Mazda B3000 (2002 year). Instruction

WARNING: Never adjust the steering wheel when the vehicle is
moving. You could lose control of the vehicle.

AUXILIARY POWER POINT

Power outlets are designed for accessory plugs only. Do not hang
any type of accessory or accessory bracket from the plug.
Improper use of the power outlet can cause damage not covered
by your warranty.

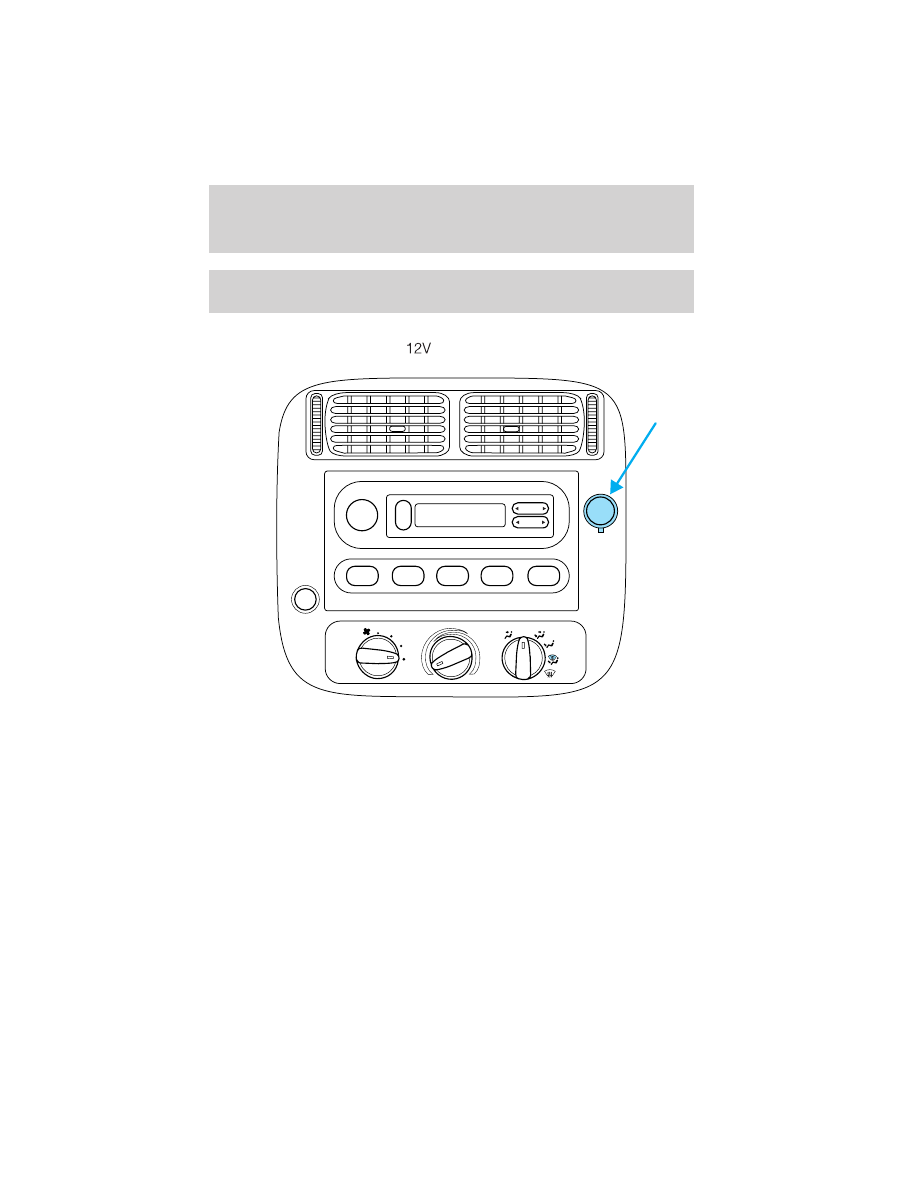

The auxiliary power point is located on the instrument panel. This outlet
should be used in place of the cigarette lighter for optional electrical
accessories.

OFF

A/C

MAX

A/C

TUNE

SEEK

12V

AM-FM

Driver Controls

POWER WINDOWS (IF EQUIPPED)

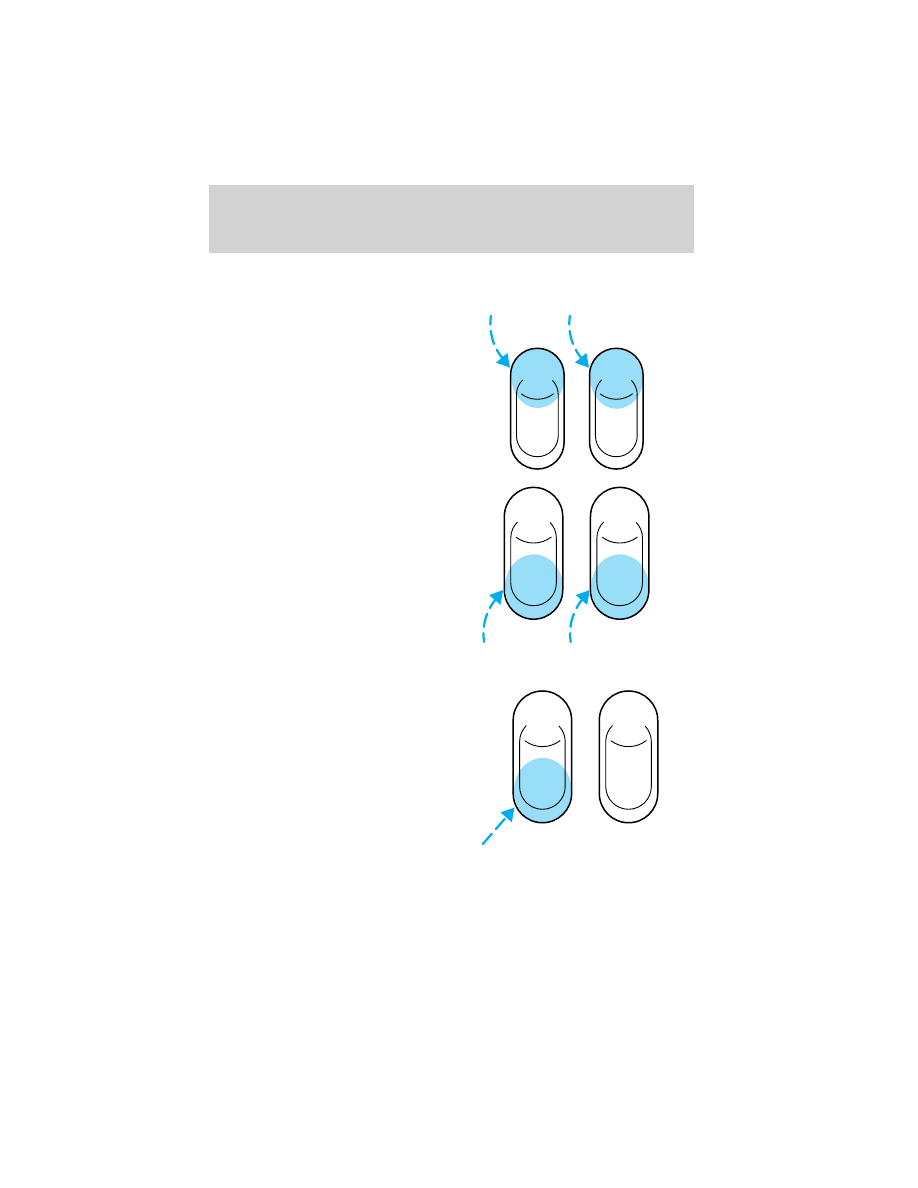

Press and hold the rocker switches to open and close windows.
• Press the top portion of the

rocker switch to close.

• Press the bottom portion of the

rocker switch to open.

One touch down

• Press AUTO completely down and

release quickly. The driver’s
window will open fully. Depress
again to stop window operation.

One touch down can be deactivated
during operation by pushing down
on the top part of the driver power
window control.

NOTE:This feature will only operate
the driver’s side window.

AUTO

Driver Controls

AUTOMATIC DIMMING REAR VIEW MIRRORS (IF EQUIPPED)

Your vehicle is equipped with an inside rear view mirror with an
auto-dimming function. The electronic day/night mirror will change from
the normal state to the non-glare state when bright lights (glare) reach
the inside rear view mirror. When the inside rear view mirror detects
bright light from behind the vehicle, the inside rear view mirror will
automatically adjust (darken) to minimize glare.

Do not block the sensor on the backside of the inside rear view mirror
since this may impair proper system performance.

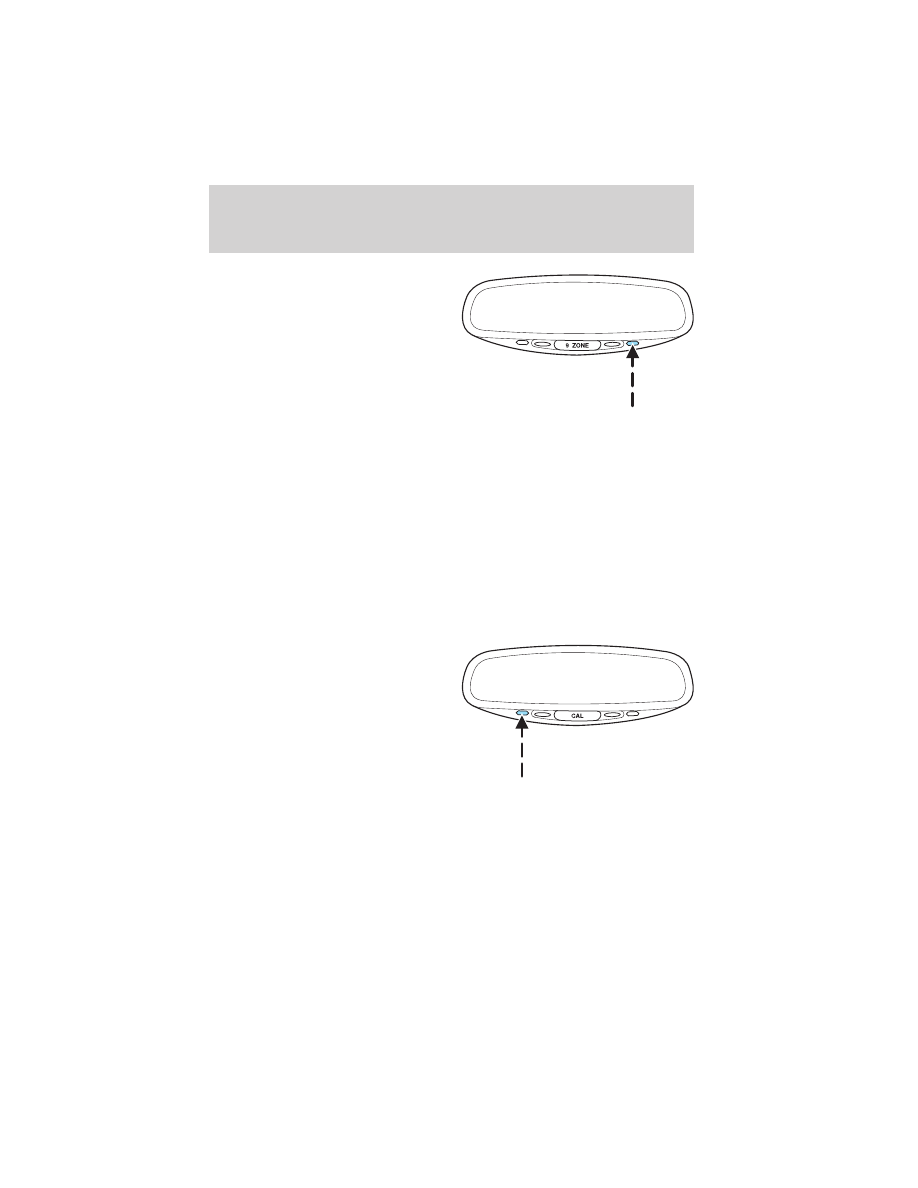

Press the left button on the mirror
to turn the auto dimming ON or
OFF. The green indicator light left
of the display will illuminate when
this feature is ON.

The mirror will automatically return
to the normal state whenever the
vehicle is placed in R
(Reverse)(when the mirror is on) to
ensure a bright clear view when
backing up.

COMPASS/TEMPERATURE EC MIRROR (IF EQUIPPED)

The compass reading may be affected when you drive near large
buildings, bridges, power lines and powerful broadcast antennas.
Magnetic or metallic objects placed in, on or near the vehicle may also
affect compass accuracy.

Usually, when something affects the compass readings, the compass will
correct itself after a few days of operating your vehicle in normal
conditions. If the compass still appears to be inaccurate, a manual
calibration may be necessary. Refer to Compass calibration
adjustment.

Most geographic areas (zones) have a magnetic north compass point that
varies slightly from the northerly direction on maps. This variation is four
degrees between adjacent zones and will become noticeable as the
vehicle crosses multiple zones. A correct zone setting will eliminate this
error. Refer to Compass zone adjustment.

Driver Controls

OUTSIDE AIR TEMPERATURE

Display operation of the mirror with
the compass feature:
• Press the right button to toggle

the display between the compass
direction and no display.

Display operation of mirror with
temperature and compass feature:
• Press the right button once to

display temperature °F and
compass.

• Press the right button twice to display temperature °C and compass.
• Press the right button three times to turn the display OFF.

WARNING: The outside temperature indicator is not designed
to serve as an ICE warning device and is therefore unsuitable
for that purpose. Indicated temperatures just above the
freezing point do not guarantee that the road surface is free of
ice.

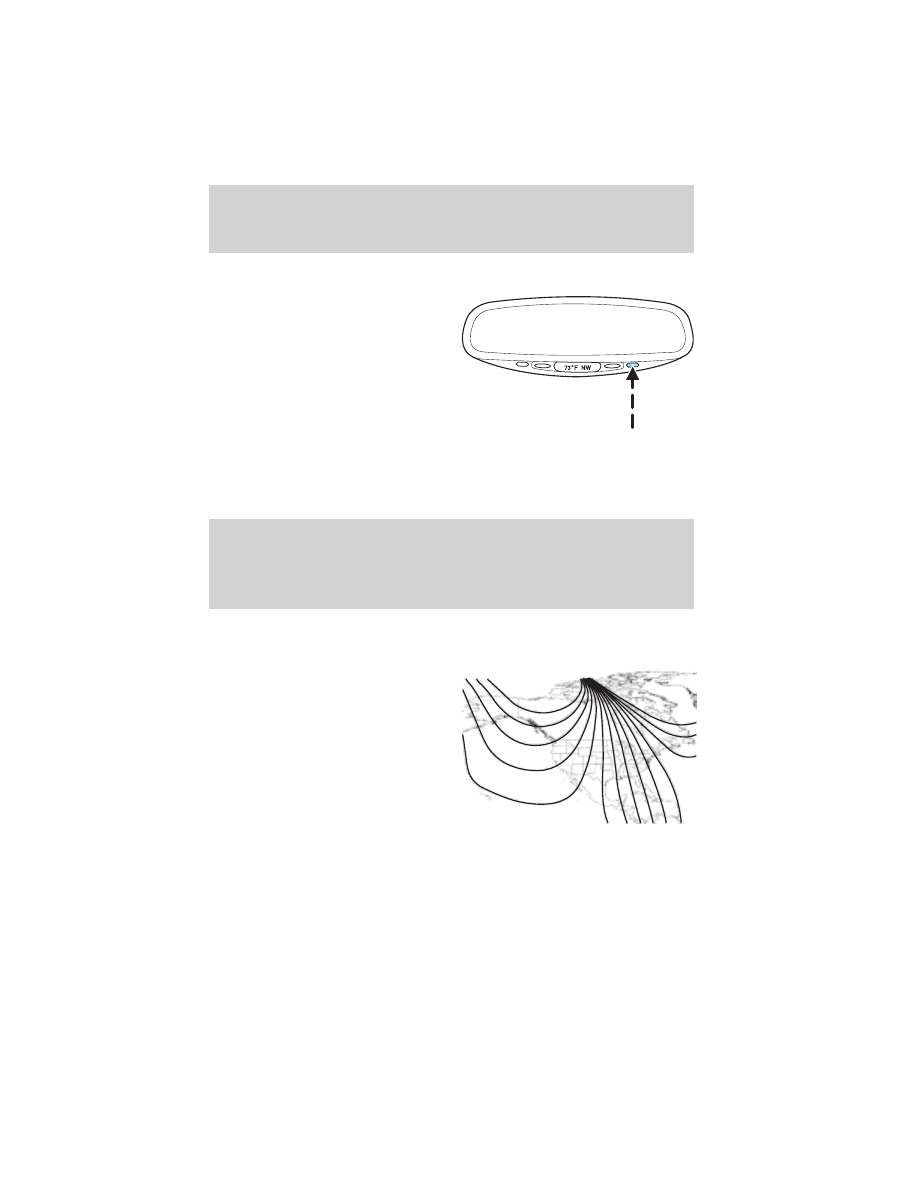

COMPASS ZONE ADJUSTMENT

1. Determine which compass zone

you are in by referring to the
zone map.

2. Turn ignition to the ON

position.

7 8 9 1011

Driver Controls

3. To change the zone setting,

push and hold the right button
until ZONE appears in the
display.

4. Press the right button

repeatedly until desired
compass zone number is
displayed. The display will
change back to the compass
direction after 3 seconds when
the button is not activated.

COMPASS CALIBRATION ADJUSTMENT

The compass calibrates itself under normal driving conditions. There is
not a need for manual compass calibration. If calibration is still desired,
follow these instructions:

1. Start the vehicle.

2. For optimum calibration, turn off all electrical accessories and make

sure that all vehicle doors are shut.

3. Perform this adjustment in an open area free from steel structures

and high voltage lines.

4. Press and hold the left button

for approximately 3 seconds
until CAL appears in the display.
Release the left button to enter
the calibration mode.

5. Drive the vehicle slowly (less

than 5 km/h [3 mph] in a circle
until CAL indicator disappears
in the display (about two or
three circles).

6. The compass is now calibrated.

Driver Controls

POWER MIRROR CONTROL (IF EQUIPPED)

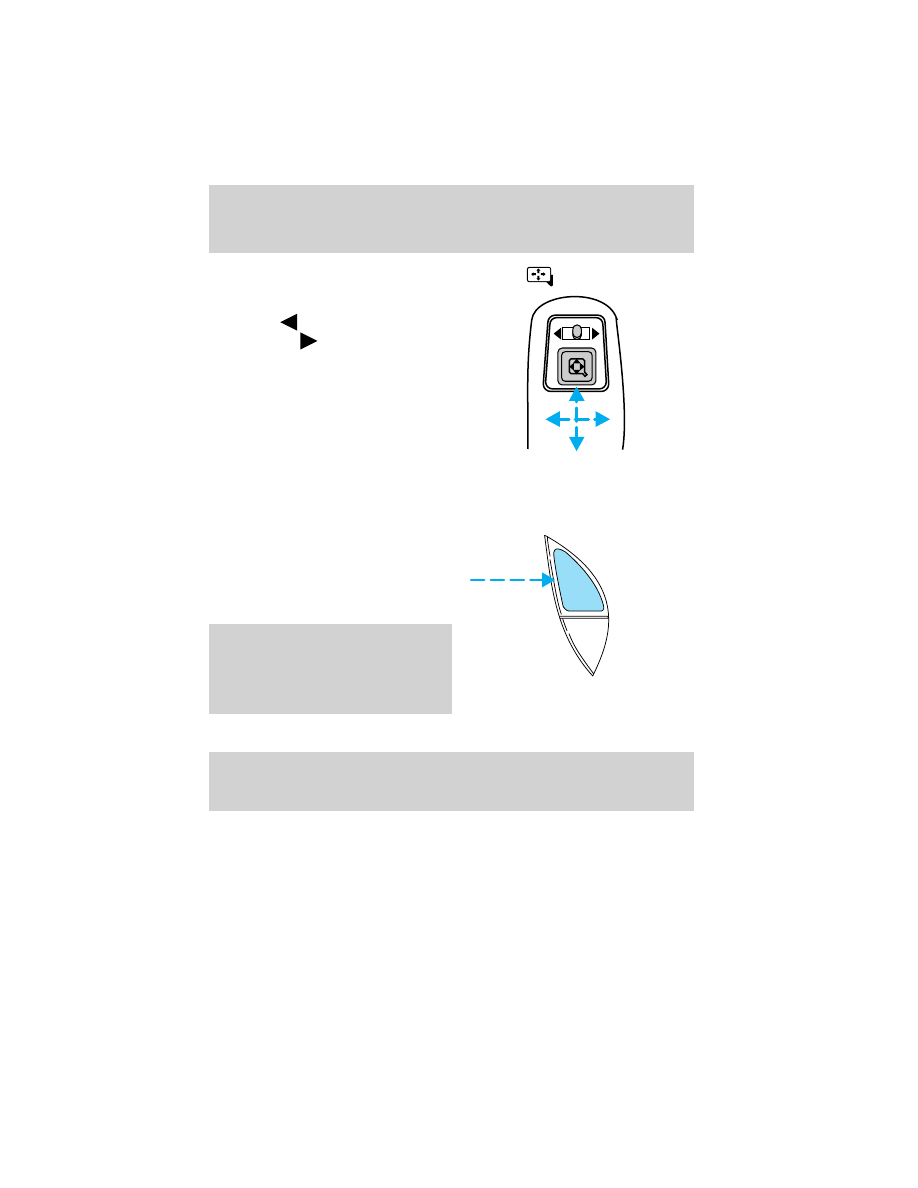

To adjust your mirrors:

1. Select

to adjust the left

mirror or

to adjust the right

mirror.

2. Move the control in the

direction you wish to tilt the
mirror.

3. Return to the center position to

lock mirrors in place.

SPEED CONTROL (IF EQUIPPED)

To turn speed control on

• Press ON.
NOTE: Vehicle speed cannot be
controlled until the vehicle is
traveling at or above 48 km/h (30
mph).

WARNING: Do not use the
speed control in heavy traffic
or on roads that are winding,
slippery, or unpaved. You may
lose control of the vehicle.

WARNING: Do not shift the gearshift lever into N (Neutral)
with the speed control on. You may lose control of the vehicle
or cause engine system damage.

OFF

Driver Controls

To turn speed control off

• Press OFF.
NOTE: Once speed control is
turned off or the ignition is switched
off, the previously programmed set
speed will be erased.

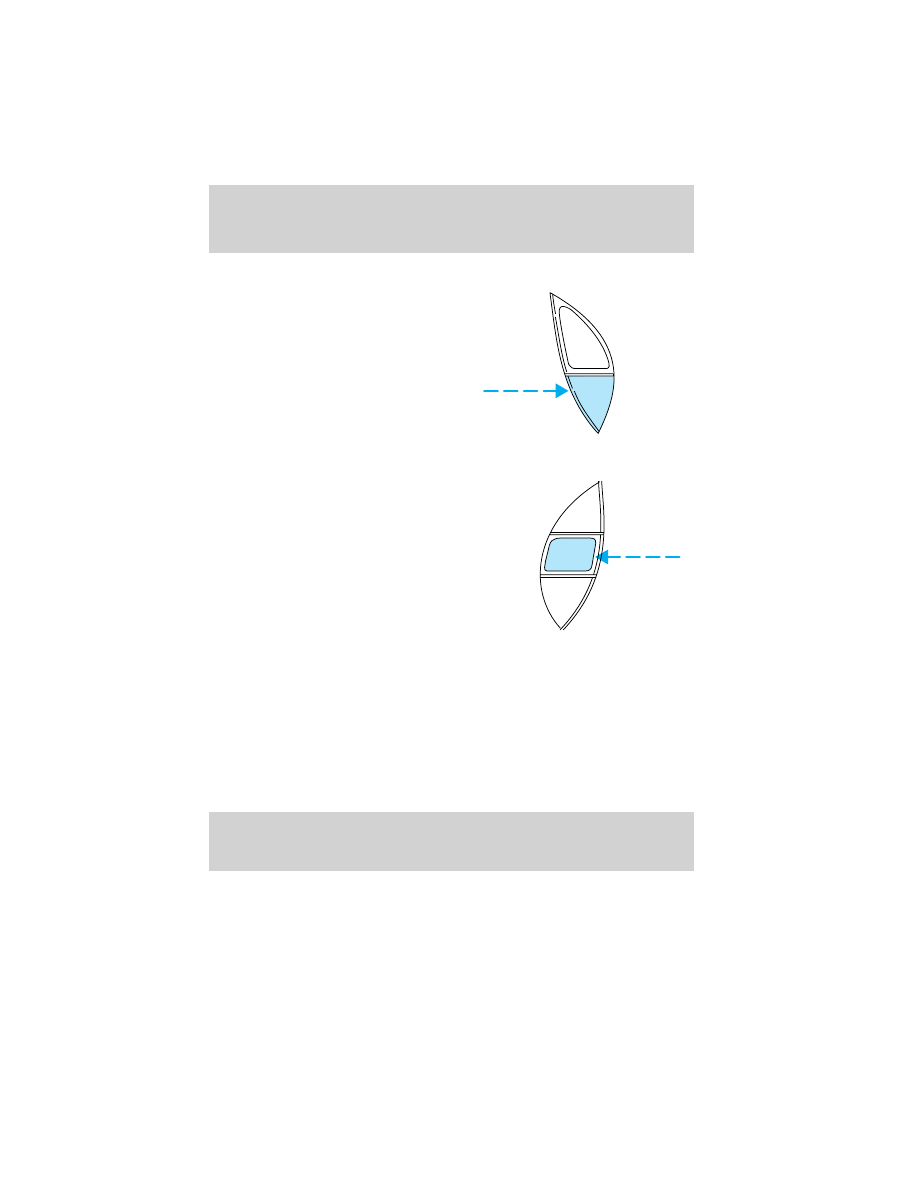

To set a speed

• Press SET ACC.
NOTE: For speed control to
operate, the speed control must be
ON and the vehicle speed must be
greater than 48 km/h (30 mph).

If you drive up or down a steep hill, your vehicle speed may vary
momentarily slower or faster than the set speed. This is normal.

Speed control cannot reduce the vehicle speed if it increases above the
set speed on a downhill. If your vehicle speed is faster than the set
speed while driving on a downhill, you may want to shift to the next
lower gear or apply the brakes to reduce your vehicle speed.

If your vehicle slows down more than 16 km/h (10 mph) below your set
speed on an uphill, your speed control will disengage. This is normal.
Pressing RSM will re-engage it.

WARNING: Do not use the speed control in heavy traffic or on
roads that are winding, slippery, mountainous, hilly, or unpaved.
This may cause an accident.

OFF

RSM

SET

ACC

COAST

Driver Controls

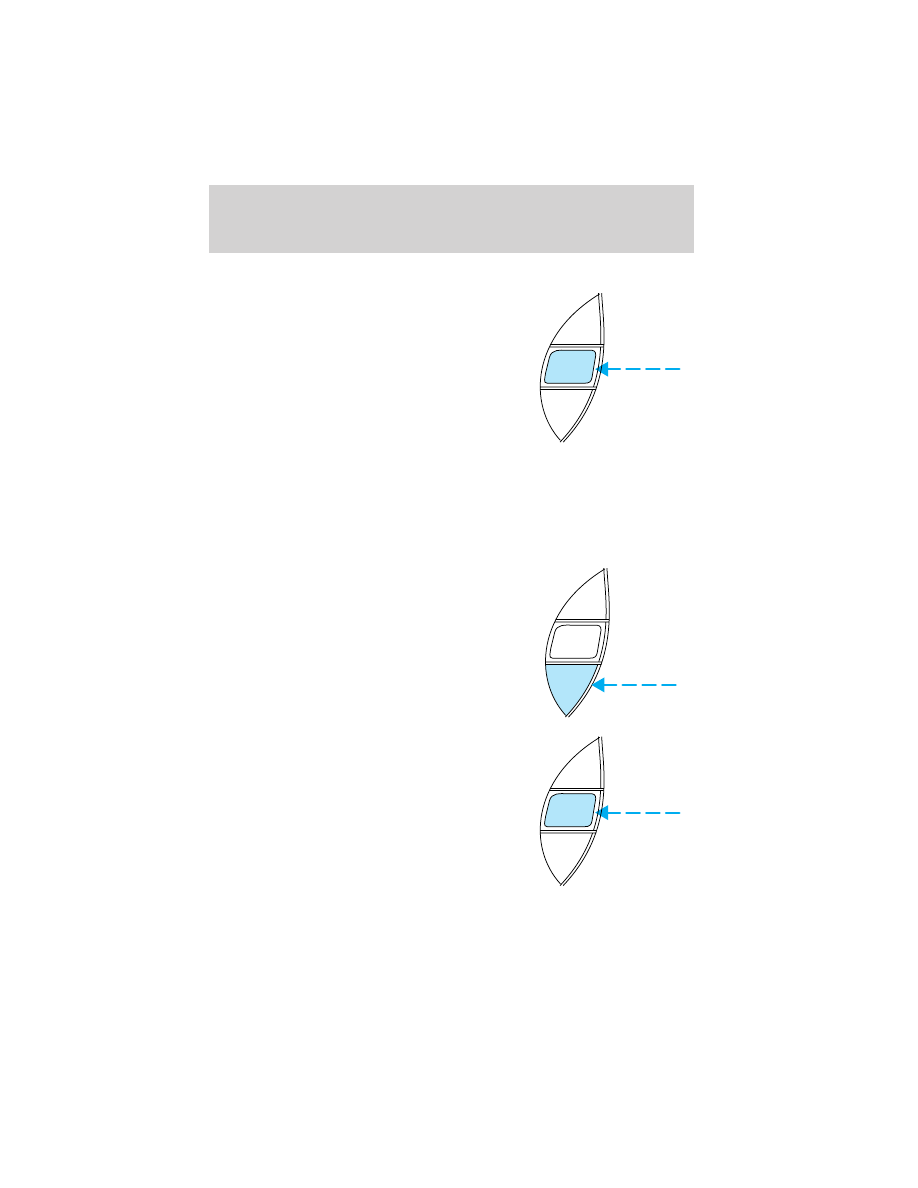

To set a higher set speed

• Press and hold SET ACC. Release

the control when the desired
vehicle speed is reached or

• Press and release SET ACC to

operate the Tap-Up function.
Each press will increase the set
speed by 1.6 km/h (1 mph) or

• Accelerate with your accelerator

pedal. When the desired vehicle
speed is reached, press and
release SET ACC.

NOTE: You can accelerate with the accelerator pedal at any time during
speed control usage. Releasing the accelerator pedal will return your
vehicle to the previously programmed set speed.

To set a lower set speed

• Press and hold COAST. Release

the control when the desired
speed is reached or

• Press and release COAST to

operate the Tap-Down function.
Each press will decrease the set
speed by 1.6 km/h (1 mph) or

• Depress the brake pedal. When

the desired vehicle speed is
reached, press SET ACC.

RSM

SET

ACC

COAST

RSM

SET

ACC

COAST

RSM

SET

ACC

COAST

Driver Controls

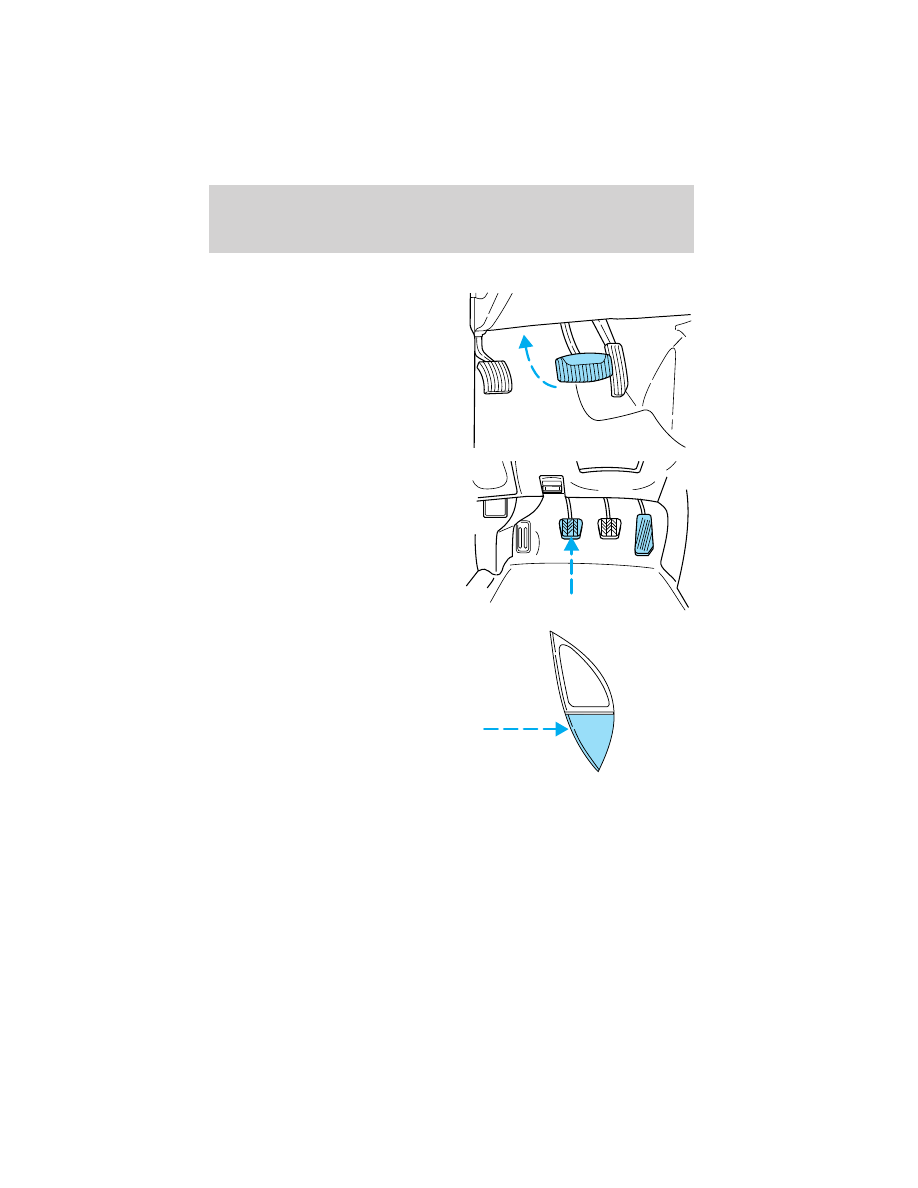

To disengage speed control

• Depress the brake pedal or

• Depress the clutch pedal (if

equipped).

NOTE: Disengaging the speed
control will not erase the previously
programmed set speed.

NOTE: Fully depressing the clutch
pedal may cause a flare in engine
RPM as the throttle is returned to
idle. This is normal.

NOTE: Pressing OFF will erase the
previously programmed set speed.

OFF

Driver Controls

To return to a previously set speed

• Press RSM. For RSM to operate,

the vehicle speed must be faster
than 48 km/h (30 mph).

Indicator light

This light comes on when either the
SET ACCEL or RES controls are
pressed. It turns off when the speed
control OFF control is pressed, the
brake or clutch is applied or the ignition is turned to the OFF position.

OVERDRIVE CONTROL (IF EQUIPPED)

Activating overdrive

(Overdrive) is the normal drive position for the best fuel economy.

The overdrive function allows automatic upshifts and downshifts through
all available gears.

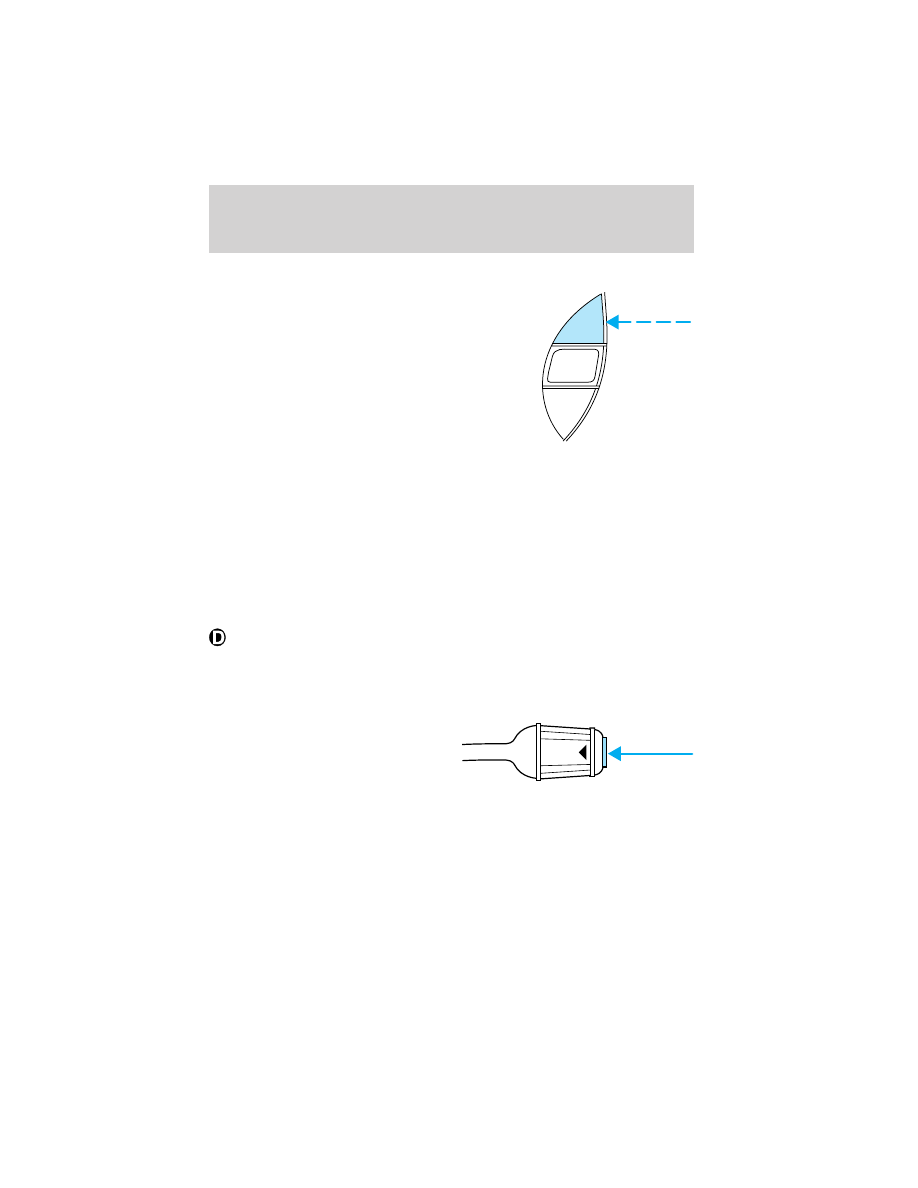

Deactivating overdrive

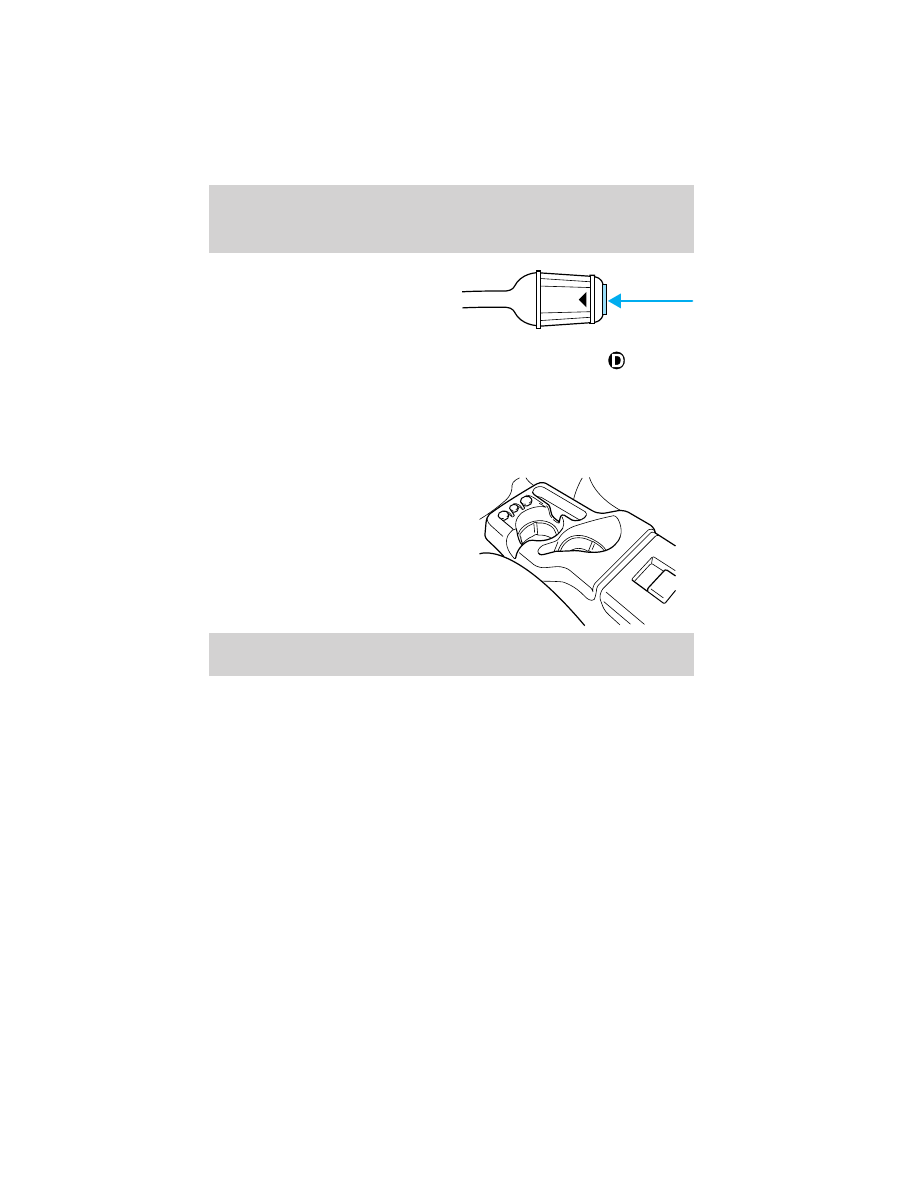

Press the Transmission Control
Switch (TCS) located on the end of
the gearshift lever. The O/D Off
indicator light will illuminate on the
instrument cluster. The transmission
will operate in all gears except overdrive.

RSM

SET

ACC

COAST

SPEED

CONT

O/D

ON/OFF

Driver Controls

To return to normal overdrive mode,
press the Transmission Control
Switch again. The O/D Off indicator
light will no longer be illuminated.

When you shut off and re-start your
vehicle, the transmission will automatically return to normal
(Overdrive) mode.

For additional information about the gearshift lever and the transmission
control switch operation refer to the Automatic Transmission
Operation section of the Driving chapter.

CENTER CONSOLE (IF EQUIPPED)

Your vehicle may be equipped with a
variety of console features. These
include:
• Utility compartment with

cassette/compact disc storage

• Cupholders
• Coin holder slots
• Flip up armrest

WARNING: Use only soft cups in the cupholder. Hard objects
can injure you in a collision.

O/D

ON/OFF

Driver Controls

CARGO AREA FEATURES

Cargo area shade (if equipped)

Your vehicle may be equipped with notches in the side trim panels that
are used for a cargo area shade. See your dealer for more information.

BED EXTENDER (IF EQUIPPED)

Your vehicle may be equipped with a bed extender designed to extend
the pickup box for longer loads.

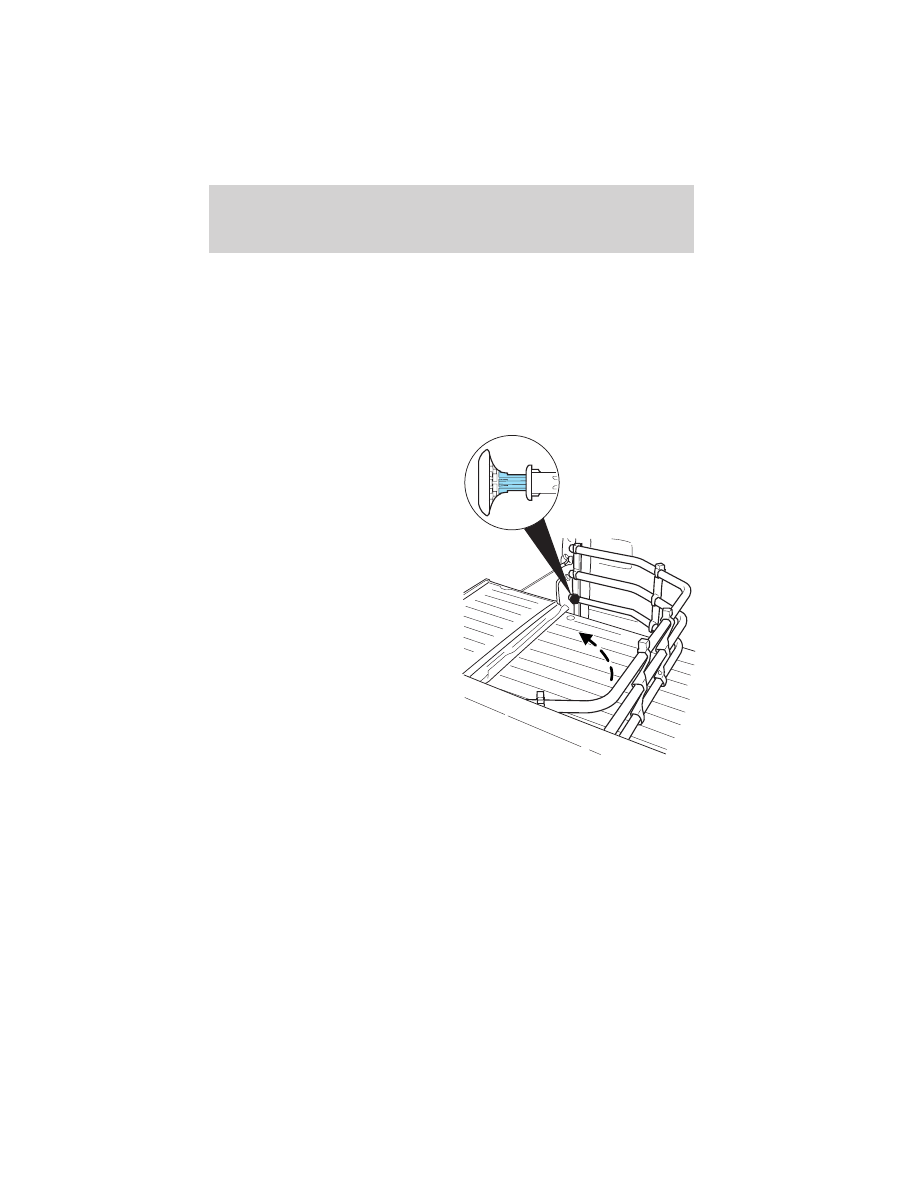

To extend the bed extender:

1. Lower tailgate.

2. Pull the round knobs on each

side of the extender to release
it from the pickup box.

3. Pivot extender on to the

tailgate.

Driver Controls

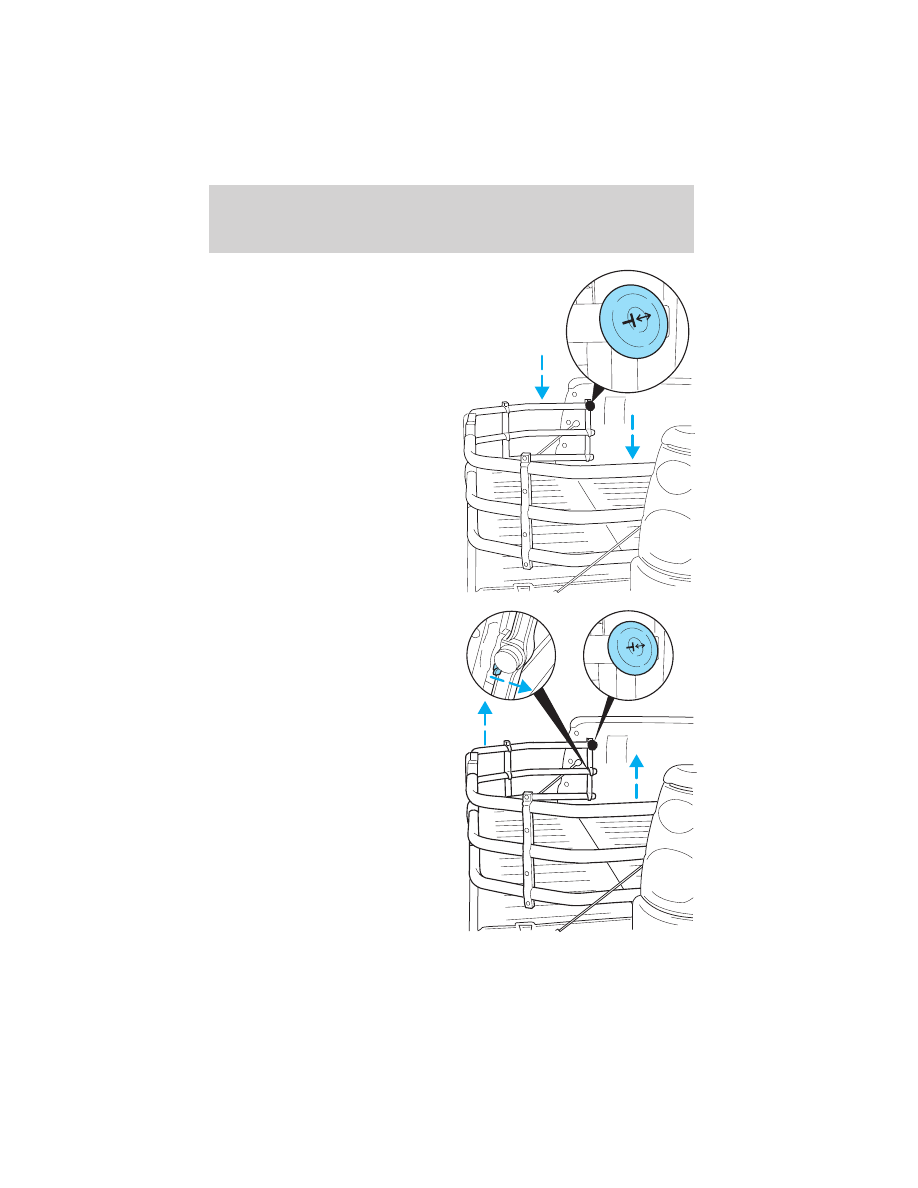

4. Evenly push down on the

extender and push the round
knobs in on each side locking it
in place.

Green markings on the shaft
indicate the locked position. The
locking clip screws below the middle
bar can be tightened
counterclockwise for extra security.

To stow the bed extender, follow
steps one through four in reverse
order.

The bed extender may be used to
secure a load of up to 46 kg (100
lbs.) on the tailgate.

The bed extender should always
be kept in the stowed position
with the tailgate closed when
not in use.

To remove the bed extender:

1. Extend the bed extender.

2. Pull the round knobs on each

side of the extender to unlock
it.

Make sure the locking clip screws
are loose before removing the
extender.

1. Press the locking clips below

the middle bar on each side and
lift the extender out of the bed.

To install the bed extender, follow
the removal procedure in reverse
order.

Driver Controls

KEYS

The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.

You should always carry a second key with you in a safe place in case
you require it in an emergency.

Refer to SecuriLock

y Passive Anti-Theft System for more information.

POWER DOOR LOCKS (IF EQUIPPED)

Press the top of the control to
unlock all doors and the bottom to
lock all doors.

REMOTE ENTRY SYSTEM (IF EQUIPPED)

The remote entry system allows you to lock or unlock all vehicle doors
without a key.

The remote entry features only operate with the ignition in the LOCK
position.

If there is any potential remote keyless entry problem with your vehicle,
ensure ALL remote entry transmitters are brought to the dealership,
to aid in troubleshooting.

GENERAL INFORMATION: This device complies with part 15 of the FCC
rules and with RS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation. Changes or
modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

UNLOCK

LOCK

Locks and Security

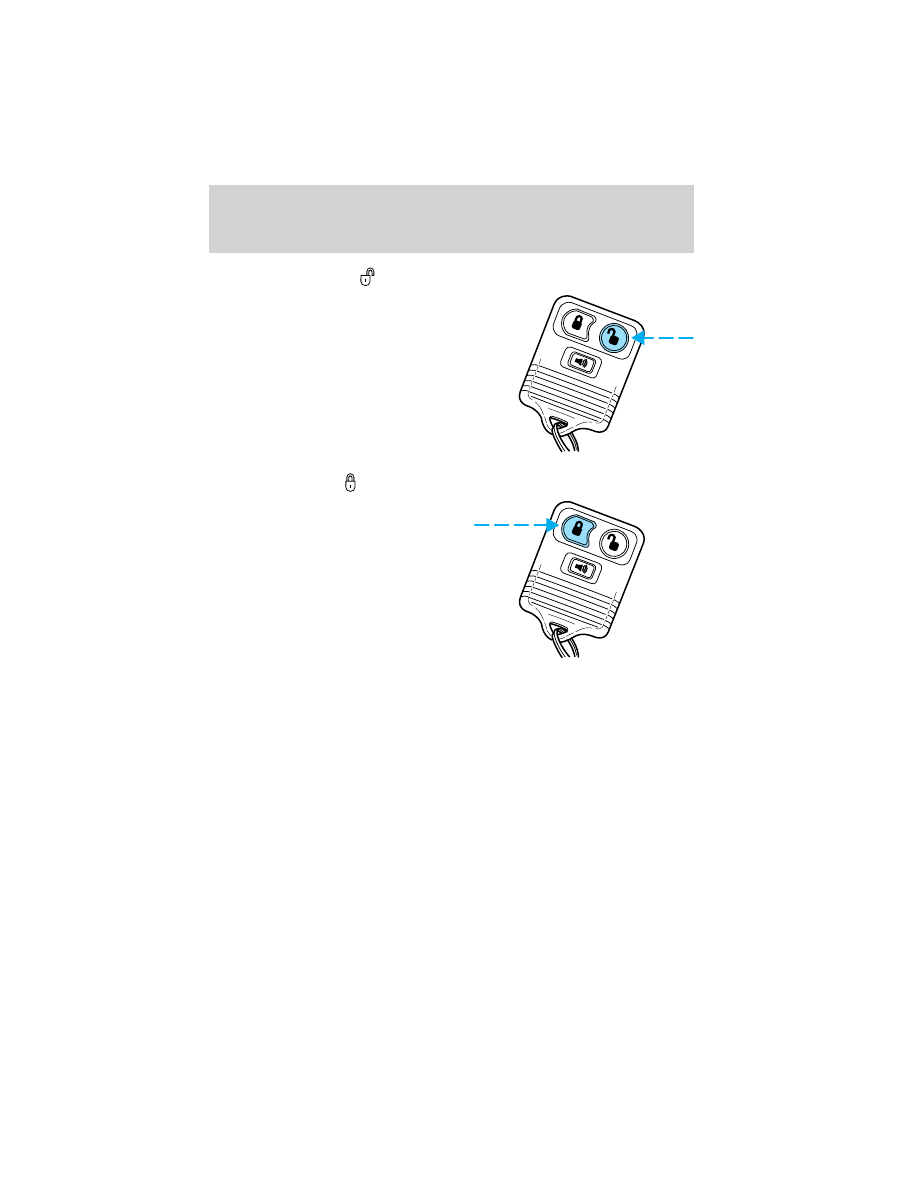

Unlocking the doors

Press this control to unlock the
driver’s door. The interior lamps will
illuminate.

Press the control a second time
within five seconds to unlock all
doors.

Locking the doors

Press this control to lock all doors.

To confirm all doors are closed and
locked, press the control a second
time within five seconds. The doors
will lock again, the horn will chirp
and the lamps will flash.

If any of the doors are ajar, the horn
will make two quick chirps,
reminding you to properly close all
doors.

Illuminated entry

The interior lamps illuminate when the remote entry system is used to
unlock the door(s) or sound the personal alarm.

The system automatically turns off after 25 seconds or when the ignition
is turned to the ON or ACC position.

NOTE: The dome lamp control (if equipped) must not be set to the
OFF position for the illuminated entry system to operate.

The inside lights will not turn off if:
• they have been turned on with the dimmer control, or
• any door is open.
NOTE: The battery saver will shut off the interior lamps 45 minutes
after the ignition has been turned to the OFF position.

Locks and Security

Power door lock disable feature

This feature will help protect your vehicle from unauthorized entry.

The UNLOCK function on the power door control will not operate with
the ignition OFF and twenty seconds after the doors are closed and
electronically locked by the remote entry transmitter, key pad, or power
door control (if pressed while the door was open).

The UNLOCK function will operate again after you unlock the vehicle
using the remote entry transmitter or key pad, turn the ignition to ON,
or open the door from inside of the vehicle.

Deactivating/activating power door lock disable feature

1. Turn the ignition key to ON,

then press the UNLOCK button
3 times.

2. Turn the ignition key to OFF,

then press the UNLOCK button
3 times.

3. Turn the ignition key to ON,

within five seconds press the
UNLOCK button 2 times then
LOCK once.

The user should receive 2 horn chirps to indicate the system has been
disabled or 2 chirps followed by a honk to indicate the system has been
enabled.

Pressing the power door LOCK button two times again will turn the
feature ON if it was previously OFF, or OFF if it was previously ON.
Every two consecutive presses of the LOCK button after successfully
entering the configuration mode will change the enable/disable condition
of the feature.

Turn ignition to OFF to exit programming.

Locks and Security

Mazda B3000 (2002 year). Instruction - part 6
