Mazda B2300 (2003 year). Instruction - part 2

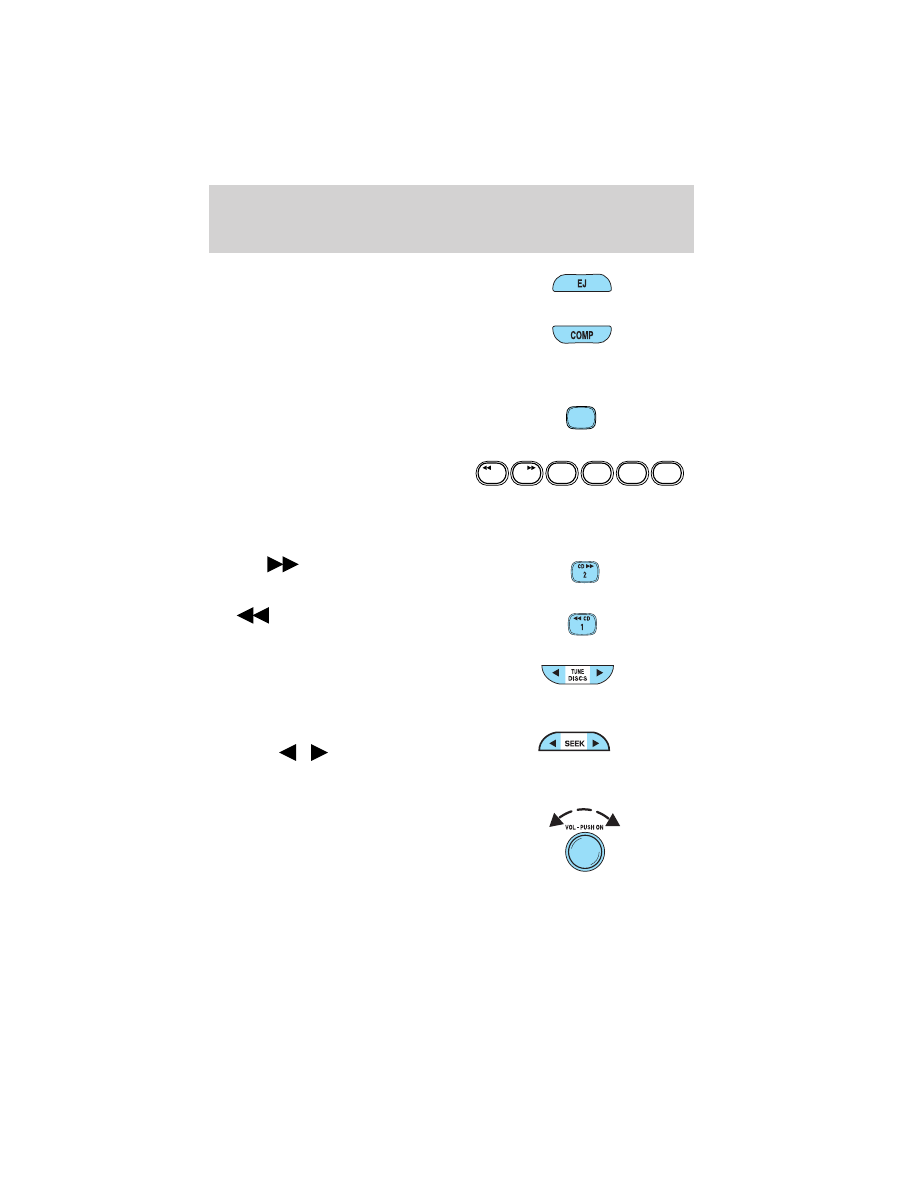

5. EJ (eject): Press to eject a CD.

6. COMP (Compression): In CD

mode, press to bring louder and
softer levels into more
comfortable listening level. The compression icon (c) will appear in
the display.

7. Shuffle: Press to listen to the

tracks on the CD in random
order. Press again to turn off.

8. Memory presets: To set a

station: Select frequency band
AM/FM; tune to a station. Press
and hold a preset button until sound returns. This radio is equipped
with six station memory preset controls which allow you to set up to
six AM stations and 12 FM stations (six in FM1 and six in FM2).

9. CD:

Press and hold until

desired selection is reached.

10.

CD:Press and hold until

desired selection is reached.

11. Tune / Discs: In radio mode,

press to move up or down the
frequency band in individual
increments.

12. Seek: Press and release

SEEK

for previous/next

strong station, selection or
track.

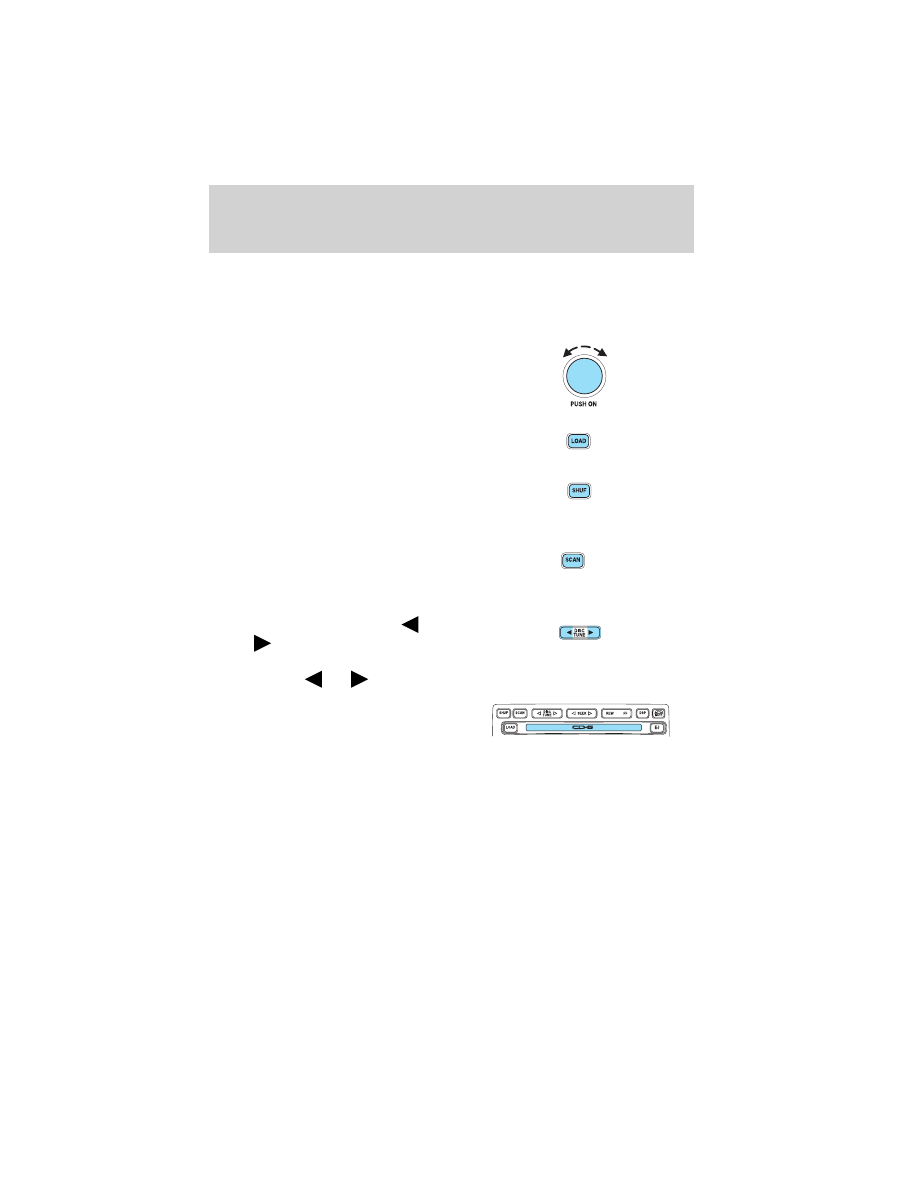

13. Power/volume: Press to turn

ON/OFF; turn to increase or
decrease volume levels.

SHUFFLE

Entertainment Systems

14. CD: Press to enter CD mode or

to play a CD already loaded into
the system.

15. AM/FM: Press to choose a

frequency band in radio mode.

16. Bass: Press

increase/decrease the bass
output.

17. Treble: Press

increase/decrease the treble
output.

18. CD door: Insert a CD printed

side up.

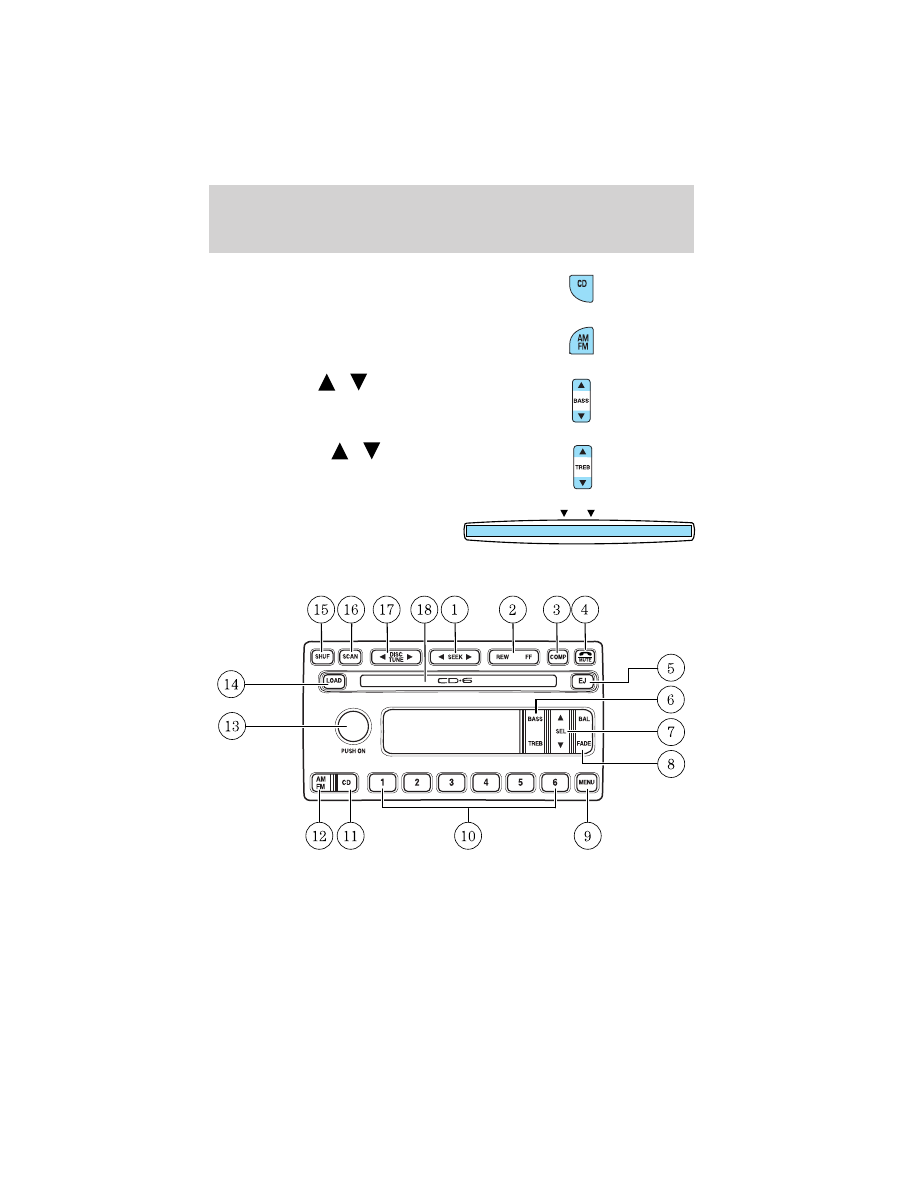

PREMIUM IN-DASH SIX CD SOUND SYSTEM

DISC

Entertainment Systems

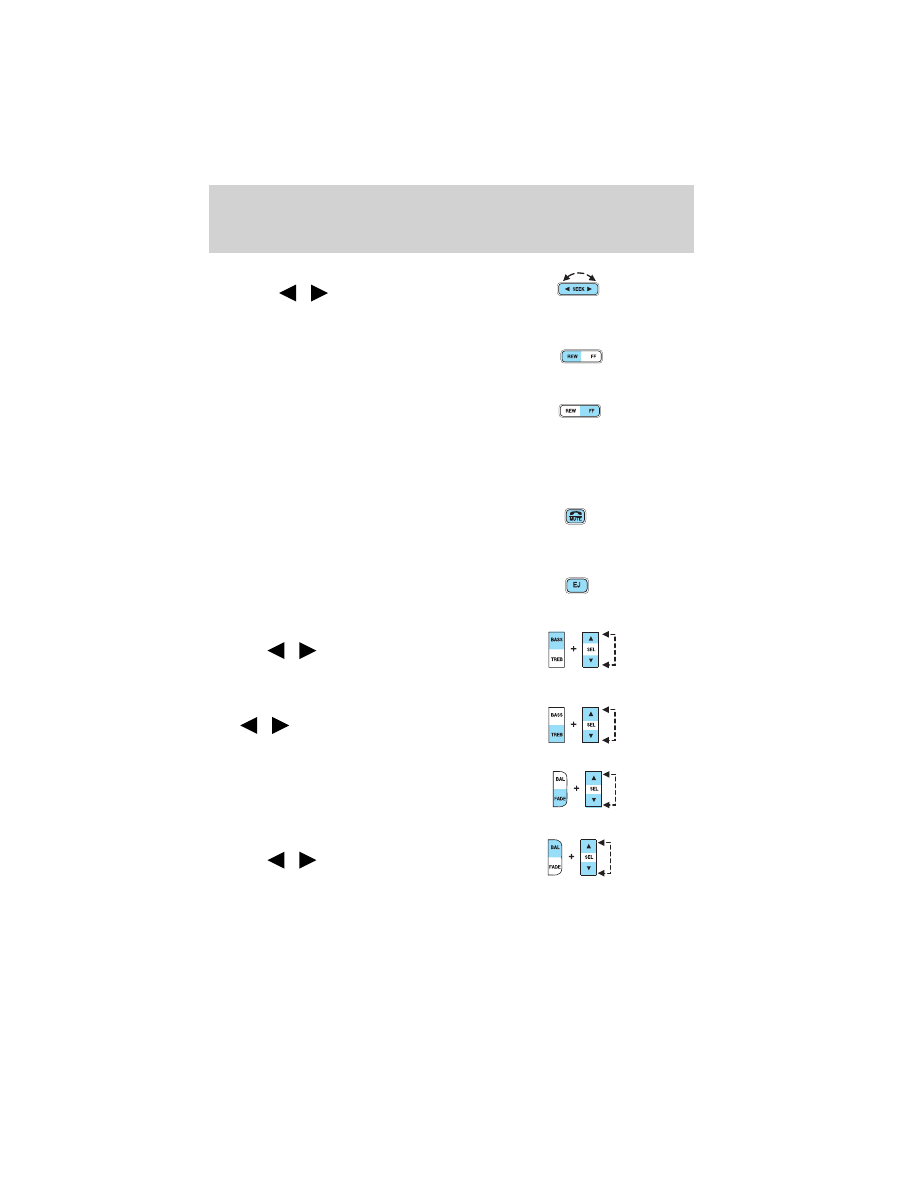

1. Seek: Press and release

SEEK

for previous/next

strong station, or track of
current disc.

2. Rewind: Press for a slow

rewind, press and hold for a fast
rewind.

Fast forward: Press for a slow
advance, press and hold for a fast
advance.

3. Comp (Compression): In CD mode, press to adjust the soft and loud

passages together for a more consistent listening level. Press the
COMP control until COMP ON is displayed.

4. Mute: Press to MUTE playing

media; press again return to
playing media. In CD mode,
MUTE acts as a pause feature.

5. Eject: Press to eject a CD.

Press and hold to auto eject all
loaded discs.

6. Bass: Press BASS; then press

SEL

decrease/increase the bass
output.

Treble: Press TREB; then press
SEL

to decrease/increase

the treble output.

7. Select: Use with Bass, Treble,

Balance and Fade controls to
adjust levels. Use with MENU to
set the clock and engage RDS.

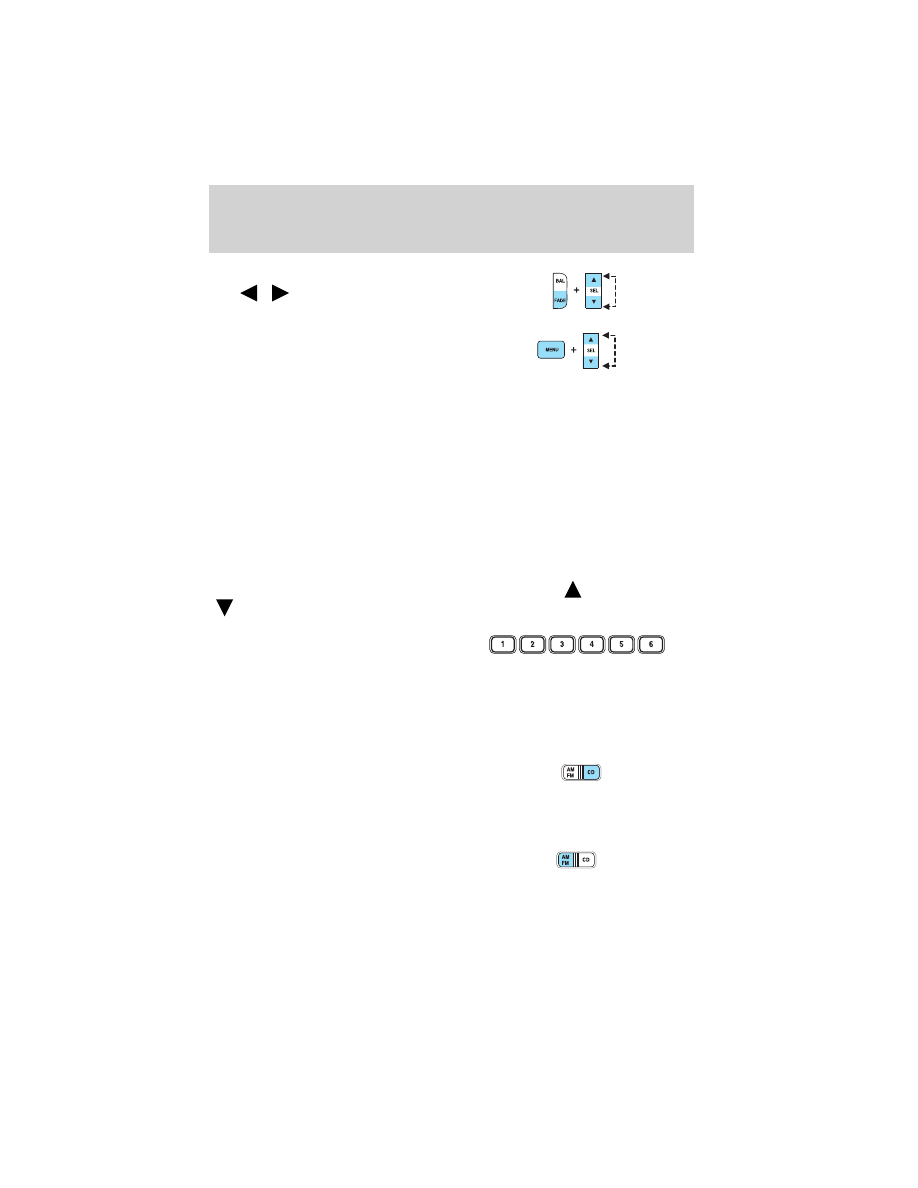

8. Balance: Press BAL; then press

SEL

to shift sound to

the left/right speakers.

Entertainment Systems

Fade: Press FADE; then press
SEL

to shift sound to the

rear/front speakers.

9. Menu: Press MENU and SEL to

access clock mode, RDS on/off,
Traffic, Program type, Show
type and Compression modes.

Traffic: Allows you to hear traffic broadcasts. With the feature ON, press
SEEK or SCAN to find a station broadcasting a traffic report (if it is
broadcasting RDS data). Traffic information is not available in most
U.S. markets.

FIND Program type: Allows you to search RDS-equipped stations for a
certain category of music format: Classic, Country, Info, Jazz, Oldies,
R&B, Religious, Rock, Soft, Top 40.

Show TYPE: Displays the station’s call letters and format.

Compression: Brings soft and loud CD passages together for a more
consistent listening level.

Setting the clock: Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Use SEL to manually increase (

) or decrease

(

) the hours/minutes. Press MENU again to disengage clock mode.

10. Memory presets: To set a

station: Select frequency band
AM/FM; tune to a station, press
and hold a preset button until
sound returns. In CD mode, press to move between CDs.
This radio is equipped with six station memory preset controls which
allow you to set up to six AM stations and 12 FM stations (six in
FM1 and six in FM2).

11. CD: Press to select CD mode.

Seamless play: In CD mode, the
transition between the end of one
CD and the beginning of another will not contain delay time unless SEEK
or a preset control is pressed.

12. AM/FM: Press to select a

frequency band in radio mode.

Autostore: Allows you to set the
strongest local radio stations without losing your original manually set
preset stations for AM/FM1/FM2 . Press and momentarily hold AM/FM.

Entertainment Systems

AUTOSTORE will flash on the display. When the six strongest stations
are filled, the station stored in preset 1 will begin playing. If there are
less than six strong stations, the system will store the last one in the
remaining presets. Press again to disengage.

13. Power/volume: Press to turn

ON/OFF; turn to increase or
decrease volume levels.

14. Load: Press to load a CD. Press

and hold to load up to six discs.

15. Shuffle: Press to play tracks in

random order. Press SHUF to
cycle through SHUF DISC,
SHUF TRAC or SHUF OFF.

16. Scan: Press to hear a brief

sampling of all listenable
stations or CD tracks. Press
again to stop.

17. Disc/Tune: Radio: Press

to manually tune down

or up the frequency band.
CD: Press

to select the previous or next track on the CD.

18. CD door: Insert a CD label side

up.

Entertainment Systems

MACH

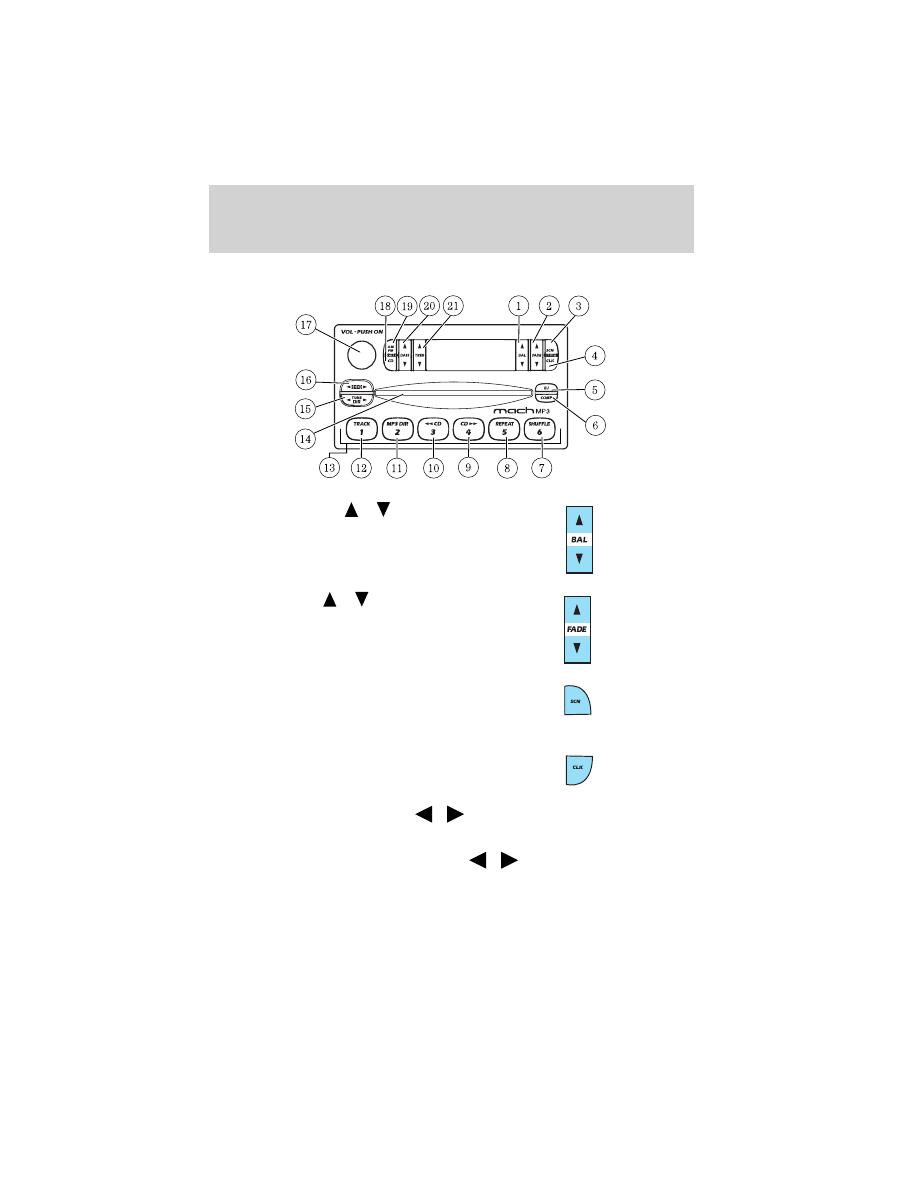

MP3 AUDIO SYSTEM

1. Balance: Press

to shift

sound to the left/right speakers.

2. Fade: Press

to shift

sound to the rear/front
speakers.

3. Scan: Press to hear a brief

sampling of all listenable radio
stations, CD or MP3 tracks.
Press again to stop.

4. CLK: To set the clock press and

hold the CLK control for the
following functions:

• To set the hour, press SEEK

control to decrease or increase

to the hours.

• To set the minutes, press TUNE DIR

to decrease or increase

the minutes.

Release CLK to save the clock settings. Press CLK again to return the
display to radio mode.

Entertainment Systems

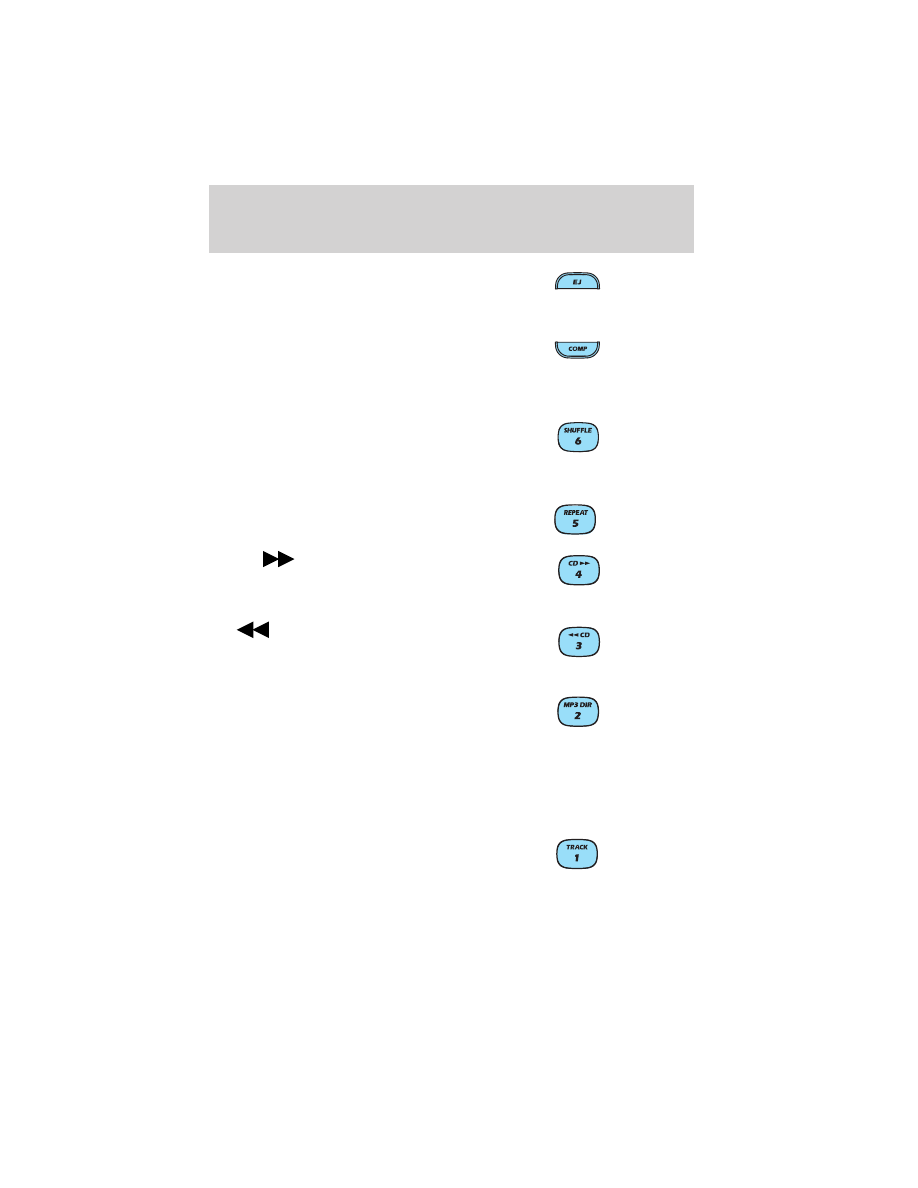

5. EJ (Eject): Press to stop and

eject a disc. If a disc is ejected
and not removed, the player will
automatically reload the disc and return to radio mode.

6. COMP (Compression): In CD

and MP3 mode, press to adjust
the soft and loud sounds
together for a more consistent listening level. The compression icon
(c) will illuminate in the display.

7. Shuffle: Press to engage

random play on the CD or MP3
disc. SHF then ON will briefly
appear in the display. Press SEEK to select another random track on
the disc. Press shuffle again to disable.

8. Repeat: Press to repeat the

current track.

9. CD

(Fast forward): Press

and hold until the desired
selection point is reached. This
function is not enabled in MP3 mode.

10.

CD (Rewind): Press and

hold until the desired selection
point is reached. This function
is not enabled in MP3 mode.

11. MP3 directory: Allows you to

listen to songs in MP3 flat file
mode and MP3 directory mode.

• Insert a MP3 disc to engage in the flat file mode. The MP3 icon will be

displayed.

• While in the MP3 flat file mode, press the MP3 DIR control to enter

into the directory mode. Press the TUNE DIR control to change
directories. The MP3 icon and the DIR icon will be displayed.

12. Track: Press to locate a specific

MP3 track or directory. TRAC
will appear in the display.
Rotate volume control to advance or reverse through the tracks or
directories. The MP3 icon will flash in the display while the MACH

track function is enabled.

Entertainment Systems

13. Memory presets: To set a station: Select frequency band AM/FM;

tune to a station, press and hold a preset button until sound returns.

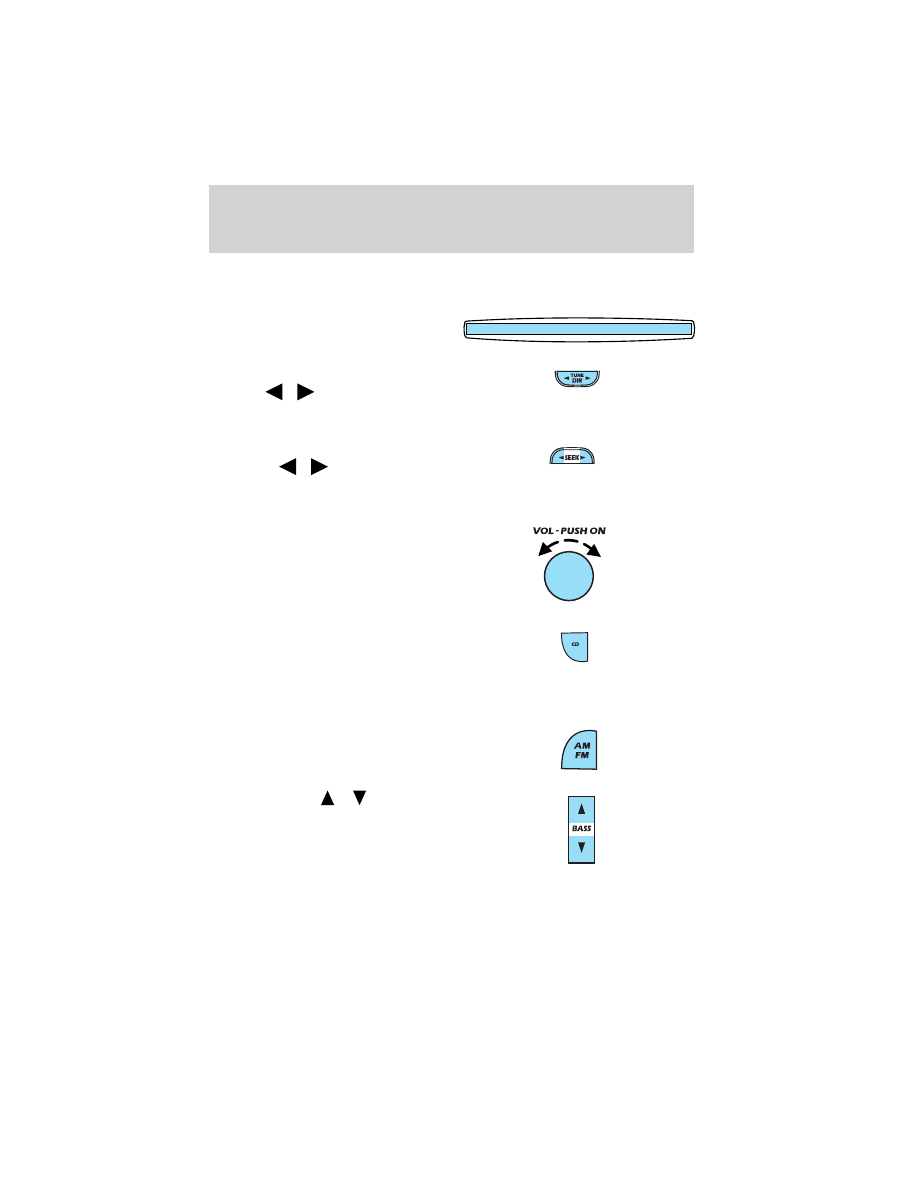

14. CD door: Insert a CD with the

label side up.

15. Tune/Directory: Press TUNE

DIR

to change the

radio frequency down/up or
change the MP3 directories.

16. Seek: Press and release

SEEK

for previous/next

strong station selection or CD
and MP3 tracks.

17. Power/volume: Press to turn

ON/OFF; turn to increase or
decrease volume levels.

18. CD: Press CD to play a CD or

MP3 disc. When the MP3 disc is
loaded, CD and LOAD will
appear on the display. The
display will briefly show the total number of tracks on the disc as
TXXX (XXX=number of tracks).

19. AM/FM: Press to select a

frequency band in radio mode.

20. Bass: Press

decrease/increase the bass
output.

Entertainment Systems

21. Treble: Press

decrease/increase the treble
output.

MP3 FUNCTIONS

Your audio system is equipped with MP3 capability which allows you to
listen to songs in MP3 flat file mode and MP3 directory mode.

To engage MP3 flat file mode, insert an MP3 disc. If an MP3 disc is
already present in the player, press the CD control. The MP3 icon will
display while the player is in MP3 mode.

While in MP3 flat file mode, press
the MP3 DIR control to enter into
MP3 directory mode. The MP3 icon
and the DIR icon will display while
the player is in directory mode.

Your MACH

t MP3 player is also equipped with an anti-shock buffer for

MP3 discs.

MP3 FILE DIRECTORY STRUCTURE

The MACH

t MP3 music system recognizes MP3 disc file and directory

(folder) structure as follows:
• There are two different modes for MP3 disc playback: MP3 flat file

mode (default) and MP3 directory mode.

• MP3 flat file mode ignores any directory structure present on the MP3

disc. The player sequentially numbers each MP3 track on the disc
(denoted by the .mp3 file extension) from T001 to T255.

• MP3 directory mode represents a directory structure consisting of one

level of directories (folders). The CD player sequentially numbers all
MP3 tracks on the disc (denoted by .mp3 extension) and all
directories containing MP3 files, from 01–01 to 99–99. The first two
digits denote the directory number and the last two digits denote the
track number within that directory.

• Creating discs with only one level of subdirectories will help with

navigation through the disc files.

Entertainment Systems

ERROR MESSAGES

You may experience an error message for the following situations:
• NO DISC when the CD control is pressed and there is not a CD

present.

• DISC ERR when there is a damaged or unreadable disc. Such as, data

discs containing no .mp3 files, or for data discs containing more than
255 files or directories.

• CD ERR for any other disc malfunction.

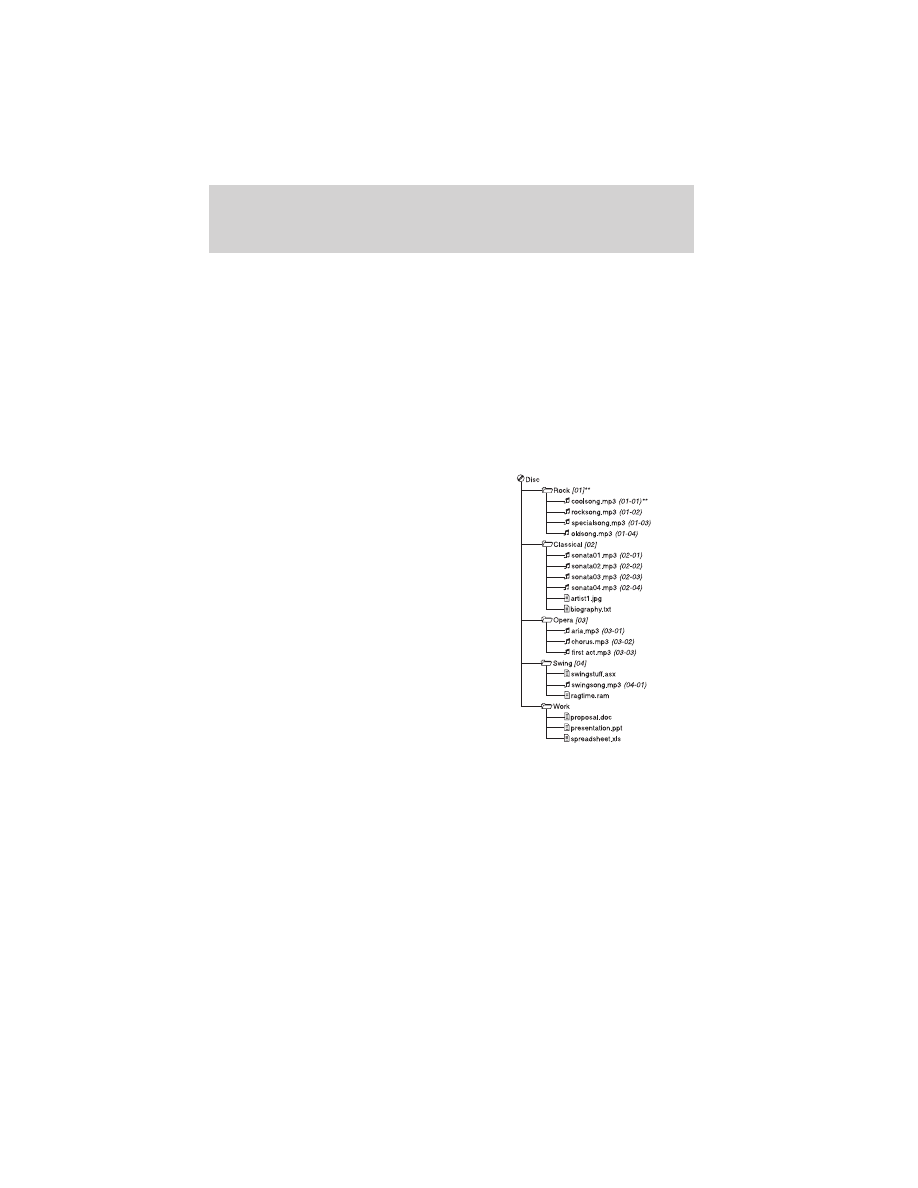

SAMPLE HIERARCHIES

If you are burning your own MP3
discs, it is important to understand
how the MACH

t MP3 music system

will read the hierarchies you create.
This is an example of creating a
directory structure that is one level
deep with various types of music.
While various files are present, (files
with extensions other than mp3),
only files with the .mp3 extension
will be played. Other files will be
ignored by the system. This enables
you to use the same MP3 disc for a
variety of tasks on your work
computer, home computer and your
MACH

t MP3 music system.

Entertainment Systems

This hierarchy is an example of a
more complex directory structure.
While you are capable of setting up
many directory levels when burning
a CD, the MACH

t MP3 music

system will display the structure as
if it were only one level deep.
Therefore, the system will condense
the complex hierarchy into a
structure similar to the
one-level-deep example above. This
will not harm the MP3 disc and will
not change the hierarchy that is
actually written on the disc. Only
mp3 files will be played, files with
other extensions will be skipped.

In this example, (xx) = directory, (xx-xx) = directory -track, and (Txxx)
= flat file track.

SAVING AND NAMING MP3 FILES

• Your MACHt MP3 music system supports discs containing up to 255

files in 255 directories. Discs containing more than 255 files will not
play.

• Always save MP3 files with the .mp3 extension. The player recognizes

an MP3 file by the .mp3 extension, so MP3 files saved with different
extensions will not be played. Never save a non-MP3 file with the
.mp3 extension as the file will not play properly and damage
may occur to the player or your sound system.

• The player supports multi session discs. However, be sure to import

the previous session of the disc before you add new files. If you do not
import the previous session, only the last session will be played.

• When burning a disc, ensure that you close/finalize the disc before

playback, or the disc may not play properly or an error message may
appear.

• The player supports DAM (Digital Automatic Music) discs.

Disc

[01]**

coolsong.mp3

(01-01) {T001}

rocksong.mp3

(01-02) {T002}

Rock

[02]

specialsong.mp3

(02-01) {T003}

Classics

Old Group

[03]

oldsong.mp3

(03-01) {T004}

Classical

Piano

[04]

sonata01.mp3

(04-01) {T005}

sonata02.mp3

(04-02) {T006}

sonata03.mp3

(04-03) {T007}

sonata04.mp3

(04-04) {T008}

Album Info


biography.txt

Opera

[05]

aria.mp3

(05-01) {T009}

chorus.mp3

(05-02) {T010}

first act.mp3

(05-03) {T011}

Swing

[06]

swingstuff.asx

swingsong.mp3

(06-01) {T012}

ragtime.ram

Work

proposal.doc

presentation.ppt

spreadsheet.xls

Entertainment Systems

RADIO FREQUENCIES

AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:

AM - 530, 540–1600, 1610 kHz

FM- 87.7, 87.9–107.7, 107.9 MHz

RADIO RECEPTION FACTORS

There are three factors that can effect radio reception:
• Distance/strength: The further you travel from an FM station, the

weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences,

traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal

may overtake a weaker one and play while the weak station frequency
is displayed.

CASSETTE/PLAYER CARE

Do:
• Use only cassettes which are 90 minutes long or less.
• Tighten very loose tapes by inserting a finger or pencil into the hole

and turning the hub.

• Remove loose labels before inserting tapes.
• Allow tapes which have been subjected to extreme heat, humidity or

cold to reach a moderate temperature before playing.

• Clean the cassette player head with a cassette cleaning cartridge after

10–12 hours of play to maintain good sound/operation.

Don’t:
• Expose tapes to direct sunlight, extreme humidity, heat or cold.
• Leave tapes in the cassette player for a long time when not being

played.

CD/CD PLAYER CARE

Do:
• Handle discs by their edges only. Never touch the playing surface.
• Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

Entertainment Systems

Don’t:
• Expose discs to direct sunlight or heat sources for extended periods

of time.

• Insert more than one disc into each slot of the CD changer magazine.
• Clean using a circular motion.
CD units are designed to play commercially pressed 12 cm (4.75 in)
audio compact discs only. Due to technical incompatibility, certain
recordable and re-recordable compact discs may not function
correctly when used in CD players. Irregular shaped CDs, CDs
with a scratch protection film attached, and CDs with homemade
paper (adhesive) labels should not be inserted into the CD player.
The label may peel and cause the CD to become jammed. It is
recommended that homemade CDs be identified with permanent
felt tip marker rather than adhesive labels. Ball point pens may
damage CDs. Please contact your dealer for further information.

AUDIO SYSTEM WARRANTY AND SERVICE

Refer to the Warranty Guide for audio system warranty information. If
service is necessary, see your authorized Mazda dealership.

Entertainment Systems

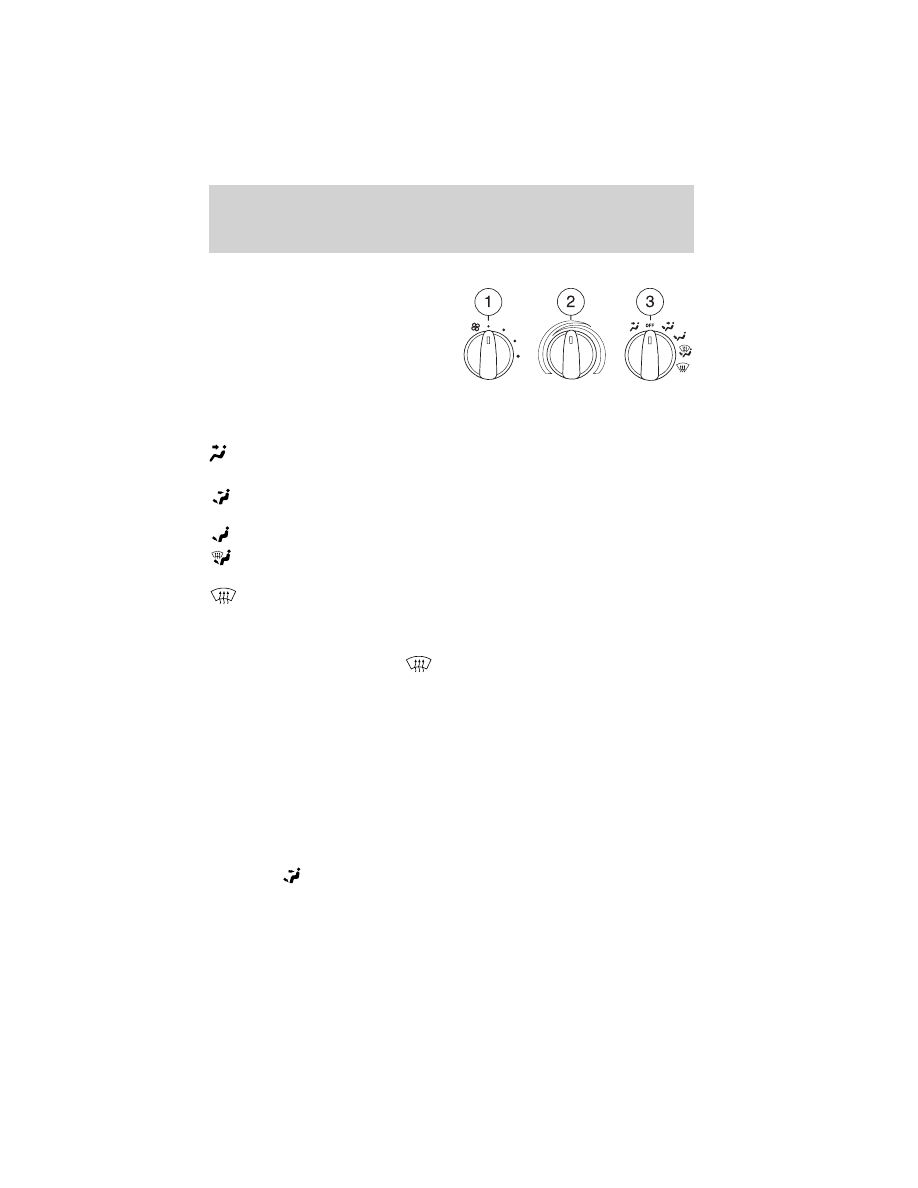

HEATER ONLY SYSTEM
(IF EQUIPPED)

1. Fan speed adjustment:

Controls the volume of air
circulated in the vehicle.

2. Temperature selection:

Controls the temperature of the
airflow in the vehicle.

3. Air flow selections: Controls the direction of the airflow in the

vehicle. See the following for a brief description on each control.

: Distributes outside air through the instrument panel vents.

OFF: Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents.

: Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

OPERATING TIPS

• To reduce fog build up on the windshield during humid weather, place

the air flow selector in the

position.

• To reduce humidity build up inside the vehicle during cold or warm

weather, do not drive with the air flow selector in the OFF position.

• Under normal weather conditions, do not leave the air flow selector in

OFF when the vehicle is parked. This allows the vehicle to “breathe”
using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the air

flow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Set the temperature control to full heat

3. Set the fan speed to HI

Climate Controls

4. Direct the outer instrument panel vents towards the side windows

To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.

WARNING: Do not place objects on top of the instrument panel
as these objects may become projectiles in a collision or sudden
stop.

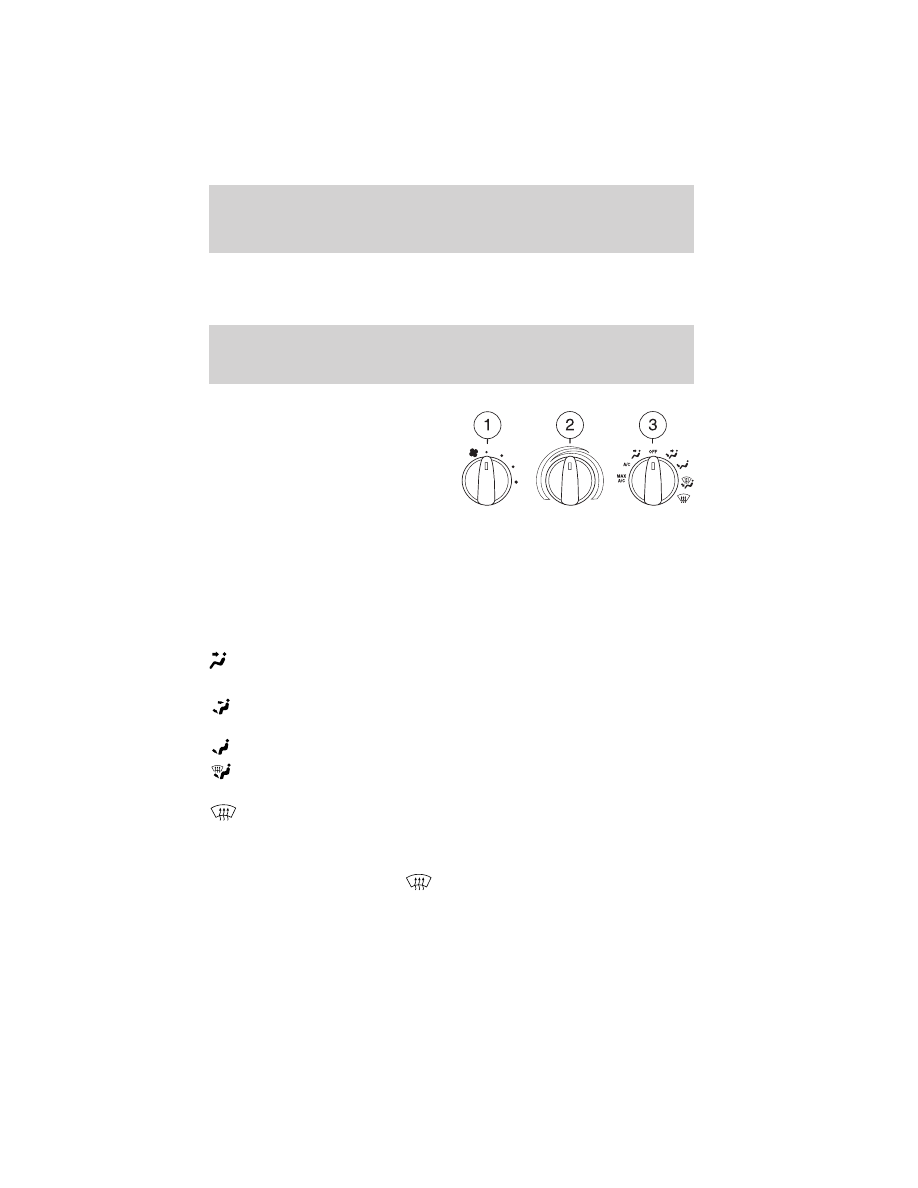

MANUAL HEATING AND AIR
CONDITIONING SYSTEM

1. Fan speed adjustment:

Controls the volume of air
circulated in the vehicle.

2. Temperature selection:

Controls the temperature of the
airflow in the vehicle.

3. Air flow selections: Controls the direction of the airflow in the

vehicle. See the following for a brief description on each control.

MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the
instrument panel vents only.

A/C: Uses outside air to cool the vehicle. Air flows from the instrument
panel vents only.

: Distributes outside air through the instrument panel vents.

OFF: Outside air is shut out and the fan will not operate.

: Distributes outside air through the instrument panel vents and the

floor vents.

: Distributes outside air through the floor vents.

: Distributes outside air through the windshield defroster vents and

floor vents.

: Distributes outside air through the windshield defroster vents.

OPERATING TIPS

• To reduce fog build up on the windshield during humid weather, place

the air flow selector in the

position.

• To reduce humidity build up inside the vehicle: do not drive with the

air flow selector in the OFF or MAX A/C position.

Climate Controls

• Under normal weather conditions, do not leave the air flow selector in

MAX A/C or OFF when the vehicle is parked. This allows the vehicle
to “breathe” using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the

airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C

3. Modulate the temperature control to maintain comfort.

4. Set the fan speed to HI

5. Direct the outer instrument panel vents towards the side windows

To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.

WARNING: Do not place objects on top of the instrument panel
as these objects may become projectiles in a collision or sudden
stop.

Climate Controls

Content .. 1 2 3 ..
