qTrip Computer

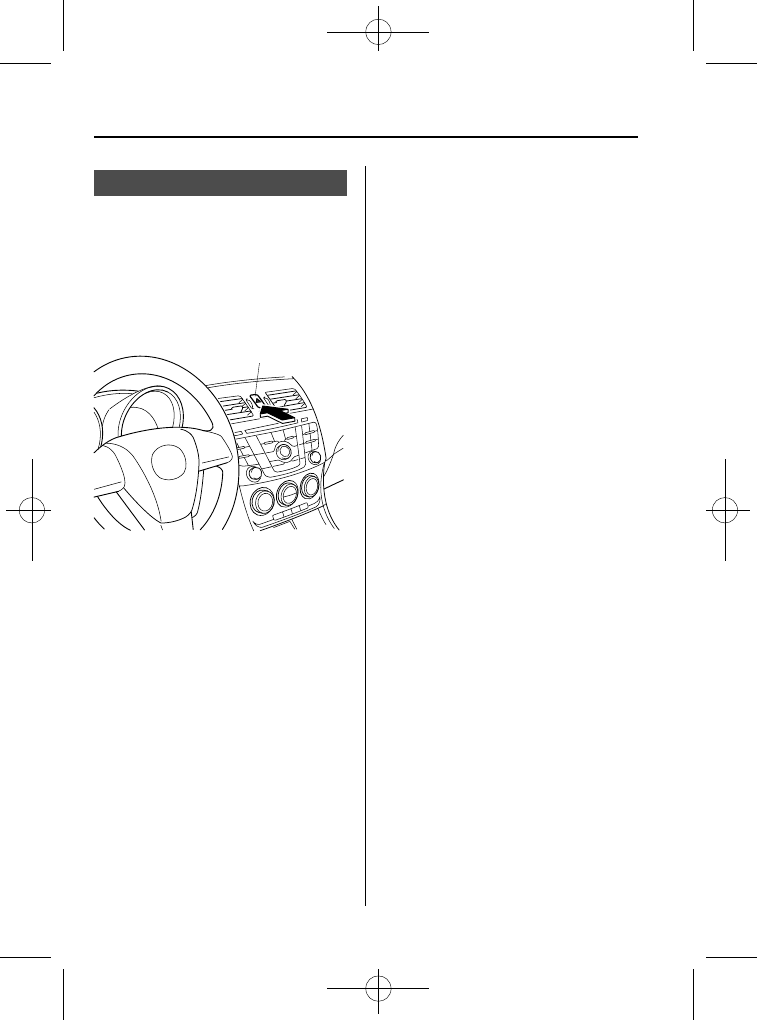

The trip computer can display the
following:

The current fuel economy.

The average fuel economy.

The approximate distance you can
travel on the available fuel.

The average vehicle speed.

Switch the ignition ON.
Press the INFO switch to change the
display mode.

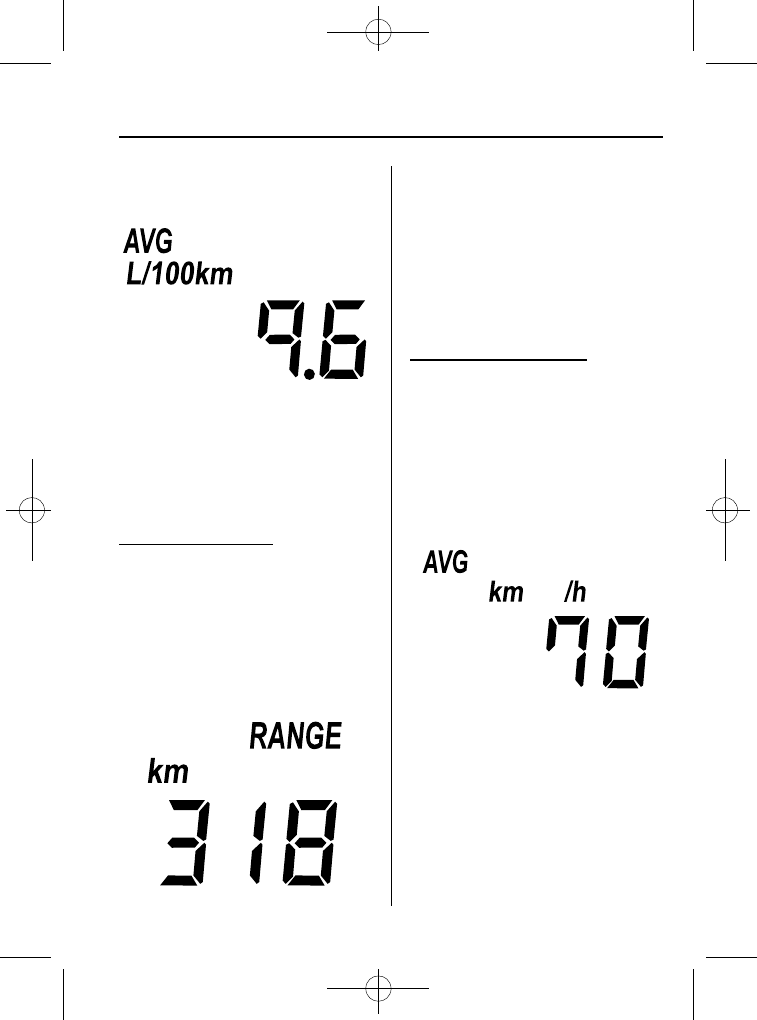

Average vehicle speed mode

Distance-to-empty mode

Average fuel economy mode

Current fuel economy mode

If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.

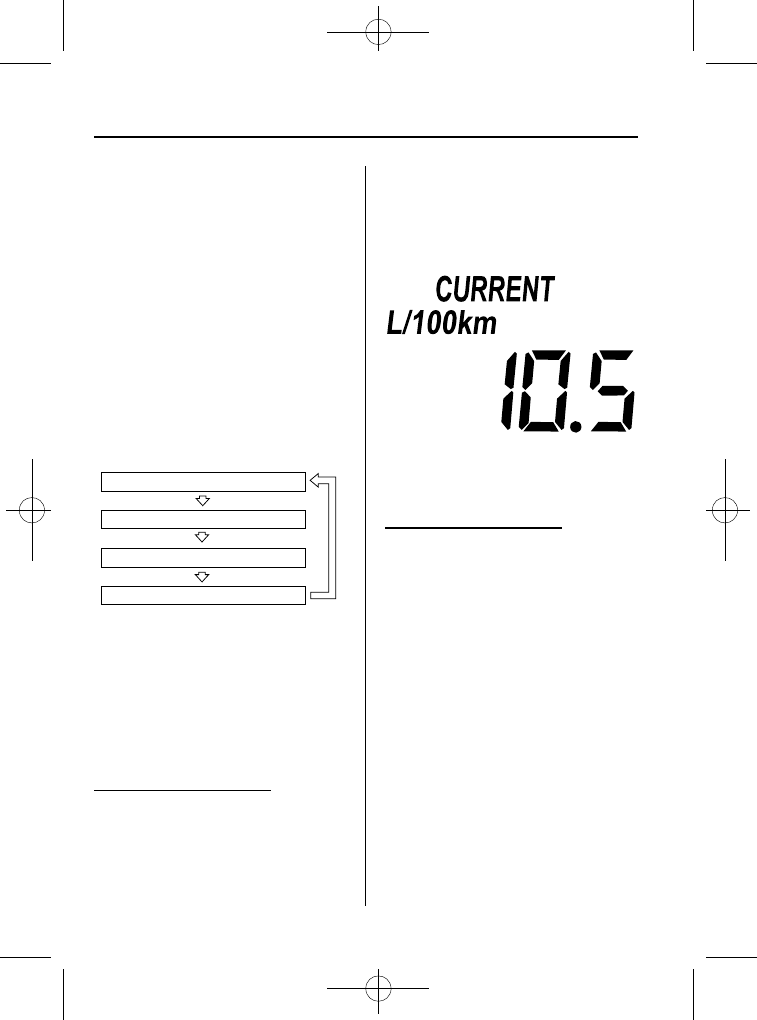

Current fuel economy mode

This mode displays the current fuel
economy by calculating the amount of
fuel consumption and the distance
traveled.

Current fuel economy will be calculated
and displayed every 2 seconds.

When this mode is selected, CURRENT
will be displayed.

When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - -mpg) will be
displayed.

Average fuel economy mode

This mode displays the average fuel
economy by calculating the total fuel
consumption and the total traveled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed
every minute.

6-98

Interior Comfort

Some models.

Mazda5_8FN4-EA-16G_Edition1 Page296
Monday, May 23 2016 7:36 PM

Black plate (297,1)

When this mode is selected, AVG will be
displayed.

To clear the data being displayed, press
the INFO switch for more than 1.5
second.
After pressing the INFO switch, - - - L/
100 km (- - - mpg) will be displayed for
about 1 minute before the fuel economy is
recalculated and displayed.

Distance-to-empty mode

This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.

The distance-to-empty will be calculated
and displayed every second.

When this mode is selected, RANGE will
be displayed.

NOTE

Even though the distance-to-empty display
may indicate a sufficient amount of
remaining mileage before refueling is
required, refuel as soon as possible if the
fuel gauge needle nears E or the low fuel
warning light illuminates.

The display won't change unless you add
more than approximately 5 L (6 US qt, 5
Imp qt) of fuel.

Average vehicle speed mode

This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.

When this mode is selected, AVG will be
displayed.

To clear the data being displayed, press
the INFO switch for more than 1.5
second. After pressing the INFO switch, -
- - km/h (- - - mile/h) will be displayed for
about 1 minute before the vehicle speed is
recalculated and displayed.

Interior Comfort

6-99

Mazda5_8FN4-EA-16G_Edition1 Page297
Monday, May 23 2016 7:36 PM

Black plate (298,1)

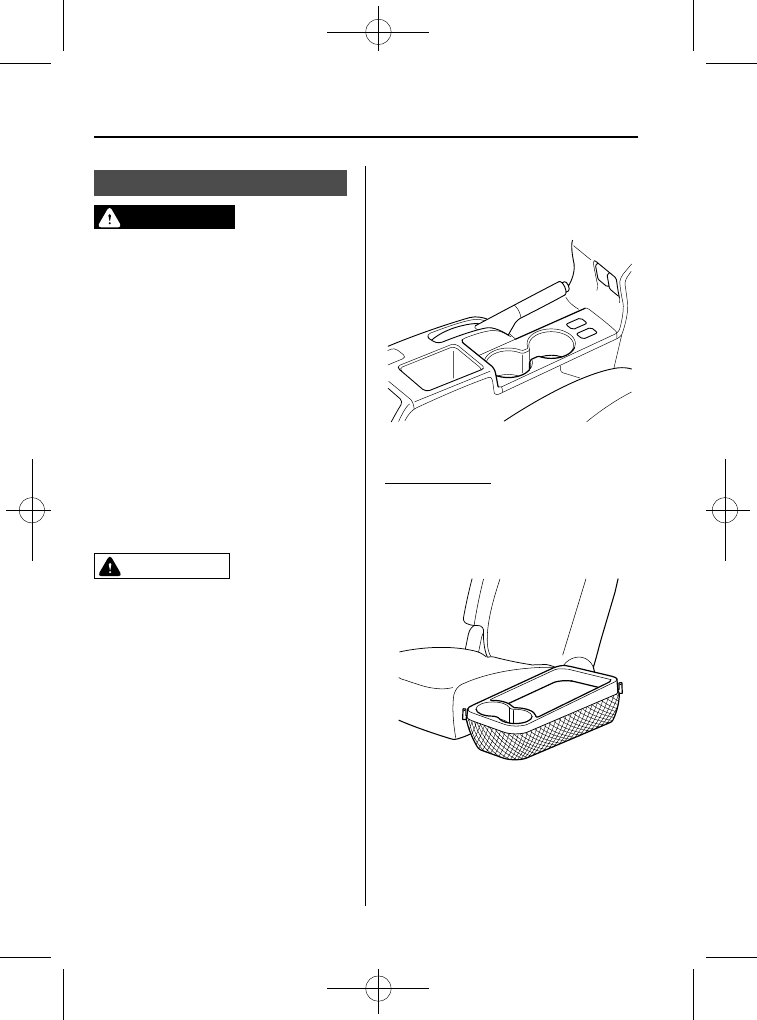

Cup Holder

WARNING

Never use a cup holder to hold hot
liquids while the vehicle is moving:

Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.

Do not put anything other than cups or
drink cans in cup holders:

Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.

CAUTION

To reduce the possibility of injury in
an accident or a sudden stop, keep
cup holders closed when not in use.

qFront

The front cup holder is in the center
console.

qRear

Second-row Seat

Storage box (Second-row right-side
seat)

To use, pull out the storage box (page
6-105).

6-100

Interior Comfort

Some models.

Mazda5_8FN4-EA-16G_Edition1 Page298
Monday, May 23 2016 7:36 PM

Black plate (299,1)

Third-row seat

Two cup holders are in the side-trim on
both the left and right sides.

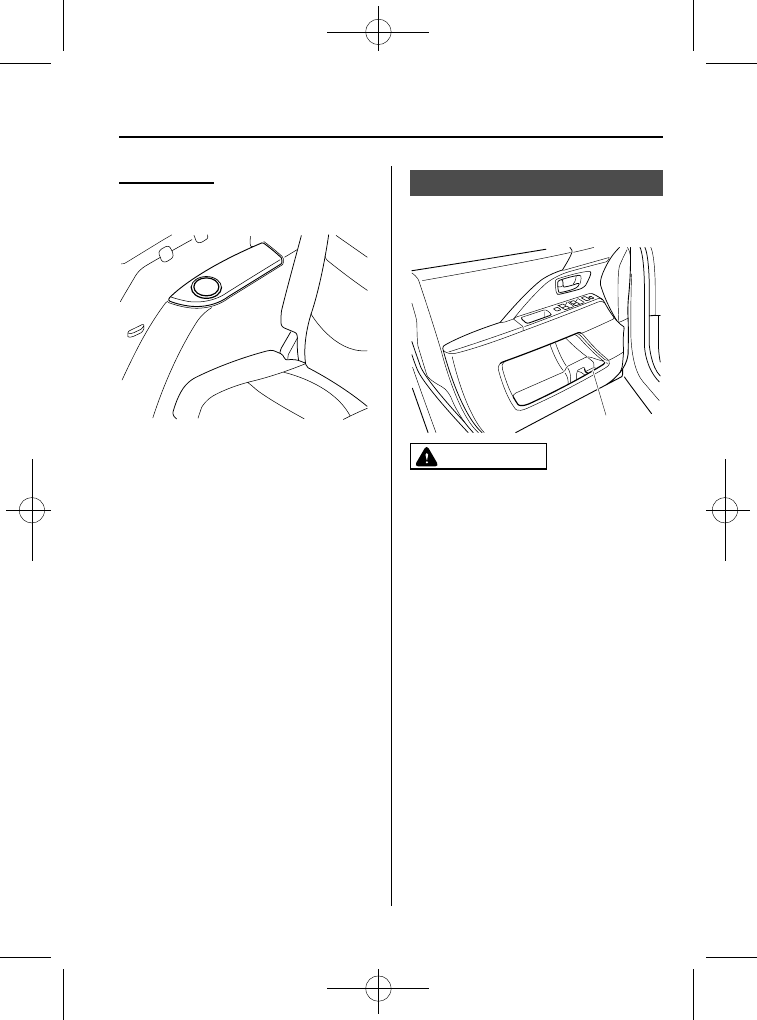

Bottle Holder

Bottle holders are on the inside of the
doors.

Bottle holder

CAUTION

Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.

Interior Comfort

6-101

Mazda5_8FN4-EA-16G_Edition1 Page299
Monday, May 23 2016 7:36 PM

Black plate (300,1)

Storage Compartments

WARNING

Keep storage boxes closed when
driving:

Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.

Do not put articles in storage spaces
with no lid:

Putting articles in storage spaces
with no lid is dangerous as they
could be thrown around the cabin if
the vehicle is suddenly accelerated
and cause injury depending on how
the article is stored.

CAUTION

Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.

6-102

Interior Comfort

Mazda5_8FN4-EA-16G_Edition1 Page300
Monday, May 23 2016 7:36 PM

Black plate (301,1)

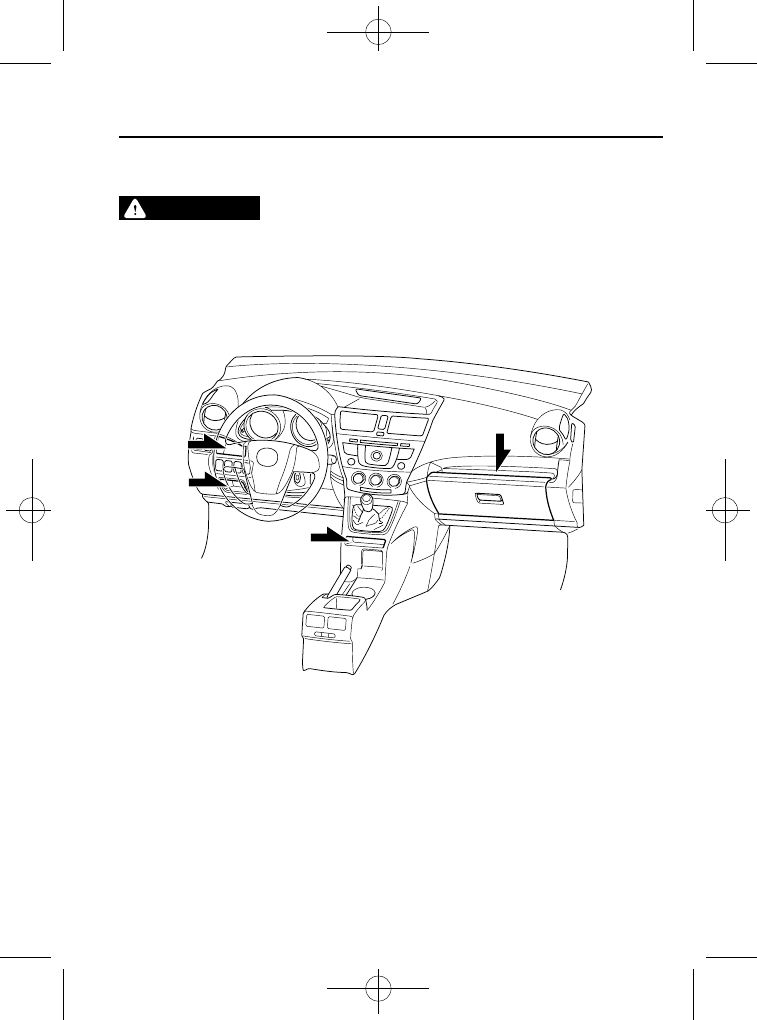

qSmall Item Storage Spaces

WARNING

Do not place objects in the small storage spaces which can roll around easily or stick
out.

Putting objects in the small item storage spaces which can roll around easily or stick
out is dangerous. During emergency braking or a collision, the objects could be
thrown around the cabin and cause injury.

The spaces can be used to store small items.

Interior Comfort

6-103

Mazda5_8FN4-EA-16G_Edition1 Page301
Monday, May 23 2016 7:36 PM

Black plate (302,1)

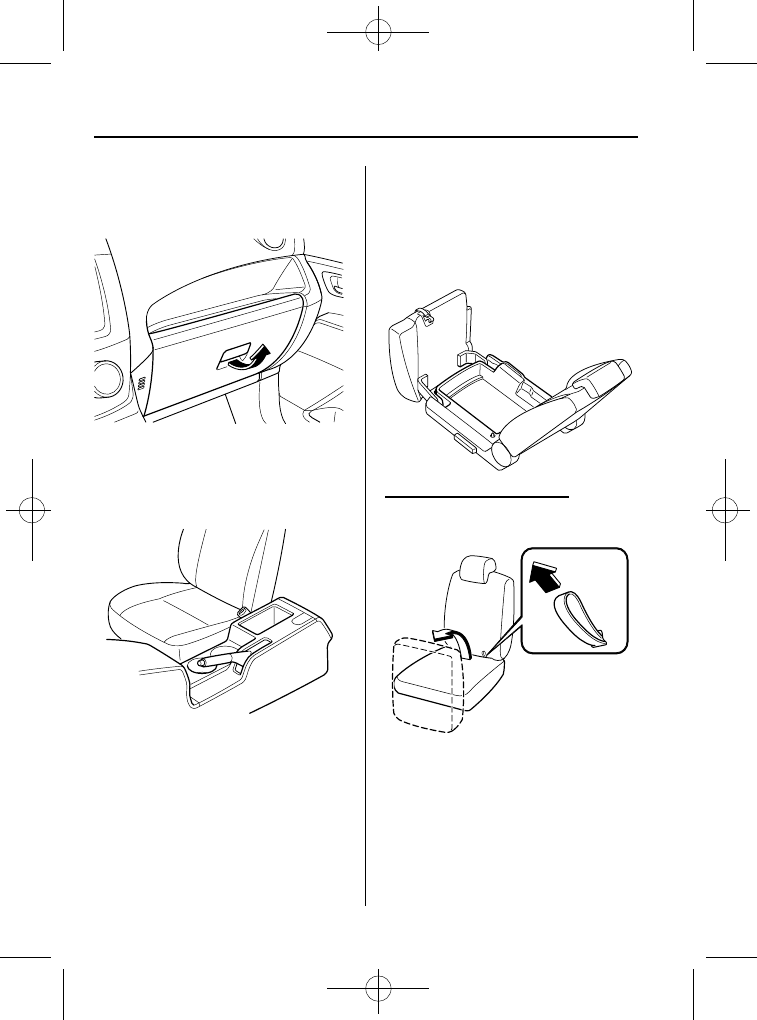

qGlove Compartment

To open the glove compartment, pull the
latch toward you.

To close the glove compartment, firmly
press in the center of the glove
compartment lid.

qCenter Console

qUnderseat Storage

If your vehicle has a right second-row
storage box (page 6-105), when using the
storage box, small items can be stored
under the both bottoms of the second-row
seats.

To use the under seat storage

Pull the strap and lift the seat bottom up
and forward.

6-104

Interior Comfort

Mazda5_8FN4-EA-16G_Edition1 Page302
Monday, May 23 2016 7:36 PM

Black plate (303,1)

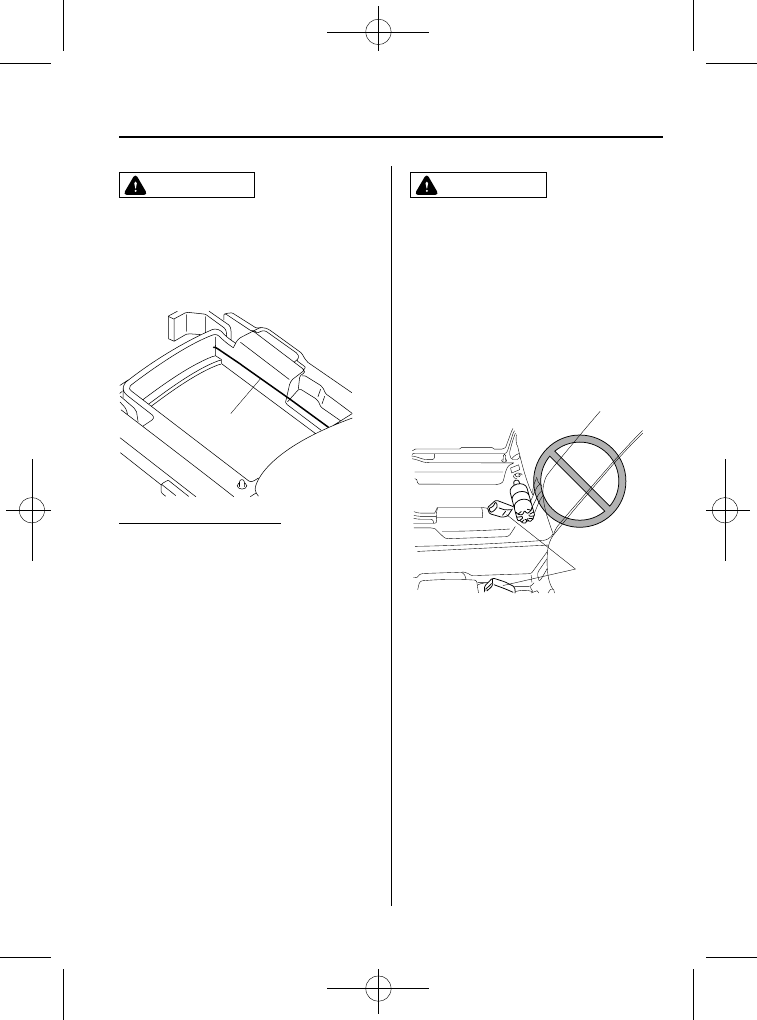

CAUTION

Do not store items above the marked
line indicated in the illustration
below. If the items are stored above
the marked line, the seat bottom will
not lock and could cause serious
injury.

Marked line

To return the seat bottom

Carefully lower the seat bottom backward
until it locks in place. Attempt to lift the
seat bottom to make sure it is firmly
locked down.

CAUTION

When returning the seat-bottom to
its upright position, make sure there
is no object lodged between the
seatback and the seat belt buckle. If
the seat-bottom is returned to its
upright position in this condition it
could damage the seat belt buckle. If
the seat belt buckle does not return
to its position after removing the
obstruction, move the buckle
rearward with your hand and then
lower the seat-bottom.

Buckle

qStorage Box

The storage box is stowed under the
bottom of the right second-row seat.
Small items can be stored in this box.

Interior Comfort

6-105

Some models.

Mazda5_8FN4-EA-16G_Edition1 Page303
Monday, May 23 2016 7:36 PM

Black plate (304,1)

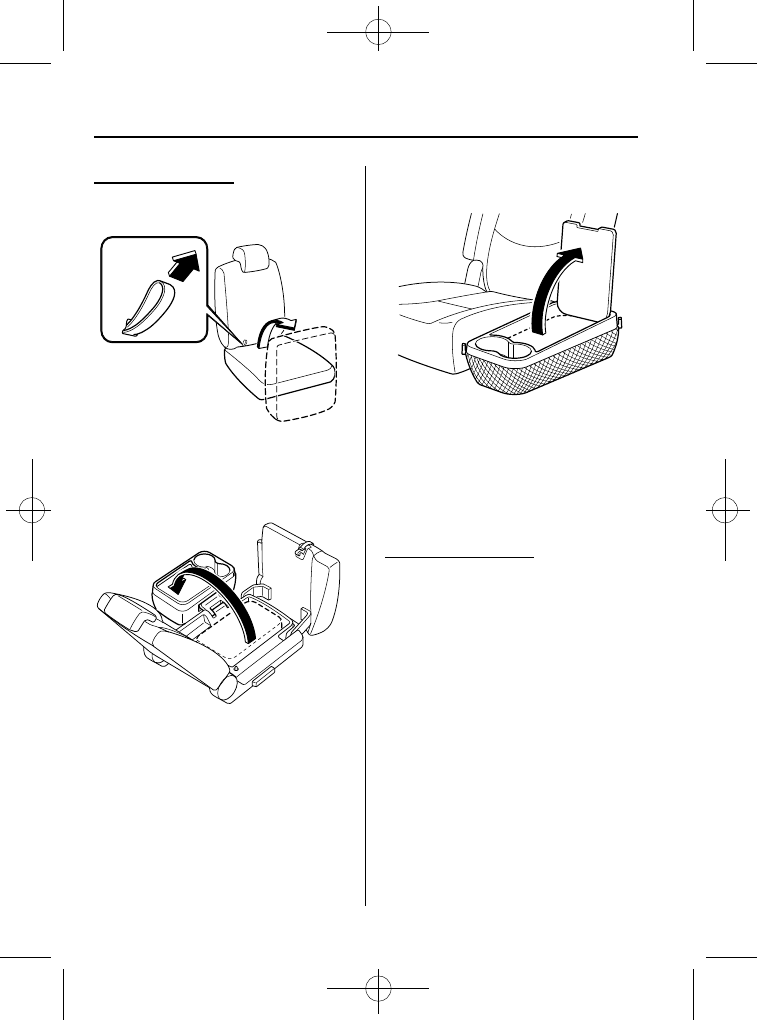

To use the storage box

1. Pull the strap and lift the seat bottom

up and forward.

NOTE

If it is hard to lift the seat bottom, raise the
reclining lever and lean back slightly.

2. Pull out the storage box.

3. More items can be stowed if the cover

is removed.

NOTE

The cover can be kept in the seatback pocket of
the driver's seat.

4. Carefully lower the seat bottom

backward until it locks in place.
Attempt to lift the seat bottom to make
sure it is firmly locked down.

To stow the storage box

1. Clean out the inside of the storage box,

and then attach the cover to it.

2. Pull the strap and lift the seat bottom

up and forward.

3. Make sure the underseat storage area is

empty before storing it.

4. Carefully lower the seat bottom

backward until it locks in place.
Attempt to lift the seat bottom to make
sure it is firmly locked down.

When folding the seatback of the right
second-row seat, make sure the storage
box is stowed. If the storage box is not
stowed, it could be damaged.

6-106

Interior Comfort

Mazda5_8FN4-EA-16G_Edition1 Page304
Monday, May 23 2016 7:36 PM

Black plate (305,1)

CAUTION

Buckle

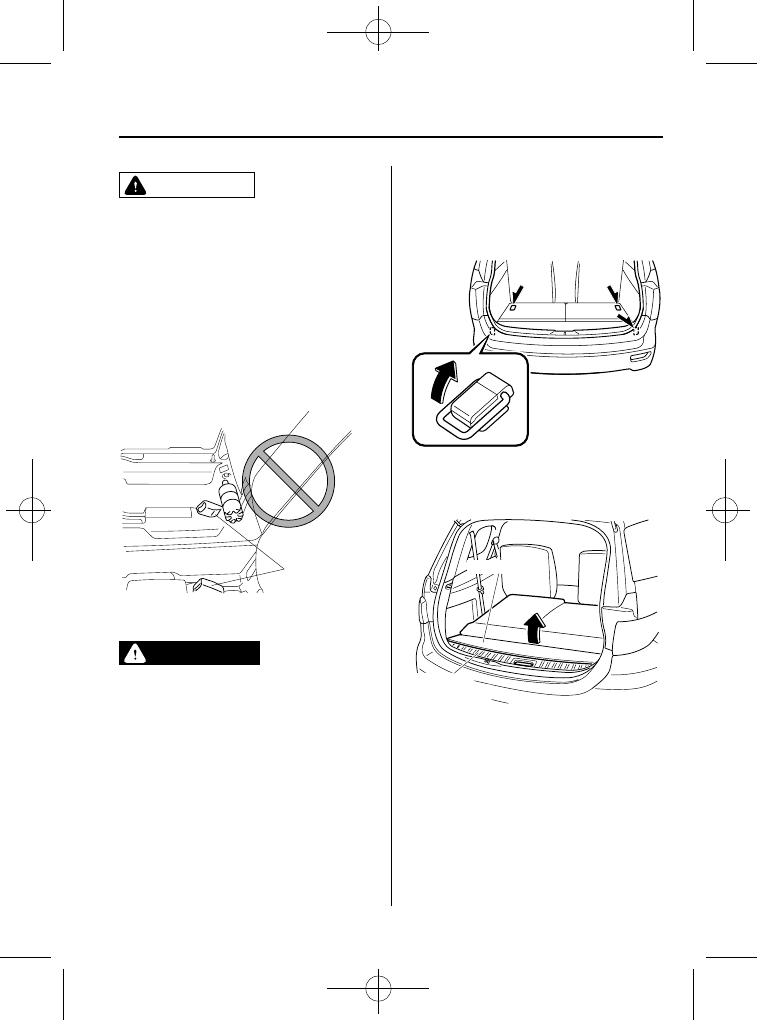

qCargo Securing Loops

WARNING

Make sure luggage and cargo are
secured before driving:

Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.

Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.

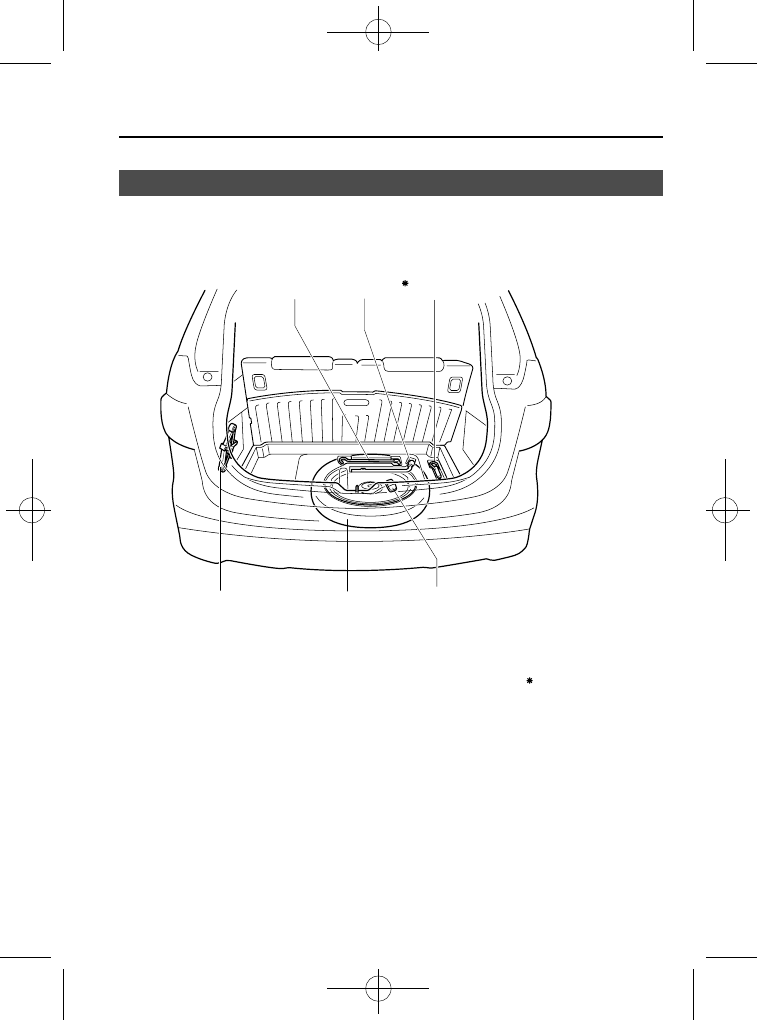

qCargo Sub-Compartment

Lift the cover.

Trunk board

Cargo sub-
compartment

Interior Comfort

6-107

Mazda5_8FN4-EA-16G_Edition1 Page305
Monday, May 23 2016 7:36 PM

Black plate (306,1)

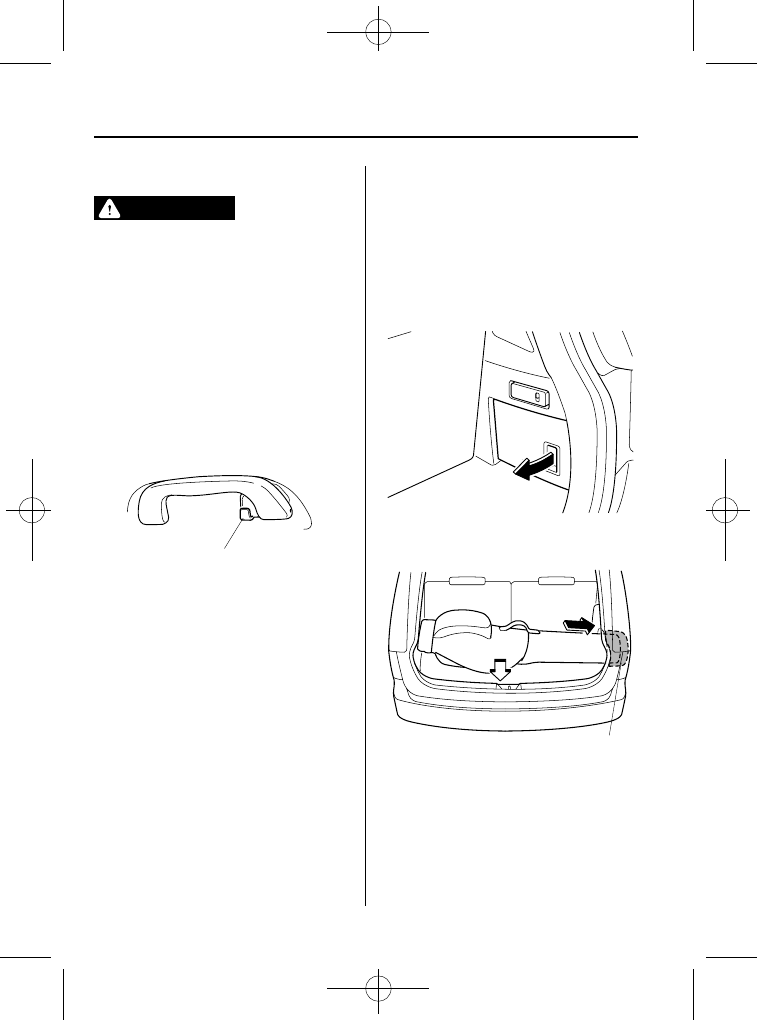

qRear Coat Hooks

WARNING

Never hang heavy or sharp objects on
the assist grips and coat hooks:

Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.

Always hang clothes on the coat hooks
and the assist grips without hangers.

Coat hook

qLuggage Compartment

A golf bag can be carried in the luggage
compartment.
To place a golf bag in the luggage
compartment, use the following
procedure:

1. Remove the cover for the side storage

space.

2. Insert the top of the golf bag into the

side storage space.

Side storage space

NOTE

Some golf bags cannot fit depending on
their size.

Golf bags up to nine inches in diameter can
be carried.

6-108

Interior Comfort

Mazda5_8FN4-EA-16G_Edition1 Page306
Monday, May 23 2016 7:36 PM

Black plate (307,1)

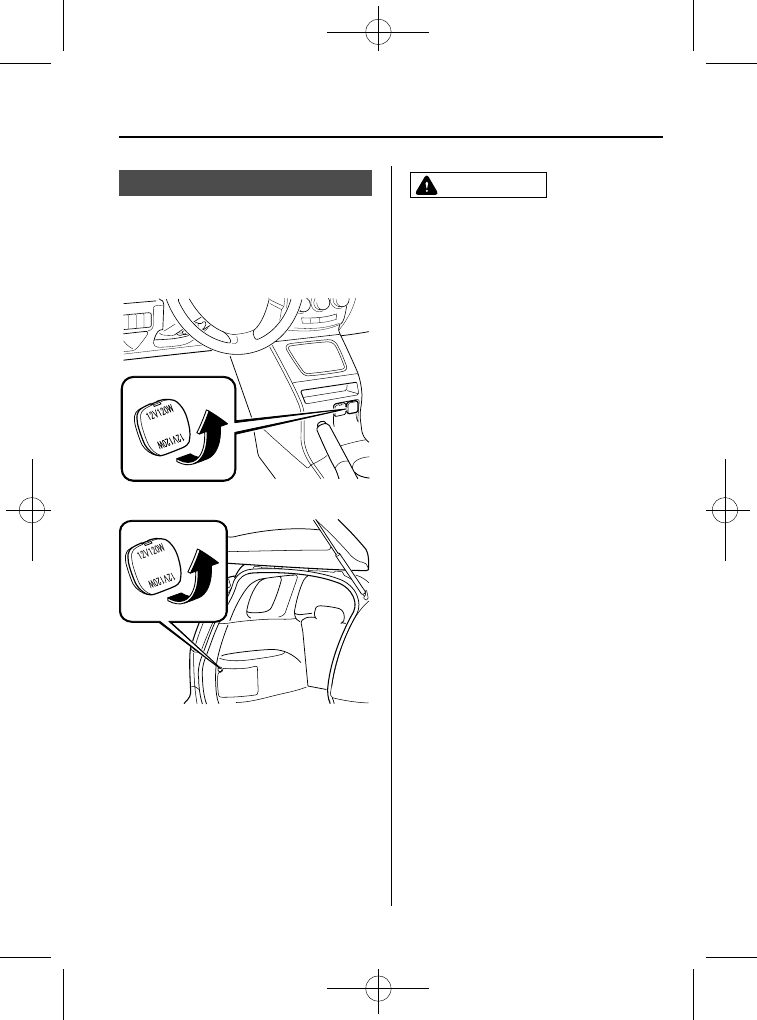

Accessory Sockets

Switch the ignition to ACC or ON.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front

Rear

CAUTION

Ø To prevent accessory socket

damage or electrical failure, pay
attention to the following:

Do not use accessories that
require more than 120 W (DC 12
V, 10 A).

Do not use accessories that are
not genuine Mazda accessories
or the equivalent.

Close the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.

Correctly insert the plug into
the accessory socket.

Ø Noise may occur on the audio

playback or TV reception
depending on the device connected
to the accessory socket.

Ø Depending on the device

connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.

NOTE

To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.

Interior Comfort

6-109

Mazda5_8FN4-EA-16G_Edition1 Page307
Monday, May 23 2016 7:36 PM

Black plate (310,1)

Parking in an Emergency

The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Hazard warning flasher

Depress the hazard warning flasher and all
the turn signals will flash.

NOTE

The turn signals do not work when the
hazard warning lights are on.

Check local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.

7-2

In Case of an Emergency

Parking in an Emergency

Mazda5_8FN4-EA-16G_Edition1 Page310
Monday, May 23 2016 7:36 PM

Black plate (311,1)

Spare Tire and Tool Storage

Spare tire and tools are stored in the locations illustrated in the diagram.

Tiedown eyelet

Spare tire

Lug wrench

Jack lever

Jack

Flat tire belt storage bag

Some models.

In Case of an Emergency

Flat Tire

7-3

Mazda5_8FN4-EA-16G_Edition1 Page311
Monday, May 23 2016 7:36 PM
