qJack

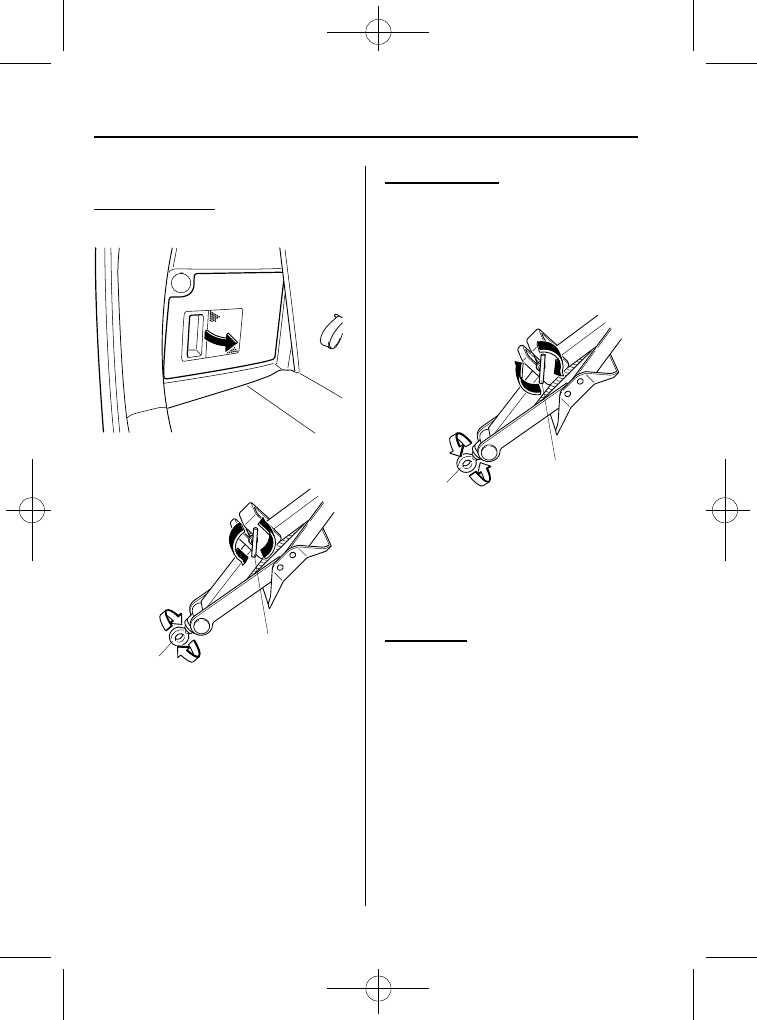

To remove the jack

1. Remove the cover.

2. Turn the wing bolt and jack screw

counterclockwise.

Wing bolt

Jack screw

To secure the jack

1. Insert the wing bolt into the jack with

the jack screw pointing down and turn
the wing bolt clockwise to temporarily
tighten it.

2. Turn the jack screw in the direction

shown in the figure.

Wing bolt

Jack screw

3. Turn the wing bolt completely to

secure the jack.

NOTE

If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.

Maintenance

Always keep the jack clean.

Make sure the moving parts are kept
free from dirt or rust.

Make sure the screw thread is
adequately lubricated.

7-4

In Case of an Emergency

Flat Tire

Mazda5_8FN4-EA-16G_Edition1 Page312
Monday, May 23 2016 7:36 PM

Black plate (313,1)

qSpare Tire

The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.

WARNING

Do not install the temporary spare tire
on the front wheels (driving wheels):

Driving with the temporary spare tire
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound
roads, and have an accident. Move a
regular tire to the front wheel and
install the temporary spare tire to the
rear.

CAUTION

Ø When using the temporary spare

tire, driving stability may decrease
compared to when using only the
conventional tire.
Drive carefully.

Ø To avoid damage to the temporary

spare tire or to the vehicle, observe
the following precautions:

Do not exceed 80 km/h (50
mph).

Avoid driving over obstacles.
Also, do not drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire, so the ground
clearance is reduced.

Do not use a tire chain on this
tire because it won't fit
properly.

Do not use your temporary
spare tire on any other vehicle;
it has been designed only for
your Mazda.

Use only one temporary spare
tire on your vehicle at the same
time.

NOTE

(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-30).

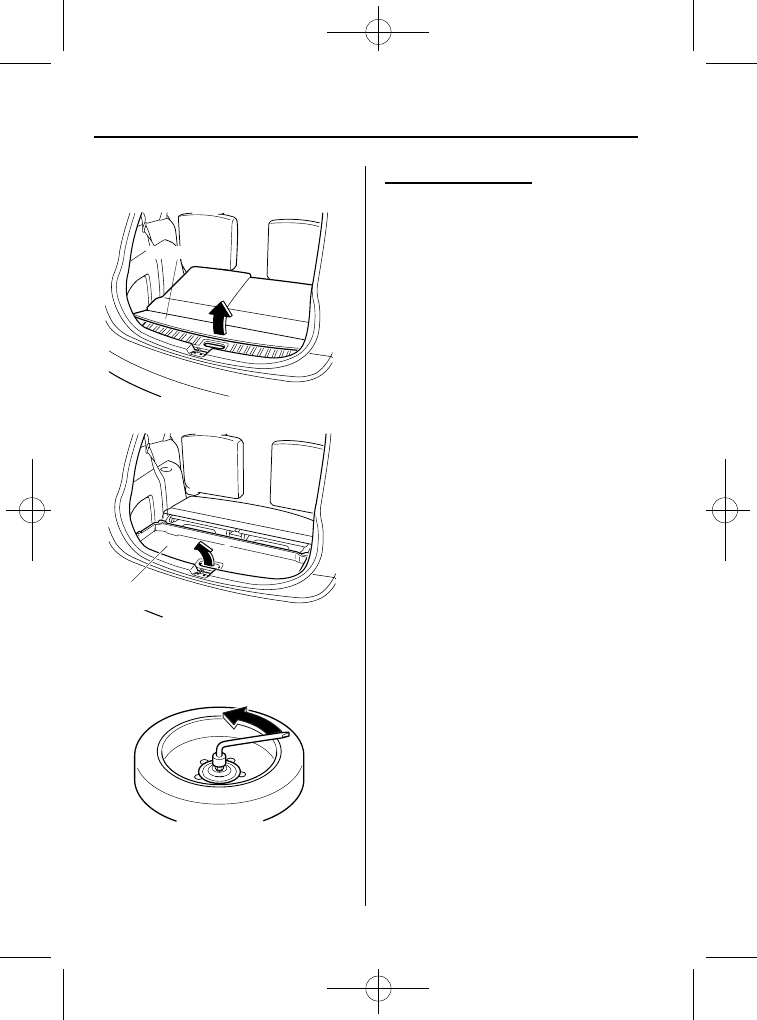

To remove the spare tire

1. Fold the third-row seat forward (page

2-10).

In Case of an Emergency

Flat Tire

7-5

Mazda5_8FN4-EA-16G_Edition1 Page313
Monday, May 23 2016 7:36 PM

Black plate (314,1)

2. Open and fold back the trunk board

over the third-row seatback.

Trunk board

3. Remove the cargo sub-compartment.

Cargo sub-
compartment

4. Turn the tire hold-down bolt

counterclockwise with the lug wrench.

To secure the spare tire

Perform the removal procedure in reverse.

7-6

In Case of an Emergency

Flat Tire

Mazda5_8FN4-EA-16G_Edition1 Page314
Monday, May 23 2016 7:36 PM

Black plate (315,1)

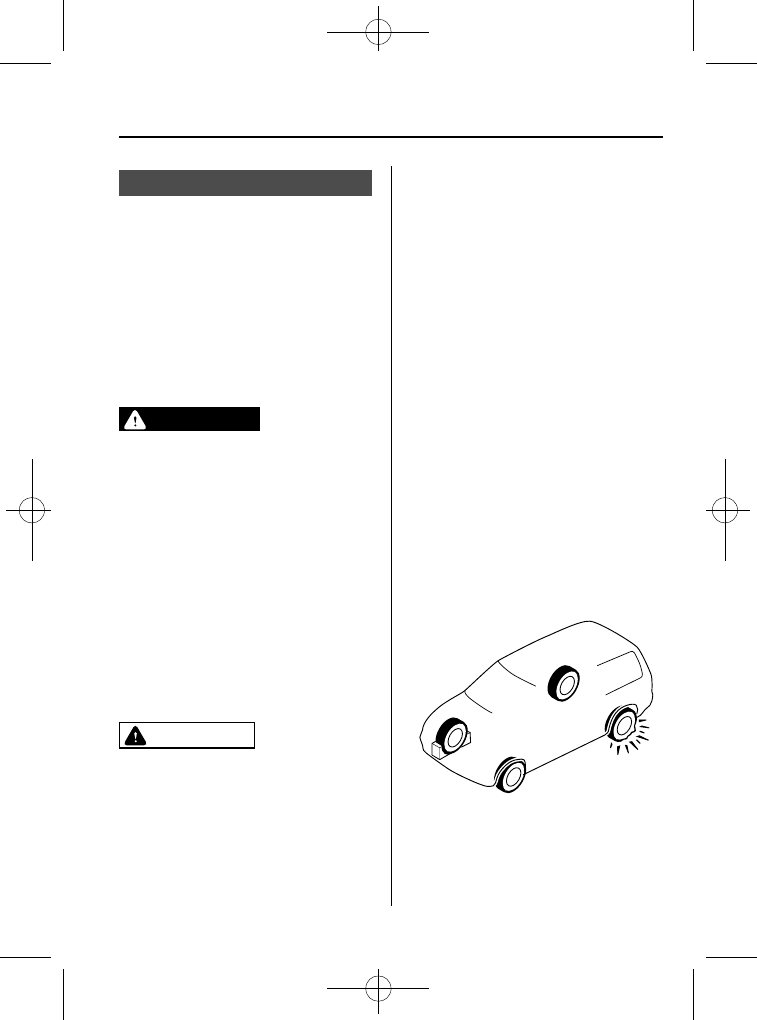

Changing a Flat Tire

NOTE

If the following occurs while driving, it could
indicate a flat tire.

Steering becomes difficult.

The vehicle begins to vibrate excessively.

The vehicle pulls in one direction.

If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.

WARNING

Be sure to follow the directions for
changing a tire:

Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.

Never allow anyone inside a vehicle
supported by a jack:

Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.

CAUTION

(With Tire Pressure Monitoring
System)
The wheels equipped on your Mazda
are specially designed for installation
of the tire pressure sensors. Do not
use non-genuine wheels, otherwise it
may not be possible to install the tire
pressure sensors.

NOTE

Make sure the jack is well lubricated before
using it.

(With Tire Pressure Monitoring System)

Be sure to register the tire pressure sensor
ID signal code whenever tires or wheels are
changed (page 5-32).

1. Park on a hard, level surface off the

right-of-way and firmly set the parking
brake.

2. Put a vehicle with an automatic

transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.

3. Turn on the hazard warning flasher.

4. Have everyone get out of the vehicle

and away from the vehicle and traffic.

5. Remove the jack, tool, and spare tire

(page 7-3).

6. Block the wheel diagonally opposite

the flat tire. When blocking a wheel,
place a tire block both in front and
behind the tire.

NOTE

When blocking a tire, use rocks or wood blocks
of sufficient size if possible to hold the tire in
place.

In Case of an Emergency

Flat Tire

7-7

Mazda5_8FN4-EA-16G_Edition1 Page315
Monday, May 23 2016 7:36 PM

Black plate (316,1)

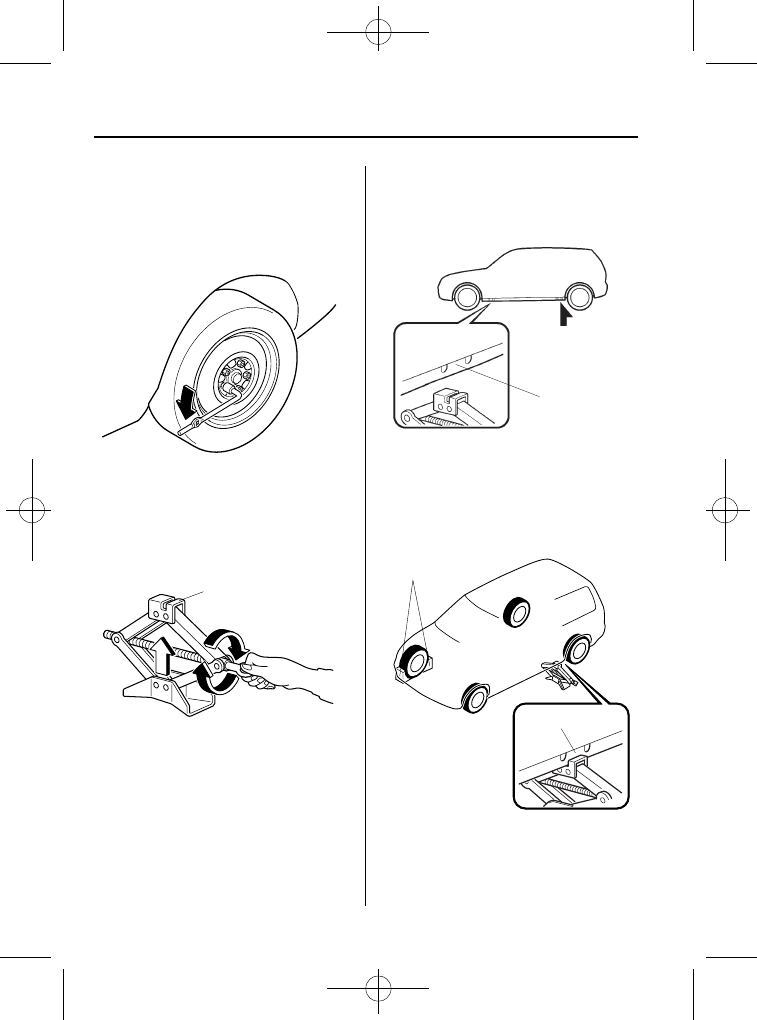

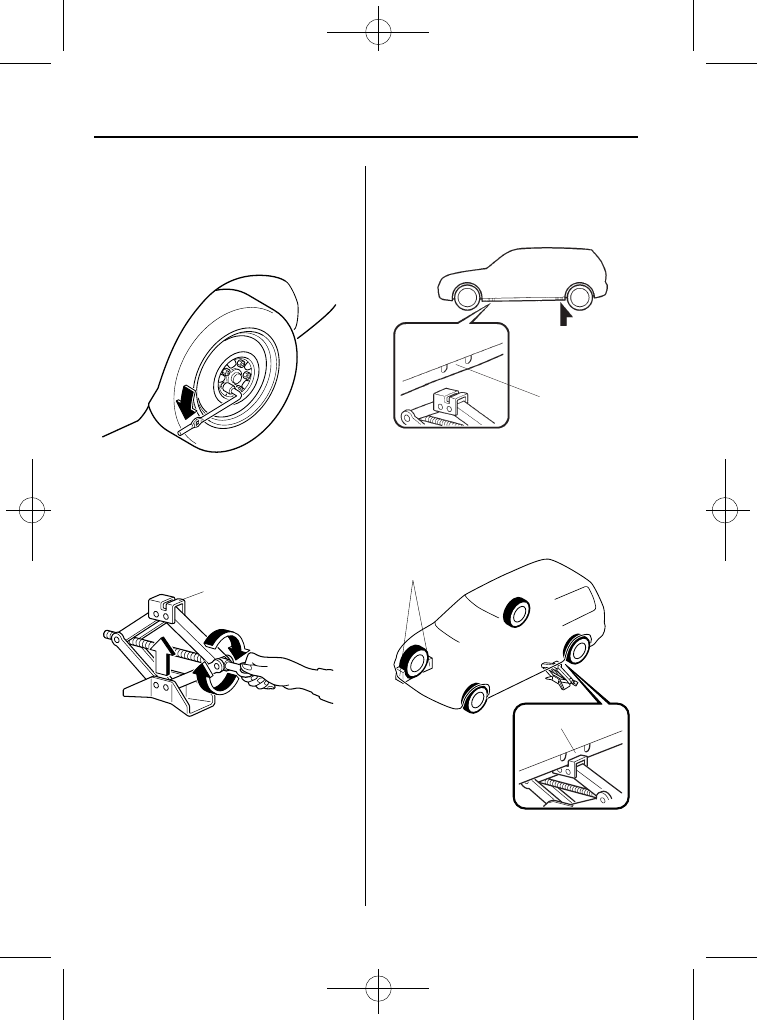

qRemoving a Flat Tire

1. Loosen the lug nuts by turning them

counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.

2. Place the jack on the ground.

3. Turn the jack screw in the direction

shown in the figure and adjust the jack
head so that it is close to the jack-up
position.

Jack head

4. Place the jack under the jack-up

position closest to the tire being
changed with the jack head squarely
under the jack-up point.

Jacking position

5. Continue raising the jack head

gradually by rotating the screw with
your hand until the jack head is
inserted into the jack-up position.

Tire blocks

Jacking position

7-8

In Case of an Emergency

Flat Tire

Mazda5_8FN4-EA-16G_Edition1 Page316
Monday, May 23 2016 7:36 PM

Black plate (317,1)

WARNING

Use only the front and rear jacking
positions recommended in this manual:

Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.

Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:

Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or
under the jack is dangerous as it
could deform the vehicle body or the
vehicle could fall off the jack
resulting in an accident.

Use only the jack provided with your
Mazda:

Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.

Never place objects under the jack:

Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.

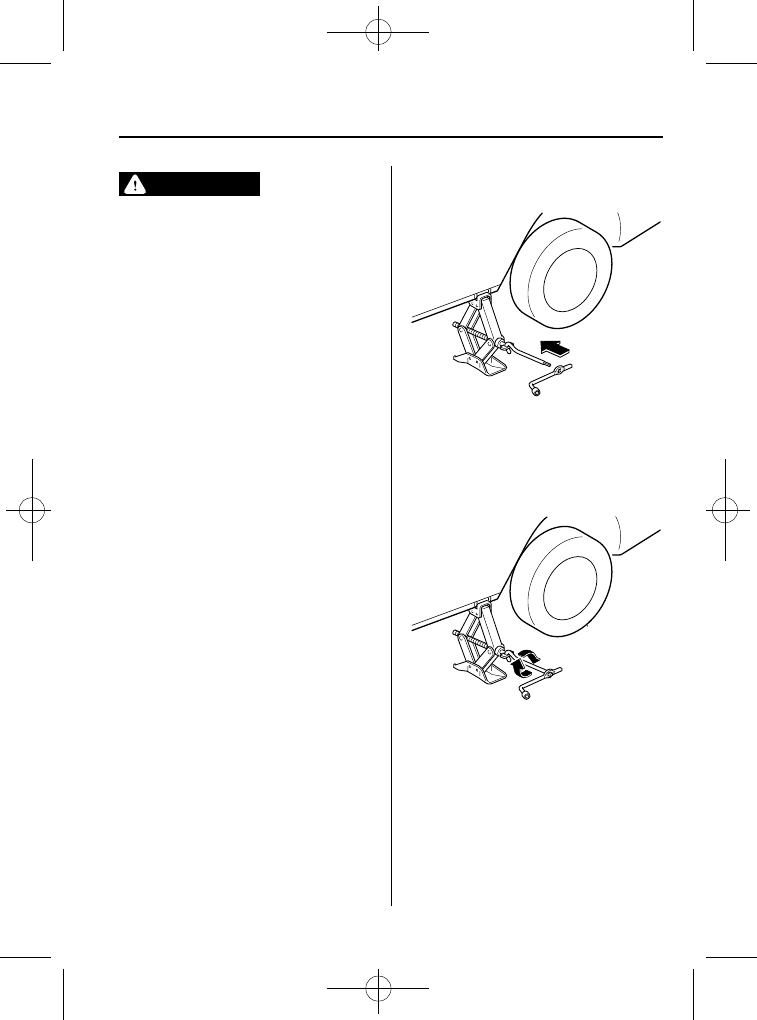

6. Insert the jack lever and attach the lug

wrench to tire jack.

7. Turn the lug wrench clockwise and

raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.

In Case of an Emergency

Flat Tire

7-9

Mazda5_8FN4-EA-16G_Edition1 Page317
Monday, May 23 2016 7:36 PM

Black plate (318,1)

WARNING

Do not jack up the vehicle higher than
is necessary:

Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.

Do not start the engine or shake the
vehicle while it is jacked up:

Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the
vehicle to fall off the jack resulting in
an accident.

Never go under the vehicle while it is
jacked up:

Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.

8. Remove the lug nuts by turning them

counterclockwise; then remove the
wheel.

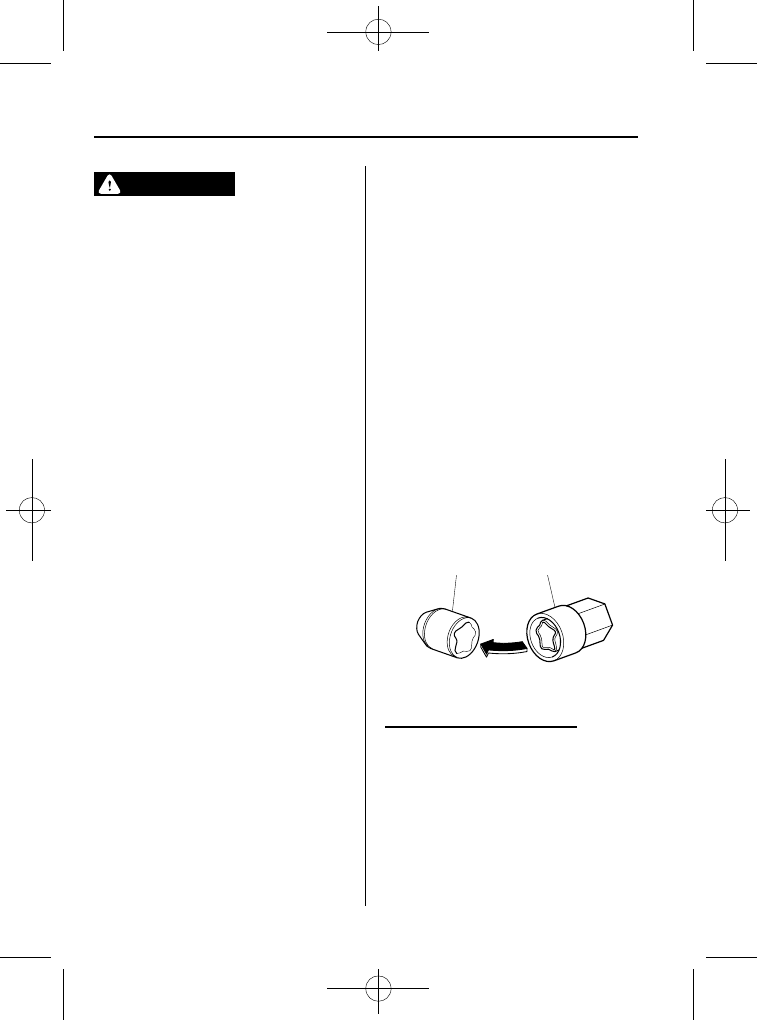

qLocking Lug Nuts

If your vehicle has Mazda optional
antitheft wheel lug nuts, one on each
wheel will lock the tires and you must use
a special key to unlock them. This key
will attach to the lug wrench. Register
them with the lock manufacturer by filling
out the card provided in the glove
compartment and mailing it in the
accompanying envelope. If you lose this
key, consult an Authorized Mazda Dealer
or use the lock manufacturer's order form,
which is with the registration card.
Accessory wheel locks cannot be used on
steel wheels. This includes situations
when the spare tire is installed. If the
spare tire is installed, one of the original
lug nuts (which should still be in the
vehicle) must be installed in place of the
wheel lock.

Special key

Antitheft lug nut

To remove an antitheft lug nut

1. Obtain the special key for the antitheft

lug nut.

2. Place the special key on top of the

antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.

7-10

In Case of an Emergency

Some models.

Flat Tire

Mazda5_8FN4-EA-16G_Edition1 Page318
Monday, May 23 2016 7:36 PM

Black plate (319,1)

3. Place the lug wrench on top of the key

and apply pressure. Turn the wrench
counterclockwise.

To install the antitheft lug nut

1. Place the special key on top of the nut,

and be sure to hold the key square to it.
If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.

2. Place the lug wrench on top of the

special key, apply pressure, and turn it
clockwise.

Nut tightening torque

N·m (kgf·m, ft·lbf)

―118 (9―12, 65―87)

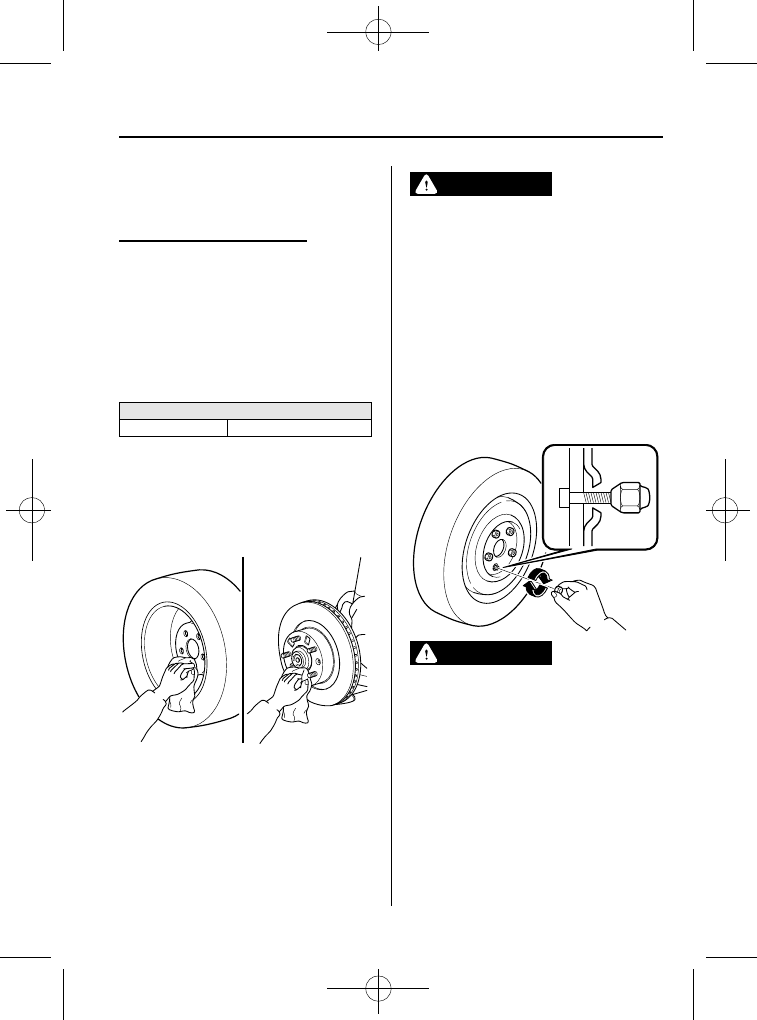

qMounting the Spare Tire

1. Remove dirt and grime from the

mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.

WARNING

Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:

When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.

2. Mount the spare tire.

3. Install the lug nuts with the beveled

edge inward; tighten them by hand.

WARNING

Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque:

Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts
could loosen while driving and cause
the tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary.

In Case of an Emergency

Flat Tire

7-11

Mazda5_8FN4-EA-16G_Edition1 Page319
Monday, May 23 2016 7:36 PM

Black plate (320,1)

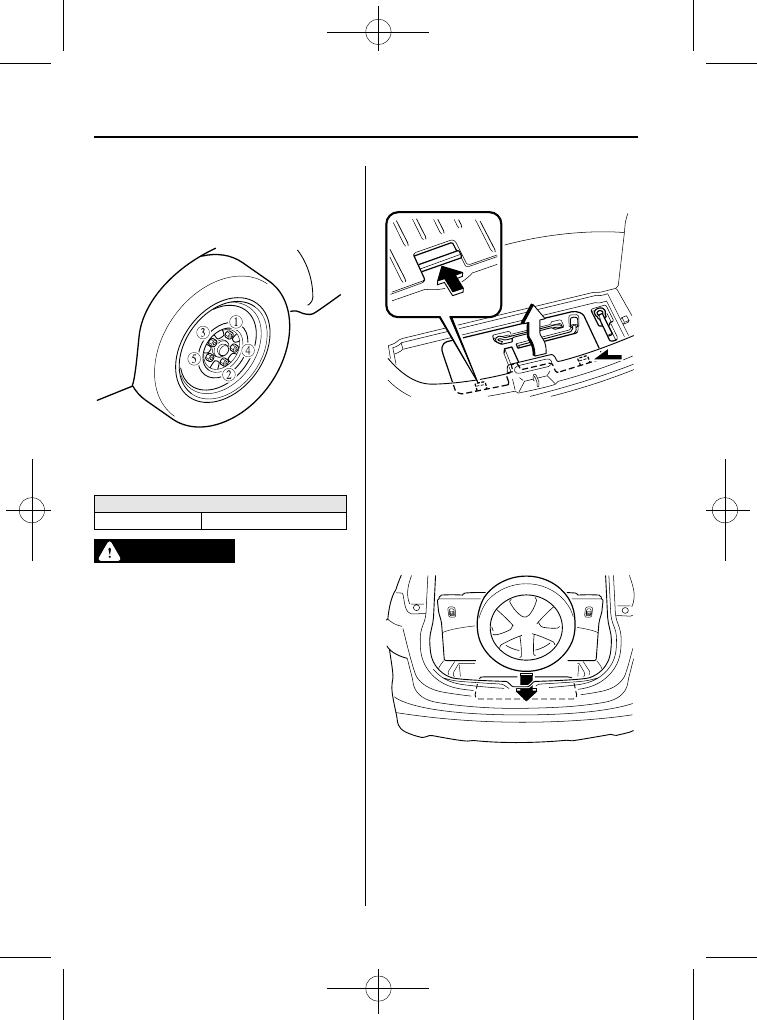

4. Turn the lug wrench counterclockwise

and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.

If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.

Nut tightening torque

N·m (kgf·m, ft·lbf)

―118 (9―12, 65―87)

WARNING

Always securely and correctly tighten
the lug nuts:

Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.

Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:

Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the
stud, which could cause the wheel to
slip off and cause an accident.

5. Replace the cargo sub-compartment.

6. Remove the lid by pressing the two

latches on the cargo sub-compartment.

7. Remove the belt for securing the flat

tire.

8. Return the third-row seatback to its

original position.
Refer to Folding the Third-Row Seat
on page 2-11.

9. Place the flat tire in the cargo sub-

compartment.

7-12

In Case of an Emergency

Flat Tire

Mazda5_8FN4-EA-16G_Edition1 Page320
Monday, May 23 2016 7:36 PM

Black plate (321,1)

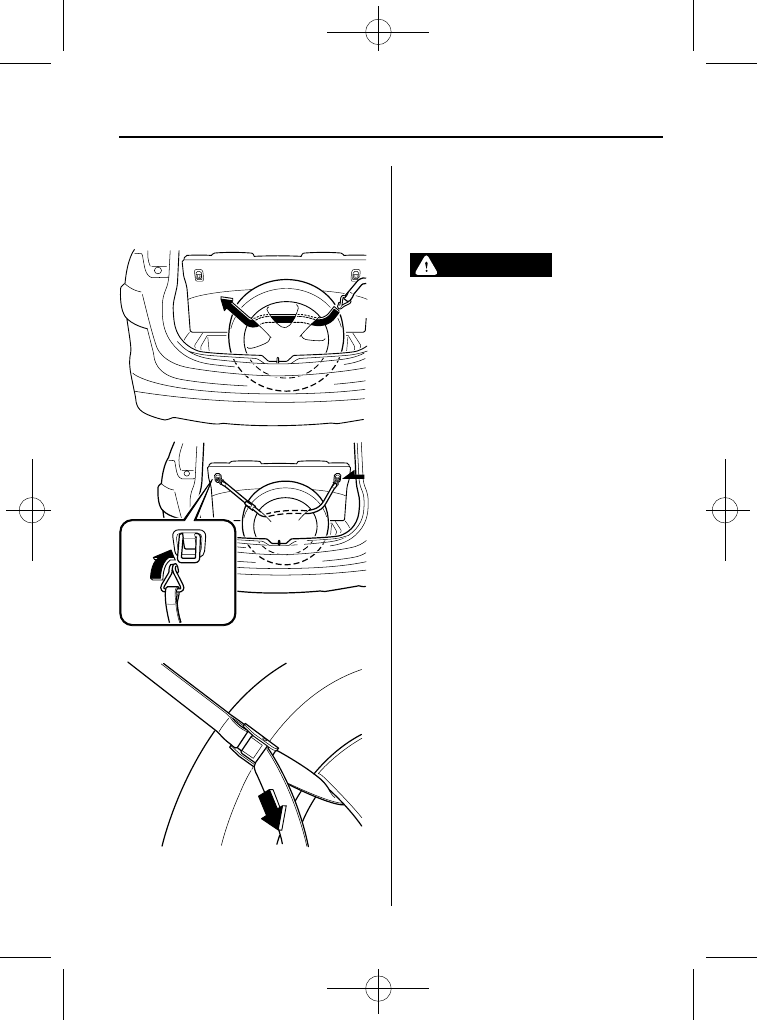

10. Thread the belt through the wheel as

shown in the figure, then attach the
belt clips to the cargo securing loops
on the back of the third-row seat.

11. Pull the belt end to secure the flat tire.

12. Remove the tire blocks and store the

tools and jack.

13. Check the tire inflation pressure.

Refer to Tires on page 10-6.

14. Have the flat tire repaired or replaced

as soon as possible.

WARNING

Do not drive with any tires that have
incorrect air pressure:

Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.

NOTE

To prevent the jack and tool from rattling, store
them properly.

In Case of an Emergency

Flat Tire

7-13

Mazda5_8FN4-EA-16G_Edition1 Page321
Monday, May 23 2016 7:36 PM

Black plate (322,1)

Overheating

If the High engine coolant temperature
warning light illuminates, the vehicle
loses power, or you hear a loud knocking
or pinging noise, the engine is probably
too hot.

WARNING

Switch the ignition to off and

make sure the fan is not running before
attempting to work near the cooling
fan:

Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.

Do not remove either cooling

system caps when the engine and
radiator are hot:

When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.

Open the hood ONLY after steam is no
longer escaping from the engine:

Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.

If the High engine coolant temperature
warning light illuminates:

1. Drive safely to the side of the road and

park off the right-of-way.

2. Put a vehicle with an automatic

transaxle in park (P), a manual
transaxle in neutral.

3. Apply the parking brake.

4. Turn off the air conditioner.

5. Check whether coolant or steam is

escaping from under the hood or from
the engine compartment.

If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.

If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.

CAUTION

If the cooling fan does not operate
while the engine is running, the
engine temperature will increase.
Stop the engine and call an
Authorized Mazda Dealer.

6. Make sure the cooling fan is operating,

then turn off the engine after the
temperature has decreased.

7. When cool, check the coolant reservoir

level.
If it's low, look for coolant leaks from
the radiator and hoses.

7-14

In Case of an Emergency

Overheating

Mazda5_8FN4-EA-16G_Edition1 Page322
Monday, May 23 2016 7:36 PM

Black plate (323,1)

If you find a leak or other damage, or if
coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.

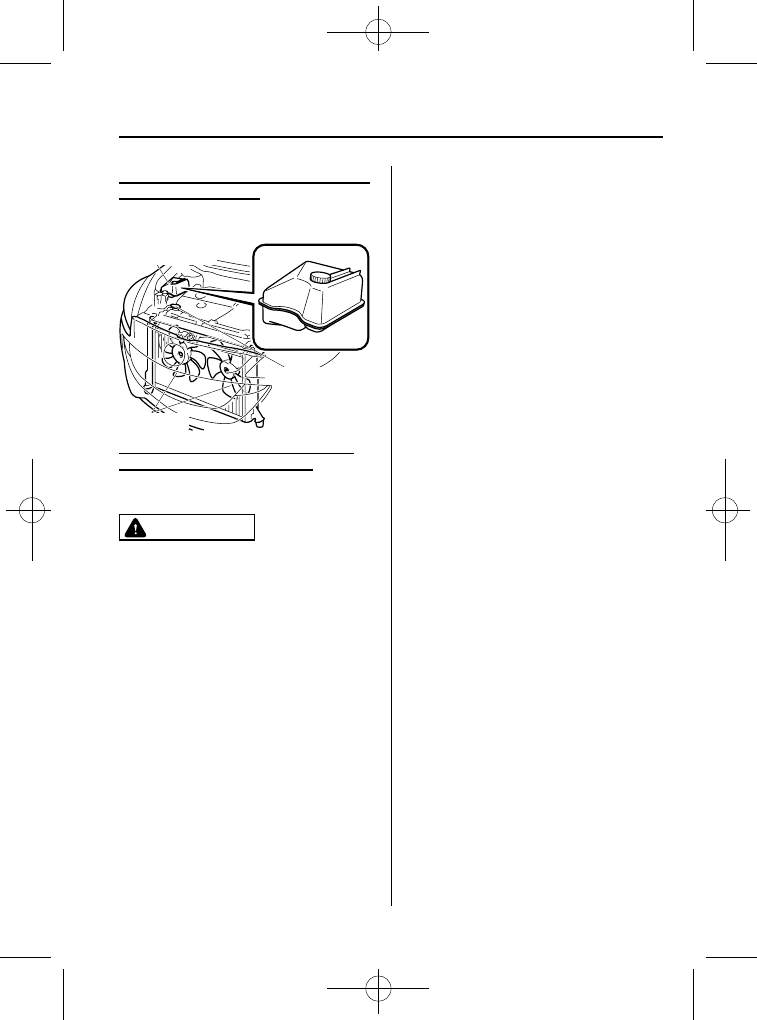

Cooling system cap

Cooling fan

Coolant reservoir

If you find no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
8-12).

CAUTION

If the engine continues to overheat or
frequently overheats, have the
cooling system inspected. The engine
could be seriously damaged unless
repairs are made. Consult an
Authorized Mazda Dealer.

In Case of an Emergency

Overheating

7-15

Mazda5_8FN4-EA-16G_Edition1 Page323
Monday, May 23 2016 7:36 PM

Black plate (324,1)

Starting a Flooded Engine

If the engine fails to start, it may be
flooded (excessive fuel in the engine).

Follow this procedure:

1. If the engine does not start within five

seconds on the first try, switch the
ignition off, wait ten seconds and try
again.

2. Make sure the parking brake is on.

3. Depress the accelerator all the way and

hold it there.

4. Depress the clutch pedal (Manual

transaxle) or the brake pedal
(Automatic transaxle).

5. Switch the ignition to START and hold

it there

―for up to ten seconds. If the

engine starts, release the key and
accelerator immediately because the
engine will suddenly rev up.

6. If the engine fails to start, crank it

without depressing the accelerator

―for

up to ten seconds.

If the engine still does not start using the
above procedure, have your vehicle
inspected by an Authorized Mazda
Dealer.

7-16

In Case of an Emergency

Emergency Starting

Mazda5_8FN4-EA-16G_Edition1 Page324
Monday, May 23 2016 7:36 PM

Black plate (325,1)

Jump-Starting

Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.

WARNING

Follow These Precautions Carefully:

To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.

Always wear eye protection when working near the battery:

Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID
which could cause blindness if splashed into your eyes. Also, hydrogen gas produced
during normal battery operation, could ignite and cause the battery to explode.

Wear eye protection and protective gloves to prevent contact with battery

fluid:

Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in
eyes, skin or clothing. If this happens, immediately flush your eyes with water for 15
minutes or wash your skin thoroughly and get medical attention.

Always keep batteries out of the reach of children:

Allowing children to play near batteries is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or on the skin.

Do not allow the positive (

) terminal to contact any other metal object that

could cause sparks:

Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a
battery, do not allow metal tools to contact the positive (

) or negative ( )

terminal of the battery.

In Case of an Emergency

Emergency Starting

7-17

Mazda5_8FN4-EA-16G_Edition1 Page325
Monday, May 23 2016 7:36 PM

Black plate (326,1)

Keep all flames, including cigarettes, and sparks away from open battery cells:

Do not jump-start a frozen battery or one with a low fluid level:

Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.

Connect the negative cable to a good ground point away from the battery:

Connecting the end of the second jumper cable to the negative ( ) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.

Route the jumper cables away from parts that will be moving:

Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury.

CAUTION

Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).

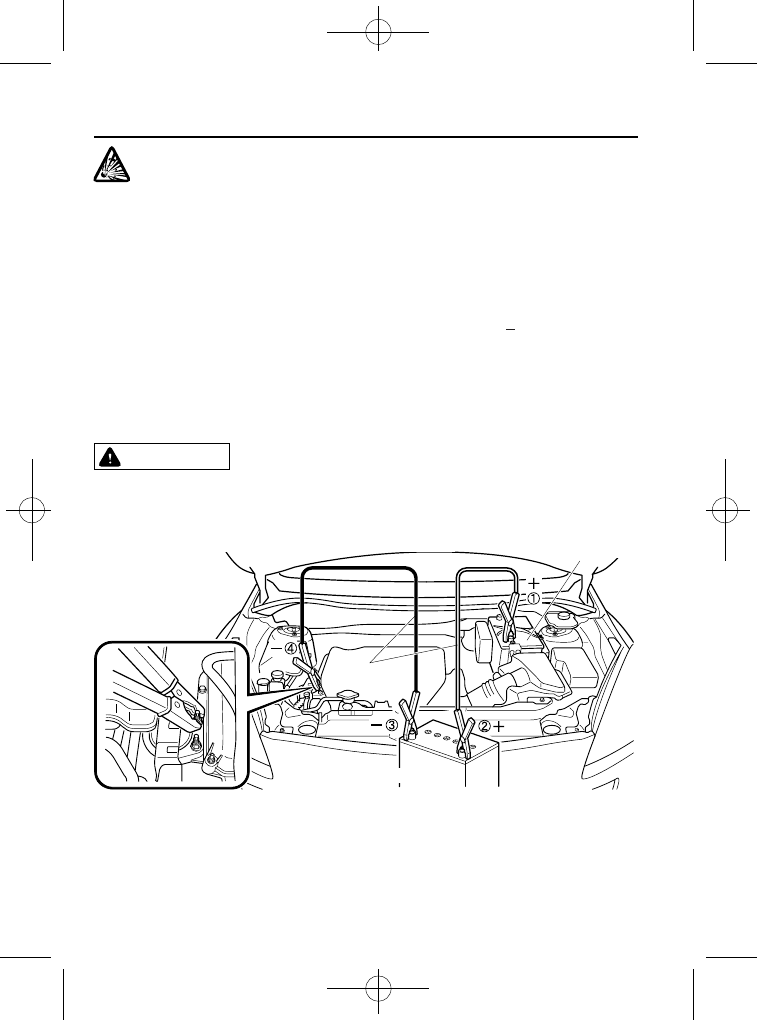

Jumper cables

Connect cables in numerical order and disconnect in reverse order.

Discharged battery

Booster battery

7-18

In Case of an Emergency

Emergency Starting

Mazda5_8FN4-EA-16G_Edition1 Page326
Monday, May 23 2016 7:36 PM

Black plate (327,1)

1. Remove the battery cover from its front

side.

CAUTION

Ø Do not use a tool which applies

excessive force such as a
screwdriver or pliers.
If excessive force is applied to the
clips, they could be damaged.
To prevent damaging the battery
cover, remove/install the battery
cover using the following
procedure.

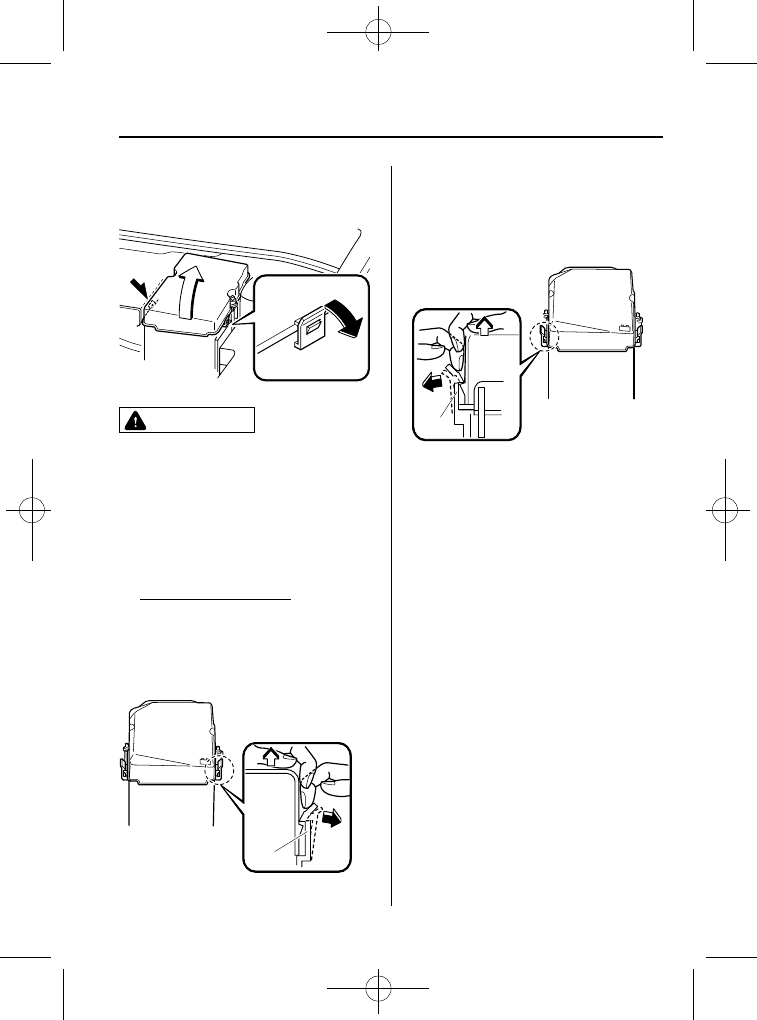

Removing battery cover
1 Detach the clip facing the side of

the vehicle first and pull it outward
with your finger approx. 4 mm (0.2
in). Then, lift the cover slightly to
clear the lock.

Clip

2 Detach the clip facing the vehicle

interior first and pull it outward
with your finger approx. 4 mm (0.2
in). Then, lift the cover slightly to
clear the lock.

Clip

In Case of an Emergency

Emergency Starting

7-19

Mazda5_8FN4-EA-16G_Edition1 Page327
Monday, May 23 2016 7:36 PM

Mazda 5 (2017 year). Instruction - part 20
