Mazda 5 (2017 year). Instruction - part 6

Black plate (88,1)

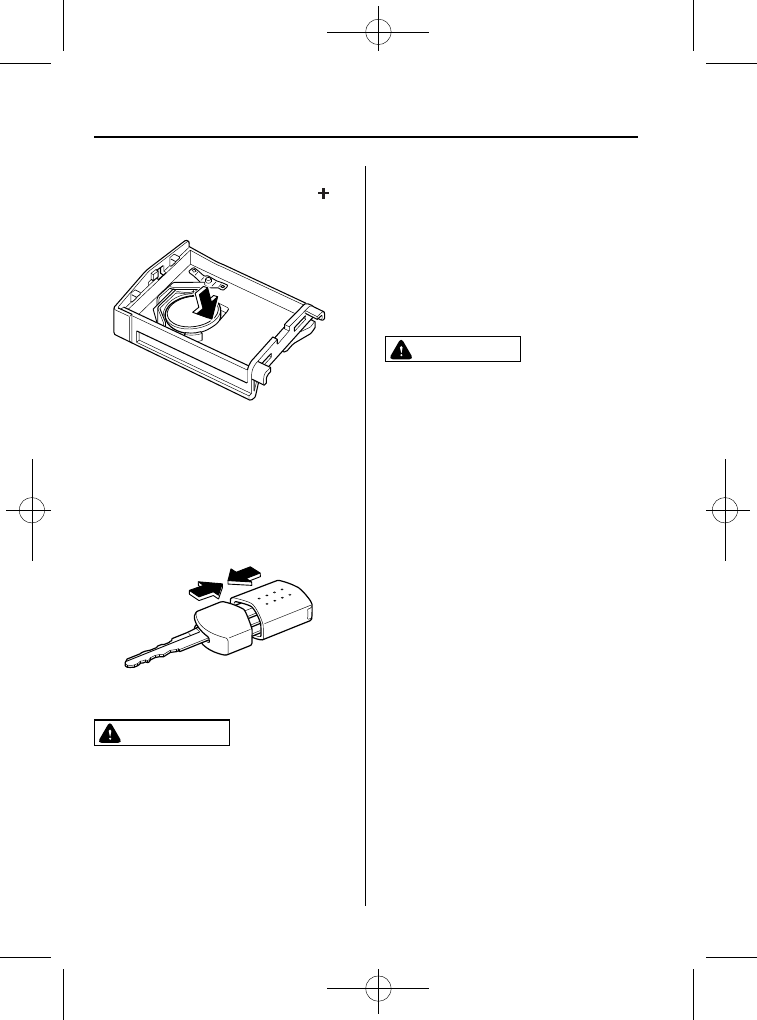

5. Put in the new battery (CR1620 or

equivalent) with the positive pole (

)

facing down.

6. Align the front and back covers and

snap the transmitter shut.

7. Align the key with the transmitter as

shown in the figure, and insert the key
until a click sound is heard.

CAUTION

Insert the key into the transmitter
securely until a click sound is heard.
If it is not inserted securely, it could
detach from the transmitter.

qService

If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.

If your transmitter is lost or stolen, consult
an Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.

CAUTION

Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.

3-8

Knowing Your Mazda

Doors and Locks

Mazda5_8FN4-EA-16G_Edition1 Page88
Monday, May 23 2016 7:34 PM

Black plate (89,1)

Door Locks

WARNING

Always take all children and pets with
you or leave a responsible person with
them:

Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.

Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:

Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.

Keep all doors locked when driving:

Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.

Always close all the windows and the
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended:

Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.

After closing the doors, always verify
that they are securely closed:

Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident.

Always confirm the safety around the
vehicle before opening a door:

Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.

CAUTION

Always confirm the conditions
around the vehicle before opening/
closing the doors and use caution
during strong winds or when parked
on an incline. Not being aware of the
conditions around the vehicle is
dangerous because fingers could get
caught in the door or a passing
pedestrian could be hit, resulting in
an unexpected accident or injury.

Knowing Your Mazda

Doors and Locks

3-9

Mazda5_8FN4-EA-16G_Edition1 Page89
Monday, May 23 2016 7:34 PM

Black plate (90,1)

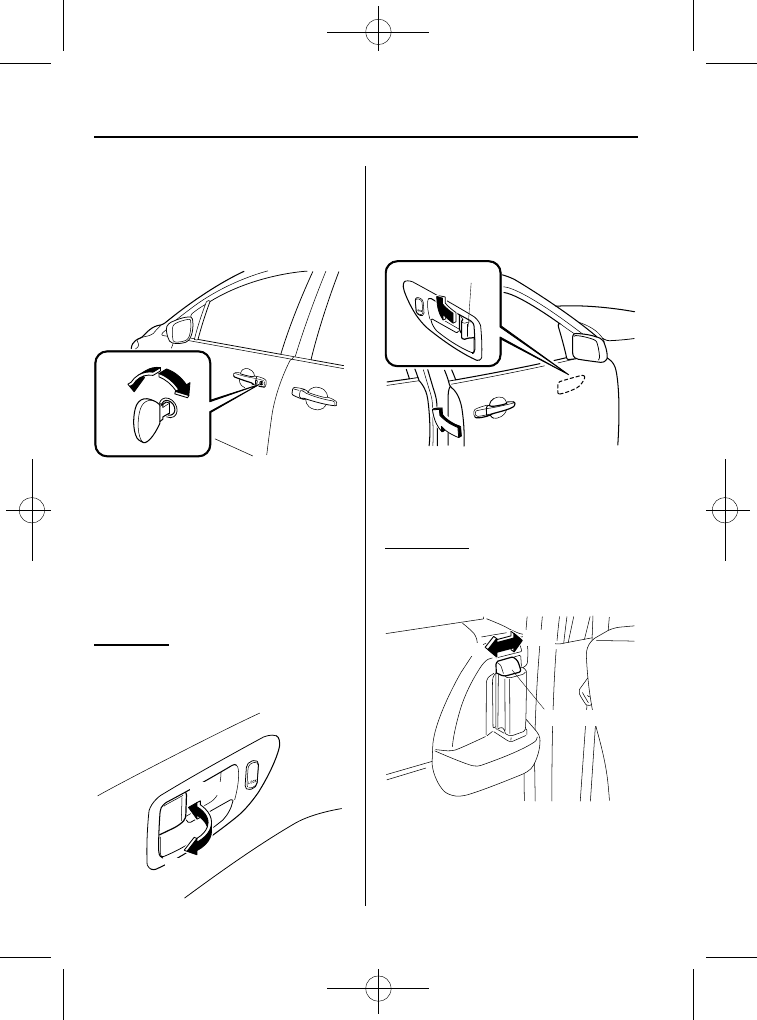

qLocking, Unlocking with Key

The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.

Unlock

Lock

qLocking, Unlocking with Transmitter

The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).

qLocking, Unlocking with Door-

Lock Knob

Front doors

To lock either front door from the inside,
push the door-lock knob.
To unlock, pull it out.

Unlock

Lock

To lock either front door with the door-
lock knob from the outside, push the
door-lock knob to the lock position and
close the door (pulling the door handle is
not required).

Door-lock knob

NOTE

When locking the doors using the door-lock
knob from the outside, be careful not to leave
the key inside the vehicle.

Sliding doors

To lock a sliding door from the inside,
slide the door-lock knob toward the front.
To unlock, slide it toward the back.

Unlock

Lock

Door-lock knob

3-10

Knowing Your Mazda

Doors and Locks

Mazda5_8FN4-EA-16G_Edition1 Page90
Monday, May 23 2016 7:34 PM

Black plate (91,1)

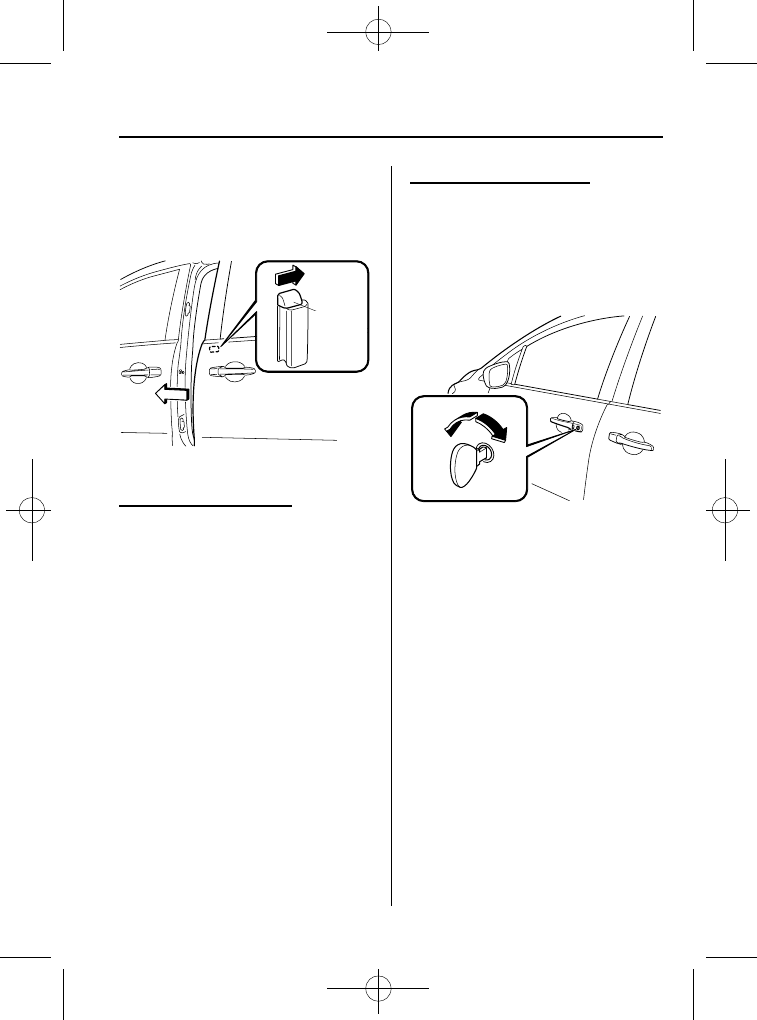

To lock a sliding door with the door-lock
knob from the outside, slide the door-lock
knob toward the front to the lock position
and close the door (pulling the door
handle is not required).

Door-lock
knob

qPower Door Locks

Vehicle lock-out prevention

The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.

Locking, unlocking with key

All doors and the liftgate lock
automatically when the driver's door is
locked with the key.
All doors and the liftgate unlock when the
driver's door is unlocked and the key is
held in the unlock position for one second
or longer.

Unlock

Lock

NOTE

Holding the key in the unlocked position in
the driver's door lock for about a second
unlocks all doors and the liftgate. To unlock
only the driver's door, insert the key into the
driver's door lock and turn the key briefly
to the unlock position and then immediately
return it to the center position.

The system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-8.

Knowing Your Mazda

Doors and Locks

3-11

Mazda5_8FN4-EA-16G_Edition1 Page91
Monday, May 23 2016 7:34 PM

Black plate (92,1)

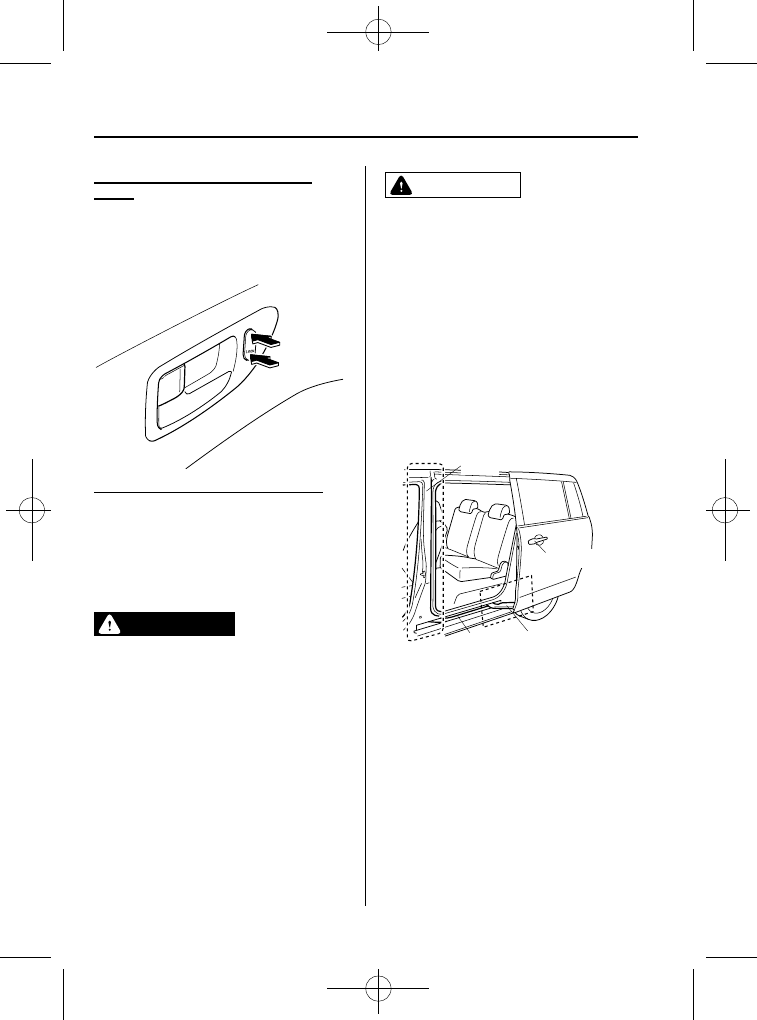

Locking, unlocking with door-lock
switch

All doors and the liftgate lock
automatically when LOCK is pressed.
They all unlock when the unmarked part
of the door-lock switch is pressed.

Unlock

Lock

Locking, unlocking with transmitter

All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-3).

qSliding Door Open/Close

WARNING

Do not leave a sliding door open while
parked on an incline:

Leaving a sliding door open is
dangerous. The door may open
unexpectedly resulting in injury.

CAUTION

When opening/closing a sliding door,
heed the cautions as in the following.
If the cautions are not heeded,
hands, feet, or even a head may be
caught in a door resulting in an
injury.

Ø Use the door handle.

Ø Keep your hands, feet, and head

away from the sliding door
openings.

Ø Make sure that there is nothing

behind the sliding doors.

Ø Keep your hands and feet away

from the sliding door rails, arms
and pillars.

Pillar

Arm

Rail

Door handle

NOTE

When you leave the vehicle, stop the engine
and lock the doors. And do not put valuables
in your vehicle to prevent theft.

3-12

Knowing Your Mazda

Doors and Locks

Mazda5_8FN4-EA-16G_Edition1 Page92
Monday, May 23 2016 7:34 PM

Black plate (93,1)

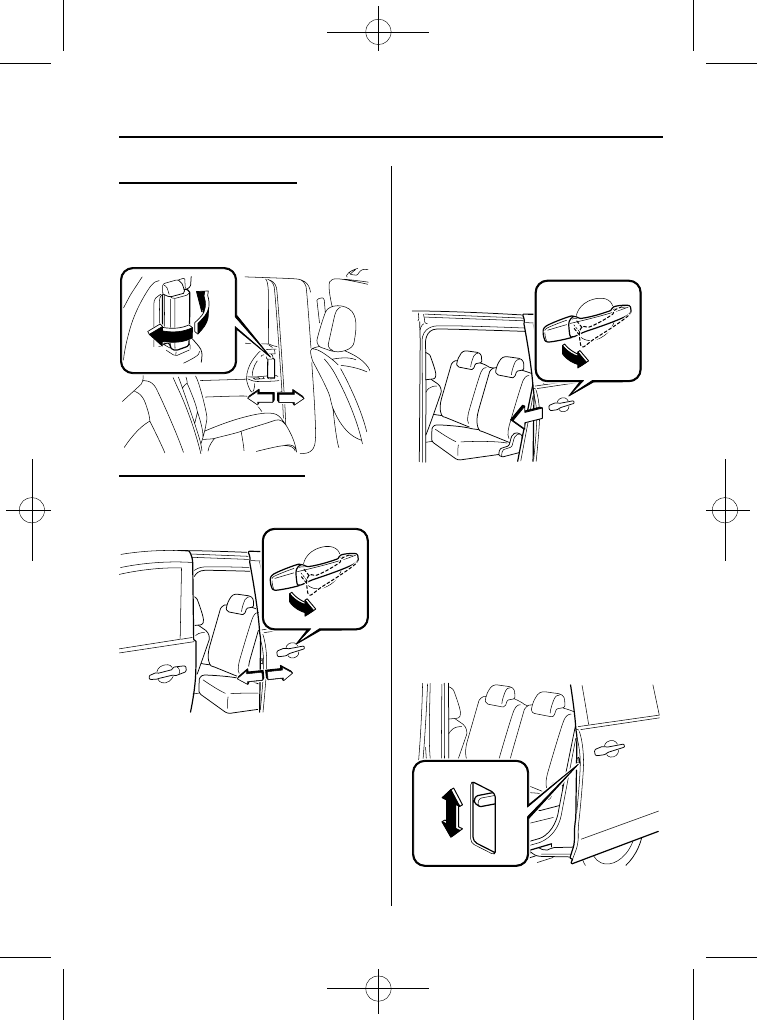

Opening/closing from inside

To open, pull the inner door handle
toward the back.
To close, push the inner door handle
toward the front.

Open

Opening/closing from outside

Pull the outer door handle and slide the
door.

NOTE

The right sliding door cannot fully open when
the fuel-filler lid is open. Close the fuel filler
lid before opening the sliding door.

NOTE

When closing the sliding door from the fully-
opened position and from outside the vehicle,
pull the outside door handle outward to
release the latch, and slide the door toward the
front.

qRear Door Child Safety Locks

These locks are intended to help prevent
children from accidentally opening the
sliding doors. Use them both whenever a
child rides in the vehicle.

If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.

Unlock

Lock

Knowing Your Mazda

Doors and Locks

3-13

Mazda5_8FN4-EA-16G_Edition1 Page93
Monday, May 23 2016 7:34 PM

Black plate (94,1)

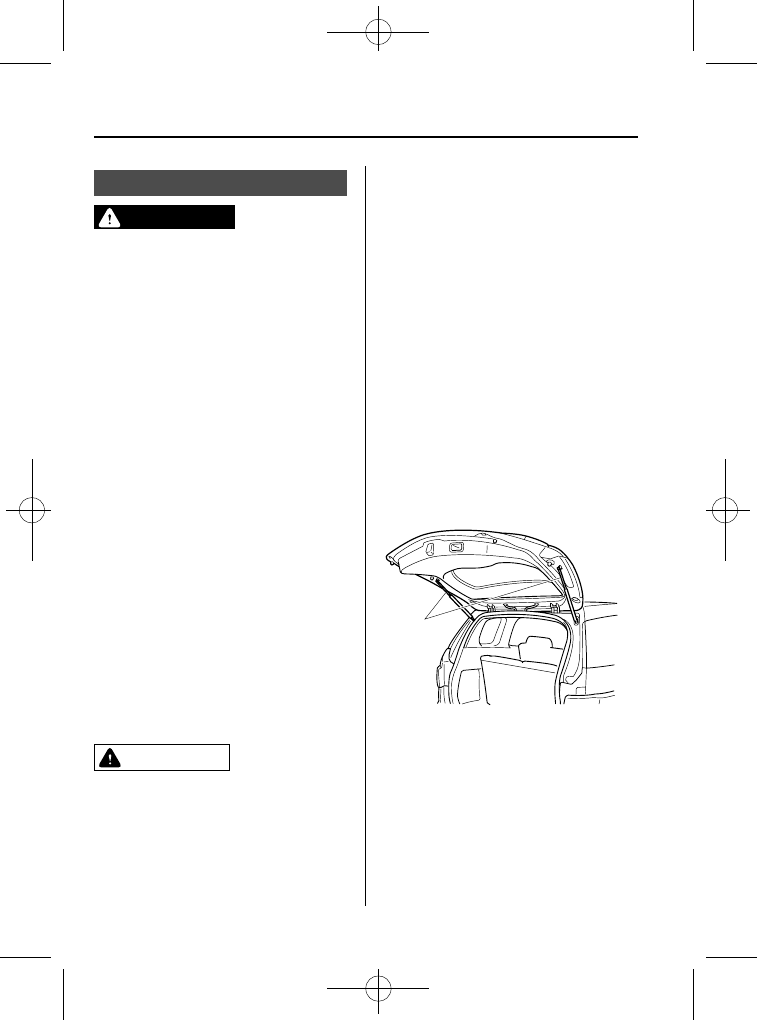

Liftgate

WARNING

Never allow a person to ride in the
luggage compartment:

Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.

Do not drive with the liftgate open:

Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.

Do not stack or leave loaded luggage
unsecured in the luggage
compartment:

Otherwise, the luggage may move or
collapse, resulting in injury or an
accident. In addition, do not load
luggage higher than the seatbacks. It
may affect the side or rear field of
view.

CAUTION

Ø Before opening the liftgate,

remove any snow and ice
accumulation on it. Otherwise, the
liftgate could close under the
weight of the snow and ice
resulting in injury.

Ø Be careful when opening/closing

the liftgate during strong winds. If
a strong gust blows against the
liftgate, it could close suddenly
resulting in injury.

Ø Fully open the liftgate and make

sure that it stays open. If the
liftgate is only opened partially, it
could slam shut by vibration or
wind gusts resulting in injury.

Ø When loading or unloading

luggage in the luggage
compartment, turn off the engine.
Otherwise, you could get burned
by the heat of the exhaust gas.

Ø Be careful not to apply excessive

force to the damper stay on the
liftgate such as by putting your
hand on the stay. Otherwise, the
damper stay may bend and affect
the liftgate operation.

Damper stay

Ø Do not modify or replace the

liftgate damper stay. Consult an
Authorized Mazda Dealer if a
liftgate damper stay is deformed
or damaged for reasons such as a
collision or if there is some other
problem.

3-14

Knowing Your Mazda

Doors and Locks

Mazda5_8FN4-EA-16G_Edition1 Page94
Monday, May 23 2016 7:34 PM

Black plate (95,1)

qLocking, Unlocking with Key

The liftgate can be locked/unlocked by
inserting the key into the driver's door key
cylinder, refer to Power Door Locks (page
3-11).

qLocking, Unlocking with Transmitter

The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).

qLocking, Unlocking with Door-

Lock Switch

The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-11).

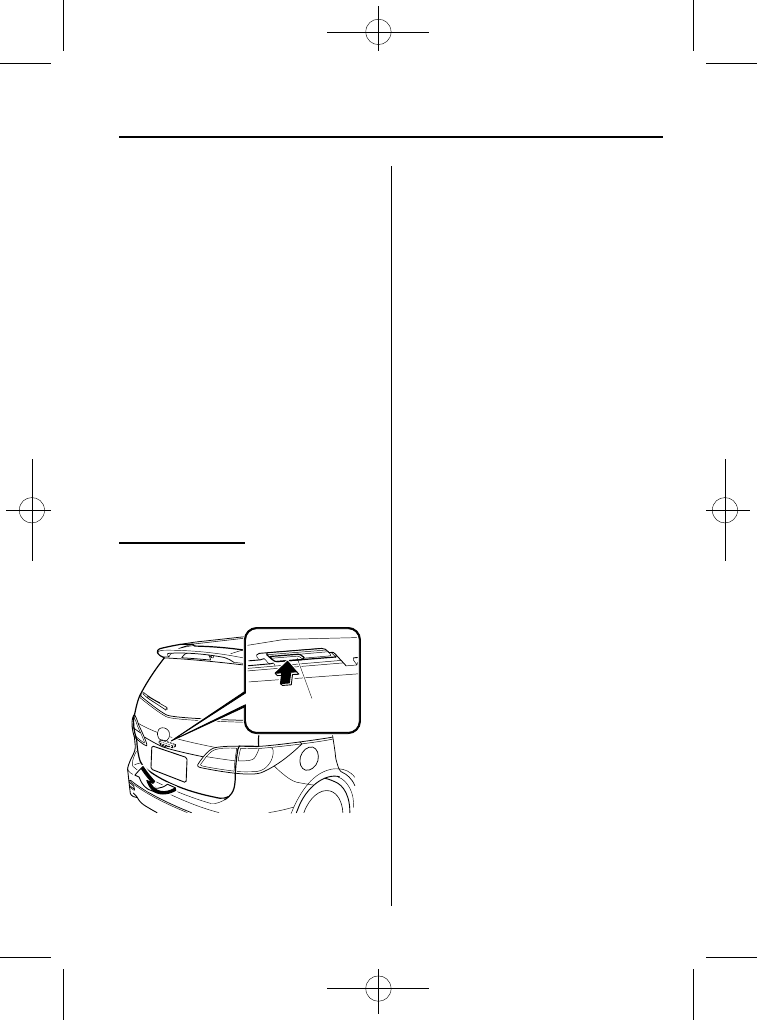

qOpening and Closing the Liftgate

Opening the liftgate

Grasp the lower end of the liftgate, press
the electric liftgate opener on the liftgate,
and then raise the liftgate when the latch
releases.

Electric liftgate
opener

While the ignition is switched ON, the
liftgate can be opened only when the
vehicle is stopped with the parking brake
applied (manual transaxle), or with the
selector lever in the P position (automatic
transaxle).

NOTE

When the liftgate latch is released by
pressing the electric liftgate opener button,
the liftgate raises slightly to allow it to be
opened. If the liftgate is not operated for a
certain period of time after the electric
liftgate opener button has been pressed, the
liftgate cannot be raised any more from its
slightly raised position. Press the electric
liftgate opener button again to fully open
the liftgate. To close the liftgate from its
slightly raised position, open it first by
pressing the electric liftgate opener button
and wait for 1 second or longer, then close
it.
If the liftgate is not fully closed, the driver
is notified by a warning indicated in the
instrument cluster.

The sound of the latch may be heard for a
few seconds after the electric liftgate
opener has been pressed, however, this does
not indicate a malfunction.

Knowing Your Mazda

Doors and Locks

3-15

Mazda5_8FN4-EA-16G_Edition1 Page95
Monday, May 23 2016 7:34 PM

Black plate (96,1)

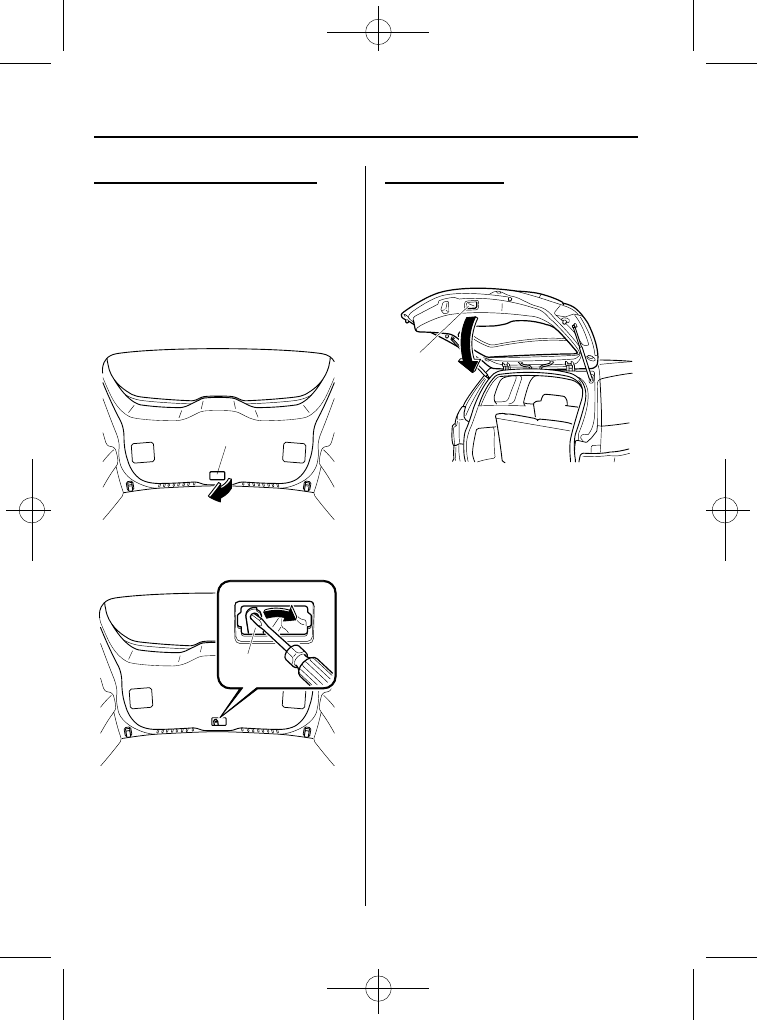

When the liftgate cannot be opened

If the vehicle battery is dead or there is a
malfunction in the electrical system and
the liftgate cannot be unlocked, perform
the following procedure as an emergency
measure to unlock it:

1. Remove the cap on the interior surface

of the liftgate with a flathead
screwdriver.

Cover

2. Turn the lever to the right to unlock the

liftgate.

Lever

After performing this emergency measure,
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.

Closing the liftgate

To close, lower the liftgate slowly using
the liftgate grip recess, and then push the
liftgate closed using both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.

Liftgate grip
recess

3-16

Knowing Your Mazda

Doors and Locks

Mazda5_8FN4-EA-16G_Edition1 Page96
Monday, May 23 2016 7:34 PM

Black plate (97,1)

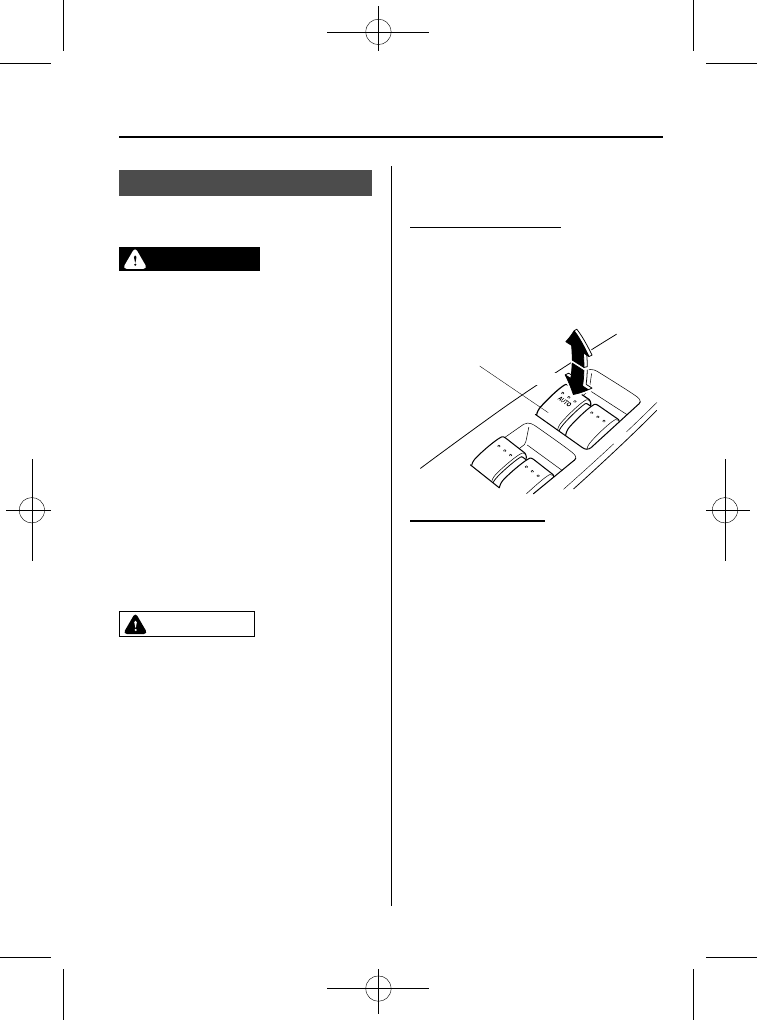

Power Windows

The ignition must be switched ON for the
power windows to operate.

WARNING

Make sure the opening is clear before
closing a window:

Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.

Never allow children to play with
power window switches:

Power window switches that are not
locked with the power window lock
switch would allow children to
operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.

CAUTION

To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.

qOperating the Driver's Side

Power Window

Normal opening/closing

To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.

Open

Driver's window

Master control switches

Auto-opening/closing

To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.

To stop the window partway, pull or press
the switch in the opposite direction and
then release it.

Knowing Your Mazda

Doors and Locks

3-17

Mazda5_8FN4-EA-16G_Edition1 Page97
Monday, May 23 2016 7:34 PM

Black plate (98,1)

Power window system initialization
procedure

If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically. Carry out the following
procedure to resume operation:

1. Switch the ignition ON.

2. Press the switch and fully open the

window.

3. Pull up the switch to fully close the

window and continue holding the
switch for about 2 seconds after the
window fully closes.

Two-step down function

With the window completely closed, press
the switch lightly and the window will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.

NOTE

Pressing the power window switch once
when the window is fully closed will only
open it about 3 cm (1 in) to allow
convenient ventilation of the cabin.

The two-step down function can be
canceled.
Refer to Personalization Features on page
10-8.

Jam-safe window

If a person's hands, head or an object
blocks the window during the auto-
closing operation, the window will stop
and open halfway.

WARNING

Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:

Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.

NOTE

Depending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is similar
to something blocking it.
In the event the jam-safe function activates and
the power window cannot be closed
automatically, pull and hold the switch and the
window will close.

Engine-off power window operation

The power window can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will be inoperable.

NOTE

For engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.

The two-step down function is inoperable
during engine-off operation.

3-18

Knowing Your Mazda

Doors and Locks

Mazda5_8FN4-EA-16G_Edition1 Page98
Monday, May 23 2016 7:34 PM

Black plate (99,1)

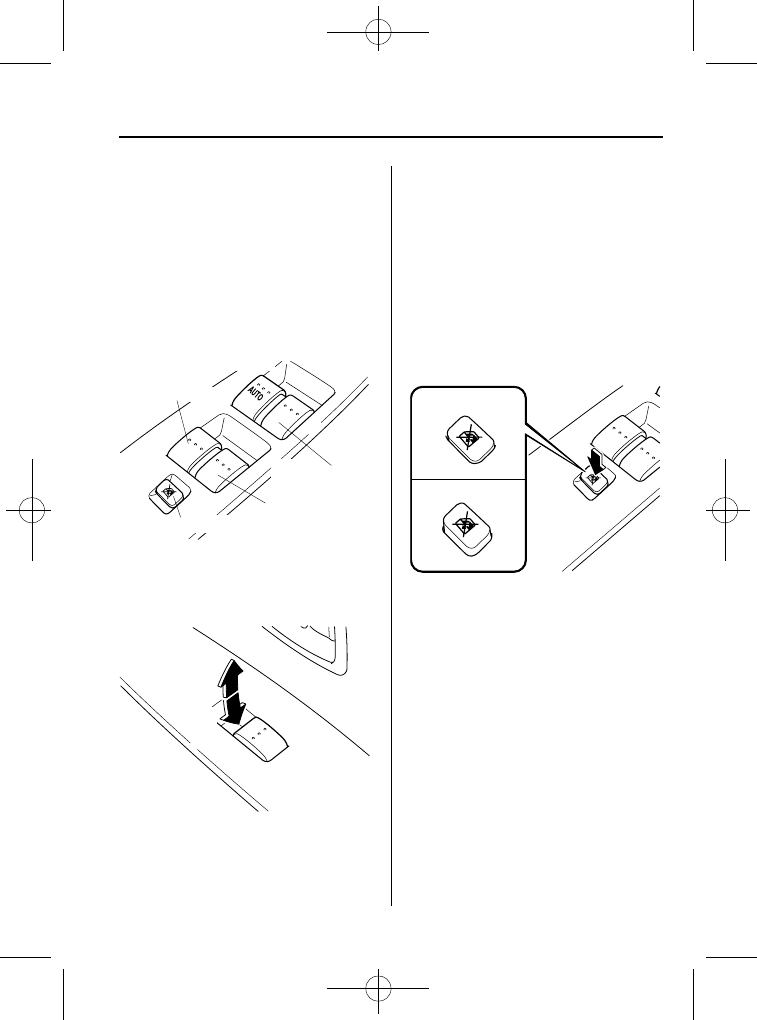

qOperating the Passenger Power

Windows

The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.

The passenger windows may be opened or
closed using the master control switches
on the driver's door.

Power window lock switch

Front passenger's
window

Right rear window

Left rear window

Master control switches

To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.

Open

qPower Window Lock Switch

This feature prevents all power windows
from operating, except the driver's power
window. Keep this switch in the locked
position while children are in the vehicle.
Locked position (button depressed):
Only the driver's power window can be
operated.
Unlocked position (button not
depressed):
All power windows on each door can be
operated.

Locked position

Unlocked position

Knowing Your Mazda

Doors and Locks

3-19

Mazda5_8FN4-EA-16G_Edition1 Page99
Monday, May 23 2016 7:34 PM

Black plate (100,1)

Fuel-Filler Lid and Cap

WARNING

When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:

Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.

Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:

Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.

Do not continue refueling after the fuel
pump nozzle shuts off automatically:

Continuing to add fuel after the fuel
pump nozzle has shut off
automatically is dangerous because
overfilling the fuel tank may cause
fuel overflow or leakage. Fuel
overflow and leakage could damage
the vehicle and if the fuel ignites it
could cause a fire and explosion
resulting in serious injury or death.

CAUTION

Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.

qFuel-Filler Lid

To open, pull up the remote fuel-filler lid
release.

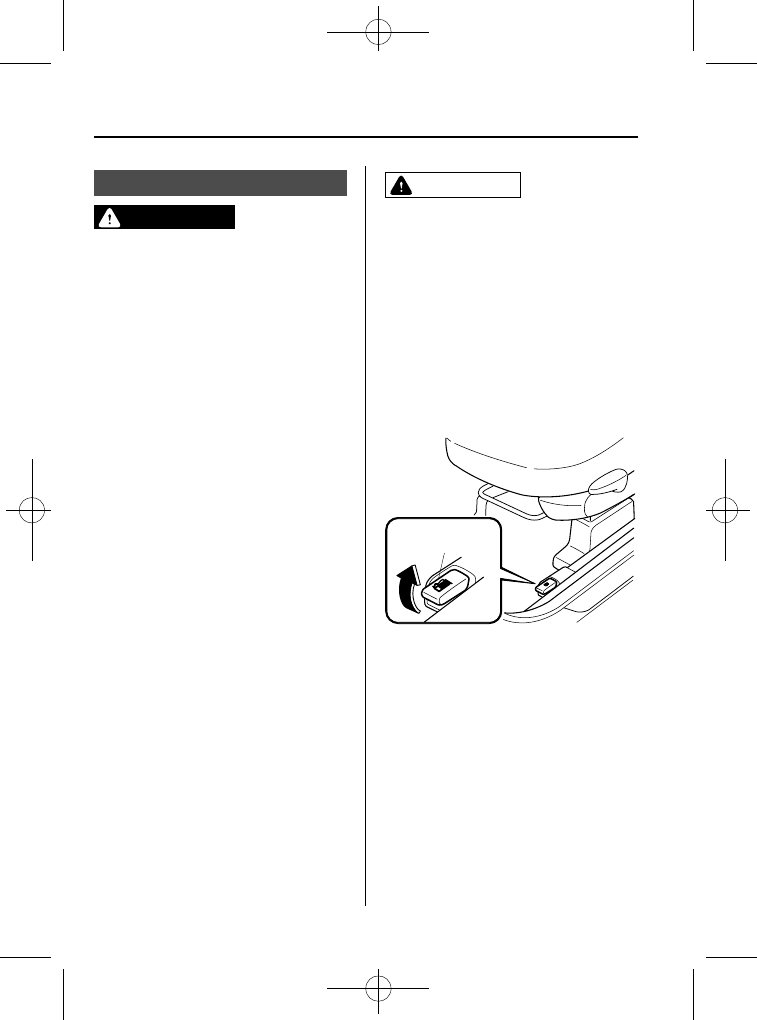

Remote fuel-filler
lid release

NOTE

The fuel-filler lid cannot be opened when the
right-side sliding door is open. Close the
sliding door to open the fuel-filler lid.

qFuel-Filler Cap

To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.

3-20

Knowing Your Mazda

Doors and Locks

Mazda5_8FN4-EA-16G_Edition1 Page100
Monday, May 23 2016 7:34 PM

Black plate (101,1)

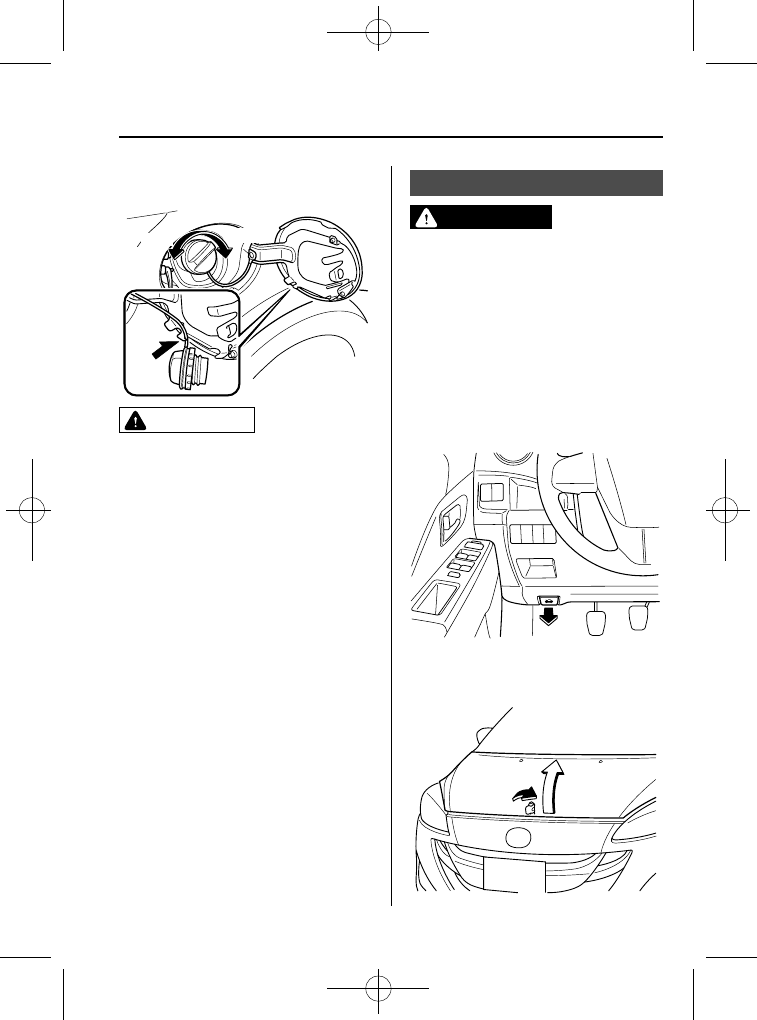

To close the fuel-filler cap, turn it
clockwise until a click is heard.

Open

CAUTION

Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap is
not tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven,
and restarted the engine several
times), it may indicate a different
problem. Contact an Authorized
Mazda Dealer as soon as possible.

Hood

WARNING

Always check that the hood is closed
and securely locked:

A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.

qOpening the Hood

1. With the vehicle parked, pull the

release handle to unlock the hood.

2. Insert your hand into the hood opening,

slide the hood latch lever, and lift the
hood.

Knowing Your Mazda

Doors and Locks

3-21

Mazda5_8FN4-EA-16G_Edition1 Page101
Monday, May 23 2016 7:34 PM

Black plate (102,1)

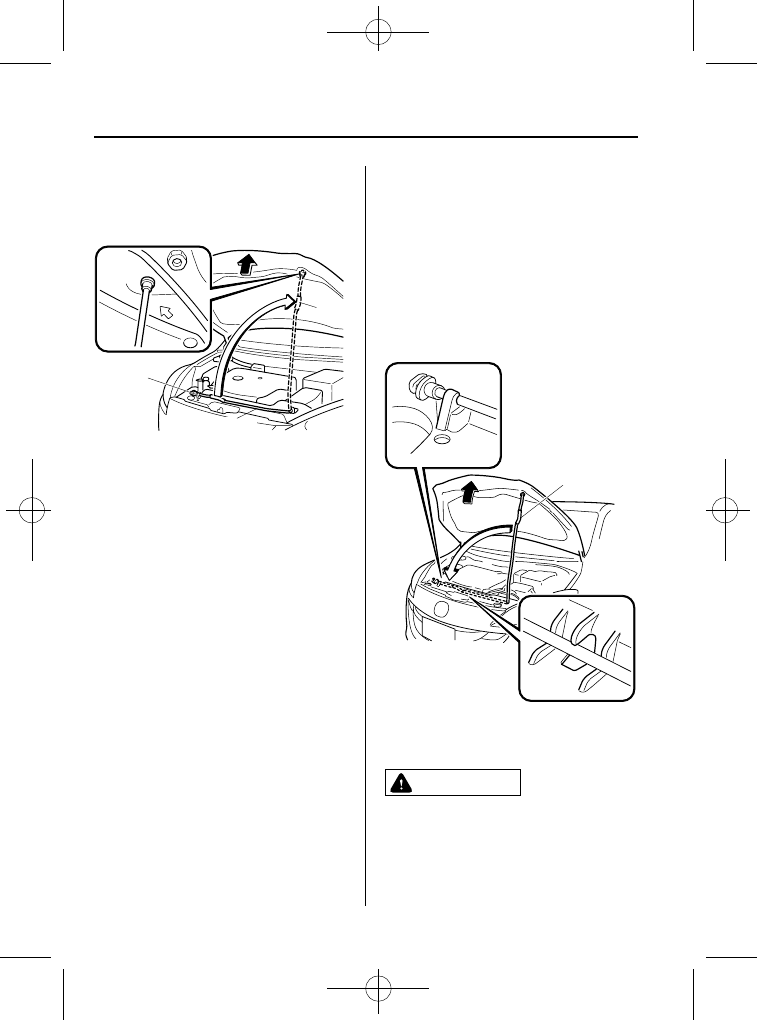

3. Grasp the support rod in the padded

area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.

Support rod

Clip

Pad

qClosing the Hood

1. Check under the hood area to make

certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.

2. Lift the hood, grasp the padded area on

the support rod, and secure the support
rod in the clip. Verify that the support
rod is secured in the clip before closing
the hood.

Pad

3. Lower the hood slowly to a height of

about 20 cm (7.9 in) above its closed
position and then let it drop.

CAUTION

When closing the hood, do not push
it excessively such as by applying
your weight. Otherwise, the hood
could be deformed.

3-22

Knowing Your Mazda

Doors and Locks

Mazda5_8FN4-EA-16G_Edition1 Page102
Monday, May 23 2016 7:34 PM

Black plate (103,1)

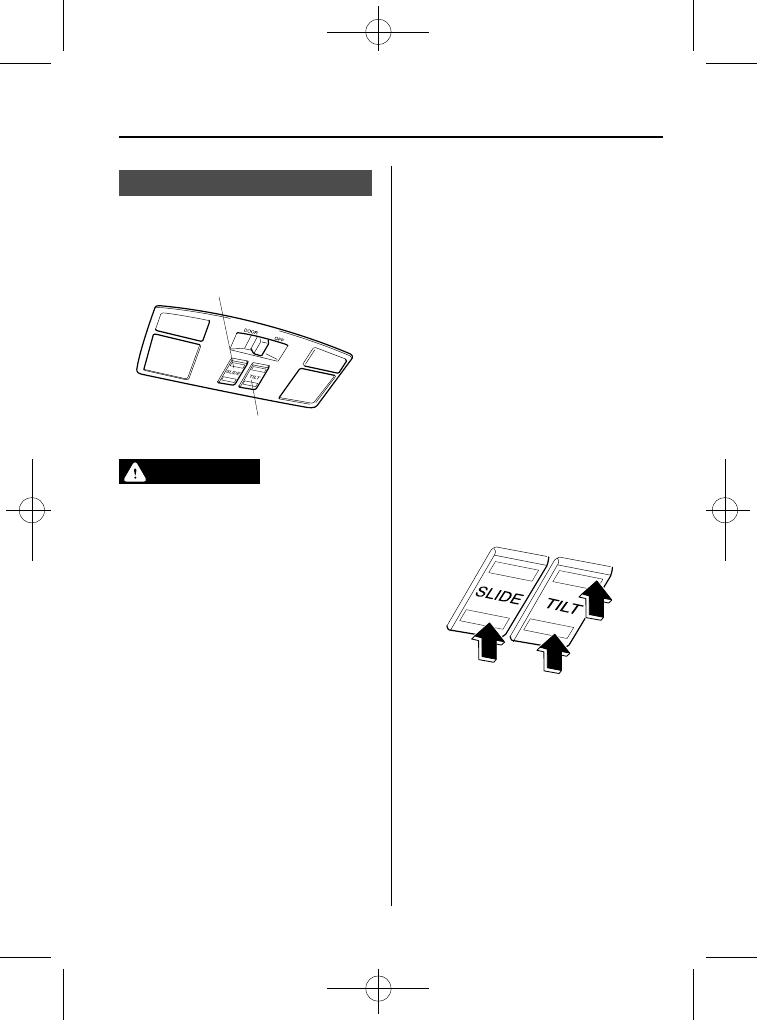

Moonroof

The moonroof can be opened or closed
electrically only when the ignition is
switched ON.

Tilt switch

Slide switch

WARNING

Do not let passengers stand up or
extend part of their body through the
open moonroof while the vehicle is
moving:

Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.

Make sure the opening is clear before
closing the moonroof:

A closing moonroof is dangerous. The
hands, head, or even neck of a
person, especially a child, could be
caught in it as it closes, causing
serious injury or even death.

NOTE

Before washing your Mazda, make sure the
moonroof is completely closed so that water
does not get inside the cabin area. After
washing your Mazda or after it rains, wipe the
water off the moonroof before operating it to
avoid water penetration which could cause
rust and water damage to your headliner.

qTilt Operation

The rear of the moonroof can be tilted
open to provide more ventilation.

To fully tilt automatically, momentarily
press the rear of the tilt switch.
To stop tilting partway, press any part of
the tilt or slide switch.

To close to the desired position, press the
front of the tilt or slide switch.

Tilt up

qSlide Operation

To fully open automatically, momentarily
press the rear of the slide switch.
To stop sliding partway, press any part of
the tilt or slide switch.

Knowing Your Mazda

Doors and Locks

3-23

Some models.

Mazda5_8FN4-EA-16G_Edition1 Page103
Monday, May 23 2016 7:34 PM

Content .. 4 5 6 7 ..
