Limitations to SRS Air Bag

In severe collisions such as those described previously in

“SRS Air Bag Deployment

Criteria

”, the applicable SRS air bag equipment will deploy. However, in some accidents,

the equipment may not deploy depending on the type of collision and its severity.

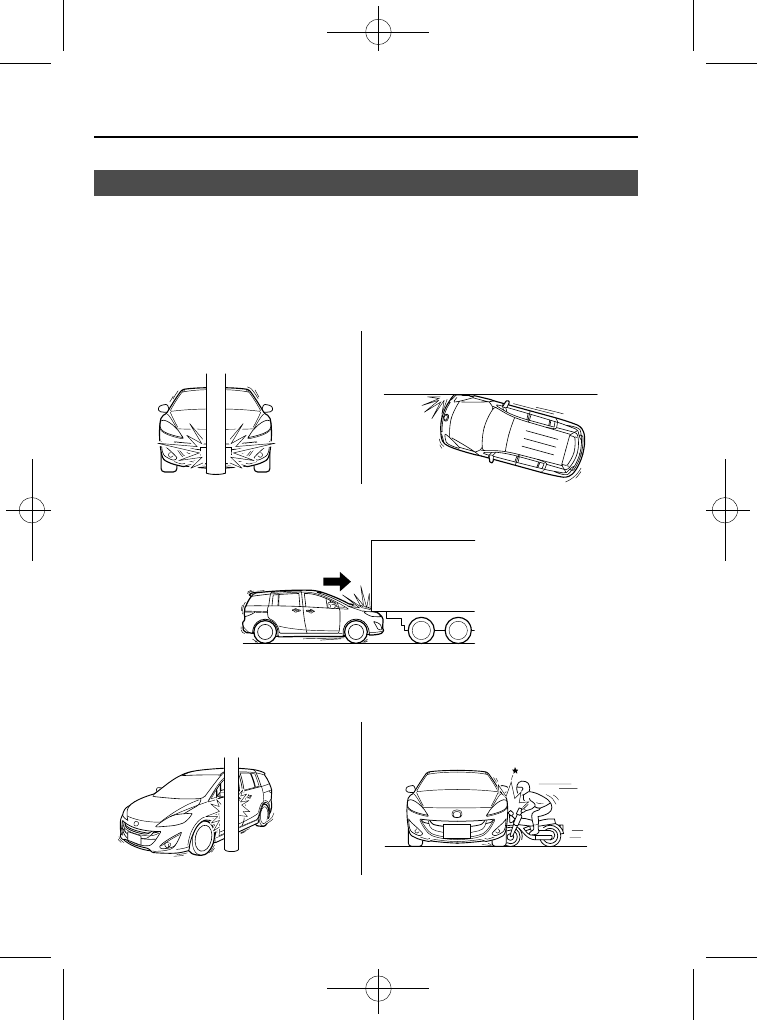

Limitations to front/near front collision detection:
The following illustrations are examples of front/near front collisions that may not be
detected as severe enough to deploy the SRS air bag equipment.

Impacts involving trees or poles

Frontal offset impact to the vehicle

Rear-ending or running under a truck's tail gate

Limitations to side collision detection:
The following illustrations are examples of side collisions that may not be detected as
severe enough to deploy the SRS air bag equipment.

Side impacts involving trees or poles

Side impacts with two-wheeled vehicles

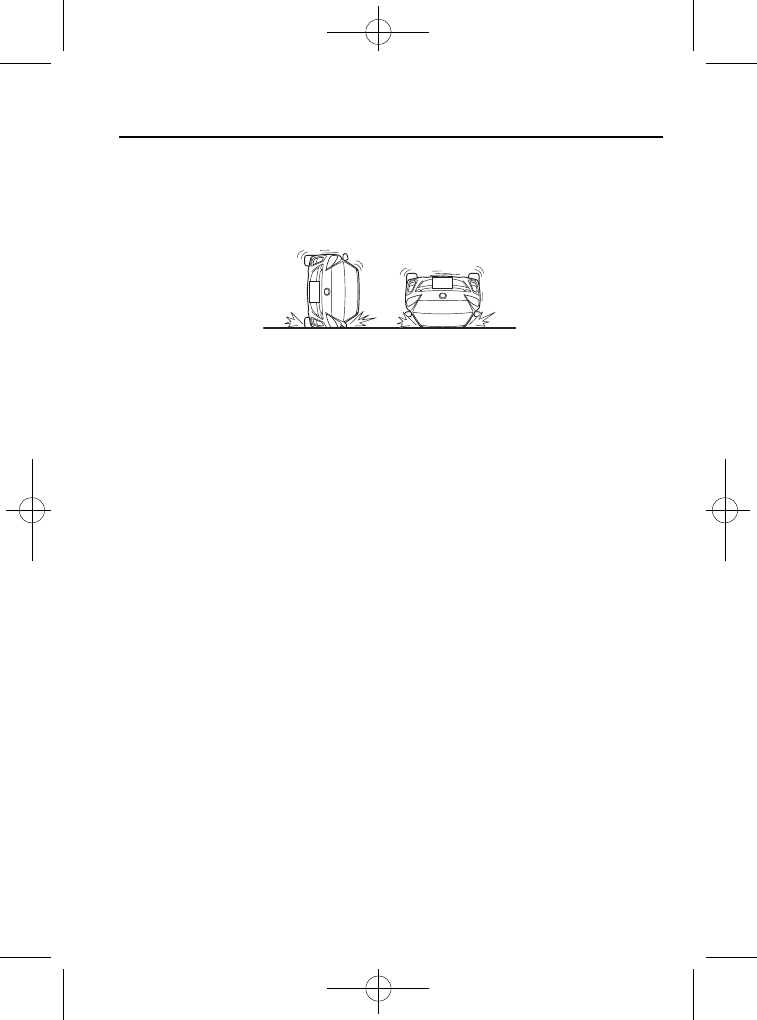

2-60

SRS Air Bags

Mazda5_8FN4-EA-16G_Edition1 Page72
Monday, May 23 2016 7:33 PM

Black plate (74,1)

Driver and Front Passenger Occupant Classification System

First, please read

“Supplemental Restraint System (SRS) Precautions” (page 2-47)

carefully.

qDriver Seat Slide Position Sensor

Your vehicle is equipped with a driver seat slide position sensor as a part of the
supplemental restraint system. The sensor is located under the driver seat. The sensor
determines whether the driver seat is fore or aft of a reference position and sends the seat
position to the diagnostic module (SAS unit). The SAS unit is designed to control the
deployment of the driver air bag depending on how close the driver seat is to the steering
wheel.
The air bag/front seat belt pretensioner system warning light flashes if the sensor has a
possible malfunction (page 2-58).

qFront Passenger Seat Weight Sensors

Your vehicle is equipped with a front passenger seat weight sensors as a part of the
supplemental restraint system. These sensors are located under both of the front passenger
seat rails. These sensors determine the total seated weight on the front passenger seat and
monitor the seat belt buckle for the front passenger seat. The SAS unit is designed to
prevent the front passenger front and side air bags and seat belt pretensioner system from
deploying if the front passenger air bag deactivation indicator light illuminates.
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
system deactivates the front passenger front and side air bags and also the seat belt
pretensioner system when the front passenger air bag deactivation indicator light
illuminates. Refer to the following table for the front passenger air bag deactivation
indicator light illumination conditions.

This system shuts off the front passenger front and side air bags and seat belt pretensioner
system, so make sure the front passenger air bag deactivation indicator light illuminates
according to the following table.

The air bag/front seat belt pretensioner system warning light flashes and the front
passenger air bag deactivation indicator light illuminates if the sensors have a possible
malfunction. If this happens, the front passenger front and side air bags and seat belt
pretensioner system will not deploy.

2-62

Some models.

SRS Air Bags

Mazda5_8FN4-EA-16G_Edition1 Page74
Monday, May 23 2016 7:34 PM

Black plate (75,1)

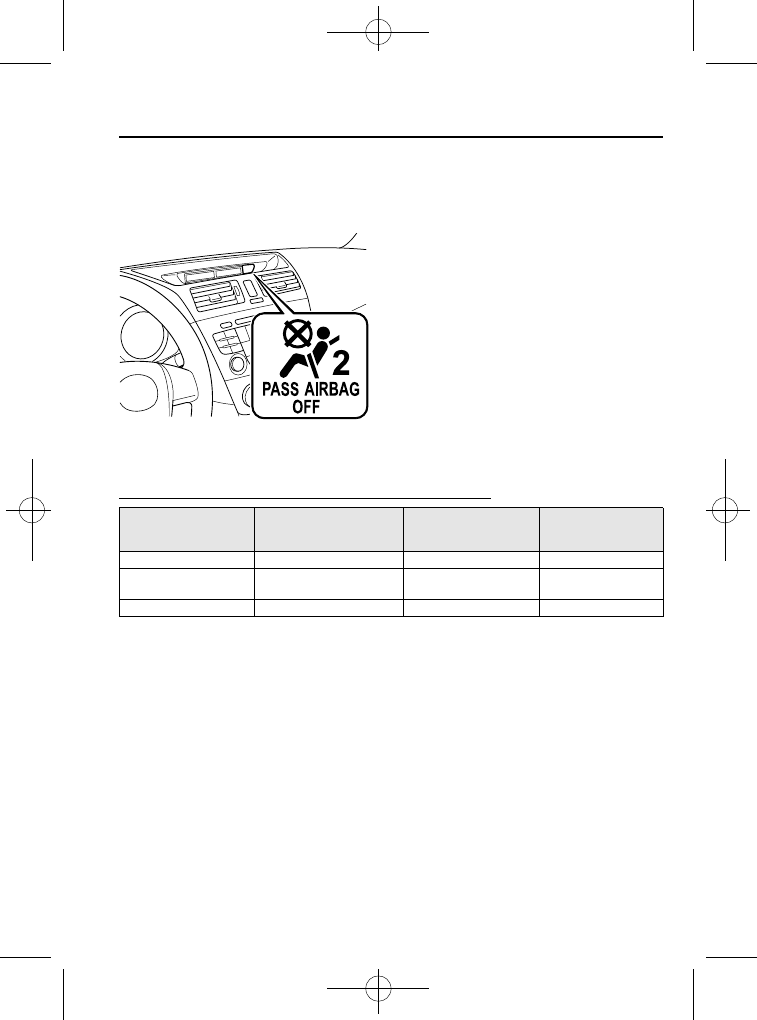

Front passenger air bag deactivation indicator light

This indicator light illuminates to remind you that the front passenger front and side air
bags and seat belt pretensioner will not deploy during a collision.

If the front passenger weight sensors are normal, the indicator light illuminates when the
ignition is switched ON. The light turns off after a few seconds. Then, the indicator light
illuminates or is off under the following conditions:

Front passenger air bag deactivation indicator light on/off condition chart

Condition detected by the
front passenger occupant

classification system

Front passenger air bag

deactivation indicator light

Front passenger front and

side air bags

Front passenger seat

belt pretensioner

system

Empty (Not occupied)

Off

Deactivated

Child or child-restraint
system

Deactivated

Adult

Off

Ready

*1 : If the front passenger seat belt is buckled, the front passenger air bag deactivation indicator light illuminates,

however this does not indicate a malfunction.

*2 : If a larger child sits on the front passenger seat, the sensors might detect the child as being an adult depending

on the child's physique.

*3 : If a smaller adult sits on the front passenger seat, the sensors might detect the person as being a child

depending on the person's physique.

The curtain air bag is ready for inflating regardless of what the front passenger air bag deactivation indicator light
on/off condition chart indicates.

If the front passenger air bag deactivation indicator light does not illuminate when the
ignition is switched ON and does not illuminate as indicated in the front passenger air bag
deactivation indicator light on/off condition chart, do not allow a child to sit in the front
passenger seat and consult an Authorized Mazda Dealer as soon as possible. The system
may not work properly in an accident.

SRS Air Bags

2-63

Mazda5_8FN4-EA-16G_Edition1 Page75
Monday, May 23 2016 7:34 PM

Black plate (76,1)

WARNING

Do not decrease the total seated weight on the front passenger seat:

When an adult or large child sits on the front passenger seat, decreasing the total
seated weight on the front passenger seat required for air bag deployment is
dangerous. The front passenger seat weight sensors will detect the reduced total
seated weight condition and the front passenger front and side air bags and seat
belt pretensioner system will not deploy during an accident. The front passenger will
not have the supplementary protection of the air bag, which could result in serious
injury. Decreasing the total seated weight on the front passenger seat could result in
an air bag not deploying under the following conditions, for example:

Ø A rear passenger pushes up on the front passenger seat with their feet.

Ø Luggage or other items placed under the front passenger seat or between the

front passenger seat and driver seat that push up the front passenger seat
bottom.

Ø The front passenger seat occupant sits in a manner that does not place the entire

weight of the occupant on the seat such as by sitting too close to the door,
grasping the assist grip or the rim of the moonroof and sitting with the seatback
reclined too far.

Ø Any accessories which might decrease the total seated weight on the front

passenger seat are attached to the front passenger seat.

The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the front passenger air bag deactivation indicator light illuminates.

2-64

SRS Air Bags

Mazda5_8FN4-EA-16G_Edition1 Page76
Monday, May 23 2016 7:34 PM

Black plate (77,1)

Do not increase the total seated weight on the front passenger seat:

When an infant or small child sits on the front passenger seat, increasing the total
seated weight on the front passenger seat is dangerous. The front passenger seat
weight sensors will detect the increased total seated weight, which could result in the
unexpected deployment of the front passenger front and side air bags and seat belt
pretensioner system in an accident and may cause serious injury. Increasing the total
seated weight on the front passenger seat could result in the front passenger front
and side air bags and seat belt pretensioner system deployment in an accident under
the following conditions, for example:

Ø Luggage or other items are placed on the seat with the child in the child-restraint

system.

Ø A rear passenger or luggage push or pull down on the front passenger seatback.

Ø A rear passenger steps on the front passenger seat rails with their feet.

Ø Luggage or other items are placed on the seatback or hung on the head restraint

or armrest.

Ø Heavy items are placed in the seatback map pocket.

Ø The seat is washed.

Ø Liquids are spilled on the seat.

Ø The front passenger seat is moved backward, pushing into luggage or other items

placed behind it.

Ø The front passenger seatback contacts the second-row seat.

Ø Luggage or other items are placed between the front passenger seat and driver

seat.

Ø Any accessories which might increase the total seated weight on the front

passenger seat are attached to the front passenger seat.

The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the front passenger air bag deactivation indicator light illuminates.

CAUTION

Ø To assure proper deployment of the front air bag and to prevent damage to the

sensors in the front seat bottoms:

Do not place sharp objects on the front seat bottoms or leave heavy luggage on
them.

Do not spill any liquids on the front seats or under the front seats.

Ø To allow the sensors to function properly, always perform the following:

Adjust the front seats as far back as possible and always sit upright against the
seatbacks with seat belts worn properly.

If you place your child on the front passenger seat, secure the child-restraint
system properly and slide the front passenger seat as far back as possible (page
2-41).

SRS Air Bags

2-65

Mazda5_8FN4-EA-16G_Edition1 Page77
Monday, May 23 2016 7:34 PM

Black plate (78,1)

NOTE

The system requires about 10 seconds to alternate between turning the front passenger front and
side air bags and seat belt pretensioner system on or off.

The front passenger air bag deactivation indicator light may illuminate repeatedly if luggage or
other items are put on the front passenger seat, or if the temperature of the vehicle's interior
changes suddenly.

The front passenger air bag deactivation indicator light may illuminate for 10 seconds if the total
seated weight on the front passenger seat changes.

The air bag/front seat belt pretensioner system warning light might illuminate if the front
passenger seat receives a severe impact.

If the front passenger air bag deactivation indicator light does not illuminate after installing a
child-restraint system on the front passenger seat, first, re-install your child-restraint system
according to the procedure in this owner's manual. Then, if the front passenger air bag
deactivation indicator light still does not illuminate, install the child-restraint system on the rear
seat and consult an Authorized Mazda Dealer as soon as possible.

If the front passenger air bag deactivation indicator light illuminates when an adult is seated in
the front passenger seat, have the passenger re-adjust their posture by sitting with their feet on the
floor, and then re-fastening the seat belt. If the front passenger air bag deactivation indicator light
still illuminates, move the passenger to the rear seat. If sitting in the rear seat is not possible, slide
the front passenger seat as far back as possible. Consult an Authorized Mazda Dealer as soon as
possible.

qDriver and Front Passenger Buckle Switches

The buckle switches on the front seat belts detect whether or not the front seat belts are
securely fastened and further control the deployment of the air bags.

2-66

SRS Air Bags

Mazda5_8FN4-EA-16G_Edition1 Page78
Monday, May 23 2016 7:34 PM

Black plate (79,1)

Monitoring and Maintenance

qConstant Monitoring

The following components of the air bag systems are monitored by a diagnostic system:

Crash sensors, and diagnostic module (SAS unit)

Front air bag sensor

Air bag modules

Side crash sensors

Air bag/Front seat belt pretensioner system warning light

Front seat belt pretensioners

Related wiring

(With Driver and Front Passenger Occupant Classification System)

Front passenger air bag deactivation indicator light

Driver seat slide position sensor

Front passenger seat weight sensors

Front passenger seat weight sensor control module

The diagnostic module continuously monitors the system's readiness. This begins when the
ignition is switched ON and continues while the vehicle is being driven.

qMaintenance

The air bag systems do not require regular maintenance. But if any of the following occurs,
take your vehicle to an Authorized Mazda Dealer as soon as possible:

The air bag system warning light flashes.

The air bag system warning light remains illuminated.

The air bag system warning light does not illuminate when the ignition is switched ON.

The air bag system warning beep sound is heard.

The air bags have deployed.

(With Driver and Front Passenger Occupant Classification System)
Front passenger air bag deactivation indicator light does not illuminate when the ignition
is switched ON or does not illuminate as indicated in the chart. For more details about
this indicator light and this chart, refer to

“Front passenger seat weight sensors” (page

2-62).

SRS Air Bags

2-67

Mazda5_8FN4-EA-16G_Edition1 Page79
Monday, May 23 2016 7:34 PM

Black plate (80,1)

WARNING

Do not operate a vehicle with damaged air bag/seat belt pretensioner system
components:

Expended or damaged air bag/seat belt pretensioner system components must be
replaced after any collision which caused them to deploy or damage them. Only a
trained Authorized Mazda Dealer can fully evaluate these systems to see that they
will work in any subsequent accident. Driving with an expended or damaged air bag
or pretensioner unit will not afford you the necessary protection in the event of any
subsequent accident which could result in serious injury or death.

Do not remove interior air bag parts:

Removing any components such as the front seats, front dashboard, the steering
wheel or parts on the front and rear window pillars and along the roof edge,
containing air bag parts or sensors is dangerous. These parts contain essential air
bag components. The air bag could accidentally activate and cause serious injuries.
Always have an Authorized Mazda Dealer remove these parts.

Dispose of the air bag properly:

Improper disposal of an air bag or a vehicle with live air bags in it can be extremely
dangerous. Unless all safety procedures are followed, injury can result. Ask an
Authorized Mazda Dealer how to safely dispose of an air bag or how to scrap an air
bag equipped vehicle.

2-68

SRS Air Bags

Mazda5_8FN4-EA-16G_Edition1 Page80
Monday, May 23 2016 7:34 PM

Black plate (82,1)

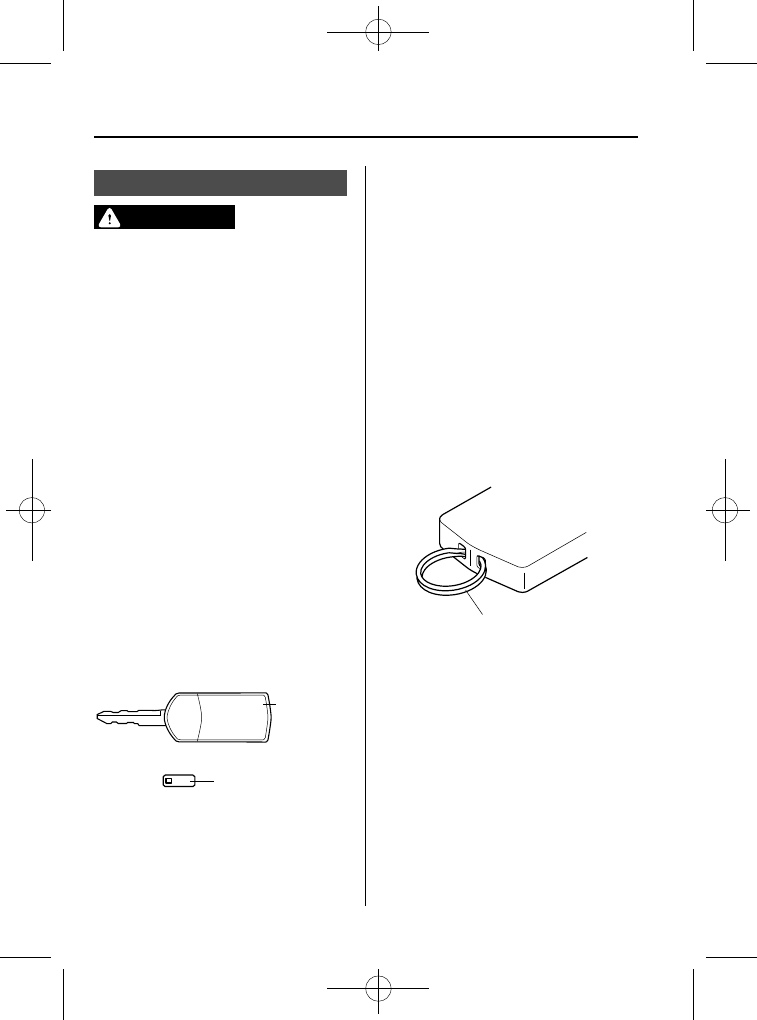

Keys

WARNING

Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:

Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these new
kinds of keys to be an interesting toy
to play with and could cause the
power windows or other controls to
operate, or even make the vehicle
move.

NOTE

Refer to Immobilizer System (page 3-25) for
information regarding keys and engine
starting.

(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-29)
for information regarding keys and the
prevention of vehicle and vehicle contents
theft.

The keys operate all locks.

Key code number plate

Retractable
type key

A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.

NOTE

Write down the code number and keep it in
a separate, safe and convenient place, but
not in the vehicle.
If your key is lost, consult your Authorized
Mazda Dealer and have your code number
ready.

Some types of key chains cannot be
attached to the retractable type key. In this
case, use the key ring provided with the
transmitter which has the key code number
plate attached.

Key ring

3-2

Knowing Your Mazda

Doors and Locks

Mazda5_8FN4-EA-16G_Edition1 Page82
Monday, May 23 2016 7:34 PM

Black plate (83,1)

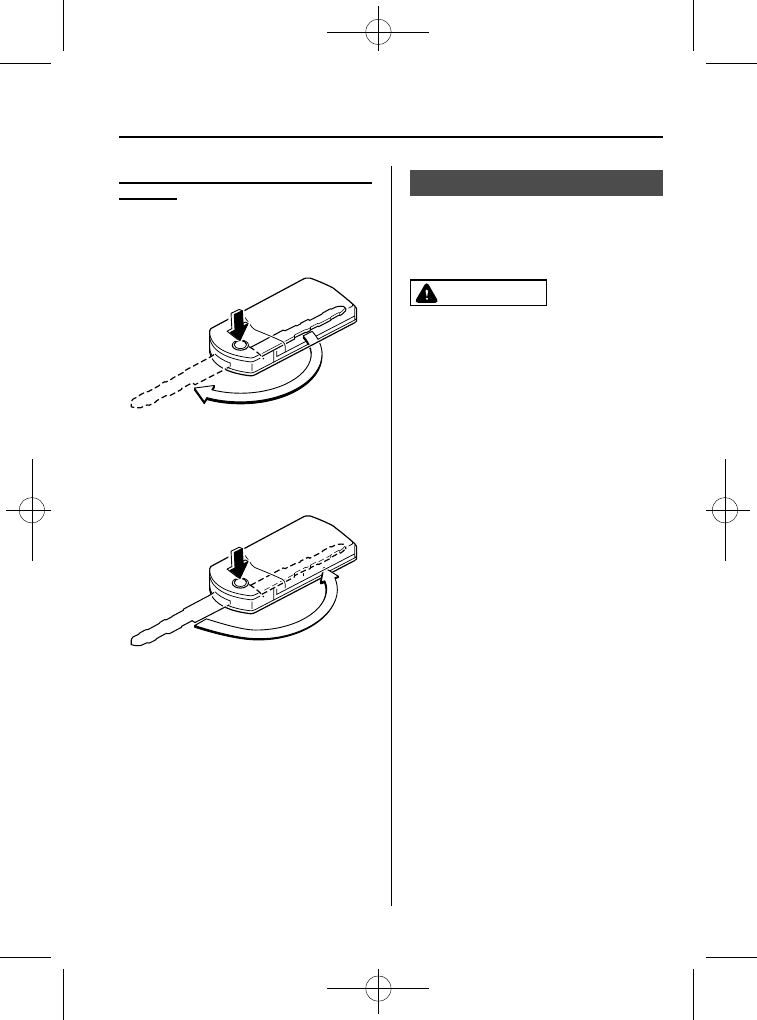

Key extend/retract method (Retractable
type key)

To extend the key, press the release
button.

To retract the key, rotate it into the holder
while pressing the release button.

Keyless Entry System

This system remotely locks and unlocks
the doors and the liftgate.
It can also help you signal for attention.
Press the buttons slowly and carefully.

CAUTION

To avoid damage to the transmitter,
do not:

Ø Drop the transmitter.

Ø Get the transmitter wet.

Ø Disassemble the transmitter.

Ø Expose the transmitter to any kind

of magnetic field.

Ø Expose the transmitter to high

temperatures on places such as
the dashboard or hood, under
direct sunlight.

NOTE

The keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.

The system does not operate when the key is
in the ignition switch.

If the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-7).

Additional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.

Knowing Your Mazda

Doors and Locks

3-3

Mazda5_8FN4-EA-16G_Edition1 Page83
Monday, May 23 2016 7:34 PM

Black plate (84,1)

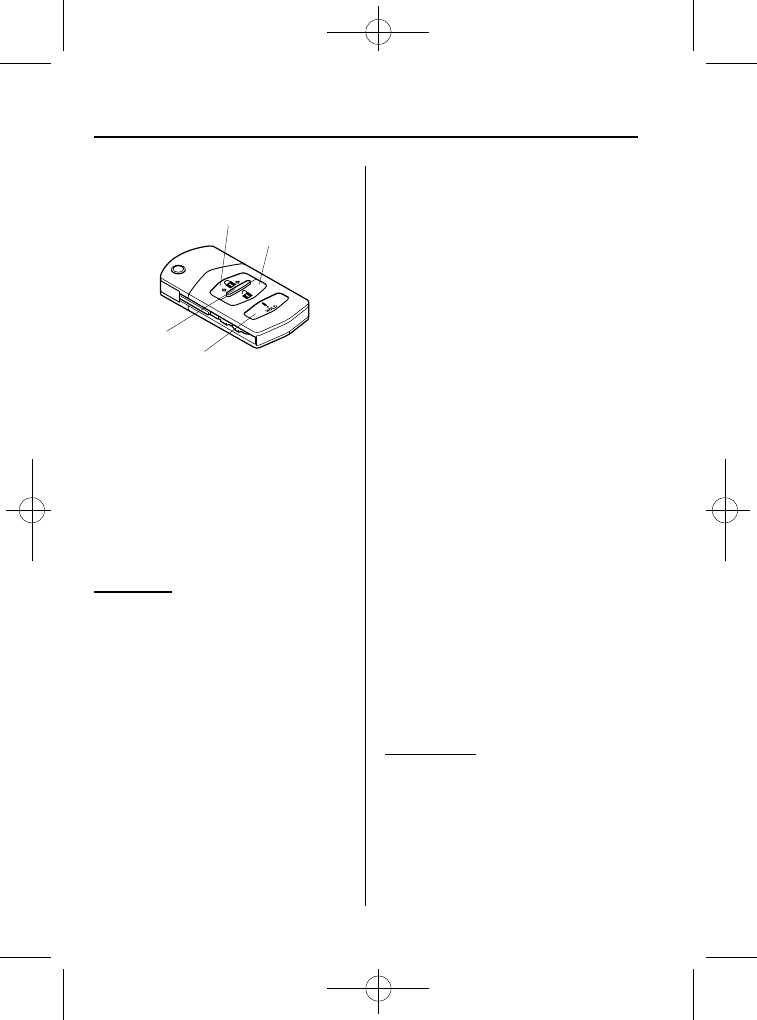

qTransmitter

Lock button

Unlock button

Panic button

Operation
indicator light

NOTE

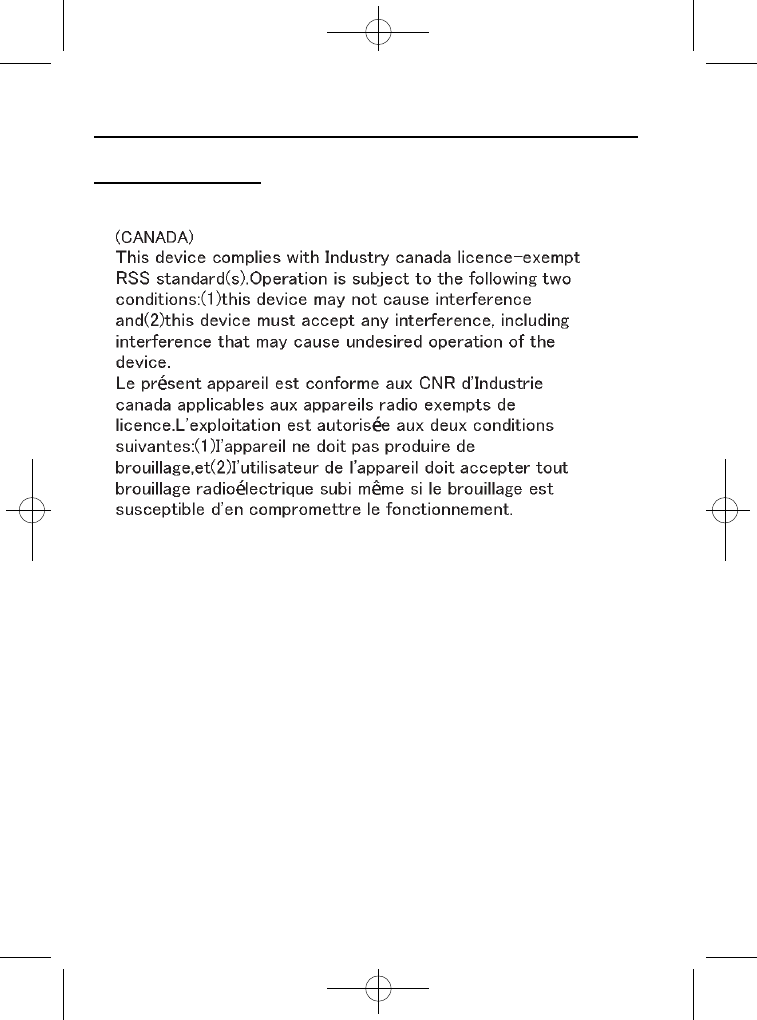

This device complies with RSS-210 of Industry
CANADA. Operation is subject to the
following two conditions: (1) this device may
not cause interference, and (2) this device must
accept any interference, including interference
that may cause undesired operation of the
device.

The operation indicator light flashes when
the buttons are pressed.

Lock button

To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.

To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound and the
hazard warning lights will flash once.
The system can be set not to sound the
horn.
Refer to Personalization Features on page
10-8.

NOTE

Doors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. However, the
hazard warning lights will not flash and the
horn will not sound.

(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before
the theft-deterrent system is properly
armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to Theft-Deterrent System on page
3-29.

The hazard warning lights can be set to not
flash when the doors are locked or
unlocked.
Refer to Personalization Features on page
10-8.

All doors and the liftgate cannot be locked
when the key is in the ignition switch.

Confirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.

Unlock button

To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.

To unlock all doors and the liftgate, press
the unlock button again within 5 seconds
and the hazard warning lights will flash
twice.

3-4

Knowing Your Mazda

Doors and Locks

Mazda5_8FN4-EA-16G_Edition1 Page84
Monday, May 23 2016 7:34 PM

Black plate (85,1)

NOTE

(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors and the liftgate are
unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the theft
deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
When the doors are unlocked by pressing the
unlock button on the transmitter while the
theft-deterrent system is turned off, the hazard
warning lights will flash twice to indicate that
the system is turned off.
Refer to Theft-Deterrent System on page 3-29.
The system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-8.

NOTE

Auto re-lock function
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if one
of the doors or the liftgate is not opened within
about 30 seconds.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
10-8.

Panic button

If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.

NOTE

The panic button will work whether any door
or the liftgate is open or closed.

Turning on the alarm

Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:

The horn sounds intermittently.

The hazard warning lights flash.

Turning off the alarm

Press any button on the transmitter.

Knowing Your Mazda

Doors and Locks

3-5

Mazda5_8FN4-EA-16G_Edition1 Page85
Monday, May 23 2016 7:34 PM

Black plate (87,1)

qTransmitter Maintenance

If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.

CAUTION

Ø Install the battery with the positive

pole (

) facing down. Battery

leakage could occur if it is not
installed correctly.

Ø When replacing the battery, be

careful not to touch any of the
internal circuitry and electrical
terminals, bend the electrical
terminals, or get dirt in the
transmitter as the transmitter
could be damaged.

Ø There is the danger of explosion if

the battery is not correctly
replaced.

Ø Replace only with the same type

battery (CR1620 or equivalent).

Ø Dispose of used batteries

according to the following
instructions.

Insulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.

Never disassemble.

Never throw the battery into
fire and/or water.

Never deform or crush.

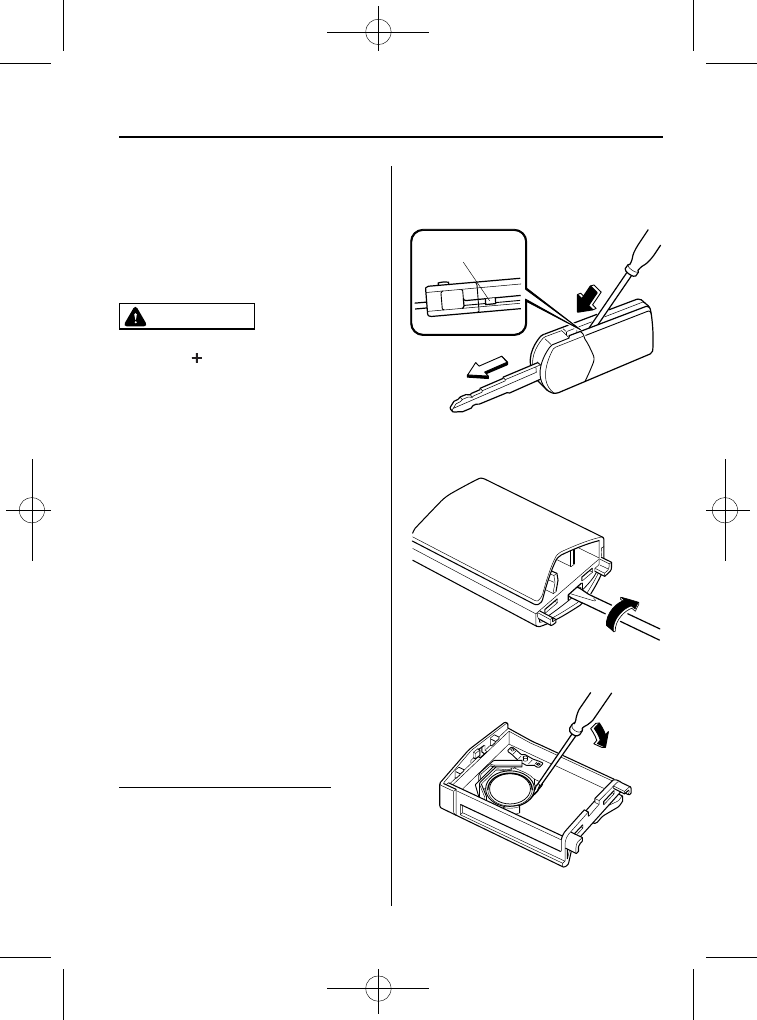

Replacing the transmitter battery

1. Unfold the key (page 3-2).

2. Insert a screwdriver into the slot and

push the tab to remove the key from
the transmitter.

Tab

3. Insert a screwdriver into the slot and

gently pry open the transmitter.

4. Remove the battery.

Knowing Your Mazda

Doors and Locks

3-7

Mazda5_8FN4-EA-16G_Edition1 Page87
Monday, May 23 2016 7:34 PM

Mazda 5 (2017 year). Instruction - part 5
