Valve Seal Assembly Note

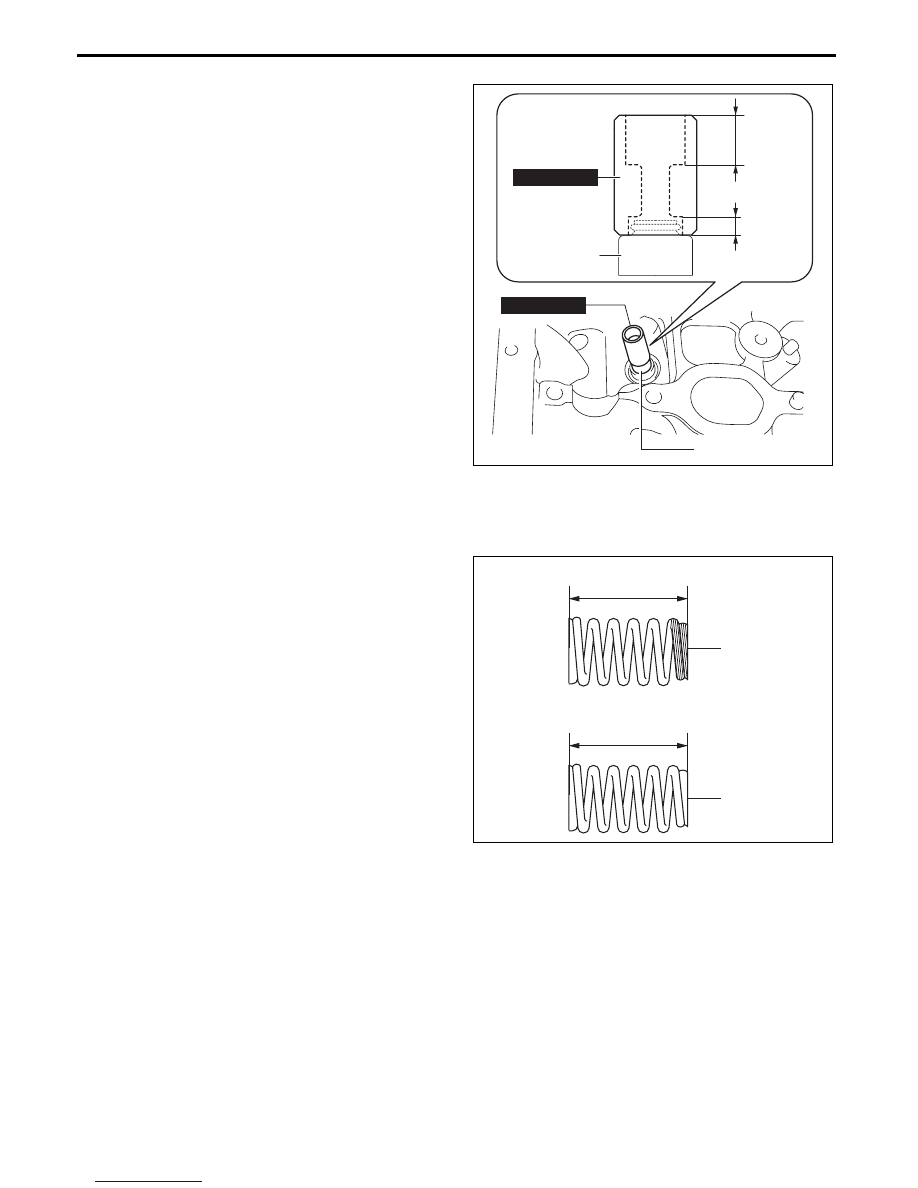

1. Press on the valve seal to the valve guide using

the

SST by hand.

Valve seal identification color

IN: GREEN

EX: GRAY

Valve Spring Assembly Note

Caution

• The valve springs differ depending on IN

and EX sides. Therefore, verify the free

length or identification paint beforehand

and assemble the valve springs correctly.

1. Assemble the valve spring with the small diameter

side of the valve spring facing upward.

VALVE SEAL

49 B012 016

49 B012 016

9.52 mm
{0.375 in}

VALVE SEAL

3.5 mm
{0.14 in}

bpe1ze00000057

IN

EX

PURPLE
PAINT

NOT
PAINTE

50.07 mm {1.971 in}

48.96 mm {1.928 in}

bpe1ze00000094

MECHANICAL

01-10–57

01-10

Valve Keeper Assembly Note

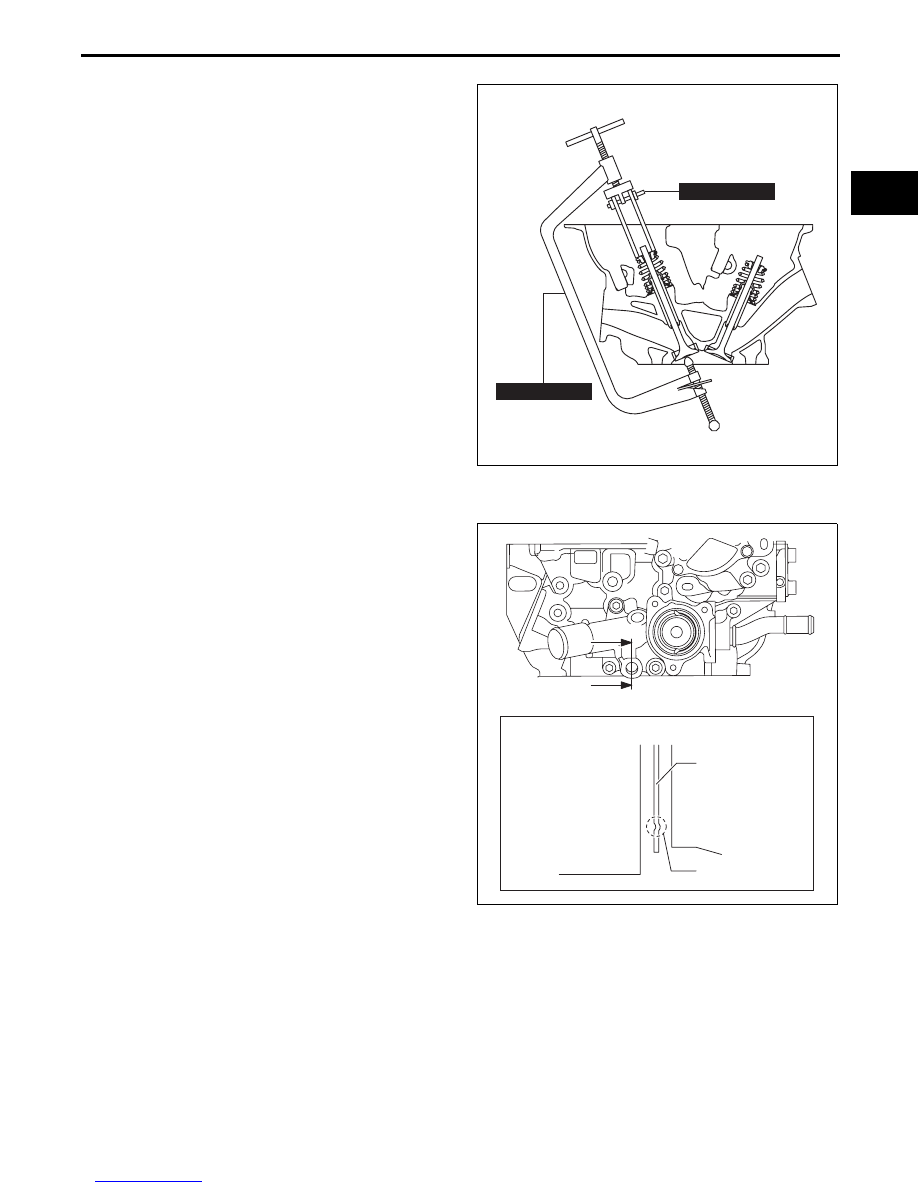

1. Install the valve keeper using the

SST.

Water Outlet Assembly Note

1. Install the water outlet gasket with the bead of the

gasket facing the direction shown in the figure.

2. Temporarily tighten the water outlet installation

bolts.

49 0636 100B

49 B012 0A2A

bpe1ze00000020

B

SECTION B-B

BEAD

CYLINDER HEAD

WATER OUTLET

WATER OUTLET
GASKET

bpe1ze00000021

MECHANICAL

01-10–58

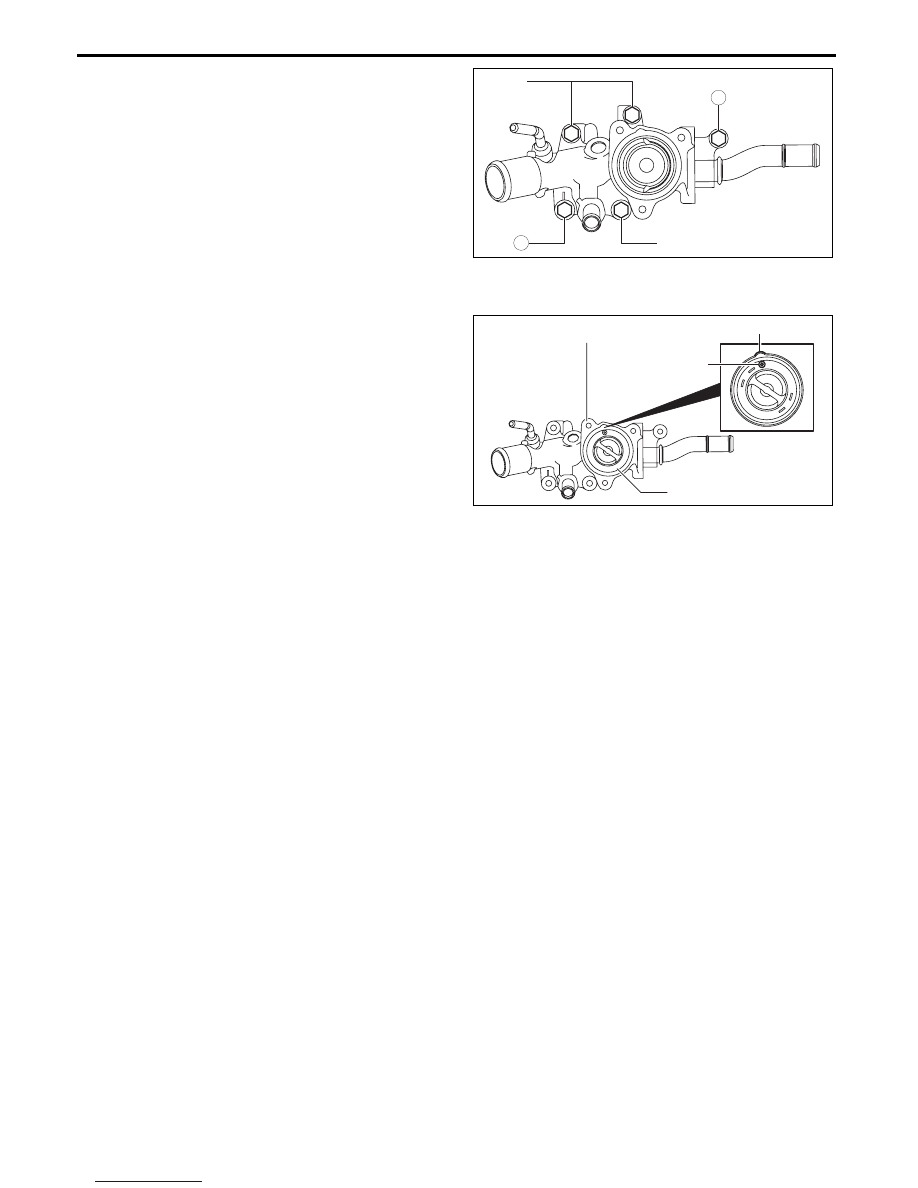

3. Tighten bolt A of the 5 bolts shown in the figure to

the specified torque first.

Tightening torque

8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}

Note

• The tightening order for the remaining 3

bolts is optional.

Thermostat Assembly Note

1. Install the thermostat with the jiggle pin aligned

with the notch of the water outlet.

End Of Sie

BOLT

A

A

BOLT

bpe1ze00000022

THERMOSTAT

WATER OUTLET

NOTCH

JIGGLE-PIN

bpe1ze00000023

MECHANICAL

01-10–59

01-10

CYLINDER HEAD ASSEMBLY (II)

id011000504400

Caution

• If the camshaft is rotated with the timing chain removed and the piston at the top dead center

position, the valve may contact the piston and the engine could be damaged. When rotating the

camshaft with the timing chain removed, rotate it after lowering the piston from the top dead

center position.

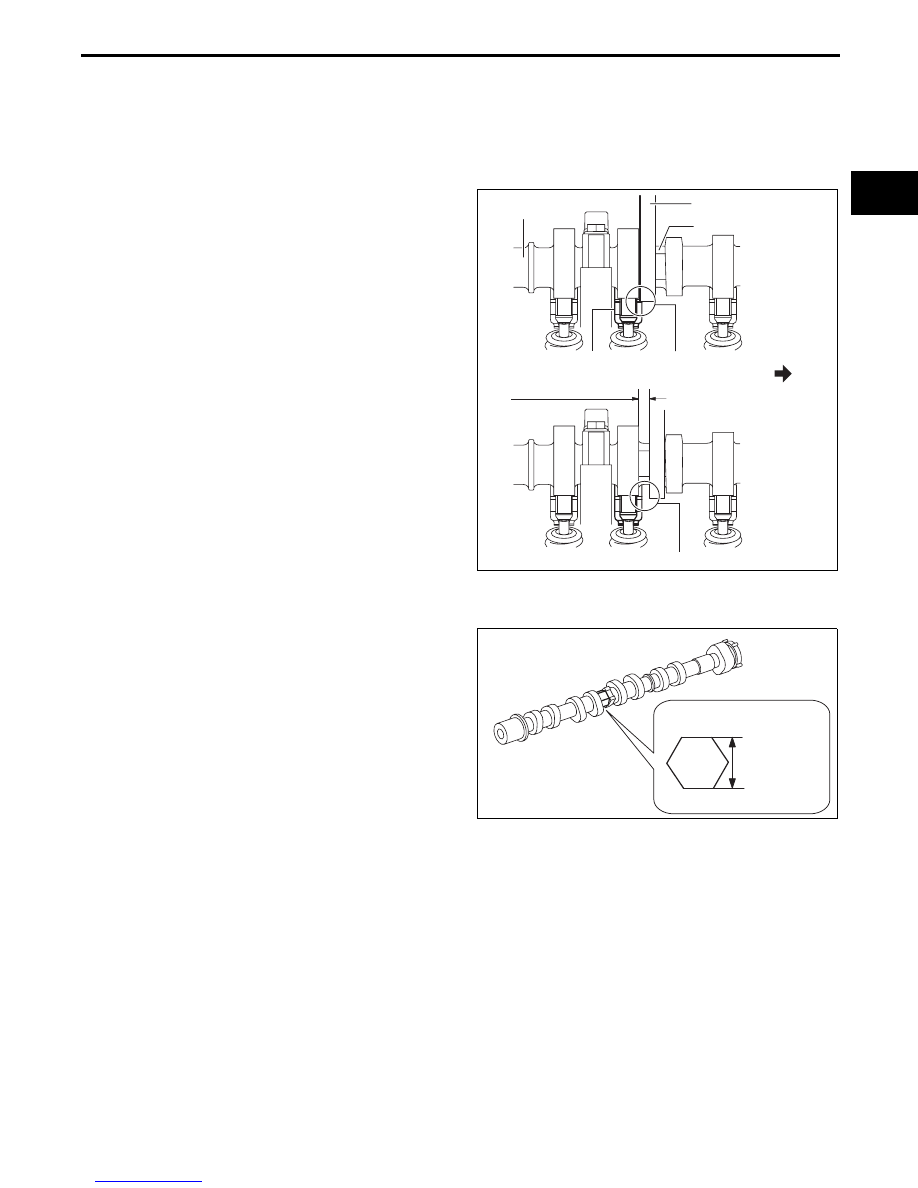

• When rotating the camshaft using a

wrench on the cast hexagon, the wrench

may contact the rocker arm and damage

the rocker arm. To prevent damage to the

rocker arm when holding the camshaft on

the cast hexagon, use a wrench on the

rear side of the engine as shown in the

figure to secure a clearance between the

cam.

Note

• Width at the cast hexagon of the camshaft is

22—24 mm {0.87—0.94 in}.

CAMSHAFT

WRENCH

CAST HEXAGON

ROCKER ARM

CONTACT

ENGINE REAR

DOES NOT CONTACT

SECURE CLEARANCE

am3uuw00008968

22

—

24 mm

{0.87

—

0.94 in}

CAMSHAFT

CAST HEXAGON

am3uuw00009029
