Lexus TX500H (2024 year). Manual in english

408

5-5. Using the other interior features

A portable device, such as a smart-
phone or mobile battery, can be
charged by just placing it on the
charging area, provided the device is
compatible with the Qi wireless
charging standard created by the
Wireless Power Consortium.
The compatible portable devices can
be found on the following Wireless
Power Consortium website.
https://
www.wirelesspowerconsortium.com/
The wireless charger cannot be used
with a portable device that is larger
than the charging tray. Additionally,
depending on the portable device, the
wireless charger may not operate
properly. Refer to the operation man-
ual of the portable device.

■

The “Qi” logo

The “Qi” logo is a trademark of the

Wireless Power Consortium.

■

Name for all parts

Operation indicator light

Charge area

Charging tray
Approximately 3.9 in. (10 cm)
Approximately 1.0 in. (2.5 cm)

: The charging coil in the wireless charger

can be moved within the charge area up
to the position of the charging coil inside
a portable device. Charging is possible if
the center of the coil of the portable
device is placed within the charge area.

Additionally, if 2 or more portable devices

are placed on the charging tray at the
same time, each charging coil may not
be detected correctly and charging may
not be possible.

■

Using the wireless charger

Place the portable device on the wire-
less charger.

Place the charging side of the portable
device down with the center of the device
in the center of the charge area.
When charging, the operation indicator
light (orange) on the wireless charger

NOTICE

■

To prevent damage to external

devices

●

Do not leave external devices in the

vehicle. The temperature inside the

vehicle may become high, resulting in

damage to an external device.

●

Do not push down on or apply unnec-

essary force to an external device or

the cable of an external device while it

is connected.

■

To prevent 12-volt battery discharge

Do not use the USB charging ports for a

long period of time with the hybrid sys-

tem stopped.

Wireless charger

409

5-5. Using the other interior features

Interio

r fe

atures

comes on.
Refer to “Situations in which the function
may not operate normally” (



P.412) when

charging is not performed.
When charging is complete, the operation
indicator light (green) on the wireless char-
ger comes on.

■

Recharging function



If a certain amount of time has
elapsed since charging completed
and the portable device has not
been moved, the wireless charger
will restart charging.



If a portable device is moved signifi-
cantly within the charging area, the

charging coil may disconnect and
charging may temporarily be
stopped. However, if a charging coil
is detected within the charging area,
the charging coil inside the wireless
charger will move near the other
coil and charging will resume.

■

Rapid charging function



The following portable devices sup-
port rapid charging.

• Portable devices compliant with WPC

Ver1.3.2 and compatible with rapid
charging

• iPhone’s with an iOS version that sup-

ports 7.5 W charging (iPhone 8 and
later models)

• Portable devices compatible with Gal-

axy original rapid charging standard.



When a portable device that sup-
ports rapid charging is charged,
charging automatically switches to
the rapid charging function.

■

Operation indicator light status

: Charging power will not be output during standby. A metallic object will not be heated, if

it is placed on the wireless charger in this state.

: Depending on the portable device, there are cases where the operation indicator light

will continue being lit up orange even after the charging is complete.

Operation indicator light

Conditions

Charging tray

Center display

Turning off

Disappear

When the Multimedia power supply is off or ACC
OFF

Green (comes

on)

Gray

On Standby (charging possible state)

When charging is complete

Orange (comes

on)

Blue

Charging

410

5-5. Using the other interior features

■

The wireless charger is not working properly.

The followings are situations in which the wireless charger does not work properly
and how to deal with the possible causes.

Operation indicator light

Suspected causes/Handling method

Charging tray

Center display

Green (Flashing
repeatedly once

every second)

Disappear

Wireless charger and multimedia system communi-
cation failure



If the hybrid system is operating, stop and then
restart the hybrid system.

If the power switch is in ACC, start the hybrid sys-
tem. (



P.188)

Orange (Flashing

repeatedly once

every second)

Gray

Vehicle to wireless charger communication failure



If the hybrid system is operating, stop and then
restart the hybrid system.

If the power switch is in ACC, start the hybrid sys-
tem. (



P.188)

Green (comes

on)

Blue

AM radio stations are being automatically selected



Wait until the system has completed the auto-
matic selection of AM radio stations. In the
case that automatic selection cannot be com-
pleted, stop automatic selection.

The smart access system with push-button start is
detecting the key.



Wait until electronic key detection has com-
pleted.

411

5-5. Using the other interior features

Interio

r fe

atures

■

The wireless charger can be operated

when

The power switch is in ACC or ON.

■

Portable devices that can be charged

●

Portable devices compatible with the Qi

wireless charging standard can be

charged by the wireless charger. How-

Green (comes

on)

Gray

Foreign substance detection:
A metallic foreign substance is in the charge area,
and so the abnormal heating prevention function of
the metallic foreign object operated



Remove the foreign substance from the charge
area.

Portable device misaligned/distanced from
charging surface:
The charging coil in the portable device moved out-
side of the charging area, or lens convex is large, or
case is thick so the abnormal heating prevention
function operated



Remove the portable device from the wireless
charger, after 5 seconds, then place the porta-
ble device so that it is near the center of the
wireless charger. Also, if a case or cover is
installed to the portable device, remove it.

Battery protection function of portable device:
Before full charging, battery protection function of
portable device operated



Confirm the setting of portable device.

Continued detection of an electronic key:
When a Multimedia function is used through vehi-
cle customization, the electronic key is continually
detected without being confirmed.



In this case, turn the power switch ACC or ON
to confirm the key.

Orange (Repeat-

edly flashes 4

times continu-

ously)

Gray

Safety shutdown resulting when the temperature
within the wireless charger exceeded the set value



Stop charging, remove the portable device
from the wireless charger, wait for the tem-
perature to drop, and then start charging
again.

Operation indicator light

Suspected causes/Handling method

Charging tray

Center display

412

5-5. Using the other interior features

ever, compatibility with portable devices

that comply with Qi Ver. 1.0, 1.3.2 and

later versions is not guaranteed.

●

The wireless charger is designed to sup-

ply low power electricity (5 W or less) to

a cellular phone, smartphone, or other

portable device.

However, portable devices, such as the fol-

lowing, can be charged with more than 5

• 7.5 W charging compatible iPhones can

be charged at 7.5 W or less.

• Devices that comply with independent

Galaxy charging standards support 10 W

or less charging. Check the specifica-

tions of each portable device for the

charging electricity.

• Portable devices compliant with EPP out-

put as defined by WPC standard

Ver1.3.2. can be charged at 15 W or less.

■

Using the smart access system with

push-button start

During charging, when the smart access

system with push-button start searches for

an electronic key, charging may be tempo-

rarily suspended.

■

If a cover or accessory is attached to the

portable device

Do not charge a portable device if a cover

or accessory which is not Qi compatible is

attached. Depending on the type of cover

(including the certain genuine manufacture

parts) and/or accessory attached, it may not

be possible to charge the portable device. If

the portable device is placed on the

charging area and does not charge, remove

the cover and/or accessories.

■

AM radio cooperation function during

charging

●

During charging, if noise occurs when lis-

tening to the AM radio, the charging fre-

quency is automatically changed to

reduce the noise.

●

When automatically seeking AM radio

stations, charging will be suspended to

prevent charging noise from being

detected as a radio station. Charging will

resume automatically when seek tuning is

stopped.

■

Charging precautions

If the electronic key cannot be detected

within the vehicle interior, charging can not

be done. When the door is opened and

closed, charging may be temporarily sus-

pended.
While charging, the wireless charger and

the portable device will become warm. This

is not a malfunction. If a portable device

becomes warm while charging and

charging stops due to the protection func-

tion of the portable device, wait until the

portable device cools down and charge it

again.
Also, to decrease the temperature inside

the wireless charger, a fan may operate.

This does not indicate a malfunction.

■

Sound generated during operation

Operation sounds may be heard when the

power switch is pressed to change to ACC

or ON, or when a portable device is being

detected. This does not indicate a malfunc-

tion.

■

Cleaning the wireless charger



P.437

■

Situations in which the wireless charger

may not operate correctly

In the following situations, the wireless char-

ger may not operate correctly:

●

When a portable device is fully charged

●

When a portable device is being charged

by a wired connection

●

When there is a foreign object between

the charging area and portable device

●

When the temperature of a portable

device becomes high while charging

●

When the temperature near the charging

tray is 95°F (35°C) or more due to being

in direct sunlight, etc.

●

When a portable device is placed with its

charging surface facing up

●

The small portable device such as fold-

able type is placed in an area misaligned

from the charge area

●

When a portable device is larger than the

charging tray

413

5-5. Using the other interior features

rio

r f

●

When the vehicle is near a TV tower,

electric power plant, fuel station, radio

station, large display, airport, or other

facility that generates strong radio waves

or electrical noise

●

The electronic key is not inside the vehi-

cle

●

When the any of the following objects are

between the charging surface of a porta-

ble device and the charging area:

• Thick cases or covers

• A case or cover attached with an uneven

or tilted surface, so that the charging side

is not flat

• Thick decorations

• Accessories, such as finger rings, straps,

etc.

●

When there is a gap between the

charging side of the portable device and

the charge area due to a protrusion such

as a camera on the charging side of the

portable device.

●

When the portable device is in contact

with, or is covered by any of the following

metallic objects:

• Cards covered with metal, such as alumi-

num foil

• Cigarette boxes that have aluminum foil

inside

• Metallic wallets or bags

• Coins

• Heat packs

• Recorded media such as CDs and DVDs

• Metallic decorations

• Metallic cases or covers

• Casing which has magnet in it on the

charging side of the portable device

●

When wireless keys (that emit radio

waves) other than those of your vehicle

are being used nearby

●

When 2 or more portable devices are

placed on the charging tray at the same

time

●

If a portable device built in S-pen (Galaxy

“Note” series etc.) used, a portable

device that inserted S-pen is placed on

the tray

In situations other than above, if the wire-
less charger does not operate properly or
the operation indicator light blinks continu-

ously, the wireless charger may be mal-
functioning.
Contact your Lexus dealer.

■

If the smartphone OS has been updated

If the smartphone OS has been updated to

a newer version, its charging specifications

may have changed significantly. For details,

check the information on the manufac-

turer’s website.

■

Trademark information

iPhone is a trademark of Apple Inc., regis-

tered in the U.S. and other countries.
Galaxy is a trademark or registered trade-

mark of Samsung Electronics Co.,Ltd.

WARNING

■

Caution while driving

When charging a portable device while

driving, for safety reasons, the driver

should not operate the portable device.

■

Precautions for when driving

Do not charge small, lightweight porta-

ble devices, such as wireless earbuds,

while driving. Lightweight devices may fly

off of the charging tray, possibly leading

to an accident.

■

Caution regarding interference with

electronic devices

People with implantable cardiac pace-

makers, cardiac resynchronization ther-

apy pacemakers or implantable

cardioverter defibrillators, as well as any

other electrical medical device, should

consult their physician about the usage of

the wireless charger.

Operations of the wireless charger may

have an affect on medical devices.

■

To prevent damage or burns

Observe the following precautions.

Failure to do so may result in the possibil-

ity of fire, equipment failure or damage,

or burns due to heat.

414

5-5. Using the other interior features

Pull the armrest down for use.
To adjust the armrest angle, raise the
armrest to the highest position and
then lower the armrest to the lowest
position.
Raise the armrest again to the desired
position and the armrest will be locked
at that position.

When the armrest is locked, the armrest
cannot be lowered.
To lower the armrest, raise the armrest to
the highest position again.

WARNING

●

Do not put any metallic objects

between the charging area and the

portable device while charging.

●

Do not attach metallic objects, such as

aluminum stickers, to the charging

area.

●

Do not charge portable devices with

aluminum stickers or other metallic

objects attached to the side which

touches the charging area.

●

Do not store items on the wireless

charger instead of in an auxiliary box.

●

Do not apply force or impact to the

wireless charger.

●

Do not disassemble, modify or remove

the wireless charger.

●

Do not attempt to charge portable

devices which are not compatible with

the Qi wireless charging standard.

●

Do not allow magnetic objects to

come near the wireless charger.

●

Do not perform charging if the

charging area is dirty.

●

Do not cover the wireless charger with

a cloth or other object while charging.

NOTICE

■

To prevent failure or damage to data

●

Do not place magnetic cards, such as a

credit card, or magnetic recording

media, close to the wireless charger

while charging. Otherwise, data may

be erased due to the influence of mag-

netism. Additionally, do not bring pre-

cision instruments such as wrist

watches, close to the wireless charger,

as such objects may malfunction.

●

Do not perform charging with a con-

tactless smart card, such as a transpor-

tation system IC card, between the

charging surface of a portable device

and the charging area. The IC chip in

the card may become extremely hot,

possibly damaging the portable device

or smart card.

Be extra careful to not charge a porta-

ble device with a case or cover which a

contactless smart card can be

inserted.

●

Do not leave portable devices in the

cabin. The temperature inside the

cabin may become high when parked

in the sun, and cause damage to the

device.

■

To prevent 12-volt battery discharge

Do not use the wireless charger for a

long period of time with the hybrid sys-

tem stopped.

Armrests

415

5-5. Using the other interior features

rio

r f

An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.

The coat hooks are provided with the
rear assist grips.

Please use as a power supply for elec-
tronic goods that use less than 12
VDC/10 A (power consumption of
120 W).
When using electronic goods, make
sure that the power consumption of all
the connected power outlets is less
than 120 W.



Instrument panel

Open the auxiliary box. (



P.401)

Open the lid.

NOTICE

■

To prevent damage to the armrest

Do not apply too much load on the arm-

rest.

Assist grips

WARNING

■

Assist grip

Do not use the assist grip when getting in

or out of the vehicle or rising from your

seat.

NOTICE

■

To prevent damage to the assist grip

Do not hang any heavy object or put a

heavy load on the assist grip.

Coat hooks

WARNING

■

Items that must not be hung on the

hook

Do not hang coat hangers or other hard

or sharp objects on the hook. If the SRS

curtain shield airbags deploy, these items

may become projectiles, causing death

or serious injury.

Power outlets (12 VDC)

416

5-5. Using the other interior features



In the luggage compartment (if
equipped)

Open the lid.

■

The power outlet can be used when

The power switch is in ACC or ON.

■

When stopping the hybrid system

Disconnect electrical devices with charging

functions, such as mobile battery packs.

If such devices are left connected, the

hybrid system may not stop normally.

To set the visor in the forward posi-
tion, flip it down.

To set the visor in the side position,
flip down, unhook, and swing it to
the side.

To use the side extender, place the
visor in the side position, then slide
it backward.

Slide the cover to open.

The light turns on when the cover is
opened.

■

To prevent 12-volt battery discharge

If the vanity lights remain on when the

power switch is turned off, the lights will go

off automatically after 20 minutes.

NOTICE

■

To avoid damaging the power outlet

Close the power outlet lid when the

power outlet is not in use.

Foreign objects or liquids that enter the

power outlet may cause a short circuit.

■

To prevent 12-volt battery discharge

Do not use the power outlet longer than

necessary when the hybrid system is off.

Sun visors

Vanity mirrors

417

5-5. Using the other interior features

rio

r f

Pull the tab up.

Hook the sunshade on to the
anchors.

To lower the sunshade, pull the tab up

slightly to unhook the shade from the

anchors, and lower it slowly.

NOTICE

■

To prevent the 12-volt battery from

being discharged

Do not leave the vanity lights on for

extended periods while the hybrid sys-

tem is off.

Rear door sunshades

WARNING

■

Closing the rear door sunshade

When a rear door sunshade is in use, do

not put fingers, etc. on the anchors or in

the groove of the rear door sunshade.

Otherwise, a finger, etc. may get caught,

possibly causing an injury.

NOTICE

■

To ensure normal operation of the

sunshades

●

Do not put anything in an area where it

may interfere with the operation of a

rear door sunshade.

●

To prevent damage to the rear door

sunshades, do not apply excessive

load or attach items to the rear door

sunshades.

418

5-5. Using the other interior features

: If equipped

Observe the following precautions
before starting the power supply:



Park the vehicle in a well-ventilated
area, avoiding locations with poor
ventilation such as garages, as the
engine may start while the system is
operating.



Park the vehicle on a solid and level
place.



Block the wheels as needed.



Check that the hood is closed.



Check that the parking brake is
engaged.



Check that the P shift position is

selected.



Check that the power switch is off.



Note that the alarm system cannot
be enabled during the Power supply.
For theft prevention, do not leave
valuable items, etc. in the cabin or
luggage compartment.

Using the power outlets
(1500 W)

This system allows the use of elec-
trical devices with a total power
consumption of 1500W at 120
VAC in the vehicle. Supplying
power to electrical devices outside
the vehicle is not recommended, as
it may violate the laws and regula-
tions of the country or region where
it is used. When supplying power to
electrical devices outside the vehi-
cle, check the laws and regulations
with the relevant local government
of each country or region in
advance. Also, be careful not to
drag electrical devices and cords
when moving the vehicle.

Precautions for using the power
outlets while parked

419

5-5. Using the other interior features

Interio

r fe

atures

Power switch (



P.188)

Power outlet (luggage compartment)
Power outlet (rear console)

Check that the parking brake is
engaged. securely depress the
brake pedal, and press the power
switch. (



P.188)

Check that the “READY” indicator
is illuminated, and touch Shortcut
screen switch on the center display.

Touch “Power outlet 1500W”.

The power outlets are turned on/off each

time “Power outlet 1500W” is touched.

Open the lid, and fully and securely
insert the plug of the device into the
power outlet.

Follow the procedure described below:

Turn the connected devices off.

Touch Shortcut screen switch on
the center display.

Touch “Power outlet 1500W” to
turn it off.

Disconnect each plug from the
power outlets.

Close the lid of each power outlet.

■

When connecting a device

Make sure to read the instruction man-
ual which came with a device and
observe warnings on the device.

Names of parts

Using the power outlets (1500
W)

Stopping the use of the power
outlets (1500 W)

Connecting a device

420

5-5. Using the other interior features

Before connecting a device to the
power outlet, make sure that the device
is turned off.

Open the lid, and fully and securely
insert the plug of the device into the
power outlet.

Do not leave the plug halfway inserted.
In the following situations, use cable
extension, etc. and connect the plug
securely to the power outlet:



When the plug of a device is too
large to allow it to be inserted fully
and securely into the power outlet.



When the plug of a device is heavy,
possibly causing it to come off the
power outlet.

If the device to be used has a ground
wire, use a conversion adapter avail-
able on the market and connect the
ground wire to the ground terminal of
the conversion adapter.

■

Power outlets

●

With these power outlets, use devices

which operate on 120 VAC and have a

combined maximum power consumption

of 1500 W or less. If a device is con-

nected and the power consumption is

exceeded, a protection circuit may be

activated and the power supply function

may be stopped.

●

Some of the devices that consume a large

amount of power, such as an electric

grille, may require the exclusive use of the

power outlets. When such a device is

connected, do not connect other

device(s) to the power outlets.

●

When multiple devices are connected,

depending on the device, a connected

device may not operate properly. For

such a device, use exclusively the power

outlets.

●

When a power outlet is being used,

depending on the device to be used, the

current flow may be high and the initial

peak wattage may exceed 1500 W.

●

When a power outlet is being used,

depending on the device to be used, it

may cause interference with TV and

radio broadcasts.

●

While a power outlet is being used, a

cooling fan sound may be heard from

near a center console. This does not indi-

cate a malfunction.

■

Devices which may not operate cor-

rectly

The following devices may not operate

properly even if the combined power con-

sumption is 1500 W or less:

●

Devices with high initial peak wattage

●

Devices requiring larger amount of

power supply than the power consump-

tion specified in its instruction manual

●

Measuring devices that process precise

data

●

Devices that require an extremely stable

power supply

●

Devices that require a constant power

supply from the power outlet, such as a

device with a timer.

■

Idling stop regulations

The engine starts automatically and

charging is performed when the remaining

charge of the hybrid battery (traction bat-

tery) decreases, etc. Some local govern-

ments have regulations against starting the

engine while parked or stopped. Use the

power outlets appropriately after checking

the regulations of the applicable local gov-

ernment.

421

5-5. Using the other interior features

rio

r f

■

When the power outlets are used while

the vehicle is parked or stopped

●

Depending on the device connected to a

power outlet, the smart access system

with push-button start or the electronic

keys may not operate properly due to

electronic interference generated from

the connected device.

●

When a door is opened/closed, a buzzer

may sound or “Key not Detected Check

Key Location” may be displayed on the

multi-information display. Check that an

electronic key is carried with you.

●

When the surrounding area becomes

dark while the power supply is being per-

formed, the headlights, etc. will come on

automatically.

To turn the lights off:



P.204

WARNING

■

For safe use

Observe the following precautions. Fail-

ure to do so may lead to an accident,

resulting in death or serious injury.

●

Do not allow children or other people

not used to the operation to perform

the power supply by themselves.

●

Do not disconnect the plug of a device

while your hands are wet or insert a pin

or other object into the power outlet.

Also, if a liquid or snow is on the power

outlet, dry the outlet before using it.

●

Do not attempt to modify, disassemble,

or repair a Power outlet. For informa-

tion on repairs, contact your Lexus

dealer.

●

Keep the power outlets free of dust

and foreign matter. Also, make sure to

clean the power outlets periodically.

●

Hold the plug body to plug in/out of a

power outlet. Do not touch the plug

blades. Do not pull on a cord for

unplugging, as otherwise the plug or

cord may be damaged.

●

Stop the use immediately if abnormal

heat is observed on a cord or power

outlet. To prevent the cord or power

outlet from becoming hot, observe the

following precautions:

• Do not connect 2 or more multi-point

outlet adapters, such as dual adapters.

• When an extension cord reel is used,

make sure to draw the whole cord out

of the reel.

●

If the device to be used has a ground

wire, use a conversion adapter avail-

able on the market and connect the

ground wire to the ground terminal of

the conversion adapter.

●

If the plug of a device fits loosely in a

power outlet, even though it is fully

inserted, replace the power outlet. For

information on replacement, contact

your Lexus dealer.

■

Devices to be connected

●

Make sure to read any instruction

manual which came with a device and

observe any warnings on the device.

●

Do not connect a device to a power

outlet if the device is malfunctioning or

its plug is damaged.

●

Otherwise, the device may be further

malfunctioning, especially when the

outside temperature is high or low.

●

Devices requiring to be installed on a

level place may not operate properly.

●

Do not use devices, other than water-

proof devices, in a place where water,

such as rain, is splashed over or where

it is humid.

422

5-5. Using the other interior features

WARNING

●

Do not use a device that has been or

likely to have been merged in water or

absorbed water within.

●

Depending on the vehicle condition,

the power supply function may be tem-

porarily stopped.

■

When the power outlets are used

while the vehicle is parked or stopped

●

The power outlets are designed to be

connected to electric devices, such as

lighting devices. Do not use them as a

generator that supplies power to a

house, etc. Also, when they are to be

used on an emergency power supply

device for homes, such as an exclusive

device having connection to an exter-

nal power source, or a device whose

power supply circuit for external

power source is separate from electric

wiring of power companies, consult

with the manufacturer or a retailer of

the device.

●

When using a power outlet, make sure

to securely engage the parking brake

and shift the shift position to P. Other-

wise, the vehicle may move, possibly

leading to an accident.

●

When using a power outlet, do not

move away from the vehicle.

●

Do not perform rapid charging during

weather when lightning may occur.

Stop supplying power if lightning is

observed during power supply.

●

Do not use the power outlets if the

vehicle has a vehicle cover installed.

●

Take due care when you sleep in the

vehicle while using devices such as an

electric heater. The power supply sys-

tem may stop automatically, possibly

resulting in unintended stoppage of

the connected device.

●

Do not use a power outlet when the

vehicle is parked on a slanted place or

a slope. When a power outlet is being

used, do not move the vehicle or cause

it to be inclined.

●

Do not refuel or wash the vehicle when

using a power outlet.

●

Make sure that the hood is closed. As

the engine will start automatically

depending on the condition of the

vehicle, make sure that nothing is left

near or contacting the exhaust pipes.

Also, do not put your head or hands

anywhere inside the engine compart-

ment. The cooling fan may operate

suddenly. Keep hands and clothing

(especially a tie, scarf, muffler, etc.)

away from the fans as they may get

caught in a fan, resulting in serious

injury.

●

Do not stop the vehicle near objects

which burn easily. If the exhaust system

is extremely hot, it may cause a fire.

●

Do not use in places where corrosive

gases or fluids are generated.

●

If the charge level of the hybrid battery

(traction battery) becomes low, the

gasoline engine will operate automati-

cally. When using a power outlet in an

area with poor ventilation, such as a

garage, or an enclosed area (covered

with snow), to prevent the exhaust gas-

ses from accumulating and causing a

lack of oxygen, make sure to properly

install and use an air supply/exhaust

device. Do not use the power outlets if

such a device cannot be installed.

●

Observe the following precautions

when a connected cord is to be

brought outside the vehicle:

• Take due care for not allowing rain to

enter.

If the power outlet are wet with rain-

drops, dry them before use.

• Do not have cords pinched in a win-

dow or door.

423

5-5. Using the other interior features

rio

r f

WARNING

• Allow slack in a connected cord. Do

not cause it to be extraordinary tense.

• Do not start off the vehicle by mistake.

■

Use of a power outlet while driving

●

In situations such as the following, do

not use an electric device while driv-

ing. Also, do not use a device if it can-

not be secured within the vehicle.

• When a device is likely to distract the

driver and be a hindrance to safe driv-

ing, such as a TV, video/DVD player,

etc.

• When an inadequately secured device

is likely to fall over in case of sudden

braking or an accident

• When a device is likely to cause fire if it

falls or generates heat

• When a device is likely to cause burns,

such as a toaster, microwave, electric

heater, electric kettle, coffee maker,

etc.

• When a device is likely to fall under the

pedals and prevent the brake pedal

from being depressed, such as a hair

dryer, AC adapter, mouse, etc.

●

Do not use devices which produce

steam while the windows are closed.

Doing so may cause the windows to

fog up, reducing visibility and making it

difficult to drive safely. Also, the steam

may damage or negatively affect other

devices. If the device must be used,

stop the vehicle and open the windows

before use.

NOTICE

■

To avoid short circuit or malfunction

Observe the following precautions. Fail-

ure to do so may lead to the power out-

lets not operating correctly or damage to

the vehicle or a connected device.

●

Do not set a toaster or other device

which generates heat near the interior

components or on a seat. Heat may

cause these parts to melt or burn.

●

Do not use devices which are sensitive

to vibration or heat in the vehicle.

These devices may malfunction due to

vibration while driving or heat while

the vehicle is parked in the sun.

●

When not using a power outlet, make

sure to close the lid. If foreign matter or

a liquid enters the power outlet, it may

cause a malfunction or short circuit.

■

Using the power outlet while parked

or stopped

●

Water may leak from the exhaust pipe

while the engine running if the power

outlet is used for a long time. However,

this is not a malfunction.

●

At extremely low temperatures, water

may freeze in the exhaust pipe and

make it difficult to start the engine, or

an odor may come from the exhaust

pipe. In this case, stop using the power

outlet, and then drive the vehicle for 15

to 30 minutes.

424

5-5. Using the other interior features

If the power outlets (1500
W) cannot be used

If the power supply does not start
even though the correct steps are
followed, check each of the follow-
ing:

If the power outlets (1500 W)
cannot be used

Cause

Remedy

Quantity of fuel
remaining is low
and the remain-
ing charge of the
hybrid battery
(traction battery)
is insufficient

After refueling, drive
for a while to restore
the remaining charge
of the hybrid battery
(traction battery).
Then, touch “Power
outlet 1500 W” again.

The traction bat-
tery may be too
hot, such as when
the outside tem-
perature is high,
etc.

Move the vehicle to a
shaded place, etc. or
use the air condition-
ing system to cool
down the cabin. After
a while, touch “Power
outlet 1500 W” again.

The traction bat-
tery may be too
cold, such as
when the outside
temperature is
low, etc.

Drive the vehicle for a
while or use the air
conditioning system to
warm up the cabin.
After a while, touch
“Power outlet 1500
W” again.

The combined
power consump-
tion of connected
device(s) exceeds
1500 W.

Disconnect the plug of
each device from the
power outlets, check
that the combined
power consumption of
all devices to be con-
nected to the power
outlets is 1500 W or
below, reconnect the
devices, and then
touch “Power outlet
1500 W” again.

A connect device
does not operate.

Disconnect the plug of
each device from the
power outlets, check
that the devices are not
malfunctioning, recon-
nect the devices, and
then touch “Power out-
let 1500 W” again.

The power outlets
have a short cir-
cuit.

Disconnect the plug of
each device from the
power outlets, check
the following, and then
touch “Power outlet
1500 W” again.



If a pin or other
object is not inserted



If a liquid or snow is
not on the power
outlets



If the power outlets
are free of dust or
foreign matter

Cause

Remedy

425

5-5. Using the other interior features

Interio

r fe

atures

■

HomeLink

programming procedure

The programming procedures can also be

found at the following URL.
Website: www.homelink.com/lexus

For support, contact customer support at

the following.
Help Line: 1-800-355-3515

The HomeLink

wireless control sys-

tem in your vehicle has 3 buttons which
can be programmed to operate 3 dif-
ferent devices. Refer to the program-
ming methods on the following pages
to determine the method which is
appropriate for the device.



Vehicles with auto anti-glare inside
rear view mirror

HomeLink

indicator light

Garage door operation indicators

HomeLink

icon

Illuminates while HomeLink

is operating.

Buttons



Vehicles with Digital Rearview Mir-
ror

HomeLink

logo

Appears while HomeLink

is operating.

When the menu button (



P.142) is

pressed, the logo disappears even while
the HomeLink

is operating.

Garage door operation indicators

HomeLink

indicator light

Illuminates above each button selected.

Buttons

Garage door opener

The garage door opener can be
programmed using the Home-
Link

to operate garage doors,

gates, entry doors, door locks,
home lighting systems, security sys-
tems, and other devices.

System components

426

5-5. Using the other interior features

■

Codes stored in the HomeLink

mem-

ory

●

The registered codes are not erased even

if the 12-volt battery cable is discon-

nected.

●

If learning failed when registering a dif-
ferent code to a HomeLink

button that

already has a code registered to it, the

already registered code will not be

erased.

■

Before programming HomeLink



During programming, it is possible
that garage doors, gates, or other
devices may operate. For this rea-

son, make sure that people and
objects are clear of the garage door
or other devices to prevent injury or
other potential harm.



It is recommended that a new bat-
tery be placed in the remote control
transmitter for more accurate pro-
gramming.



Garage door opener motors manu-
factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “Learn” or
“Smart” button on the garage door
opener motor.

■

Programming HomeLink

Steps

through

must be performed

within 60 seconds, otherwise the
HomeLink

indicator light will stop

flashing and programming will not be
successfully completed.

Press and release the HomeLink

button you want to program and
check that the HomeLink

indica-

tor light flashes (orange).

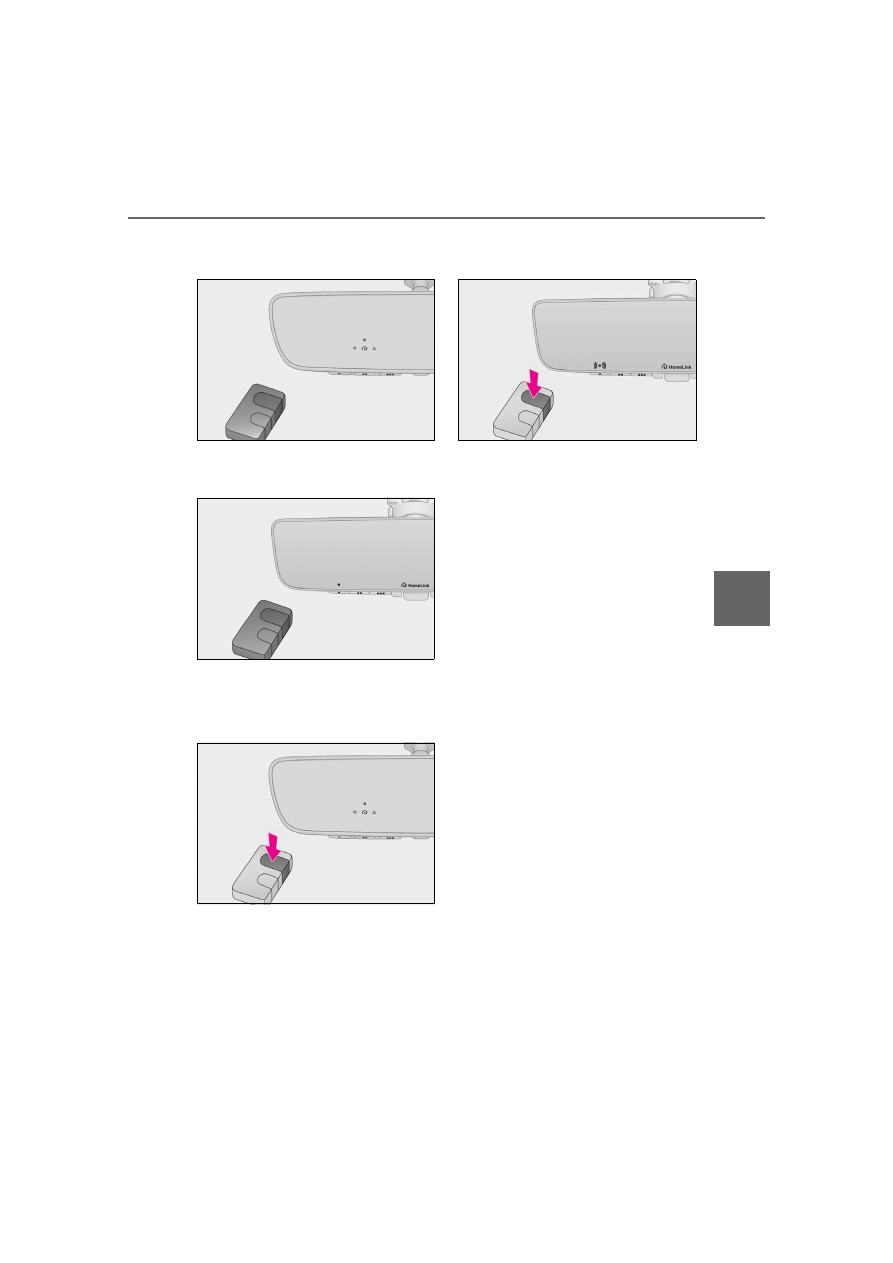

Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink

buttons.

Keep the HomeLink

indicator light in

view while programming.

WARNING

■

When programming a garage door or

other remote control device

The garage door or other device may

operate, so ensure people and objects

are out of danger to prevent potential

harm.

■

Conforming to federal safety stan-

dards

Do not use the HomeLink

compatible

transceiver with any garage door opener

or device that lacks safety stop and

reverse features as required by federal

safety standards.

This includes any garage door that can-

not detect an interfering object. A door

or device without these features

increases the risk of death or serious

injury.

■

When operating or programming
HomeLink

Never allow a child to operate or play
with the HomeLink

buttons.

Programming the HomeLink

427

5-5. Using the other interior features

Interio

r fe

atures



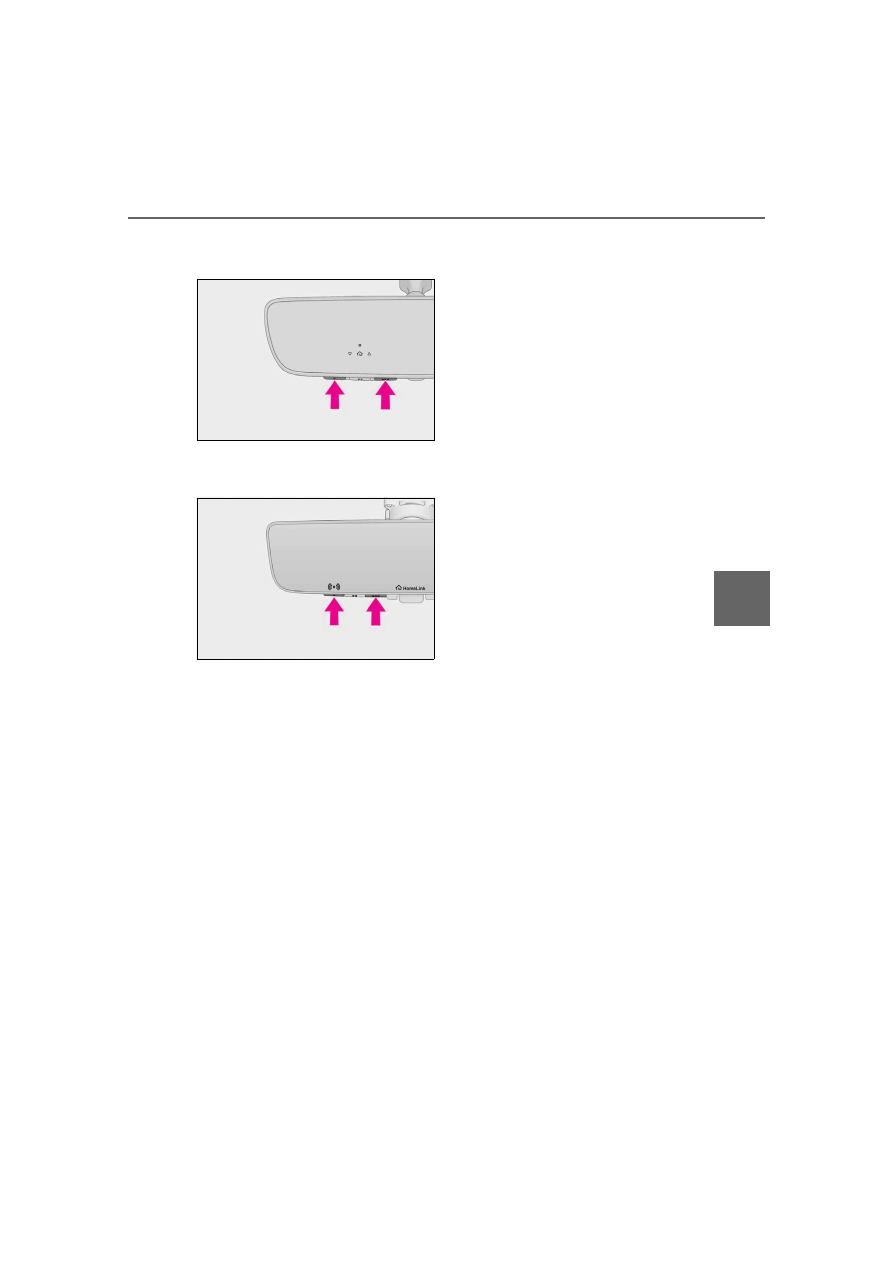

Vehicles with auto anti-glare inside
rear view mirror



Vehicles with Digital Rearview Mir-
ror

Program a device.



Vehicles with auto anti-glare inside
rear view mirror



Vehicles with Digital Rearview Mir-
ror



Programming a device other than
an entry gate (for U.S.A. owners)

Press and hold the remote control
transmitter button until the Home-
Link

indicator light changes from

slowly flashing orange to rapidly flash-
ing green (rolling code) or continu-
ously lit green (fixed code), then
release the button.



Programming an entry gate (for
U.S.A. owners)/Programming a
device in the Canadian market

Press and release the remote control
transmitter button at 2 second inter-
vals, repeatedly, until the HomeLink

indicator light changes from slowly
flashing (orange) to rapidly flashing
(green) (rolling code) or continuously
lit (green) (fixed code).

Test the HomeLink

operation by

pressing the newly programmed
button and observing the indicator
light:



HomeLink

indicator light illumi-

nates: Programming of a fixed code
device has completed. The garage
door or other device should operate

428

5-5. Using the other interior features

when a HomeLink

button is

pressed and released.



HomeLink

indicator light flashes

rapidly: The garage door opener
motor or other device is equipped
with a rolling code. To complete
programming, firmly press and hold
the HomeLink

button for 2 sec-

onds then release it.



If the garage door or other device
does not operate, proceed to “Pro-
gramming a rolling code system”.

Repeat the steps above to program
another device for any of the
remaining HomeLink

buttons.

■

Programming a rolling code sys-
tem

Two or more people may be necessary
to complete rolling code program-
ming.

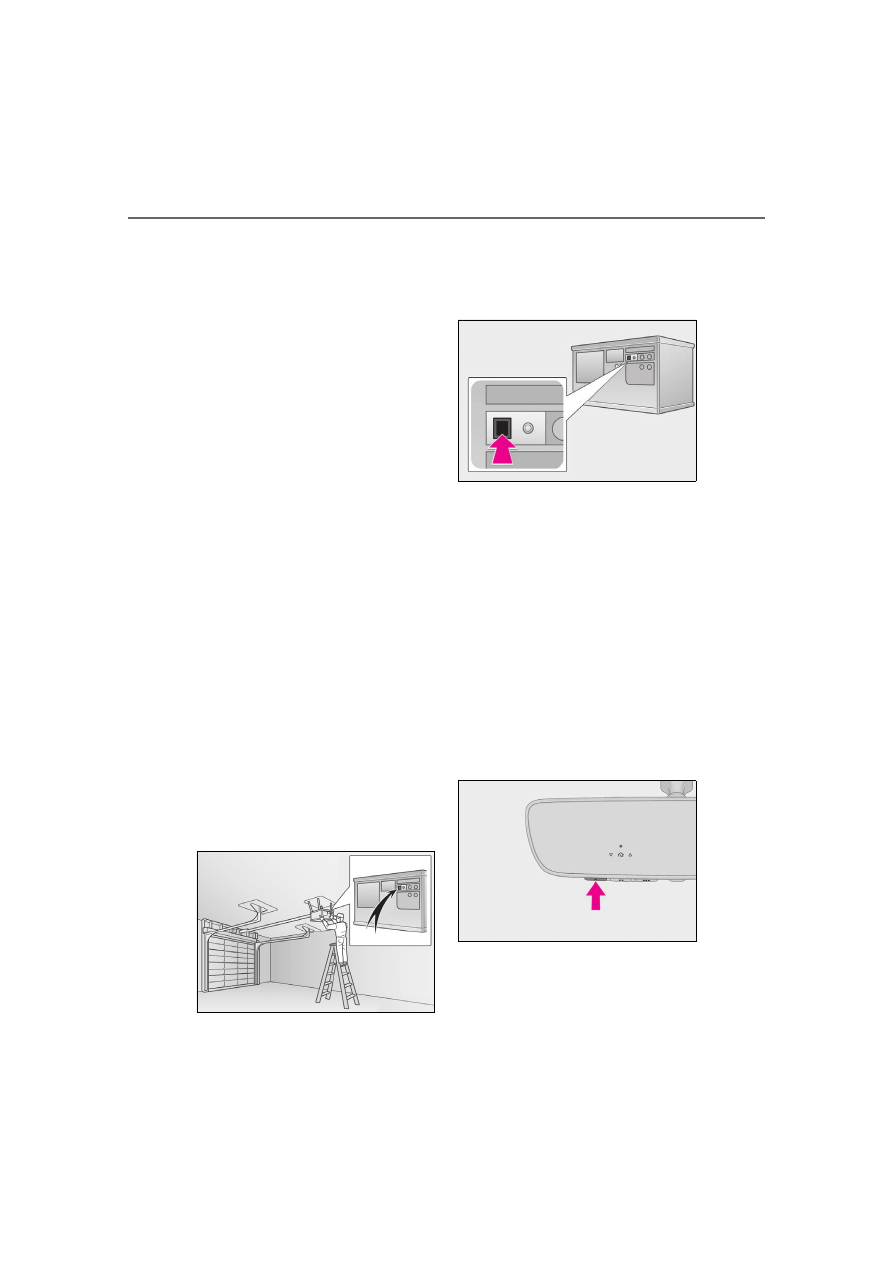

Locate the “Learn” or “Smart” but-
ton on the garage door opener
motor in the garage.

This button can usually be found where the

hanging antenna wire is attached to the

unit. The name and color of the button may

vary by manufacturer. Refer to the owner’s

manual supplied with the garage door

opener motor for details.

Press and release the “Learn” or
“Smart” button.
Perform

within 30 seconds after

performing

Press and hold the desired Home-
Link

button (inside the vehicle)

for 2 seconds and release it. Repeat
this sequence (press/hold/release)
up to 3 times to complete pro-
gramming.
If the garage door opener motor
operates when the HomeLink

button is pressed, the garage door
opener motor recognizes the
HomeLink

signal.



Vehicles with auto anti-glare inside
rear view mirror

429

5-5. Using the other interior features

Interio

r fe

atures



Vehicles with Digital Rearview Mir-
ror

■

Enabling 2-way communication
with a garage door (only available
for compatible devices)

When enabled, 2-way communication
allows you to check the status of the
opening and closing of a garage door
through indicators in your vehicle.
2-way communication is only available
if the garage door opener motor used
is a compatible device. (To check
device compatibility, refer to
www.homelink.com.)

Within 5 seconds after program-
ming the garage door opener has
been completed, if the garage door
opener motor is trained to Home-
Link

, both garage door operation

indicators will flash rapidly (green)
and the light on the garage door
opener motor will blink twice, indi-
cating that 2-way communication is
enabled.

If the indicators do not flash, perform

and

within the first 10 presses of the Home-

Link

button after programming has been

completed.

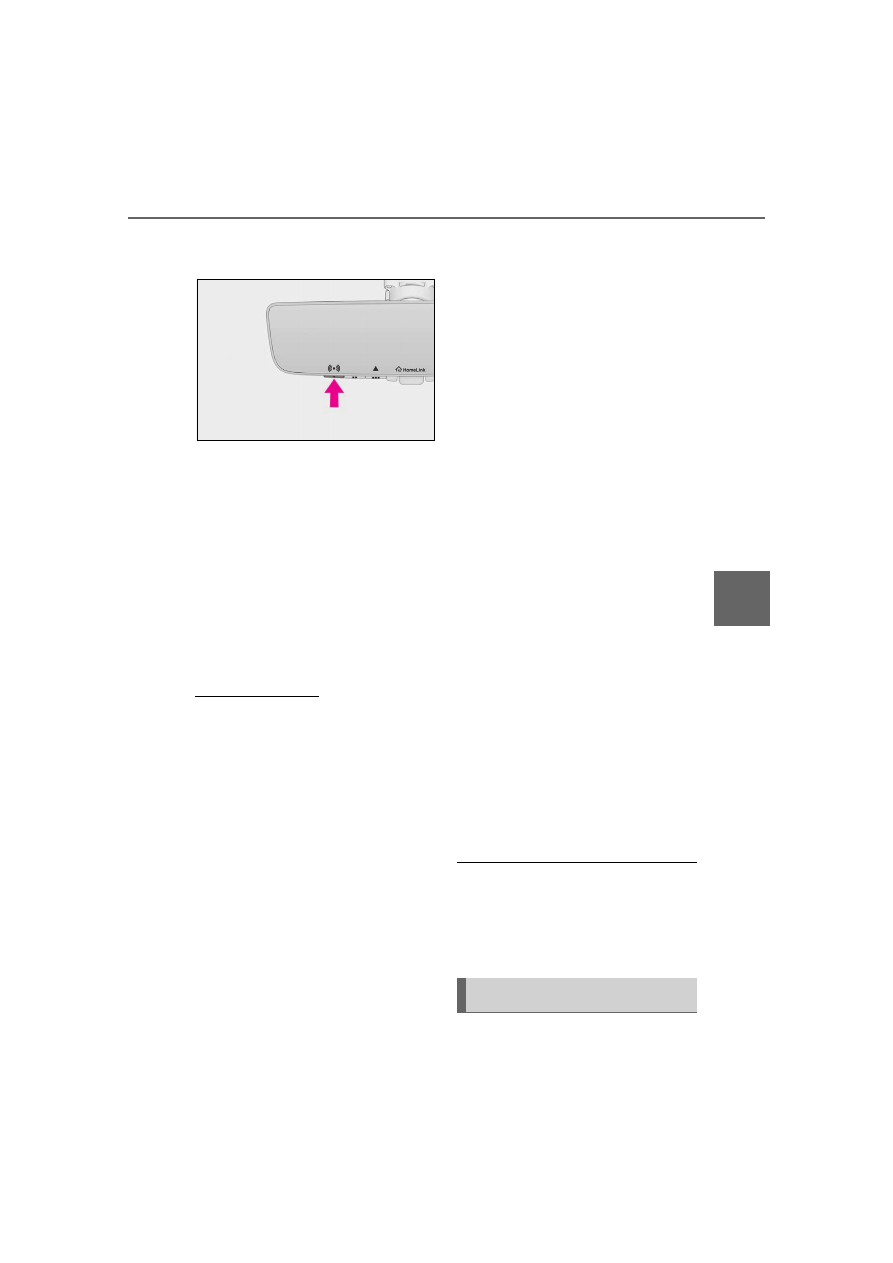

Press a programmed HomeLink

button to operate a garage door.

Within 1 minute of pressing the
HomeLink

button, after the

garage door operation has
stopped, press the “Learn” or
“Smart” button on the garage door
opener motor. Within 5 seconds of
the establishment of 2-way com-
munication with the garage door
opener, both garage door opera-
tion indicators in the vehicle will
flash rapidly (green) and the light
on the garage door opener motor
will blink twice, indicating that
2-way communication is enabled.

■

Reprogramming a single Home-
Link

button

When the following procedure is per-
formed, buttons which already have
devices registered to them can be
overwritten:

Press and hold the desired Home-
Link

button.

When the HomeLink

indicator

starts flashing orange, release the
HomeLink

button and perform

“Programming HomeLink

” 1 (it

takes 20 seconds for the Home-
Link

indicator to start flashing).

■

Before programming

●

Install a new battery in the transmitter.

●

The battery side of the transmitter must
be pointed away from the HomeLink

buttons.

Press the appropriate HomeLink

Operating HomeLink

430

5-5. Using the other interior features

button. The HomeLink

indicator light

should turn on.
The status of the opening and closing
of a garage door is shown by the indi-
cators.



Vehicles with auto anti-glare inside
rear view mirror

Opening
Closing



Vehicles with Digital Rearview Mir-
ror

Opening
Closing

This function is only available if the garage
door opener motor used is a compatible
device. (To check device compatibility,
refer to www.homelink.com.)

The indicators can operate within
approximately 820 ft. (250 m) of the
garage door. However, if there are
obstructions between the garage door
and the vehicle, such as houses and
trees, feedback signals from the
garage door may not be received.
To recall the previous door operation
status, press and release either Home-
Link

buttons

and

(vehicles with auto

anti-glare inside rear view mirror),

and

(vehicles with Digital Rearview

Mirror), simultaneously. The last
recorded status will be displayed for 3
seconds.

Press and hold the 2 outside buttons
for 10 seconds until the HomeLink

indicator light changes from continu-
ously lit (orange) to rapidly flashing
(green).

If you sell your vehicle, be sure to erase the
programs stored in the HomeLink

mem-

ory.

Color

Status

Orange (flashing)

Currently open-

ing/closing

Green

Opening/closing has

completed

Red (flashing)

Feedback signals

cannot be received

Erasing the entire HomeLink

memory (all three codes)

433

Mai
nte

e a

are

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting the vehi-

cle exterior................................

434

Cleaning and protecting the vehi-

cle interior .................................

437

6-2. Maintenance

Maintenance requirements

........................................................

440

General maintenance..............

441

Emission inspection and mainte-

nance (I/M) programs .........

444

6-3. Do-it-yourself maintenance

Do-it-yourself service precautions

........................................................

445

Hood...............................................

447

Positioning a floor jack............

448

Engine compartment...............

449

12-volt battery.............................

455

Tires ................................................

457

Tire inflation pressure..............

467

Wheels...........................................

469

Air conditioning filter...............

470

Cleaning the hybrid battery (trac-

tion battery) air intake vents
........................................................

472

Electronic key battery.............

475

Checking and replacing fuses

........................................................

477

Headlight aim..............................

479

Light bulbs....................................

480

434

6-1. Maintenance and care

6-1.Maintenance and care



Working from top to bottom, liber-
ally apply water to the vehicle body,
wheel wells and underside of the
vehicle to remove any dirt and dust.



Wash the vehicle body using a
sponge or soft cloth, such as a
chamois.



For hard-to-remove marks, use car
wash soap and rinse thoroughly with
water.



Wipe away any water.



Wax the vehicle when the water-
proof coating deteriorates.

If water does not bead on a clean surface,
apply wax when the vehicle body is cool.

■

Automatic car washes

●

Before washing the vehicle:

• Fold the mirrors

• Turn off the power back door
Start washing from the front of the vehicle.

Extend the mirrors before driving.

●

Brushes used in automatic car washes

may scratch the vehicle surface, parts

(wheel, etc.) and harm your vehicle’s

paint.

●

Rear spoiler may not be washable in

some automatic car washes. There may

also be an increased risk of damage to

vehicle.

●

When the shift position needs to be held

in N, refer to P.193.

■

High pressure car washes

As water may enter the cabin, do not bring

the nozzle tip near the gaps around the

doors or perimeter of the windows, or spray

these areas continuously.

■

When using a car wash

If the door handle becomes wet while the

electronic key is within the effective range,

the door may lock and unlock repeatedly. In

that case, follow the following correction

procedures to wash the vehicle:

●

Place the key in a position 6 ft. (2 m) or

more separate from the vehicle while the

vehicle is being washed. (Take care to

ensure that the key is not stolen.)

●

Set the electronic key to battery-saving

mode to disable the smart access system

with push-button start. (



P.127)

■

Wheels and wheel ornaments

●

Remove any dirt immediately by using a

neutral detergent.

●

Wash detergent off with water immedi-

ately after use.

●

To protect the paint from damage, make

sure to observe the following precau-

tions.

• Do not use acidic, alkaline or abrasive

detergent

• Do not use hard brushes

• Do not use detergent on the wheels when

they are hot, such as after driving or park-

ing in hot weather

■

Brake pads and calipers

Rust may form if the vehicle is parked with

wet brake pads or disc rotors, causing them

to stick. Before parking the vehicle after it is

washed, drive slowly and apply the brakes

several times to dry the parts.

■

Brake caliper coating

●

When using detergent, use neutral deter-

gent. Do not use hard brushes or abra-

sive cleaners, as they will damage the

coating.

●

Do not use detergent on the brake cali-

pers when they are hot.

●

Wash detergent off immediately after

use.

Cleaning and protecting the
vehicle exterior

Perform cleaning in a manner
appropriate to each component
and its material.

Cleaning instructions

435

6-1. Maintenance and care

Mai
nte

e a

are

■

Bumpers

Do not scrub with abrasive cleaners.

■

Front side windows water-repellent

coating

The following precautions can extend the

effectiveness of the water-repellent coating.

●

Remove any dirt, etc. from the front side

windows regularly.

●

Do not allow dirt and dust to accumulate

on the windows for a long period.

Clean the windows with a soft, damp

cloth as soon as possible.

●

Do not use wax or glass cleaners that

contain abrasives when cleaning the win-

dows.

●

Do not use any metallic objects to

remove condensation build up.

■

Plated portions

If dirt cannot be removed, clean the parts as

follows:

●

Use a soft cloth dampened with an

approximately 5% solution of neutral

detergent and water to clean the dirt off.

●

Wipe the surface with a dry, soft cloth to

remove any remaining moisture.

●

To remove oily deposits, use alcohol wet

wipes or a similar product.

WARNING

■

When washing the vehicle

Do not apply water to the inside of the

engine compartment. Doing so may

cause the electrical components, etc. to

catch fire.

■

When cleaning the windshield

Set the wiper switch to off.

If the switch is in “AUTO”, the wipers may

operate unexpectedly in the following sit-

uations, and may result in hands being

caught or other serious injuries and

cause damage to the wiper blades.

Off
AUTO

●

When the upper part of the windshield

where the raindrop sensor is located is

touched by hand

●

When a wet rag or similar is held close

to the raindrop sensor

●

If something bumps against the wind-

shield

●

If you directly touch the raindrop sen-

sor body or if something bumps into

the raindrop sensor

■

Precautions regarding the exhaust

pipe

Exhaust gasses cause the exhaust pipe to

become quite hot.

When washing the vehicle, be careful not

to touch the pipe until it has cooled suffi-

ciently, as touching a hot exhaust pipe

can cause burns.

■

Precaution regarding the front and

rear bumpers

If the paint of the front or rear bumper is

chipped or scratched, the following sys-

tems may not function correctly. If this

occurs, consult your Lexus dealer.

●

Lexus Safety System + 3

●

BSM

●

RCTA

●

SEA

●

PKSB

●

Intuitive parking assist

436

6-1. Maintenance and care

NOTICE

■

To prevent paint deterioration and

corrosion on the body and compo-

nents (aluminum wheels, etc.)

●

Wash the vehicle immediately in the

following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present on the

paint surface

• If dead insects, insect droppings or

bird droppings are present on the

paint surface

• After driving in an area contaminated

with soot, oily smoke, mine dust, iron

powder or chemical substances

• If the vehicle becomes heavily soiled

with dust or mud

• If liquids such as benzene and gasoline

are spilled on the paint surface

●

If the paint is chipped or scratched,

have it repaired immediately.

●

To prevent the wheels from corroding,

remove any dirt and store in a place

with low humidity when storing the

wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use organic

substances or scrub with a hard brush.

This may damage the surfaces of the

lights.

●

Do not apply wax to the surfaces of the

lights.

Wax may cause damage to the lenses.

■

When using an automatic car wash

Set the wiper switch to the off position.

If the wiper switch is in “AUTO”, the wip-

ers may operate and the wiper blades

may be damaged.

■

When using a high pressure car wash

●

When washing the vehicle, do not

spray the camera or its surrounding

area directly with a high pressure

washer. Shock applied from high pres-

sure water may cause the device to not

operate normally.

●

Do not spray water directly on the

radar which is equipped behind the

emblem. Otherwise it may cause the

device to be damaged.

●

Do not bring the nozzle tip close to

boots (rubber or resin manufactured

cover), connectors or the following

parts. The parts may be damaged if

they come into contact with high-pres-

sure water.

• Traction related parts

• Steering parts

• Suspension parts

• Brake parts

●

Keep the cleaning nozzle at least 11.9

in. (30 cm) away from the vehicle

body. Otherwise resin section, such as

moldings and bumpers, may be

deformed and damaged.

Also, do not continuously hold the nozzle

in the same place.

●

Do not spray the lower part of the

windshield continuously.

If water enters the air conditioning sys-

tem intake located near the lower part of

the windshield, the air conditioning sys-

tem may not operate correctly.

●

Do not wash the underside of the vehi-

cle using a high pressure car washer.

437

6-1. Maintenance and care

Mai
nte

e a

are



Remove dirt and dust using a vac-
uum cleaner. Wipe dirty surfaces
with a cloth dampened with luke-
warm water.



If dirt cannot be removed, wipe it off
with a soft cloth dampened with
neutral detergent diluted to approx-
imately 1%.
Wring out any excess water from
the cloth and thoroughly wipe off
remaining traces of detergent and
water.

■

Shampooing the carpets

There are several commercial foaming-type

cleaners available. Use a sponge or brush

to apply the foam. Rub in overlapping cir-

cles. Do not use water. Wipe dirty surfaces

and let them dry. Excellent results are

obtained by keeping the carpet as dry as

possible.

■

Handling the seat belts

Clean with mild soap and lukewarm water

using a cloth or sponge. Also check the

belts periodically for excessive wear, fraying

or cuts.

Cleaning and protecting the
vehicle interior

Perform cleaning in a manner
appropriate to each component
and its material.

Protecting the vehicle interior

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in the vehi-

cle, such as on the floor, in the hybrid

battery (traction battery) air vents, and

in the luggage compartment. (



P.66)

Doing so may cause the hybrid battery,

electrical components, etc. to mal-

function or catch fire.

●

Do not get any of the SRS components

or wiring in the vehicle interior wet.

(



P.30)

An electrical malfunction may cause

the airbags to deploy or not function

properly, resulting in death or serious

injury.

●

Vehicles with wireless charger: Do not

let the wireless charger (



P.408) get

wet. Failure to do so may cause the

charger to become hot and cause

burns or could cause electric shock

resulting in death or serious injury.

■

Cleaning the interior (especially

instrument panel)

Do not use polish wax or polish cleaner.

The instrument panel may reflect off the

windshield, obstructing the driver’s view

and leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following liquids, as

they may discolor the vehicle interior

or cause streaks or damage to painted

surfaces:

• Areas other than the seats and steer-

ing wheel: Organic substances such as

benzene or gasoline, alkaline or acidic

solutions, dye, and bleach

• Seats: Alkaline or acidic solutions,

such as thinner, benzene, and alcohol

438

6-1. Maintenance and care



Remove dirt and dust using a vac-
uum cleaner.



Wipe off any excess dirt and dust
with a soft cloth dampened with
diluted detergent.

Use a diluted water solution of approxi-
mately 5% neutral wool detergent.



Wring out any excess water from
the cloth and thoroughly wipe off all
remaining traces of detergent.



Wipe the surface with a dry, soft
cloth to remove any remaining
moisture. Allow the leather to dry in
a shaded and ventilated area.

■

Caring for leather areas

Lexus recommends cleaning the interior of

the vehicle at least twice a year to maintain

the quality of the vehicle’s interior.



Remove dirt and dust using a vac-
uum cleaner.



Wipe it off with a soft cloth damp-

NOTICE

• Steering wheel: Organic substances,

such as thinner, and cleaner that con-

tains alcohol

●

Do not use polish wax or polish

cleaner. The instrument panel’s or

other interior part’s painted surface

may be damaged.

■

Preventing damage to leather sur-

faces

Observe the following precautions to

avoid damage to and deterioration of

leather surfaces:

●

Remove any dust or dirt from leather

surfaces immediately.

●

Do not expose the vehicle to direct

sunlight for extended periods of time.

Park the vehicle in the shade, espe-

cially during summer.

●

Do not place items made of vinyl, plas-

tic, or containing wax on the uphol-

stery, as they may stick to the leather

surface if the vehicle interior heats up

significantly.

■

Water on the floor

Do not wash the vehicle floor with water.

Vehicle systems such as the audio system

may be damaged if water comes into

contact with electrical components such

as the audio system above or under the

floor of the vehicle. Water may also

cause the body to rust.

■

When cleaning the inside of the wind-

shield

Do not allow glass cleaner to contact the

lens. Also, do not touch the lens.

(



P.225)

■

Cleaning the inside of the rear win-

dow

●

Do not use glass cleaner to clean the

rear window, as this may cause dam-

age to the rear window defogger

heater wires or antenna. Use a cloth

dampened with lukewarm water to

gently wipe the window clean. Wipe

the window in strokes running parallel

to the heater wires or antenna.

●

Be careful not to scratch or damage

the heater wires or antenna.

Cleaning the leather areas

Cleaning the synthetic leather
areas

Lexus TX500H (2024 year). Manual in english - page 13
