Lexus TX500H (2024 year). Manual in english

376

4-6. Driving tips



Specific design characteristics give
it a higher center of gravity than
ordinary passenger cars. This vehi-
cle design feature causes this type
of vehicle to be more likely to roll-
over. And, utility vehicles have a sig-
nificantly higher rollover rate than
other types of vehicles.



An advantage of the higher ground
clearance is a better view of the
road allowing you to anticipate
problems.



It is not designed for cornering at
the same speeds as ordinary pas-
senger cars any more than
low-slung sports cars are designed
to perform satisfactorily under
off-road conditions. Therefore,
sharp turns at excessive speeds may
cause the vehicle to rollover.

Your vehicle is not designed to be
driven off-road. However, in the event
that off-road driving cannot be
avoided, please observe the following
precautions to help avoid the areas
prohibited to vehicles.



Drive your vehicle only in areas
where off-road vehicles are permit-
ted to travel.



Respect private property. Get
owner’s permission before entering
private property.

Utility vehicle precautions

This vehicle belongs to the utility
vehicle class, which has higher
ground clearance and narrower
tread in relation to the height of its
center of gravity.

Utility vehicle feature

WARNING

■

Utility vehicle precautions

Always observe the following precau-

tions to minimize the risk of death, seri-

ous injury or damage to your vehicle:

●

In a rollover crash, an unbelted person

is significantly more likely to die than a

person wearing a seat belt. Therefore,

the driver and all passengers should

always fasten their seat belts.

●

Avoid sharp turns or abrupt maneu-

vers, if at all possible.

Failure to operate this vehicle correctly

may result in loss of control or vehicle

rollover causing death or serious

injury.

●

Loading cargo on the roof luggage

carrier will make the center of the

vehicle gravity higher. Avoid high

speeds, sudden starts, sharp turns,

sudden braking or abrupt maneuvers,

otherwise it may result in loss of con-

trol or vehicle rollover due to failure to

operate this vehicle correctly.

●

Always slow down in gusty crosswinds.

Because of its profile and higher cen-

ter of gravity, your vehicle is more sen-

sitive to side winds than an ordinary

passenger car. Slowing down will allow

you to have better control.

●

Do not drive horizontally across steep

slopes. Driving straight up or straight

down is preferred. Your vehicle (or any

similar off-road vehicle) can tip over

sideways much more easily than for-

ward or backward.

Off-road driving

377

4-6. Driving tips

Driving



Do not enter areas that are closed.
Honor gates, barriers and signs that
restrict travel.



Stay on established roads. When
conditions are wet, driving tech-
niques should be changed or travel
delayed to prevent damage to
roads.

■

Additional information for off-road driv-

ing



For owners in U.S. mainland, Hawaii and

Puerto Rico:

To obtain additional information pertaining

to driving your vehicle off-road, consult the

following organizations.

●

State and Local Parks and Recreation

Departments

●

State Motor Vehicle Bureau

●

Recreational Vehicle Clubs

●

U.S. Forest Service and Bureau of Land

Management

WARNING

■

Off-road driving precautions

Always observe the following precau-

tions to minimize the risk of death, seri-

ous injury or damage to your vehicle:

●

Drive carefully when off the road. Do

not take unnecessary risks by driving in

dangerous places.

●

Do not grip the steering wheel spokes

when driving off-road. A bad bump

could jerk the wheel and injure your

hands. Keep both hands and especially

your thumbs on the outside of the rim.

●

Always check your brakes for effec-

tiveness immediately after driving in

sand, mud, water or snow.

●

After driving through tall grass, mud,

rock, sand, rivers, etc., check that there

is no grass, bush, paper, rags, stone,

sand, etc. adhering or trapped on the

underbody. Clear off any such matter

from the underbody. If the vehicle is

used with these materials trapped or

adhering to the underbody, a break-

down or fire could occur.

●

When driving off-road or in rugged

terrain, do not drive at excessive

speeds, jump, make sharp turns, strike

objects, etc. This may cause loss of

control or vehicle rollover causing

death or serious injury. You are also

risking expensive damage to your

vehicle’s suspension and chassis.

NOTICE

■

To prevent water damage

Take all necessary safety measures to

ensure that water damage to the hybrid

battery (traction battery), hybrid system

or other components does not occur.

●

Water entering the engine compart-

ment may cause severe damage to the

hybrid system. Water entering the inte-

rior may cause the hybrid battery

(traction battery) stowed under the

rear seats to short circuit.

●

Water entering the transmission and

rear electric motor (traction motor)

will cause deterioration in transmission

quality. The malfunction indicator may

come on, and the vehicle may not be

drivable.

●

Water can wash the grease from wheel

bearings, causing rusting and prema-

ture failure, and may also enter the

transmission case, reducing the gear

oil’s lubricating qualities.

378

4-6. Driving tips

NOTICE

■

When you drive through water

If driving through water, such as when

crossing shallow streams, first check the

depth of the water and the bottom of the

riverbed for firmness. Drive slowly and

avoid deep water.

■

Inspection after off-road driving

●

Sand and mud that has accumulated

around brake discs may affect braking

efficiency and may damage brake sys-

tem components.

●

Always perform a maintenance

inspection after each day of off-road

driving that has taken you through

rough terrain, sand, mud, or water. For

scheduled maintenance information,

refer to the “Warranty and Services

Guide/Owner’s Manual Supple-

ment/Scheduled Maintenance”.

379

Interio

r fe

atures

Interior features

5-1. Lexus Climate Concierge

Lexus Climate Concierge.....

380

5-2. Using the air conditioning system

and defogger

Front automatic air conditioning

system ..........................................

381

Rear air conditioning system

........................................................

389

Heated steering wheel/seat heat-

ers/seat ventilators................

392

5-3. Using the interior lights

Interior lights list.........................

395

5-4. Using the storage features

List of storage features............

398

Luggage compartment features

........................................................

403

5-5. Using the other interior features

Other interior features ...........

407

Using the power outlets (1500

W)..................................................

418

If the power outlets (1500 W)

cannot be used........................

424

Garage door opener...............

425

380

5-1. Lexus Climate Concierge

5-1.Lexus Climate Concierge

Lexus Climate Concierge operates in
conjunction with “AUTO” of the air
conditioning system.

Select the option screen switch.
(



P.381)

Select the “Climate concierge”
switch.

Turn the “AUTO” switch on.



Automatic air conditioning system
(



P.381)

Operation of the air conditioning system is
performed automatically according to the
temperature setting for the driver’s
side/front passenger’s side.



Seat heaters (



P.392)

Operation of the seat heaters is performed
automatically according to the tempera-
ture setting for the driver’s side/front pas-
senger’s side.
Operation will automatically change
between the seat heaters and seat ventila-

tors according to the temperature setting
of the air conditioning system, outside tem-
perature, etc.



Seat ventilators (



P.393)

Operation of the seat ventilators is per-
formed automatically according to the
temperature setting for the driver’s
side/front passenger’s side.
Operation will automatically change
between the seat heaters and seat ventila-
tors according to the temperature setting
of the air conditioning system, outside tem-
perature, etc.



Heated steering wheel (



P.392)

Operation of the heated steering wheel is
performed automatically according to the
temperature setting of the air conditioning
system, outside temperature, etc.

: If equipped

■

Passenger detection functions

●

When a passenger is detected in the

front passenger seat, the seat heater and

ventilator will operate automatically.

●

When the seat heater/seat ventilator

switch is set to AUTO, the passenger

detection function will not operate.

■

Rear seat heater operation (If

equipped)

The rear seat heaters are not controlled by

the Lexus Climate Concierge.

Lexus Climate Concierge

The climate control seats are auto-
matically controlled according to
the set temperature of the air con-
ditioning system, outside tempera-
ture, cabin temperature, etc. Lexus
Climate Concierge allows a com-
fortable condition to be maintained
without adjusting each system.

Turning on Lexus Climate Con-
cierge

Automatically controllable func-
tions

381

5-2. Using the air conditioning system and defogger

Interio

r fe

atures

5-2.Using the air conditioning system and defogger

Left-hand side temperature control switch
Airflow mode control switch
Option screen switch
Shortcut screen switch

Select to display shortcut icons for various functions.

Front/rear control screen switch
“Sync” switch
Right-hand side temperature control switch
“A/C” switch
Outside/recirculated air mode switch
Fan speed control switch
“Off” switch
“AUTO” switch

■

Adjusting the temperature

Turn temperature control dial clock-
wise to increases the temperature and
turn the dial counterclockwise to
decreases the temperature.
When the indicator on the “Sync”
switch is illuminated, the temperature

setting for the front passenger’s side
and the rear seats side will match the
setting for the driver’s side.
When the indicator on the “Sync”
switch is off, turning the “Sync” switch
on will illuminate the “Sync” switch indi-
cator and the temperature setting for

Front automatic air conditioning system

When the “AUTO” switch is on, the air outlets and fan speed will automatically
be changed according to the set temperature.

Option screen switch

382

5-2. Using the air conditioning system and defogger

the front passenger’s side and the rear
seats side will become the same as that
for the driver’s side.

When the front passenger’s side tempera-
ture adjustment switch is operated, the
indicator on the “Sync” switch will turn off
and the temperature setting for the front
passenger’s side will be able to be
adjusted.
When the rear seats side temperature
adjustment switch is operated, the indica-
tor on the “Sync” switch will turn off and the
temperature setting for the rear seats side
will be able to be adjusted.
If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature air or
heated air.
When the front passenger’s side and the
rear seats side temperature adjustment
switch is operated, adjust the temperature
for the driver, front passenger and rear
seats separately. (“3-ZONE” mode)

■

Setting the fan speed

To increase the fan speed, select the
“+” fan speed adjustment switch or
slide the icon of the fan speed adjust-
ment switch right. To decrease the fan
speed, select the “-” fan speed adjust-
ment switch or slide the icon of the fan
speed adjustment switch left.

Select the “Off” switch to turn the fan off.
The fan can also be stopped by touching
and holding the “-” fan speed adjustment
switch or sliding the icon of the fan speed
adjustment switch to the leftmost position
and holding it.

■

Changing the air flow mode

Select the airflow mode control switch.

The airflow mode changes each time the
switch is selected.

The air outlets and air volume changes
according to the selected air flow mode.

: Air flows to the upper body

and feet

: Air flows to the feet

: Air flows to the feet and the

windshield defogger operates

■

Location of air outlets

■

Switching between outside air and
recirculated air modes

Temporarily changing the air mode to
recirculated air mode is recommended
to prevent dirty air from entering the
vehicle, such as when in a tunnel or
heavy traffic, and to help cool the inte-
rior when the outside air temperature
is high.
Select the outside/recirculated air
mode switch.

The air mode changes between outside air
mode and recirculated air mode each time

383

5-2. Using the air conditioning system and defogger

Interio

r fe

atures

the switch is selected. When recirculated
air mode is selected, the indicator will illu-
minate.
The air mode may change automatically
depending on the temperature setting,
temperature inside the vehicle, etc.

■

When the outside temperature exceeds

75°F (24°C) and the air conditioning

system is on

●

In order to reduce the air conditioning

power consumption, the air conditioning

system may switch to recirculated air

mode automatically. This may also

reduce fuel consumption.

●

Recirculated air mode is selected as a

default mode when the power switch is

turned to ON.

●

It is possible to switch to outside air mode

at any time by pressing the outside/recir-

culated air mode switch.

■

Front seat concentrated airflow
mode (S-Flow)

When S-Flow mode is enabled, air flow
to the rear seats will be stopped for
increased fuel efficiency. If S-Flow
mode is disabled manually, it will be
automatically enabled when the power
switch is turned to ON after being off
for a period of time.
Only when S-Flow mode is enabled
automatically, it will be automatically
disabled when a rear door is opened
and closed.

The S-Flow switch is

(ON) on

the option screen.



Manually turning front seat concen-
trated airflow mode on/off

In front seat concentrated airflow
mode, directing airflow to the front
seats only and to all seats can be

switched via switch operation. When
the mode has been switched manually,
automatic airflow control stops operat-
ing.

Select the option screen switch.
(



P.381)

Select the “S-Flow” switch.



Indicator illuminated: Airflow to the
front seats only



Indicator off: Airflow to all the seats

■

Operation of automatic airflow control

●

In order to maintain a comfortable inte-

rior, airflow may be directed to seats

without passengers immediately after the

hybrid system is started and at other

times depending on the outside tempera-

ture.

●

After the hybrid system is started, if pas-

sengers move around inside or enter/exit

the vehicle, the system cannot accurately

detect the presence of passengers and

automatic airflow control will not oper-

ate.

●

If a rear seat passenger is on board

before the power switch is turned to ON,

the system will determine that there are

no passengers in the rear seats.

The presence of a rear seat passenger is
determined by opening and closing of a
rear door.
Once the system determines the presence
of a rear seat passenger, it will not deter-
mine otherwise during that trip.

●

If it is very hot or very cold and the system

determines that air conditioning to the

whole vehicle is required, air flow will be

directed to the rear seats, regardless of

whether S-Flow mode is enabled/dis-

abled.

■

To return to automatic airflow control

With the indicator off, turn the power

switch off.

384

5-2. Using the air conditioning system and defogger

After 60 minutes or more elapse, turn

the power switch to ON.

■

Eco air conditioning mode

The air conditioning is controlled with
low fuel consumption prioritized such
as reducing fan speed, etc.

Select the option screen switch.
(



P.381)

Select the “Eco heat/cool” switch.



In Eco drive mode, the air condition-
ing system is controlled as follows to
prioritize fuel efficiency. To improve
air conditioning performance, turn
off Eco air conditioning mode.

• Engine speed and compressor opera-

tion controlled to restrict heating/cool-
ing capacity.

• Fan speed restricted when automatic

mode is selected.



When the driving mode is set to Eco
driving mode, the Eco air condition-
ing mode will be turned on automat-
ically. Even in this case, the Eco air
conditioning mode can be turned
off by selecting the “Eco heat/cool”.

■

Warming the interior quickly (Max
heat)

When “MAX heat” is turned on, in
order to warm the interior quickly, the

settings ofthe air conditioning system
will be changed immediately.

Select the shortcut screen switch.
(



P.381)

Select the “MAX heat” switch.



The temperature setting of the air
conditioning system will be set to
“Hi” and the “AUTO” switch will be
turned on.



Seat heaters will be set to Hi.



Heated steering wheel will be set to
Hi. (vehicles with heated steering
wheel)



In the following situations, the front
passenger’s side seat heater/seat
ventilator will be set to “AUTO”.

• When “Climate concierge” is on
• When the system determines that a pas-

senger is in the front passenger seat



When the indicator on the “Sync”
switch is illuminated, the tempera-
ture setting for the front passenger’s
side and the rear seats side will also
be set to “Hi”.

■

Cooling the interior quickly (Max
cool)

When “MAX cool” is turned on, in
order to cool the interior quickly, the
settings ofthe air conditioning system
will be changed immediately.

Select the shortcut screen switch.
(



P.381)

Select the “MAX cool” switch.



The temperature setting of the air
conditioning system will be set to
“Lo” and the “AUTO” switch will be

NOTICE

■

Operation of manual airflow control

When S-Flow mode is enabled manually,

air flow will not be directed to the rear

seats during that trip, even though a rear

door is opened and closed.

To direct air flow to the rear seats , manu-

ally disable S-Flow mode.

385

5-2. Using the air conditioning system and defogger

Interio

r fe

atures

turned on.



Seat ventilators will be set to Hi.



In the following situation, the heated
steering wheel will be set to
“AUTO”. (vehicles with heated
steering wheel)

• When “Climate concierge” is on



In the following situations, the front
passenger’s side seat heater/seat
ventilator will be set to “AUTO”.

• When “Climate concierge” is on
• When the system determines that a pas-

senger is in the front passenger seat



When the indicator on the “Sync”
switch is illuminated, the tempera-
ture setting for the front passenger’s
side and the the rear seats side will
also be set to “Lo”.

■

Defogging the windshield

Defoggers are used to defog the wind-
shield and front side windows.
Press the windshield defogger switch.

The dehumidification function will operate
and the air flow will increase.
Set the outside/recirculated air mode but-
ton to outside air mode if the recirculated
air mode is used. (It may switch automati-
cally.)
To defog the windshield and the side win-

dows early, turn the air flow and tempera-
ture up.
To return to the previous mode, press the
windshield defogger switch again when the
windshield is defogged.

■

Defogging the rear window and
outside rear view mirrors

Defoggers are used to defog the rear
window, and to remove raindrops, dew
and frost from the outside rear view
mirrors.
Press the rear window and outside rear
view mirror defoggers switch.

The rear window defogger and outside
rear view mirror defoggers will operate
and defog the rear window and outside
rear view mirrors.
The defoggers will automatically turn off
after a period of time.

■

Windshield wiper de-icer (if
equipped)

Use the windshield wiper de-icer to
help prevent the windshield wiper
blades from freezing to the windshield.

Select the option screen switch.
(



P.381)

Select the “Deicer” switch.

The windshield wiper de-icer will automati-
cally turn off after a period of time.

386

5-2. Using the air conditioning system and defogger

■

When driving on dusty roads

Close all windows. If dust thrown up by the

vehicle is still drawn into the vehicle after

closing the windows, it is recommended

that the air intake mode be set to outside air

mode and the fan speed to any setting

except off.

■

When the outside temperature is low

The dehumidification function may not

operate even when “A/C” is selected.

■

Ventilation and air conditioning odors

●

To let fresh air in, set the air conditioning

system to the outside air mode.

●

During use, various odors from inside and

outside the vehicle may enter into and

accumulate in the air conditioning sys-

tem. This may then cause odor to be

emitted from the vents.

●

To reduce potential odors from occur-

ring:

• It is recommended that the air condition-

ing system be set to outside air mode

prior to turning the vehicle off.

• The start timing of the blower may be

delayed for a short period of time imme-

diately after the air conditioning system is

started in automatic mode.

●

When parking, the system automatically

switches to outside air mode to encour-

age better air circulation throughout the

vehicle, helping to reduce odors that

occur when starting the vehicle.

■

“MAX heat”

●

The “MAX heat” switch cannot be used

to turn the setting off.

●

After the “MAX heat” switch has been

operated, the temperature setting can be

adjusted using the temperature control

switches of the air conditioning system.

●

When “Climate concierge” is on, if the

“AUTO” switch is turned on, the seat

heaters and seat ventilators of the front
seats, and the heated steering wheel

will

be operated automatically according to

the temperature setting.

●

Each function can also be adjusted to the

desired setting.

: If equipped

■

“MAX cool”

●

The “MAX cool” switch cannot be used

to turn the setting off.

●

After the “MAX cool” switch has been

operated, the temperature setting can be

adjusted using the temperature control

switches of the air conditioning system.

●

When “Climate concierge” is on, if the

“AUTO” switch is turned on, the seat

heaters and seat ventilators of the front
seats, and the heated steering wheel

will

be operated automatically according to

the temperature setting.

●

Each function can also be adjusted to the

desired setting.

: If equipped

■

Fogging up of the windows

The windows will easily fog up when the

humidity in the vehicle is high. Selecting

“A/C” on will dehumidify the air from the

outlets and defog the windshield effectively.

●

If you turn “A/C” off, the windows may fog

up more easily.

●

The windows may fog up if the recircu-

lated air mode is used.

■

Air conditioning system refrigerant

●

A label regarding the refrigerant of the

air conditioning system is attached to the

hood at the location shown in the follow-

ing illustration.

●

The meaning of each symbol on the label

are as follows:

387

5-2. Using the air conditioning system and defogger

rio

r f

■

Using the voice control system

Air conditioning system can be operated

using voice controls. For details, refer to the

“MULTIMEDIA OWNER’S MANUAL”.

■

Air conditioning filter



P.470

■

Customization

Functions that are linked to automatic mode

(when the “AUTO” switch is on) can be set

through “Vehicle customize” on the center

display. Exhaust gas sensor sensitivity set-

tings can also be changed. (if equipped)

(



P.550)

■

Adjusting the position of and open-
ing and closing the air outlets

To adjust the position of and opening
and closing the air outlets, perform the

Caution

Air conditioning system

Air conditioning system
lubricant type

Requires registered tech-
nician to service air condi-
tioning system

Flammable refrigerant

WARNING

■

To prevent the windshield defogger

from operating improperly

●

Do not use the windshield defogger in

extremely humid areas when the air

conditioning system is set to a low tem-

perature. The difference between the

temperature of the outside air and that

of the windshield can cause the outer

surface of the windshield to fog up,

blocking your vision.

●

Do not place anything on the instru-

ment panel which may cover the air

outlets. Otherwise, air flow may be

obstructed, preventing the windshield

defoggers from defogging.

■

When the outside rear view mirror

defoggers are operating

Do not touch the surface of the outside

rear view mirrors when the rear windowd

efogger and outside rear view mirror

defoggers are operating, as the surface

of the mirrors will become extremely hot

and may cause burns.

■

To prevent the windshield from fog-

ging up

Do not touch the lower part of the wind-

shield or parts along the front pillars

when the windshield wiper de-icer is on,

as they will be hot and may cause burns.

NOTICE

■

To prevent 12-volt battery discharge

Do not leave the air conditioning system

on longer than necessary when the

hybrid system is off.

■

When repairing/replacing parts of

the air conditioning system

Have repair/replacement performed by

your Lexus dealer.

When a part of the air conditioning sys-

tem, such as the evaporator, is to be

replaced, it must be replaced with a new

one.

Air outlet layout and operations

389

5-2. Using the air conditioning system and defogger

Interio

r fe

atures

■

Center display

Rear seats temperature control switch

Turn temperature control dial clockwise to increases the temperature and turn the dial
counterclockwise to decreases the temperature.

Air flow mode control switch
Close the rear air conditioning control screen
“Rear off” switch

Turn the rear seats fan off.

Adjust the rear seats fan speed setting
“Rear auto” switch

Set the rear seats automatic mode on/off.

■

Rear air conditioning system control panel

Rear air conditioning system

The rear air conditioning system can be operated selecting option switch and
also selecting “Rear” switch on the center display and rear air conditioning
system control panel.

Rear air conditioning control operation

390

5-2. Using the air conditioning system and defogger

Adjust the rear seats fan speed setting

Press

to increase the fan speed and

to decrease the fan speed.

“OFF” switch

Pressing the “OFF” switch turns off the fan.

Air flow mode control switch
Automatic mode switch

When the function is on, the indicator illuminates on the control screen.

Adjust the rear seats temperature setting

Press

to increase the temperature and

to decrease the temperature.

The temperature setting of the rear
seats can be adjusted using the follow-
ing methods:



When the “Sync” indicator is on:
Adjust the driver’s seat temperature.

Adjust the temperature setting of each
rear seat using the center display or rear
air conditioning system control panel.



Adjust the temperature setting of
rear seats using the rear air condi-
tioning system control panel.

To change the airflow mode, press the
airflow mode control switch.

The air outlets used are switched each time
the switch is pressed.

Upper body

Upper body and feet

Feet

Press the automatic mode switch.

Adjust the temperature setting.

To stop the operation, press the
“OFF” switch.

If the fan speed setting or air flow
modes are operated, the automatic
mode indicator goes off. However,
automatic mode for functions other

Adjusting the temperature set-
ting of the rear seats (Center dis-
play)

Change the airflow mode (Rear
air conditioning control panel)

Using automatic mode

391

5-2. Using the air conditioning system and defogger

rio

r f

than that operated is maintained.

■

Using automatic mode

Fan speed is adjusted automatically accord-

ing to the temperature setting and the

ambient conditions.
Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-

ately after the automatic mode switch is

pressed.

■

Location of air outlets

The air outlets and air volume changes
according to the selected air flow
mode.

■

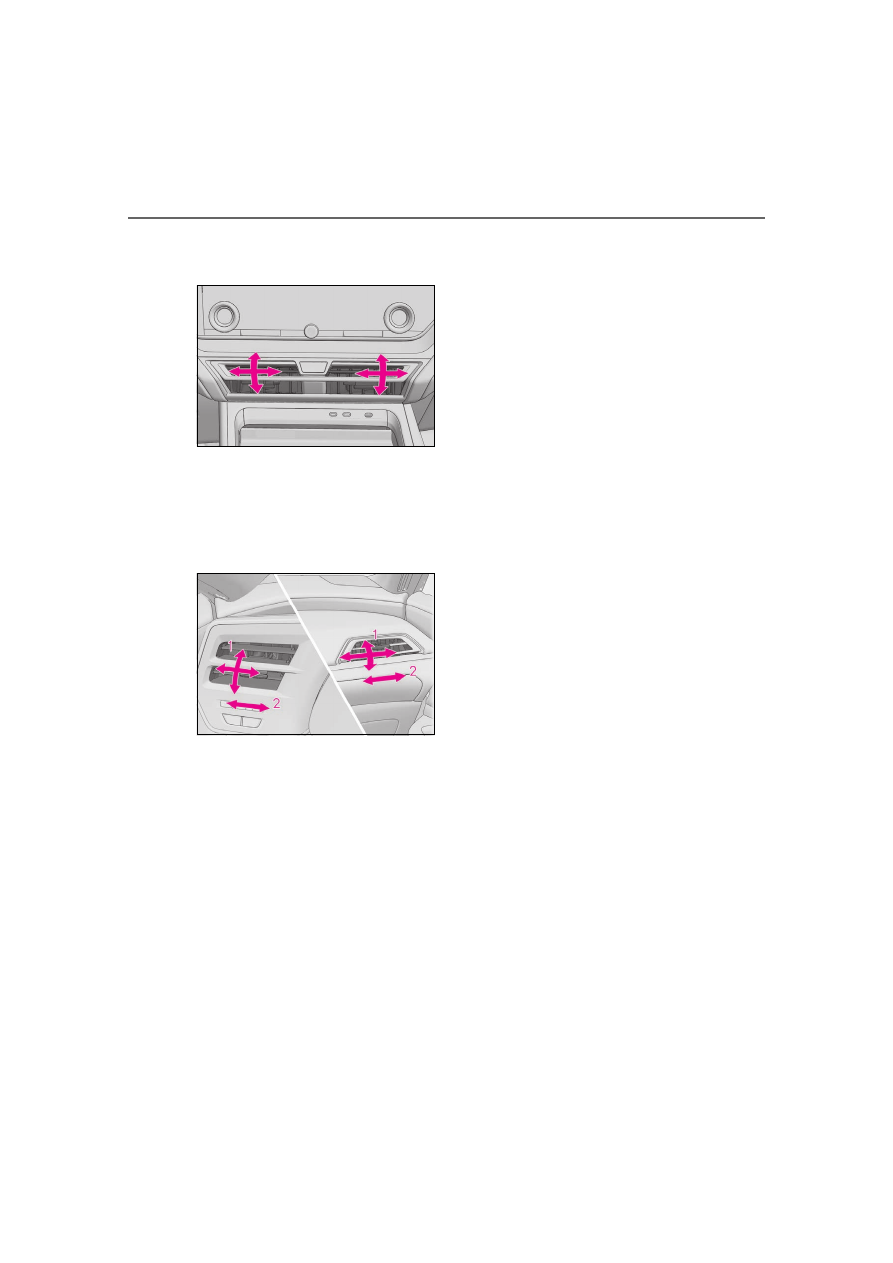

Adjusting the position of and open-
ing and closing the air outlets

Direct air flow to the left or right, up
or down

Close the vent

Open the vent

Air outlets

NOTICE

■

To prevent 12-volt battery discharge

Do not leave the air conditioning system

on longer than necessary when the

hybrid system is off.

392

5-2. Using the air conditioning system and defogger

: If equipped

Select

on the center display.

Each time the switch is selected, the opera-
tion condition changes as follows.
AUTO



Hi (2 segments lit)



Lo (1 seg-

ment lit)



Off

The level indicator (red) lights up during
operation. “AUTO” indicator lights up
during automatic operation.

■

Operation condition

The power switch is in ON.

■

Customization

The temperature setting of the heated

steering wheel can be set through “Vehicle

customize” on the center display.

(



P.550)

■

Front seats

Select

on the center dis-

play.
Each time the switch is selected, the
operation condition changes as fol-
lows.
Auto



Hi (3 segments lit)



Mid (2

segments lit)



Lo (1 segment lit)



Off

The level indicator (red) lights up during
operation. “AUTO” indicator lights up
during automatic operation.

■

Second seats (If equipped)

Each time the switch is pressed, the
operation condition changes as fol-
lows.
Hi (3 segments lit)



Mid (2 segments

lit)



Lo (1 segment lit)



Off

Heated steering wheel

/seat

heaters/seat ventilators



Heated steering wheel

Warms up the grip of the steering
wheel



Seat heaters

Warm up the seat upholstery



Seat ventilators

Maintain good ventilation using a fan
built into the seat

WARNING

■

To prevent minor burn injuries

Care should be taken if anyone in the fol-

lowing categories comes in contact with

the steering wheel or seats when the

heater is on:

●

Babies, small children, the elderly, the

sick and the physically challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alcohol or

drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

NOTICE

■

To prevent damage to the seat heat-

ers

Do not put heavy objects that have an

uneven surface on the seat and do not

stick sharp objects (needles, nails, etc.)

into the seat.

■

To prevent 12-volt battery discharge

Do not use the functions when the hybrid

system is off.

Heated steering wheel

Seat heaters

393

5-2. Using the air conditioning system and defogger

rio

r f



Vehicles with the seat ventilators

The level indicator (yellow)

lights up

during operation.



Vehicles without the seat ventilators

The level indicator (amber)

lights up

during operation.

■

Operation condition

The power switch is in ON.

■

Customization

The temperature setting of the seat heaters

of the front seats can be set through “Vehi-

cle customize” on the center display.

(



P.550)

■

Front seats

Select

on the center display.

Each time the switch is selected, the
operation condition changes as fol-
lows.
AUTO



Hi (3 segments lit)



Mid (2

segments lit)



Lo (1 segment lit)



Off

The level indicator (blue) lights up during
operation. “AUTO” indicator lights up
during automatic operation.

■

Second seats (If equipped)

Each time the switch is pressed, the
operation condition changes as fol-
lows.
Hi (3 segments lit)



Mid (2 segments

lit)



Lo (1 segment lit)



Off

The level indicator (green)

lights up

during operation.

■

Operation condition

The power switch is in ON.

■

Customization

The temperature setting of the seat ventila-

tors of the front seats can be set through

“Vehicle customize” on the center display.

WARNING

■

To prevent overheating and minor

burn injuries

Observe the following precautions when

using the seat heaters.

●

Do not cover the seat with a blanket or

cushion when using the seat heater.

●

Do not use seat heater more than nec-

essary.

Seat ventilators

395

5-3. Using the interior lights

Interio

r fe

atures

5-3.Using the interior lights

Center console light

Front personal lights (



P.396)

Front interior lights (



P.395)

Shift lever light

Inside door handle lights

Inside handle lights

Rear personal lights (



P.396)

Door courtesy lights

Footwell lights

Outer foot lights

: The illumination color can also be changed.

Refer to the “MULTIMEDIA OWNER’S MANUAL” to change the settings.

■

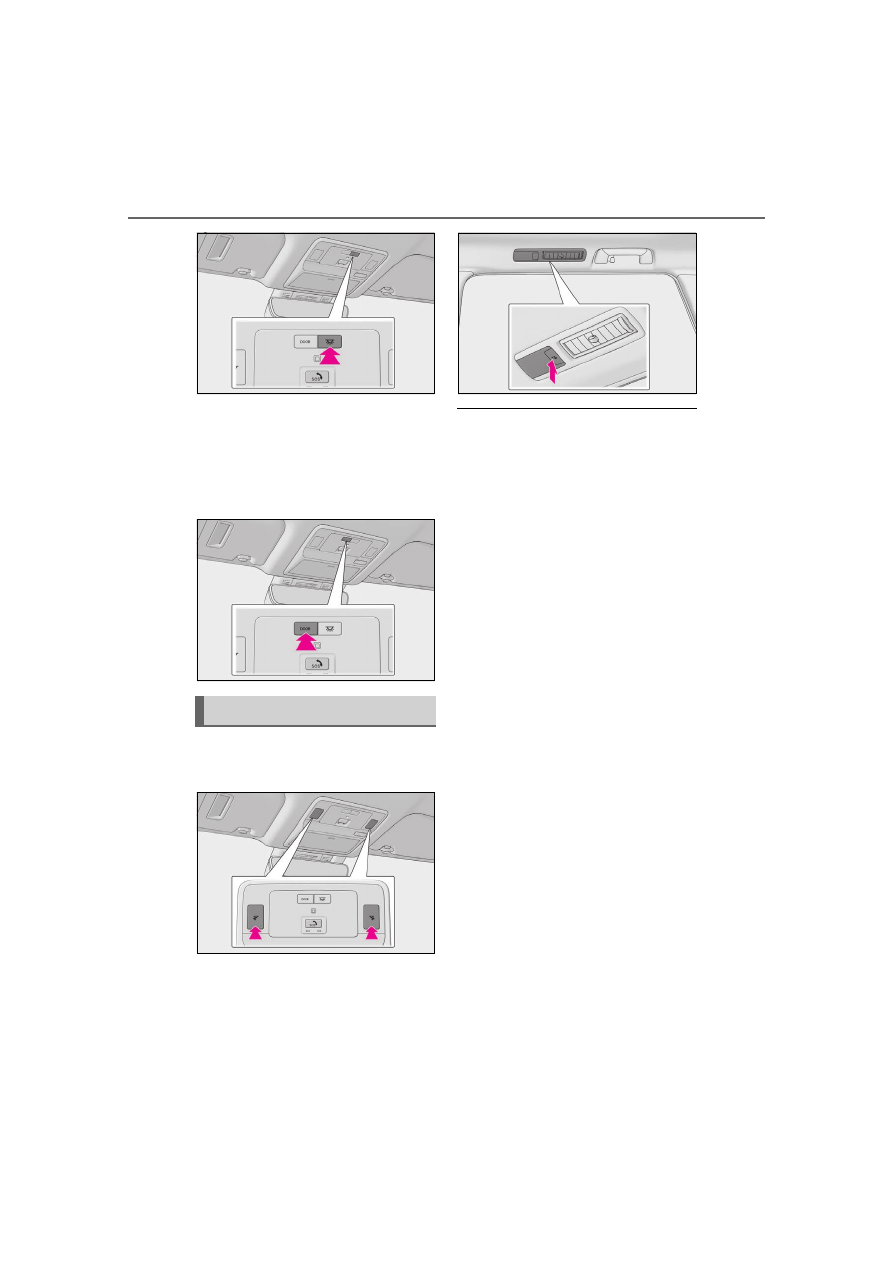

Turning the interior lights on/off

Press the interior light switch

Interior lights list

Location of the interior lights

Operating the interior lights

396

5-3. Using the interior lights

■

Turning the door position on

Press the door-linked interior light
switch

The lights are turned on and off according
to whether the doors are opened/closed.

■

Front personal lights

Turns the lights on/off

■

Rear personal lights

Turns the lights on/off

■

Illuminated entry system

The lights automatically turn on/off accord-

ing to the power switch mode, the presence

of the electronic key, whether the doors are

locked/unlocked, and whether the doors

are opened/closed.

■

To prevent the 12-volt battery from

being discharged

If the interior lights remain on when the

power switch is turned off, the lights will go

off automatically after 20 minutes.

■

Automatic illumination of the interior

lights

If any of the SRS airbags deploy (inflate) or

in the event of a strong rear impact, the inte-

rior lights will turn on automatically.
The interior lights will turn off automatically

after approximately 20 minutes.
The interior lights can be turned off manu-

ally. However, in order to help prevent fur-

ther collisions, it is recommended that they

be left on until safety can be ensured.
(The interior lights may not turn on auto-

matically depending on the force of the

impact and conditions of the collision.)

■

Using the voice control system

: If equipped

The following operations can be performed

using the voice control system.

●

Turning interior light on/off

●

Changing color of each lights

For details, refer to the “MULTIMEDIA

OWNER’S MANUAL”.

Operating the personal lights

398

5-4. Using the storage features

5-4.Using the storage features

Cup holders (

Bottle holders (

Console box (

Auxiliary boxes (



P.401)

Glove box (



P.399)

Open trays (



P.402)

List of storage features

Location of the storage features

WARNING

■

Items that should not be left in the

storage spaces

Do not leave glasses, lighters or spray

cans in the storage spaces, as this may

cause the following when cabin tempera-

ture becomes high:

●

Glasses may be deformed by heat or

cracked if they come into contact with

other stored items.

●

Lighters or spray cans may explode. If

they come into contact with other

stored items, the lighter may catch fire

or the spray can may release gas,

causing a fire hazard.

■

When storage compartments are not

in use

When driving or when the storage com-

partments are not in use, keep the lids

closed.

399

5-4. Using the storage features

rio

r f

Open (pull the lever)

Lock with the mechanical key

Unlock with the mechanical key

■

Glove box light

The glove box light turns on when the tail

lights are on.

Press the button and open the lid.

■

Console box light

The console box light turns on when the tail

lights are on.



Front seats



Second seats



Third seats

WARNING

In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by an open lid

or the items stored inside.

Glove box

Console box

WARNING

■

Caution while driving

Keep the console box closed.

In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by the open

console box or the items stored inside.

Cup holders

400

5-4. Using the storage features

■

When the cup holders are not in use

Cup holder unit of the second seats can be

removed.
While lifting the tab, push up the front edge

of the cup holder unit then pull it forward.
After removing the cup holder unit, store it

in the exclusive bag attached.

■

Changing the position of the cup holder

Each of the first-row cup holders and the

second seat-row cup holders can be

removed and installed.
Removed cup holders can be installed to

the third-row cup holder unit. Remaining

first-row/second row cup holder(s) can be

removed also or slid longitudinally to make

an open tray or trays.
To remove a cup holder, press the lock

release button A.

■

Tablet holders

Tablets can be stored in the following

places:
Depending on the situations, such as the
size or shape of a smartphone, it may not

be stored.

●

Second seat

●

Third seats

WARNING

■

Items unsuitable for the cup holder

Do not place anything other than cups,

aluminum cans, or water bottles in the

cup holders. Other items may be thrown

out of the holders in the event of an acci-

dent or sudden braking, possibly causing

injury. If possible, cover hot drinks to pre-

vent burns.

■

Precautions when using a removable

cup holder

Before using the cup holder, make sure

that the cup holder/cup holder unit is

securely locked.

401

5-4. Using the storage features

rio

r f



Front seats



Second seats

■

Bottle holders

●

When storing a bottle, close the cap.

●

The bottle may not be stored depending

on its size or shape.



Overhead

Push the lid.



Driver’s side instrument panel

Push the tab to open.



Instrument panel

Push the lid.
To close, press in and release the lid.

Bottle holders

NOTICE

■

Items unsuitable for the bottle hold-

ers

Do not place open bottle, glass or paper

cups containing liquid in the bottle hold-

ers. Otherwise, contained liquid may be

spilled. Glass cups may break if used in

the bottle holders.

Auxiliary boxes

WARNING

■

Items unsuitable for storing (Over-

head)

Do not store items heavier than 0.44 lb.

(200 g).

Doing so may cause the auxiliary box to

open and the items inside may fall out,

resulting in an accident.

402

5-4. Using the storage features



Instrument panel



On the rear console

WARNING

■

Caution while driving

When driving or when the auxiliary box is

not in use, keep the lid closed. In the

event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by the items

stored inside.

Open trays

WARNING

■

Items unsuitable for the open tray

Observe the following precautions when

putting items in the open tray. Failure to

do so may cause items to be thrown out

of the tray in the event of sudden braking

or steering. In these cases, the items may

interfere with pedal operation or cause

driver distraction, resulting in an acci-

dent.

●

Do not store items in the tray that can

easily shift or roll out.

●

Do not stack items in the tray higher

than the tray’s edge.

●

Do not put items in the tray that may

protrude over the tray’s edge.

403

5-4. Using the storage features

rio

r f

Pull down the hook to use.

The cargo hooks are provided for securing
loose items.

To hang the cargo net, use the cargo
net hooks and cargo hooks.

■

Taking out the luggage cover unit

Fold down the third seats. (



P.135)

Open the center deck board
(



P.405) and take out the lug-

gage cover unit.

Luggage compartment fea-
tures

Cargo hooks

WARNING

■

When cargo hooks are not in use

To avoid injury, always return the hooks

to their stowed positions when not in use.

Cargo net hooks

WARNING

■

When the cargo net is not in use

To avoid injury, always return the cargo

hooks to their stowed positions when not

in use.

Grocery bag hooks

NOTICE

■

To prevent damage to the grocery

bag hooks

Do not hang any object heavier than 6.6

lb. (3 kg) on the grocery bag hooks.

Luggage cover

404

5-4. Using the storage features

■

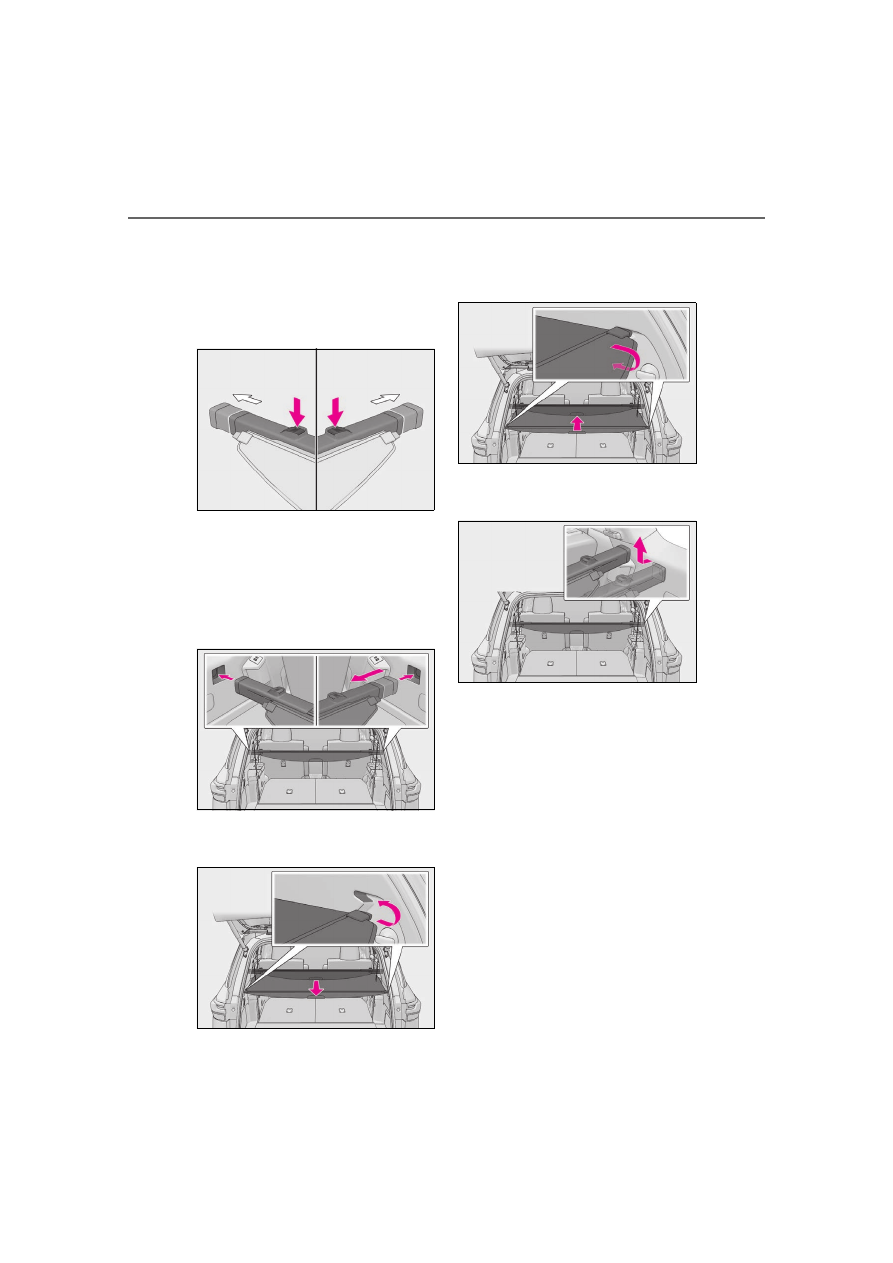

Installing the luggage cover

Fold down the third seats. (



P.135)

Press the lock release buttons to
extend the ends of the luggage
cover unit.

To install the luggage cover unit,
with the lock release buttons facing
upward, insert one end into the
recess, then compress the other
end and insert it into the other
recess.

Pull out the luggage cover and
hook it onto the anchors.

■

Removing the luggage cover

Release the cover from the left and
right anchors and allow it to retract.

Compress the end of the luggage
cover and lift the luggage cover up.

■

Stowing the luggage cover

Open the center deck board.
(



P.405)

To store the luggage cover unit,
compress both ends until they lock.

Store the unit with the lock release buttons

facing up and the cover portion facing the

405

5-4. Using the storage features

rio

r f

rear of the vehicle.

■

Opening the deck board

Pull the strap upwards to open the
center deck board.

Lift the center deck board, remove
the hook from the back of the cen-
ter deck board. Then hook it to the
upper edge of the back door open-
ing securely.

WARNING

■

Luggage cover

●

When installing/stowing the luggage

cover, make sure that the luggage

cover is securely installed/stowed. Fail-

ure to do so may result in serious injury

in the event of sudden braking or a col-

lision.

●

Do not place anything on the luggage

cover. In the event of sudden braking

or turning, the item may go flying and

strike an occupant. This could lead to

an unexpected accident, resulting in

death or serious injury.

●

Do not allow children to climb on the

luggage cover. Climbing on the lug-

gage cover could result in damage to

the luggage cover, possibly causing

death or serious injury to the child.

●

Do not point the luggage cover unit at

your face or body, as doing so may

cause injuries if the cover ends extend

suddenly.

NOTICE

■

When using the luggage cover

●

Do not put heavy items on the luggage

cover.

●

Install the cover unit in the correct

direction so that the lock release but-

ton faces upward.

Deck board

407

5-5. Using the other interior features

rio

r f

5-5.Using the other interior features

The USB charging ports are used to
supply 3 A of electricity at 5 V to
external devices.
The USB charging ports are for
charging only. They are not designed
for data transfer or other purposes.
Depending on the external device, it
may not charge properly. Refer to the
manual included with the device
before using a USB charging port.

■

Using the USB charging ports



On the instrument panel



Rear of console box



Third seats

■

The USB charging ports can be used

when

The power switch is in ACC or ON.

■

Situations in which the USB charging

ports may not operate correctly

●

If a device which consumes more than 3

A at 5 V is connected

●

If a device designed to communicate with

a personal computer, such as a USB

memory device, is connected

●

If the connected external device is turned

off (depending on device)

●

If the temperature inside the vehicle is

high, such as after the vehicle has been

parked in the sun

■

About connected external devices

Depending on the connected external

device, charging may occasionally be sus-

pended and then start again. This is not a

malfunction.

Other interior features

USB charging ports

NOTICE

■

To prevent damage to the USB

charging ports

●

Do not insert foreign objects into the

ports.

●

Do not spill water or other liquids into

the ports.

●

Do not apply excessive force to or

impact the USB charging ports.

●

Do not disassemble or modify the USB

charging ports.

Lexus TX500H (2024 year). Manual in english - page 12
