The operating state of the LCA system is indicated.

WARNING

■

Situations in which the LCA should

not be used

●

When driving on a one lane road

●

When there is no broken white line

between the current lane and the lane

to be changed to

Enabling/disabling the system

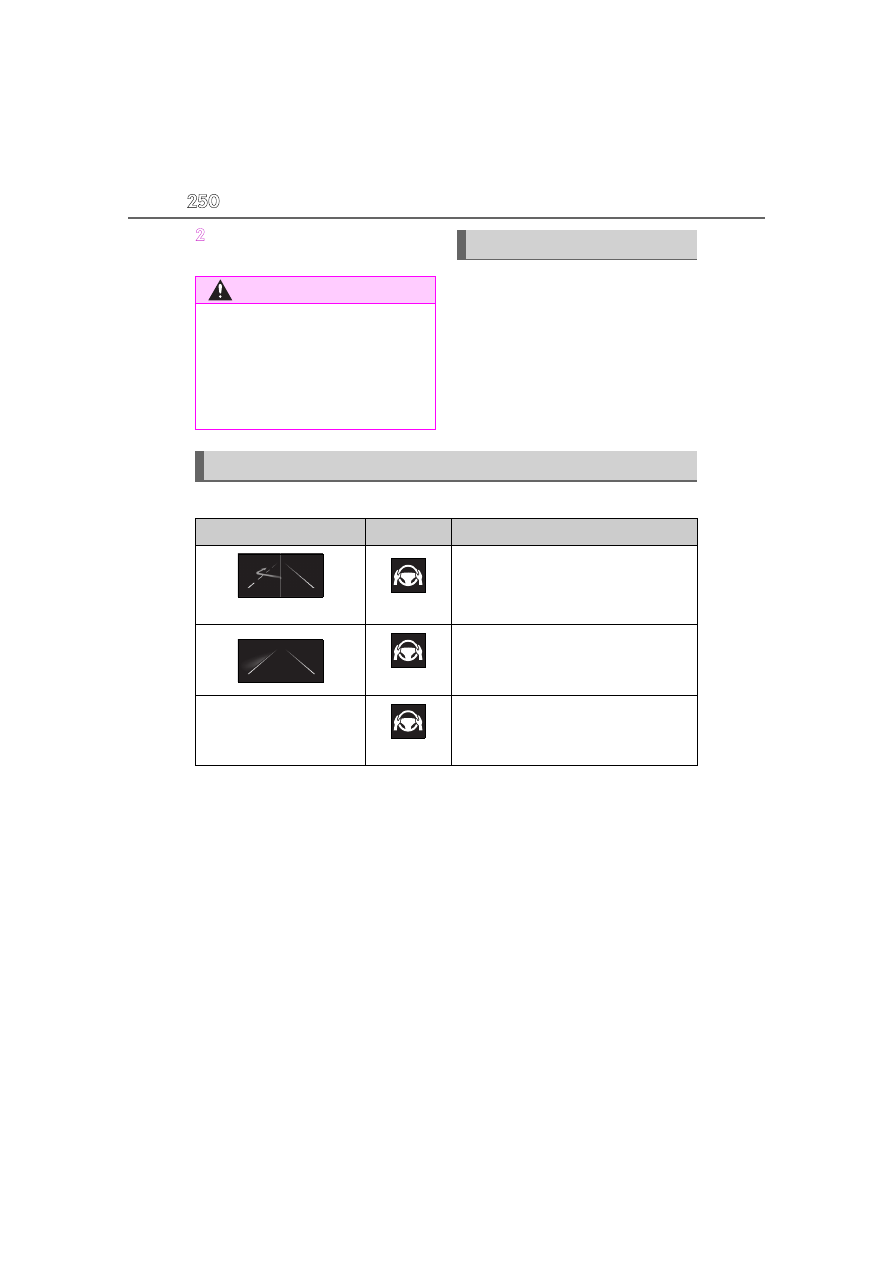

Displays and system operation

LCA display

Steering icon

Condition

Blue arrow and white line

Green

LCA is operating

Grey

Approaching vehicle detected while LCA is
operating

Not displayed

Grey

Lane line no longer detected while LCA is
operating

251

4-5. Using the driving support systems

Driving

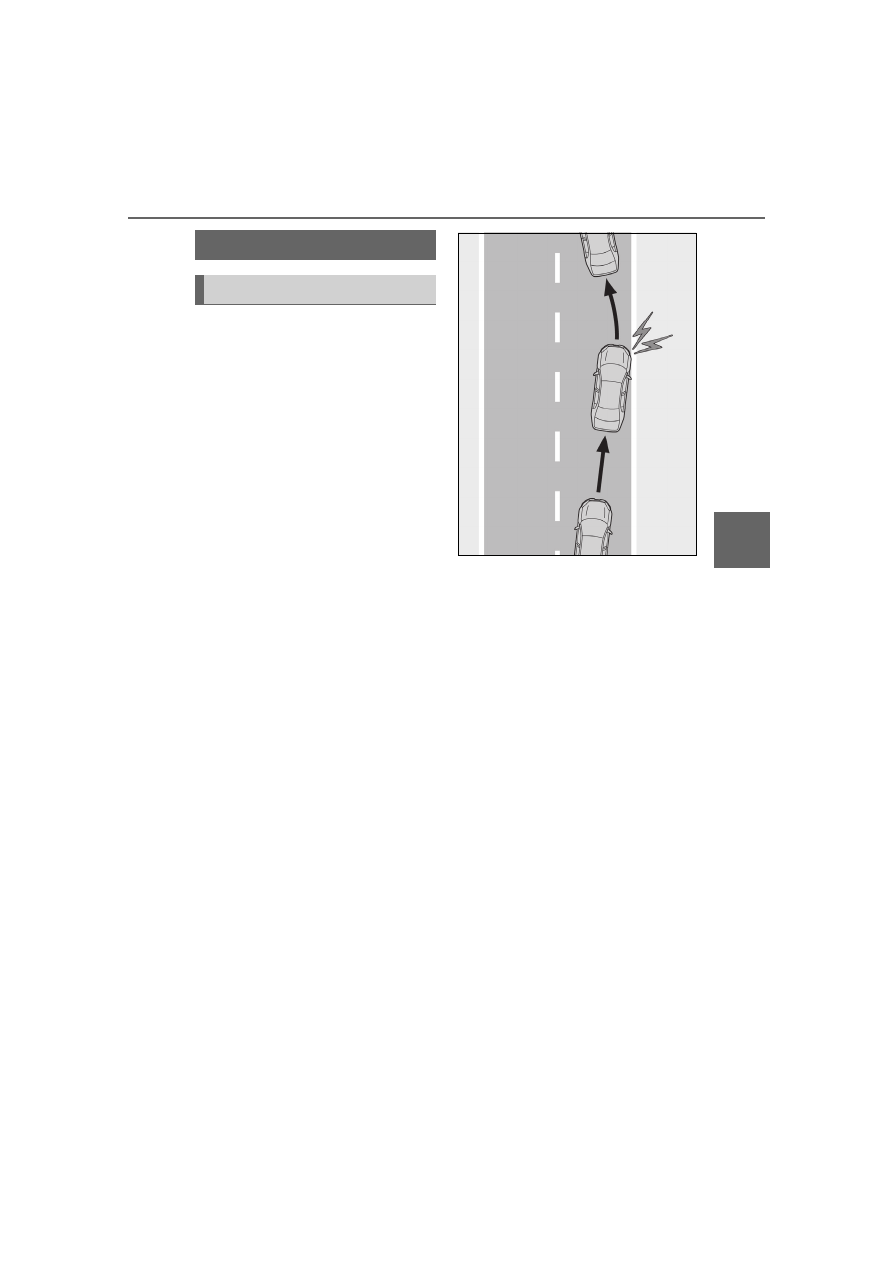

The LDA system warns the driver if the
vehicle may deviate from the current
lane or course

, and also can slightly

operate the steering wheel to help
avoid deviation from the lane or
course

The front camera is used to detect lane
lines or a course

: Boundary between the asphalt and

grass, soil, etc., or structures, such as a
curb, guardrail, etc.

■

Lane departure alert function

When the system determines that the
vehicle might depart from its lane or
course

, a warning is displayed on a

display, and either a warning buzzer
will sound or the steering wheel will
vibrate to alert the driver.

Check the area around your vehicle and
carefully operate the steering wheel to
move the vehicle back to the center of the
lane or course*.
If the system determines that the vehicle
may collide with a vehicle in an adjacent
lane, the lane departure alert will operate
even if the turn signals are operating.

: Boundary between the asphalt and

grass, soil, etc., or structures, such as a
curb, guardrail, etc.

■

Lane departure prevention func-
tion

If the system determines that the vehi-
cle is likely to depart from its lane or
course

, it provides assistance through

steering wheel operations to help
avoid deviation from the lane or
course

If the system determines that the steering
wheel has not been operated for a certain
amount of time or the steering wheel is not
being firmly gripped, a warning message
may be displayed and a warning buzzer
may sound to alert the driver.
If the system determines that the vehicle
may collide with a vehicle in an adjacent
lane, the lane departure prevention func-
tion will operate even if the turn signals are
operating.

: Boundary between the asphalt and

grass, soil, etc., or structures, such as a
curb, guardrail, etc.

LDA (Lane Departure Alert)

Basic functions

252

4-5. Using the driving support systems

■

Break suggestion function

If the vehicle is swaying, a message will
be displayed and a buzzer will sound to
urge the driver to take a break.

■

Operating conditions of each function

●

Lane departure alert/prevention function

This function is operable when all of the fol-

lowing conditions are met:

• The vehicle speed is approximately 30

mph (50 km/h) or more.

Operation may be possible when the vehi-
cle speed is approximately 25 mph (40
km/h) or more if vehicles, motorcycles,
bicycles, or pedestrians are detected near
the lane.
• The system recognizes a lane or course

(When recognized on only one side, the

system will operate only for the recog-

nized side.)

• The lane width is approximately 9.8 ft. (3

m) or more.

• The turn signal lever is not being oper-

ated.

(Except when a vehicle is detected in the
direction that the turn signal lever is oper-
ated.)
• The vehicle is not being driven around a

sharp curve.

• The vehicle is not accelerating or decel-

erating more than a certain amount.

• The steering wheel is not being turned

sufficiently to perform a lane change.

WARNING

■

Before using the LDA system

●

Do not overly rely on the LDA system.

The LDA system is not a system which

provides automated assistance in driv-

ing. However, as it is not a system

which reduces the amount of attention

necessary for safe driving. The driver is

solely responsible for paying attention

to their surroundings and operating

the steering wheel as necessary to

ensure safety. Also, the driver is

responsible for taking adequate

breaks when fatigued, such as when

driving for a long time.

●

Failure to perform appropriate driving

operations and pay careful attention

may lead to an accident.

253

4-5. Using the driving support systems

Driving

• When the VSC or TRAC system is not

turned off.

: Boundary between the asphalt and

grass, soil, etc., or structures, such as a
curb, guardrail, etc.

■

Temporary cancellation of functions

When the operating conditions are no lon-

ger met, a function may be temporarily can-

celed. However, when the operation

conditions are met again, operation of the

function will automatically be restored.

(



P.252)

■

Operation of the lane departure alert

function/lane departure prevention

function

●

Depending on the vehicle speed, road

conditions, lane departure angle, etc.,

operation of the lane departure preven-

tion function may not be felt or the func-

tion may not operate.

●

Depending on the conditions, the warn-

ing buzzer may operate even if vibration

is selected through a customize setting.

●

If a course

is not clear or straight, the

lane departure alert function or lane

departure prevention function may not

operate.

●

The lane departure alert function or lane

departure prevention function may not

operate if the system judges that the vehi-

cle is intentionally being steered to avoid

a pedestrian or parked vehicle.

●

It may not be possible for the system to

judge if there is danger of a collision with

a vehicle in an adjacent lane.

●

Vehicles with a driver monitor camera:

Depending on the driver condition, the

lane departure alert function or lane

departure prevention function changes

the timing of operation.

●

The steering assist operation of the lane

departure prevention function can be

overridden by the steering wheel opera-

tion of the driver.

: Boundary between the asphalt and

grass, soil, etc., or structures, such as a
curb, guardrail, etc.

■

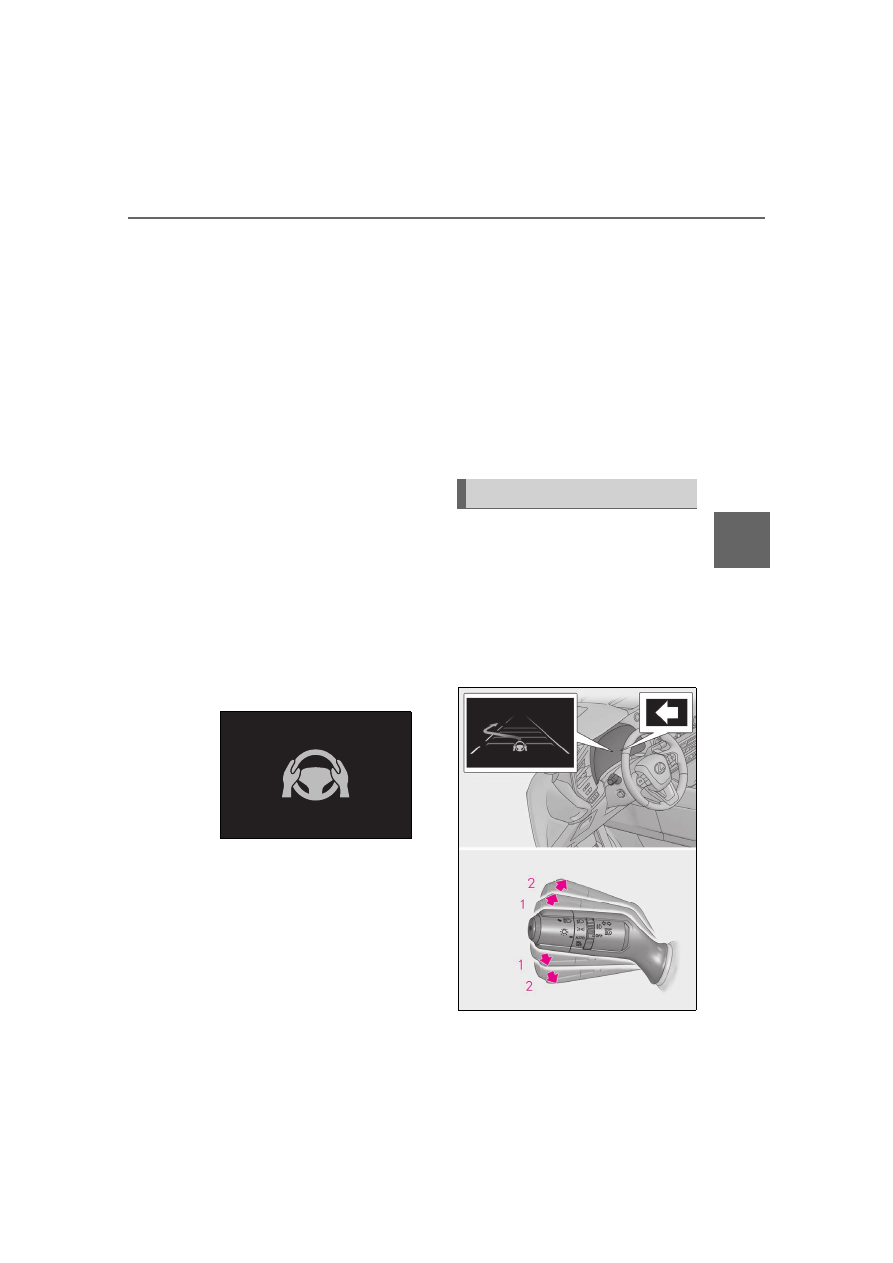

Hands off steering wheel warning oper-

ation

In the following situations, a message urging

the driver to operate the steering wheel and

an icon will be displayed and a buzzer will

sound to warn the driver. When using the

system, make sure to grip the steering

wheel firmly, regardless of whether the

warning is operating or not.

●

When the system determines that the

driver is not securely holding the steering

wheel, or the steering wheel is not being

operated when the steering assist opera-

tion of the lane departure prevention

function is operating

Except for Puerto Rico: The length of time
that the warning buzzer operates will
become longer as the frequency of the
steering assist operating increases. If the
system judges that the steering wheel has
been operated, the warning buzzer will
stop.
For Puerto Rico: The length of time that the
warning buzzer operates will become lon-
ger as the frequency of the steering assist
operating increases. Even if the system
judges that the steering wheel has been
operated, the warning buzzer will sound
for a certain amount of time.

■

Break suggestion function

This function is operable when all of the fol-

lowing conditions are met:

●

The vehicle speed is approximately 40
mph (65 km/h) or more.

●

The vehicle speed is approximately 32
mph (50 km/h) or more.

●

The lane width is approximately 9.8 ft. (3

m) or more.

254

4-5. Using the driving support systems

Depending on the condition of the vehicle

and road surface, the break suggestion

function may not operate.

Press the

meter control switch to turn

off the message.

Unless

is pressed, the message of the

break suggestion function will remain dis-
played.

: For Puerto Rico

: Except for Puerto Rico

: The countries and areas for each region

listed in the table are current as of Sep-
tember 2023. However, depending on
when the vehicle was sold, the countries
and areas of each region may be differ-
ent. Contact your Lexus dealer for
details.



The LDA system can be
enabled/disabled through a custom-
ize setting. (



The settings of the LDA can be
changed on the customize settings.
(

The operating state of the lane departure alert function and steering assist opera-
tion of the lane departure prevention function are indicated.

Changing LDA settings

WARNING

■

Situations in which the system may

not operate properly

In the following situations, the system

may not operate properly and the vehicle

may depart from its lane. Do not overly

rely on these functions. The driver is

solely responsible for paying attention to

their surroundings and operating the

steering wheel as necessary to ensure

safety.

●

When the boundary between the

asphalt and grass, soil, etc., or struc-

tures, such as a curb, guardrail, etc. is

not clear or straight

●

When the vehicle is struck by a cross-

wind or the turbulence of other nearby

vehicles

●

Situations in which the lane may not be

detected:

P.229

●

Situations in which the sensors may not

operate properly:



●

Situations in which some or all of the

functions of the system cannot oper-

ate:



●

When it is necessary to disable the sys-

tem:



Displays and system operation

255

4-5. Using the driving support systems

Driving



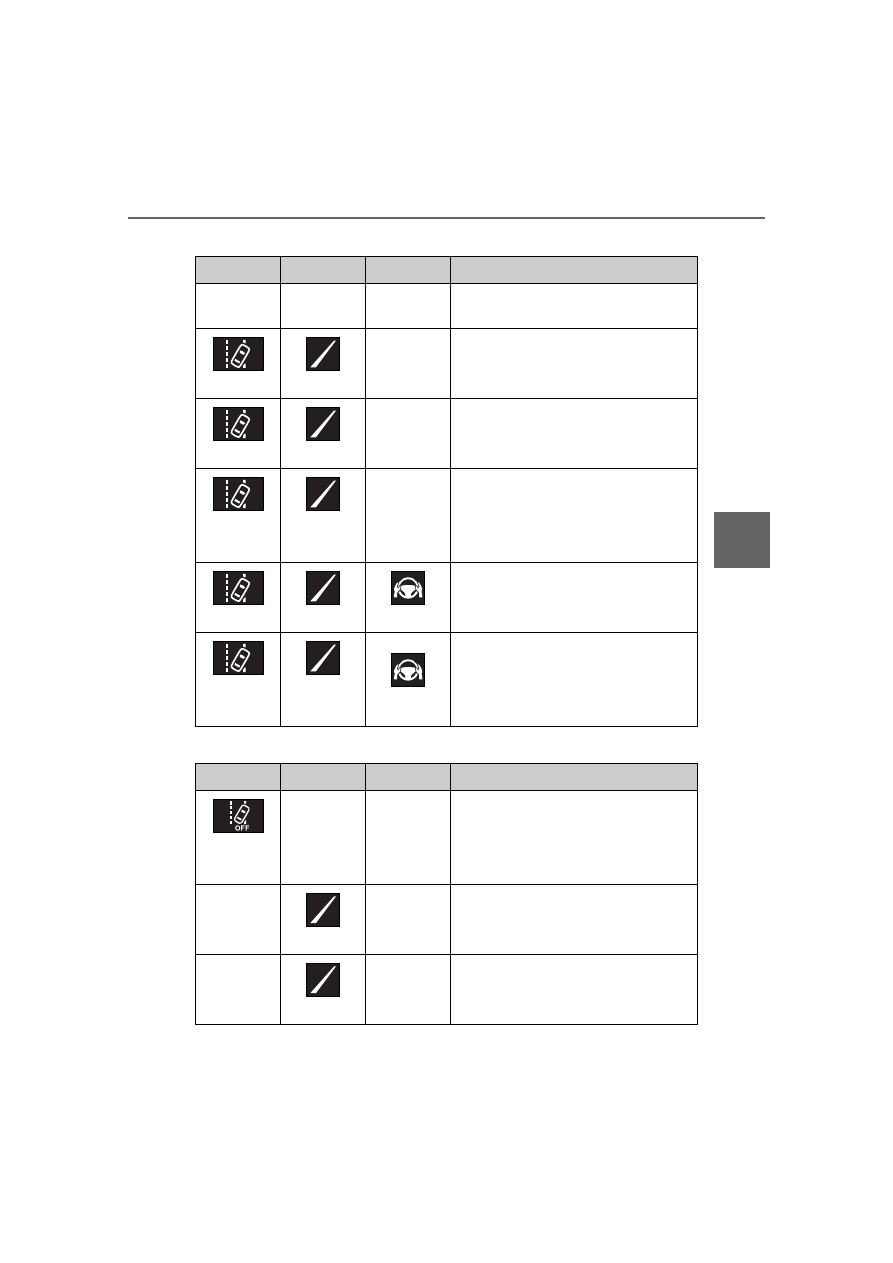

Except for Puerto Rico



For Puerto Rico

Indicator

Lane display Steering icon

Situation

Not illumi-

nated

Not illumi-

nated

Not illumi-

nated

System disabled

White

Grey

Not illumi-

nated

Lane lines are not detected by the system

White

Not illumi-

nated

Lane lines are detected by the system

Yellow

Flashing

Yellow

Flashing

Not illumi-

nated

Lane departure alert function is operating
for the side which the lane display is flashing

Green

Lane departure prevention function is oper-
ating for the side which the lane display is
illuminated

Yellow

Flashing

Yellow

Flashing

Green

Lane departure alert function/lane depar-
ture prevention function is operating for the
side which the lane display is flashing

Indicator

Lane display Steering icon

Situation

Yellow

Illuminated

Not illumi-

nated

Not illumi-

nated

System disabled

Not illumi-

nated

Grey

Not illumi-

nated

Lane lines are not detected by the system

Not illumi-

nated

White

Not illumi-

nated

Lane lines are detected by the system

257

4-5. Using the driving support systems

Driving

According to the driving conditions, the operation and detectable objects of the
proactive driving assist will change as follows.

PDA (Proactive driving
assist)

When a detectable object
(

P.257) is detected, the proac-

tive driving assist operates the
brakes and steering wheel to help
prevent the vehicle from approach-
ing too close to the object.

WARNING

■

For safe use

Driving safely is solely the responsibility

of the driver.

●

The proactive driving assist is designed

to provide some assistance for regular

braking and steering operations, as

well as helping to prevent the vehicle

from approaching too close to a

detectable object. However, the scope

of this assistance is limited.

The driver should perform brake and

steering operations as necessary. Read

the following items carefully. Do not

overly rely on the proactive driving assist

and always drive carefully. (



P.259)

●

The proactive driving assist is not a sys-

tem which reduces the amount of

attention necessary for safe driving.

Even if the system is operating cor-

rectly, the surrounding conditions as

recognized by the driver and detected

by the system may differ. It is necessary

for the driver to pay attention, assess

risks, and ensure safety. Over-reliance

on this system to drive the vehicle

safely may lead to an accident result-

ing in death or serious injury.

●

Proactive driving assist is not a system

which allows for inattentive driving and

is not a system which assists in poor

visibility conditions. The driver is solely

responsible for paying attention to

their surroundings and driving safely.

■

When turning proactive driving assist

off

●

Situations in which the sensors may not

operate properly:



●

When it is necessary to disable the sys-

tem:



System operating conditions and detectable objects

258

4-5. Using the driving support systems

■

Vehicle speeds at which the system can

operate

●

Detectable object crossing the road

assistance

Approximately 20 to 35 mph (30 to 60

km/h)

●

Detectable object on the side of the road

assistance

Approximately 20 to 35 mph (30 to 60
km/h)

●

Preceding vehicle deceleration assis-

Function

Conditions

Operation

Detectable objects

Obstacle Antici-
pation Assist
(OAA)

A detectable object is
detected crossing the
road

Assistance with some
brake operations is pro-
vided in order to reduce
the possibility of a colli-
sion.



Pedestrians



Bicyclists

A detectable object is
detected on the side
of the road

Assistance with some
brake and steering wheel
operations are provided
according to the sur-
rounding conditions to
help prevent the vehicle
from approaching too
close to a detected
object.
Assistance with steering
wheel operations is pro-
vided within a range that
the vehicle will not devi-
ate from its current lane.



Pedestrians



Bicyclists



Parked vehicles

Deceleration
Assist
(DA)

A preceding vehicle
or an adjacent vehicle
cutting in front of the
vehicle is detected

The vehicle is gently
decelerated so that the
vehicle-to-vehicle dis-
tance will not be exces-
sively short.



Preceding vehicles



Motorcycles

A curve is detected
ahead of the vehicle

The vehicle is gently
decelerated if the vehicle
speed is determined to
be too high for the curve
ahead.

None

Steering Assist
(SA)

Lane is detected

The system anticipates
the driver’s operation
and supports the opera-
tion of the steering
wheel.

None

259

4-5. Using the driving support systems

Driving

tance

Approximately 15 mph (20 km/h) or more

●

Curve deceleration assistance

Approximately 15 mph (20 km/h) or more

●

Steering assist within a lane

Approximately 5 to 80 mph (10 to 140
km/h)

■

System operation will be canceled when

●

In the following situations, system opera-

tion will be canceled:

• When the dynamic radar cruise control

or cruise control is operating

• When the PCS is off

• Situations in which some or all of the

functions of the system cannot operate:

• When the P, R or N shift position is

selected

●

In the following situations, the brake

operation assist will be canceled:

• Approximately 9 mph (15 km/h) or less

• When a certain vehicle speed has been

reached, as judged by the system,

according to the surrounding conditions

●

In the following situations, system opera-

tion may be canceled:

• When the brake control or output restric-

tion control of a driving support system

operates

(For example: PCS, drive-start control)
• When the system determines that a

detected object has moved away from

the vehicle

• When lane lines can no longer be

detected

• When the brake pedal has been

depressed

• When the accelerator pedal has been

depressed

• When the steering wheel has been oper-

ated with more than a certain amount of

force

• When the turn signal lever is operated to

the left/right turn position

WARNING

■

Situations in which the system may

not operate properly

●

Situations in which the lane may not be

detected:

P.229

●

When a detectable object stops

immediately before entering the path

of the vehicle

●

When passing extremely close to a

detectable object behind a guardrail,

fence, etc.

●

When changing lanes while overtaking

a detectable object

●

When passing a detectable object that

is changing lanes or turning left/right

●

When there are objects (guardrails,

power poles, trees, walls, fences, poles,

traffic cones, mailboxes, etc.) in the

surrounding area

●

When there are patterns or a painting

ahead of the vehicle that may be mis-

taken for a detectable object

●

When passing through a place with a

low structure above the road (tunnel

with a low ceiling, traffic sign, sign-

board, etc.)

●

When driving on snowy, icy, or rutted

roads

●

When a detectable object is

approaching your vehicle

●

When your vehicle or a detectable

object is wandering

●

When the movement of a detectable

object changes (change in direction,

sudden acceleration or deceleration,

etc.)

●

When suddenly approaching a detect-

able object

●

When a preceding vehicle or motor-

cycle is not directly in front of your

vehicle

260

4-5. Using the driving support systems



The proactive driving assist can be
enabled/disabled through a custom-
ize setting. (





The following settings of the proac-
tive driving assist can be changed
through customize settings.
(

WARNING

●

When there is a structure above a

detectable object

●

When part of a detectable object is

hidden by another object (large lug-

gage, umbrella, guardrail, etc.)

●

When multiple detectable objects are

overlapping

●

When a bright light, such as the sun or

headlights of another vehicle, is

reflecting off of the detectable object

●

When the detectable object is white

and looks extremely bright

●

When the color or brightness of the

detectable object causes it to blend in

with its surroundings

●

When a detectable object cuts in front

of or emerges from beside a vehicle

●

When approaching a vehicle ahead

which is perpendicular or at an angle

to the vehicle, or is facing the vehicle

●

If a parked vehicle is perpendicular or

at an angle to the vehicle

●

When a bicycle is a child sized bicycle,

is carrying a large load, is carrying an

extra passenger, or has an unusual

shape (bicycles equipped with a child

seat, tandem bicycles, etc.)

●

When a pedestrian or bicyclist is

shorter than approximately 3.2 ft. (1 m)

or taller than approximately 6.5 ft. (2

●

When the silhouette of a pedestrian or

bicyclist is unclear (such as when they

are wearing a raincoat, long skirt, etc.)

●

When a pedestrian or bicyclist is

bending forward or squatting

●

When a pedestrian or bicyclist is mov-

ing at high speed

●

When a pedestrian is pushing a

stroller, wheelchair, bicycle or other

vehicle

●

When a detectable object blends in

with the surrounding area, such as

when it is dim (at dawn or dusk) or

dark (at night, in a tunnel, etc.)

●

When the lane width is 13.1 ft. (4 m) or

●

When the lane width is 8.2 ft. (2.5 m)

or less

●

When the vehicle has not been driven

for a certain amount of time after the

hybrid system was started

●

While turning left or right or a few sec-

onds after turning left or right

●

While changing lanes or a few seconds

after changing lanes

●

When entering a curve, driving around

a curve and a few seconds after driving

around a curve

Changing proactive driving
assist settings

261

4-5. Using the driving support systems

Driving

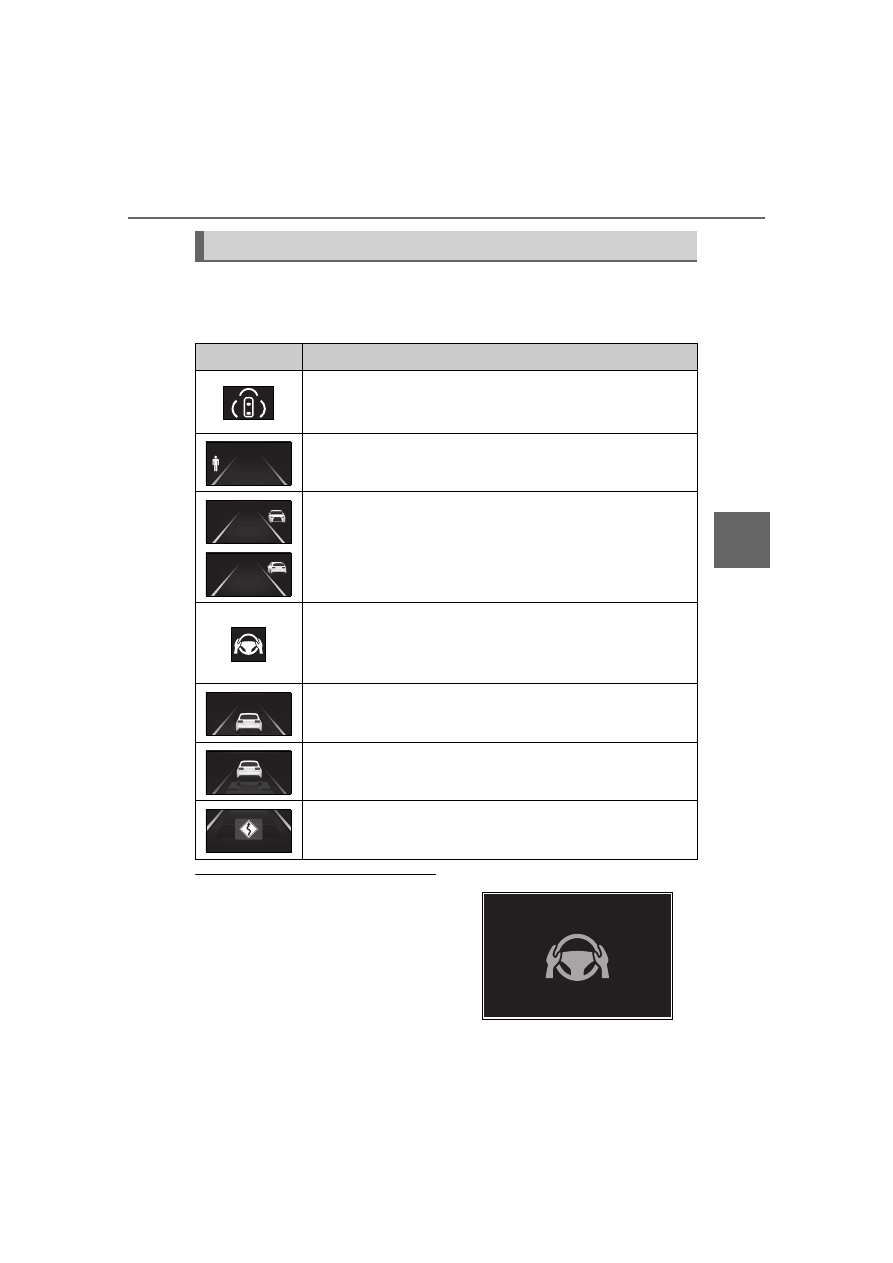

Depending on the situation, the following indicators or icons will be displayed.
Some icons cannot be displayed unless the display is changed to the driving safety
support function information screen.

■

Hands off steering wheel warning oper-

ation

In the following situations, a message urging

the driver to grip the steering wheel and the

icon shown in the illustration will be dis-

played on the display to warn the driver. If

the system detects that the steering wheel is

held, the warning will be canceled. When

using the system, make sure to grip the

steering wheel firmly, regardless of whether

the warning is operating or not.

●

When assistance to a detectable object

System operation display

Icon

Meaning



White: Monitoring for detectable objects



Green: Detectable object crossing the road or detectable object on
the side of the road assistance operating

A pedestrian has been detected as crossing the road or on the side of
the road and brake or steering assistance is operating

A vehicle has been detected on the side of the road and brake or steer-
ing operation assistance is being performed



Steering operation assistance is being performed to prevent the
vehicle from approaching too close to a detectable object on the
side of the road



When the steering assist is operating

Preceding vehicle deceleration assistance is being performed

Warning to maintain appropriate vehicle-to-vehicle distance

Curve deceleration assistance is being performed

262

4-5. Using the driving support systems

crossing the road or assistance to a

detectable object on the side of the road

is performed and the system determines

the driver is not holding the steering

wheel

If no operations are detected for a certain
amount of time, a buzzer will sound, the
warning will operate. This warning may
also operate if the driver only operates
steering wheel a small amount continu-
ously.

■

Warning operation after preceding

vehicle deceleration assistance has

ended

After preceding vehicle deceleration assis-

tance has ended, if the driver does not

operate the brake pedal or accelerator

pedal and the vehicle approaches the pre-

ceding vehicle, the display will flash and a

buzzer will sound to urge the driver to

decelerate. If the system determines that

the driver is operating the brake pedal or

accelerator pedal, the warning will be can-

celed.

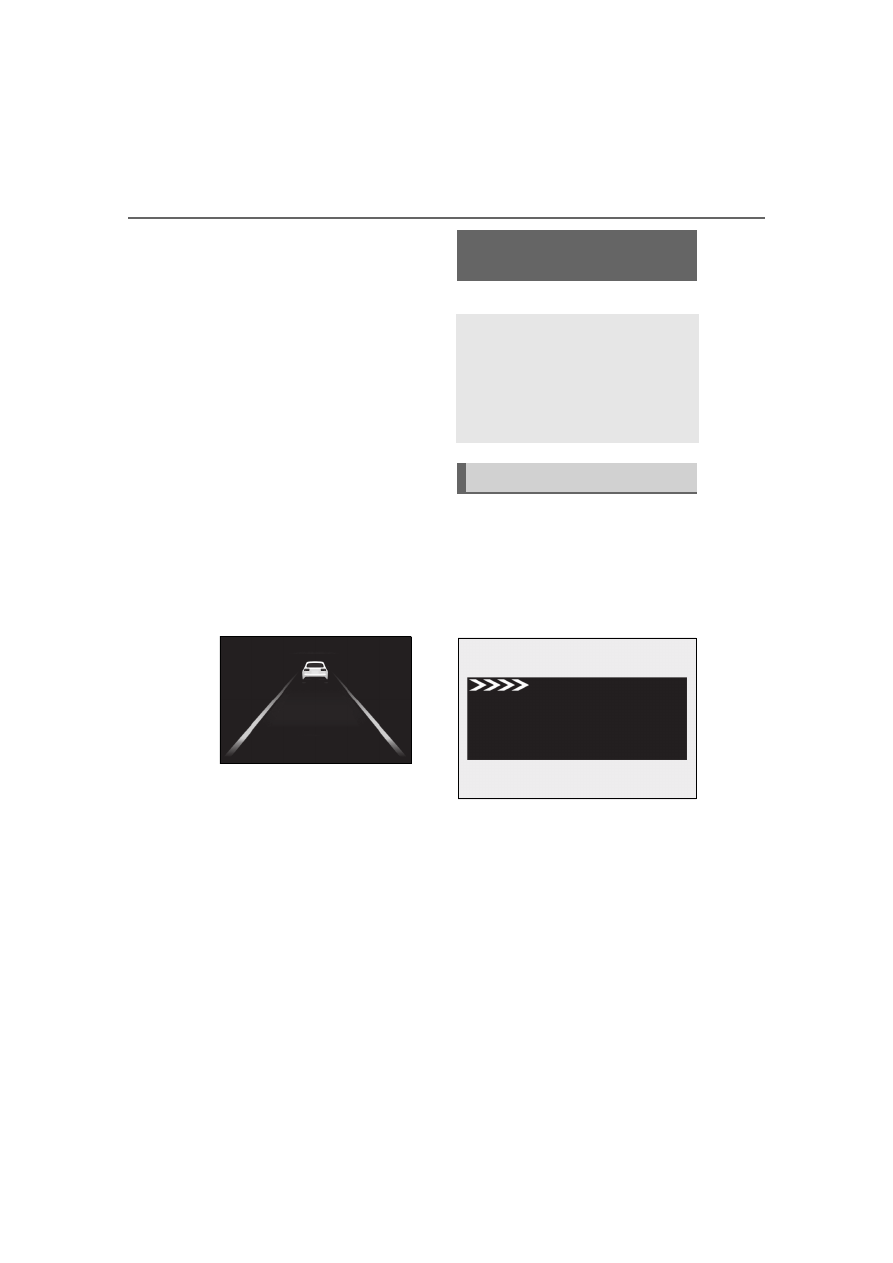

: If equipped



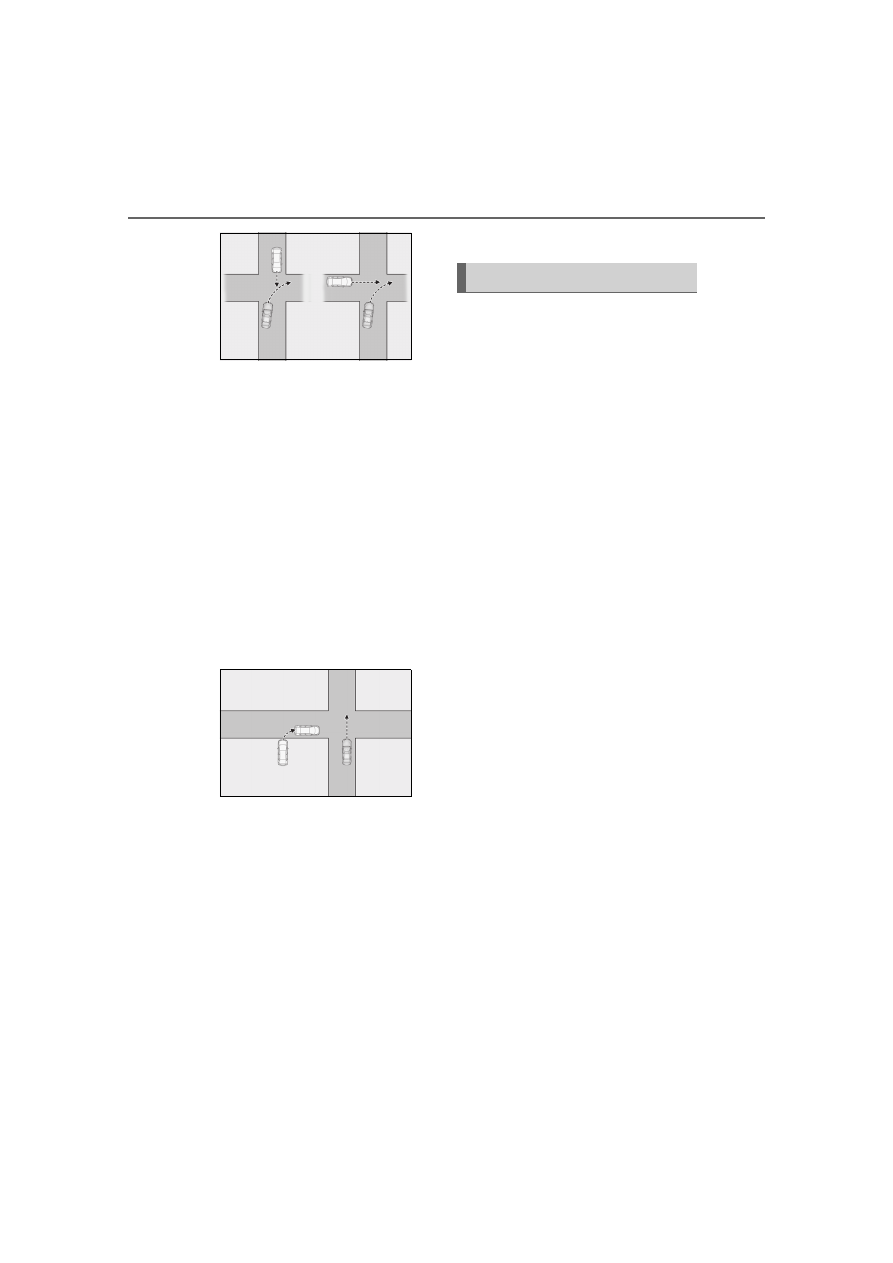

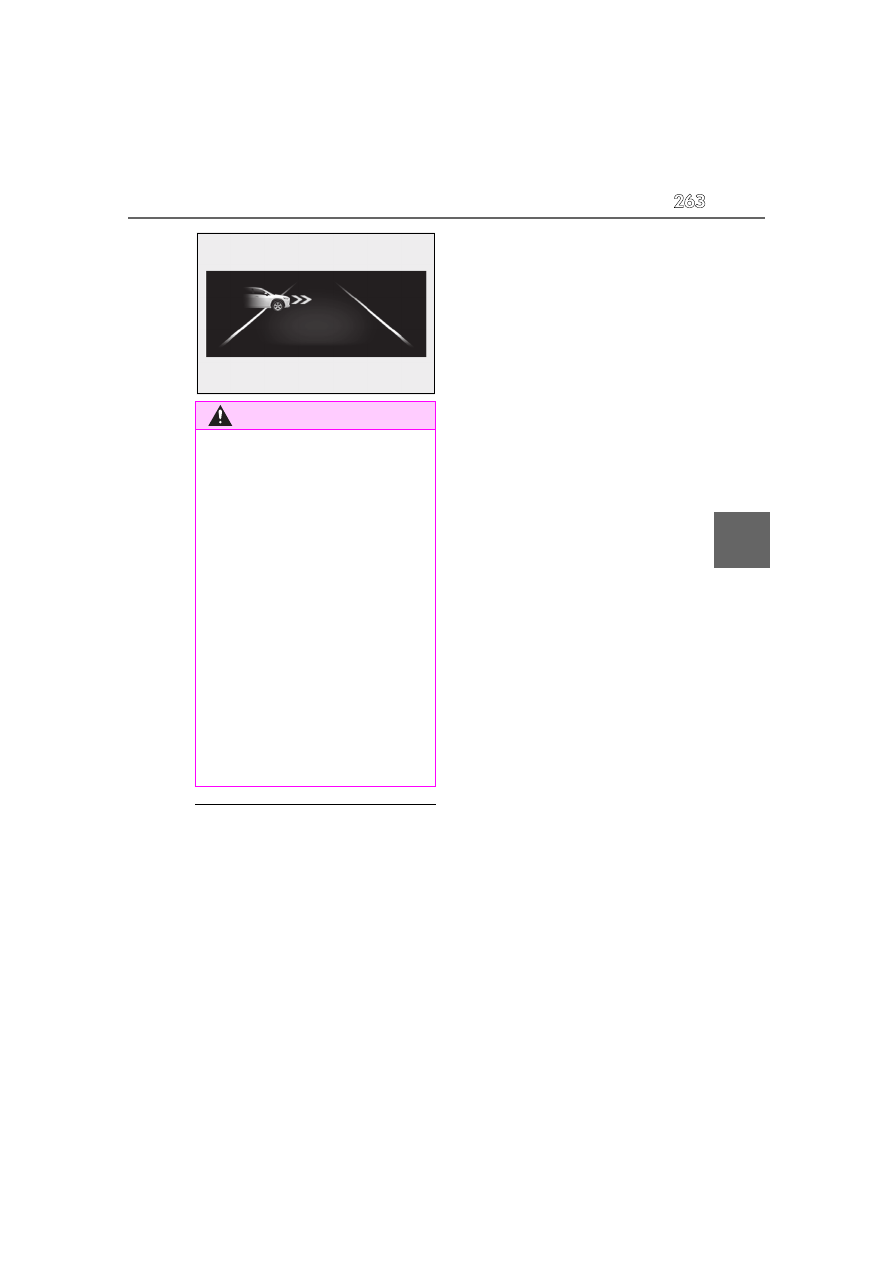

When the system detects a vehicle
approaching from the left or right in
front of your vehicle when
approaching an intersection, a noti-
fication will be displayed.

• Head-up display



When the system determines that
your vehicle may be about to enter
an intersection even though a vehi-
cle is approaching from the left or
right in front of your vehicle, a
buzzer will sound and a message
will be displayed to urge you to
depress the brake pedal.

• Multi-information display

FCTA (Front Cross Traffic
Alert)

When approaching an intersec-
tion, etc., at a low speed, vehicles
approaching from the left and right
of the front of the vehicle can be
detected and the driver informed of
these vehicles.

FCTA system control

263

4-5. Using the driving support systems

Driving

■

FCTA system operating conditions

The system will operate when all of the fol-

lowing conditions are met:

●

A shift position other than P or R is

selected

●

The vehicle speed is approximately 10

mph (15 km/h) or less

●

A vehicle is approaching from the left or

right in front of your vehicle at a speed

between approximately 7 to 37 mph (10

to 60 km/h)

●

There are no vehicles in front of your

vehicle

●

The accelerator pedal is not being

strongly depressed

●

The brake pedal is not being strongly

depressed

■

Situations in which the system may

operate even though no vehicles are

approaching

In certain situations, such as the following,

the system may operate even though no

vehicles are approaching:

●

When approaching objects on the road-

side, such as guardrails, traffic signs, util-

ity poles, street lights, trees, tall grass,

walls, etc.

●

When passing an object on the side of the

road, such as a parked vehicle

●

When a vehicle or pedestrian is

approaching from the left or right in front

of your vehicle in the distance

●

When a vehicle or pedestrian is moving

within a parking spot, etc., next to the lane

your vehicle is in

●

When a pedestrian or bicyclist is

approaching on a sidewalk

●

When a vehicle or pedestrian is moving

away from your vehicle

●

When an approaching vehicle is deceler-

ating or stops

●

When an approaching vehicle makes a

left/right turn immediately in front of your

vehicle

●

When a pedestrian is approaching your

vehicle

●

When an oncoming vehicle makes a

right/left turn

●

When your vehicle enters an intersection

before a vehicle approaching from the

left or right in front of your vehicle

●

When stopped at traffic light and a vehi-

cle approaches from the left or right in

front of your vehicle

●

When making a left/right turn in front of

an approaching vehicle

WARNING

■

For safe use

Driving safely is solely the responsibility

of the driver. Pay careful attention to the

surrounding conditions in order to

ensure safe driving.

The FCTA system is a supplementary

system that informs the driver of vehicles

approaching from the left and right of the

front of the vehicle.

Over-reliance on this system may lead to

an accident resulting in death or serious

injury.

The details of the warning display may

differ from the actual traffic conditions.

Although the warning display will stop

being displayed after a certain amount of

time, this does not necessarily indicate

that there are no longer any vehicles or

pedestrians around your vehicle.

264

4-5. Using the driving support systems

●

When an oncoming vehicle approaches

and passes

●

When being overtaken by another vehi-

cle

●

When driving next to another vehicle or a

pedestrian

●

When a vehicle or pedestrian

approaches the side of your vehicle

■

Situations in which the system may not

operate properly

In situations such as the following, a vehicle

may not be detected by a front side radar

sensor and the system may not operate

properly:

●

If an approaching vehicle moves sud-

denly (sudden steering, acceleration,

deceleration, etc.)

●

If a vehicle is approaching from the left or

right of the front of your vehicle diago-

nally

●

When a vehicle is approaching from the

left or right in front of your vehicle in the

distance

●

When there is an object between your

vehicle and an approaching vehicle

●

When several vehicles are approaching

with little space between them

●

Situations in which the sensors may not

operate properly:



●

Situations in which some or all of the

functions of the system cannot operate:





The FCTA can be enabled/disabled
through a customize setting.
(



The following settings of the FCTA
can be changed through customize
settings. (



Changing FCTA settings

265

4-5. Using the driving support systems

Driving

: If equipped



When the front camera detects a
sign or information of a sign is avail-
able from the navigation system, the
sign will be displayed on the display.



Multiple signs can be displayed.

Depending on the specifications of the
vehicle, the number of displayed signs may
be limited.

■

Operating conditions of sign display

Signs will be displayed when the following

conditions are met:

●

The system has detected a sign

In the following situations, a displayed sign

may stop being displayed:

●

When a new sign has not been detected

for a certain distance

●

When the system determines that the

road being driven on has changed, such

as after a left or right turn

■

Situations in which the display function

may not operate properly

In the following situations, the RSA system

may not operate properly and may not

detect signs or may display the incorrect

sign. However, this does not indicate a mal-

function.

●

When a sign is dirty, faded, tilted or bent

●

When the contrast of an electronic sign is

low

●

When all or part of a sign is hidden by a

tree, utility pole, etc.

●

When a sign is detected by the front cam-

era for a short amount of time

●

When the driving state (turning, chang-

ing lanes, etc.) is judged incorrectly

●

When a sign is immediately after a free-

way junction or in an adjacent lane just

before merging

●

When stickers are attached to the rear of

a preceding vehicle

●

When a sign similar to a system compati-

ble sign is detected as a system compati-

ble sign

●

When a speed limit sign for a frontage

road is within detection range of the front

camera

●

When driving around a roundabout

●

When a sign intended for trucks, etc. is

detected

RSA (Road Sign Assist)

The RSA system detects specific
road signs using the front camera
and/or navigation system (when
speed limit information is available)
and warns the driver via displays
and buzzers.

WARNING

■

For safe use

●

Driving safely is solely the responsibil-

ity of the driver. Pay careful attention to

the surrounding conditions in order to

ensure safe driving.

●

Do not rely solely upon the RSA. The

RSA assists the driver by providing

road sign information, but it is not a

replacement for the driver’s own vision

and awareness. Driving safely is solely

the responsibility of the driver. Pay

careful attention to the surrounding

conditions in order to ensure safe driv-

ing.

■

Situations in which the RSA should

not be used

●

When it is necessary to disable the sys-

tem:

■

Situations in which the system may

not operate properly

●

Situations in which the sensors may not

operate properly:

Display Function

266

4-5. Using the driving support systems

●

When the navigation system map data is

out of date

●

When the navigation system cannot be

used

In this case, the speed limit signs displayed

on the multi-information display and navi-

gation system display may differ.

In the following situations, the RSA sys-
tem will output a warning to notify the
driver.



If the vehicle speed exceeds the
speed warning threshold of the
speed limit sign displayed on the
display, the sign display will be
emphasized and a buzzer will
sound.



When the RSA system detects a do
not enter sign and determines that
the vehicle has entered a no-entry
area, the do not enter sign displayed
on the display will flash and a buzzer
will sound.

■

Operating conditions of the notification

functions

●

Excess speed notification function

This function will operate when the follow-

ing condition is met:

• A speed limit road sign is recognized by

the system.

●

No entry notification function

This function will operate when all of the

following conditions are met:

• More than one no entry road signs are

recognized by the system simultaneously.

• The vehicle is passing between no entry

road signs recognized by the system.



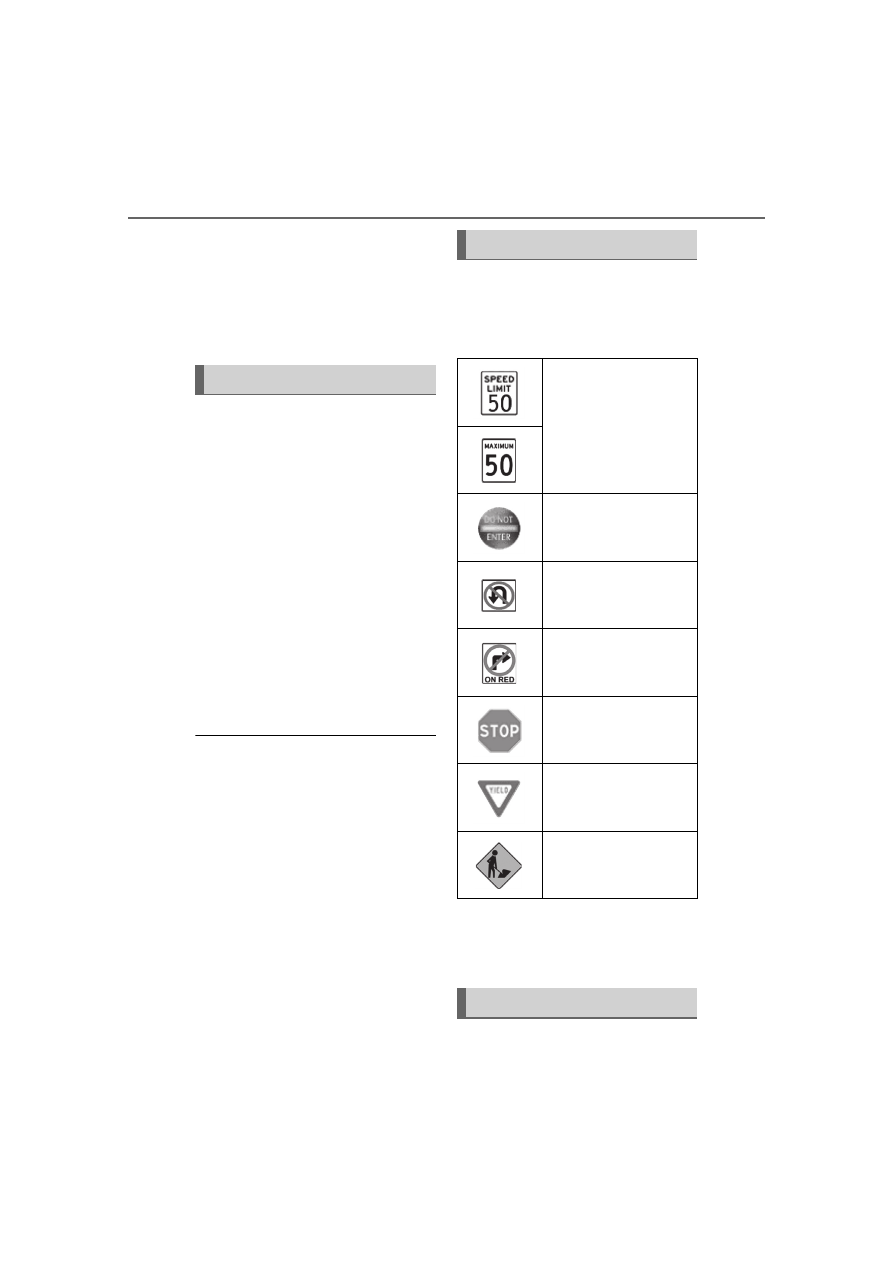

The following types of road signs
can be displayed.

However, non-standard or recently intro-
duced traffic signs may not be displayed.



Depending on the specifications of
the vehicle, signs may be displayed
overlapping.

The following settings of the RSA can

Notification function

Types of road signs supported

Speed limit

Do Not Enter

No U-turn

No Turn On Red

Stop

Yield

Warning

Changing RSA settings

267

4-5. Using the driving support systems

Driving

be changed through customize set-
tings. (

Dynamic radar cruise con-
trol

This dynamic radar cruise control
detects the presence of vehicles
ahead, determines the current
vehicle-to-vehicle distance, and
operates to maintain a suitable dis-
tance from the vehicle ahead. The
desired vehicle-to-vehicle distance
can be set by operating the vehi-
cle-to-vehicle distance switch.

Use the dynamic radar cruise con-
trol only on highways and express-
ways.

WARNING

■

For safe use

●

Driving safely is solely the responsibil-

ity of the driver. Do not overly rely on

this system, and pay careful attention

to the surrounding conditions in order

to ensure safe driving.

●

The dynamic radar cruise control pro-

vides driving assistance to reduce the

driver’s burden. However, there are

limitations to the assistance provided.

Read the following items carefully. Do

not overly rely on this system and always

drive carefully.
• Conditions under which the system

may not operate correctly:



P.274

●

Set the speed appropriately according

to the speed limit, traffic flow, road

conditions, weather conditions, etc.

The driver is responsible for confirm-

ing the set speed.

268

4-5. Using the driving support systems

WARNING

●

Even if the system is operating cor-

rectly, the condition of a preceding

vehicle as recognized by the driver

and detected by the system may differ.

Therefore, it is necessary for the driver

to pay attention, assess risks, and

ensure safety. Over-reliance on this

system to drive the vehicle safely may

lead to an accident resulting in death

or serious injury.

■

Precautions for the driving assist sys-

tems

Observe the following precautions, as

there are limitations to the assistance

provided by the system. Over-reliance

on this system may lead to an accident

resulting in death or serious injury.

●

Details of support provided for the

driver’s vision

The dynamic radar cruise control is only

intended to help the driver in determin-

ing the distance between the driver’s own

vehicle and a designated preceding vehi-

cle. It is not a system which allows for

careless or inattentive driving, and is not

a system which assists in poor visibility

conditions.
The driver must pay attention to their sur-

roundings, even when the vehicle stops.

●

Details of support provided for the

driver’s judgement

The dynamic radar cruise control deter-

mines whether the distance between the

driver’s own vehicle and a designated

preceding vehicle is within a set range. It

is not capable of making any other type

of judgement. Therefore, it is absolutely

necessary for the driver to remain vigi-

lant and to determine whether or not

there is a possibility of danger.

●

Details of support provided for the

driver’s operation

The dynamic radar cruise control does

not include functions which will prevent

or avoid collisions with vehicles ahead of

your vehicle. Therefore, if there is ever

any possibility of danger, the driver must

take immediate and direct control of the

vehicle and act appropriately in order to

ensure safety.

■

Situations in which the dynamic radar

cruise control should not be used

Do not use the dynamic radar cruise

control in the following situations. As the

system will not be able to provide appro-

priate control, using it may lead to an

accident resulting in death or serious

injury.

●

Roads where there are pedestrians,

cyclists, etc.

●

When driving on a highway or

expressway entrance or exit

●

When the approach warning sounds

frequently

●

Situations in which the sensors may not

operate properly:



●

Situations in which the lane may not be

detected:

P.229

269

4-5. Using the driving support systems

Driving

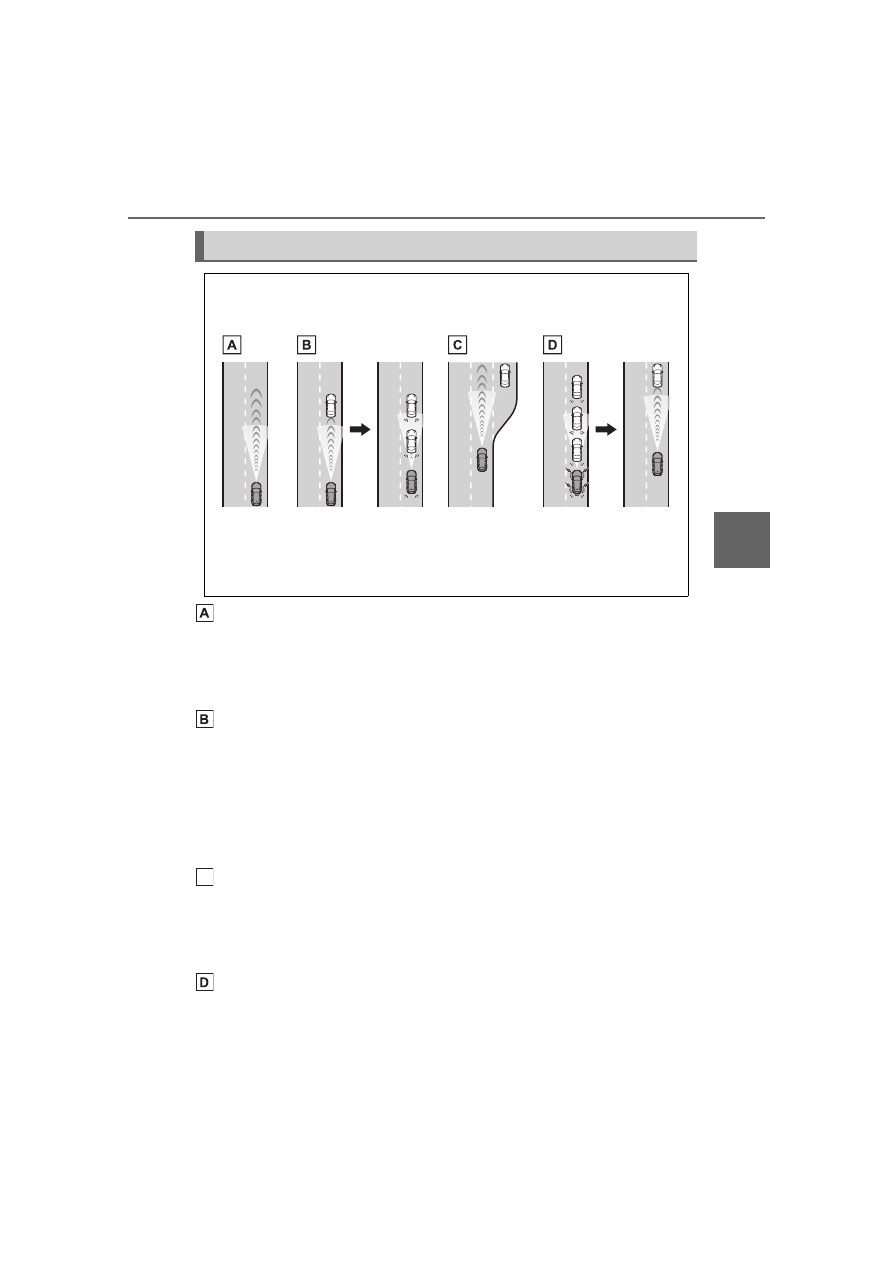

Constant speed cruising:
When there are no vehicles ahead

The vehicle drives at the speed set by the driver.
If the set vehicle speed is exceeded while driving down a hill, the set vehicle speed display
will blink and a buzzer will sound.

Deceleration and follow-up cruising:
When a preceding vehicle driving slower than the set vehicle speed is detected

When a vehicle is detected driving ahead of your vehicle, the vehicle automatically decel-
erates and if a greater reduction in vehicle speed is necessary, the brakes are applied (the
stop lights will come on at this time). The vehicle is controlled to maintain the vehi-
cle-to-vehicle distance set by the driver, in accordance with changes in the speed of the
preceding vehicle. If vehicle deceleration is not sufficient and the vehicle approaches the
vehicle ahead, the approach warning will sound.

Acceleration:
When there are no longer any preceding vehicles driving slower than the set
vehicle speed

The vehicle accelerates until the set vehicle speed is reached and then resumes constant
speed cruising.

Starting off:

If a preceding vehicle stops, the vehicle will also stop (controlled stop). After the preceding
vehicle starts off, pressing the “RES” switch or depressing the accelerator pedal will resume

Basic functions

270

4-5. Using the driving support systems

follow-up cruising (start off operation). If a start off operation is not performed, the con-
trolled stop will continue.
Vehicles with Traffic Jam Assist: While driving on a highway or expressway, if a preceding
vehicle stops, your vehicle will stop accordingly. On some highways and expressways, if the
system determines that the preceding vehicle starts off within approximately 3 minutes of
stopping, a buzzer will sound and a message will be displayed on the multi-information dis-
play to notify the driver, and your vehicle will start off accordingly following the preceding
vehicle. (Extended resume time)

■

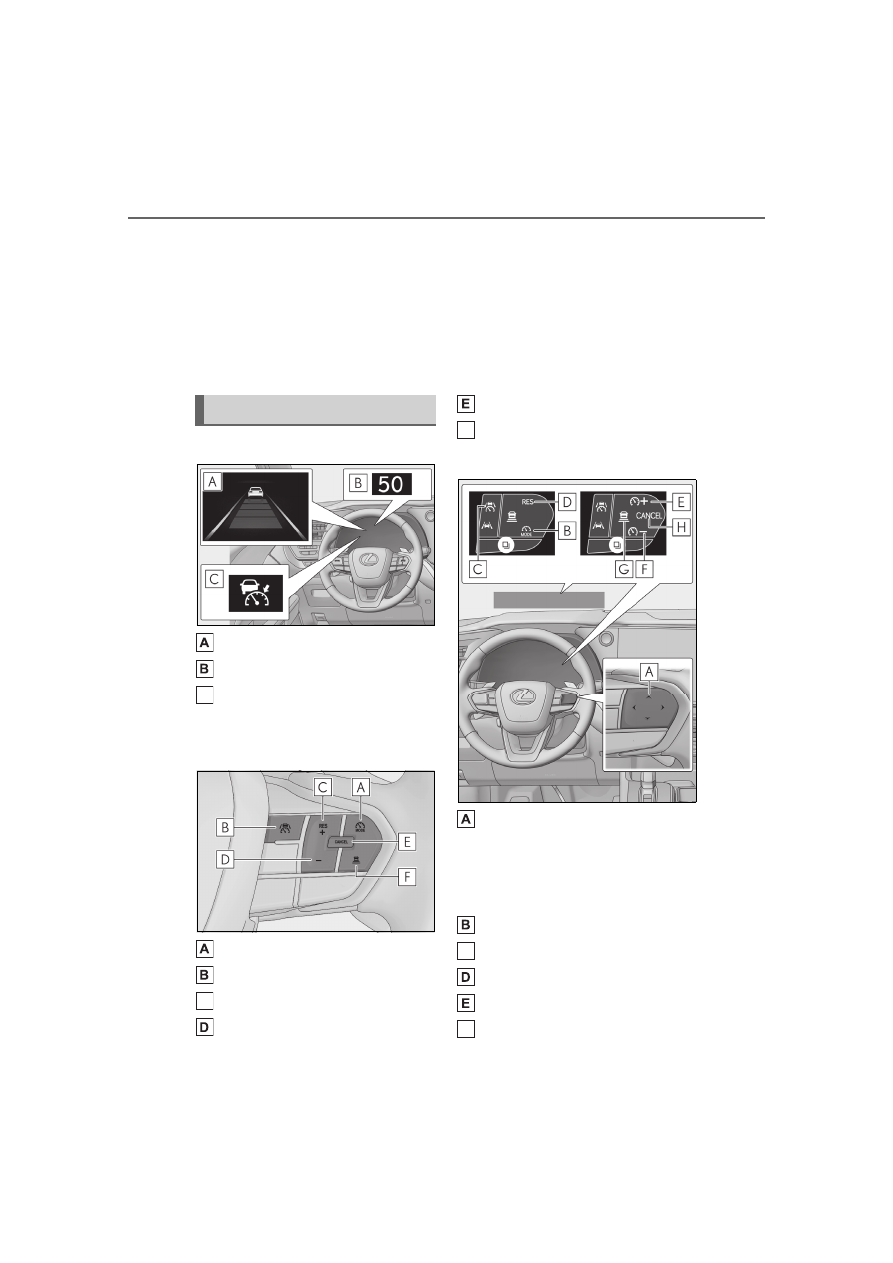

Meter display

Multi-information display
Set vehicle speed
Indicators

■

Switches



Vehicles without a head-up display

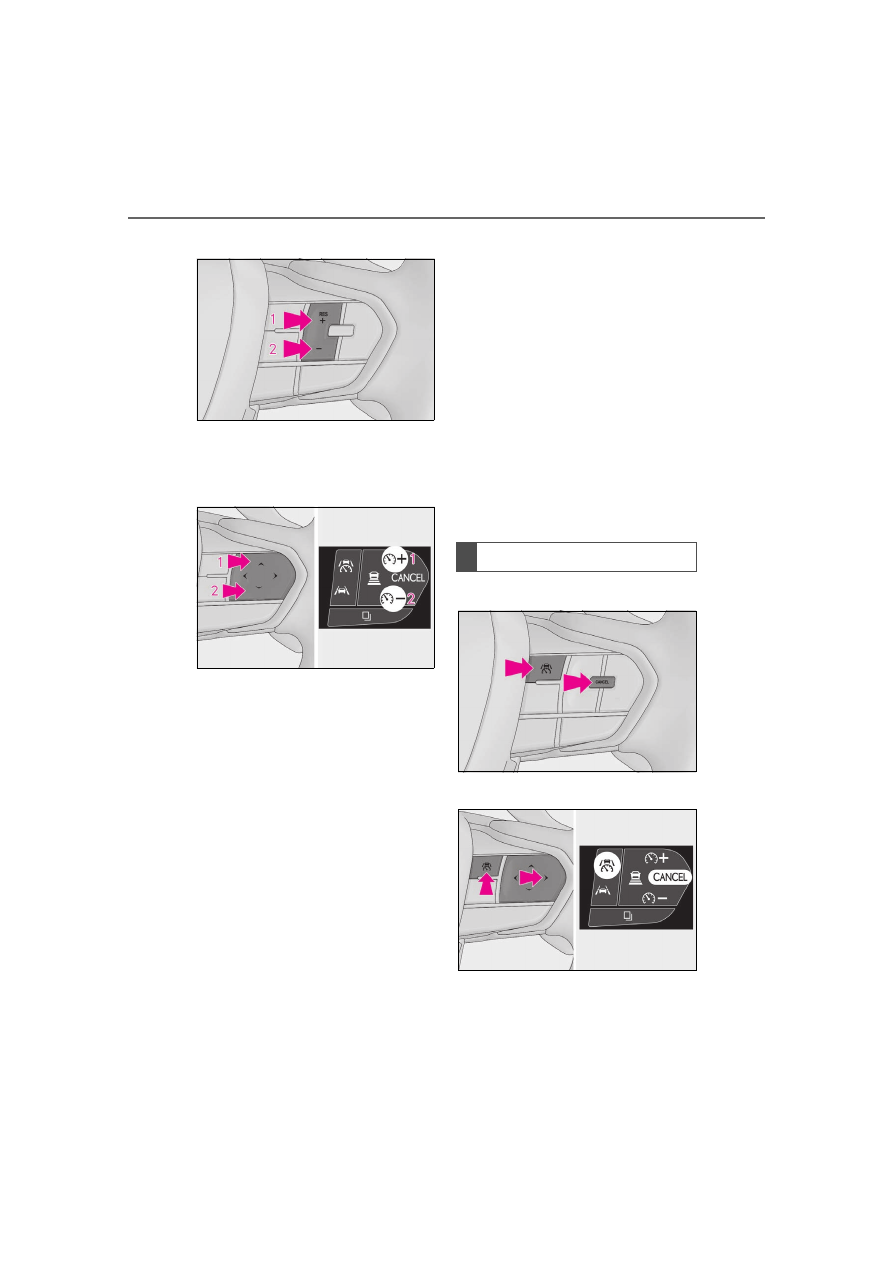

Driving assist mode select switch
Driving assist switch
“+” switch/“RES” switch
“-” switch

Cancel switch
Vehicle-to-vehicle distance switch



Vehicles with a head-up display

The function of each switch differs
depending on the conditions and
settings.

When a switch is touched, the function of
each switch is displayed.

Driving assist mode select switch
Driving assist switch
“RES” switch
“+” switch
“-” switch

System components

271

4-5. Using the driving support systems

Driving

Vehicle-to-vehicle distance switch
Cancel switch

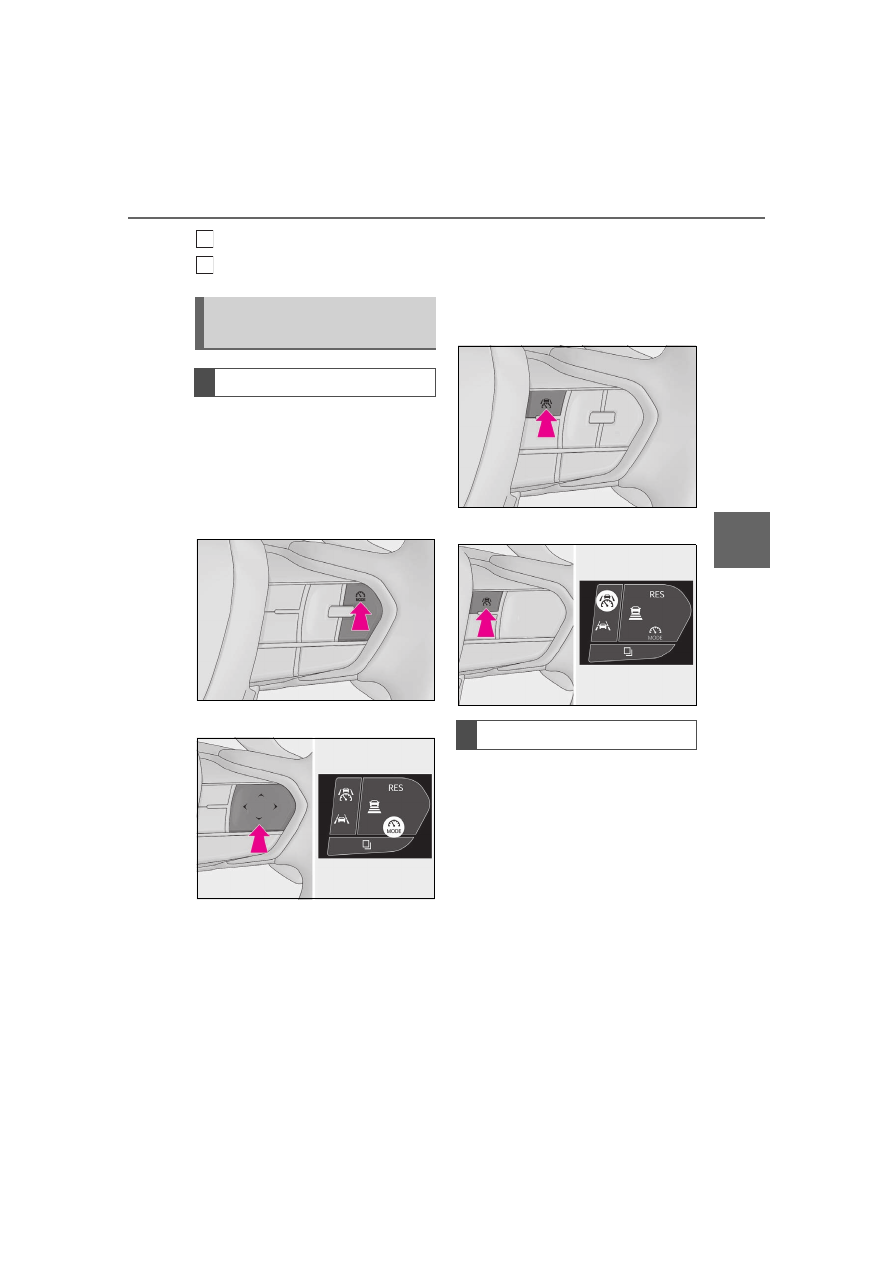

Press the driving assist mode select
switch to select dynamic radar
cruise control.

The dynamic radar cruise control indicator

will illuminate.



Vehicles without a head-up display



Vehicles with a head-up display

Using the accelerator pedal, accel-
erate or decelerate to the desired
vehicle speed (approximately 20
mph [30 km/h] or more), and press
the driving assist switch to set the
set vehicle speed.

The set vehicle speed will be displayed on

the multi-information display.
The vehicle speed at the moment the

switch is released will be the set vehicle

speed.



Vehicles without a head-up display



Vehicles with a head-up display



Adjusting the set vehicle speed
using the switches

To change the set vehicle speed, press
the “+” switch or “-” switch until the
desired speed is displayed.

Using the dynamic radar cruise
control

Setting the vehicle speed

Adjusting the set vehicle speed

272

4-5. Using the driving support systems



Vehicles without a head-up display

Increase set vehicle speed

Decrease set vehicle speed



Vehicles with a head-up display

Increase set vehicle speed

Decrease set vehicle speed

Short press adjustment: Press the switch
Long press adjustment: Press and hold the
switch until the desired set vehicle speed is
reached.

The set vehicle speed will increase or
decrease as follows:



Except for Canada

Short press adjustment: Increases or
decreases by 1 mph (1.6 km/h) each time
the switch is pressed
Long press adjustment: Increases or
decreases in 1 mph (1.6 km/h) increments
continuously while the switch is pressed
and held



For Canada

Short press adjustment: By 0.6 mph (1
km/h) or 1 mph (1.6 km/h) each time the
switch is pressed
Long press adjustment: Increases or
decreases in 3.1 mph (5 km/h) or 5 mph (8
km/h) increments continuously while the
switch is pressed and held



Increasing the set vehicle speed
using the accelerator pedal

Depress the accelerator pedal to
accelerate the vehicle to the
desired vehicle speed.

Press the “+” switch.



Vehicles without a head-up display



Vehicles with a head-up display

Press the cancel switch or driving
assist switch to cancel control.

Control will also be canceled if the brake

Canceling/resuming control

273

4-5. Using the driving support systems

Driving

pedal is depressed.
(If the vehicle has been stopped by system

control, depressing the brake pedal will not

cancel control.)

Press the “RES” switch to resume
control.

Each time the switch is pressed, the
vehicle-to-vehicle distance setting will
change as follows:

If a preceding vehicle is detected, the pre-
ceding vehicle mark will be displayed.



Vehicles without a head-up display



Vehicles with a head-up display

The actual vehicle-to-vehicle distance var-
ies in accordance with the vehicle speed.
Also, when the vehicle is stopped by sys-
tem control, it will be stopped at a certain
distance from the preceding vehicle,
depending on the situation, regardless of
the setting.

■

Operating conditions

●

The shift position is in D.

●

The desired set speed can be set when

the vehicle speed is approximately 20

mph (30 km/h) or more.

• If the vehicle speed is set while driving at

below approximately 20 mph (30 km/h),

the set vehicle speed will be approxi-

mately 20 mph (30 km/h).

• If the vehicle speed is set while driving at

a speed that exceeds the system’s upper

limit, the set vehicle speed will be the sys-

tem’s upper limit.

■

Accelerating after setting the vehicle

speed

As with normal driving, acceleration can be

performed by depressing the accelerator

pedal. After accelerating, the vehicle will

return to the set vehicle speed. However,

while in vehicle-to-vehicle distance control

mode, the vehicle speed may decrease to

below the set vehicle speed in order to

maintain the distance from the preceding

vehicle.

Changing the vehicle-to-vehicle
distance

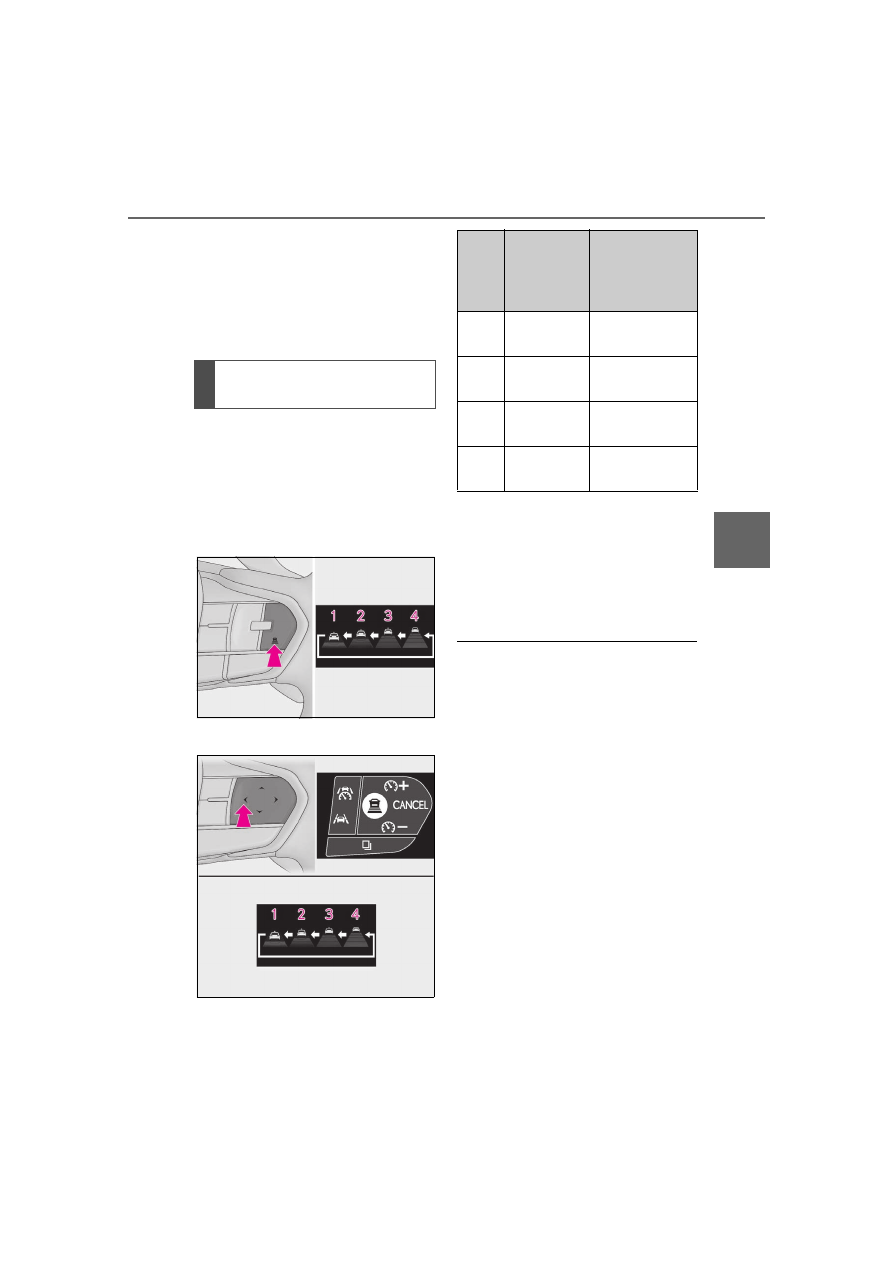

Illus-

tration

Num-

ber

Vehi-

cle-to-vehicle

distance

Approximate Dis-

tance (Vehicle

Speed: 60 mph

[100 km/h])

Short

Approximately 85

ft. (25 m)

Medium

Approximately

100 ft. (30 m)

Long

Approximately

145 ft. (45 m)

Extra long

Approximately

200 ft. (60 m)

274

4-5. Using the driving support systems

■

When the vehicle is stopped by system

control during follow-up cruising

●

When the “RES” switch is pressed while

the vehicle is stopped by system control,

if the preceding vehicle starts off within

approximately 3 seconds, follow-up

cruising will resume.

●

If the preceding vehicle starts off within

approximately 3 seconds of the vehicle

being stopped by system control, fol-

low-up cruising will resume.

■

Automatic cancellation of vehi-

cle-to-vehicle distance control mode

In the following situations, vehicle-to-vehi-

cle distance control mode will be canceled

automatically:

●

When the brake control or output restric-

tion control of a driving support system

operates

(For example: Pre-Collision System,

drive-start control)

●

When the parking brake has been oper-

ated

●

When the vehicle is stopped by system

control on a steep incline

●

When any of the following are detected

while the vehicle is stopped by system

control:

• The driver’s seat belt is unfastened

• The driver’s door is opened

• Approximately 3 minutes have elapsed

since the vehicle was stopped

The parking brake may be activated auto-

matically.

●

Situations in which some or all of the

functions of the system cannot operate:

■

Dynamic radar cruise control system

warning messages and buzzers

For safe use:

■

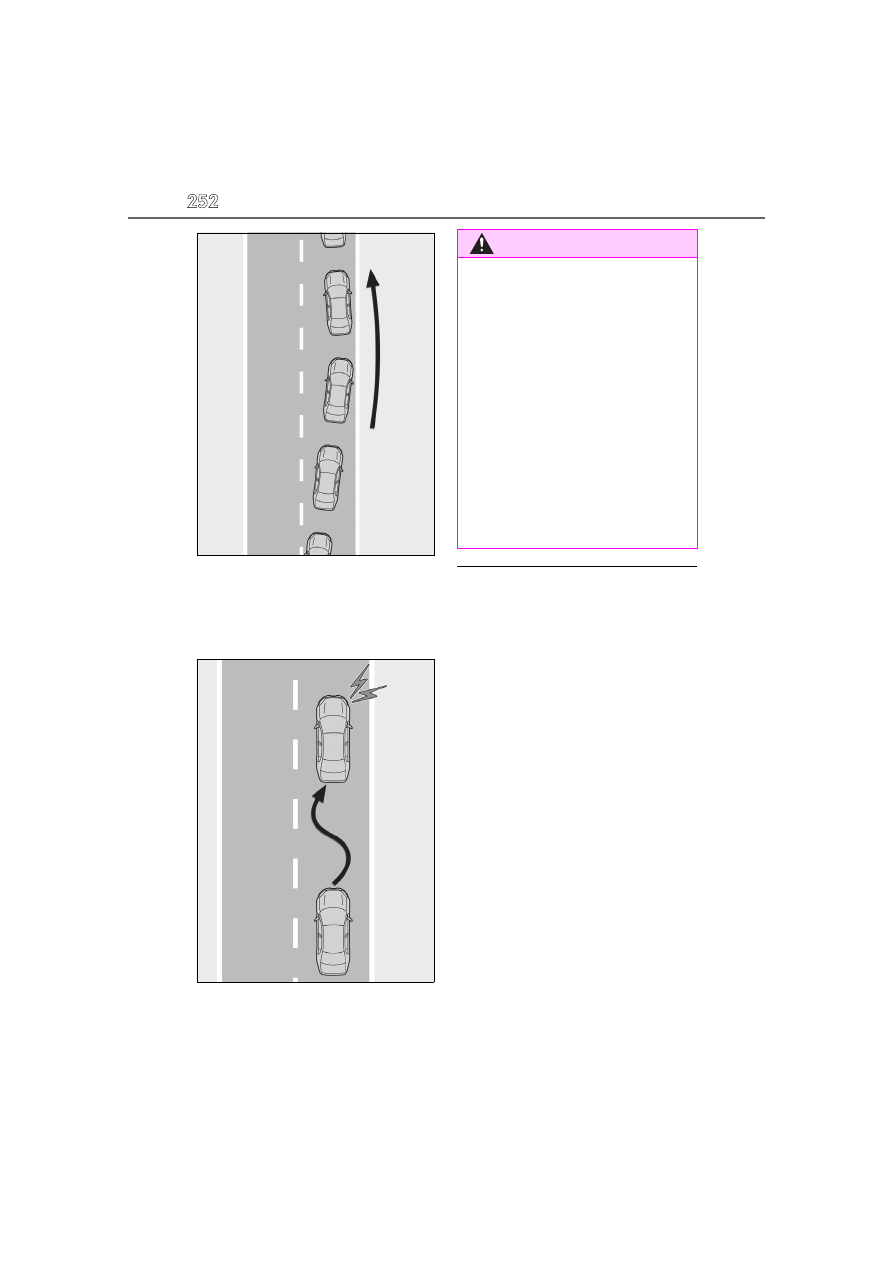

Preceding vehicles that the sensor may

not detect correctly

In the following situations, depending on the

conditions, if the system cannot provide suf-

ficient deceleration or acceleration is nec-

essary, operate the brake pedal or

accelerator pedal.
As the sensor may not be able to correctly

detect these types of vehicles, the approach

warning (



P.275) may not operate.

●

When a vehicle cuts in front of your vehi-

cle or changes lanes away from your

vehicle extremely slowly or quickly

●

When changing lanes

●

When a preceding vehicle is driving at a

low speed

●

When a vehicle is stopped in the same

lane as the vehicle

●

When a motorcycle is traveling in the

same lane as the vehicle

■

Conditions under which the system may

not operate correctly

In the following situations, operate the

brake pedal (or accelerator pedal, depend-

ing on the situation) as necessary.
As the sensor may not be able to correctly

detect a vehicle, the system may not oper-

ate properly.

●

When a preceding vehicle brakes sud-

denly

●

When changing lanes at low speeds, such

as in a traffic jam

■

Conditions for extended resume time

(vehicles with Traffic Jam Assist)

Extended resume time is activated when all

of the following conditions are satisfied:

●

The connected service that Lexus pro-

vides is subscribed to. Contact your

Lexus dealer for details.

●

The vehicle is driving on a vehicle-only

road, such as an expressway.

●

There is a preceding vehicle and the sys-

tem is able to detect it.

●

No vehicle interruptions occur.

●

The preceding vehicle has not been

replaced.

●

Clearance sonar and FCTA are not

detecting the object in front of you.

●

The driver monitor judges that the driver

is looking forward.

●

The steering wheel has not been oper-

ated.

●

The brake pedal has not been operated.

275

4-5. Using the driving support systems

Driving

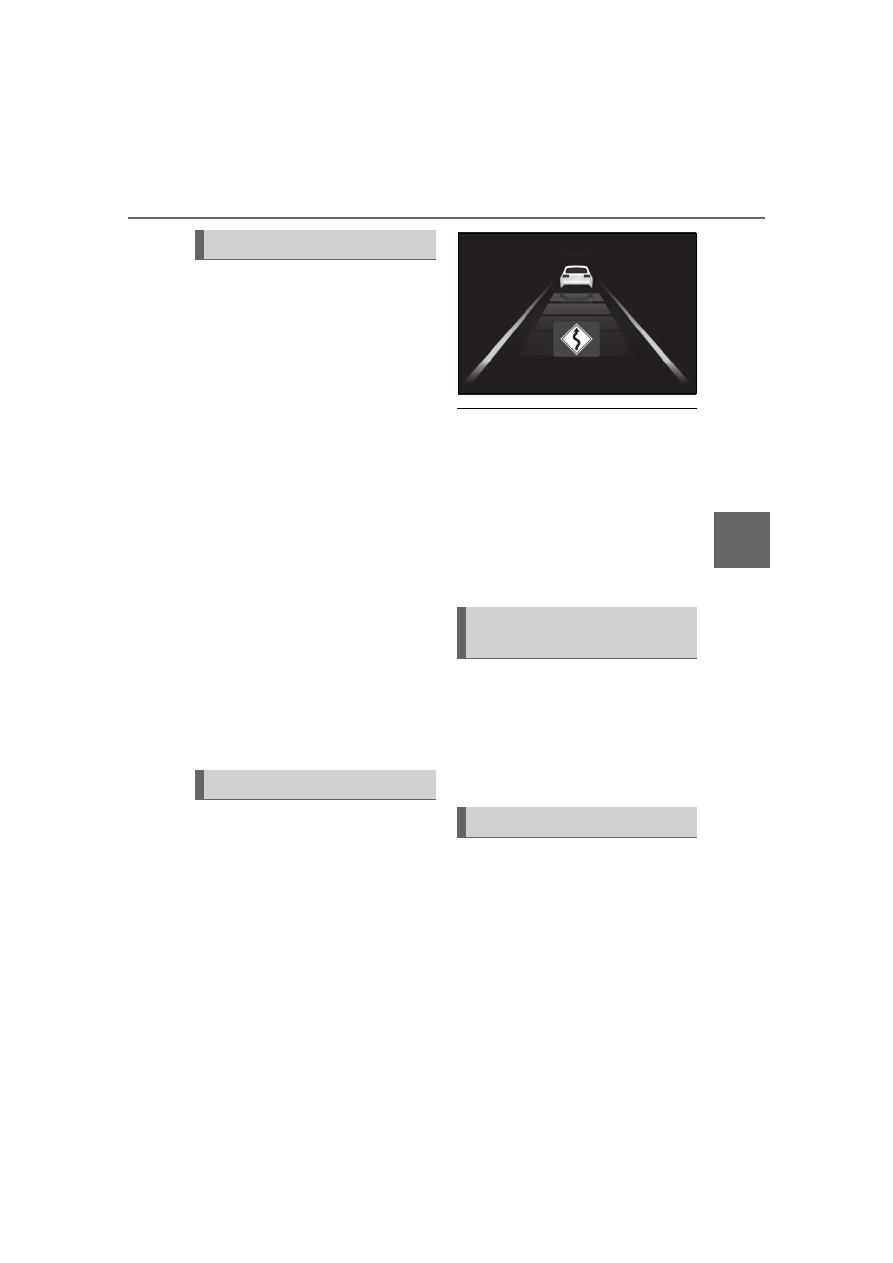

In situations where the vehicle
approaches a preceding vehicle and
the system cannot provide sufficient
deceleration, such as if a vehicle cuts in
front of the vehicle, a warning display
will flash and a buzzer will sound to
alert the driver. Depress the brake
pedal to ensure appropriate vehi-
cle-to-vehicle distance.

■

Warnings may not occur when

In the following situations, the warning
may not operate even though the vehi-
cle-to-vehicle distance is short.



When the preceding vehicle is trav-
eling at the same speed or faster
than your vehicle



When the preceding vehicle is trav-
eling at an extremely low speed



Immediately after the vehicle speed
has been set



When the accelerator pedal is
depressed

When a curve is detected, the vehicle
speed will begin being reduced. When
the curve ends, the vehicle speed
reduction will end.

Depending on the situation, the vehicle
speed will then return to the set vehicle
speed.
In situations where vehicle-to-vehicle dis-
tance control needs to operate, such as
when a preceding vehicle cuts in front of
your vehicle, the curve speed reduction
function will be canceled.

■

Situations in which the curve speed

reduction function may not operate

In situations such as the following, the curve

speed reduction function may not operate:

●

When the vehicle is being driven around

a gentle curve

●

When the accelerator pedal is being

depressed

●

When the vehicle is being driven around

an extremely short curve

While a warning of the driver monitor
is being displayed, the vehicle acceler-
ation will be restrained.

When the warning of the driver monitor
disappears, the restrained acceleration
control will end.

If your vehicle is being driven at
approximately 50 mph (80 km/h) or
more and a lane change to the passing
lane is performed, when the turn signal
lever is operated and the lane is
changed, the vehicle will accelerate up
to the set speed to assist in overtaking.

The system’s recognition of which lane is
the passing lane may be based solely on

Approach warning

Curve speed reduction function

Driver Monitor support function
(if equipped)

Support for lane change

276

4-5. Using the driving support systems

the location of the steering wheel in the
vehicle (left-hand drive/right-hand drive). If
the vehicle is driven in a location where the
passing lane is on the opposite side of that
where the vehicle was originally sold, the
vehicle may accelerate when the turn sig-
nal lever is operated away from the passing
lane. (e.g. The vehicle was manufactured
for a right-hand traffic location, but is being
driven in a left-hand traffic location. The
vehicle may accelerate when the turn sig-
nal lever is operated to the right.)

If your vehicle is being driven at
approximately 50 mph (80 km/h) or

more and the lane is changed to that
with a vehicle traveling slower than
your vehicle, when the turn signal lever
is operated the vehicle will gradually
decelerate to assist in changing lanes.



The settings of Dynamic radar
cruise control can be changed
through customize settings.
(

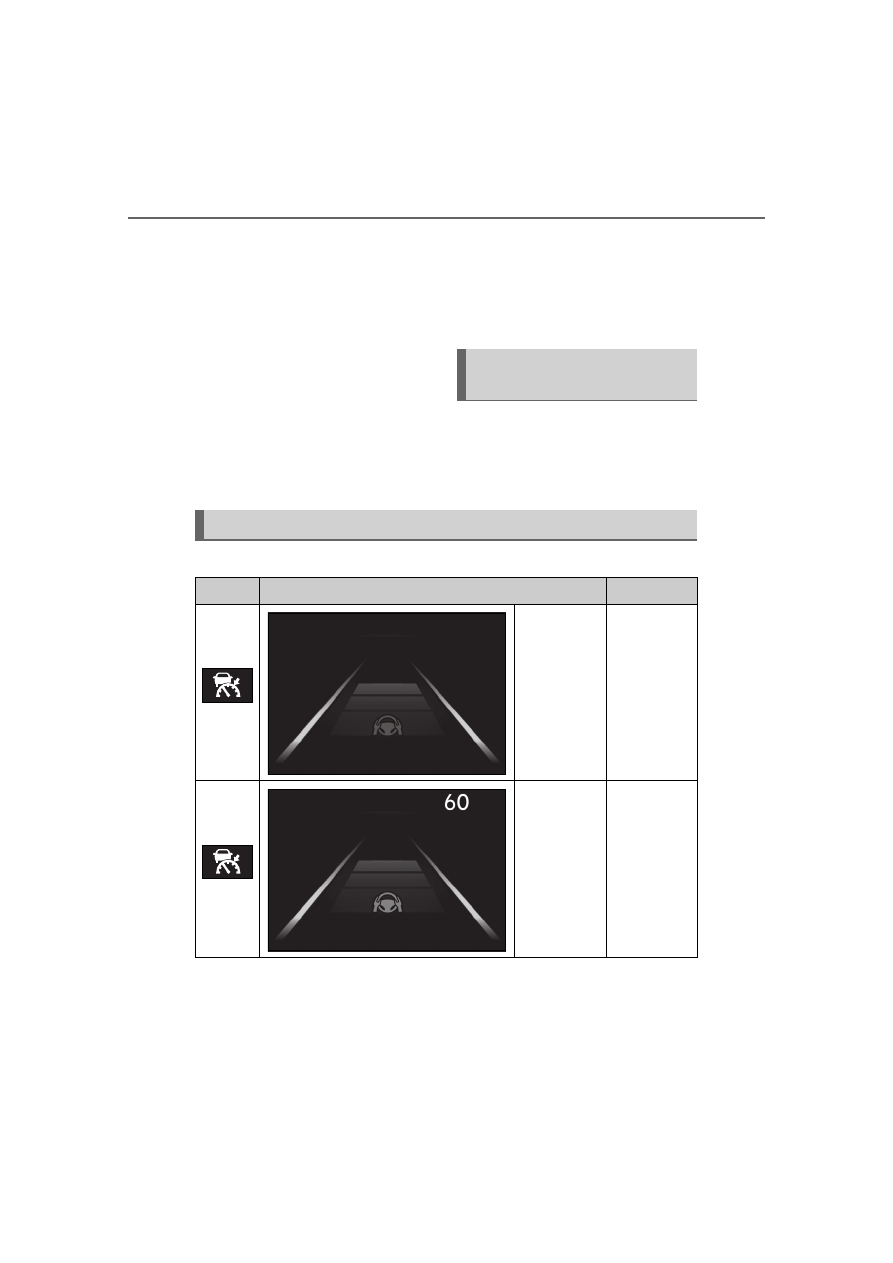

The operating state of Dynamic radar cruise control is indicated.

Changing Dynamic radar cruise
control settings

Display and system operation state

Indicator

Multi-information display

Situation

White

Vehi-

cle-to-vehicle

distance set-

ting: Grey

Dynamic radar

cruise control

being OFF

Green

Vehi-

cle-to-vehicle

distance set-

ting: Blue

Set vehicle

speed: Green

Constant

speed cruising

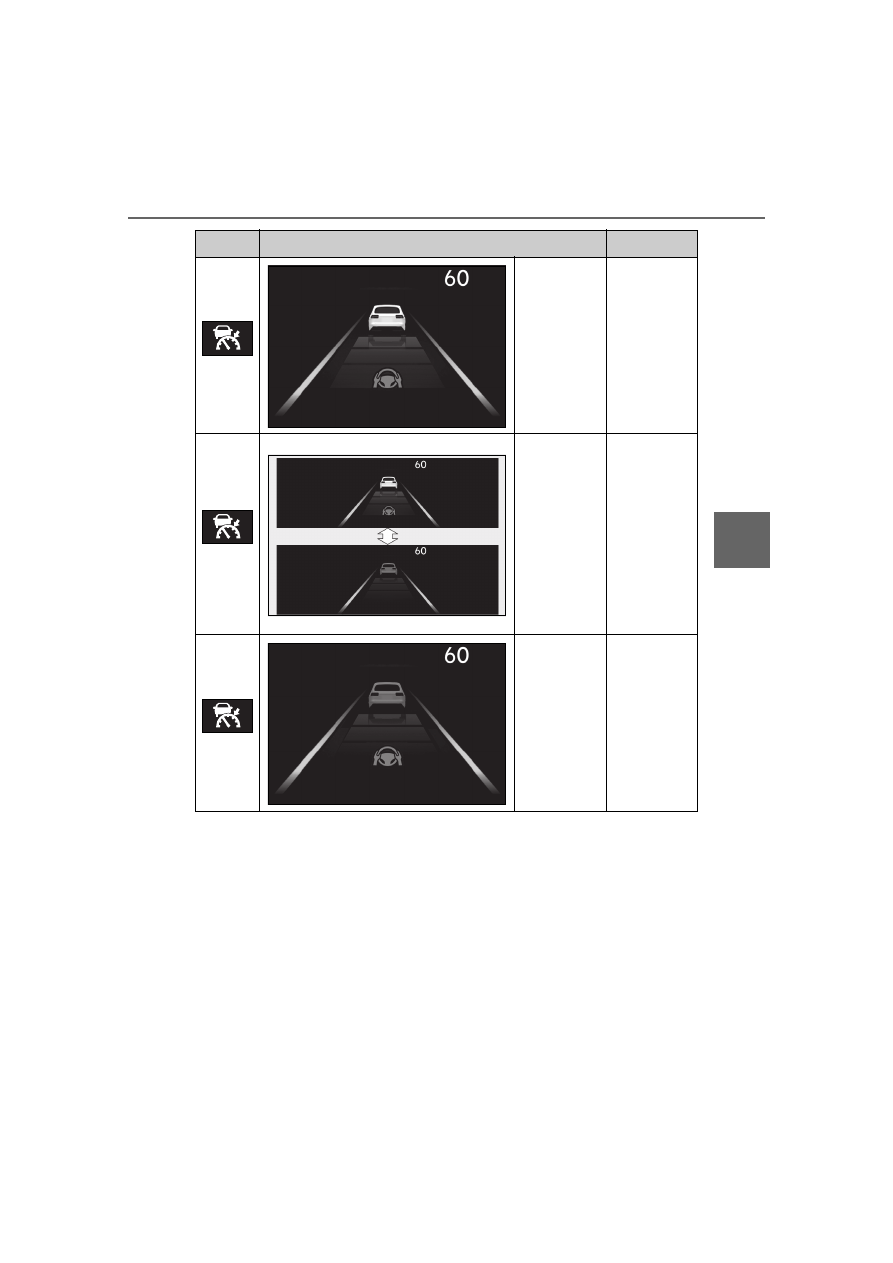

277

4-5. Using the driving support systems

Driving

Green

Vehi-

cle-to-vehicle

distance set-

ting: Blue

Set vehicle

speed: Green

Preceding

vehicle: White

Follow-up

cruising

Green

Vehi-

cle-to-vehicle

distance set-

ting: Orange

flashing

Set vehicle

speed: Green

Preceding

vehicle: Yellow

flashing

Approach

warning

Green

Vehi-

cle-to-vehicle

distance set-

ting: Grey

Set vehicle

speed: White

Preceding

vehicle: Grey

Accelerating

with the accel-

erator pedal

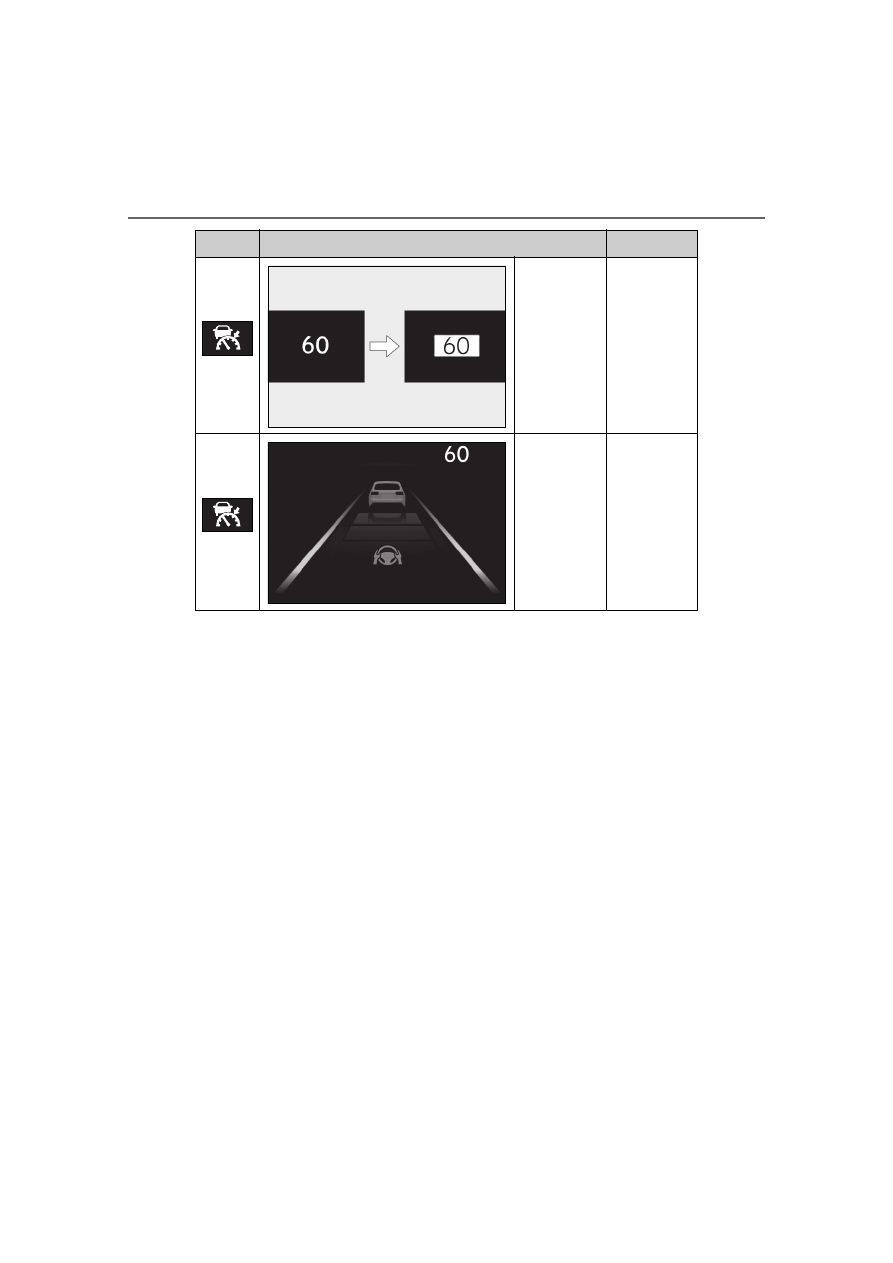

Indicator

Multi-information display

Situation

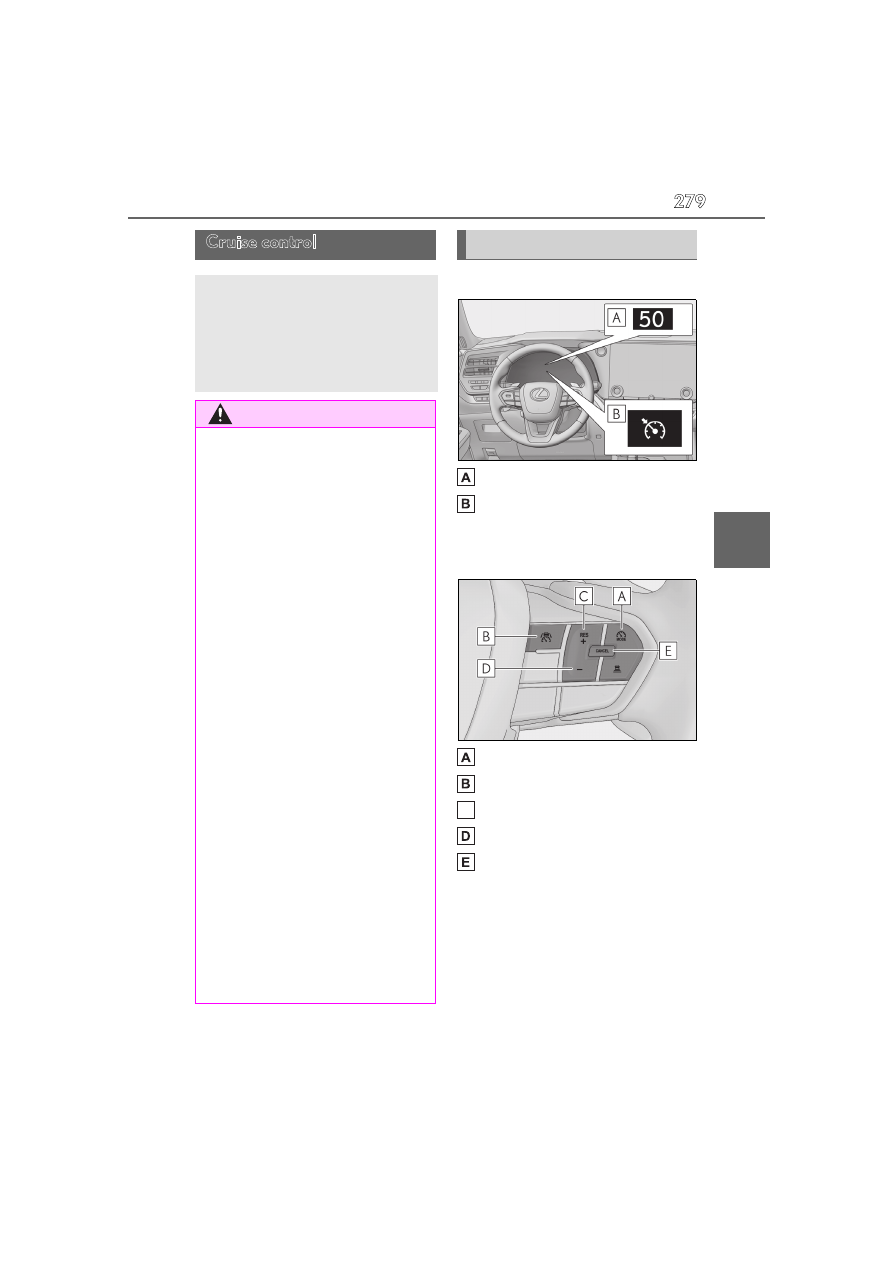

279

4-5. Using the driving support systems

Driving

■

Meter display

Set vehicle speed
Cruise control indicator

■

Switches



Vehicles without a head-up display

Driving assist mode select switch
Driving assist switch
“+” switch/“RES” switch
“-” switch
Cancel switch

Cruise control

The vehicle can be driven at a set
speed even if the accelerator pedal
is not depressed.

Use the cruise control only on high-
ways and expressways.

WARNING

■

For safe use

●

Driving safely is solely the responsibil-

ity of the driver. Therefore, do not

overly rely on this system. The driver is

solely responsible for paying attention

to the vehicle’s surroundings and driv-

ing safely.

●

Set the speed appropriately according

to the speed limit, traffic flow, road

conditions, weather conditions, etc.

The driver is responsible for confirm-

ing the set speed.

■

Situations in which cruise control

should not be used

Do not use the cruise control in the fol-

lowing situations. As the system will not

be able to provide appropriate control,

using it may lead to an accident resulting

in death or serious injury.

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as those cov-

ered with rain, ice or snow

●

On steep downhills, or where there

are sudden changes between sharp up

and down gradients

Vehicle speed may exceed the set speed

when driving down a steep hill.

●

When it is necessary to disable the sys-

tem:
