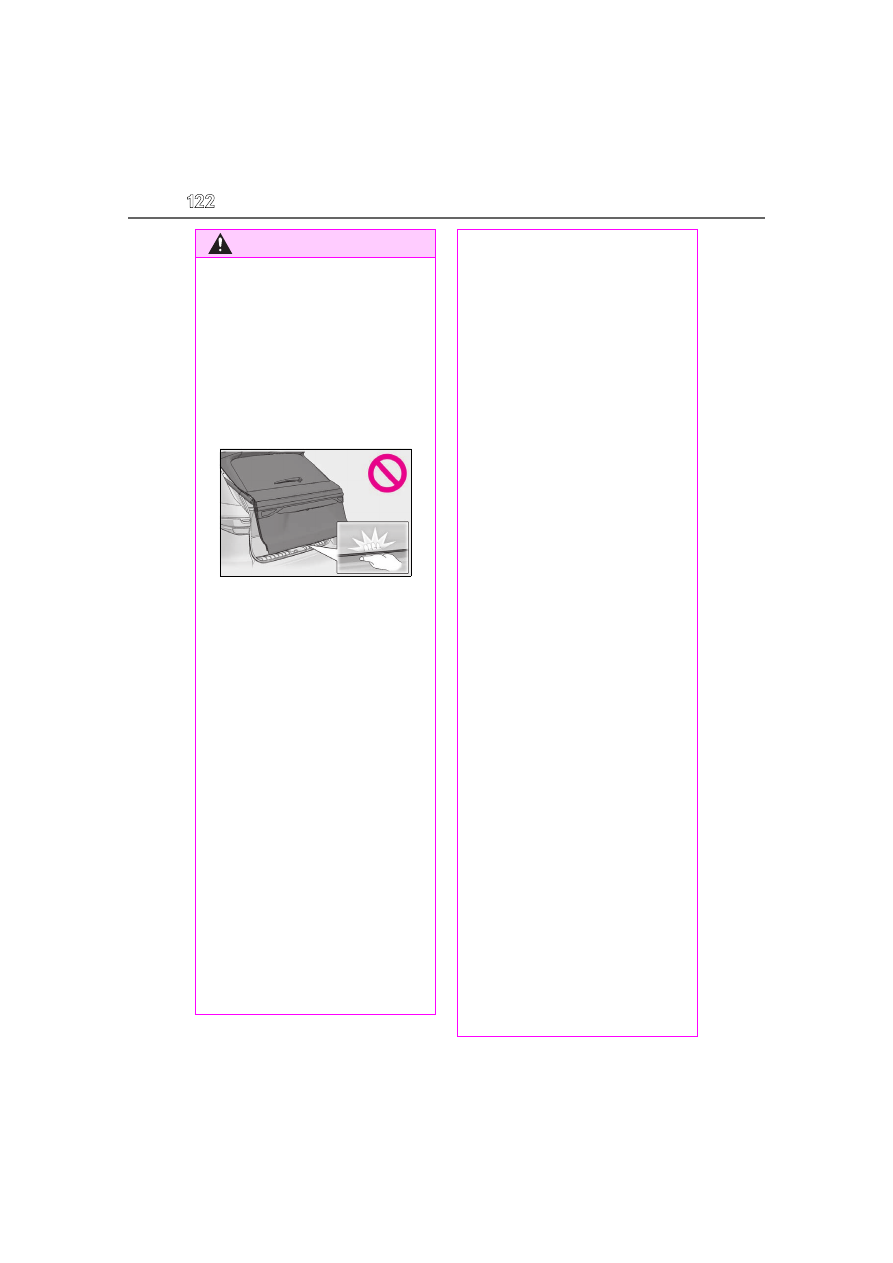

3-2. Opening, closing and locking the doors

WARNING

■

Back door closer

●

In the event that the power back door

is left slightly open, the back door

closer will automatically close it to the

fully closed position. It takes several

seconds before the back door closer

begins to operate. Be careful not to get

fingers caught or anything else in the

power back door, as this may cause

bone fractures or other serious inju-

ries.

●

Use caution when using the back door

closer as it still operates when the

power back door system is disabled.

■

Power back door

Observe the following precautions when

operating the power back door.

Failure to do so may cause death or seri-

ous injury.

●

Check the safety of the surrounding

area to make sure there are no obsta-

cles or anything that could cause any

of your belongings to get caught.

●

If anyone is in the vicinity, make sure

they are safe and let them know that

the power back door is about to open

or close.

●

If the power back door system is dis-

abled while the power back door is

operating, the power back door will

stop operating. The power back door

must then be operated manually. Take

extra care in this situation, as the

power back door may open or close

suddenly.

●

If the operating conditions of the

power back door (



P.118) are no lon-

ger met, a buzzer may sound and the

power back door may stop opening or

closing. The power back door must

then be operated manually. Take extra

care on an incline in this situation, as

the power back door may move sud-

denly.

●

On an incline, the power back door

may suddenly shut after it opens. Make

sure the power back door is fully open

and secure.

●

In the following situations, the power

back door may detect an abnormality

and automatic operation may be

stopped. In this case, the power back

door must then be operated manually.

Take extra care in this situation, as the

stopped power back door may sud-

denly open or close, causing an acci-

dent.

• When the power back door contacts

an obstacle

• When the 12-volt battery voltage sud-

denly drops, such as when the power

switch is turned to ON or the hybrid

system is started during automatic

operation

●

If a bicycle carrier or similar heavy

object is attached to the power back

door, the power back door may not

operate, causing a malfunction, or the

power back door may suddenly shut

again after being opened, causing

someone’s hands, arms, head or neck

to be caught and injured. When install-

ing an accessory part to the power

back door, using a genuine Lexus part

is recommended.

■

Jam protection function

Observe the following precautions.

Failure to do so may cause death or seri-

ous injury.

●

Never use any part of your body to

intentionally activate the jam protec-

tion function.

123

3-2. Opening, closing and locking the doors

fore
dri
ving

WARNING

●

The jam protection function may not

work if something gets caught just

before the power back door fully

closes. Be careful not to get fingers

caught or anything else.

●

The jam protection function may not

work depending on the shape of the

object that is caught. Be careful not to

catch fingers or anything else.

■

Hands Free Power Back Door (if

equipped)

Observe the following precautions.

Failure to do so may cause death or seri-

ous injury.

●

Check the safety of the surrounding

area to make sure there are no obsta-

cles or anything that could cause any

of your belongings to get caught.

●

Exhaust gasses cause the exhaust

pipes to become quite hot. When

operating the Hands Free Power Back

Door, be careful not to touch the

exhaust pipe.

●

Do not operate the Hands Free Power

Back Door if there is little space under

the rear bumper.

■

Close & lock (Walk-Away) function

and Hands Free close & lock

(Walk-Away) function

*1, 2

: This setting can be customized by

your Lexus dealer.

: If equipped

The back door starts to close automati-

cally when leaving the back door. Check

the safety of the surrounding area to

make sure there are no obstacles or any-

thing that could cause any of your

belongings to get caught.

NOTICE

■

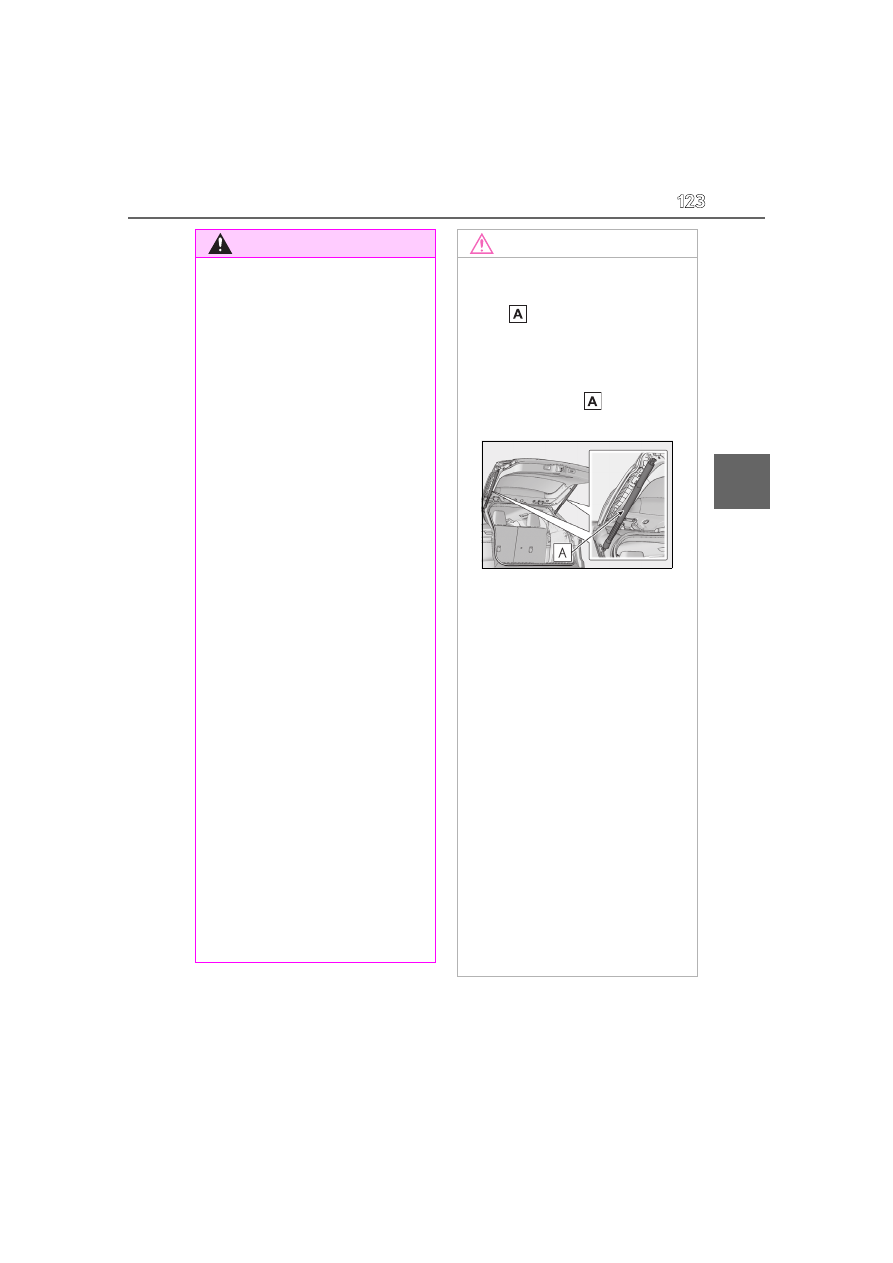

Back door spindles

The power back door is equipped with
spindles

that hold the power back

door in place.

Observe the following precautions.

Failure to do so may cause damage to
the back door spindle

, resulting in

malfunction.

●

Do not attach any foreign objects, such

as stickers, plastic sheets, or adhesives

to the spindle rod.

●

Do not attach any accessories other

than genuine Lexus parts to the power

back door.

●

Do not place your hand on the spindle

or apply lateral forces to it.

■

To prevent back door closer malfunc-

tion

●

Do not apply excessive force to the

power back door while the back door

closer is operating. Applying excessive

force may cause the back door closer

to malfunction.

●

If the power back door is opened and

closed repeatedly in a short amount of

time, the back door closer may stop

operating. In this case, manually open

the power back door once and wait for

a while before attempting to close it

again.

124

3-2. Opening, closing and locking the doors

NOTICE

■

To prevent malfunction of the power

back door

●

Make sure that there is no ice between

the power back door and frame that

would prevent movement of the power

back door. Operating the power back

door when excessive load is present

on the power back door may cause a

malfunction.

●

Do not apply excessive force to the

power back door while the power

back door is operating.

●

Take care not to damage the sensors

installed on the right and left edges of

the power back door (

P.118) with a

knife or other sharp object. If a sensor

is disconnected, the power back door

will not close automatically.

■

Close & lock function

: This setting can be customized by your

Lexus dealer.

When closing the power back door using

the close & lock function, a different

buzzer than the normal one will sound

before the operation begins.

To check that the operation has started

correctly, check that a different buzzer

than the normal one has sounded.

Additionally, when the power back door

is fully closed and locked, operation sig-

nals will indicate that all of the doors have

been locked.

Before leaving the vehicle, make sure

that the operational signals have oper-

ated and that all of the doors are locked.

■

Hands Free Power Back Door pre-

cautions (if equipped)

The kick sensor is located behind lower

center part of the rear bumper. Observe

the following to ensure that the Hands

Free Power Back Door function operates

properly:

●

Keep the lower center part of the rear

bumper clean at all times.

If the lower center part of the rear

bumper is dirty or covered with snow, the

Hands Free Power Back Door may not

operate. In this situation, clean off the dirt

or snow, move the vehicle from the cur-

rent position and then check if the Hands

Free Power Back Door operates. If it

does not operate, have the vehicle

inspected by your Lexus dealer.

●

Do not apply coatings that have a rain

clearing (hydrophilic) effect, or other

coatings, to the lower center part of

the rear bumper.

●

Do not park the vehicle near objects

that may move and contact the lower

center part of the rear bumper, such as

grass or trees.

If the vehicle has been parked for a while

near objects that may move and contact

the lower center part of the rear bumper,

such as grass or trees, the Hands Free

Power Back Door may not operate. In

this situation, move the vehicle from the

current position and then check if the

Hands Free Power Back Door operates.

If it does not operate, have the vehicle

inspected by your Lexus dealer.

●

Do not subject the rear bumper or its

surrounding area to a strong impact.

If the rear bumper or its surrounding area

has been subjected to a strong impact,

the Hands Free Power Back Door may

not operate properly.
If the Hands Free Power Back Door does

not operate in the following situations,

have the vehicle inspected by your Lexus

dealer.
• The kick sensor or its surrounding area

has been subjected to a strong impact.

• The lower center part of the rear

bumper is scratched or damaged.

●

Do not disassemble the rear bumper.

●

Do not attach stickers to the rear

bumper.

125

3-2. Opening, closing and locking the doors

fore
dri
ving

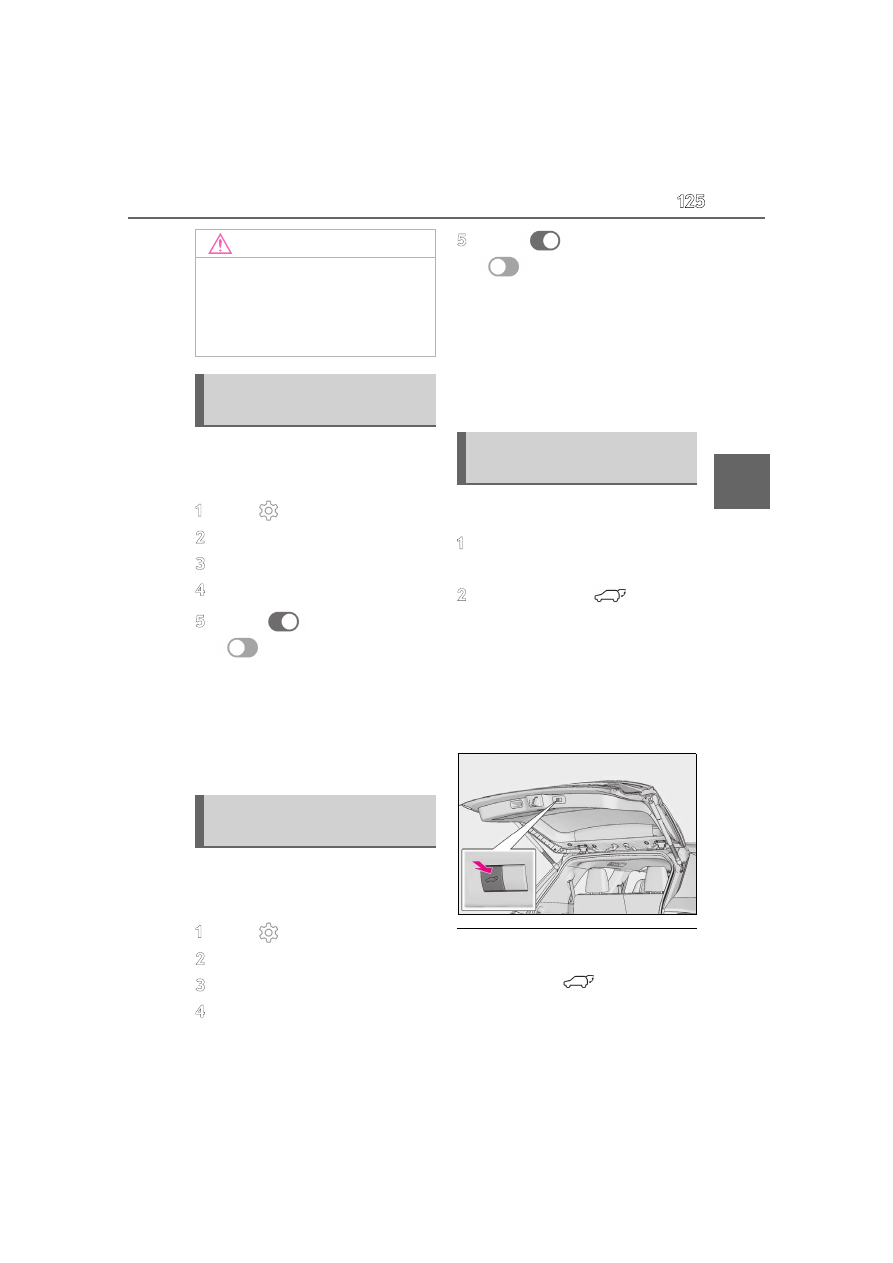

The power back door system can be
enabled/disabled on the center display.
(



Select

on the center display.

Select “Vehicle customize”.

Select “Door control”.

Select “Power back door”.

Select (ON)/

(OFF).

When OFF is selected and the operations
of the power back door is made to stop
from the center display, unless it is set to
ON, the operation of the power back door
will not return. (No return in the power
switch operation)

The Hands Free Power Back Door
(kick sensor) can be enabled/disabled
on the center display. (



Select

on the center display.

Select “Vehicle customize”.

Select “Door control”.

Select “Hands free”.

Select (ON)/

(OFF).

When OFF is selected and the operations
of the Hands Free Power Back Door is
made to stop from the center display,
unless it is set to ON, the operation of the
Hands Free Power Back Door will not
return. (No return in the power switch
operation)

The open position of the power back
door can be adjusted.

Stop the power back door at the
desired position. (

P.113)

Press and hold the

switch on

the lower part of the power back
door for 2 seconds.



When setting is complete, a buzzer
will sound 4 times.



The next time the power back door
is opened, it will stop at that position.

■

Returning the power back door opening

position to the default setting

Press and hold the

switch on the

lower part of the power back door for 7

seconds.
After the buzzer sounds 4 times, it sounds

NOTICE

●

Do not paint the rear bumper.

●

If a bicycle carrier or similar heavy

object is attached to the power back

door, disable the Hands Free Power

Back Door (kick sensor).

Canceling the power back door
system

Canceling the Hands Free
Power Back Door (if equipped)

Adjusting the open position of
the power back door

126

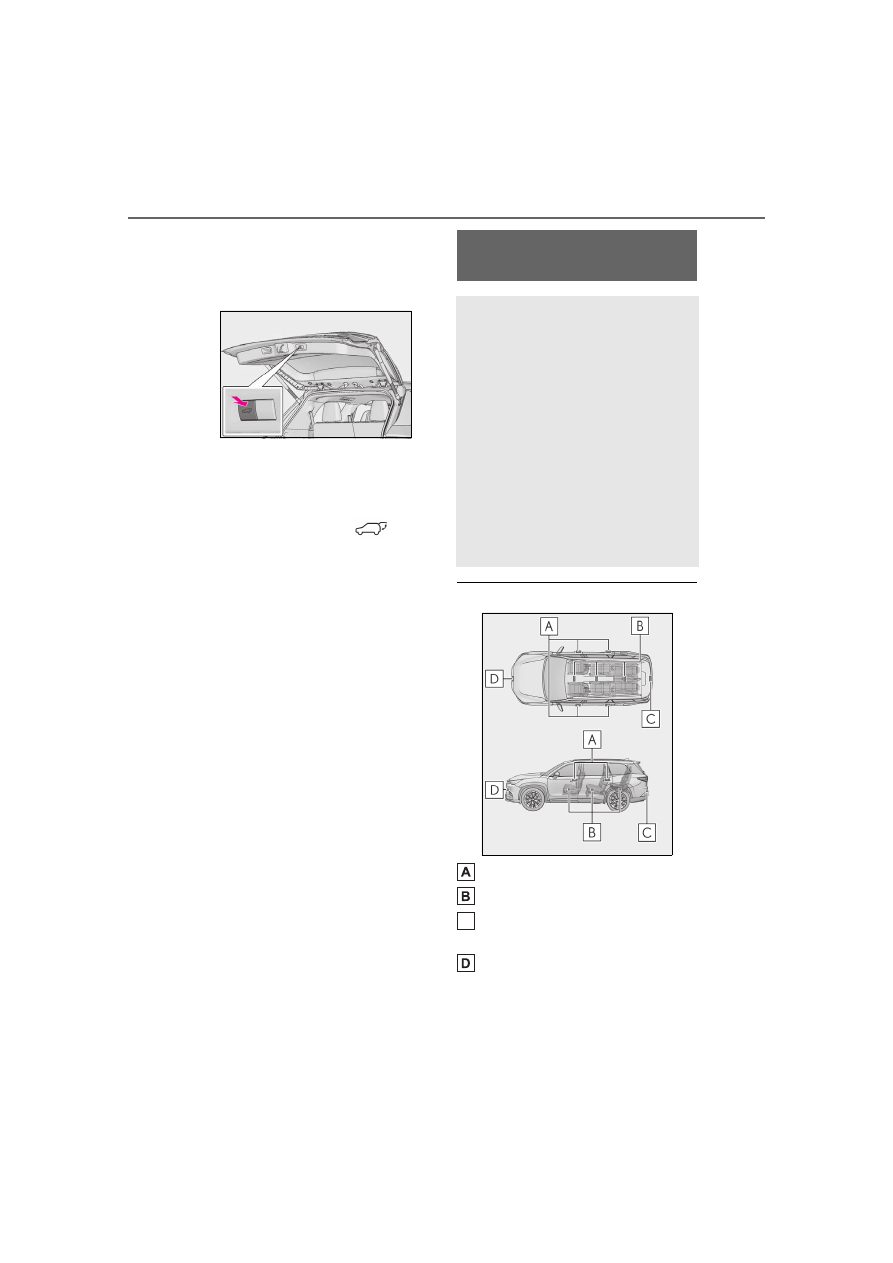

3-2. Opening, closing and locking the doors

twice more. When the power back door
does the opening operation the next time,
the door will open to the initial settings
position.

■

Customization

The opening position can be set with the

center display.
Priority for the stop position is given to the
last position set by either the

switch

or center display.
(Customizable features:

■

Antenna location

Antennas outside the cabin
Antennas inside the cabin
Antenna outside the luggage compart-
ment
Antennas outside the cabin (Vehicles
with Lexus Teammate Advanced Park
system)

Smart access system with
push-button start

The following operations can be
performed simply by carrying the
electronic key on your person, for
example in your pocket. The driver
should always carry the electronic
key.



Locks and unlocks the doors
(



P.106)



Locks and unlocks the back door
(



P.112)



Starts and stops the hybrid system
(



P.188)

127

3-2. Opening, closing and locking the doors

fore
dri
ving

■

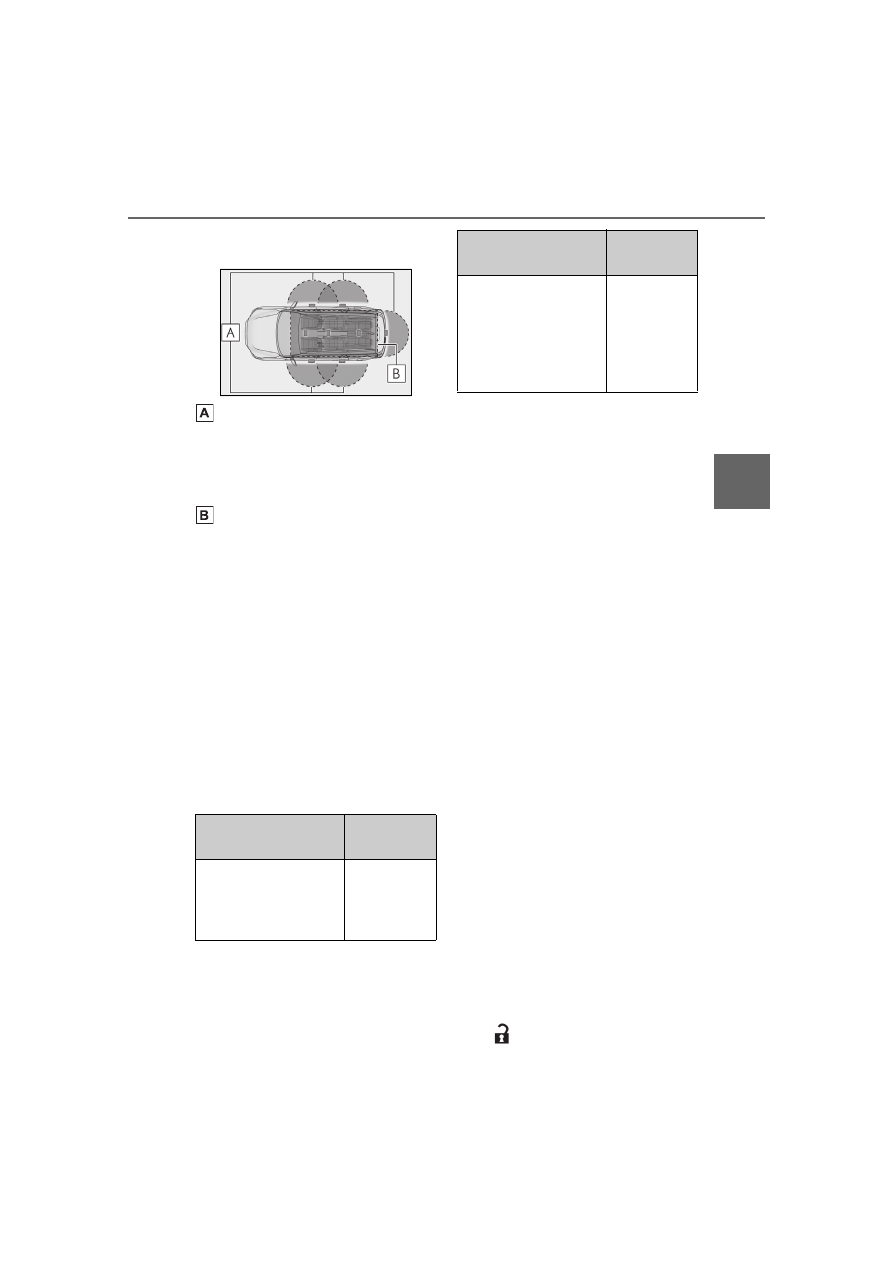

Effective range (areas within which the

electronic key is detected)

When locking or unlocking the doors

The system can be operated when the
electronic key is within about 2.3 ft. (0.7 m)
of an outside door handle. (Only the doors
detecting the key can be operated.)

When starting the hybrid system or
changing power switch modes

The system can be operated when the
electronic key is inside the vehicle.

■

Alarms and warning messages

An alarm sounds and warning messages

are displayed on the multi-information dis-

play to protect against unexpected acci-

dents or theft of the vehicle resulting from

erroneous operation. When a warning mes-

sage is displayed, take appropriate mea-

sures based on the displayed message.

(



P.498)

When only an alarm sounds, circumstances

and correction procedures are as follows.

●

When an exterior alarm sounds once for

5 seconds

●

When an interior alarm sounds continu-

ously

■

If “Key Detected in Vehicle” is shown on

the multi-information display

An attempt was made to lock the doors

using the smart access system with

push-button start while the electronic key

was still inside the vehicle. Retrieve the elec-

tronic key from the vehicle and lock the

doors again.

■

Battery-saving function

The battery-saving function will be acti-

vated in order to prevent the electronic key

battery and the 12-volt battery from being

discharged while the vehicle is not in opera-

tion for a long time.

●

In the following situations, the smart

access system with push-button start may

take some time to unlock the doors. Also

the illuminated entry system may not

operate properly.

• The electronic key has been left in an

area of approximately 11 ft. (3.5 m) of the

outside of the vehicle for 40 seconds or

longer.

• The smart access system with push-but-

ton start has not been used for 5 days or

longer.

●

If the smart access system with push-but-

ton start has not been used for 14 days or

longer, the doors cannot be unlocked at

any doors except the driver’s door. In this

case, take hold of the driver’s door han-

dle, or use the wireless remote control or

the mechanical key, to unlock the doors.

■

Turning an electronic key to bat-

tery-saving mode

When battery-saving mode is set, battery

depletion is minimized by stopping the elec-

tronic key from receiving radio waves.

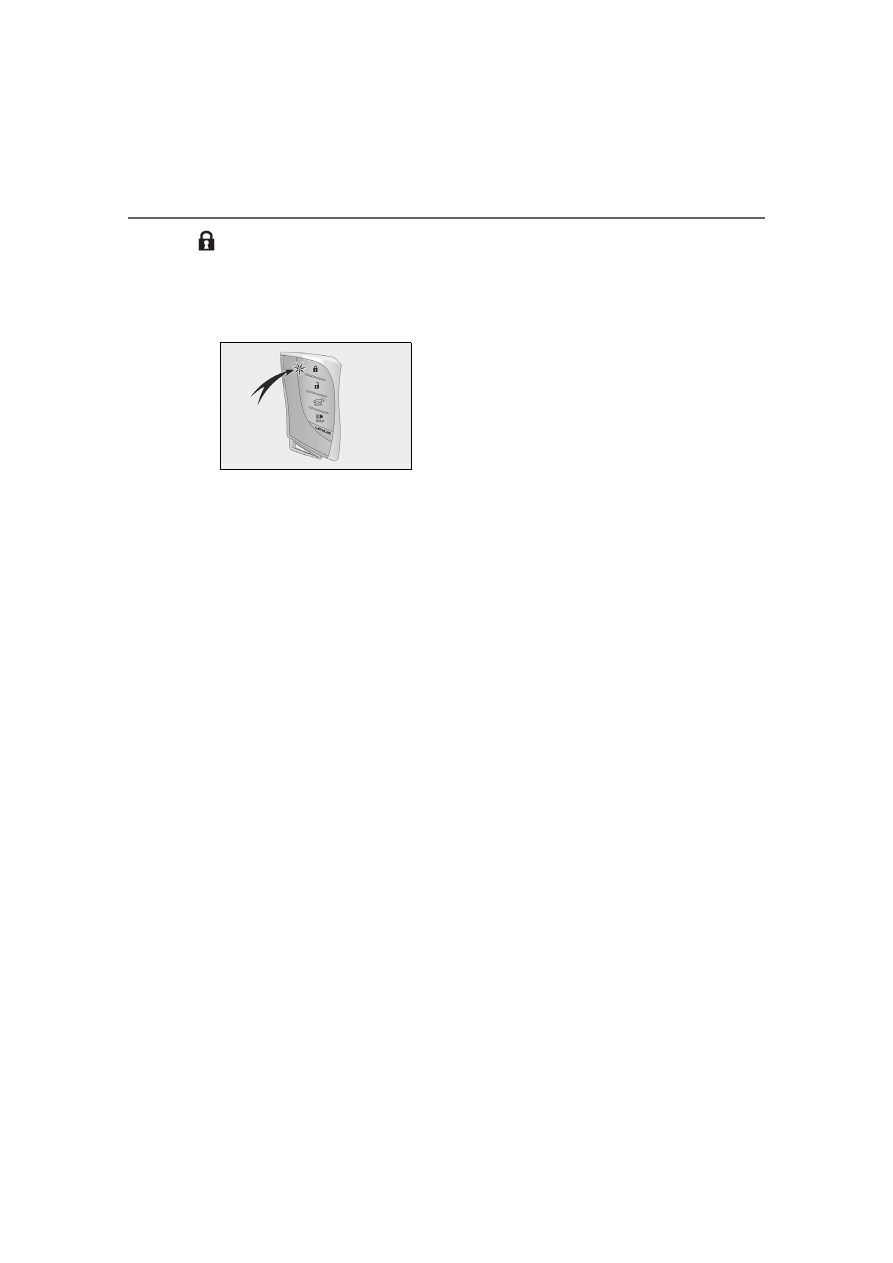

Press

twice while pressing and holding

Situation

Correction

procedure

An attempt was made to
lock the vehicle while a
door was open.

Close all of the
doors and lock
the doors
again.

Situation

Correction

procedure

The power switch was
turned to ACC while the
driver’s door was open
(The driver’s door was
opened when the power
switch was in ACC).

Turn the power
switch off and
close the
driver’s door.

128

3-2. Opening, closing and locking the doors

. Confirm that the electronic key indica-

tor flashes 4 times.
While the battery-saving mode is set, the

smart access system with push-button start

cannot be used. To cancel the function,

press any of the electronic key buttons.

■

When electronic key function stops

If the position of the electronic key has not

changed for a certain amount of time such

as when the electronic key is left some

where, the function of the electronic key

stops to reduce depletion of the battery.

■

Conditions affecting operation

The smart access system with push-button

start, wireless remote control and immobi-

lizer system use weak radio waves. In the

following situations, the communication

between the electronic key and the vehicle

may be affected, preventing the smart

access system with push-button start, wire-

less remote control and immobilizer system

from operating properly. (Ways of coping:

P.516)

●

When the electronic key battery is

depleted

●

Near a TV tower, electric power plant,

gas station, radio station, large display,

airport or other facility that generates

strong radio waves or electrical noise

●

When the electronic key is in contact

with, or is covered by the following metal-

lic objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil

inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

●

When other wireless keys (that emit radio

waves) are being used nearby

●

When carrying the electronic key

together with the following devices that

emit radio waves

• Portable radio, cellular phone, cordless

phone or other wireless communication

devices

• Another vehicle’s electronic key, another

electronic key of your vehicle, or a wire-

less key that emits radio waves

• Personal computers or personal digital

assistants (PDAs)

• Digital audio players

• Portable game systems

●

If window tint with a metallic content or

metallic objects are attached to the rear

window

●

When the electronic key is placed near a

battery charger or electronic devices

●

When the vehicle is parked in a pay park-

ing spot where radio waves are emitted

If the doors cannot be locked/unlocked

using the smart access system with

push-button start, lock/unlock the doors by

performing any of the following:

●

Bring the electronic key close to either

front door handle and operate the entry

function.

●

Operate the wireless remote control.

If the doors cannot be locked/unlocked

using the above methods, use the mechani-

cal key. (

P.516)

If the hybrid system cannot be started using

the smart access system with push-button

start, refer to

P.517

■

Note for the entry function

●

Even when the electronic key is within the

effective range (detection areas), the sys-

tem may not operate properly in the fol-

lowing cases:

• The electronic key is too close to the win-

dow or outside door handle, near the

ground, or in a high place when the doors

are locked or unlocked.

• The electronic key is on the instrument

panel, luggage compartment, floor, or in

the door pockets or glove box when the

hybrid system is started or power switch

modes are changed.

• The electronic key is obstructed by a per-

son’s body between it and the vehicle

129

3-2. Opening, closing and locking the doors

fore
dri
ving

when the doors are unlocked.

●

Do not leave the electronic key on top of

the instrument panel or near the door

pockets when exiting the vehicle.

Depending on the radio wave reception

conditions, it may be detected by the

antenna outside the cabin and the door

will become lockable from the outside,

possibly trapping the electronic key

inside the vehicle.

●

As long as the electronic key is within the

effective range, the doors may be locked

or unlocked by anyone. However, only

the doors detecting the electronic key

can be used to unlock the vehicle.

●

Even if the electronic key is not inside the

vehicle, it may be possible to start the

hybrid system if the electronic key is near

the window.

●

The doors may unlock if a large amount

of water splashes on the door handle,

such as in the rain or in a car wash when

the electronic key is within the effective

range. (The door will automatically be

locked after approximately 60 seconds if

the doors are not opened and closed.)

●

If the wireless remote control is used to

lock the doors when the electronic key is

near the vehicle, there is a possibility that

the door may not be unlocked by the

entry function. (Use the wireless remote

control to unlock the doors.)

●

Touching the door lock sensor while

wearing gloves may delay or prevent lock

operation. Remove the gloves and touch

the lock sensor again.

●

When the lock operation is performed

using the lock sensor, recognition signals

will be shown up to two consecutive

times. After this, no recognition signals

will be given.

●

If the door handle becomes wet while the

electronic key is within the effective

range, the door may lock and unlock

repeatedly. In that case, follow the follow-

ing correction procedures to wash the

vehicle:

• Place the electronic key in a location 6 ft.

(2 m) or more away from the vehicle.

(Take care to ensure that the key is not

stolen.)

• Set the electronic key to battery-saving

mode to disable the smart access system

with push-button start. (



P.127)

●

If the electronic key is inside the vehicle

and a door handle becomes wet during a

car wash, a message may be shown on

the multi-information display and a

buzzer will sound outside the vehicle. To

turn off the alarm, lock all the doors.

●

The lock sensor may not work properly if

it comes into contact with ice, snow, mud,

etc. Clean the lock sensor and attempt to

operate it again.

●

A sudden approach to the effective

range or door handle may prevent the

doors from being unlocked. In this case,

return the door handle to the original

position and check that the doors unlock

before pulling the door handle again.

●

If there is another electronic key in the

detection area, it may take slightly longer

to unlock the doors after the door handle

is gripped.

■

When the vehicle is not driven for

extended periods

●

To prevent theft of the vehicle, do not

leave the electronic key within 6 ft. (2 m)

of the vehicle.

●

The smart access system with push-but-

ton start can be deactivated in advance.

●

Setting the electronic key to battery-sav-

ing mode helps to reduce key battery

depletion. (



P.127)

■

To operate the system properly

Make sure to carry the electronic key when

operating the system. Do not get the elec-

tronic key too close to the vehicle when

operating the system from the outside of the

vehicle.
Depending on the position and holding

condition of the electronic key, the key may

not be detected correctly and the system

may not operate properly. (The alarm may

go off accidentally, or the door lock preven-

tion may not operate.)

130

3-2. Opening, closing and locking the doors

■

If the smart access system with

push-button start does not operate

properly

●

If the doors cannot be locked or unlocked

and the back door cannot be opened,

perform the following.

• Bring the electronic key close to the door

handle and perform a lock or unlock

operation.

• Bring the electronic key close to the but-

ton on the back door (



P.112) and press

the button.

• Use the wireless remote control.
If the doors cannot be locked or unlocked
by perform the above, use the mechanical
key. (



P.516) However, if the mechanical

key is used while the alarm system is set,
the warning will sound. (



P.69)

●

If the hybrid system cannot be started,

refer to



P.517

■

Customization

Some functions can be customized.

(



■

If the smart access system with

push-button start has been deactivated

in a customized setting

●

Locking and unlocking the doors: Use

the wireless remote control or mechani-

cal key. (

P.106, 113, 516)

●

Starting the hybrid system and changing

power switch modes:



P.517

●

Stopping the hybrid system:

P.188

WARNING

■

Caution regarding interference with

electronic devices

●

People with implantable cardiac pace-

makers, cardiac resynchronization

therapy-pacemakers or implantable

cardioverter defibrillators should keep

away from the smart access system

with push-button start antennas.

(

P.126)

The radio waves may affect the opera-

tion of such devices. If necessary, the

entry function can be disabled. Ask

your Lexus dealer for details, such as

the frequency of radio waves and tim-

ing of the emitted radio waves. Then,

consult your doctor to see if you

should disable the entry function.

●

Users of any electrical medical device

other than implantable cardiac pace-

makers, cardiac resynchronization

therapy-pacemakers or implantable

cardioverter defibrillators should con-

sult the manufacturer of the device for

information about its operation under

the influence of radio waves.

Radio waves could have unexpected

effects on the operation of such medi-

cal devices.

Ask your Lexus dealer for details on dis-

abling the entry function.

131

3-3. Adjusting the seats

fore
dri
ving

3-3.Adjusting the seats

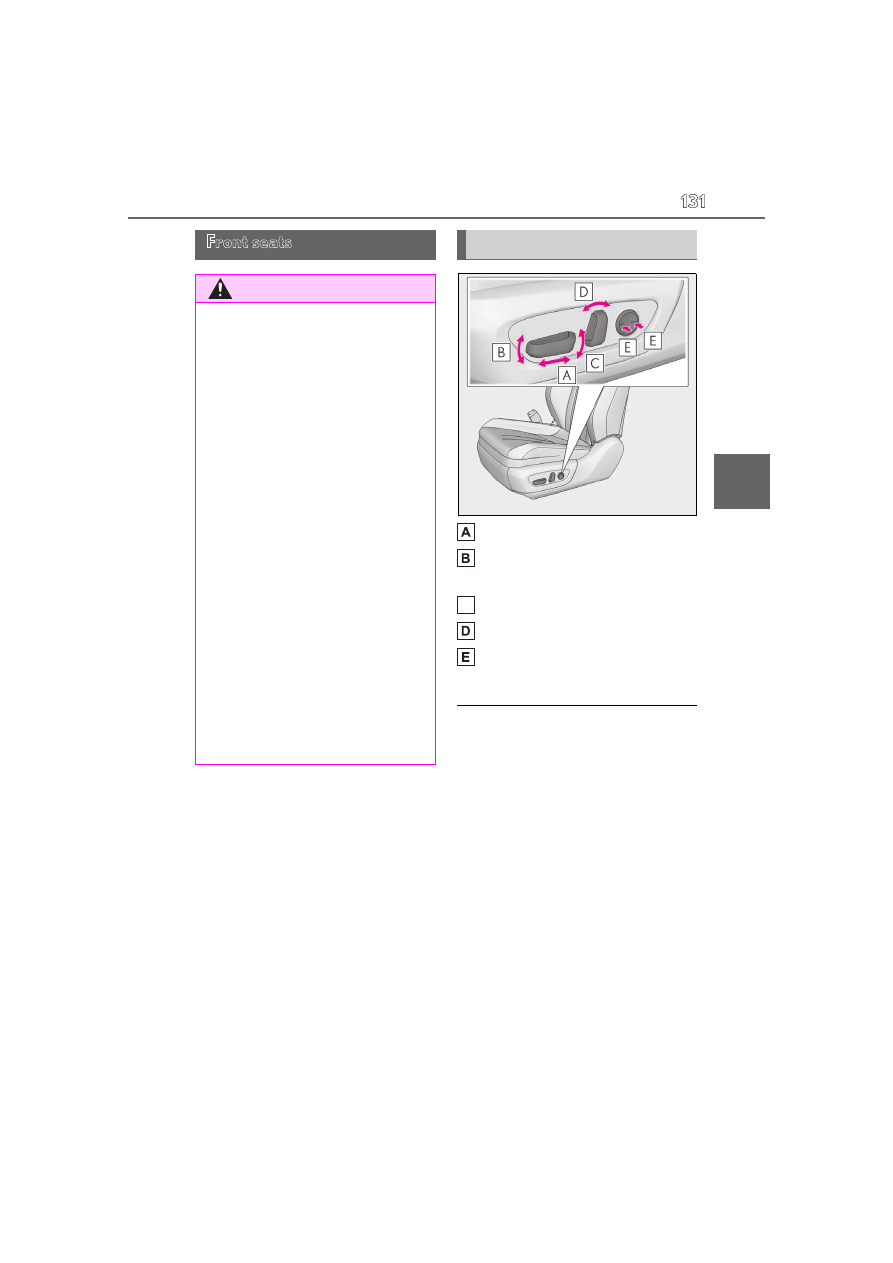

Seat position adjustment switch
Seat cushion (front) angle adjust-
ment switch
Vertical height adjustment switch
Seatback angle adjustment switch
Lumbar support firmness adjust-
ment switch

■

When adjusting the seat

●

Make sure that any surrounding passen-

gers or objects are not contact the seat.

●

Make sure that the head restraint does

not touch the ceiling or sun visor.

■

Power easy access system

The driver’s seat and steering wheel move

in accordance with power switch mode and

the driver’s seat belt condition. (

■

Jam protection function

While the driving position is recalled or the

power easy access system is operating, if an

object is stuck behind the front seat, the

front seat will stop and then slightly move

forward. When the jam protection function

operates, the seat stops at a position other

than the set seat position. Check the seat

position.

Front seats

WARNING

■

When adjusting the seat position

●

Take care when adjusting the seat

position to ensure that other passen-

gers are not injured by the moving

seat.

●

Do not put your hands under the seat

or near the moving parts to avoid

injury. Fingers or hands may become

jammed in the seat mechanism.

●

Make sure to leave enough space

around the feet so they do not get

stuck.

■

Seat adjustment

To reduce the risk of sliding under the lap

belt during a collision, do not recline the

seat more than necessary.

If the seat is too reclined, the lap belt may

slide past the hips and apply restraint

forces directly to the abdomen, or your

neck may contact the shoulder belt,

increasing the risk of death or serious

injury in the event of an accident.

Adjustments should not be made while

driving as the seat may unexpectedly

move and cause the driver to lose control

of the vehicle.

Adjustment procedure

132

3-3. Adjusting the seats

Rear seats

The reclining angle can be adjusted
and the seatback can be folded by
operating the lever or switch.

WARNING

■

Seat adjustment

●

To reduce the risk of sliding under the

lap belt during a collision, do not

recline the seat more than necessary.

If the seat is too reclined, the lap belt may

slide past the hips and apply restraint

forces directly to the abdomen, or your

neck may contact the shoulder belt,

increasing the risk of death or serious

injury in the event of an accident.
Adjustments should not be made while

driving as the seat may unexpectedly

move and cause the driver to lose control

of the vehicle.

●

Be careful that the seat does not hit

passengers or luggage.

●

Be careful not to get your hands or feet

caught in the seat.

■

After adjusting or returning the seats

Observe the following precautions. Fail-

ure to do so may result in death or seri-

ous injury.

●

Make sure that the seat and seatback

are securely locked in position by

lightly rocking them back and forth.

●

Check that the seat belts are not

twisted or caught in the seatback.

■

When folding the rear seatbacks

down

Observe the following precautions. Fail-

ure to do so may result in death or seri-

ous injury.

●

Do not fold the seatbacks down while

driving.

●

Stop the vehicle on level ground, set

the parking brake and shift the shift

position to P.

●

Do not allow anyone to sit on a folded

seatback or in the luggage compart-

ment while driving.

●

Do not allow children to enter the lug-

gage compartment.

●

Do not fold down a rear seatback

when there are passengers sitting in

the rear seats or when there is luggage

placed on the rear seats.

●

Be careful not to catch your hand

when folding the rear seatbacks.

■

Jam protection function

Observe the following precautions.

Failure to do so may result in death or

serious injury.

●

Never use any part of your body to

intentionally activate the jam protec-

tion function.

●

The jam protection function may not

work if something gets caught just

before the rear seatback is fully folded

forward. Be careful not to get fingers

or anything else caught.

●

The jam protection function may not

work depending on the shape of the

object that is caught. Be careful not to

get fingers or anything else caught.

133

3-3. Adjusting the seats

fore
dri
ving

■

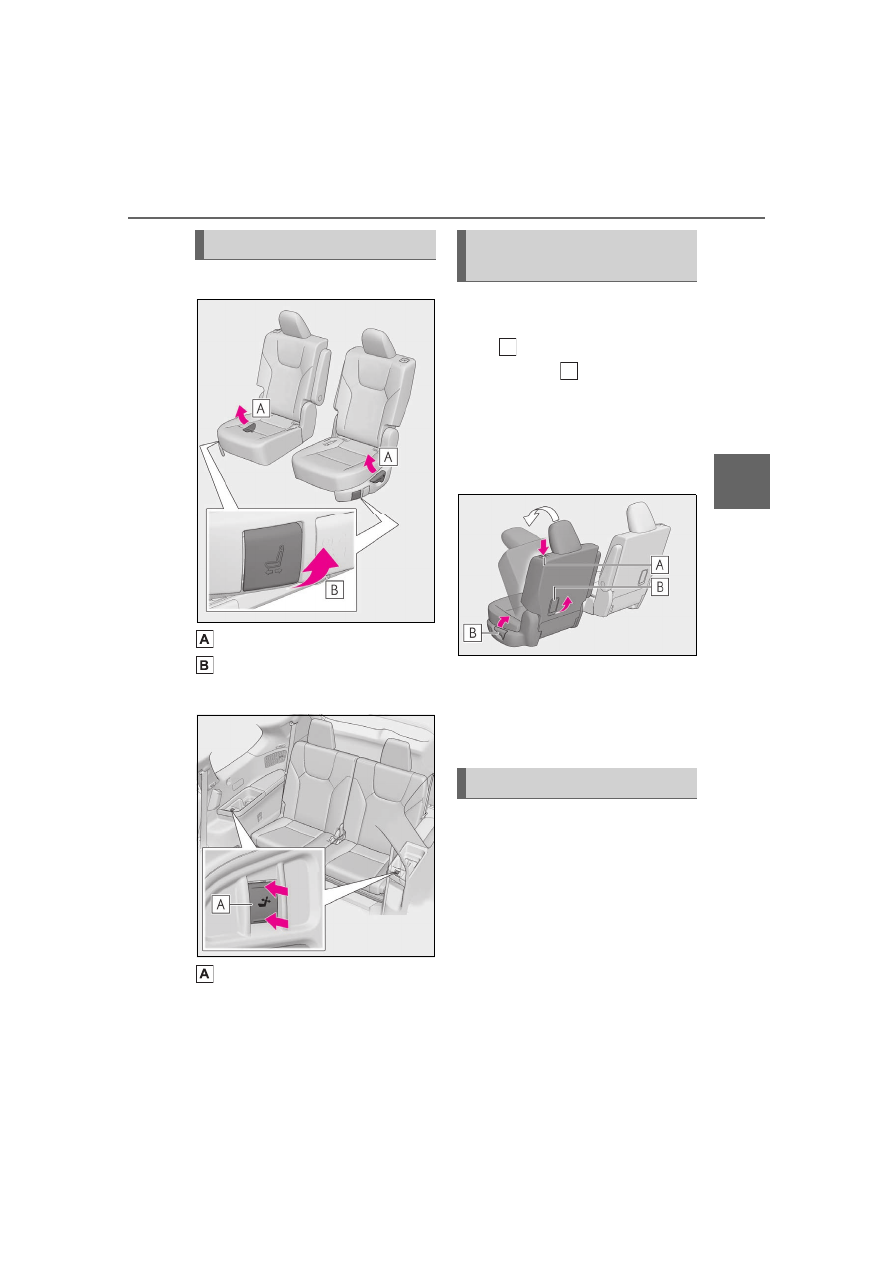

Second seats

Seatback angle adjustment lever
Seat position adjustment lever

■

Third seats

Seatback angle adjustment switch

■

When entering/exiting the vehicle

Push the seatback angle adjustment
switch or pull the seatback angle
adjustment lever to tilt the seatback
forward and then slide the seat for-
ward.

Make sure that the second seat is free of
passengers and obstructions before oper-
ating the lever or switch.

■

After passengers have
entered/exited the vehicle

Lift up the seatback and slide the seat
backward until it locks.

■

Before folding down the second
seats

Stow the armrest. (

P.414)

Adjustment procedure

Moving a second seat for third
seat access

Folding down the second seats

134

3-3. Adjusting the seats

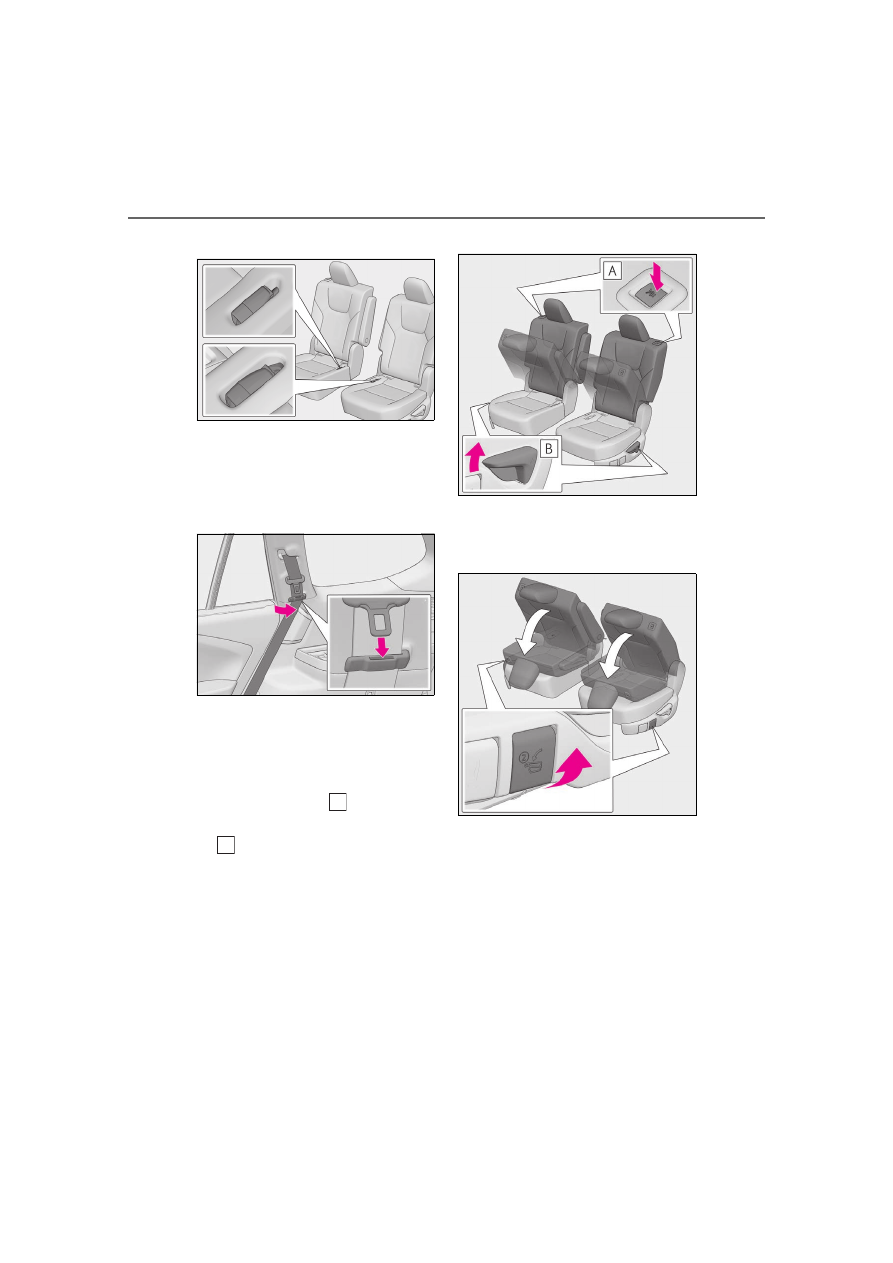

Stow the second seat belt buckles.

Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates.

This prevents the shoulder belts from being

damaged.

Lower the head restraints to the
lowest position. (



P.137)

■

Folding down the second seats

Press and hold the seatback angle
adjustment switch or pull the
seatback angle adjustment lever

to tilt the seatback forward.

Each seatback may be folded separately.

Pull the seatback folding lever to
unlock the seatback. The seatback
will be folded down.

■

Returning the second seats

Lift up the seatbacks until they lock.

Remove the secured seat belts from the
seat belt hangers before using them.

135

3-3. Adjusting the seats

fore
dri
ving

■

Before folding down the third seats

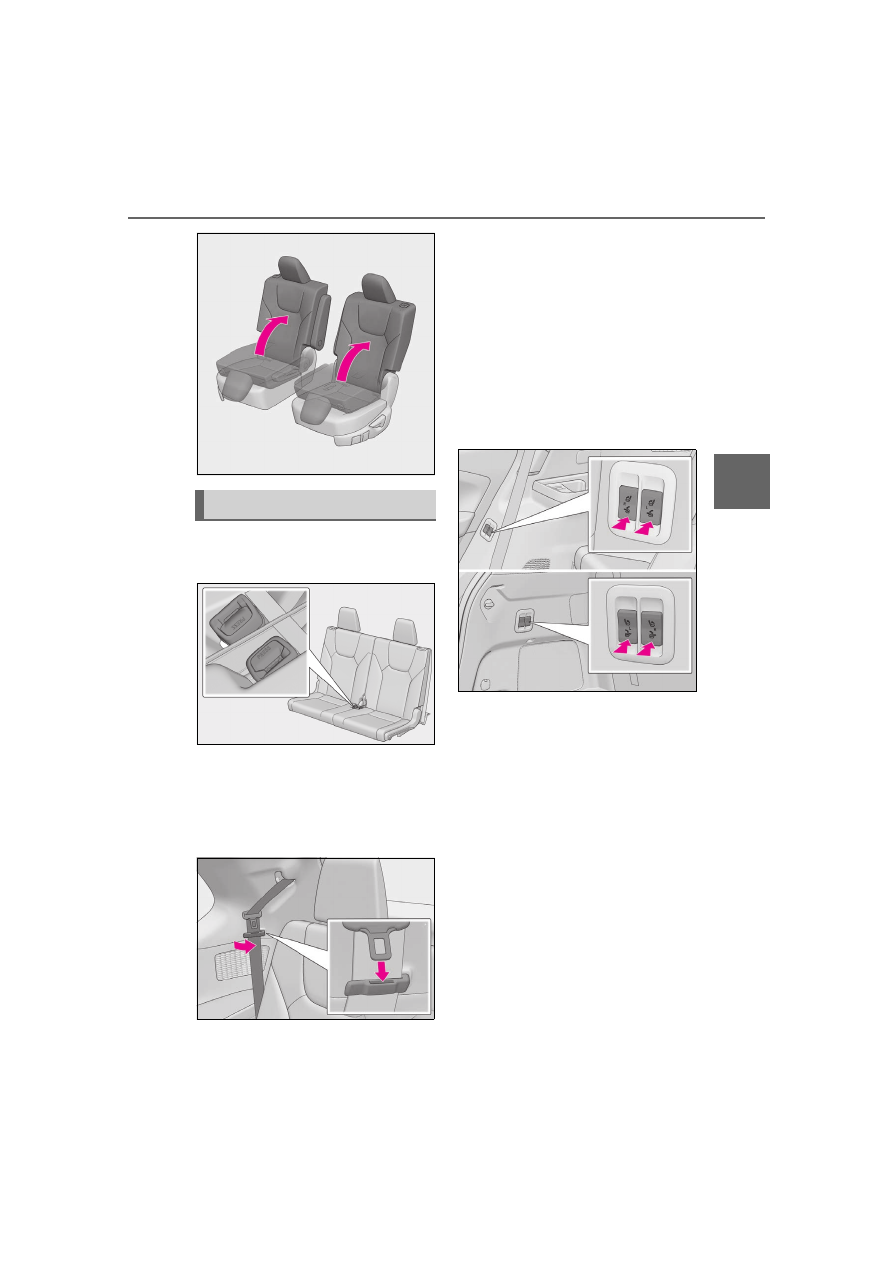

Stow the third seat belt buckles.

Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates.

This prevents the shoulder belts from being

damaged.

■

Folding down the third seats

Press the switch to fold down the rear
seatback.

A buzzer will sound and then the operation
will start. The buzzer will sound again when
the operation is completed.
To stop the operation partway, press either
side of the rear seat operation switch of the
operating seat.
The outer head restraints will fold forward.

■

Returning the third seats

Returning the seatbacks



From inside

Press the switch to return the rear seat-
back.
A buzzer will sound and then the operation
will start. The buzzer will sound again when
the operation is completed.
To stop the operation partway, press either
side of the rear seat operation switch of the
operating seat.

Folding down the third seats

136

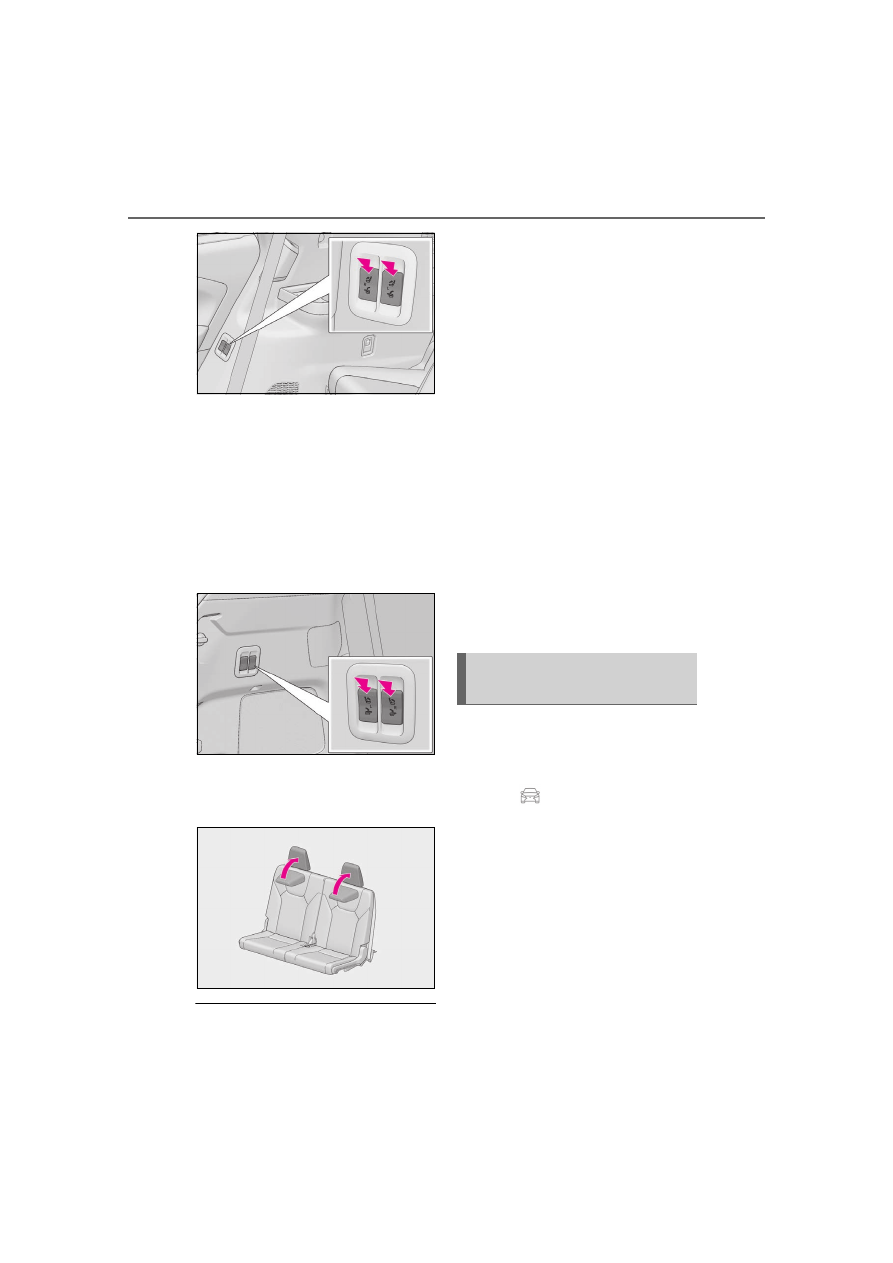

3-3. Adjusting the seats



From outside

Returning the head restraints.

Remove the secured seat belts from the

seat belt hangers before using them.

■

The power seat can be operated when

The rear seatbacks can be folded down or

raised when the power switch is in either of

the following modes:

●

When the power switch is turned off or in

ACC

●

When the power switch is in ON and any

of the following conditions are met:

• The parking brake is engaged.

• The brake pedal is depressed.

• The shift position is in P.

■

Power seat operations

If a seat cover or seat cushion has been put

on the seat, it may not operate properly.

When folding down the rear seatback,

make sure that there is nothing on the seat

that would interfere with the operation.

■

Rear seatback jam protection function

When folding or returning the seatback of a

power seat, if an object is detected between

the seatback and seat cushion or behind the

seatback, the seatback may stop or move in

the opposite direction slightly.
A buzzer will sound continuously when the

rear seatback stops and intermittently when

moving in the opposite direction.

The rear seats can be operated on the
center display.



Operating a selected seat

Select

on the center display.

Select “Seat controls”.

Select “Rear arrangement”.

Select a seat to be adjusted.

Select the operation button.

When the button is selected, a buzzer will

sound and the operation will start.
To stop the seatback return operation part-

way, select “Cancel” stop on the center dis-

play.

Operation of the third seats from
the front seats

137

3-3. Adjusting the seats

fore
dri
ving



Operating all of the seats

Select

on the center display.

Select “Seat controls”.

Select “Rear arrangement”.

Select the operation button.

When the button is selected, a buzzer will

sound and the operation will start.
To stop the seatback return operation part-

way, select “Cancel” stop on the center dis-

play.

■

The third seats can be operated on the

center display when

When all of the following conditions are

met, the seatbacks can be folded by operat-

ing a switch.
When an operation switch other than that

for the seat to be folded is not pressed
When the power switch is on, the operation

is enabled if any of the following conditions

is met in addition to the above:

●

The parking brake is engaged.

●

The brake pedal is depressed.

●

The shift position is in P.

■

Front seats

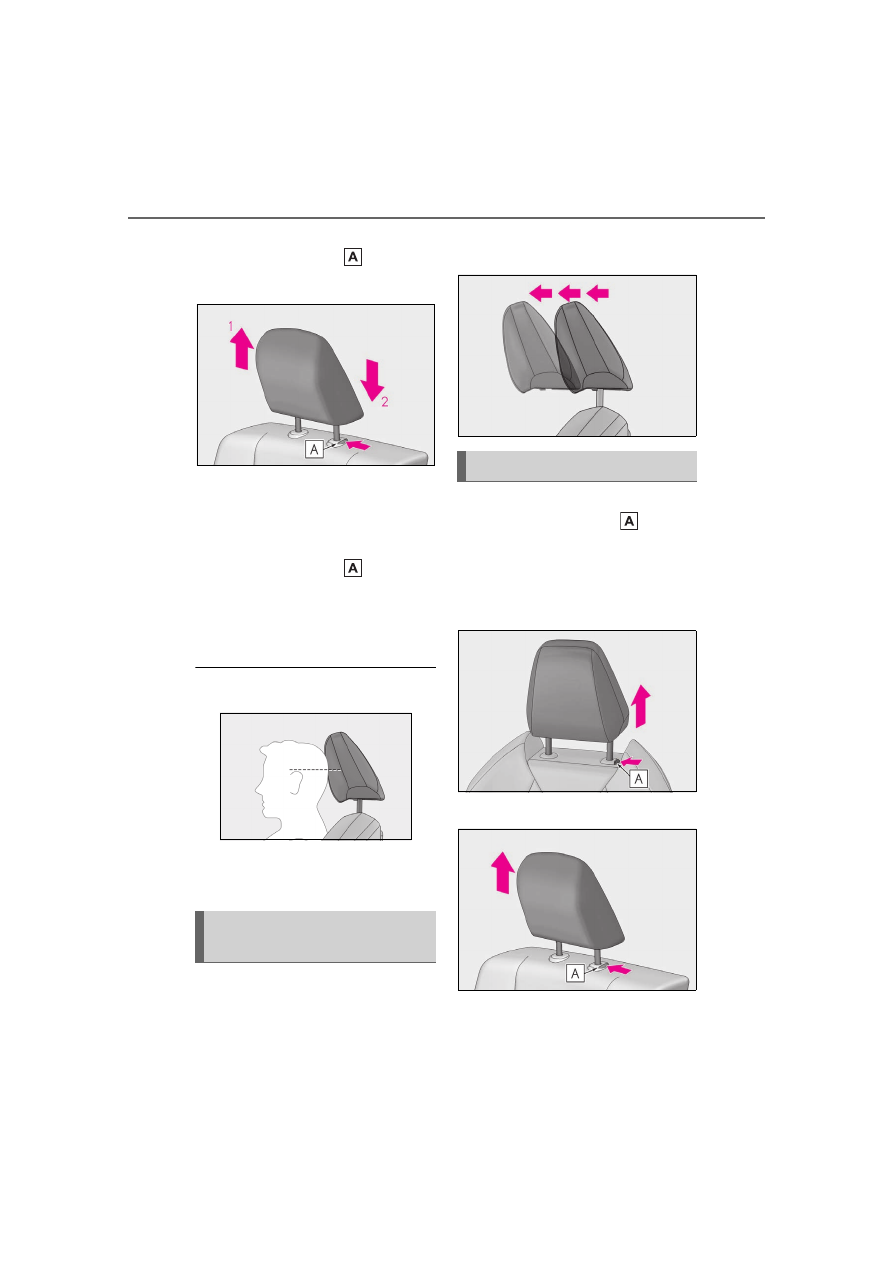

Pull the head restraints up.

Down

WARNING

■

Operation of the third seats from the

front seats

Have third seat passengers exit the vehi-

cle before operating the third seats.

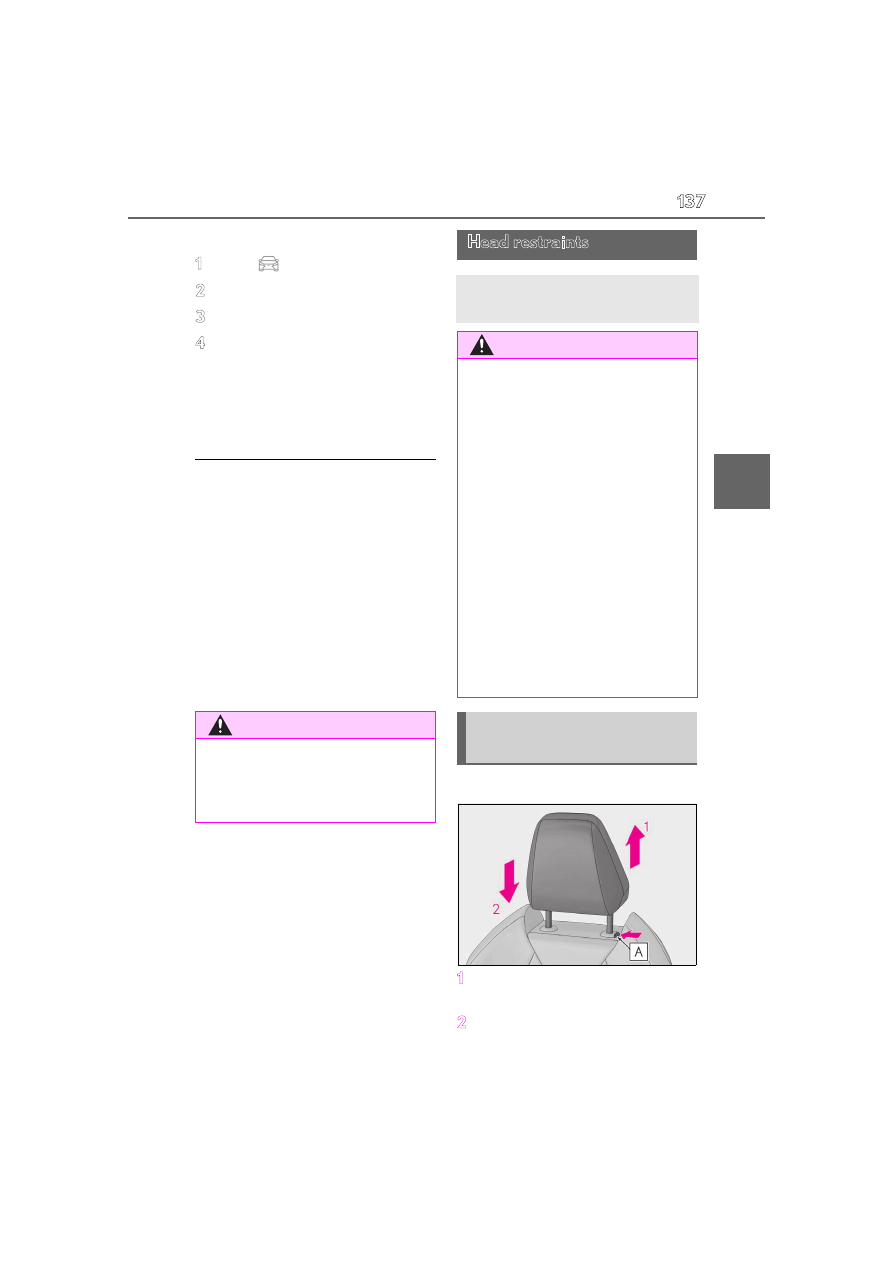

Head restraints

Head restraints are provided for all
seats.

WARNING

■

Head restraint precautions

Observe the following precautions

regarding the head restraints. Failure to

do so may result in death or serious

injury.

●

Use the head restraints designed for

each respective seat.

●

Adjust the head restraints to the cor-

rect position at all times.

●

After adjusting the head restraints,

push down on them and make sure

they are locked in position.

●

Do not drive with the head restraints

removed.

●

When sitting on the third seat, make

sure that the head restraint is not

folded.

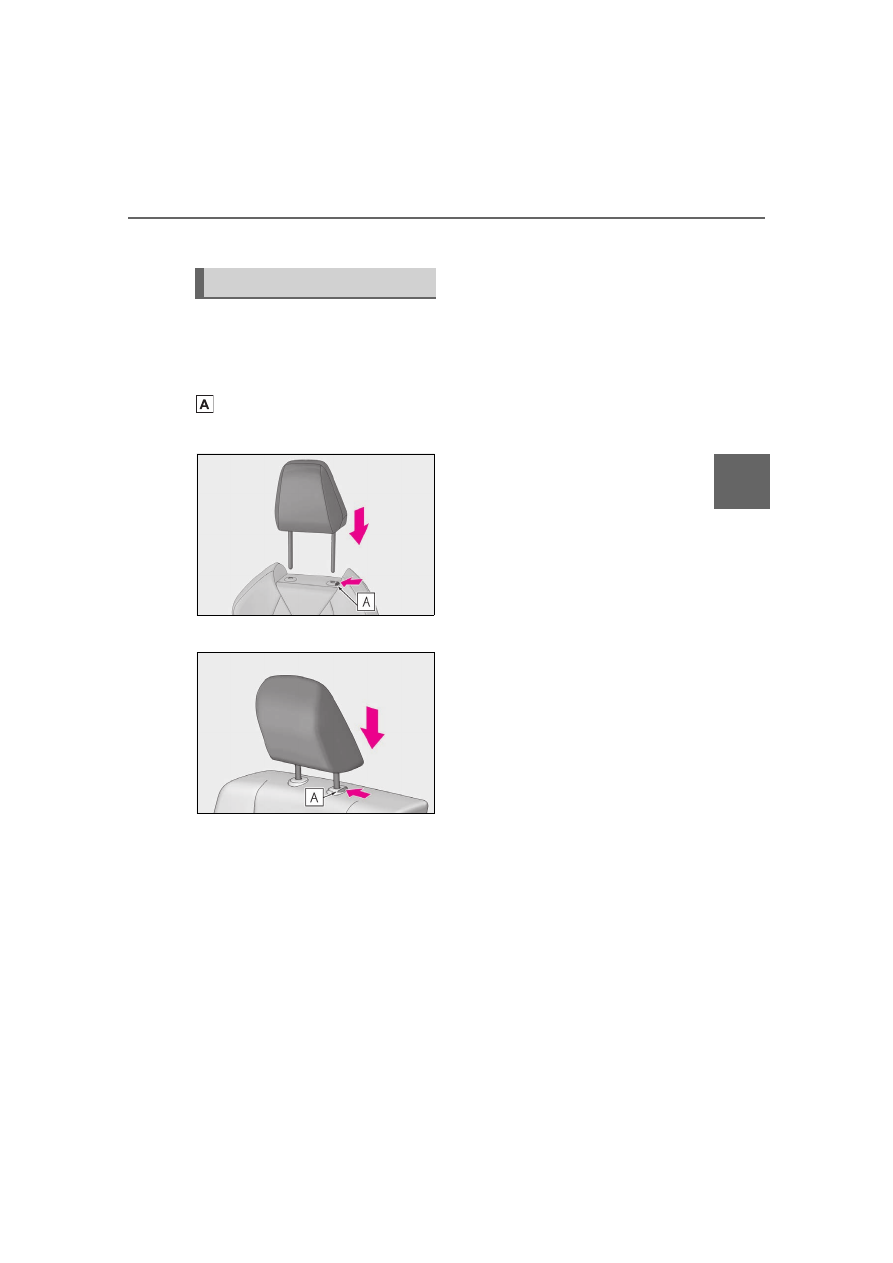

Adjusting a head restraint verti-
cally

138

3-3. Adjusting the seats

Push the head restraint down while press-
ing the lock release button

■

Second seats

Pull the head restraints up.

Down

Push the head restraint down while press-
ing the lock release button

■

Third seats

Head restraints cannot be adjusted or
removed.

■

Adjusting the height of the head

restraints

Make sure that the head restraints are

adjusted so that the center of the head

restraint is closest to the top of your ears.

The position of the head restraint can
be adjusted forward in 4 stages.

If the head restraint is pulled forward from

the foremost position, it will return to the
rearmost position.

Pull the head restraint up while press-
ing the lock release button .

If the head restraint touches the ceiling,
making the removal difficult, change the
seat height or angle. (

P.131, 132)



Front seats



Second seats



Third seats

Head restraints cannot be adjusted or

Adjusting a head restraint hori-
zontally (front seats only)

Removing the head restraints

140

3-4. Adjusting the steering wheel and mirrors

3-4.Adjusting the steering wheel and mirrors

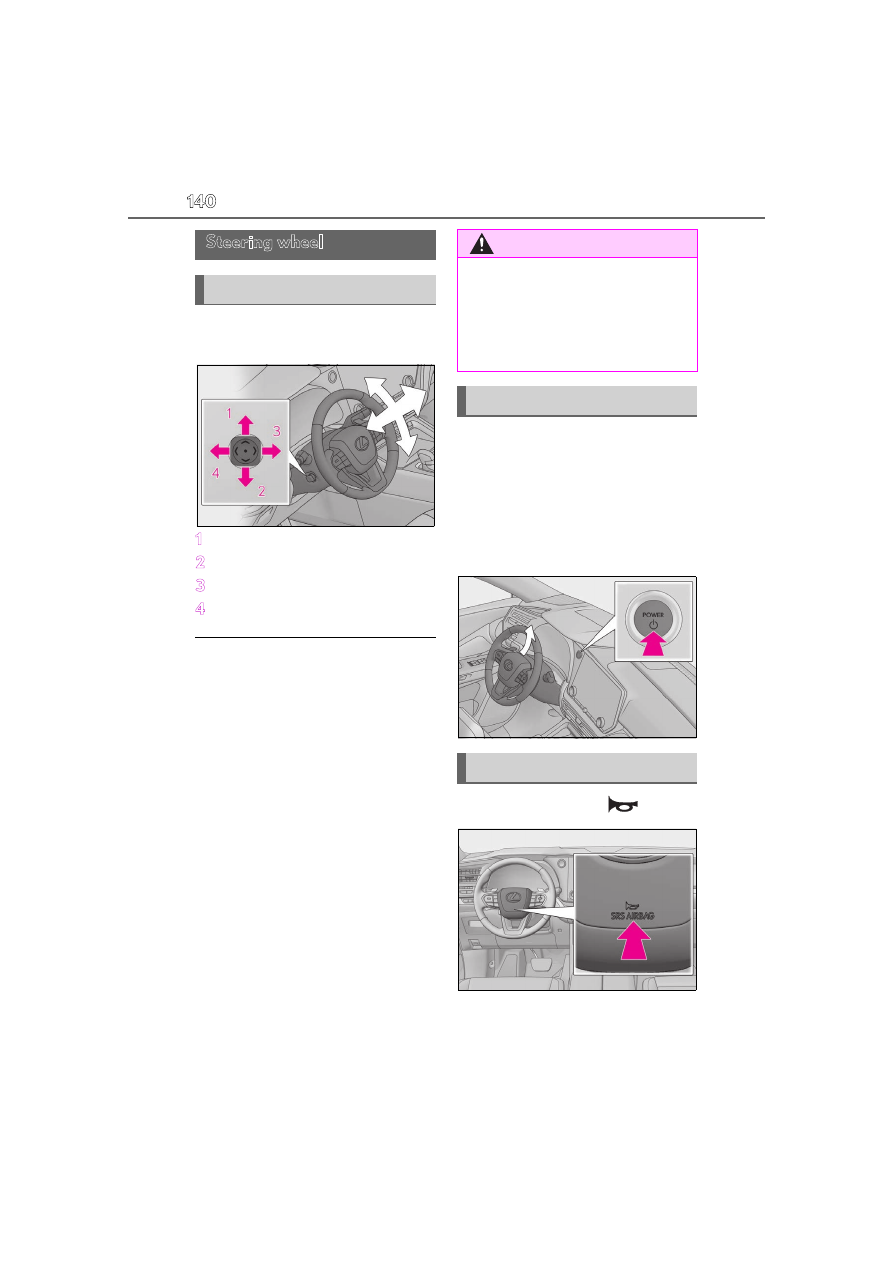

Operating the switch moves the steer-
ing wheel in the following directions:

Down

Toward the driver

Away from the driver

■

The steering wheel can be adjusted

when

The power switch is in ACC or ON

: If the driver’s seat belt is fastened, the

steering wheel can be adjusted regard-
less of power switch mode.

■

Automatic adjustment of the steering

position

A desired steering position can be entered

to memory and recalled automatically by

the driving position memory system.

(



■

Power easy access system

The steering wheel and driver’s seat move

in accordance with power switch mode and

the driver’s seat belt condition. (



■

Customization

Some functions can be customized.

(



When the power switch is turned off,
the steering wheel returns to its stowed
position by moving up and away to
enable easier driver entry and exit.

Turning the power switch to ACC or ON
will return the steering wheel to the original
position.

Press on or close to the

mark.

Steering wheel

Adjustment procedure

WARNING

■

Caution while driving

Do not adjust the steering wheel while

driving.

Doing so may cause the driver to mis-

handle the vehicle and cause an acci-

dent, resulting in death or serious injury.

Auto tilt away

Sounding the horn

141

3-4. Adjusting the steering wheel and mirrors

fore
dri
ving

: If equipped

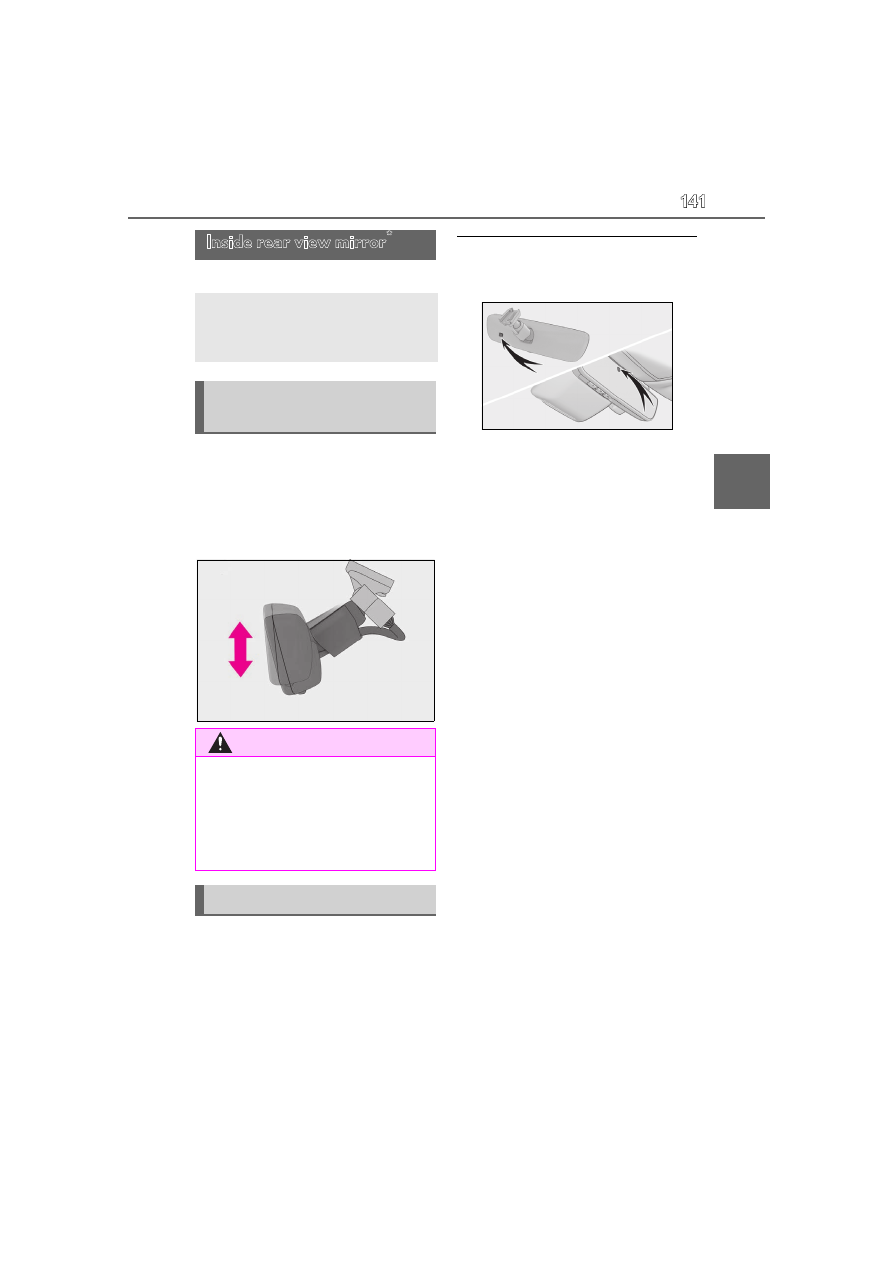

The height of the rear view mirror can
be adjusted to suit your driving pos-
ture.
Adjust the height of the rear view mir-
ror by moving it up and down.

Responding to the level of brightness
of the headlights of vehicles behind, the
reflected light is automatically
reduced.

■

To prevent sensor error

To ensure that the sensors operate properly,

do not touch or cover them.

Inside rear view mirror

The rear view mirror’s position can
be adjusted to enable sufficient
confirmation of the rear view.

Adjusting the height of rear view
mirror

WARNING

■

Caution while driving

Do not adjust the position of the mirror

while driving.

Doing so may lead to mishandling of the

vehicle and cause an accident, resulting

in death or serious injury.

Anti-glare function

142

3-4. Adjusting the steering wheel and mirrors

: If equipped

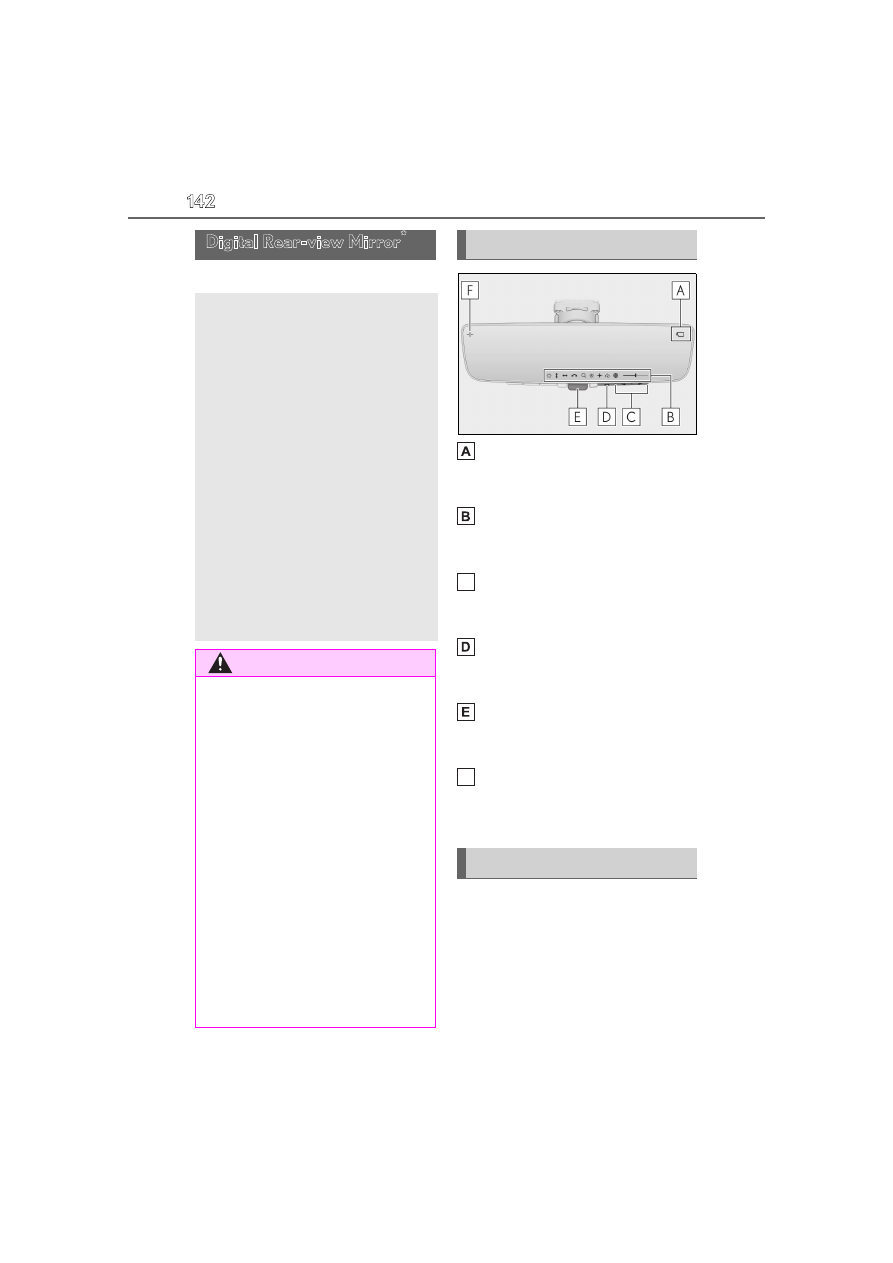

Camera indicator

Indicates that the camera is operating nor-
mally.

Icon display area

Displays icons, adjusting gauge, etc.
(

P.144)

Select/adjust button

Press to change the setting of the item you
want to adjust.

Menu button

Press to display the icon display area and
select the item you want to adjust.

Lever

Operate to change between digital mirror
mode and optical mirror mode.

Digital anti-glare mode indicator

In digital mirror mode, this indicates that
the anti-glare function is on. (

P.144)

Operate the lever to change between
digital mirror mode and optical mirror
mode.

Digital Rear-view Mirror

The Digital Rear-view Mirror is a
system that uses the camera on the
rear of the vehicle and displays its
image on the display of the Digital
Rear-view Mirror.

The Digital Rear-view Mirror can
be changed between optical mirror
mode and digital mirror mode by
operating the lever.

The Digital Rear-view Mirror allows
the driver to see the rear view
despite obstructions, such as the
head restraints or luggage, ensur-
ing rear visibility. Also, the rear
seats are not displayed and privacy
of the passengers is enhanced.

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

Before using the Digital Rearview

Mirror

●

Make sure to adjust the mirror before

driving. (

P.143)

• Change to optical mirror mode and

adjust the position of the Digital

Rear-view Mirror so that the area

behind your vehicle can be viewed

properly.

• Change to digital mirror mode and

adjust the display settings.

●

As the range of the image displayed by

the Digital Rear-view Mirror is differ-

ent from that of the optical mirror,

make sure to check this difference

before driving.

System components

Changing modes

143

3-4. Adjusting the steering wheel and mirrors

fore
dri
ving

Digital mirror mode

Displays an image of the area behind the
vehicle.

will illuminate in this mode.

Optical mirror mode

Turns off the display of the Digital Rearview
Mirror allows it to be used as an optical
mirror.

■

Digital mirror mode operating condi-

tion

The power switch is turned to ON.
When the power switch is changed from

ON to OFF or ACC, the image will disap-

pear after several seconds.

■

When using the Digital Rearview Mir-

ror in digital mirror mode

●

If it is difficult to see the displayed image

due to light reflected off the Digital

Rear-view Mirror, the camera being dirty

or covered with water droplets, dust, etc.,

or if lights of a vehicle behind your vehicle

or the displayed image are bothering you,

change to optical mirror mode.

●

When it is raining, if the image is unclear

due to water on the rear window, operate

the rear wiper.

●

When the back door is open, the Digital

Rear-view Mirror image may not display

properly. Before driving, make sure the

back door is closed.

●

If the display is difficult to see due to

reflected light, close the electronic sun-

shade for the panoramic moon roof (if

equipped).

●

Any of the following conditions may

occur when driving in the dark, such as at

night. None of them indicates that a mal-

function has occurred.

• Colors of objects in the displayed image

may differ from their actual color.

• Depending on the height of the lights of

the vehicle behind, the area around the

vehicle may appear white and blurry.

• Automatic image adjustment for brighter

surrounding image may cause flickering.

If it is difficult to see the displayed image or
flickering bothers you, change to optical
mirror mode.

●

The Digital Rear-view Mirror may

become hot while it is in digital mirror

mode. This is not a malfunction.

●

Depending on your physical condition or

age, it may take longer than usual to focus

on the displayed image. In this case,

change to optical mirror mode.

●

Do not let passengers stare at the dis-

played image when the vehicle is being

driven, as doing so may cause motion

sickness.

■

When the system malfunctions

If the symbol shown in the illustration is dis-

played when using the Digital Rear-view

Mirror in digital mirror mode, the system

may be malfunctioning. The symbol will dis-

appear in a few seconds. Operate the lever,

change to optical mirror mode and have the

vehicle inspected by your Lexus dealer.

■

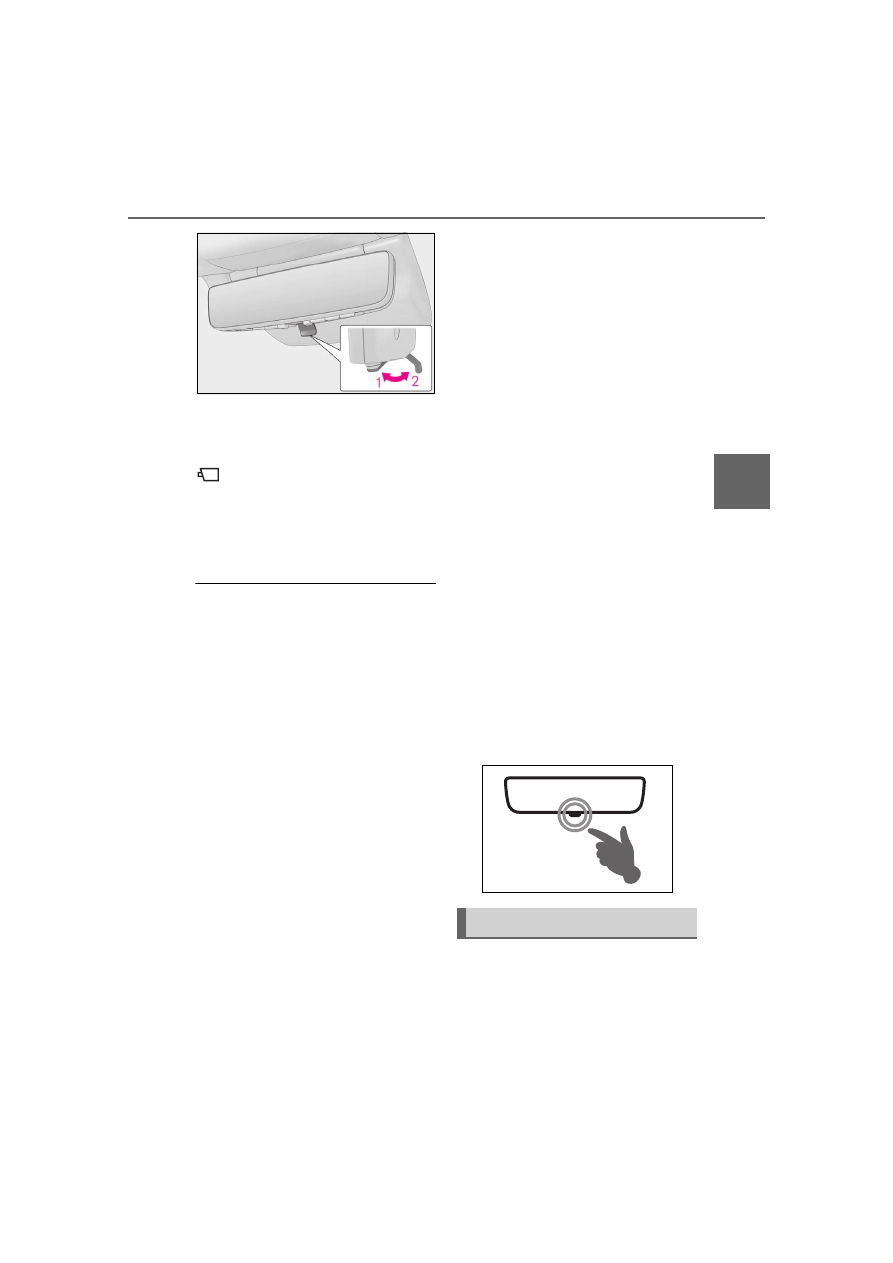

Adjusting the mirror height

The height of the rear view mirror can
be adjusted to suit your driving pos-
ture.

Adjusting the mirror

144

3-4. Adjusting the steering wheel and mirrors

Change to optical mirror mode, adjust-
ing the height of the rear view mirror by
moving it up and down.

■

Display settings (digital mirror
mode)

Settings of the display in the digital mir-
ror mode, on/off operation of the auto-
matic anti-glare function, etc. can be
changed.

Press the menu button.

The icons will be displayed.

Press the menu button repeatedly
and select the item you want to
adjust.

Press

change the setting.

The icons will disappear if a button is not

operated for approximately 5 seconds or

more.

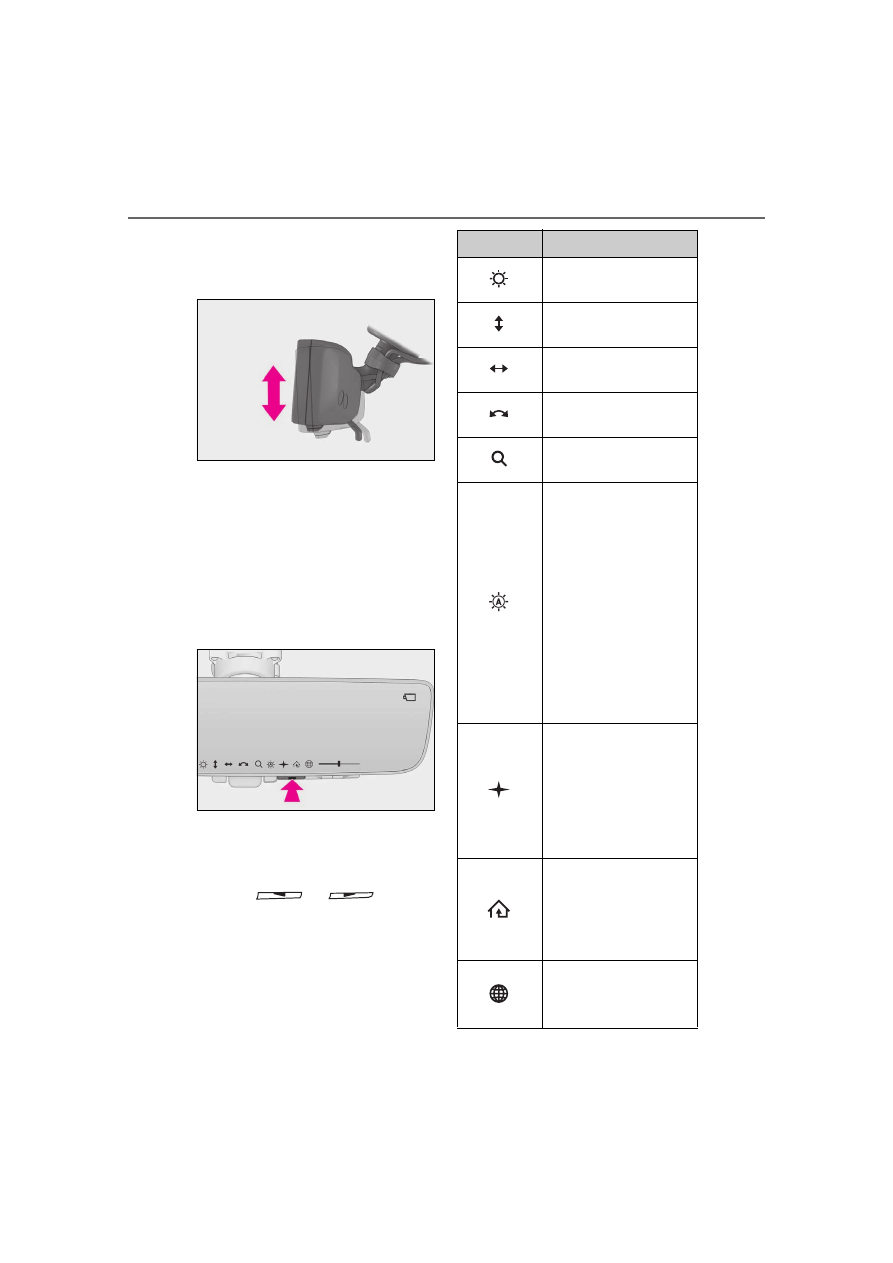

Icons

Settings

Select to adjust the bright-
ness of the display.

Select to adjust the area
displayed up/down.

Select to adjust the area
displayed to the left/right.

Select to adjust the angle
of the displayed image.

Select to zoom in/out the
displayed image.

Select to enable/disable
the automatic anti-glare
function.

Responding to the bright-
ness of the headlights of
vehicles behind, the
reflected light is automati-
cally adjusted.
The automatic anti-glare
function is enabled each
time the power switch is
changed to ON.

The digital anti-glare mode

can be turned on and off.

When enabled, the bright-

ness of the display is

reduced at night to reduce

headlight glare from vehi-

cles to the rear.

Select to display Home-

Link

Training Tutorial to

assist customers to train

their garage door opener

system. (



P.425)

Select to change the lan-
guage of the Homelink

Training Tutorial.

145

3-4. Adjusting the steering wheel and mirrors

fore
dri
ving

: This is a function for the optical mirror

mode, however, the setting can also be
changed while using the digital mirror
mode.

■

Enabling/disabling the automatic
anti-glare function (optical mirror
mode)

The automatic anti-glare function in the
optical mirror mode can be
enabled/disabled. The setting can be
changed in both the digital mirror
mode and the optical mirror mode.



When using the digital mirror mode



P.144



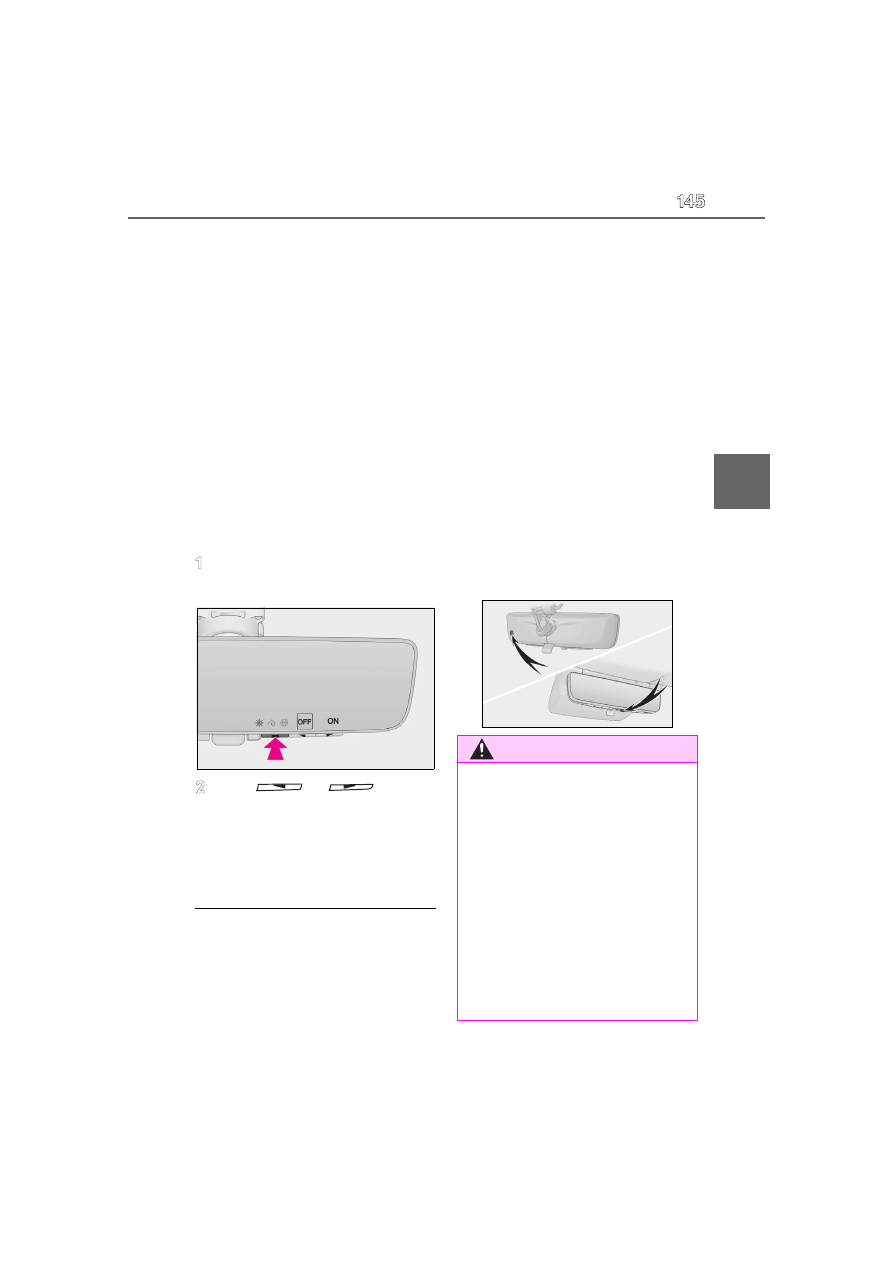

When using the optical mirror mode

Press the menu button.

The icons will be displayed.

Press

enable (“ON”)/disable (“OFF”) the
automatic anti-glare function.

The icons will disappear if a button is not

operated for approximately 5 seconds or

more.

■

Adjusting the display (digital mirror

mode)

●

The icons will disappear if a button is not

operated for approximately 5 seconds or

more.

●

If the displayed image is adjusted, it may

appear distorted. This is not a malfunc-

tion.

●

If the brightness of the Digital Rearview

Mirror is set too high, it may cause eye

strain. Adjust the Digital Rear-view Mir-

ror to an appropriate brightness. If your

eyes become tired, change to optical mir-

ror mode.

●

The brightness of the Digital Rear-view

Mirror will change automatically accord-

ing to the brightness of the area in front of

your vehicle.

●

The digital anti-glare mode operates only

in locations where the surroundings are

dark. Depending on the surrounding illu-

mination environment, the image may not

darken and it may not be possible to

reduce headlight glare from vehicles to

the rear.

■

To prevent the light sensors from mal-

functioning

To prevent the light sensors from malfunc-

tioning, do not touch or cover them.

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

While driving

●

Do not adjust the position of the Digital

Rear-view Mirror or adjust the display

settings while driving.

Stop the vehicle and operate the Digi-

tal Rear-view Mirror control switches.

Failure to do so may cause a steering

wheel operation error, resulting in an

unexpected accident.

●

Always pay attention to the vehicle’s

surroundings.

146

3-4. Adjusting the steering wheel and mirrors

■

Cleaning the mirror surface

If the mirror surface is dirty, the image
on the display may be difficult to see.
Clean the mirror surface gently using a
soft dry cloth.

■

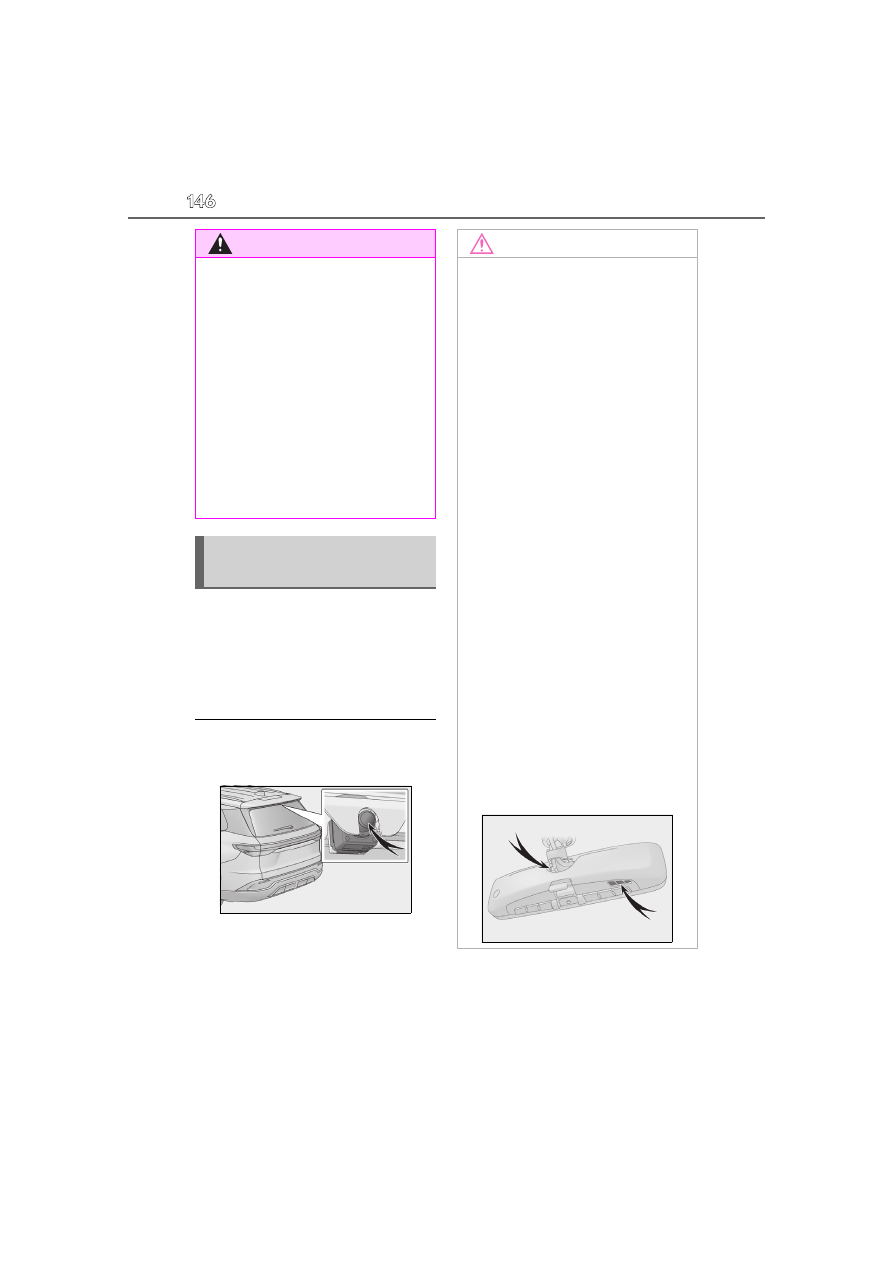

The camera

The camera for the Digital Rear-view Mir-

ror is located as shown.

WARNING

The size of the vehicles and other objects

may look different when in digital mirror

mode and optical mirror mode.

When backing up, make sure to directly

check the safety of the area around your

vehicle, especially behind the vehicle.

Additionally, if a vehicle approaches from

the rear in the dark, such as at night, the

surrounding area may appear dim.

■

To prevent causes of fire

If the driver continues using the Digital

Rear-view Mirror while smoke or odor

comes from the mirror, it may result in

fire. Stop using the system immediately

and contact your Lexus dealer.

Cleaning the Digital Rearview
Mirror

NOTICE

■

To prevent the camera from malfunc-

tioning

●

Observe the following precautions,

otherwise the Digital Rear-view Mirror

may not operate properly.

• Do not strike or hit the camera or sub-

ject it to a strong impact, as the camera

installation position and angle may be

changed.

• Do not remove, disassemble or modify

the camera.

• Do not allow an organic solvent, car

wax, window cleaner or glass coating

to adhere to the camera. If this hap-

pens, wipe it off as soon as possible.

• When applying colored film (including

transparent film) to the rear window

glass, do not apply it to the area in front

of the camera. If film is applied to the

area in front of the camera, the image

from the camera may not display prop-

erly.

●

Do not subject the camera to a strong

impact as this could cause a malfunc-

tion.

If this happens, have the vehicle

inspected by your Lexus dealer as

soon as possible.

●

Do not block the vent holes of the mir-

ror. Otherwise, the mirror may be hot,

leading to a malfunction or a fire.

147

3-4. Adjusting the steering wheel and mirrors

fore
dri
ving

If you notice any of the following symptoms, refer to the following table for the likely
cause and the solution.
If the symptom is not resolved by the solution, have the vehicle inspected by your
Lexus dealer.

If you notice any symptoms

Symptom

Likely cause

Solution

The image is difficult to
see.

The mirror surface is dirty.

Clean the mirror surface
gently, using a soft dry cloth.

Sunlight or headlights are shining
directly into the Digital Rear-view
Mirror.

Change to optical mirror
mode.
(If the light is coming through
the panoramic moon roof [if
equipped], close the elec-
tronic sunshade.)

• The vehicle is in a dark area.
• The vehicle is near a TV tower,

broadcasting station, electric
power plant, or other location
where strong radio waves or
electrical noise may be pres-
ent.

• The temperature around the

camera is extremely high/low.

• The ambient temperature is

extremely low.

• It is raining or humid.
• Sunlight or headlights are shin-

ing directly into the camera
lens.

• The vehicle is under fluores-

cent lights, sodium lights, mer-
cury lights, etc.

• Exhaust gas is obstructing the

camera.

Change to optical mirror
mode.
(Change back to digital mir-
ror mode when the condi-
tions have improved.)

148

3-4. Adjusting the steering wheel and mirrors

The image is difficult to
see.

Foreign matters such as water
droplets or dust is on the camera
lens.

Have the vehicle inspected by
your Lexus dealer.

The luggage in the luggage com-
partment is reflected off the rear
window glass and obstructing the
camera.



Change to optical mirror
mode.



Move the luggage to a
position where it does not
obstruct the camera or
cover it with a black cloth to
reduce the amount it is
reflected off the rear win-
dow glass.

The rear window glass is fogged
up.

Change to optical mirror
mode.
After defogging the rear win-
dow using the rear window
defogger (



P.381), use the

digital mirror mode again.

The outside of the rear window
glass is dirty.

Use the rear window wiper to
remove dirt.

The inside of the rear window
glass is dirty.

Have the vehicle inspected by
your Lexus dealer.

The image is out of
alignment.

The back door is not fully closed. Fully close the back door.

The camera or its surrounding
area has received a strong
impact.

Change to optical mirror
mode and have the vehicle
inspected by your Lexus
dealer.

The display is dim and

is displayed.

The system may be malfunction-
ing.

Change to optical mirror
mode and have the vehicle
inspected by your Lexus
dealer.

goes off.

Symptom

Likely cause

Solution

150

3-4. Adjusting the steering wheel and mirrors

■

When using the outside rear view mir-

rors in a cold weather

When it is cold and the outside rear view

mirrors are frozen, it may not be possible to

fold/extend them or adjust the mirror sur-

face. Remove the ice, snow, etc. covering

the outside rear view mirrors.

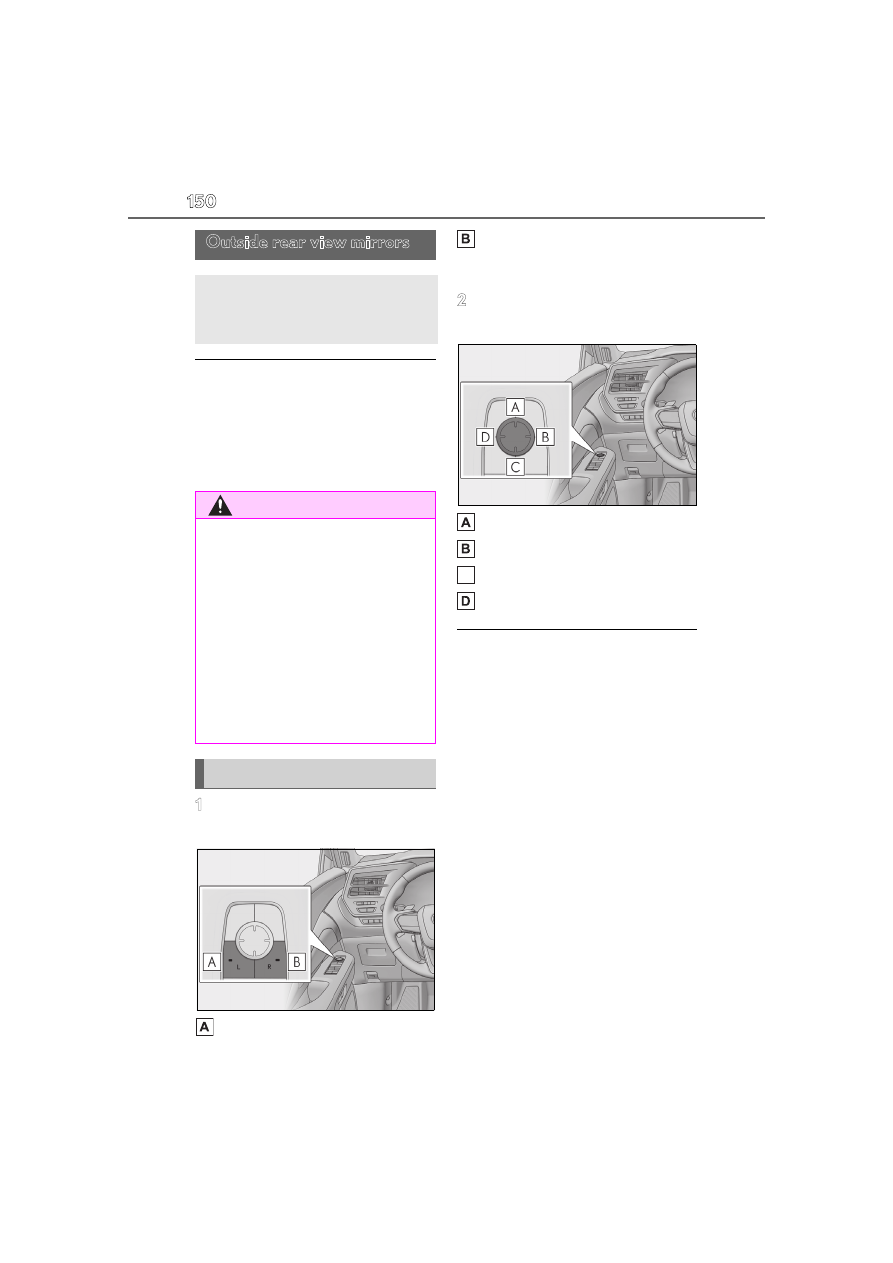

To select a mirror to adjust, press
the switch.

Left

Right

Pressing the same switch again will put the

switch in neutral.

To adjust the mirror, press the
switch.

Up
Right
Down
Left

■

Mirror angle can be adjusted when

The power switch is in ACC or ON.

■

Defogging the mirrors

The outside rear view mirrors can be

cleared using the mirror defoggers. Turn on

the rear window defogger to turn on the

outside rear view mirror defoggers.

(

P.385)

■

Automatic adjustment of the mirror

angle

A desired mirror face angle can be entered

to memory and recalled automatically by

the driving position memory. (

■

Linked mirror function when reversing

When either “L” or “R” of the mirror select

switch is selected, the outside rear view mir-

rors will automatically angle downwards

when the vehicle is reversing in order to

give a better view of the ground.
To disable this function, select neither “L”

nor “R”.
To set the mirror angle used when the vehi-

cle is reversing, adjust the mirror angle at a

Outside rear view mirrors

The rear view mirror’s position can
be adjusted to enable sufficient
confirmation of the rear view.

WARNING

■

Important points while driving

Observe the following precautions while

driving.

Failing to do so may result in loss of con-

trol of the vehicle and cause an accident,

resulting in death or serious injury.

●

Do not adjust the mirrors while driving.

●

Do not drive with the mirrors folded.

●

Both the driver and passenger side

mirrors must be extended and prop-

erly adjusted before driving.

Adjustment procedure

151

3-4. Adjusting the steering wheel and mirrors

fore
dri
ving

desired position with the shift position in R.
The adjusted angle will be memorized and

the mirror will automatically tilt to the mem-

orized angle whenever the shift position is

shifted to R from next time.
The memorized downward tilt position of

the mirror is linked to the normal position

(angle adjusted with the shift position in

other than R). Therefore, if the normal posi-

tion is changed after adjustment, the tilt

position will also change.
When the normal position is changed, read-

just the angle in reversing.

■

Auto anti-glare function

When the anti-glare inside rear view mirror

is set to automatic mode, the outside rear

view mirrors will activate in conjunction with

the anti-glare inside rear view mirror to

reduce reflected light. (



P.141, 144)

■

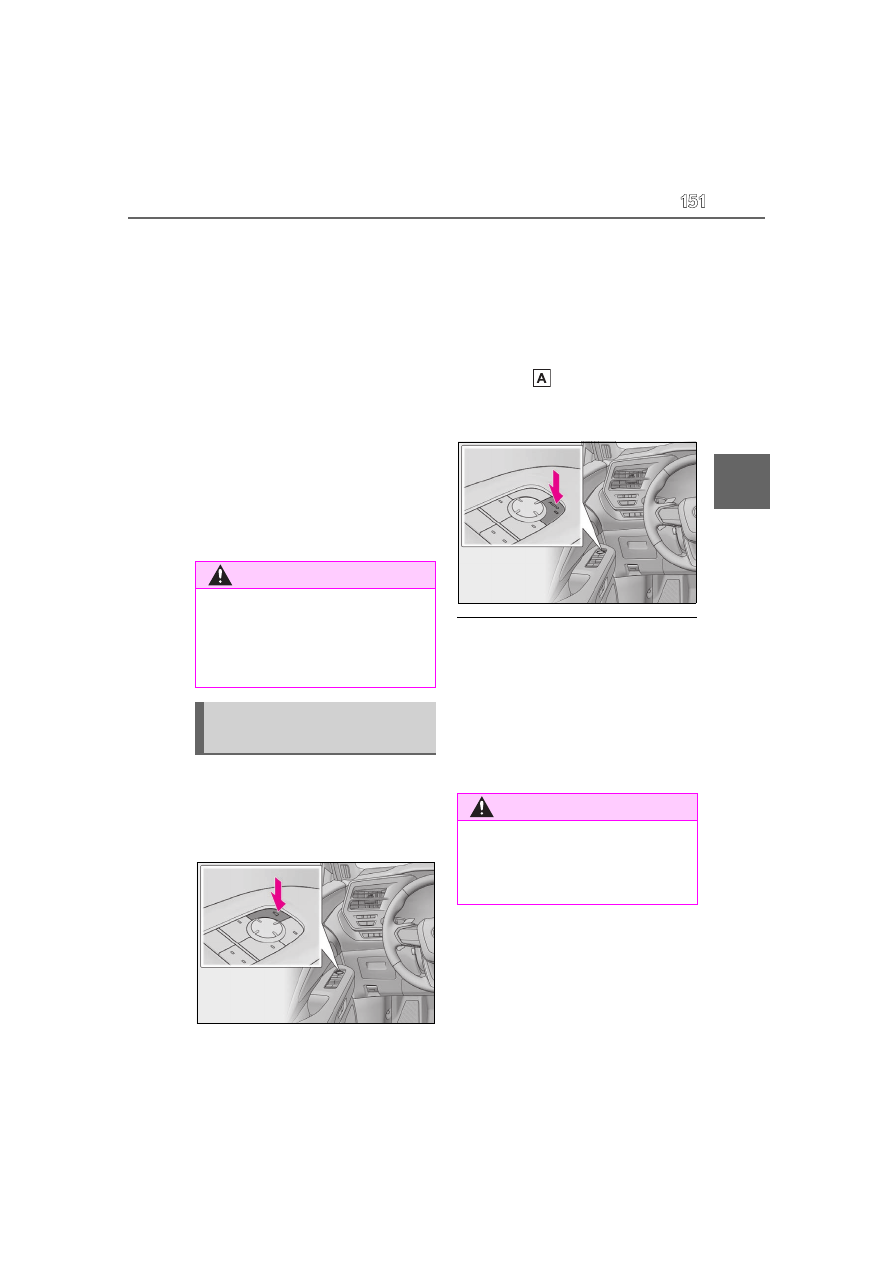

Using the switch

Press the switch to fold the mirrors.

Press it again to extend them to the original
position.

■

Setting automatic mode

Automatic mode allows the folding or
extending of the mirrors to be linked to
locking/unlocking of the doors.
Press the “AUTO” switch to set auto-
matic mode.

The indicator

will come on.

Pressing the switch once more will return
to manual mode.

■

When disconnecting and reconnecting

12-volt battery terminals

The automatic folding/extending mirror

function will return to off as default. To turn

the function on, press the switch again to

select on.

■

Customization

Some functions can be customized.

(
