1-2. Child safety

WARNING

●

If the seat is adjusted, reconfirm the

security of the child restraint system.

57

1-3. Emergency assistance

1

For safety and security

1-3.Emergency assistance

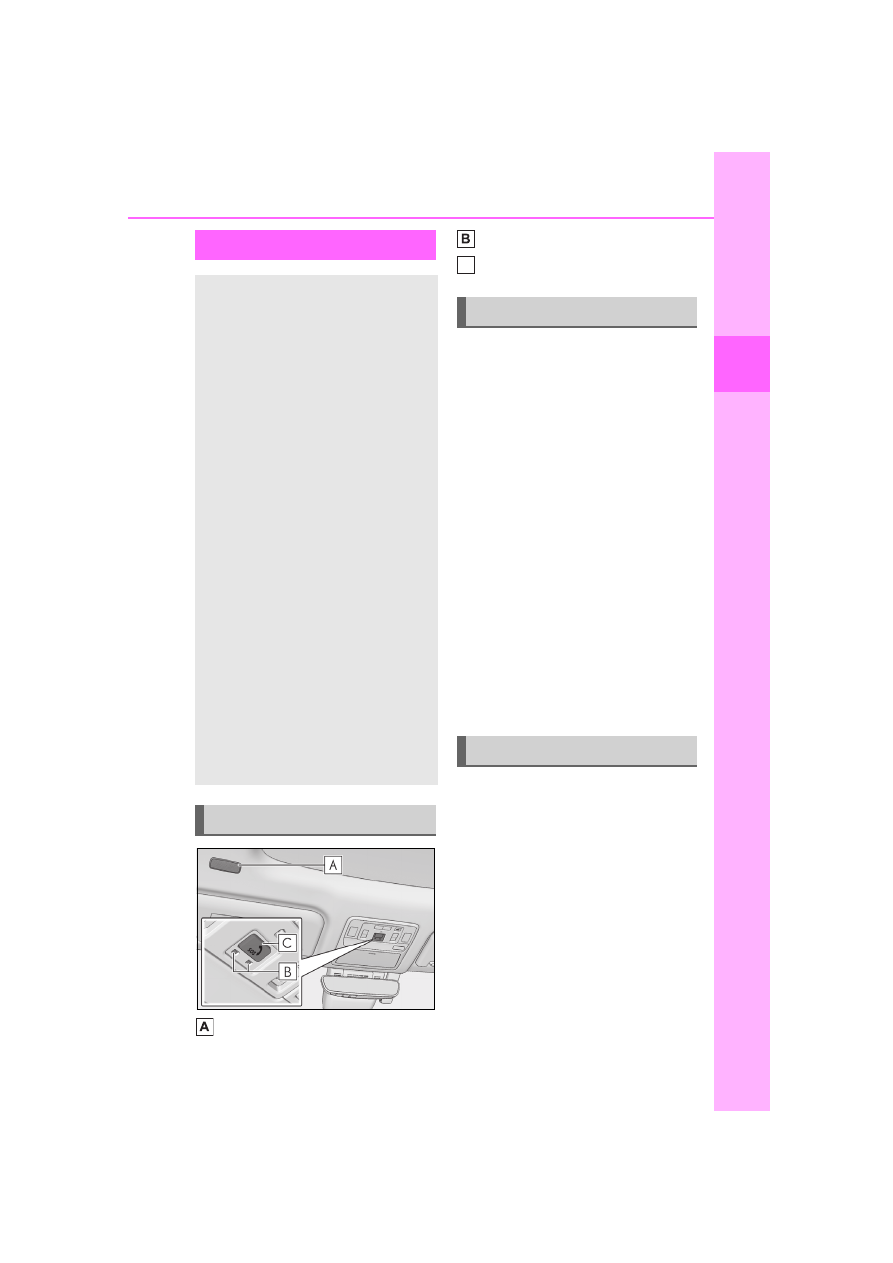

Microphone

LED light indicators
“SOS” button

Subscribers have the following Safety
Connect services available:



Automatic Collision Notification

*

Helps drivers receive necessary response
from emergency service providers.
(



P.58)

*

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle theft.
(



P.58)



Emergency Assistance Button
(“SOS”)

Connects drivers to response-center sup-
port. (



P.58)



Enhanced Roadside Assistance

Provides drivers various on-road assis-
tance. (



P.58)

After you have signed the Telematics
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.



The United States

1-800-25-LEXUS (1-800-255-3987)



Canada

Safety Connect

Safety Connect is a subscrip-
tion-based telematics service that
uses Global Positioning System
(GPS) data and embedded cellular
technology to provide safety and
security features to subscribers.
Safety Connect is supported by
Lexus’ designated response center,
which operates 24 hours per day, 7
days per week.

Safety Connect service is available
by subscription on select, telemat-
ics hardware-equipped vehicles.

By using the Safety Connect ser-
vice, you are agreeing to be bound
by the Telematics Subscription Ser-
vice Agreement and its Terms and
Conditions, as in effect and
amended from time to time, a cur-
rent copy of which is available at
Lexus.com. All use of the Safety
Connect service is subject to such
then-applicable Terms and Condi-
tions.

System components

Services

Subscription

C

58

1-3. Emergency assistance

1-800-26-LEXUS (1-800-265-3987)



Puerto Rico

1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicles Blue-
tooth

®

 technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall

2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

■

Free/Open Source Software Informa-

tion

This product contains Free/Open Source

Software (FOSS). The license information

and/or the source code of such FOSS can

be found at the following URL.
https://opensource.lge.com/osSch/

list?types=ALL&search=TL21BNU

When the power switch is turned to
ON, the red indicator light comes on
for 2 seconds then turns off. Afterward,
the green indicator light comes on,
indicating that the service isactive.
The following indicator light patterns
indicate specific system usage condi-
tions:



Green indicator light on = Active
service



Green indicator light flashing =
Safety Connect call in process



Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)



No indicator light (off) = Safety
Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the

Safety Connect LED light Indi-
cators

Safety Connect services

59

1-3. Emergency assistance

1

For safety and security

response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.



ANSI (American National Stan-
dards Institute) C95.1 [1992]

Safety information for Safety
Connect

60

1-3. Emergency assistance



NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]



ICNIRP (International Commission
on Non-Ionizing Radiation Protec-
tion) [1996]

Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-
plies with the FCC guidelines in addi-
tion to those standards.

61

1-4. Hybrid system

1

For safety and security

1-4.Hybrid system

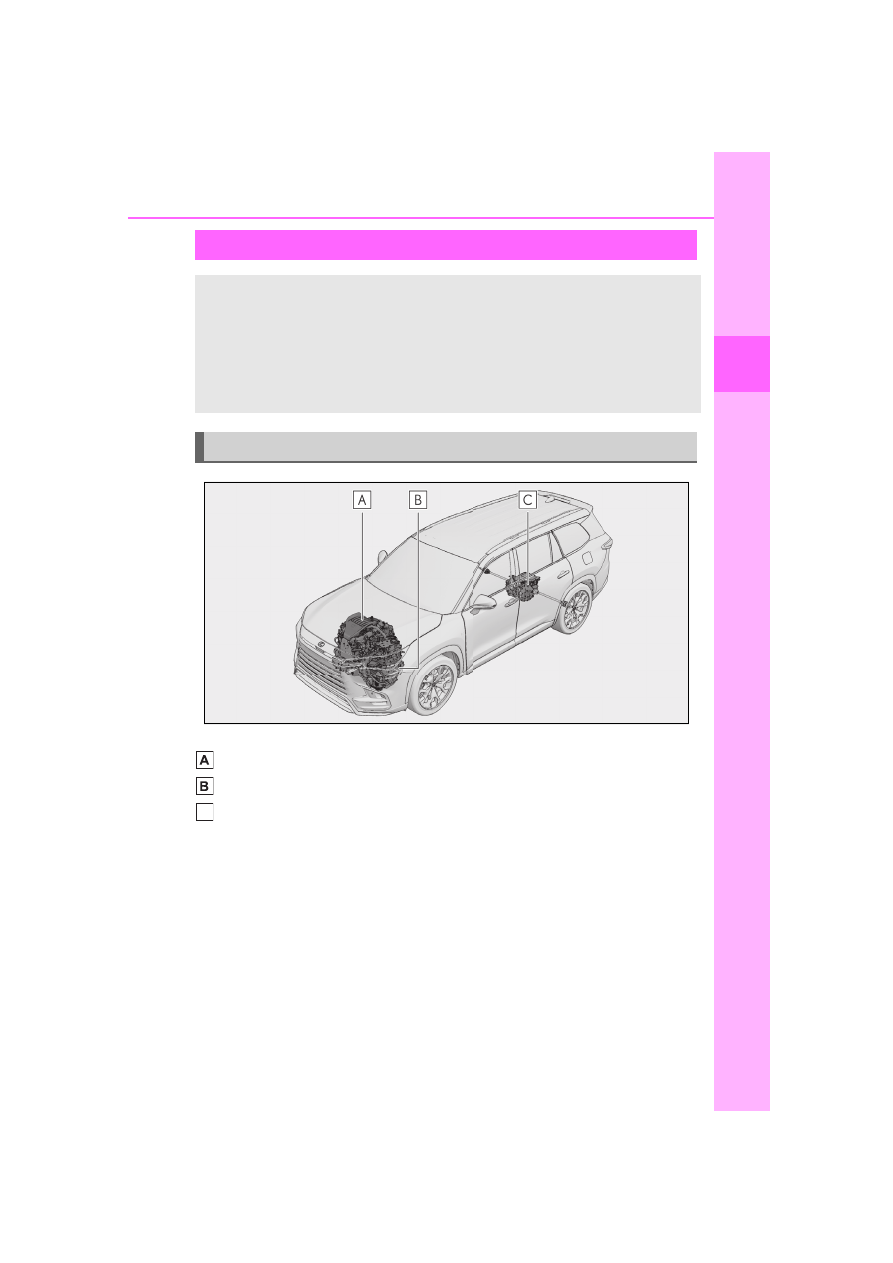

The illustration is an example for explanation and may differ from the actual item.

Gasoline engine
Front electric motor (traction motor)
Rear electric motor (traction motor)

■

When stopped/during start off

The gasoline engine stops

*

 when the

vehicle is stopped. During start off, the
electric motor (traction motor) drives
the vehicle. At slow speeds or when
traveling down a gentle slope, the
engine is stopped

*

 and the electric

motor (traction motor) is used.

*

: When the hybrid battery (traction bat-

tery) requires charging or the engine is
warming up, etc., the gasoline engine will
not automatically stop. (



P.62)

■

During normal driving

The gasoline engine is predominantly
used. The electric motor (traction
motor) charges the hybrid battery
(traction battery) as necessary.
Depending on the driving conditions,
the rear electric motor (traction motor)

Hybrid system features

Your vehicle is a hybrid electric vehicle. It has characteristics different from
conventional vehicles. Be sure you are closely familiar with the characteristics
of your vehicle, and operate it with care.

The hybrid system combines the use of a gasoline engine and an electric motor
(traction motor) according to driving conditions, improving fuel efficiency and
reducing exhaust emissions.

System components

C

62

1-4. Hybrid system

is powered by the front electric motor
(traction motor) to drive the rear
wheels.

■

When accelerating sharply

When the accelerator pedal is
depressed heavily, the power of the
hybrid battery (traction battery) is
added to that of the gasoline engine via
the electric motor (traction motor).

■

When braking (regenerative brak-
ing)

The wheels operate the electric motor
(traction motor) as a power generator,
and the hybrid battery (traction bat-
tery) is charged.

■

Regenerative braking

In the following situations, kinetic energy is

converted to electric energy and decelera-

tion force can be obtained in conjunction

with the recharging of the hybrid battery

(traction battery).

●

The accelerator pedal is released while

driving with the shift position in D or M.

●

The brake pedal is depressed while driv-

ing with the shift position in D or M.

■

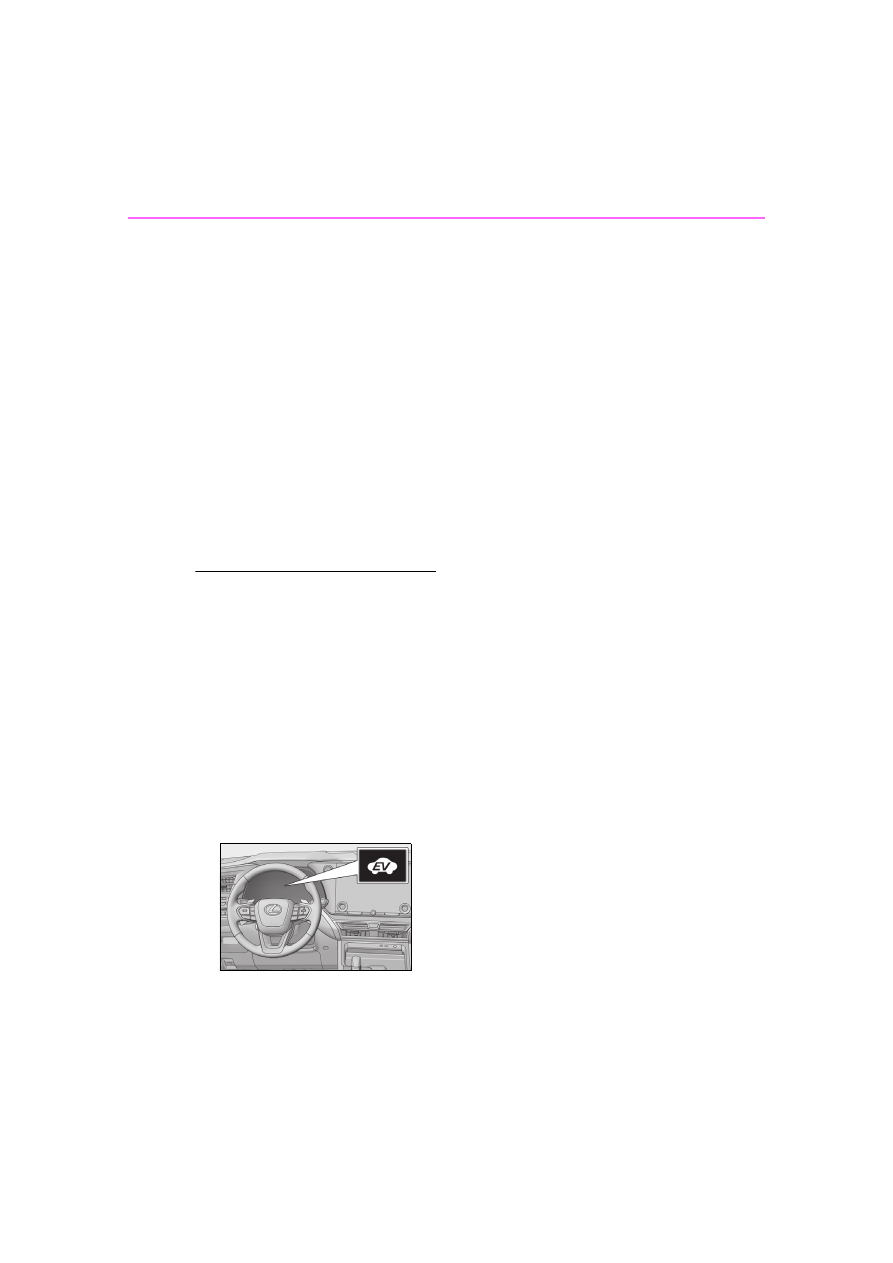

EV indicator

The EV indicator comes on when the vehi-

cle is driven using only the electric motor

(traction motor) or the gasoline engine is

stopped.

■

Conditions in which the gasoline engine

may not stop

The gasoline engine starts and stops auto-

matically. However, it may not stop auto-

matically in the following conditions:

●

During gasoline engine warm-up

●

During hybrid battery (traction battery)

charging

●

When the temperature of the hybrid bat-

tery (traction battery) is high or low

●

When the heater is switched on

●

When the hood is opened during

“READY” indicator is illuminated

Depending on the circumstances, the gaso-

line engine may also not stop automatically

in other situations.

■

Charging the hybrid battery (traction

battery)

As the gasoline engine charges the hybrid

battery (traction battery), the battery does

not need to be charged from an outside

source. However, if the vehicle is left parked

for a long time the hybrid battery (traction

battery) will slowly discharge. For this rea-

son, be sure to drive the vehicle at least

once every few months for at least 30 min-

utes or 10 miles (16 km). If the hybrid bat-

tery (traction battery) becomes fully

discharged and you are unable to start the

hybrid system, contact your Lexus dealer.

■

Charging the 12-volt battery



P.523

■

After the 12-volt battery has discharged

or when the terminal has been removed

and installed during exchange, etc.

The gasoline engine may not stop even if

the vehicle is being driven by the hybrid bat-

tery (traction battery). If this continues for a

few days, contact your Lexus dealer.

■

Sounds and vibrations specific to a

hybrid electric vehicle

Because there is no engine sound or vibra-

tion, it is easy to mistake the hybrid electric

vehicle for being off when it is actually still

running, as indicated by the “READY” indi-

cator being illuminated. For safety, make

sure to always shift the shift position to P

and apply the parking brake when parked.
The following sounds or vibrations may

occur when the hybrid system is operating

and are not a malfunction:

63

1-4. Hybrid system

1

For safety and security

●

Motor sounds may be heard from the

engine compartment.

●

Sounds may be heard from the hybrid

battery (traction battery) behind the sec-

ond seats when the hybrid system starts

or stops.

●

Relay operating sounds such as a snap or

soft clank will be emitted from the hybrid

battery (traction battery), under the sec-

ond seats, when the hybrid system is

started or stopped.

●

Sounds from the hybrid system may be

heard when the back door is open.

●

Sounds may be heard from the transmis-

sion when the gasoline engine starts or

stops, when driving at low speeds, or

during idling.

●

Engine sounds may be heard when

accelerating sharply.

●

Sounds may be heard due to regenera-

tive braking when the brake pedal is

depressed or as the accelerator pedal is

released.

●

Vibration may be felt when the gasoline

engine starts or stops.

●

Cooling fan sounds may be heard from

the air intake vents under the second

seats.

■

Maintenance, repair, recycling, and dis-

posal

Contact your Lexus dealer regarding main-

tenance, repair, recycling and disposal. Do

not dispose of the vehicle yourself.

■

Customization

Some functions can be customized.

(



P.550)

When driving with the gasoline engine
stopped, a sound, which changes in
accordance with the driving speed, will
be played in order to warn people
nearby of the vehicle’s approach. This
sound may be heard inside the vehicle.

The sound will stop when the vehicle
speed exceeds approximately 22 mph
(35 km/h).

■

Acoustic Vehicle Alerting System

In the following cases, the Acoustic Vehicle

Alerting System may be difficult for sur-

rounding people to hear.

●

In very noisy areas

●

In the wind or the rain

■

When “Acoustic Vehicle Alerting Sys-

tem Malfunction Visit your Dealer” is

displayed on the multi-information dis-

play

The Acoustic Vehicle Alerting System may

be malfunctioning. Have the vehicle

inspected by your Lexus dealer immedi-

ately.

Acoustic Vehicle Alerting Sys-
tem

64

1-4. Hybrid system

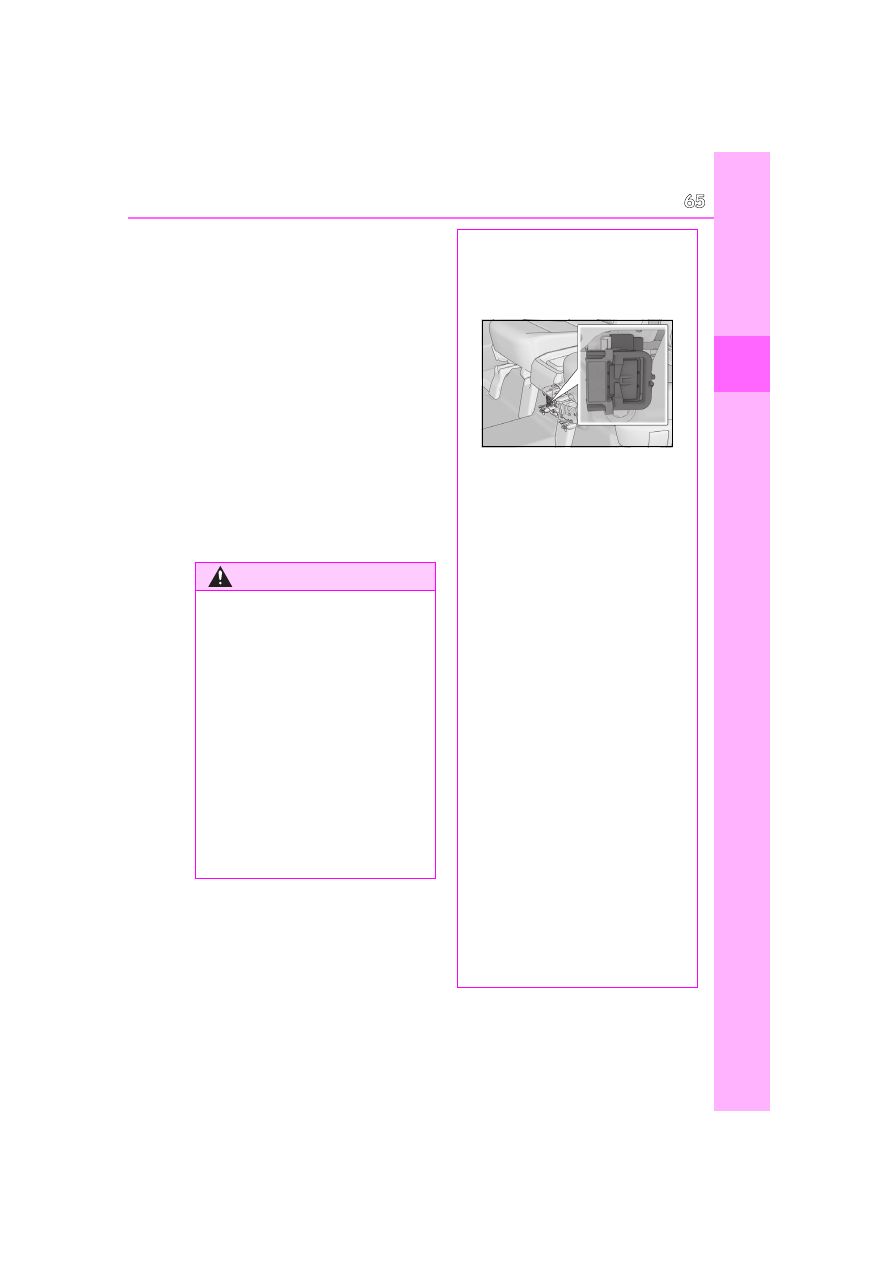

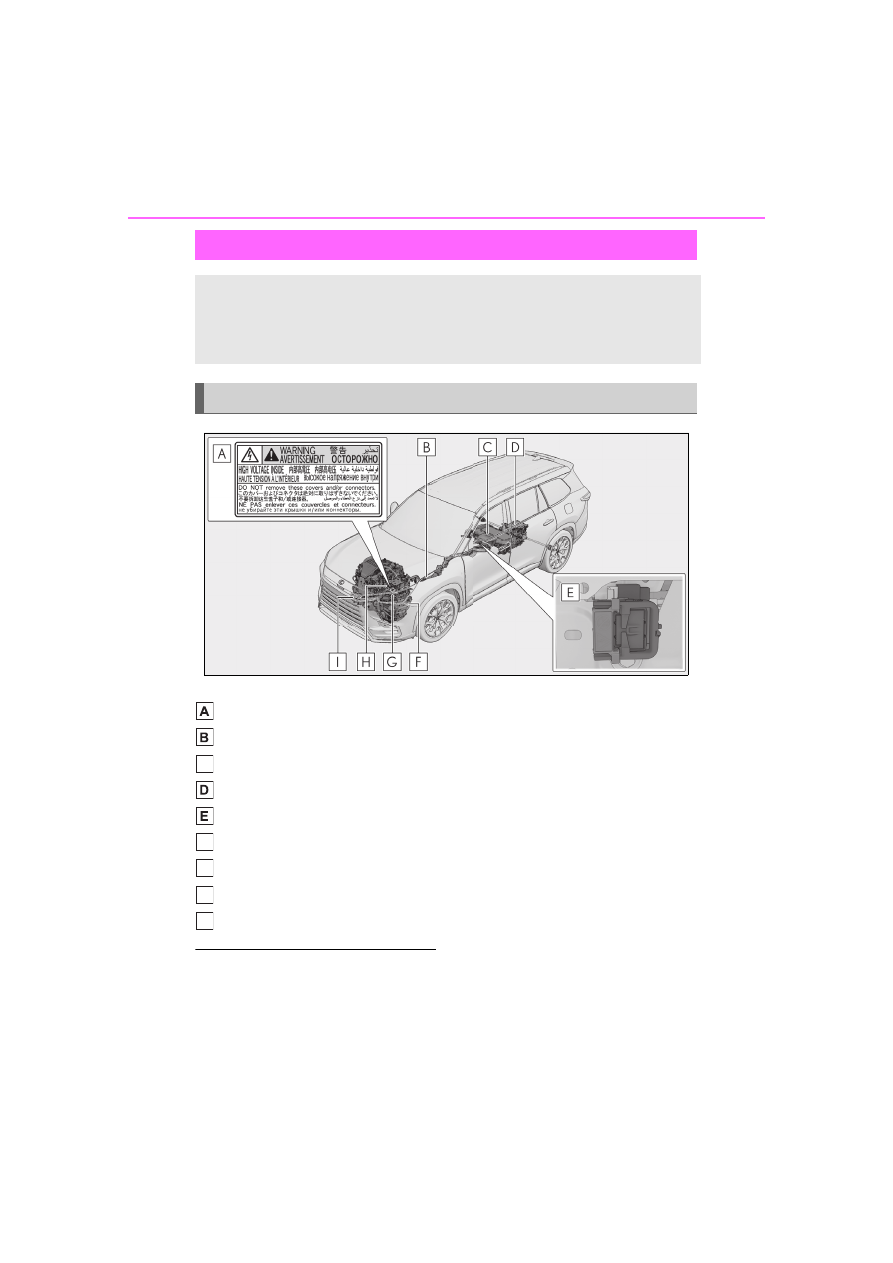

The illustration is an example for explanation and may differ from the actual item.

Warning label
High voltage cables (orange)
Hybrid battery (traction battery)
Rear electric motor (traction motor)/Inverter (rear)
Service plug
Front electric motor (traction motor)
Inverter (front)
DC/DC converter
Air conditioning compressor

■

Running out of fuel

When the vehicle has run out of fuel and the

hybrid system cannot be started, refuel the

vehicle with at least enough gasoline to

make the low fuel level warning light

(



P.491) go off. If there is only a small

amount of fuel, the hybrid system may not

be able to start. (The standard amount of

fuel is about 2.6 gal. [9.8 L, 2.2 Imp. gal.],

when the vehicle is on a level surface. This

value may vary when the vehicle is on a

Hybrid system precautions

Take care when handling the hybrid system, as it is a high voltage system (about
393.6 V at maximum) as well as contains parts that become extremely hot
when the hybrid system is operating. Obey the warning labels attached to the
vehicle.

System components

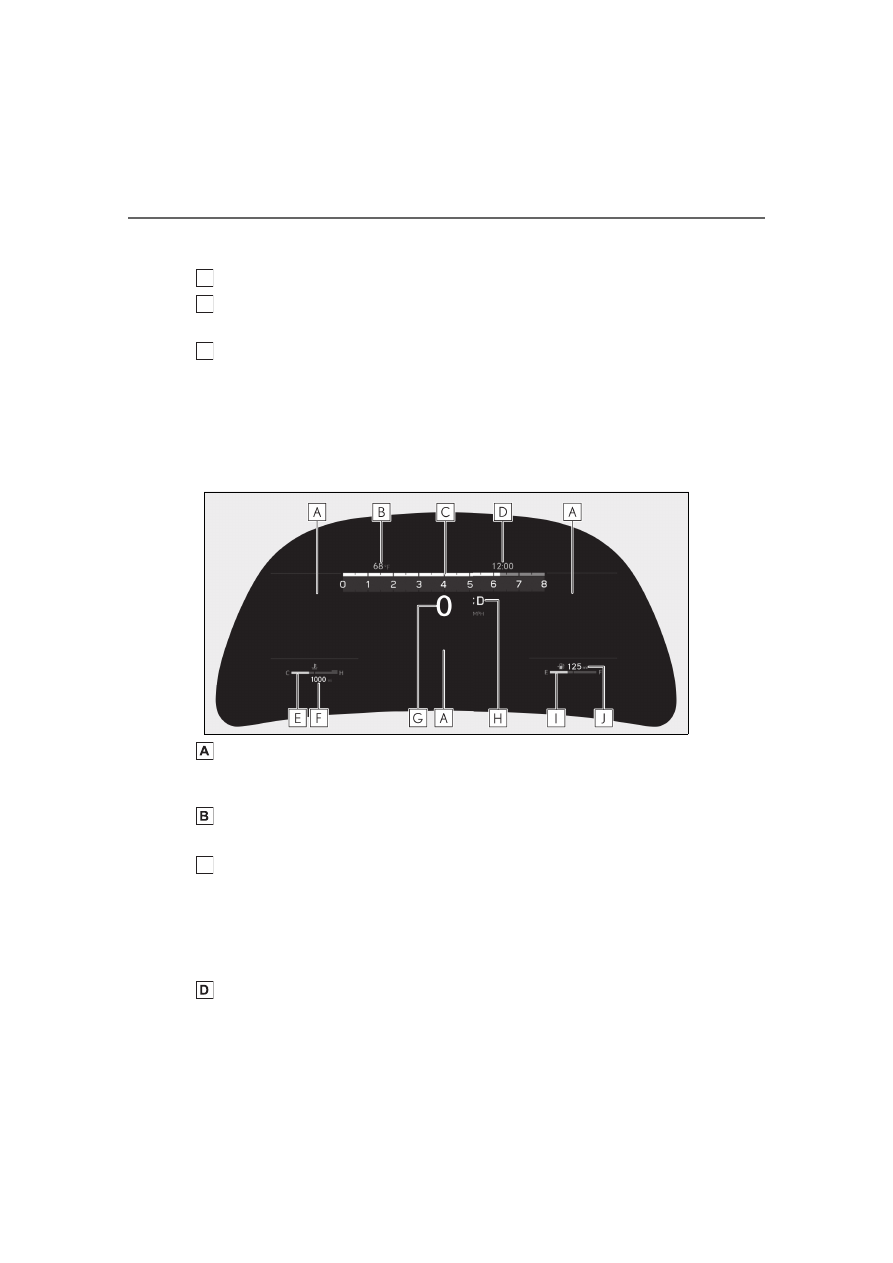

C

F

G

H

I

65

1-4. Hybrid system

1

For safety and security

slope. Add extra fuel when the vehicle is

inclined.)

■

Electromagnetic waves

●

High voltage parts and cables on hybrid

electric vehicles incorporate electro-

magnetic shielding, and therefore emit

approximately the same amount of elec-

tromagnetic waves as conventional gaso-

line powered vehicles or home electronic

appliances.

●

Your vehicle may cause sound interfer-

ence in some third party-produced radio

parts.

■

Hybrid battery (traction battery)

The hybrid battery (traction battery) has a

limited service life. The lifespan of the

hybrid battery (traction battery) can

change in accordance with driving style and

driving conditions.

WARNING

■

High voltage precautions

This vehicle has high voltage DC and AC

systems as well as a 12-volt system. DC

and AC high voltage is very dangerous

and can cause severe burns and electric

shock that may result in death or serious

injury.

●

Never touch, disassemble, remove or

replace the high voltage parts, cables

or their connectors.

●

The hybrid system will become hot

after starting as the system uses high

voltage. Be careful of both the high

voltage and the high temperature, and

always obey the warning labels

attached to the vehicle.

●

Never try to open the service plug

access hole located under the second

seat. The service plug is used only

when the vehicle is serviced and is

subject to high voltage.

■

Road accident cautions

Observe the following precautions to

reduce the risk of death or serious injury:

●

Stop the vehicle in a safe place to pre-

vent subsequent accidents. While

depressing the brake pedal, apply the

parking brake and shift the shift posi-

tion to P to stop the hybrid system.

Then, slowly release the brake pedal.

●

Do not touch the high voltage parts,

cables and connectors.

●

If electric wires are exposed inside or

outside your vehicle, an electric shock

may occur. Never touch exposed elec-

tric wires.

●

If a fluid leak occurs, do not touch the

fluid as it may be strong alkaline elec-

trolyte from the hybrid battery (trac-

tion battery). If it comes into contact

with your skin or eyes, wash it off

immediately with a large amount of

water or, if possible, boric acid solu-

tion. Seek immediate medical atten-

tion.

●

If a fire occurs in the hybrid electric

vehicle, leave the vehicle as soon as

possible. Never use a fire extinguisher

that is not meant for electric fires.

Using even a small amount of water

may be dangerous.

66

1-4. Hybrid system

There are air intake vents for the hybrid
battery (traction battery) are located
under the second seats.
If the vents are blocked, it may interfere
with the cooling of the hybrid battery
(traction battery).

If input/output of the hybrid battery (trac-
tion battery) becomes limited and the dis-
tance that the vehicle can be driven using
the electric motor (traction motor) is
reduced, the fuel economy may be
reduced.

WARNING

●

If your vehicle needs to be towed, do

so with four wheels raised. If the

wheels connected to the electric

motor (traction motor) are on the

ground when towing, the motor may

continue to generate electricity. This

may cause a fire. (



P.485)

●

Carefully inspect the ground under the

vehicle. If you find that liquid has

leaked onto the ground, the fuel sys-

tem may have been damaged. Leave

the vehicle as soon as possible.

■

Hybrid battery (traction battery)

●

Never resell, hand over or modify the

hybrid battery. To prevent accidents,

hybrid batteries that have been

removed from a disposed vehicle are

collected through your Lexus dealer.

Do not dispose of the battery yourself.

Unless the battery is properly col-

lected, the following may occur, result-

ing in death or serious injury:

• The hybrid battery may be illegally dis-

posed of or dumped, and it is hazard-

ous to the environment or someone

may touch a high voltage part, result-

ing in an electric shock.

• The hybrid battery is intended to be

used exclusively with your hybrid elec-

tric vehicle. If the hybrid battery is used

outside of your vehicle or modified in

any way, accidents such as electric

shock, heat generation, smoke gener-

ation, an explosion and electrolyte

leakage may occur.

When reselling or handing over your

vehicle, the possibility of an accident is

extremely high because the person

receiving the vehicle may not be aware

of these dangers.

●

If your vehicle is disposed of without

the hybrid battery having been

removed, there is a danger of serious

electric shock if high voltage parts,

cables and their connectors are

touched. In the event that your vehicle

must be disposed of, the hybrid battery

must be disposed of by your Lexus

dealer or a qualified service shop. If

the hybrid battery is not disposed of

properly, it may cause electric shock

that can result in death or serious

injury.

NOTICE

■

Hybrid battery (traction battery)

Do not carry large amounts of water

such as water cooler bottles in the vehi-

cle. If water spills onto the hybrid battery

(traction battery), the battery may be

damaged. Have the vehicle inspected by

your Lexus dealer.

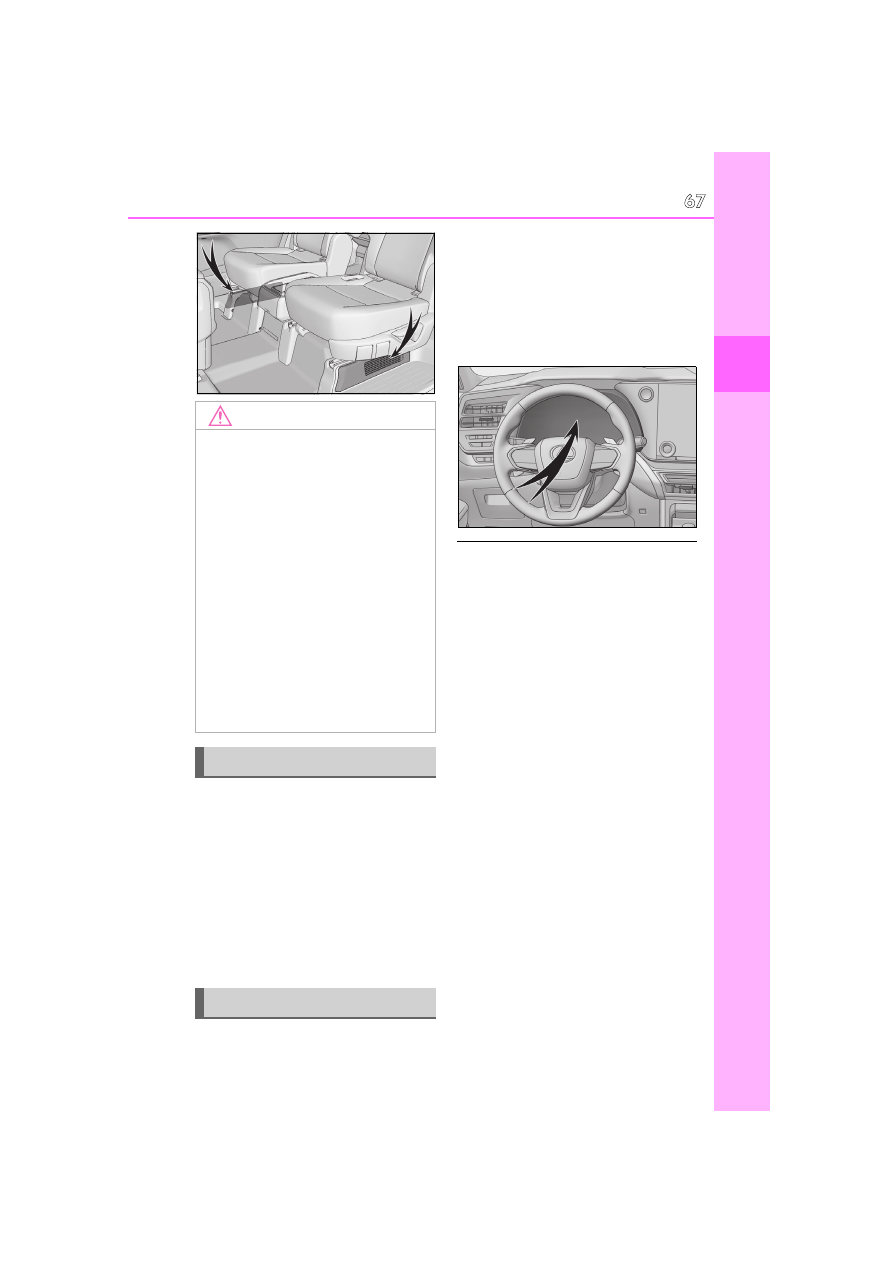

Hybrid battery (traction bat-
tery) air intake vents

67

1-4. Hybrid system

1

For safety and security

When a certain level of impact is
detected by the impact sensor, the
emergency shut off system blocks the
high voltage current and stops the fuel
pump to minimize the risk of electrocu-
tion and fuel leakage. If the emergency
shut off system activates, your vehicle
will not restart. To restart the hybrid
system, contact your Lexus dealer.

A message is automatically displayed

when a malfunction occurs in the
hybrid system or an improper opera-
tion is attempted.
If a warning message is shown on the
multi-information display, read the
message and follow the instructions.

■

If a warning light comes on, a warning

message is displayed, or the 12-volt bat-

tery is disconnected

The hybrid system may not start. In this

case, try to start the system again. If the

“READY” indicator does not come on, con-

tact your Lexus dealer.

NOTICE

■

Hybrid battery (traction battery) air

intake vents

●

Make sure not to block the air intake

vent with anything, such as a seat

cover, plastic cover, or luggage. The

input/output of the hybrid battery

(traction battery) may be restricted,

leading to a reduction in hybrid battery

(traction battery) output and a mal-

function.

●

Periodically clean the air intake vents

to prevent them from clogging.

(



P.472)

●

Do not get water or foreign materials

in either the air intake vents as this may

cause a short circuit and damage the

hybrid battery (traction battery).

Emergency shut off system

Hybrid warning message

68

1-5. Theft deterrent system

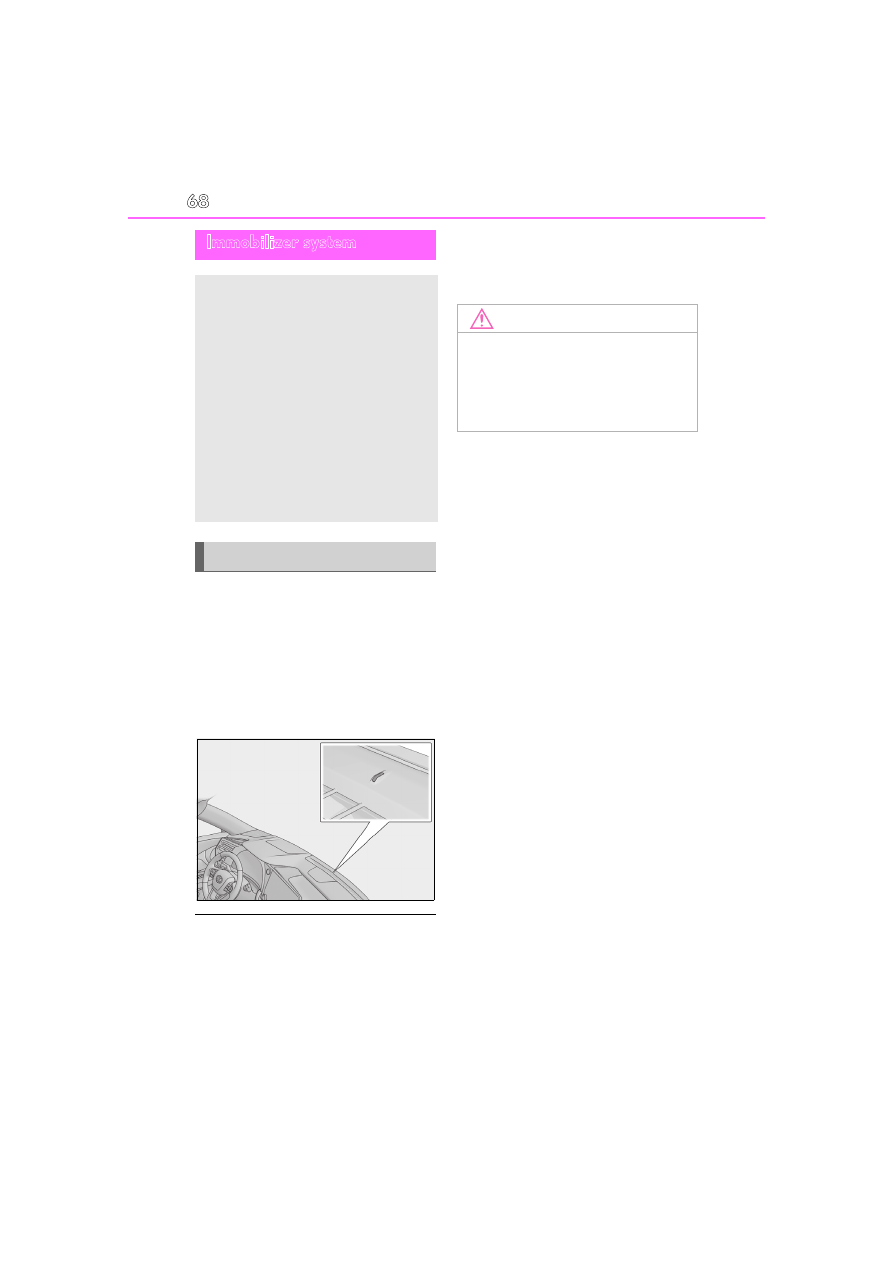

1-5.Theft deterrent system

The indicator light flashes after the
power switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the power switch has been turned to
ACC or ON to indicate that the sys-
tem has been canceled.

■

System maintenance

The vehicle has a maintenance-free type

immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

Immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
hybrid system from starting if a key
has not been previously registered
in the vehicle’s on-board computer.

Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.

Operating the system

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

69

1-5. Theft deterrent system

1

For safety and security

■

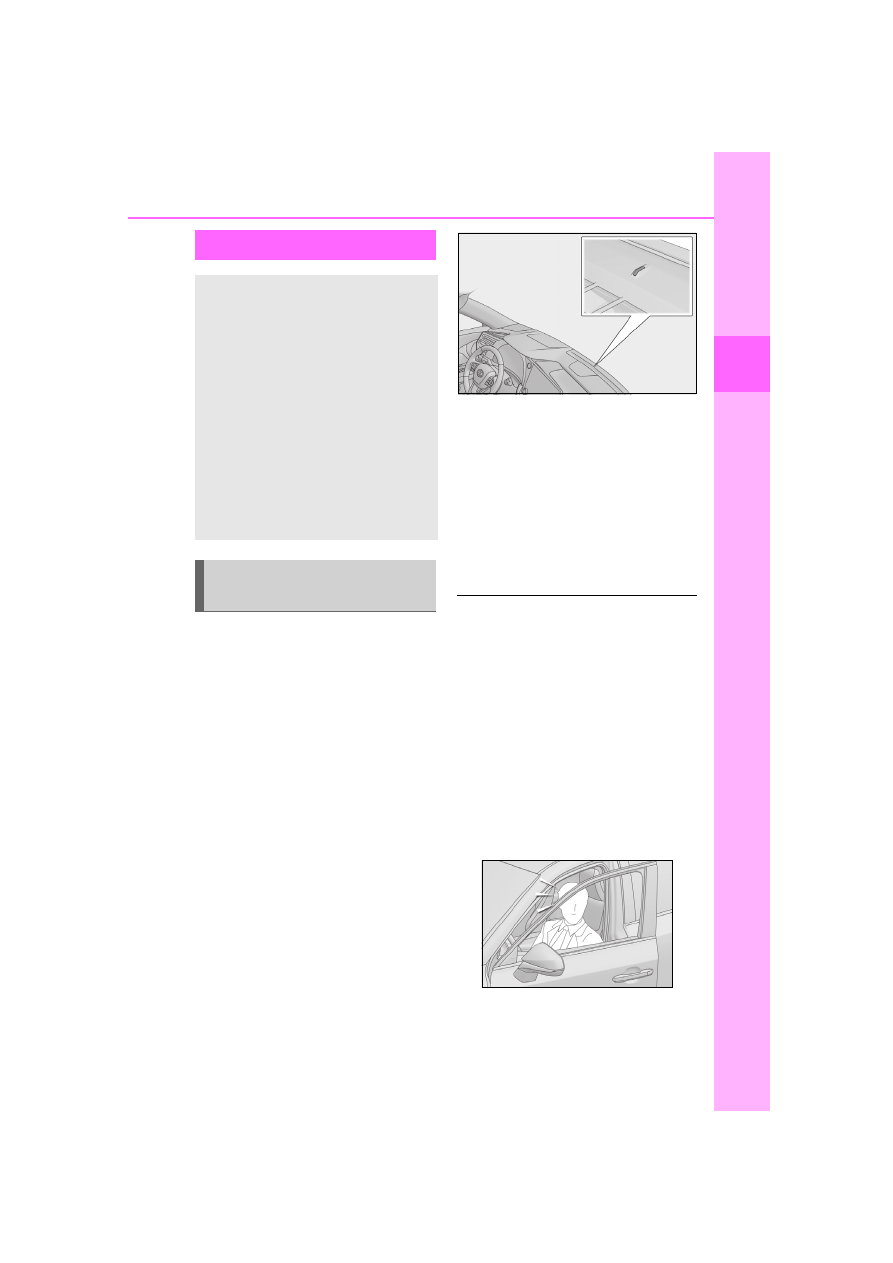

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows and panoramic moon
roof (if equipped) are closed before
the alarm is set.



No valuables or other personal
items are left in the vehicle.

■

Setting

Close the doors, back door and hood,
and lock all the doors. The system will
be set automatically after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.

■

Deactivating or stopping

Do one of the following to deactivate
or stop the alarms:



Unlock the doors.



Turn the power switch to ACC or
ON, or start the hybrid system. (The
alarm will be deactivated or stopped
after a few seconds.)

■

Setting the alarm

The alarm can be set if all the doors are

closed even with the hood open.

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

A person inside the vehicle opens a door,

the back door or hood, or unlocks the

vehicle.

●

The 12-volt battery is recharged or

replaced when the vehicle is locked.

(



P.520)

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



A locked door or back door is
unlocked or opened in any way
other than using the entry func-
tion, wireless remote control or
mechanical key. (The doors will
lock again automatically.)



The hood is opened.

Setting/deactivating/stopping
the alarm system

70

1-5. Theft deterrent system

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

When recharging or replacing the 12-volt

battery

If a door is unlocked with the mechani-
cal key while the alarm is being set, the
pre-alarm will sound for 10 seconds.
If either the door is locked again or the
pre-alarm is stopped within those 10
seconds, an alarm will sound.
Do any of the following in order to
deactivate or stop the pre-alarm:



Close the doors, and lock all doors
by smart access system or wireless
remote control.



Turn the power switch to ACC or
ON, or start the hybrid system. (The

alarm will be deactivated or stopped
after a few seconds.)

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

Pre-alarm

71

2

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

.

2-1. Instrument cluster

Warning lights and indicators

............................................................

72

Gauges and meters ....................

76

Multi-information display..........

83

Head-up display ...........................

85

Displayed content........................

89

72

2-1. Instrument cluster

2-1.Instrument cluster

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.

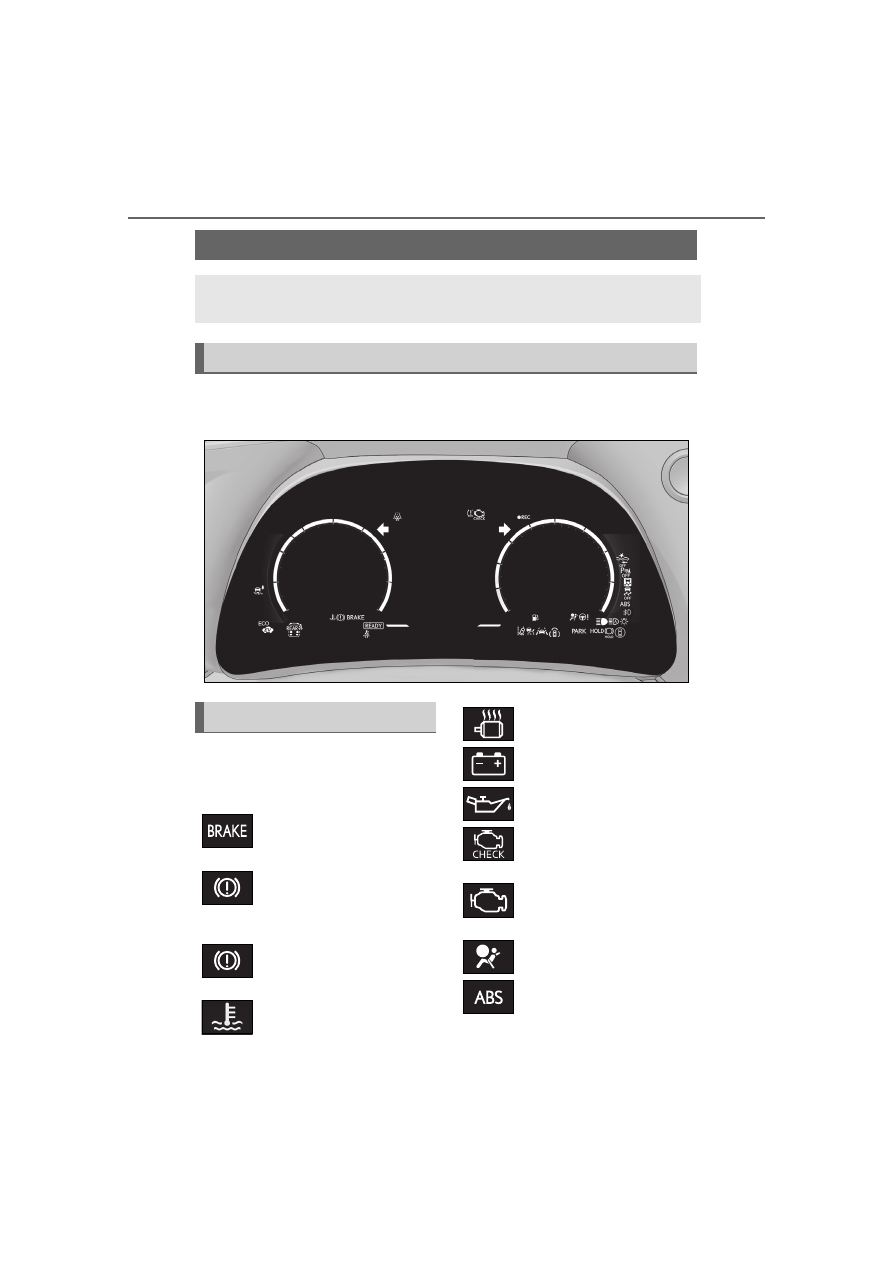

Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.

Warning lights and indicators

The warning lights and indicators on the instrument cluster and outside rear
view mirrors inform the driver of the status of the vehicle’s various systems.

Warning lights and indicators displayed on the instrument cluster

Warning lights

(U.S.A.)

Brake system warning light

*1



(



P.488)

(red)

(Canada)

Brake system warning light

*1



(



P.488)

(yellow)

Brake system warning light

*1



(



P.488)

High coolant temperature
warning light

*2

 (



P.488)

Hybrid system overheat warn-
ing light

*2

 (



P.489)

Charging system warning
light

*2

 (



P.489)

Low engine oil pressure warn-
ing light

*2

 (



P.489)

(U.S.A.)

Malfunction indicator lamp

*1



(



P.489)

(Canada)

Malfunction indicator lamp

*1



(



P.489)

SRS warning light

*1

 (



P.490)

(U.S.A.)

ABS warning light

*1

 (



P.490)

73

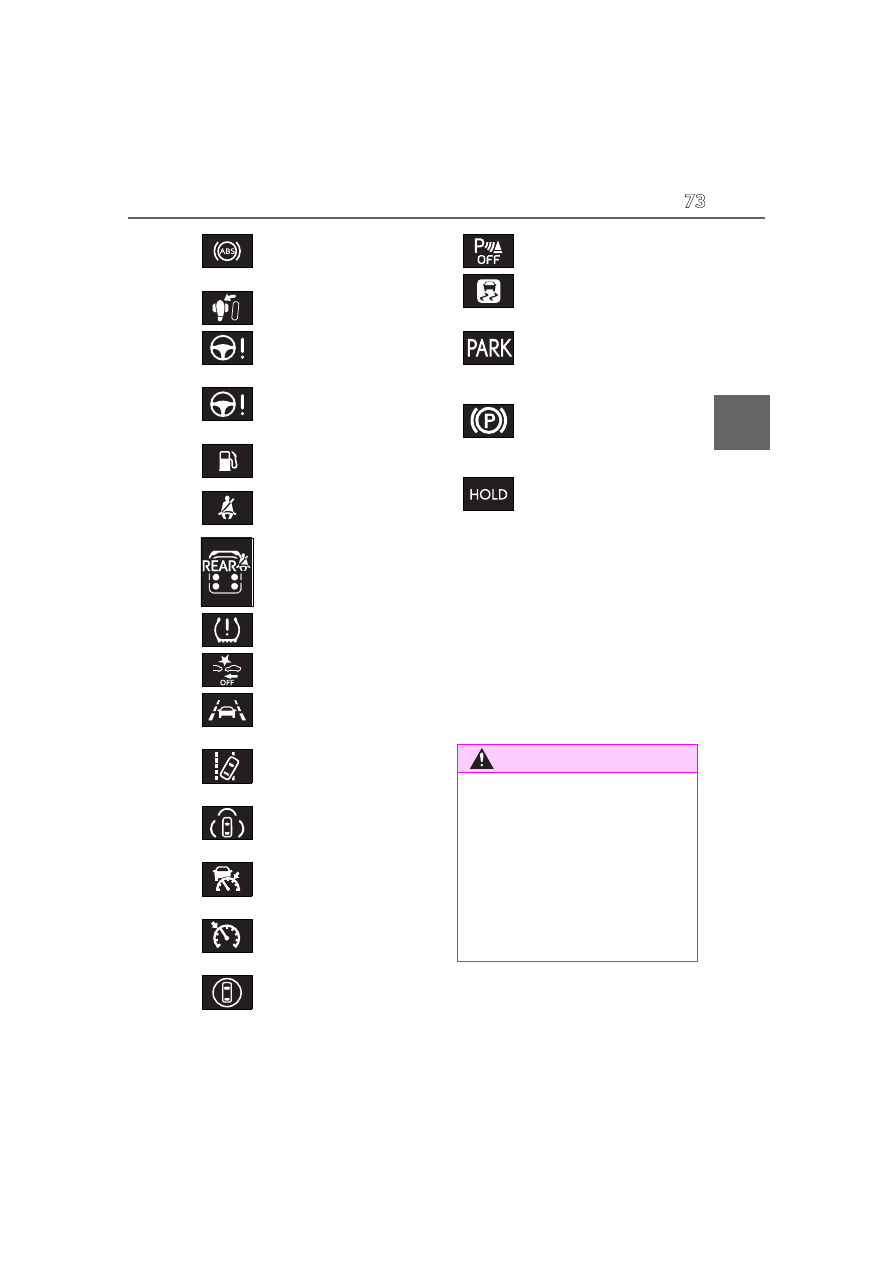

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

*1

: These lights come on when the power

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the hybrid system is
started, or after a few seconds. There
may be a malfunction in a system if the
lights do not come on, or turn off. Have
the vehicle inspected by your Lexus
dealer.

*2

: This light illuminates on the multi-infor-

mation display.

(Canada)

ABS warning light

*1

 (



P.490)

Inappropriate pedal operation
warning light

*2

 (



P.490)

(red)

Electric power steering system
warning light

*1

 (



P.490)

(yellow)

Electric power steering system
warning light

*1

 (



P.490)

Low fuel level warning light
(



P.491)

Driver’s and front passenger’s
seat belt reminder light
(



P.491)

Rear passengers’ seat belt
reminder light (



P.491)

Tire pressure warning light

*1



(



P.492)

PCS warning light

*1

 (



P.492)

(yellow)

LTA indicator (



P.492)

(yellow)

LDA indicator (



P.492)

(yellow)

PDA indicator (



P.493)

(yellow)

Dynamic radar cruise control
indicator (



P.493)

(yellow)

Cruise control indicator
(



P.493)

Driving assist information indi-
cator

*1

(



P.493)

Intuitive parking assist OFF indi-
cator

*1

 (



P.494)

(illuminates)

Slip indicator

*1

 (



P.494)

(flashes)

(U.S.A.)

Parking brake indicator
(



P.494)

(flashes)

(Canada)

Parking brake indicator
(



P.494)

(flashes)

Brake hold operated indicator

*1



(



P.495)

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning lights not come on

when you start the hybrid system, this

could mean that these systems are not

available to help protect you in an acci-

dent, which could result in death or seri-

ous injury. Have the vehicle inspected by

your Lexus dealer immediately if this

occurs.

74

2-1. Instrument cluster

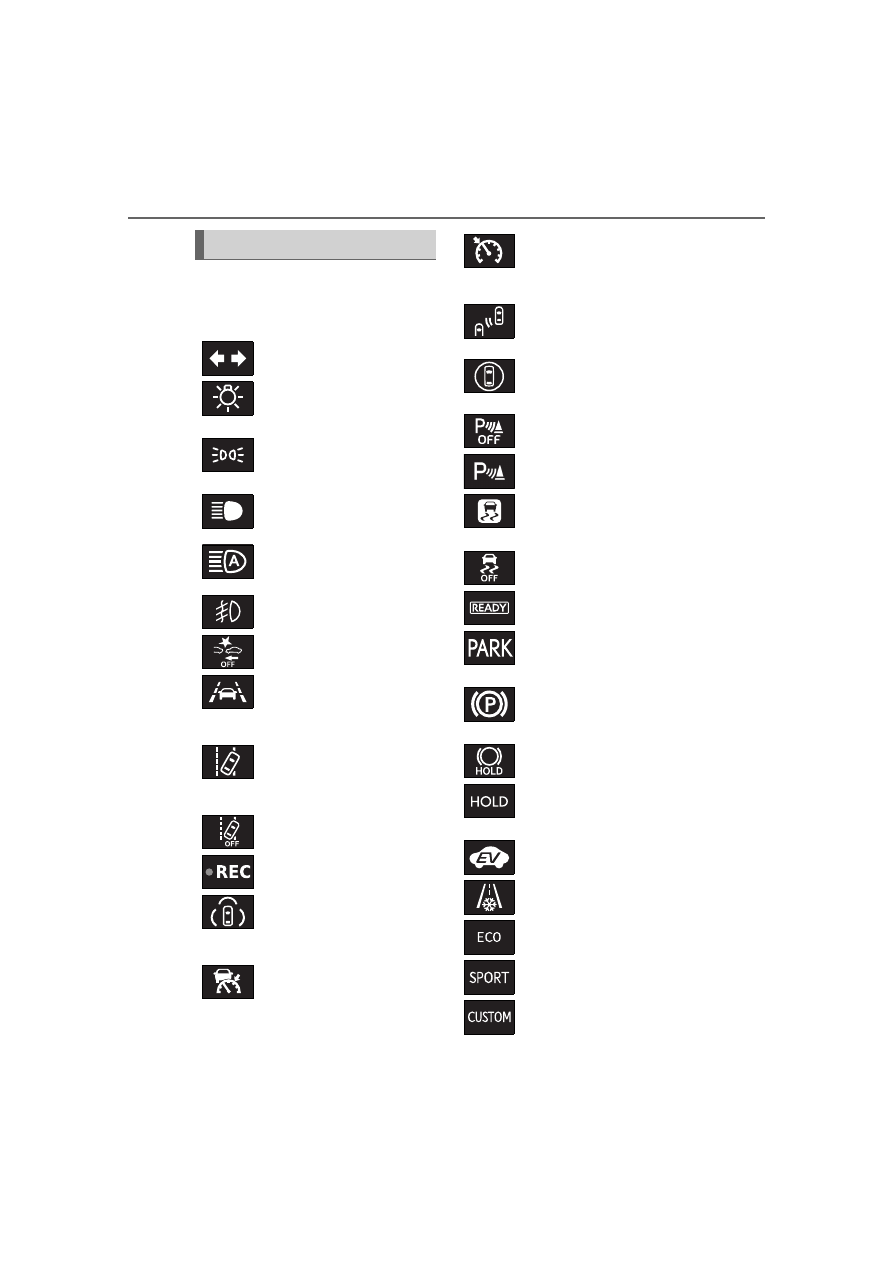

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

Indicators

Turn signal indicator (



P.198)

(U.S.A.)

Headlight indicator (



P.204)

(Canada)

Tail light indicator (



P.204)

Headlight high beam indicator
(



P.206)

AHS indicator (if equipped)
(



P.207)

AHB indicator (



P.210)

Fog light indicator (



P.213)

PCS warning light

*1, 2



(



P.242)

(green/whit

e)

LTA indicator (



P.247)

(green/whit

e)

LDA indicator (



P.254)

LDA OFF indicator

*2

 (if

equipped) (



P.254)

REC indicator (if equipped)
(



P.290)

(green/whit

e)

PDA indicator (



P.261)

(green/whit

e)

Dynamic radar cruise control
indicator (



P.270)

(green/whit

e)

Cruise control indicator
(



P.279)

Outside rear view mirror indi-
cators

*3

 (



P.292, 296,  310)

Driving assist information indi-
cator

*1, 2

 (



P.292, 296, 310,

319)
Intuitive parking assist OFF
indicator

*1, 2, 4

 (



P.301)

Intuitive parking assist detection
indicator

*5

 (



P.301)

(flashes)

Slip indicator

*1

 (



P.367)

VSC OFF indicator

*1, 2



(



P.367)

“READY” indicator (



P.188)

(U.S.A.)

Parking brake indicator
(



P.198)

(Canada)

Parking brake indicator
(



P.198)

Brake hold standby indicator

*1



(



P.201)

(illuminates)

Brake hold operated indicator

*1



(



P.201)

EV indicator (



P.62)

Low outside temperature indi-
cator

*6

 (



P.76)

Eco drive mode indicator
(



P.363)

Sport mode indicator
(



P.363)

Customize mode indicator
(



P.363)

75

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

*1

: These lights come on when the power

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the hybrid system is
started, or after a few seconds. There
may be a malfunction in a system if the
lights do not come on, or turn off. Have
the vehicle inspected by your Lexus
dealer.

*2

: This light comes on when the system is

turned off.

*3

: This light illuminates on the outside rear

view mirrors.

*4

: Vehicles without center display: The

indicators turn off when the shift posi-
tion is changed to R regardless of
whether the intuitive parking assist
function is turned on or off.

*5

: Vehicles without center display or rear

camera

*6

: When the outside temperature is

approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

*7

: This light comes on when the stop lights

are illuminated by the operation of the
brake pedal or the driving assist system.

*8

: This light illuminates on the front inte-

rior/personal lights.

Trail Mode indicator (



P.364)

Stop light indicator

*7

“AIR BAG ON/OFF”
indicator

*8

 (



P.37)

76

2-1. Instrument cluster

■

Locations of gauges and meters



1-dial display state

*1

The units used on the meters may differ depending on the target region.

Multi-information display

Presents the driver with a variety of vehicle data (



P.83)

Displays warning messages if a malfunction occurs (



P.498)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 141°F (60°C)

Hybrid System Indicator/Speedometer/Tachometer

*2

Hybrid System Indicator: Displays hybrid system output or regeneration level (



P.80)

Tachometer: Displays the engine speed in revolutions per minute
This setting can be changed on the setting screen. (



P.83)

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For details,
refer to the “MULTIMEDIA OWNER’S MANUAL”.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.81)

Digital speedometer
Shift position and gear position indicator (



P.193)

Gauges and meters

Meter display

C

F

G

H

77

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Fuel gauge

Displays the quantity of fuel remaining in the tank

Driving range

Displays driving range with remaining fuel.

*1

: Displayed when the meter display type setting is set to display type 1 and a driving mode

other than sport mode is selected.

*2

: Depending on the item displayed on the multi-information display and the system oper-

ation state, meter will not be displayed.



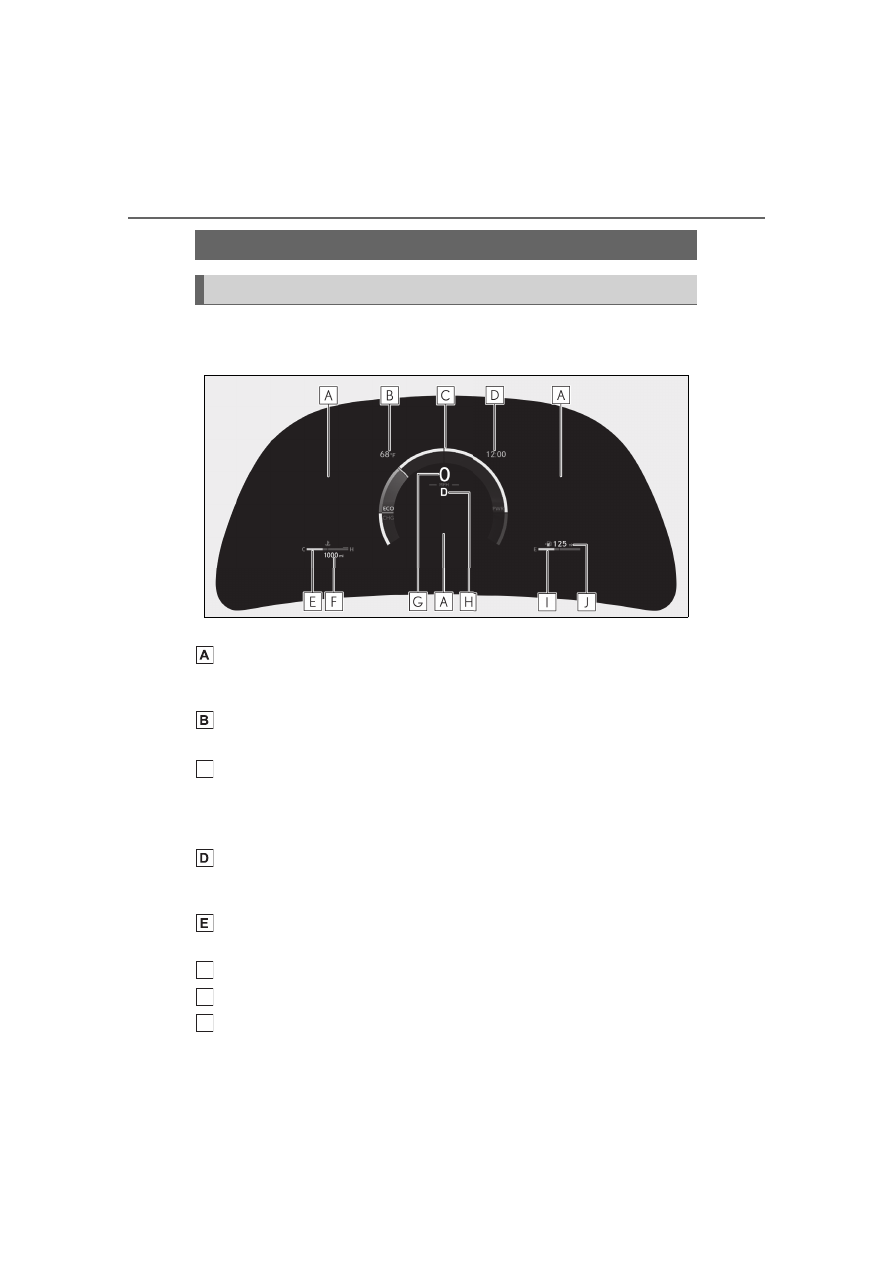

2-dial display state

*1

The units used on the meters may differ depending on the target region.

Hybrid System Indicator/Tachometer

*2

Hybrid System Indicator: Displays hybrid system output or regeneration level (



P.80)

Tachometer: Displays the engine speed in revolutions per minute

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 141°F (60°C)

Digital speedometer
Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For details,
refer to the “MULTIMEDIA OWNER’S MANUAL”.

Analog speedometer

*2

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.81)

Multi-information display

I

J

C

F

G

H

78

2-1. Instrument cluster

Presents the driver with a variety of vehicle data (



P.83)

Displays warning messages if a malfunction occurs (



P.498)

Shift position and gear position indicator (



P.193)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Driving range

Displays driving range with remaining fuel.

*1

: Displayed when the meter display type setting is set to display type 2.

*2

: Depending on the item displayed on the multi-information display and the system oper-

ation state, meter will not be displayed.



Bar display state

*1, 2

Multi-information display

Presents the driver with a variety of vehicle data (



P.83)

Displays warning messages if a malfunction occurs (



P.498)

Outside temperature

Displays the ambient temperature within the range of -40°F (-40°C) to 141°F (60°C).

Tachometer/Hybrid System Indicator

*3

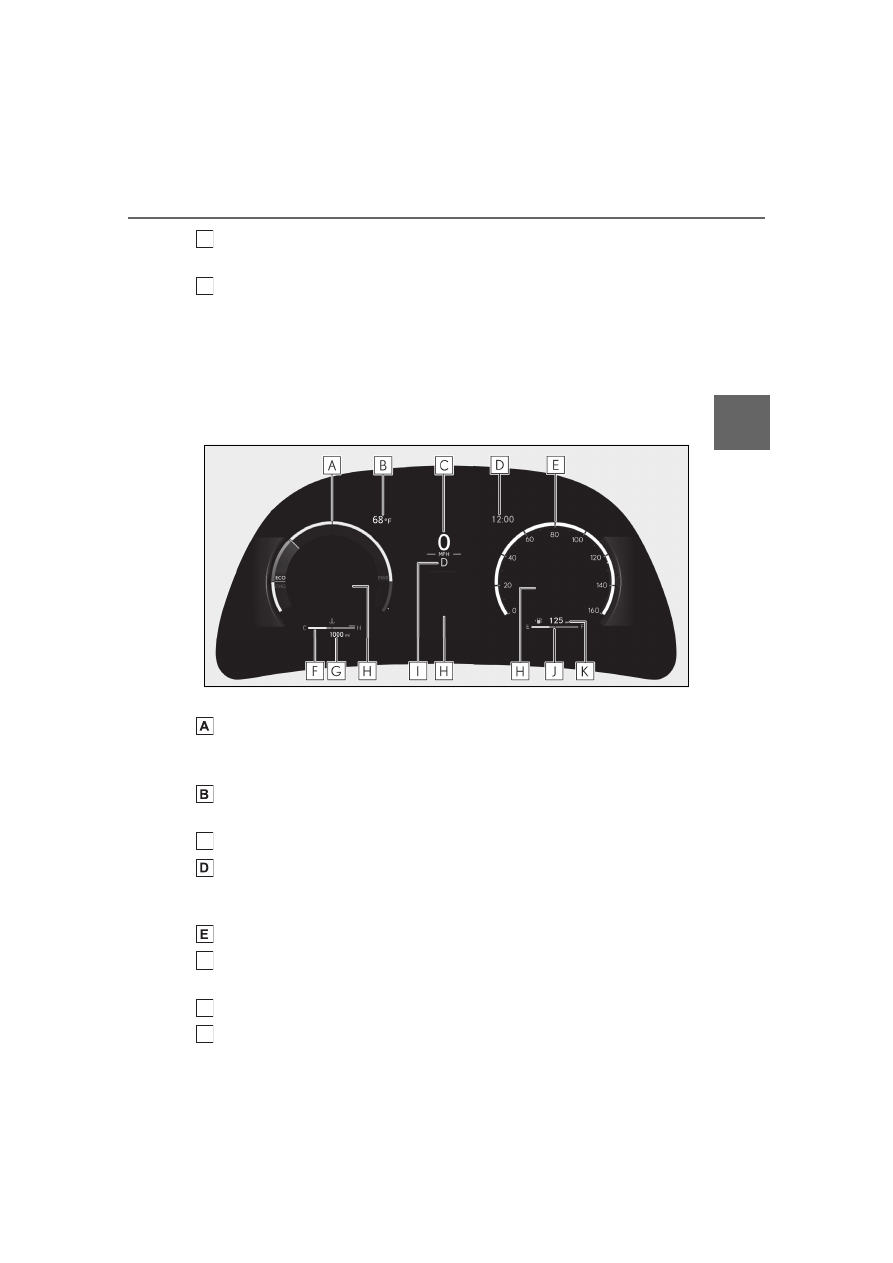

Tachometer: Displays the engine speed in revolutions per minute.
• Rev indicator
• Rev  peak
Hybrid System Indicator: Displays hybrid system output or regeneration level. (



P.79)

Depending on the selected drive mode or certain settings, the display will change.

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For details,
refer to the “MULTIMEDIA OWNER’S MANUAL”.

I

J

K

C

79

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.81)

Speedometer
Shift position indicator and gear position indicator (



P.193)

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Distance to empty

Displays the driving range with remaining fuel.

*1

: Displayed when the meter display type setting is set to display type 1 and sport mode is

selected.

*2

: Displayed when the meter display type setting is set to display type 3.

*3

: Depending on the item displayed on the multi-information display and the system oper-

ation state, meter will not be displayed.

■

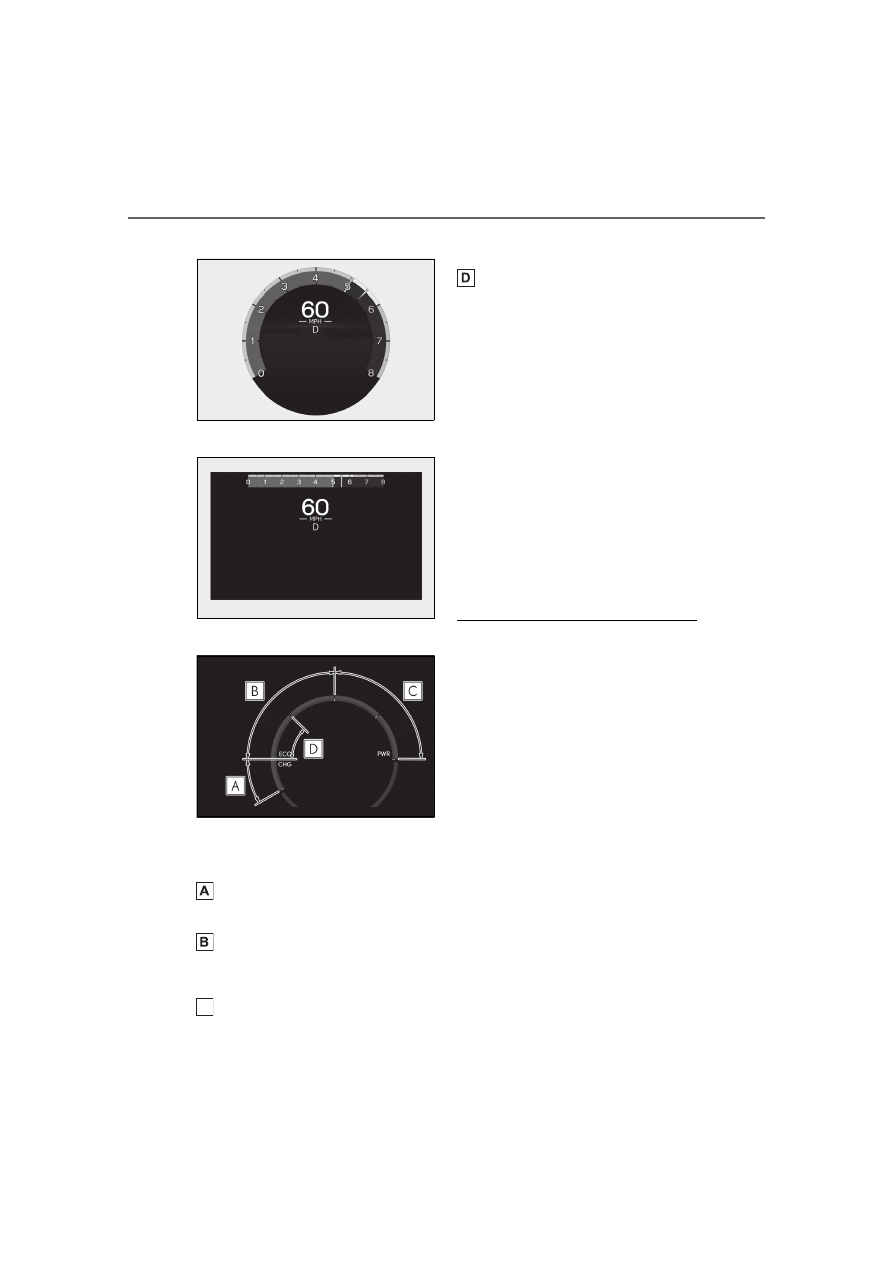

Rev indicator

When the engine speed reaches a set
speed or the red zone, the tachometer
will be highlighted.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the Rev indica-
tor is displayed can be changed on the
center display. (



P.551)



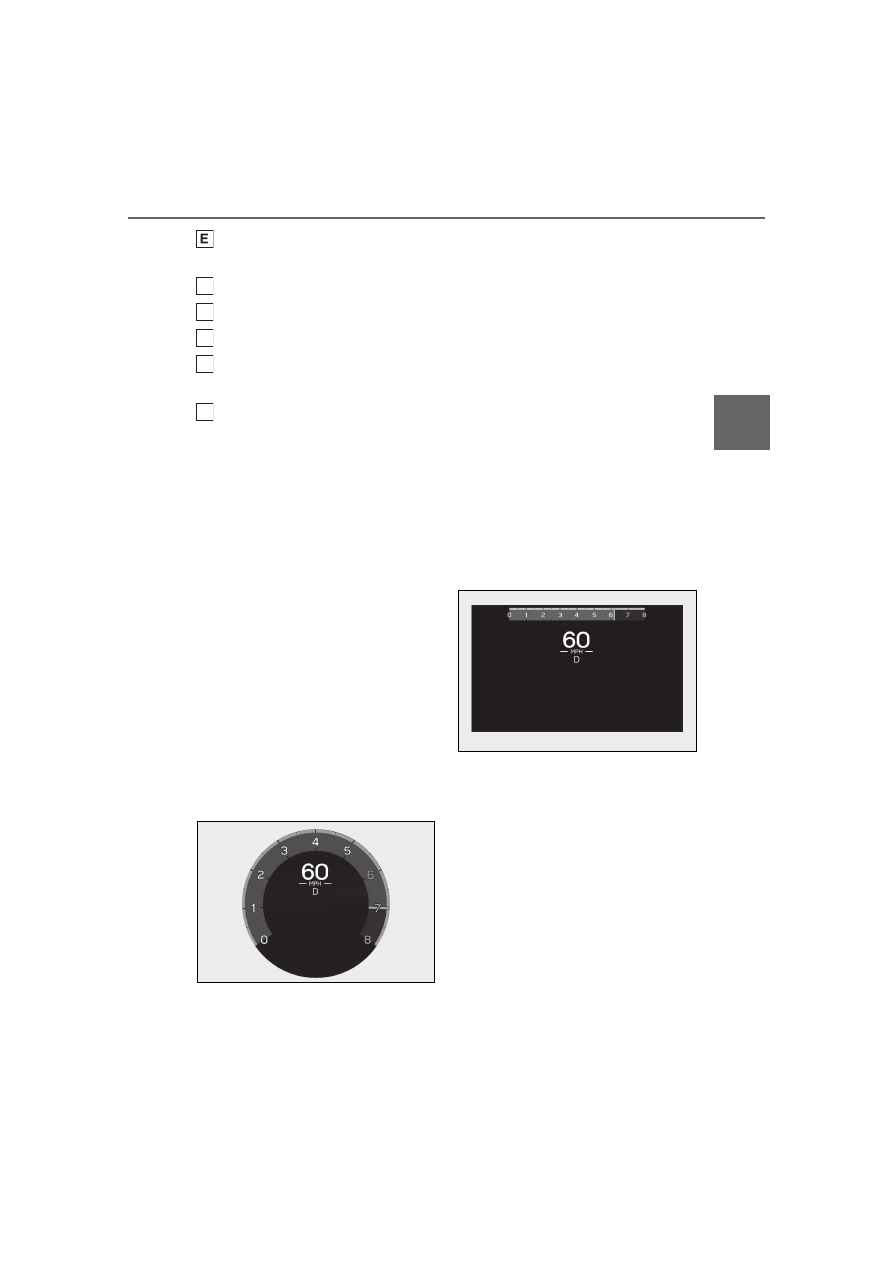

Ring display state



Bar display state

■

Rev peak

When the engine speed reaches or
exceeds 5000 rpm, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

F

G

H

I

J

80

2-1. Instrument cluster



Ring display state



Bar display state

■

Hybrid System Indicator

This illustration is for explanation only and
may differ depending on the specifications
of the vehicle.

Charge area

Shows regeneration

*

 status.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.

Power area

Shows that an Eco-friendly driving range is

being exceeded (during full power driving
etc.)

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.



By keeping the indicator needle
within Eco area, more Eco-friendly
driving can be achieved.



Charge area indicates regenera-
tion

*

 status. Regenerated energy

will be used to charge the hybrid
battery (traction battery).

*

: When used in this manual, regeneration

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

■

The meters and display illuminate when

The power switch is in ON.

■

Hybrid System Indicator will operate

when

The Hybrid System Indicator will operate in

the following situations:

●

The “READY” indicator is illuminated.

●

The shift position is in D or M.

■

Engine speed

On hybrid electric vehicles, engine speed is

precisely controlled in order to help

improve fuel efficiency and reduce exhaust

emissions etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

C

81

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Distance to empty

●

This distance is computed based on your

average fuel consumption. As a result,

the actual distance that can be driven

may differ from that displayed.

●

When only a small amount of fuel is

added to the tank, the display may not be

updated. When refueling, turn the power

switch off. If the vehicle is refueled with-

out turning the power switch off, the dis-

play may not be updated.

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

■

Free/Open Source Software Informa-

tion

This product contains Free/Open Source

Software (FOSS). The license information

and/or the source code of such FOSS can

be found at the following URL.
https://www.denso.com/global/en/

opensource/meter/toyota/

■

Customization

The gauges and meters can be customized.

(



P.550)

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H); or “Engine Cool-

ant Temp High Stop in a Safe Place

See Owner’s Manual” is shown on the

multi-information display. In this case,

immediately stop the vehicle in a safe

place, and check the engine after it has

cooled completely. (



P.526)

Odometer and trip meter dis-
play

82

2-1. Instrument cluster

■

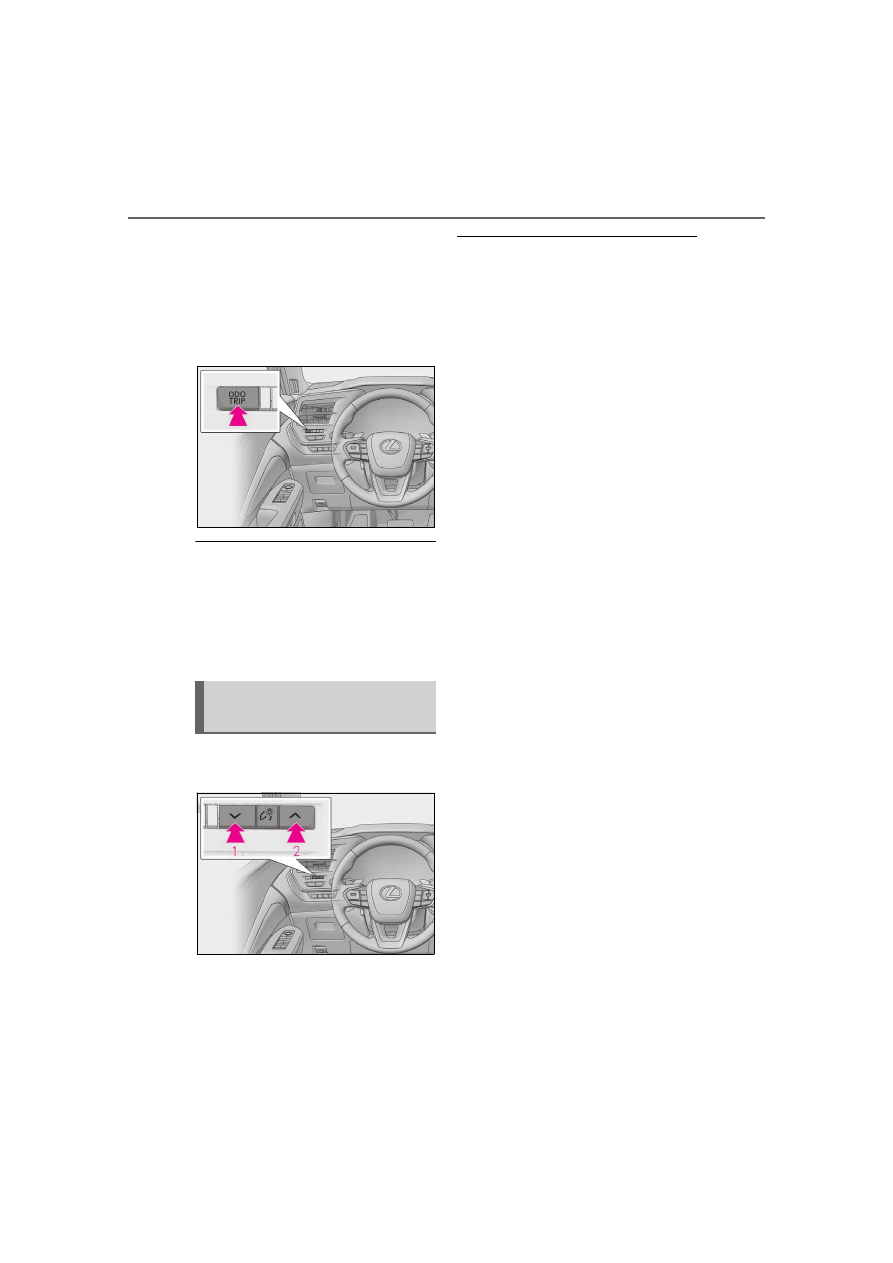

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Using the voice control system

*

*

: If  equipped

Odometer and trip meter display can be

changed using the voice control system.
For details, refer to the “MULTIMEDIA

OWNER’S MANUAL”

The brightness of the instrument panel
lights can be adjusted.

1

Darker

2

Brighter

■

Brightness of the meters (day mode and

night mode)

The brightness of the meters is changed

between day mode and night mode.

●

Day mode: When the tail lights are off

●

Night mode: When the tail lights are on

and the surrounding area is dark

When the tail lights are on but the sur-

rounding area is bright, any adjustments

made to the meter brightness levels will be

applied to both modes at once.

Changing the instrument panel
light brightness

83

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

■

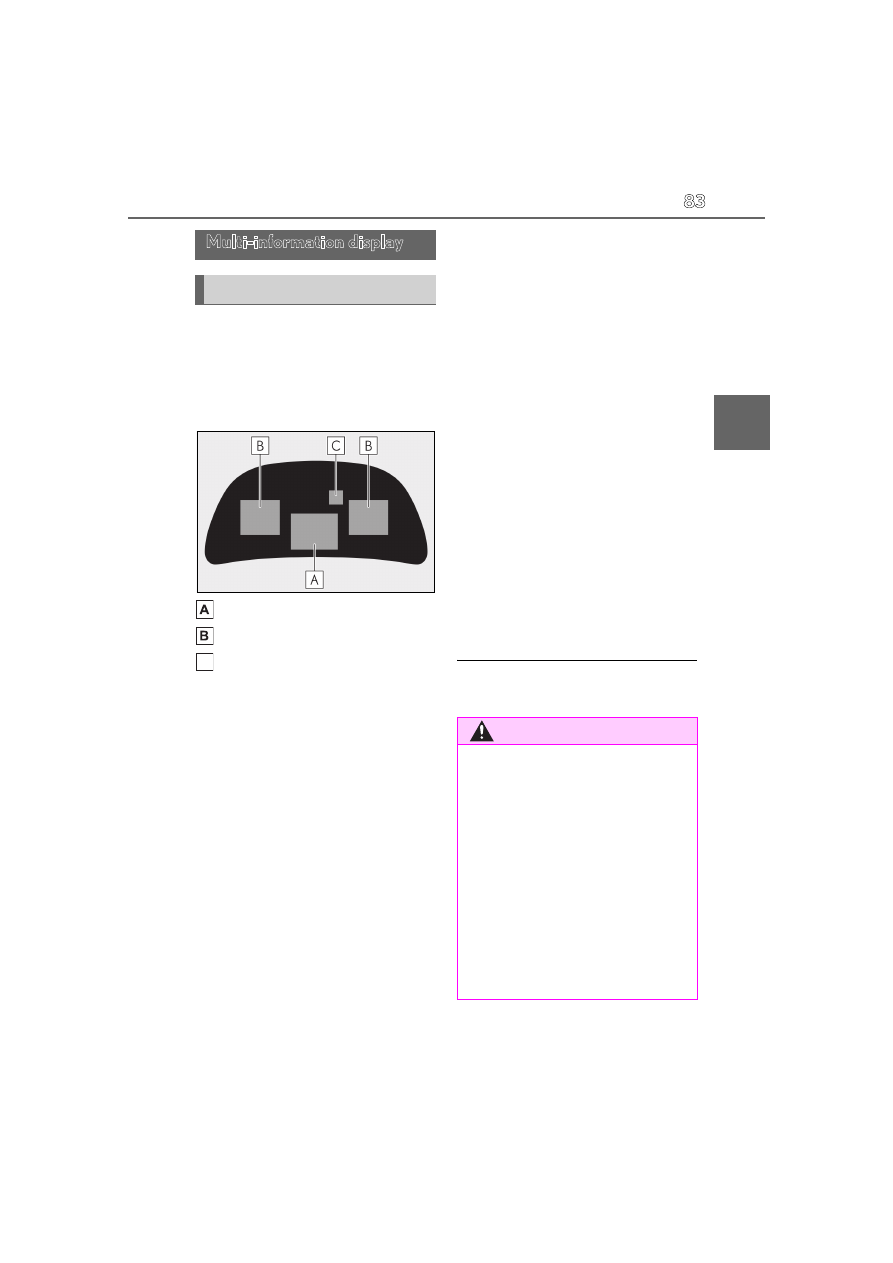

Display area

A variety of driving-related information
can be displayed. Depending on the
situation, warning or advice pop-up
displays will also be displayed.

Content display area (center)
Content display area (side)
Driving support system status dis-
play area

*

When driving support system information
is not displayed in the content display area,
if the driving support system operates, the
system operating state will be displayed.

*

: Depending on the settings and the sys-

tem operation state, the position dis-
played may change.

■

Items displayed in the content dis-
play area



Content display area (center)

• Driving support system information dis-

play (



P.97)

• Navigation system-linked display

(



P.96)

• Message (



P.498)

• Blank



Content display area (side)

• Blank
• Fuel consumption (



P.92)

• EV Driving Ratio/Elapsed time after

starting (



P.92)

• Driving support system information dis-

play (



P.97)

• Navigation system-linked display

(



P.96)

• Audio system-linked display (



P.96)

• Drive information (



P.92)

• Energy monitor (



P.92)

• Engine coolant temperature

gauge/engine oil temperature
gauge/engine oil pressure gauge
(



P.93)

• Boost gauge (



P.94)

• G-force (



P.94)

• Gear Position (



P.95)

■

Liquid crystal display



P.81

Multi-information display

Displayed contents summary

C

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

■

The information display at low tem-

peratures



P.81

84

2-1. Instrument cluster

WARNING

■

Cautions during setting up the dis-

play

As the hybrid system needs to be operat-

ing during setting up the display, ensure

that the vehicle is parked in a place with

adequate ventilation. In a closed area

such as a garage, exhaust gases includ-

ing harmful carbon monoxide (CO) may

collect and enter the vehicle. This may

lead to death or a serious health hazard.

NOTICE

■

While setting up the display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while setting up the display features.

85

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

*

: If  equipped

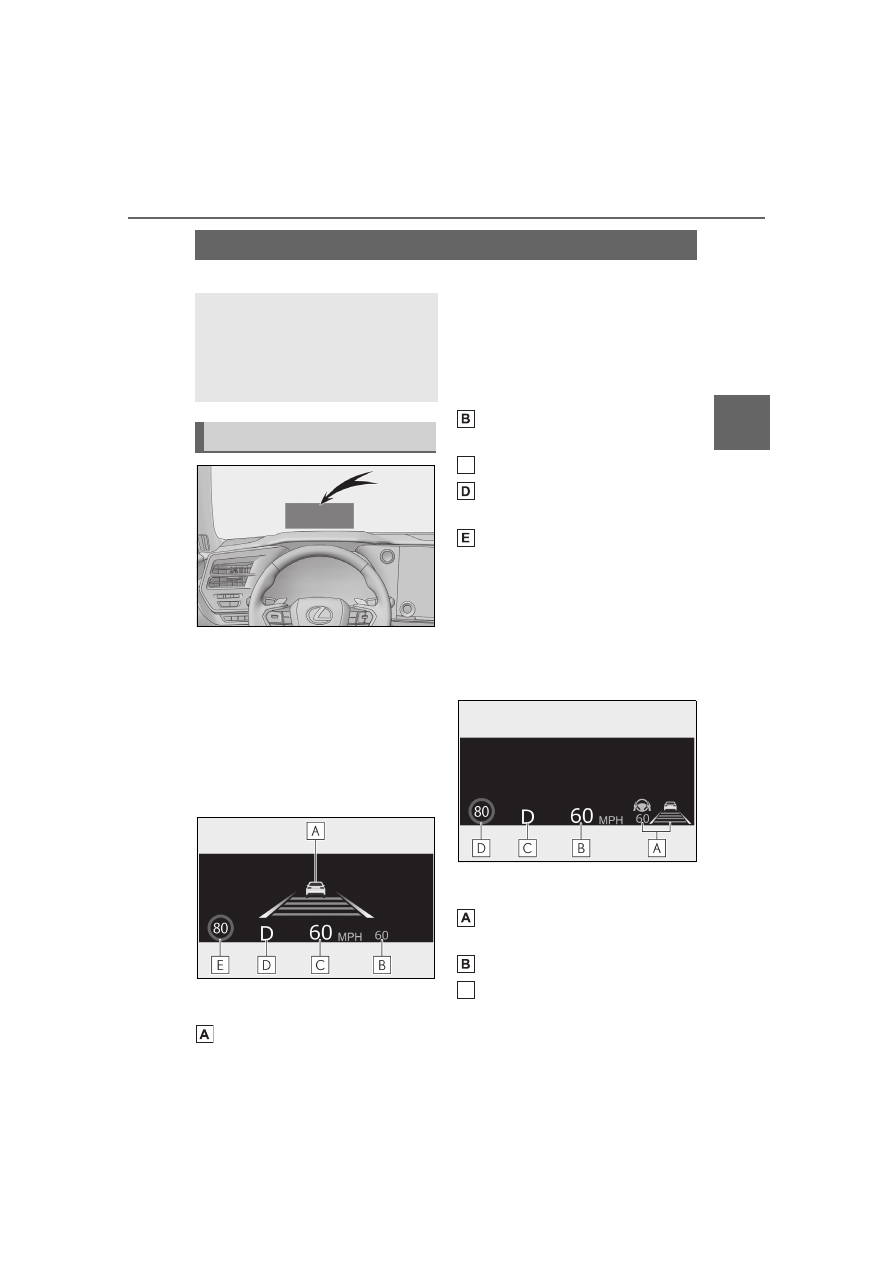

Can be changed the head-up display
type.
The content displayed will differ
according to the driving conditions and
display mode of the head-up display.
Depending on the situation, pop-up
displays will also be displayed.



Full

These images are examples only, and may
vary slightly from actual conditions.

Content display area

• Driving support system information dis-

play (



P.97)

• Tachometer
Displays the engine speed in revolutions
per minute
• Hybrid System Indicator (



P.80)

Driving support system informa-
tion display (



P.97)

Speedometer
Shift position and gear position
indicator (



P.192)

Speed limit/RSA (Road Sign
Assist) display area (if equipped)

Displays the following items:
• Speed limit of the current road (linked to

the navigation system) (U.S.A. only)

• RSA (Road Sign Assist) display

(



P.265)



Standard

These images are examples only, and may
vary slightly from actual conditions.

Driving support system informa-
tion display (



P.97)

Speedometer
Shift position and gear position
indicator (



P.192)

Head-up display

*

The head-up display projects a vari-
ety of driving-related information
and the operating state of the driv-
ing support systems on the wind-
shield.

System components

C

C

86

2-1. Instrument cluster

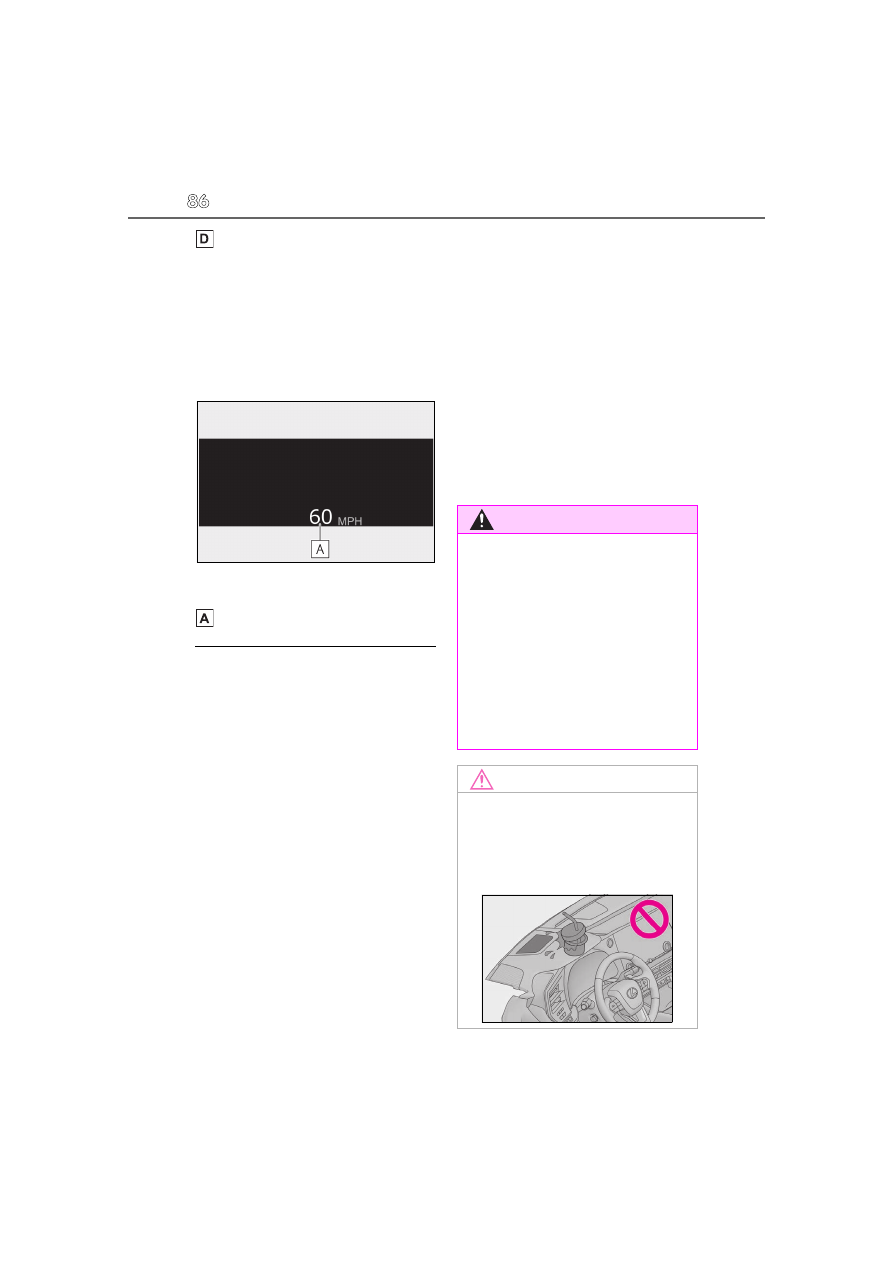

Speed limit/RSA (Road Sign
Assist) display area (if equipped)

Displays the following items:
• Speed limit of the current road (linked to

the navigation system) (U.S.A. only)

• RSA (Road Sign Assist) display

(



P.265)



Minimum

These images are examples only, and may
vary slightly from actual conditions.

Speedometer

■

Head-up display will operate when

The power switch is in ON.

■

Head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Hybrid System Indicator or tachometer

is displayed when

●

Hybrid System Indicator is displayed

when all of the following conditions are

met:

• LTA (Lane Tracing Assist) is disabled.

(



P.246)

• LDA (Lane Departure Alert) is disabled.

(



P.254)

• The cruise control, selected by pressing

the driving assist mode select switch, is

canceled. (



P.280, 281)

• When other than Sport mode is selected.

• Full mode (



P.85) is selected as

head-up display type.

• A shift position other than M is selected

when the meter display type setting is set

to display type 1 or 3

●

Tachometer is displayed when all of the

following conditions are met:

• LTA (Lane Tracing Assist) is disabled.

(



P.246)

• LDA (Lane Departure Alert) is disabled.

(



P.254)

• The cruise control, selected by pressing

the driving assist mode select switch, is

canceled. (



P.280, 281)

• When Sport mode is selected.

• Full mode (



P.85) is selected as

head-up display type.

• A shift position other than M is selected if

the meter display type setting is set to dis-

play type 1 or 3

WARNING

■

Before using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the

head-up display while driving as you

may fail to see pedestrians, objects on

the road, etc. ahead of the vehicle.

NOTICE

■

To prevent damage to components

●

Do not place any drinks near the

head-up display projector. If the pro-

jector gets wet, electrical malfunctions

may result.

87

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

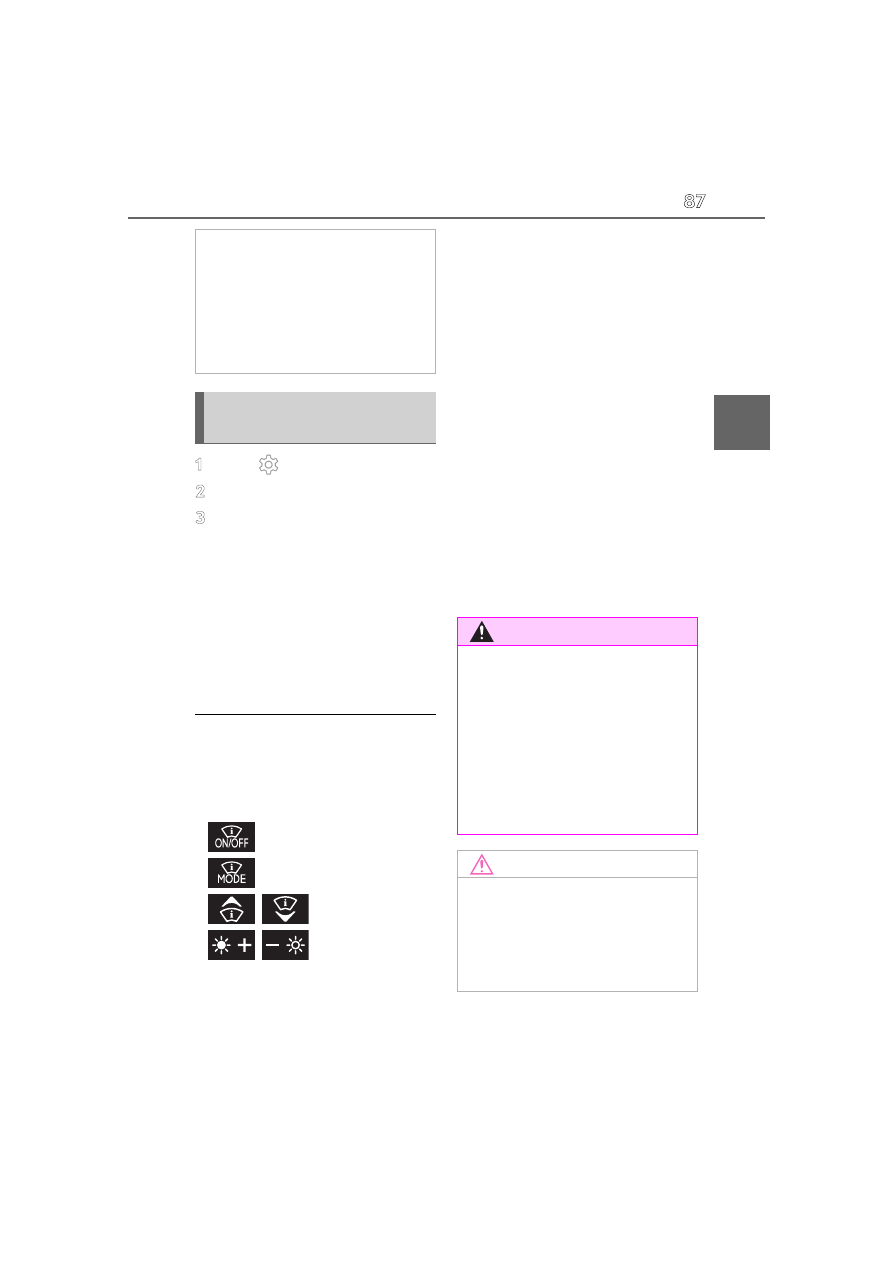

1

Select

 on the center display.

2

Select “Vehicle customize”.

3

Select “Head up display”.

The following settings for the head-up dis-

play can be changed.



Display on/off



Brightness



Display mode



Height



Angle

■

Changing settings with the steering

wheel switches

If any of the following items have been set as

as a favorite steering wheel switch function,

settings of the head-up display can be

changed using the steering wheel switches.

●

: Display on/off

●

: Display mode

●

/

: Height

●

/

: Brightness

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the power switch is

turned off then back to ON.

■

Display brightness

In addition to the brightness setting, the

brightness of the display will change auto-

matically according to the ambient bright-

ness.

■

Head-up display automatic position

adjustment

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

■

Using the voice control system

*

*

: If equipped

The head-up display can be enabled and

disabled using the voice control system.
For details, refer to the “MULTIMEDIA

OWNER’S MANUAL”

■

Customization

Some functions can be customized.

(



P.551)

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector. Doing so

could cause mechanical malfunctions.

Changing settings of the
head-up display

WARNING

■

Caution for changing settings of the

head-up display

As the hybrid system needs to be operat-

ing while changing the settings of the

head-up display, ensure that the vehicle

is parked in a place with adequate venti-

lation. In a closed area such as a garage,

exhaust gases including harmful carbon

monoxide (CO) may collect and enter

the vehicle. This may lead to death or a

serious health hazard.

NOTICE

■

When changing the settings of the

head-up display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while the changing the settings of the

head-up display.
