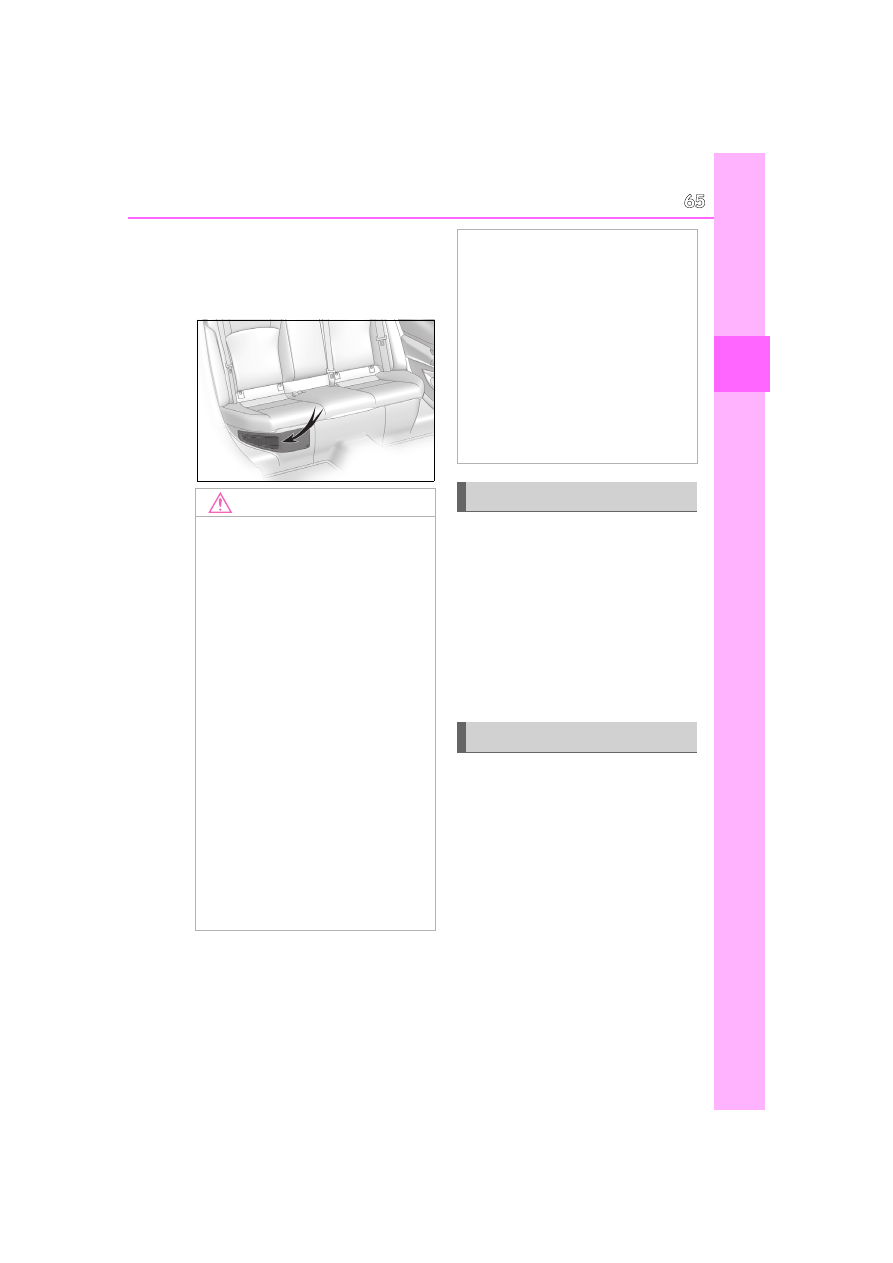

65

1-4. Hybrid system

1

For safety and security

the hybrid battery (traction battery)
may overheat, leading to a reduction in
the hybrid battery (traction battery)
output.

When a certain level of impact is
detected by the impact sensor, the
emergency shut off system blocks the
high voltage current and stops the fuel
pump to minimize the risk of electrocu-
tion and fuel leakage. If the emergency
shut off system activates, your vehicle
will not restart. To restart the hybrid
system, contact your Lexus dealer.

A message is automatically displayed
when a malfunction occurs in the
hybrid system or an improper opera-
tion is attempted.
If a warning message is shown on the
multi-information display, read the
message and follow the instructions.

NOTICE

■

Hybrid battery (traction battery) air

intake vent

●

Make sure not to block the air intake

vent with anything, such as a seat

cover, plastic cover, or luggage. If the

vents become blocked, the hybrid bat-

tery (traction battery) input and output

may be restricted, leading to a reduc-

tion in hybrid battery (traction battery)

output and a malfunction.

●

When dust etc. has accumulated in the

air intake vent, periodically clean it

with a vacuum cleaner to prevent the

vent from clogging.

●

Do not get water or foreign materials

in the air intake vent as this may cause

a short circuit and damage the hybrid

battery (traction battery).

●

Do not carry large amounts of water

such as water cooler bottles in the

vehicle. If water spills onto the hybrid

battery (traction battery), the battery

may be damaged. Have the vehicle

inspected by your Lexus dealer.

●

There is a filter installed to the air

intake vent. When the filter remains

noticeably dirty even after cleaning the

air intake vent, filter cleaning or

replacement is recommended. For

information regarding filter cleaning or

replacement, refer to P.340.

●

If “Maintenance required for Traction

battery cooling parts See owner’s

manual” is shown on the multi-infor-

mation display, the air intake vent and

filter may be clogged. Refer to P.340

for information on how to clean the air

intake vent.

Emergency shut off system

Hybrid warning message

66

1-4. Hybrid system

■

If a warning light comes on, a warning

message is displayed, or the 12-volt bat-

tery is disconnected

The hybrid system may not start. In this

case, try to start the system again. If the

“READY” indicator does not come on, con-

tact your Lexus dealer.

67

1-5. Theft deterrent system

1

For safety and security

1-5.Theft deterrent system

The indicator light flashes after the
power switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the power switch has been turned to
ACCESSORY or ON mode to indi-
cate that the system has been can-
celed.

■

System maintenance

The vehicle has a maintenance-free type

immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

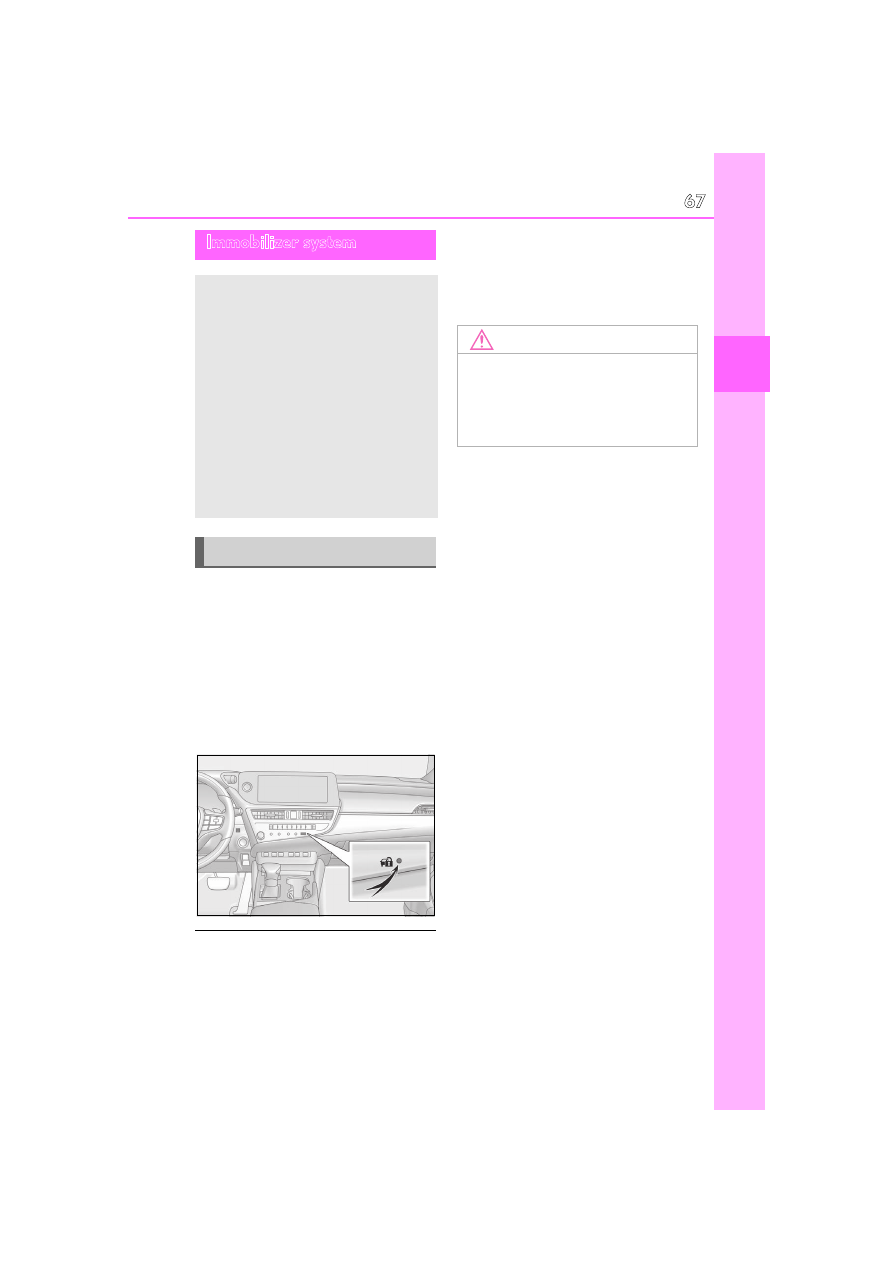

Immobilizer system

The vehicle’s keys have built-in
transponder chips that prevent the
hybrid system from starting if a key
has not been previously registered
in the vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not guar-
antee absolute security against all
vehicle thefts.

Operating the system

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

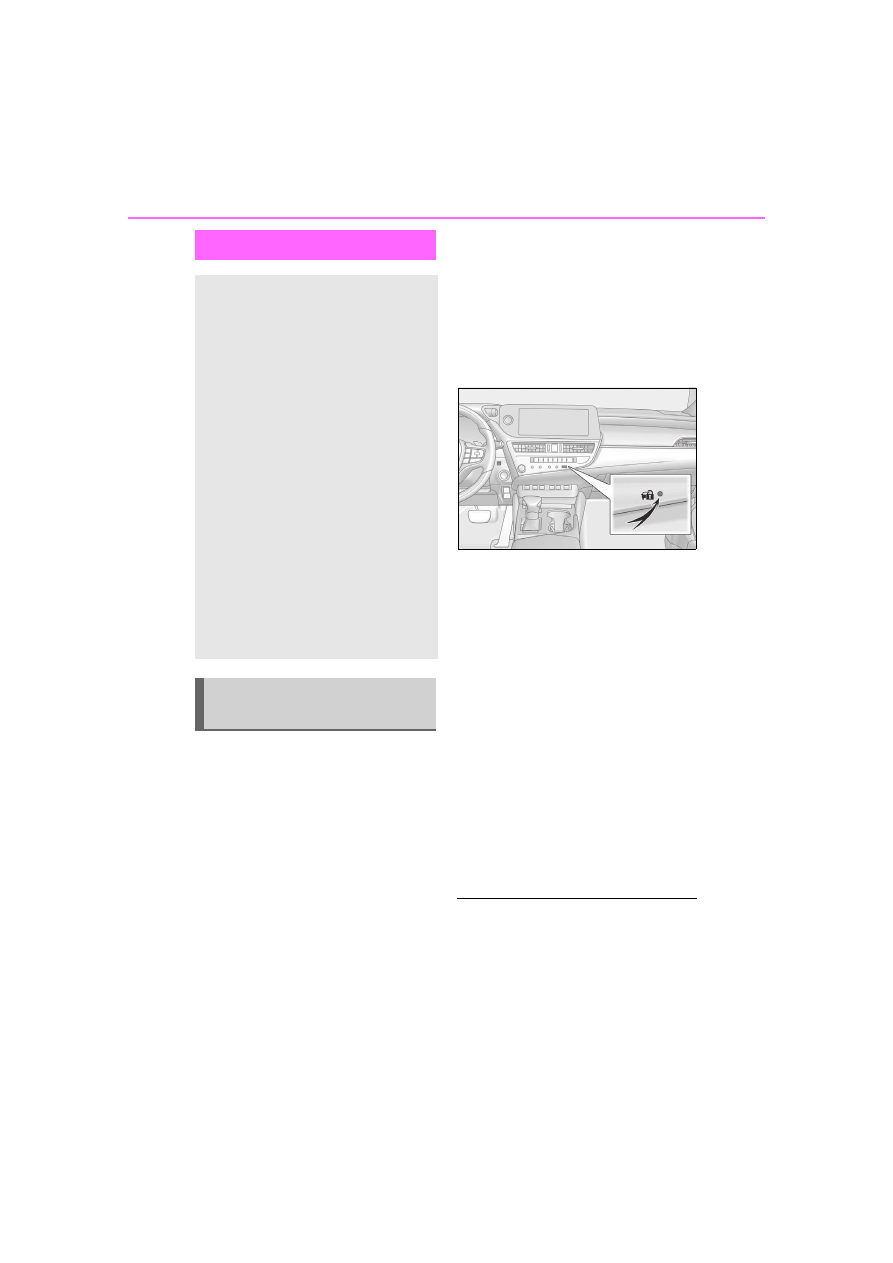

68

1-5. Theft deterrent system

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows and moon roof are
closed before the alarm is set.



No valuables or other personal
items are left in the vehicle.

■

Setting

Close the doors, trunk and hood, and
lock all the doors using the entry func-

tion or wireless remote control. The
system will be set automatically after
30 seconds.
Except for Canada, the alarm can also
be set using the mechanical key.

The indicator light changes from being on
to flashing when the system is set.

■

Canceling or stopping

Do one of the following to deactivate
or stop the alarm:



Except for Canada: Unlock the
doors using the entry function, wire-
less remote control or mechanical
key.



For Canada: Unlock the doors using
the entry function or wireless
remote control.



Turn the power switch to ACCES-
SORY or ON mode, or start the
hybrid system. (The alarm will be
deactivated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



A locked door is unlocked or
opened in any way other than
using the entry function, wireless
remote control or mechanical
key

*

. (The doors will lock again

automatically.)



A locked trunk is unlocked or
opened in any way other than
using the entry function or wire-
less remote control.



The hood is opened.

*

: Except  for  Canada

Setting/canceling/stopping the
alarm system

69

1-5. Theft deterrent system

1

For safety and security

●

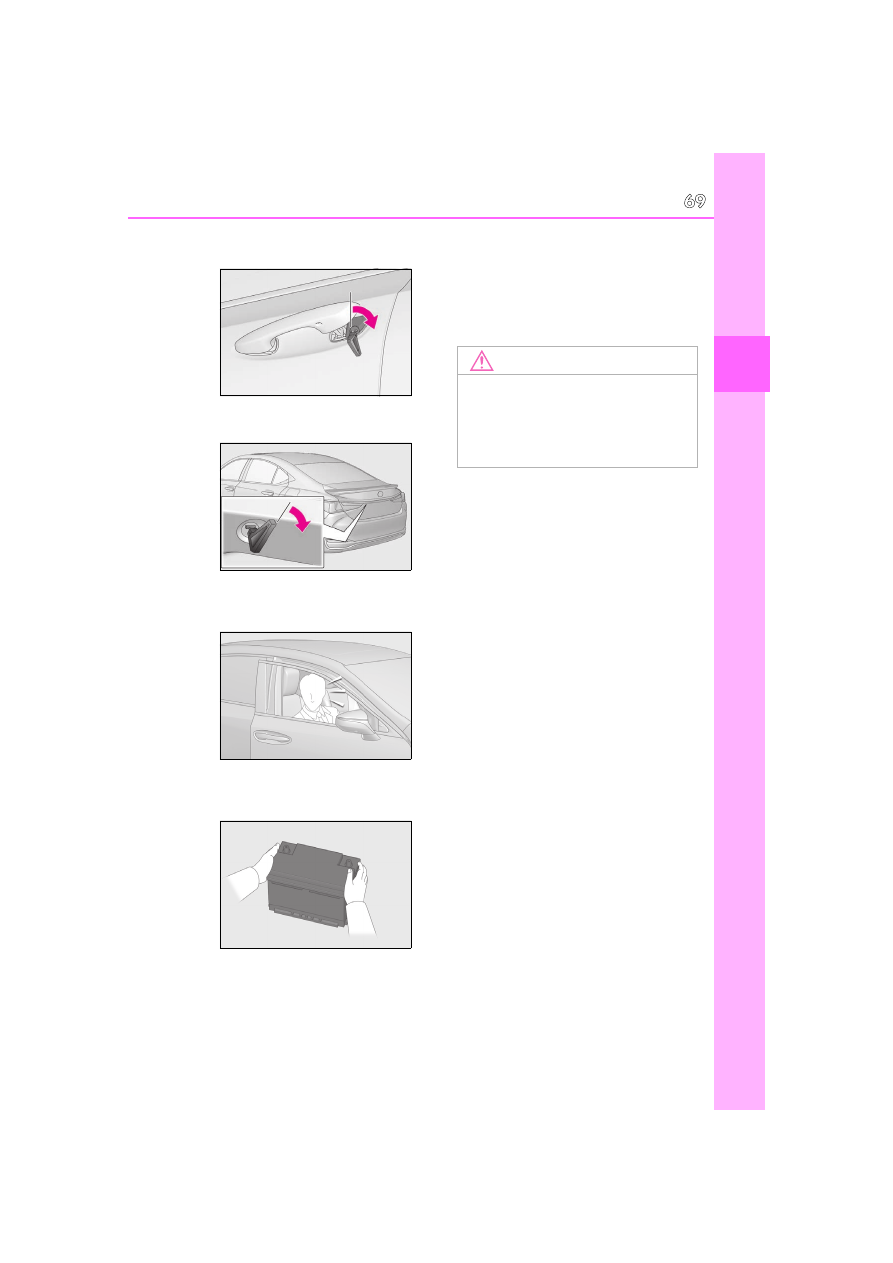

For Canada: The doors are unlocked

using the mechanical key.

●

The trunk is unlocked using the mechani-

cal key.

●

A person inside the vehicle opens a door,

the trunk or hood, or unlocks the vehicle

using a door lock switch.

●

The 12-volt battery is recharged or

replaced when the vehicle is locked.

(



P.389)

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

When recharging or replacing the 12-

volt battery

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

70

1-5. Theft deterrent system

71

2

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indicators..

72

Gauges and meters (except F

SPORT models) ........................

76

Gauges and meters (F SPORT

models)..........................................

80

Multi-information display..........

85

Head-up display ............................

91

Energy monitor/consumption

screen ............................................

95

72

2-1. Instrument cluster

2-1.Instrument cluster



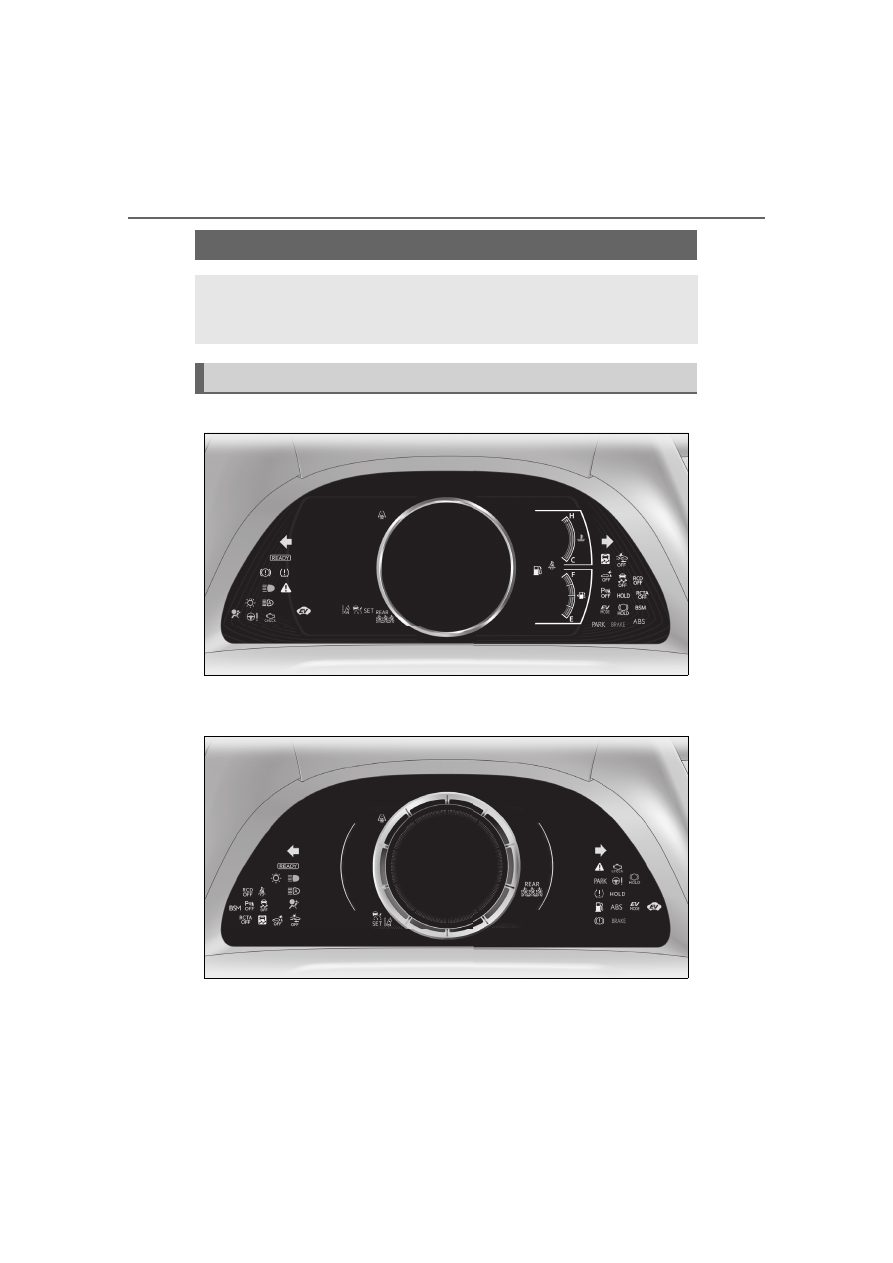

Except F SPORT models

The image may differ from the actual condition.



F SPORT models

The image may differ from the actual condition.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.

Warning lights and indicators displayed on the instrument cluster

73

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

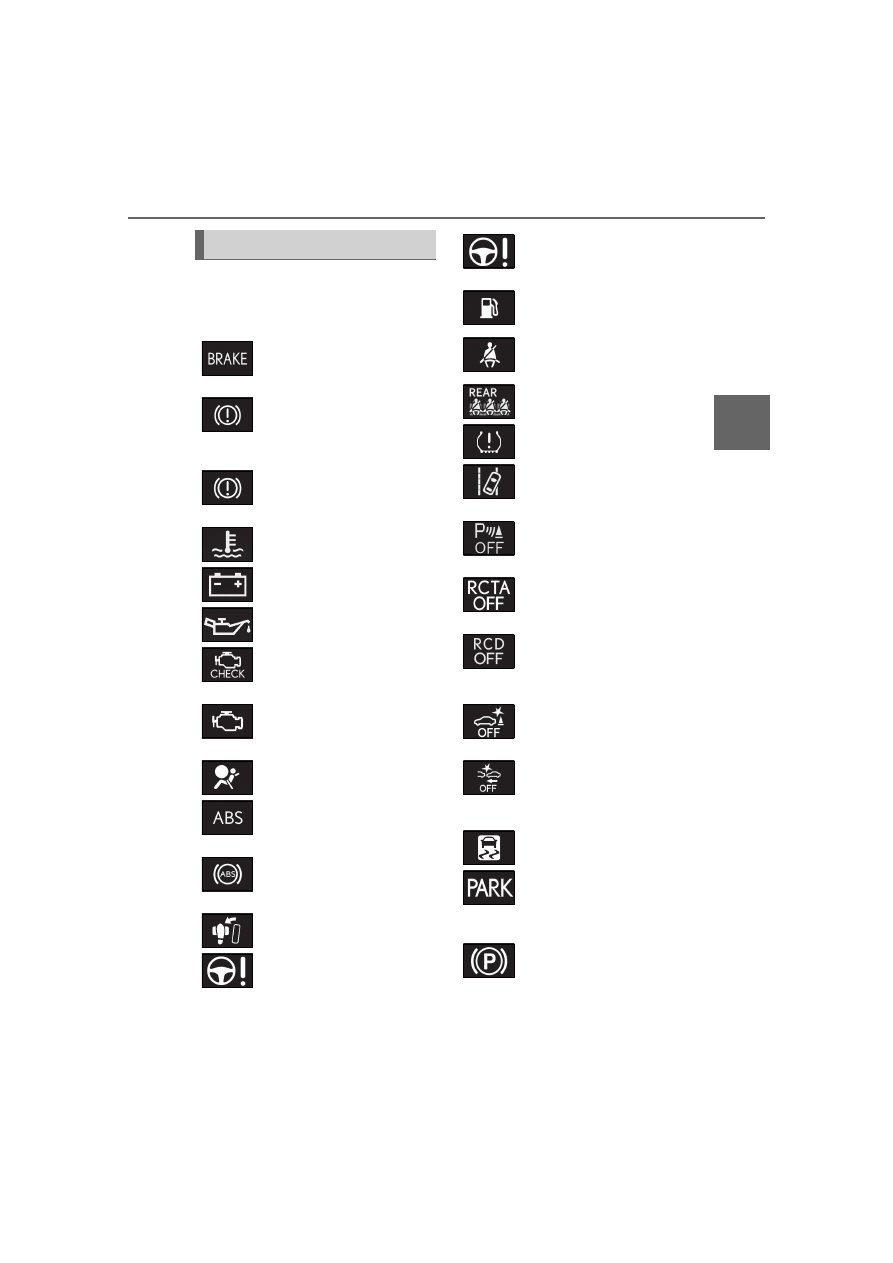

Warning lights inform the driver of
malfunctions in the indicated vehicle’s
systems.

Warning lights

(U.S.A.)

Brake system warning light

*1



(



P.360)

(red)

(Canada)

Brake system warning light

*1



(



P.360)

(yellow)

Brake system warning light

*1



(



P.360)

High coolant temperature
warning light

*2

 (



P.360)

Charging system warning
light

*2

 (



P.361)

Low engine oil pressure warn-
ing light

*2

 (



P.361)

(U.S.A.)

Malfunction indicator lamp

*1



(



P.361)

(Canada)

Malfunction indicator lamp

*1



(



P.361)

SRS warning light

*1

 (



P.361)

(U.S.A.)

ABS warning light

*1

 (



P.362)

(Canada)

ABS warning light

*1

 (



P.362)

Inappropriate pedal operation
warning light

*2

 (



P.362)

(red)

Electric power steering system
warning light

*1

 (



P.362)

(yellow)

Electric power steering system
warning light

*1

 (



P.362)

Low fuel level warning light
(



P.363)

Driver’s and front passenger’s
seat belt reminder light
(



P.363)

Rear passengers’ seat belt
reminder lights

*2

 (



P.363)

Tire pressure warning light

*1



(



P.364)

(orange)

LTA indicator

*2

 (



P.364)

(flashes)

Intuitive parking assist OFF indi-
cator

*1

 (if equipped) (



P.364)

(flashes)

RCTA OFF indicator

*1



(



P.365)

(flashes or

illuminates)

RCD OFF indicator (if
equipped) (



P.365)

(flashes)

PKSB OFF indicator

*1

 (if

equipped) (



P.365)

(flashes or

illuminates)

PCS warning light

*1

 (



P.366)

Slip indicator

*1

 (



P.366)

(flashes)

(U.S.A.)

Parking brake indicator
(



P.366)

(flashes)

(Canada)

Parking brake indicator
(



P.366)

74

2-1. Instrument cluster

*1

: These lights come on when the power

switch is turned to ON mode to indi-
cate that a system check is being per-
formed. They will turn off after the
hybrid system is on, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: This light illuminates on the multi-infor-

mation display.

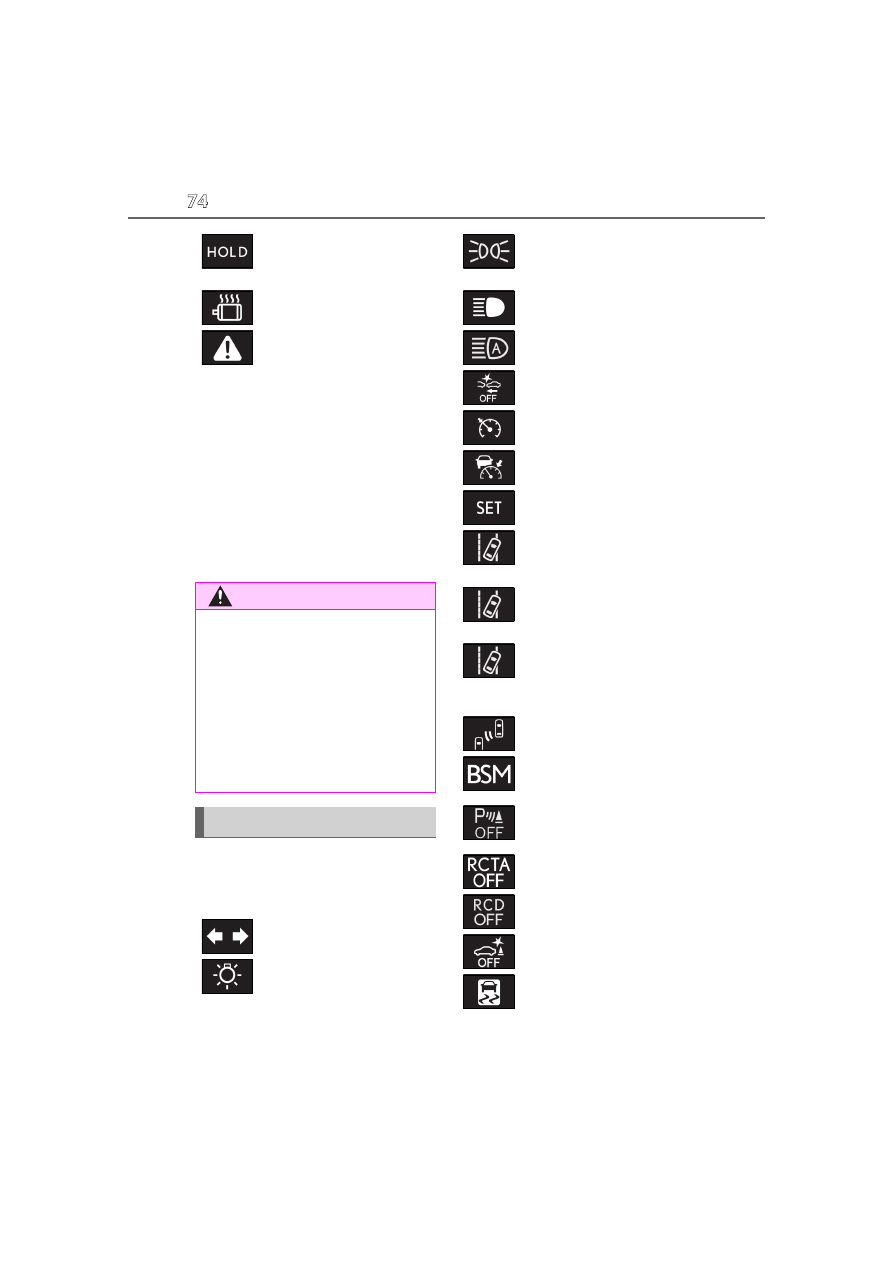

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

(flashes)

Brake hold operated indica-
tor

*1

 (



P.367)

Hybrid system overheat warn-
ing light

*2

(



P.367)

Master warning light

*1



(



P.367)

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the hybrid system, this

could mean that these systems are not

available to help protect you in an acci-

dent, which could result in death or seri-

ous injury. Have the vehicle inspected by

your Lexus dealer immediately if this

occurs.

Indicators

Turn signal indicator (



P.158)

(U.S.A.)

Headlight indicator (



P.163)

(Canada)

Tail light indicator (



P.163)

Headlight high beam indicator
(



P.165)

Automatic High Beam indicator
(



P.166)

PCS warning light

*1, 2

 (



P.181)

Cruise control indicator

*3



(



P.203)

Dynamic radar cruise control
indicator

*3

 (



P.203)

Cruise control “SET” indica-
tor

*3

 (



P.203)

(white)

LTA indicator

*3

 (



P.196)

(green)

LTA indicator

*3

 (



P.181, 196)

(orange)

(flashes)

LTA indicator

*3

 (



P.196)

BSM outside rear view mirror
indicators

*1, 4

 (



P.213, 229)

BSM indicator (



P.213)

Intuitive parking assist OFF indi-
cator

*1, 2

 (if equipped)

(



P.222)

RCTA OFF indicator

*1, 2



(



P.230)

RCD OFF indicator

*2

 (if

equipped) (



P.235)

PKSB OFF indicator

*1, 2

 (if

equipped) (



P.240)

(flashes)

Slip indicator

*1

 (



P.253)

75

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators



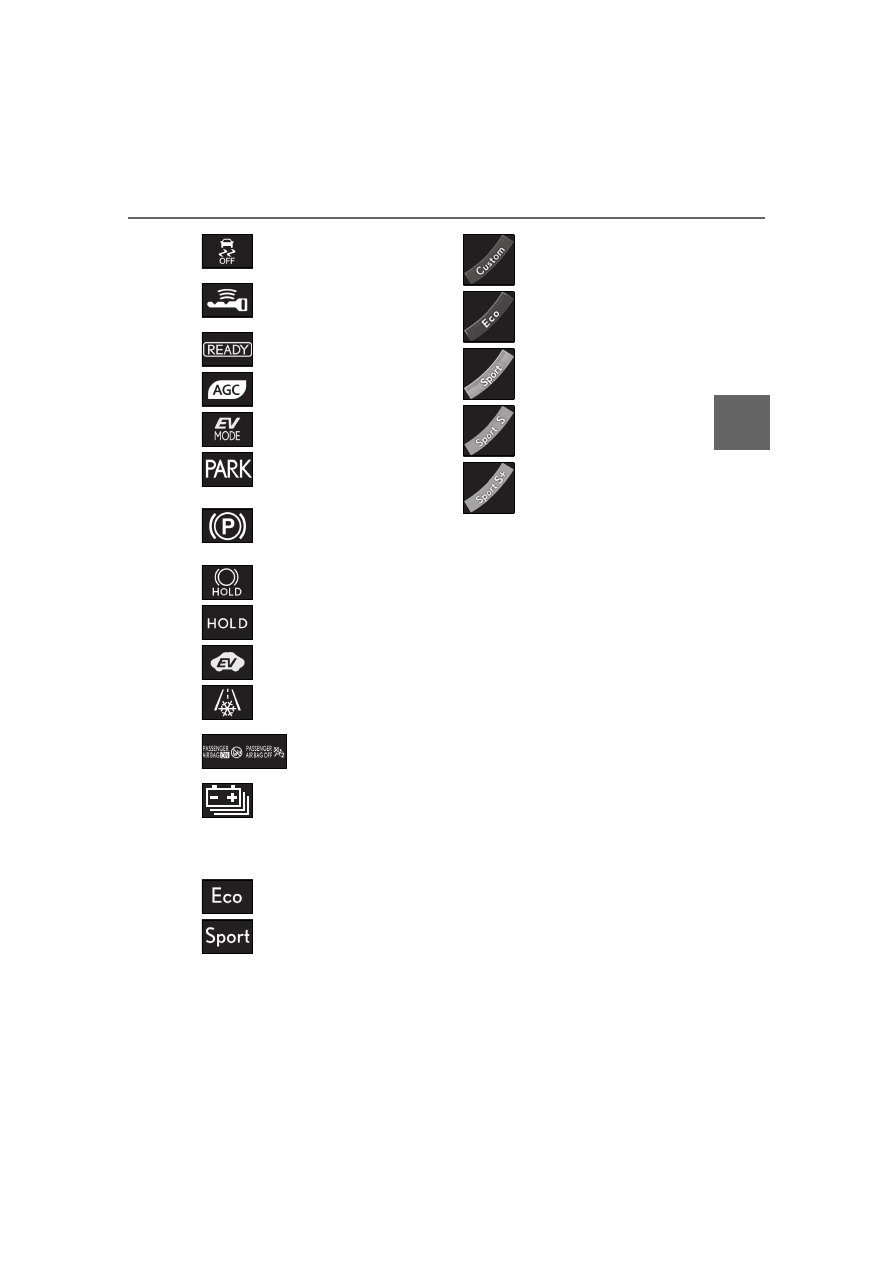

Drive mode indicators



Except F SPORT models



F SPORT models

*1

: These lights come on when the power

switch is turned to ON mode to indi-
cate that a system check is being per-
formed. They will turn off after the
hybrid system is on, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: This light comes on when the system is

turned off.

*3

: This light illuminates on the multi-infor-

mation display.

*4

: This light illuminates on the outside rear

view mirrors.

*5

: Except F SPORT models: This light illu-

minates on the multi-information dis-
play.

*6

: When the outside temperature is

approximately 37°F (3°C) or lower,
this indicator will flash for approxi-
mately 10 seconds, then stay on.

*7

: This light illuminates on the center

panel.

VSC OFF indicator

*1, 2



(



P.253)

Smart access system with push-
button start indicator

*3



(



P.148)

“READY” indicator (



P.148)

AGC indicator

*3

 (



P.219)

EV drive mode indicator
(



P.153)

(U.S.A.)

Parking brake indicator
(



P.159)

(Canada)

Parking brake indicator
(



P.159)

Brake hold standby indicator

*1



(



P.161)

Brake hold operated indica-
tor

*1

 (



P.161)

EV indicator

*5

 (



P.60)

Low outside temperature indi-
cator

*3, 6

 (



P.76, 80)

“PASSENGER AIR
BAG” indicator lights

*1, 7



(



P.37)

Traction battery status indica-
tor (if equipped)

*3

 (



P.95)

Eco drive mode indicator
(



P.218)

Sport mode indicator (



P.218)

Custom mode indicator (if
equipped) (



P.218)

Eco drive mode indicator
(



P.218)

Sport mode indicator (if
equipped) (



P.218)

Sport S mode indicator (if
equipped) (



P.218)

Sport S+ mode indicator (if
equipped) (



P.218)

76

2-1. Instrument cluster

■

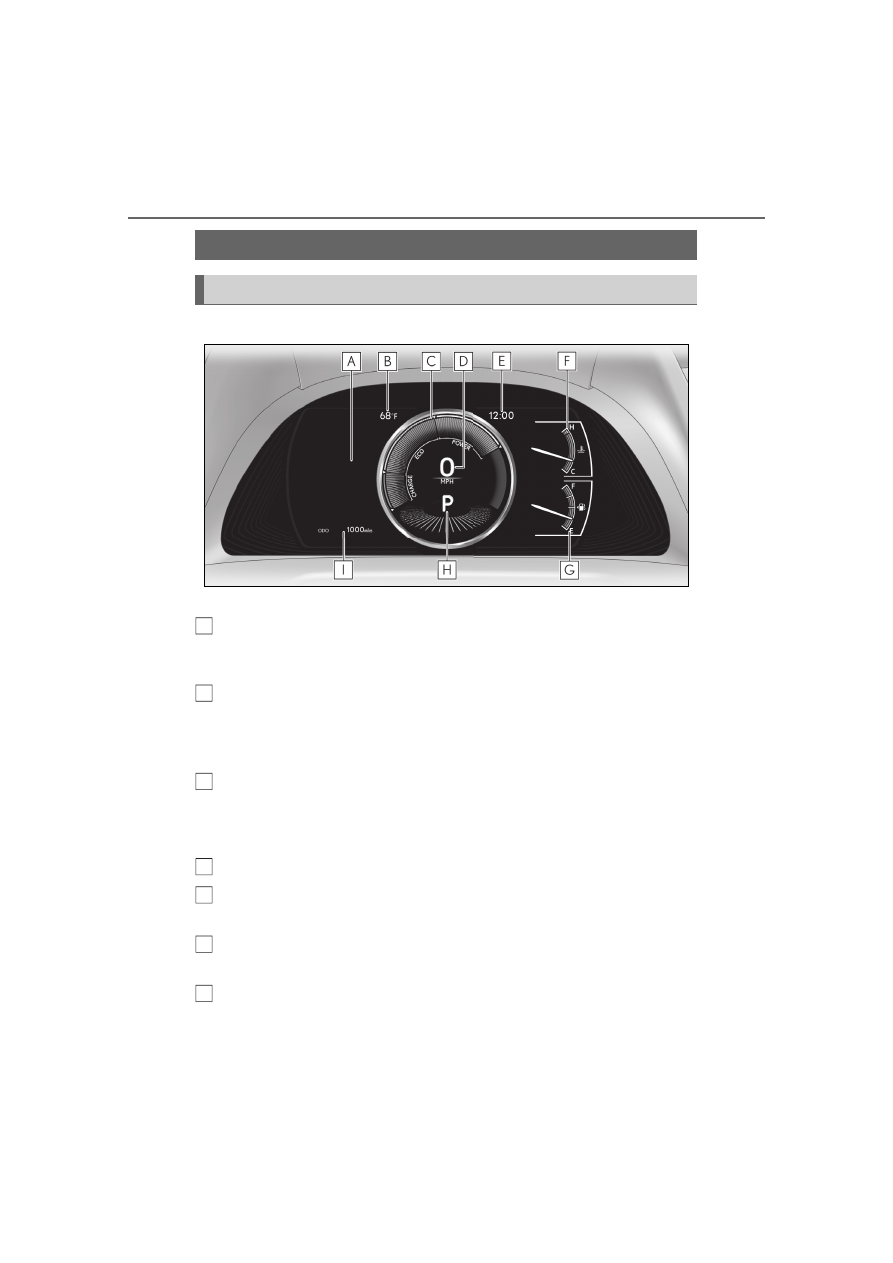

Locations of gauges and meters

The units of measure may differ depending on the intended destination of the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (



P.85)

Displays warning messages if a malfunction occurs (



P.370)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F
(3°C) or lower

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P.77)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (



P.89, 218)

Speedometer

Clock

Time displayed is linked to the analog clock on the center panel. (



P.283)

Engine coolant temperature gauge

Displays the engine coolant temperature

Fuel gauge

Displays the quantity of fuel remaining in the tank

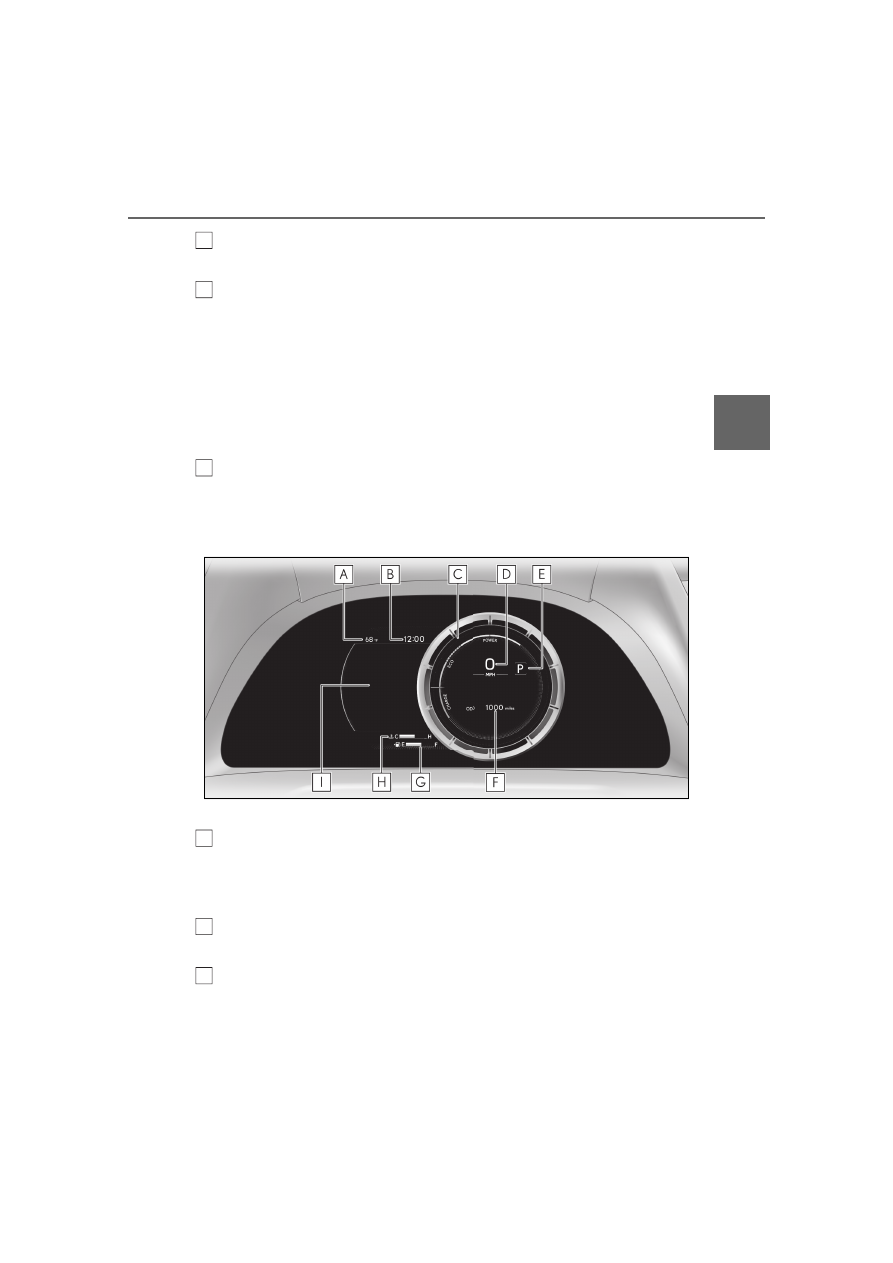

Gauges and meters (except F SPORT models)

Meter display

A

B

C

D

E

F

G

77

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.77 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Shift position and shift range (



P.154)

Odometer and trip meter display (



P.78)

■

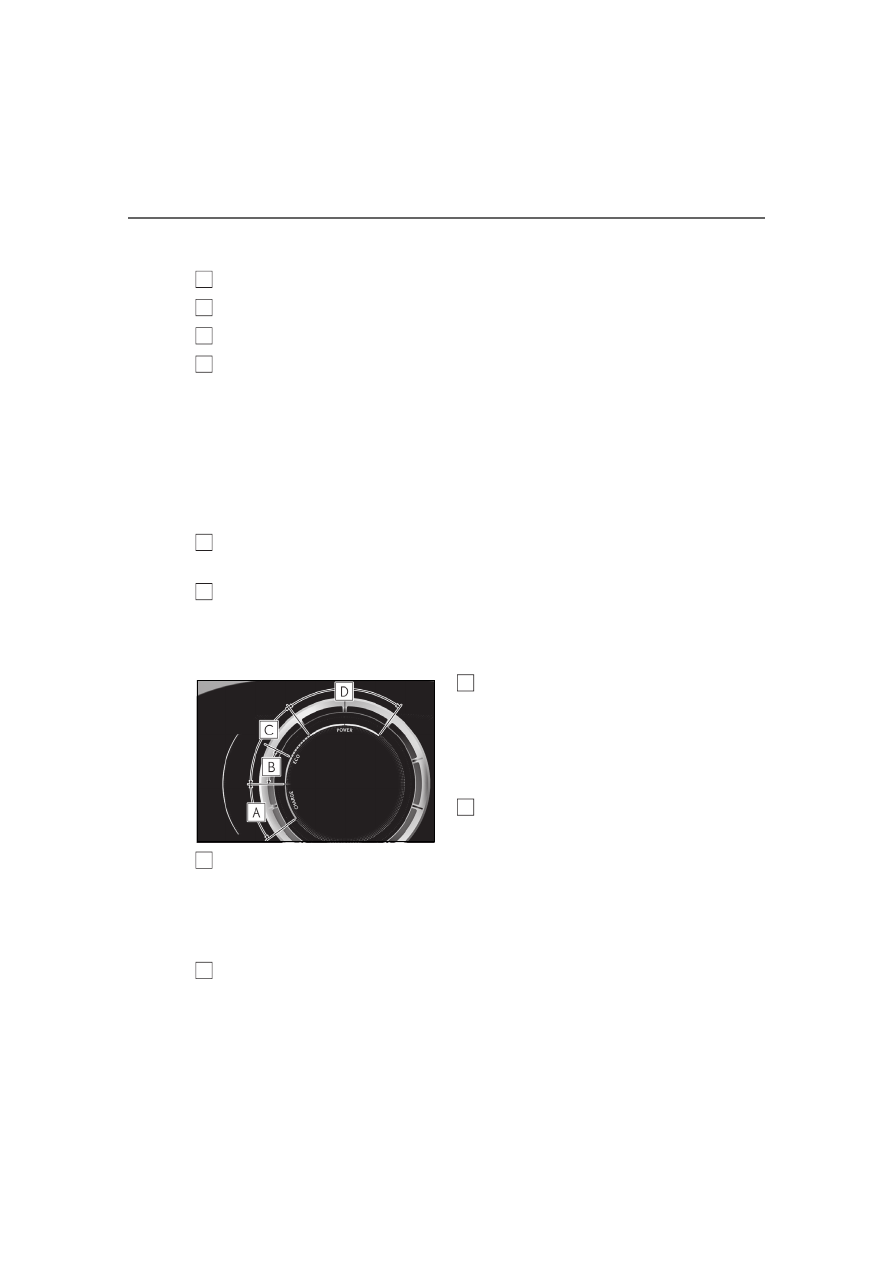

Hybrid System Indicator

Charge area

Shows regeneration

*

 status.

Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)

*

: When used in this manual, regeneration

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

■

Engine speed

On Hybrid Electric Vehicles, engine speed

is precisely controlled in order to help

improve fuel efficiency and reduce exhaust

emissions etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

■

Hybrid System Indicator is displayed

when

The Hybrid System Indicator is displayed in

the following situations:

●

The shift lever is in D or S.

●

The hybrid system is started.

■

Manually updating the fuel gauge and

possible driving range

The fuel gauge and the possible driving

range are linked. If the displays of the fuel

gauge and possible driving range do not

update after adding a small amount of fuel,

the displays can be updated by performing

the following procedure.

1

Stop the vehicle on a level surface.

2

Press the “ODO TRIP” switch to

change the odometer and trip meter

display to odometer.

3

Turn the power switch off.

4

While pressing and holding the “ODO

TRIP” switch, turn the power switch to

ON mode.

H

I

A

B

C

D

78

2-1. Instrument cluster

5

Continue to hold the “ODO TRIP”

switch for approximately 5 seconds,

and then release it once the odometer

begins flashing.

Updating is complete once the odometer

flashes for approximately 5 seconds and

then the display returns to normal.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Liquid crystal display



P.86

■

Customization

The gauges and meters can be customized
on

 of the multi-information display.

(



P.89)

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.391)

Odometer and trip meter dis-
play

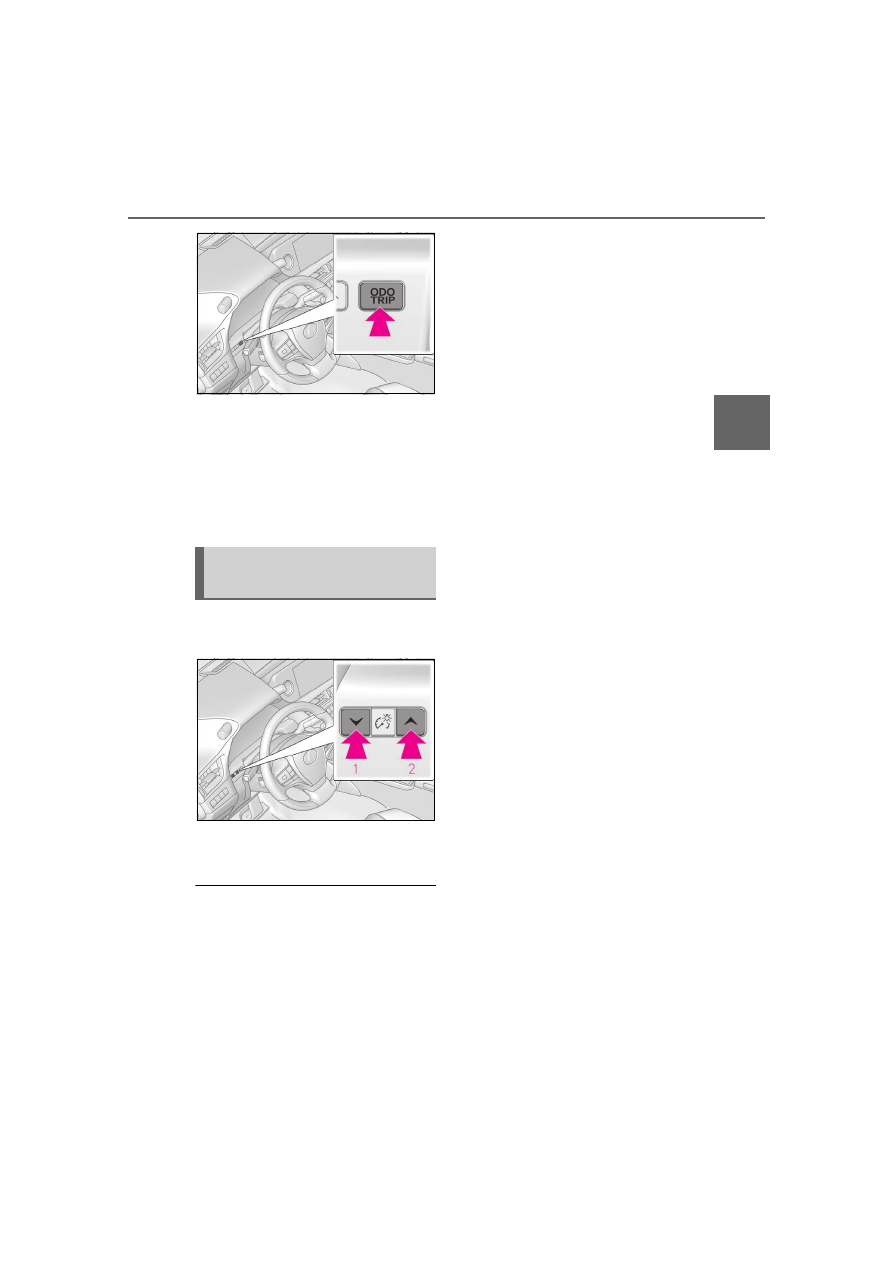

79

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

■

Pop-up display

Distance until the next engine oil
change will be displayed when a warn-
ing message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

1

Darker

2

Brighter

■

Brightness of the meter lights (day mode

and night mode)

The brightness of the meter lights can be

adjusted individually.
In the following situations, the meters

changes between day mode and night

mode.

●

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

Changing the instrument panel
light brightness

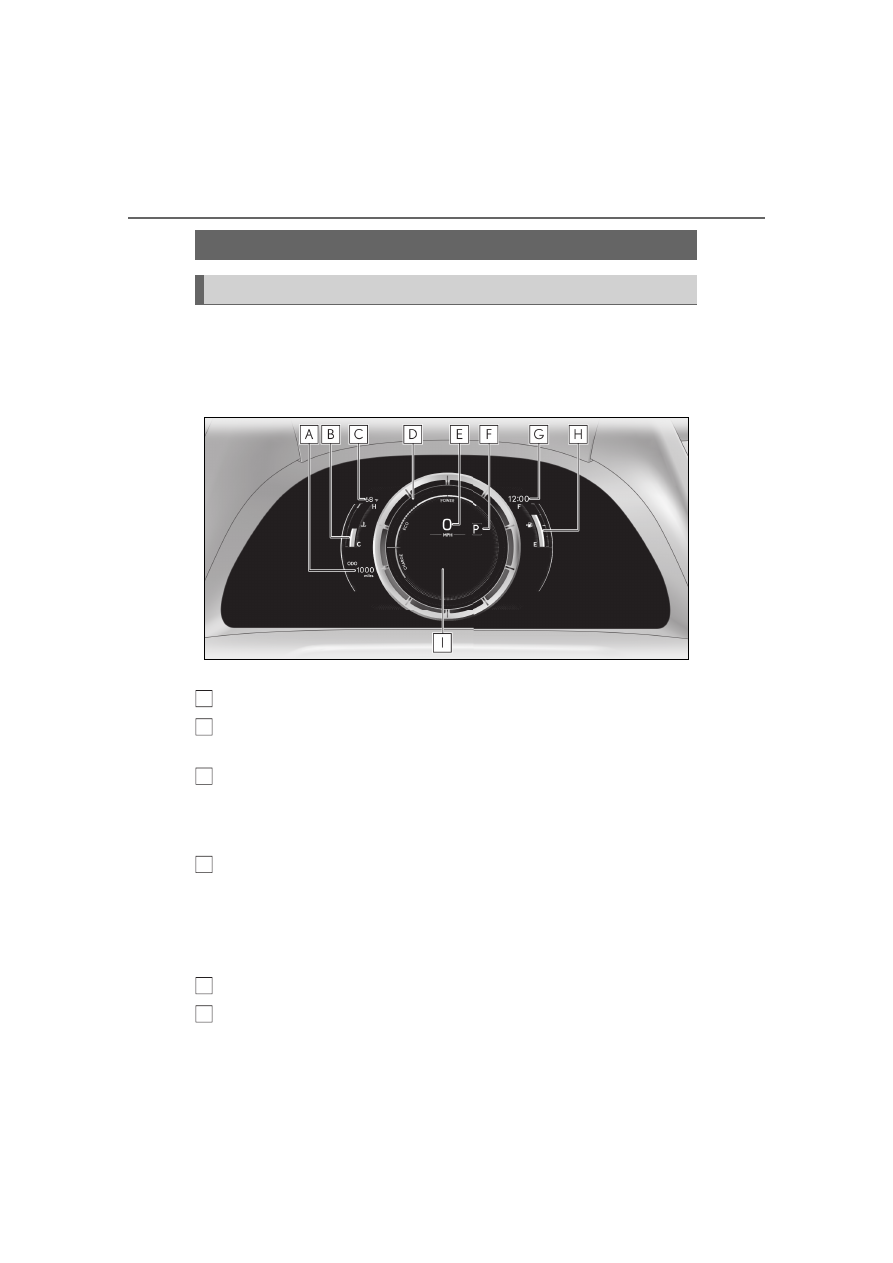

80

2-1. Instrument cluster

■

Locations of gauges and meters

When the main meter is moved to the right, some of the meter displays and the
gauge layout will change. (



P.85)



Main meter in center position

The units of measure may differ depending on the intended destination of the vehicle.

Odometer and trip meter display (



P.84)

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F
(3°C) or lower

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P.82)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (



P.89, 218)

• Rev indicator (



P.82)

• Rev  peak  (



P.83)

Speedometer

Shift position and shift range (



P.154)

Gauges and meters (F SPORT models)

Meter display

A
B

C

D

E
F

81

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Clock

Time displayed is linked to the analog clock on the center panel. (



P.283)

Fuel gauge

Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.83 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Multi-information display

Presents the driver with a variety of vehicle data (



P.85)

Displays warning messages if a malfunction occurs (



P.370)



Main meter moved to the right

The units of measure may differ depending on the intended destination of the vehicle.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F
(3°C) or lower

Clock

Time displayed is linked to the analog clock on the center panel. (



P.283)

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P.82)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (



P.89, 218)

G

H

I

A

B

C

82

2-1. Instrument cluster

• Rev indicator (



P.82)

• Rev  peak  (



P.83)

Speedometer

Shift position and shift range (



P.154)

Odometer and trip meter display (



P.84)

Fuel gauge

Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.83 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “F”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Engine coolant temperature gauge

Displays the engine coolant temperature

Multi-information display

Presents the driver with a variety of vehicle data (



P.85)

Displays warning messages if a malfunction occurs (



P.370)

■

Hybrid System Indicator

Charge area

Shows regeneration

*

 status.

Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop

and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)

*

: When used in this manual, regeneration

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

■

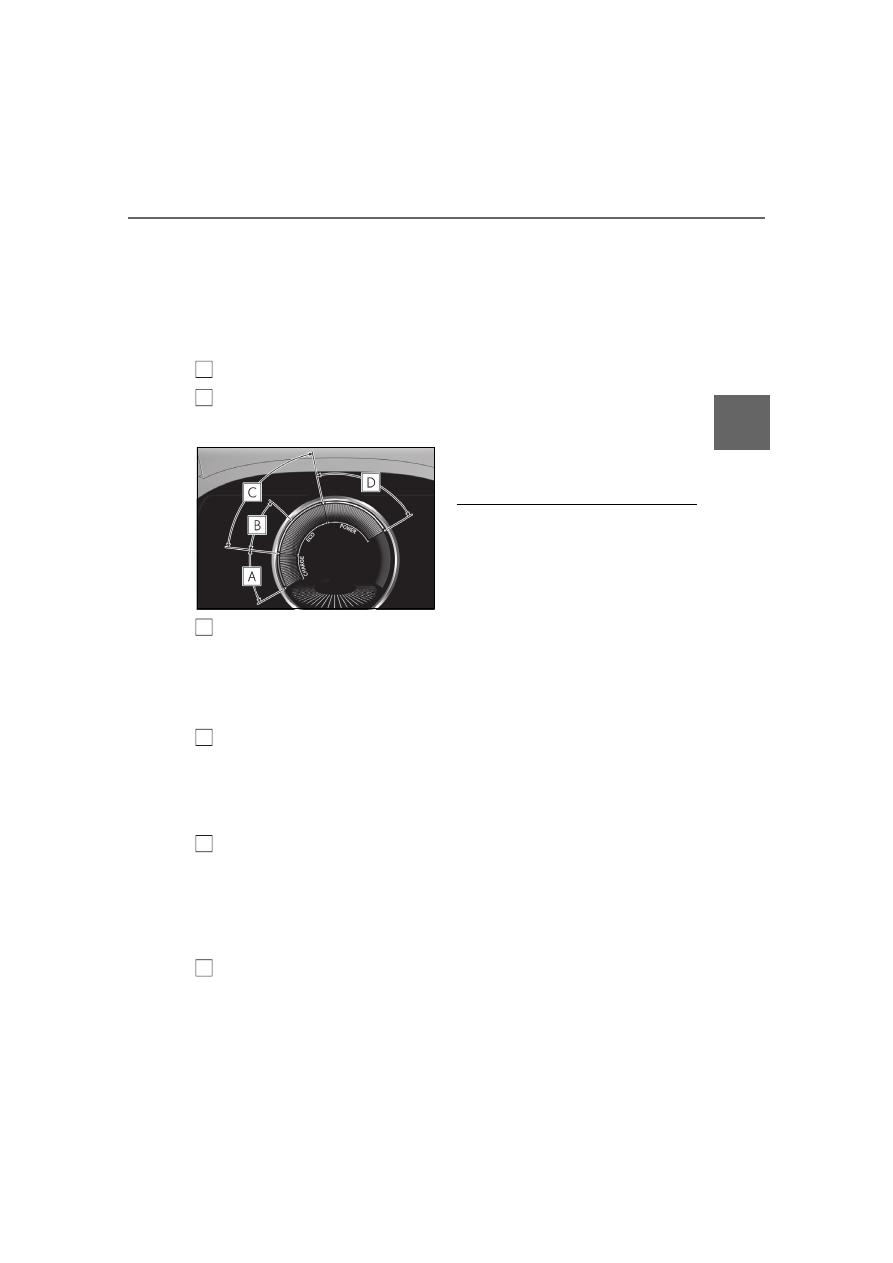

Rev indicator

When the engine speed reaches a set
speed or the red zone, a ring-shaped

D

E
F

G

H

I

A

B

C

D

83

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

indicator (

) will be displayed on the

tachometer.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on

 of the multi-information display.

(



P.89)

■

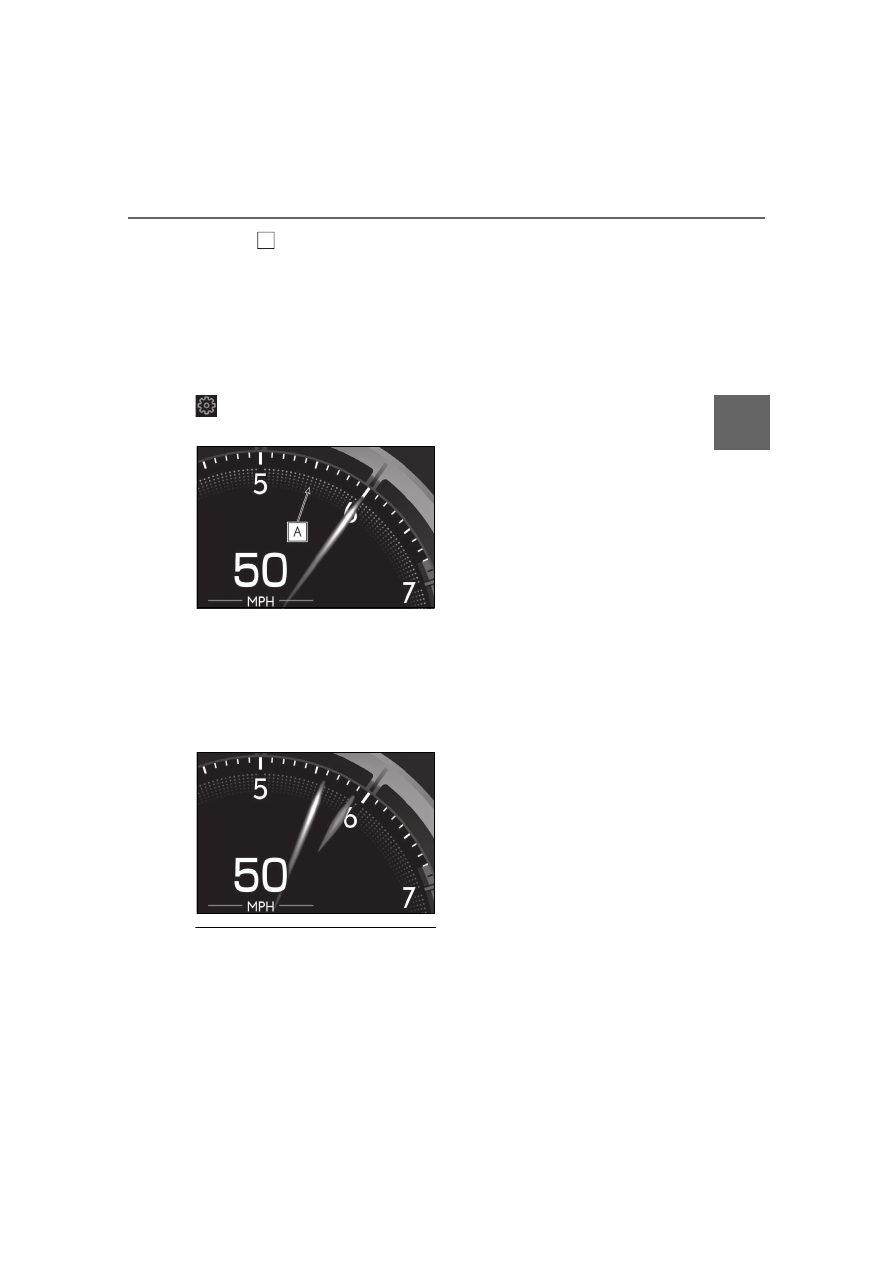

Rev peak

When the engine speed reaches or
exceeds 4000 r/min, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

■

Engine speed

On Hybrid Electric Vehicles, engine speed

is precisely controlled in order to help

improve fuel efficiency and reduce exhaust

emissions etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

■

Hybrid System Indicator is displayed

when

The Hybrid System Indicator is displayed in

the following situations:

●

The shift lever is in D or S.

●

The hybrid system is started.

■

Manually updating the fuel gauge and

possible driving range

The fuel gauge and the possible driving

range are linked. If the displays of the fuel

gauge and possible driving range do not

update after adding a small amount of fuel,

the displays can be updated by performing

the following procedure.

1

Stop the vehicle on a level surface.

2

Press the “ODO TRIP” switch to

change the odometer and trip meter

display to odometer.

3

Turn the power switch off.

4

While pressing and holding the “ODO

TRIP” switch, turn the power switch to

ON mode.

5

Continue to hold the “ODO TRIP”

switch for approximately 5 seconds,

and then release it once the odometer

begins flashing.

Updating is complete once the odometer

flashes for approximately 5 seconds and

then the display returns to normal.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Liquid crystal display



P.86

A

84

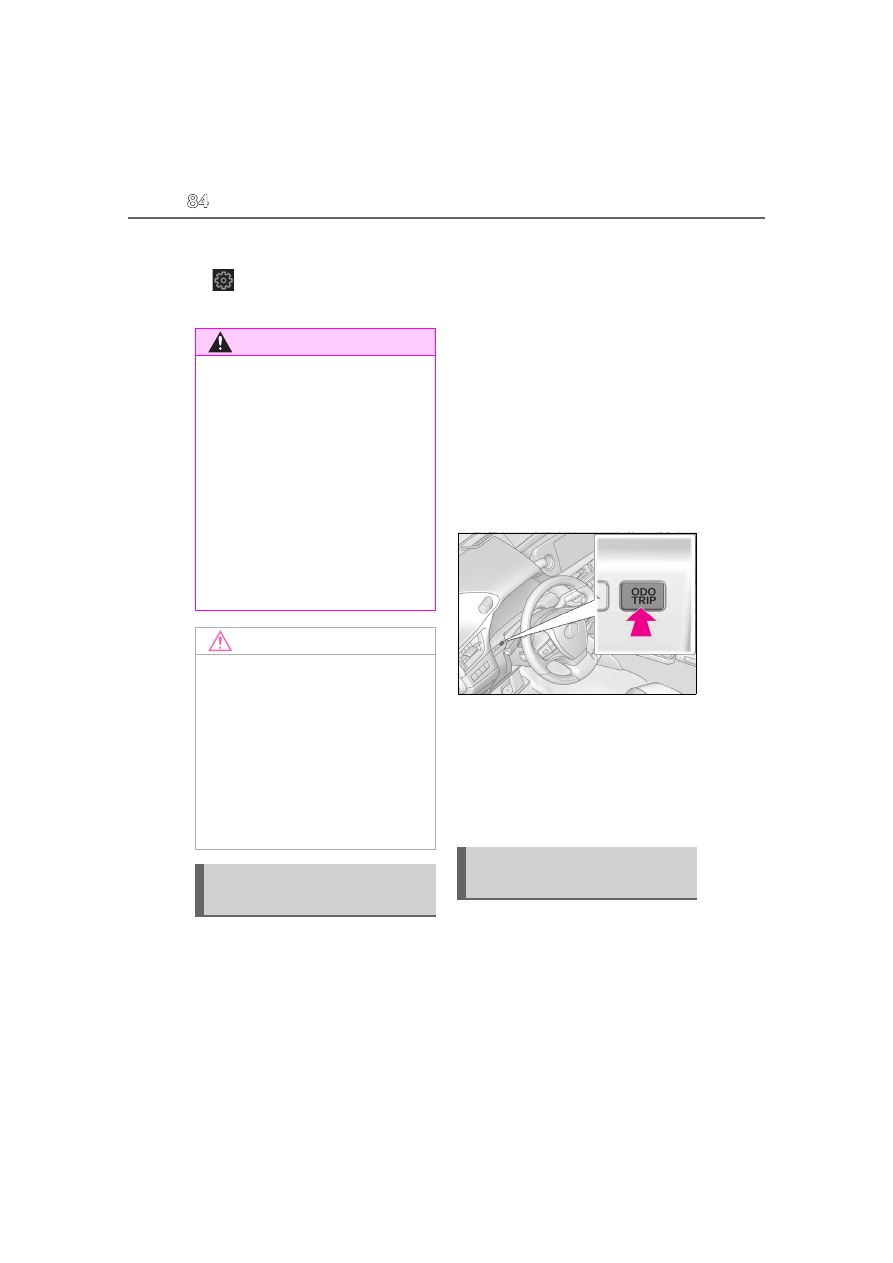

2-1. Instrument cluster

■

Customization

The gauges and meters can be customized
on

 of the multi-information display.

(



P.89)

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Pop-up display

Distance until the next engine oil
change will be displayed when a warn-
ing message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.391)

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

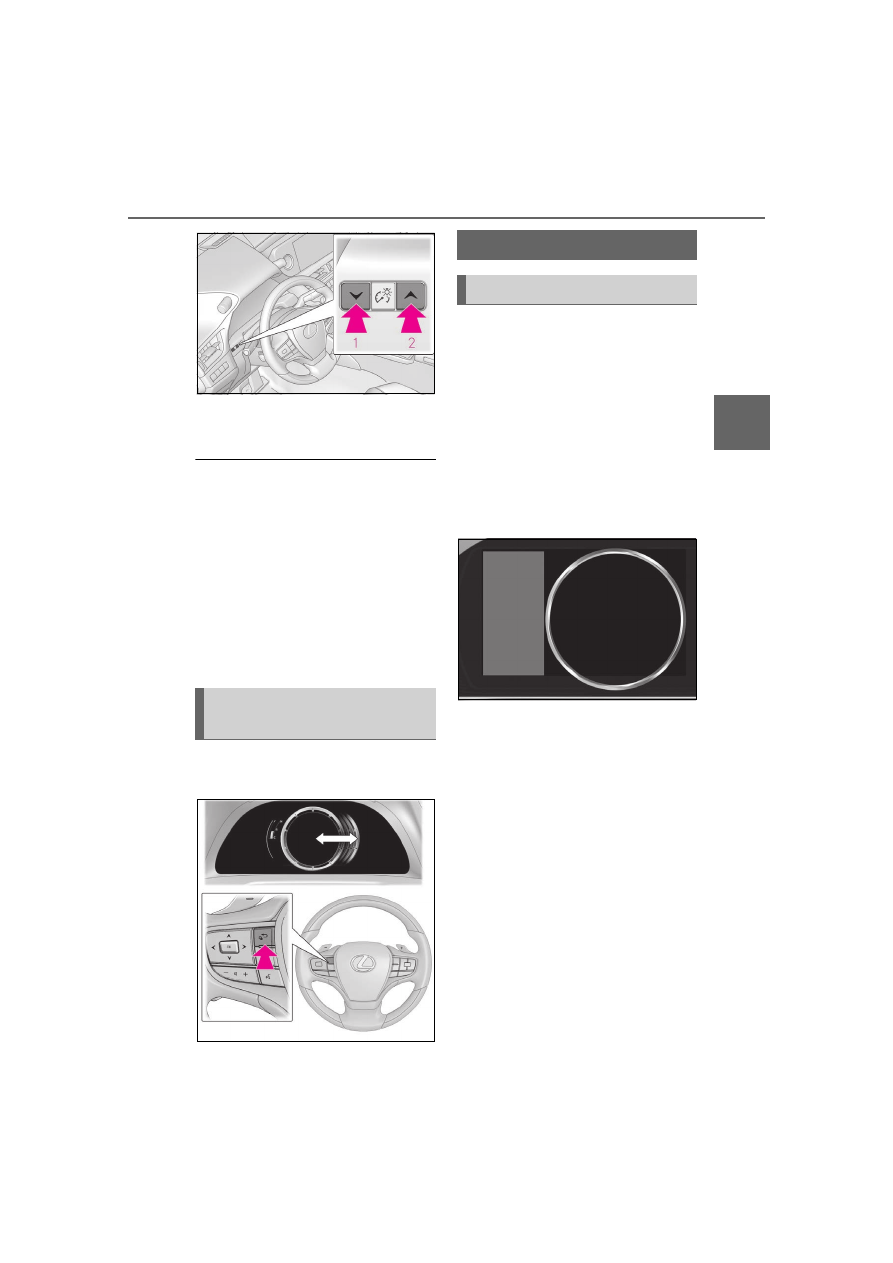

85

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

1

Darker

2

Brighter

■

Brightness of the meter lights (day mode

and night mode)

The brightness of the meter lights can be

adjusted individually.
In the following situations, the meters

changes between day mode and night

mode.

●

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

The display can be switched between
the center and side positions.

■

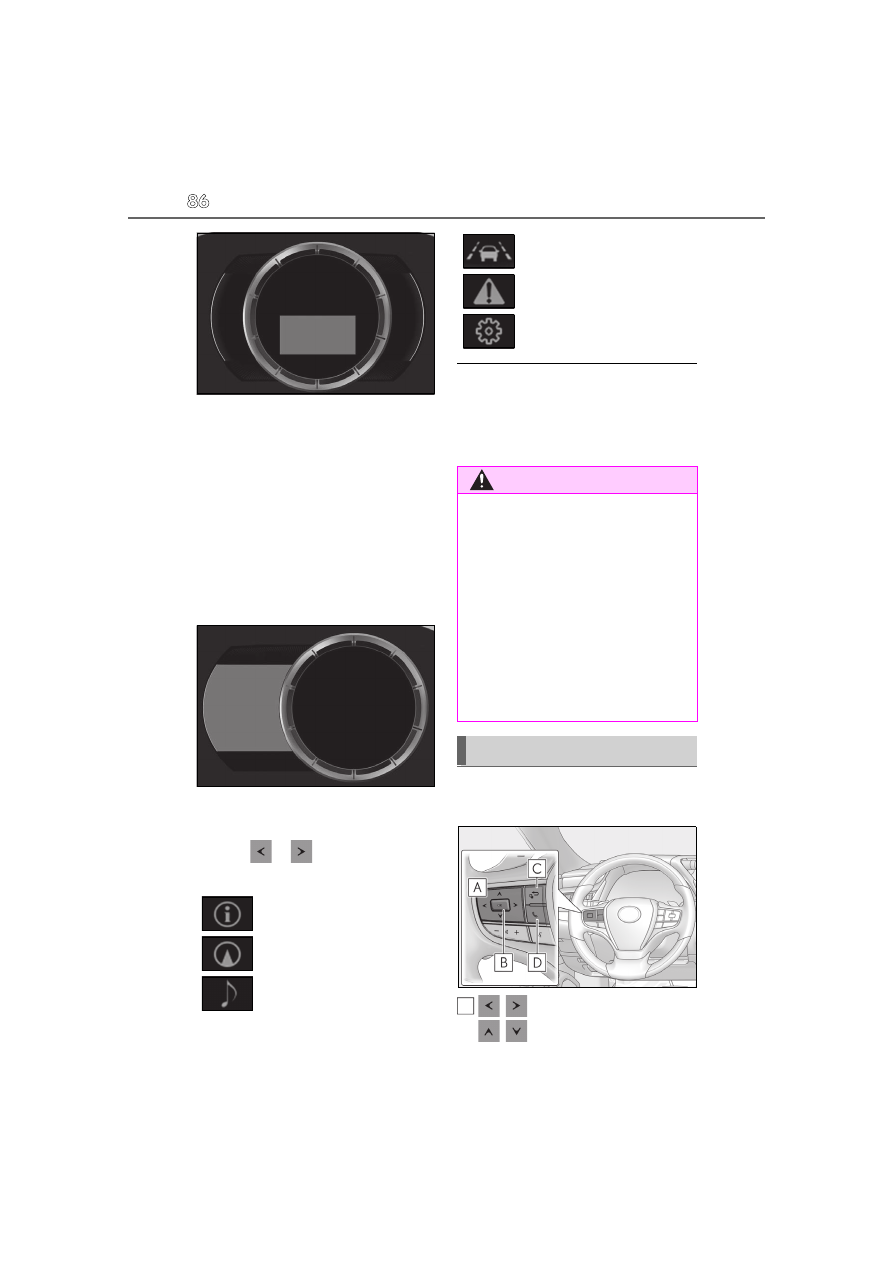

Display (except F SPORT models)

By selecting menu icons on the multi-
information display, a variety of driv-
ing-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

■

Display (F SPORT models)



Main meter in center position

The multi-information display presents
the driver with a variety of driving-
related information.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

Changing the main meter loca-
tion

Multi-information display

Display and menu icons

86

2-1. Instrument cluster



Main meter moved to the right

By selecting menu icons on the multi-
information display, a variety of driv-
ing-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

■

Menu icons

The menu icons will be displayed by
pressing

 or

 of the meter con-

trol switches.

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

The multi-information display is oper-
ated using the meter control switches.

/

: Select menu icons

/

: Change displayed con-

Driving information display
(



P.87)

Navigation system-linked dis-
play (if equipped) (



P.89)

Audio system-linked display
(



P.89)

Driving support system infor-
mation display (



P.89)

Warning message display
(



P.370)

Settings display (



P.89)

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around

the vehicle.

●

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

■

The information display at low tem-

peratures



P.78, 84

Changing the meter display

A

87

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

tent, scroll up/down the screen and
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Move the main meter

*

 and return

to the previous screen

Call sending/receiving and history
display
Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S
MANUAL”.

*

: F  SPORT  models

■

Display items (except F SPORT
models)

Press

 or

 of the meter control

switches and select

. Then press

 or

 to display the following

items:



Drive information 1



Drive information 2



Energy monitor (



P.95)



Tire pressure (



P.329)



Display off

■

Display items (F SPORT models)



Main meter in center position

Press

 or

 of the meter control

switches to display the following items:



Drive information 1



Drive information 2



Tire pressure (



P.329)



Units



Display off



Main meter moved to the right

Press

 or

 of the meter control

switches and select

. Then press

 or

 to display the following

items:



Drive information 1



Drive information 2



Energy monitor (



P.95)



G-force



Tire pressure (



P.329)



Display off

■

Drive information 1/Drive informa-
tion 2

Displays drive information such as the
following:

Use the displayed values as a reference
only.



Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)

Displayed items (listed below) can be
changed on

. (



P.89)



Current fuel consumption

Bar type: Displays instantaneous current
fuel consumption



Average fuel economy

Content of driving information

B

C

D

88

2-1. Instrument cluster

After reset: Displays average fuel con-
sumption since the display was reset

*1

After start: Displays average fuel con-
sumption since hybrid system start
After refuel: Displays average fuel con-
sumption since refuel



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

*1

After start: Displays average vehicle speed
since hybrid system start



Elapsed time

After reset: Displays elapsed time since the
display was reset

*1

After start: Displays elapsed time since
hybrid system start



Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven
since hybrid system start



Other

Blank: No item

*1

: To reset, display the desired item and

press and hold “OK” of the meter con-
trol switches.

*2

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

*3

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the power switch
off. If the vehicle is refueled without
turning the power switch off, the display
may not be updated.

■

G-force (F SPORT models)

Displays lateral G-forces on the vehi-
cle.

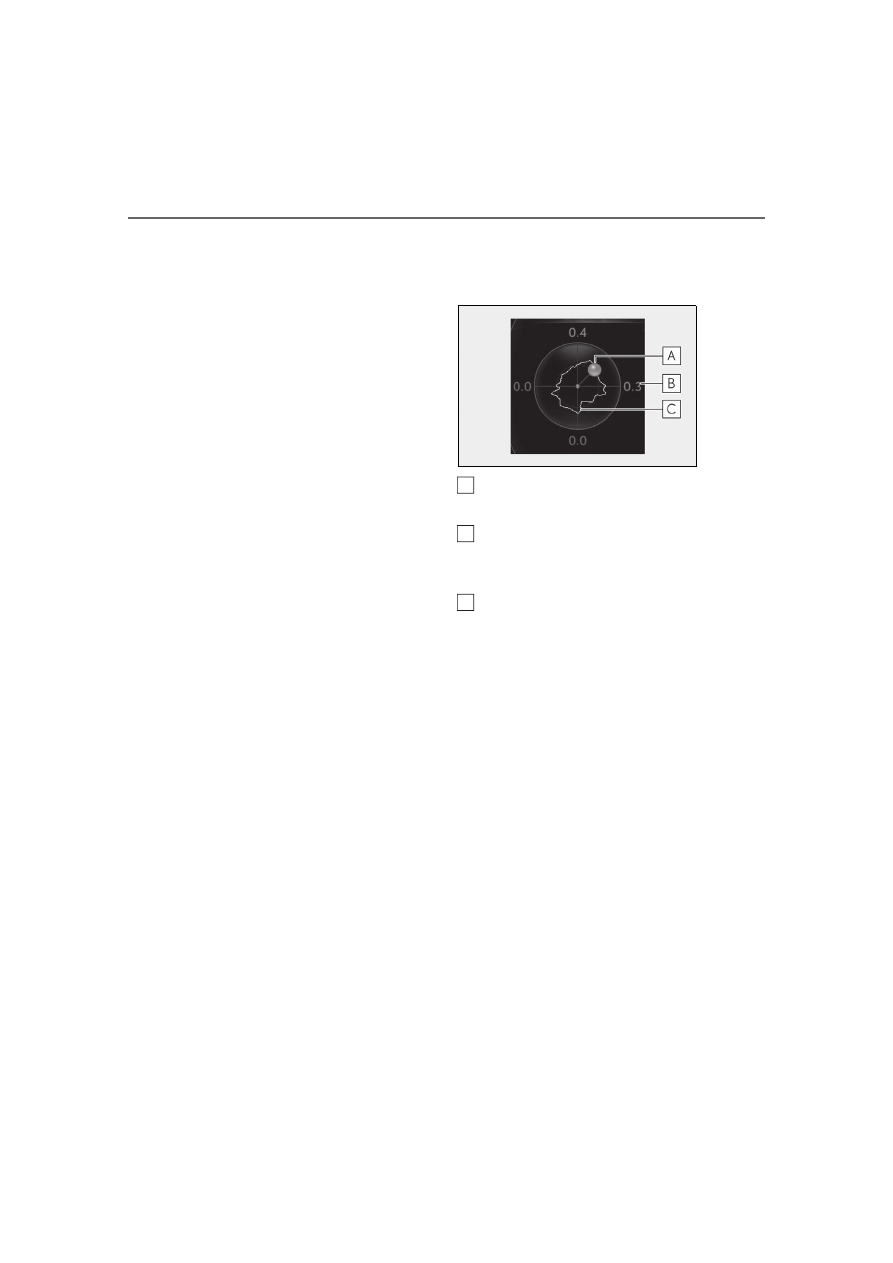

Acceleration G-force on the vehi-
cle

Current G-force value (analyzed
value of front/rear and left/right G-
forces)

Record of the maximum G-forces

This display is intended for use as a guide-
line. Depending on factors such as the
road surface condition, temperature and
vehicle speed, the display may not show
the actual condition of the vehicle.



Resetting the record of maximum
G-forces

Press and hold “OK” of the meter control
switches to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

■

Units (F SPORT models)

On some models, the units of measure
used can be changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

A

B

C

89

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display (heading-up dis-
play)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist) (



P.191)



Dynamic radar cruise control with
full-speed range (



P.203)



RSA (Road Sign Assist) (if
equipped) (



P.200)

■

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display (except F
SPORT models)

Select to set the display of the speedome-
ter to digital or analog.



Drive information 1/Drive informa-
tion 2

Select to select up to 2 items (



P.87) that

will be displayed on each Drive information
screen (Drive information 1 screen and
Drive information 2 screen) respectively.



Clock

Select to switch between 12-hour display
and 24-hour display.



Pop-up display

Select to enable/disable some pop-up dis-
plays for each relevant system.



Tachometer setting

Select to set the display of the Hybrid Sys-
tem Indicator or tachometer for each driv-
ing mode.



Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.



Rev peak (F SPORT models)

Select to enable/disable the rev peak.



EV indicator

Select to enable/disable the EV indicator.



Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed



P.417

■

Suspension of the settings display

●

Some settings cannot be changed while

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

Settings display

90

2-1. Instrument cluster

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

■

Suggestion to turn on the head-
lights

If the headlights turn off, and the vehi-
cle speed is 3 mph (5 km/h) or higher
for a certain amount of time when the
surroundings are dark, a suggestion
message will be displayed.

■

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight

switch in

 after the power switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.

If a front door is opened after the power
switch is turned off, this suggestion mes-
sage will not be displayed.

■

Customization

Some functions can be customized.

(



P.417)

WARNING

■

Cautions during setting up the dis-

play

As the hybrid system needs to be operat-

ing during setting up the display, ensure

that the vehicle is parked in a place with

adequate ventilation. In a closed area

such as a garage, exhaust gases includ-

ing harmful carbon monoxide (CO) may

collect and enter the vehicle. This may

lead to death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while setting up the display features.

Suggestion function

91

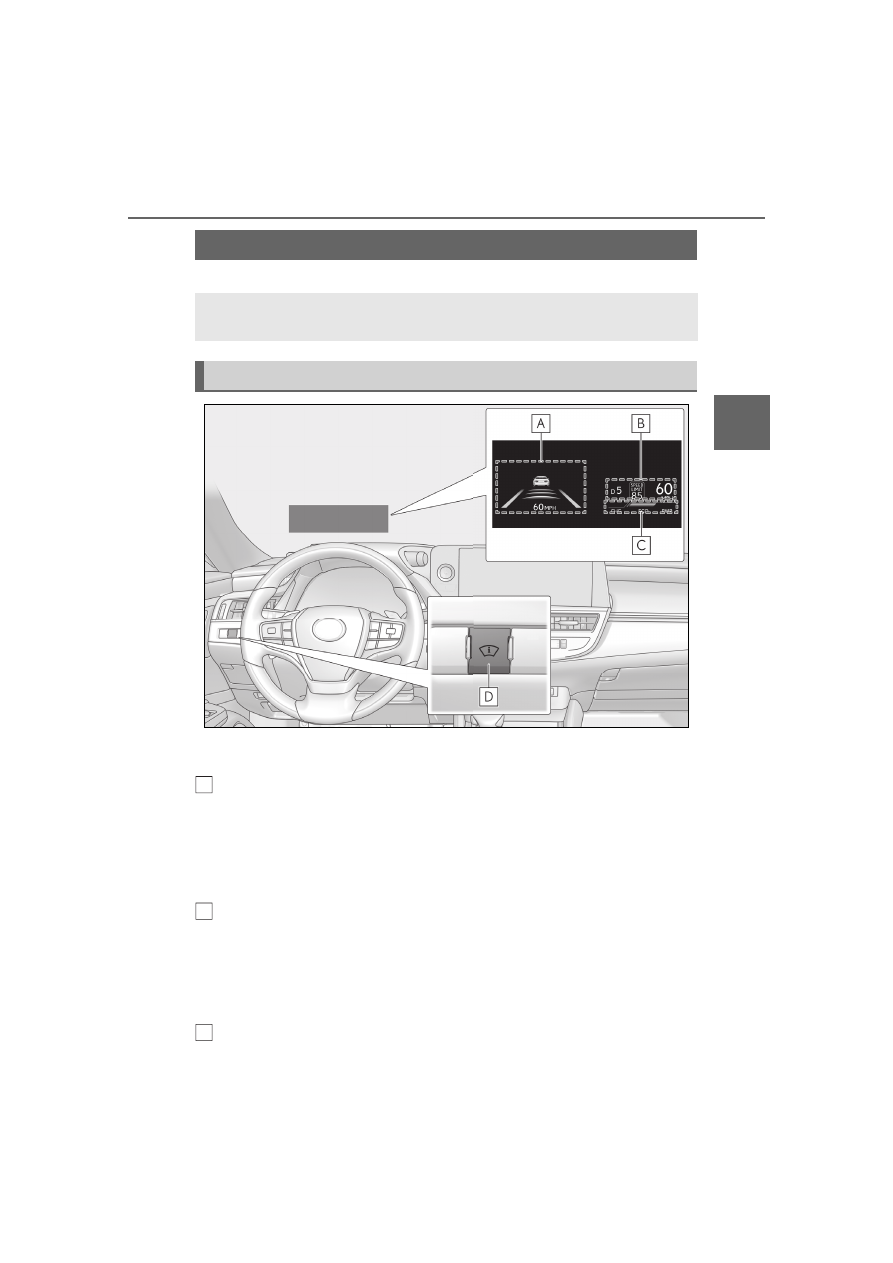

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

*

: If  equipped

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

Driving support system display area (



P.93)

Navigation system-linked display area (if equipped)

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street  name
• Compass (heading-up display)

Driving information display area

Displays the following items:
• Speed limit of the current road (linked to the navigation system) (U.S.A. only)
• RSA (Road Sign Assist) display (if equipped) (



P.200)

• Speedometer
• Shift position and shift range (



P.154)

Hybrid System Indicator/tachometer display area (



P.94)

Head-up display

*

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.

System components

A

B

C

92

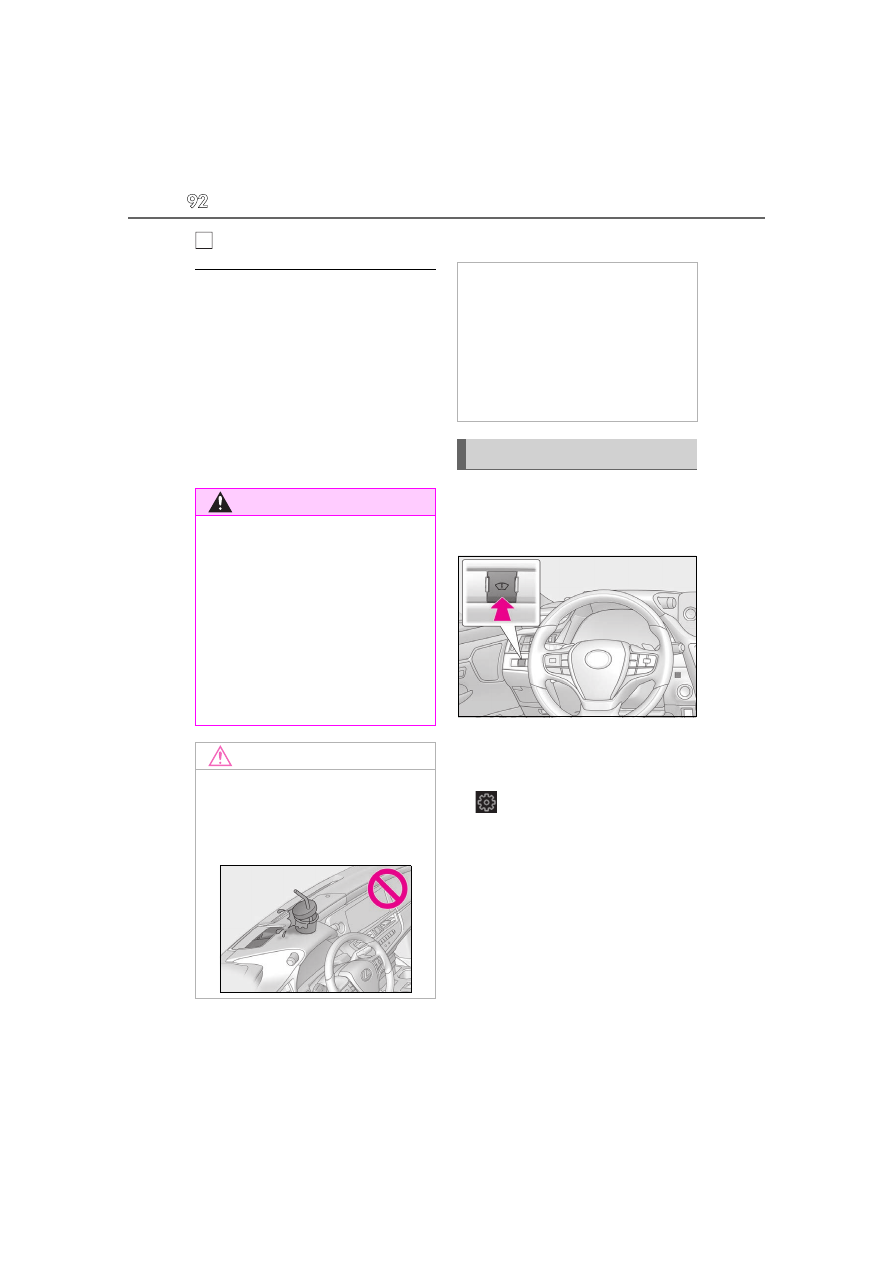

2-1. Instrument cluster

Head-up display switch

■

Head-up display will operate when

The power switch is in ON mode.

■

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are included in the

map data will be displayed.

■

Enabling/disabling the head-up
display

Press the Head-up display switch.

■

Changing settings of the head-up
display

The following settings can be changed
on

 of the multi-information display.

(



P.85)



Brightness and vertical position of
the head-up display

Select to adjust the brightness or vertical
position of the head-up display.



Hybrid System Indicator/tachome-
ter

Select to display the Hybrid System Indica-
tor, tachometer or no content.



Display content

D

WARNING

■

When using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

Using the head-up display

93

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Select to enable/disable the following
items:
• Route guidance to destination/street

name

• Driving support system display

*

• Compass (heading-up display)
• Audio system operation status

*

: Make sure to enable this display when

using the driving support systems



Display angle

Select to adjust the angle of the head-up
display.

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the power switch is

turned off then back to ON mode.

■

Display brightness

The brightness of the head-up display can
be adjusted on

 of the multi-information

display. Also, it is automatically adjusted
according to the ambient brightness.

■

Head-up display automatic position

adjustment

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(



P.121)

■

When the 12-volt battery is discon-

nected

The customize settings of the head-up dis-

play will be reset.

Displays the operational status of the
following systems:



LTA (Lane Tracing Assist) (



P.191)



Dynamic radar cruise control with
full-speed range (



P.203)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

■

Driving support systems

Displays a warning/suggestion/advice

WARNING

■

Caution for changing settings of the

head-up display

As the hybrid system needs to be operat-

ing while changing the settings of the

head-up display, ensure that the vehicle

is parked in a place with adequate venti-

lation. In a closed area such as a garage,

exhaust gases including harmful carbon

monoxide (CO) may collect and enter

the vehicle. This may lead to death or a

serious health hazard.

NOTICE

■

When changing the settings of the

head-up display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while changing the settings of the

head-up display.

Driving support system display
area

Pop-up display

94

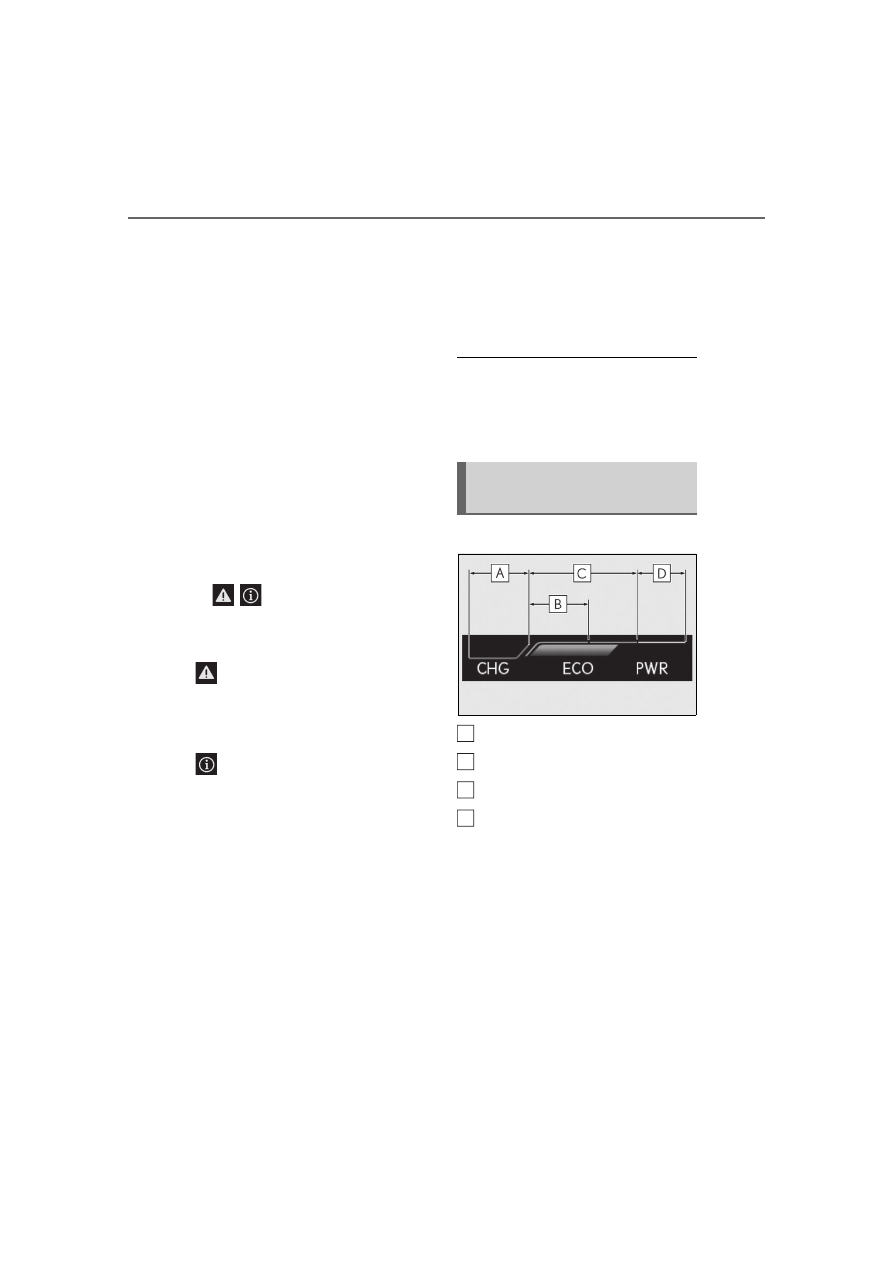

2-1. Instrument cluster

message or the operating state of a rel-
evant system.



PCS (Pre-Collision System)
(



P.181)



Intuitive parking assist (if equipped)
(



P.222)



PKSB (Parking Support Brake) (if
equipped) (



P.238)



Brake Override System (



P.138)



Drive-Start Control (DSC)
(



P.143)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

■

/



icons

These icons are linked to the multi-
information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(



P.370)

: Information icon

Displayed when a suggestion pop-up dis-
play (



P.90) or advice pop-up display is

displayed on the multi-information display.

■

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display.

■

Audio system operation status

Displayed when an audio remote con-

trol switch on the steering wheel is
operated.

■

Hands-free system status

Displayed when the hands-free system
is operated.

■

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

■

Hybrid System Indicator

Charge area

Hybrid Eco area

Eco area

Power area

Displayed content is the same as that dis-
played on the meter (Hybrid System Indi-
cator). For details, refer to P.77 or P.82.

■

Tachometer

Displays the engine speed in revolu-
tions per minute.

Hybrid System Indica-
tor/tachometer display area

A
B
C
D

95

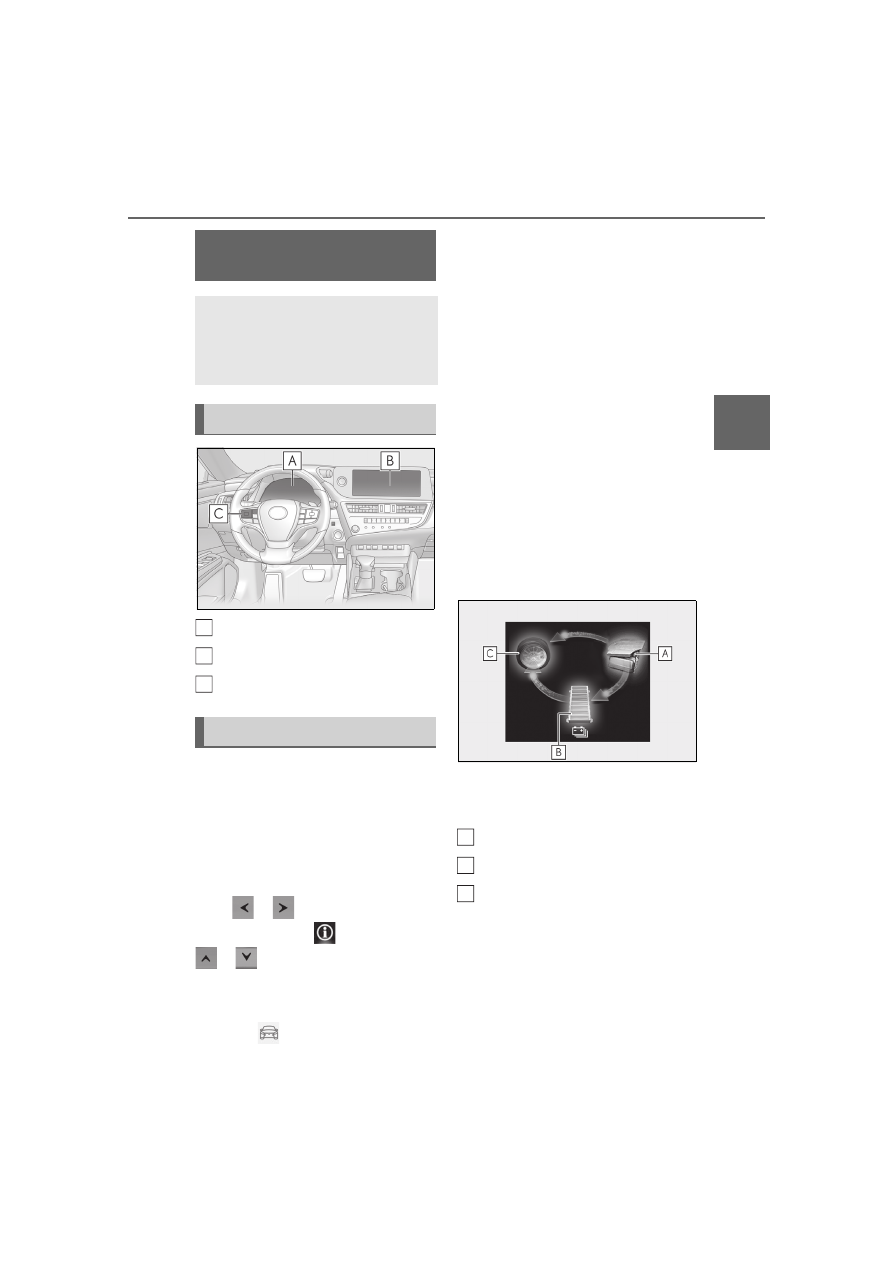

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Multi-information display

Center Display

Meter control switches

The energy monitor can be used to
check the vehicle drive status, hybrid
system operation status and energy
regeneration status.

■

Display procedure



Multi-information display

Press

 or

 of the meter control

switches and select

, and then press

 or

 to select the energy monitor

display.



Center Display

1

Select

 on the main menu.

2

Select “Energy flow”.

■

Reading the display

The arrows will appear in accordance
with the energy flow. When there is no
energy flow, arrows will not be dis-
played.

The color of the arrows will change as fol-
lows
Blue: When the hybrid battery (traction
battery) is regenerated or charged.

Yellow

*1

/Orange

*2

: When the hybrid bat-

tery (traction battery) is in use.
Red: When the gasoline engine is in use.

*1

: Multi-information  display

*2

: Center  Display



Multi-information display

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

Gasoline engine

Hybrid battery (traction battery)

Tire

Energy monitor/consump-
tion screen

You can view the status of your
hybrid system and fuel consump-
tion information on the multi-infor-
mation display and Center Display.

System components

Energy monitor

A
B
C

A
B
C

96

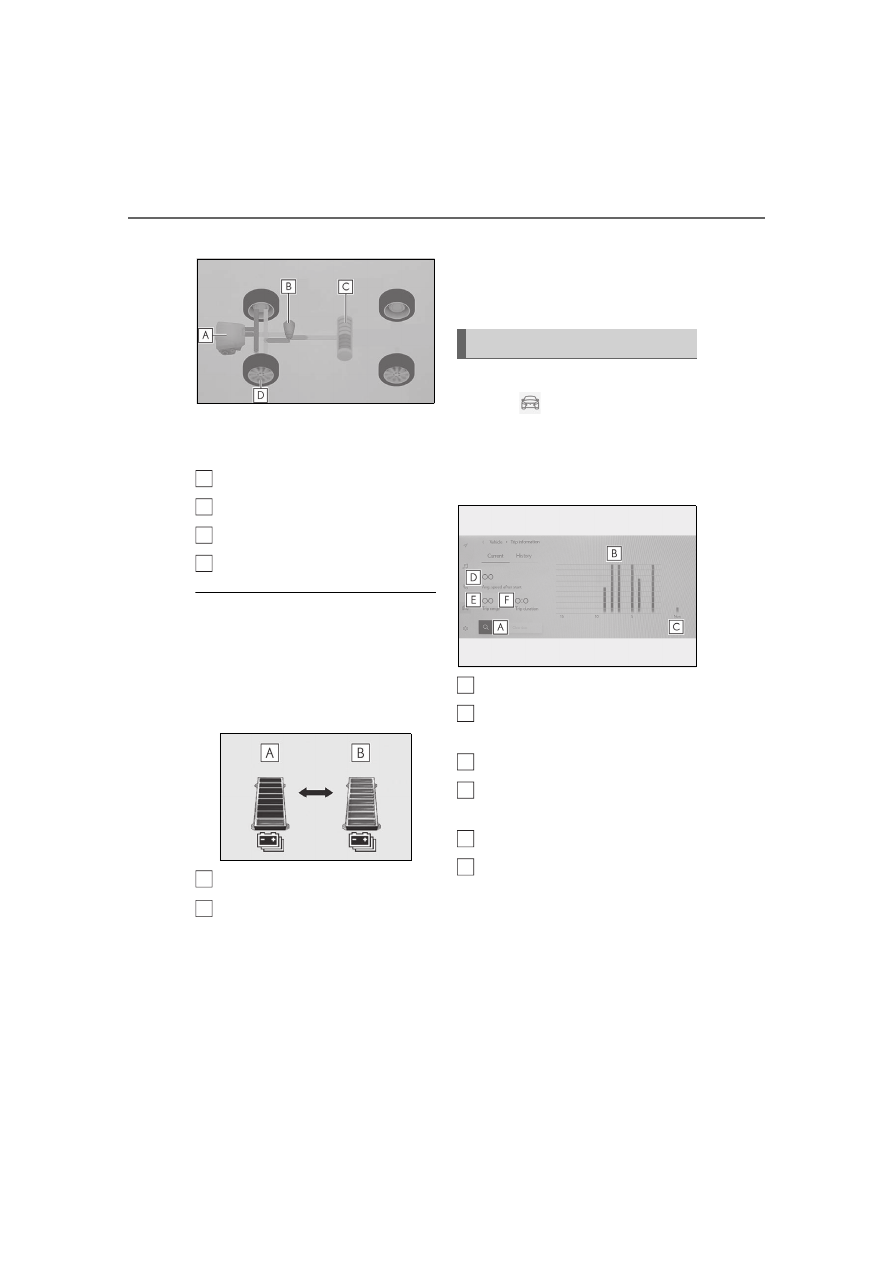

2-1. Instrument cluster



Center Display

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

Gasoline engine

Electric motor (traction motor)

Hybrid battery (traction battery)

Tires

■

Hybrid battery (traction battery) status

●

The display changes in 8 levels accord-

ing to the remaining charge amount of

the hybrid battery (traction battery).

• The figure shows the multi-information

display as an example for explanation.

• These images are examples only, and

may vary slightly from actual conditions.

Low

High

●

Color of the hybrid battery (traction bat-

tery) displayed on the Center Display will

be blue when the power switch is in other

than ACCESSORY mode.

■

Color of the engine displayed on the

Center Display

Color of the engine displayed on the Cen-

ter Display will be orange when the engine

is running.

■

Display procedure

1

Select

 on the main menu.

2

Select “Trip information”.

3

Select “Current”.

■

Display

Resetting the history data

Fuel consumption in the past 15
minutes

Current fuel consumption

Average vehicle speed since the
hybrid system was started.

Trip range

Elapsed time since the hybrid sys-
tem was started.

Use the displayed average fuel consump-
tion as a reference.
The image is an example only, and may
vary slightly from actual conditions.

A
B
C
D

A

B

Current screen

A
B

C
D

E
F
