INFORMATION

The hybrid system cannot be started by push-starting.

WARNING

■

Avoiding 12-volt battery fires or explosions

Observe the following precautions to prevent accidentally igniting the flammable gas that
may be emitted from the 12-volt battery:

●

Make sure each jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any other than the intended terminal.

●

Do not allow the other end of the jumper cable connected to the “+” terminal to come
into contact with any other parts or metal surfaces in the area, such as brackets or
unpainted metal.

●

Do not allow the + and - clamps of the jumper cables to come into contact with each
other.

●

Do not smoke, use matches, cigarette lighters or allow open flame near the 12-volt
battery.

■

12-volt battery precautions

The 12-volt battery contains poisonous and corrosive acidic electrolyte, while related
parts contain lead and lead compounds. Observe the following precautions when han-
dling the 12-volt battery:

●

When working with the 12-volt battery, always wear safety glasses and take care not
to allow any battery fluids (acid) to come into contact with skin, clothing or the vehicle
body.

●

Do not lean over the 12-volt battery.

●

In the event that battery fluid comes into contact with the skin or eyes, immediately
wash the affected area with water and seek medical attention. Place a wet sponge or
cloth over the affected area until medical attention can be received.

●

Always wash your hands after handling the 12-volt battery support, terminals, and
other battery-related parts.

●

Do not allow children near the 12-volt battery.

■

When replacing the 12-volt battery

After replacing, securely attach the exhaust hose and exhaust hole plug to the exhaust
hole of the new 12-volt battery. If not properly installed, gases (hydrogen) may leak into
the vehicle interior, and there is the possible danger of the gas igniting and exploding.

9-5. If a door cannot be opened or locked

689

When tr

ouble arises

Confirm that the electronic key is being car-
ried.

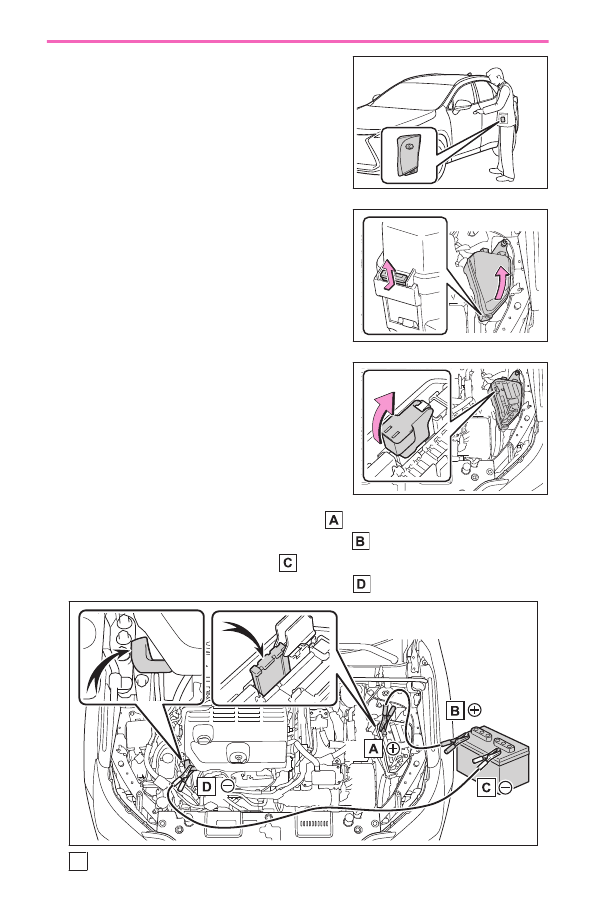

When connecting the jumper (or booster) cables,
depending on the situation, the alarm may activate
and the doors may lock.

Open the hood and exclusive jump starting
terminal cover.

Open the exclusive jump starting terminal
cover.

Connect a positive jumper cable clamp to   on your vehicle and connect the
clamp on the other end of the positive cable to   on the second vehicle. Then,
connect a negative cable clamp to   on the second vehicle and connect the
clamp at the other end of the negative cable to  .

Exclusive jump starting terminal (your vehicle)

9-5. If a door cannot be opened or locked

690

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Solid, stationary, unpainted metallic point away from the exclusive jump starting
terminal and any moving parts as shown in the illustration

NOTICE

■

When handling jumper cables

When connecting the jumper cables, ensure that they do not become entangled in
the cooling fan or belt.

■

Exclusive jump starting terminal

The exclusive jump starting terminal is intended to charge the 12-volt battery on your
vehicle from another vehicle in an emergency.
Do not use the exclusive jump starting terminal to jump start another vehicle.

Start the engine of the second vehicle. Increase the engine speed slightly
and maintain at that level for approximately 5 minutes to recharge the 12-volt
battery of your vehicle.

Open and close any of the doors of your vehicle with the power switch off.

Maintain the engine speed of the second vehicle and start the hybrid system of
your vehicle by turning the power switch to ON.

Make sure the "READY" indicator comes on.

If the indicator light does not come on, contact your Lexus dealer.

Once the hybrid system has started, remove the jumper cables in the exact
reverse order from which they were connected.

Once the hybrid system starts, have the vehicle inspected at your Lexus dealer as soon
as possible.

WARNING

After recharging the 12-volt battery, have the 12-volt battery inspected by your Lexus
dealer as soon as possible.
If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery to
emit a malodorous gas, which may be detrimental to the health of passengers.

9-5. If a door cannot be opened or locked

691

When tr

ouble arises

If a door cannot be opened using the door opener switch

If a door cannot be opened using the door opener switch, it can be opened
using a manual release handle.

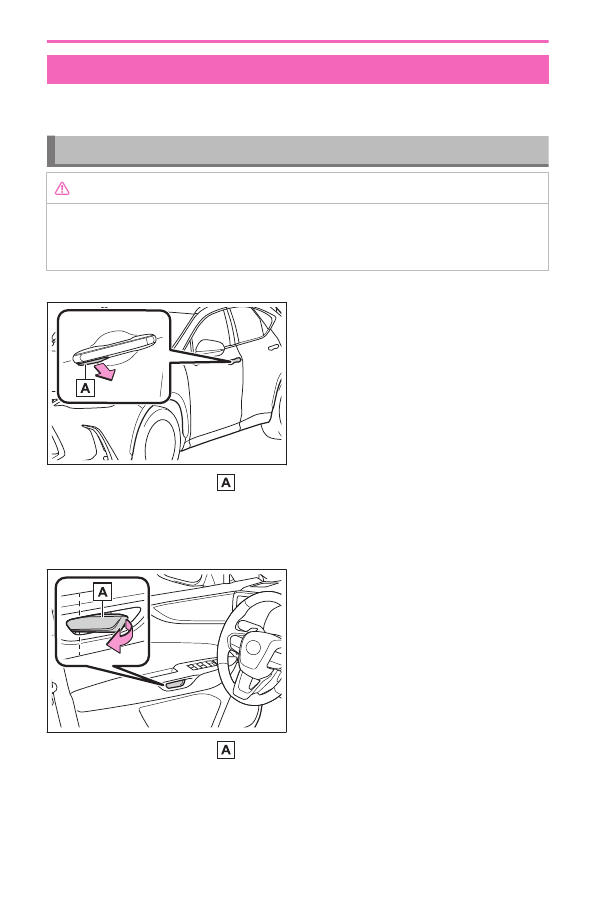

Operating a manual release handle

NOTICE

Normally, the manual release handles cannot be used to open the doors. To enable
manual release handle operation, perform the following. If the following is not performed
and/or a manual release handle is operated with force, it may deform or be damaged.

▶

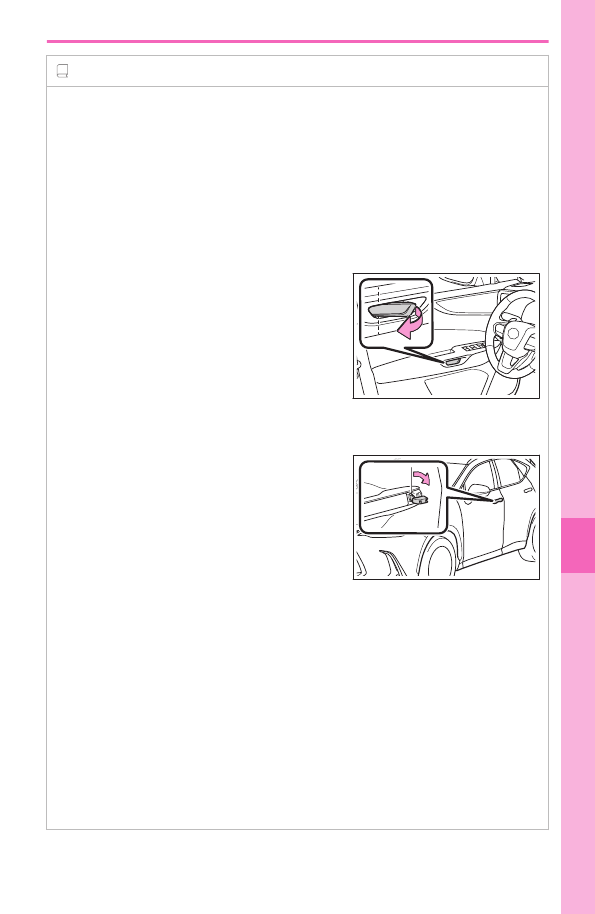

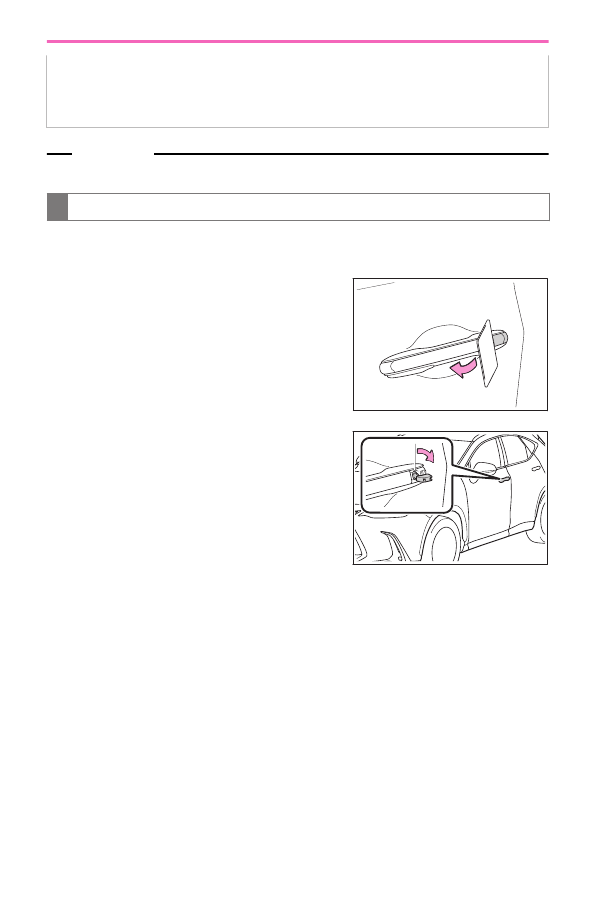

Outside the vehicle

Pull the manual release handle

to open the door.

Normally, the manual release handles cannot be used to open the doors.
To open a door, enable manual release handle operation.

→

P.694

▶

Inside the vehicle

Pull the manual release handle

twice to open the door.

Pulling the handle once will enable operation. Pulling the handle again will open the door.

9-5. If a door cannot be opened or locked

692

INFORMATION

■

Manual release handle operating conditions

●

If the vehicle is involved in a severe frontal or rear collision, manual release handle
operation will be enabled for all of the doors.
However, the manual release handle may not become operable depending on the
force of the impact and conditions of the collision.

●

When the 12-volt battery voltage drops slowly while a door was unlocked
It may not work depending on how it is lowered.

●

When manual release handle operation is enabled from inside the vehicle

●

When manual release handle operation is enabled from outside the vehicle using a
mechanical key

■

Conditions which manual release handle operation is disabled

●

Normally, operation of the outside manual release handles is disabled, and they cannot
be used to open the doors.
When operation is enabled by operating a manual release handle or using a mechani-
cal key, operation will be disabled automatically if the door is opened using the door
opener switch or locked.

●

Operation of the inside manual release handles is disabled when the power switch is in
ON, and they cannot be used to open the doors.
When operation is enabled by operating a manual release handle or using a mechani-
cal key, operation will be disabled automatically if the door is opened using the door
opener switch or locked.

9-5. If a door cannot be opened or locked

693

When tr

ouble arises

●

To prevent a door from being opened accidentally, when the power switch is in ON,
after an inside manual release handle is operated once, operation will automatically be
disabled after approximately 1 second.

9-5. If a door cannot be opened or locked

695

When tr

ouble arises

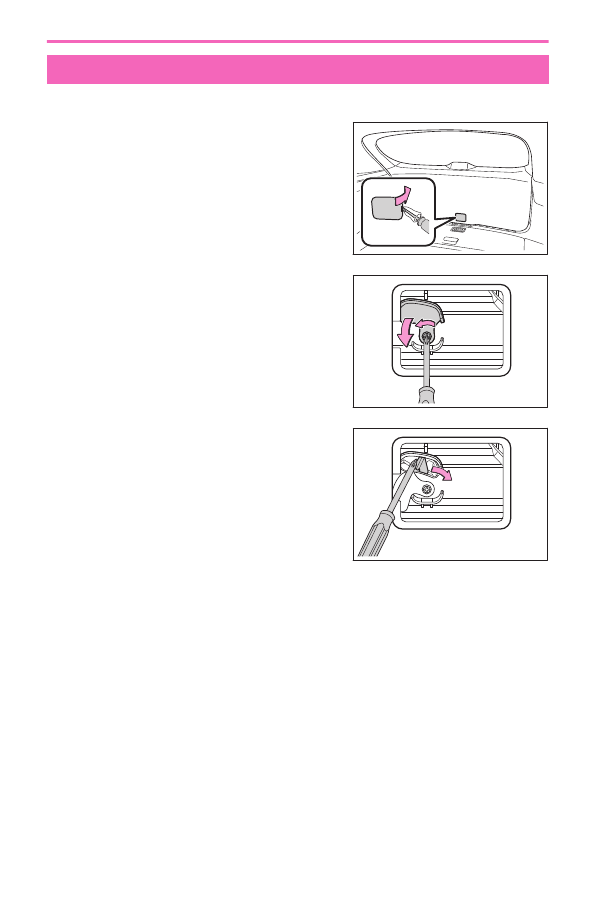

If the back door cannot be opened

The back door can be unlocked from the inside.

Using a flathead screwdriver, remove the
cover.

To protect the cover, place a rag between the
flathead screwdriver and the cover as shown in
the illustration.

Loosen the screw and turn back the cover.

Using a screwdriver, push the lever.

9-5. If a door cannot be opened or locked

696

If the moon roof or electronic sunshade does not operate correctly

If the moon roof does not operate correctly

If the moon roof closes but then re-opens slightly

Stop the vehicle.

Press and hold the

switch.

The moon roof will close, reopen and pause for approximately 10 seconds.

Then it will close again, tilt up and pause for approximately 1 second. Finally, it will tilt
down, open and close.

Check to make sure that the moon roof completely stops and then release
the switch.

If the moon roof does not fully close even after performing the above procedure
correctly, have the vehicle inspected by your Lexus dealer.

If the moon roof tilts down but then tilts back up

Stop the vehicle.

Press and hold the

switch until the moon roof moves into the tilt up

position and stops.

Release the switch once and then press and hold the

switch again.

The moon roof will pause for approximately 10 seconds in the tilt up position.

Check to make sure that the moon roof is completely closed and then
release the switch.

If the moon roof does not fully close even after performing the above procedure
correctly, have the vehicle inspected by your Lexus dealer.

*1 :

If the switch is released at the incorrect time, the procedure will have to be performed

again from the beginning.

*2 :

If the switch is released after the above mentioned 10 second pause, automatic
operation will be disabled. In that case, press and hold the

switch, and

the moon roof will tilt up and pause for approximately 1 second. Then it will tilt down,

open and close. Check to make sure that the moon roof is completely closed and then

release the switch.

*3 :

If the switch is released at the incorrect time, the procedure will have to be performed

again from the beginning.

*4 :

If the switch is released after the above mentioned 10 second pause, automatic
operation will be disabled. In that case, press and hold the

switch, and

the moon roof will tilt up and pause for approximately 1 second. Then it will tilt down,

open and close. Check to make sure that the moon roof is completely closed and then

release the switch.

9-6. If the moon roof or electronic sunshade does not operate correctly

697

When tr

ouble arises

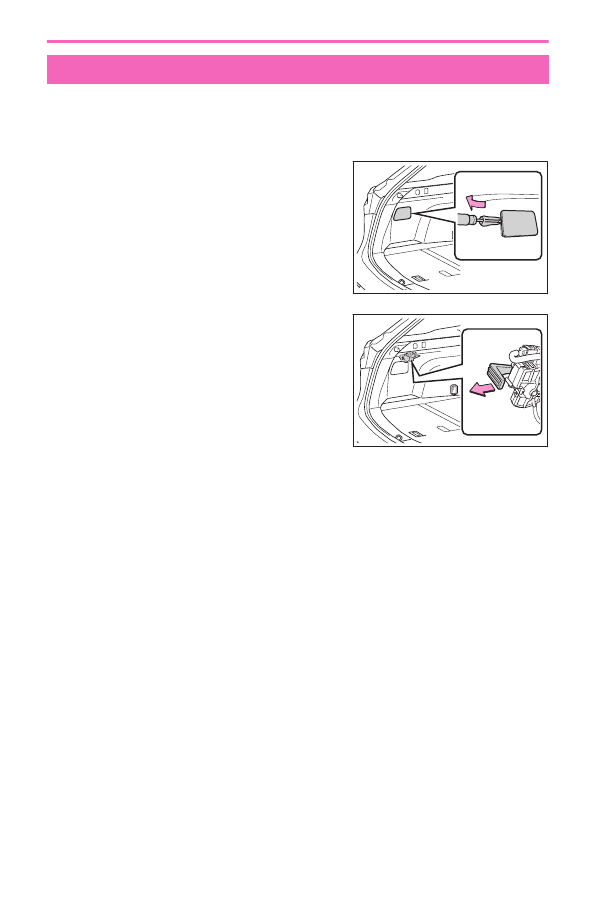

If refueling cannot be performed

If the fuel filler door cannot be opened

If the fuel filler door opener switch cannot be operated, contact your Lexus
dealer to service the vehicle. In case where refueling is urgently necessary, the
following procedure can be used to open the fuel filler door.

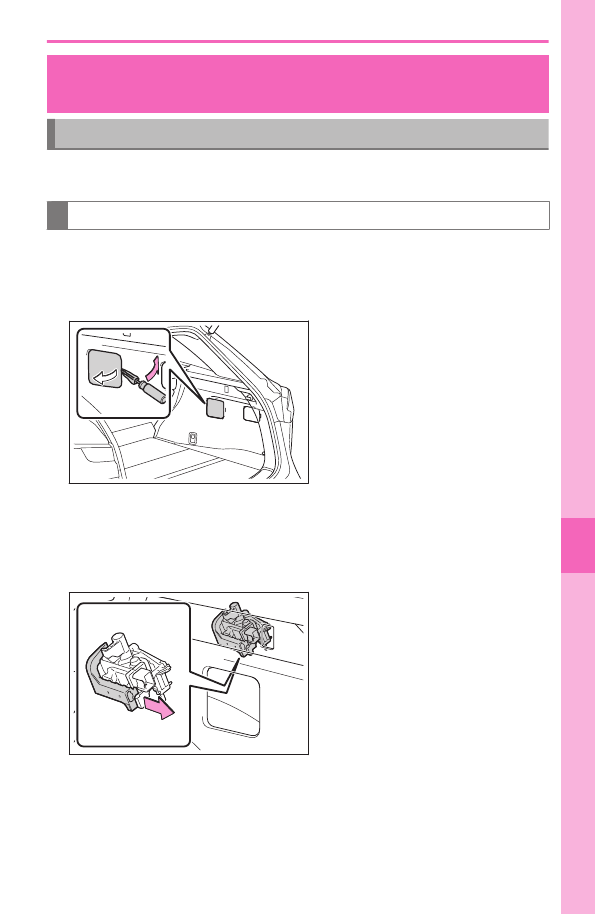

Remove the cover inside the luggage com-
partment by inserting a screwdriver.

When removing the cover, to prevent damage,
cover the tip of the screwdriver with a rag.

Pull the lever.

Using the lever to open the fuel filler door may
not allow for an adequate reduction in fuel tank
pressure before refueling. To prevent fuel from
spilling out, turn the cap slowly when removing
it.
During refueling, fuel may spill out from the
filler opening due to air being discharged from
inside the fuel tank. Therefore, fill the fuel tank carefully and slowly.

9-7. If refueling cannot be performed

698

If the plug-in hybrid system cannot be used normally

If the hybrid battery (traction battery) of the plug-in hybrid system
cannot be charged

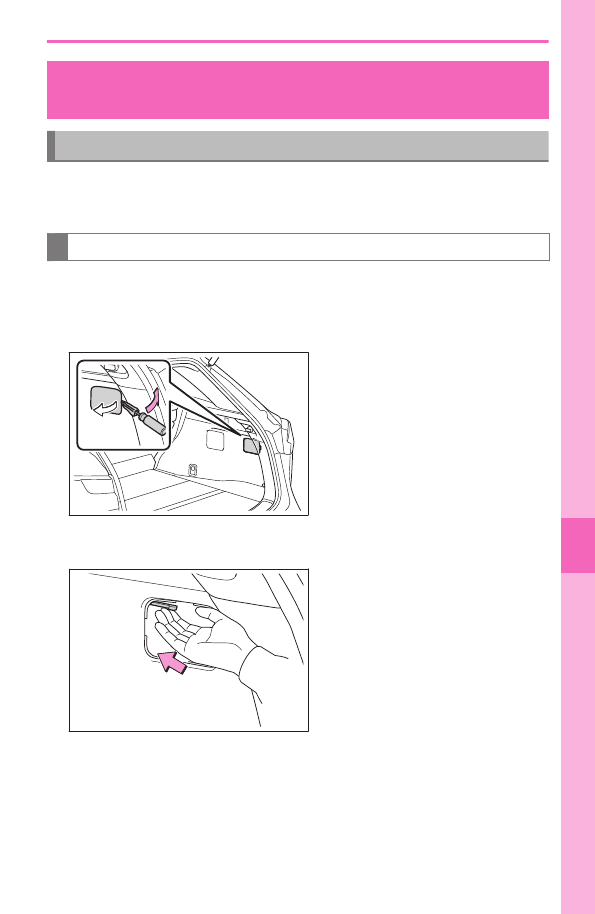

If the charging port lid does not open

In an emergency, if the charging port lid cannot be opened using the normal

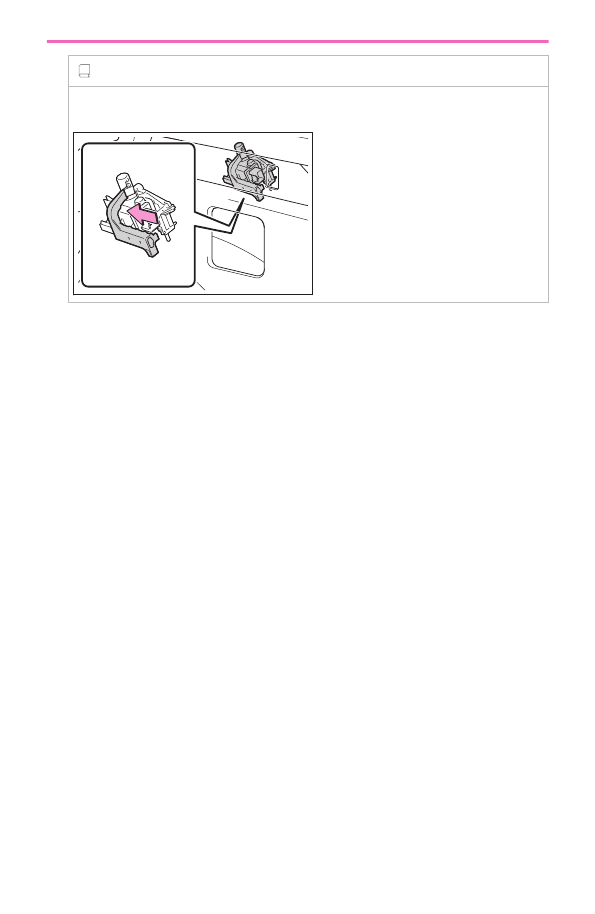

procedure, it can be opened using the charging port lid lock emergency release
lever.

Opening the charging port lid in an emergency

Using a flathead screwdriver, remove the cover inside the luggage compart-
ment as shown in the illustration.

When removing the cover, to prevent damage, cover the tip of the screwdriver with a
rag.

Insert a hand from the lower side of the vehicle obliquely upward, and hook a
finger to the emergency release lever.

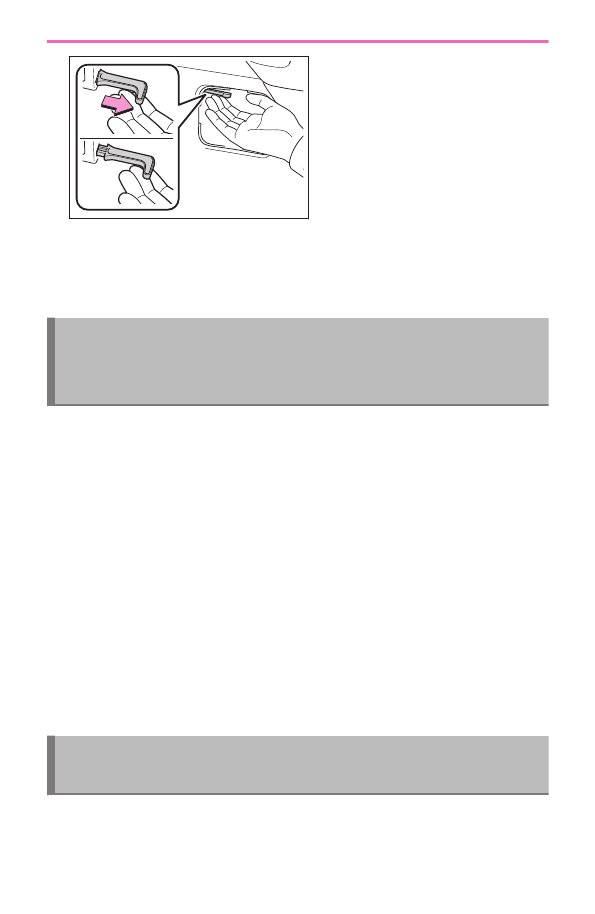

Move the emergency release lever in the direction shown in the illustration.

Make sure to move in the direction shown in the illustration. Applying force in other
directions may damage the emergency release lever.

9-8. If the plug-in hybrid system cannot be used normally

699

When tr

ouble arises

The charging port lid is unlocked and can be opened.

Press the central rear edge of the charging port lid to open it.

This unlocking method is a temporary correction procedure for emergency use only. If
the problem persists, have the vehicle inspected by your Lexus dealer immediately.

The power source indicator on the CCID (Charging Circuit Interrupt-
ing Device) does not illuminate, even though the plug is connected to an
external power source.

Plug is not properly connected to socket
Check that the plug is properly connected to the socket.
Power is out
After power is restored, carry out the charging procedure again.
Remote switch is off
If the remote switch is equipped, turn the switch on.
Building breaker is tripped and power is cut off
Check that the breaker is connected and if there is no malfunction, check if the
vehicle can be charged through another socket.
If charging is possible, the first socket may have a malfunction. Contact the
building or facility manager, or an electrician.
Short circuit between CCID (Charging Circuit Interrupting Device) and plug
Immediately stop charging and contact your Lexus dealer.

The error warning indicator on the CCID (Charging Circuit Interrupt-
ing Device) flashes.

Electrical leakage detection function or self-diagnostic function operates and
power is cut off.

9-8. If the plug-in hybrid system cannot be used normally

700

When the voltage is insufficient, the error warning indicator may flash when
there is noise interference. Perform a reset and connect to a proper power
source.
If charging does not start, immediately stop charging and contact your Lexus
dealer.

Charging indicator of the charging port does not illuminate, even
though charging connector is connected.

The plug is not properly connected to the socket
Check that the plug is properly connected to the socket.
Charging connector is not securely connected to AC charging inlet
Check the connection status of the charging connector.

●

When connecting the charging connector, make sure not to touch the latch
release button. Insert the charging connector securely until you hear a click.
The charging connector may not be connected correctly if the latch release
button is pressed while inserting.

●

After connecting the charging connector, check that the latch release button
is not pressed and the charging indicator of the charging port is turned on.
If the charging indicator of the charging port does not illuminate, even though
the charging connector is securely connected, there may be a malfunction in
the system. Immediately stop charging and contact your Lexus dealer.

Hybrid battery (traction battery) is already fully charged
When the hybrid battery (traction battery) is fully charged, charging is not
performed.
The charger does not operate
Please contact the facility manager when there is a problem with charger.

When the charging indicator on the charging port is blinking

When charging indicator of the charging port flashes: Charging schedule is
registered
When you wish to charge according to the charging schedule, wait until the set
time.
To start charging, set [Charge now] to on.
When charging indicator of the charging port rapidly flashes: Malfunction
occurred in an external power source or the vehicle

9-8. If the plug-in hybrid system cannot be used normally

701

When tr

ouble arises

Start the hybrid system and follow the instructions displayed by the message on
the multi-information display.

9-8. If the plug-in hybrid system cannot be used normally

702

If the charging connector cannot be disconnected from the AC charg-
ing inlet

If the charging connector cannot be unlocked

The charging connector can be unlocked by operating the emergency release
lever.

Unlocking the charging connector in an emergency

Using a flathead screwdriver, remove the cover inside the luggage compart-
ment as shown in the illustration.

When removing the cover, to prevent damage, cover the tip of the screwdriver with a
rag.

Move the emergency release lever in the direction shown in the illustration.

Move the emergency release lever only in the direction shown in the illustration. Even
if a click sound is heard after beginning operation, do not stop pulling the emergency
release lever until it cannot be moved. If the emergency release lever is moved in any
other direction, it may be damaged.

The charging connector is unlocked and can be removed.
This procedure is a temporary correction procedure for emergency use only. If the
problem persists, have the vehicle inspected by your Lexus dealer immediately.
Do not operate the emergency release lever when the charging connector can be
unlocked in the normal procedure.

9-8. If the plug-in hybrid system cannot be used normally

703

When tr

ouble arises

INFORMATION

After operating the connector lock emergency release lever, push it back to its
original position until a click sound is heard.

9-8. If the plug-in hybrid system cannot be used normally

704

Content .. 40 41 42 43 ..
