When a malfunction occurs during charging

The indicators on the CCID (Charging Circuit Interrupting Device) use a
combination of different statuses (not illuminated, illuminated or flashing) to
inform the user of internal malfunctions.

When the error warning indicator is illuminated or flashing, temporarily remove the plug
from the outlet and then reconnect it to check if the error indicator turns off.
If the error warning indicator turns off, charging is now possible. If it does not turn off,
perform the correction procedure in the following chart.

Status

Power indicator

Error warning indi-

cator

Cause/Correction

procedure

Charging system
error

Not illuminated

Not illuminated or
illuminated

An electrical leak-
age is detected and
charging is can-
celed, or there is a
malfunction in the
AC charging cable.
Consult your Lexus
dealer.

Illuminated

Flashes

Plug temperature
detection malfunc-
tion

Flashes

There is a malfunc-
tion in the plug tem-
perature detection
part.
Consult your Lexus
dealer.

Plug temperature
increase detection

Flashes

Not illuminated

An increase in the
temperature of the
plug is detected
due to an improper
connection be-
tween the socket
and plug.
Check that the plug
is securely connect-
ed to the socket.

9-8. If the plug-in hybrid system cannot be used normally

705

When tr

ouble arises

Status

Power indicator

Error warning indi-

cator

Cause/Correction

procedure

AC charging cable
life span notice

Illuminated

Flashes

The number of
charges using the
AC charging cable
is nearing the end of
its usable life span.
Consult your Lexus
dealer.

AC charging cable
life span

Illuminated

The number of
charges using the
AC charging cable
has exceeded its
usable number of
charges.
Consult your Lexus
dealer.

9-8. If the plug-in hybrid system cannot be used normally

706

If the charging schedule function does not operate normally

Cannot charge at desired time

Vehicle clock is not properly adjusted
Check the clock settings and adjust it to the proper time.

The vehicle calendar is not set correctly.
Check the calendar setting and set it to the correct date.

AC charging cable is not connected to vehicle
Before using the charging schedule, connect the AC charging cable.
Incorrect charging mode selected
Check the charging mode setting.
When the charging mode is [Start at set time], charging starts at the set time, but
when it is [Departure time], charging is completed by the set time (The charging
start time is automatically controlled by the system).

Cannot change [Next charging event] from smartphone application

Smartphone is outside its coverage area

Check the signal strength. If the smartphone is outside its coverage area, move
to a place with a better signal.

Charging starts, even though charging schedule is registered

[Charge now] is set to on
When charging according to the charging schedule, set [Charge now] to off.
Charging schedule is set to off
Check that charging schedule is not set to off.
Charging mode is set to [Departure time] and schedule departure time is close
to current time
When the system determines that there is no time to finish charging by the set
scheduled departure time, it starts charging. Check the charging schedules.
AC charging cable was removed and reinserted while charging indicator of the
charging port was flashing

*1 :

For the setting procedure for the clock, refer to the "MULTIMEDIA OWNER'S

MANUAL".

*2 :

It may be necessary to use a smartphone with a dedicated app to change the next

charging schedule.

9-8. If the plug-in hybrid system cannot be used normally

707

When tr

ouble arises

If the AC charging cable is removed and reinserted while the charging indicator
is flashing, the charging schedule is canceled. Temporarily remove the AC
charging cable, and then reconnect it.
My Room Mode was operated
When My Room Mode is operated, the system will start charging, even if
the charging schedule is registered. To carry out charging using the charging
schedule, stop My Room Mode, and then reconnect the AC charging cable.
Traction battery heater operated
When the charging mode is set to [Departure time], traction battery heater may
operate before charging starts. Check the status of the charging indicator of the
charging port.
Outside temperature is low and hybridbattery (traction battery) warming con-
trol operated (Alaska and Canada only)
When hybrid battery (traction battery) warming control operates, the charging
schedules are ignored and charging starts. In order to protect the hybrid battery
(traction battery), allow charging to continue.

Charging ends earlier than time set in [Departure time]

Charging end time does not match estimated end time due to condition of
power source or outside temperature
If sudden changes in temperature or changes in the condition of the power
source occur while charging, charging may end earlier than the time estimated
by the system.

Charging is not complete, even though it is time set in [Departure time]

Charging does not start, even though it is time set in[Start at set time]

AC charging cable was connected after set time
Connect the AC charging cable before the time set in [Start at set time].

9-8. If the plug-in hybrid system cannot be used normally

708

If an indicator on an interior feature illuminates or flashes

When the wireless charger operation indicator light (on the charging
tray) flashes

When the wireless charger indicator light continuously flashes once per
second (orange / green)

Cause

Remedy

Poor communication
between the vehicle
and wireless charger.

If the hybrid system is operating, stop the hybrid system
and then restart it.
If the power switch is in ACC, start the hybrid system.
Also, if a case or cover is installed to the portable device,
remove it.

When the wireless charger indicator light continuously flashes 3 times
quickly (orange)

Cause

Remedy

The following causes are possible.

●

Foreign matter detected: If a metallic
foreign object is detected in the charge
area, the overheat prevention function
of the charging coil will operate

●

Portable device not aligned correctly: If
the charging coil of a portable device is
not properly positioned on the charg-
ing area, the overheat prevention func-
tion of the charging coil will operate

●

Remove the foreign object from
the charge area.

●

Remove the portable device from
the charging tray, check that the
operation indicator light changes
back to green, and then place the
portable device so that it is near
the center of the charging tray.
Also, if a case or cover is installed
to the portable device, remove it.

* :

If equipped

9-9. If an indicator on an interior feature illuminates or flashes

709

When tr

ouble arises

When the wireless charger indicator light continuously flashes 4 times
quickly (orange)

Cause

Remedy

The temperature inside the
wireless charger may have
become too high.

Stop charging, remove the portable device from
the charging tray, and wait for the temperature
to decrease before attempting to begin charging
again.

9-9. If an indicator on an interior feature illuminates or flashes

710

If the vehicle cannot move

When a hybrid system warning message is displayed and the vehicle
does not move

There may be a problem with the drivetrain.
Contact your Lexus dealer or commercial towing service before towing.

9-10. If the vehicle cannot move

711

When tr

ouble arises

If the hybrid transmission makes abnormal sounds

There may be a problem with the drivetrain.
Contact your Lexus dealer or commercial towing service before towing.

9-10. If the vehicle cannot move

712

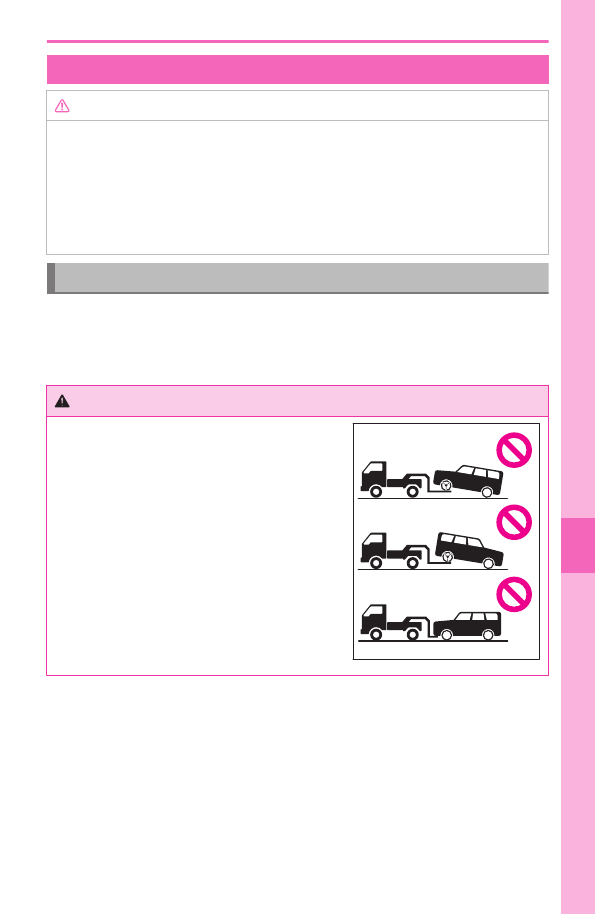

Towing with a tow truck

NOTICE

■

To prevent damage to the vehicle when towing using a wheel-lift type truck

●

Do not tow the vehicle from the rear when the power switch is off. The steering lock
mechanism is not strong enough to hold the front wheels straight.

●

When raising the vehicle, ensure adequate ground clearance for towing at the oppo-
site end of the raised vehicle. Without adequate clearance, the vehicle could be
damaged while being towed.

Towing with a tow truck

If towing is necessary, we recommend having your vehicle towed by your Lexus
dealer or a commercial towing service, using a wheel-lift type truck or flatbed
truck.Use a safety chain system for all towing, and abide by all state/provincial and
local laws.

WARNING

Be sure to transport the vehicle with all four wheels
raised off the ground. If the vehicle is towed with the
tires contacting the ground, the drivetrain or related
parts may be damaged, the vehicle may fly off the
truck, or electricity generated by the operation of the
motor may cause a fire to occur depending on the
nature of the damage or malfunction.

9-10. If the vehicle cannot move

713

When tr

ouble arises

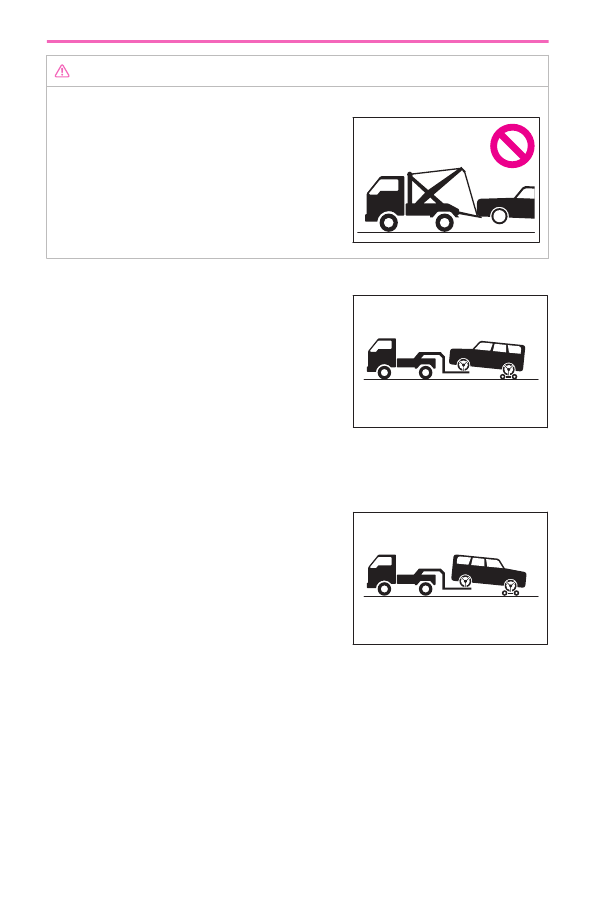

NOTICE

■

Towing with a sling-type truck

Do not tow with a sling-type truck to prevent body
damage.

▶

From the front

Use a towing dolly under the
rear wheels.

▶

From the rear

Use a towing dolly under the
front wheels.

9-10. If the vehicle cannot move

714

Using a flatbed truck

When using a flat-bed truck to transport the vehicle, use tire strapping belts. Refer
to the owner's manual of the flat-bed truck for the tire strapping method.
In order to suppress vehicle movement during transportation, set the parking brake
and turn the power switch off.

9-10. If the vehicle cannot move

715

When tr

ouble arises

Towing with another vehicle

Emergency towing

If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using cables or chains secured to the emergency towing eyelets. This should
only be attempted on hard surfaced roads for short distances at under 18 mph (30
km/h ).
A driver must be in the vehicle to steer and operate the brakes. The vehicle's
wheels, drive train, axles, steering and brakes must be in good condition.

Situations when it is not possible to be towed by another vehicle

In the following situations, it is not possible to be towed by another vehicle using
cables or chains, as the front wheels may be locked due to the parking lock.
Contact your Lexus dealer or commercial towing service.

●

There is a malfunction in the shift control system.

●

There is a malfunction in the immobilizer system.

●

There is a malfunction in the smart access system with push-button start.

(

→

P.670)

●

The 12-volt battery is discharged.

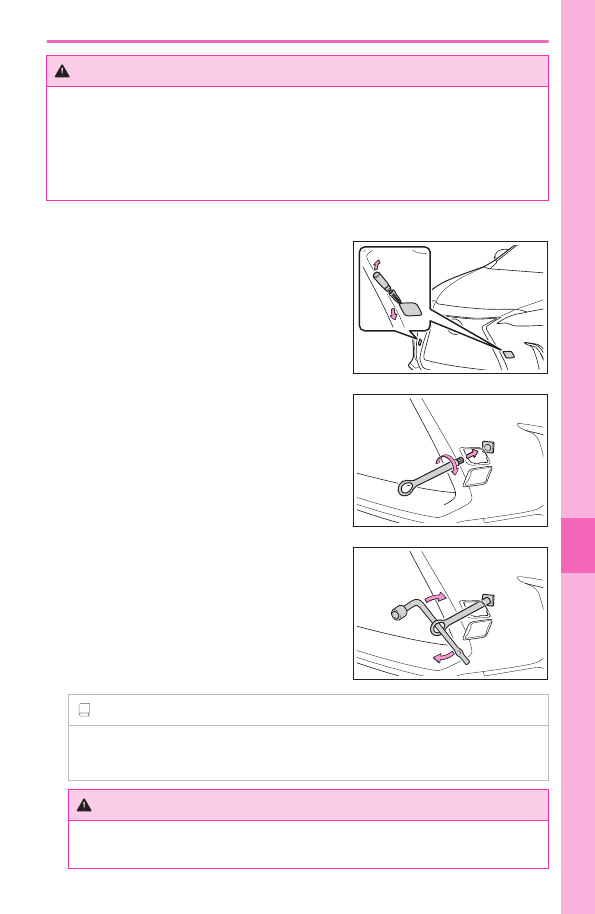

Emergency towing procedure

To have your vehicle towed by another vehicle, the towing eyelet must be installed
to your vehicle. Install the towing eyelet using the following procedure.

9-10. If the vehicle cannot move

716

WARNING

Do not perform any of the following as doing so may cause the parking lock mechanism
to engage, locking the front wheels and possibly leading to an accident resulting in death
or serious injury:

●

Unfasten the driver’s seat belt and open the driver’s door.

●

Turn the power switch off.

Take out the flathead screwdriver and towing eyelet.

Remove the eyelet cover using a flathead
screwdriver.

To protect the bodywork, place a rag between the
screwdriver and the vehicle body as shown in the
illustration.

Insert the towing eyelet into the hole and
tighten partially by hand.

Tighten down the towing eyelet securely us-
ing a wheel bolt wrench or hard metal bar.

INFORMATION

■

Wheel bolt wrench

Wheel bolt wrench can be purchased at your Lexus dealer.

WARNING

When installing towing eyelets to the vehicle, make sure to securely install them to
the specified positions.

9-10. If the vehicle cannot move

717

When tr

ouble arises

WARNING

If not securely installed, towing eyelets may come loose during towing.

Securely attach cables or chains to the towing eyelet.

Take care not to damage the vehicle body.

NOTICE

To prevent damage to the vehicle during emergency towing, do not secure cables or
chains to the suspension components.

Enter the vehicle being towed and start the hybrid system.

If the hybrid system does not start, turn the power switch to ON.

INFORMATION

■

While towing

If the hybrid system is off, the power assist for the brakes and steering will not
function, making steering and braking more difficult.

WARNING

Do not turn the power switch off while towing the vehicle with another vehicle. This
may lead to an accident as the front wheels will be locked by the parking lock.

Shift the shift position to N and release the parking brake.

Turn auto mode of the parking brake off.

WARNING

When towing, avoid sudden starts, etc., which place excessive stress on the towing
eyelets, cables or chains. The towing eyelets, cables or chains may become dam-
aged, broken debris may hit people, and cause serious damage.

9-10. If the vehicle cannot move

718

Getting unstuck from mud, sand, or snow

Stop the hybrid system. Set the parking brake and shift the shift position to P.

Remove the mud, snow or sand from around the front wheels.

Place wood, stones or some other material under the front wheels to help
provide traction.

Restart the hybrid system.

Shift the shift position to D or R and release the parking brake. Then, while
exercising caution, depress the accelerator pedal.

WARNING

●

When shifting the shift lever, do not shift it with the accelerator pedal depressed.
Doing so may lead to unexpected rapid acceleration of the vehicle that may cause
an accident.

●

If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.

NOTICE

Avoid spinning the front wheels and depressing the accelerator pedal more than
necessary.
Doing so may damage the hybrid transmission and other components.

If it is difficult to free the vehicle, press the

switch and turn the TRAC off.

If the vehicle remains stuck even after these procedures are performed, the vehicle
may require towing to be freed.

9-10. If the vehicle cannot move

719

When tr

ouble arises

If you think something is wrong

If a vehicle abnormality is found

The following symptoms are abnormal.

●

Fluid leaks under the vehicle

Water dripping from the air conditioning after use is normal.

●

Flat-looking tires or uneven tire wear

●

High engine coolant temperature warning light comes on.

Contact your Lexus dealer as soon as possible. Your vehicle probably needs
adjustment or repair.

9-11. If you think something is wrong

720

Content .. 41 42 43 44 ..
