Adjusting the position of the steering wheel and mirrors

Adjusting the position of the steering wheel horizontally/vertically

INFORMATION

■

The steering wheel can be adjusted when

The power switch is in ACC or ON.

WARNING

Do not adjust the steering wheel while driving.

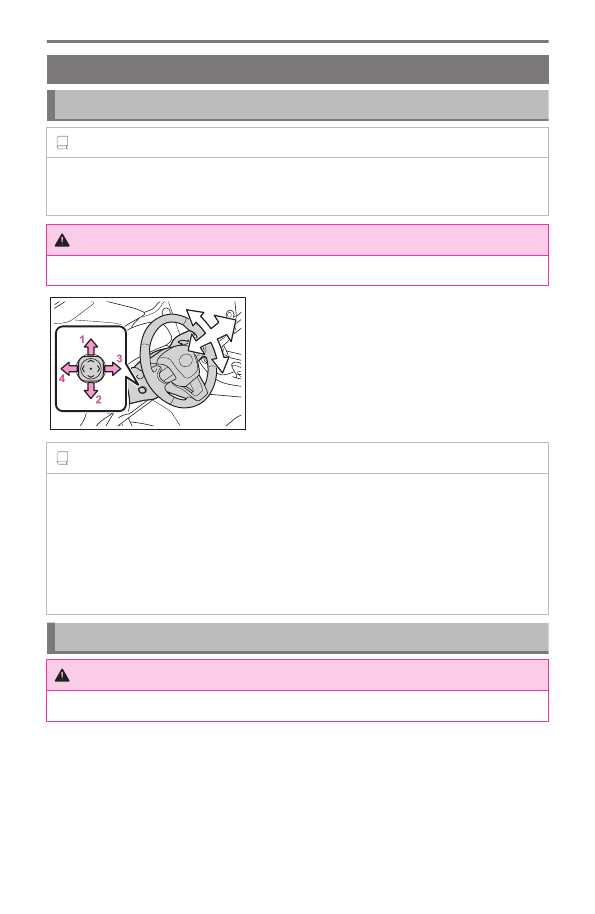

Operating the switch moves the steering wheel
in the following directions:

Down

Toward the driver

Away from the driver

INFORMATION

■

Automatic adjustment of the steering position

A desired steering position can be entered to memory and recalled automatically by the
driving position memory system.

■

Power easy access system

The steering wheel and driver’s seat move in accordance with power switch mode and
the driver’s seat belt condition.

Adjusting the position of the inside rear view mirror

WARNING

Do not adjust the position of the mirror while driving.

Adjust the position of the inside rear view mirror so that the correct driving posture
can be achieved.

*1 :

If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of

power switch mode.

1-7. Obtaining the correct driving posture

168

Adjust the inside rear view mirror vertically by
grasping and moving it.

Digital Rear-veiw mirror effort and caution

The Digital Rear-view Mirror is a system that uses the camera on the rear of the
vehicle and displays its image on the display of the Digital Rear-view Mirror.
The Digital Rear-view Mirror can be changed between optical mirror mode and
digital mirror mode by operating the lever.
The Digital Rear-view Mirror allows the driver to see the rear view despite obstruc-
tions, such as the head restraints or luggage, ensuring rear visibility. Also, the rear
seats are not displayed and privacy of the passengers is enhanced.

WARNING

Observe the following precautions. Failure to do so may result in death or serious injury.

■

Before using the Digital Rear-view Mirror

●

Make sure to adjust the mirror before driving.

•

Change to optical mirror mode and adjust the position of the Digital Rear-view
Mirror so that the area behind your vehicle can be viewed properly.

•

Change to digital mirror mode and adjust the display settings.

●

As the range of the image displayed by the Digital Rear-view Mirror is different from
that of the optical mirror, make sure to check this difference before driving.

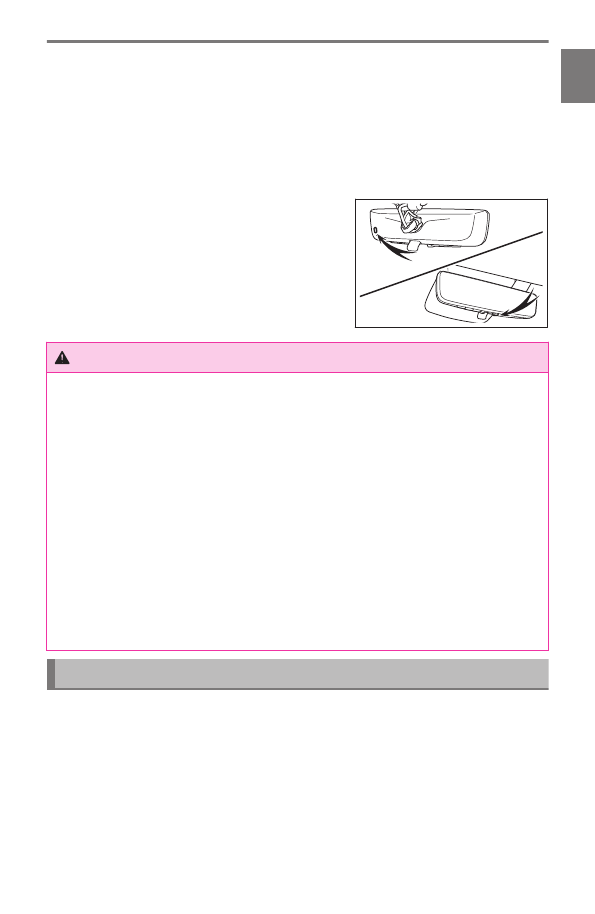

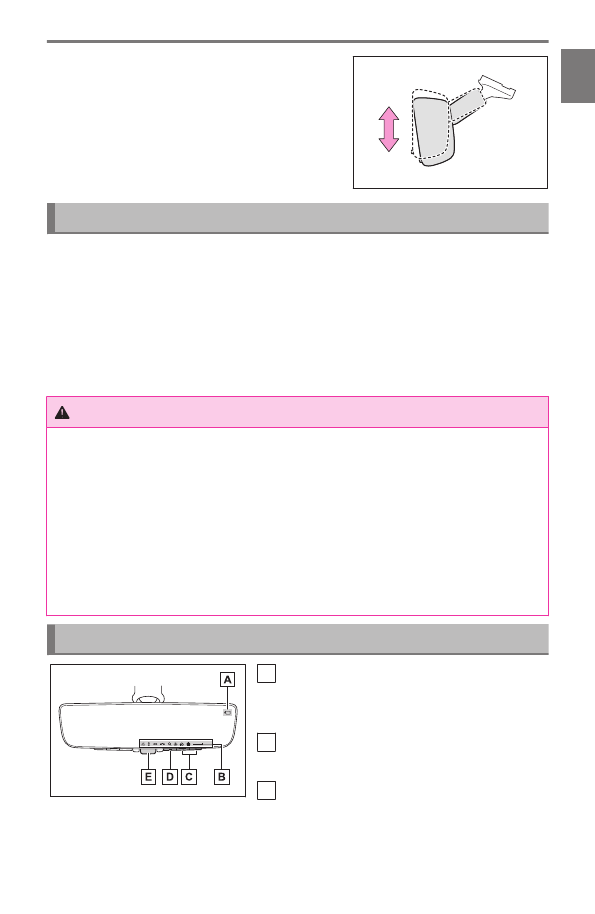

System components of the Digital Rear-view Mirror

Camera indicator
Indicates that the camera is operating nor-
mally.

Icon display area
Displays icons, adjusting gauge, etc.

Select/adjust button
Press to change the setting of the item you
want to adjust.

* :

If equipped

1-7. Obtaining the correct driving posture

169

Befor

e driving

Menu button
Press to display the icon display area and
select the item you want to adjust.

Lever
Operate to change between digital mirror
mode and optical mirror mode.

Changing modes of the Digital Rear-view Mirror

Operate the lever to change between digital mirror mode and optical mirror
mode.

Digital mirror mode
Displays an image of the area behind the
vehicle.

[

] will illuminate in this mode.

Optical mirror mode
Turns off the display of the Digital Rearview
Mirror allows it to be used as an optical
mirror.

Digital mirror mode operating condition

The power switch is turned to ON.
When the power switch is changed from ON to OFF or ACC, the image will
disappear after several seconds.

Precautions about digital mirror mode

If it is difficult to see the displayed image due to light reflected off the Digital
Rear-view Mirror, the camera being dirty or covered with water droplets, dust, etc.,
or if lights of a vehicle behind your vehicle or the displayed image are bothering
you, change to optical mirror mode.
When it is raining, if the image is unclear due to water on the rear window, operate
the rear wiper.

●

When the back door is open, the Digital Rear-view Mirror image may not
display properly. Before driving, make sure the back door is closed.

●

If the display is difficult to see due to reflected light, close the sunshade.

1-7. Obtaining the correct driving posture

170

●

Any of the following conditions may occur when driving in the dark, such as at
night. None of them indicates that a malfunction has occurred.

•

Colors of objects in the displayed image may differ from their actual color.

•

Depending on the height of the lights of the vehicle behind, the area around the
vehicle may appear white and blurry.

•

Automatic image adjustment for brighter surrounding image may cause flickering.
If it is difficult to see the displayed image or flickering bothers you, change to optical
mirror mode.

●

The Digital Rear-view Mirror may become hot while it is in digital mirror mode.
This is not a malfunction.

●

Depending on your physical condition or age, it may take longer than usual to
focus on the displayed image. In this case, change to optical mirror mode.

●

Do not let passengers stare at the displayed image when the vehicle is being
driven, as doing so may cause motion sickness.

■

When the system malfunctions

If the symbol shown in the illustration is displayed
when using the Digital Rear-view Mirror in digital
mirror mode, the system may be malfunctioning.
The symbol will disappear in a few seconds.
Operate the lever, change to optical mirror
mode and have the vehicle inspected by your
Lexus dealer.

Adjusting the Digital Rear-view Mirror

Settings of the display in the digital mirror mode, on/off operation of the automatic
anti-glare function, etc. can be changed.

Press the menu button.

The icons will be displayed.

Press the menu button repeatedly and select the item you want to adjust.

Press [

] or [

]to change the setting.

1-7. Obtaining the correct driving posture

171

Befor

e driving

The icons will disappear if a button is not operated for approximately 5 seconds or
more.

Icons

Settings

Select to adjust the brightness of the dis-
play.

Select to adjust the area displayed up/
down.

Select to adjust the area displayed to the
left/right.

Select to adjust the angle of the displayed
image.

Select to zoom in/out the displayed im-
age.

Select to enable/disable the automatic
anti-glare function.

Responding to the brightness of the
headlights of vehicles behind, the reflect-
ed light is automatically adjusted.
The automatic anti-glare function is en-
abled each time the power switch is
changed to ON.

Select to display HomeLink

Training Tu-

torial to assist customers to train their
Garage Door Opener System.

Select to change the language of the
HomeLink

Training Tutorial.

Precautions when adjusting the Digital Rear-view Mirror

■

Display settings (digital mirror mode)

●

The icons will disappear if a button is not operated for approximately 5 seconds
or more.

●

If the displayed image is adjusted, it may appear distorted. This is not a malfunc-
tion.

*2 :

This is a function for the optical mirror mode, however, the setting can also be changed

while using the digital mirror mode.

1-7. Obtaining the correct driving posture

172

●

If the brightness of the Digital Rear-view Mirror is set too high, it may cause eye
strain. Adjust the Digital Rear-view Mirror to an appropriate brightness. If your
eyes become tired, change to optical mirror mode.

●

The brightness of the Digital Rear-view Mirror will change automatically accord-
ing to the brightness of the area in front of your vehicle.

■

To prevent the light sensors from malfunctioning

To prevent the light sensors from malfunctioning,
do not touch or cover them.

WARNING

Observe the following precautions. Failure to do so may result in death or serious injury.

■

While driving

●

Do not adjust the position of the Digital Rear-view Mirror or adjust the display settings
while driving.
Stop the vehicle and operate the Digital Rear-view Mirror control switches. Failure
to do so may cause a steering wheel operation error, resulting in an unexpected
accident.

●

Always pay attention to the vehicle’s surroundings.
The size of the vehicles and other objects may look different when in digital mirror
mode and optical mirror mode. When backing up, make sure to directly check the
safety of the area around your vehicle, especially behind the vehicle. Additionally, if a
vehicle approaches from the rear in the dark, such as at night, the surrounding area
may appear dim.

Cleaning the Digital Rear-view Mirror

■

Cleaning the mirror surface

If the mirror surface is dirty, the image on the display may be difficult to see. Wipe
the mirror surface gently using a soft dry cloth.

1-7. Obtaining the correct driving posture

173

Befor

e driving

INFORMATION

■

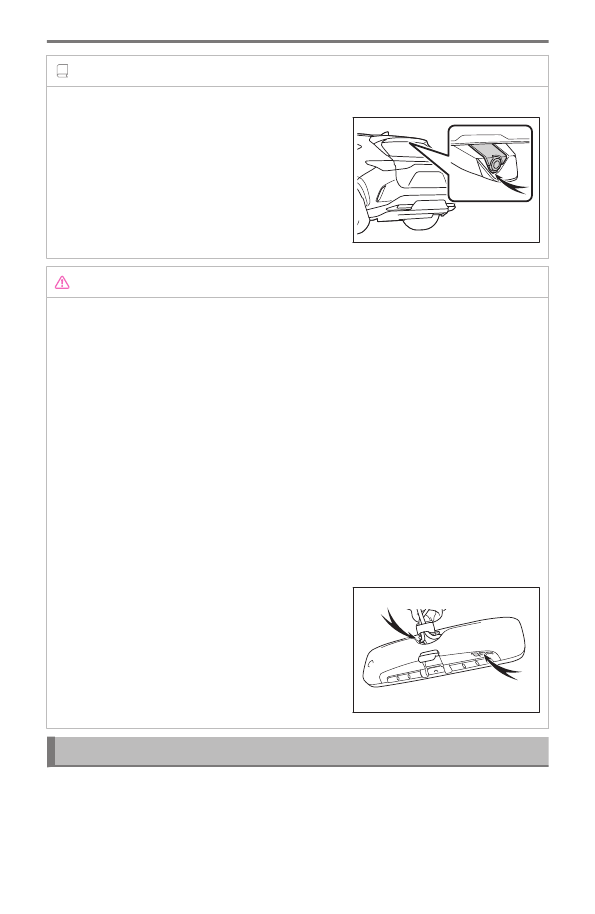

The camera

The camera for the Digital Rear-view Mirror is locat-
ed as shown.

NOTICE

■

To prevent the camera from malfunctioning

●

Observe the following precautions, otherwise the Digital Rear-view Mirror may not
operate properly.

•

Do not strike or hit the camera or subject it to a strong impact, as the camera
installation position and angle may be changed.

•

Do not remove, disassemble or modify the camera.

•

Do not allow an organic solvent, car wax, window cleaner or glass coating to
adhere to the camera. If this happens, wipe it off as soon as possible.

•

When applying colored film (including transparent film) to the rear window glass,
do not apply it to the area in front of the camera. If film is applied to the area in front
of the camera, the image from the camera may not display properly.

●

Do not subject the camera to a strong impact as this could cause a malfunction. If this
happens, have the vehicle inspected by your Lexus dealer as soon as possible.

●

Do not block the vent holes of the mirror. Other-
wise, the mirror may be hot, leading to a malfunc-
tion or a fire.

If you notice any symptoms about the Digital Rear-view Mirror

If you notice any of the following symptoms, refer to the following table for the likely
cause and the solution.
If the symptom is not resolved by the solution, have the vehicle inspected by your
Lexus dealer.

1-7. Obtaining the correct driving posture

174

Symptom

Likely cause

Solution

The image is dif-
ficult to see.

The mirror surface is dirty.

Wipe the mirror surface gently, us-
ing a soft dry cloth.

Sunlight or headlights are shin-
ing directly into the Digital Rear-
view Mirror.

Change to optical mirror mode.
(If the light is coming through the
moon roof or panoramic moon roof,
close the sunshade or electronic
sunshade.)

●

The vehicle is in a dark area.

●

The vehicle is near a TV tow-
er, broadcasting station, elec-
tric power plant, or other
location where strong radio
waves or electrical noise may
be present.

●

The temperature around the
camera is extremely high/low.

●

The ambient temperature is
extremely low.

●

It is raining or humid.

●

Sunlight or headlights are
shining directly into the cam-
era lens.

●

The vehicle is under fluores-
cent lights, sodium lights,
mercury lights, etc.

●

Exhaust gas is obstructing the
camera.

Change to optical mirror mode.
(Change back to digital mirror
mode when the conditions have im-
proved.)

Foreign matters such as water
droplets or dust is on the camera
lens.

Have the vehicle inspected by your
Lexus dealer

The luggage in the luggage
compartment is reflected off the
rear window glass and obstruct-
ing the camera.

Change to optical mirror mode.
Move the luggage to a position
where it does not obstruct the cam-
era or cover it with a black cloth to
reduce the amount it is reflected off
the rear window glass.

1-7. Obtaining the correct driving posture

175

Befor

e driving

Symptom

Likely cause

Solution

The image is dif-
ficult to see.

The rear window glass is fogged
up.

After defogging the rear window us-
ing the rear window defogger, use
the digital mirror mode again.

The outside of the rear window
glass is dirty.

Use the rear window wiper to re-
move dirt.

The inside of the rear window
glass is dirty.

Have the vehicle inspected by your
Lexus dealer

The image is out
of alignment.

The back door is not fully closed. Fully close the back door.

The camera or its surrounding
area has received a strong im-
pact.

Change to optical mirror mode and
have the vehicle inspected by your
Lexus dealer.

The display is
dim and [

]

is displayed.

The system may be malfunction-
ing.

Change to optical mirror mode and
have the vehicle inspected by your
Lexus dealer.

[

] goes off.

[

] is dis-

played.

The Digital Rear-view Mirror is
extremely hot. (The display will
gradually become more dim. If
the temperature continues to
increase, the Digital Rear-view
Mirror will turn off.)

Reducing the cabin temperature is
recommended to reduce the tem-
perature of the mirror. ([

] will

disappear when the mirror becomes
cool.)

If [

] does not disappear even

though the mirror is cool, have the
vehicle inspected by your Lexus
dealer.

The lever can-
not be operated
properly.

The lever may be malfunction-
ing.

Change to optical mirror mode and
have the vehicle inspected by your
Lexus dealer.

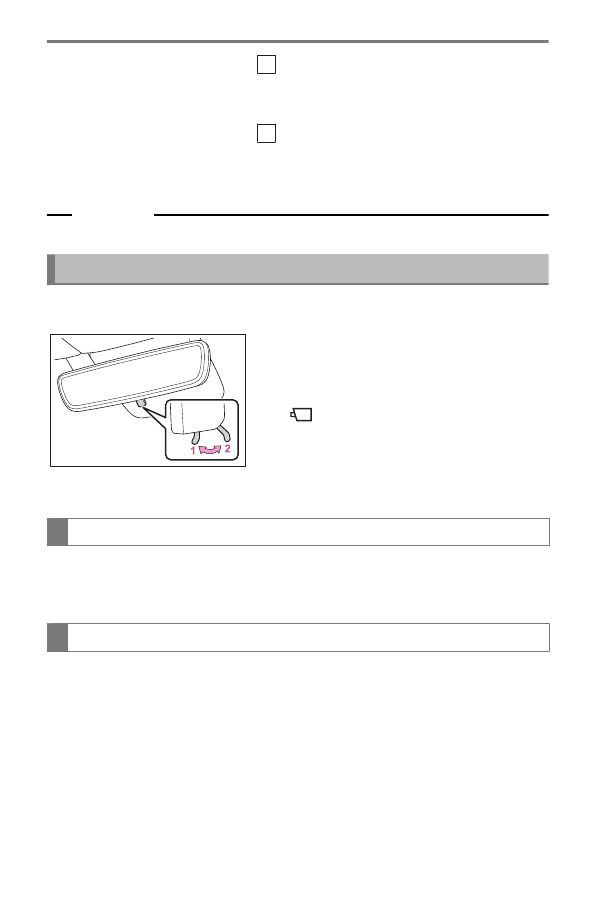

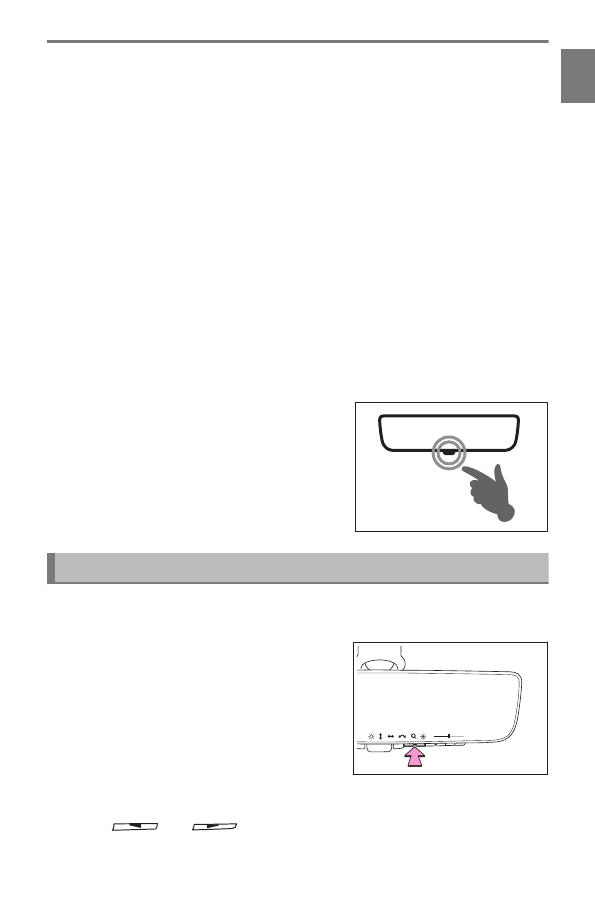

To change to optical mirror mode,
press and hold the menu button for
approximately 10 seconds.

Adjusting the angle of the outside rear view mirrors

WARNING

Do not adjust the position of the mirror while driving.

1-7. Obtaining the correct driving posture

176

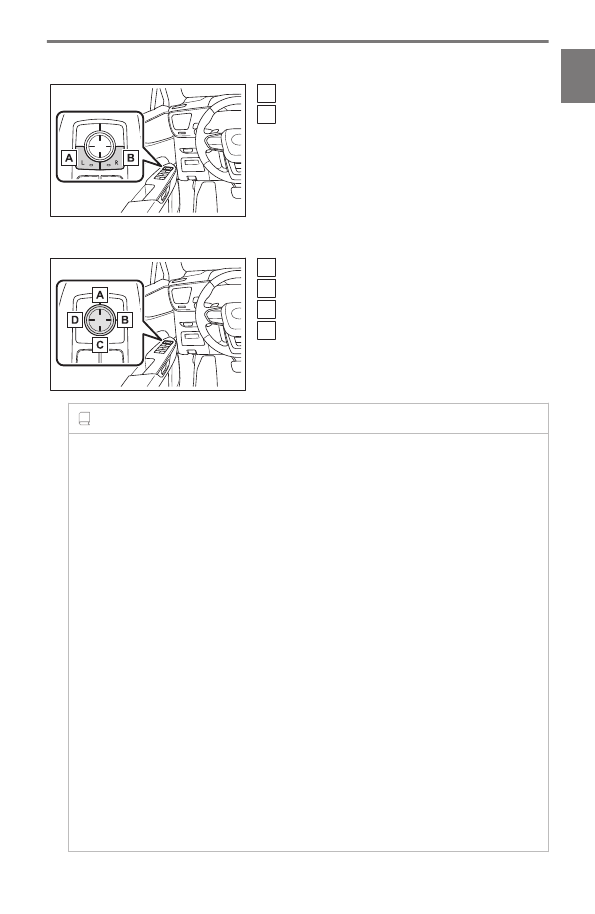

To select a mirror to adjust, press the switch.

Select the left mirror

Select the right mirror

To adjust the mirror, press the switch.

Adjust the mirror surface up

Adjust the mirror surface right

Adjust the mirror surface down

Adjust the mirror surface left

INFORMATION

■

Mirror angle can be adjusted when

The power switch is in ACC or ON.

■

Automatic adjustment of the mirror angle

A desired mirror face angle can be entered to memory and recalled automatically by
the driving position memory.

■

Linked mirror function when reversing (vehicles with driving position memory)

When the mirror select switch is in the “L” or “R” position, the outside rear view
mirrors will automatically angle downwards when the vehicle is reversing in order to
give a better view of the ground.
To disable this function, move the mirror select switch to the neutral position (be-
tween “L” and “R”)
With the shift position in R, adjust the mirror angle at a desired position to set the
mirror angle used when the vehicle is reversing.
The adjusted angle will be memorized and the mirror will automatically tilt to the
memorized angle whenever the shift position is shifted to R from next time.
The memorized downward tilt position of the mirror is linked to the normal position
(angle adjusted with the shift position in other than R). Therefore, if the normal
position is changed after adjustment, the tilt position will also change.
When the normal position is changed, readjust the angle in reversing.

1-7. Obtaining the correct driving posture

177

Befor

e driving

■

Using the reverse-linked function when it is cold

When reverse-linked function used in cold weather, the door mirror could be frozen
and may not automatically point the mirror surface downward. In this event, remove
any ice and snow from the mirror surface.

Related Links

Customizable features(P. 763)

Folding/extending the outside rear view mirrors

▶

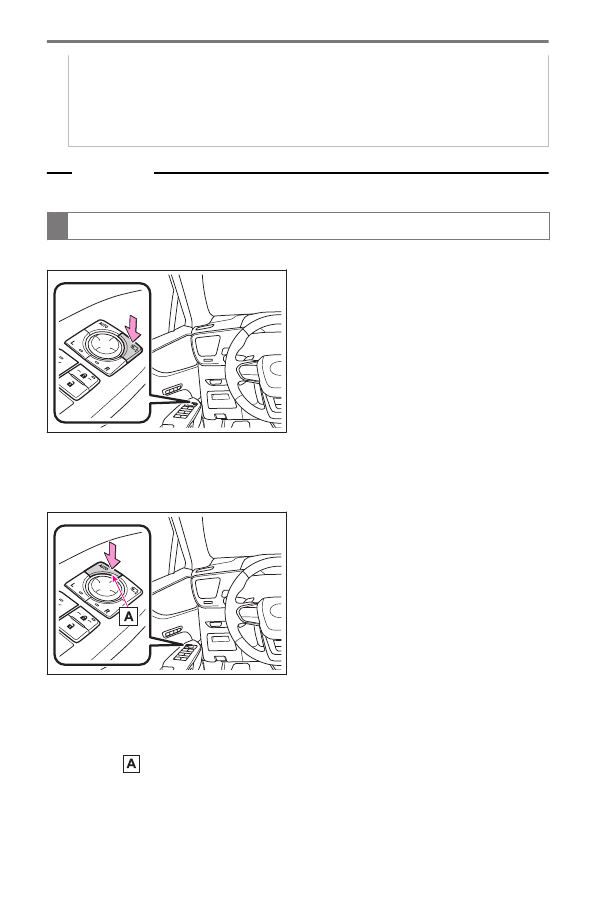

Using the switch

Press the switch to fold the mirrors.

Press it again to extend them to the original position.

▶

Setting automatic mode

Automatic mode allows the folding or extending of the mirrors to be linked to
locking/unlocking of the doors.
Press the switch to set automatic mode.

The indicator

will come on.

Pressing the switch once more will return to manual mode.

1-7. Obtaining the correct driving posture

178

INFORMATION

■

Using automatic mode when it is cold

When automatic mode is used in cold weather, the door mirror could freeze up and
automatic stowing and return may not be possible. In this event, after removing any ice
and snow from the door mirror, operate the mirror using manual mode or move it by
hand.

WARNING

Observe the following precautions.

●

Do not drive with the mirrors folded.

●

Do not touch an outside rear view mirror when it is moving. Failure to do so may lead
to your finger being pinched or the mirror being damaged.

●

As the mirror surface will be hot, do not touch an outside rear view mirror when the
mirror heater is operating.

●

Both the driver and passenger side mirrors must be extended and properly adjusted
before driving.

1-7. Obtaining the correct driving posture

179

Befor

e driving

Starting and stopping the hybrid system

Starting the hybrid system

WARNING

Always start the hybrid system while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the hybrid system under any circumstances.

NOTICE

■

When starting the hybrid system

If the hybrid system becomes difficult to start, have your vehicle checked by your Lexus
dealer immediately.

■

Operation of the power switch

If the power switch seems to be operating somewhat differently than usual, such as
the switch sticking slightly, there may be a malfunction. Contact your Lexus dealer
immediately.

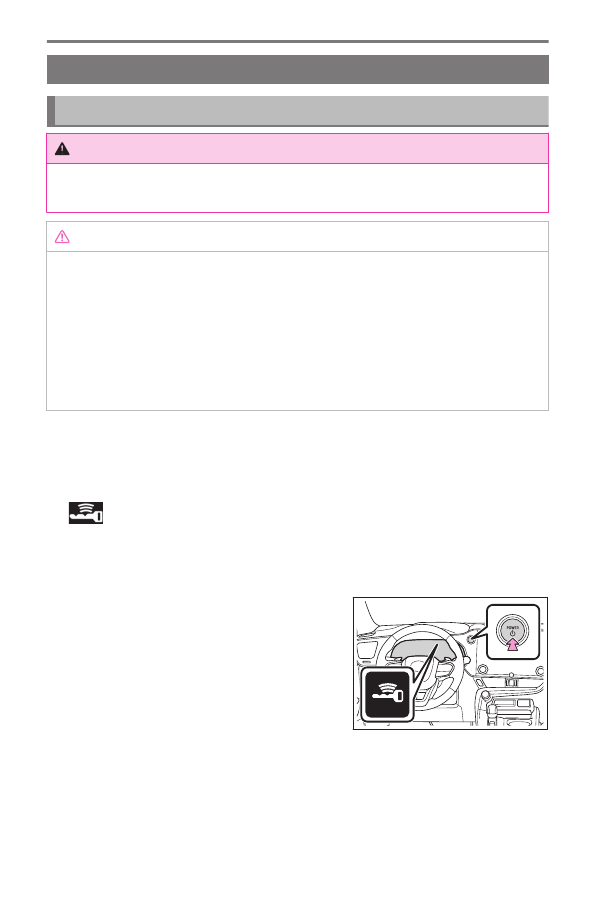

Check that the parking brake is set.

The parking brake indicator will come on.

Firmly depress the brake pedal.

and a message will be displayed on the multi-information display. If it is not

displayed, the hybrid system cannot be started.
When the shift position is N, the hybrid system cannot start. Shift the shift position to P
when starting the hybrid system.

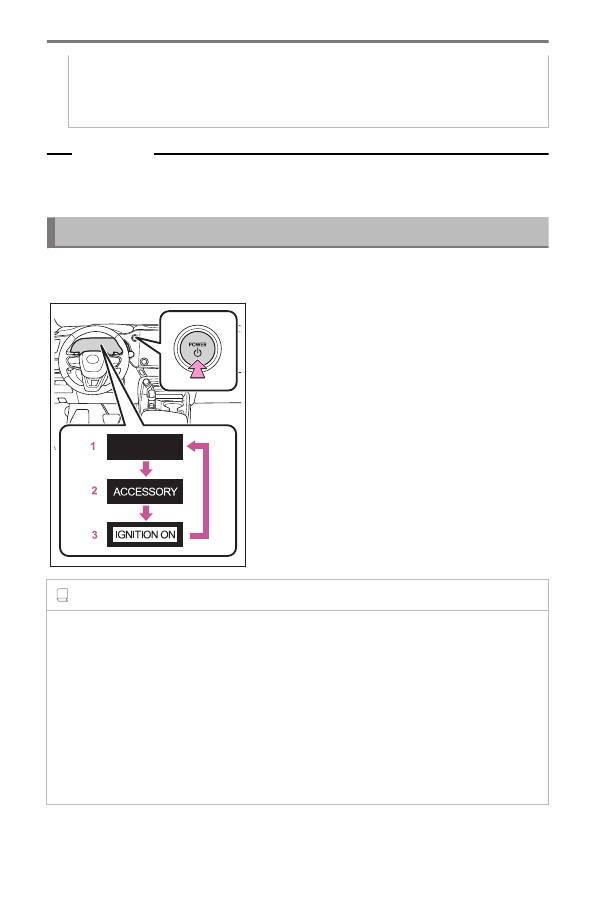

Press the power switch shortly and firmly.

When operating the power switch, one short, firm
press is enough. It is not necessary to press and
hold the switch.
If the "READY" indicator turns on, the hybrid sys-
tem will operate normally.
Continue depressing the brake pedal until the
"READY" indicator is illuminated.
The hybrid system can be started from any power switch mode.

Check that the "READY" indicator is illuminated.

The vehicle will not move when the "READY" indicator is off.

2-1. Starting and stopping the hybrid system

182

INFORMATION

■

Power switch illumination

According to the situation, the power switch illumination operates as follows.

●

When a door is opened, or the power switch mode is changed from ACC or ON
to off, the power switch illumination slowly blinks.

●

When depressing the brake pedal with carrying the electronic key on your person,
the power switch illumination rapidly blinks.

●

When the power switch is in ACC or ON, the power switch illumination illumi-
nates.

■

If the hybrid system does not start

●

If a message related to start-up is shown on the multi-information display, read the
message and follow the instructions.

■

When the ambient temperature is low, such as during winter driving conditions

●

When starting the hybrid system, the flashing time of the "READY" indicator may
be long. Leave the vehicle as it is until the "READY" indicator is steady on, as
steady means the vehicle is able to move.

●

When the hybrid battery (traction battery) is extremely cold (below approximately
-22°F [-30°C]) under the influence of the outside temperature, it may not be
possible to start the hybrid system. In this case, try to start the hybrid system
again after the temperature of the hybrid battery increases due to the outside
temperature increase etc.
When the hybrid battery (traction battery) is extremely cold (below approximately
-30°C [-22°F]) under the influence of the outside temperature, it may not be
possible to start the hybrid system. In this case, try to start the hybrid system
again after the temperature of the hybrid battery increases due to the outside
temperature increase etc.

■

Steering lock function

After turning the power switch off and opening and closing the doors, the steering
wheel will be locked due to the steering lock function. Operating the power switch
again automatically cancels the steering lock.

■

If the "READY" indicator does not come on

In the event that the "READY" indicator does not come on even after performing the
proper procedures for starting the vehicle, contact your Lexus dealer immediately.

■

Operation of the power switch

●

If the switch is not pressed shortly and firmly, the power switch mode may not
change or the hybrid system may not start.

2-1. Starting and stopping the hybrid system

183

Driving the v

ehicle

●

If attempting to restart the hybrid system immediately after turning the power
switch off, the hybrid system may not start in some cases. After turning the power
switch off, please wait a few seconds before restarting the hybrid system.

Lexus NX450H+ (2022 year). Manual in english - page 10
