2-1. Instrument cluster

icle

rmat

ion
an

dica
tor

■

Display (except F SPORT models)

By selecting menu icons on the multi-
information display, a variety of driv-
ing-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

■

Display (F SPORT models)



When the main meter is in the cen-
ter position

The multi-information display presents
the driver with a variety of driving-
related information.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.



When the main meter is in the side
position

■

Menu icons

The menu icons will be displayed by
pressing

of the meter con-

trol switches (



P.90).

F SPORT models: The menu icons can be
displayed when the main meter is in the
side position.

Multi-information display

Display and menu icons

2-1. Instrument cluster

■

Opening image display

When the power switch is in ACC or ON,

the opening image is displayed on the multi-

information display.
While the opening image is being dis-

played, the meter display cannot be

changed even if the drive mode is changed.

When the opening image is finished, the

meter display for the currently selected

mode will be displayed.

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

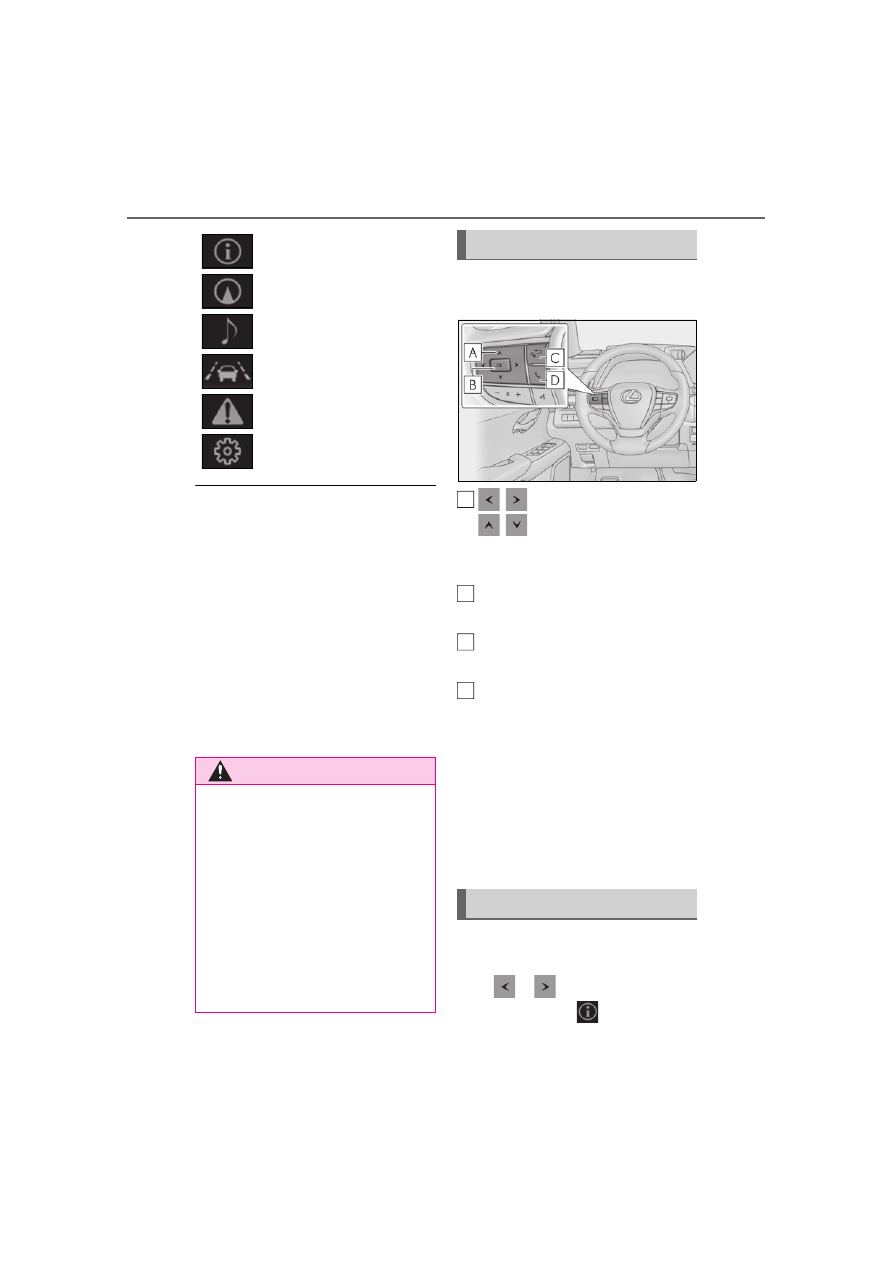

The multi-information display is oper-
ated using the meter control switches.

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen or
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Move the main meter

or return to

the previous screen

Call sending/receiving and history
display
Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S
MANUAL”.

: F SPORT models

■

Display items (except F SPORT
models)

Press

of the meter control

switches and select

. Then press

Driving information display
(



P.90)

Navigation system-linked dis-
play (if equipped) (



P.92)

Audio system-linked display
(



P.92)

Driving support system infor-
mation display (



P.92)

Warning message display
(



P.387)

Settings display (



P.93)

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around

the vehicle.

●

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

■

The information display at low tem-

peratures



P.81, 87

Changing the meter display

Drive information

2-1. Instrument cluster

icle

rmat

ion
an

dica
tor

to display the following

items:



Drive information 1



Drive information 2



Energy monitor (



P.99)



Tire pressure



Display off

■

Display items (F SPORT models)



When the main meter is in the cen-
ter position

Press

of the meter control

switches to display the following items:



Drive information 1



Drive information 2



Tire pressure



Units



Display off



When the main meter is in the side
position

Press

of the meter control

switches and select

. Then press

to display the following

items:



Drive information 1



Drive information 2



Energy monitor (



P.99)



G-force



Tire pressure



Display off

■

Drive information 1/Drive informa-
tion 2

2 of the following drive information can

be displayed in each screen.
Displayed items can be changed on

. (



P.89)

Use the displayed values as a reference
only.



Current fuel consumption

Displays instantaneous current fuel con-
sumption



Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

After start: Displays average fuel con-
sumption since the hybrid system was
started
After refuel: Displays average fuel con-
sumption since refuel



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since the hybrid system was started



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since the
hybrid system was started



Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven
since hybrid system start



Other

No item

: To reset, display the desired item and

press and hold “OK” of the meter con-
trol switches.

2-1. Instrument cluster

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the power switch
off. If the vehicle is refueled without
turning the power switch off, the display
may not be updated.

■

G-force (F SPORT models)

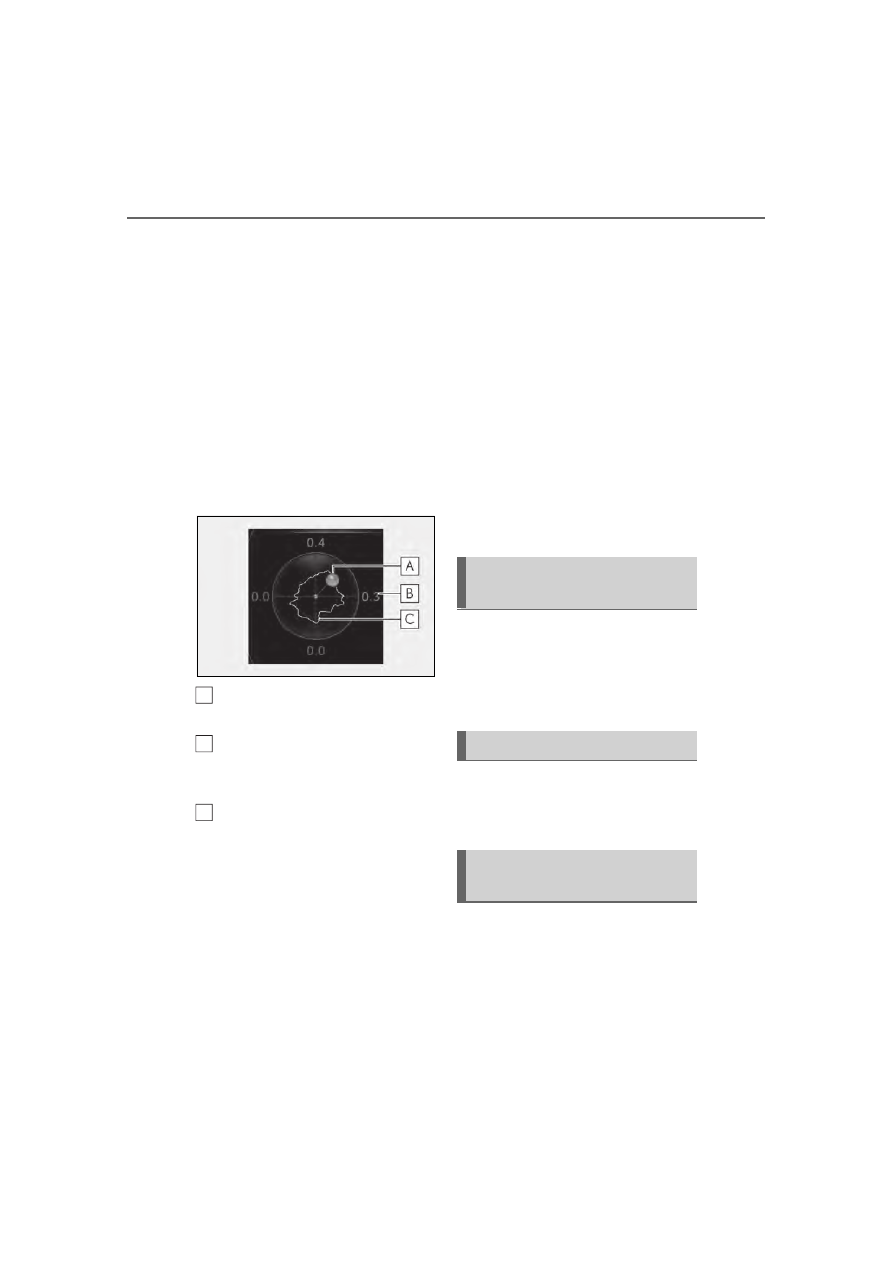

Displays lateral G-forces on the vehi-
cle.

Acceleration G-force on the vehi-
cle

Current G-force value (analyzed
value of front/rear and left/right G-
forces)

Record of the maximum G-forces

This display is intended for use as a guide-
line. Depending on factors such as the
road surface condition, temperature and
vehicle speed, the display may not show
the actual condition of the vehicle.



Resetting the record of maximum
G-forces

Press and hold “OK” of the meter control
switches to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

■

Tire pressure



P.341

■

Units (F SPORT models)

The units of measure used can be
changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

■

Display OFF

Displays a blank screen.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.209)



Dynamic radar cruise control with
full-speed range (



P.221)

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

2-1. Instrument cluster

icle

rmat

ion
an

dica
tor



RSA (Road Sign Assist) (if
equipped) (



P.218)

Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (



P.387)

■

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display (except F
SPORT models)

Select to set the display of the speedome-
ter to digital/analog.



Drive information 1/Drive informa-
tion 2

Select to select up to 2 items (



P.91) that

will be displayed on each Drive information
screen (Drive information 1 screen and
Drive information 2 screen) respectively.



Pop-up display

Select to enable/disable some pop-up dis-
plays for each relevant system.



Accent color

Select to change the accent color on the
screen, such as the cursor color.



Tachometer setting

Select to set the display of the Hybrid Sys-
tem Indicator or tachometer for each driv-
ing mode.



Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.



Rev peak (F SPORT models)

Select to enable/disable the rev peak.



EV indicator

Select to enable/disable the EV indicator.



Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed



P.426

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Warning message display

Settings display

WARNING

■

Cautions during setting up the dis-

play

As the hybrid system needs to be operat-

ing during setting up the display, ensure

that the vehicle is parked in a place with

adequate ventilation. In a closed area

such as a garage, exhaust gases includ-

ing harmful carbon monoxide (CO) may

collect and enter the vehicle. This may

lead to death or a serious health hazard.

2-1. Instrument cluster

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

■

Suggestion to enable the power
back door

If the power back door system is dis-
abled on

of the multi-information

display (



P.89) and the power back

door switch on the instrument panel is
operated, a suggestion message will
be displayed asking if you wish to
enable the power back door system.
To enable the power back door sys-
tem, select “Yes”.
After enabling the power back door
system, press the power back door
switch again to open or close the
power back door.

■

Suggestion to turn on the head-
lights

If the headlight switch is in other than

position, and the vehicle

speed is 3 mph (5 km/h) or higher for
a certain amount of time when the sur-
roundings are dark, a suggestion mes-
sage will be displayed.

■

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight
switch in

position after the

power switch has been turned off, a
suggestion message will be displayed
asking if you wish to turn the headlights
off.
To turn the headlights off, select “Yes”.

If a front door is opened after the power
switch is turned off, this suggestion mes-
sage will not be displayed.

■

Customization

Some functions can be customized.

(



P.427)

NOTICE

■

During setting up the display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while setting up the display features.

Suggestion function

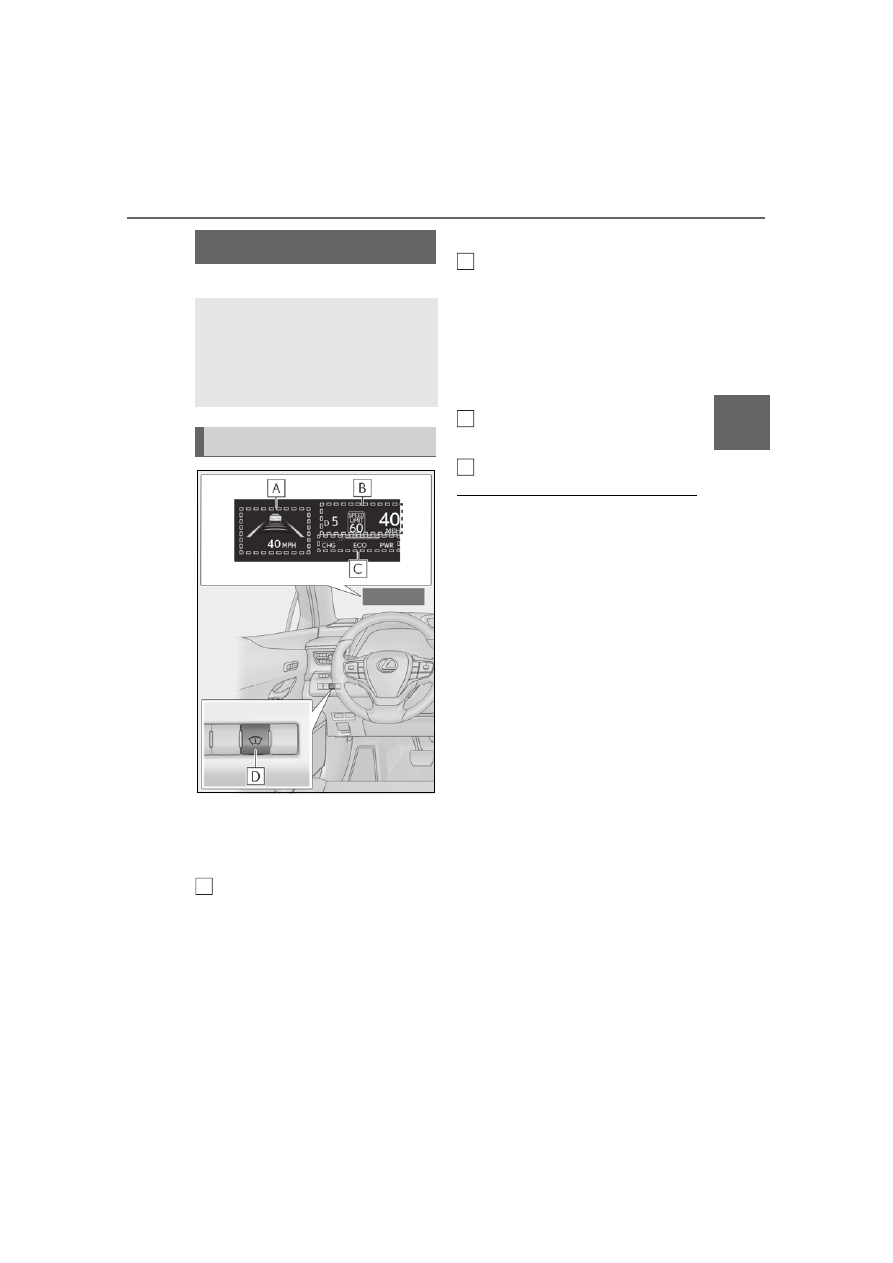

2-1. Instrument cluster

icle

rmat

ion
an

dica
tor

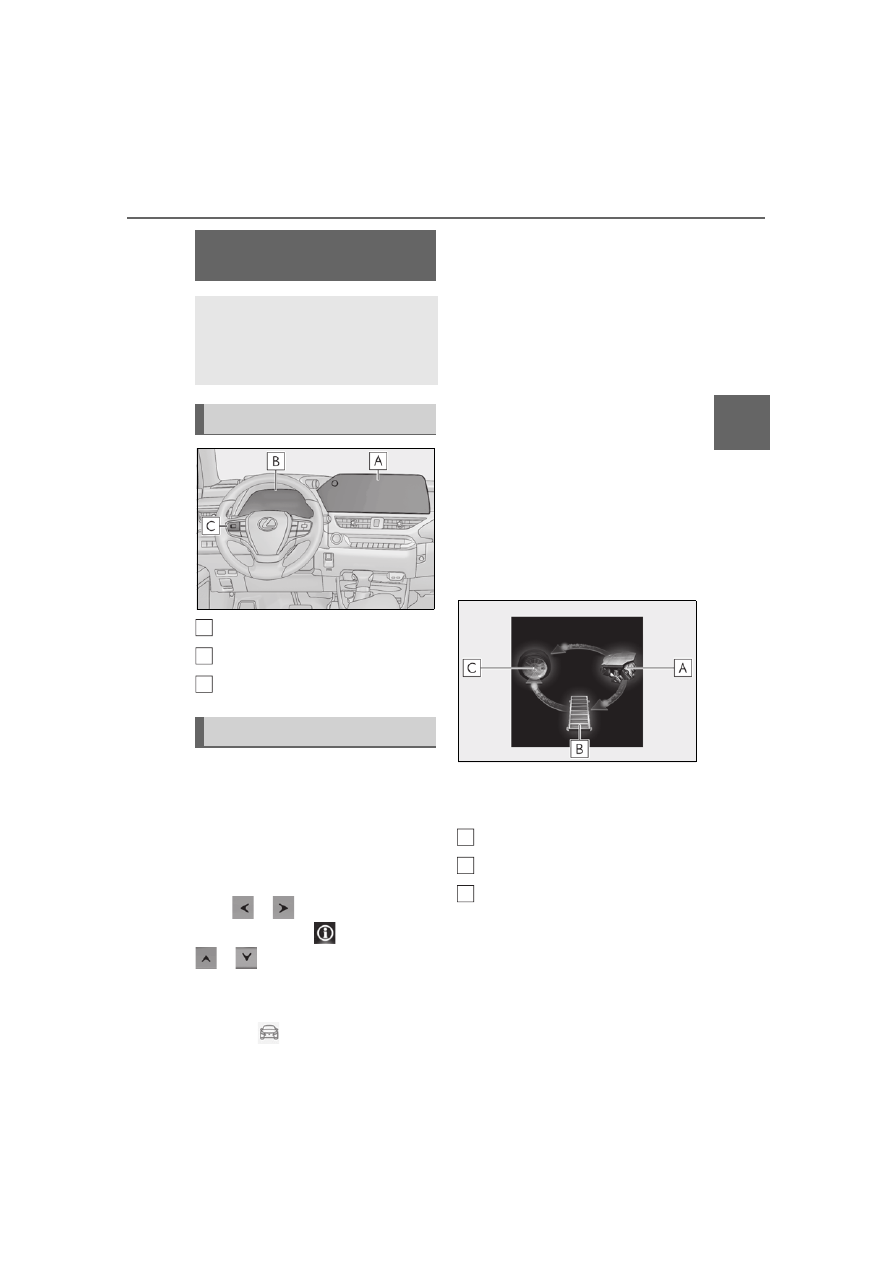

: If equipped

Illustrations used in this text are intended
as examples, and may differ from the
image that is actually displayed by the
head-up display.

Driving support system display
area (



P.97)

Navigation system-linked display
area (if equipped)

Displays the following items which are
linked to the navigation system:
• Route guidance to destination
• Street name

• Compass (heading-up display)

Driving information display area

Displays the following items:
• Speed limit of the current road (linked to

the navigation system) (U.S.A. only)

• RSA (Road Sign Assist) display (if

equipped) (



P.218)

• Speedometer
• Shift position/shift range (



P.169)

Hybrid System Indicator/tachome-
ter display area (



P.98)

Head-up display switch

■

Head-up display will operate when

The power switch is in ON.

■

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are included in the

map data will be displayed.

■

Outside temperature display

●

In the following situations, the outside

temperature is displayed.

• When the ambient temperature is

approximately 37°F (3°C) or lower (In

this case, the outside temperature display

will be displayed and the low outside tem-

perature indicator will flash for approxi-

mately 10 seconds.)

• After the opening image (



P.90) is dis-

played (The outside temperature display

will be displayed for approximately 10

seconds.)

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit

Head-up display

The head-up display projects a vari-
ety of driving-related information
and the operating state of the driv-
ing support systems on the wind-
shield.

System components

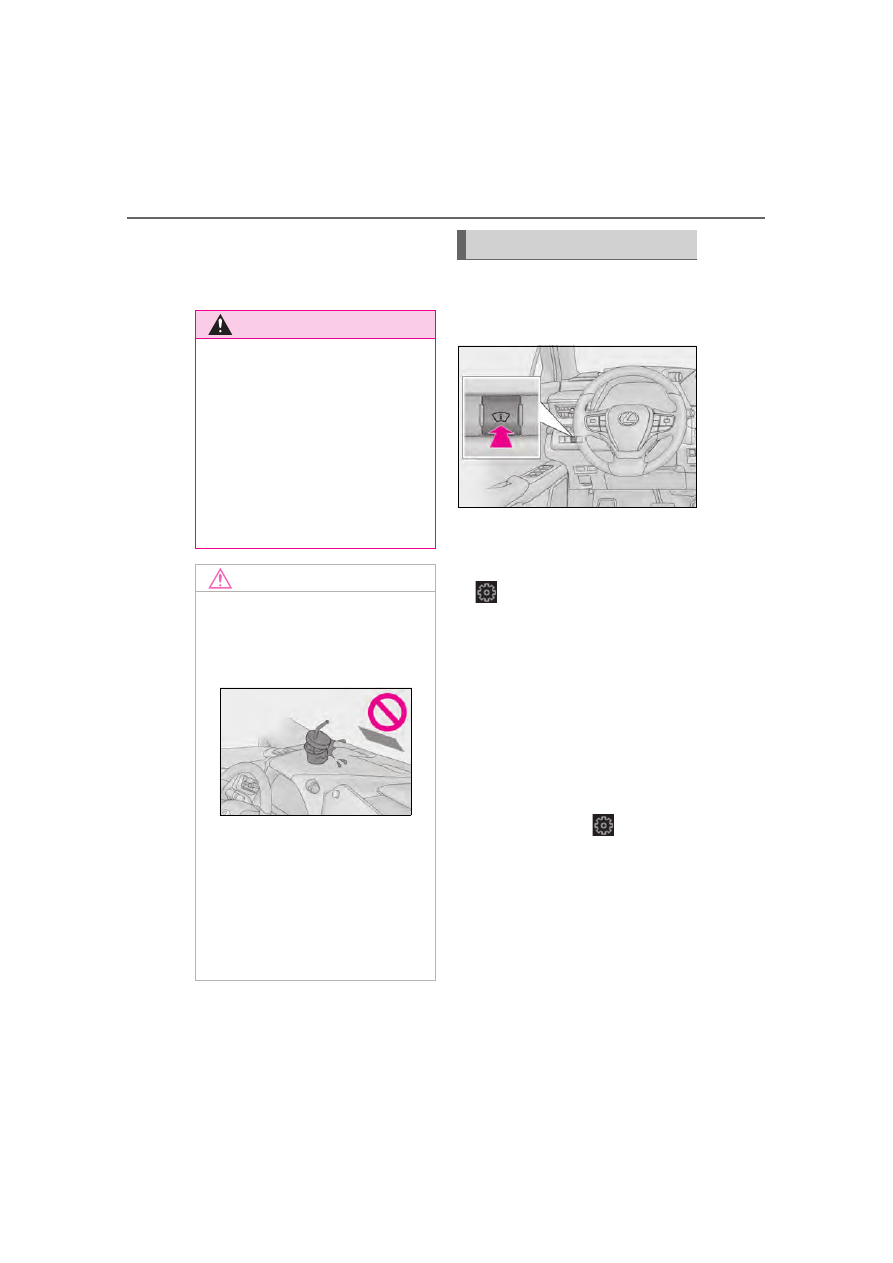

2-1. Instrument cluster

of a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Enabling/disabling the head-up
display

Press the head-up display switch.

■

Changing settings of the head-up
display

The following settings can be changed
on

of the multi-information display.

(



P.89)



Brightness and vertical position of
the head-up display

Select to adjust the brightness or vertical
position of the head-up display.



Hybrid System Indicator/tachome-
ter

Select to display the Hybrid System Indica-
tor, tachometer or no content.

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.



Display content

Select to enable/disable the following
items:
• Route guidance to destination/street

name

• Driving support system display

• Compass (heading-up display)

WARNING

■

When using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

Using the head-up display

2-1. Instrument cluster

icle

rmat

ion
an

dica
tor

• Audio system operation status

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.

: Make sure to enable this display when

using the driving support systems



Display angle

Select to adjust the angle of the head-up
display.

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the power switch is

turned off then back to ON.

■

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted
according to the ambient brightness.

■

Head-up display automatic position

adjustment (vehicles with driving posi-

tion memory)

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(



P.133)

■

When the 12-volt battery is discon-

nected

The customize settings of the head-up dis-

play will be reset.

Displays the operational status of the
following systems:



LTA (Lane Tracing Assist)
(



P.209)



Dynamic radar cruise control with
full-speed range (



P.221)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

WARNING

■

Caution for changing settings of the

head-up display

As the hybrid system needs to be operat-

ing while changing the settings of the

head-up display, ensure that the vehicle

is parked in a place with adequate venti-

lation. In a closed area such as a garage,

exhaust gases including harmful carbon

monoxide (CO) may collect and enter

the vehicle. This may lead to death or a

serious health hazard.

NOTICE

■

When changing the settings of the

head-up display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while changing the settings of the

head-up display.

Driving support system display
area

Pop-up display

2-1. Instrument cluster

■

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel-
evant system.



PCS (Pre-Collision System)
(



P.199)



Intuitive parking assist (if equipped)
(



P.237)



PKSB (Parking Support Brake) (if
equipped) (



P.249)



Brake Override System (



P.152)



Drive-Start Control (



P.157)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

■

icons

These icons are linked to the multi-
information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(



P.387)

: Information icon

Displayed when a suggestion pop-up dis-
play (



P.94) or advice pop-up display is

displayed on the multi-information display.

■

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display.

■

Audio system operation status

Displayed when an audio remote con-
trol switch on the steering wheel is
operated.

■

Hands-free system status

Displayed when the hands-free system
is operated.

■

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

■

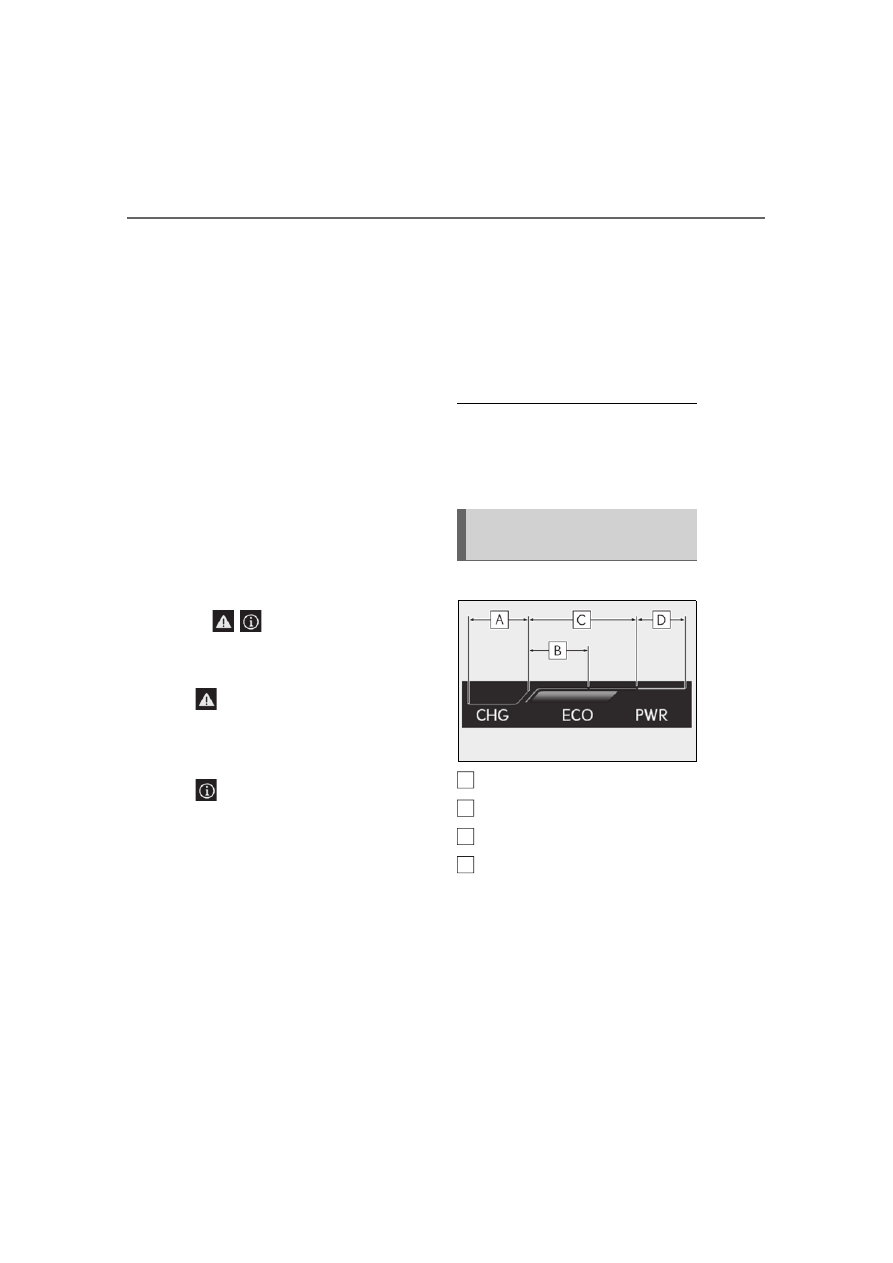

Hybrid System Indicator

Charge area

Hybrid Eco area

Eco area

Power area

Displayed content is the same as that dis-
played on the meter (Hybrid System Indi-
cator). For details, refer to P.80 or P.85.

■

Tachometer

Displays the engine speed in revolu-
tions per minute.

Hybrid System Indica-
tor/tachometer display area

A
B
C
D

2-1. Instrument cluster

icle

rmat

ion
an

dica
tor

Center Display

Multi-information display

Meter control switches

The energy monitor can be used to
check the vehicle drive status, hybrid
system operation status and energy
regeneration status.

■

Displaying procedure



Multi-information display

Press

of the meter control

switches and select

, and then press

to select the energy monitor

display.



Center Display

Select

on the main menu.

Select “Energy flow”.

■

Reading the display

The arrows will appear in accordance
with the energy flow. When there is no
energy flow, arrows will not be dis-
played.

The color of the arrows will change as fol-
lows
Blue: When the hybrid battery (traction
battery) is regenerated or charged.

Yellow

/Orange

: When the hybrid bat-

tery (traction battery) is in use.
Red: When the gasoline engine is in use.

: Multi-information display

: Center Display



Multi-information display

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

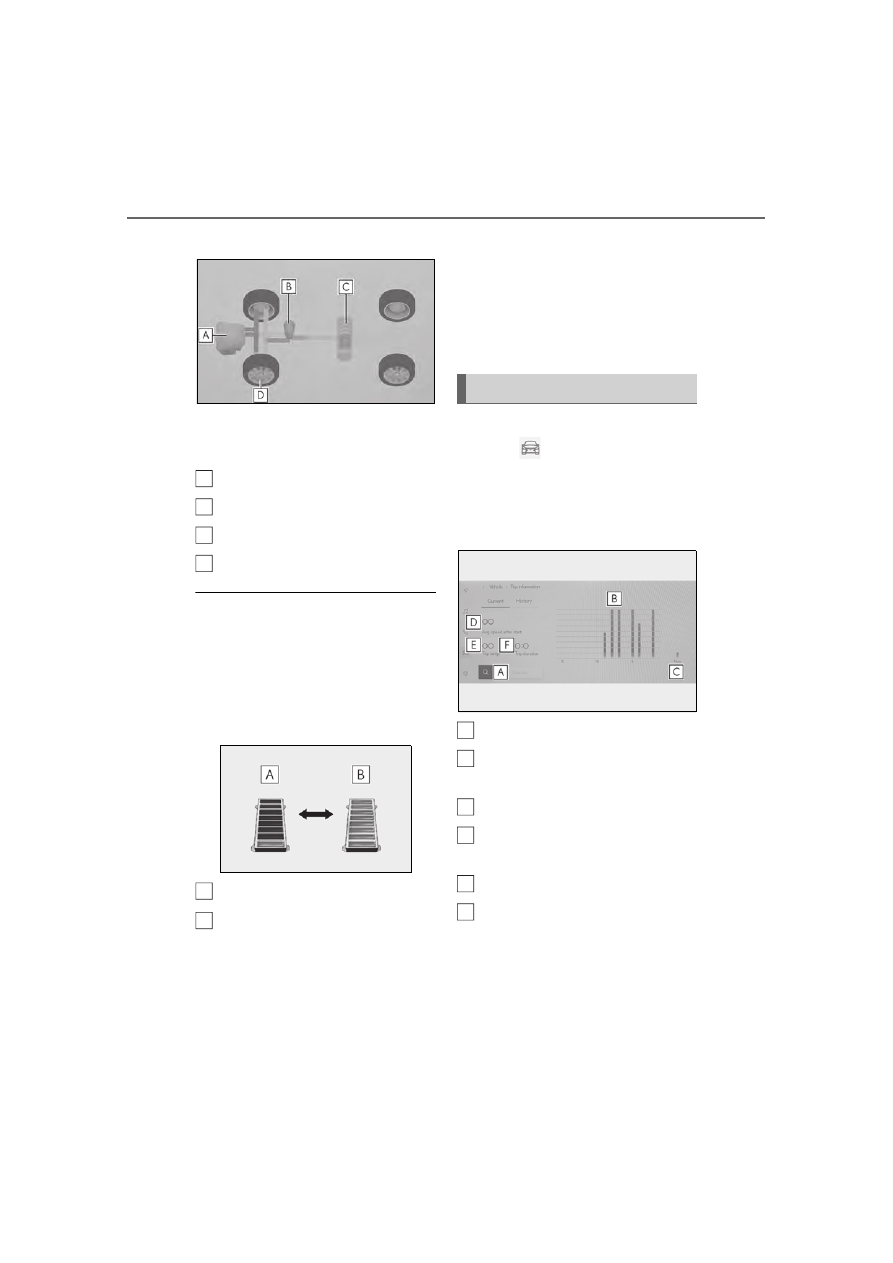

Gasoline engine

Hybrid battery (traction battery)

Tires

Energy monitor/consump-
tion screen

The status of your hybrid system
and fuel consumption information
can be displayed on the multi-infor-
mation display and Center Display.

System components

Energy monitor

A
B
C

100

2-1. Instrument cluster



Center Display

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

Gasoline engine

Electric motor (traction motor)

Hybrid battery (traction battery)

Front tires

■

Hybrid battery (traction battery) status

The display changes in 8 levels according

to the remaining charge amount of the

hybrid battery (traction battery).
• The figure shows the multi-information

display as an example for explanation.

• These images are examples only, and

may vary slightly from actual conditions.

Low

High

■

Remaining charge amount warning of

hybrid battery (traction battery)

●

The buzzer sounds intermittently when

the hybrid battery (traction battery)

remains without charging while the shift

lever is in N, or the remaining charge

amount drops below a certain level. If the

remaining charge amount drops further,

the buzzer sounds continuously.

●

When a warning message is shown on

the multi-information display and the

buzzer sounds, follow the instructions

displayed on the screen to perform trou-

bleshooting.

■

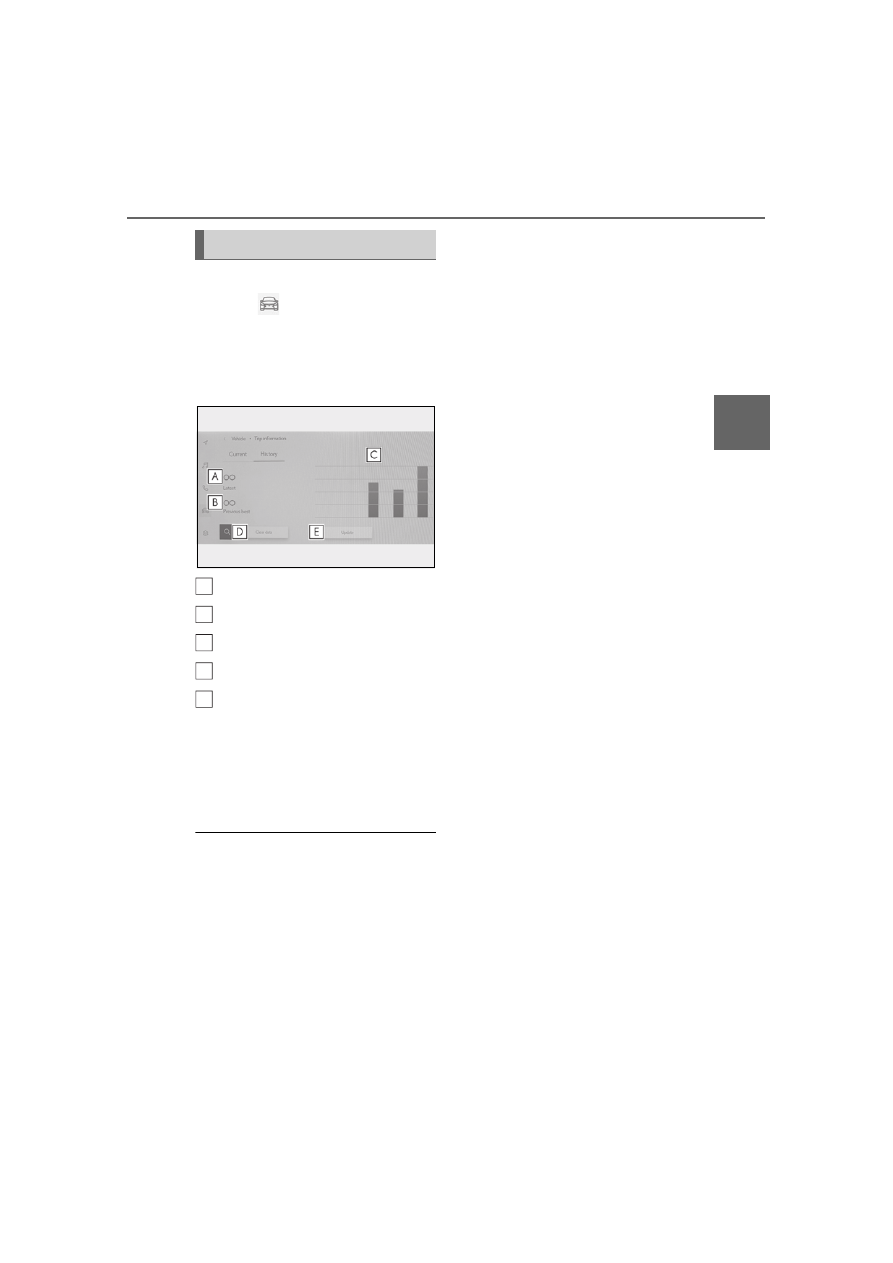

Display procedure

Select

on the main menu.

Select “Trip information”.

Select “Current”.

■

Display

Resetting the history data

Fuel consumption in the past 15
minutes

Current fuel consumption

Average vehicle speed since the
hybrid system was started.

Trip range

Elapsed time since the hybrid sys-
tem was started.

Use the displayed average fuel consump-
tion as a reference.
The image is an example only, and may
vary slightly from actual conditions.

A
B
C
D

Current screen

A
B

C
D

E
F

101

2-1. Instrument cluster

icle

rmat

ion
an

dica
tor

■

Display procedure

Select

on the main menu.

Select “Trip information”.

Select “History”.

■

Display

Latest fuel consumption

Best recorded fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel consump-
tion data

Use the displayed average fuel consump-
tion as a reference.
The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear data”.

■

Trip range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.

This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

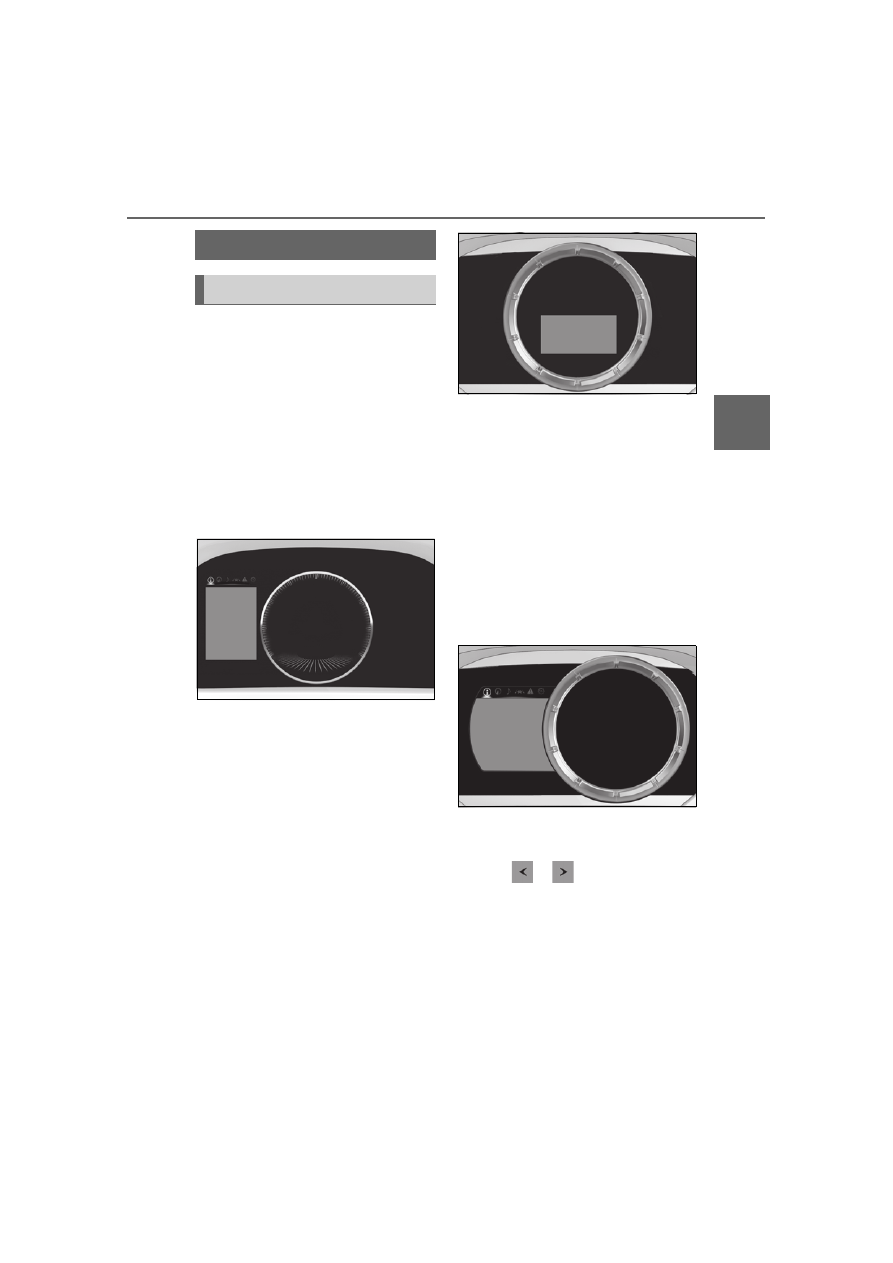

History screen

A
B
C
D

103

Before drivi

Before driving

3-1. Key information

Keys .................................................

104

Digital Key.....................................

108

3-2. Opening, closing and locking the

doors

Side doors ......................................

110

Back door.......................................

114

Smart access system with push-

button start.................................

126

3-3. Adjusting the seats

Front seats......................................

131

Rear seats......................................

132

Driving position memory ........

133

Head restraints............................

137

3-4. Adjusting the steering wheel and

mirrors

Steering wheel.............................

140

Inside rear view mirror..............

141

Outside rear view mirrors......

143

3-5. Opening, closing the windows

and moon roof

Power windows...........................

146

Moon roof .....................................

148

104

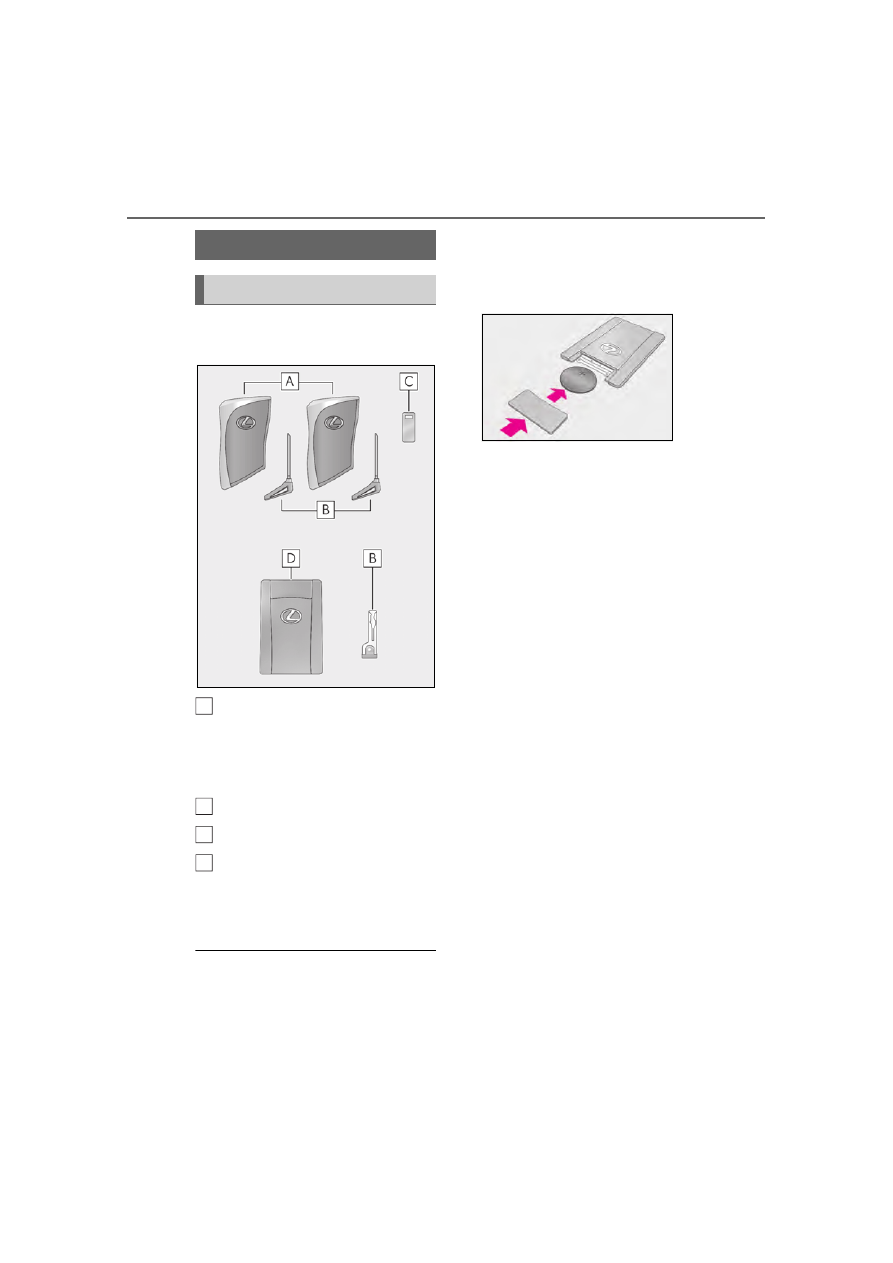

3-1. Key information

3-1.Key information

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart access system with

push-button start (



P.126)

• Operating the wireless remote control

function

Mechanical keys

Key number plate

Card key (electronic key) (if
equipped)

Operating the smart access system with
push-button start (



P.126)

■

Card key (if equipped)

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

●

The card key is not waterproof.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag, etc., ensure that

the buttons are not likely to be pressed

accidentally. Pressing a button may cause

the electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is from one year

to one year and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin when the hybrid sys-

tem stops.

●

To reduce key battery depletion when

the electronic key is to not be used for

long periods of time, set the electronic

key to the battery-saving mode.

(



P.128)

●

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary. (



P.359)

• The smart access system with push-but-

ton start or the wireless remote control

does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface

Keys

Key types

B
C
D

105

3-1. Key information

Before drivi

does not turn on.

You can replace the battery by yourself
(



P.359). However, as there is a danger

that the electronic key may be damaged, it
is recommended that replacement be car-
ried out by your Lexus dealer.

●

To avoid serious deterioration, do not

leave the electronic key within 3 ft. (1 m)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

■

Replacing the battery



P.359

■

Confirmation of the registered key

number

The number of keys already registered to

the vehicle can be confirmed. Ask your

Lexus dealer for details.

■

If “A New Key has been Registered

Contact Your Dealer for Details” is

shown on the multi-information display

This message will be displayed each time

the driver’s door is opened when the doors

are unlocked from the outside for approxi-

mately 10 days after a new electronic key

has been registered. If this message is dis-

played but you have not had a new elec-

tronic key registered, ask your Lexus dealer

to check if an unknown electronic key

(other than those in your possession) has

been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to

strong shocks or bend them.

●

Do not expose the keys to high tem-

peratures for long periods of time.

●

Do not get the keys wet or wash them

in an ultrasonic washer, etc.

●

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else

to the surface of the electronic key.

●

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers,

or medical electrical equipment, such

as low-frequency therapy equipment.

■

Carrying the electronic key on your

person

Carry the electronic key 3.9 in. (10 cm)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 3.9 in. (10

cm) of the electronic key may interfere

with the key, causing the key to not func-

tion properly.

■

In case of a smart access system with

push-button start malfunction or

Lexus UX250h (2023 year). Manual in english - page 5
