2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Select to select up to 2 items (



P.110) that

will be displayed on each Drive information
screen (Drive information 1 screen and
Drive information 2 screen) respectively.



Clock

Select to switch between 24-hour display
and 12-hour display.



Pop-up display

Select to enable/disable some pop-up dis-
plays for each relevant system.



Accent color

Select to change the accent color on the
screen, such as the cursor color.



Tachometer setting

Select to set the display of the Hybrid Sys-
tem Indicator or tachometer for each driv-
ing mode.



Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.



Rev peak (F SPORT models)

Select to enable/disable the rev peak.



EV indicator

Select to enable/disable the EV indicator.



Default setting

Select to reset the meter display settings to
the default setting.

Suspension of the settings display

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

Suggestion to enable the power
back door (if equipped)

If the power back door system is dis-
abled on

of the multi-information

display (



P.109) and the power back

door switch on the instrument panel is
operated, a suggestion message will
be displayed asking if you wish to
enable the power back door system.
To enable the power back door sys-
tem, select “Yes”.
After enabling the power back door
system, press the power back door
switch again to open or close the

WARNING

Cautions during setting up the dis-

play

As the hybrid system needs to be operat-

ing during setting up the display, ensure

that the vehicle is parked in a place with

adequate ventilation. In a closed area

such as a garage, exhaust gases includ-

ing harmful carbon monoxide (CO) may

collect and enter the vehicle. This may

lead to death or a serious health hazard.

NOTICE

During setting up the display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while setting up the display features.

Suggestion function

114

2-1. Instrument cluster

power back door.

Suggestion to turn on the head-
lights

If the headlight switch is in other than

position, and the vehicle

speed is 5 km/h (3 mph) or higher for
a certain amount of time when the sur-
roundings are dark, a suggestion mes-
sage will be displayed.

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight
switch in

after the power switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.

If a front door is opened after the power
switch is turned off, this suggestion mes-
sage will not be displayed.

Suggestion to close the power win-
dows (linked to windshield wiper
operation)

If the windshield wipers are operated
with a power window open, a sugges-
tion message will be displayed asking if
you wish to close the power windows.
To close all of the power windows,
select “Yes”.

Customization

Some functions can be customized.

(



P.477)

: If equipped

Illustrations used in this text are intended
as examples, and may differ from the
image that is actually displayed by the
head-up display.

Driving support system display
area (



P.117)

Navigation system-linked display
area (if equipped)

Displays the following items which are
linked to the navigation system:
• Route guidance to destination

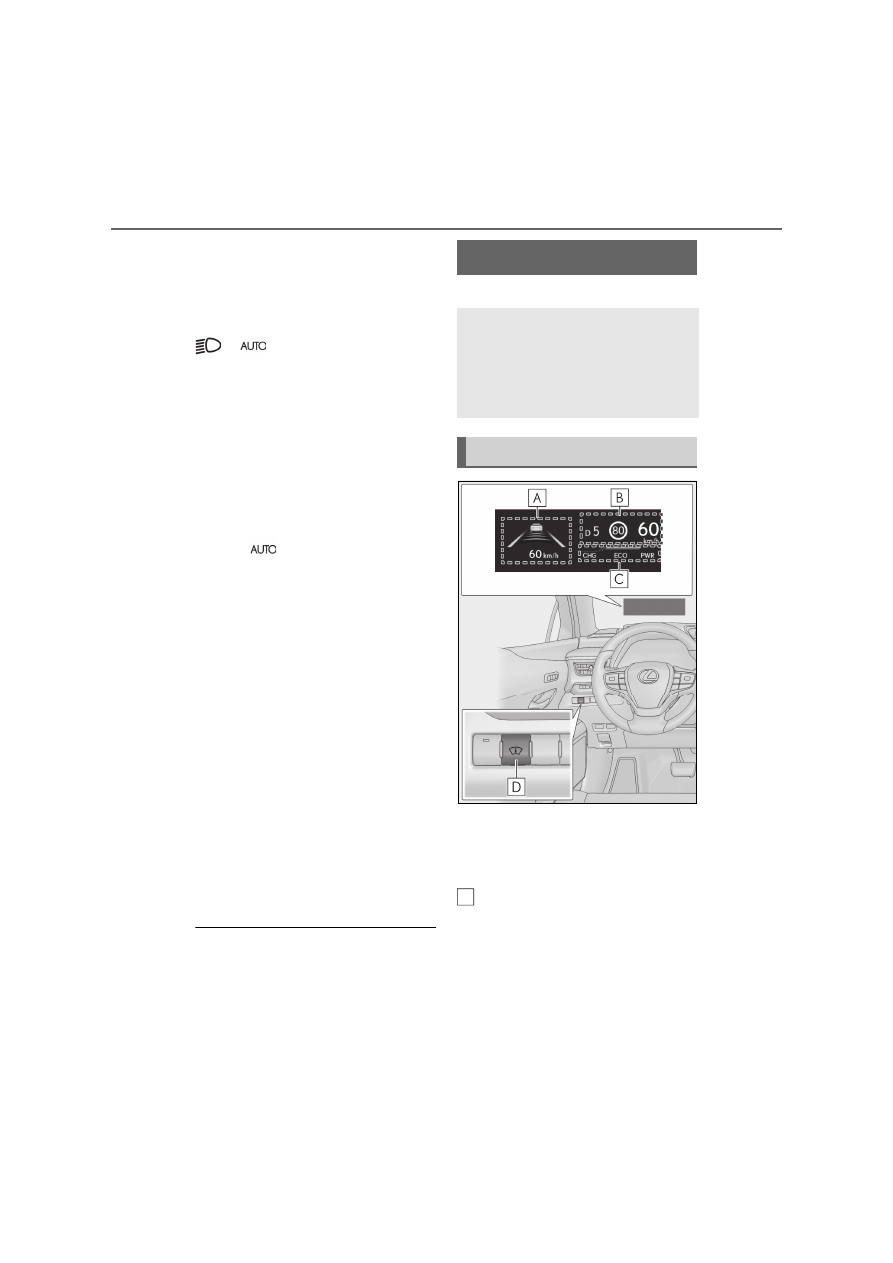

Head-up display

The head-up display projects a vari-
ety of driving-related information
and the operating state of the driv-
ing support systems on the wind-
shield.

System components

115

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

• Street name
• Compass (heading-up display)

Driving information display area

Displays the following items:
• Speedometer
• Shift position/shift range (



P.190)

• RSA (Road Sign Assist) (if equipped)

(



P.249)

Hybrid System Indicator/tachome-
ter display area (



P.118)

Head-up display switch

Head-up display will operate when

The power switch is in ON.

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

Street name display

Only street names which are included in the

map data will be displayed.

Outside temperature display

In the following situations, the outside

temperature is displayed.

• When the ambient temperature is

approximately 3°C (37°F) or lower (In

this case, the outside temperature display

will be displayed and the low outside tem-

perature indicator will flash for approxi-

mately 10 seconds.)

• After the opening image (



P.109) is dis-

played (The outside temperature display

will be displayed for approximately 10

seconds.)

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

WARNING

When using the head-up display

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

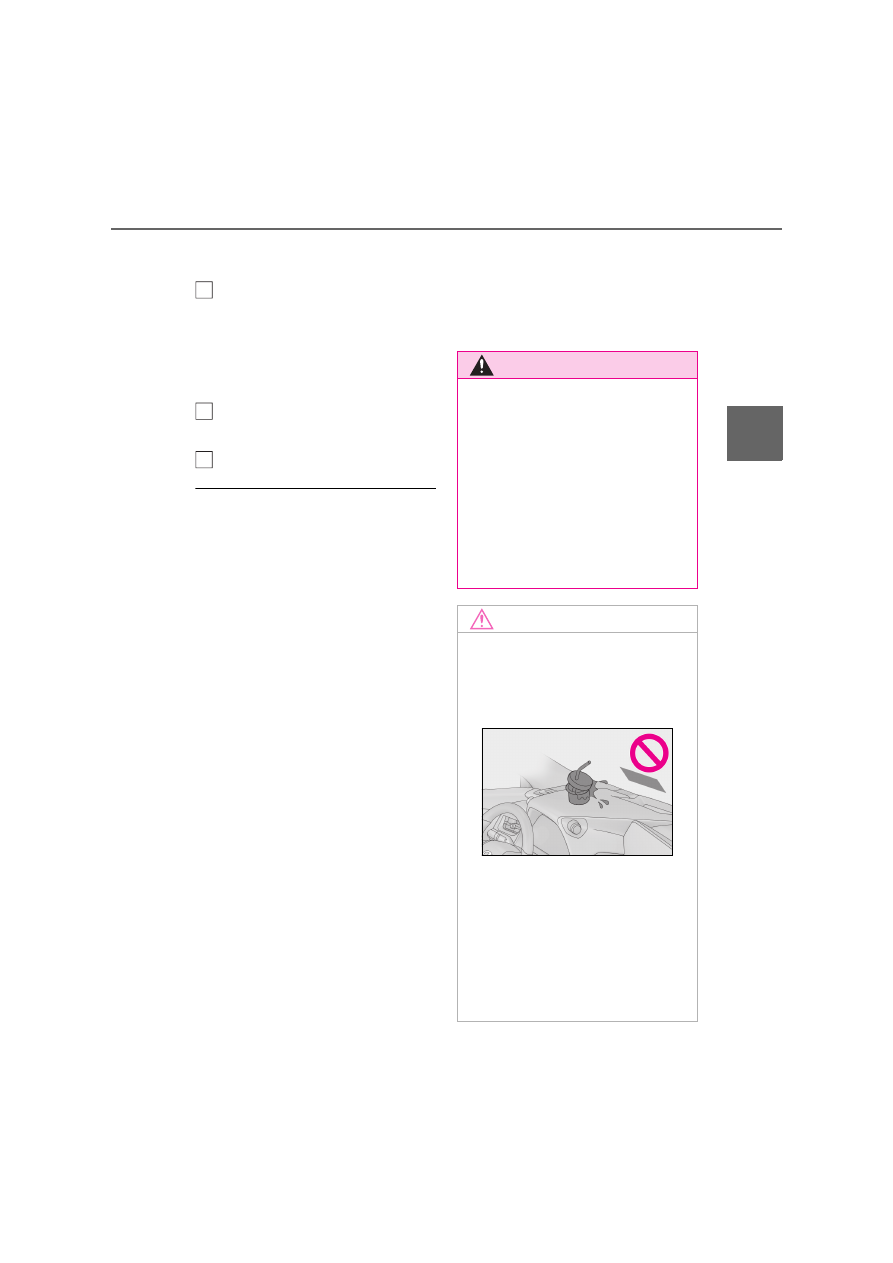

NOTICE

Head-up display projector

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

116

2-1. Instrument cluster

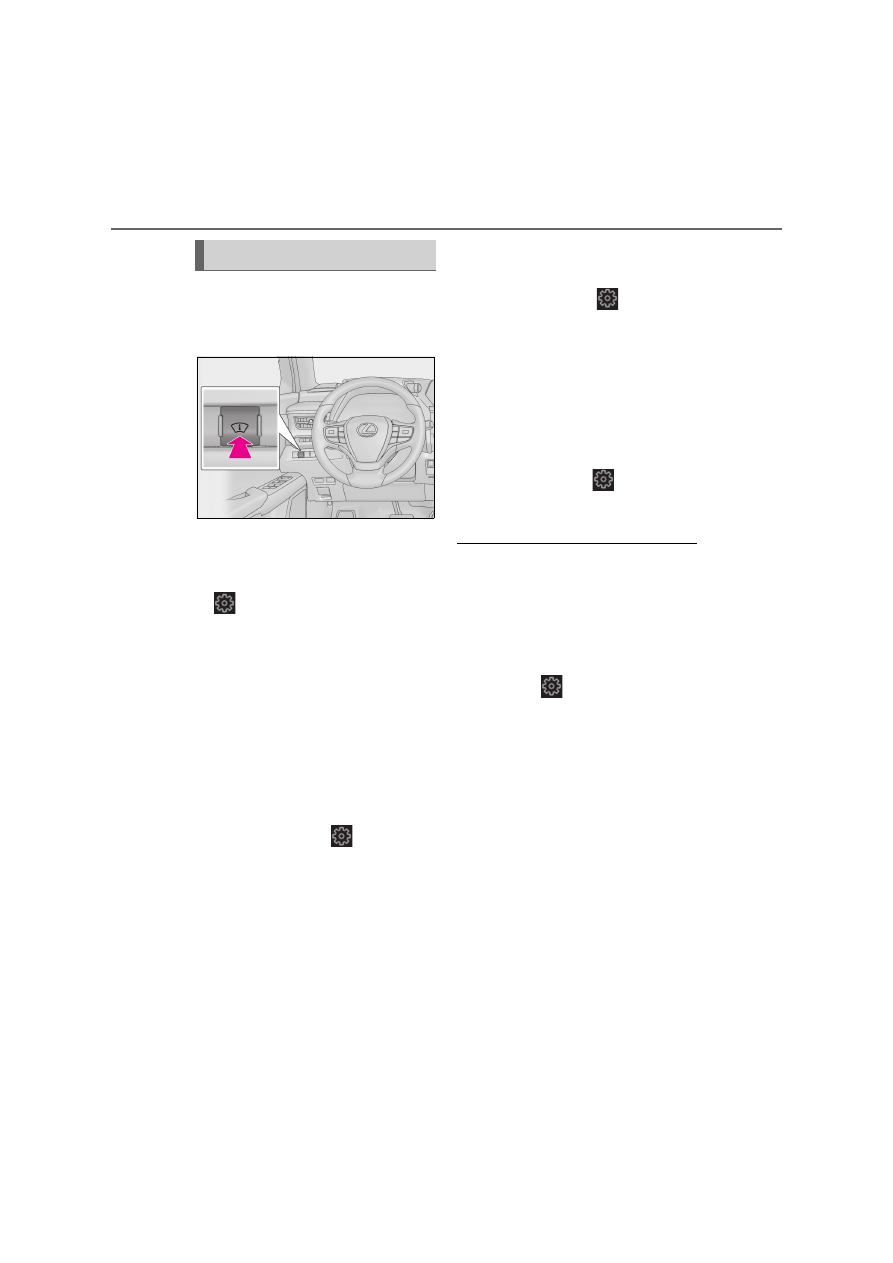

Enabling/disabling the head-up
display

Press the head-up display switch.

Changing settings of the head-up
display

The following settings can be changed
on

of the multi-information display.

(



P.109)



Brightness and vertical position of
the head-up display

Select to adjust the brightness or vertical
position of the head-up display.



Hybrid System Indicator/tachome-
ter

Select to display the Hybrid System Indica-
tor, tachometer or no content.

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.



Display content

Select to enable/disable the following
items:
• Route guidance to destination/street

name

• Driving support system display

• Compass (heading-up display)
• Audio system operation status

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.

: Make sure to enable this display when

using the driving support systems



Display angle

Select to adjust the angle of the head-up
display.

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the power switch is

turned off then back to ON.

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted

according to the ambient brightness.

Head-up display automatic position

adjustment (vehicles with driving posi-

tion memory)

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(



P.153)

When the 12-volt battery is discon-

nected

The customize settings of the head-up dis-

play will be reset.

Using the head-up display

117

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Displays the operational status of the
following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.239)



Dynamic radar cruise control with
full-speed range (if equipped)
(



P.253)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel-
evant system.



PCS (Pre-Collision System) (if
equipped) (



P.231)



Lexus parking assist-sensor (if
equipped) (



P.280)



Parking Support Brake function
(static objects) (if equipped)
(



P.297)



Brake Override System (



P.170)



Drive-Start Control (



P.171)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

icons

These icons are linked to the multi-
information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(



P.422)

: Information icon

Displayed when a suggestion pop-up dis-
play (



P.113) or advice pop-up display is

displayed on the multi-information display.

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the head-
up display may differ from that displayed

WARNING

Caution for changing settings of the

head-up display

As the hybrid system needs to be operat-

ing while changing the settings of the

head-up display, ensure that the vehicle

is parked in a place with adequate venti-

lation. In a closed area such as a garage,

exhaust gases including harmful carbon

monoxide (CO) may collect and enter

the vehicle. This may lead to death or a

serious health hazard.

NOTICE

When changing the settings of the

head-up display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while changing the settings of the

head-up display.

Driving support system display
area

Pop-up display

118

2-1. Instrument cluster

on the multi-information display.

Audio system operation status

Displayed when an audio remote con-
trol switch on the steering wheel is
operated.

Hands-free system status

Displayed when the hands-free system
is operated.

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

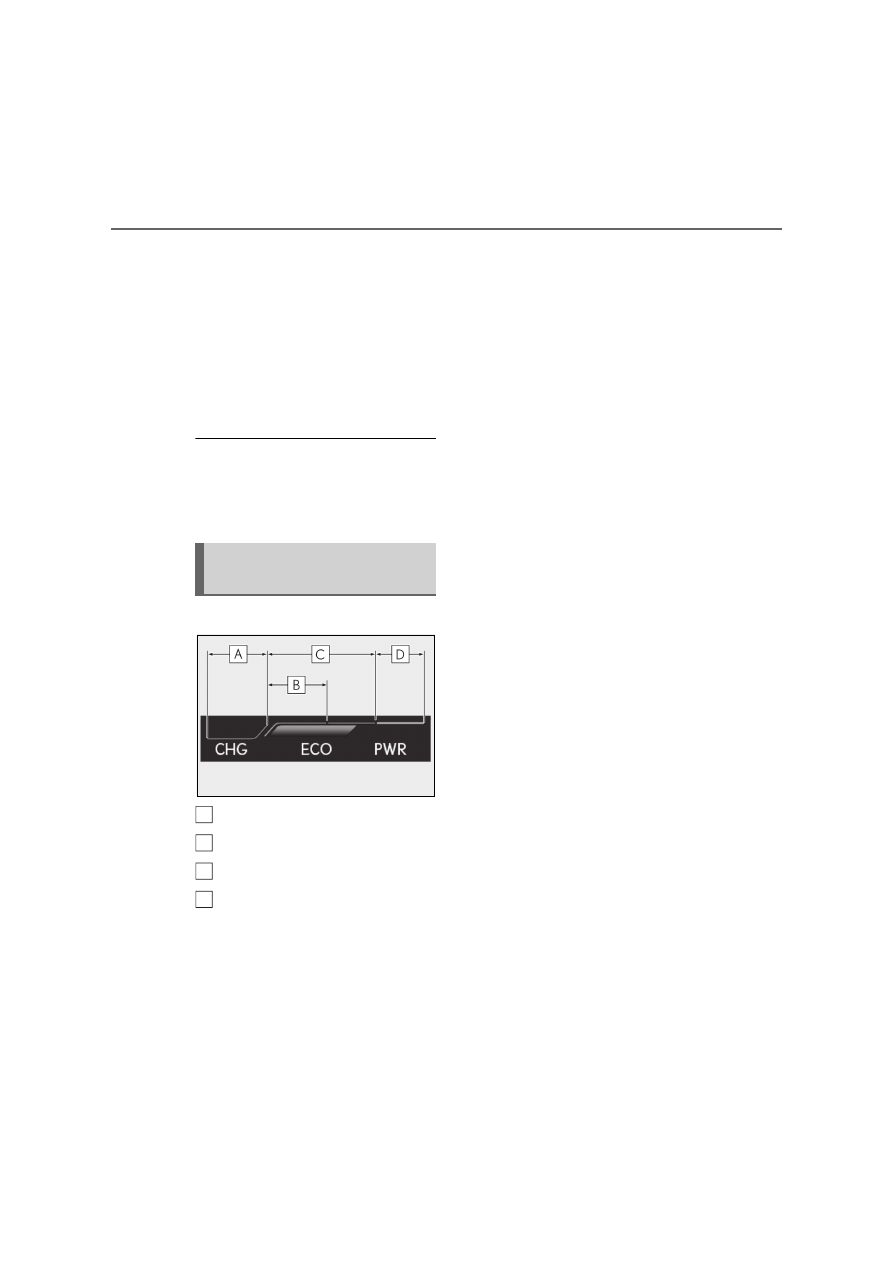

Hybrid System Indicator

Charge area

Hybrid Eco area

Eco area

Power area

Displayed content is the same as that dis-
played on the meter (Hybrid System Indi-
cator). For details, refer to P.100or P.105.

Tachometer

Displays the engine speed in revolu-

tions per minute.

Hybrid System Indica-
tor/tachometer display area

A
B
C
D

119

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

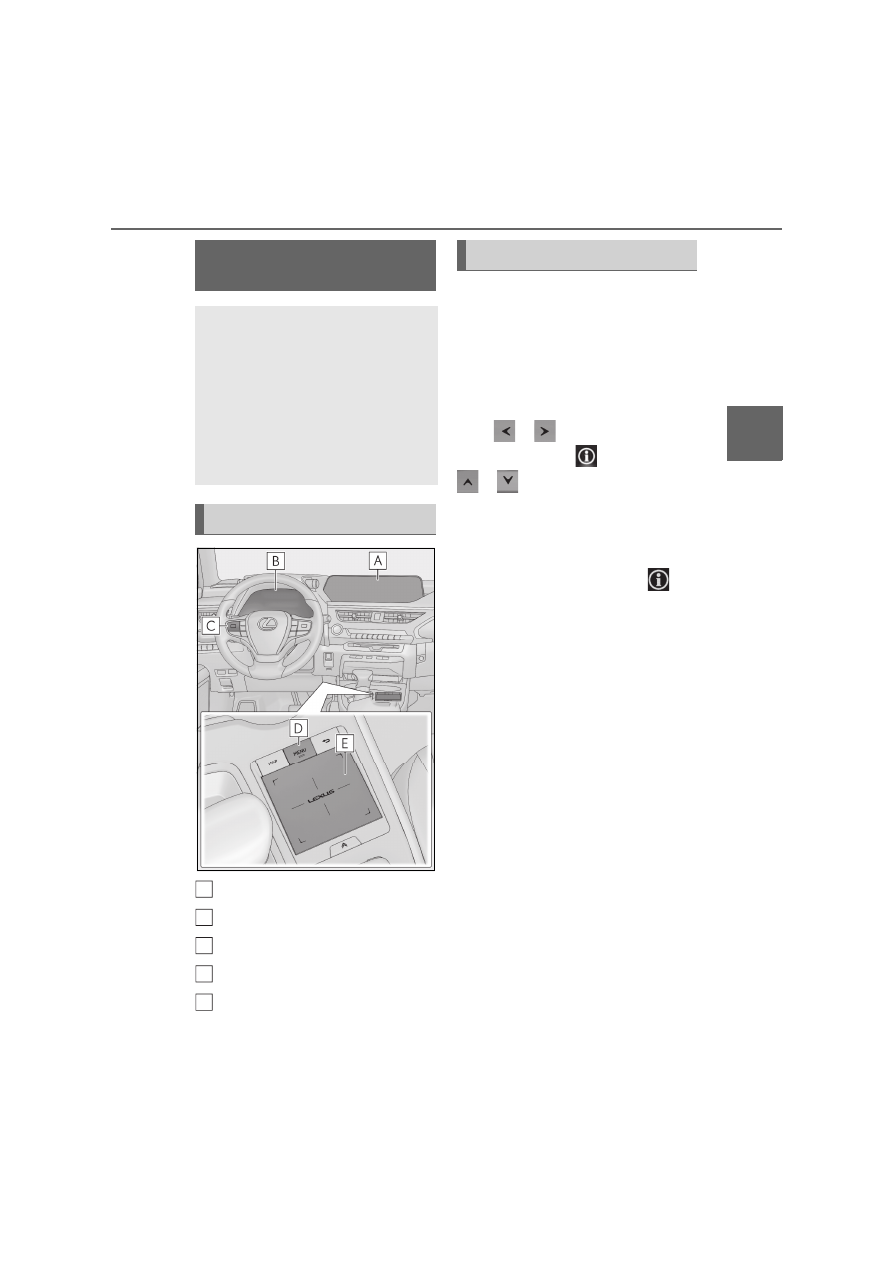

Center Display

Multi-information display

Meter control switches

“MENU” button

Touchpad

The energy monitor can be used to
check the vehicle drive status, hybrid
system operation status and energy
regeneration status.

Displaying procedure



Multi-information display

Press

of the meter control

switches and select

, and then press

to select the energy monitor

display.



Center Display

Press the “MENU” button on the
Remote Touch, and then select

the menu screen.

If the “Trip Information” or “History” screen
is displayed, select “Energy”.

Reading the display

The arrows will appear in accordance
with the energy flow. When there is no
energy flow, arrows will not be dis-
played.

The color of the arrows will change as fol-
lows
Blue: When the hybrid battery (traction
battery) is regenerated or charged.
Yellow: When the hybrid battery (traction
battery) is in use.
Red: When the gasoline engine is in use.

Energy monitor/consump-
tion screen

The status of your hybrid system
and fuel consumption information
can be displayed on the multi-infor-
mation display and Center Display.

10.3-inch display model: The
energy monitor and consumption
screen can be displayed on the side
display.

System components

A
B
C
D

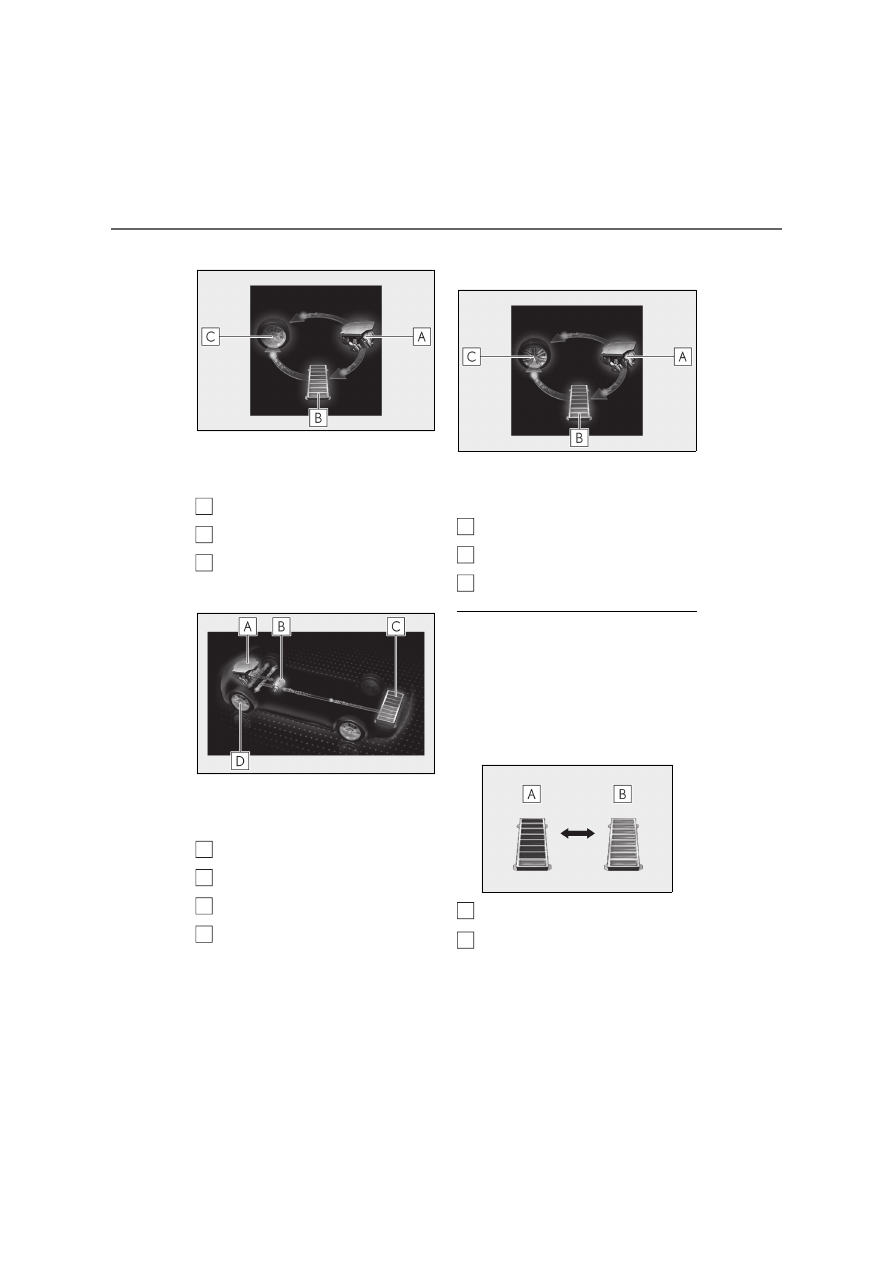

Energy monitor

120

2-1. Instrument cluster



Multi-information display

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

Gasoline engine

Hybrid battery (traction battery)

Tires



Center Display (main display)

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

Gasoline engine

Electric motor (traction motor)

Hybrid battery (traction battery)

Front tires



Center Display (side display) (10.3-
inch display model)

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

Gasoline engine

Hybrid battery (traction battery)

Tires

Hybrid battery (traction battery) status

The display changes in 8 levels according

to the remaining charge amount of the

hybrid battery (traction battery).
• The figure shows the multi-information

display as an example for explanation.

• These images are examples only, and

may vary slightly from actual conditions.

Low

High

Remaining charge amount warning of

hybrid battery (traction battery)

The buzzer sounds intermittently when

the hybrid battery (traction battery)

A
B
C

A
B
C
D

A
B
C

121

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

remains without charging while the shift

lever is in N, or the remaining charge

amount drops below a certain level. If the

remaining charge amount drops further,

the buzzer sounds continuously.

When a warning message is shown on

the multi-information display and the

buzzer sounds, follow the instructions

displayed on the screen to perform trou-

bleshooting.

Press the “MENU” button on the
Remote Touch, and then select

the screen.

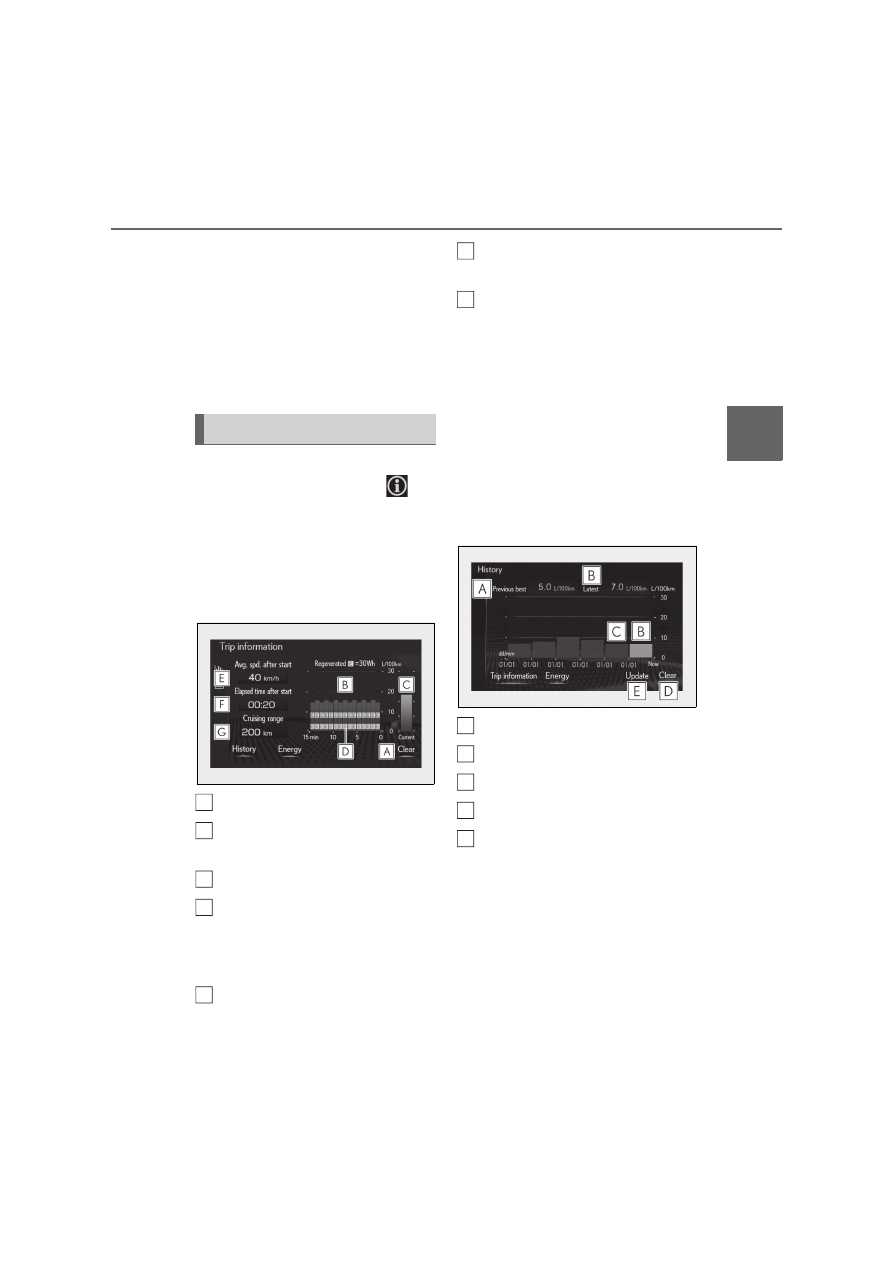

Trip information

If a screen other than “Trip Informa-
tion” is displayed, select “Trip Informa-
tion”.

Resetting the consumption data

Fuel consumption in the past 15
minutes

Current fuel consumption

Regenerated energy in the past 15
minutes

One symbol indicates 30 Wh. Up to 5
symbols are shown.

Average vehicle speed since the
hybrid system was started.

Elapsed time since the hybrid sys-
tem was started.

Cruising range

Average fuel consumption for the past 15
minutes is divided by color into past aver-
ages and averages attained since the
power switch was last turned to ON. Use
the displayed average fuel consumption as
a reference.
The image is an example only, and may
vary slightly from actual conditions.

History

If a screen other than “History” is dis-
played, select “History”.

Best recorded fuel consumption

Latest fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel consump-
tion data

The latest fuel consumption history is
divided by color into past averages and the
average fuel consumption since the last
updated. Use the displayed average fuel
consumption as a reference.
The image is an example only, and may
vary slightly from actual conditions.

Consumption

A
B

C
D

A
B
C
D

122

2-1. Instrument cluster

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

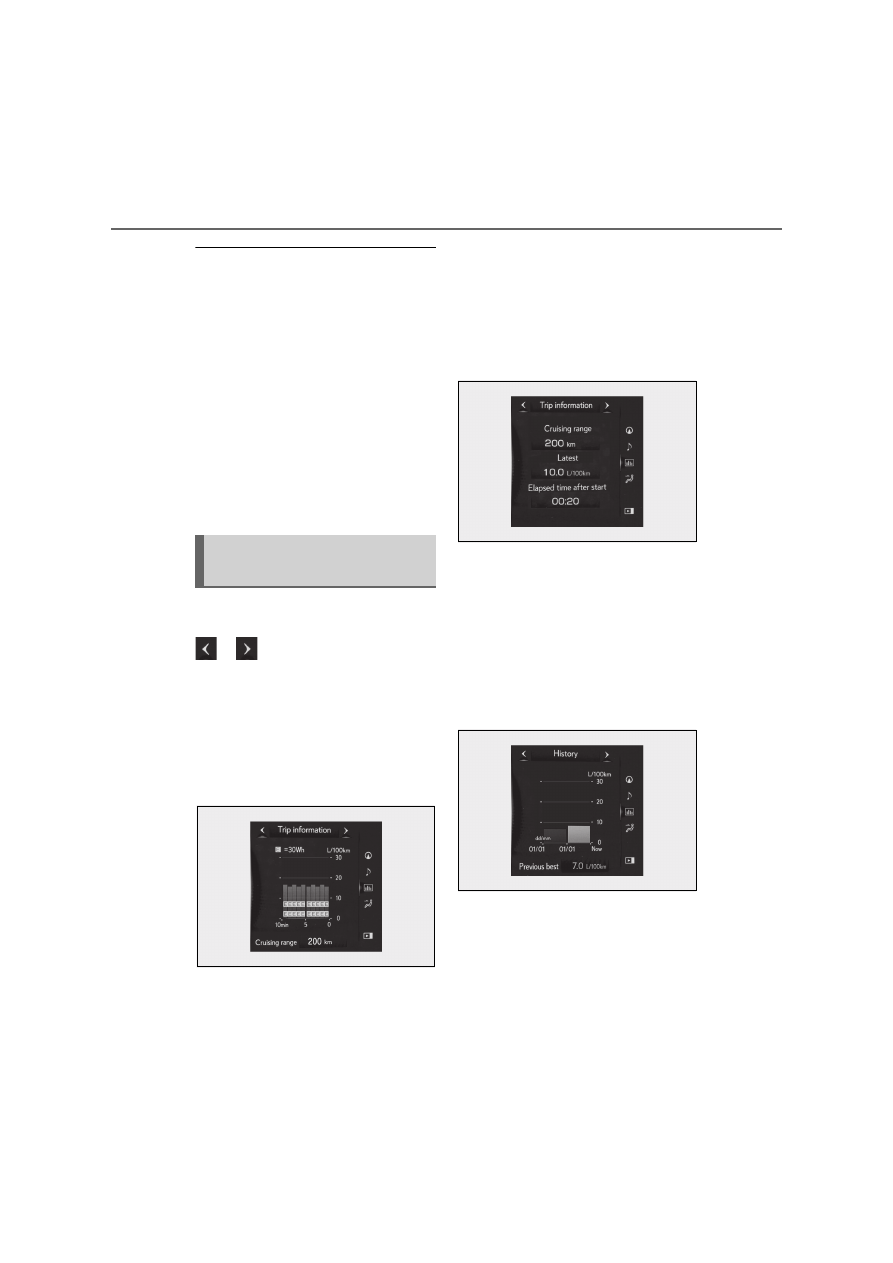

Display the vehicle information on the
side display (



P.323), and then select

to display the desired

screen.

Trip information (type A)

Displays the average fuel consumption
and regenerated energy for the past 10
minutes in 1 minute intervals, as well as
the cruising range.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-

tion as a reference.

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the hybrid system was
started.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

History

Displays the average fuel consump-
tion, previous average fuel consump-
tion and highest fuel consumption.

The image is an example only, and may

vary slightly from actual conditions.
Use the displayed average fuel consump-

tion as a reference.

Energy monitor

Displays the hybrid system operation
and energy recovery states. (



P.119)

Using the side display (10.3-inch
display model)

123

Before drivi

Before driving

3-1. Key information

Keys .................................................

124

3-2. Opening, closing and locking the

doors

Side doors .....................................

128

Back door......................................

132

Smart entry & start system.....

145

3-3. Adjusting the seats

Front seats.....................................

150

Rear seats.......................................

151

Driving position memory ........

153

Head restraints............................

156

3-4. Adjusting the steering wheel and

mirrors

Steering wheel ............................

159

Inside rear view mirror.............

160

Outside rear view mirrors......

162

3-5. Opening, closing the windows

and moon roof

Power windows ..........................

164

Moon roof .....................................

166

124

3-1. Key information

3-1.Key information

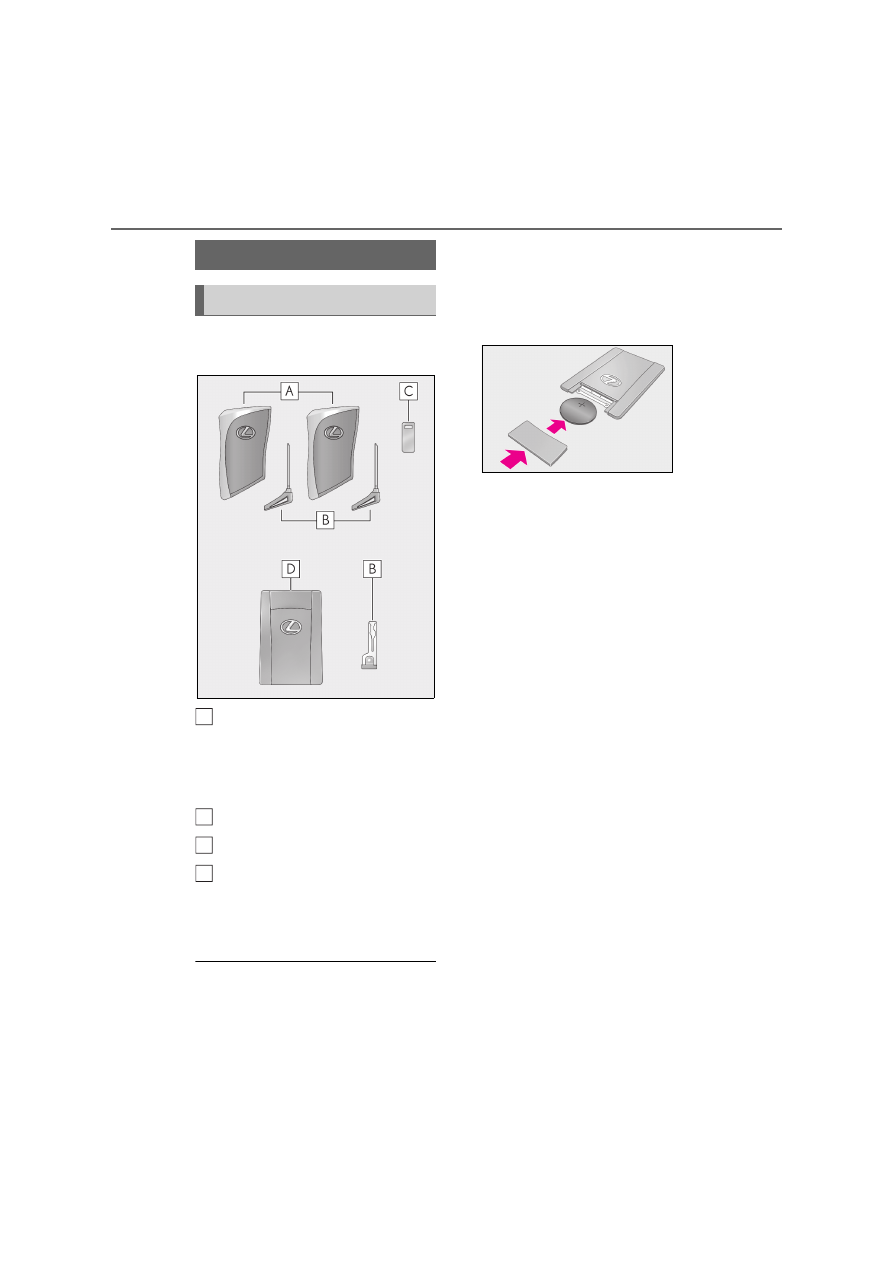

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart entry & start sys-

tem (



P.145)

• Operating the wireless remote control

function

Mechanical keys

Key number plate

Card key (electronic key) (if
equipped)

Operating the smart entry & start system
(



P.145)

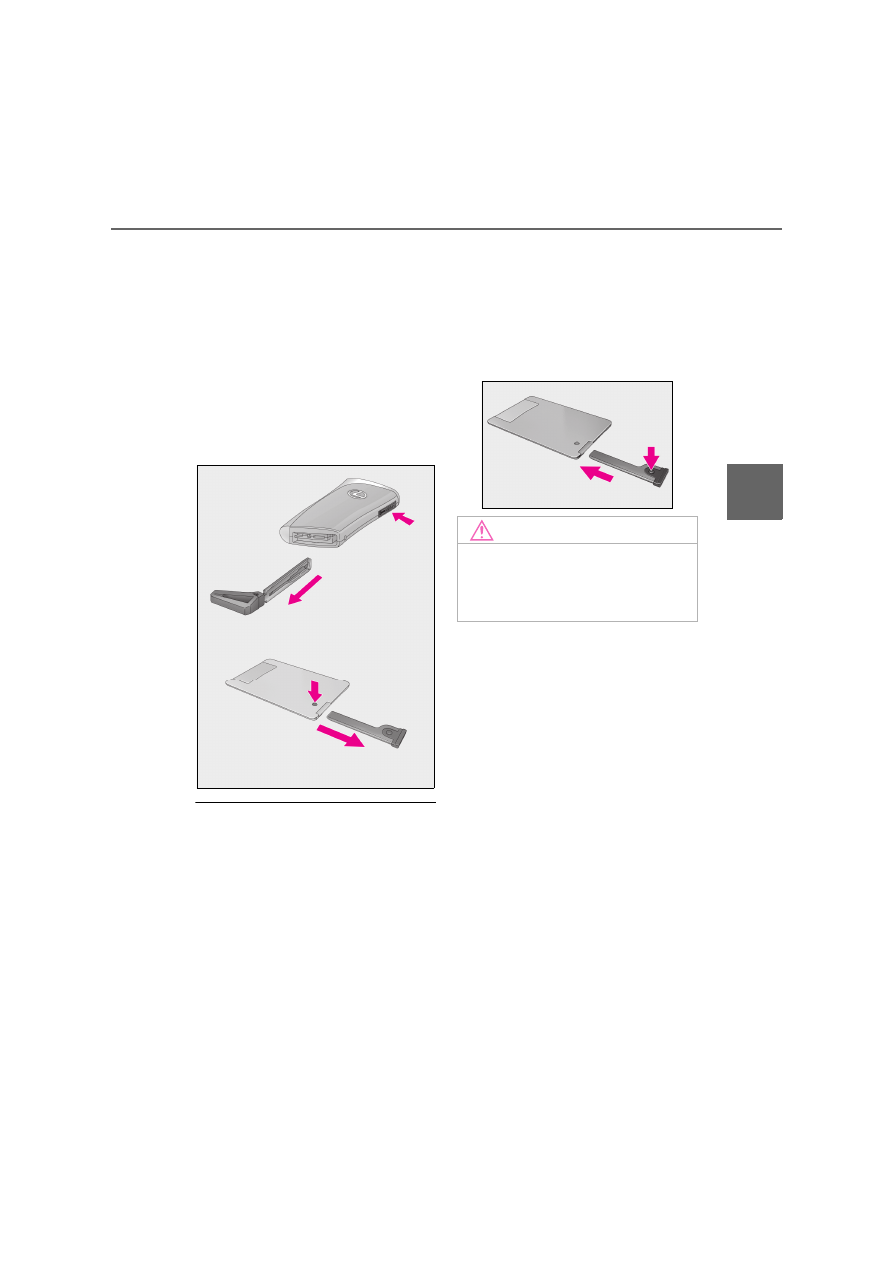

Card key (if equipped)

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

The card key is not waterproof.

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag, etc., ensure that

the buttons are not likely to be pressed

accidentally. Pressing a button may cause

the electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

Electronic key battery depletion

The standard battery life is 1 to 2 years.

(The card key battery life is from one year

to one year and a half.)

If the battery becomes low, an alarm will

sound in the cabin when the hybrid sys-

tem stops.

To reduce key battery depletion when

the electronic key is to not be used for

long periods of time, set the electronic

key to the battery-saving mode.

(



P.147)

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary. (



P.395)

• The smart entry & start system or the

wireless remote control does not oper-

ate.

Keys

Key types

B
C
D

125

3-1. Key information

Before drivi

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

You can replace the battery by yourself
(



P.395). However, as there is a danger

that the electronic key may be damaged, it
is recommended that replacement be car-
ried out by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable
repairer.

To avoid serious deterioration, do not

leave the electronic key within 1 m (3 ft.)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

Replacing the battery



P.395

Confirmation of the registered key

number

The number of keys already registered to

the vehicle can be confirmed. Ask any

authorized Lexus retailer or Lexus autho-

rized repairer, or any reliable repairer for

details.

If “A New Key has been Registered

Contact Your Dealer for Details” is

shown on the multi-information display

This message will be displayed each time

the driver’s door is opened when the doors

are unlocked from the outside for approxi-

mately 10 days after a new electronic key

has been registered.
If this message is displayed but you have not

had a new electronic key registered, ask

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer

to check if an unknown electronic key

(other than those in your possession) has

been registered.

NOTICE

To prevent key damage

Do not drop the keys, subject them to

strong shocks or bend them.

Do not expose the keys to high tem-

peratures for long periods of time.

Do not get the keys wet or wash them

in an ultrasonic washer, etc.

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

Do not disassemble the keys.

Do not attach a sticker or anything else

to the surface of the electronic key.

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers,

or medical electrical equipment, such

as low-frequency therapy equipment.

Carrying the electronic key on your

person

Carry the electronic key 10 cm (3.9 in.)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 10 cm

(3.9 in.) of the electronic key may inter-

fere with the key, causing the key to not

function properly.

In case of a smart entry & start system

malfunction or other key-related

problems



P.451

When an electronic key is lost



P.450

126

3-1. Key information

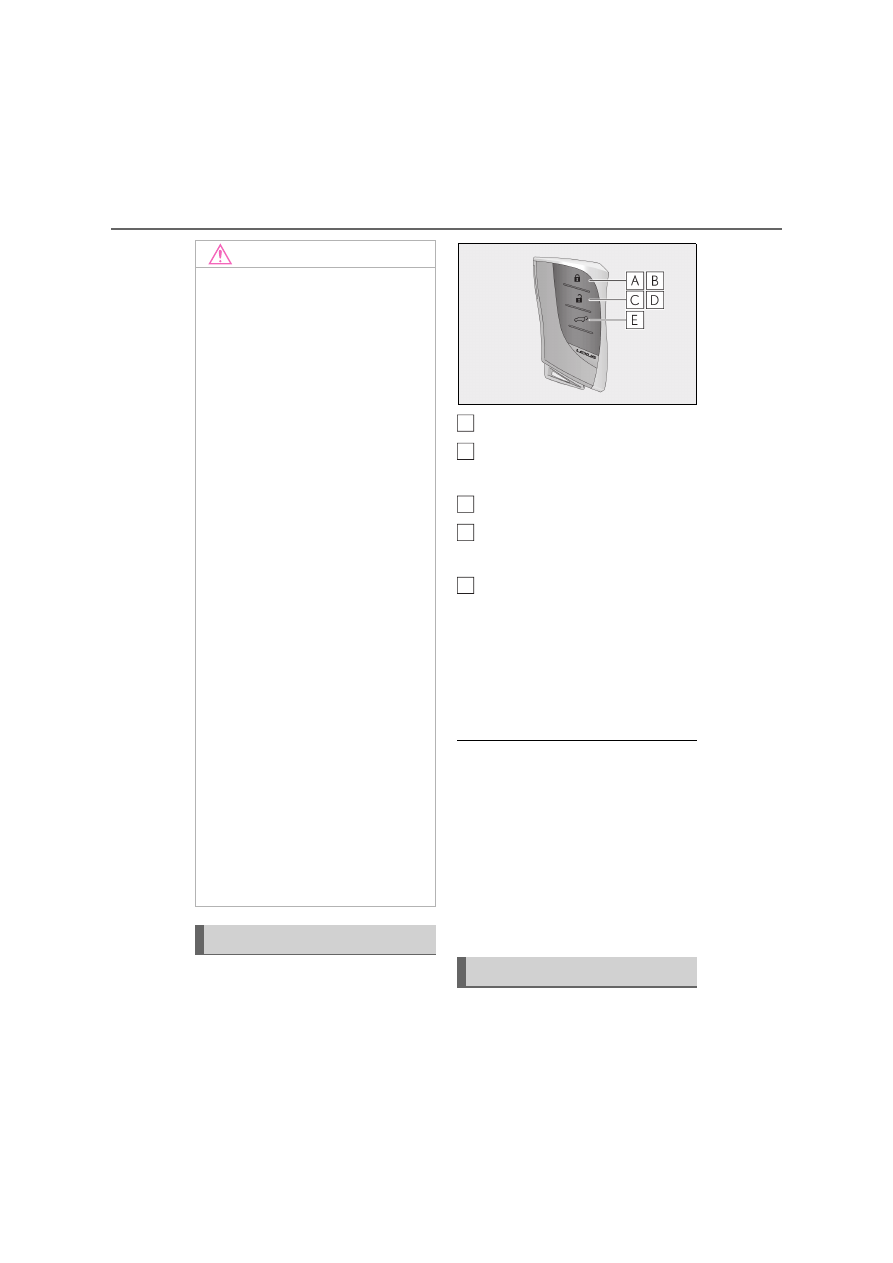

The electronic keys are equipped with
the following wireless remote control:

Locks all the doors (



P.128)

Closes the windows and moon
roof

*1, 2

(



P.128)

Unlocks all the doors (



P.128)

Opens the windows and moon
roof

*1, 2

(



P.128)

Opens and closes the power back
door

(



P.135)

: If equipped

: These settings must be customized at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

Back door reserve lock function (vehi-

cles with power back door)

This function reserves locking of all doors,

beforehand, when the back door is open.

When the following is done, all the doors

except the back door are locked and then

back door will also be locked at the same

time it is closed.

Close all doors, except the back door.

Push the wireless lock button during the

automatic closing operation of the back

door.

To take out the mechanical key, push
the release button and take the key out.

NOTICE

Handling the card key (if equipped)

If the battery or card key terminals get

wet, the battery may corrode and the

card key may stop working.

If the key is dropped into water, or if

drinking water, etc., is spilled on the

key, immediately remove the battery

cover and wipe the battery and termi-

nals. (To remove the battery cover,

lightly grasp and pull it.) If the battery is

corroded, have any authorized Lexus

retailer or Lexus authorized repairer,

or any reliable repairer replace the

battery.

Do not crush the battery cover or use

a screwdriver to remove the battery

cover.

Forcibly removing the battery cover

may bend or damage the key.

If the battery cover is frequently

removed, the battery cover may

become loose.

When installing the battery, make sure

to check the direction of the battery.

Installing the battery in the wrong

direction may cause the battery to

deplete rapidly.

The surface of the card key may be

damaged, or its coating may peel off in

the following situations:

• The card key is carried together with

hard objects, such as coins and keys.

• The card key is scraped with a sharp

object, such as the tip of a mechanical

pencil.

• The surface of the card key is wiped

with thinner or benzene.

Wireless remote control

Using the mechanical key

A
B

C
D

127

3-1. Key information

Before drivi

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key.
If the electronic key battery is depleted or
the entry function does not operate prop-
erly, you will need the mechanical key.
(



P.451)

When required to leave the vehicle’s

key with a parking attendant

Lock the glove box as circumstances

demand. (



P.342)

Remove the mechanical key for your own

use and provide the attendant with the elec-

tronic key only.

If you lose your mechanical keys



P.450

If a wrong key is used

The key cylinder rotates freely to isolate

inside mechanism.

Card key (if equipped)

If it is difficult to take out the mechanical

key, push down the release button using

a pen tip, etc. If it is still difficult to pull it

out, use a coin, etc.

To store the mechanical key in the card

key, insert it while pressing the release

button.

NOTICE

Handling the card key (if equipped)

Do not apply excess force when inserting

the mechanical key into the card key.

Doing so may damage the card key.

128

3-2. Opening, closing and locking the doors

3-2.Opening, closing and locking the doors

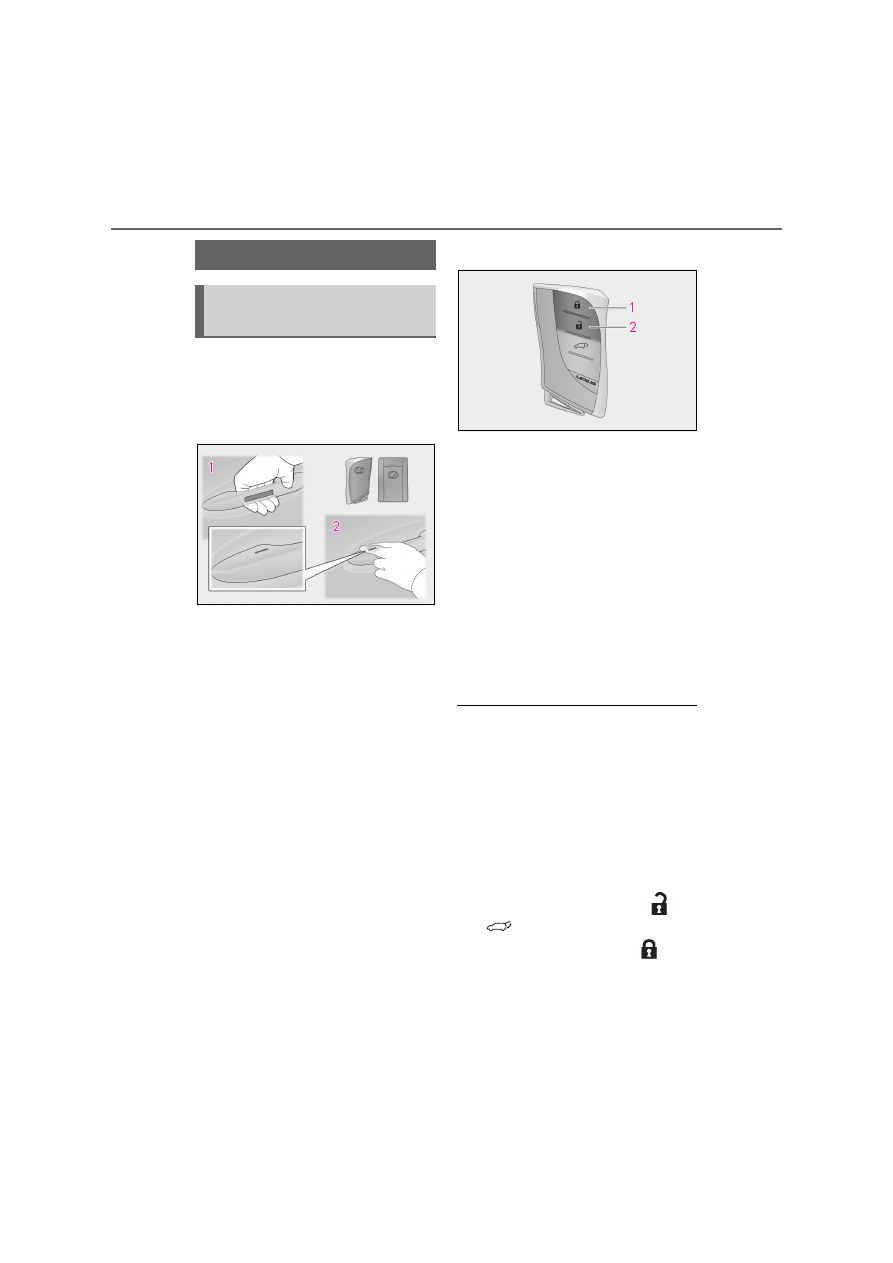

Smart entry & start system (vehi-
cles with entry function)

Carry the electronic key to enable this
function.

Grip the front door handle to
unlock the doors.

Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.

: The door unlock settings can be

changed.

Touch the lock sensor (the indenta-
tion on the upper part of the front
door handle) to lock all the doors.

Check that the door is securely locked.

Wireless remote control

Locks all the doors

Check that the door is securely locked.
Press and hold to close the windows and
moon roof.

*1, 2

Unlocks all the doors

Press and hold to open the windows and
moon roof.

*1, 2

: If equipped

: These settings must be customized at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

Switching the door unlock function

It is possible to set which doors the entry

function unlocks using the wireless remote

control.

Turn the power switch off.

Cancel the intrusion sensor and tilt sen-

sor of the alarm system to prevent unin-

tended triggering of the alarm while

changing the settings. (if equipped)

(



P.89)

When the indicator light on the key sur-
face is not on, press and hold

for approximately 5 seconds

while pressing and holding

The setting changes each time an operation
is performed, as shown below. (When
changing the setting continuously, release

Side doors

Unlocking and locking the doors
from the outside

Lexus UX (2022 year). Manual in english - page 6
