1-4. Hybrid system

After the 12-volt battery has discharged

or when the terminal has been removed

and installed during exchange, etc.

The gasoline engine may not stop even if

the vehicle is being driven by the hybrid

battery (traction battery). If this continues

for a few days, contact any authorized

Lexus retailer or Lexus authorized repairer,

or any reliable repairer.

Sounds and vibrations specific to a

hybrid vehicle

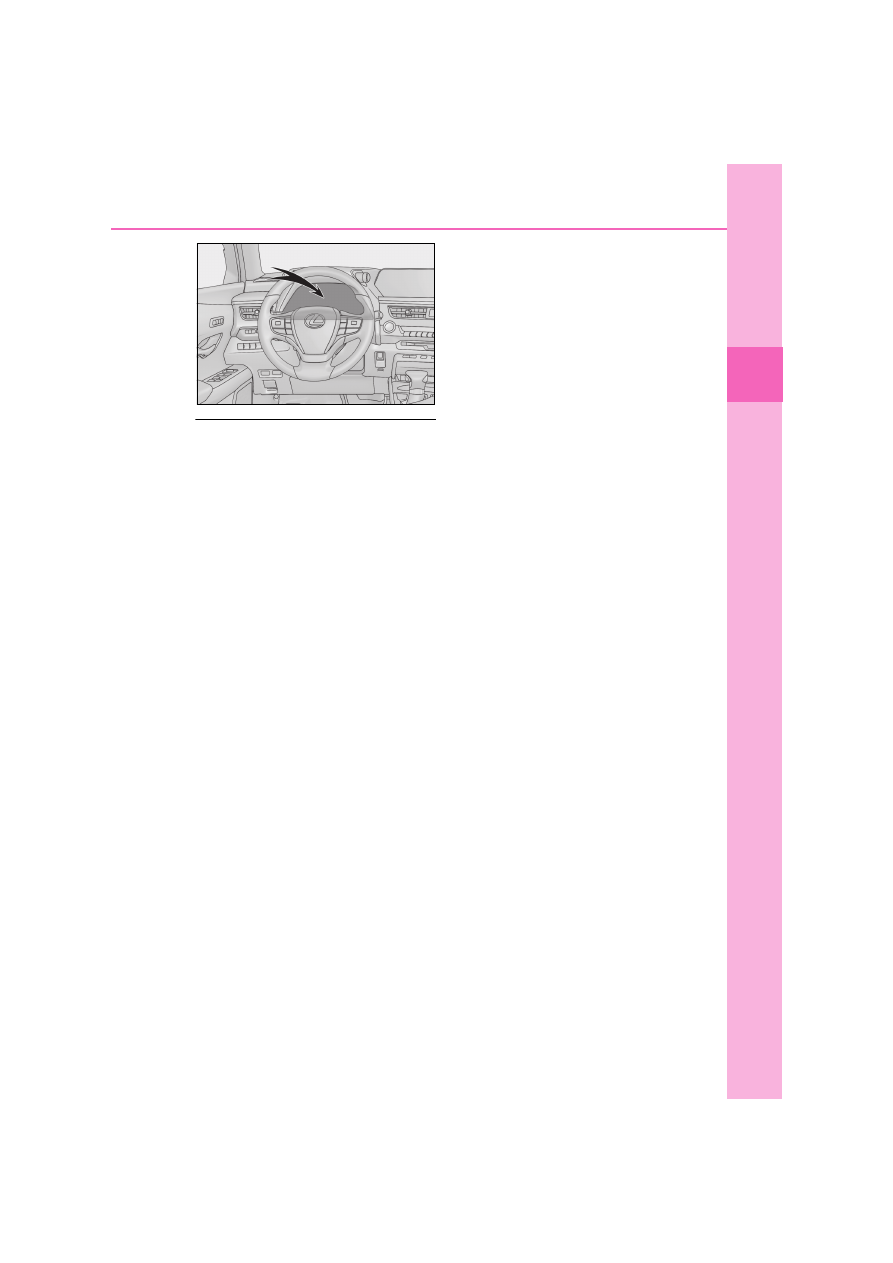

There may be no engine sound or vibration

even though the vehicle is able to move with

the “READY” indicator is illuminated. For

safety, apply the parking brake and make

sure to shift the shift lever to P when parked.
The following sounds or vibrations may

occur when the hybrid system is operating

and are not a malfunction:

Motor sounds may be heard from the

engine compartment.

Sounds may be heard from the hybrid

battery (traction battery) behind the rear

seats when the hybrid system starts or

stops.

Relay operating sounds such as a snap or

soft clank will be emitted from the hybrid

battery (traction battery), behind the rear

seats, when the hybrid system is started

or stopped.

Sounds from the hybrid system may be

heard when the back door is open.

Sounds may be heard from the hybrid

transmission when the gasoline engine

starts or stops, when driving at low

speeds, or during idling.

Engine sounds may be heard when

accelerating sharply.

Sounds may be heard due to regenera-

tive braking when the brake pedal is

depressed or as the accelerator pedal is

released.

Vibration may be felt when the gasoline

engine starts or stops.

Cooling fan sounds may be heard from

the air intake vent under the right side of

the rear seat.

Maintenance, repair, recycling, and dis-

posal

Contact any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer regarding maintenance, repair,

recycling and disposal. Do not dispose of

the vehicle yourself.

Customization

Settings (e.g. on/off operation of the EV

indicator) can be changed.

(Customizable features:



P.477)

When driving with the gasoline engine
stopped, a sound, which changes in
accordance with the driving speed, will
be played in order to warn people
nearby of the vehicle’s approach. This
sound may be heard inside the vehicle.
The sound will stop when the vehicle
speed exceeds approximately 25
km/h (15 mph).

: If equipped

Acoustic Vehicle Alerting System

In the following cases, the Acoustic Vehicle

Alerting System may be difficult for sur-

rounding people to hear.

In very noisy areas

In the wind or the rain

Also, as the Acoustic Vehicle Alerting Sys-

tem is installed on the front of the vehicle, it

may be more difficult to hear from the rear

of the vehicle compared to the front.

Acoustic Vehicle Alerting Sys-
tem

1-4. Hybrid system

For
sa

d s

uri

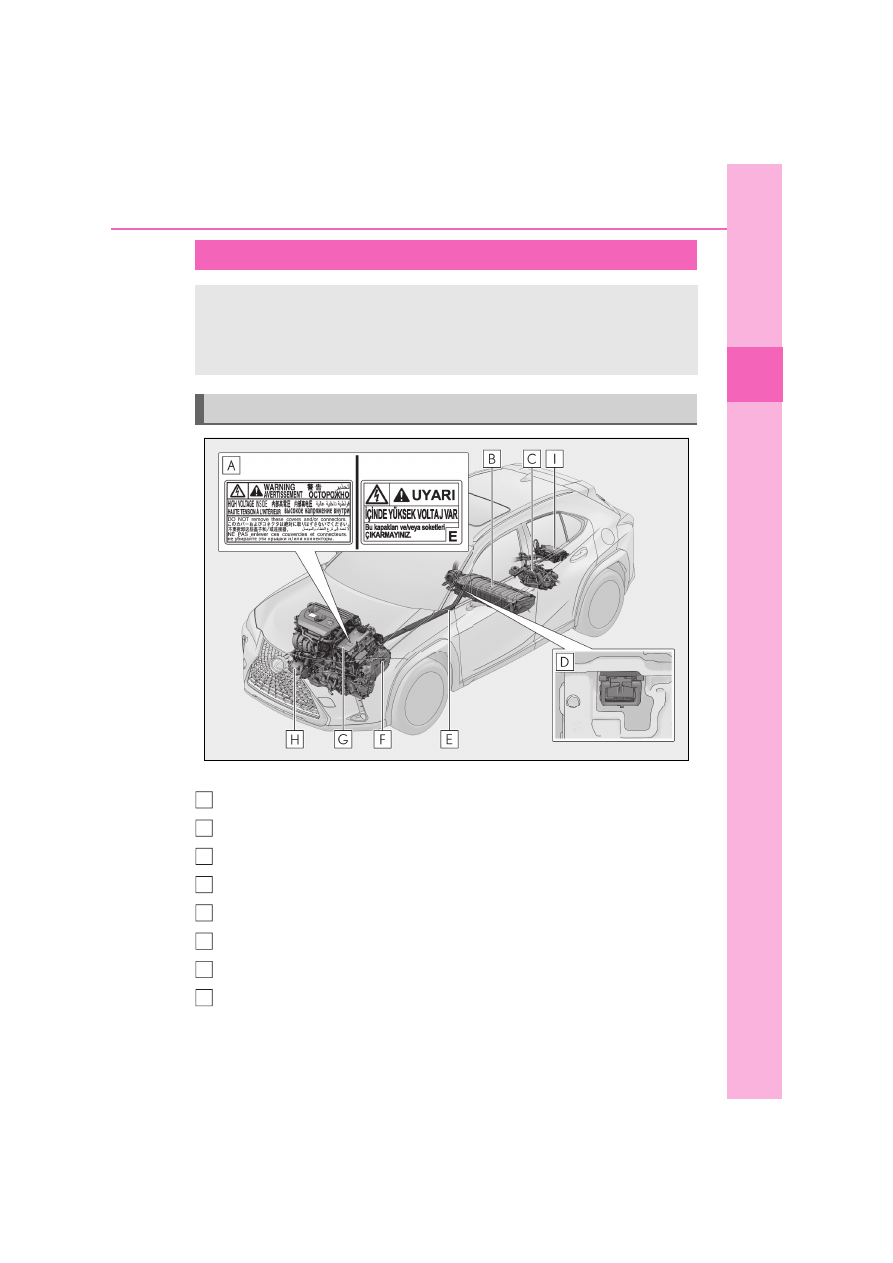

The illustration is an example for explanation and may differ from the actual item.

Warning label

Hybrid battery (traction battery)

Rear electric motor (traction motor)

Service plug

High voltage cables (orange)

Front electric motor (traction motor)

Power control unit

Air conditioning compressor

Hybrid system precautions

Take care when handling the hybrid system, as it is a high voltage system
(about 650V at maximum) as well as contains parts that become extremely
hot when the hybrid system is operating. Obey the warning labels attached to
the vehicle.

System components

A
B
C
D

E
F

1-4. Hybrid system

Rear inverter

: AWD models only

Running out of fuel

When the vehicle has run out of fuel and the

hybrid system cannot be started, refuel the

vehicle with at least enough gasoline to

make the low fuel level warning light

(



P.416) go off. If there is only a small

amount of fuel, the hybrid system may not

be able to start. (The standard amount of

fuel is about 7.5 L [2.0 gal., 1.7 Imp.gal.],

when the vehicle is on a level surface. This

value may vary when the vehicle is on a

slope. Add extra fuel when the vehicle is

inclined.)

Electromagnetic waves

High voltage parts and cables on hybrid

vehicles incorporate electromagnetic

shielding, and therefore emit approxi-

mately the same amount of electromag-

netic waves as conventional gasoline

powered vehicles or home electronic

appliances.

Your vehicle may cause sound interfer-

ence in some third party-produced radio

parts.

Hybrid battery (traction battery)

The hybrid battery (traction battery) has a

limited service life. The lifespan of the

hybrid battery (traction battery) can change

in accordance with driving style and driving

conditions.

Declaration of conformity

This model conforms to hydrogen emis-

sions according to regulation ECE100

(Battery electric vehicle safety).

WARNING

High voltage precautions

This vehicle has high voltage DC and AC

systems as well as a 12-volt system. DC

and AC high voltage is very dangerous

and can cause severe burns and electric

shock that may result in death or serious

injury.

Never touch, disassemble, remove or

replace the high voltage parts, cables

or their connectors.

The hybrid system will become hot

after starting as the system uses high

voltage. Be careful of both the high

voltage and the high temperature, and

always obey the warning labels

attached to the vehicle.

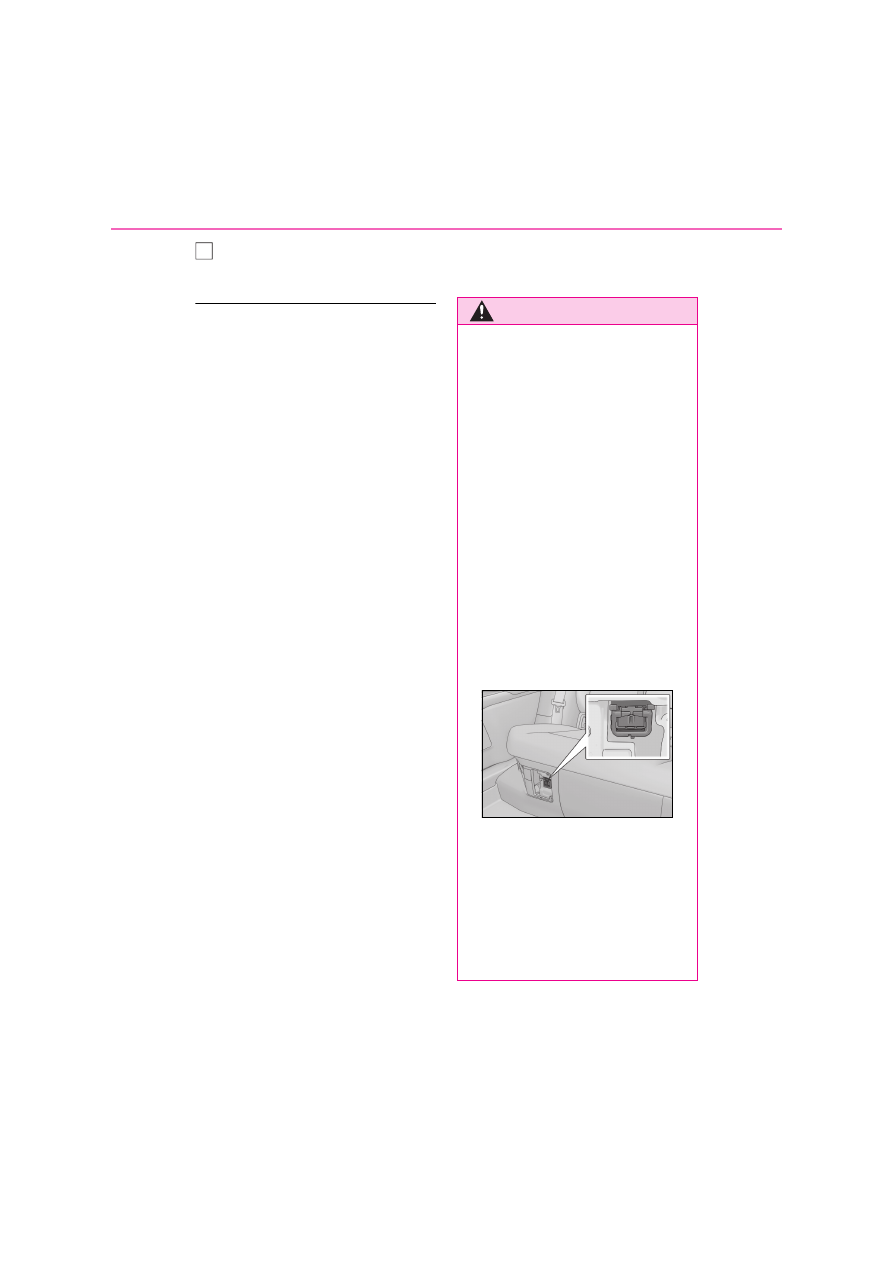

Never try to open the service plug

access hole located underneath the

rear seats. The service plug is used

only when the vehicle is serviced and is

subject to high voltage.

Road accident cautions

Observe the following precautions to

reduce the risk of death or serious injury:

Pull your vehicle off the road, shift the

shift lever to P, apply the parking

brake, and turn the hybrid system off.

Do not touch the high voltage parts,

cables and connectors.

1-4. Hybrid system

For
sa

d s

uri

WARNING

If electric wires are exposed inside or

outside your vehicle, an electric shock

may occur. Never touch exposed

electric wires.

If a fluid leak occurs, do not touch the

fluid as it may be strong alkaline elec-

trolyte from the hybrid battery (trac-

tion battery). If it comes into contact

with your skin or eyes, wash it off

immediately with a large amount of

water or, if possible, boric acid solu-

tion. Seek immediate medical atten-

tion.

If a fire occurs in the hybrid vehicle,

leave the vehicle as soon as possible.

Never use a fire extinguisher that is not

meant for electric fires. Using even a

small amount of water may be danger-

ous.

If your vehicle needs to be towed, do

so with front wheels (2WD models) or

four wheels (AWD models) raised. If

the wheels connected to the electric

motor (traction motor) are on the

ground when towing, the motor may

continue to generate electricity. This

may cause a fire. (



P.407)

Carefully inspect the ground under the

vehicle. If you find that liquid has

leaked onto the ground, the fuel sys-

tem may have been damaged. Leave

the vehicle as soon as possible.

Hybrid battery (traction battery)

Never resell, hand over or modify the

hybrid battery. To prevent accidents,

hybrid batteries that have been

removed from a disposed vehicle are

collected through any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer. Do

not dispose of the battery yourself.

Unless the battery is properly collected,
the following may occur, resulting in
death or serious injury:
• The hybrid battery may be illegally dis-

posed of or dumped, and it is hazard-

ous to the environment or someone

may touch a high voltage part, result-

ing in an electric shock.

• The hybrid battery is intended to be

used exclusively with your hybrid vehi-

cle. If the hybrid battery is used outside

of your vehicle or modified in any way,

accidents such as electric shock, heat

generation, smoke generation, an

explosion and electrolyte leakage may

occur.

When reselling or handing over your

vehicle, the possibility of an accident is

extremely high because the person

receiving the vehicle may not be aware

of these dangers.

If your vehicle is disposed of without

the hybrid battery having been

removed, there is a danger of serious

electric shock if high voltage parts,

cables and their connectors are

touched. In the event that your vehicle

must be disposed of, the hybrid battery

must be disposed of by any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer. If the

hybrid battery is not disposed of prop-

erly, it may cause electric shock that

can result in death or serious injury.

1-4. Hybrid system

There is an air intake vent under the
right side of the rear seat for the pur-
pose of cooling the hybrid battery
(traction battery). If the vent become
blocked, the hybrid battery input and
output may be restricted, leading to a
reduction in hybrid battery (traction
battery) output.

When a certain level of impact is
detected by the impact sensor, the
emergency shut off system blocks the
high voltage current and stops the fuel
pump to minimize the risk of electrocu-
tion and fuel leakage. If the emergency
shut off system activates, your vehicle
will not restart. To restart the hybrid
system, contact any authorized Lexus
retailer or Lexus authorized repairer,
or any reliable repairer.

A message is automatically displayed
when a malfunction occurs in the
hybrid system or an improper opera-
tion is attempted.
If a warning message is shown on the
multi-information display, read the
message and follow the instructions.

NOTICE

Hybrid battery (traction battery)

Do not carry large amounts of water

such as water cooler bottles in the vehi-

cle. If water spills onto the hybrid battery

(traction battery), the battery may be

damaged. Have the vehicle inspected by

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

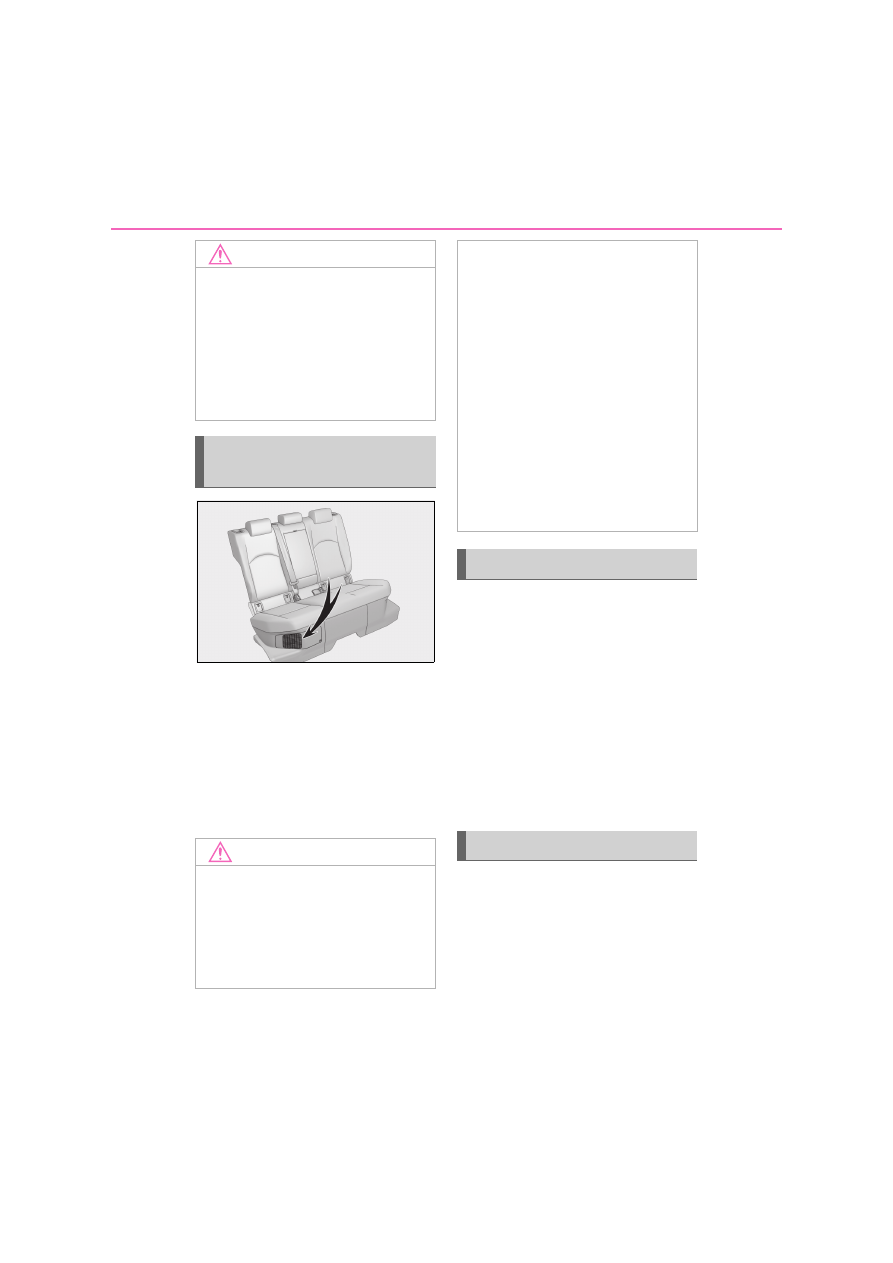

Hybrid battery (traction battery)
air intake vent

NOTICE

Hybrid battery (traction battery) air

intake vent

Make sure not to block the air intake

vent with anything, such as a seat

cover, luggage or carpet. The hybrid

battery (traction battery) may over-

heat, leading to poor fuel economy.

Clean the air intake vent regularly to

prevent the hybrid battery (traction

battery) from overheating.

Do not get water or foreign materials

in the air intake vent as this may cause

a short circuit and damage the hybrid

battery (traction battery).

A filter is installed to the air intake vent.

When the filter remains noticeably

dirty even after cleaning the air intake

vent, filter cleaning or replacement is

recommended. When cleaning or

replacing the filter, contact any autho-

rized Lexus retailer or Lexus autho-

rized repairer, or any reliable repairer.

Refer to P.392for details on how to

clean the filter.

Emergency shut off system

Hybrid warning message

1-5. Theft deterrent system

1-5.Theft deterrent system

The security indicator flashes after the
power switch has been turned off to
indicate that the system is operating.
The indicator stops flashing after the
power switch has been turned to ACC
or ON to indicate that the system has
been canceled.

System maintenance

The vehicle has a maintenance-free type

immobilizer system.

Conditions that may cause the system to

malfunction

If the grip portion of the key is in contact

with a metallic object

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

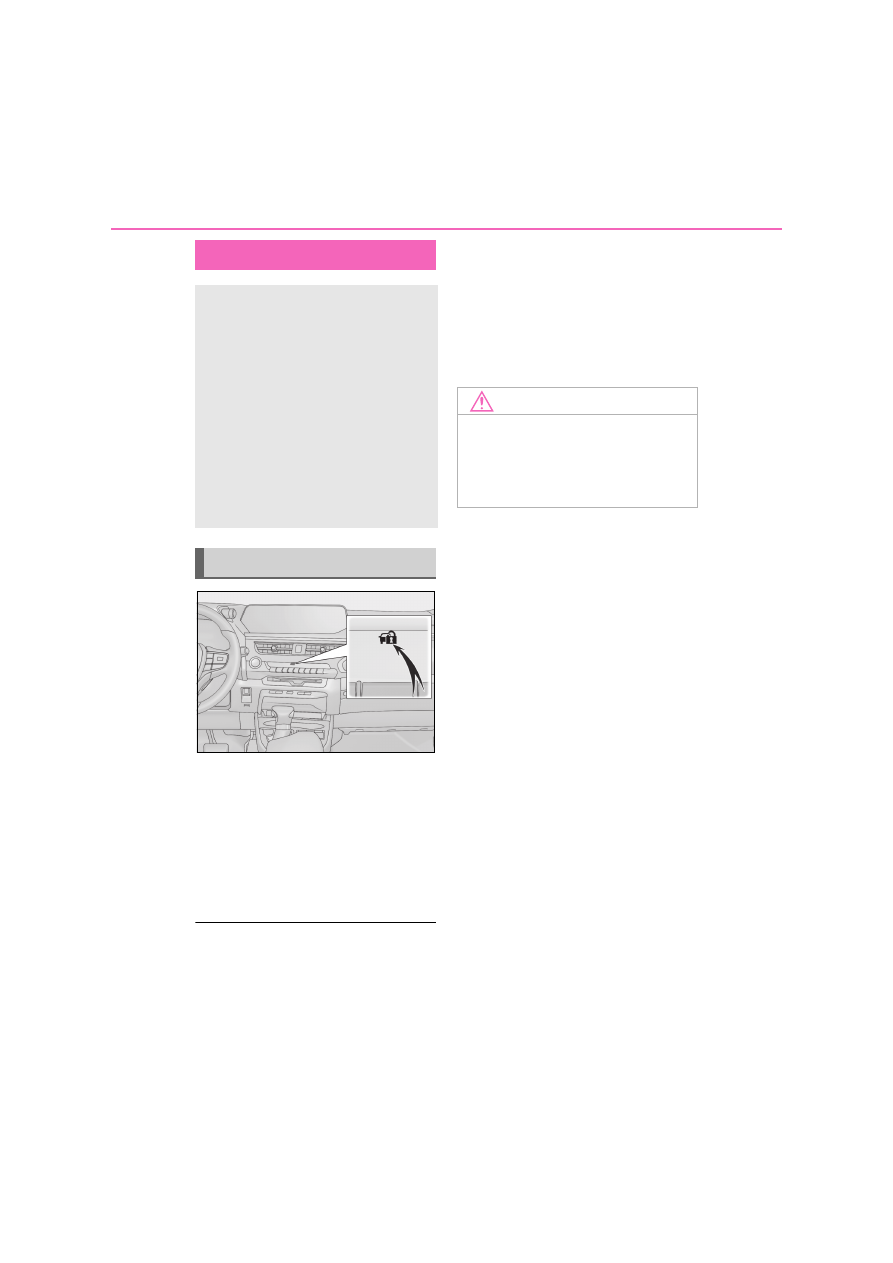

Immobilizer system

The vehicle’s keys have built-in
transponder chips that prevent the
hybrid system from starting if a key
has not been previously registered
in the vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not guar-
antee absolute security against all
vehicle thefts.

Operating the system

NOTICE

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

1-5. Theft deterrent system

For
sa

d s

uri

Setting

Turn the power switch off, have all the
passengers exit the vehicle and ensure
that all the doors are closed.
Using the entry function:
Touch the sensor area on the outside
door handle twice within 5 seconds.
Using the wireless remote control:
Press

twice within 5 seconds.

Canceling

Using the entry function: Hold the out-
side door handle.
Using the wireless remote control:
Press .

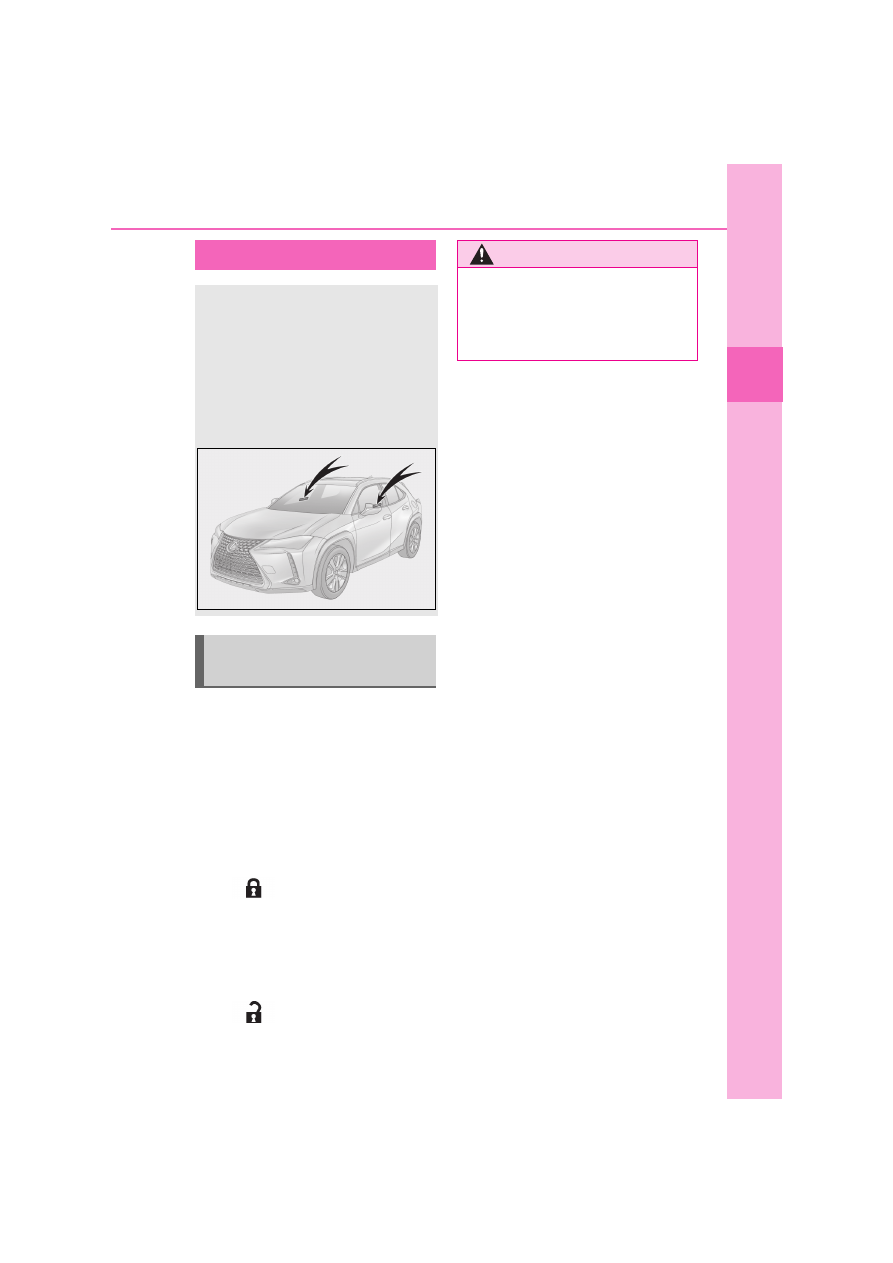

Double locking system

Unauthorized access to the vehicle
is prevented by disabling the door
unlocking function from both the
interior and exterior of the vehicle.
Vehicles employing this system
have labels on the side window of
both front doors.

Setting/canceling the double
locking system

WARNING

Double locking system precaution

Never activate the double locking sys-

tem when there are people in the vehicle,

because all the doors cannot be opened

from inside the vehicle.

1-5. Theft deterrent system

: If equipped

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following.



Nobody is in the vehicle.



The windows and moon roof (if
equipped) are closed before the
alarm is set.



No valuables or other personal
items are left in the vehicle.

Setting

Close the doors and hood, and lock all
the doors using the entry function (if
equipped) or wireless remote control.
The system will be set automatically
after 30 seconds.

The security indicator changes from being
on to flashing when the system is set.

Canceling or stopping

Do one of the following to deactivate
or stop the alarm.



Unlock the doors using the entry
function (if equipped) or wireless
remote control.



Start the hybrid system. (The alarm
will be deactivated or stopped after
a few seconds.)

System maintenance

The vehicle has a maintenance-free type

alarm system.

Triggering of the alarm

The alarm may be triggered in the following

situations:

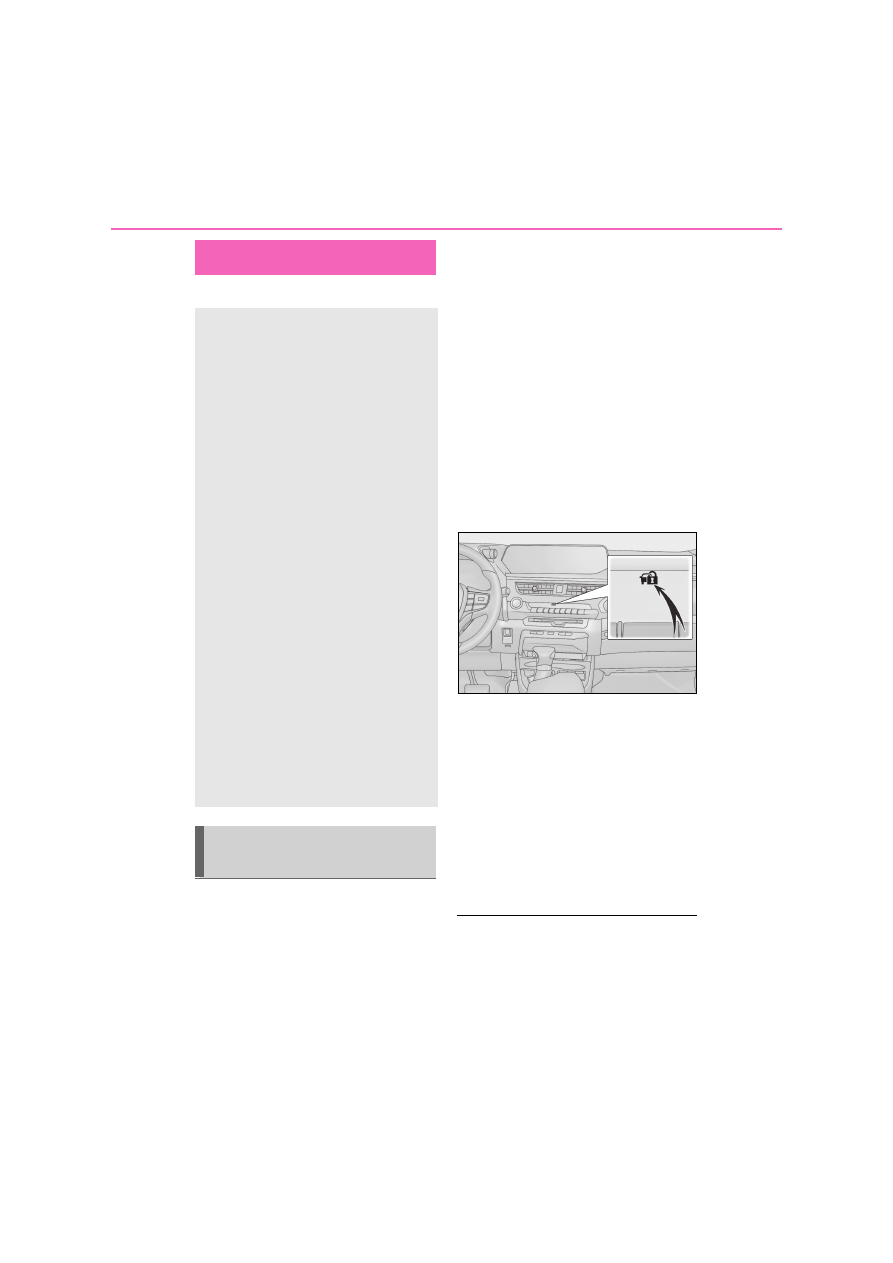

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



A locked door is unlocked or
opened in any way other than
using the entry function (if
equipped) or wireless remote
control. (The doors will lock again
automatically.)



The hood is opened.



The intrusion sensor detects
something moving inside the
vehicle. (An intruder gets in the
vehicle.)



Vehicles with tilt sensor: The tilt
sensor detects a change of vehi-
cle inclination.



Vehicles with glass breakage sen-
sor: Any of the windows are bro-
ken.

Setting/canceling/stopping the
alarm system

1-5. Theft deterrent system

For
sa

d s

uri

(Stopping the alarm deactivates the alarm

system.)

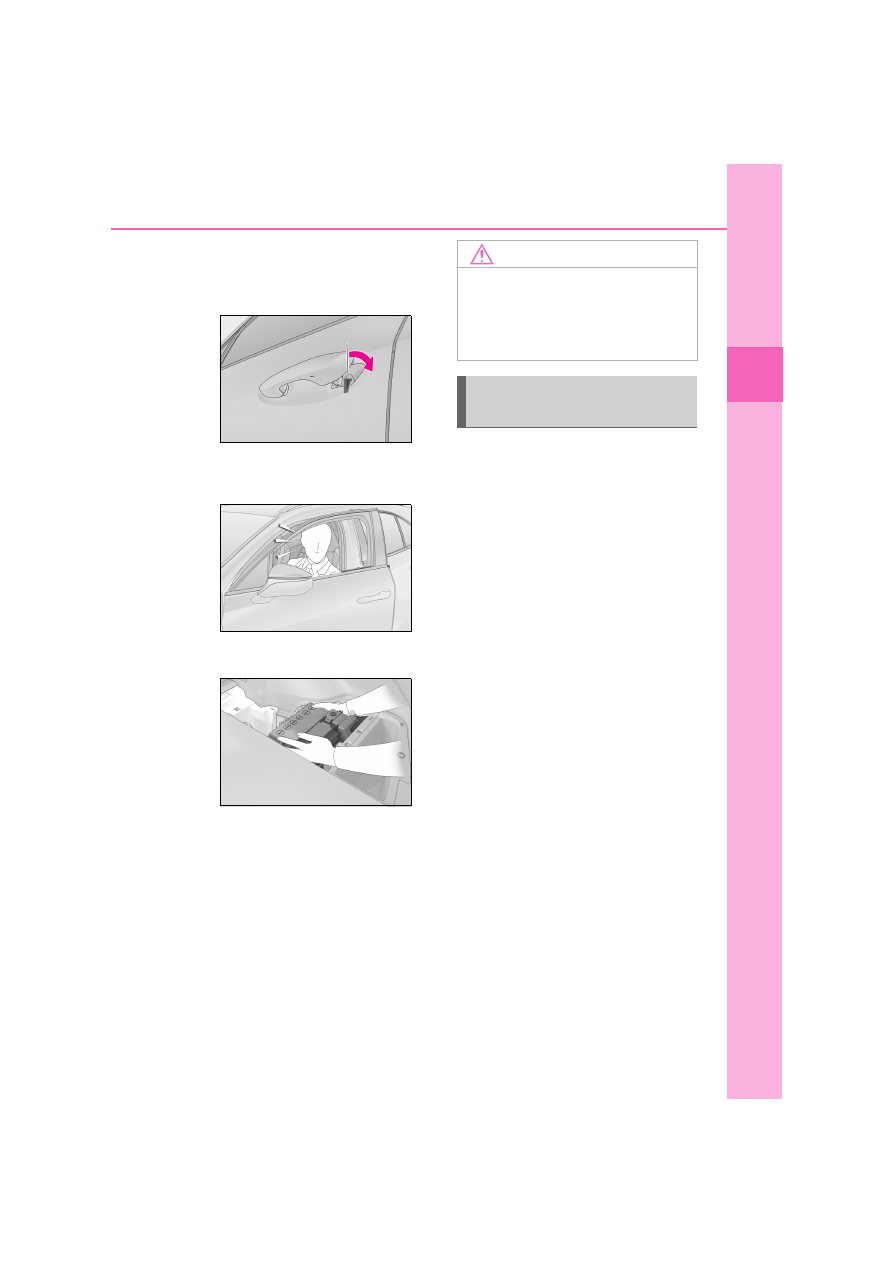

The doors are unlocked using the

mechanical key.

A person inside the vehicle opens a door

or hood, or unlocks the vehicle using an

inside lock button.

The 12-volt battery is disconnected.

(



P.456)

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

When recharging or replacing the 12-

volt battery.

The intrusion sensor and tilt sensor
detection



The intrusion sensor detects intrud-
ers or movement in the vehicle.



The tilt sensor detects changes in
vehicle inclination, such as when the
vehicle is towed away.

This system is designed to deter and
prevent vehicle theft but does not
guarantee absolute security against all
intrusions.

Setting the intrusion sensor and tilt
sensor

The intrusion sensor and tilt sensor will
be set automatically when the alarm is
set. (



P.88)

Canceling the intrusion sensor and
tilt sensor

If you are leaving pets or other moving
things inside the vehicle, make sure to
disable the intrusion sensor and tilt
sensor before setting the alarm, as they
will respond to movement inside the
vehicle.

Turn the power switch off.

Press the intrusion sensor and tilt
sensor cancel switch.

NOTICE

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

Intrusion sensor (if equipped)
and tilt sensor (if equipped)

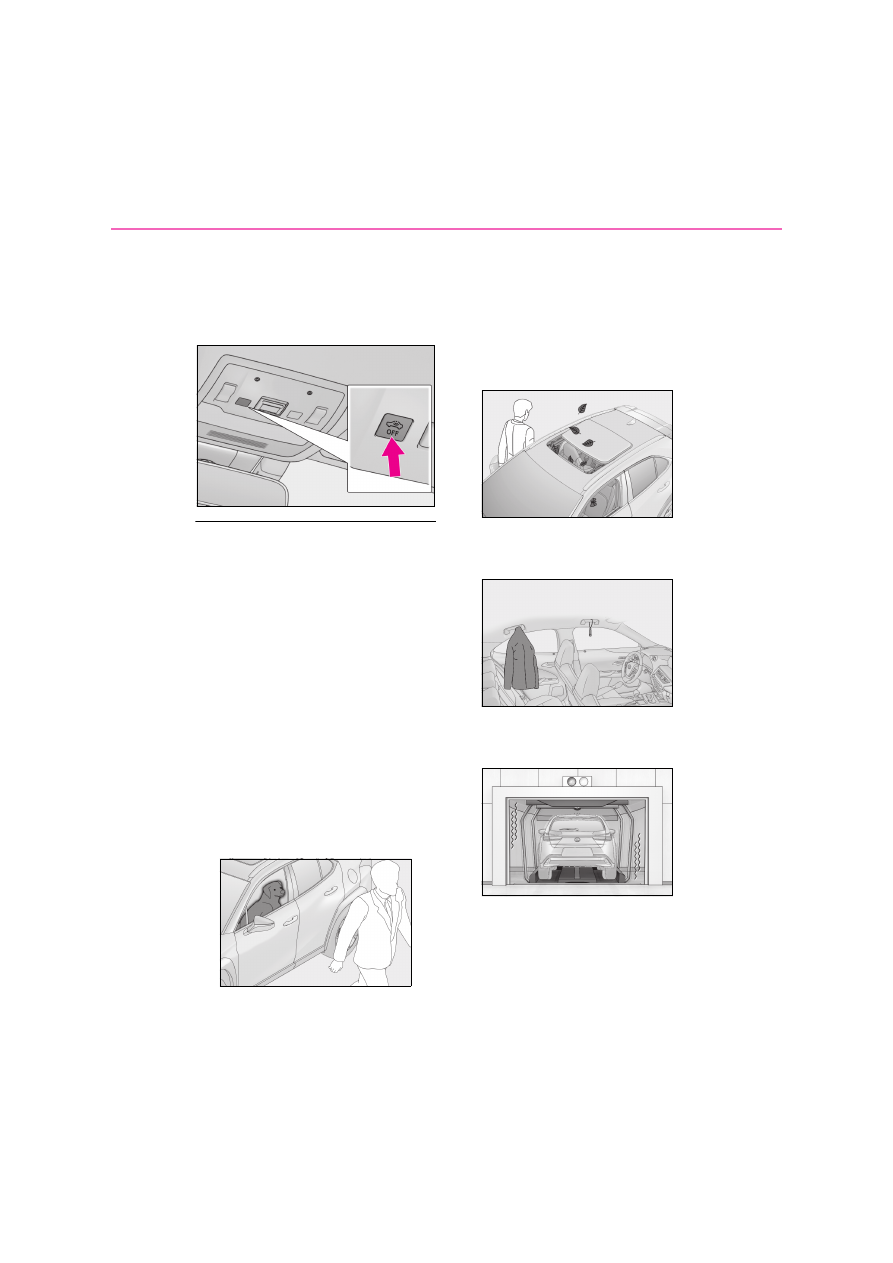

1-5. Theft deterrent system

Press the switch again to re-enable the

intrusion sensor and tilt sensor.
Each time the intrusion sensor and tilt sen-

sor are canceled/set, a message will be

shown on the multi-information display in

the instrument cluster.

Canceling and automatic re-enabling of

the intrusion sensor and tilt sensor

The alarm will still be set even when the

intrusion sensor and tilt sensor are can-

celed.

After the intrusion sensor and tilt sensor

are canceled, pressing the power switch

or unlocking the doors using the entry

function (if equipped) or wireless remote

control will re-enable the intrusion sensor

and tilt sensor.

The intrusion sensor and tilt sensor will

automatically be re-enabled when the

alarm system is reactivated.

Intrusion sensor detection consider-

ations

The sensor may trigger the alarm in the fol-

lowing situations:

People or pets are in the vehicle.

A window or the moon roof (if equipped)

is open.

In this case, the sensor may detect the fol-
lowing:
• Wind or the movement of objects such as

leaves and insects inside the vehicle

• Ultrasonic waves emitted from devices

such as the intrusion sensors of other

vehicles

• The movement of people outside the

vehicle

Unstable items, such as dangling acces-

sories or clothes hanging on the coat

hooks, are in the vehicle.

The vehicle is parked in a place where

extreme vibrations or noises occur, such

as in a parking garage.

Ice or snow is removed from the vehicle,

causing the vehicle to receive repeated

impacts or vibrations.

1-5. Theft deterrent system

For
sa

d s

uri

The vehicle is inside an automatic or

high-pressure car wash.

The vehicle experiences impacts, such as

hail, lightning strikes, and other kinds of

repeated impacts or vibrations.

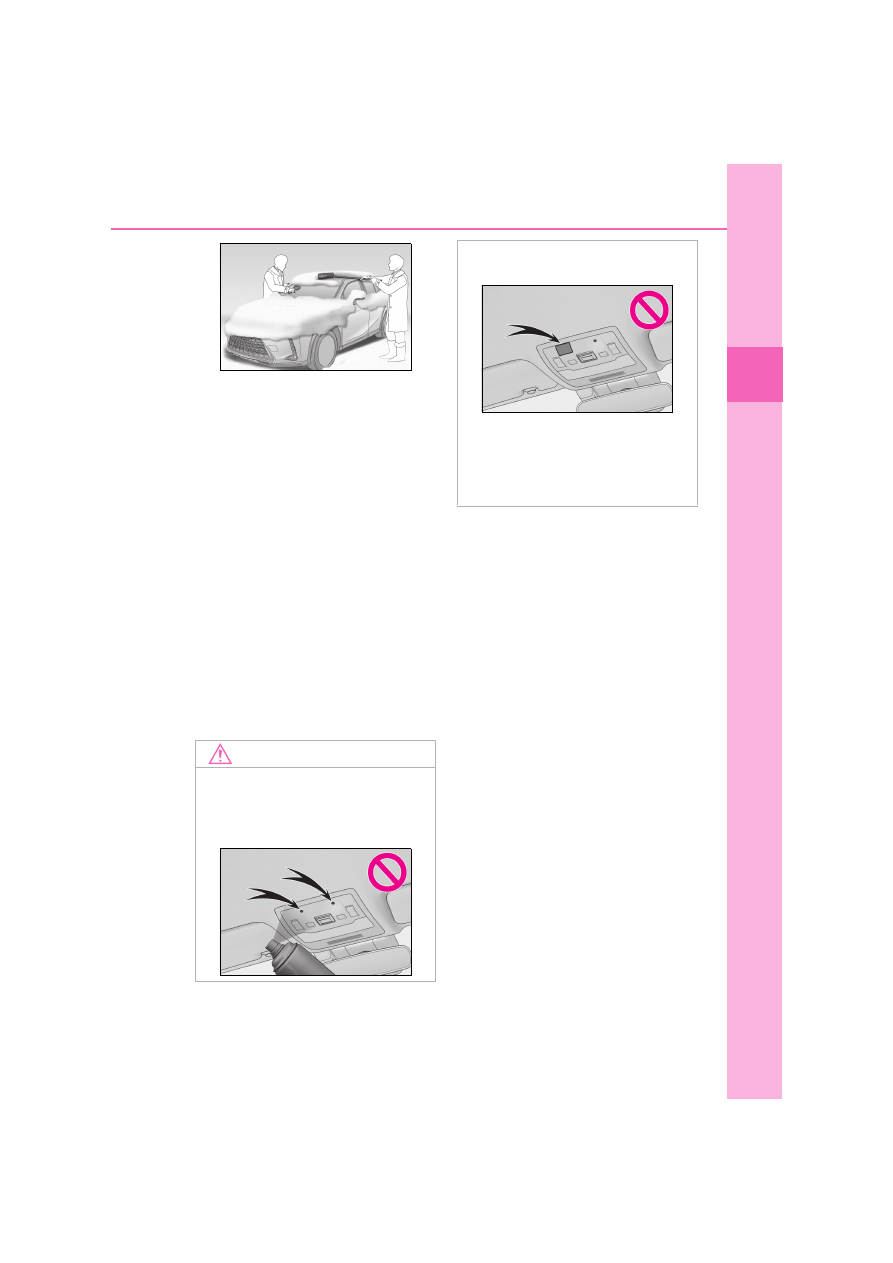

Tilt sensor detection considerations

The sensor may trigger the alarm in the fol-

lowing situations:

The vehicle is transported by a ferry,

trailer, train, etc.

The vehicle is parked in a parking garage.

The vehicle is inside a car wash that

moves the vehicle.

Any of the tires loses air pressure.

The vehicle is jacked up.

An earthquake occurs or the road caves

in.

Cargo is loaded onto or unloaded from

the roof luggage carrier.

NOTICE

To ensure the intrusion sensor func-

tions correctly

Do not spray air fresheners or other

products directly into the sensor holes.

To ensure that the sensors operate

properly, do not touch or cover them.

Installing accessories other than genu-

ine Lexus parts or leaving objects

between the driver’s seat and front

passenger’s seat may reduce the

detection performance.

icle

ion
an

d i

ica

tor

Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indicators..

Gauges and meters (except F

SPORT models) ........................

Gauges and meters (F SPORT

models)........................................

103

Multi-information display........

108

Head-up display ..........................

114

Energy monitor/consumption

screen ...........................................

119

2-1. Instrument cluster

icle

ion
an

d i

ica

tor



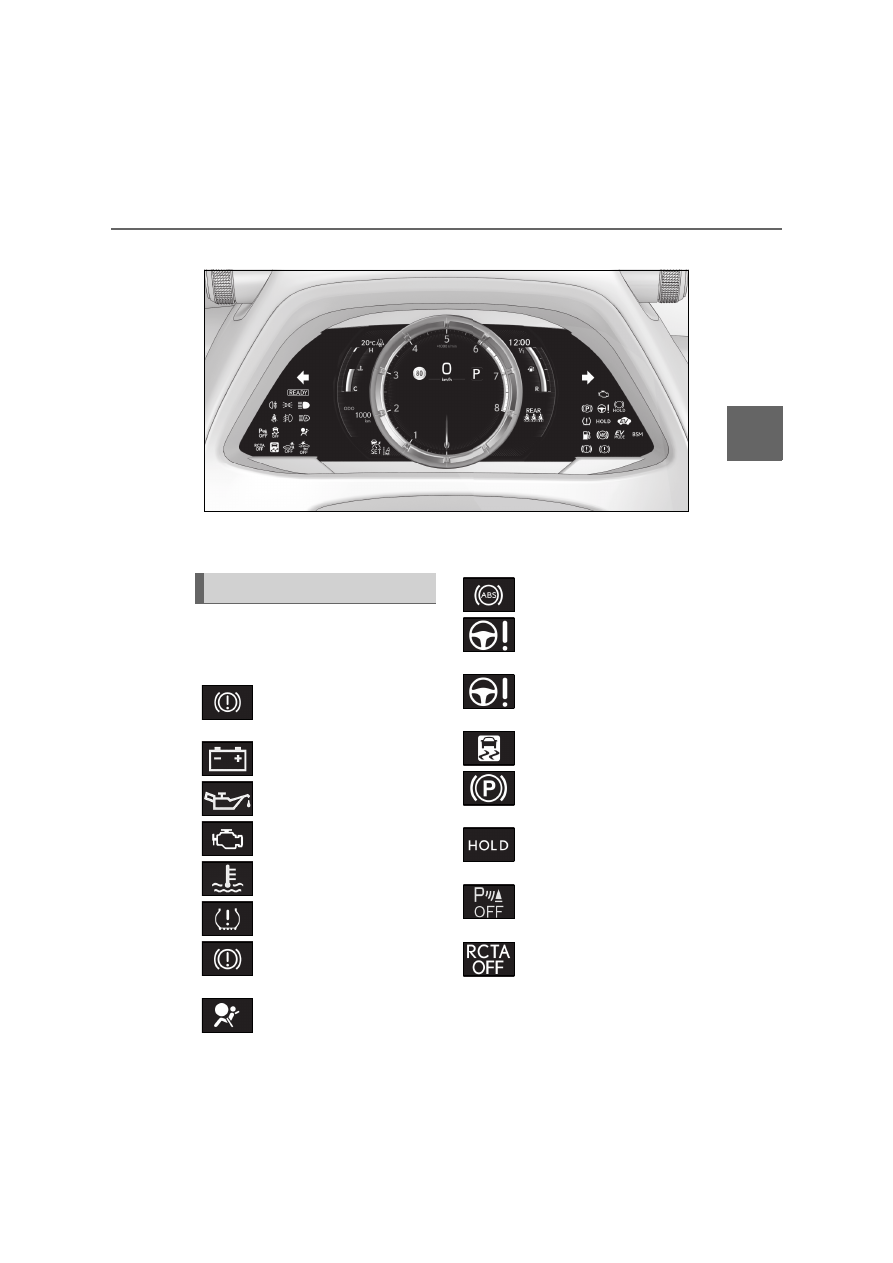

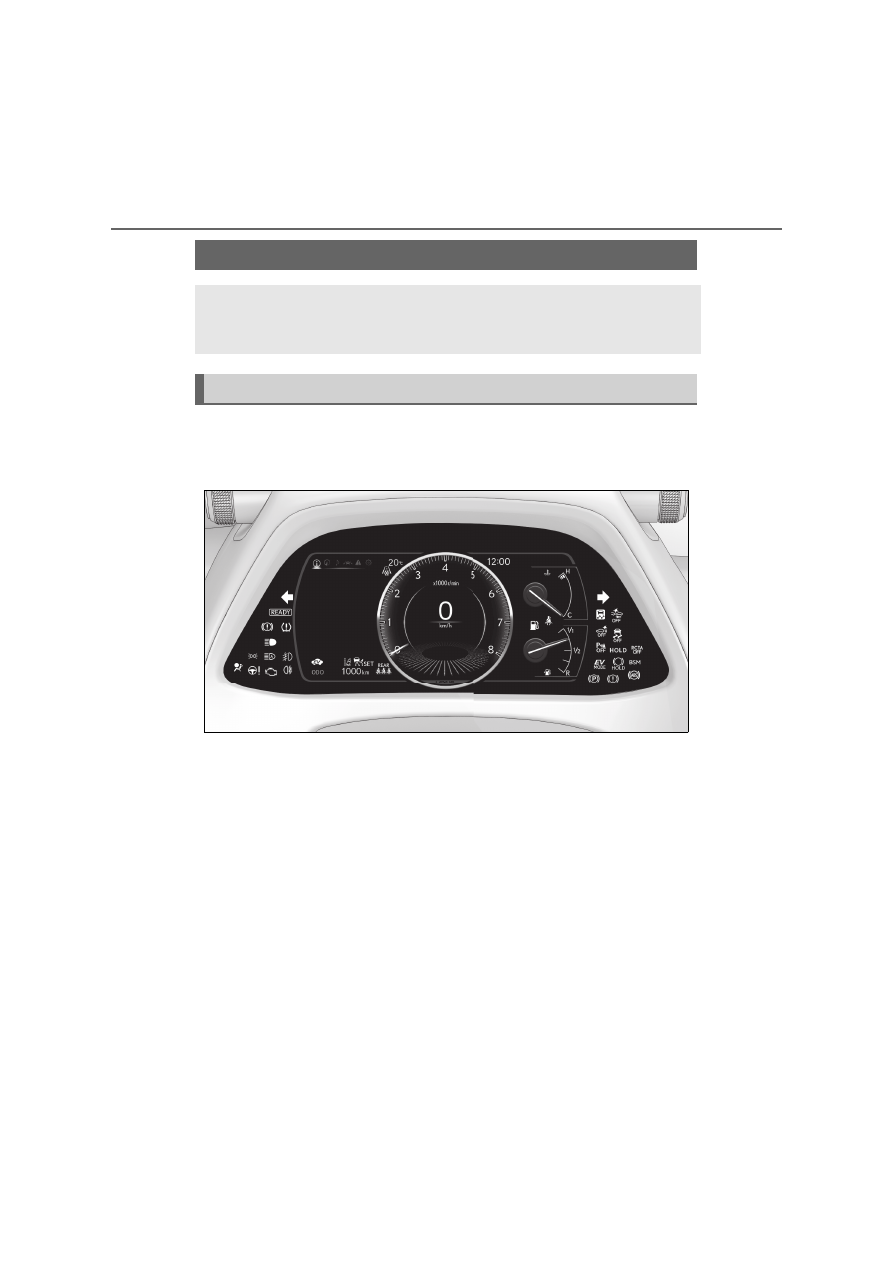

F SPORT models

The location of warning lights and indicators may differ depending on the intended destina-
tion of the vehicle and the main meter position.

Warning lights inform the driver of
malfunctions in the indicated vehicle’s
systems.

Warning lights

(red)

Brake system warning light

(



P.412)

Charging system warning
light

(



P.412)

Low engine oil pressure warn-
ing light

(



P.412)

Malfunction indicator lamp

(



P.413)

High coolant temperature
warning light

(



P.413)

Tire pressure warning light

(



P.413)

(yellow)

Brake system warning light

(



P.414)

SRS warning light

(



P.414)

ABS warning light

(



P.414)

(red)

Electric power steering system
warning light

(



P.414)

(yellow)

Electric power steering system
warning light

(



P.414)

Slip indicator

(



P.415)

(Flashes)

Parking brake indicator
(



P.415)

(Flashes)

Brake hold operated indica-
tor

(



P.415)

(Flashes)

Lexus parking assist-sensor
OFF indicator

(if equipped)

(



P.415)

(Flashes)

RCTA OFF indicator

(if

equipped) (



P.416)

2-1. Instrument cluster

: These lights come on when the power

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the hybrid system is on,
or after a few seconds. There may be a
malfunction in a system if the lights do
not come on, or turn off. Have the vehi-
cle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.

: This light illuminates on the multi-infor-

mation display.

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

(Flashes)

PKSB OFF indicator

(if

equipped) (



P.416)

Low fuel level warning light
(



P.416)

Driver’s and front passenger’s
seat belt reminder light
(



P.417)

Rear passengers’ seat belt
reminder lights

(



P.417)

Brake Override System warn-
ing light/Drive-Start Control
warning light/PKSB warning
light

(



P.418)

(orange)

LTA indicator

(if equipped)

(



P.418)

(Flashes or

illuminates)

PCS warning light

(if

equipped) (



P.419)

Hybrid system overheat warn-
ing light

(



P.419)

(orange)

Low traction battery charge
warning light

(



P.419)

WARNING

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the hybrid system, this

could mean that these systems are not

available to help protect you in an acci-

dent, which could result in death or seri-

ous injury. Have the vehicle inspected by

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer immediately if this occurs.

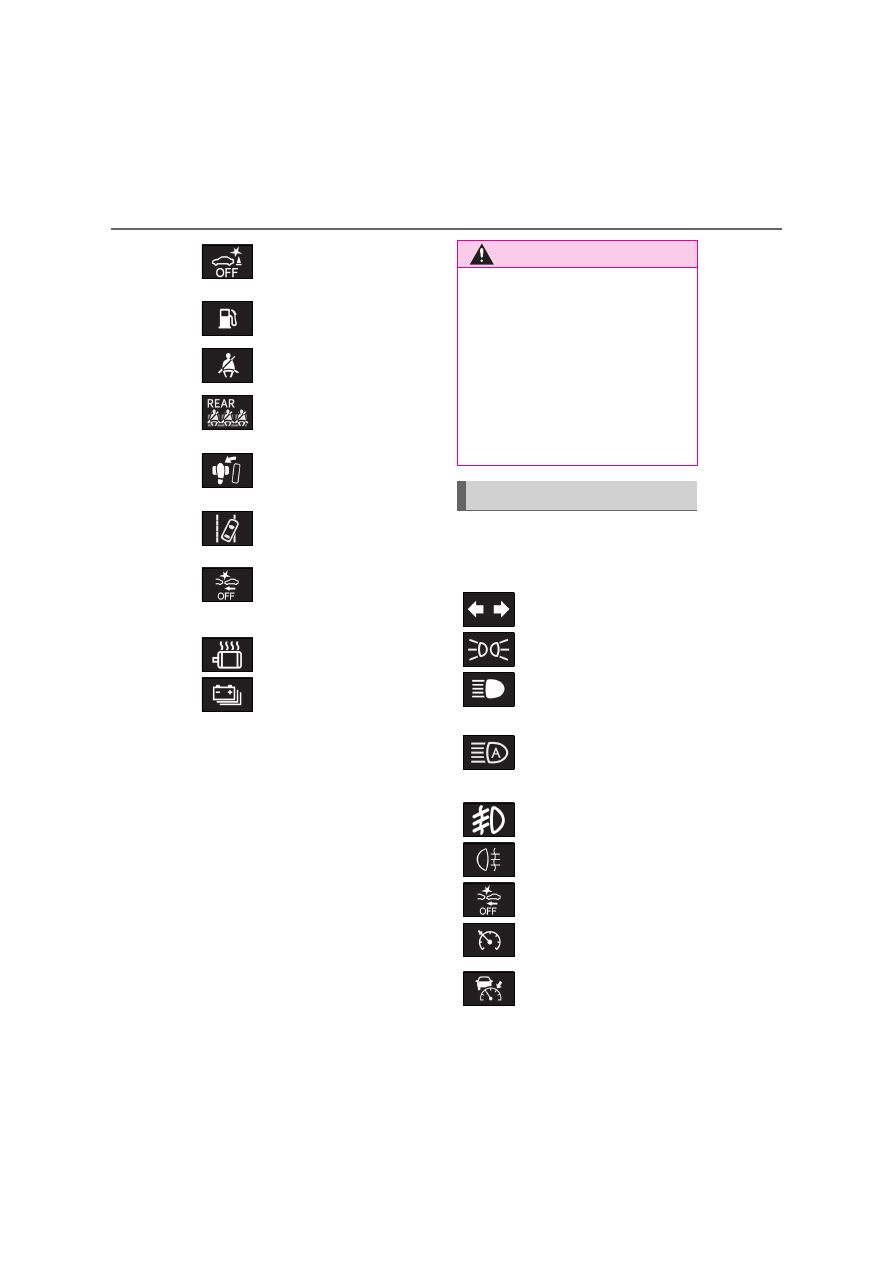

Indicators

Turn signal indicator (



P.194)

Tail light indicator (



P.201)

Headlight high beam indicator
(



P.202)

AHS indicator

(if equipped)

(



P.203)

Automatic High Beam indica-
tor

(if equipped) (



P.207)

Front fog light indicator (if
equipped) (



P.210)

Rear fog light indicator
(



P.210)

PCS warning light

*1, 2

(if

equipped) (



P.231)

Cruise control indicator

(



P.253, 264)

Dynamic radar cruise control
indicator

(if equipped)

(



P.253)

Lexus UX (2022 year). Manual in english - page 4
