Lexus UX (2022 year). Manual in english

2-1. Instrument cluster

icle

ion
an

d i

ica

tor



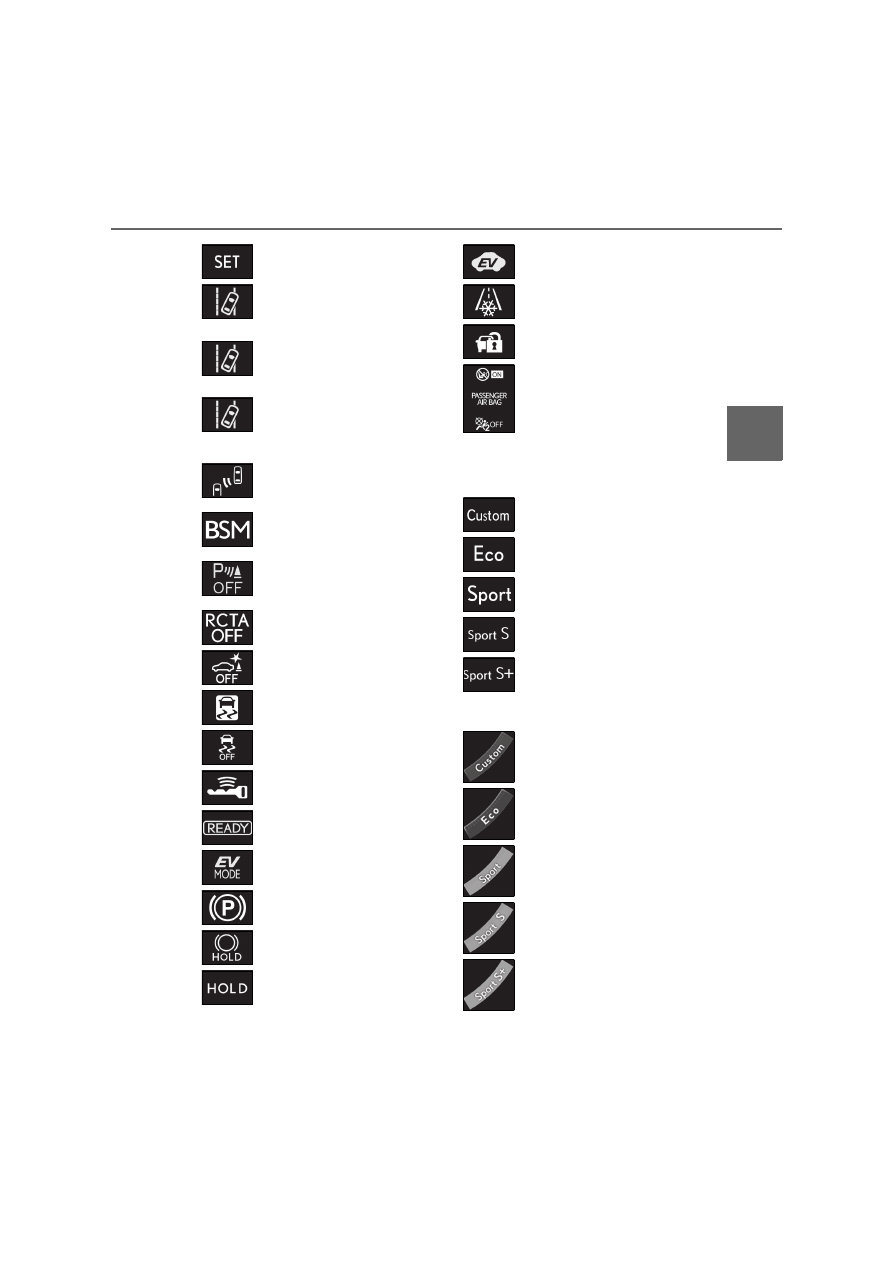

Drive mode indicators



Except F SPORT models



F SPORT models

: These lights come on when the power

Cruise control “SET” indica-
tor

(



P.253, 264)

(white)

LTA indicator

*3, 4

(if equipped)

(



P.244)

(green)

LTA indicator

*3, 4

(if equipped)

(



P.244)

(orange)

LTA indicator

*3, 4, 5

(if

equipped) (



P.244)

BSM outside rear view mirror
indicators

*1, 6

(if equipped)

(



P.266)

BSM indicator (if equipped)
(



P.266)

Lexus parking assist-sensor
OFF indicator

*1, 2

(if equipped)

(



P.281)

RCTA OFF indicator

*1, 2

(if

equipped) (



P.289)

PKSB OFF indicator

*1, 2

(if

equipped) (



P.294)

Slip indicator

*1, 5

(



P.305)

VSC OFF indicator

*1, 2

(



P.306)

Smart entry & start system indi-
cator

(



P.184)

“READY” indicator (



P.184)

EV drive mode indicator
(



P.188)

Parking brake indicator
(



P.195)

Brake hold standby indicator

(



P.198)

Brake hold operated indica-
tor

(



P.198)

EV indicator

(



P.79)

Low outside temperature indi-
cator

*3, 8

(



P.99, 103)

Security indicator

(



P.86,

88)

“PASSENGER AIR BAG” indi-
cator

*1, 9

(



P.47)

Custom mode indicator (if
equipped) (



P.301)

Eco drive mode indicator
(



P.301)

Sport mode indicator (if
equipped) (



P.301)

Sport S mode indicator (if
equipped) (



P.301)

Sport S+ mode indicator (if
equipped) (



P.301)

Custom mode indicator (if
equipped) (



P.301)

Eco drive mode indicator
(



P.301)

Sport mode indicator (if
equipped) (



P.301)

Sport S mode indicator (if
equipped) (



P.301)

Sport S+ mode indicator (if
equipped) (



P.301)

2-1. Instrument cluster

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the hybrid system is on,
or after a few seconds. There may be a
malfunction in a system if the lights do
not come on, or turn off. Have the vehi-
cle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.

: This light comes on when the system is

turned off.

: This light illuminates on the multi-infor-

mation display.

: Depending on the operating condition,

the color and illuminating/flashing state
of the light change.

: This light flashes to indicate that the sys-

tem is operating.

: This light illuminates on the outside rear

view mirrors.

: Except F SPORT models: This light illu-

minates on the multi-information dis-
play.

: When the outside temperature is

approximately 3°C (37°F) or lower,
this indicator will flash for approxi-
mately 10 seconds, then stay on.

: This light illuminates on the center

panel.

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

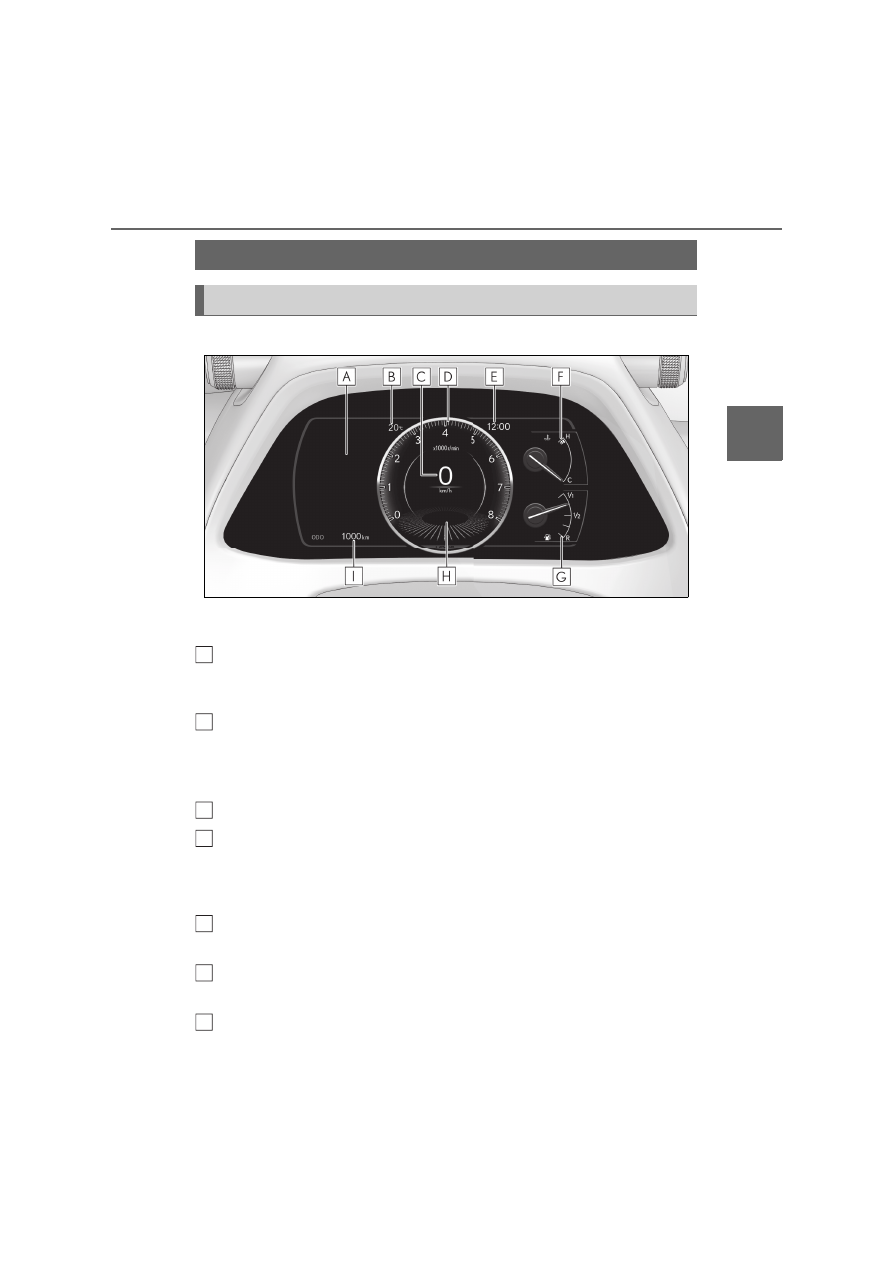

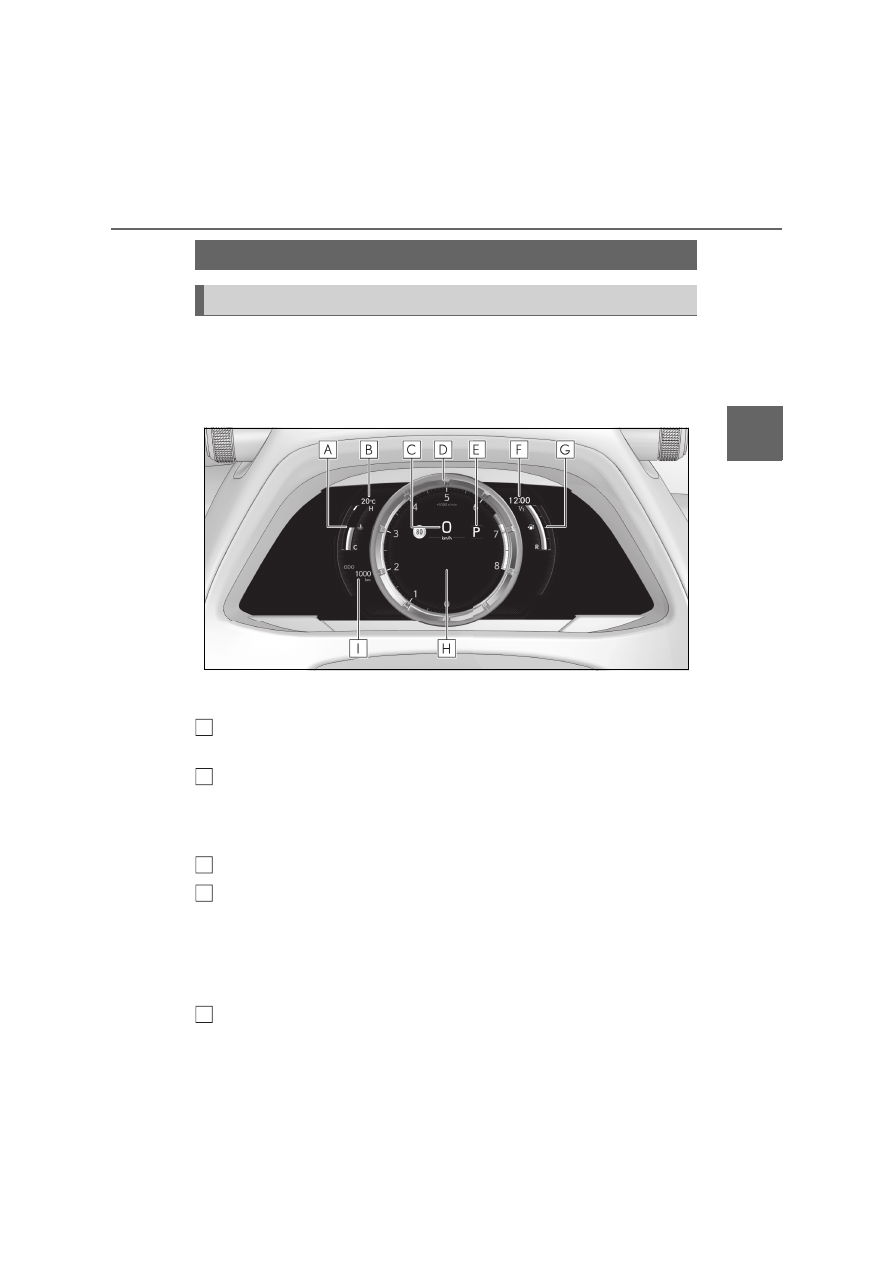

Locations of gauges and meters

The location of some displayed items and the units of measure may differ depending on the
intended destination of the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (



P.108)

Displays warning messages if a malfunction occurs (



P.422)

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)
Low outside temperature indicator comes on when the ambient temperature is 3°C
(37°F) or lower

Speedometer

Hybrid System Indicator/tachometer

Displays hybrid system output or regeneration level (



P.100)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (



P.112, 301)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.350)

Engine coolant temperature gauge

Displays the engine coolant temperature

Fuel gauge

Gauges and meters (except F SPORT models)

Meter display

C
D

100

2-1. Instrument cluster

Displays the quantity of fuel remaining in the tank

Shift position/shift range (



P.190)

Odometer and trip meter display (



P.101)

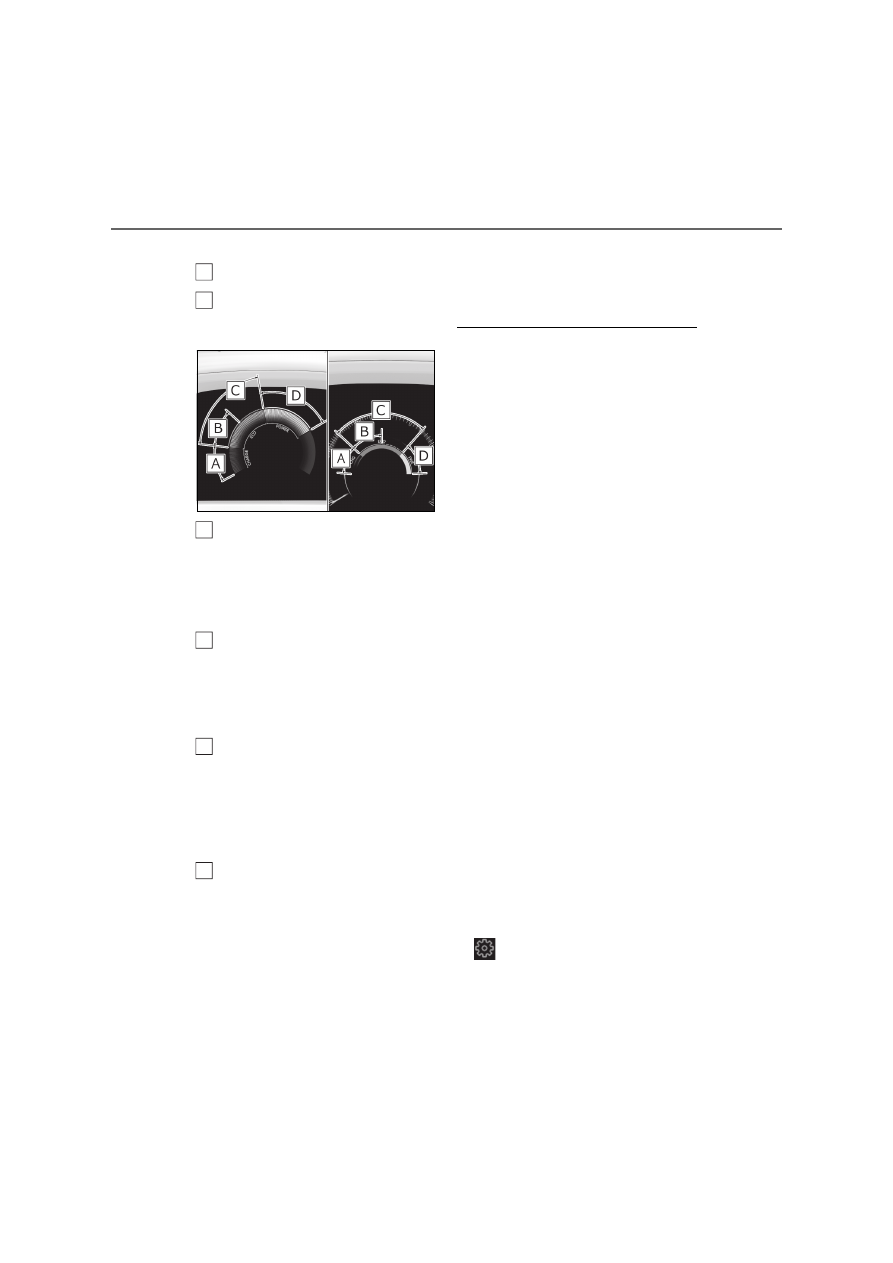

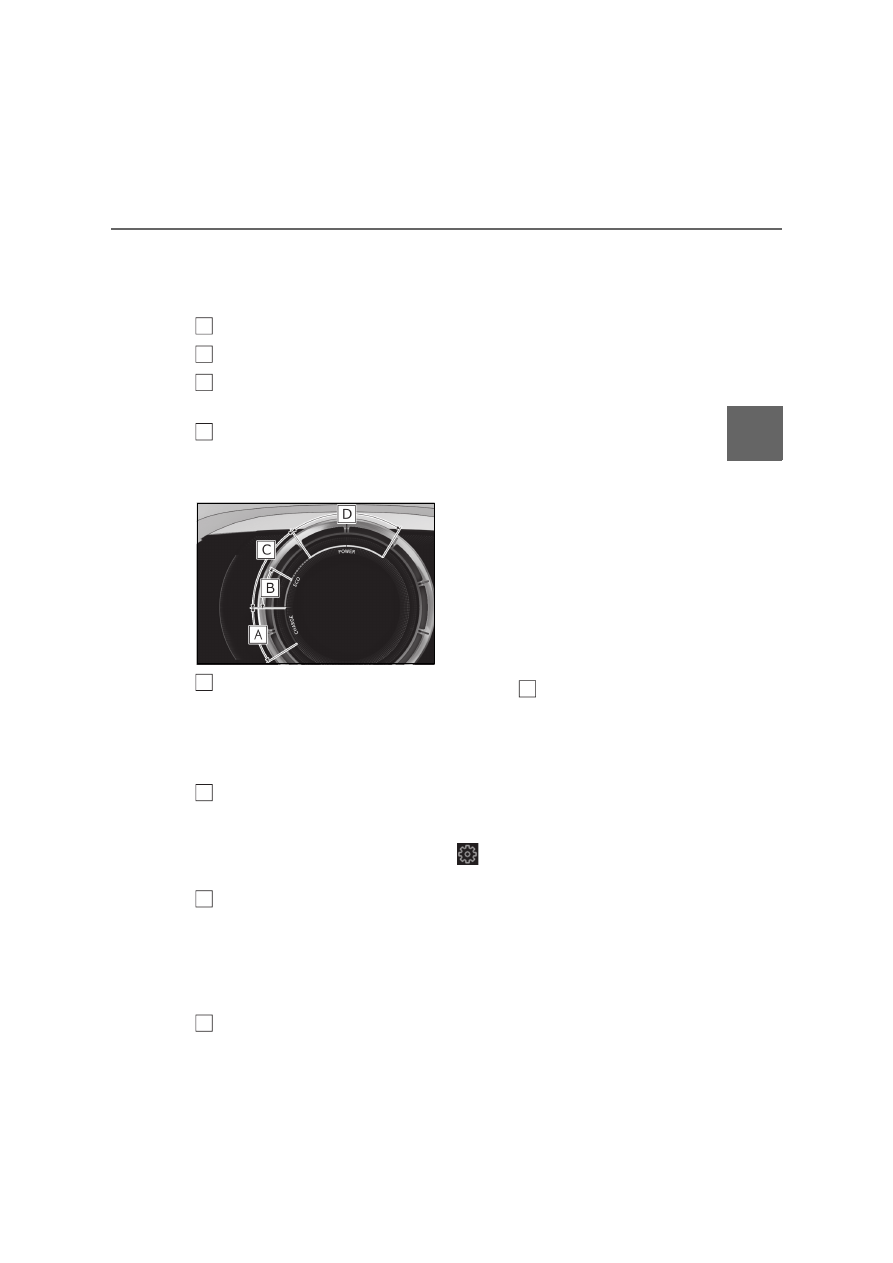

Hybrid System Indicator

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)

: When used in this manual, regeneration

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

Engine speed

On hybrid vehicles, engine speed is pre-

cisely controlled in order to help improve

fuel efficiency and reduce exhaust emis-

sions etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

Hybrid System Indicator is displayed

when

The Hybrid System Indicator is displayed in

the following situations:

The shift lever is in D or S.

The driving mode is other than Sport

mode.

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Liquid crystal display



P.109

Customization

The gauges and meters can be customized
on

of the multi-information display.

(



P.477)

101

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

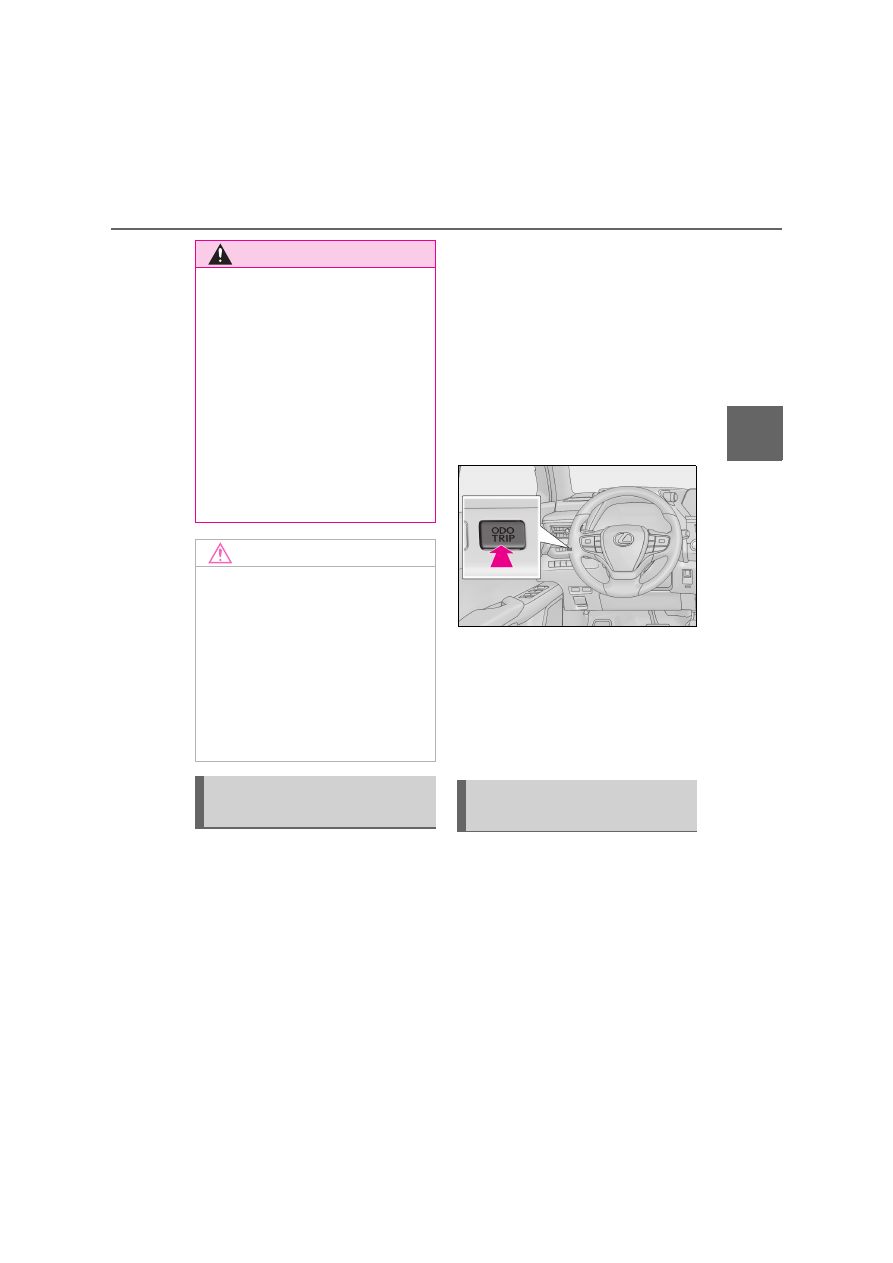

Changing the display

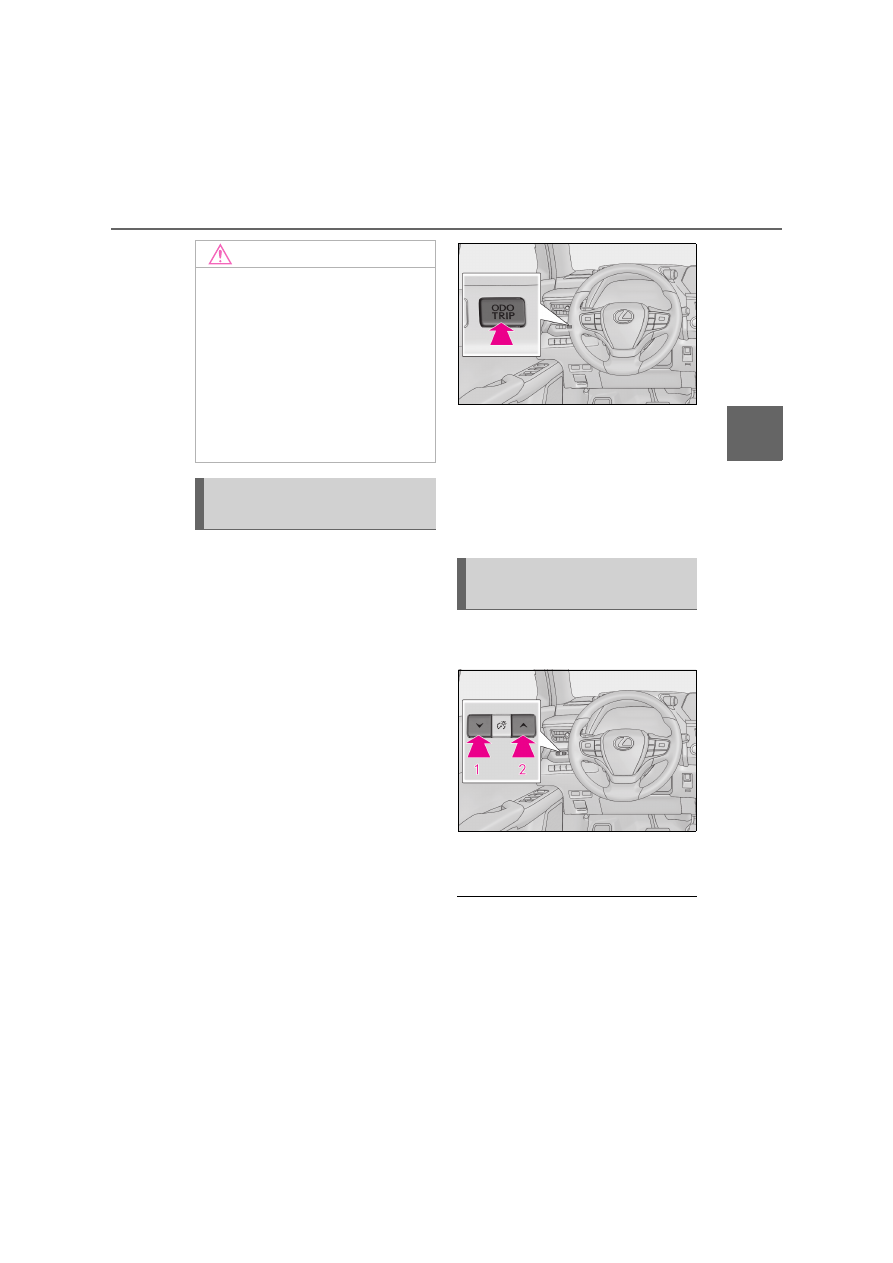

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

Pop-up display

Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

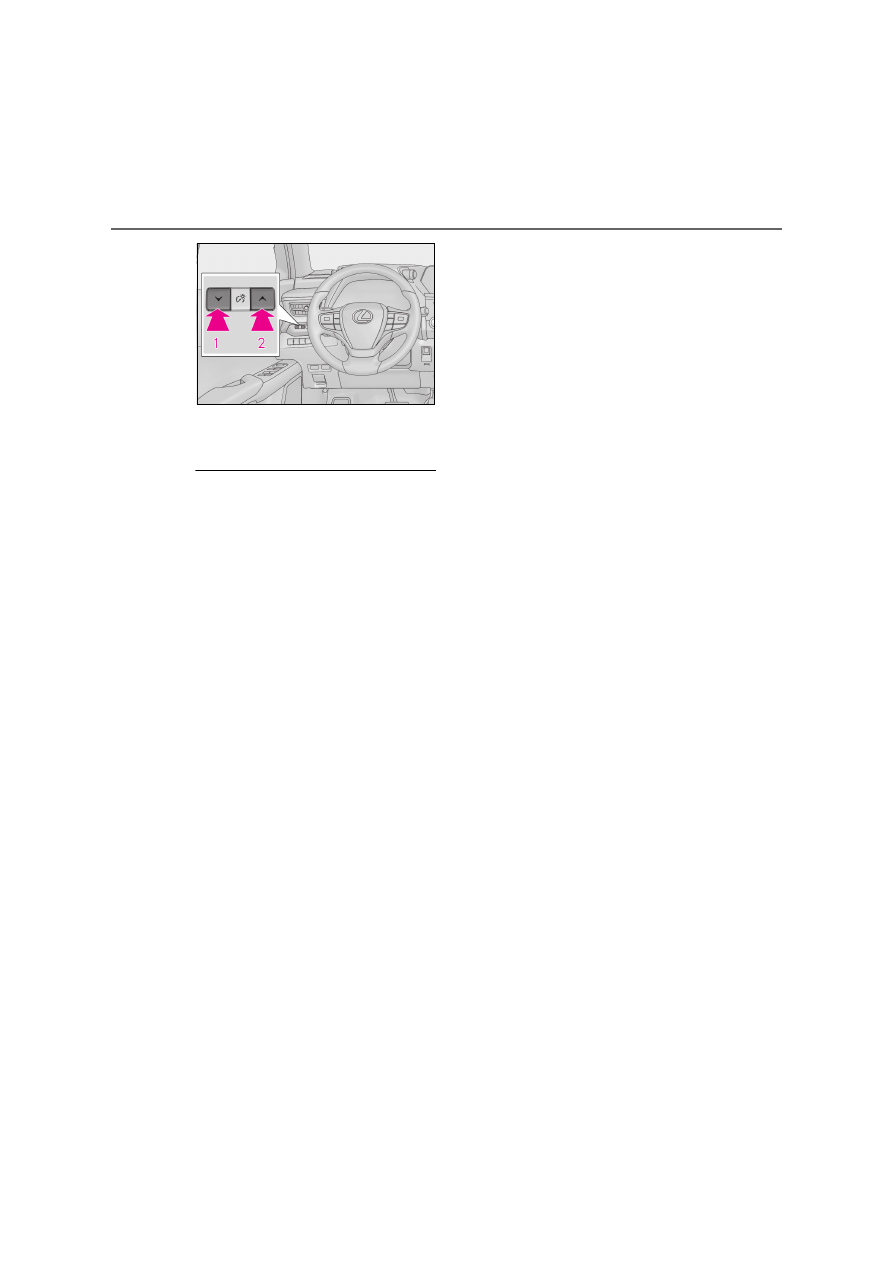

The brightness of the instrument panel
lights can be adjusted.

WARNING

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

NOTICE

To prevent damage to the engine and

its components

Do not let the indicator of the tachom-

eter enter the red zone, which indi-

cates the maximum engine speed.

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.458)

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

103

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Locations of gauges and meters

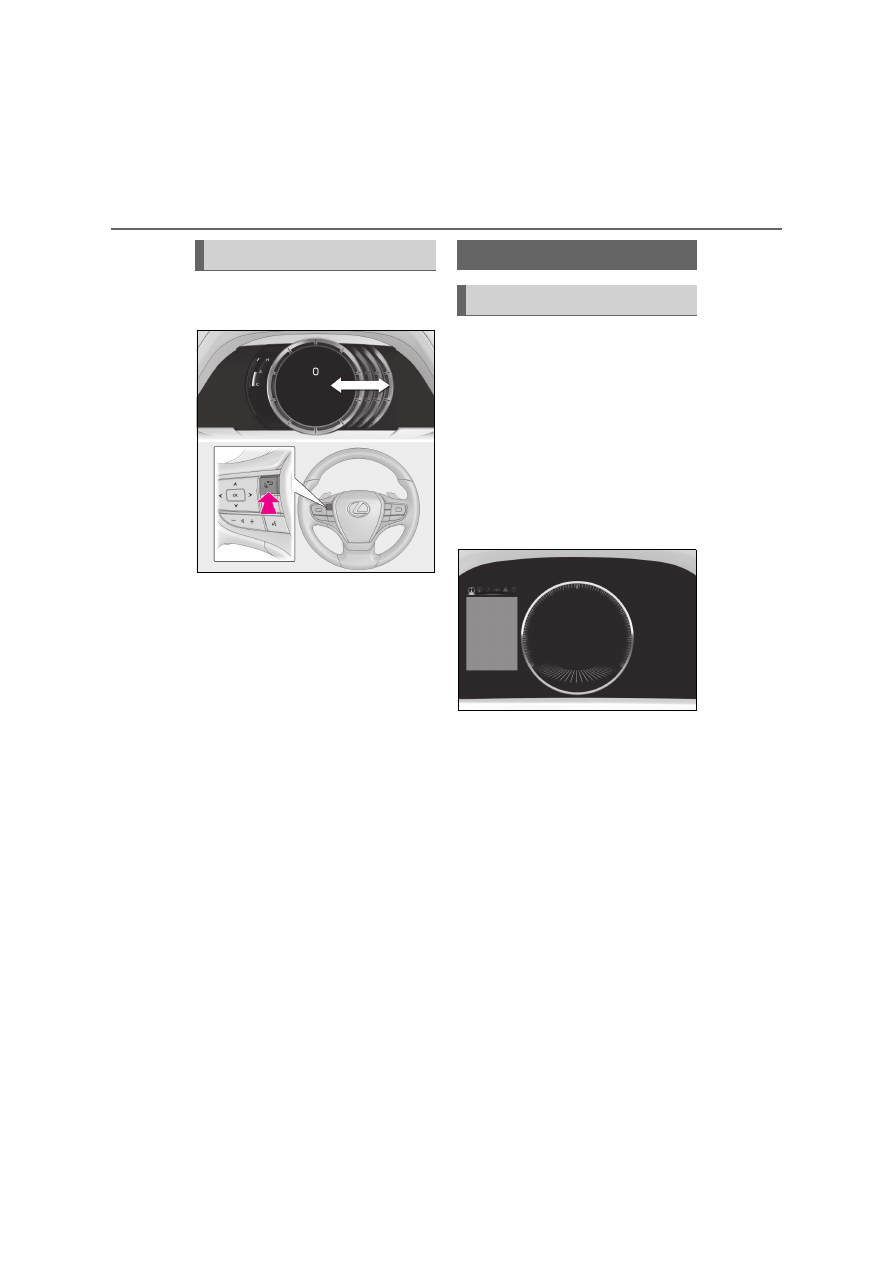

When the main meter is in the side position, some of the meter displays and the
gauge layout will change.



When the main meter is in the center position

The location of some displayed items and the units of measure may differ depending on the
intended destination of the vehicle.

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)
Low outside temperature indicator comes on when the ambient temperature is 3°C
(37°F) or lower

Speedometer

Hybrid System Indicator/tachometer

Displays hybrid system output or regeneration level (



P.105)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (



P.112, 301)

• Rev indicator
• Rev peak

Shift position/shift range (



P.190)

Gauges and meters (F SPORT models)

Meter display

C
D

104

2-1. Instrument cluster

Clock

Time displayed is linked to the analog clock on the center panel. (



P.350)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Multi-information display

Presents the driver with a variety of vehicle data (



P.108)

Displays warning messages if a malfunction occurs (



P.422)

Odometer and trip meter display (



P.107)



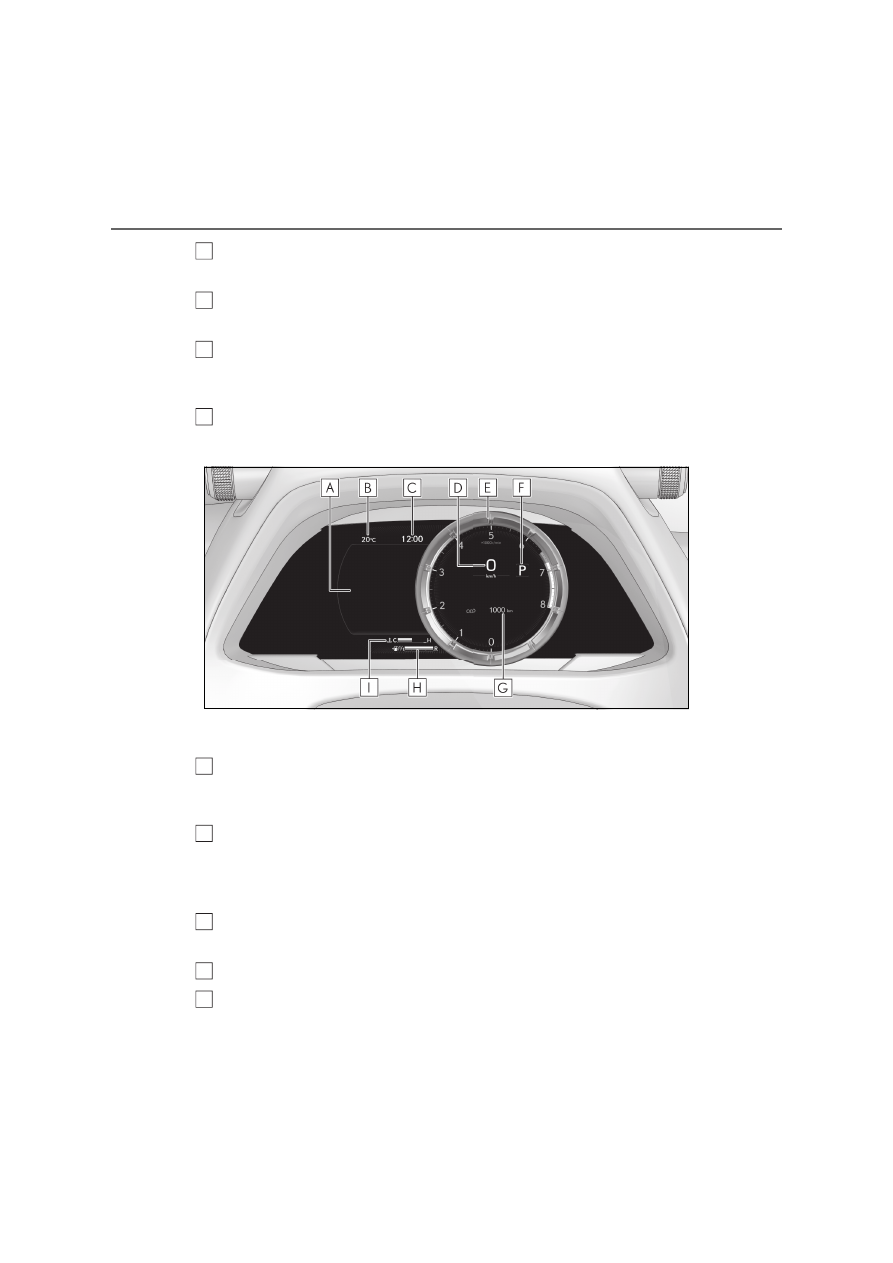

When the main meter is in the side position

The location of some displayed items and the units of measure may differ depending on the
intended destination of the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (



P.108)

Displays warning messages if a malfunction occurs (



P.422)

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)
Low outside temperature indicator comes on when the ambient temperature is 3°C
(37°F) or lower

Clock

Time displayed is linked to the analog clock on the center panel. (



P.350)

Speedometer

Hybrid System Indicator/tachometer

Displays hybrid system output or regeneration level (



P.105)

105

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (



P.112, 301)

• Rev indicator
• Rev peak

Shift position/shift range (



P.190)

Odometer and trip meter display (



P.107)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Hybrid System Indicator

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)

: When used in this manual, regeneration

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

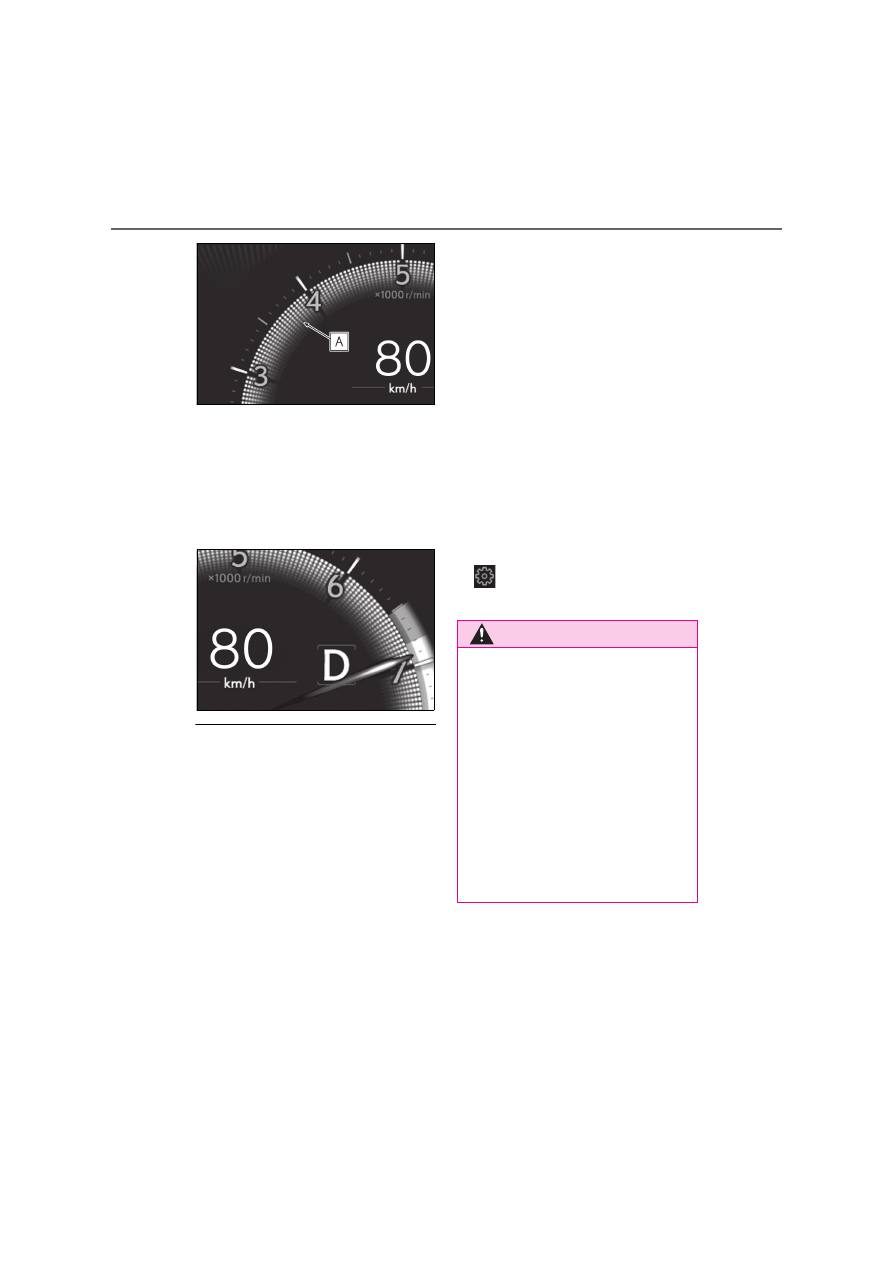

Rev indicator

When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator (

) will be displayed on the

tachometer.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on

of the multi-information display.

(



P.109)

106

2-1. Instrument cluster

Rev peak

When the engine speed reaches or
exceeds 4000 r/min, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

Engine speed

On hybrid vehicles, engine speed is pre-

cisely controlled in order to help improve

fuel efficiency and reduce exhaust emis-

sions etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

Hybrid System Indicator is displayed

when

The Hybrid System Indicator is displayed in

the following situations:

The shift lever is in D or S.

The driving mode is other than Sport

mode.

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Liquid crystal display



P.109

Customization

The gauges and meters can be customized
on

of the multi-information display.

(



P.477)

WARNING

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

107

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

Pop-up display

Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

Instrument panel brightness adjustment

The instrument panel brightness levels

when the surroundings are bright (daytime

etc.) and dark (nighttime etc.) can be

adjusted individually.

NOTICE

To prevent damage to the engine and

its components

Do not let the indicator of the tachom-

eter enter the red zone, which indi-

cates the maximum engine speed.

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.458)

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

109

2-1. Instrument cluster

icle

ion
an

d i

ica

tor



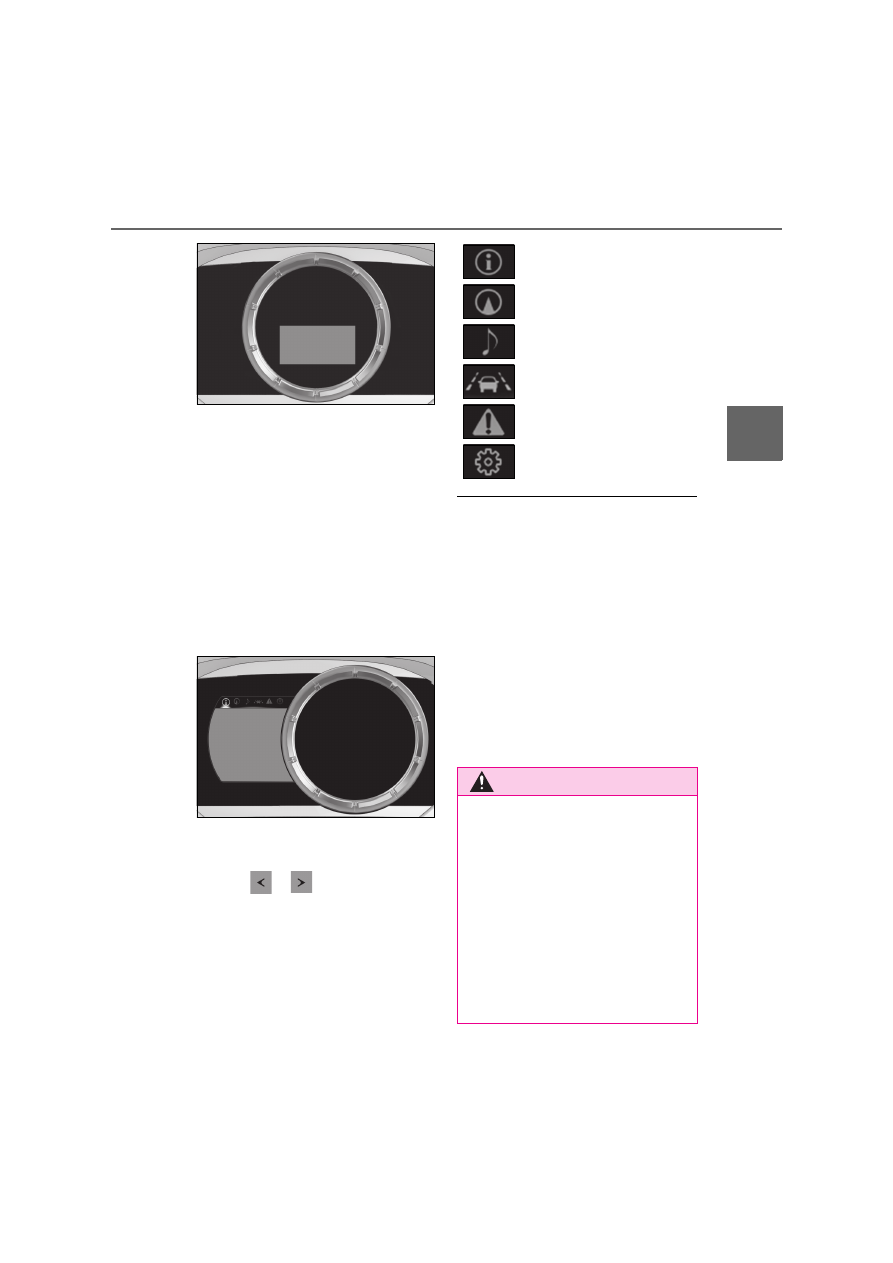

When the main meter is in the side
position

By selecting menu icons on the multi-
information display, a variety of driv-
ing-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

Menu icons

The menu icons will be displayed by
pressing

of the meter con-

trol switches (



P.110).

F SPORT models: The menu icons can be
displayed when the main meter is in the
side position.

Opening image display

When the power switch is in ACC or ON,

the opening image is displayed on the multi-

information display.
While the opening image is being dis-

played, the meter display cannot be

changed even if the drive mode is changed.

When the opening image is finished, the

meter display for the currently selected

mode will be displayed.

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

Driving information display
(



P.110)

Navigation system-linked dis-
play (if equipped) (



P.112)

Audio system-linked display
(



P.112)

Driving support system infor-
mation display (



P.112)

Warning message display
(



P.422)

Settings display (



P.112)

WARNING

Caution for use while driving

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around

the vehicle.

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

The information display at low tem-

peratures



P.101, 106

110

2-1. Instrument cluster

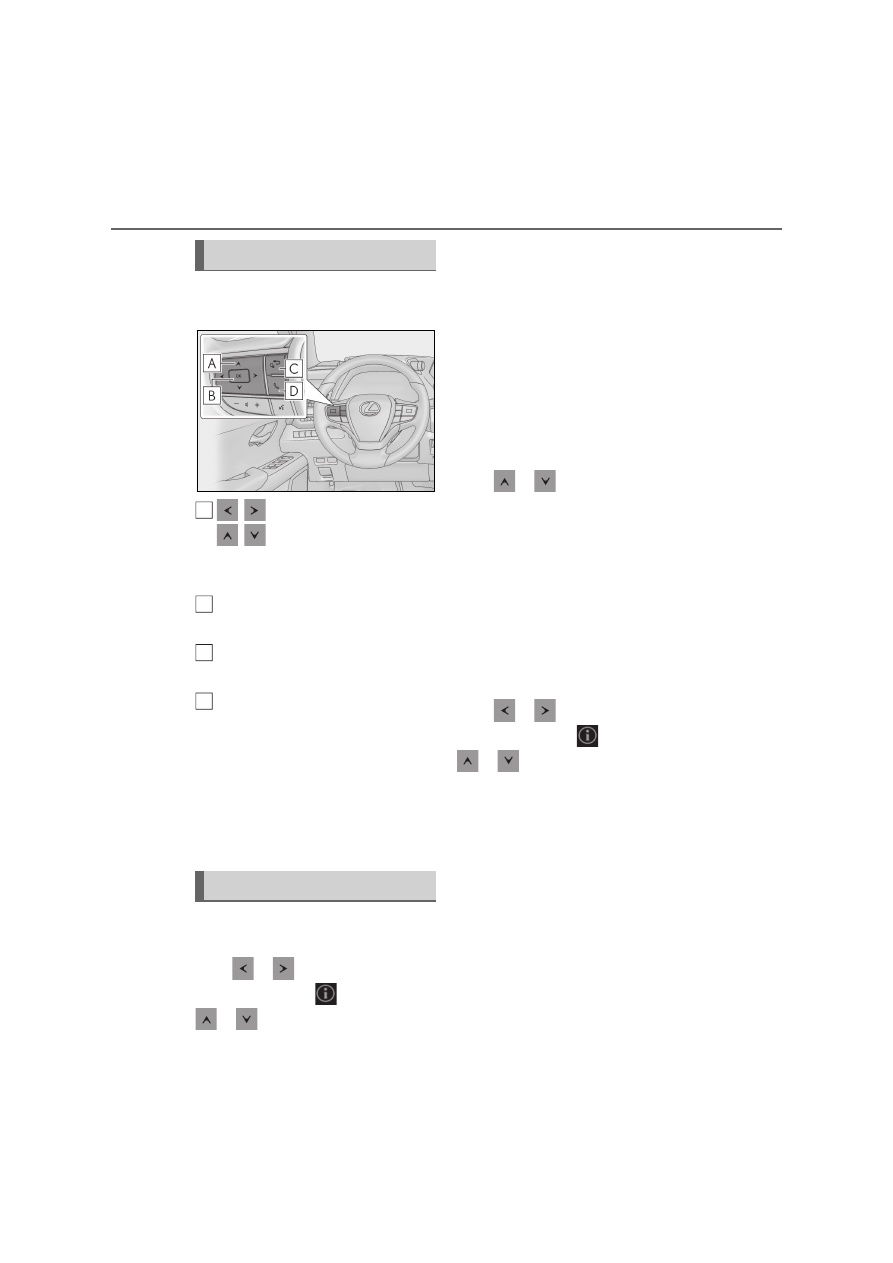

The multi-information display is oper-
ated using the meter control switches.

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen or
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Move the main meter

or return to

the previous screen

Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIME-
DIA SYSTEM OWNER’S MANUAL”.

: F SPORT models

Display items (except F SPORT
models)

Press

of the meter control

switches and select

. Then press

to display the following

items:



Drive information 1



Drive information 2



Energy monitor (



P.119)



Tire pressure



Display off

Display items (F SPORT models)



When the main meter is in the cen-
ter position

Press

of the meter control

switches to display the following items:



Drive information 1



Drive information 2



Tire pressure



Units



Display off



When the main meter is in the side
position

Press

of the meter control

switches and select

. Then press

to display the following

items:



Drive information 1



Drive information 2



Energy monitor (



P.119)



G-force



Tire pressure



Display off

Drive information 1/Drive informa-
tion 2

2 of the following drive information can

Changing the meter display

Drive information

111

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

be displayed in each screen.
Displayed items can be changed on

. (



P.109)

Use the displayed values as a reference
only.



Current fuel consumption

Displays instantaneous current fuel con-
sumption



Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

After start: Displays average fuel con-
sumption since the hybrid system was
started
After refuel: Displays average fuel con-
sumption since refuel



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since the hybrid system was started



Driven distance

Displays the distance driven since the
hybrid system was started



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since the
hybrid system was started



Driving range

Displays driving range with remaining
fuel

*2, 3



Other

No item

: To reset, display the desired item and

press and hold “OK” of the meter con-
trol switches.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the power switch
off. If the vehicle is refueled without
turning the power switch off, the display
may not be updated.

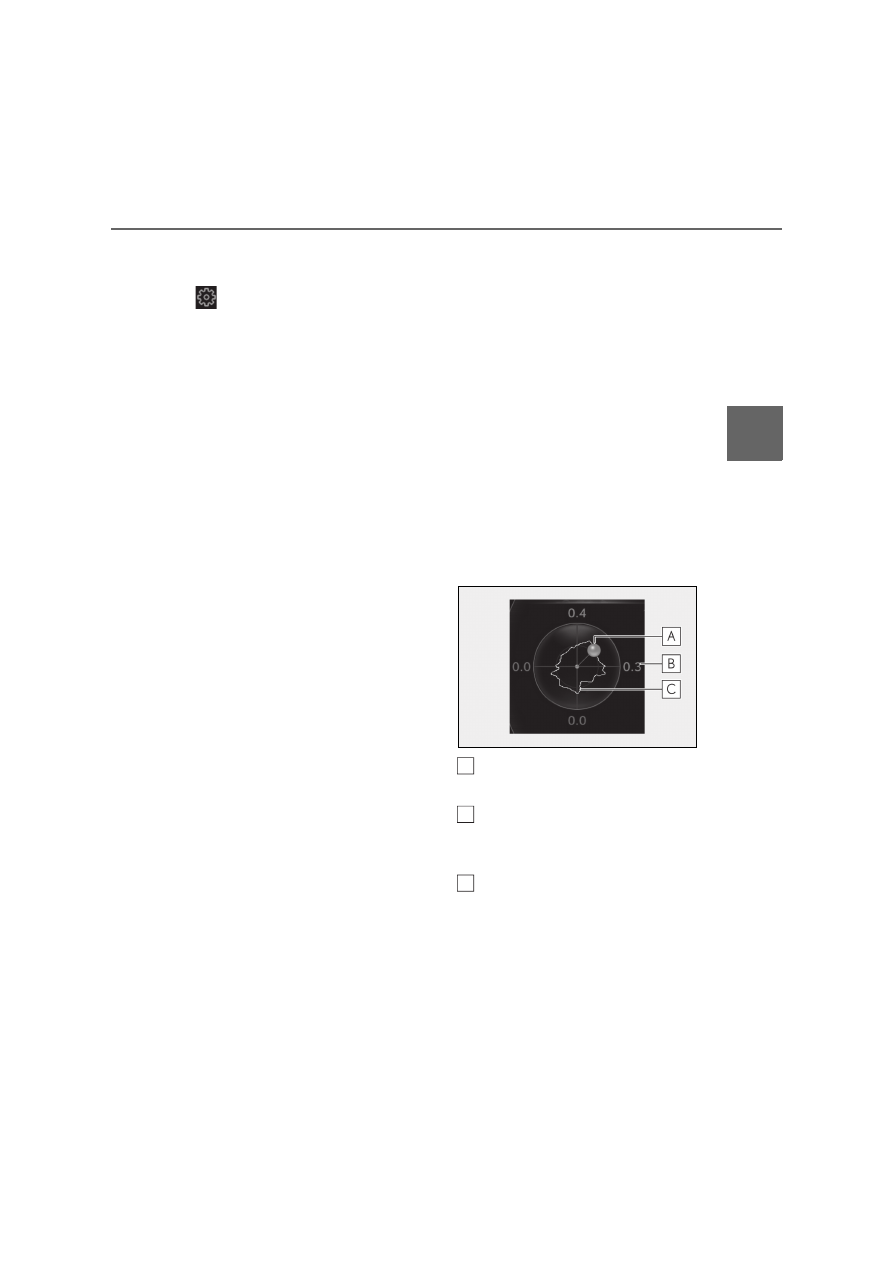

G-force (F SPORT models)

Displays lateral G-forces on the vehi-
cle.

Acceleration G-force on the vehi-
cle

Current G-force value (analyzed
value of front/rear and left/right G-
forces)

Record of the maximum G-forces

This display is intended for use as a guide-
line. Depending on factors such as the
road surface condition, temperature and
vehicle speed, the display may not show
the actual condition of the vehicle.



Resetting the record of maximum

112

2-1. Instrument cluster

G-forces

Press and hold “OK” of the meter control
switches to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

Tire pressure



P.382

Units (F SPORT models)

On some models, the units of measure
used can be changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

Display OFF

Displays a blank screen.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display

Route guidance to destination display

When the route guidance to destination

display is enabled on the head-up display, it

will not be displayed on the multi-informa-

tion display. (



P.114)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.239)



Dynamic radar cruise control with
full-speed range (if equipped)
(



P.253)



Cruise control (if equipped)
(



P.264)



RSA (Road Sign Assist) (if
equipped) (



P.249)

Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (



P.422)

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display (except F
SPORT models)

Select to set the display of the speedome-
ter to digital/analog.



Drive information 1/Drive informa-
tion 2

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

Warning message display

Settings display

Lexus UX (2022 year). Manual in english - page 5
