5-1. Remote Touch/Display

5-1.Remote Touch/Display

■

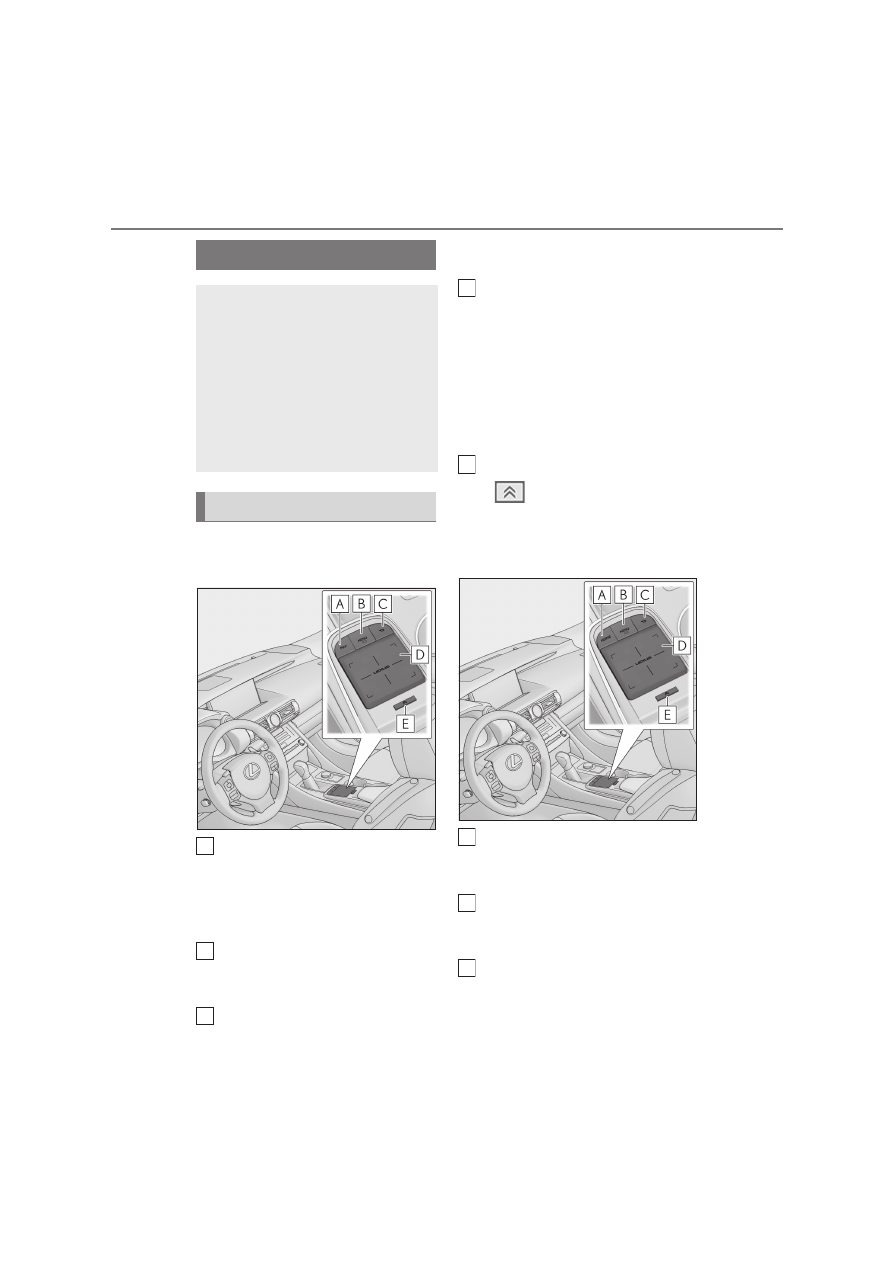

Switches



With navigation function

“MAP” button

Press to display the global map screen.
Vehicles with navigation function:
Press this button to display the vehicle’s
current position.

“MENU” button

Press this button to display the menu
screen.

Back button

Press this button to display the previous
screen.

Touchpad

Slide your finger on the touchpad and
move the pointer to select a function, letter
and screen button.
Press the touchpad to enter the selected
function, letter or screen button. Certain
finger movements on the touchpad can
perform functions, such as changing map
scalings and scrolling list screens.

Sub function button

When

is displayed on the screen, a

function screen assigned to the screen can
be displayed.



Without navigation function

“HOME” button

Press this button to display the “Home”
screen.

“MENU” button

Press this button to display the menu
screen.

Back button

Press this button to display the previous
screen.

Remote Touch

The Remote Touch can be used to
operate the Center Display.

For details on the Remote Touch,
refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

The illustrations below are for
left-hand drive vehicles.

Remote Touch operation

223

5-1. Remote Touch/Display

rior f
ea

ture
s

Touchpad

Sub function button

When

is displayed on the screen, a

function screen assigned to the screen can
be displayed.

■

Using the touchpad

Select: Touch the touchpad to
select the desired button on the
screen.

Enter: Buttons on the screen can be
selected by either depressing or
double tapping the touchpad.
Once a button has been selected,
the screen will change.

■

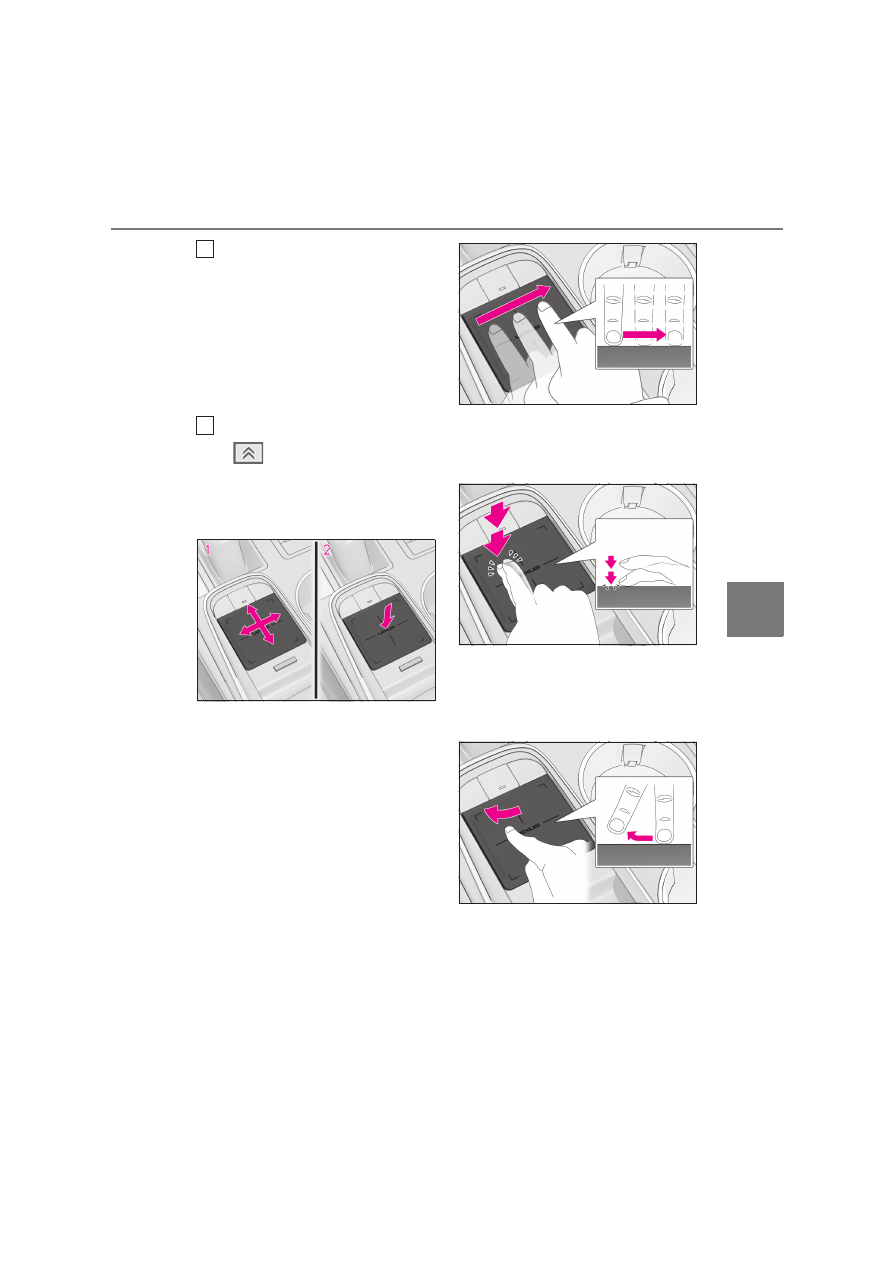

Touch operation

Operations are performed by touching
the touchpad with your finger.



Trace

Trace the pad surface while maintaining
contact with the touchpad. Moving the
cursor and the pointer.



Double tap

Tap the touchpad twice, quickly. Select the
button on the screen.



Flick

Quick and short movement along the
touchpad with you finger. Move the list
screen.



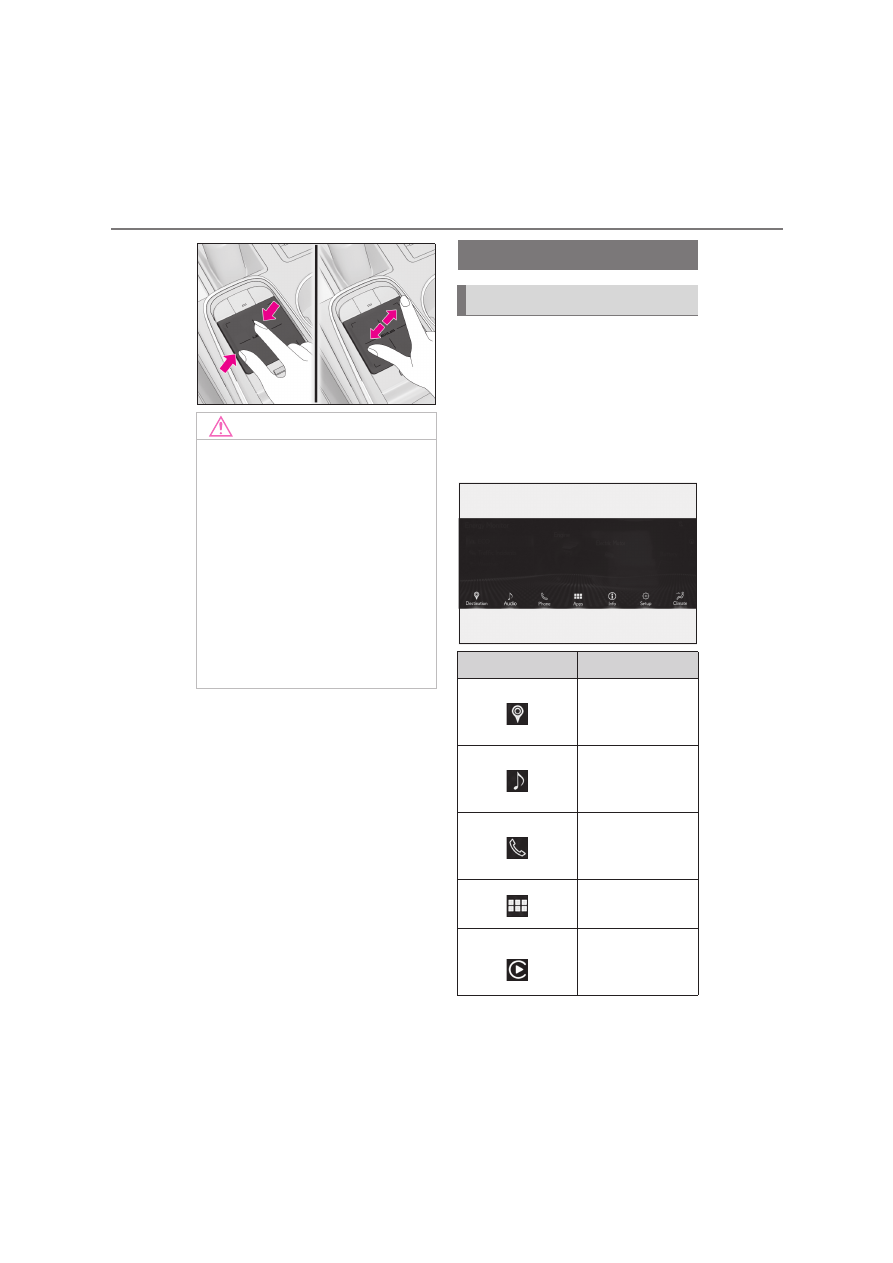

Pinch in/Pinch out

Slide fingers toward each other or apart on
the touchpad. Change the scale of the
map.

224

5-1. Remote Touch/Display

■

Menu screen

Press the “MENU” button on the
Remote Touch to display the menu
screen.
The displays shown in the illustrations
are used for example only and may dif-
fer from the actual vehicle.

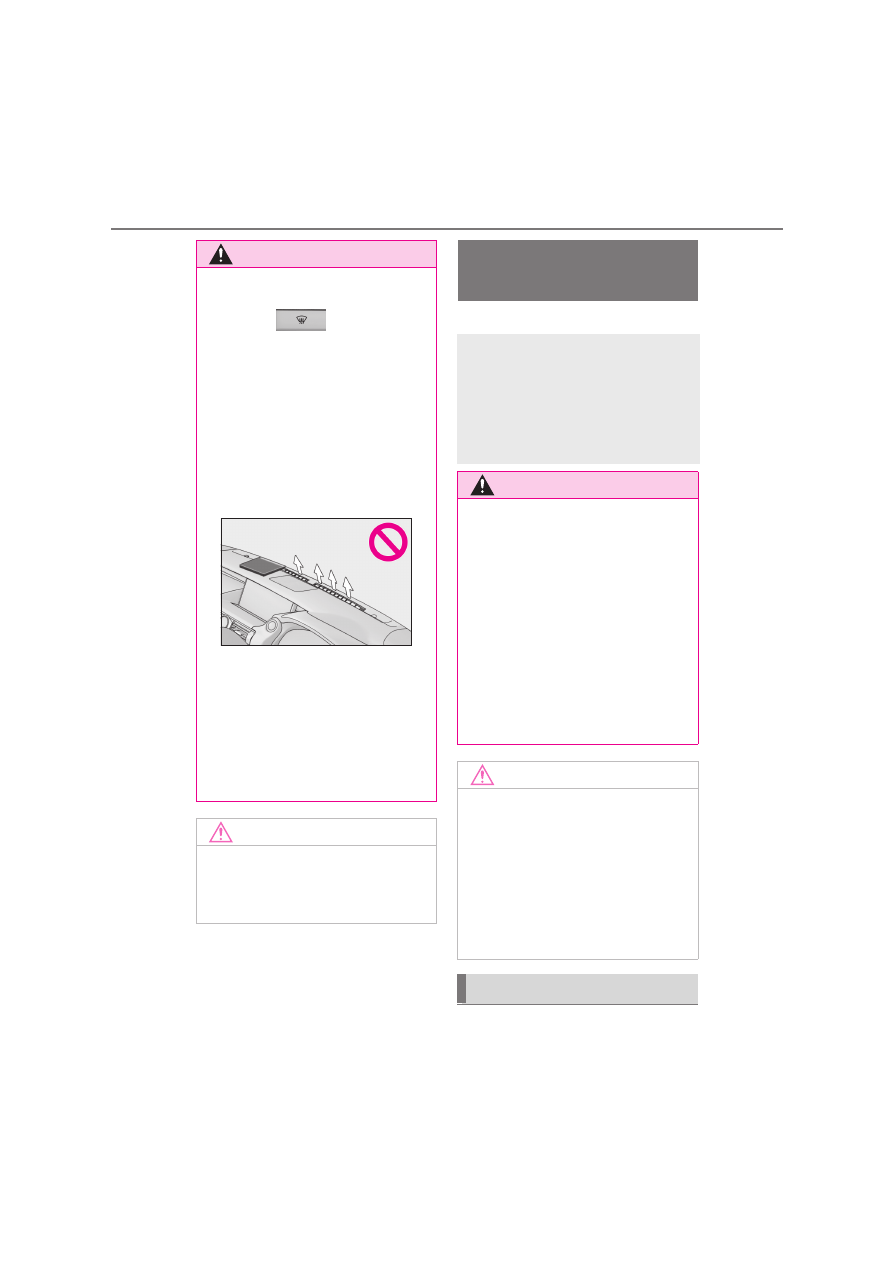

NOTICE

■

To prevent damage to the Remote

Touch

Observe the following precautions. Fail-

ure to do so may cause damage to the

Remote Touch.

●

Do not allow food, liquid, stickers or lit

cigarettes to contact the Remote

Touch.

●

Do not subject the Remote Touch to

excessive pressure or strong impact.

●

Do not push the touchpad with a

strong force or use a sharp pointed

object to operate the pad.

Center Display

Center Display overview

Switch

Function

Select to display the
“Destination”
screen.

*1, 2

Select to display the
media control
screen.

Select to display the
hands-free control
screen.

Select to display the
“Apps” screen.

*1, 2

Select to display the
Apple CarPlay
screen.

*1, 2

225

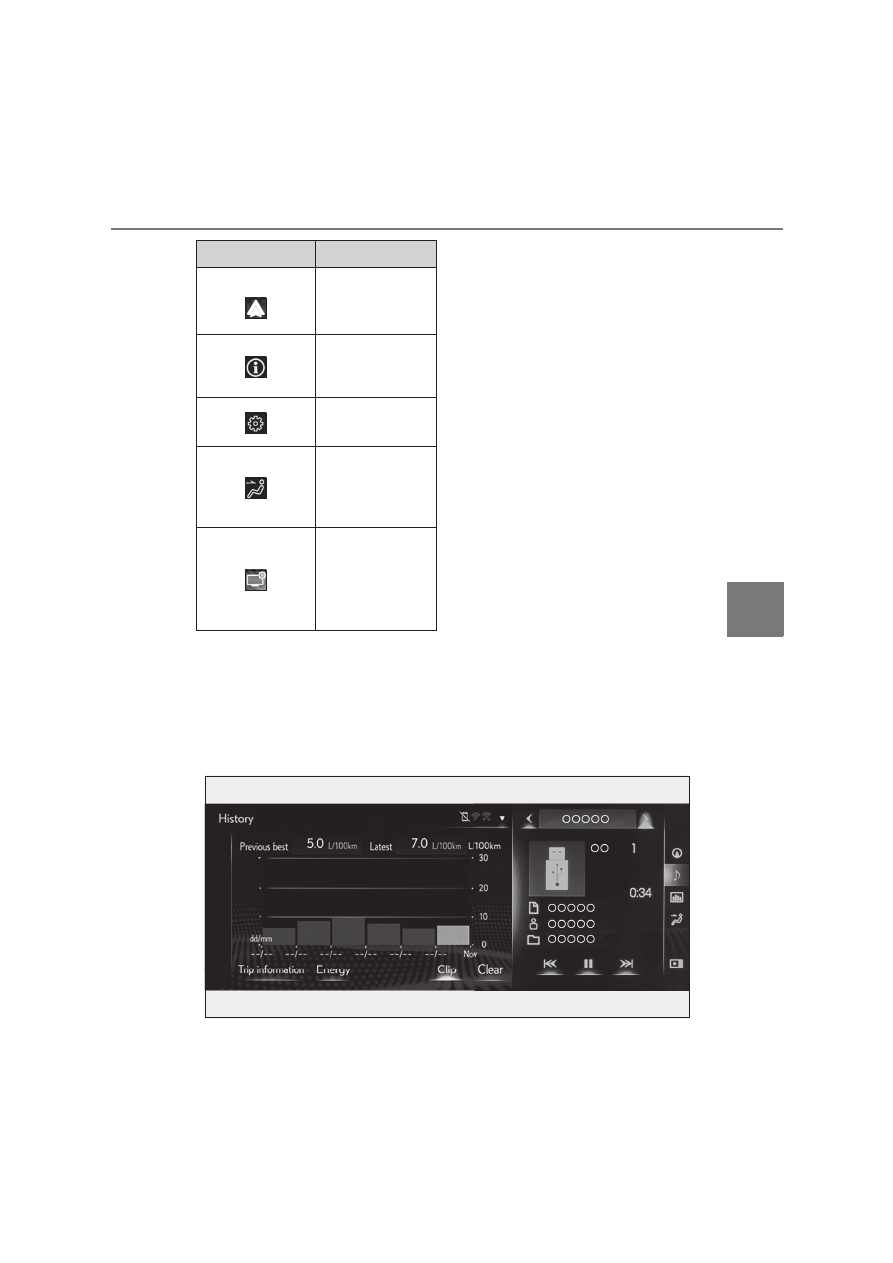

5-1. Remote Touch/Display

rior f
ea

ture
s

: Refer to the “NAVIGATION AND

MULTIMEDIA SYSTEM OWNER’S
MANUAL”.

: This function is not available on some

models.

■

Split-screen display

Different information can be displayed on the left and right sides of the screen. For
example, air conditioning system screen can be displayed and operated while the
fuel consumption information screen is being displayed. The large screen on the
left of the display is called the main display, and the small screen to the right is
called the side display.

Select to display the
Android Auto
screen.

*1, 2

Select to display the
fuel consumption
screen. (



P.88)

Select to display the
setup screen.

Select to display the
air conditioning con-
trol screen.
(



P.229)

Select to adjust the
contrast and bright-
ness of the screens,
turn the screen off,
etc.

Switch

Function

226

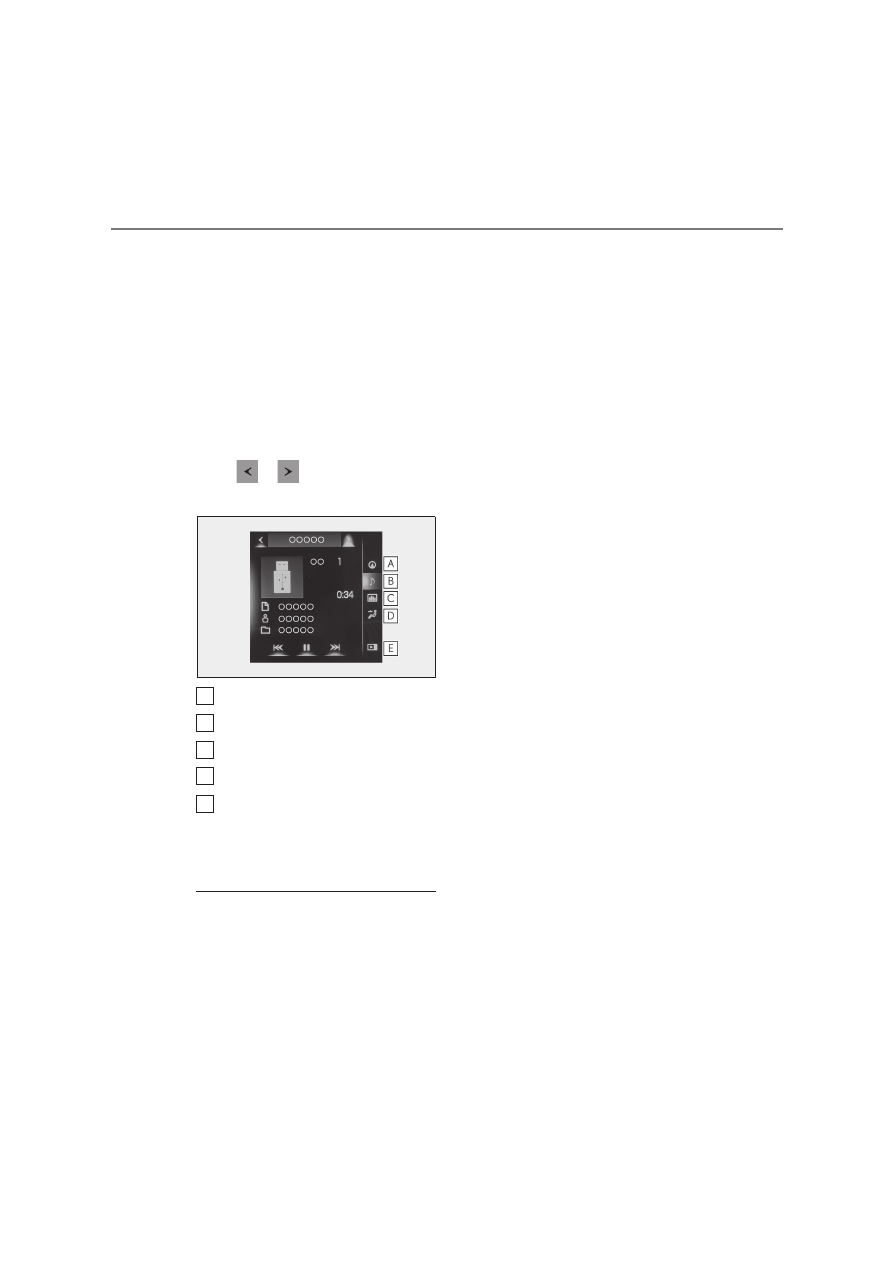

5-1. Remote Touch/Display

■

Main display

For details about the functions and
operation of the main display, refer to
the respective section and “NAVIGA-
TION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

■

Side display

The following functions can be dis-
played and operated on the side dis-
play.
Select

to display the desired

screen.

Navigation system

Audio

Vehicle information (



P.89)

Air conditioning system (



P.230)

Show/hide the side display

: Refer to the “NAVIGATION AND

MULTIMEDIA SYSTEM OWNER’S
MANUAL”.

■

Screen display during low temperatures

When the ambient temperature is

extremely low, screen response may be

delayed even if the Remote Touch is oper-

ated.

A
B
C
D

227

5-2. Using the air conditioning system

rior f
ea

ture
s

5-2.Using the air conditioning system

Left-hand side temperature control switch
Automatic mode switch
Off switch
Fan speed down switch
Fan speed up switch
Air flow mode switch
Right-hand side temperature control switch

Automatic air conditioning system

Air outlets and fan speed are automatically adjusted according to the temper-
ature setting.

Press the “MENU” button on the Remote Touch, then select “Climate” to dis-
play the air conditioning control screen. (



P.224)

The air conditioning system can be displayed and operated on the side display.

The illustrations below are for left-hand drive vehicles.

The button positions and shapes will differ for right-hand drive vehicles.

Also, the display and button positions will differ depending on the type of the
system.

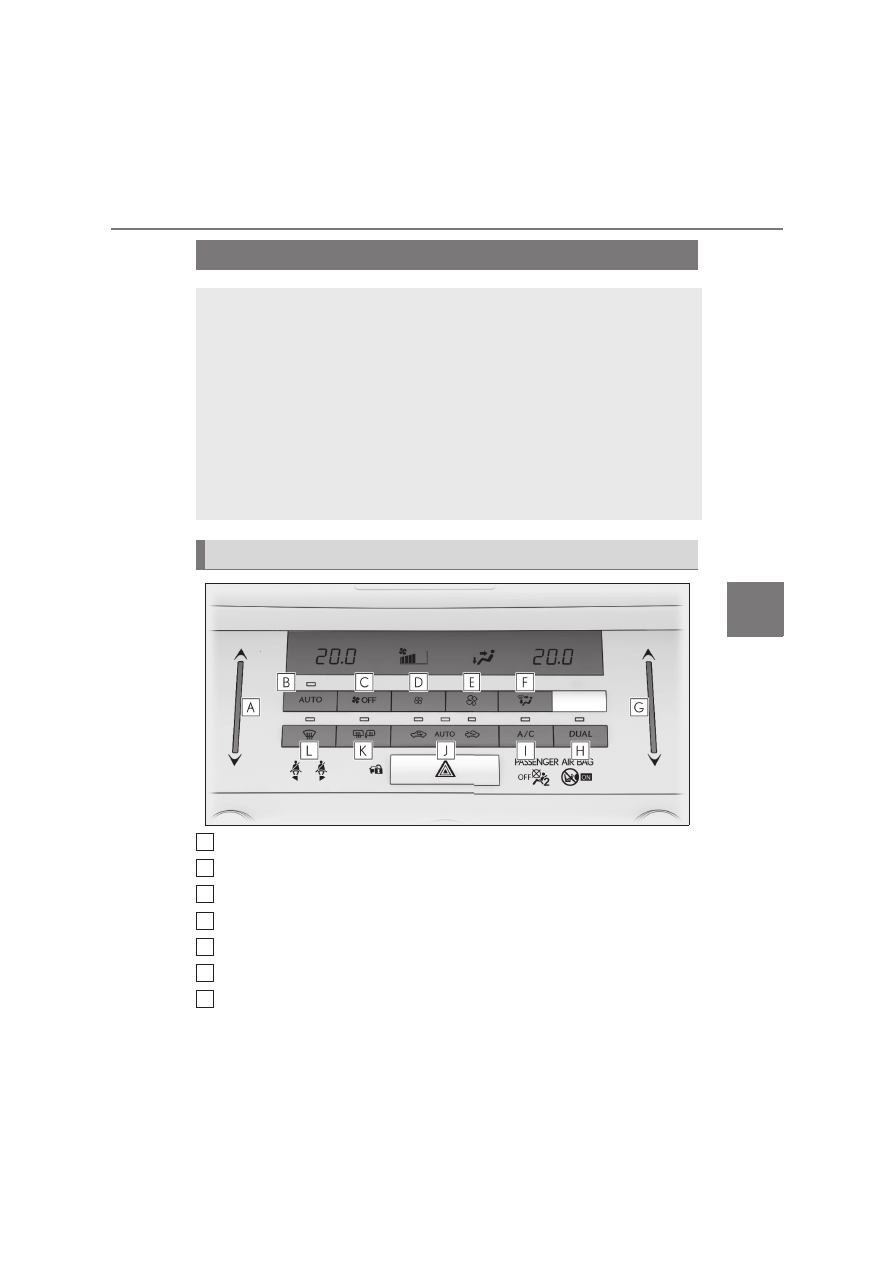

Air conditioning controls

A
B
C
D

E
F

228

5-2. Using the air conditioning system

DUAL mode switch
A/C switch
Outside/recirculated air mode switch
Rear window defogger and outside rear view mirror defoggers switch
Windshield defogger switch

■

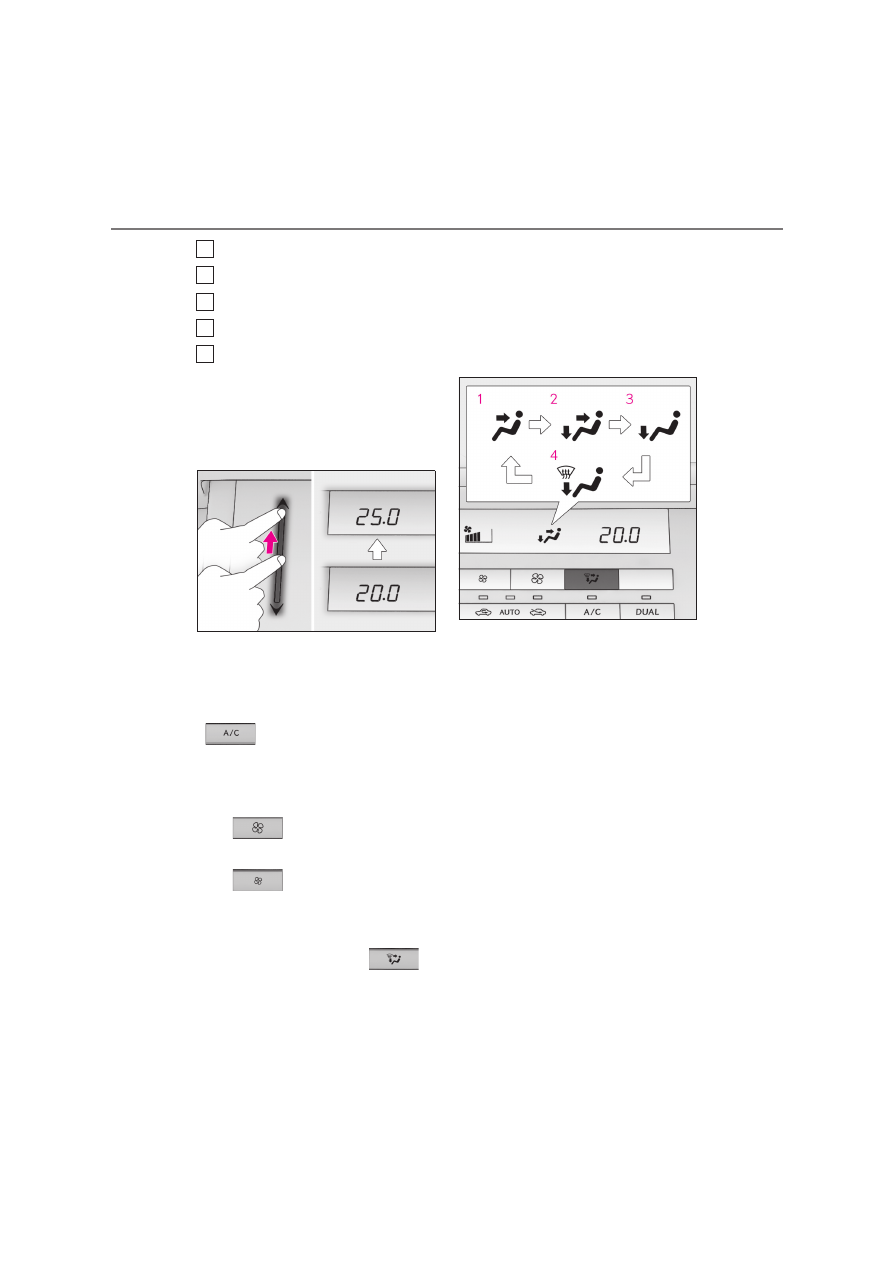

Adjusting the temperature setting

To adjust the temperature setting,
touch and slide your finger up or down
on the sensor.

The temperature setting can also be
adjusted by touching on the sensor.
When the temperature setting is changed,
a buzzer sounds.

(“A/C”) is not pressed, the sys-

tem will blow ambient temperature air or
heated air.

■

Fan speed setting

Press

to increase the fan

speed.

Press

to decrease the fan

speed.

■

Change the airflow mode

To change the airflow, press

The air outlets used are switched each time
the button is pressed.

Air flows to the upper body.

Air flows to the upper body and
feet.

Air flows to the feet.

Air flows to the feet and the wind-
shield defogger operates.

■

Other functions



Switching between outside air and
recirculated air modes (



P.231)



Defogging the windshield (



P.231)



Defogging the rear window and
outside rear view mirrors (



P.231)

229

5-2. Using the air conditioning system

rior f
ea

ture
s

Display the air conditioning control
screen
Display the option control screen
(



P.229)

Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select the air flow mode
Adjust the right-hand side temper-
ature setting
Function on/off indicators

When the function is on, the indicator illu-
minates on the control screen.

Display the sub function menu
(



P.229)

Using the Remote Touch, select the button
on the screen and activate it by pressing on
or double tapping the Remote Touch Pad.

■

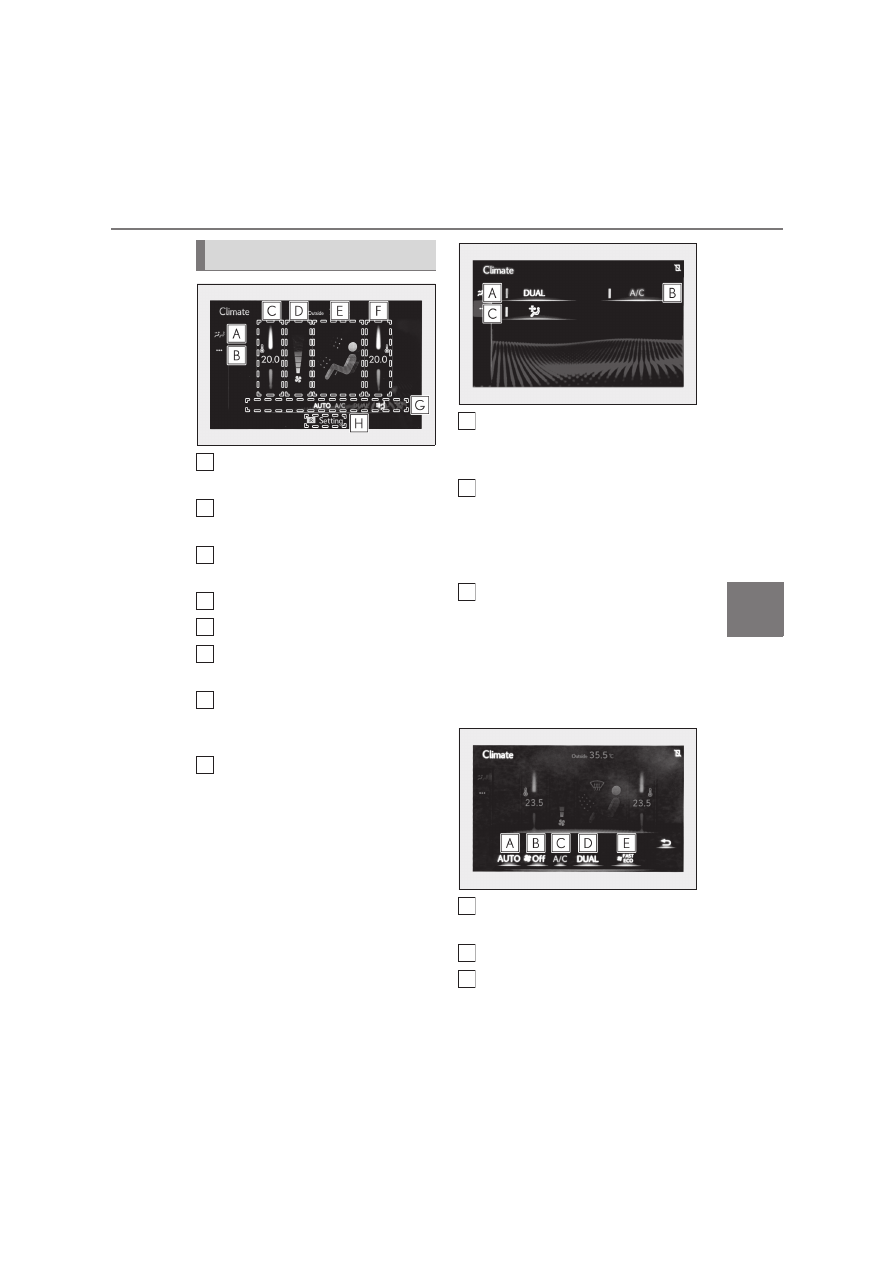

Option control screen

The functions can be switched on and
off.

Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode) (



P.230)

Set cooling and dehumidification
function on/off

If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature air or
heated air.

Removing pollen from the air (Pol-
len removal mode) (



P.231)

■

Sub function menu

When the sub function button on the
Remote Touch is pressed, the following
functions can be switched on and off.

Set automatic mode on/off
(



P.230)

Turn the fan off
Set cooling and dehumidification
function on/off

If the “A/C” indicator is turned off, the sys-

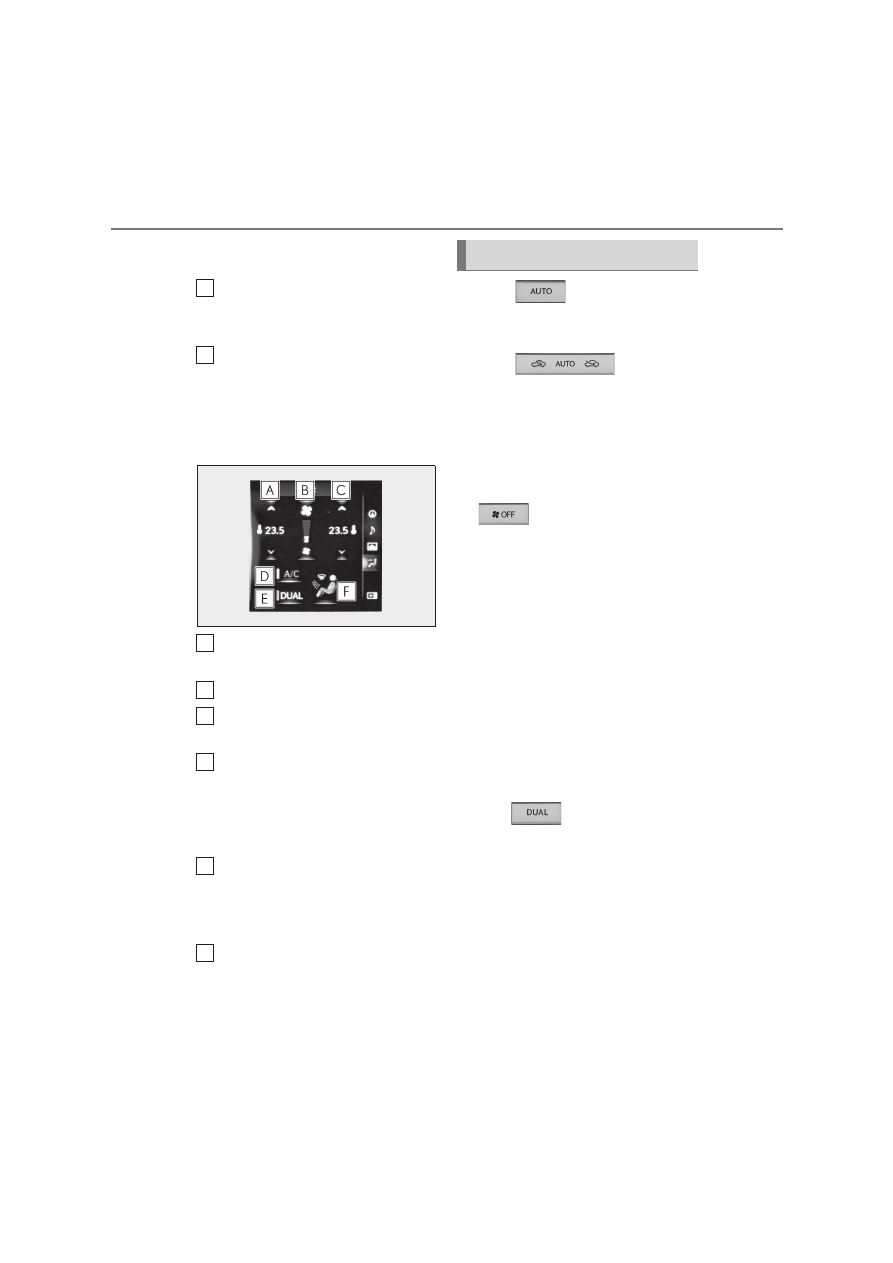

Air conditioning control screen

E
F

B
C

230

5-2. Using the air conditioning system

tem will blow ambient temperature air or
heated air.

Adjust the temperature for driver
and passenger seats separately
(“DUAL” mode) (



P.230)

Changing the fan speed setting
during the automatic mode opera-
tion (



P.231)

■

Side display (vehicles with a
10.3-inch display)

Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Adjust the right-hand side temper-
ature setting
Set cooling and dehumidification
function on/off

If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature air or
heated air.

Adjust the temperature for the
driver’s and front passenger’s seats
separately (“DUAL” mode)
(



P.230)

Select the air flow mode

Press

, or select “AUTO”

on the air conditioning control
screen.

Press

to switch to

automatic air intake mode.

The air conditioning system automatically

switches between outside air and recircu-

lated air modes.

Adjust the temperature setting.

To stop the operation, press

or select “Off” on the sub

function menu.

■

Automatic mode indicator

If the fan speed setting or air flow
modes are operated, the automatic
mode indicator goes off. However,
automatic mode for functions other
than that operated is maintained.

■

Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode)

To turn on the “DUAL” mode, perform
any of the following procedures:



Press .



Select “DUAL” on the option con-
trol screen.



Adjust the passenger’s side temper-
ature setting.

The indicator comes on when the “DUAL”
mode is on.
While in “DUAL” mode, the temperature of
the rear air outlets is set at the right-hand
side temperature setting.

B
C

Using automatic mode

231

5-2. Using the air conditioning system

rior f
ea

ture
s

■

Switching between outside air and
recirculated air modes

Press .

The mode switches among

(recircu-

lated air mode), automatic and

(out-

side air mode) modes each time the button
is pressed.
When the system is switched to automatic
mode, the air conditioning system operates
automatically.
The indicator above the selected button
comes on.

■

Pollen removal mode

Pollen is removed from the air and the
air flows to the upper part of the body.

Select

on the option control

screen.

When pollen removal mode is on,

displayed on the air conditioning control
screen.
In order to prevent the windshield from
fogging up when the outside air is cold, the
dehumidification function may operate.
Pollen is filtered even if the pollen removal
mode is turned off.

■

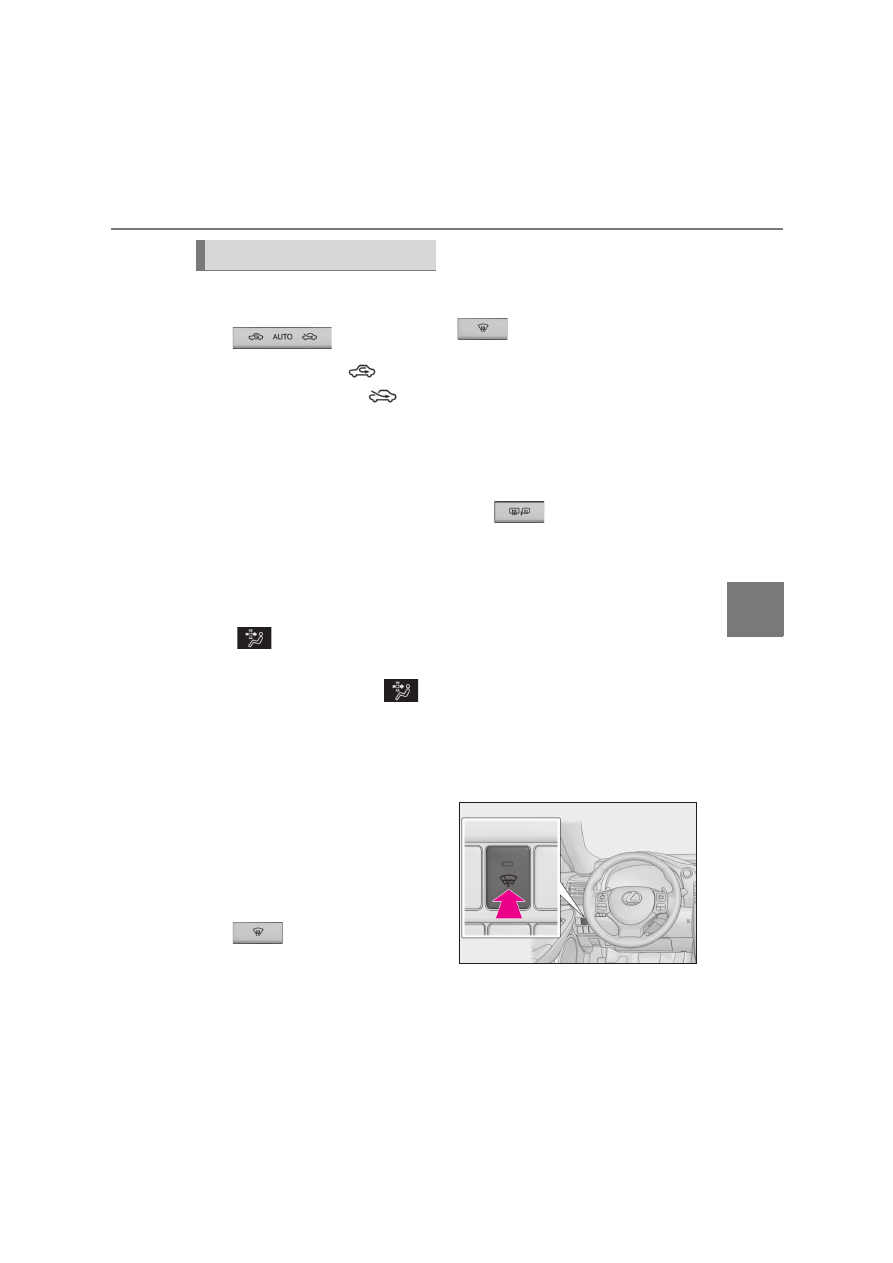

Defogging the windshield

Defoggers are used to defog the wind-
shield and side windows.

Press .

Set the outside/recirculated air mode but-
ton to outside air mode if the recirculated
air mode is used. (It may switch automati-
cally.)

To defog the windshield and the side win-
dows early, turn the air flow and tempera-
ture up.
To return to the previous mode, press

again when the windshield is

defogged.

■

Defogging the rear window and
outside rear view mirrors

Defoggers are used to defog the rear
window, and to remove raindrops, dew
and frost from the outside rear view
mirrors.

Press .

The defoggers will automatically turn off
after a period of time.

■

Windshield wiper de-icer (if
equipped)

This feature is used to prevent ice from
building up on the windshield and
wiper blades.
Turns on/off.

The indicator comes on when the wind-
shield wiper de-icer is on.
The windshield de-icer will automatically
turn off after a period of time.

■

Blower customization

Fan speed setting during the automatic
mode operation can be customized.

Other functions

232

5-2. Using the air conditioning system

To change the fan speed setting mode,
select

on the air conditioning

control screen.

Each time

is selected, the fan

speed setting mode changes as follows.
“NORMAL”



“ECO”



“FAST”



“NORMAL”

■

Registering air conditioning settings to

electronic keys

●

Unlocking the vehicle using an electronic

key and turning the engine switch to

IGNITION ON mode will recall that

key’s registered air conditioning settings.

●

When the engine switch is turned off, the

current air conditioning settings will auto-

matically be registered to the electronic

key that was used to unlock the vehicle.

●

The system may not operate correctly if

more than one electronic key is in the

vicinity or if the smart entry & start system

is used to unlock a passenger door.

●

The doors that can recall the air condi-
tioning setting

when unlocked using the

smart entry & start system can be

changed. For details, contact any author-

ized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

: The doors that can recall the driving

position memory are changed at the
same time.

■

Using automatic mode

Fan speed is adjusted automatically accord-

ing to the temperature setting and the

ambient conditions.
Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-
ately after

is pressed or “AUTO” is

selected.

■

Fogging up of the windows

The windows will easily fog up when the

humidity in the vehicle is high. Turning

(“A/C”) on will dehumidify the air

from the outlets and defog the windshield

effectively.

●

If you turn

(“A/C”) off, the win-

dows may fog up more easily.

●

The windows may fog up if the recircu-

lated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up by the

vehicle is still drawn into the vehicle after

closing the windows, it is recommended

that the air intake mode be set to outside air

mode and the fan speed to any setting

except off.

■

Outside/recirculated air mode

●

Setting to the recirculated air mode tem-

porarily is recommended in preventing

dirty air from entering the vehicle interior

and helping to cool the vehicle when the

outside air temperature is high.

●

Outside/recirculated air mode may auto-

matically switch depending on the tem-

perature setting or the inside

temperature.

■

Automatic mode for air intake control

In automatic mode, the system detects

exhaust gas and other pollutants and auto-

matically switches between outside air and

recirculated air modes.
When the dehumidification function is off,

and the fan is operating, turning automatic

mode on will activate the dehumidification

function.

■

Operation of the air conditioning sys-

tem in Eco drive mode

In Eco drive mode, the air conditioning sys-

tem is controlled as follows to prioritize fuel

efficiency:

●

Engine speed and compressor operation

controlled to restrict heating/cooling

capacity

●

Fan speed restricted when automatic

mode is selected

To improve air conditioning performance,

perform the following operations:

●

Adjust the fan speed

233

5-2. Using the air conditioning system

rior f
ea

ture
s

●

Turn off Eco drive mode

■

When the outside temperature falls to

nearly 0°C (32°F)

The dehumidification function may not
operate even when

is pressed or

“A/C” is selected.

■

Ventilation and air conditioning odors

●

To let fresh air in, set the air conditioning

system to the outside air mode.

●

During use, various odors from inside and

outside the vehicle may enter into and

accumulate in the air conditioning sys-

tem. This may then cause odor to be

emitted from the vents.

●

To reduce potential odors from occur-

ring:

• It is recommended that the air condition-

ing system be set to outside air mode

prior to turning the vehicle off.

• The start timing of the blower may be

delayed for a short period of time imme-

diately after the air conditioning system is

started in automatic mode.

■

Air conditioning filter



P.288

■

Customization

Some functions can be customized.

(



P.354)

■

Location of air outlets

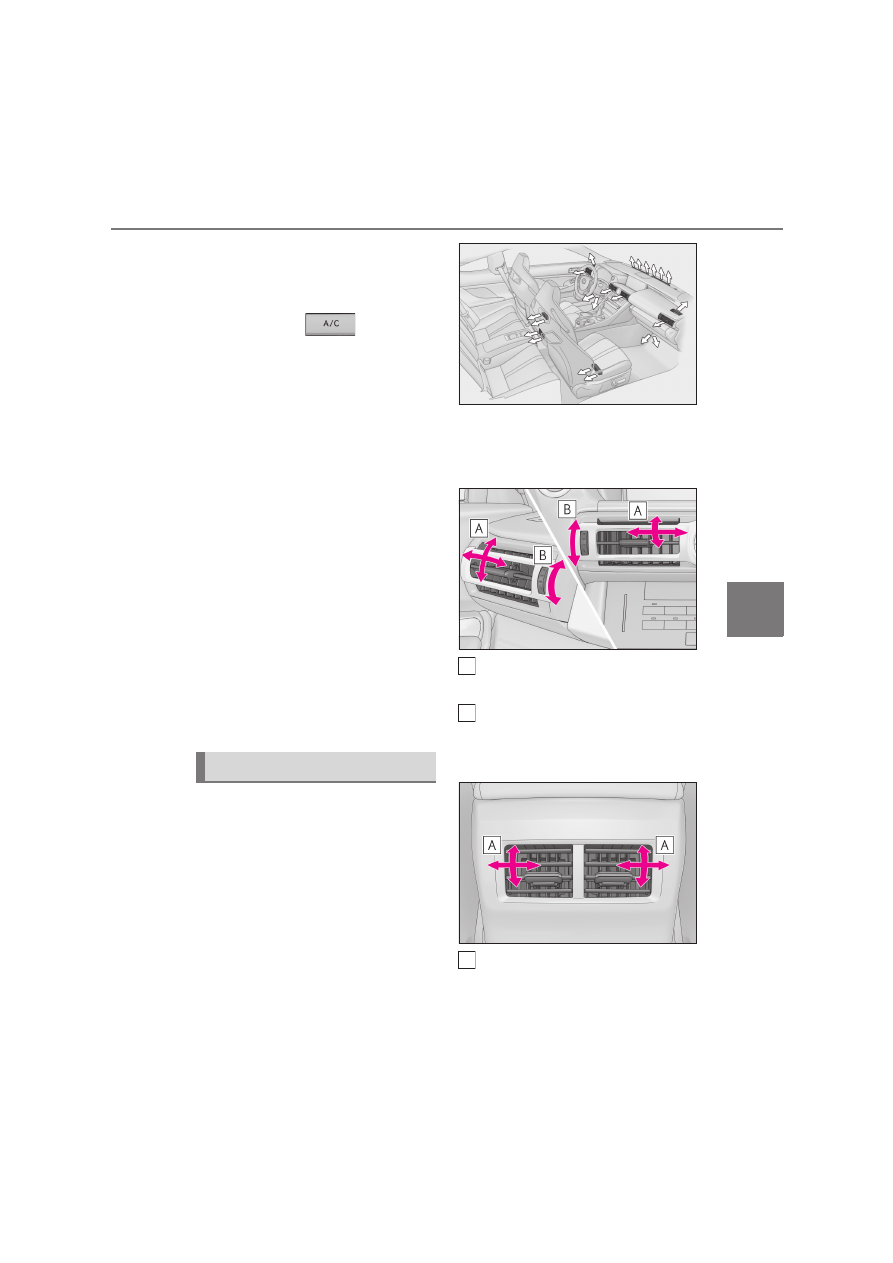

The air outlets and air volume changes
according to the selected airflow
mode.

■

Adjusting the position of and open-
ing and closing the air outlets



Front

Direct air flow to the left or right, up
or down
Turn the knob to open or close the
vent



Rear

Direct air flow to the left or right, up
or down

To close the vent, move the knob to the
most outside position.

Air outlets

234

5-2. Using the air conditioning system

: If equipped

Turn the heated steering wheel on/off

WARNING

■

To prevent the windshield from fog-

ging up

●

Do not use

during cool air

operation in extremely humid weather.

The difference between the tempera-

ture of the outside air and that of the

windshield can cause the outer surface

of the windshield to fog up, blocking

your vision.

●

Do not place anything on the instru-

ment panel which may cover the air

outlets. Otherwise, air flow may be

obstructed, preventing the windshield

defoggers from defogging.

■

To prevent burns

●

Do not touch the rear view mirror sur-

faces when the outside rear view mir-

ror defoggers are on.

●

Do not touch the glass at lower part of

the windshield or to the side of the

front pillars when the windshield wiper

de-icer is on.

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning system

on longer than necessary when the

engine is off.

Heated steering wheel

/seat

heaters

/seat ventilators

Heated steering wheel and seat
heaters heat the side grips of the
steering wheel and seats, respec-
tively. Seat ventilators maintain
good ventilation using a fan built
into the seat.

WARNING

■

To prevent minor burn injuries

Care should be taken if anyone in the fol-

lowing categories comes in contact with

the steering wheel or seats when the

heater is on:

●

Babies, small children, the elderly, the

sick and the physically challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alcohol or

drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

NOTICE

■

To prevent damage to the seat heat-

ers and seat ventilators

Do not put heavy objects that have an

uneven surface on the seat and do not

stick sharp objects (needles, nails, etc.)

into the seat.

■

To prevent battery discharge

Do not use the functions when the

engine is off.

Heated steering wheel

235

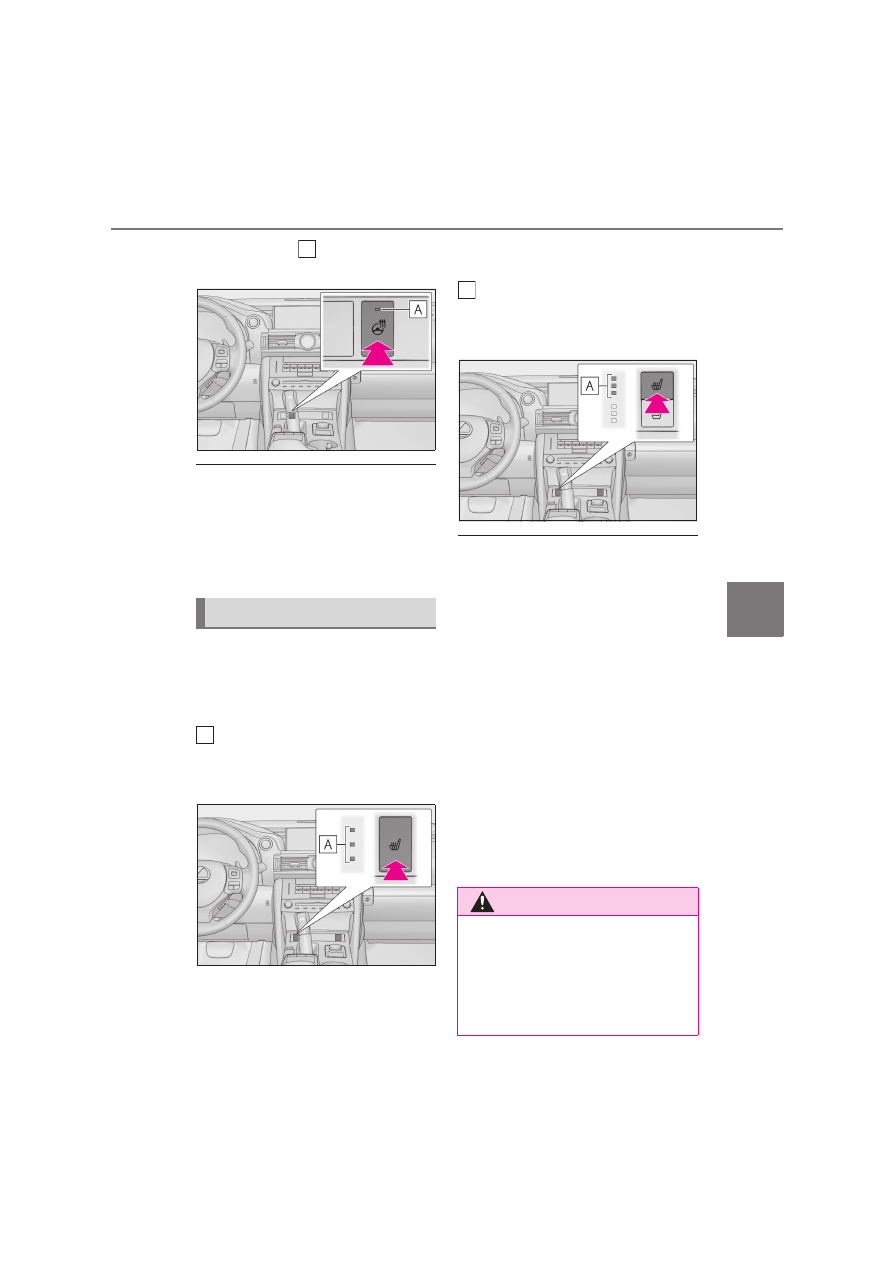

5-2. Using the air conditioning system

rior f
ea

ture
s

The indicator light

comes on when the

heated steering wheel is operating.

■

Operation condition

The engine switch is in IGNITION ON

mode.

■

Timer function

The heated steering wheel will automati-

cally turn off after about 30 minutes.



Vehicles without seat ventilators

Each time the switch is pressed, the
intensity of the seat heater changes
and the level indicator lights (amber)

light as follows:

Hi (3 segments lit)



Mid (2 segments

lit)



Lo (1 segment lit)



Off



Vehicles with seat ventilators

Each time the switch is pressed, the

intensity of the seat heater changes
and the level indicator lights (amber)

light as follows:

Hi (3 segments lit)



Mid (2 segments

lit)



Lo (1 segment lit)



Off

■

Operation condition

The engine switch is in IGNITION ON

mode.

■

Seat heater timer control

To enable seat heater timer control, press

and hold the driver and front passenger

seat heater switches at the same time when

the vehicle is stopped until a buzzer sounds

once. If a seat heater is turned on while seat

heater timer control is enabled, the intensity

of the seat heater will automatically change

from Hi



Mid



Lo.

The timing of the change in seat heater

intensity differs depending on the tempera-

ture inside the cabin, etc. when the seat

heater is operating.
To disable seat heater timer control, press

and hold the driver and front passenger

seat heater switches at the same time until a

buzzer sounds twice.

Seat heaters

WARNING

■

To prevent overheating and minor

burn injuries

Observe the following precautions when

using the seat heaters.

●

Do not cover the seat with a blanket or

cushion when using the seat heater.

236

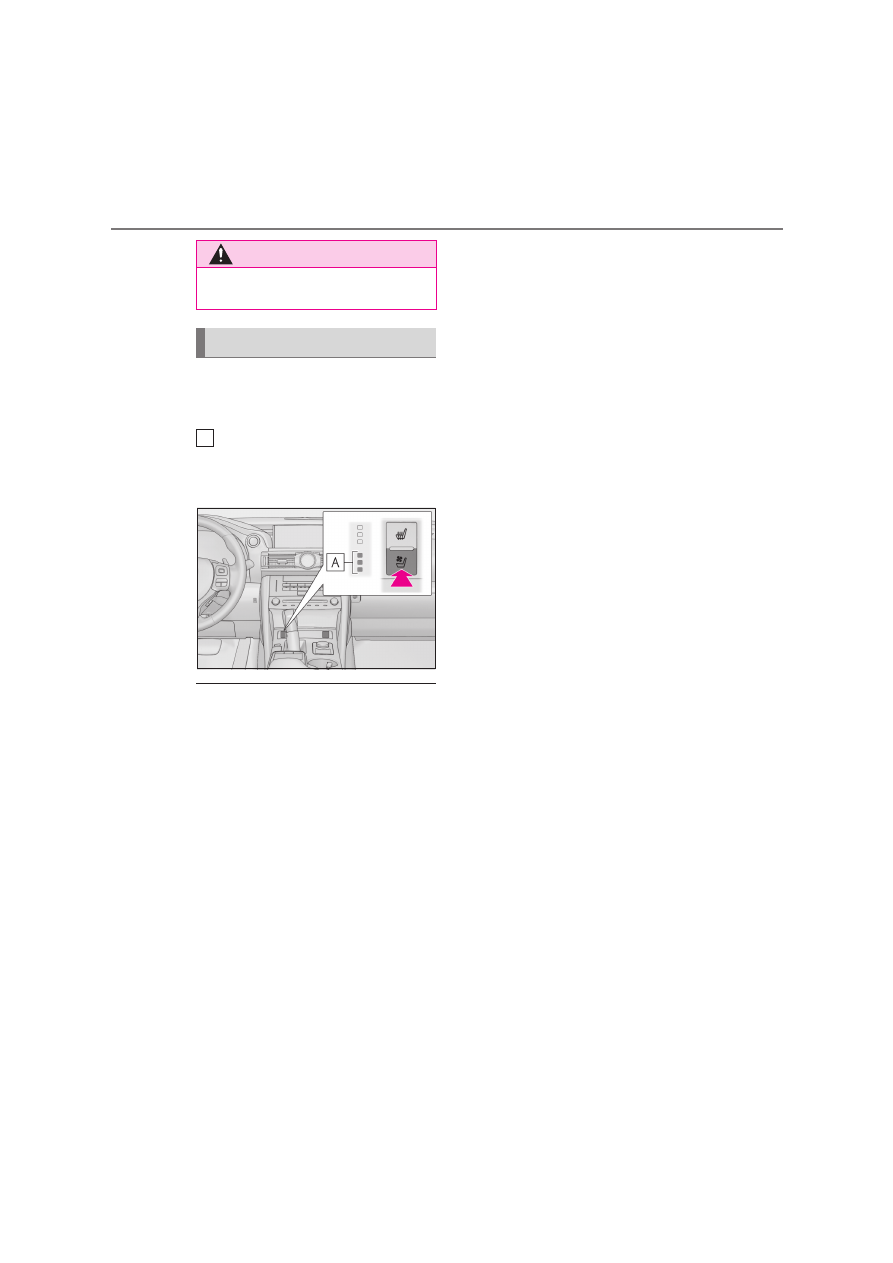

5-2. Using the air conditioning system

Each time the switch is pressed, the
intensity of the seat ventilator changes
and the level indicator lights (green)

light as follows:

Hi (3 segments lit)



Mid (2 segments

lit)



Lo (1 segment lit)



Off

■

Operation condition

The engine switch is in IGNITION ON

mode.

WARNING

●

Do not use seat heater more than nec-

essary.

Seat ventilators

237

5-3. Using the interior lights

rior f
ea

ture
s

5-3.Using the interior lights

Outer foot lights
Personal lights (



P.238)

Front interior light (



P.237)

Rear interior light (



P.237)

Door courtesy lights
Footwell lights

■

Front

Turns the light on/off (touch the light)
The rear interior light turns on/off
together with the front interior light.

Turns the door position on/off

Interior lights list

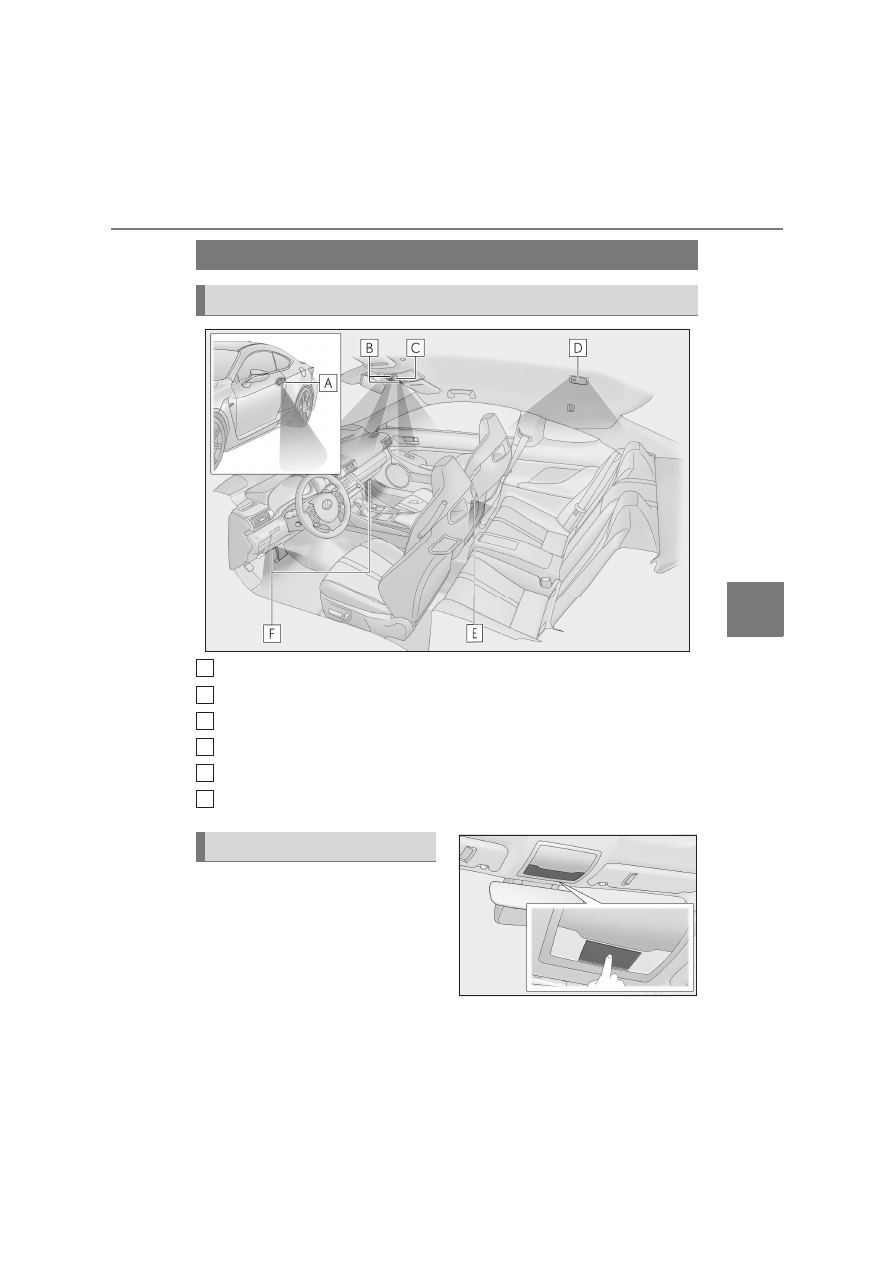

Location of the interior lights

A
B
C
D

E
F

Operating the interior lights

Content .. 11 12 13 14 ..
