189

4

4-5. Using the driving support systems

Driving

Accelerating after setting the vehicle

speed

The vehicle can be accelerated by oper-

ating accelerator pedal. After accelerat-

ing, the set speed resumes.

Even without canceling the cruise con-

trol, the set speed can be increased by

first accelerating the vehicle to the

desired speed and then pushing the lever

down to set the new speed.

Automatic cruise control cancelation

Cruise control is automatically canceled in

any of the following situations.

Actual vehicle speed falls more than

approximately 16 km/h (10 mph) below

the set speed.

Actual vehicle speed is below approxi-

mately 40 km/h (25 mph).

VSC is activated.

TRC is activated for a period of time.

When the VSC or TRC system is turned

off by pressing the VSC OFF switch.

If the warning message for the cruise

control is shown on the multi-informa-

tion display

Press the “ON/OFF” button once to deacti-

vate the system, and then press the button

again to reactivate the system.

If the cruise control speed cannot be set or

if the cruise control cancels immediately

after being activated, there may be a mal-

function in the cruise control system. Have

the vehicle inspected by any authorized

Lexus retailer or Lexus authorized repairer,

or any reliable repairer.

WARNING

To avoid operating the cruise control

by mistake

Switch the cruise control off using the

“ON/OFF” button when not in use.

Situations unsuitable for cruise con-

trol

Do not use cruise control in any of the

following situations.

Doing so may result in loss of control and

could cause an accident resulting in

death or serious injury.

In heavy traffic

On roads with sharp bends

On winding roads

On slippery roads, such as those cov-

ered with rain, ice or snow

On steep hills

Vehicle speed may exceed the set speed

when driving down a steep hill.

During emergency towing

190

4-5. Using the driving support systems

The Blind Spot Monitor is a system that
has 2 functions:

The BSM (Blind Spot Monitor) func-
tion
Assists the driver in making a deci-
sion when changing lanes

The RCTA (Rear Crossing Traffic
Alert) function
Assists the driver when backing up

These functions use same sensors.

BSM main switch

This switch is for both the BSM function
and RCTA function.
Pressing the switch turns the system on or
off. When the switch is turned on, the indi-
cator on the switch illuminates.

Outside rear view mirror indicators

BSM function:
When a vehicle is detected in a blind spot
of the outside rear view mirrors or
approaching rapidly from behind into a
blind spot, the outside rear view mirror
indicator on the detected side will illumi-
nate. If the turn signal lever is operated
toward the detected side, the outside rear
view mirror indicator will flash.
RCTA function:
When a vehicle approaching from the right
or left at the rear of the vehicle is detected,
both outside rear view mirror indicators
will flash.

Center Display

If a vehicle approaching from the right or

BSM (Blind Spot Monitor)

*

The Blind Spot Monitor is a system
that uses rear side radar sensors
installed on the inner side of the
rear bumper on the left and right
side to assist the driver in confirm-
ing safety when changing lanes.

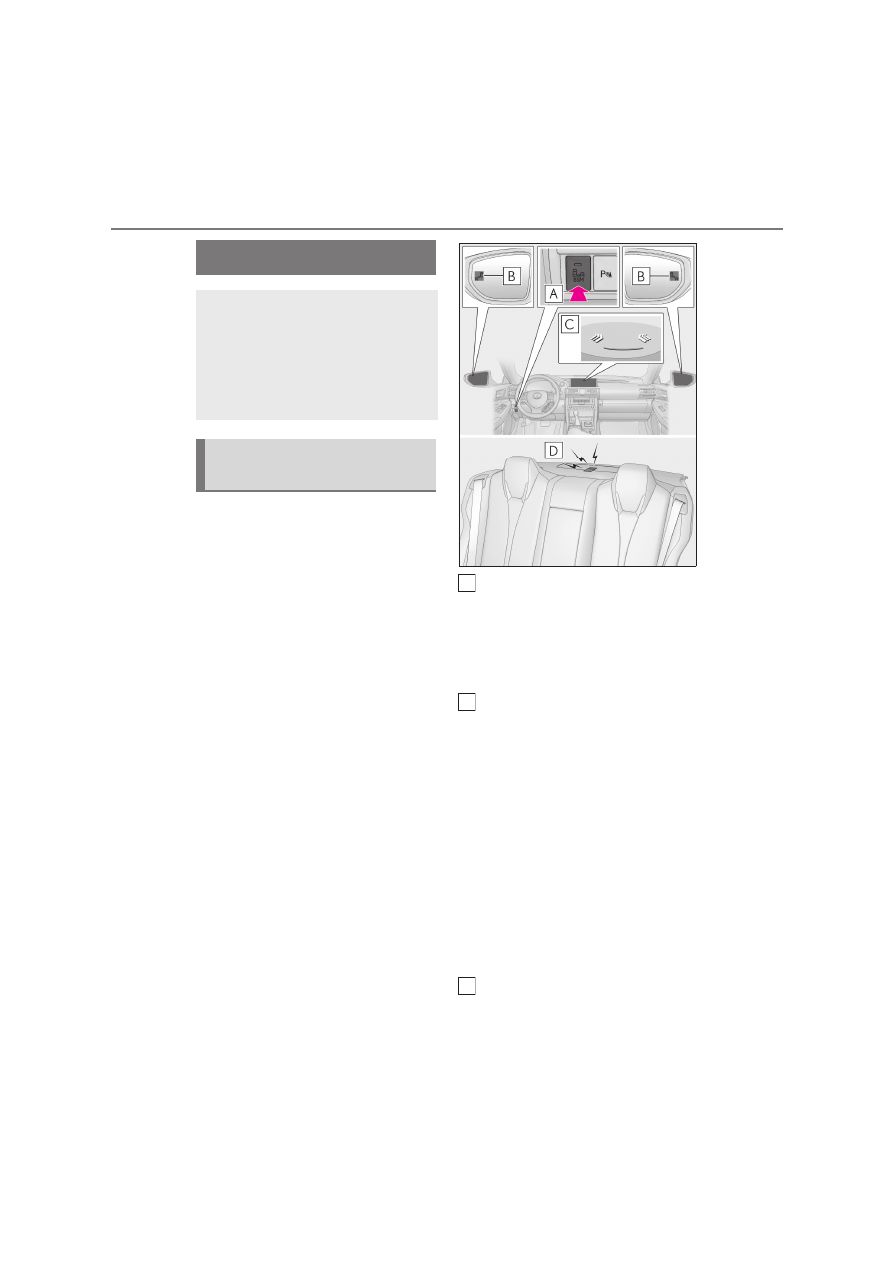

Summary of the Blind Spot Mon-
itor

A

B

C

191

4

4-5. Using the driving support systems

Driving

left at the rear of the vehicle is detected,

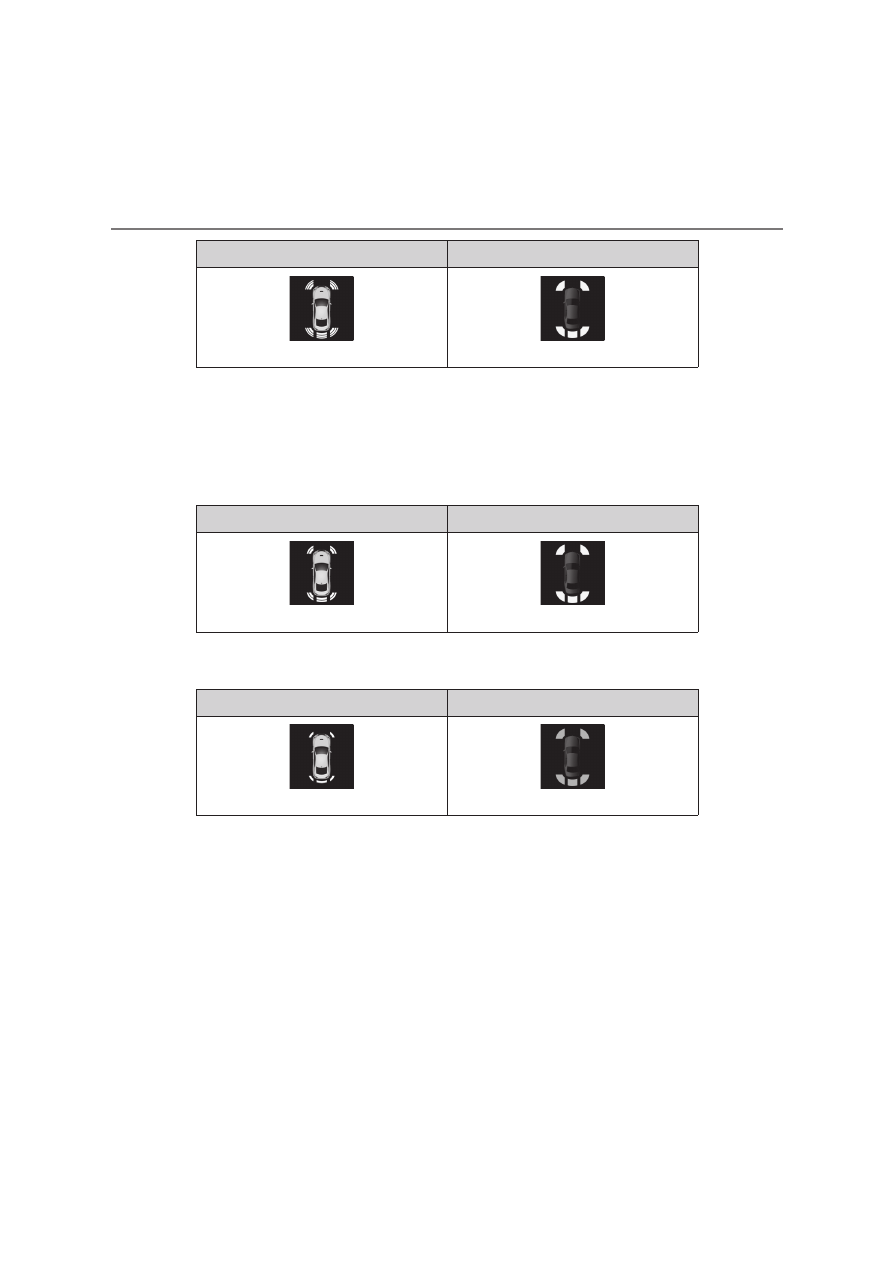

the RCTA icon (

P.195) for the detected

side will be displayed on the Center Dis-
play.
This illustration shows an example of a
vehicle approaching from both sides of the
vehicle.

RCTA buzzer (RCTA function only)

If a vehicle approaching from the right or
left at the rear of the vehicle is detected, a
buzzer will sound. The buzzer also sounds
for approximately 1 second immediately
after the BSM main switch is operated to
turn the system on.

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to hear

over loud noises, such as if the audio system

volume is high.

When “Blind Spot Monitor Unavailable”

is shown on the multi-information dis-

play

Ice, snow, mud, etc., may be attached to the

rear bumper around the sensors. (

P.191)

The system should return to normal opera-

tion after removing the ice, snow, mud, etc.

from the rear bumper. Additionally, the sen-

sors may not operate normally when driving

in extremely hot or cold environments.

When there is a malfunction in the Blind

Spot Monitor

If a system malfunction is detected due to

any of the following, a warning message will

be displayed: (

P.311)

A sensor is malfunctioning

A sensor is dirty or covered with snow or

a sticker

The outside temperature is extremely

high or low

Sensor voltage is abnormal

A sensor is misaligned

D

WARNING

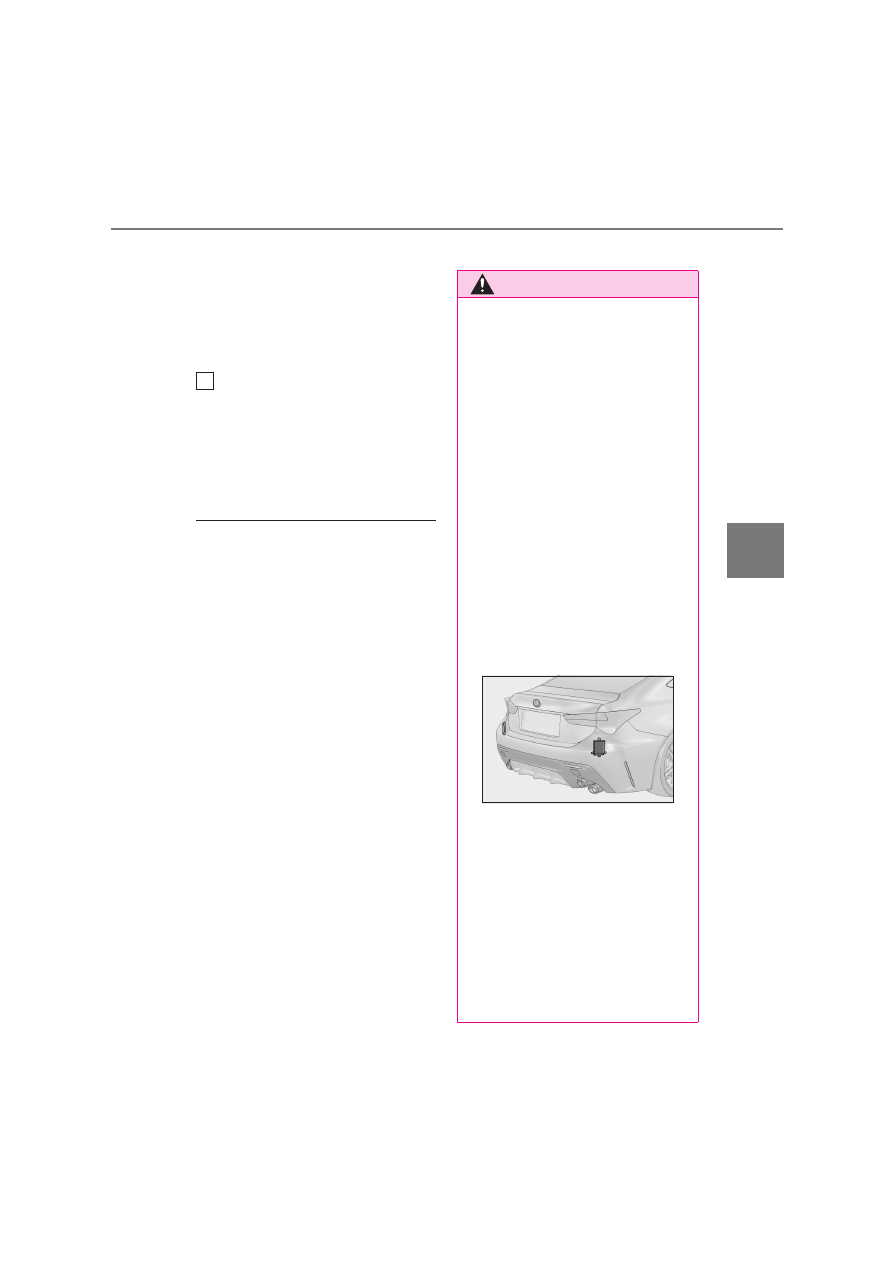

Handling the radar sensor

Blind Spot Monitor sensors are installed

behind the left and right sides of the rear

bumper respectively. Observe the fol-

lowing to ensure the Blind Spot Monitor

can function correctly.

Keep the sensors and the surrounding

areas on the rear bumper clean at all

times.

If a sensor or its surrounding area on

the rear bumper is dirty or covered

with snow, the Blind Spot Monitor may

not operate and a warning message

(

P.311) will be displayed. In this situ-

ation, clear off the dirt or snow and

drive the vehicle with the operation

conditions of the BSM function

(

P.194) satisfied for approximately

10 minutes. If the warning message

does not disappear, have the vehicle

inspected by any authorized Lexus

retailer or Lexus authorized repairer,

or any reliable repairer.

Do not subject a sensor or its sur-

rounding area on the rear bumper to a

strong impact.

If a sensor is moved even slightly off

position, the system may malfunction

and vehicles may not be detected cor-

rectly.

In the following situations, have your

vehicle inspected by any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

• A sensor or its surrounding area is

subject to a strong impact.

192

4-5. Using the driving support systems

The BSM function uses radar sensors to detect the following vehicles traveling in
adjacent lanes and advises the driver of the presence of such vehicles via the indi-

WARNING

• If the surrounding area of a sensor is

scratched or dented, or part of them

has become disconnected.

Do not disassemble the sensor.

Do not attach stickers to the sensor or

surrounding area on the rear bumper.

Do not modify the sensor or surround-

ing area on the rear bumper.

Do not paint the rear bumper any

color other than an official Lexus color.

Cautions regarding the use of the

function

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The BSM function is a supplementary

function which alerts the driver that a

vehicle is in a blind spot of the outside

rear view mirrors or is approaching rap-

idly from behind into a blind spot. Do not

overly rely on the BSM function. As the

function cannot judge if it is safe to

change lanes, over reliance could lead to

an accident resulting in death or serious

injury.
As the system may not function correctly

under certain conditions, the driver’s own

visual confirmation of safety is necessary.
The RCTA function is only a supplemen-

tary function which alerts the driver that a

vehicle is approaching from the right or

left at the rear of the vehicle. As the

RCTA function may not function cor-

rectly under certain conditions, the

driver’s own visual confirmation of safety

is necessary. Over reliance on this func-

tion may lead to an accident resulting

death or serious injury.

BSM function

193

4

4-5. Using the driving support systems

Driving

cators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

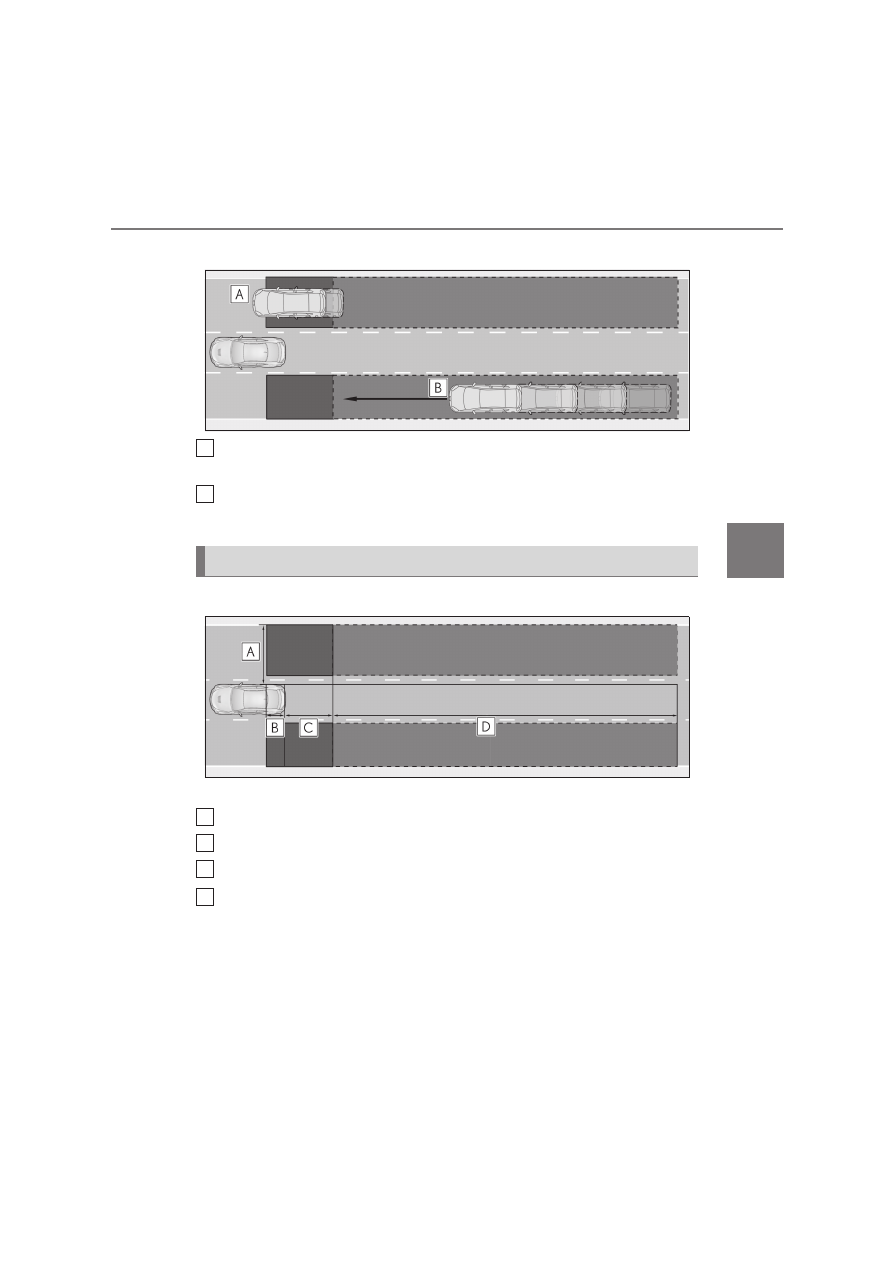

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 0.5 m (1.6 ft.) to 3.5 m (11.5 ft.) from either side of the vehicle

*1

Approximately 1 m (3.3 ft.) forward of the rear bumper
Approximately 3 m (9.8 ft.) from the rear bumper

Approximately 3 m (9.8 ft.) to 60 m (197 ft.) from the rear bumper

*2

*1

: The area between the side of the vehicle and 0.5 m (1.6 ft.) from the side of the vehicle

cannot be detected.

*2

: The greater the difference in speed between your vehicle and the detected vehicle is,

the farther away the vehicle will be detected, causing the outside rear view mirror indi-
cator to illuminate or flash.

BSM function detection areas

A

B

A
B
C
D

194

4-5. Using the driving support systems

The BSM function is operational when

The BSM function is operational when all of

the following conditions are met:

The BSM main switch is on.

The shift lever is in a position other than R.

The vehicle speed is greater than approx-

imately 16 km/h (10 mph).

The BSM function will detect a vehicle

when

The BSM function will detect a vehicle pres-

ent in the detection area in the following sit-

uations:

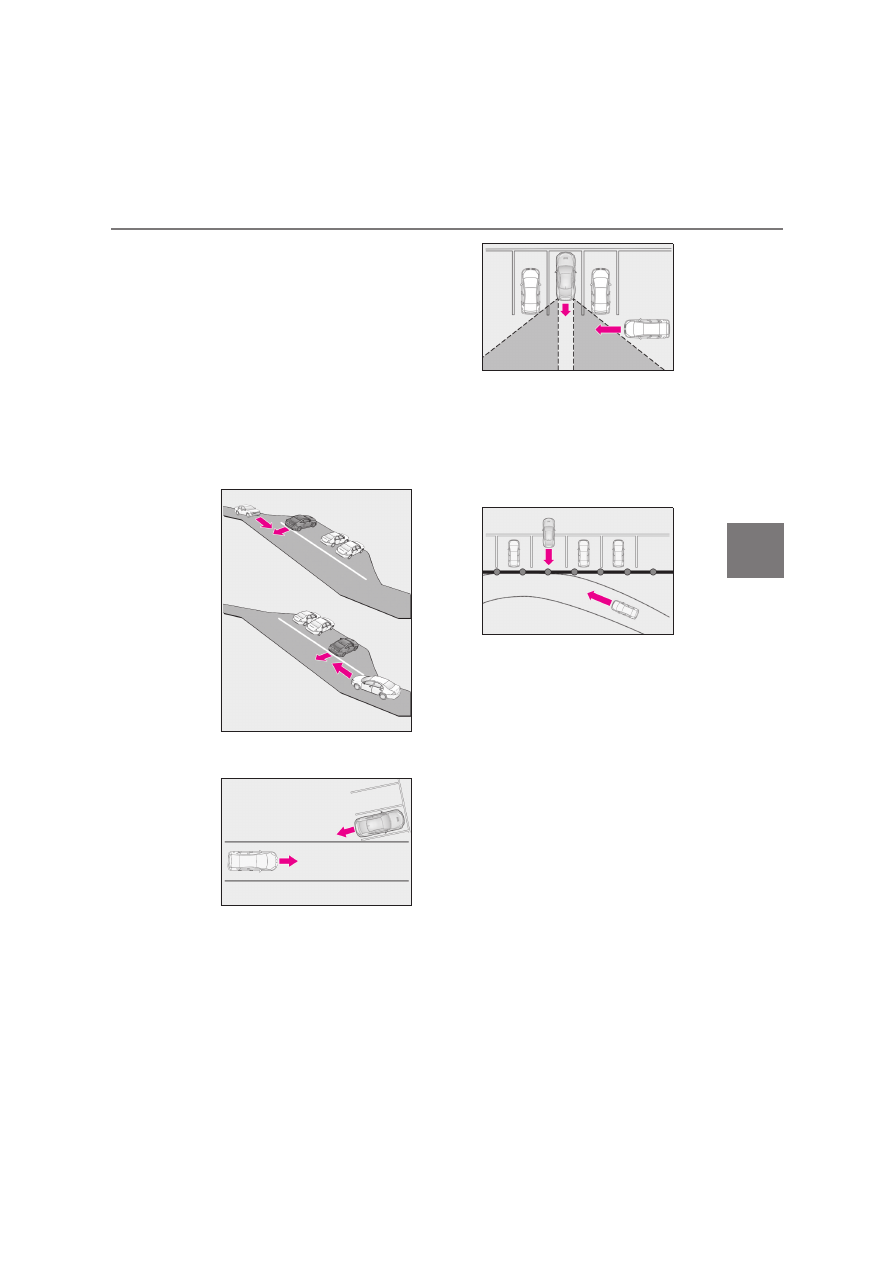

A vehicle in an adjacent lane overtakes

your vehicle.

You overtake a vehicle in an adjacent lane

slowly.

Another vehicle enters the detection

area when it changes lanes.

Conditions under which the BSM func-

tion will not detect a vehicle

The BSM function is not designed to detect

the following types of vehicles and/or

objects:

Small motorcycles, bicycles, pedestrians,
etc.

*

Vehicles traveling in the opposite direc-

tion

Guardrails, walls, signs, parked vehicles
and similar stationary objects

*

Following vehicles that are in the same
lane

*

Vehicles traveling 2 lanes away from your
vehicle

*

Vehicles which are being overtaken rap-
idly by your vehicle

*

*

: Depending on the conditions, detection

of a vehicle and/or object may occur.

Conditions under which the BSM func-

tion may not function correctly

The BSM function may not detect vehi-

cles correctly in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When the distance between your vehicle

and a following vehicle is short

• When there is a significant difference in

speed between your vehicle and the vehi-

cle that enters the detection area

• When the difference in speed between

your vehicle and another vehicle is

changing

• When a vehicle enters a detection area

traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehi-

cle remains in the detection area

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When vehicle lanes are wide, or when

driving on the edge of a lane, and the

vehicle in an adjacent lane is far away

from your vehicle

• When a bicycle carrier or other acces-

sory is installed to the rear of the vehicle

• When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

• Immediately after the BSM main switch is

turned on

Instances of the BSM function unneces-

sarily detecting a vehicle and/or object

may increase in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When the distance between your vehicle

and a guardrail, wall, etc. that enters the

detection area is short

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

195

4

4-5. Using the driving support systems

Driving

• When vehicle lanes are narrow, or when

driving on the edge of a lane, and a vehi-

cle traveling in a lane other than the adja-

cent lanes enters the detection area

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle

and a following vehicle is short

• When a bicycle carrier or other acces-

sory is installed to the rear of the vehicle

Operation of the RCTA function

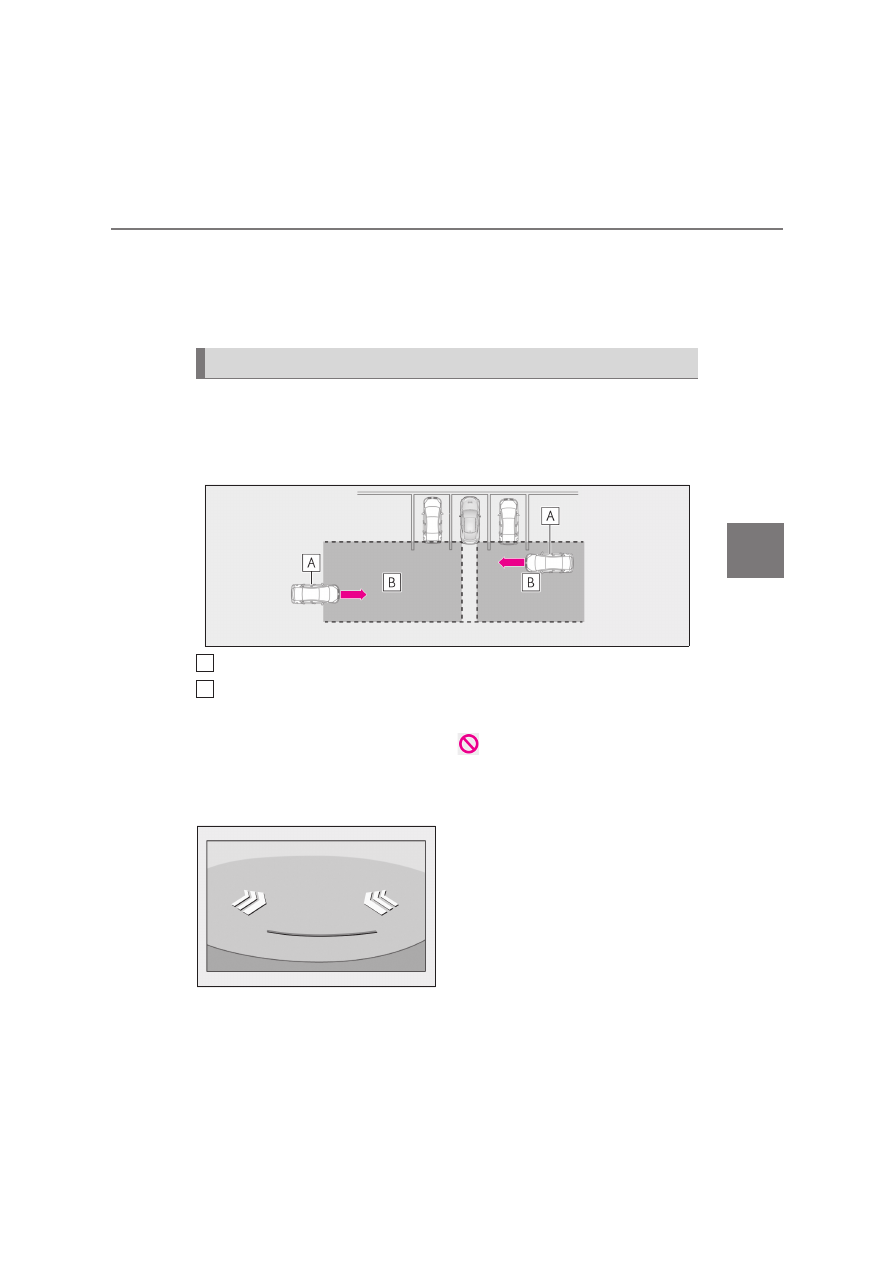

The RCTA function uses radar sensors to detect vehicles approaching from the
right or left at the rear of the vehicle and alerts the driver of the presence of such
vehicles by flashing the outside rear view mirror indicators and sounding a buzzer.

Approaching vehicles
Detection areas of approaching vehicles

RCTA icon display

When a vehicle approaching from the
right or left at the rear of the vehicle is
detected, the following will be dis-
played on the Center Display.

This illustration shows an example of a
vehicle approaching from both sides of the

vehicle.

: The RCTA function is malfunc-

tioning (

P.191)

RCTA function

A
B

196

4-5. Using the driving support systems

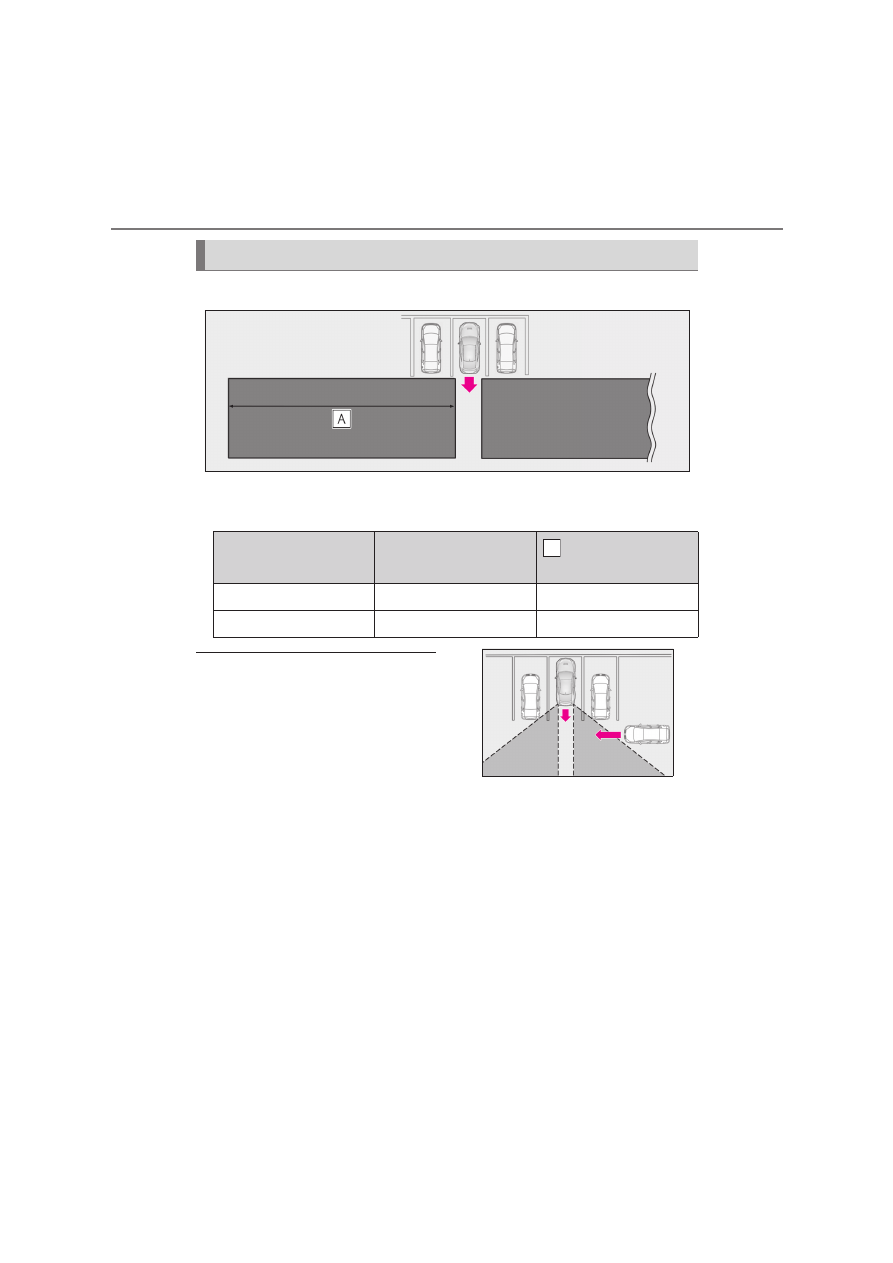

The areas that vehicles can be detected in are outlined below.

The buzzer can alert the driver of faster vehicles approaching from farther away.
Example:

The RCTA function is operational when

The RCTA function operates when all of the

following conditions are met:

The BSM main switch is on.

The shift lever is in R.

The vehicle speed is less than approxi-

mately 8 km/h (5 mph).

The approaching vehicle speed is

between approximately 8 km/h (5 mph)

and 28 km/h (18 mph).

Conditions under which the RCTA func-

tion will not detect a vehicle

The RCTA function is not designed to

detect the following types of vehicles and/or

objects:

Vehicles approaching from directly

behind

Vehicles backing up in a parking space

next to your vehicle

Vehicles that the sensors cannot detect

due to obstructions

Guardrails, walls, signs, parked vehicles
and similar stationary objects

*

Small motorcycles, bicycles, pedestrians,
etc.

*

Vehicles moving away from your vehicle

Vehicles approaching from the parking
spaces next to your vehicle

*

*

: Depending on the conditions, detection

of a vehicle and/or object may occur.

Conditions under which the RCTA func-

tion may not function correctly

The RCTA function may not detect vehi-

cles correctly in the following situations:

RCTA function detection areas

Approaching vehicle

Speed

 Approximate alert dis-

tance

Fast

28 km/h (18 mph)

20 m (65 ft.)

Slow

8 km/h (5 mph)

5.5 m (18 ft.)

A

197

4

4-5. Using the driving support systems

Driving

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When a vehicle is approaching at high

speed

• When backing up on a slope with a sharp

change in grade

• When backing out of a shallow angle

parking spot

• Immediately after the BSM main switch is

turned on

• Immediately after the engine is started

with the BSM main switch on

• When the sensors cannot detect a vehi-

cle due to obstructions

Instances of the RCTA function unneces-

sarily detecting a vehicle and/or object

may increase in the following situations:

• When a vehicle passes by the side of your

vehicle

• When the parking space faces a street

and vehicles are being driven on the

street

• When the distance between your vehicle

and metal objects, such as a guardrail,

wall, sign, or parked vehicle, which may

reflect electrical waves toward the rear of

the vehicle, is short

198

4-5. Using the driving support systems

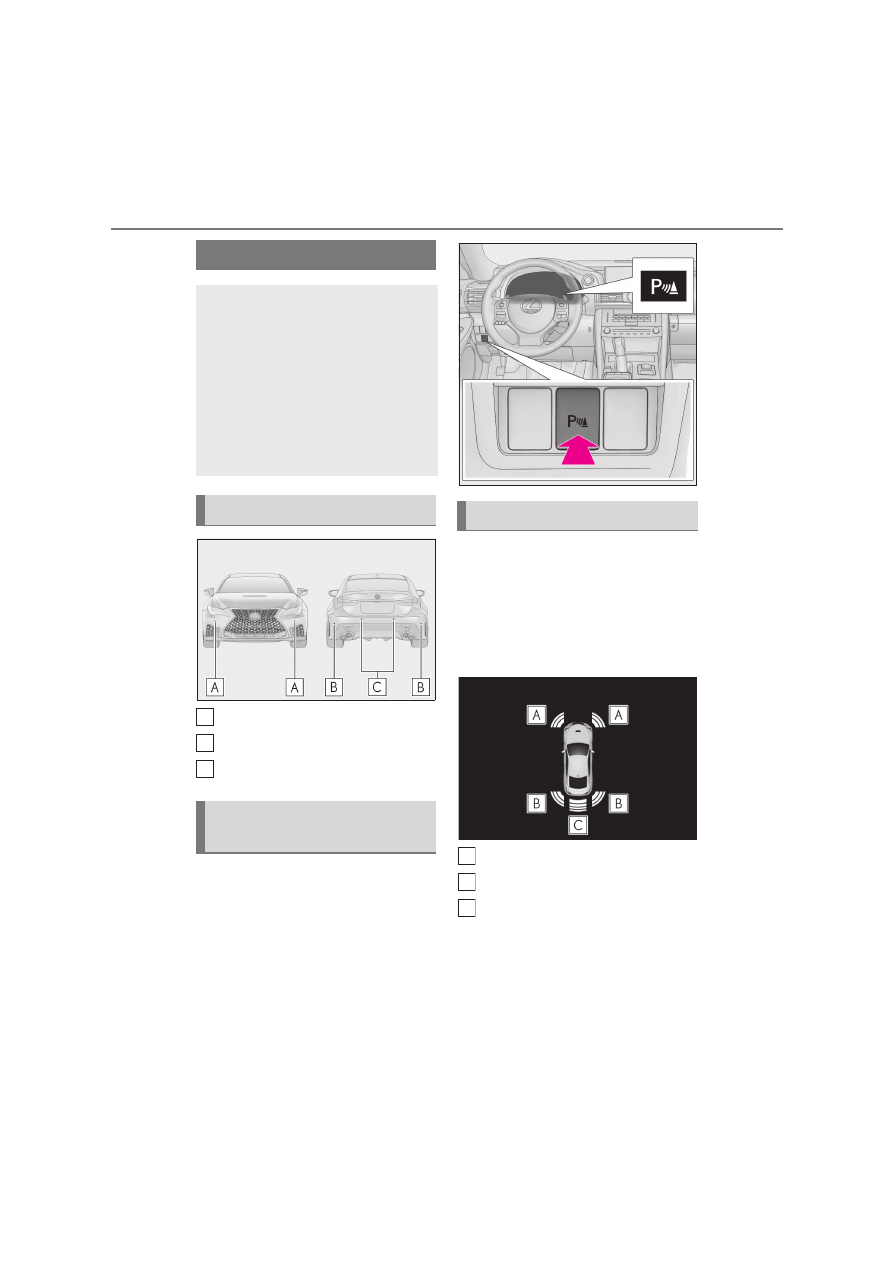

Front corner sensors
Rear corner sensors
Rear center sensors

Turns the Lexus parking assist-sensor
on/off

When on, the indicator light comes on to
inform the driver that the system is opera-
tional.

When the sensors detect an obstacle, a
graphic is shown on the multi-informa-
tion display and Center Display
depending on the position and dis-
tance to the obstacle.

Multi-information display

Front corner sensor detection
Rear corner sensor detection
Rear center sensor detection

Center Display

A graphic is shown when the Lexus
parking assist monitor is displayed
(insert display).

Lexus parking assist-sensor

The distance from your vehicle to
nearby obstacles when parallel
parking or maneuvering into a
garage is measured by the sensors
and communicated via the
multi-information display, Center
Display and a buzzer. Always check
the surrounding area when using
this system.

Types of sensors

Lexus parking assist-sensor
switch

A
B
C

Display

A
B
C

199

4

4-5. Using the driving support systems

Driving

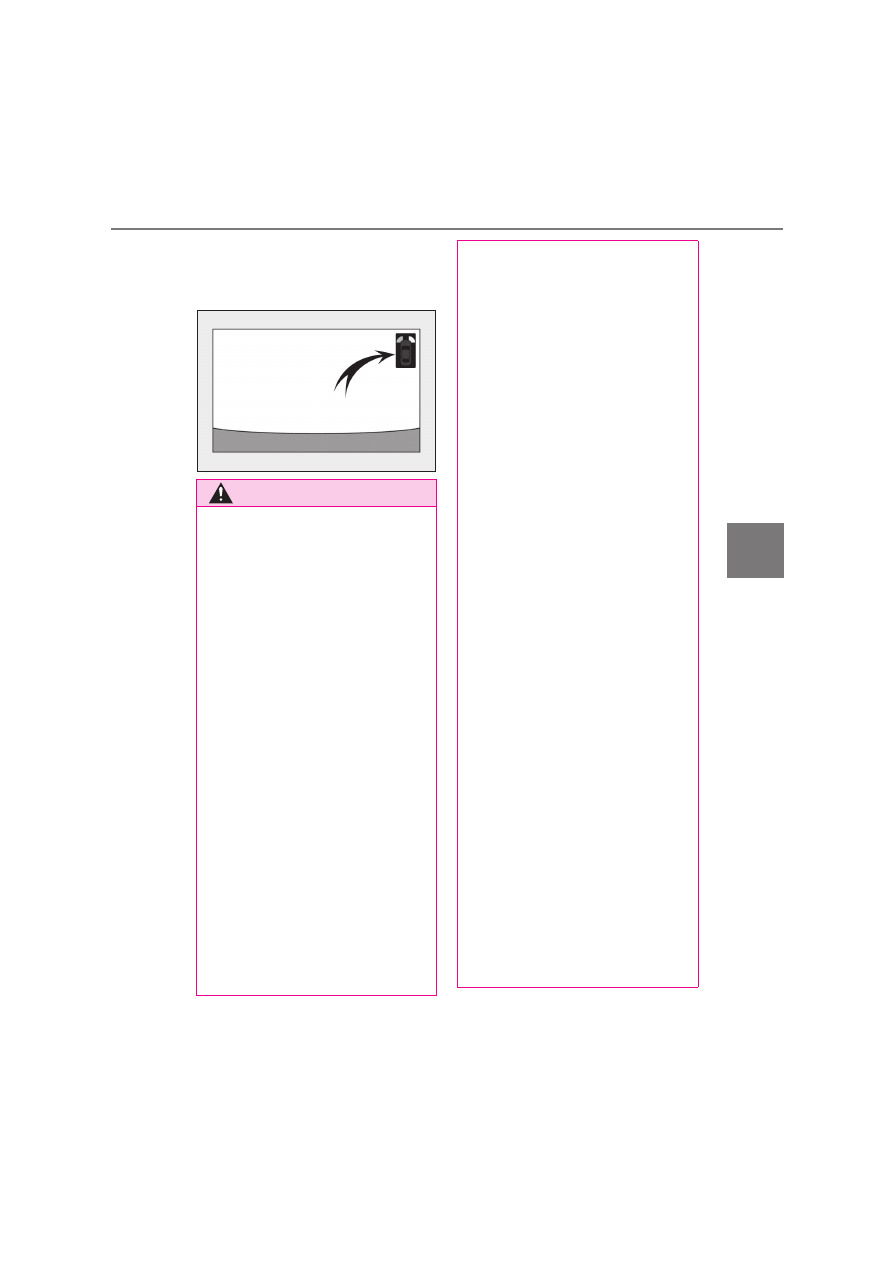

A simplified image is displayed on the
Center Display when an object is
detected.

WARNING

When using the Lexus parking

assist-sensor

Observe the following precautions.

Failing to do so may result in the vehicle

being unable to be driven safely and pos-

sibly cause an accident.

Do not use the sensor at speeds in

excess of 10 km/h (6 mph).

The sensor’s detection areas and reac-

tion times are limited. When moving

forward or reversing, check the areas

surrounding the vehicle (especially the

sides of the vehicle) for safety, and

drive slowly, using the brake to control

the vehicle’s speed.

Do not install accessories within the

sensor’s detection areas.

The area directly under the bumpers is

not detected.

Thin posts or objects lower than a sen-

sor may not be detected when

approached, even if they have been

detected once.

When to disable the function

In the following situations, disable the

function as it may operate even though

there is no possibility of a collision.

The vehicle is equipped with a fender

pole, wireless antenna or fog lights.

The front or rear bumper or a sensor

receives a strong impact.

A non-genuine Lexus suspension

(lowered suspension, etc.) is installed.

Towing eyelets are installed.

A backlit license plate is installed.

When using Lexus parking assist-sen-

sor

In the following situations, the system

may not function correctly due to a sen-

sor malfunction, etc. Have the vehicle

checked by any authorized Lexus retailer

or Lexus authorized repairer, or any reli-

able repairer.

The Lexus parking assist-sensor oper-

ation display flashes or shows continu-

ously, and a beep sounds when no

objects are detected.

If the area around a sensor collides

with something, or is subjected to

strong impact.

If the bumper or grille collides with

something.

If the display flashes or is displayed

continuously and a buzzer does not

sound, except when the mute function

has been turned on.

If a display error occurs, first check the

sensor.

If the error occurs even when there is

no ice, snow or mud on the sensor, it is

likely that the sensor is malfunctioning.

Notes when washing the vehicle

Do not apply intensive bursts of water or

steam to the sensor area.
Doing so may result in the sensor mal-

functioning.

200

4-5. Using the driving support systems

The Lexus parking assist-sensor can be

operated when

Front corner sensors:

• The engine switch is in IGNITION ON

mode.

• The shift lever is in a position other than P.

• The vehicle speed is less than about 10

km/h (6 mph).

(At any speed when the shift lever is in R)

Rear corner and rear center sensors:

• The engine switch is in IGNITION ON

mode.

• The shift lever is in R.

Muting the buzzer sound

To mute the buzzer sound:

The buzzer can be temporarily muted by

pressing “OK” of the meter control

switches while an obstacle detection dis-

play is shown on the multi-information dis-

play.

To cancel the mute:

Mute will be automatically canceled in the

following situations.

• When the shift lever is changed (except

shifting from D to N, or N to D).

• When the vehicle speed has reached or

exceeded 10 km/h (6 mph) with the shift

lever in D.

• When the Lexus parking assist-sensor is

turned off once and turned on again.

• When the engine switch is turned off

once and turned to IGNITION ON

mode again.

If “Clean Parking Assist Sensor” is dis-

played on the multi-information display

A sensor may be covered with ice, snow,

dirt, etc. Remove the ice, snow, dirt, etc.,

from the sensor to return the system to nor-

mal.
Also, due to ice forming on a sensor at low

temperatures, a warning message may be

displayed or the sensor may not be able to

detect an object. Once the ice melts, the

system will return to normal.

Sensor detection information

The following situations may occur dur-

ing use.

• The sensors may be able to only detect

objects near the front and rear bumpers.

• Depending on the shape of the object

and other factors, the detection distance

may shorten, or detection may be impos-

sible.

• There will be a short delay between

object detection and display. Even at low

speeds, there is a possibility that the

object will come within the sensor’s

detection areas before the display is

shown and the warning beep sounds.

• It might be difficult to hear the buzzer due

to the volume of the audio system or air

flow noise of the air conditioning system.

• It may be difficult to hear the buzzer if

buzzers for other systems are sounding.

Conditions under which the function

may not function correctly

Certain vehicle conditions and the sur-

rounding environment may affect the ability

of a sensor to correctly detect objects. Par-

ticular instances where this may occur are

listed below.

There is dirt, snow or ice on a sensor.

(Cleaning the sensors will resolve this

problem.)

A sensor is frozen. (Thawing the area will

resolve this problem.)

In especially cold weather, if a sensor is

frozen the sensor display may be dis-

played abnormally, or objects, such as a

wall, may not be detected.

A sensor is covered in any way.

WARNING

When using a high pressure washer to

wash the vehicle, do not spray the sen-

sors directly, as doing so may cause a

sensor to malfunction.

When using steam to clean the vehicle,

do not direct steam too close to the

sensors as doing so may cause a sen-

sor to malfunction.

201

4

4-5. Using the driving support systems

Driving

When a sensor or the area around a sen-

sor is extremely hot or cold.

On an extremely bumpy road, on an

incline, on gravel, or on grass.

The vicinity of the vehicle is noisy due to

vehicle horns, motorcycle engines, air

brakes of large vehicles, or other loud

noises producing ultrasonic waves.

There is another vehicle equipped with

parking assist sensors in the vicinity.

A sensor is coated with a sheet of spray

or heavy rain.

If a sensor is hit by a large amount of

water, such as when driving on a flooded

road.

If the vehicle is significantly tilted.

The vehicle is approaching a tall or

curved curb.

If objects draw too close to the sensor.

Objects which may not be properly

detected

The shape of the object may prevent the

sensor from detecting it. Pay particular

attention to the following objects:

Wires, fences, ropes, etc.

Cotton, snow and other materials that

absorb sound waves

Sharply-angled objects

Low objects

Tall objects with upper sections project-

ing outwards in the direction of your vehi-

cle

People may not be detected if they are

wearing certain types of clothing.

Customization

Settings can be changed. (

P.361)

Multi-information display and Center Display

Sensors that detect an obstacle will illuminate continuously or blink.

Approximate distance to object: 150 cm (4.9 ft.) to 60 cm (2.0 ft.) (Rear center
sensor)

Approximate distance to object: 70 cm (2.3 ft.) to 50 cm (1.6 ft.) (Front corner
sensor)
Approximate distance to object: 60 cm (2.0 ft.) to 45 cm (1.5 ft.) (Rear corner
sensor, Rear center sensor)

Sensor detection display, obstacle distance

Multi-information display

Insert display (Center Display)

(continuous)

(blinking slowly)

202

4-5. Using the driving support systems

Approximate distance to object: 50 cm (1.6 ft.) to 30 cm (1.0 ft.) (Front corner
sensor)
Approximate distance to object: 45 cm (1.5 ft.) to 30 cm (1.0 ft.) (Rear corner
sensor)
Approximate distance to object: 45 cm (1.5 ft.) to 35 cm (1.1 ft.) (Rear center
sensor)

Approximate distance to object: Less than 30 cm (1.0 ft.) (Corner sensor)
Approximate distance to object: Less than 35 cm (1.1 ft.) (Rear center sensor)

Buzzer operation and distance to
an obstacle

A buzzer sounds when the sensors are
operating.

The buzzer beeps faster as the vehi-
cle approaches an obstacle. When
the vehicle comes within the follow-
ing distance of the obstacle, the
buzzer sounds continuously:

• Corner sensors: Approximately 30 cm

(1.0 ft.)

• Rear center sensors: Approximately 35

cm (1.1 ft.)

When 2 or more obstacles are
detected simultaneously, the buzzer
system responds to the nearest
obstacle. If one or both come within
the above distances, the beep will
repeat a long tone, followed by fast

Multi-information display

Insert display (Center Display)

(continuous)

(blinking)

Multi-information display

Insert display (Center Display)

(continuous)

(blinking rapidly)

Multi-information display

Insert display (Center Display)

(blinking)

(continuous)

203

4

4-5. Using the driving support systems

Driving

beeps.

Approximately 150 cm (4.9 ft.)
Approximately 70 cm (2.3 ft.)
Approximately 60 cm (2.0 ft.)

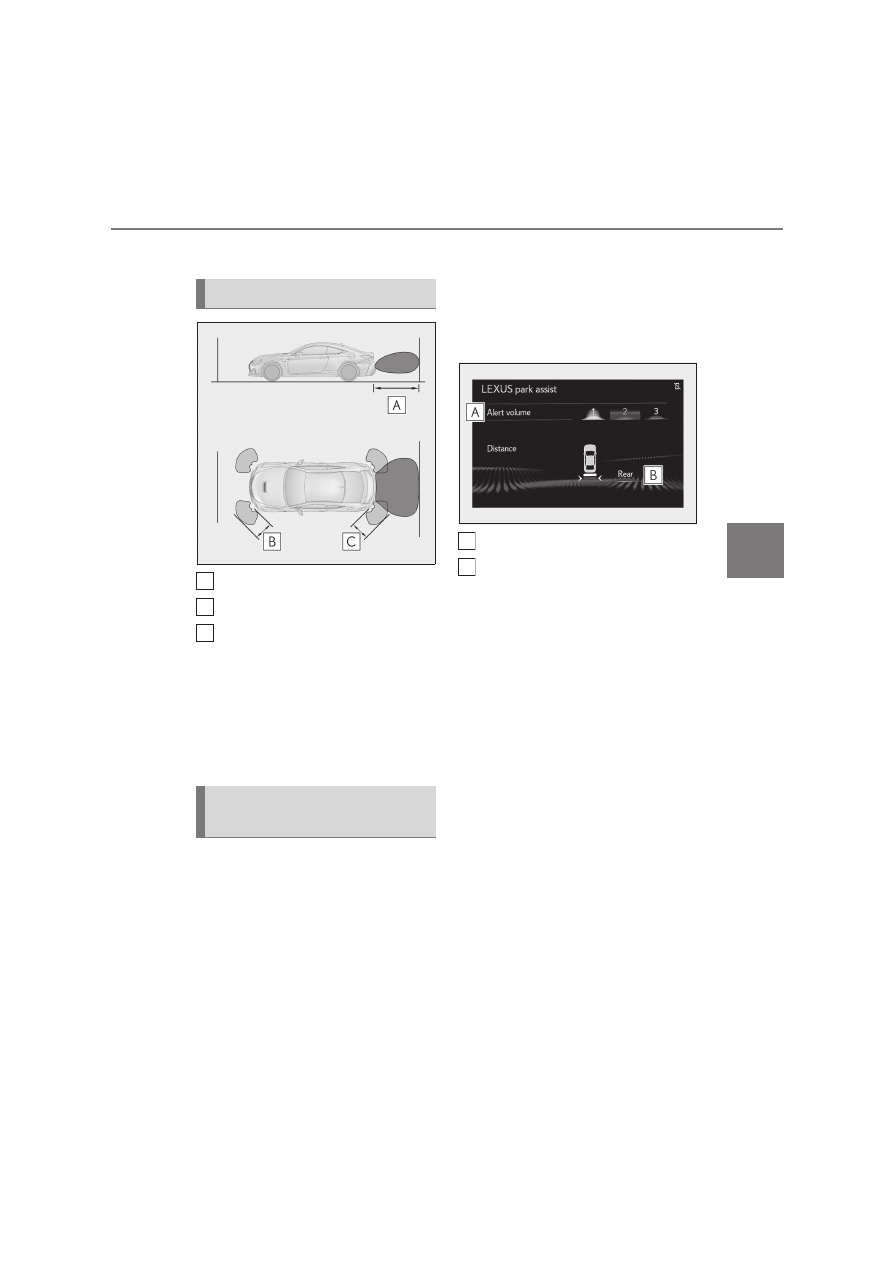

The diagram shows the detection range of
the sensors. Note that the sensors cannot
detect obstacles that are extremely close
to the vehicle.
The range of the sensors may change
depending on the shape of the object, etc.

You can change the warning beep vol-
ume and Center Display operating
conditions.

1

Press the “MENU” button on the
Remote Touch. (

P.222)

2

Select “Setup” on the “MENU”
screen.

3

Select “Vehicle” on the “Setup”
screen.

4

Select “LEXUS park assist” on the
vehicle settings screen.

5

Select the desired button.

The alert volume can be adjusted.
Rear center sensor display and
tone indication can be set.

Detection range of the sensors

Setting up Lexus parking
assist-sensor

A
B
C

A
B

204

4-5. Using the driving support systems

1

Normal mode/Custom mode

Normal mode and custom mode are
selected by pressing the driving mode
select switch. Each time the switch is
pressed, the driving mode changes
between normal mode and custom mode.
When custom mode is selected, the “CUS-
TOM” indicator will be illuminated.
When Eco drive mode or sport mode is
selected, pressing the switch changes the
driving mode to normal mode.
• Normal  mode
Provides an optimal balance of fuel econ-
omy, quietness, and dynamic performance.
Suitable for city driving.
• Custom  mode
Allows you to drive with the following func-
tions set to your preferred settings.
Custom mode settings can only be
changed on the drive mode customization

display of the Center Display. (

P.224)

2

Eco drive mode

Helps the driver accelerate in an
eco-friendly manner and improve fuel
economy through moderate throttle char-
acteristics and by controlling the operation
of the air conditioning system (heat-
ing/cooling).
When not in Eco drive mode, if the driving
mode select switch is turned to the left, the
Eco drive mode indicator will come on.

3

Sport mode

• SPORT S mode
Controls the transmission and engine to
provide quick, powerful acceleration. Also,
gear shift timing is controlled to suit sporty
driving, making this mode is suitable for
when agile driving response is desired,
such as when driving on roads with many
curves.
When not in SPORT S mode, if the driving
mode select switch is turned to the right,
the “SPORT S” indicator will come on.
• SPORT S+ mode
Provides earlier downshift timing than
SPORT S mode in order to maintain a high
engine speed and provides faster gear
changes. This mode also changes the
steering feel, suspension control and

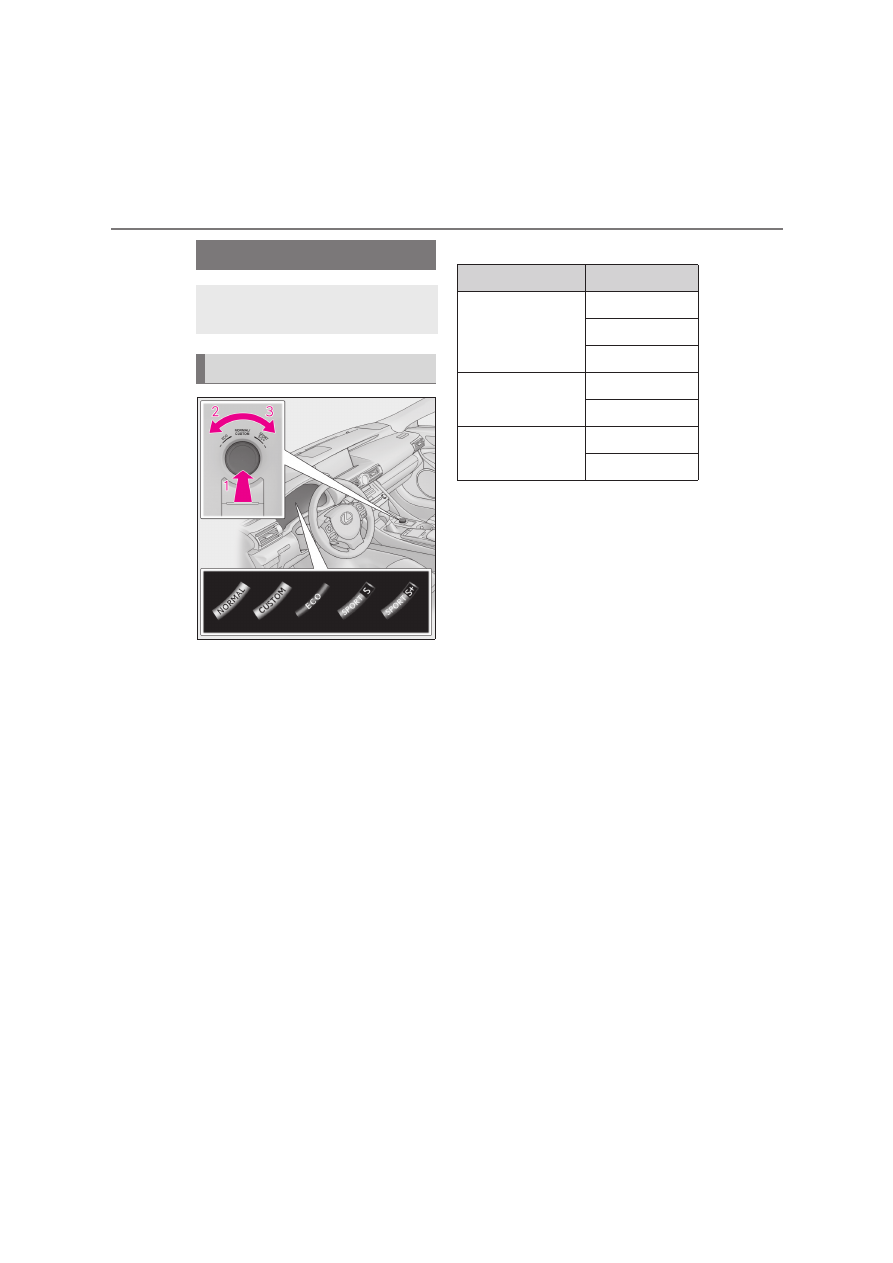

Driving mode select switch

The driving modes can be selected
to suit driving condition.

Selecting a drive mode

Function

Setting

Powertrain

Normal

Power

Eco

Chassis

Normal

Sport

Air conditioning sys-
tem

Normal

Eco















Content      ..     9      10      11      12     ..
