5-1. Display

The time it takes to switch screen
displays when no operation is per-
formed can be set to either 20 sec-
onds, 1 minute or 5 minutes.

The screen operation sensitivity
can be set to either 1 (low), 2 (nor-
mal) or 3 (high).

Software information is displayed.

■

Operation condition

When the engine switch is in ON.

■

Operation screen

●

Touch the operation screen gently with

your fingers so that the screen is not

damaged.

●

If the operation screen does not respond,

withdraw your hand from the screen

momentarily and then touch it again.

●

When

is displayed on the

screen, select

to return to the

previous screen.

●

In the following situations, the operation

screen may not respond or operate nor-

mally.

• When wearing gloves

• When operating the screen with your

nails

• When another finger or the palm is near

another switch

• When the screen is dirty or wet

• When a film is applied to the surface of

the operation screen

• When the surface of the operation

screen is coated

• When the vehicle is in an area where

strong electrical waves or noise are emit-

ted, such as near a television tower,

power plant, gasoline station, broadcast-

ing station, large display, airport, etc.

• When carrying a wireless device such as

a radio or cell phone

●

If the operation screen is touched or cov-

ered by the following types of metallic

objects, the operation screen may not

respond or operate normally.

• A card that has metal on it, such as alumi-

num foil, etc.

• A pack of cigarettes containing alumi-

num foil

• A wallet or bag made of metal

• Coins

• A heating pad

• CDs, DVDs or other media

●

The operation screen may respond when

wiping the operation screen for cleaning.

●

If your hand is near the operation screen

when the engine switch is turned to ACC

or ON, the operation screen may not

respond. If this occurs, withdraw your

hand from the operation screen, and then

turn the engine switch to OFF and then to

ON.

■

LCD screen

●

When the LCD screen is viewed at an

angle, it looks lighter or darker.

●

When light from the sun or another

external light source strikes the screen,

the screen is difficult to see.

●

When wearing sunglasses with polarized

lenses, the screen looks lighter or darker.

■

Open source software information

WARNING

■

Use when driving

For safety reasons, drivers should avoid

performing operations as much as possi-

ble while driving. Performing operations

while driving may cause the driver to

mistakenly operate the steering wheel,

which may lead to an accident. Stop the

vehicle before using. Furthermore, avoid

looking at the screen as much as possible

while driving.

381

5-1. Display

Inte
rior f
ea

tures

■

Home screen

Touch to display the audio control
screen.
Refer to “MULTIMEDIA
OWNER’S MANUAL”.

Touch to display the rear air condi-
tioning control screen. (



P.394,

398)

Touch to display the rear seat
adjustment screen. (



P.134, 163)

Touch to display the relaxation seat
control screen. (



P.136)

Touch to display the rear interior

NOTICE

■

Cleaning the screen

If the screen becomes dirty, wipe it gently

using a soft dry cloth such as an eyeglass

cleaner for plastic lenses.
Pressing it excessively by hand or rub-

bing it with a hard cloth may scratch the

surface. Note that the LCD is coated.

The screen may be damaged if exposed

to substances such as gasoline or alka-

line solutions.

■

Preventing battery discharge

Do not operate the screen for a long

period of time when the engine is

stopped.

Rear Multi Operation Panel
(4-passenger models)

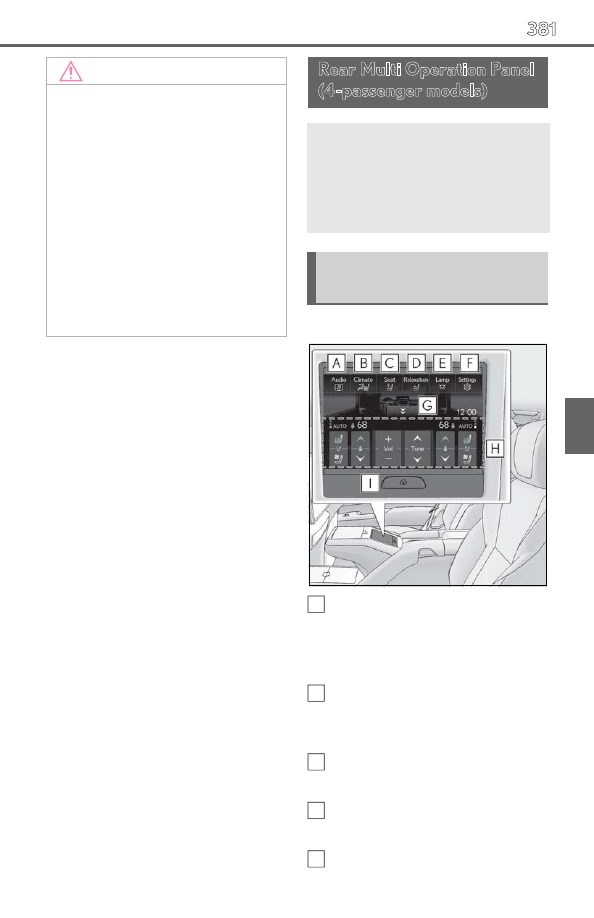

The Rear Multi Operation Panel
built-into the rear armrest can be
used to operate the rear audio sys-
tem, air conditioning system, seat,
relaxation seat or lights.

Rear Multi Operation Panel
overview

382

5-1. Display

light control screen. (



P.405)

Touch to display the Rear Multi
Operation Panel settings screen.
(



P.382)

Touch to display/hide the shortcut
screen.

Shortcut screen

The following can be adjusted or operated:
• Rear air conditioning system tempera-

ture setting (



P.394)

• Rear seat heaters/rear seat ventilators

(



P.398)

• Audio system
Refer to “MULTIMEDIA OWNER’S
MANUAL”.

button

Press to display the home screen.
When the screen is on, press and
hold to turn the screen off.

■

Rear Multi Operation Panel set-
tings screen

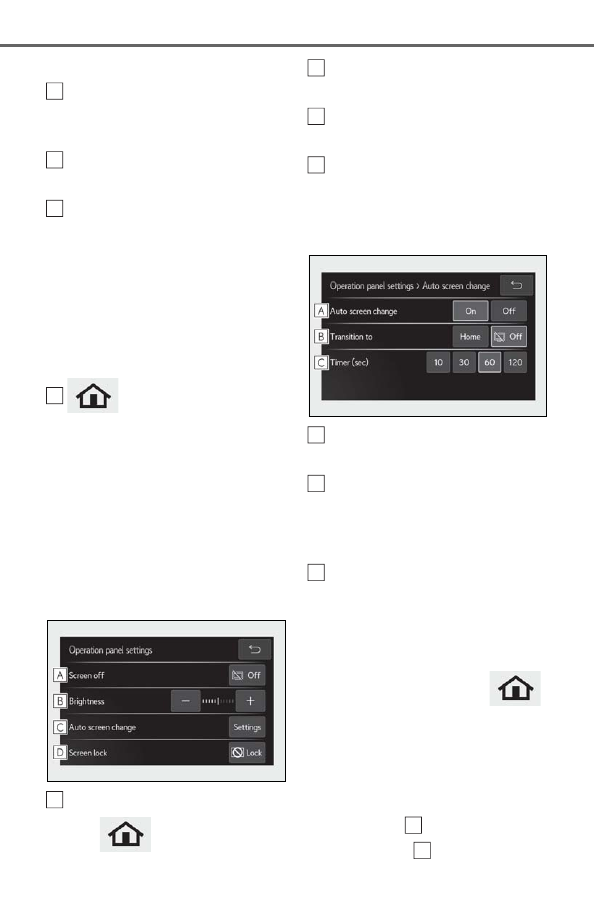

Screen operation settings and the
brightness of the screen can be
changed.

Touch to turn the screen off.

Press the

button to display the

home screen.

Touch to adjust the brightness of
the screen.

Touch to display the automatic
screen transition settings screen.

Touch to lock the Rear Multi Oper-
ation Panel.

■

Auto screen change settings
screen

Touch to turn the automatic screen
transition function on/off.

Touch to set whether the screen
will transition to the home screen or
turn off when the automatic screen
transition function operates.

Touch to set the amount of time
(10/30/60/120 seconds) the Rear
Multi Operation Panel must be idle
before the automatic screen transi-
tion function operates.

When the screen is off, press the

button to turn the screen on and display
the previously displayed screen. Press
again to display the home screen.

■

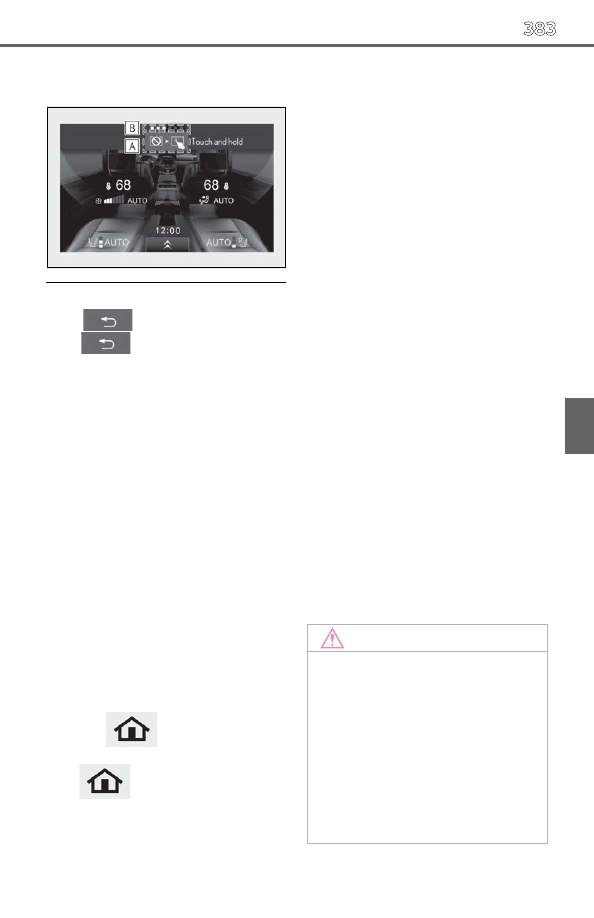

Unlocking the Rear Multi Opera-
tion Panel

Touch and hold

until the unlock

status indicators (

) are completely

383

5-1. Display

Inte
rior f
ea

tures

illuminated to unlock the Rear Multi
Operation Panel.

■

Operation screen

When

is displayed on the screen,

select

to return to the previous

screen.

■

Operating the Rear Multi Operation

Panel

●

When operating the Rear Multi Opera-

tion Panel, only use the tip of a finger. The

Rear Multi Operation Panel cannot be

operated with a fingernail, pen, etc.

●

Use only one finger when operating the

Rear Multi Operation Panel. The Rear

Multi Operation Panel cannot be oper-

ated with multiple fingers.

●

When the engine switch is changed to

ACC or ON, if a hand object, liquid or

foreign matter is touching the Rear Multi

Operation Panel, it may not operate cor-

rectly. In this case, remove anything

touching the Rear Multi Operation Panel

and wait for approximately 30 seconds

before operating it again.

If the Rear Multi Operation Panel still

cannot be operated normally, press and

hold the

button to turn the Rear

Multi Operation Panel off, and then press

the

button again to turn it back

on and operate it.

●

In the following situations, the Rear Multi

Operation Panel may not operate prop-

erly:

• If wearing gloves during operation, non

response may occur.

• If a wet hand is used to operate the Rear

Multi Operation Panel.

• If a screen cover or coating is applied to

on the Rear Multi Operation Panel.

• If the Rear Multi Operation Panel is dirty

or has liquid attached to it, incorrect

operation or non-response may occur.

• If the Rear Multi Operation Panel

receives electro magnetic waves, incor-

rect operation or non-response may

occur.

• If a mobile phone or other wireless com-

munication device brought near the Rear

Multi Operation Panel.

●

If a metal object, such as the following, is

touching or covering the Rear Multi

Operation Panel:

• Coins

• Keys

• Metallic wallets or bags

• Magnetic isolation cards

• Metallic foil, such as the inner packaging

of a cigarette box

• Disposable heat packs

• Discs, such as a CD or DVD, Cables,

such as a USB cable

• Mobile devices, such as smartphones,

mobile phones, tablets, etc.

●

Make sure to keep the Rear Multi Oper-

ation Panel clean. If the Rear Multi Oper-

ation Panel is dirty, it may not operate

correctly. (When cleaning the Rear Multi

Operation Panel, turn the screen off to

avoid unexpected operation.)

NOTICE

■

To prevent damage to the Rear Multi

Operation Panel

Observe the following precautions. Fail-

ure to do so may cause damage to the

Rear Multi Operation Panel.

●

Keep the Rear Multi Operation Panel

free of liquids, such as drinks or rain, as

they may cause a short circuit.

●

Do not sit on or set heavy objects on

the Rear Multi Operation Panel.

384

5-1. Display

NOTICE

●

Do not push the Rear Multi Operation

Panel with a strong force or use a

sharp pointed object to operate the

panel.

385

5-2. Lexus Climate Concierge

Inte
rior f
ea

tures

5-2.Lexus Climate Concierge

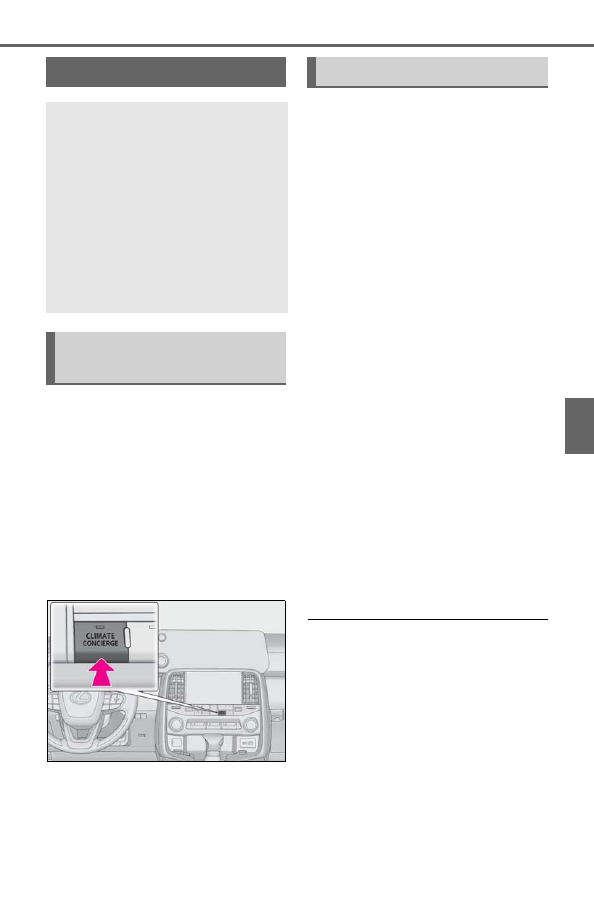

Press the “CLIMATE CONCIERGE”
switch

The indicator above the switch illuminates,
and the automatic air conditioning system,
seat heaters and ventilators, and heated
steering wheel operate in automatic mode.
If any of the system is operated manually,
the indicator turns off. However, all other
functions continue to operate in automatic
mode.

■

Automatic air conditioning system
(



P.386, 394)

The temperature can be adjusted inde-
pendently for the driver seat, passen-
ger seat, and rear seats.
When a passenger is detected in the
second seat, the rear air conditioning
operates in automatic mode.

■

Seat heaters and ventilators (if
equipped) (



P.398)

Heating or ventilation is automatically
selected according to the set tempera-
ture of the air conditioning system, the
outside temperature, etc.
The seat heaters and ventilators of the
front passenger seat and second out-
board seats operate in automatic
mode if passengers are detected.

■

Heated steering wheel (if
equipped) (



P.398)

Heated steering wheel operates auto-
matically according to the outside tem-
perature and cabin temperature.

■

Front air conditioning system operation

To improve air conditioning performance in

the front seat area, the air outlets on the

rear of the console box may close when

there is no passenger in the second seat.

■

Rear air conditioning system operation

The rear air conditioning system may stop

automatically when there is no passenger in

the second seat.

■

Seat heater/ventilator operation

When automatic mode is selected using the

seat heater/ventilator switch, passenger

detection is not performed.

Lexus Climate Concierge

The seat heaters, seat ventilators (if
equipped) and heated steering
wheel (if equipped) are each auto-
matically controlled according to
the set temperature of the air con-
ditioning system, the outside and
cabin temperature, etc. Lexus Cli-
mate Concierge allows a comfort-
able condition to be maintained
without adjusting each system.

Turning on Lexus Climate Con-
cierge

Operation of each system

386

5-3. Using the air conditioning system and defogger

5-3.Using the air conditioning system and defogger



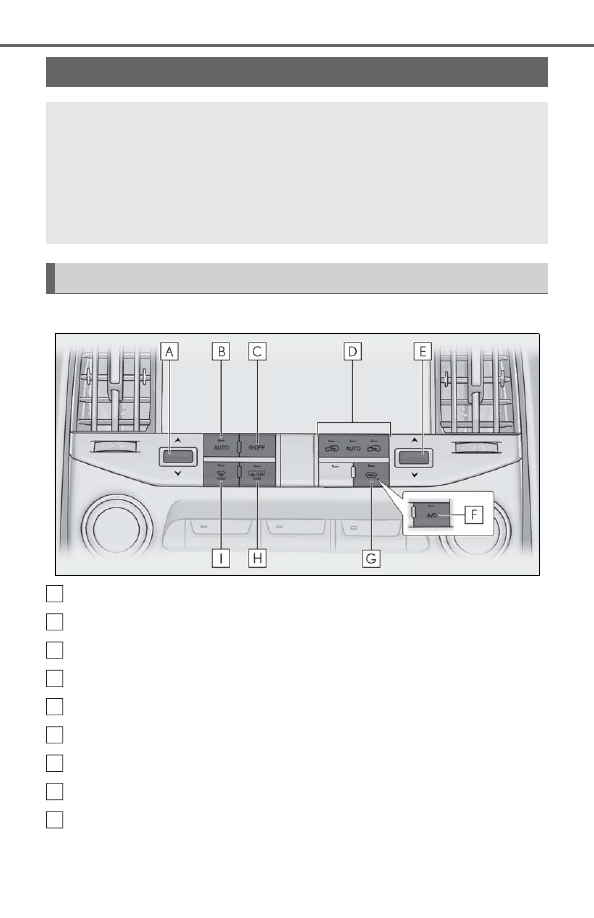

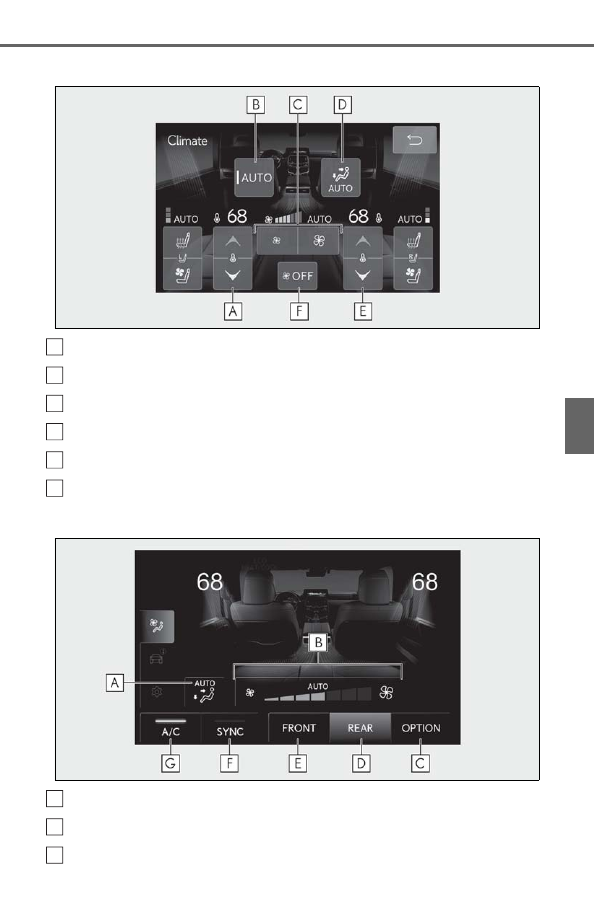

Air conditioning control panel

Left-hand side temperature control switches

Automatic mode switch

“OFF” switch

Outside/recirculated air mode switch

Right-hand side temperature control switches

“A/C” switch (if equipped)

Windshield wiper de-icer switch (if equipped)

Rear window and outside rear view mirror defoggers switch

Windshield defogger switch

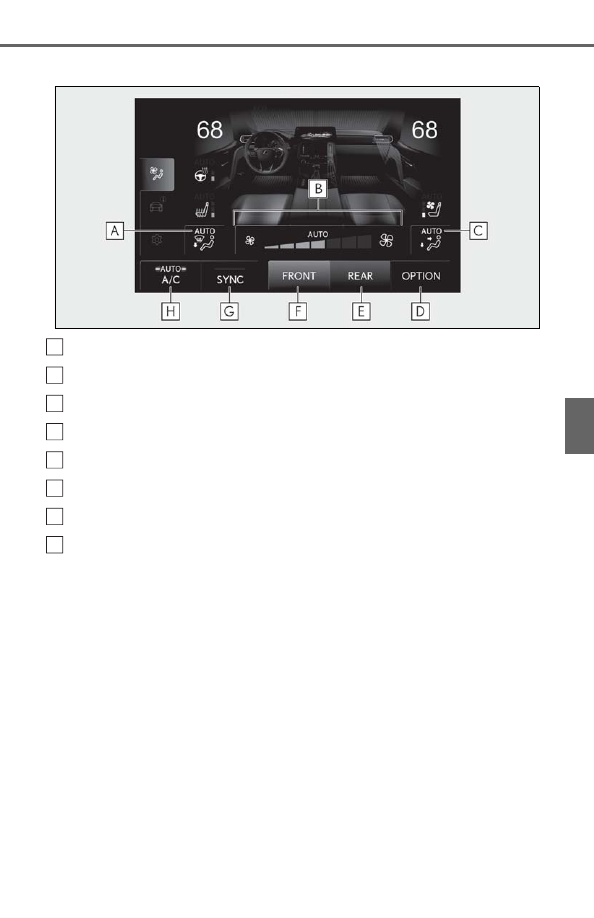

Front automatic air conditioning system

Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
The air conditioning system can be operated using the air conditioning con-
trol panel and air conditioning control screen on the Front Multi Operation
Panel.
For details about Front Multi Operation Panel, refer to P.378.

Air conditioning controls

A
B
C
D

E
F

387

5-3. Using the air conditioning system and defogger

Inte
rior f
ea

tures



Front Multi Operation Panel

Left-hand side airflow mode control switch

Fan speed control switches

Right-hand side airflow mode control switch

“OPTION” switch

“REAR” switch (



P.394)

“FRONT” switch

“SYNC” switch

“A/C” switch

■

Adjusting the temperature setting

Operate the temperature control
switches on the air conditioning con-
trol panel upwards to increase the tem-
perature.
Operate the temperature control
switches on the air conditioning con-
trol panel downwards to decrease the
temperature.

If the switch is pressed and held, the tem-
perature will continuously change.
If the indicator on the “A/C” switch does
not illuminate, the system will blow ambient
temperature air or heated air.

■

Adjusting the fan speed setting

Select the fan speed control switch on
the air conditioning control screen to
increase the fan speed.
Select the fan speed control switch on
the air conditioning control screen to
decrease the fan speed.

The fan speed is shown on the display. (7
levels)
Press the “OFF” switch on the air condi-
tioning control panel to turn the fan off.

■

Change the airflow mode

Select the airflow mode control switch
on the air conditioning control screen.

A
B
C
D

E
F

388

5-3. Using the air conditioning system and defogger

The airflow mode changes each time the
switch is selected.

: Air flows to the upper body

: Air flows to the upper body and

feet

: Air flows to the feet

: Air flows to the feet and the wind-

shield defogger operates

■

Switching between outside air and
recirculated air modes

Operate the outside/recirculated air
mode switch on the air conditioning
control panel.

The mode switches between outside air
mode, automatic mode and recirculated
air mode each time the switch is operated.
When the system is switched to automatic
mode, the air conditioning system oper-
ates automatically according to the outside
air condition.

■

Set cooling and dehumidification
function

Select the “A/C” switch on the air con-
ditioning control screen.
On some models: The “A/C” switch on
the air conditioning control panel can
also be operated to set cooling and
dehumidification function.

■

Eco air conditioning mode

The air conditioning is controlled with
low fuel consumption prioritized such
as reducing fan speed, etc.
Select the eco air conditioning mode
switch on the option control screen.
(



P.388)

■

Defogging the windshield

Defoggers are used to defog the wind-
shield and front side windows.
Press the windshield defogger switch
on the air conditioning control panel.

Set the outside/recirculated air mode
switch to outside air mode if the recircu-
lated air mode is used. (It may switch auto-
matically.)
To defog the windshield and the side win-
dows quickly, turn the air flow and tem-
perature up.
To return to the previous mode, press the
windshield defogger switch again when the
windshield is defogged.
When the windshield defogger switch is
on, the indicator illuminates on the wind-
shield defogger switch.

■

Defogging the rear window and
outside rear view mirrors

Defoggers are used to defog the rear
window and to remove raindrops, dew
and frost from the outside rear view
mirrors.
Press the rear window and outside
rear view mirror defoggers switch on
the air conditioning control panel.

The defoggers will automatically turn off
after 15 minutes. (Depending on the sur-
rounding environment and outside tem-
perature, the defogger may continue to
operate after 15 minutes have elapsed.)
When the rear window and outside rear
view mirror defoggers switch is on, the
indicator illuminates on the rear window
and outside rear view mirror defoggers
switch.

■

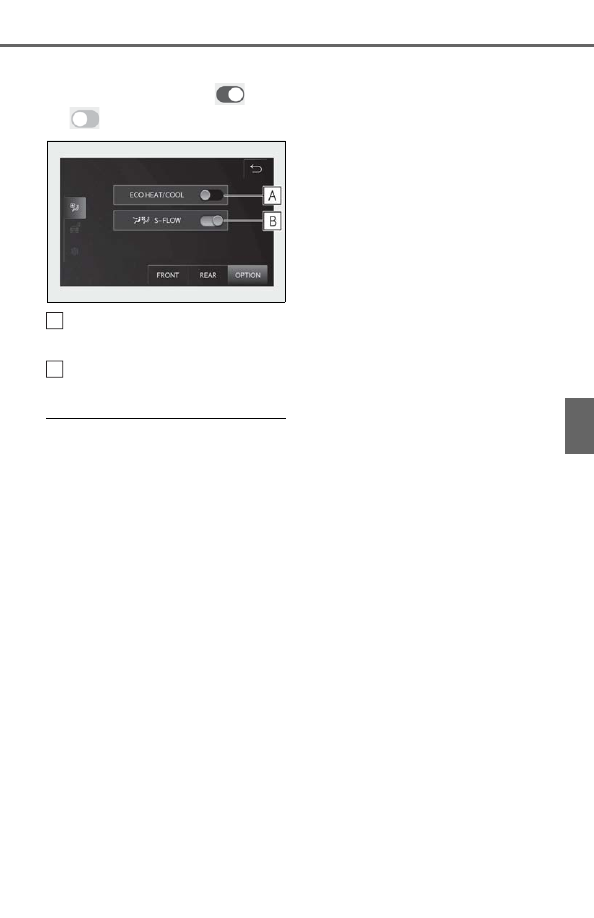

Option control screen

Select the “OPTION” switch to display

389

5-3. Using the air conditioning system and defogger

Inte
rior f
ea

tures

the option control screen.

The functions can be switched

(ON)

and

(OFF).

Eco air conditioning mode
(



P.388)

Front seat concentrated airflow
mode (S-FLOW) (



P.392)

■

When the outside temperature exceeds

75°F (24°C) and the air conditioning

system is on

●

In order to reduce the air conditioning

power consumption, the air conditioning

system may switch to recirculated air

mode automatically.

This may also reduce fuel consumption.

●

Recirculated air mode is selected as a

default mode when the engine switch is

turned to ON.

●

It is possible to switch to outside air mode

at any time by pressing the outside/recir-

culated air mode switch.

■

Fogging up of the windows

●

The windows will easily fog up when the

humidity in the vehicle is high. Turning the

cooling and dehumidification function on

will dehumidify the air from the outlets

and defog the windshield effectively.

●

If you turn the cooling and dehumidifica-

tion function off, the windows may fog up

more easily.

●

The windows may fog up if the recircu-

lated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up by the

vehicle is still drawn into the vehicle after

closing the windows, it is recommended

that the air intake mode be set to outside air

mode and the fan speed to any setting

except off.

■

Outside/recirculated air mode

●

Setting to the recirculated air mode tem-

porarily is recommended in preventing

dirty air from entering the vehicle interior

and helping to cool the vehicle when the

outside air temperature is high.

●

Outside/recirculated air mode may

automatically switch depending on the

temperature setting or the inside tem-

perature.

■

When the outside temperature falls to

nearly 32°F (0°C)

The dehumidification function may not

operate even when “A/C” switch is

selected.

■

Operation of the air conditioning sys-

tem in Eco drive mode

●

In Eco drive mode, the air conditioning

system is controlled as follows to priori-

tize fuel efficiency:

• Engine speed and compressor operation

controlled to restrict heating/cooling

capacity

• Fan speed restricted when automatic

mode is selected

●

To improve air conditioning perfor-

mance, perform the following operations:

• Adjust the fan speed

• Turn off Eco drive mode (



P.344)

• Turn off eco air conditioning mode

●

When the driving mode is set to Eco

drive mode, the eco air conditioning

mode will be turned on automatically.

Even in this case, the eco air conditioning

mode can be turned off by selecting the

eco air conditioning mode switch.

■

Ventilation and air conditioning odors

●

To let fresh air in, set the air conditioning

system to the outside air mode.

●

During use, various odors from inside

and outside the vehicle may enter into

390

5-3. Using the air conditioning system and defogger

and accumulate in the air conditioning

system. This may then cause odor to be

emitted from the vents.

●

In order to suppress odors that occur

when the air conditioning system starts,

the air flow mode may change to blow air

to the feet or air may stop blowing for a

short period of time immediately after the

air conditioning system is started in auto-

matic mode.

●

When parking, the system automatically

switches to outside air mode to encour-

age better air circulation throughout the

vehicle, helping to reduce odors that

occur when starting the vehicle.

●

To reduce potential odors from occur-

ring:

• It is recommended that the air condition-

ing system be set to outside air mode

prior to turning the vehicle off.

• The start timing of the blower may be

delayed for a short period of time imme-

diately after the air conditioning system is

started in automatic mode.

■

Using the Intelligent Assistant

Air conditioning system can be operated

using voice commands. For details, refer to

the “MULTIMEDIA OWNER’S MAN-

UAL”.

■

Air conditioning filter



P.478

■

Air conditioning system operations

when the engine is stopped due to the

Stop & Start system

When the engine is stopped due to the Stop

& Start system operations, the air condi-

tioning cooling and dehumidification func-

tions turn off and only ambient temperature

air is blown, and there is a possibility that the

blowing of ambient temperature air will

stop. To prevent the air conditioning system

from turning off, press the Stop & Start can-

cel switch to deactivate the system.

■

When the windshield is fogged up and

the engine is stopped due to the Stop &

Start system

Press the windshield defogger switch to

restart the engine and defog the windshield.

If the windshield continuously fogs up, press

the Stop & Start cancel switch and refrain

from using the Stop & Start system.

■

When an odor comes from the air con-

ditioning system while the engine is

stopped due to the Stop & Start system

Press the Stop & Start cancel switch to

restart the engine.

■

While the cool box is on (vehicles with

cool box)

The front air conditioning system cannot be

turned off.

■

Air conditioning system refrigerant

●

A label regrading the refrigerant of the

air conditioning system is attached to the

hood at the location shown in the follow-

ing illustration.

●

The meaning of each symbol on the label

are as follows:

■

Customization

Some functions can be customized.

(Customizable features:



P.563)

Caution

Air conditioning system

Air conditioning system
lubricant type

Requires registered tech-
nician to service air con-
ditioning system

Flammable refrigerant

391

5-3. Using the air conditioning system and defogger

Inte
rior f
ea

tures

Press the automatic mode switch
on the air conditioning control
panel.

Press the outside/recirculated air
mode switch to switch to automatic
mode.

Adjust the temperature setting.

To stop the operation, press the
“OFF” switch on the air condition-
ing control panel.

If the fan speed setting or air flow
modes are operated, the automatic
mode indicator goes off. However,
automatic mode for functions other
than that operated is maintained.

■

Using automatic mode

Fan speed is adjusted automatically

according to the temperature setting and

the ambient conditions.
Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-

ately after the automatic mode switch is

pressed.
Cool air may blow around the upper body

even when the heater is on due to sunlight.

■

Automatic mode for air intake control

In automatic mode, the system detects

exhaust gas and other pollutants and auto-

matically switches between outside air and

recirculated air modes. When the dehu-

midification function is off, and the fan is

operating, turning automatic mode on will

activate the dehumidification function.

To turn on the “SYNC” mode, select
the “SYNC” switch on the air condi-
tioning control screen.

The driver’s side temperature control
switches can be used to adjust the tem-
perature for the driver’s and passenger’s
side. To enter individual mode, operate the
passenger’s side temperature control
switches or select the “SYNC” switch
again.
When the “SYNC” mode is on, the indica-
tor illuminates on display.

WARNING

■

To prevent the windshield from fog-

ging up

Do not use the windshield defogger

switch during cool air operation in

extremely humid weather.

The difference between the temperature

of the outside air and that of the wind-

shield can cause the outer surface of the

windshield to fog up, blocking your

vision.

■

When the outside rear view mirror

defoggers are operating

Do not touch the rear view mirror sur-

faces when the outside rear view mirror

defoggers are on.

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning system

on longer than necessary when the

engine is not running.

■

When repairing/replacing parts of

the air conditioning system

Have repair/replacement performed by

your Lexus dealer. When a part of the air

conditioning system, such as the evapo-

rator, is to be replaced, it must be

replaced with a new one.

Using automatic mode

Adjusting the temperature and
airflow for driver and passenger
seats simultaneously (“SYNC”
mode)

392

5-3. Using the air conditioning system and defogger

Directing airflow to the front seats only
and to all seats can be switched via
switch operation. Unnecessary air
conditioning is suppressed, contribut-
ing to increased fuel efficiency.

Select

on the option control screen

of the air conditioning control screen
and switch the airflow.

(ON): Airflow to the front seats

only

(OFF): Airflow to all the seats

Even if the function is switched to directing

airflow to only the front seats, when a rear

seat is occupied, it may automatically direct

airflow to all seats.

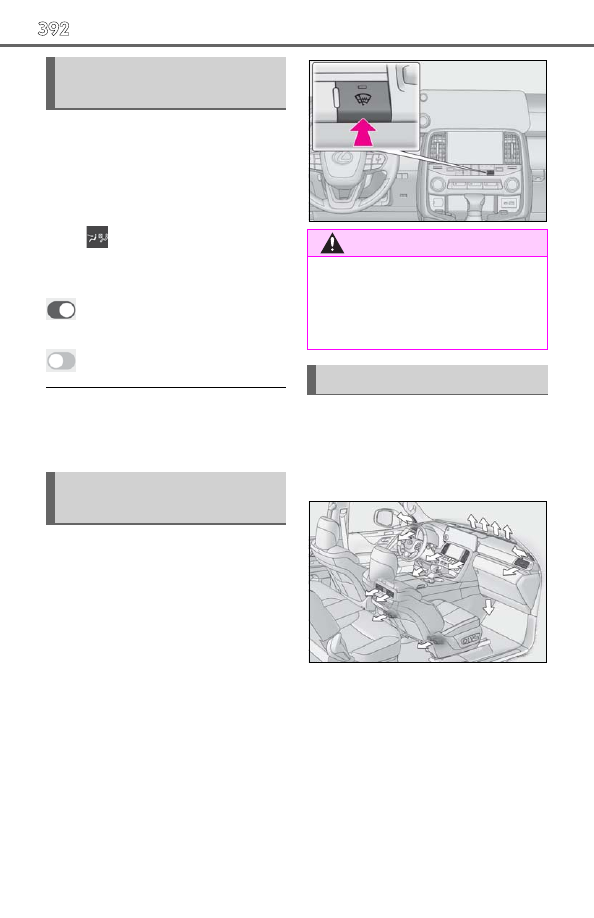

This feature is used to prevent ice from
building up on the windshield and
wiper blades.
Press the switch to turn the system
on/off.

The indicator comes on when the system is
on.
The windshield wiper de-icer will automati-
cally turn off after a period of time.

■

Location of air outlets

The air outlets and air volume change
according to the selected air flow
mode.

Using front seat concentrated
airflow mode (S-FLOW)

Windshield wiper de-icer (if
equipped)

WARNING

■

To prevent burns

Do not touch the glass at lower part of

the windshield or to the side of the front

pillars when the windshield wiper de-icer

is on.

Air outlet layout and operations

393

5-3. Using the air conditioning system and defogger

Inte
rior f
ea

tures

■

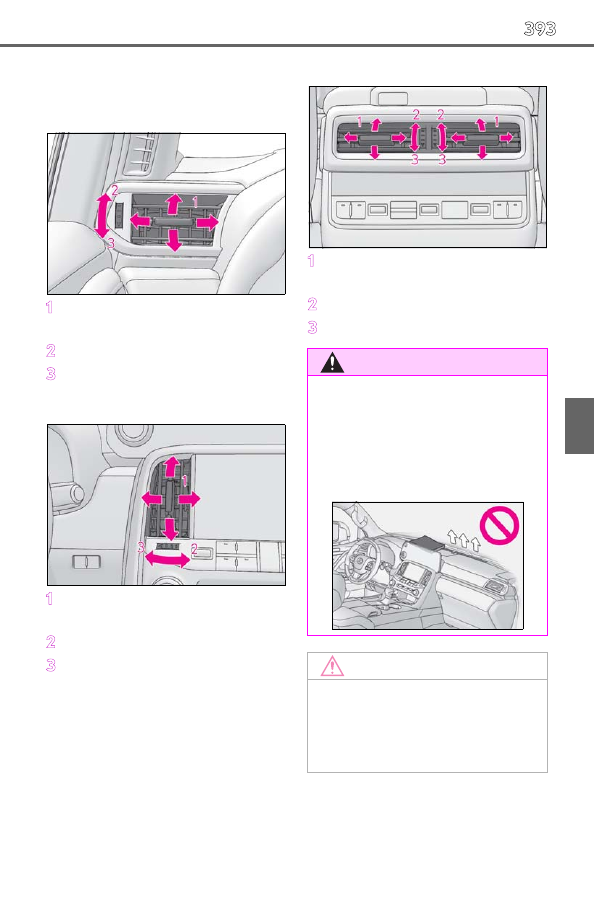

Adjusting the air flow direction and
opening/closing the air outlets



Front (side)

Direct air flow to the left or right, up
or down

Open the vent

Close the vent



Front (center)

Direct air flow to the left or right, up
or down

Open the vent

Close the vent



Rear

Direct air flow to the left or right, up
or down

Open the vent

Close the vent

WARNING

■

To not interrupt the windshield

defogger from operating

Do not place anything on the instrument

panel which may cover the air outlets.

Otherwise, air flow may be obstructed,

preventing the windshield defoggers

from defogging.

NOTICE

■

To prevent air conditioning system

malfunction

Make sure that nothing falls into the air

outlets. An object that falls into the air

outlet may cause a malfunction.

394

5-3. Using the air conditioning system and defogger



Air conditioning control panel (5-passenger and 7-passenger models)

Left-hand side temperature control switch

Automatic mode switch

Fan speed control switch

Airflow mode control switch

Right-hand side temperature control switch

“OFF” switch

Rear air conditioning system

Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.

Rear air conditioning controls

A
B
C
D

E
F

395

5-3. Using the air conditioning system and defogger

Inte
rior f
ea

tures



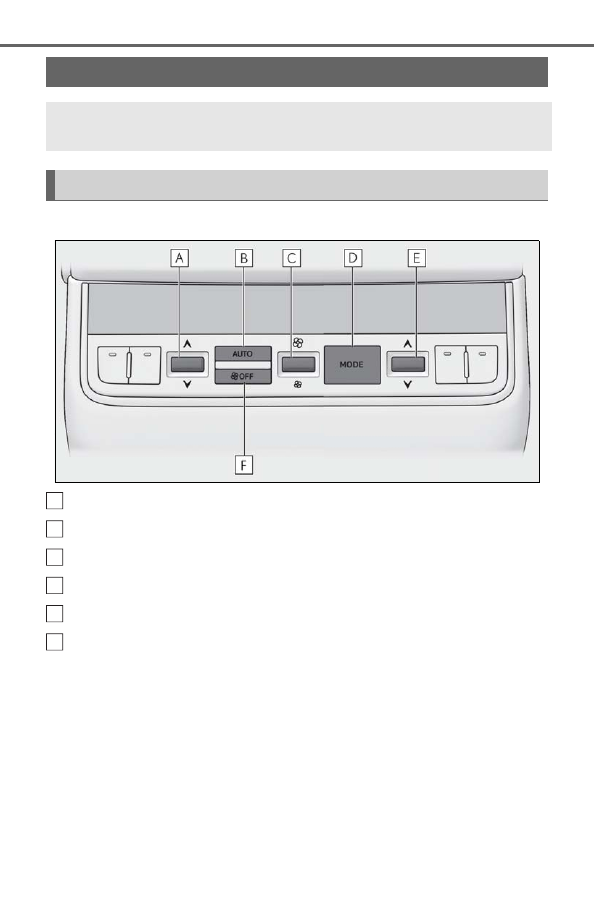

Rear Multi Operation Panel (4-passenger models)

Left-hand side temperature control switch

Automatic mode switch

Fan speed control switches

Airflow mode control switch

Right-hand side temperature control switch

“OFF” switch



Front Multi Operation Panel

Airflow mode control switch

Fan speed control switches

“OPTION” switch (



P.388)

A
B
C
D

E
F

A
B
C

Content .. 21 22 23 24 ..
