Lexus LX600 (2022 year). Manual in english - page 20

331

4-5. Using the driving support systems

riv

ing

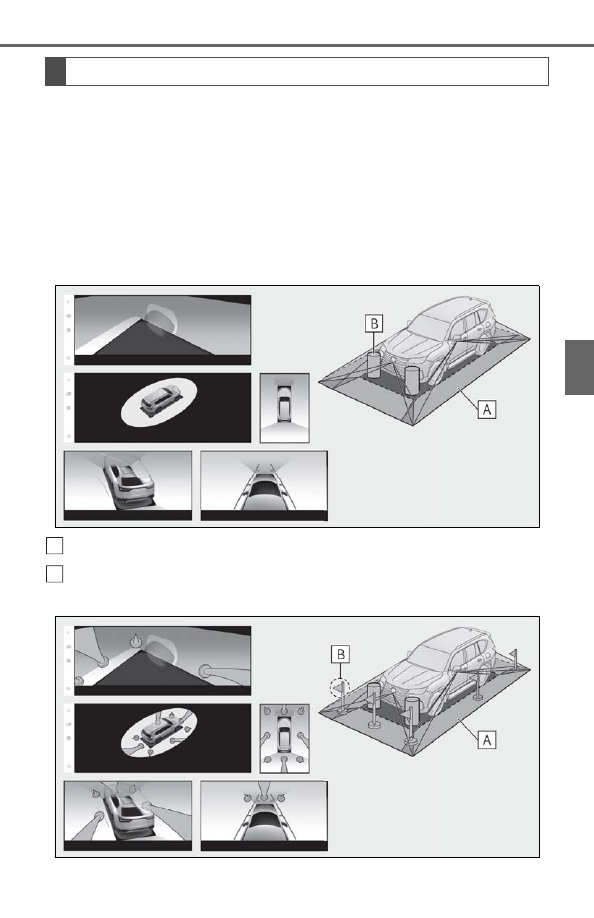

Area of image of panoramic view:
The Multi-terrain Monitor displays an image of the surrounding view of the vehicle.
Since the panoramic view processes and displays images based on flat road sur-
faces, it cannot depict the position of three-dimension objects (such as vehicle
bumpers, etc.) that are in positions higher than the surface of the road. Even if there
is room between the bumpers of the vehicles and it seems not likely to collide in the
image, in reality, the both vehicles are on a collision course.
Check the safety of the surroundings directly.

The area displayed on the screen

The objects not displayed on the screen

• Objects located in the shaded areas will not be displayed on the screen.

Area displayed on screen

A
B

332

4-5. Using the driving support systems

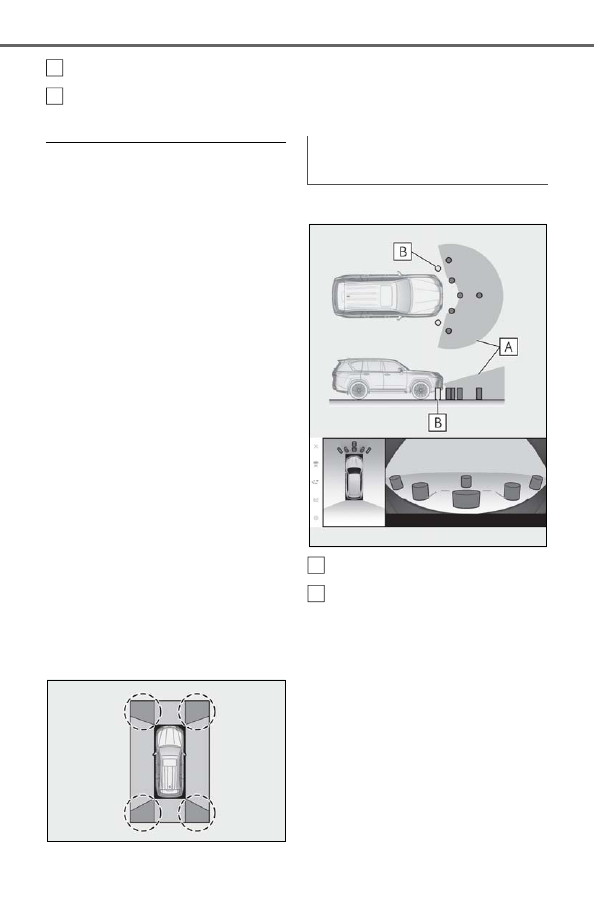

The area displayed on the screen

The parts of objects not displayed on the screen

• Parts of objects which extend above a certain height cannot be displayed on the screen.

■

Area displayed on screen

●

As the images obtained from four cam-

eras are processed and displayed on the

standard of a flat road surface; the pan-

oramic view/moving view/see-through

view/Side Clearance View/Cornering

View may be displayed as follows.

• Objects may look collapsed; thinner or

bigger than usual.

• An object with a higher position than the

road surface may look farther away than

it actually is or may not appear at all.

• Tall objects may appear protruding from

the non-displayed areas of the image.

●

Variations in the brightness of the image

may appear for every camera.

●

The displayed image may be shifted by

inclination of the vehicle body, change in

vehicle height, etc., depending on the

number of passengers, amount of lug-

gage, fuel quantity, etc.

●

If the front doors or back door are not

completely closed; neither the image nor

the guide lines are displayed.

●

The position relations of the vehicle icon

and the road surface or obstacle may dif-

fer from the actual positions.

●

The black areas of the vicinity of the vehi-

cle icon are areas that are not captured

by the camera.

●

Images like the following are combined,

thus some areas may be difficult to view.



Wide front view

The area displayed on the screen

The objects not displayed on the
screen

A
B

Area of the image captured by the
camera

A
B

333

4-5. Using the driving support systems

riv

ing



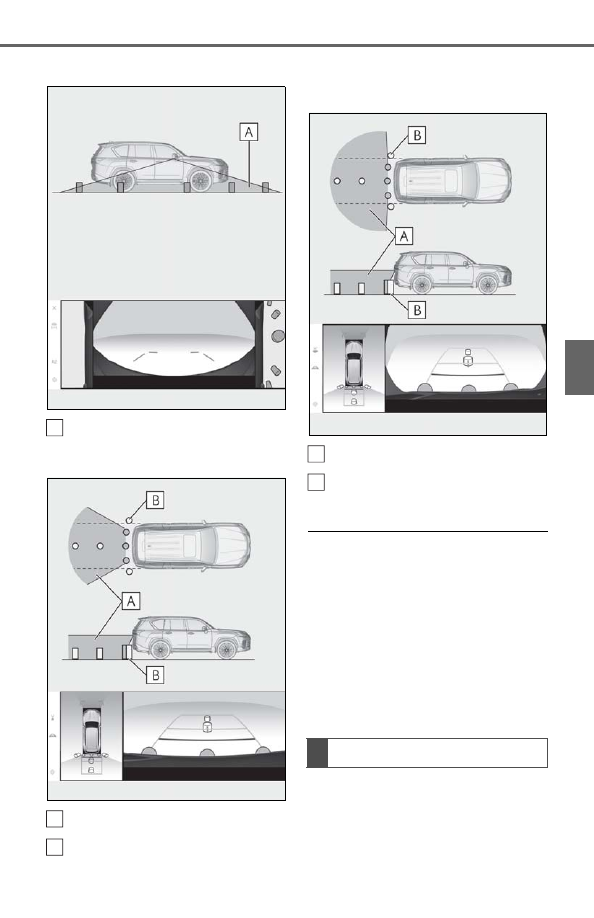

Side view

The area displayed on the screen



Rear view

The area displayed on the screen

The objects not displayed on the

screen



Wide rear view

The area displayed on the screen

The objects not displayed on the
screen

■

Display range

●

The area covered by the camera is lim-

ited. Objects which are close to either

corner of the bumper or under the

bumper cannot be seen on the screen.

●

The area displayed on the screen may

vary depending on vehicle orientation or

road conditions.

●

The camera uses a special lens. The dis-

tance in the image displayed on the

screen will differ from the actual distance.

The cameras for the Multi-terrain
Monitor are located as shown in the
illustrations.

A
B

The camera

A
B

334

4-5. Using the driving support systems



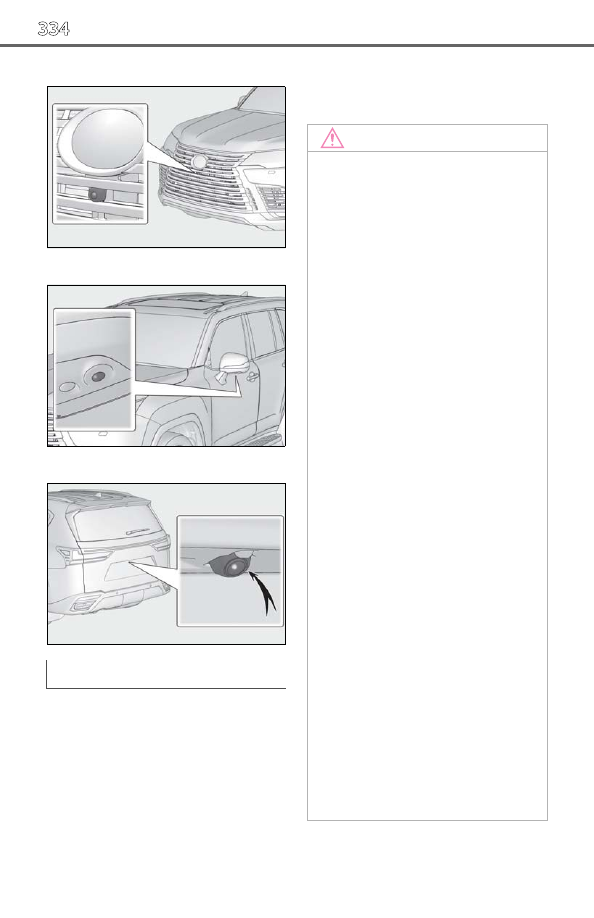

Front camera



Side cameras



Rear camera

If dirt or foreign matter (such as water
droplets, snow, mud, etc.) is adhering
to the camera, it cannot transmit a
clear image. In this case, flush it with a
large quantity of water and wipe the
camera lens clean with a soft and wet
cloth.
Rear camera: Dirt on the camera lens

can be cleaned by operating the dedi-
cated camera cleaning washer.
(



P.211)

Using the camera

NOTICE

■

How to use the cameras

●

The Multi-terrain Monitor may not

operate properly in the following

cases.

• If the front or the rear of the vehicle or

the outside rear view mirror has been

hit, the camera’s position and mount-

ing angle of the camera may change.

• As the camera has a water proof con-

struction, do not detach, disassemble

or modify it. This may cause incorrect

operation.

• When cleaning the camera lens, flush

the camera with a large quantity of

water and wipe it with a soft and wet

cloth. Strongly rubbing the camera

lens may cause the camera lens to be

scratched and unable to transmit a

clear image.

• Do not allow organic solvent, car wax,

window cleaner or glass coat to

adhere to the camera. If this happens,

wipe it off as soon as possible.

• If the temperature changes rapidly,

such as when hot water is poured on

the vehicle in cold weather, the system

may not operate normally.

• When washing the vehicle, do not

apply intensive bursts of water to the

camera or camera area. Doing so may

result in the camera malfunctioning.

• When the camera is used under fluo-

rescent lights, sodium light or mercury

light etc., the lights and the illuminated

areas may appear to flicker.

• The camera can be damaged by flying

rocks and other debris.

335

4-5. Using the driving support systems

riv

ing



When cleaning the camera, it may
be difficult to see the image due to
the washer fluid. When backing up,
be sure to visually check all around
the vehicle both directly and using
the mirrors before proceeding.



If washer fluid remains on the cam-
era lens surface after cleaning, the
image may be difficult to see at night
due to the height or inclination of
the headlights of the vehicle behind.



Some dirts may not be removed
completely after cleaning. In this
case, rinse the camera lens with a
large quantity of water and then
wipe it clean with a soft cloth damp-
ened with water.



Washer fluid is sprayed onto the
camera lens surface. Therefore, the
ice, snow, etc. adhering around the
camera cannot be removed.

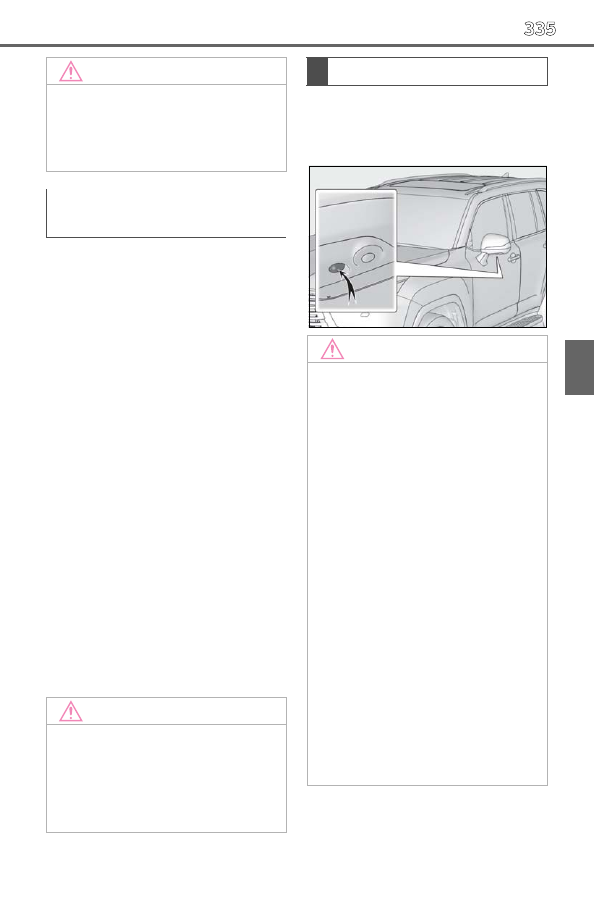

The parking assist lights of the Multi-
terrain Monitor system are installed in
the locations shown in the figure.

NOTICE

●

Do not expose the camera to strong

impacts as this could cause a malfunc-

tion. If this happens, have the vehicle

inspected by your Lexus dealer as

soon as possible.

Cleaning the rear camera with
washer fluid (rear camera)

NOTICE

■

Cleaning the camera with washer

fluid

Do not strike or hit the washer nozzle or

subject it to a strong impact, as the

washer nozzle installation position and

angle may be changed.

Parking assist lights

NOTICE

■

Parking assist lights

●

Make sure to observe the following

precautions, otherwise the Multi-ter-

rain Monitor system may not operate

correctly:

• Do not apply excessive force to a light

or subject it to a strong impact. Doing

so may cause the position or installa-

tion angle of the light to deviate.

• Do not remove, disassemble, or mod-

ify the lights as they have a waterproof

construction.

• When cleaning the lights, wash them

with a large amount of water, and then

wipe them with a soft wet cloth.

• Do not apply organic solvents, waxes,

oil removing solvents, glass coatings,

etc. to the covers of the lights, as they

are made of resin. If such is applied,

remove it immediately.

• Do not expose the lights to sudden

temperature changes, such as apply-

ing hot water to them when it is cold.

336

4-5. Using the driving support systems



The distance guide lines and the
vehicle width guide lines may not
actually be parallel with the dividing
lines of the parking space, even
when they appear to be so. Be sure
to check visually.



The distances between the vehicle
width guide lines and the left and
right dividing lines of the parking
space may not be equal, even when
they appear to be so. Be sure to
check visually.



The distance guide lines give a dis-
tance guide for flat road surfaces. In
any of the following situations, there
is a margin of error between the
guide lines on the screen and the
actual distance/course on the road.

The distance guide lines will appear to
be closer to the vehicle than the actual
distance. Because of this, objects will
appear to be farther away than they

actually are. In the same way, there will
be a margin of error between the guide
lines and the actual distance/course on
the road.

The distance guide lines will appear to
be farther from the vehicle than the
actual distance. Because of this,
objects will appear to be closer than
they actually are. In the same way,
there will be a margin of error between
the guide lines and the actual dis-
tance/course on the road.

NOTICE

• When washing the vehicle with a high-

pressure washer, do not spray water

directly on the lights or their surround-

ing area. High-pressure water can

damage the lights and cause them to

not operate correctly.

●

If a light has been subjected to a strong

impact, it may be damaged. Have the

vehicle inspected by your Lexus

dealer as soon as possible.

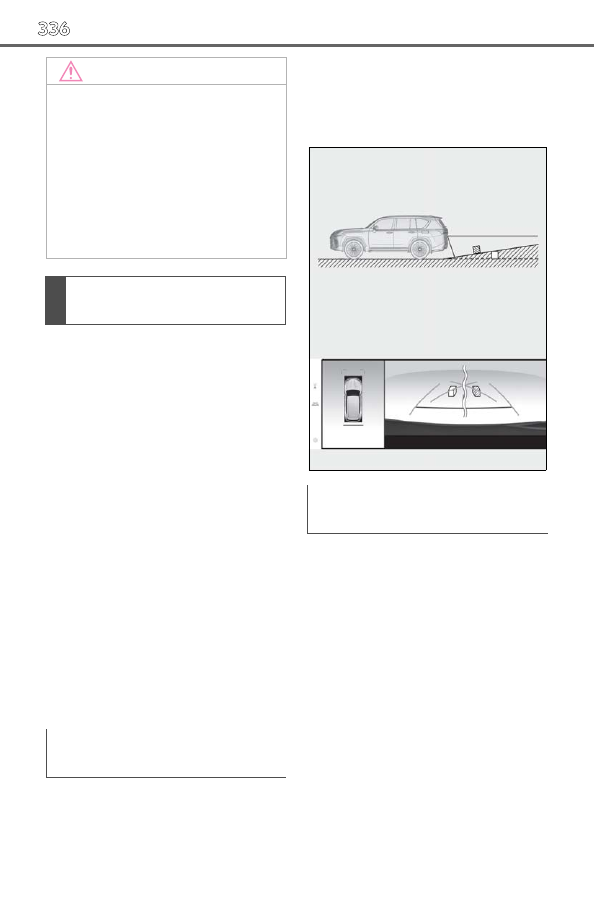

Difference between the screen
and the actual road

When the ground behind the vehicle
slopes up sharply

When the ground behind the vehicle
slopes down sharply

337

4-5. Using the driving support systems

riv

ing

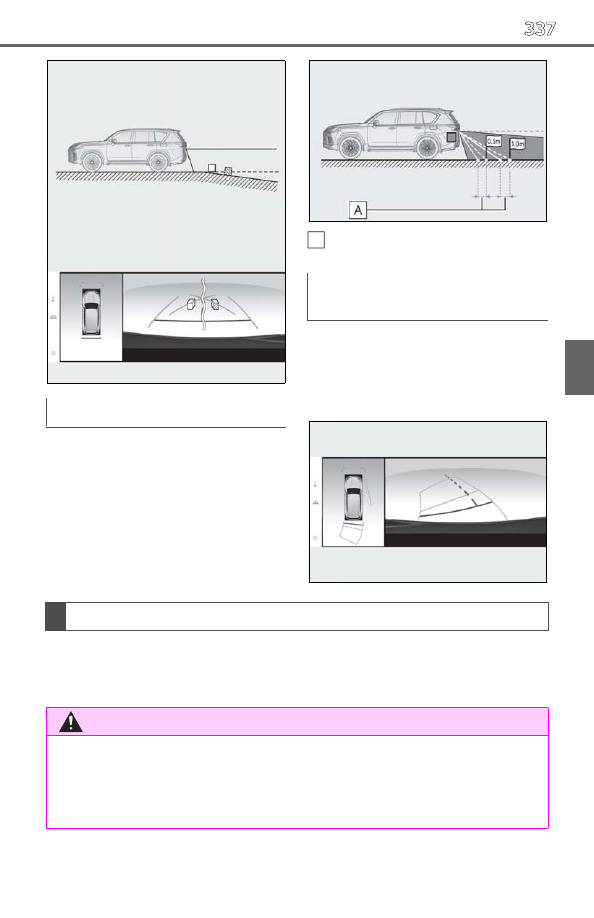

When any part of the vehicle sags due
to the number of passengers or the dis-
tribution of the load, there is a margin
of error between the guide lines on the
screen and the actual distance/course
on the road.

A margin of error

As the guide lines are shown in the air
near the rear bumper, there are times
that they may look like they are off-
center.

When there are three-dimensional objects (such as vehicle bumpers, etc.) nearby
in positions higher than the surface of the road, take extra care when using the fol-
lowing.

When any part of the vehicle sags

Vehicle center estimated course
line

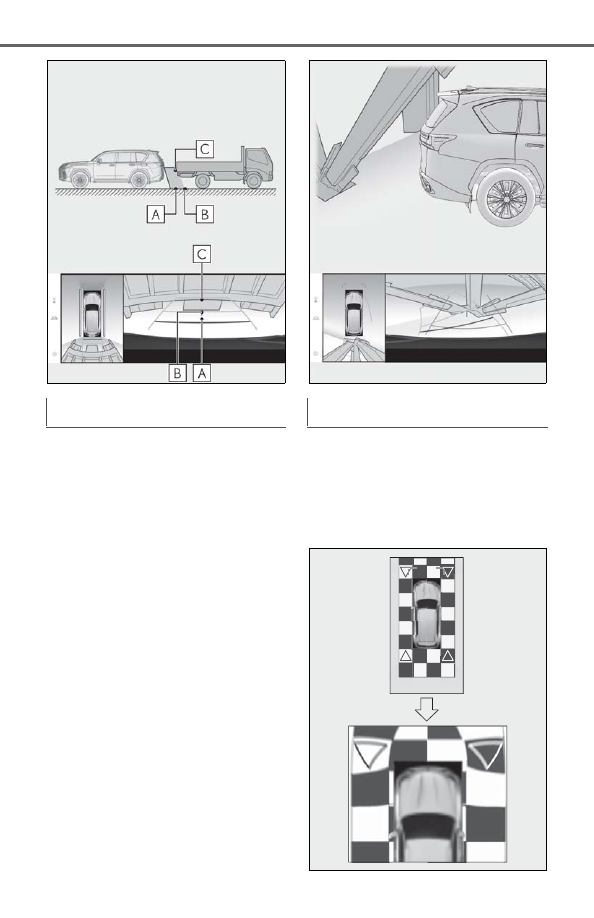

Distortion of three-dimensional objects on the screen

WARNING

■

Intuitive parking assist pop-up display

When a sensor indicator on the intuitive parking assist display illuminates in red or a

buzzer sounds continuously, be sure to check the area around the vehicle immediately

and do not proceed any further until safety has been ensured, otherwise an unexpected

accident may occur.

338

4-5. Using the driving support systems

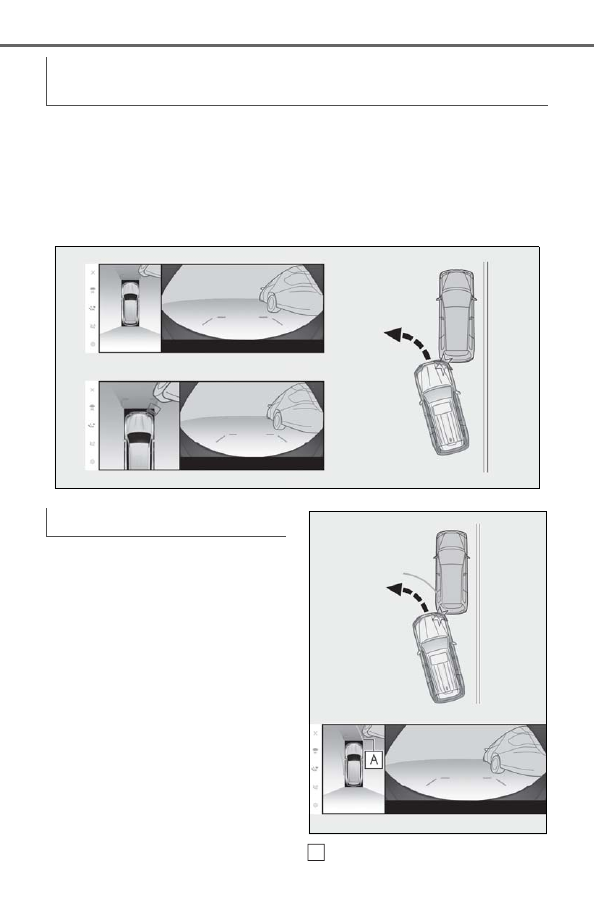

Since the panoramic view, Side Clearance View and Cornering View process and
display images based on flat road surfaces, it cannot depict the position of three-
dimension objects (such as vehicle bumpers, etc.) that are in positions higher than
the surface of the road. For example, even though it appears that there is space
between the bumpers of the two vehicles in the illustration below and they are not
likely to collide, in reality, a collision is about to occur.

Since the estimated course line is dis-
played for a flat road surface, it cannot
depict the position of three-dimen-
sional objects (such as vehicle bum-
pers, etc.) that are in positions higher
than the surface of the road. Even if the
bumper of the vehicle is on the outside
of the estimated course line in the
image, in reality, the vehicles are on a
collision course.

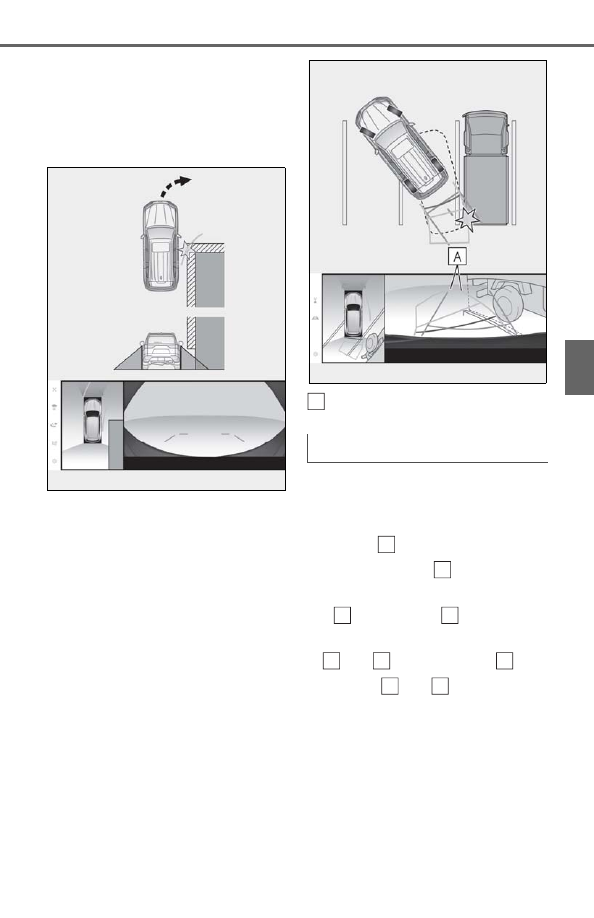

Estimated course line

Panoramic view display (including magnified display), Side Clearance View
and Cornering View display

Estimated course lines

339

4-5. Using the driving support systems

riv

ing

Three-dimensional objects (such as the
overhang of a wall or loading platform
of a truck) in high positions may not be
projected on the screen. Check the
safety of the surroundings directly.

Visually check the surroundings and
the area behind the vehicle. In the case
shown below, the truck appears to be
outside of the estimated course lines
and the vehicle does not look as if it hits
the truck. However, the rear body of
the truck may actually cross over the
estimated course lines. In reality if you
back up as guided by the estimated
course lines, the vehicle may hit the
truck.

Estimated course lines

Visually check the surroundings and
the area behind the vehicle. On the
screen, it appears that a truck is park-
ing at point

. However, in reality if

you back up to point

, you will hit

the truck. On the screen, it appears
that

is closest and

is farthest

away. However, in reality, the distance
to

and

is the same, and

farther than

and

Distance guide lines

340

4-5. Using the driving support systems

In panoramic view, a diagonal beam
may appear straight and seems likely
not to be struck, however, since the top
part of the beam is actually overhang-
ing, the vehicle may hit it. Make sure to
visually check the rear and surround-
ings.

Unlike the normal panoramic view, the
panoramic view magnifying function
zooms in on the vehicle icon. There-
fore, white lines on the road, walls, and
other objects may look bent.

Overhang of a diagonal beam

Magnifying function

341

4-5. Using the driving support systems

riv

ing

The tire position indicator lines and
vehicle position indicator lines may dif-
fer from actual vehicle positions
depending on the number of passen-
gers, weight of the load, road grade,
road surface conditions, brightness of
the surrounding environment, etc.
Always drive the vehicle while directly
confirming the safety of your surround-
ings

■

Using under vehicle terrain view

●

The images displayed were previously

taken behind the current vehicle position.

Therefore, actual conditions may differ

from those shown on the screen in the

following situations.

• When conditions changed such as when

an object moved or entered the frame

after the image was taken.

• Loose material like sand or snow has

crumbled or shifted

• An obstacle has moved

• There is a puddle, tract of mud, etc.,

within the display range

• The vehicle slips

●

In the following situations, actual tire

positions and vehicle position may differ

from those indicated by the tire position

indicator lines and vehicle position indi-

cator lines.

• Tires have been replaced

• Optional equipment has been installed

If you notice any of the following symptoms, refer to the likely cause and the solu-
tion, and re-check.
If the symptom is not resolved by the solution, have the vehicle inspected by your
Lexus dealer.

Under vehicle terrain view

WARNING

■

Guide lines

The displayed guide lines are composed

with the image that was previously taken

and may differ from the actual state.

Always drive the vehicle while confirm-

ing the safety of your surroundings.

Things you should know

If you notice any symptoms

342

4-5. Using the driving support systems

Symptom

Likely cause

Solution

The image is difficult to see



The vehicle is in a dark
area



The temperature around
the lens is either high or
low



The outside temperature is
low



There are water droplets
on the camera



It is raining or humid



Foreign matter (mud, etc.)
is adhering to the camera



Sunlight or headlights are
shining directly into the
camera



The vehicle is under fluo-
rescent lights, sodium
lights, mercury lights, etc.

Back up while visually check-
ing the vehicle’s surround-
ings. (Use the monitor again
once conditions have been
improved.)
The procedure for adjusting
the picture quality of the
Multi-terrain Monitor sys-
tem is the same as the proce-
dure for adjusting the screen
display. Refer to the “MULTI-
MEDIA OWNER’S MAN-
UAL”.

The image is blurry

Dirt or foreign matter (such
as water droplets, snow,
mud, etc.) is adhering to the
camera.

Flush the camera with a large
quantity of water and wipe
the camera lens clean with a
soft and wet cloth.
Rear camera: Operate the
dedicated camera cleaning
washer and clean the camera
lens. (



P.211)

The image is out of alignment

The camera or surrounding
area has received a strong
impact.

Have the vehicle inspected
by your Lexus dealer.

The guide lines are very far
out of alignment

The camera position is out of
alignment.

Have the vehicle inspected
by your Lexus dealer.



The vehicle is tilted. (There
is a heavy load on the vehi-
cle, tire pressure is low due
to a tire puncture, etc.)



The vehicle is used on an
incline.

If this happens due to these
causes, it does not indicate a
malfunction.
Back up while visually check-
ing the vehicle’s surround-
ings.

The estimated course lines
move even though the steer-
ing wheel is straight

There is a malfunction in the
signals being output by the
steering sensor.

Have the vehicle inspected
by your Lexus dealer.

343

4-5. Using the driving support systems

riv

ing

Guide lines are not displayed The back door is open.

Close the back door.
If this does not resolve the
symptom, have the vehicle
inspected by your Lexus
dealer.

The panoramic view display
cannot be magnified

The intuitive parking assist
may be malfunctioning or
dirty.

Follow the correction proce-
dures for malfunctions of the
intuitive parking assist.
(



P.261)

The See-through view/Mov-
ing view/Side Clearance
View/Cornering View can-
not be displayed

is displayed

When dirt is detected on the
camera.

Clean any dirt from the cam-
era for which the icon was
displayed.
Operate the dedicated cam-
era cleaning washer and
clean the camera lens.
(



P.211)

Product license

Symptom

Likely cause

Solution

344

4-5. Using the driving support systems

Multi-information display (



P.81)

MODE SELECT switch

DRIVE MODE switch

Press the DRIVE MODE switch.

The indicator

on the switch will turn on.

Select the driving modes on the
multi-information display while

turning the MODE SELECT switch
left and right.



Vehicles without Adaptive Variable
Suspension system

• Normal mode

Provides an optimal balance of fuel econ-
omy, quietness, and dynamic performance.
Suitable for city driving.

• Eco drive mode

Helps the driver accelerate in an eco-
friendly manner and improve fuel economy
through moderate throttle characteristics
and by controlling the operation of the air
conditioning system (heating/cooling). The
Eco drive mode indicator comes on.

• Sport mode

Assists acceleration response by con-
trolling the transmission, engine and steer-
ing. Suitable for when precise handling is
desirable, for example when driving on
mountain roads. The sport mode indicator
comes on.

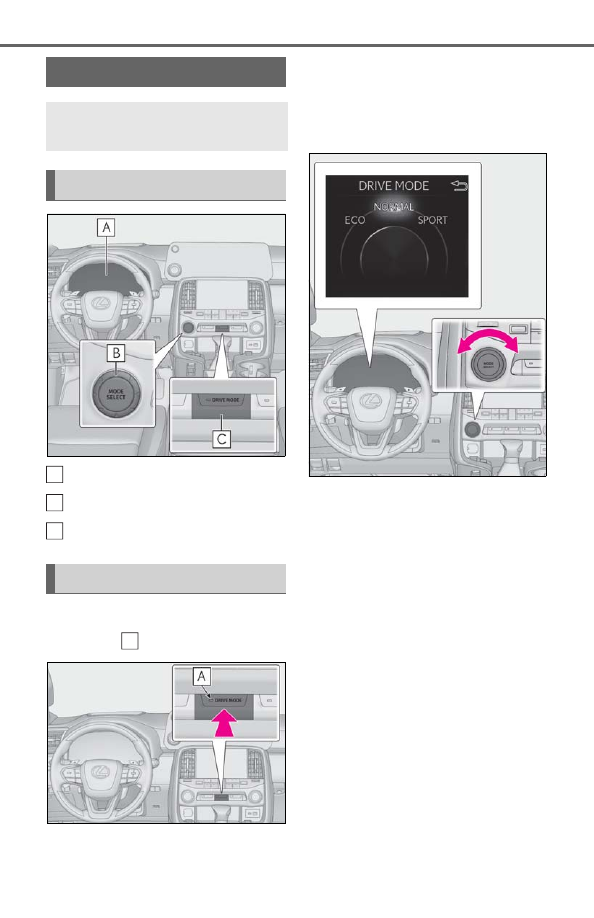

Driving mode select switch

The driving modes can be selected
to suit driving condition.

System components

Selecting the driving mode

A
B
C

345

4-5. Using the driving support systems

riv

ing



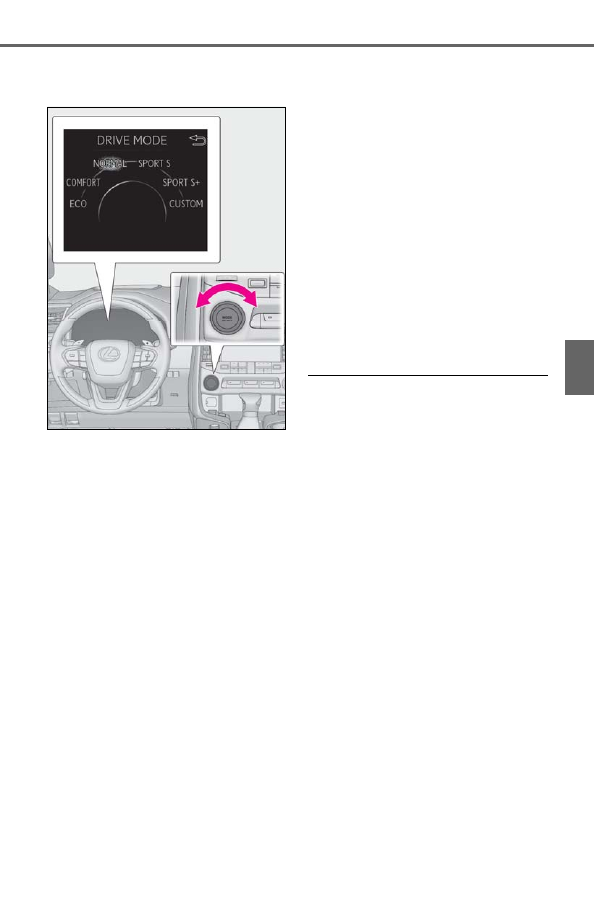

Vehicles with Adaptive Variable
Suspension system

• Normal mode

Provides an optimal balance of fuel econ-
omy, quietness, and dynamic performance.
Suitable for city driving.

• Comfort mode

By controlling the suspension, riding com-
fort is further enhanced. Suitable for city
driving. The comfort mode indicator
comes on.

• Eco drive mode

• SPORT S mode

Assists acceleration response by con-
trolling the transmission. This mode is suit-
able for when powerful acceleration is
desired. The SPORT S mode indicator
comes on.

• SPORT S+ mode

Helps to ensure the controllability and sta-
bility of the vehicle by integrally controlling
the steering wheel and suspensions as well
as the transmission and engine, making it
suitable for sporty driving. The SPORT S+
mode indicator comes on.

• Custom mode

Allows you to drive with the power train,
steering wheel, suspensions and air condi-
tioning system functions set to your pre-
ferred settings. Custom mode settings can
only be changed on the drive mode cus-
tomization display of Multimedia Display.
(



P.552) The custom mode indicator

comes on.

■

The driving mode select switch can be

operated when

The four-wheel drive control switch is in

H4.

■

Operation of the air conditioning sys-

tem in Eco drive mode

Eco drive mode controls the heating/cool-

ing operations and fan speed of the air con-

ditioning system to enhance fuel efficiency.

To improve air conditioning performance,

perform the following operations:
• Turn off eco air conditioning mode

(



P.388)

• Adjust the fan speed (



P.387)

• Turn off Eco drive mode (



P.344)

■

Automatic deactivation of driving mode

Driving mode is deactivated and the driving

mode will be changed to normal mode in

the following conditions:



When SPORT S mode, SPORT S+ mode

or custom mode is selected

●

After turning the engine switch off and

then turning it to ON.

●

When the four-wheel drive control

switch is in L4

●

When the Multi-terrain Select is turned

346

4-5. Using the driving support systems



When Eco drive mode or comfort mode

is selected

●

When the four-wheel drive control

switch is in L4

●

When the Multi-terrain Select is turned

■

Customization (vehicles with Adaptive

Variable Suspension system)

The Custom mode can be changed.
(Customizable features:



P.565)

: If equipped

■

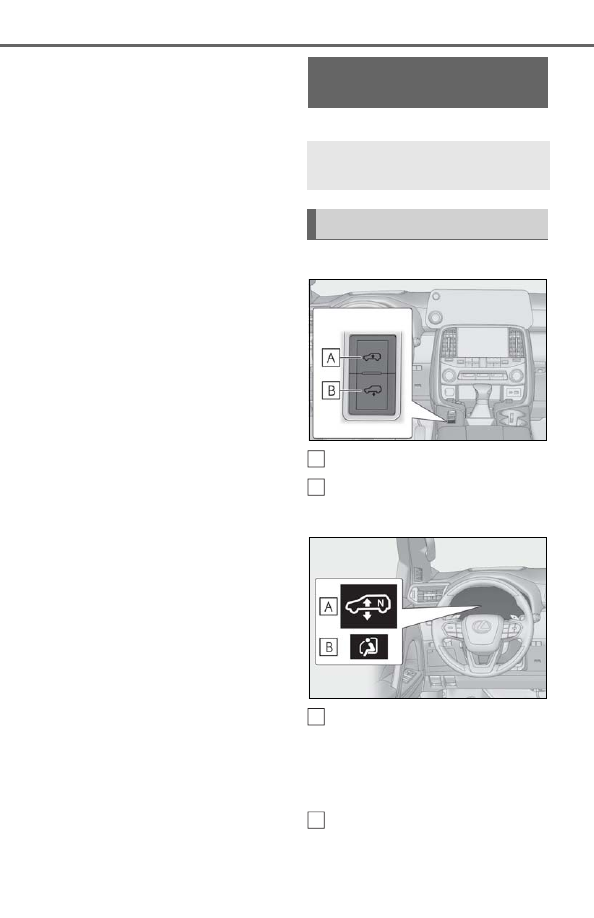

Height select switches

Higher

Lower

■

Meter display

AHC display

When the vehicle is stopped, selected
vehicle height mode is displayed. When
driving, current vehicle height mode is dis-
played.

Easy access mode indicator

AHC (Active Height Control
Suspension)

The vehicle height modes can be
selected to suit driving condition.

System components

A
B

Content .. 18 19 20 21 ..
