5-3. Using the air conditioning system and defogger



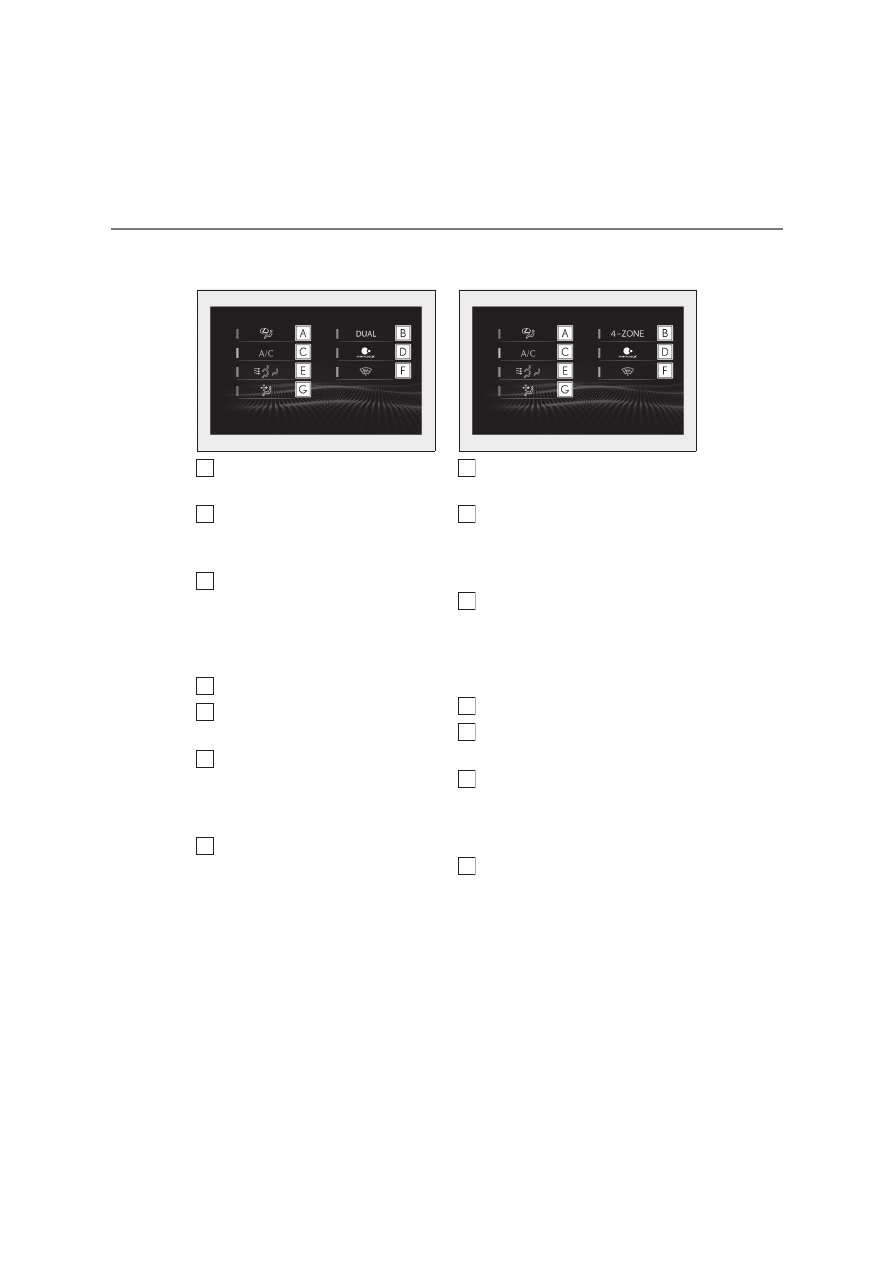

Vehicles with DUAL-ZONE climate
control

Set Lexus Climate Concierge
(



P.339)

Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode) (



P.350)

Cooling and dehumidification func-
tion

If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature airor
heated air.

nanoe™ X

system on/off

Select front seat concentrated air-
flow mode (S-FLOW) (



P.349)

Prevent ice from building up on the
windshield and wiper blades
(Windshield wiper de-icer) (if
equipped)
Removing pollen from the air (Pol-
len removal mode)

: nanoe™ and the nanoe™ mark are

trademarks of Panasonic Corporation.



Vehicles with 4-ZONE climate con-
trol

Set Lexus Climate Concierge
(



P.339)

Adjust the temperature for driver,
passenger and rear seats sepa-
rately (“4-ZONE” mode)
(



P.350)

Cooling and dehumidification func-
tion

If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature airor
heated air.

nanoe™ X

system on/off

Select front seat concentrated air-
flow mode (S-FLOW) (



P.349)

Prevent ice from building up on the
windshield and wiper blades
(Windshield wiper de-icer) (if
equipped)
Removing pollen from the air (Pol-
len removal mode)

: nanoe™ and the nanoe™ mark are

trademarks of Panasonic Corporation.

347

5-3. Using the air conditioning system and defogger

rior f
ea

ture
s

■

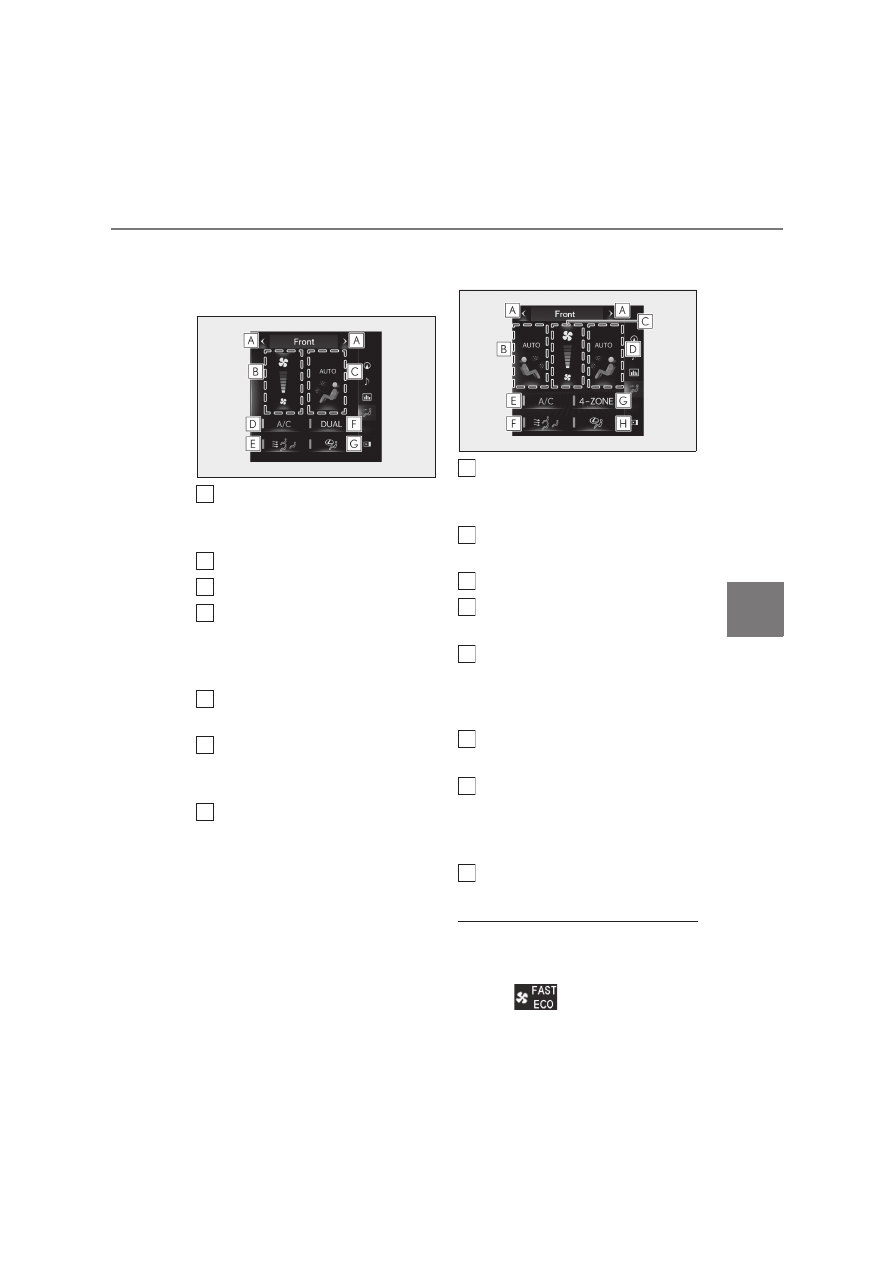

Side display



Vehicles with DUAL-ZONE climate
control

Display the front seat heaters/front
seat ventilators control screen
(



P.355)

Adjust the fan speed setting
Select the air flow mode
Set cooling and dehumidification
function on/off

If the indicator is turned off, the system will
blow ambient temperature airor heated air.

Select front seat concentrated air-
flow mode (S-FLOW) (



P.349)

Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode) (



P.350)

Set Lexus Climate Concierge
(



P.339)



Vehicles with 4-ZONE climate con-
trol

Display the front seat heaters/front
seat ventilators control screen
(



P.355)

Select the left side seat air flow
mode
Adjust the fan speed setting
Select the right side seat air flow
mode
Set cooling and dehumidification
function on/off

If the indicator is turned off, the system will
blow ambient temperature airor heated air.

Select front seat concentrated air-
flow mode (S-FLOW) (



P.349)

Adjust the temperature for driver,
passenger and rear seats sepa-
rately (“4-ZONE” mode)
(



P.350)

Set Lexus Climate Concierge
(



P.339)

■

Blower customization

Fan speed setting during the automatic

mode operation can be customized.

Each time

is selected, the fan speed

setting mode changes as follows.

B
C
D

C
D

348

5-3. Using the air conditioning system and defogger

“NORMAL”



“ECO”



“FAST”



“NORMAL”

■

Windshield wiper de-icer (if equipped)

This feature is used to prevent ice from

building up on the windshield and wiper

blades.
The windshield de-icer will automatically

turn off after a while.

■

Pollen removal mode

Outside air mode switches to

(recirculated air) mode. Pollen is removed

from the air and the air flows to the upper

part of the body.
Usually the system will automatically turn

off after a while.
In order to prevent the windshield from fog-

ging up when the outside air is cold, the

dehumidification function may operate or

the outside/recirculated air mode may not
switch to

(recirculated air) mode.

Pollen is filtered even if the pollen removal

mode is turned off.

■

nanoe™ X

system

This vehicle incorporates a biocidal prod-

uct.

Ionised air generated by a device incorpo-

rated in the vehicle purifies the air in the

cabin by suppressing bacteria.

Active substance: Free radicals generated

in situ from ambient air or water
nanoe™ helps to provide purified air by

emitting electrically charged water parti-

cles through the front center vent on the
driver’s side*

●

When the fan is turned on and nanoe™ X

on the option control screen is selected,

the nanoe™ X system is activated.

●

When the fan is operated in the following

conditions, system performance will be

maximized. If the following conditions are

not met, performance will be limited.

• The

air outlets are being

used.

• The front center vent on driver’s side is

open.

●

When nanoe™ X is generated, a small

amount of ozone is emitted and may be

faintly smelled in some situations. How-

ever, this is approximately the same as the

amount that already exists in nature, such

as in forests, and it has no affect on the

human body.

●

A slight noise may be heard during oper-

ation. This is not a malfunction.

: nanoe™ X is a nanoe™ generator.

: According to temperature and humidity

conditions, fan speed and direction of
the air flow, the nanoe™ system may not
operate at full capacity.

Press the automatic mode switch.

WARNING

■

To prevent burns (vehicles with wind-

shield wiper de-icer)

Do not touch the glass at lower part of

the windshield or to the side of the front

pillars when the windshield wiper de-icer

is on.

■

nanoe™ X

Do not disassemble or repair the genera-

tor because it contains high voltage

parts. Contact any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer if the generator

needs repair.

NOTICE

■

To prevent damage to the nanoe™ X

Do not insert anything into the driver’s

side vent, attach anything to it, or use

sprays around the driver’s side vent.

These things may cause the generator

not to work properly.

Using automatic mode

349

5-3. Using the air conditioning system and defogger

rior f
ea

ture
s

Press the outside/recirculated air
mode switch to switch to automatic
air intake mode.

The air conditioning system automatically

switches between outside air and recircu-

lated air modes.

Adjust the temperature setting.

To stop the operation, press the off
switch.

If the fan speed setting or air flow modes

are operated, the automatic mode indica-

tor goes off. However, automatic mode for

functions other than that operated is main-

tained.

■

Using automatic mode

Fan speed is adjusted automatically accord-

ing to the temperature setting and the

ambient conditions.
Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-

ately after the automatic mode switch is

pressed or “AUTO” is selected.
Cool air may blow around the upper body

even when the heater is on due to sunlight.

■

Automatic mode for air intake control

In automatic mode, the system detects

exhaust gas and other pollutants and auto-

matically switches between outside air and

recirculated air modes.
When the dehumidification function is off,

and the fan is operating, turning automatic

mode on will activate the dehumidification

function.

This function automatically controls the
air conditioning airflow so that priority
is given to the front seats. When the
front passenger seat is not occupied,
airflow may switch to only the driver's

seat. Unnecessary air conditioning is
suppressed, contributing to increased
fuel efficiency.
Front seat concentrated airflow mode
operates in the following situations.



No passengers are detected in the
rear seats



The windshield defogger is not
operating



Pollen removal mode is not operat-
ing

While operating, the indicator is turned
on.

■

Manually turning front seat con-
centrated airflow mode on/off

In front seat concentrated airflow
mode, directing airflow to the front
seats only and to all seats can be
switched via switch operation. When
the mode has been switched manually,
automatic airflow control stops operat-
ing.

Select

on the option control

screen (



P.345) and switch the air-

flow.



Indicator illuminated: Airflow to the
front seats only



Indicator off: Airflow to all the seats.

■

Operation of automatic airflow control

●

In order to maintain a comfortable inte-

rior, airflow may be directed to seats

without passengers immediately after the

engine is started and at other times

depending on the outside temperature.

●

After the engine is started, if passengers

Front seat concentrated airflow
mode (S-FLOW)

350

5-3. Using the air conditioning system and defogger

move around inside or enter/exit the vehi-

cle, the system cannot accurately detect

the presence of passengers and auto-

matic airflow control will not operate.

■

Operation of manual airflow control

Even if the function is manually switched to

directing airflow to only the front seats,

when a rear seat is occupied, it may auto-

matically direct airflow to all seats.

■

To return to automatic airflow control

With the indicator off, turn the engine

switch off.

After 60 minutes or more elapse, turn

the engine switch to IGNITION ON

mode.



Vehicles with DUAL-ZONE climate
control

To turn on the “DUAL” mode, perform
any of the following procedures:



Select “DUAL” on the main control
screen. (



P.344)



Select “DUAL” on the option con-
trol screen.



Adjust the passenger’s side temper-
ature setting.

The indicator on the main control screen
comes on when the “DUAL” mode is on.



Vehicles with 4-ZONE climate con-
trol

To turn on the “4-ZONE” mode, per-
form any of the following procedures:



Select “4-ZONE” on the main con-
trol screen. (



P.344)



Select “4-ZONE” on the option

control screen.



Adjust a passenger seat tempera-
ture setting.

The indicator on the main control screen
comes on when the “4-ZONE” mode is on.

■

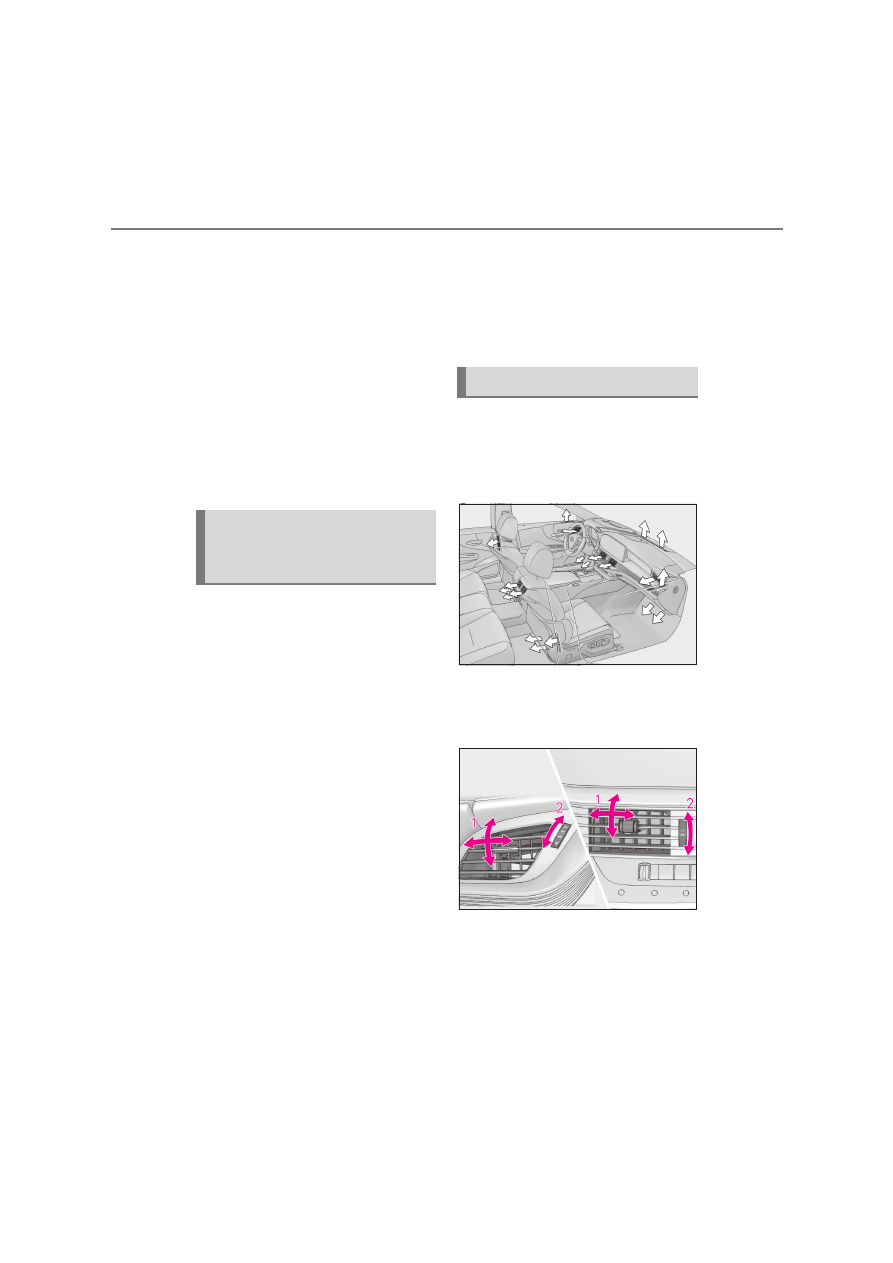

Location of air outlets

The air outlets and air volume changes
according to the selected air flow
mode.

■

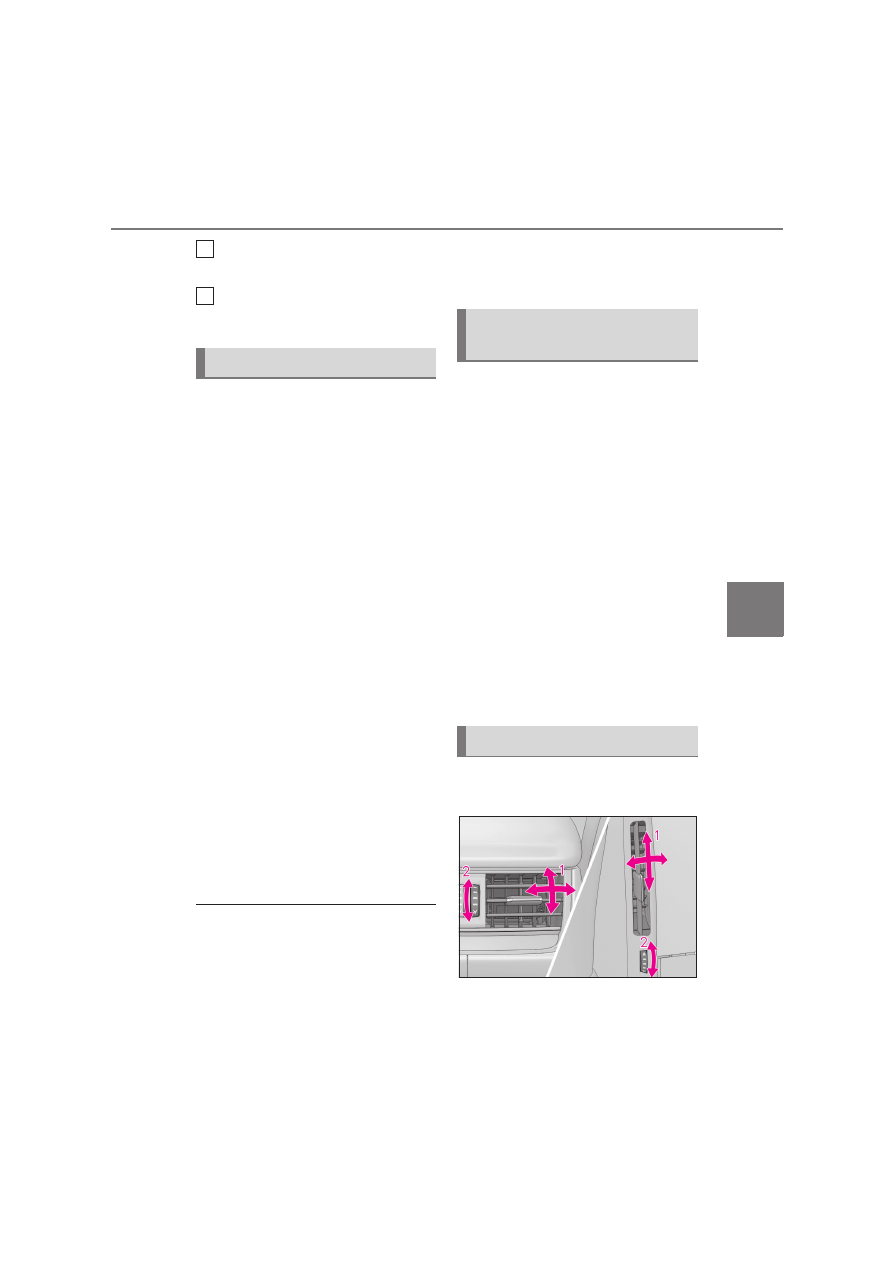

Adjusting the position of and open-
ing and closing the air outlets



Front center/front side

Direct air flow to the left or right, up
or down

Turn the knob to open or close the
vent

Adjusting the temperature for
the driver and passenger seats
separately

Air outlet layout and operations

351

5-3. Using the air conditioning system and defogger

rior f
ea

ture
s



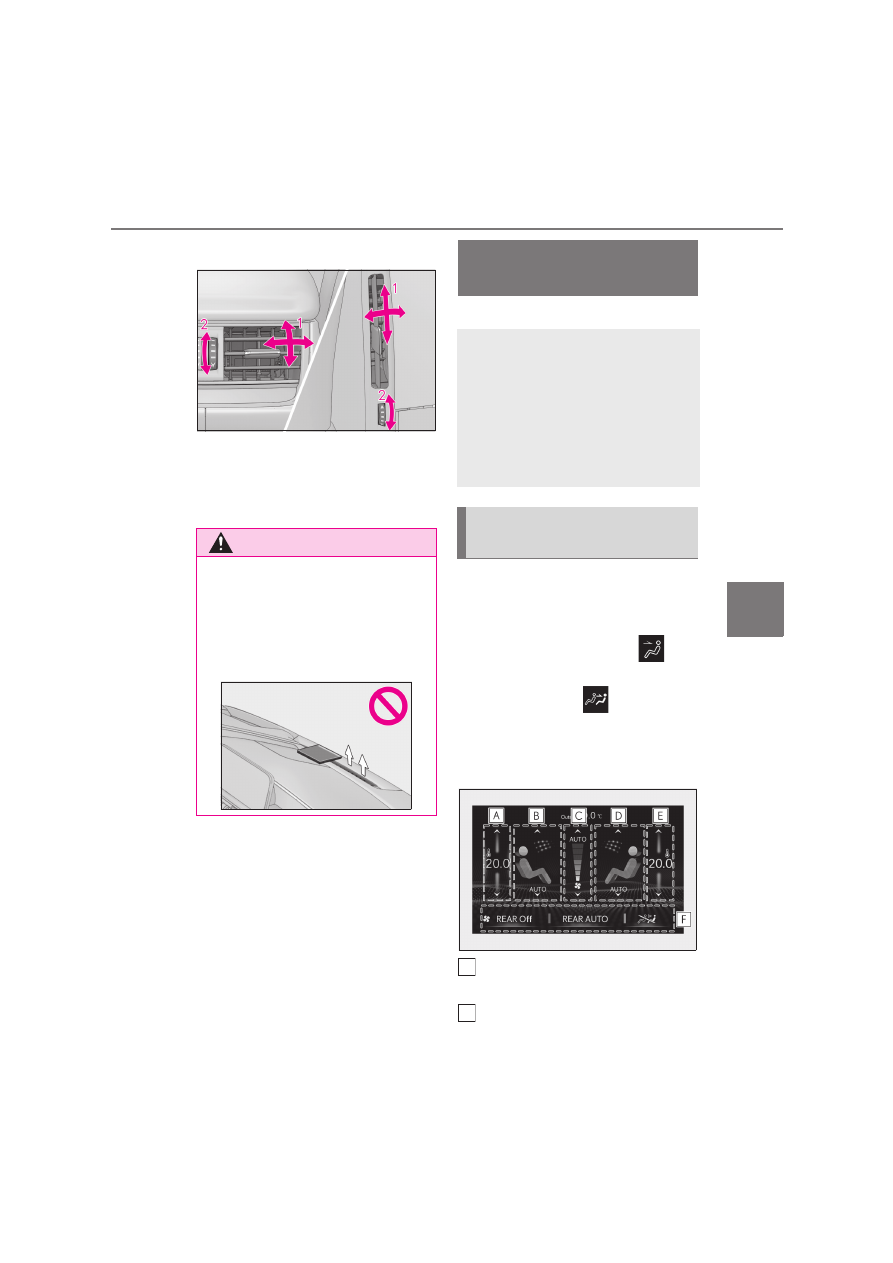

Rear center/rear side

Direct air flow to the left or right, up
or down

Turn the knob to open or close the
vent

: If equipped

■

Center Display

Press the “MENU” button on the
Remote Touch to display the main

menu and move the cursor to

display the climate control shortcut

buttons. Then, select

to display the

rear air conditioning control screen.

This system can also be operated by the
touch screen.

Adjust the left side rear seat tem-
perature setting
Select the left side rear seat air flow

WARNING

■

To prevent the windshield defogger

from operating improperly

Do not place anything on the instrument

panel which may cover the air outlets.

Otherwise, air flow may be obstructed,

preventing the windshield defoggers

from defogging.

Rear automatic air condi-
tioning system

The air outlets and fan speed are
automatically adjusted according
to the temperature setting.

The rear air conditioning system
can be operated using the Center
Display and Rear Multi Operation
Panel.

Rear air conditioning control
screen

352

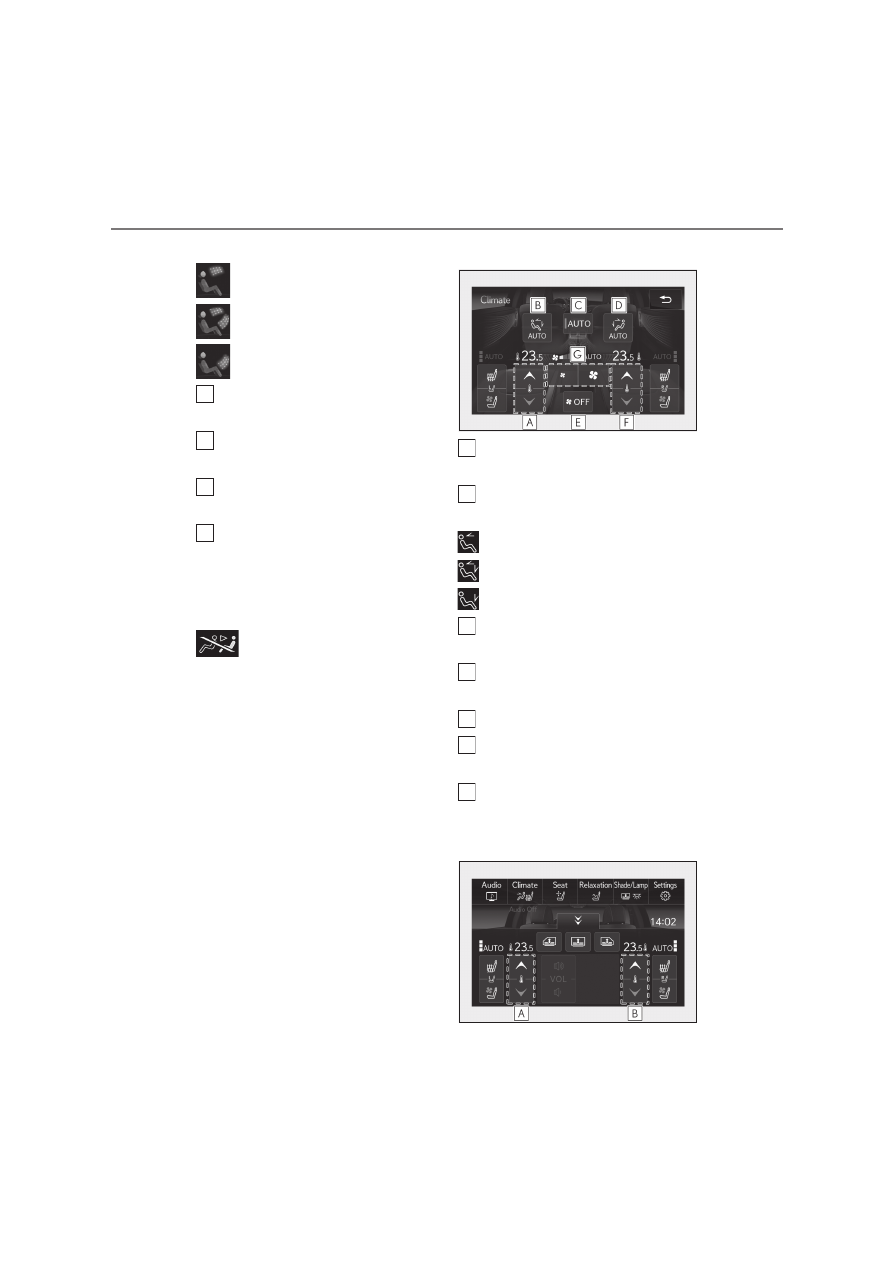

5-3. Using the air conditioning system and defogger

mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

Adjust the rear seats fan speed set-
ting
Select the right side rear seat air
flow mode
Adjust the right side rear seat tem-
perature setting
Switch the following functions on
and off

“REAR Off”: Turn the rear seats fan off
“REAR AUTO”: Set the rear seats auto-
matic mode on/off (



P.353)

: Disables operation of the rear air

conditioning system using the Rear Multi
Operation Panel

■

Rear Multi Operation Panel

Touch “Climate” on the home screen to
display the rear air conditioning con-
trol screen.(



P.336)

Some functions of the rear air condi-
tioning system can also be operated
from the shortcut screen.

The Rear Multi Operation Panel cannot be
used to operate the rear air conditioning
system if the function is disabled.



Rear air conditioning control screen

Adjust the left side rear seat tem-
perature setting
Select the left side rear seat air flow
mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

Set the rear seats automatic mode
on/off (



P.353)

Select the right side rear seat air
flow mode
Turn the rear seats fan off
Adjust the right side rear seat tem-
perature setting
Adjust the rear seats fan speed set-
ting



Shortcut screen

E
F

353

5-3. Using the air conditioning system and defogger

rior f
ea

ture
s

Adjust the left side rear seat tem-
perature setting
Adjust the right side rear seat tem-
perature setting



Center Display

Select “REAR AUTO” on the rear
air conditioning control screen.
(



P.351)

To stop the operation, select
“REAR Off” on the rear air condi-
tioning control screen. (



P.351)

If the fan speed setting or air flow
modes are operated, the automatic
mode indicator goes off. However,
automatic mode for functions other
than that operated is maintained.



Rear Multi Operation Panel

Select “AUTO” on the rear air con-
ditioning control screen. (



P.352)

To stop the operation, select “OFF”
on the rear air conditioning control
screen. (



P.351)

If the fan speed setting or air flow
modes are operated, the automatic
mode indicator goes off. However,
automatic mode for functions other
than that operated is maintained.

■

Using automatic mode

Fan speed is adjusted automatically accord-

ing to the temperature setting and the

ambient conditions.
Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-

ately after “REAR AUTO” is selected or

“AUTO” is touched.
Cool air may blow around the upper body

even when the heater is on due to sunlight.

The temperature setting of the rear
seats can be adjusted using the follow-
ing methods:



When the “4-ZONE” indicator is
off: Adjust the driver’s seat tempera-
ture.

Adjust the temperature setting of each
rear seat using the Center Display or Rear
Multi Operation Panel.



Adjust the temperature setting of
each rear seat using the Center Dis-
play (rear air conditioning control
screen) or Rear Multi Operation
Panel.

The temperature setting of each rear seat
can be changed independently.

■

Rear center outlets and rear side
outlets

Direct air flow to the left or right, up
or down

Using automatic mode

Adjusting the temperature set-
ting of the rear seats

Air outlet layout and operations

354

5-3. Using the air conditioning system and defogger

Turn the knob to open or close the
vent

: If equipped

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning system

on longer than necessary when the

engine is off.

Heated steering wheel

/seat

heaters

/seat ventilators



Heated steering wheel

Warms up the grip of the steering
wheel



Front seat heaters/Rear seat
heaters

Warm up the seat upholstery



Front seat ventilators/Rear seat
ventilators

Maintain good ventilation by pulling
air through the seat upholstery

The Center Display and Rear Multi
Operation Panel/rear control
panel can be used to operate the
heated steering wheel, seat heaters
and seat ventilators.

WARNING

■

To prevent minor burn injuries

Care should be taken if anyone in the fol-

lowing categories comes in contact with

the steering wheel or seats when the

heater is on:

●

Babies, small children, the elderly, the

sick and the physically challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alcohol or

drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

355

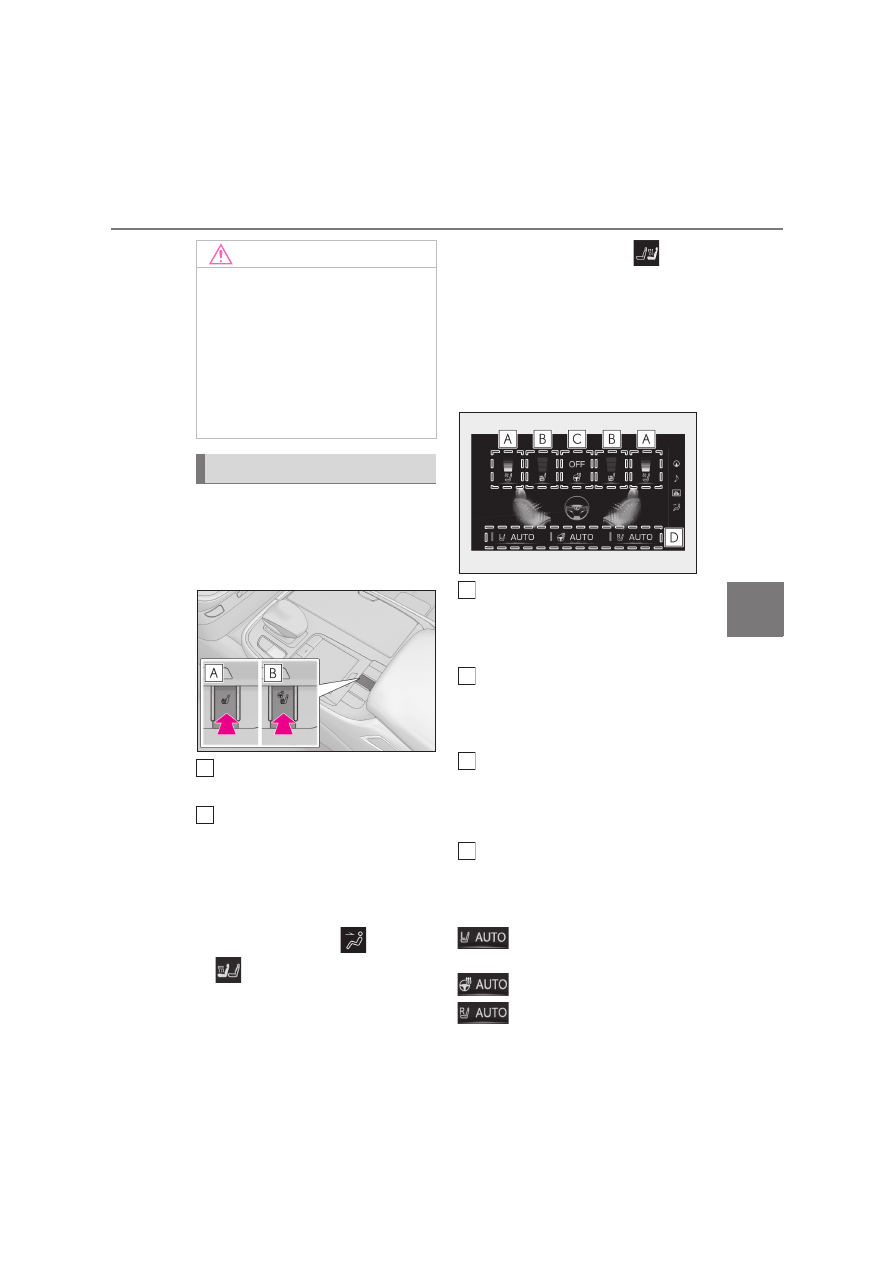

5-3. Using the air conditioning system and defogger

rior f
ea

ture
s

■

Center Display

Press the switch to display the heated
steering wheel/front seat heater/front
seat ventilator control screen.

Vehicles without heated steering
wheel
Vehicles with heated steering
wheel

The heated steering wheel/front seat
heater/front seat ventilator control screen
can also be displayed by pressing the
“MENU” button on the Remote Touch and

then moving the cursor to

and select-

ing

from the displayed shortcut menu.

To display the rear seat heater/rear seat

ventilator control screen, select

. (if

equipped)



Main screen

Using the touchpad of the Remote
Touch, select the button on the screen.

This system can also be operated by the
touch screen.

Adjust the seat ventilator fan speed
level

The seat ventilator can be adjusted in 3 lev-
els. (Low, Mid or Hi)

Adjust the seat heater temperature
level

The seat heater can be adjusted in 3 levels.
(Low, Mid or Hi)

Adjust the heated steering wheel
temperature level

The heated steering wheel can be adjusted
in 2 levels. (Low or Hi)

Change the following functions to
automatic mode.

When the automatic mode is on, the indi-
cator illuminates on the screen.

: Left-hand side seat heater/seat

ventilator

: Heated steering wheel

: Right-hand side seat heater/seat

NOTICE

■

To prevent damage to the seat heat-

ers and seat ventilators

Do not put heavy objects that have an

uneven surface on the seat and do not

stick sharp objects (needles, nails, etc.)

into the seat.

■

To prevent battery discharge

Do not use the functions when the

engine is off.

Control screen

356

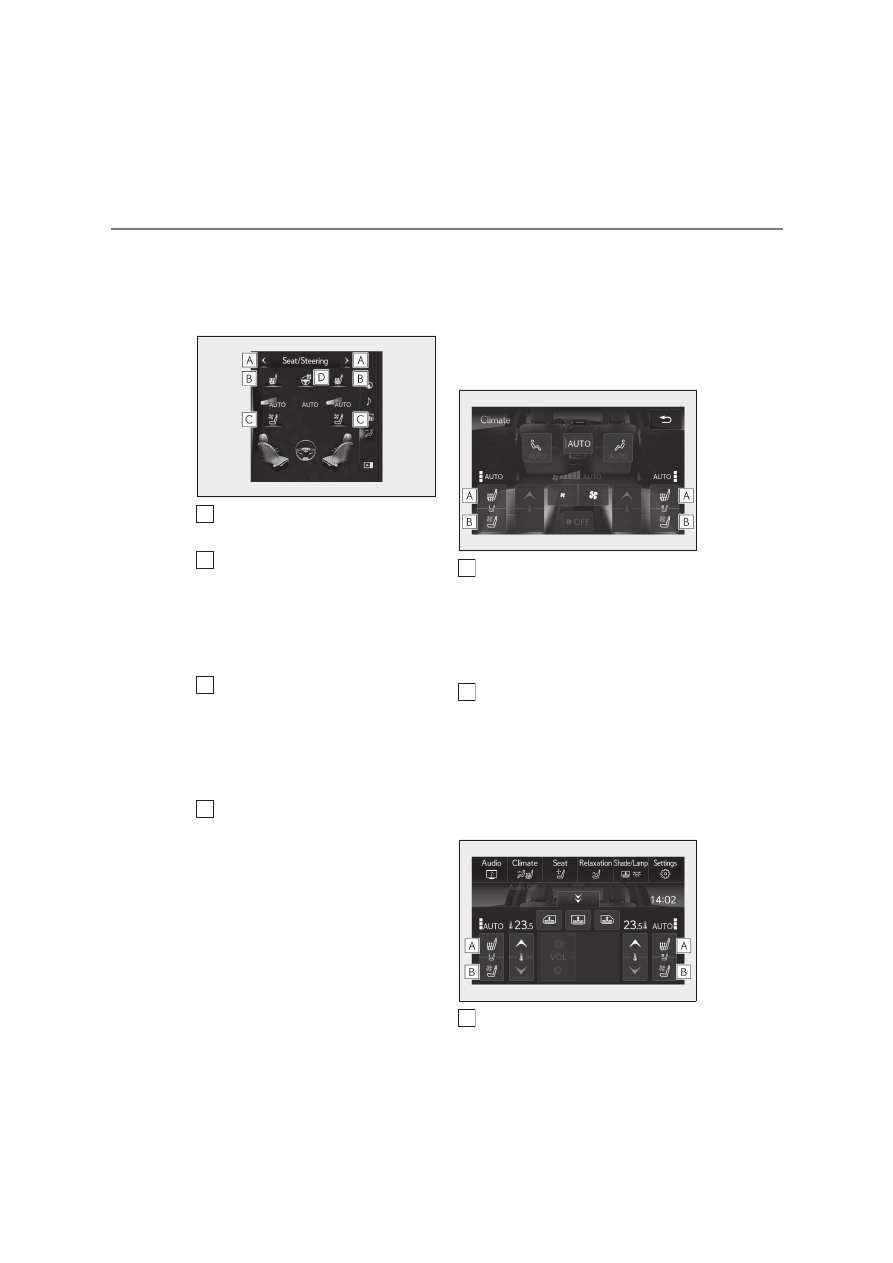

5-3. Using the air conditioning system and defogger

ventilator

: Available on the front seat control

screen only



Side screen

Display the air conditioning control
screen:



P.347

Adjust the front seat heater tem-
perature level

Each time the switch is selected, the tem-
perature level and level indicator (orange)
change as follows:
AUTO



Mid



OFF

Adjust the front seat ventilator fan
speed level

Each time the switch is selected, the fan
speed level and level indicator (blue)
change as follows:
AUTO



Mid



OFF

Adjust the heated steering wheel
temperature level

Each time the switch is selected, the tem-
perature level and level indicator change
as follows:
AUTO



OFF

■

Rear Multi Operation Panel (if
equipped)

Touch “Climate” on the home screen to
display the air conditioning control
screen.(



P.336)

The rear seat heaters and rear seat ventila-
tors can also be operated from the short-
cut screen.
The Rear Multi Operation Panel cannot be
used to operate the rear air conditioning
system if the function is disabled. (



P.351)



Rear air conditioning control screen

Adjust the rear seat heater temper-
ature level

Each time the switch is selected, the tem-
perature level and level indicator (orange)
change as follows:
AUTO



Mid



OFF

Adjust the rear seat ventilator fan
speed level

Each time the switch is selected, the fan
speed level and level indicator (blue)
change as follows:
AUTO



Mid



OFF



Shortcut screen

Adjust the rear seat heater temper-

357

5-3. Using the air conditioning system and defogger

rior f
ea

ture
s

ature level

Each time the switch is selected, the tem-
perature level and level indicator (orange)
change as follows:
AUTO



Mid



OFF

Adjust the rear seat ventilator fan
speed level

Each time the switch is selected, the fan
speed level and level indicator (blue)
change as follows:
AUTO



Mid



OFF

■

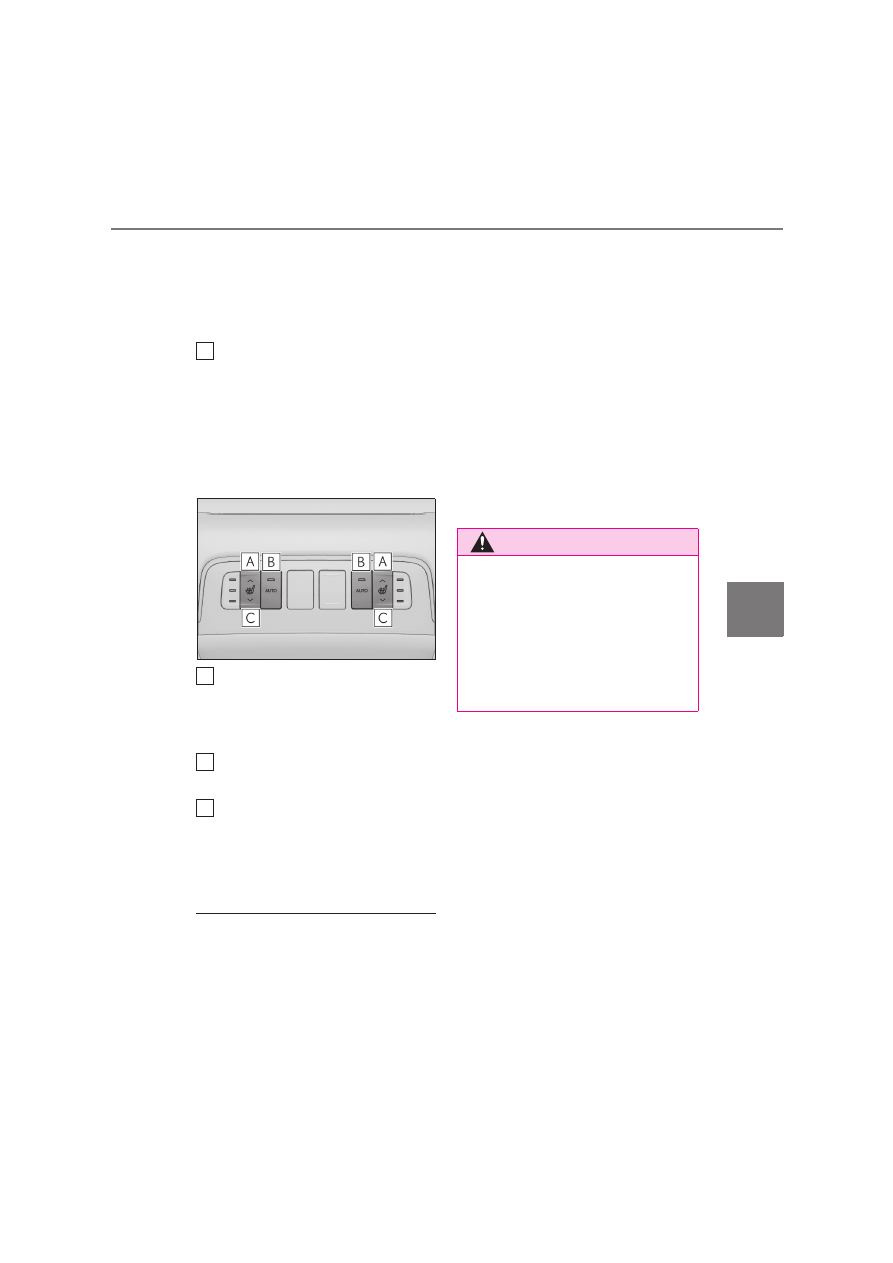

Rear control panel (if equipped)

Increases the rear seat heater tem-
perature level

The seat ventilator can be adjusted in 3 lev-
els. (Low, Mid or Hi)

Enables/Disables the automatic
mode of the rear seat heaters
Decreases the rear seat heater
temperature level

If this switch is selected when the rear seat
heater temperature level is set to Lo, the
rear seat heater will turn off.

■

The heated steering wheel, seat heaters

and seat ventilators can be used when

The engine switch is in IGNITION ON

mode.

■

Air conditioning system-linked control

mode

When the seat ventilator fan speed level is

Hi, the seat ventilator fan speed becomes

higher according to the fan speed of the air

conditioning system.

■

When the air conditioning system is

operating in front seat concentrated air-

flow mode (S-FLOW)

If a passenger is not detected in the front

passenger seat, the seat ventilator and seat

heater of the front passenger’s seat will be

turned off if on. (



P.349)

■

Customization

Some functions can be customized.

(



P.476)

WARNING

■

To prevent overheating and minor

burn injuries

Observe the following precautions when

using the seat heaters.

●

Do not cover the seat with a blanket or

cushion when using the seat heater.

●

Do not use seat heater more than nec-

essary.

358

5-4. Using the interior lights

5-4.Using the interior lights

Rear personal lights (



P.359)

Inside door handle lights
Front personal lights (



P.359)

Front interior lights (



P.359)

Clock light
Footwell lights
Engine switch light
Door trim ornament lights
Door courtesy lights
Seat belt buckle lights
Outer foot lights
Rear interior light (



P.359)

Shift lever lights

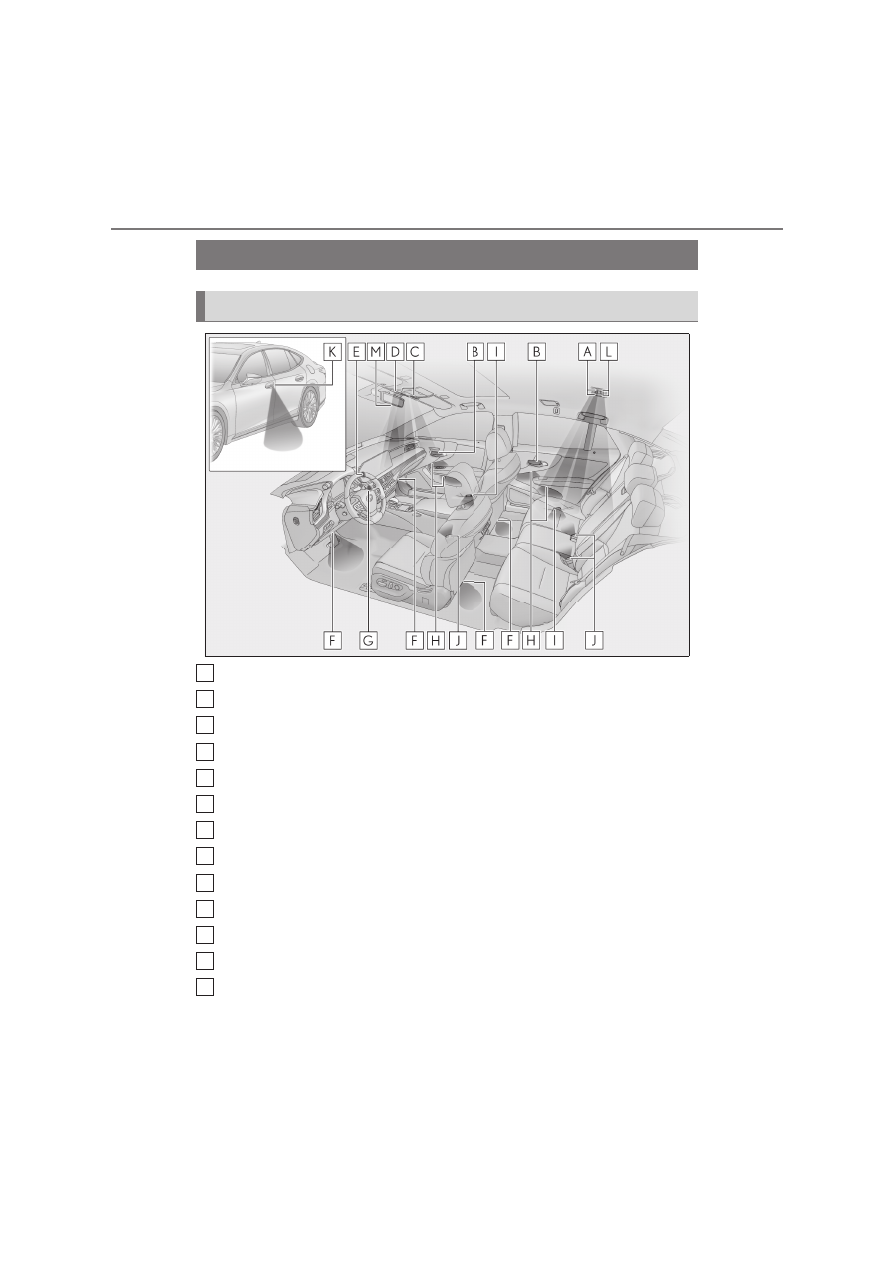

Interior lights list

Location of the interior lights

A
B
C
D

E
F

359

5-4. Using the interior lights

rior f
ea

ture
s

■

Turning the door position on

Press the door-linked interior light
switch

The lights are turned on and off according
to whether the doors are opened/closed.
When the door position is on, the indicator

illuminates.

■

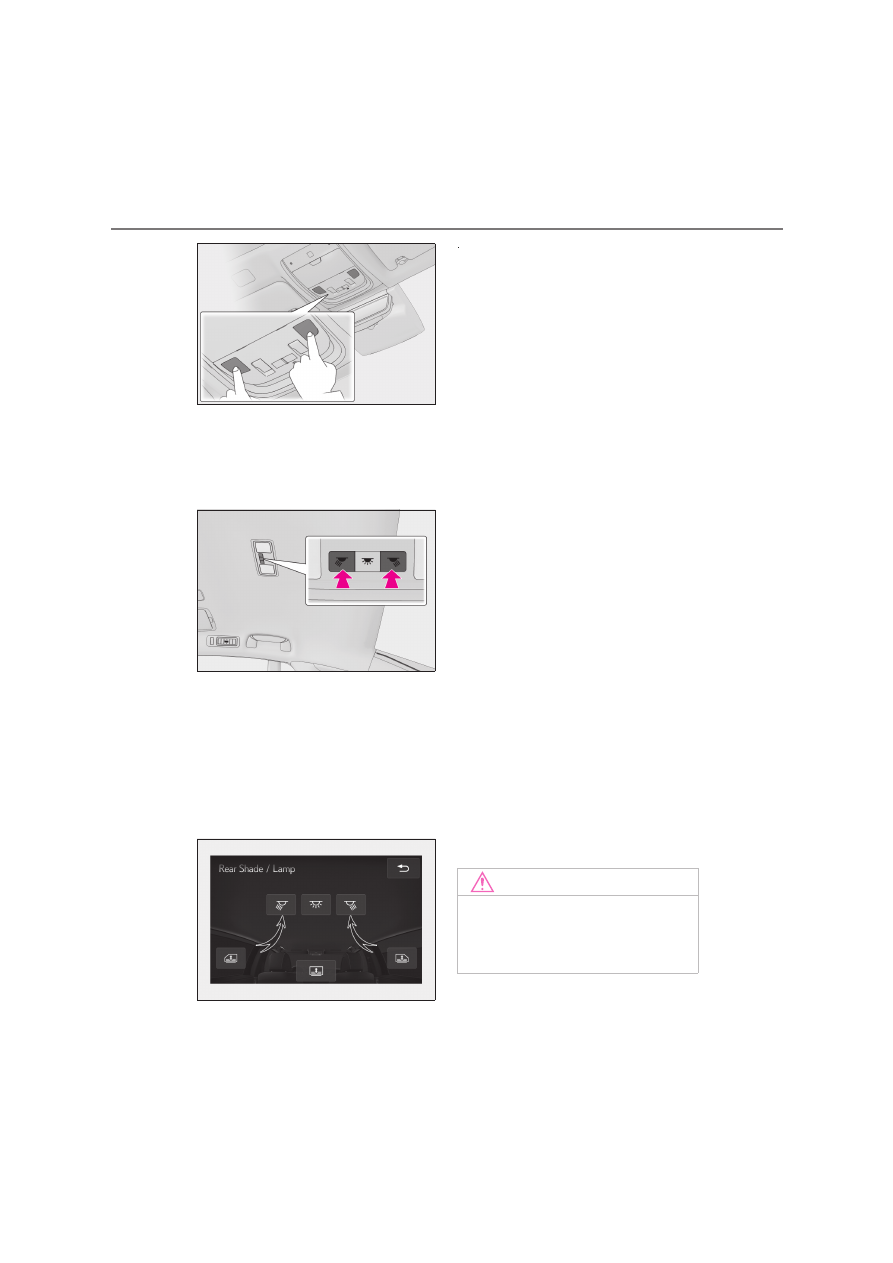

Turning the lights on/off



Front

Turns the lights on/off (touch the light)

When a door is opened while the door
position is on, the lights turn on.



Rear

On/off

The rear interior lights turn on/off together
the front interior lights.
When a door is opened while the door
position is on, the lights turn on.

■

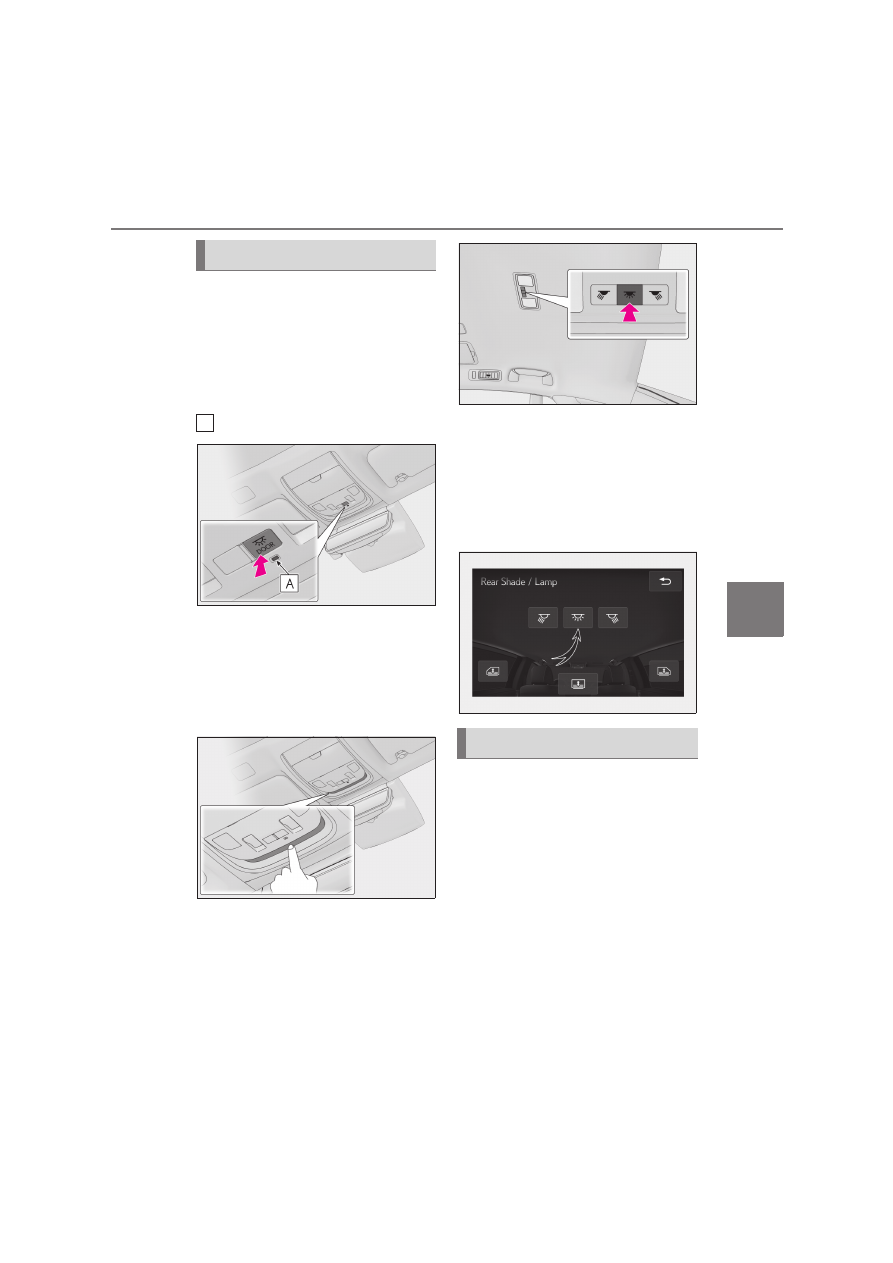

Using the Rear Multi Operation
Panel (if equipped)

Display the home screen and then
touch “Shade/Lamp”. (



P.336)

To turn on/off the rear interior
lights, touch the respective button.

■

Turning the lights on/off



Front

Turns the lights on/off (touch the light)

When a door is opened while the door
position is on, the lights turn on.

Operating the interior lights

Operating the personal lights

360

5-4. Using the interior lights



Rear

On/dimmed/off

When a door is opened while the door
position is on, the lights turn on.

■

Using the Rear Multi Operation
Panel (if equipped)

Display the home screen and then
touch “Shade/Lamp”. (



P.336)

To turn on/dimmed/off the rear per-
sonal lights, touch the respective
button.

■

Illuminated entry system

The lights automatically turn on/off accord-

ing to the engine switch mode, the pres-

ence of the electronic key, whether the

doors are locked/unlocked, and whether

the doors are opened/closed.

■

To prevent the battery from being dis-

charged

If the interior lights remain on when the

engine switch is turned off, the lights will go

off automatically after 20 minutes.

■

When front interior light or front per-

sonal lights do not respond as normal

●

When water, dirt, etc., have adhered to

the lens surface

●

When operated with a wet hand

●

When wearing gloves, etc.

■

The interior lights may turn on automati-

cally when

If any of the SRS airbags deploy (inflate) or

in the event of a strong rear impact, the inte-

rior lights will turn on automatically.
The interior lights will turn off automatically

after approximately 20 minutes.
The interior lights can be turned off manu-

ally. However, in order to help prevent fur-

ther collisions, it is recommended that they

be left on until safety can be ensured.
(The interior lights may not turn on auto-

matically depending on the force of the

impact and conditions of the collision.)

■

Customization

Some functions can be customized.

(



P.476)

NOTICE

■

To prevent battery discharge

Do not leave the lights on longer than

necessary when the engine is not run-

ning.

361

5-4. Using the interior lights

rior f
ea

ture
s

NOTICE

■

Removing light lenses

Never remove the lens for the front inte-

rior light and front personal lights. Other-

wise, the lights will be damaged. If a lens

needs to be removed, contact any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Content .. 19 20 21 22 ..
