419

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

If “Radar Cruise Control Unavailable” is

shown

The dynamic radar cruise control with full-

speed range system cannot be used tempo-

rarily. Use the system when it becomes

available again.

If a message that indicates the malfunc-

tion of front camera is displayed

The following systems may be suspended

until the problem shown in the message is

resolved. (



P.222, 406)

PCS (Pre-Collision System) (if equipped)

LTA (Lane Tracing Assist) (if equipped)

AHS (Adaptive High-beam System) (if

equipped)

AHB (Automatic High Beam) (if

equipped)

RSA (Road Sign Assist) (if equipped)

Dynamic radar cruise control with full-

speed range (if equipped)

If a message that indicates the malfunc-

tion of radar sensor is displayed

The following systems may be suspended

until the problem shown in the message is

resolved. (



P.222, 406)

PCS (Pre-Collision System) (if equipped)

LTA (Lane Tracing Assist) (if equipped)

Dynamic radar cruise control with full-

speed range (if equipped)

If “Oil Maintenance Required Soon” is

displayed

Indicates that the engine oil should be

scheduled to be changed.
Check the engine oil and change it if neces-

sary. After changing the engine oil, make

sure to reset the message. (



P.368)

If “Oil Maintenance Required” is dis-

played

Indicates that the engine oil should be

changed.
Check and change the engine oil, and oil fil-

ter by any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer. After changing the engine oil,

make sure to reset the message. (



P.368)

If a message that indicates the need for

visiting any authorized Lexus retailer or

Lexus authorized repairer, or any reli-

able repairer is displayed

The system or part shown on the multi-

information display is malfunctioning. Have

the vehicle inspected by any authorized

Lexus retailer or Lexus authorized repairer,

or any reliable repairer immediately.

If a message that indicates the need for

referring to Owner’s Manual is dis-

played

If any of the following messages are

shown on the multi-information display,

follow the instructions.

• “Engine Coolant Temp High” (



P.448)

• “Exhaust Filter Full” (



P.302)

If any of the following messages are

shown on the multi-information display, it

may indicate a malfunction. Have the

vehicle inspected by any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer immedi-

ately.

• “Entry & Start System Malfunction”

• “Hybrid system malfunction”

• “Check Engine”

• “Hybrid battery system malfunction”

• “Accelerator system malfunction”

If any of the following messages are

shown on the multi-information display, it

may indicate a malfunction. Immediately

stop the vehicle and contact any autho-

rized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

• “Braking Power Low”

• “Charging System Malfunction”

• “Oil Pressure Low”

If any of the following messages are

shown on the multi-information display,

the vehicle may have run out of fuel. Stop

the vehicle in a safe place and, if the fuel

level is low, refuel the vehicle. (



P.81)

• “Hybrid system stopped”

• “Engine stopped”

If “Low Auxiliary Battery” is shown

• When the display goes off after several

seconds

420

7-2. Steps to take in an emergency

Maintain the hybrid system operation for
more than 15 minutes and charge the 12-
volt battery.
• When the display does not go off:
Start up the hybrid system using the proce-
dures for “If the 12-volt battery is dis-
charged” (



P.444)

: Displays for about 6 seconds

If “Maintenance required for Traction

battery cooling parts” is shown, the filter

may be clogged, the air intake vent may

be blocked, or there may be a gap in the

duct. Therefore, perform the following

correction procedure.

• If the air intake vent and filter of the

hybrid battery (traction battery) are dirty,

perform the procedure on P.385 to

clean them.

• If the warning message is shown when

the air intake vent and filter of the hybrid

battery (traction battery) are not dirty,

have the vehicle inspected by any autho-

rized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

NOTICE

If “High Power Consumption Power

to Climate Temporarily Limited” is

displayed frequently

There is a possible malfunction relating

to the charging system or the 12-volt bat-

tery may be deteriorating. Have the vehi-

cle inspected by any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer.

If “Low Auxiliary Battery See

Owner’s Manual” is displayed fre-

quently

The 12-volt battery may have deterio-

rated. As the battery may discharge in

this state when left unattended, have the

battery inspected by any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

If you have a flat tire (vehi-
cles with emergency tire
puncture repair kit)

Your vehicle is not equipped with a
spare tire, but instead is equipped
with an emergency tire puncture
repair kit.
A puncture caused by a nail or
screw passing through the tire
tread can be repaired temporarily
with the emergency tire puncture
repair kit. (The emergency tire
puncture repair kit contains a bot-
tle of sealant. The sealant can be
used only once to temporarily
repair one tire without removing
the nail or screw from the tire.)
Depending on the damage condi-
tion of the flat tire, it may not be
able to repaired with the emer-
gency tire puncture repair kit.
After temporarily repairing the tire
with the kit, have the tire repaired
or replaced by any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
Repairs conducted using the emer-
gency tire puncture repair kit are
only a temporary measure. Have
the tire repaired and replaced as
soon as possible.

421

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises



Stop the vehicle in a safe place on a
hard, flat surface.



Set the parking brake.



Shift the shift lever to P.



Stop the hybrid system.



Turn on the emergency flashers.
(



P.398)



Check the degree of the tire dam-
age.

A tire should only be repaired with the
emergency tire puncture repair kit if the
damage is caused by a nail or screw pass-
ing through the tire tread.
• Do not remove the nail or screw from

the tire. Removing the object may widen
the opening and make emergency
repair with the repair kit impossible.

• To avoid sealant leakage, move the vehi-

cle until the area of the puncture, if
known, is positioned at the top of the tire.

A flat tire that cannot be repaired with

the emergency tire puncture repair kit

In the following cases, the tire cannot be

repaired with the emergency tire puncture

repair kit. Contact any authorized Lexus

retailer or Lexus authorized repairer, or any

reliable repairer.

When the tire is damaged due to driving

without sufficient air pressure

When there are any cracks or damage at

any location on the tire, such as on the

side wall, except the tread

When the tire is visibly separated from

the wheel

When the cut or damage to the tread is 4

mm (0.16 in.) long or more

When the wheel is damaged

When two or more tires have been punc-

tured

When more than one sharp objects such

as nails or screws have passed through

the tread on a single tire

WARNING

If you have a flat tire

Do not continue driving with a flat tire.

Driving even a short distance with a flat

tire can damage the tire and the wheel

beyond repair, which could result in an

accident.

Before repairing the vehicle

422

7-2. Steps to take in an emergency

Wheel nut wrench

Emergency tire puncture repair kit (compressor)

Jack handle

Towing eyelet

Emergency tire puncture repair kit (bottle)

Jack

: Use of the jack (



P.434)

Bottle

Sticker

Location of the emergency tire puncture repair kit, jack and tools

A
B
C
D

E
F

Emergency tire puncture repair
kit components

423

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

Compressor

Air pressure gauge

Compressor switch

Power plug

Hose

Air release cap

Emergency tire puncture repair kit

The sealant stored in the emergency tire

puncture repair kit can be used only once

to temporarily repair a single tire. If the

sealant in the bottle and other parts of the

kit have been used and need to be

replaced, contact any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer. The compressor

can be used repeatedly.

The sealant can be used when the outside

temperature is from -30°C (-22°F) to

60 °C (140 °F).

The kit is exclusively designed for size

and type of tires originally installed on

your vehicle. Do not use it for tires that a

different size than the original ones, or for

any other purposes.

If the sealant gets on your clothes, it may

stain.

If the sealant adheres to a wheel or the

surface of the vehicle body, the stain may

not be removable if it is not cleaned at

once. Immediately wipe away the sealant

with a wet cloth.

During operation of the repair kit, a loud

operation noise is produced. This does

not indicate a malfunction.

Do not use to check or to adjust the tire

pressure.

Note for checking the emergency tire

puncture repair kit

Check the sealant expiry date occasion-

ally.

The expiry date is shown on the bottle.

Do not use sealant whose expiry date has

already passed. Otherwise, repairs con-

ducted using the emergency tire punc-

ture repair kit may not be performed

properly.

The sealant should be replaced before

the expiry date. Contact any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer for

replacement.

A
B
C
D

WARNING

If you have a flat tire

Do not continue driving with a flat tire.
Driving even a short distance with a flat

tire can damage the tire and the wheel

beyond repair.
Driving with a flat tire may cause a cir-

cumferential groove on the side wall. In

such a case, the tire may explode when

using a repair kit.

Caution while driving

Store the repair kit in the trunk. Injuries

may result in the event of an accident

or sudden braking.

424

7-2. Steps to take in an emergency

Open the trunk.

Pull the lever upwards when lifting
the luggage mat up.

The lever can be hooked on the
edge of the trunk.

Take out the emergency tire punc-
ture repair kit.

Remove the jack.

WARNING

The repair kit is exclusively only for

your vehicle. Do not use repair kit on

other vehicles, which could lead to an

accident causing death or serious

injury.

Do not use repair kit for tires that are

different size than the original ones, or

for any other purpose. If the tires have

not been completely repaired, it could

lead to an accident causing death or

serious injury.

Precautions for use of the sealant

Ingesting the sealant is hazardous to

your health. If you ingest sealant, con-

sume as much water as possible, then

immediately consult a doctor.

If sealant gets in eyes or adheres to

skin, immediately wash it off with

water. If discomfort persists, consult a

doctor.

Taking out the emergency tire
puncture repair kit

NOTICE

To prevent damage to the luggage

mat

When closing the trunk lid, do not leave

the luggage mat lever hooked on the

edge of the trunk.

Taking out the jack

425

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

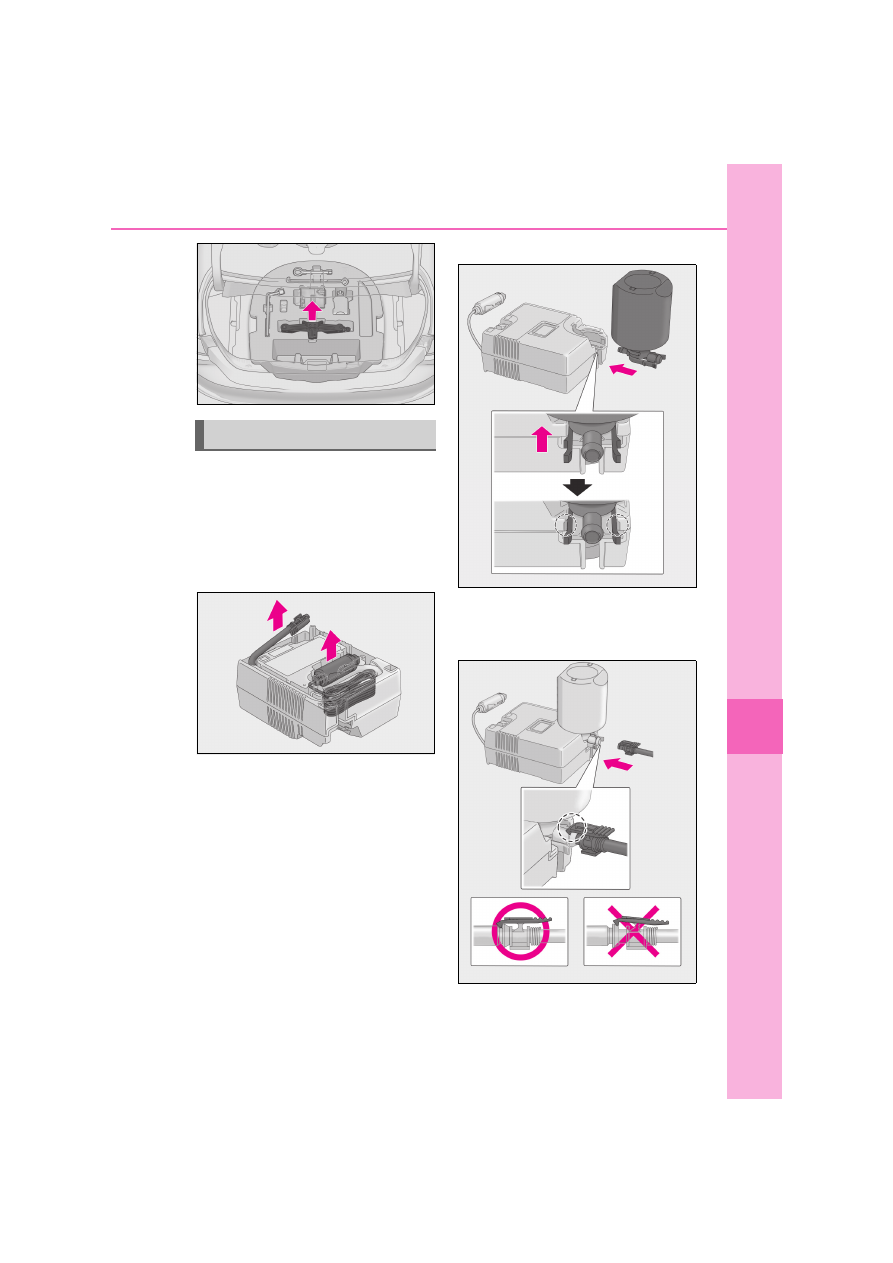

Take out the repair kit from the
plastic bag.

Attach the sticker enclosed with the bottle

on the specified locations. (See step

Remove the hose and take out the
power plug from the compressor.

Connect the bottle to the compres-
sor.

Insert and connect the bottle straight into

the compressor as shown in the illustration,

and check that the claws of the bottle are

concealed in the holes.

Connect the hose to the bottle.

As shown in the illustration, make sure the

hose is connected securely to the bottle.

Emergency repair procedure

426

7-2. Steps to take in an emergency

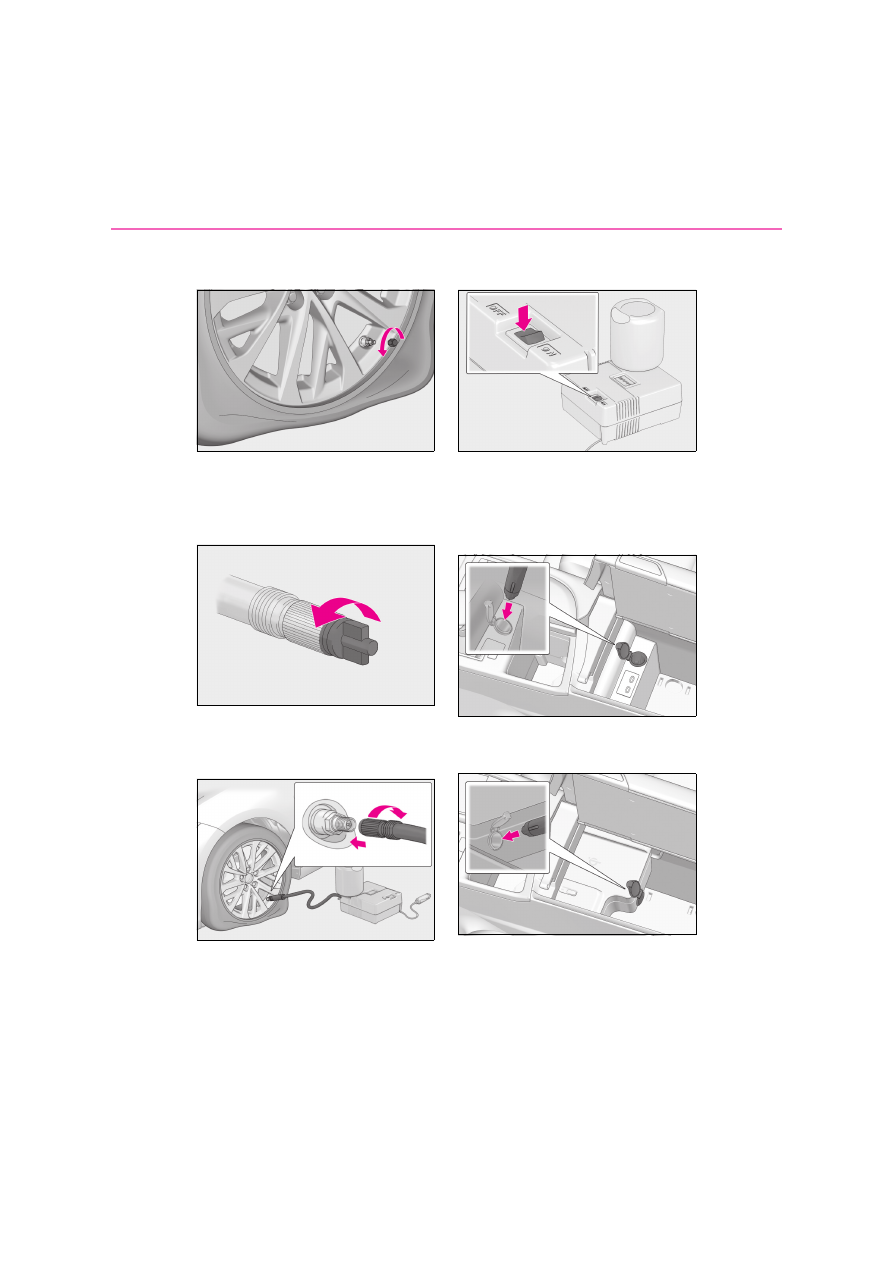

Remove the valve cap from the
valve of the punctured tire.

Extend the hose. Remove the air
release cap from the hose.

You will use the air release cap again.

Therefore keep it in a safe place.

Connect the hose to the valve.

Screw the end of the hose clockwise as far

as possible.

Make sure that the compressor
switch is off.

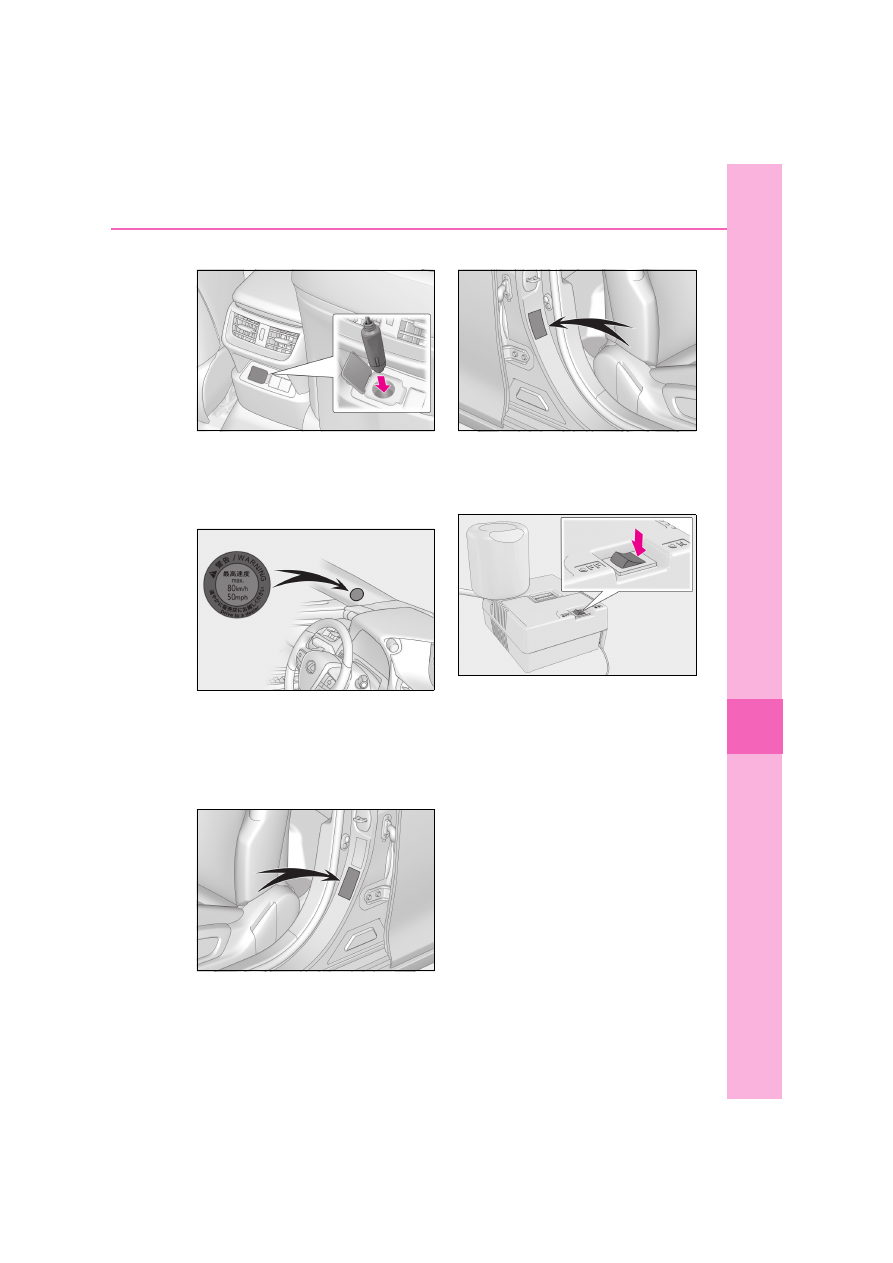

Connect the power plug to the
power outlet socket. (



P.343)



Front (vehicles without wireless
charger)



Front (vehicles with wireless char-
ger)

427

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises



Rear

Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver’s seat.

Check the specified tire inflation
pressure.

Tire inflation pressure is specified on the

label as shown. (



P.460)



Left-hand drive vehicles



Right-hand drive vehicles

Start the hybrid system. (



P.185)

To inject the sealant and inflate the
tire, turn the compressor switch on.

428

7-2. Steps to take in an emergency

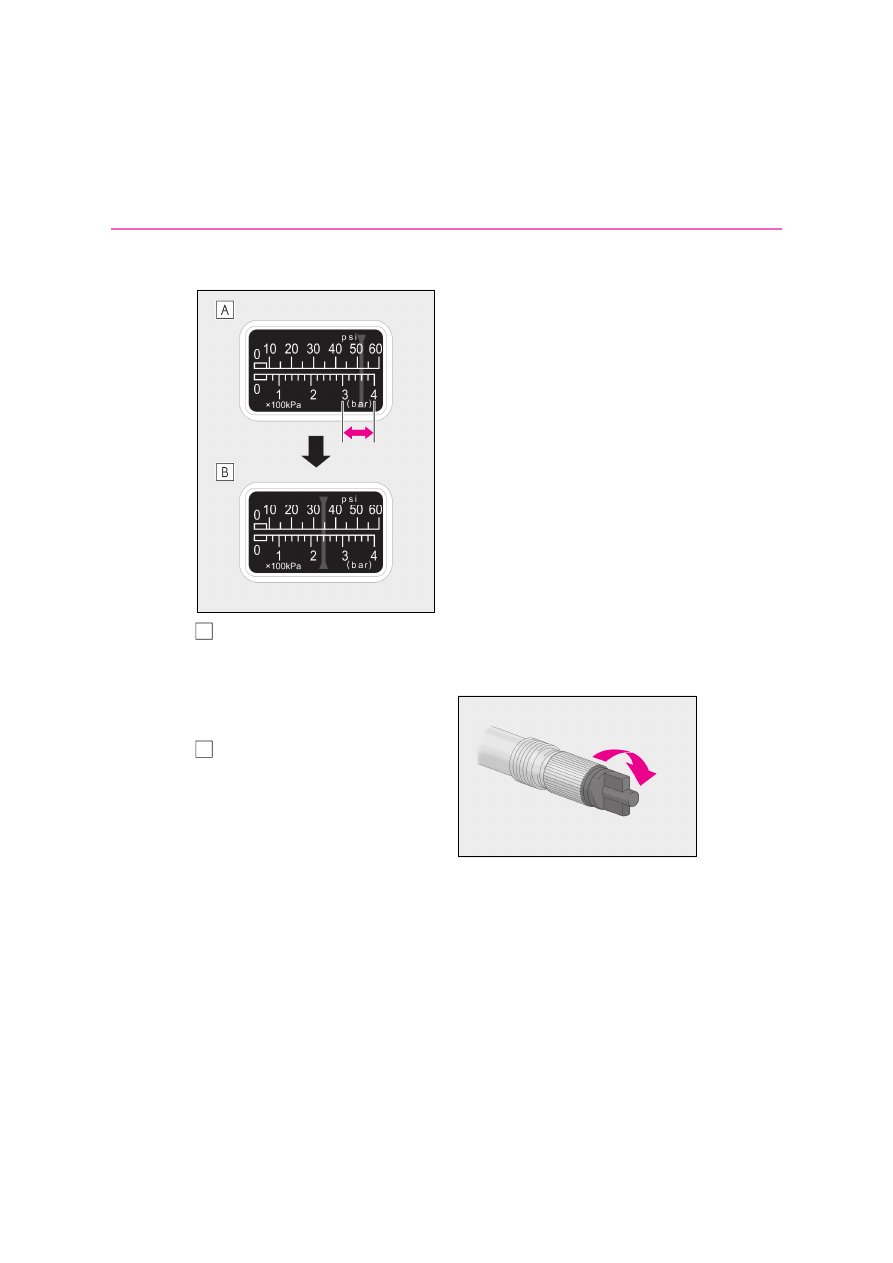

Inflate the tire until the recom-
mended pressure is reached.

The sealant will be injected and the
pressure will spike to 300 kPa (3.0
kgf/cm

or bar, 44 psi) or 400 kPa

(4.0 kgf/cm

or bar, 58 psi), then

gradually decrease.

The air pressure gauge will display
the actual tire inflation pressure
about 1 to 5 minutes after the
switch is turned on.

• Turn the compressor switch off and then

check the tire inflation pressure. Being
careful not to over inflate, check and
repeat the inflation procedure until the
specified tire inflation pressure is
reached.

• The tire can be inflated for about 5 to 20

minutes (depending on the outside tem-
perature). If the tire inflation pressure is
still lower than the specified point after
inflation for 25 minutes, the tire is too

damaged to be repaired. Turn the com-
pressor switch off and contact any
authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

• If the tire inflation pressure exceeds the

specified air pressure, let out some air to
adjust the tire inflation pressure.
(



P.430)

With the compressor switch off,
disconnect the hose from the valve
on the tire and then pull out the
power plug from the power outlet
socket.

Some sealant may leak when the hose is

removed.

Install the valve cap onto the valve
of the emergency repaired tire.

Attach the air release cap to the
end of the hose.

If the air release cap is not attached, the

sealant may leak and the vehicle may get

dirty.

Temporarily store the bottle in the
trunk while it is connected to the
compressor.

To spread the liquid sealant evenly
within the tire, immediately drive
safely for about 5 km (3 miles)
below 80 km/h (50 mph).

429

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

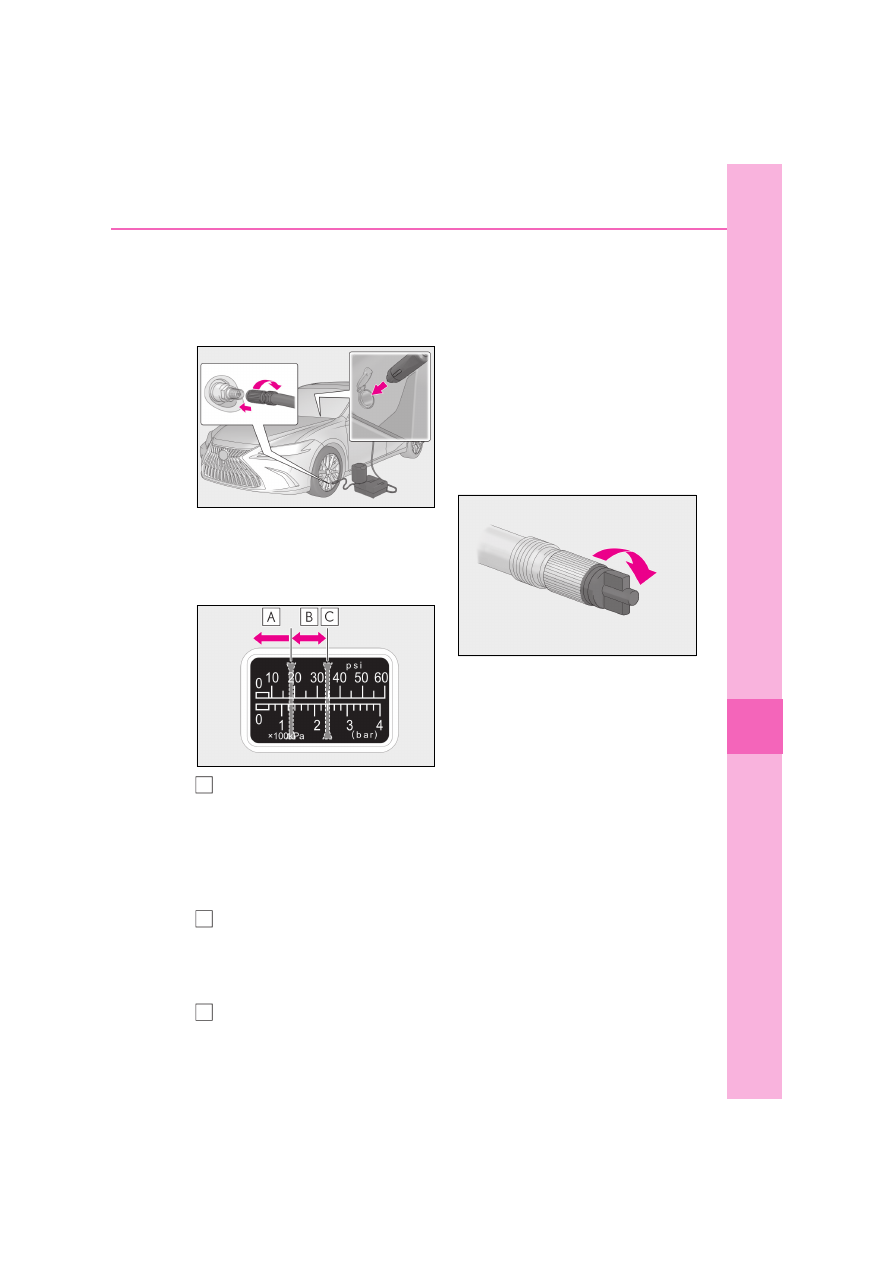

After driving, stop your vehicle in a
safe place on a hard, flat surface
and reconnect the repair kit.

Remove the air release cap from the hose

before reconnecting the hose.

Turn the compressor switch on and
wait for several seconds, then turn
it off. Check the tire inflation pres-
sure.

If the tire inflation pressure is under
130 kPa (1.3 kgf/cm

or bar, 19

psi): The puncture cannot be
repaired. Contact any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

If the tire inflation pressure is 130
kPa (1.3 kgf/cm

or bar, 19 psi) or

higher, but less than the specified
air pressure: Proceed to step

If the tire inflation pressure is the

specified air pressure (



P.460):

Proceed to step

Turn the compressor switch on to
inflate the tire until the specified air
pressure is reached. Drive for
about 5 km (3 miles) and then per-
form step

Attach the air release cap to the
end of the hose.

If the air release cap is not attached, the

sealant may leak and the vehicle may get

dirty.

Store the bottle in the trunk while it
is connected to the compressor.

Taking precautions to avoid sud-
den braking, sudden acceleration
and sharp turns, drive carefully at
under 80 km/h (50 mph) to the
nearest authorized Lexus retailer
or Lexus authorized repairer, or
any reliable repairer that is less than
100 km (62 miles) away for tire
repair or replacement.

For repair and replacement of a tire or dis-

posal of the tire puncture repair kit, contact

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.
When having the tire repaired or replaced,

make sure to tell any authorized Lexus

retailer or Lexus authorized repairer, or

430

7-2. Steps to take in an emergency

any reliable repairer that the sealant is

injected.

If the tire is inflated to more than the

specified air pressure

Disconnect the hose from the valve.

Install the air release cap to the end of

the hose and push the protrusion on the

air release cap into the valve to let some

air out.

Disconnect the hose from the valve,

remove the air release cap from the

hose and then reconnect the hose.

Turn the compressor switch on and wait

for several seconds, then turn it off.

Check that the air pressure indicator

shows the specified air pressure is

reached. (



P.460)

If the air pressure is under the desig-

nated pressure, turn the compressor

switch on again and repeat the inflation

procedure until the specified air pres-

sure is reached.

After a tire is repaired with the emer-

gency tire puncture repair kit

The tire pressure warning valve and

transmitter should be replaced.

Even if the tire inflation pressure is at the

recommended level, the tire pressure

warning light may come on/flash.

WARNING

When fixing the flat tire

Stop your vehicle in a safe and flat

area.

Do not touch the wheels or the area

around the brakes immediately after

the vehicle has been driven.

After the vehicle has been driven, the

wheels and the area around the brakes

may be extremely hot. Touching these

areas with hands, feet or other body

parts may result in burns.

Connect the valve and hose securely

with the tire installed on the vehicle.

If the hose is not properly connected to
the valve, air leakage may occur or seal-
ant may be sprayed out.

If the hose comes off the valve while

inflating the tire, there is a risk that the

hose will move abruptly due to air

pressure.

After inflation of the tire has com-

pleted, the sealant may splatter when

the hose is disconnected or some air is

let out of the tire.

Follow the operation procedure to

repair the tire. If the procedure is not

followed, the sealant may spray out.

Keep back from the tire while it is

being repaired, as there is a chance of

it bursting while the repair operation is

being performed. If you notice any

cracks or deformation of the tire, turn

off the compressor switch and stop the

repair operation immediately.

The repair kit may overheat if oper-

ated for a long period of time. Do not

operate the compressor continuously

for more than 40 minutes.

Parts of the repair kit become hot

during operation. Be careful handling

the repair kit during and after opera-

tion. Do not touch the metal part con-

necting the bottle and the compressor.

It will be extremely hot.

431

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

WARNING

Do not attach the vehicle speed warn-

ing sticker to an area other than the

one indicated.

If the sticker is attached to an area

where an SRS airbag is located, such

as the pad of the steering wheel, it may

prevent the SRS airbag from operating

properly.

Driving to spread the liquid sealant

evenly

Observe the following precautions to

reduce the risk of accidents.
Failing to do so may result in a loss of

vehicle control and cause death or seri-

ous injury.

Drive the vehicle carefully at a low

speed. Be especially careful when

turning and cornering.

If the vehicle does not drive straight or

you feel a pull through the steering

wheel, stop the vehicle and check the

following:

• Tire condition. The tire may have sepa-

rated from the wheel.

• Tire inflation pressure. If the tire infla-

tion pressure is 130 kPa (1.3 kgf/cm

or bar, 19 psi) or less, the tire may be

severely damaged.

NOTICE

When performing an emergency

repair

Perform the emergency repair without

removing the nail or screw that has

punctured the tread of the tire. If the

object that has punctured the tire is

removed, repair by the emergency tire

puncture repair kit may not be possi-

ble.

The repair kit is not waterproof. Make

sure that the repair kit is not exposed

to water, such as when it is being used

in the rain.

Do not put the repair kit directly onto

dusty ground such as sand at the side

of the road. If the repair kit vacuums up

dust etc., a malfunction may occur.

Make sure the sealant bottle of the

repair kit is in a vertical position. The

repair kit does not operate properly

when it is laid.

Precautions for the emergency tire

puncture repair kit

The repair kit power source should be

12 V DC suitable for vehicle use. Do

not connect the repair kit to any other

source.

If gasoline splatters on the kit, the kit

may deteriorate. Take care not to

allow gasoline to contact it.

When the emergency tire puncture

repair kit is not being used, be sure to

leave it in the plastic bag and keep it in

its proper storage position to prevent it

from being exposed to dirt or water.

Store the repair kit in its assigned

place out of reach of children.

Do not disassemble or modify the

repair kit. Do not subject parts such as

the air pressure indicator to impacts.

This may cause a malfunction.

To avoid damage to the tire pressure

warning valves and transmitters

When a tire is repaired with liquid seal-

ants, the tire pressure warning valve and

transmitter may not operate properly. If a

liquid sealant is used, contact any autho-

rized Lexus retailer or Lexus authorized

repairer, or any reliable repairer or other

qualified service shop as soon as possi-

ble. After use of liquid sealant, make sure

to replace the tire pressure warning

valve and transmitter when repairing or

replacing the tire. (



P.376)

432

7-2. Steps to take in an emergency



Stop the vehicle in a safe place on a
hard, flat surface.



Set the parking brake.



Shift the shift lever to P.



Stop the hybrid system.



Turn on the emergency flashers.
(



P.398)

Wheel nut wrench

Jack

Jack handle

If you have a flat tire (vehi-
cles with spare tire)

Your vehicle is equipped with a
spare tire. The flat tire can be
replaced with the spare tire.
For details about tires:



P.373

WARNING

If you have a flat tire

Do not continue driving with a flat tire.

Driving even a short distance with a flat

tire can damage the tire and the wheel

beyond repair, which could result in an

accident.

Before jacking up the vehicle

Location of the spare tire, jack and tools

A
B
C

433

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

Spare tire

Towing eyelet

Open the trunk.

Pull the lever upwards when lifting
the luggage mat up.

The lever can be hooked on the
edge of the trunk.

Remove the jack.

WARNING

Using the tire jack

Observe the following precautions.

Improper use of the tire jack may cause

the vehicle to suddenly fall off the jack,

leading to death or serious injury.

Do not use the tire jack for any pur-

pose other than replacing tires or

installing and removing tire chains.

Only use the tire jack that comes with

this vehicle for replacing a flat tire.

Do not use it on other vehicles, and do

not use other tire jacks for replacing

tires on this vehicle.

Put the jack properly in its jack point.

Do not put any part of your body under

the vehicle while it is supported by the

jack.

Do not start the hybrid system or drive

the vehicle while the vehicle is sup-

ported by the jack.

Do not raise the vehicle while some-

one is inside.

When raising the vehicle, do not put an

object on or under the jack.

Do not raise the vehicle to a height

greater than that required to replace

the tire.

Use a jack stand if it is necessary to get

under the vehicle.

When lowering the vehicle, make sure

that there is no-one near the vehicle. If

there are people nearby, warn them

vocally before lowering.

Taking out the jack

NOTICE

To prevent damage to the luggage

mat



P.424

434

7-2. Steps to take in an emergency

Remove the tool tray.

Loosen the center fastener that
secures the spare tire.

Chock the tires.

Slightly loosen the wheel nuts (one
turn).

Turn the tire jack portion

hand until the notch of the jack is in
contact with the jack point.

The jack point guides are located under

Taking out the spare tire

WARNING

When storing the spare tire

Be careful not to catch fingers or other

body parts between the spare tire and

the body of the vehicle.

Replacing a flat tire

Flat tire

Wheel chock posi-

tions

Front left-hand side

Behind the rear
right-hand side tire

Front right-hand
side

Behind the rear left-
hand side tire

Rear left-hand side

In front of the front
right-hand side tire

Rear right-hand side

In front of the front
left-hand side tire

Content .. 23 24 25 26 ..
