387

6-3. Do-it-yourself maintenance

ain

ten

ce a
nd

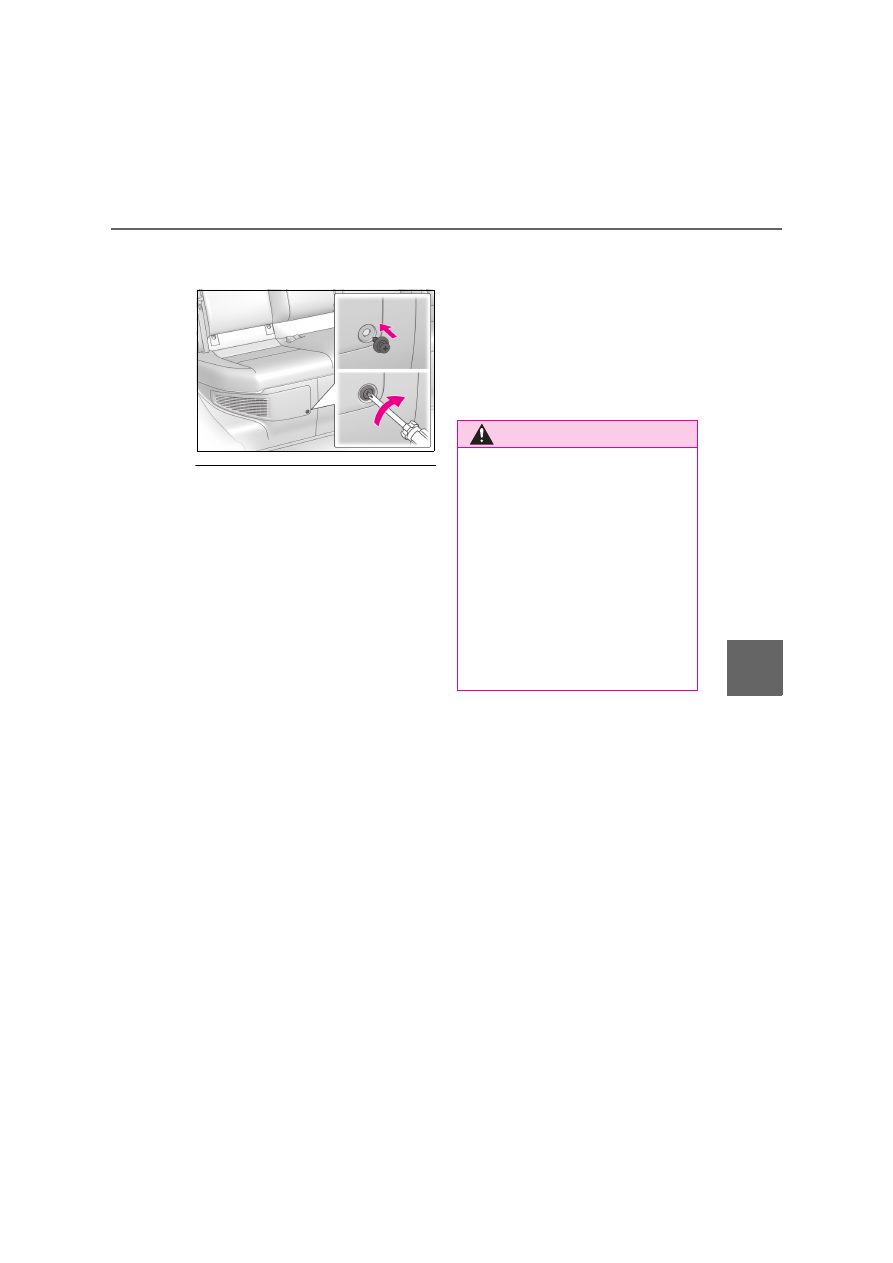

Using a Phillips screwdriver, install
the clip.

Scheduled maintenance of the air

intake vent is necessary when

In some situations such as when the vehicle

is used frequently or in heavy traffic or dusty

areas, the air intake vent may need to be

cleaned more regularly. For details, refer to

“Lexus Service Booklet” or “Lexus War-

ranty Booklet”.

Cleaning the air intake vent

Dust in the air intake vent may interfere

with the cooling of the hybrid battery

(traction battery). If charging/discharg-

ing of the hybrid battery (traction battery)

becomes limited, the distance that the

vehicle can be driven using the electric

motor (traction motor) may be reduced

and the fuel economy may be reduced.

Inspect and clean the air intake vent peri-

odically.

Improper handling of the air intake vent

cover and filter may result in damage to

them. If you have any concerns about

cleaning the filter, contact any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

If “Maintenance required for Traction

battery cooling parts See owner’s man-

ual” is displayed on the multi-informa-

tion display

If this warning message is displayed on

the multi-information display, remove the

air intake vent cover and clean the filter.

(



P.385)

After cleaning the air intake vent, start

the hybrid system and check that the

warning message is no longer displayed.

After the hybrid system is started, it may

be necessary to drive the vehicle up to

approximately 20 minutes before the

warning message disappears. If the warn-

ing message does not disappear after

driving for appropriately 20 minutes,

have the vehicle inspected by any autho-

rized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

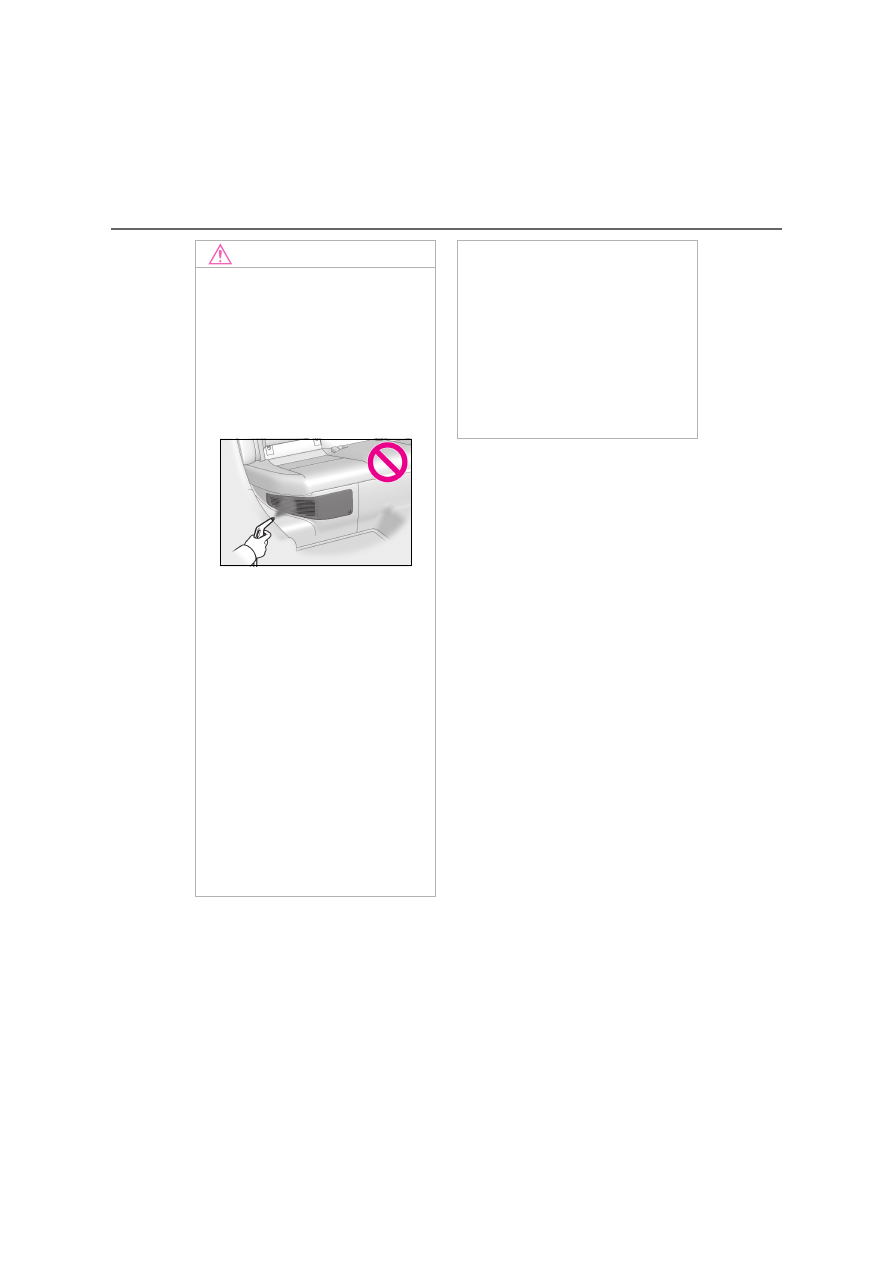

WARNING

When cleaning the air intake vent

Do not use water or other liquids to

clean the air intake vent. If water is

applied to the hybrid battery (traction

battery) or other components, a mal-

function or fire may occur.

Before cleaning the air intake vent,

make sure to turn the power switch off

to stop the hybrid system.

When removing the air intake vent

cover

Do not touch the service plug located

near the air intake vent. (



P.82)

388

6-3. Do-it-yourself maintenance

NOTICE

When cleaning the air intake vent

When cleaning the air intake vent, make

sure to only use a vacuum to suck out

dust and clogs. If a compressed air blow

gun, etc. is used to blow out dust and

clogs, the dust or clogs may be pushed

into the air intake vent, which may affect

the performance of the hybrid battery

(traction battery) and cause a malfunc-

tion.

To prevent damage to the vehicle

Do not allow water or foreign matter

to enter the air intake vent when the

cover is removed.

Carefully handle the removed filter so

that it will not be damaged.

If the filter is damaged, have it

replaced with a new filter by any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Make sure to reinstall the filter and

cover to their original positions after

cleaning.

Do not install anything to the air intake

vent other than the exclusive filter for

this vehicle or use the vehicle without

the filter installed.

If “Maintenance required for Trac-

tion battery cooling parts See

owner’s manual” is displayed on the

multi-information display

If the vehicle is continuously driven with

the warning message (indicating that

charging/discharging of the hybrid bat-

tery (traction battery) may become lim-

ited) displayed, the hybrid battery

(traction battery) may malfunction. If the

warning message is displayed, clean the

air intake vent immediately.

389

6-3. Do-it-yourself maintenance

ain

ten

ce a
nd

If the electronic key battery is depleted

The following symptoms may occur:

The smart entry & start system and wire-

less remote control will not function

properly.

The operational range will be reduced.

When the card key battery needs to be

replaced (if equipped)

The battery for the card key is available only

at Lexus dealers. Your Lexus dealer can

replace the battery for you.

Prepare the following before replacing
the battery:



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2032

Use a CR2032 lithium battery

Batteries can be purchased at any autho-

rized Lexus retailer or Lexus authorized

repairer, or any reliable repairer, local

electrical appliance shops or camera

stores.

Replace only with the same or equivalent

type recommended by the manufacturer.

Dispose of used batteries according to

the local laws.

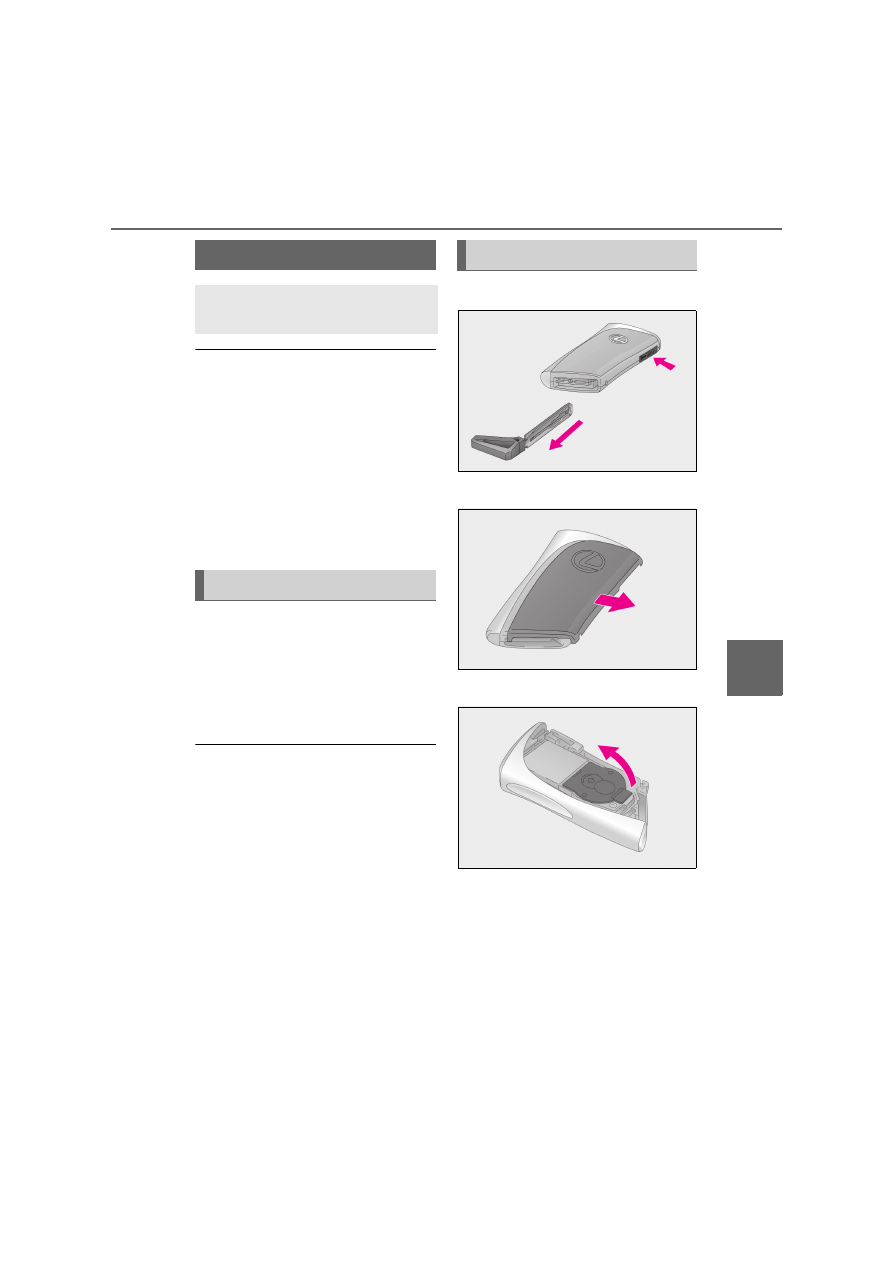

Take out the mechanical key.

Remove the cover.

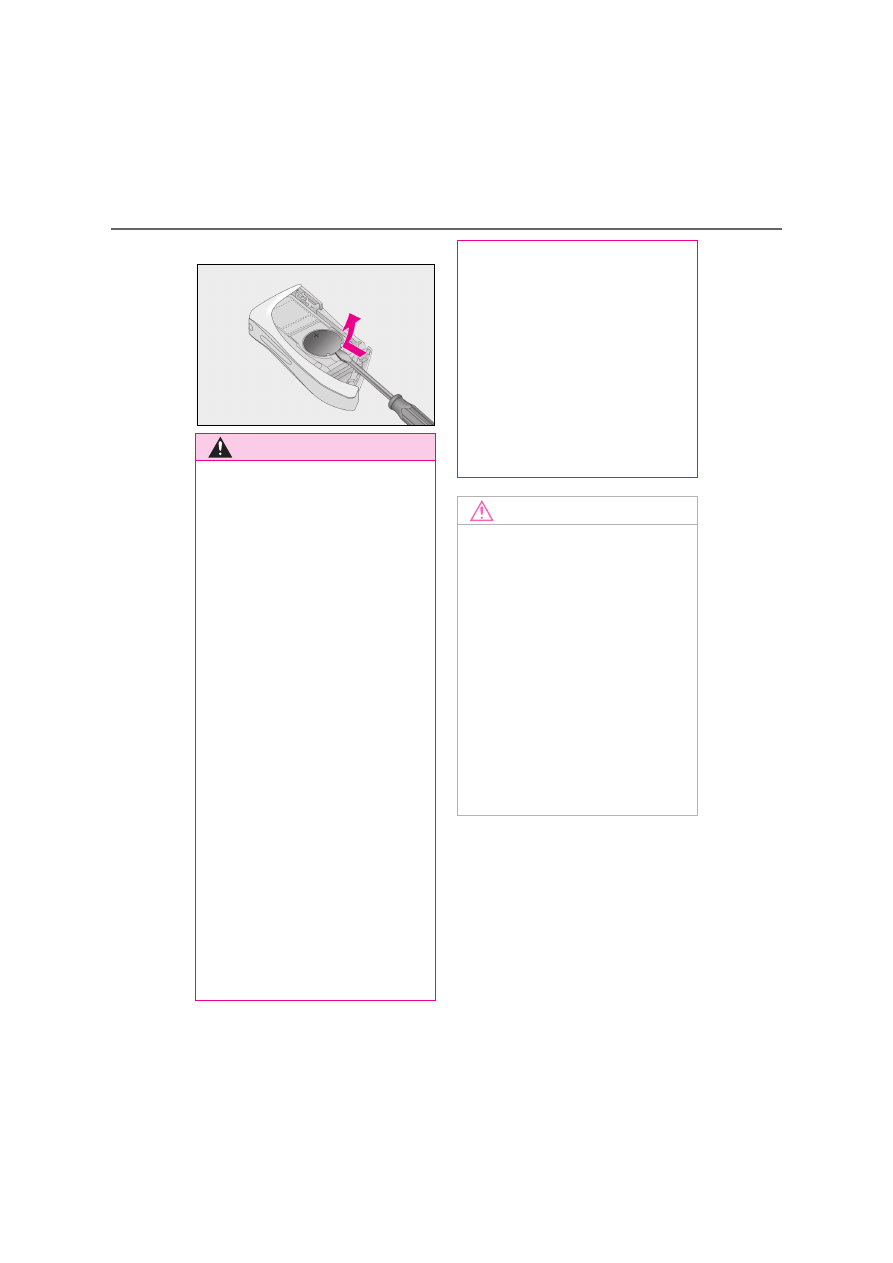

Remove the battery cover.

Remove the depleted battery.

Insert a new battery with the “+” terminal

Electronic key battery

Replace the battery with a new one
if it is depleted.

Items to prepare

Replacing the battery

390

6-3. Do-it-yourself maintenance

facing up.

WARNING

Battery precautions

Observe the following precautions. Fail-

ure to do so may result in death or seri-

ous injury.

Do not swallow the battery. Doing so

may cause chemical burns.

A coin battery or button battery is

used in the electronic key. If a battery

is swallowed, it may cause severe

chemical burns in as little as 2 hours

and may result in death or serious

injury.

Keep away new and removed batter-

ies from children.

If the cover cannot be firmly closed,

stop using the electronic key and stow

the key in the place where children

cannot reach, and then contact any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

If you accidentally swallow a battery or

put a battery into a part of your body,

get emergency medical attention

immediately.

To prevent battery explosion or leak-

age of flammable liquid or gas

Replace the battery with a new battery

of the same type. If a wrong type of

battery is used, it may explode.

Do not expose batteries to extremely

low pressure due to high altitude or

extremely high temperatures.

Do not burn, break or cut a battery.

Certification for the electronic key

battery

CAUTION

RISK OF EXPLOSION IF BATTERY IS

REPLACED BY AN INCORRECT

TYPE.

DISPOSE OF USED BATTERIES

ACCORDING TO THE

INSTRUCTIONS

NOTICE

When replacing the battery

Use a screwdriver of appropriate size.

Applying excessive force may deform or

damage the cover.

For normal operation after replacing

the battery

Observe the following precautions to

prevent accidents:

Always work with dry hands.

Moisture may cause the battery to

rust.

Do not touch or move any other com-

ponent inside the remote control.

Do not bend either of the battery ter-

minals.

391

6-3. Do-it-yourself maintenance

ain

ten

ce a
nd

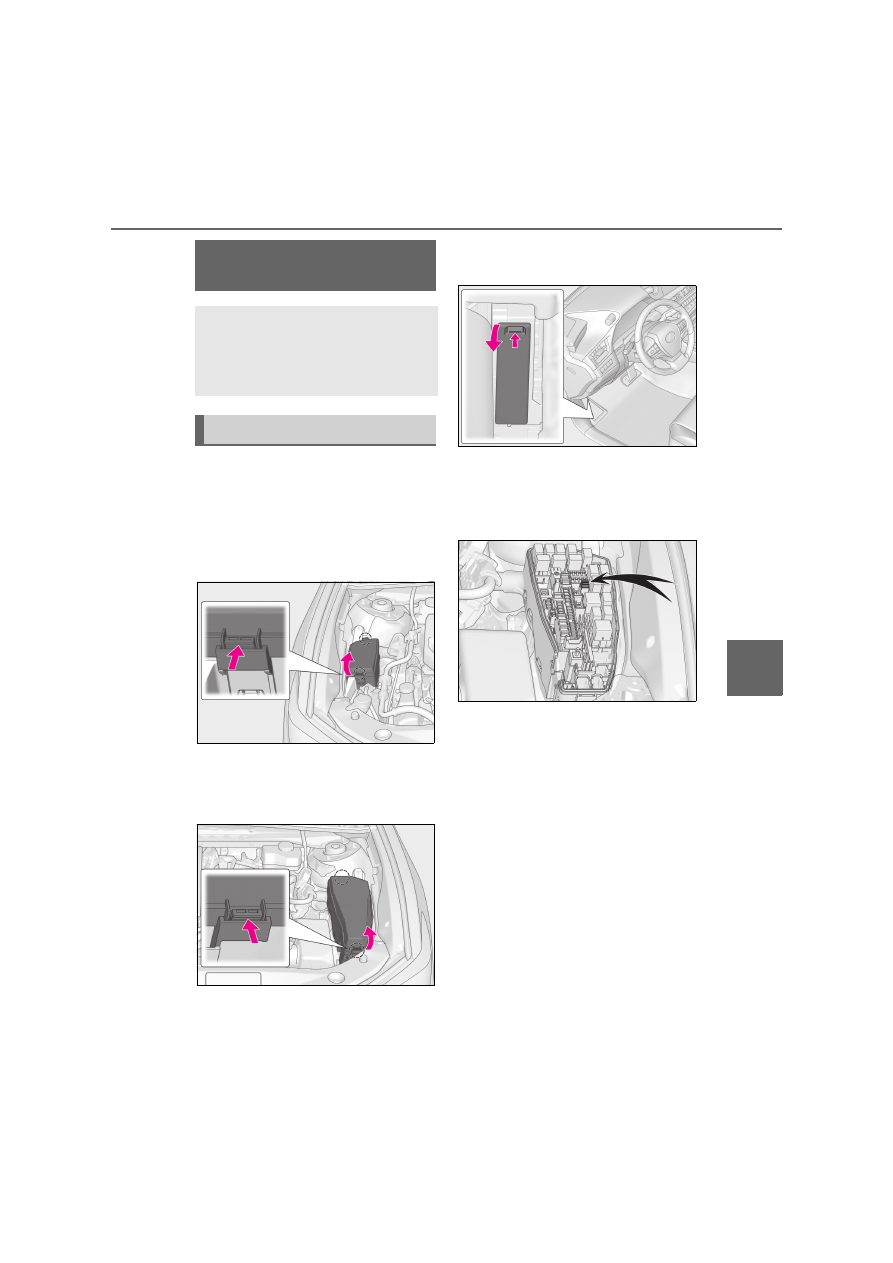

Turn the power switch off.

Open the fuse box cover.



Engine compartment: type A fuse
box

Push the tab in and lift the lid off.



Engine compartment: type B fuse
box

Push the tab in and lift the lid off.



Left side instrument panel

Push the tab in and remove the lid.

Make sure to push the tab in during
removal or installation.

Remove the fuse with the pullout
tool.

Only type A fuses can be removed using

the pullout tool.

Check if the fuse is blown.

Type A and B:

Replace the blown fuse with a new fuse of

an appropriate amperage rating. The

amperage rating can be found on the fuse

box lid.
Type C:

Contact any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer.

Checking and replacing
fuses

If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.

Checking and replacing fuses

392

6-3. Do-it-yourself maintenance



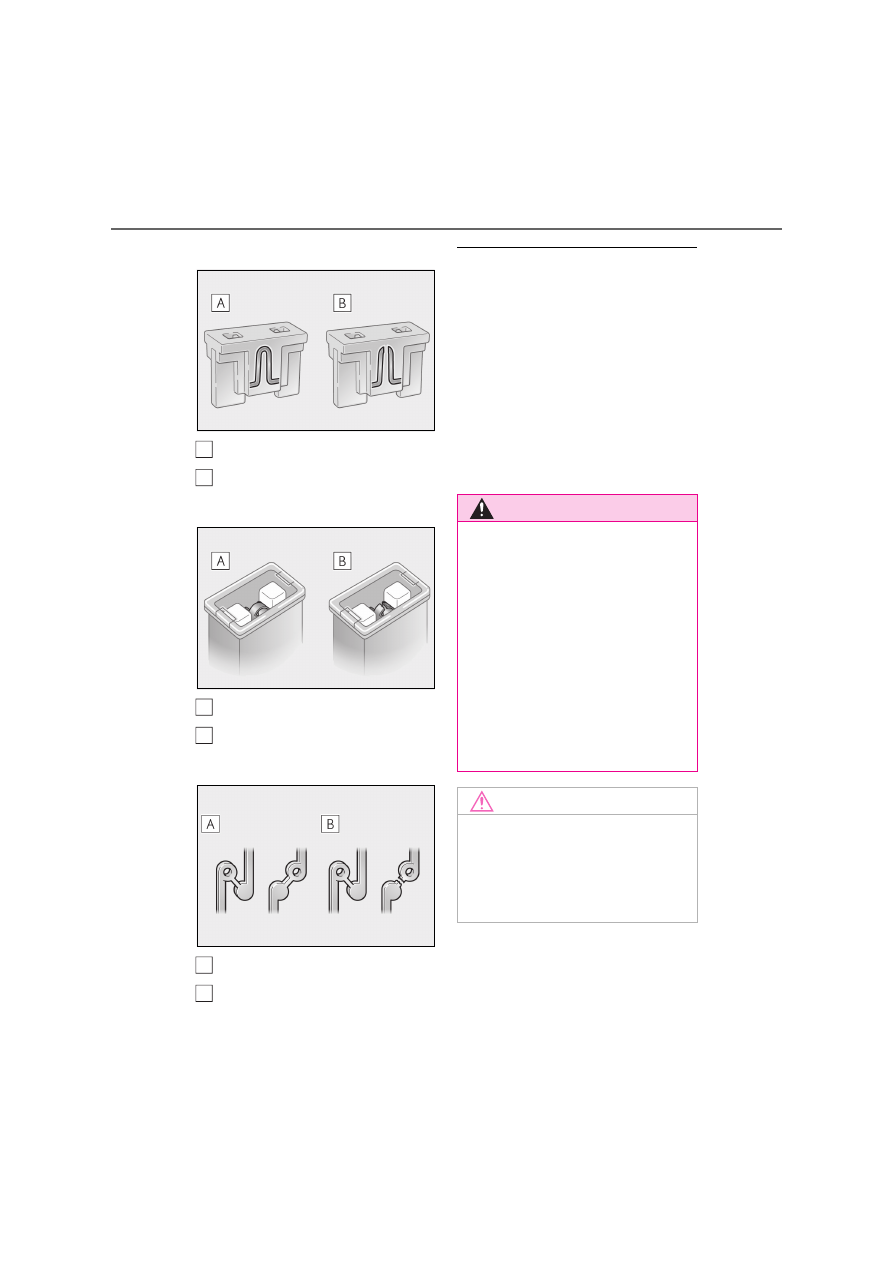

Type A

Normal fuse

Blown fuse



Type B

Normal fuse

Blown fuse



Type C

Normal fuse

Blown fuse

After a fuse is replaced

When installing the lid, make sure that the

tab is installed securely.

If the lights do not turn on even after the

fuse has been replaced, a bulb may need

replacement. (



P.393)

If the replaced fuse blows again, have the

vehicle inspected by any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

If there is an overload in a circuit

The fuses are designed to blow, protecting

the wiring harness from damage.

A
B

WARNING

To prevent system breakdowns and

vehicle fire

Observe the following precautions.

Failure to do so may cause damage to

the vehicle, and possibly a fire or injury.

Never use a fuse of a higher amperage

rating than that indicated, or use any

other object in place of a fuse.

Always use a genuine Lexus fuse or

equivalent.

Never replace a fuse with a wire, even

as a temporary fix.

Do not modify the fuses or fuse boxes.

NOTICE

Before replacing fuses

Have the cause of electrical overload

determined and repaired by any autho-

rized Lexus retailer or Lexus authorized

repairer, or any reliable repairer as soon

as possible.

393

6-3. Do-it-yourself maintenance

ain

ten

ce a
nd

Front turn signal lights (vehicles
with single-beam headlights)

Bulbs that need to be replaced by
any authorized Lexus retailer or
Lexus authorized repairer, or any
reliable repairer



Headlights



Front position lights and daytime
running lights



Front turn signal lights (vehicles with

triple-beam headlights)



Cornering lights



Side turn signal lights



Outer foot lights



Tail lights



Stop lights



Rear turn signal lights



Back-up lights



High mounted stoplight



License plate lights



Rear fog lights

LED lights

The lights other than the front turn signal

lights (vehicles with single-beam head-

lights) each consist of a number of LEDs. If

any of the LEDs burn out, take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer

to have the light replaced.

Condensation build-up on the inside of

the lens

Temporary condensation build-up on the

inside of the headlight lens does not indi-

cate a malfunction. Contact any authorized

Lexus retailer or Lexus authorized repairer,

or any reliable repairer for more informa-

tion in the following situations:

Large drops of water have built up on the

inside of the lens.

Water has built up inside the headlight.

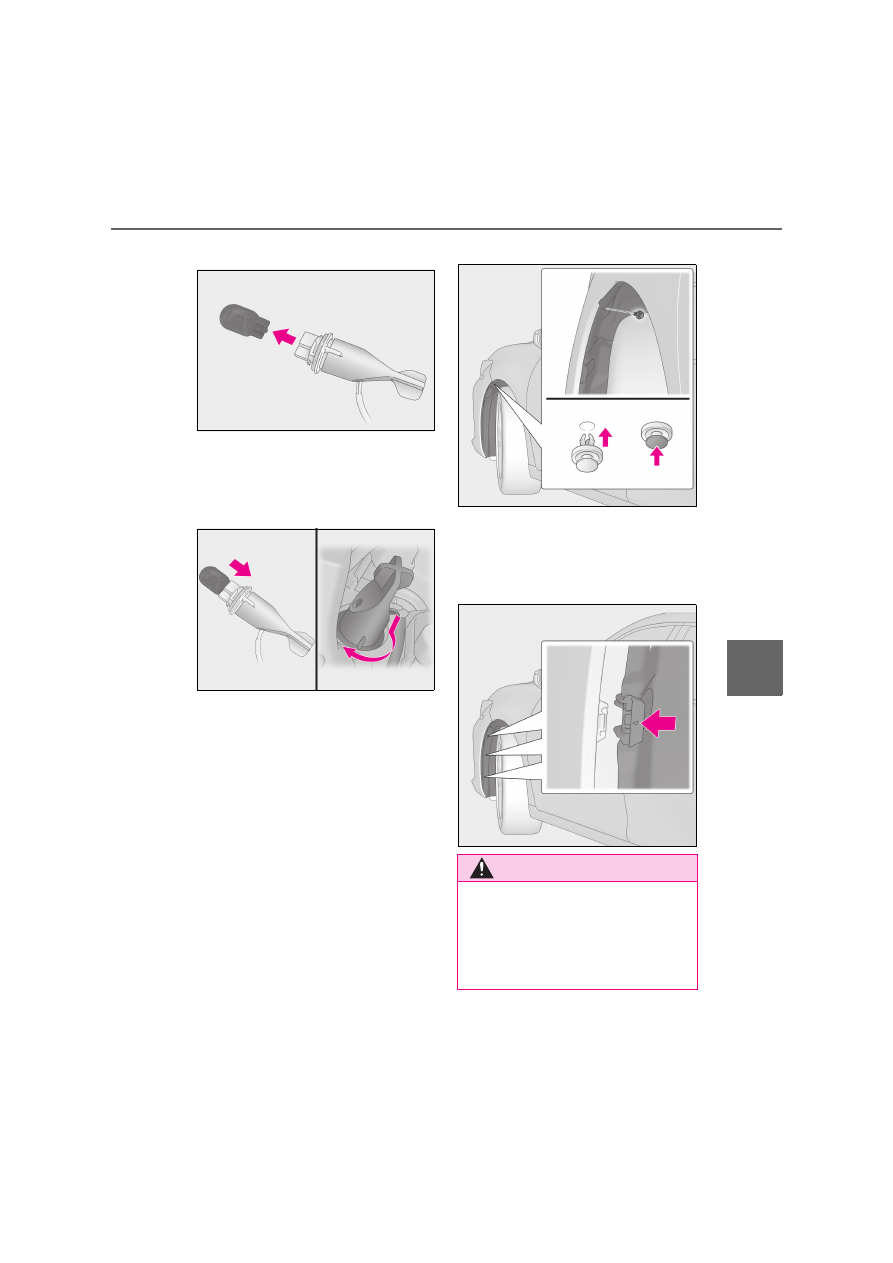

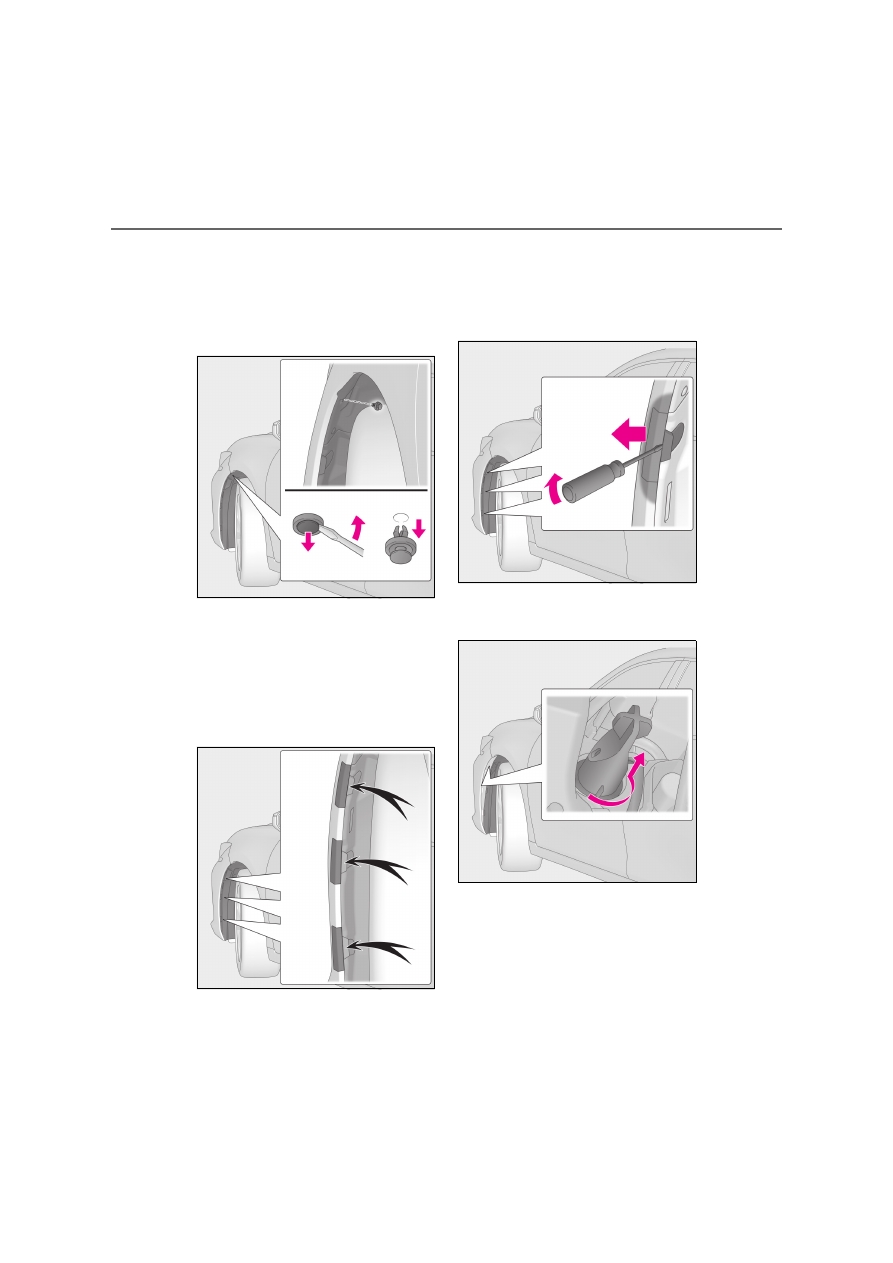

Front turn signal lights

To ensure enough space to per-
form work, turn the steering wheel
to rotate the front wheel away from

Light bulbs

You may replace the following
bulbs by yourself. Before replacing,
check the wattage of the light bulb
to be replaced. As there is a danger
that components may be damaged,
we recommend that replacement is
carried out by any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

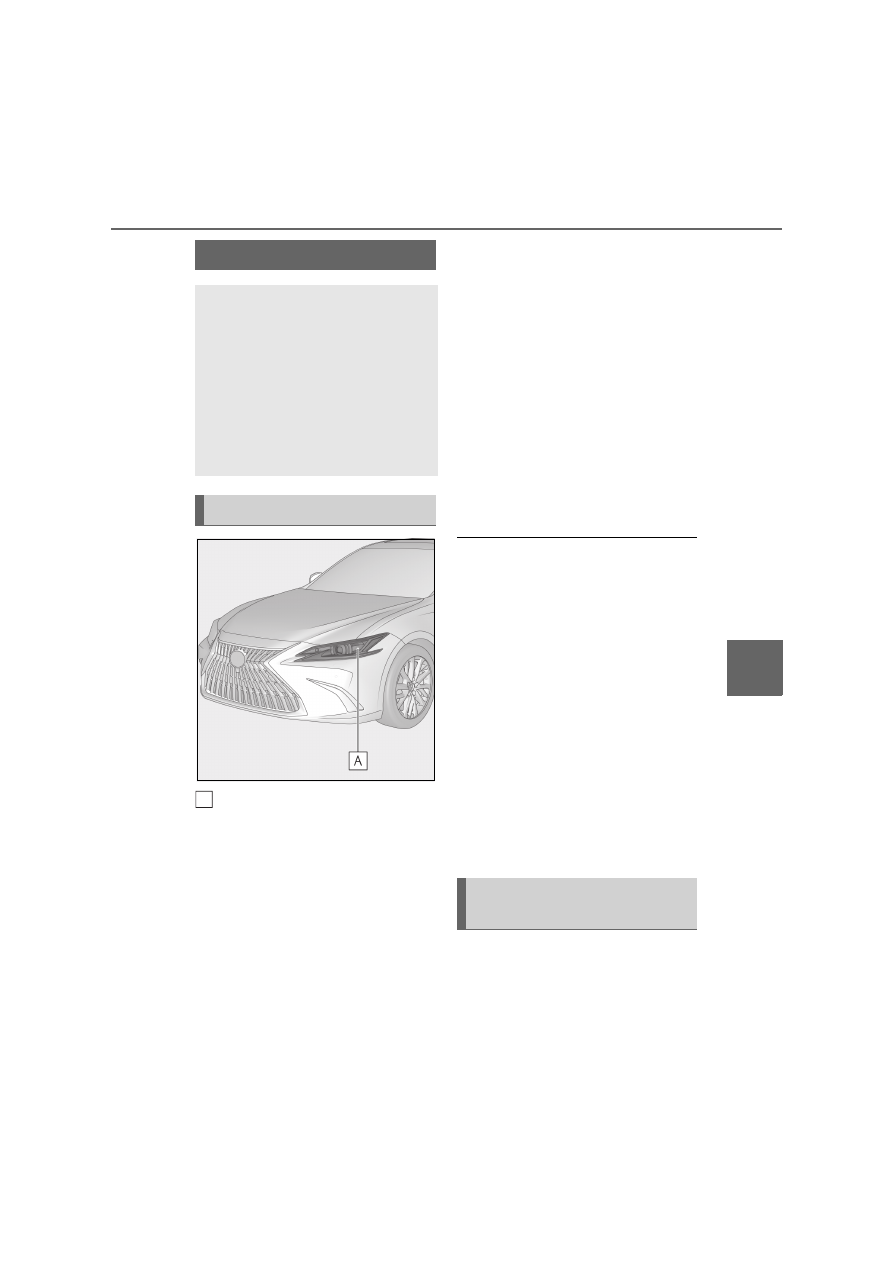

Bulb location

Replacing light bulb (vehicles
with single-beam headlights)

394

6-3. Do-it-yourself maintenance

the bulb to be replaced. Remove
the fender liner clip.

Turn the steering wheel to the left when

replacing the right side light bulb, and turn

the steering wheel to the right when

replacing the left side light bulb.

To protect the front bumper from
being damaged, apply protective
tape around the clips as shown in
the illustration.

Use masking tape, etc. Do not use duct

tape, as it may leave residue or damage the

paint when removed.

Insert a flathead screwdriver
between the front bumper and the

fender liner and then detach the
claw.

If the front bumper is pulled outward as

shown in the illustration, the claw is easily

detached.

Pull back the fender liner and turn
the bulb base counterclockwise.

395

6-3. Do-it-yourself maintenance

ain

ten

ce a
nd

Remove the light bulb.

Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.

Return the fender liner to its origi-
nal position, and install the clip.

Make sure that the fender liner is correctly

positioned on the inner side of the front

bumper.

Engage the clips to the front
bumper to install the fender liner,
and then remove the protective
tape.

WARNING

Replacing light bulb

Turn off the light. Do not attempt to

replace the bulb immediately after

turning off the light.

The bulb become very hot and may

cause burns.

396

6-3. Do-it-yourself maintenance

WARNING

Do not touch the glass portion of the

light bulb with bare hands. When it is

unavoidable to hold the glass portion,

use and hold with a clean dry cloth to

avoid getting moisture and oils on the

bulb.

Also, if the bulb is scratched or

dropped, it may blow out or crack.

Fully install light bulb and any parts

used to secure it. Failure to do so may

result in heat damage, fire, or water

entering the light unit. This may dam-

age the light or cause condensation to

build up on the lens.

To prevent damage or fire

Make sure bulb is fully seated and

locked.

Check the wattage of the bulb before

installing to prevent heat damage.

397

Wh
en

troubl
e ar
ises

When trouble arises

7-1. Essential information

Emergency flashers .................

398

If your vehicle has to be stopped

in an emergency.....................

398

If the vehicle is submerged or

water on the road is rising ..

399

7-2. Steps to take in an emergency

If your vehicle needs to be towed

.........................................................

401

If you think something is wrong

........................................................

404

If a warning light turns on or a

warning buzzer sounds .......

406

If a warning message is displayed

.........................................................

415

If you have a flat tire (vehicles with

emergency tire puncture repair
kit).................................................

420

If you have a flat tire (vehicles with

spare tire) ..................................

432

If the hybrid system will not start

........................................................

439

If you lose your keys.................

440

If the fuel filler door cannot be

opened ........................................

441

If the electronic key does not

operate properly .....................

441

If the 12-volt battery is discharged

........................................................

444

If your vehicle overheats........

448

If the vehicle becomes stuck .

451

398

7-1. Essential information

7-1.Essential information

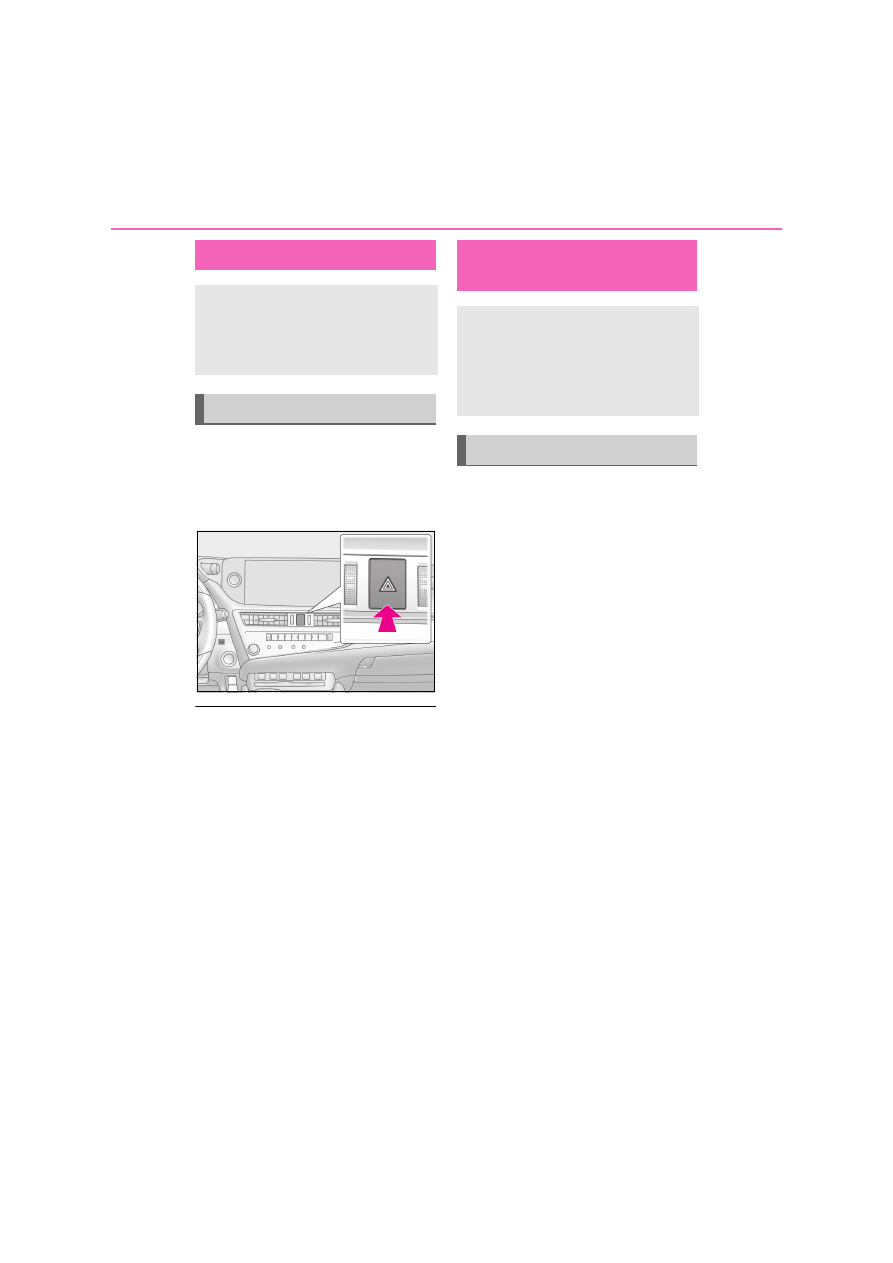

Press the switch to flash all of the turn
signal lights.
To turn them off, press the switch once
again.

Emergency flashers

If the emergency flashers are used for a

long time while the hybrid system is not

operating (while the “READY” indicator

is not illuminated), the 12-volt battery may

discharge.

If any of the SRS airbags deploy (inflate)

or in the event of a strong rear impact, the

emergency flashers will turn on automati-

cally.

The emergency flashers will turn off auto-
matically after operating for approximately
20 minutes. To manually turn the emer-
gency flashers off, press the switch twice.
(The emergency flashers may not turn on
automatically depending on the force of the
impact and conditions of the collision.)

Steadily step on the brake pedal
with both feet and firmly depress it.

Do not pump the brake pedal repeatedly

as this will increase the effort required to

slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N

After slowing down, stop the vehi-
cle in a safe place by the road.

Stop the hybrid system.



If the shift lever cannot be shifted to
N

Keep depressing the brake pedal
with both feet to reduce vehicle
speed as much as possible.

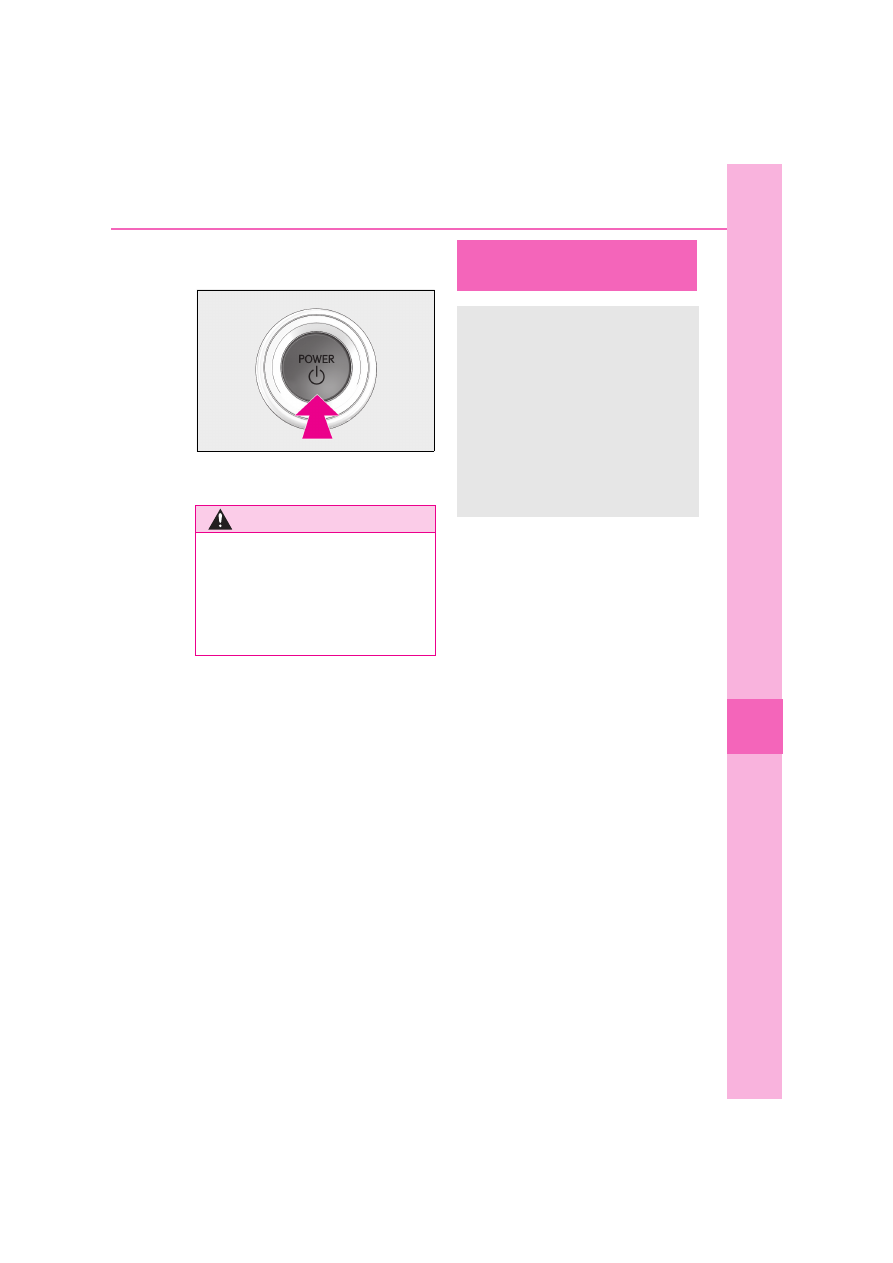

To stop the hybrid system, press
and hold the power switch for 2
consecutive seconds or more, or

Emergency flashers

The emergency flashers are used to
warn other drivers when the vehi-
cle has to be stopped in the road
due to a breakdown, etc.

Operating instructions

If your vehicle has to be
stopped in an emergency

Only in an emergency, such as if it
becomes impossible to stop the
vehicle in the normal way, stop the
vehicle using the following proce-
dure:

Stopping the vehicle

399

7-1. Essential information

Wh
en

troubl
e ar
ises

press it briefly 3 times or more in
succession.

Stop the vehicle in a safe place by
the road.



If the door can be opened, open the
door and exit the vehicle.



If the door can not be opened, open
the window using the power win-
dow switch and ensure an escape
route.



If the window can be opened, exit
the vehicle through the window.



If the door and window cannot be
opened due to the rising water,
remain calm, wait until the water
level inside the vehicle rises to the
point that the water pressure inside
of the vehicle equals the water pres-
sure outside of the vehicle and then
open the door after waiting for the
rising water to enter the vehicle, and
exit the vehicle. When the outside
water level exceeds half the height
of the door, the door cannot be
opened from the inside due to water
pressure.

WARNING

If the hybrid system has to be turned

off while driving

Power assist for the steering wheel will

be lost, making the steering wheel

heavier to turn. Decelerate as much as

possible before turning off the hybrid

system.

If the vehicle is submerged
or water on the road is rising

This vehicle is not designed to be
able to drive on roads that are
deeply flooded with water. Do not
drive on roads where the roads may
be submerged or the water may be
rising. It is dangerous to remain in
the vehicle, if it anticipated that the
vehicle will be flooded or set a drift.
Remain calm and follow the follow-
ing.

400

7-1. Essential information

Water level exceeds the floor

When the water level exceeds the floor and

time has passed, the electrical equipment

will get damaged, the power windows will

not operate, the engine and motor will stop,

and the vehicle may not be able to get mov-

ing.

Using an emergency escape hammer

Laminated glass

is used in the windshield

and the windows on this vehicle.
Laminated glass cannot be shattered with
an emergency hammer

: Contact any authorized Lexus retailer or

Lexus authorized repairer, or any reli-
able repairer, or aftermarket accessory
manufacturer for further information
about an emergency hammer.

: If equipped

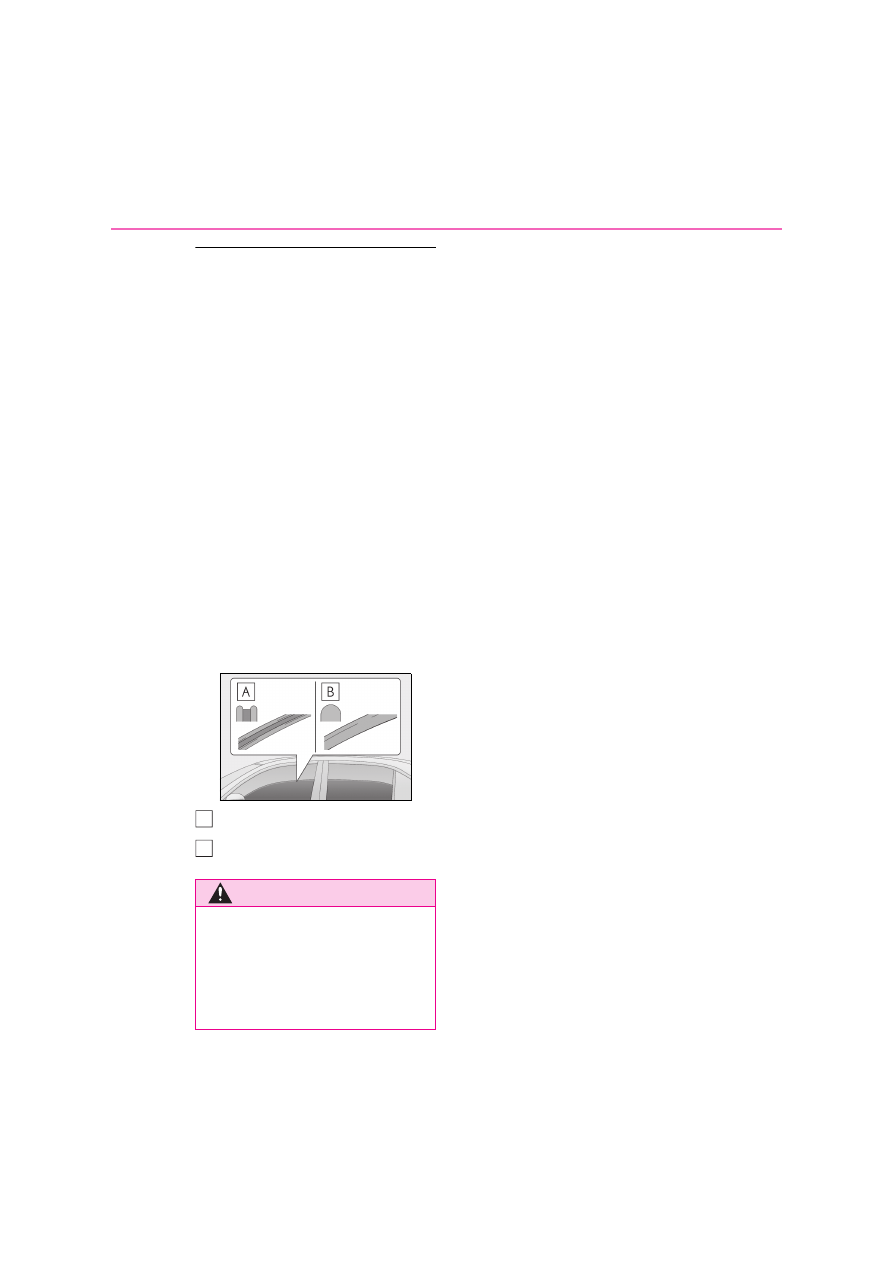

How to distinguish laminated glass

When looking from the cross-sectional

view point, laminated glass is two sheets of

glass pasted together.

Laminated glass

Tempered glass

WARNING

Caution while driving

Do not drive on roads where the roads

may be submerged or the water may be

rising. Otherwise the vehicle may be

damaged and cannot move, as well as

become flooded and set a drift, which

may lead to death.

401

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

7-2.Steps to take in an emergency

The following may indicate a problem
with your transmission. Contact any
authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer or commercial towing service
before towing.



The hybrid system warning message
is shown on the multi-information
display and the vehicle does not
move.



The vehicle makes an abnormal
sound.



From the front

Release the parking brake.

Turn automatic mode off. (



P.197)



From the rear

Use a towing dolly under the front
wheels.

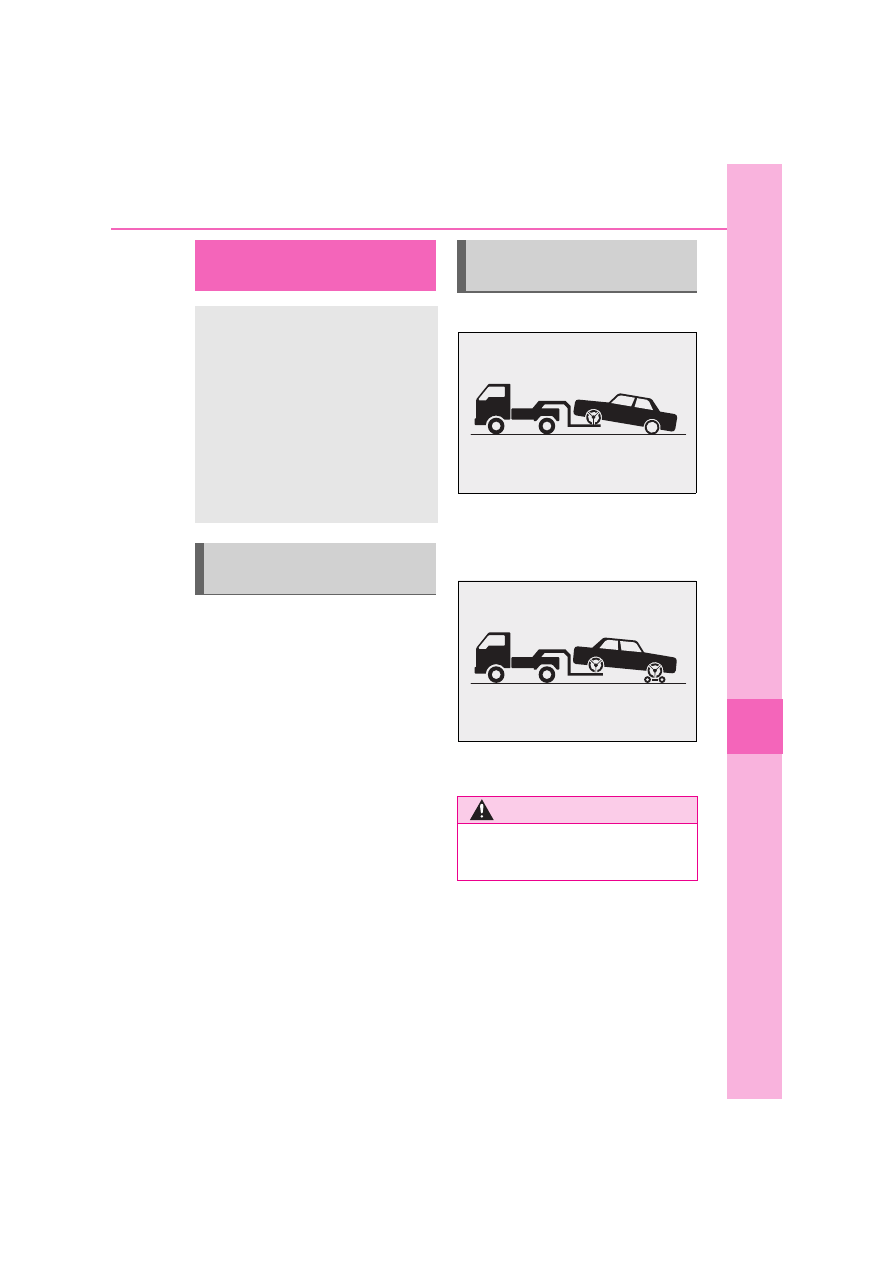

If your vehicle needs to be
towed

If towing is necessary, we recom-
mend having your vehicle towed by
any authorized Lexus retailer or
Lexus authorized repairer, or any
reliable repairer or commercial
towing service, using a wheel-lift
type truck or flatbed truck.
Use a safety chain system for all
towing, and abide by all state/pro-
vincial and local laws.

Situations when it is necessary to
contact dealers before towing

Towing with a wheel-lift type
truck

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

402

7-2. Steps to take in an emergency

When using a flat-bed truck to trans-
port the vehicle, use tire strapping
belts. Refer to the owner’s manual of
the flat-bed truck for the tire strapping
method.
In order to suppress vehicle movement
during transportation, set the parking
brake and turn the power switch off.

If a tow truck is not available in an
emergency, your vehicle may be tem-
porarily towed using cables or chains
secured to the emergency towing eye-
let. This should only be attempted on
hard surfaced roads for short distances
at under 30 km/h (18 mph).
A driver must be in the vehicle to steer
and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and
brakes must be in good condition.

To have your vehicle towed by another

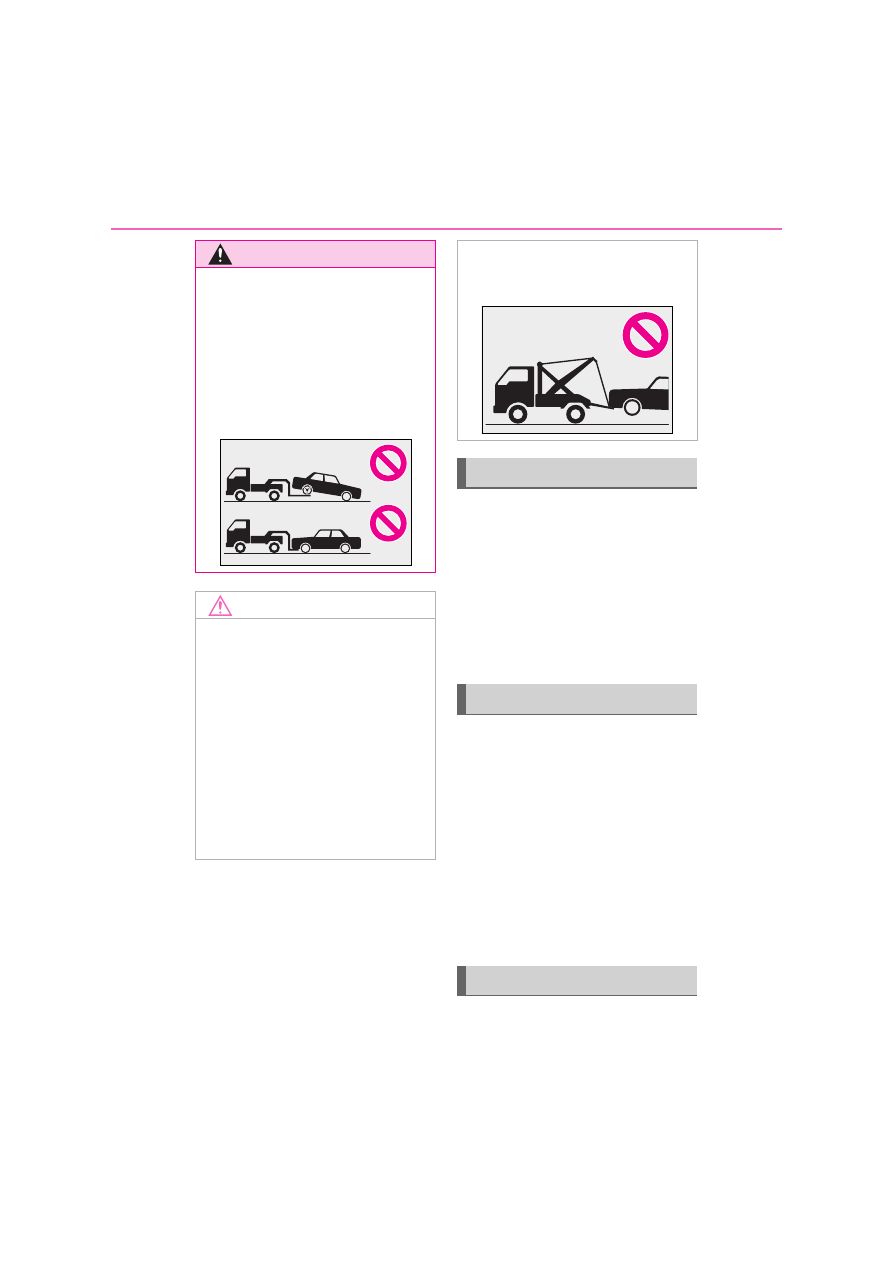

WARNING

When towing the vehicle

Be sure to transport the vehicle with the

front wheels raised or with all four wheels

raised off the ground. If the vehicle is

towed with the front wheels contacting

the ground, the drivetrain and related

parts may be damaged or electricity

generated by the operation of the motor

may cause a fire to occur depending on

the nature of the damage or malfunction.

NOTICE

To prevent damage to the vehicle

when towing using a wheel-lift type

truck

Do not tow the vehicle from the rear

when the power switch is off. The

steering lock mechanism is not strong

enough to hold the front wheels

straight.

When raising the vehicle, ensure ade-

quate ground clearance for towing at

the opposite end of the raised vehicle.

Without adequate clearance, the vehi-

cle could be damaged while being

towed.

Towing with a sling-type truck

Do not tow with a sling-type truck to pre-

vent body damage.

Using a flatbed truck

Emergency towing

Emergency towing procedure

Content .. 21 22 23 24 ..
