2-1. Instrument cluster

Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.98 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “1/1”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Shift position and shift range (



P.191)

Odometer and trip meter display (



P.99)

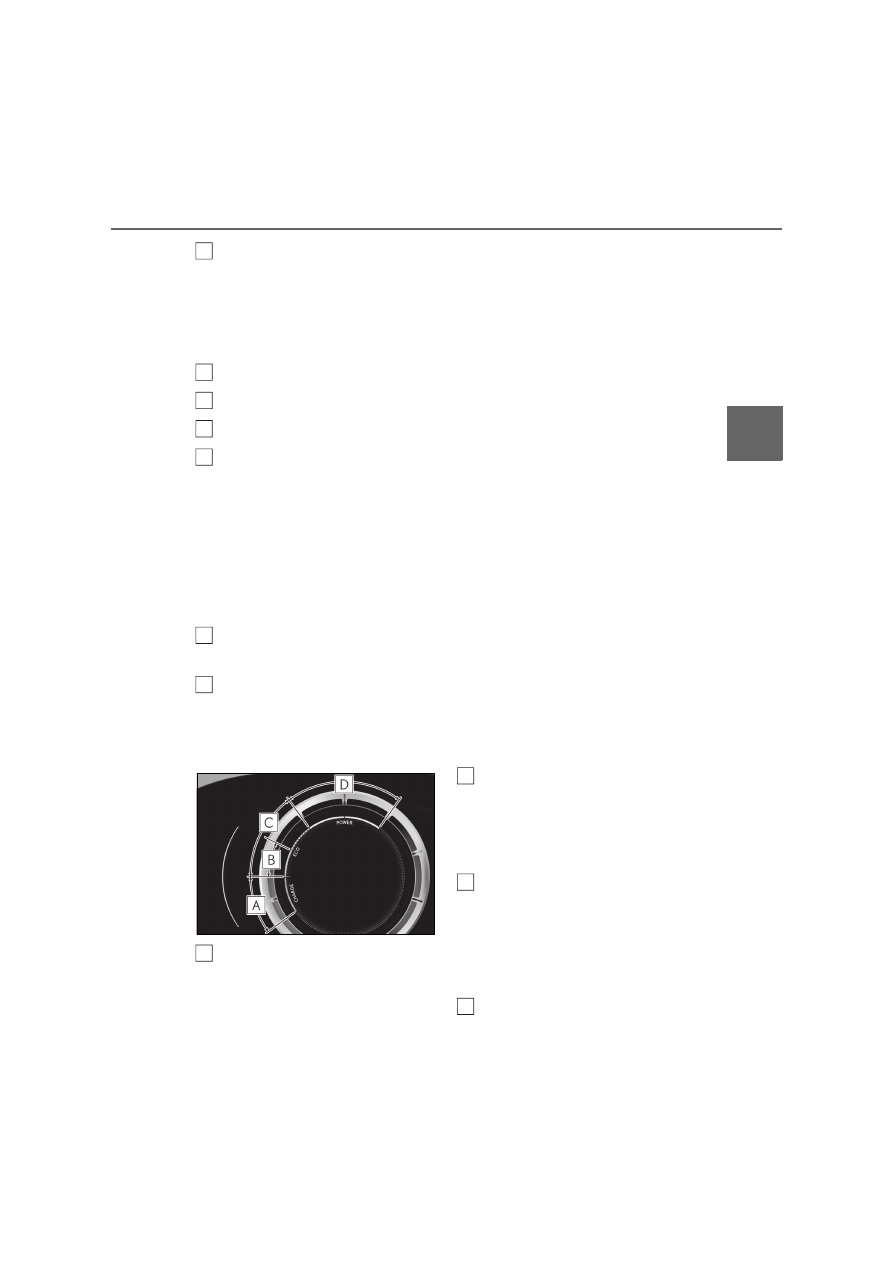

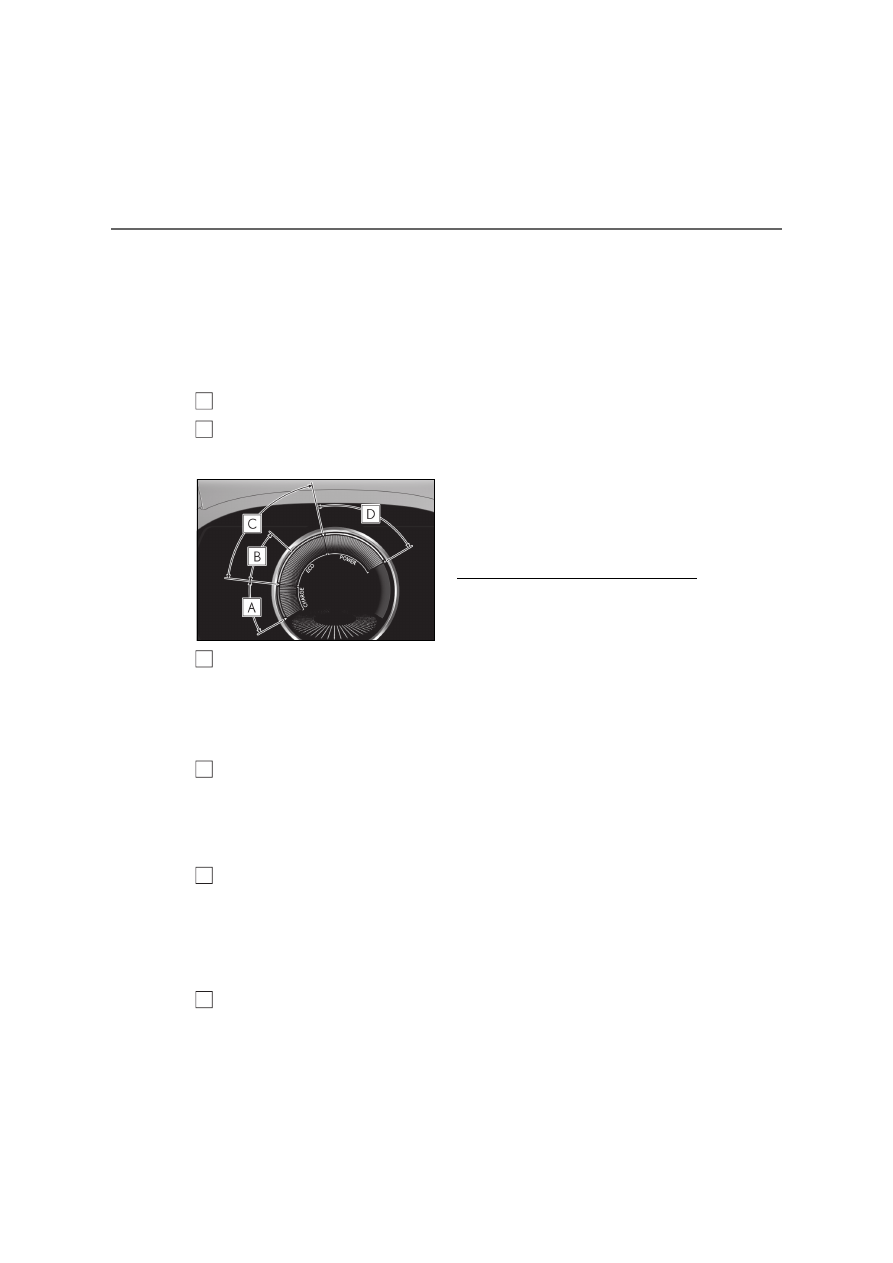

Hybrid System Indicator

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving range is

being exceeded (during full power driving
etc.)

: When used in this manual, regeneration

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

Engine speed

On hybrid vehicles, engine speed is pre-

cisely controlled in order to help improve

fuel efficiency and reduce exhaust emis-

sions etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

Hybrid System Indicator is displayed

when

The Hybrid System Indicator is displayed in

the following situations:

The shift lever is in D or S.

The hybrid system is started.

Manually updating the fuel gauge and

possible driving range

The fuel gauge and the possible driving

range are linked. If the displays of the fuel

gauge and possible driving range do not

update after adding a small amount of fuel,

the displays can be updated by performing

the following procedure.

Stop the vehicle on a level surface.

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Press the “ODO TRIP” switch to

change the odometer and trip meter

display to odometer.

Turn the power switch off.

While pressing and holding the “ODO

TRIP” switch, turn the power switch to

ON mode.

Continue to hold the “ODO TRIP”

switch for approximately 5 seconds,

and then release it once the odometer

begins flashing.

Updating is complete once the odometer

flashes for approximately 5 seconds and

then the display returns to normal.

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Liquid crystal display



P.108

Customization

The gauges and meters can be customized
on

of the multi-information display.

(



P.111)

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

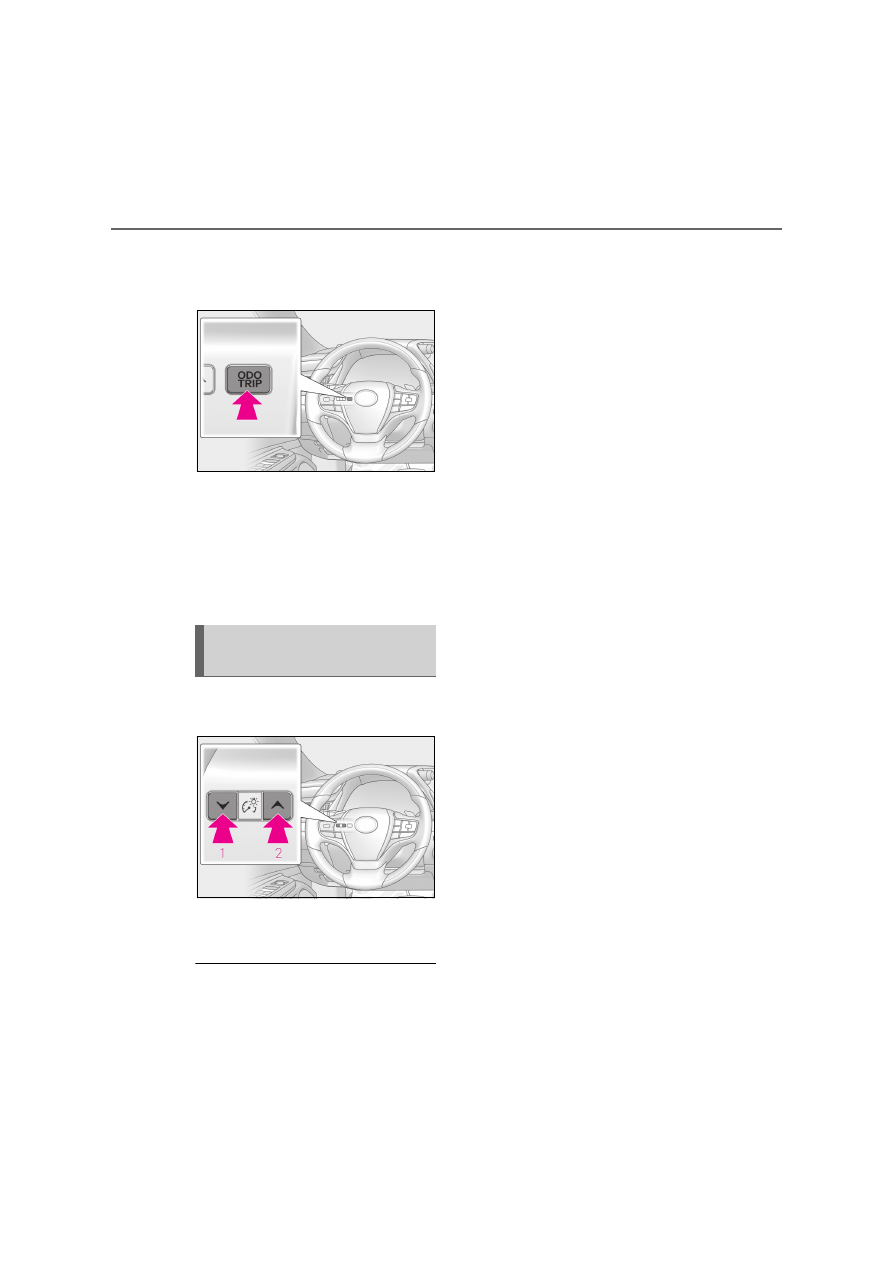

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be

WARNING

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

NOTICE

To prevent damage to the engine and

its components

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.448)

Odometer and trip meter dis-
play

100

2-1. Instrument cluster

changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

Pop-up display

Distance until the next engine oil
change will be displayed when a warn-
ing message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

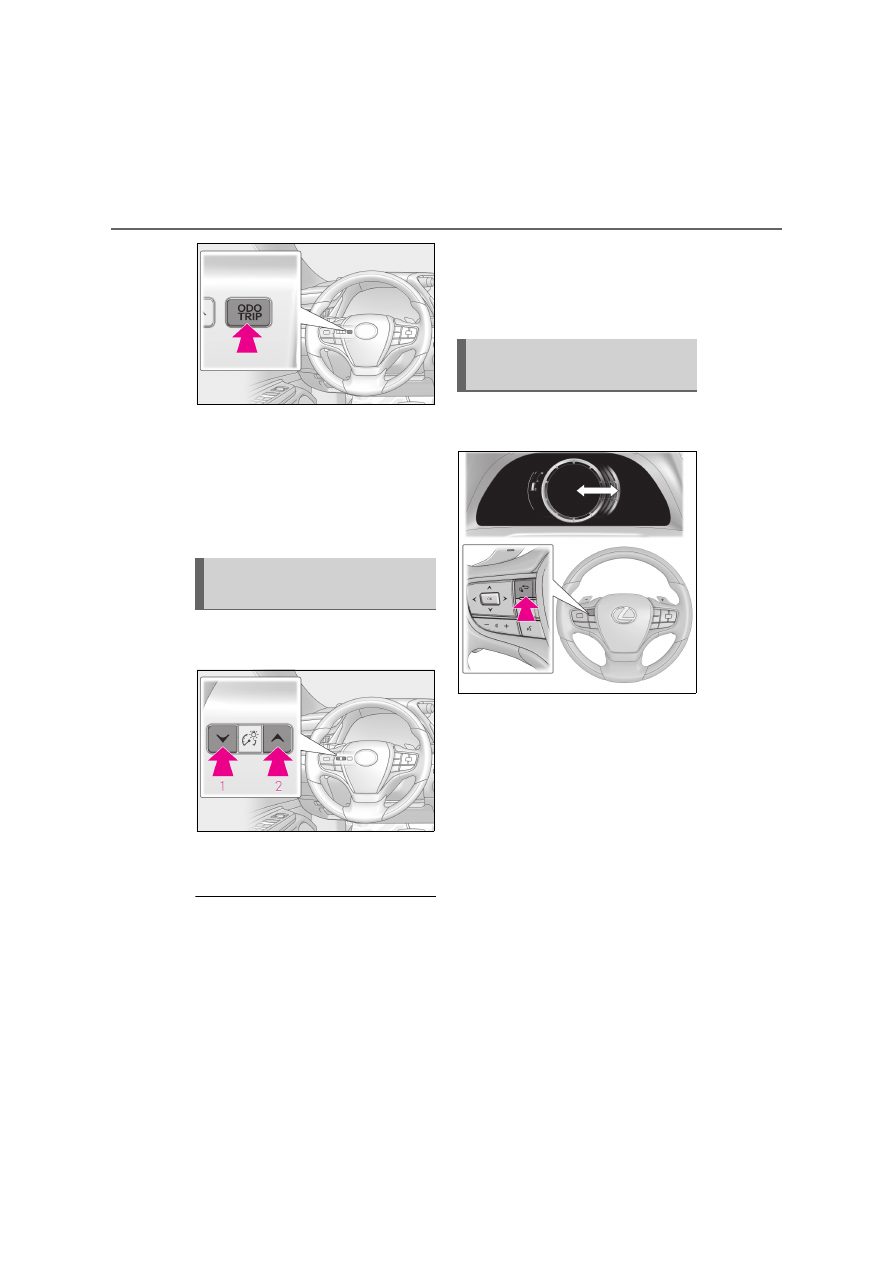

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

Brightness of the meter lights (day mode

and night mode)

The brightness of the meter lights can be

adjusted individually.

In the following situations, the meters

changes between day mode and night

mode.

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

Night mode: When the tail lights are on

and the surrounding area is dark

Changing the instrument panel
light brightness

101

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

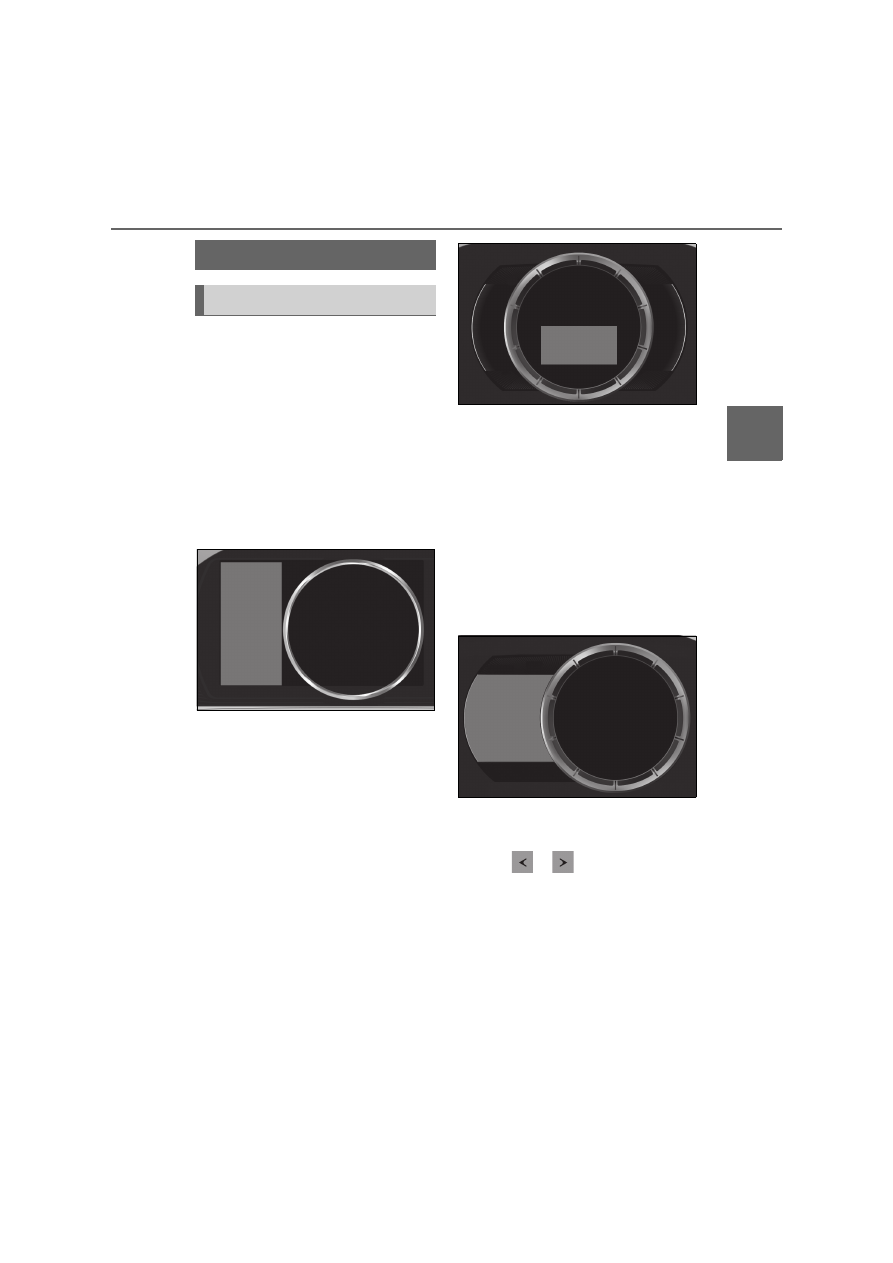

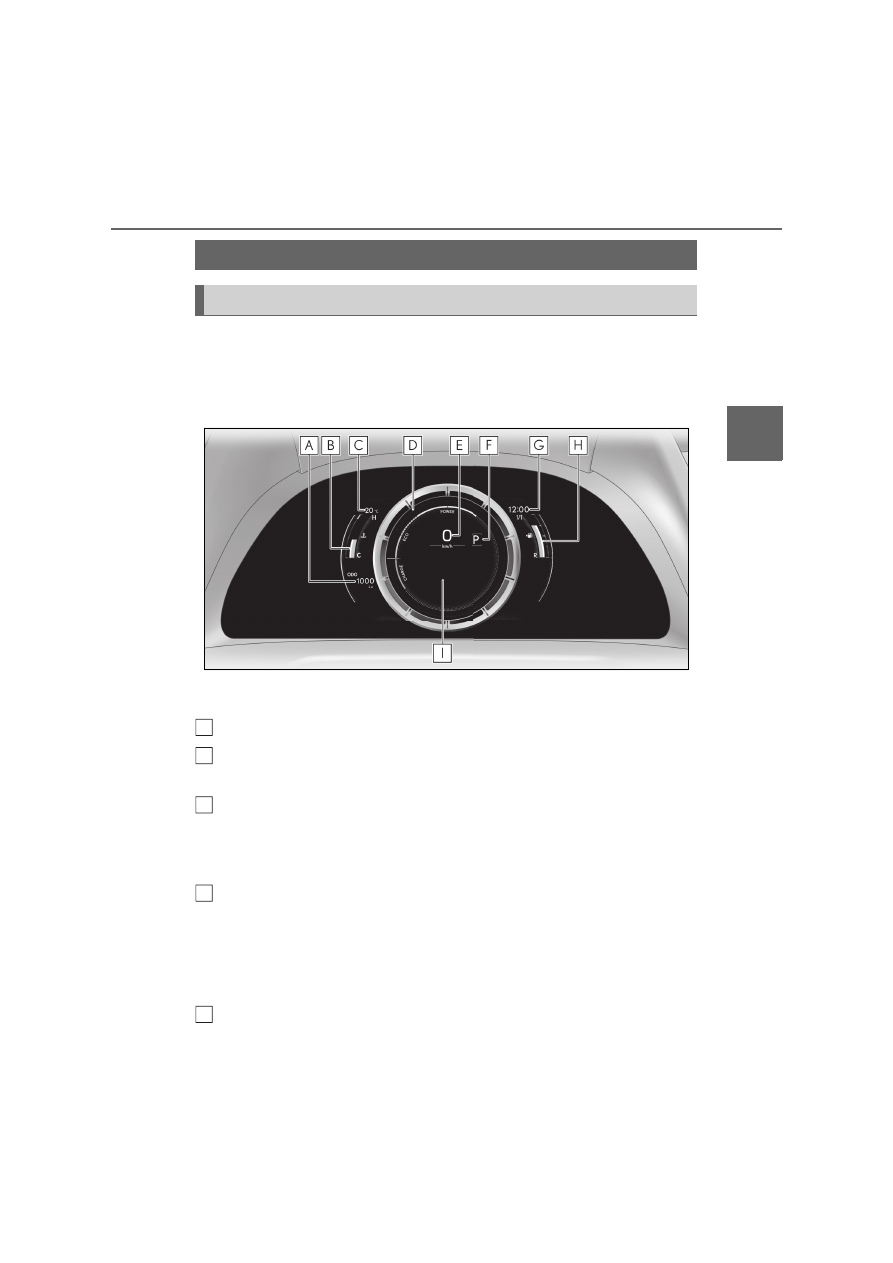

Locations of gauges and meters

When the main meter is moved to the right, some of the meter displays and the
gauge layout will change. (



P.106)



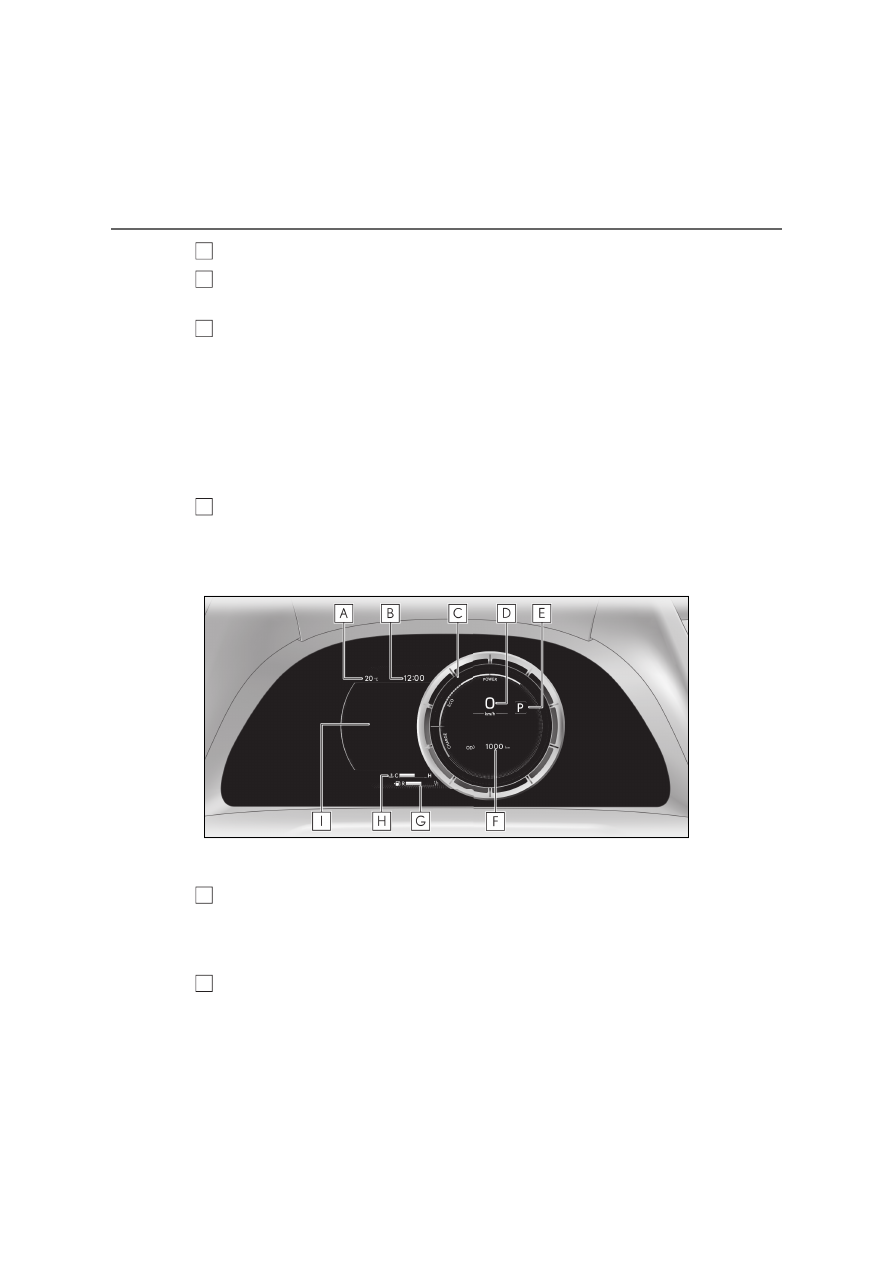

Main meter in center position

The location of some displayed items and the units of measure may differ depending on the
intended destination of the vehicle.

Odometer and trip meter display (



P.105)

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)
Low outside temperature indicator comes on when the ambient temperature is 3°C
(37°F) or lower

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P.103)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (



P.111, 267)

• Rev indicator (



P.104)

• Rev peak (



P.104)

Speedometer

Gauges and meters (F SPORT models)

Meter display

A
B

102

2-1. Instrument cluster

Shift position and shift range (



P.191)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.343)

Fuel gauge

Displays the quantity of fuel remaining in the tank
In the following situations, the actual quantity of fuel remaining in the tank may not be dis-
played correctly. Refer to P.104 if the actual quantity of fuel remaining in the tank is not dis-
played correctly.
• A small amount of fuel is added.
• Fuel is added with the fuel gauge near or at “1/1”.
• The vehicle is stopped on an uneven surface, such as a slope.
• The vehicle is driven on a slope or around a curve.

Multi-information display

Presents the driver with a variety of vehicle data (



P.107)

Displays warning messages if a malfunction occurs (



P.415)



Main meter moved to the right

The location of some displayed items and the units of measure may differ depending on the
intended destination of the vehicle.

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)
Low outside temperature indicator comes on when the ambient temperature is 3°C
(37°F) or lower

Clock

Time displayed is linked to the analog clock on the center panel. (



P.343)

103

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Hybrid System Indicator

Displays hybrid system output or regeneration level (



P.103)

This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. (



P.111, 267)

• Rev indicator (



P.104)

• Rev peak (



P.104)

Speedometer

Shift position and shift range (



P.191)

Odometer and trip meter display (



P.105)

Fuel gauge

Engine coolant temperature gauge

Displays the engine coolant temperature

Multi-information display

Presents the driver with a variety of vehicle data (



P.107)

Displays warning messages if a malfunction occurs (



P.415)

Hybrid System Indicator

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the hybrid battery (traction bat-

tery).

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be
achieved.

Power area

E
F

104

2-1. Instrument cluster

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)

: When used in this manual, regeneration

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

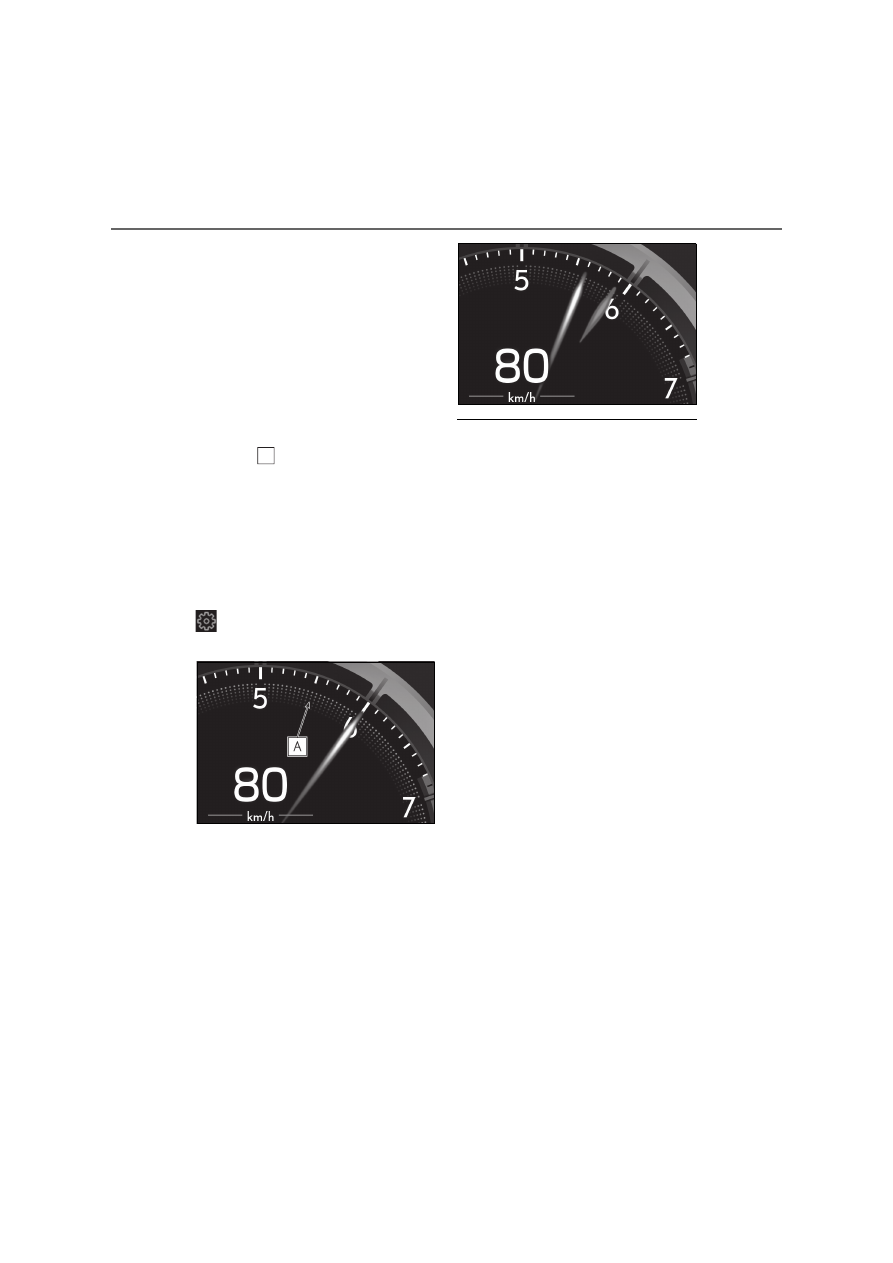

Rev indicator

When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator (

) will be displayed on the

tachometer.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on

of the multi-information display.

(



P.111)

Rev peak

When the engine speed reaches or
exceeds 4000 r/min, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

Engine speed

On hybrid vehicles, engine speed is pre-

cisely controlled in order to help improve

fuel efficiency and reduce exhaust emis-

sions etc.

There are times when the engine speed that

is displayed may differ even when vehicle

operation and driving conditions are the

same.

Hybrid System Indicator is displayed

when

The Hybrid System Indicator is displayed in

the following situations:

The shift lever is in D or S.

The hybrid system is started.

Manually updating the fuel gauge and

possible driving range

The fuel gauge and the possible driving

range are linked. If the displays of the fuel

gauge and possible driving range do not

update after adding a small amount of fuel,

the displays can be updated by performing

the following procedure.

Stop the vehicle on a level surface.

Press the “ODO TRIP” switch to

change the odometer and trip meter

display to odometer.

Turn the power switch off.

While pressing and holding the “ODO

TRIP” switch, turn the power switch to

ON mode.

Continue to hold the “ODO TRIP”

switch for approximately 5 seconds,

and then release it once the odometer

begins flashing.

Updating is complete once the odometer

105

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

flashes for approximately 5 seconds and

then the display returns to normal.

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Liquid crystal display



P.108

Customization

The gauges and meters can be customized
on

of the multi-information display.

(



P.111)

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

WARNING

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

NOTICE

To prevent damage to the engine and

its components

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.448)

Odometer and trip meter dis-
play

106

2-1. Instrument cluster

Pop-up display

Distance until the next engine oil
change will be displayed when a warn-
ing message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

Brightness of the meter lights (day mode

and night mode)

The brightness of the meter lights can be

adjusted individually.
In the following situations, the meters

changes between day mode and night

mode.

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

Night mode: When the tail lights are on

and the surrounding area is dark

The display can be switched between
the center and side positions.

Changing the instrument panel
light brightness

Changing the main meter loca-
tion

107

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Display (except F SPORT models)

By selecting menu icons on the multi-
information display, a variety of driv-
ing-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

Display (F SPORT models)



Main meter in center position

The multi-information display presents
the driver with a variety of driving-
related information.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.



Main meter moved to the right

Menu icons

The menu icons will be displayed by
pressing

of the meter con-

trol switches.

F SPORT models: The menu icons can be
displayed when the main meter is moved
to the right.

Multi-information display

Display and menu icons

108

2-1. Instrument cluster

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

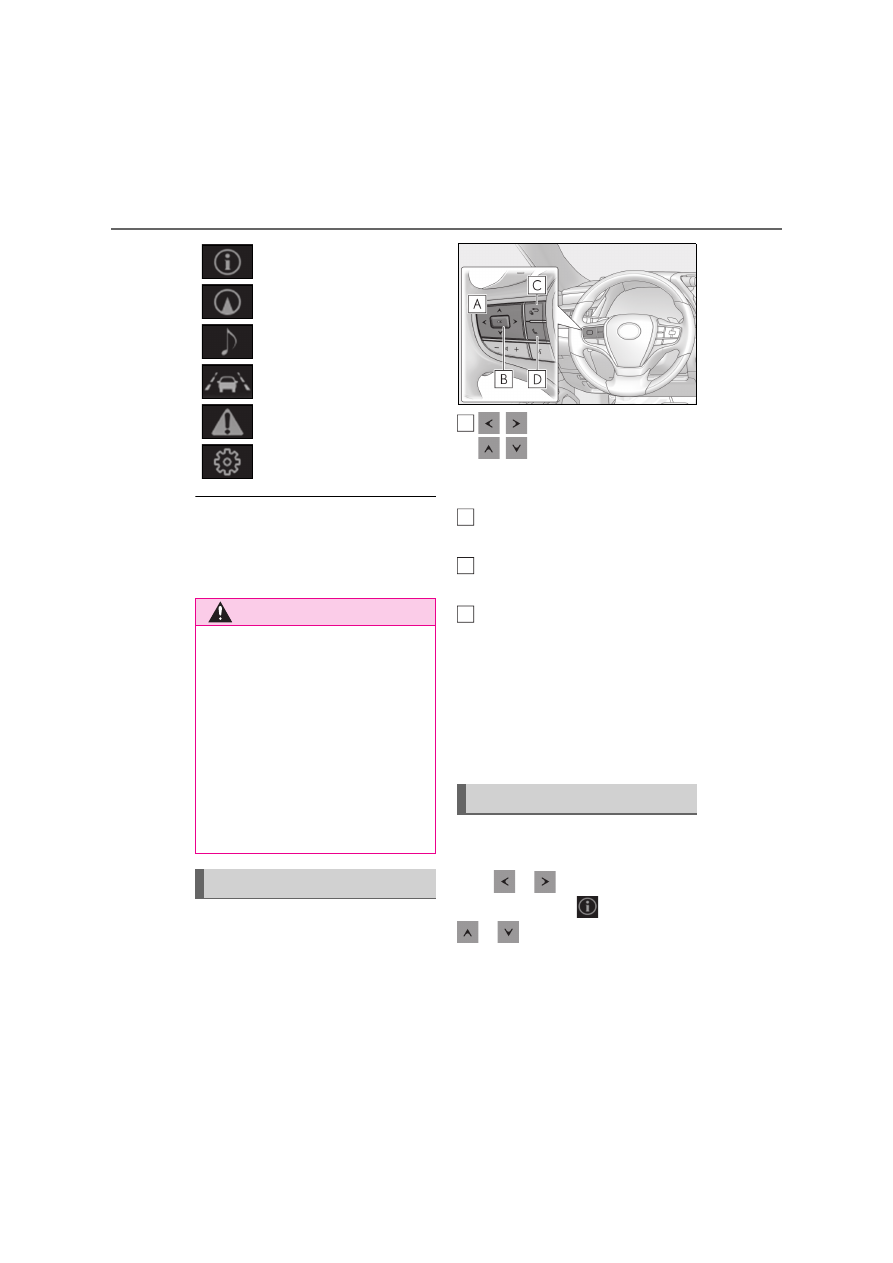

The multi-information display is oper-
ated using the meter control switches.

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen and
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Move the main meter

and return

to the previous screen

Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIME-
DIA SYSTEM OWNER’S MANUAL”.

: F SPORT models

Display items (except F SPORT
models)

Press

of the meter control

switches and select

. Then press

to display the following

items:



Drive information 1



Drive information 2

Driving information display
(



P.108)

Navigation system-linked dis-
play (if equipped) (



P.110)

Audio system-linked display
(



P.110)

Driving support system infor-
mation display (



P.110)

Warning message display
(



P.415)

Settings display (



P.111)

WARNING

Caution for use while driving

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around

the vehicle.

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

The information display at low tem-

peratures



P.99, 105

Changing the meter display

Content of driving information

109

2-1. Instrument cluster

icle

ion
an

d i

ica

tor



Energy monitor (



P.118)



Tire pressure (



P.375)



Display off

Display items (F SPORT models)



Main meter in center position

Press

of the meter control

switches to display the following items:



Drive information 1



Drive information 2



Tire pressure (



P.375)



Units (if equipped)



Display off



Main meter moved to the right

Press

of the meter control

switches and select

. Then press

to display the following

items:



Drive information 1



Drive information 2



Energy monitor (



P.118)



G-force



Tire pressure (



P.375)



Display off

Drive information 1/Drive informa-
tion 2

Displays drive information such as the
following:

Use the displayed values as a reference
only.



Drive information 1

• Current fuel consumption

• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)

Displayed items (listed below) can be
changed on

. (



P.111)



Current fuel consumption

Bar type: Displays instantaneous current
fuel consumption



Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

After start: Displays average fuel con-
sumption since hybrid system start
After refuel: Displays average fuel con-
sumption since refuel



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since hybrid system start



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since
hybrid system start



Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven
since hybrid system start



Other

Blank: No item

: To reset, display the desired item and

110

2-1. Instrument cluster

press and hold “OK” of the meter con-
trol switches.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the power switch
off. If the vehicle is refueled without
turning the power switch off, the display
may not be updated.

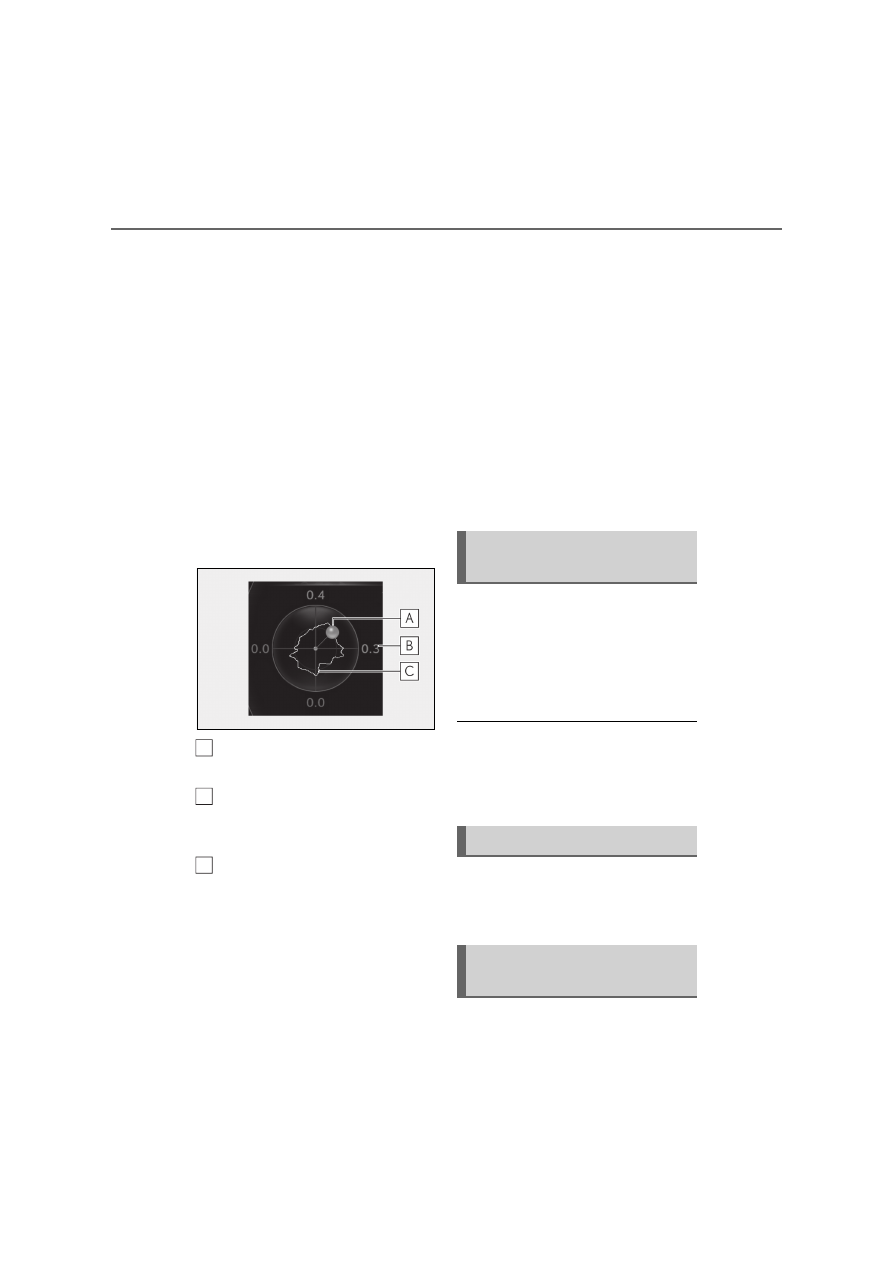

G-force (F SPORT models)

Displays lateral G-forces on the vehi-
cle.

Acceleration G-force on the vehi-
cle

Current G-force value (analyzed
value of front/rear and left/right G-
forces)

Record of the maximum G-forces

This display is intended for use as a guide-
line. Depending on factors such as the
road surface condition, temperature and
vehicle speed, the display may not show
the actual condition of the vehicle.



Resetting the record of maximum
G-forces

Press and hold “OK” of the meter control
switches to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

Units (F SPORT models)

On some models, the units of measure
used can be changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display (heading-up dis-
play)

Route guidance to destination display

When the route guidance to destination

display is enabled on the head-up display, it

will not be displayed on the multi-informa-

tion display. (



P.115)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

111

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

of the following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.234)



Dynamic radar cruise control with
full-speed range (if equipped)
(



P.248)



Cruise control (if equipped)
(



P.260)



RSA (Road Sign Assist) (if
equipped) (



P.244)

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display (except F
SPORT models)

Select to set the display of the speedome-
ter to digital or analog.



Drive information 1/Drive informa-
tion 2

Select to select up to 2 items (



P.109)

that will be displayed on each Drive infor-
mation screen (Drive information 1 screen
and Drive information 2 screen) respec-
tively.



Clock

Select to switch between 24-hour display
and 12-hour display.



Pop-up display

Select to enable/disable some pop-up dis-

plays for each relevant system.



Accent color

Select to change the accent color on the
screen, such as the cursor color.



Tachometer setting

Select to set the display of the Hybrid Sys-
tem Indicator or tachometer for each driv-
ing mode.



Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.



Rev peak (F SPORT models)

Select to enable/disable the rev peak.



EV indicator

Select to enable/disable the EV indicator.



Default setting

Select to reset the meter display settings to
the default setting.

Vehicle functions and settings that
can be changed



P.463

Suspension of the settings display

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Settings display

112

2-1. Instrument cluster

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

Suggestion to turn on the head-
lights

If the headlights turn off, and the vehi-
cle speed is 5 km/h (3 mph) or higher
for a certain amount of time when the
surroundings are dark, a suggestion
message will be displayed.

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight
switch in

after the power switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.

To turn the headlights off, select “Yes”.

If a front door is opened after the power
switch is turned off, this suggestion mes-
sage will not be displayed.

Suggestion to close the power win-
dows (linked to windshield wiper
operation)

If the windshield wipers are operated
with a power window open, a sugges-
tion message will be displayed asking if
you wish to close the power windows.
To close all of the power windows,
select “Yes”.

Customization

Some functions can be customized.

(



P.463)

WARNING

Cautions during setting up the dis-

play

As the hybrid system needs to be operat-

ing during setting up the display, ensure

that the vehicle is parked in a place with

adequate ventilation. In a closed area

such as a garage, exhaust gases includ-

ing harmful carbon monoxide (CO) may

collect and enter the vehicle. This may

lead to death or a serious health hazard.

NOTICE

During setting up the display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while setting up the display features.

Suggestion function

113

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

: If equipped

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

Driving support system display area (



P.115)

Navigation system-linked display area (if equipped)

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

Driving information display area

Displays the following items:
• Speedometer
• Shift position and shift range (



P.191)

• RSA (Road Sign Assist) display area (if equipped) (



P.244)

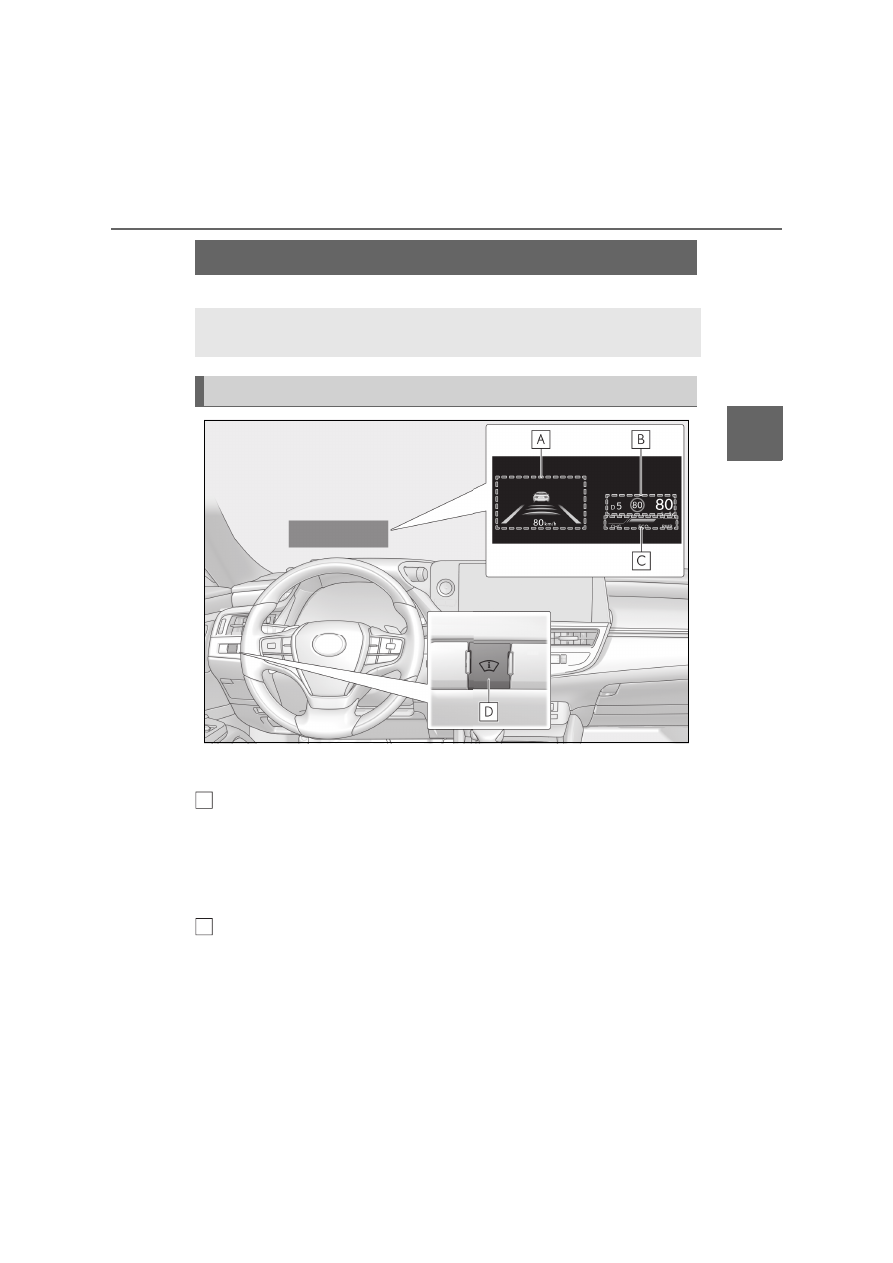

Head-up display

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.

System components

Content .. 3 4 5 6 ..
