114

2-1. Instrument cluster

Hybrid System Indicator/tachometer display area (



P.116)

Head-up display switch

Head-up display will operate when

The power switch is in ON mode.

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

Street name display

Only street names which are included in the

map data will be displayed.

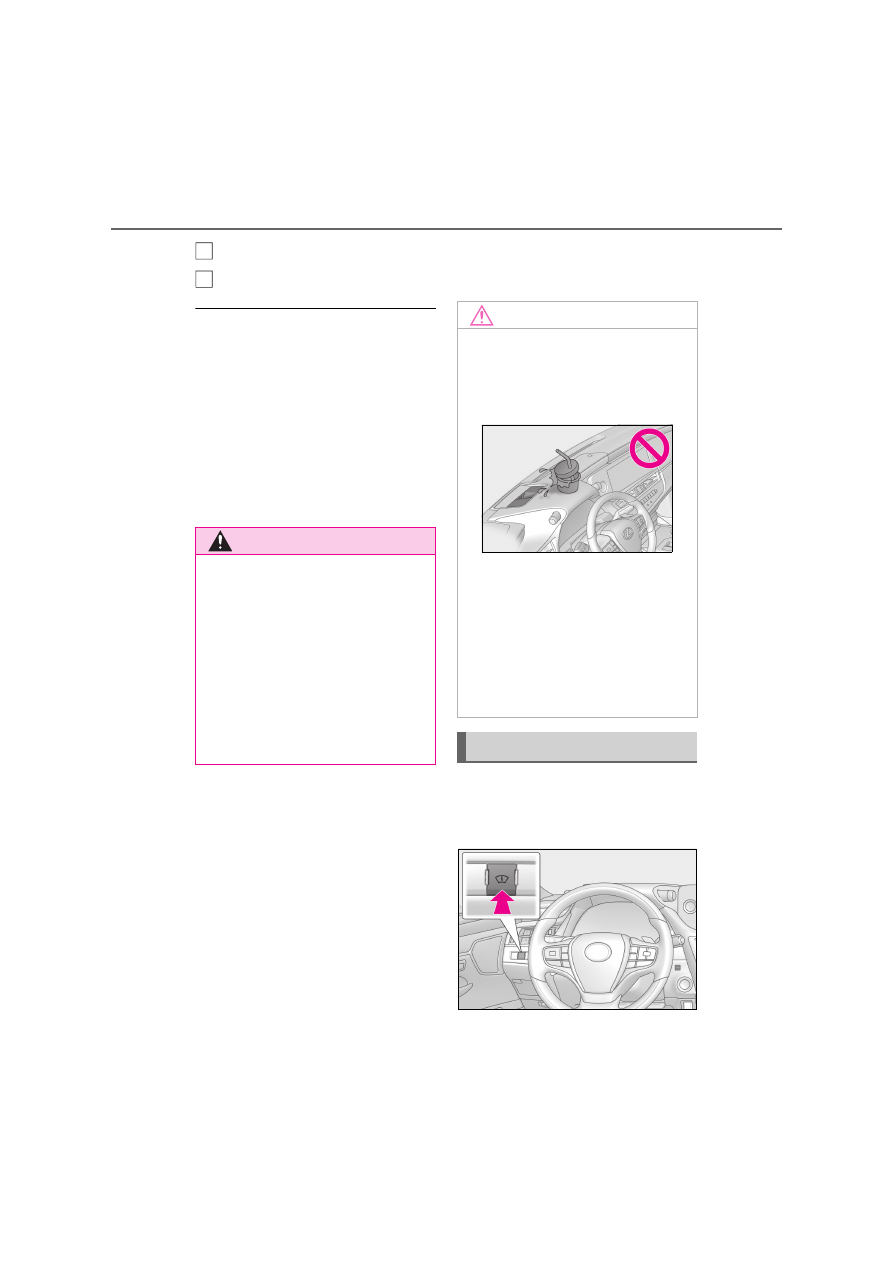

Enabling/disabling the head-up
display

Press the head-up display switch.

C
D

WARNING

When using the head-up display

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

NOTICE

Head-up display projector

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

Using the head-up display

115

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Changing settings of the head-up
display

The following settings can be changed
on

of the multi-information display.

(



P.107)



Brightness and vertical position of
the head-up display

Select to adjust the brightness or vertical
position of the head-up display.



Hybrid System Indicator/tachome-
ter

Select to display the Hybrid System Indica-
tor, tachometer or no content.



Display content

Select to enable/disable the following
items:
• Route guidance to destination/street

name

• Driving support system display

• Compass (heading-up display)
• Audio system operation status

: Make sure to enable this display when

using the driving support systems



Display angle

Select to adjust the angle of the head-up
display.

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the power switch is

turned off then back to ON mode.

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted

according to the ambient brightness.

Head-up display automatic position

adjustment (if equipped)

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(



P.147)

When the 12-volt battery is discon-

nected

The customize settings of the head-up dis-

play will be reset.

Displays the operational status of the
following systems:



LTA (Lane Tracing Assist) (if
equipped) (



P.234)



Dynamic radar cruise control with
full-speed range (if equipped)
(



P.248)

WARNING

Caution for changing settings of the

head-up display

As the hybrid system needs to be operat-

ing while changing the settings of the

head-up display, ensure that the vehicle

is parked in a place with adequate venti-

lation. In a closed area such as a garage,

exhaust gases including harmful carbon

monoxide (CO) may collect and enter

the vehicle. This may lead to death or a

serious health hazard.

NOTICE

When changing the settings of the

head-up display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while changing the settings of the

head-up display.

Driving support system display
area

116

2-1. Instrument cluster

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel-
evant system.



PCS (Pre-Collision System) (if
equipped) (



P.224)



Lexus parking assist-sensor
(



P.271)



Parking Support Brake function
(static objects) (



P.295)



Brake Override System (



P.179)



Drive-Start Control (DSC)
(



P.182)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

icons

These icons are linked to the multi-
information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(



P.415)

: Information icon

Displayed when a suggestion pop-up dis-
play (



P.112) or advice pop-up display is

displayed on the multi-information display.

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display.

Audio system operation status

Displayed when an audio remote con-
trol switch on the steering wheel is
operated.

Hands-free system status

Displayed when the hands-free system
is operated.

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

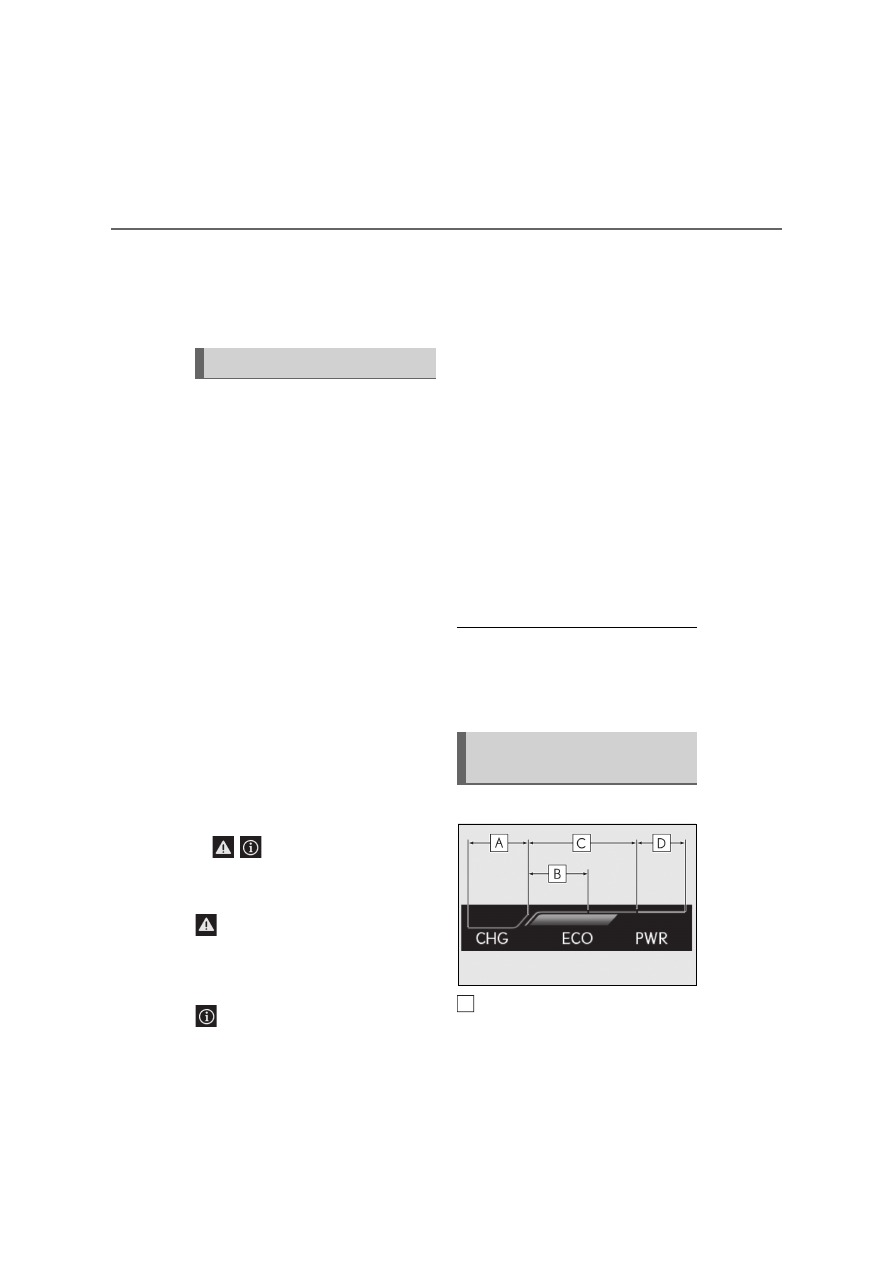

Hybrid System Indicator

Charge area

Pop-up display

Hybrid System Indica-
tor/tachometer display area

117

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Hybrid Eco area

Eco area

Power area

Displayed content is the same as that dis-
played on the meter (Hybrid System Indi-
cator). For details, refer to P.98 or P.103.

Tachometer

Displays the engine speed in revolu-
tions per minute.

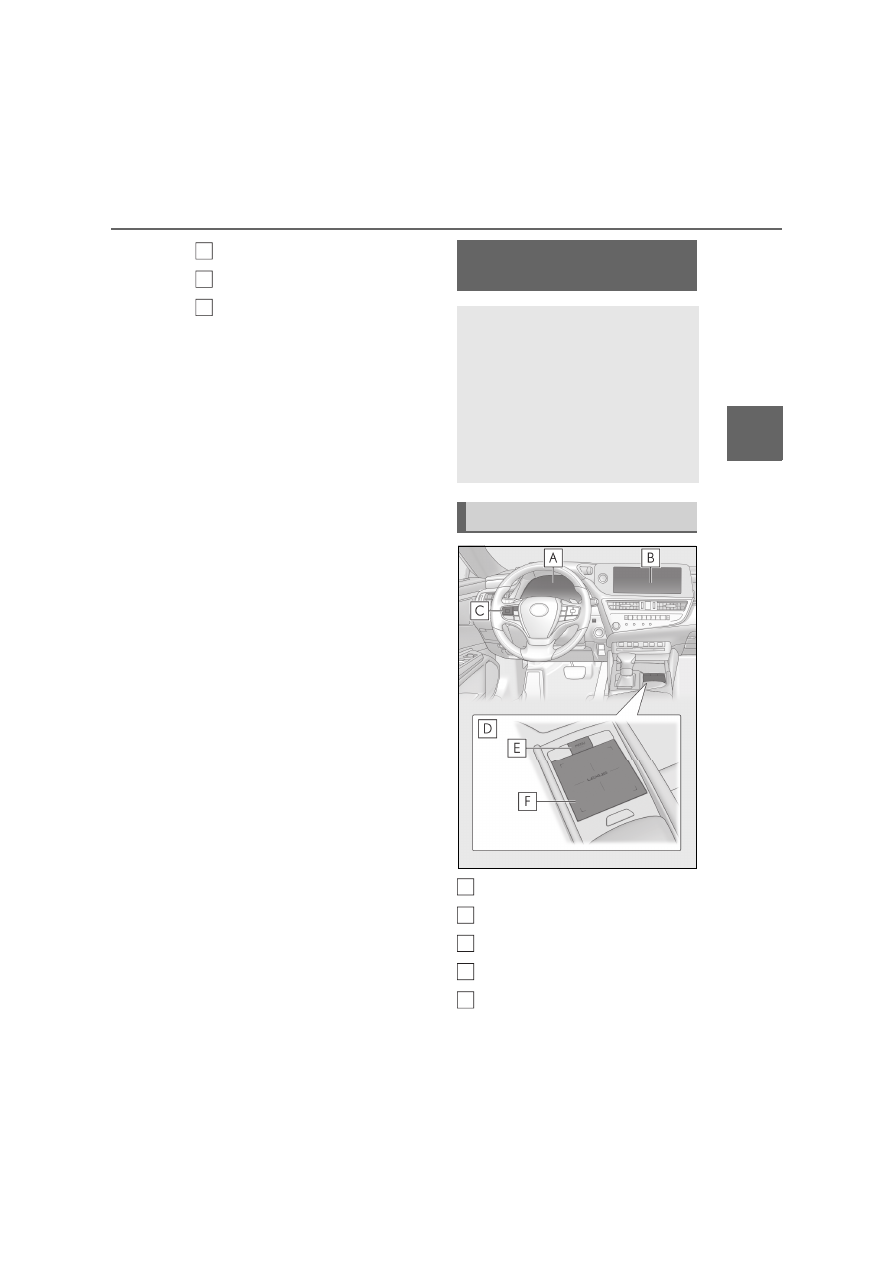

Multi-information display

Center Display

Meter control switches

Remote Touch (



P.314)

“MENU” button

B
C
D

Energy monitor/consump-
tion screen

You can view the status of your
hybrid system and fuel consump-
tion information on the multi-infor-
mation display and Center Display.
12.3-inch display model: The
energy monitor or consumption
screen can be displayed on the side
display.

System components

A
B
C
D

118

2-1. Instrument cluster

Touchpad

The energy monitor can be used to
check the vehicle drive status, hybrid
system operation status and energy
regeneration status.

Display procedure



Multi-information display

Press

of the meter control

switches and select

, and then press

to select the energy monitor

display.



Center Display

Press the “MENU” button on the
Remote Touch, then select

on the

menu screen.

If the “Trip information” or “History” screen
is displayed, select “Energy”.

Reading the display

The arrows will appear in accordance
with the energy flow.
When there is no energy flow, arrows
will not be displayed.

The color of the arrows will change as fol-
lows
Blue: When the hybrid battery (traction
battery) is regenerated or charged.
Yellow: When the hybrid battery (traction
battery) is in use.
Red: When the gasoline engine is in use.



Multi-information display

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

Gasoline engine

Hybrid battery (traction battery)

Tires



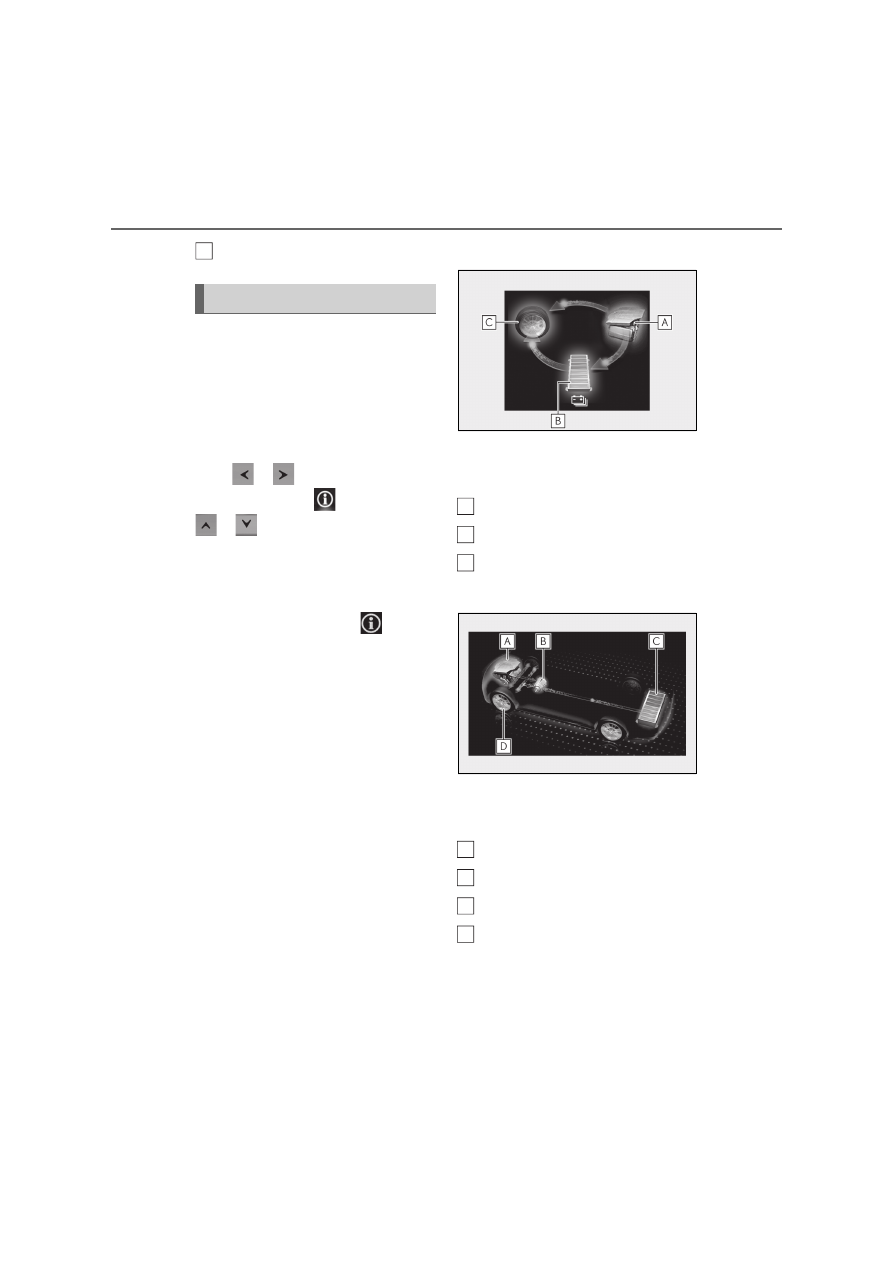

Center Display

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

Gasoline engine

Electric motor (traction motor)

Hybrid battery (traction battery)

Tires

Energy monitor

A
B
C

A
B
C
D

119

2-1. Instrument cluster

icle

ion
an

d i

ica

tor



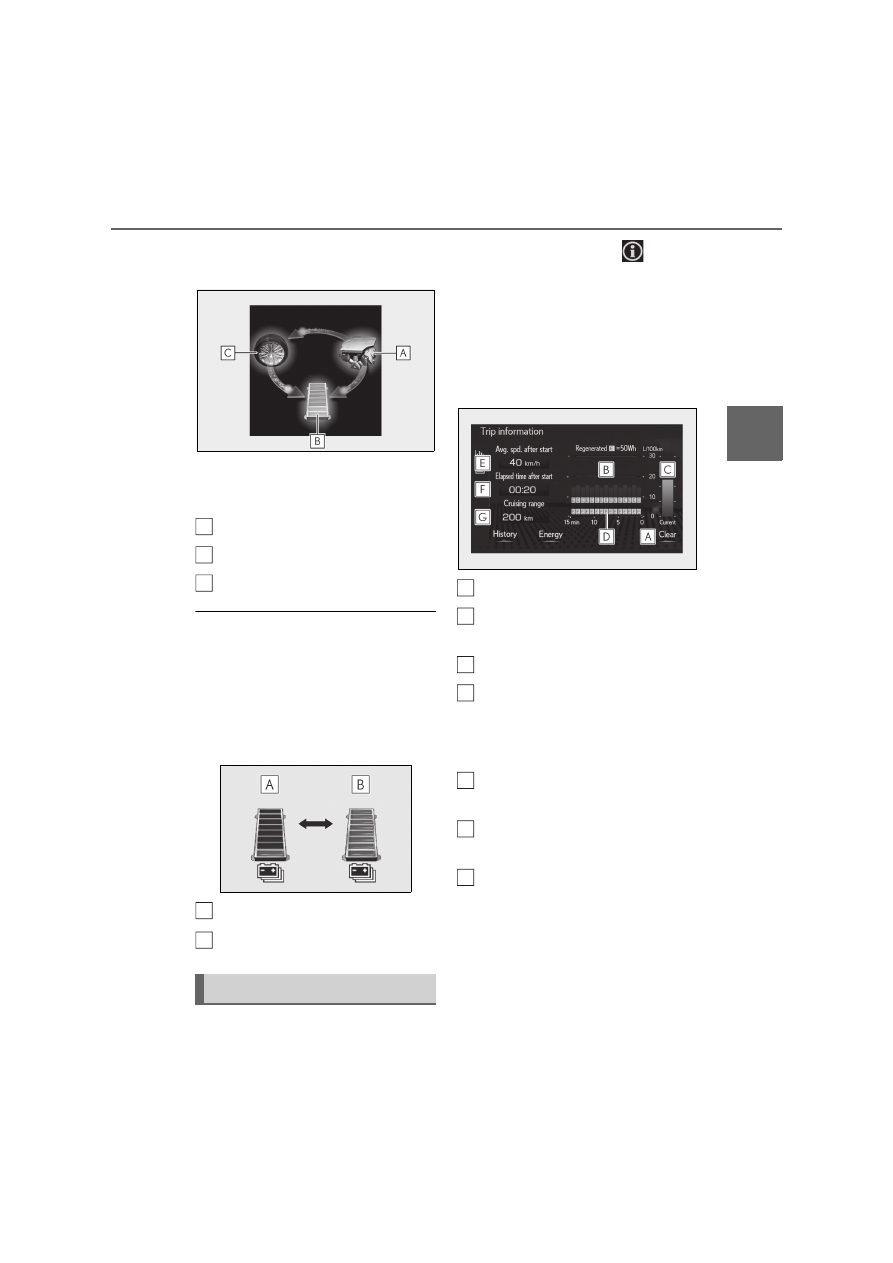

Side display (12.3-inch display
model)

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

Gasoline engine

Hybrid battery (traction battery)

Tires

Hybrid battery (traction battery) status

The display changes in 8 levels according

to the remaining charge amount of the

hybrid battery (traction battery).

The figure shows the multi-information

display as an example for explanation.

These images are examples only, and

may vary slightly from actual conditions.

Low

High

Press the “MENU” button on the

Remote Touch, then select

on the

menu screen, and then select “Trip
information” or “History”.

Trip information

If a screen other than “Trip informa-
tion” is displayed, select “Trip informa-
tion”.

Resetting the consumption data

Fuel consumption in the past 15
minutes

Current fuel consumption

Regenerated energy in the past 15
minutes

One symbol indicates 50 Wh. Up to 5
symbols are shown.

Average vehicle speed since the
hybrid system was started.

Elapsed time since the hybrid sys-
tem was started.

Cruising range

Average fuel consumption for the past 15
minutes is divided by color into past aver-
ages and averages attained since the
power switch was last turned to ON mode.
Use the displayed average fuel consump-
tion as a reference.
The image is an example only, and may

Consumption

A
B
C

A
B

C
D

120

2-1. Instrument cluster

vary slightly from actual conditions.

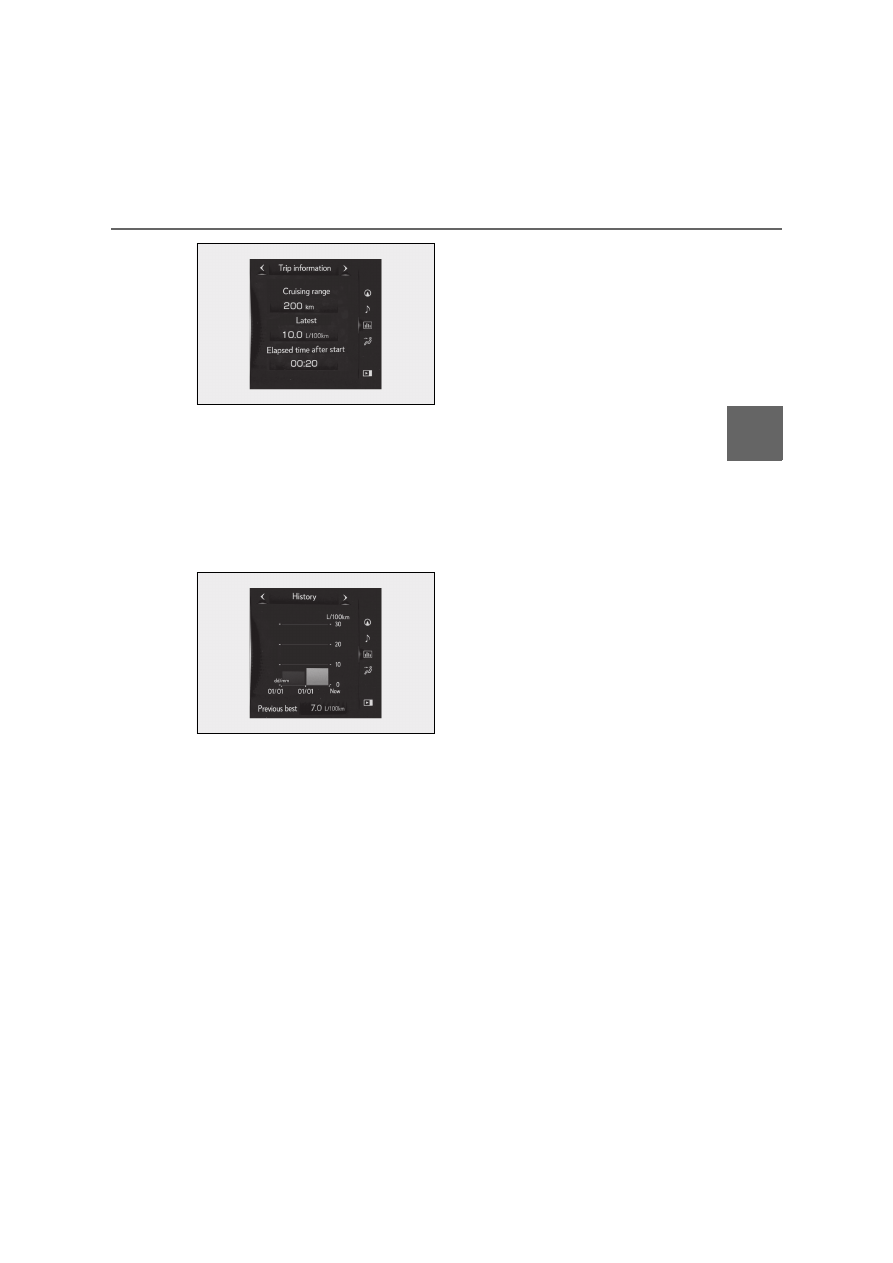

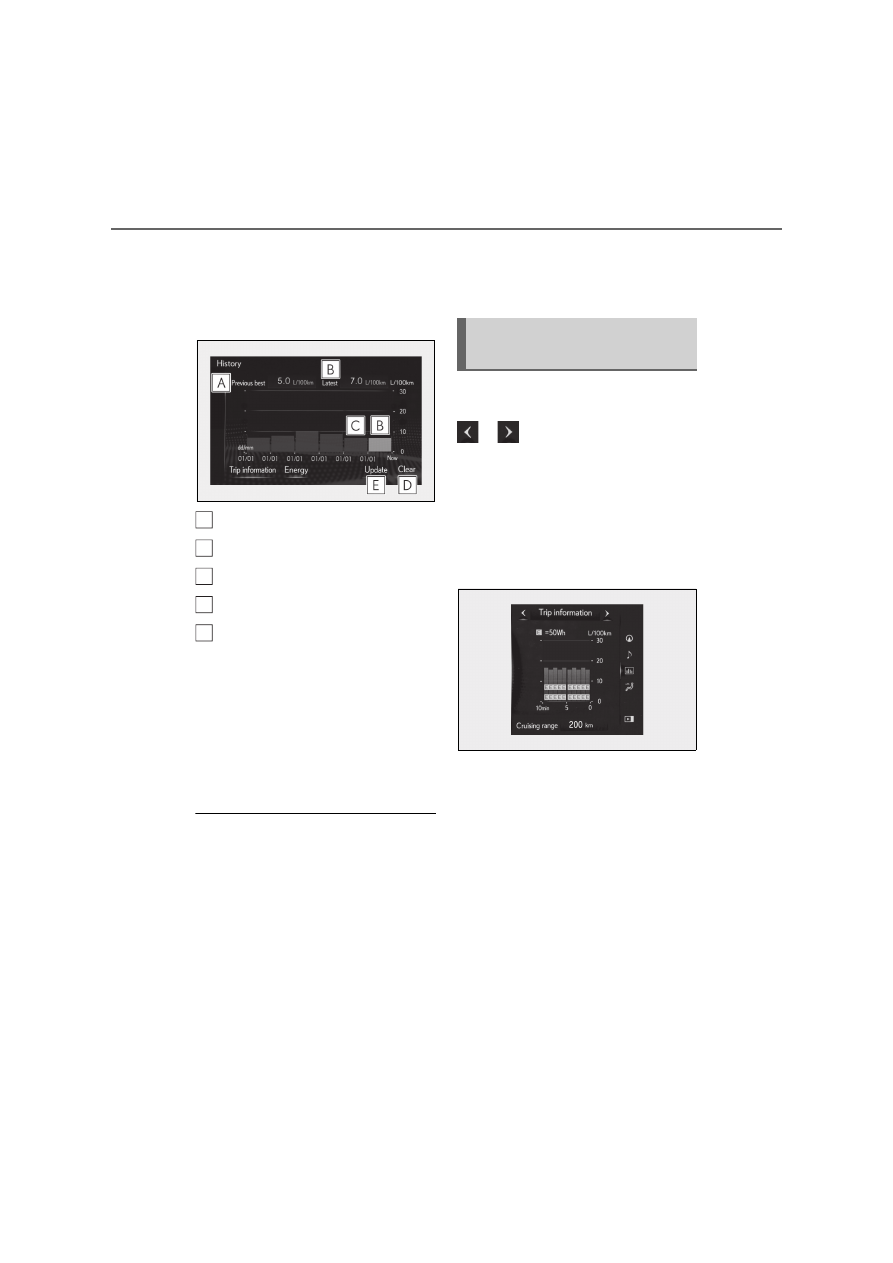

History

If a screen other than “History” is dis-
played, select “History”.

Best recorded fuel consumption

Latest fuel consumption

Previous fuel consumption record

Resetting the History data

Updating the latest fuel consump-
tion data

The latest fuel consumption history is
divided by color into past averages and the
average fuel consumption since the last
updated. Use the displayed average fuel
consumption as a reference.
The image is an example only, and may
vary slightly from actual conditions.

Updating the History data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.

This distance is computed based on your

average fuel consumption. As a result, the

actual distance that can be driven may differ

from that displayed.

Display the vehicle information on the
side display (



P.317) and then select

to display the desired

screen.

Trip information (type A)

Displays the average fuel consumption
and regenerated energy for the past 10
minutes in 1 minute intervals, as well as
the cruising range.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the hybrid system was
started.

A
B
C
D

Using the side display (12.3-inch
display model)

121

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

History

Displays the average fuel consumption
and highest fuel consumption.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

Energy monitor

Displays the hybrid system operation
and energy recovery states. (



P.118)

123

Before drivi

Before driving

3-1. Key information

Keys .................................................

124

3-2. Opening, closing and locking the

doors and trunk

Doors ..............................................

128

Trunk ...............................................

133

Smart entry & start system.....

140

3-3. Adjusting the seats

Front seats.....................................

145

Rear seats (reclining type) .....

146

Driving position memory ........

147

Head restraints............................

150

3-4. Adjusting the steering wheel and

mirrors

Steering wheel ............................

152

Inside rear view mirror.............

153

Outside rear view mirrors......

154

Digital Side-view Monitor ......

157

3-5. Opening, closing the windows

and moon roof

Power windows ..........................

172

Moon roof .....................................

174

124

3-1. Key information

3-1.Key information

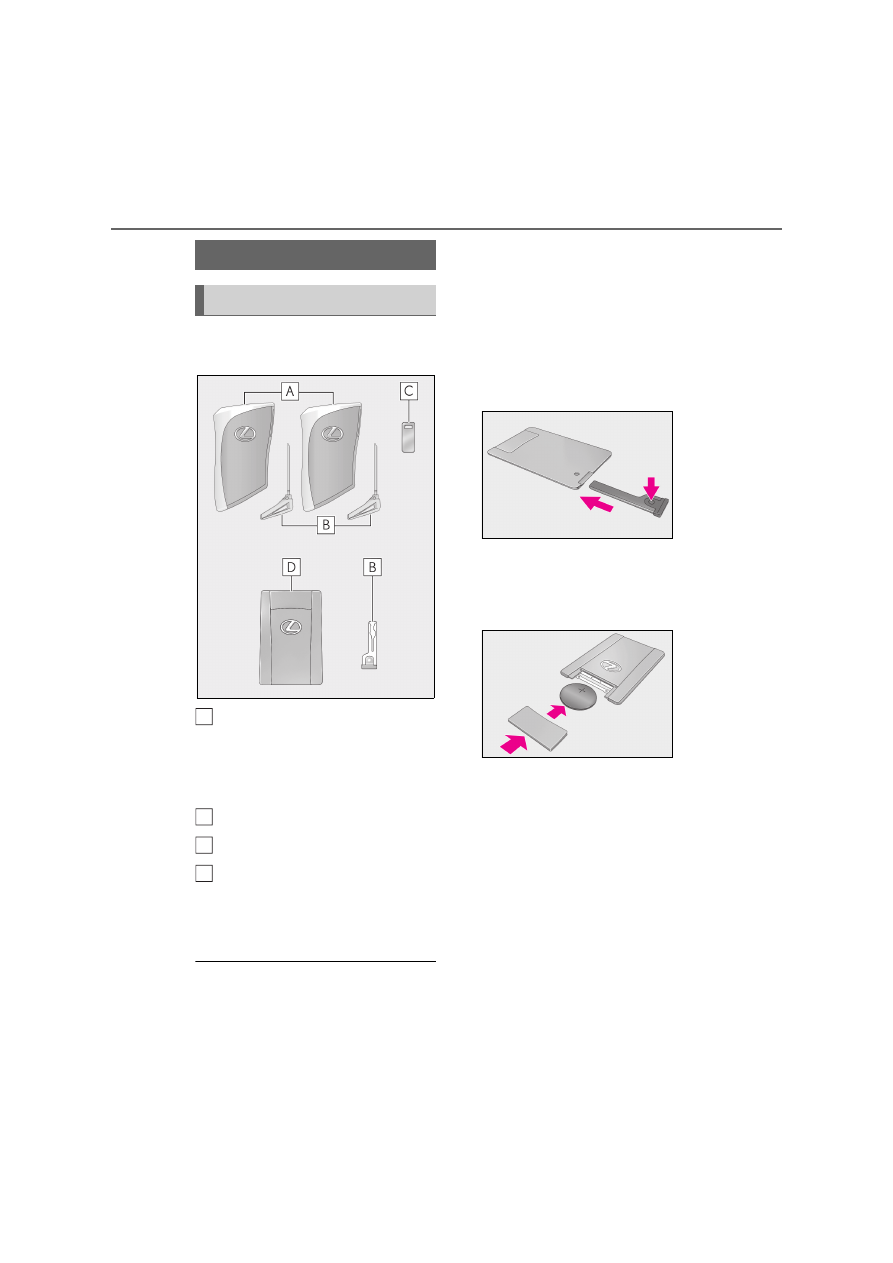

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart entry & start sys-

tem (



P.140)

• Operating the wireless remote control

function

Mechanical keys

Key number plate

Card key (electronic key) (if
equipped)

Operating the smart entry & start system
(



P.140)

Card key (if equipped)

The card key is not waterproof.

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

If it is difficult to take out the mechanical

key, push down the lock release button

using a pen tip etc. If it is still difficult to

pull it out, use a coin etc.

To store the mechanical key in the card

key, insert it while pressing the lock

release button.

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag etc., ensure that

the buttons are not likely to be pressed

accidentally. Pressing a button may cause

the electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

Electronic key battery depletion

The standard battery life is 1 to 2 years.

(The card key battery life is from one year to
one year and a half.)

Keys

Key types

B
C
D

125

3-1. Key information

Before drivi

If the battery becomes low, an alarm will

sound in the cabin when the hybrid sys-

tem is stopped.

Battery-saving mode can reduce the

power consumption of electronic keys

that are not used for long periods of time.

(



P.141)

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary. (



P.389)

• The smart entry & start system or the

wireless remote control does not oper-

ate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

You can replace the battery by yourself
(



P.389). However, as there is a danger

that the electronic key may be damaged, it
is recommended that replacement be car-
ried out by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable
repairer.

To avoid serious deterioration, do not

leave the electronic key within 1 m (3 ft.)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

Replacing the battery



P.389

Confirmation of the registered key

number

The number of keys already registered to

the vehicle can be confirmed. Ask any

authorized Lexus retailer or Lexus autho-

rized repairer, or any reliable repairer for

details.

If “A New Key has been Registered

Contact Your Dealer for Details” is

shown on the multi-information display

This message will be displayed each time

the driver’s door is opened when the doors

are unlocked from the outside for approxi-

mately 10 days after a new electronic key

has been registered.

If this message is displayed but you have not

had a new electronic key registered, ask

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer

to check if an unknown electronic key

(other than those in your possession) has

been registered.

NOTICE

To prevent key damage

Do not drop the keys, subject them to

strong shocks or bend them.

Do not expose the keys to high tem-

peratures for long periods of time.

Do not get the keys wet or wash them

in an ultrasonic washer etc.

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

Do not disassemble the keys.

Do not attach a sticker or anything else

to the surface of the electronic key.

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers.

Do not place the keys near medical

electrical equipment such as low-fre-

quency therapy equipment or micro-

wave therapy equipment, and do not

receive medical attention with the keys

on your person.

126

3-1. Key information

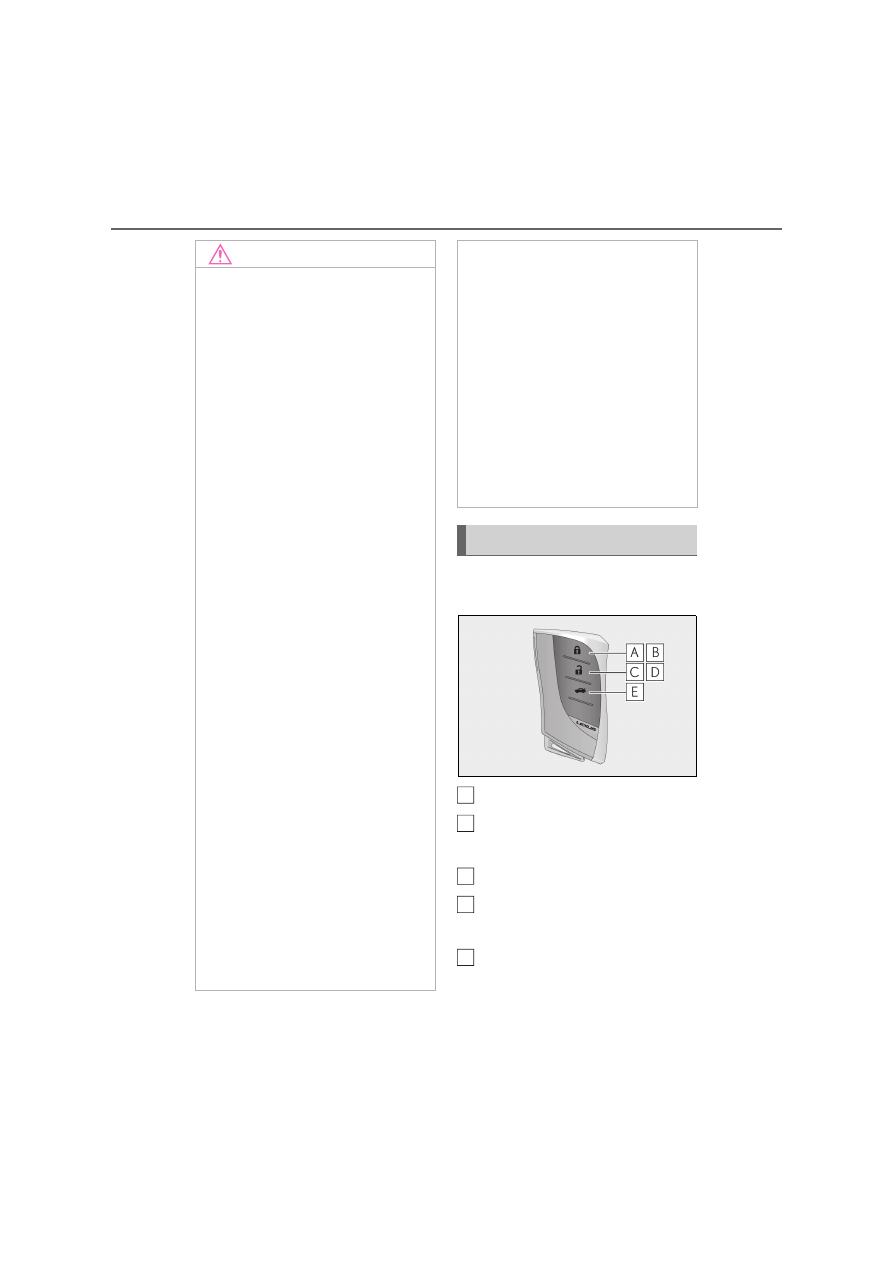

The electronic keys are equipped with
the following wireless remote control:

Locks the doors (



P.128)

Closes the windows and moon
roof

(



P.128)

Unlocks the doors (



P.128)

Opens the windows and moon
roof

(



P.128)

Opens the trunk (



P.135)

: These settings must be customized at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable

NOTICE

Carrying the electronic key on your

person

Carry the electronic key 10 cm (3.9 in.)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 10 cm

(3.9 in.) of the electronic key may inter-

fere with the key, causing the key to not

function properly.

In case of a smart entry & start system

malfunction or other key-related

problems



P.441

When an electronic key is lost



P.440

Handling the card key (if equipped)

Do not apply excess force when

inserting the mechanical key into the

card key. Doing so may damage the

card key.

If the battery or card key terminals get

wet, the battery may corrode and the

card key may stop working.

If the key is dropped into water, or if

drinking water, etc. is spilled on the

key, immediately remove the battery

cover and wipe the battery and termi-

nals. (To remove the battery cover,

lightly grasp and pull it.) If the battery is

corroded, have any authorized Lexus

retailer or Lexus authorized repairer,

or any reliable repairer. replace the

battery.

Do not crush the battery cover or use

a screwdriver to remove the battery

cover.

Forcibly removing the battery cover

may bend or damage the key.

If the battery cover is frequently

removed, the battery cover may

become loose.

When installing the battery, make sure

to check the direction of the battery.

Installing the battery in the wrong

direction may cause the battery to

deplete rapidly.

The surface of the card key may be

damaged, or its coating may peel off in

the following situations:

• The card key is carried together with

hard objects, such as coins and keys.

• The card key is scraped with a sharp

object, such as the tip of a mechanical

pencil.

• The surface of the card key is wiped

with thinner or benzene.

Wireless remote control

A
B

C
D

127

3-1. Key information

Before drivi

repairer.

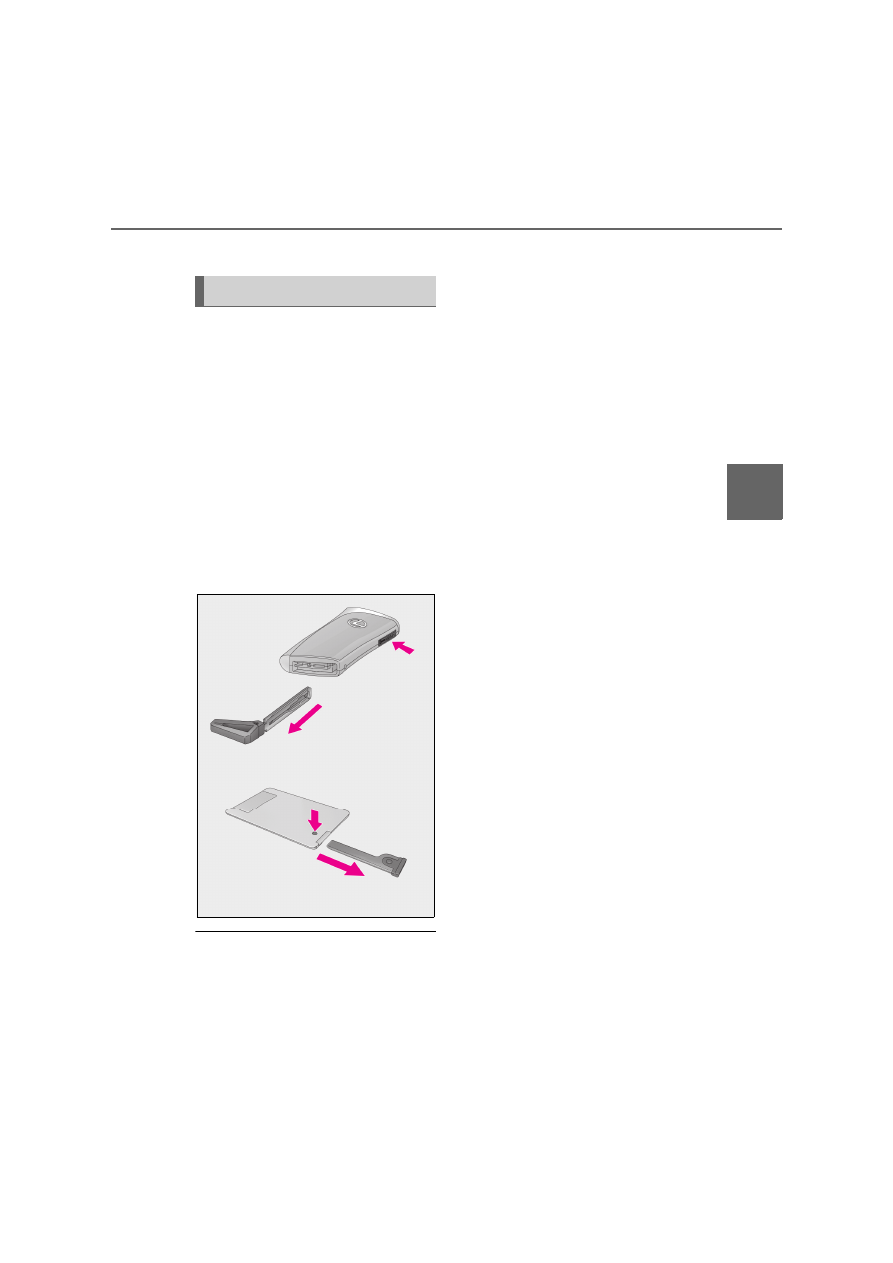

To take out the mechanical key, push
the release button and take the key out.

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(



P.441)

When required to leave the vehicle’s

key with a parking attendant

Turn the trunk opener main switch off

(



P.139) and lock the glove box

(



P.339) and armrest door (



P.352) as

circumstances demand.

Remove the mechanical key for your own

use and provide the attendant with the elec-

tronic key only.

If you lose your mechanical keys



P.440

Using the mechanical key

128

3-2. Opening, closing and locking the doors and trunk

3-2.Opening, closing and locking the doors and trunk

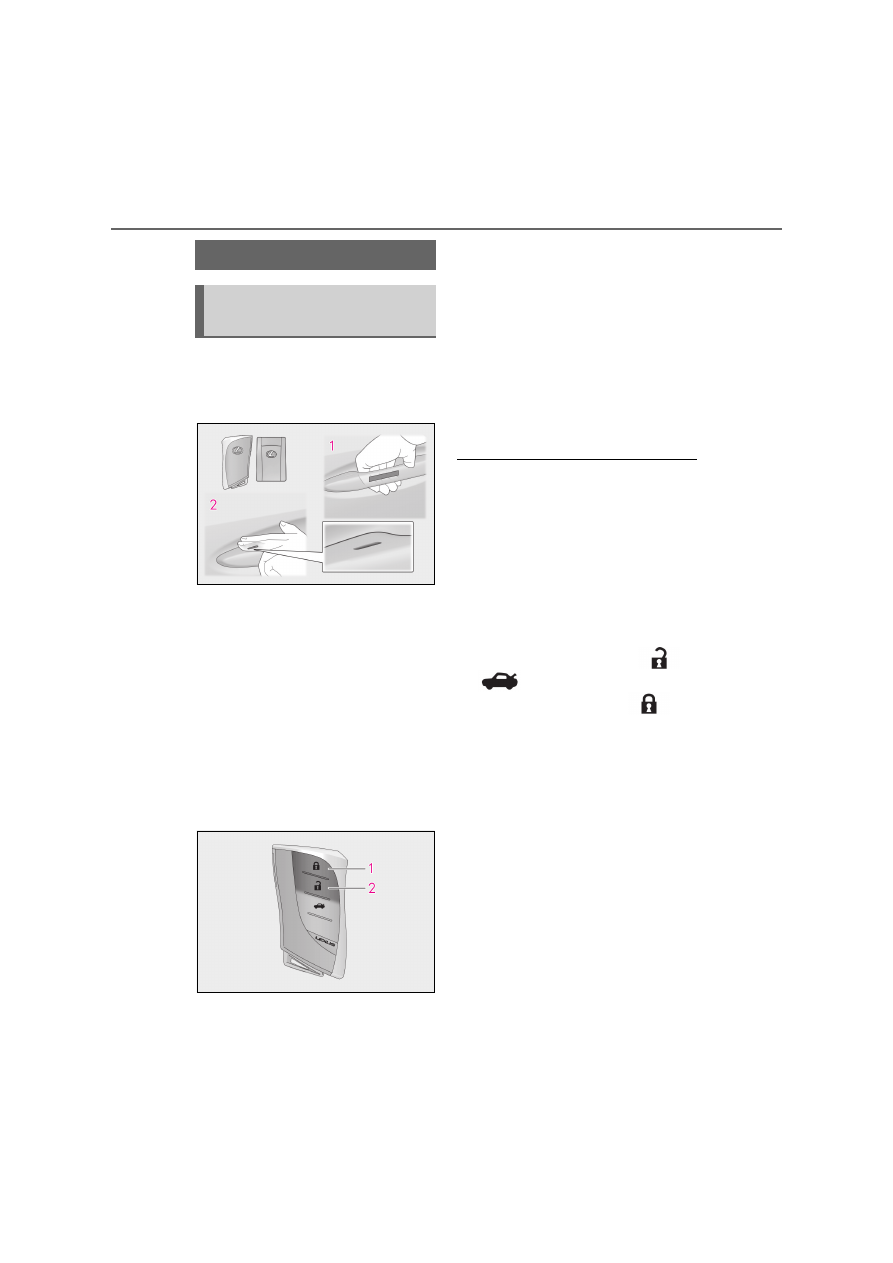

Smart entry & start system

Carry the electronic key to enable this
function.

Grip the handle to unlock the
doors.

Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.

Touch the lock sensor (the indenta-
tion on the upper part of the door
handle) to lock all the doors.

Check that the door is securely locked.

Wireless remote control

Locks all the doors

Check that the door is securely locked.
Press and hold to close the windows and
moon roof.

Unlocks all the doors

Press and hold to open the windows and
moon roof.

: These settings must be customized at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

Switching the door unlock function

It is possible to set which doors the entry

function unlocks using the wireless remote

control.

Turn the power switch off.

For vehicles with an intrusion sensor:

Cancel the intrusion sensor and tilt sen-

sor of the alarm system to prevent unin-

tended triggering of the alarm while

changing the settings. (



P.88)

When the indicator light on the key sur-
face is not on, press and hold

for approximately 5 seconds

while pressing and holding

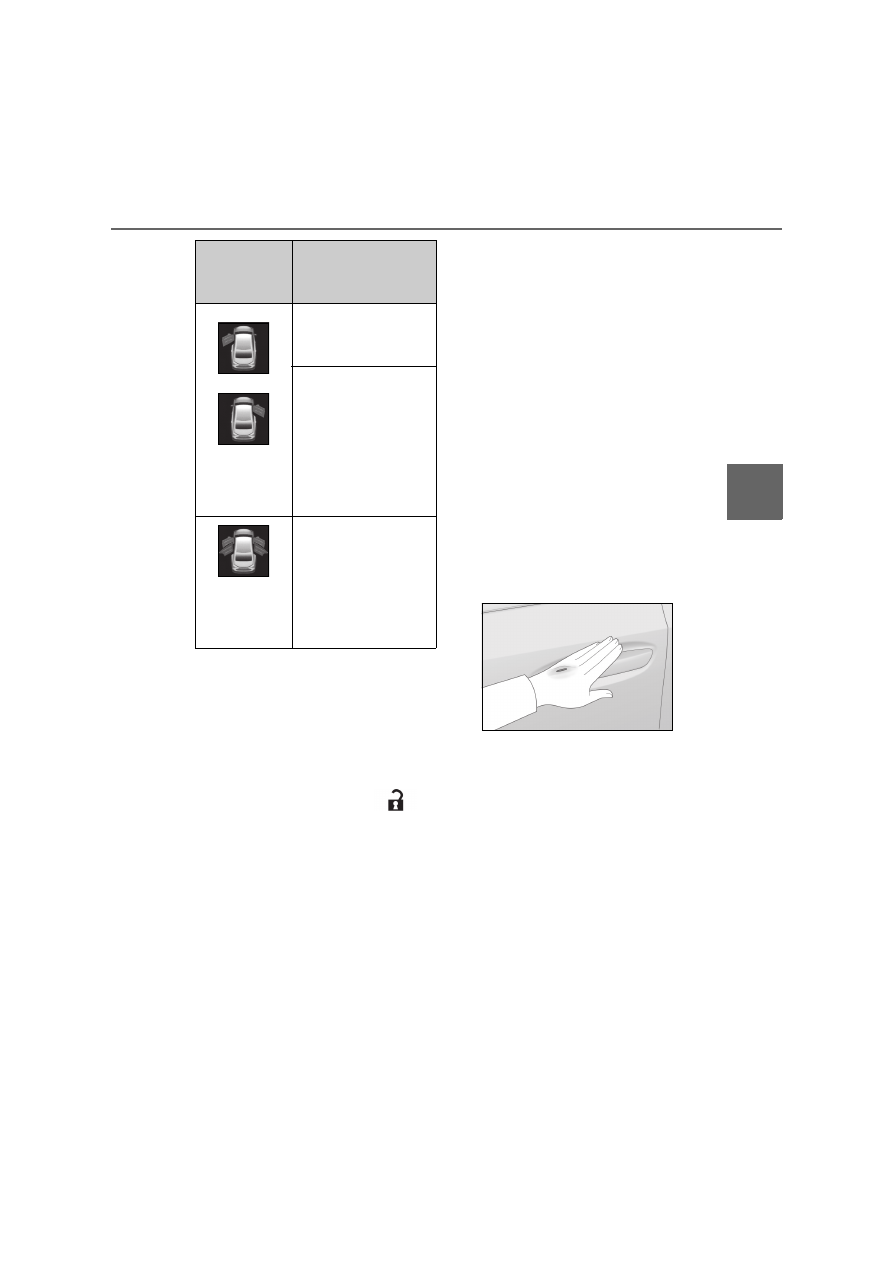

The setting changes each time an operation

is performed, as shown below. (When

changing the setting continuously, release

the buttons, wait for at least 5 seconds, and

repeat step

Doors

Unlocking and locking the doors
from the outside

129

3-2. Opening, closing and locking the doors and trunk

Before drivi

: Left-hand drive vehicles

: Right-hand drive vehicles

For vehicles with an alarm: To prevent unin-

tended triggering of the alarm, unlock the

doors using the wireless remote control

and open and close a door once after the

settings have been changed. (If a door is not
opened within 30 seconds after

pressed, the doors will be locked again and

the alarm will automatically be set.)

In a case that the alarm is triggered, imme-

diately stop the alarm. (



P.87)

Impact detection door lock release sys-

tem

In the event that the vehicle is subject to a

strong impact, all the doors are unlocked.

Depending on the force of the impact or the

type of accident, however, the system may

not operate.

Operation signals

The emergency flashers flash to indicate

that the doors have been locked/unlocked.

(Locked: once; Unlocked: twice)
A buzzer sounds to indicate that the win-

dows and moon roof are operating.

Security feature

If a door is not opened within approximately

30 seconds after the vehicle is unlocked,

the security feature automatically locks the

vehicle again. (However, depending on the

location of the electronic key, the key may

be detected as being in the vehicle. In this

case, vehicle may be unlocked.)

When the door cannot be locked by the

lock sensor on the upper part of the

door handle

If the door will not lock even when the top-

side sensor area is touched, try touching

both the topside and underside sensor

areas at the same time.

Door lock buzzer

A buzzer sounds continuously for 5 sec-

onds in the following situations. Fully close

all the doors and lock the vehicle once

more.

If an attempt to lock the doors using the

smart entry & start system is made when

a door other than the door you are lock-

ing is open.

If an attempt to lock the doors using the

wireless remote control is made when a

door is open.

Setting the alarm (if equipped)

Locking the doors will set the alarm system.

(



P.87)

Multi-informa-

tion dis-

play/Beep

Unlocking function

Exterior: Beeps 3

times

Interior: Pings

once

Holding the driver’s
door handle unlocks only
the driver’s door.

Holding a passenger’s
door handle unlocks all
the doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding a door handle
unlocks all the doors.

130

3-2. Opening, closing and locking the doors and trunk

Conditions affecting the operation of

the smart entry & start system or wire-

less remote control



P.141

If the smart entry & start system or the

wireless remote control does not oper-

ate properly

Use the mechanical key to lock and unlock

the doors. (



P.441)

Replace the key battery with a new one if it

is depleted. (



P.389)

If the 12-volt battery is discharged

The doors cannot be locked and unlocked

using the smart entry & start system or

wireless remote control. Lock or unlock the

doors using the mechanical key. (



P.441)

Rear seat reminder function

In order to remind you not to forget lug-

gage, etc. in the rear seat, when the

power switch is turned off after any of the

following conditions are met, a buzzer

will sound and a message will be dis-

played on the multi-information display

for approximately 6 seconds.

• The hybrid system is started within 10

minutes after opening and closing a rear

door.

• A rear door has been opened and closed

after the hybrid system was started.

However, if a rear door is opened and then

closed within approximately 2 seconds, the

rear seat reminder function may not oper-

ate.

The rear seat reminder function deter-

mines that luggage, etc. has been placed

in a rear seat based on opening and clos-

ing of a rear door. Therefore, depending

on the situation, the rear seat reminder

function may not operate and you may

still forget luggage, etc. in the rear seat,

or it may operate unnecessarily.

The rear seat reminder function can be

enabled/disabled. (



P.463)

Customization

Settings (e.g. unlocking function using a

key) can be changed.

(Customizable features:



P.463)

WARNING

To prevent an accident

Observe the following precautions while

driving the vehicle.

Failure to do so may result in a door

opening and an occupant being thrown

out of the vehicle, resulting in death or

serious injury.

Ensure that all doors are properly

closed.

Do not pull the inside door handle

while driving. Be especially careful for

the front doors, as the doors may be

opened even if the inside lock buttons

are in locked position.

Set the rear door child-protector locks

when children are seated in the rear

seats.

When opening or closing a door

Check the surroundings of the vehicle

such as whether the vehicle is on an

incline, whether there is enough space

for a door to open and whether a strong

wind is blowing. When opening or clos-

ing the door, hold the door handle tightly

to prepare for any unpredictable move-

ment.

When using the wireless remote con-

trol and operating the power win-

dows or moon roof

Operate the power window or moon

roof after checking to make sure that

there is no possibility of any passenger

having any of their body parts caught in

the window or moon roof. Also, do not

allow children to operate the wireless

remote control. It is possible for children

and other passengers to get caught in

the power window or moon roof.

Content .. 4 5 6 7 ..
