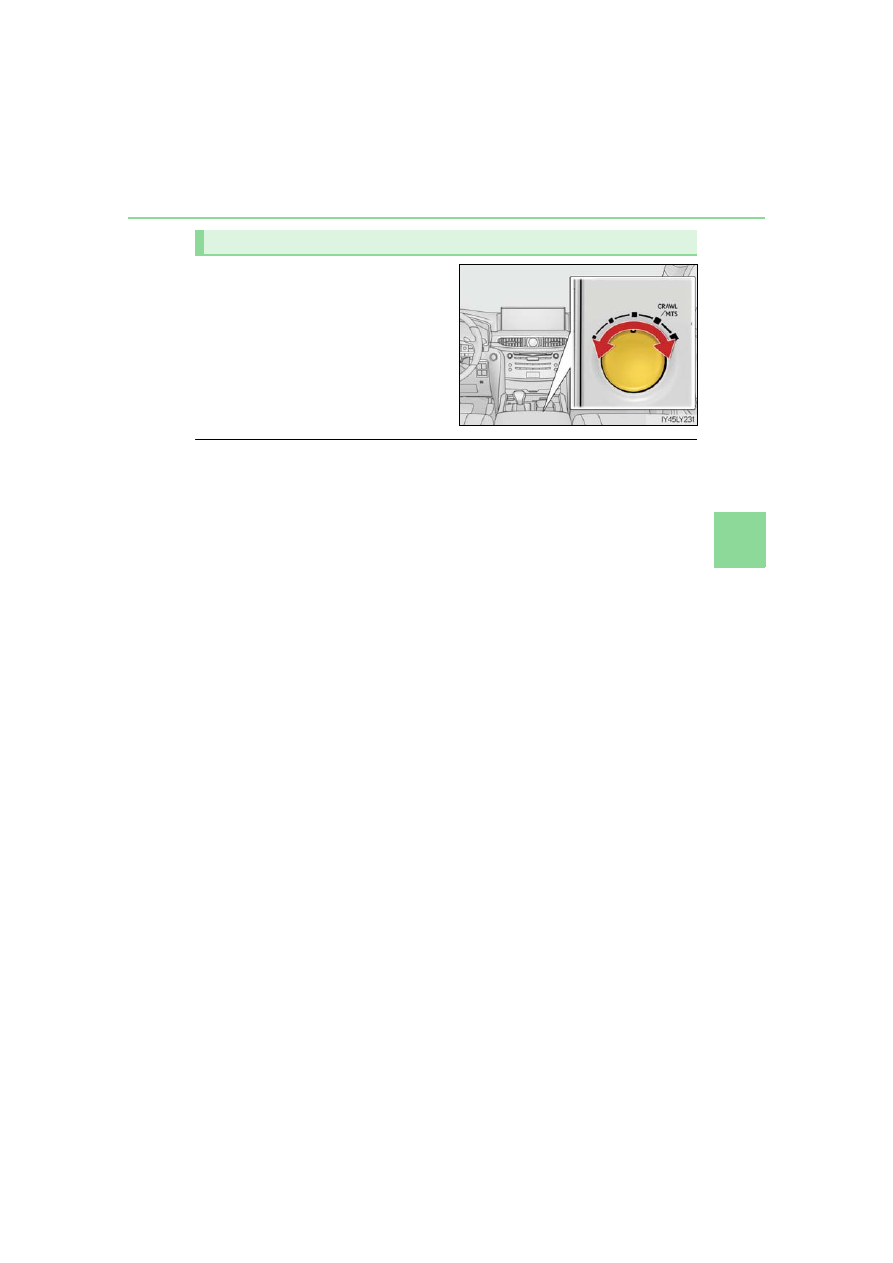

Operate the Multi-terrain Select mode
selector switch during Multi-terrain
Select control to select a mode.

Once the mode is confirmed, the mode

name will be displayed and the control

will switch.

■

Automatic system cancelation

In the following situations, the Multi-terrain Select indicator will go off, and Multi-terrain

Select will be canceled automatically.

●

When the four-wheel drive control switch is in H4.

●

When Active TRAC and VSC are off.

■

When it is difficult to generate traction

MUD & SAND mode provides the largest amount of tire slippage, followed by LOOSE

ROCK, MOGUL, ROCK & DIRT and ROCK mode.

Drivability can be improved by selecting a mode which provides a smaller amount of tire

slippage than the current mode when the amount of tire slippage is large, or conversely

selecting a mode which provides a larger amount of tire slippage than the current mode

when the amount of tire slippage is small.

■

When the vehicle is stuck

Switching the transfer and differential

For the operation of the following functions, refer to the following pages.

●

Four-wheel drive system (



P. 310)

●

Center differential lock (

P. 311)

■

When the brake system operates continuously

The brake system may overheat. In this case, a buzzer will sound, the TRAC OFF indica-

tor will flash, and Multi-terrain Select will be temporarily inoperable. In this event, stop

the vehicle immediately in a safe place, and allow the brake system to cool down suffi-

ciently. (There is no problem with continuing normal driving.)

After a short time, the TRAC OFF indicator will go off, and you will be able to use Multi-

terrain Select.

■

When there is a malfunction in the system

The slip indicator light will come on. Have the vehicle inspected by your Lexus dealer

immediately.

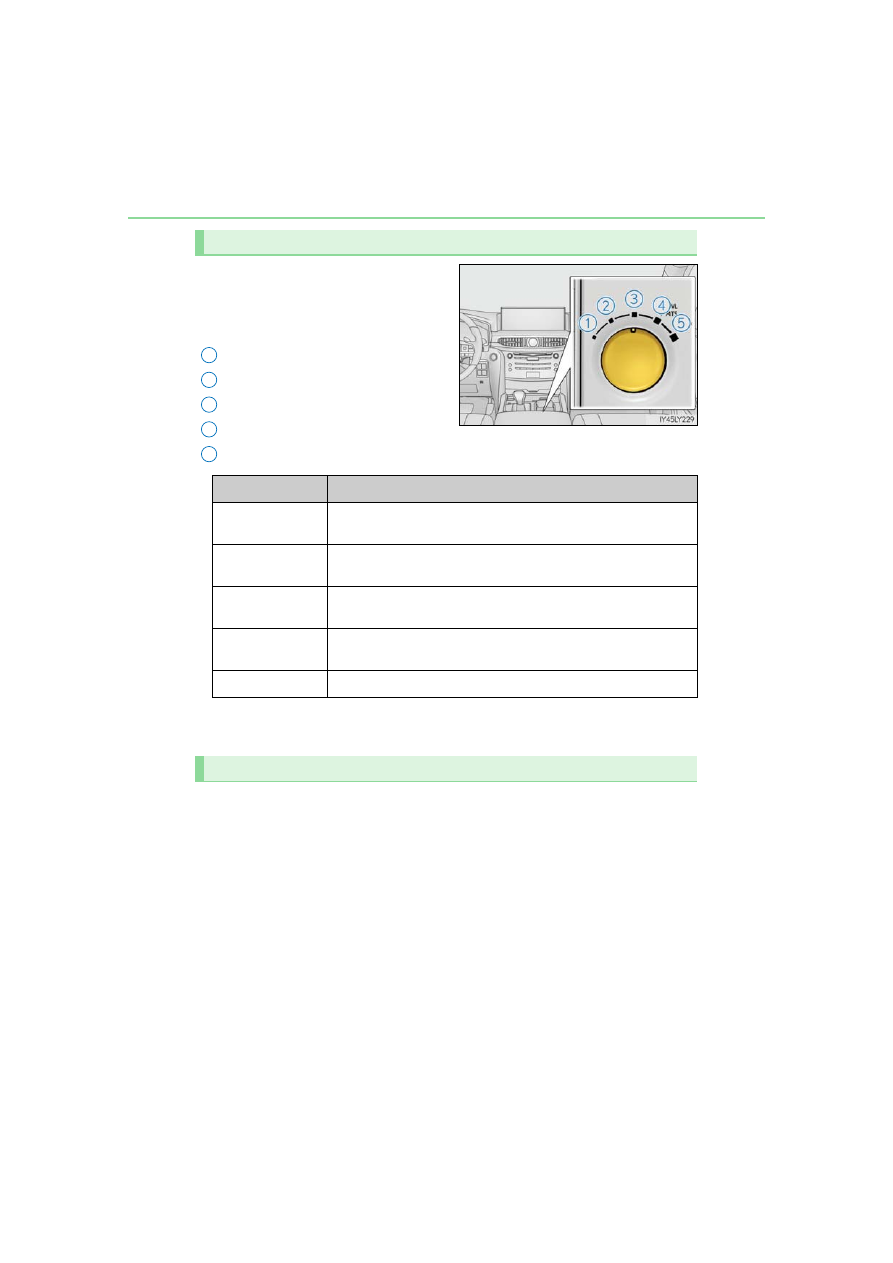

Switching modes

322

WARNING

■

When using the Multi-terrain Select

Observe the following precautions to avoid an accident that could result in death or

serious injuries:

●

There is a chance that the selected mode may not be the most appropriate in terms of

road conditions such as pitch, slipperiness, undulation, etc. (

P. 320)

●

Multi-terrain Select is not intended to expand the limits of the vehicle. Check the road

conditions thoroughly beforehand, and drive safely and carefully.

NOTICE

■

Precaution for use

The Multi-terrain Select is intended for use during off-road driving. Do not use the sys-

tem at any other time.

323

Multi-terrain Monitor

The following screens can be selected according to driving conditions.

• Screens that can be selected vary depending on conditions such as shift posi-

tion and vehicle speed. (



P. 329)

• Depending on the displayed screen, the display can be switched from normal

to wide view display.

The Multi-terrain Monitor helps the driver to check the vehicle surroundings.
It assists in determining the conditions around the driver in a variety of situa-
tions, such as when judging conditions during off-road driving or checking for
obstacles when parking.

WARNING

■

When using the Multi-terrain Monitor system

Observe the following precautions to avoid an accident that could result in death or

serious injuries.

●

Never rely solely on the Multi-terrain Monitor. As with unequipped vehicles, drive

carefully while directly confirming the safety of your surroundings and the area to the

rear of the vehicle. Take particular care to avoid parked cars and other obstacles.

●

Due to the characteristics of the camera lens, the actual position and distance of peo-

ple and other obstacles will differ from those shown on the Multi-terrain Monitor

screen. Directly confirm the safety of your surroundings before driving.

●

Do not drive while only looking at the screen. When driving, make sure to directly

confirm the safety of your surroundings, such as by visually checking the area and

using the vehicle’s mirrors.

●

In low temperatures, the screen may darken or the images may become faint.

Images of moving objects in particular may distort or disappear from the screen.

Therefore, make sure to drive carefully while directly visually confirming the safety of

your surroundings.

Multi-terrain Monitor screens

324

■

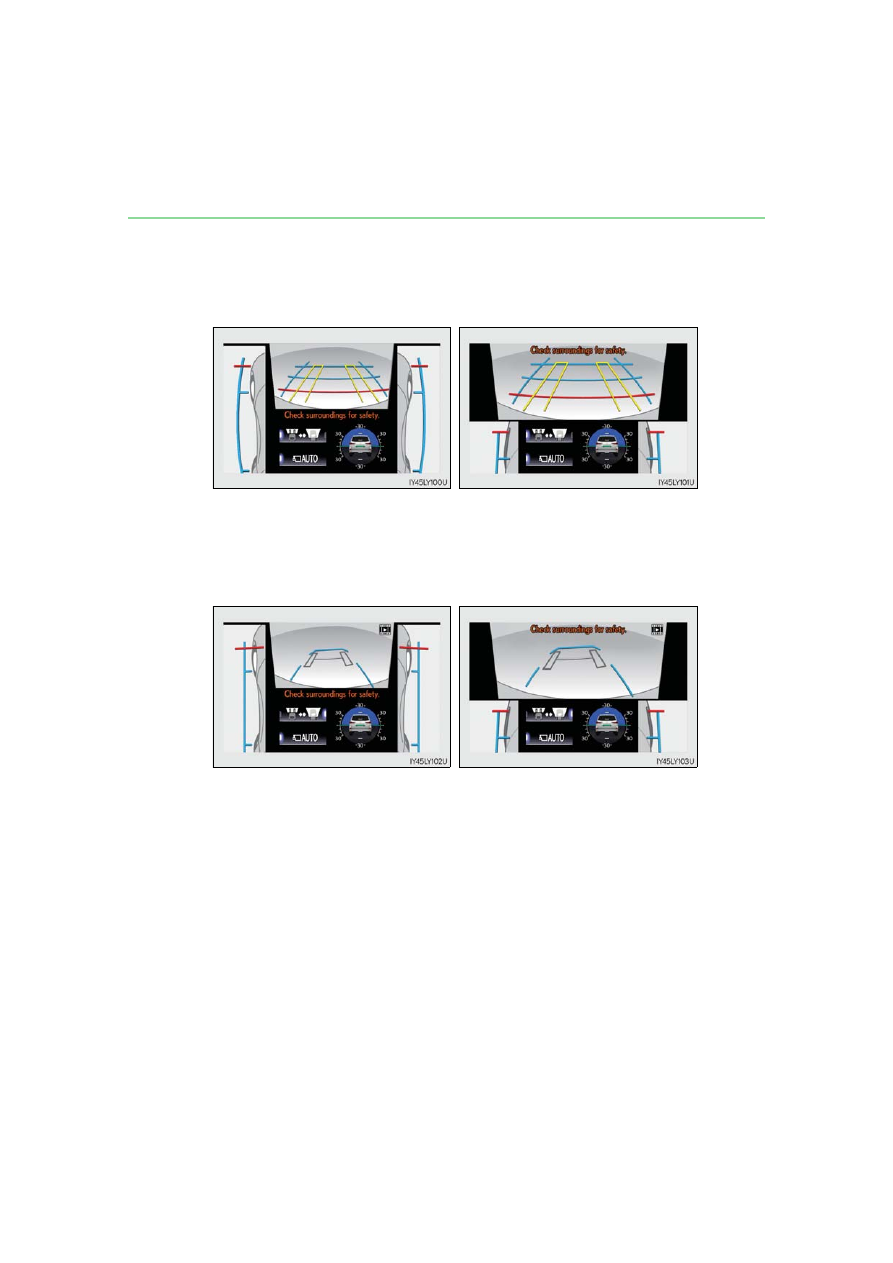

Screens when the four-wheel drive control switch is in L4

●

When checking the area to the front and sides of the vehicle

●

When checking the condition of the road surface under the vehicle



Front view & dual side view



Front view & dual side view (front
magnified)







Under vehicle terrain view & dual
side view



Under vehicle terrain view & dual
side view (front magnified)





325

●

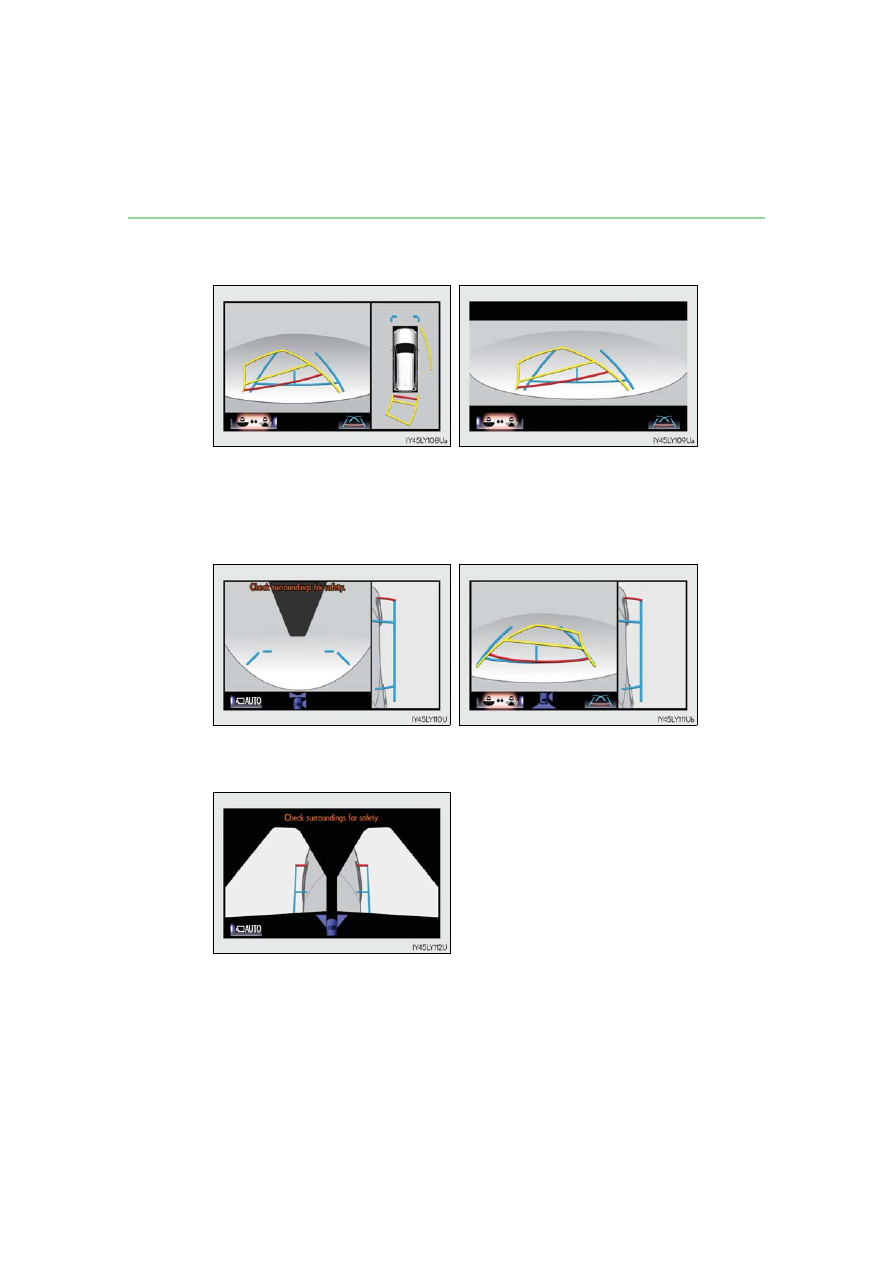

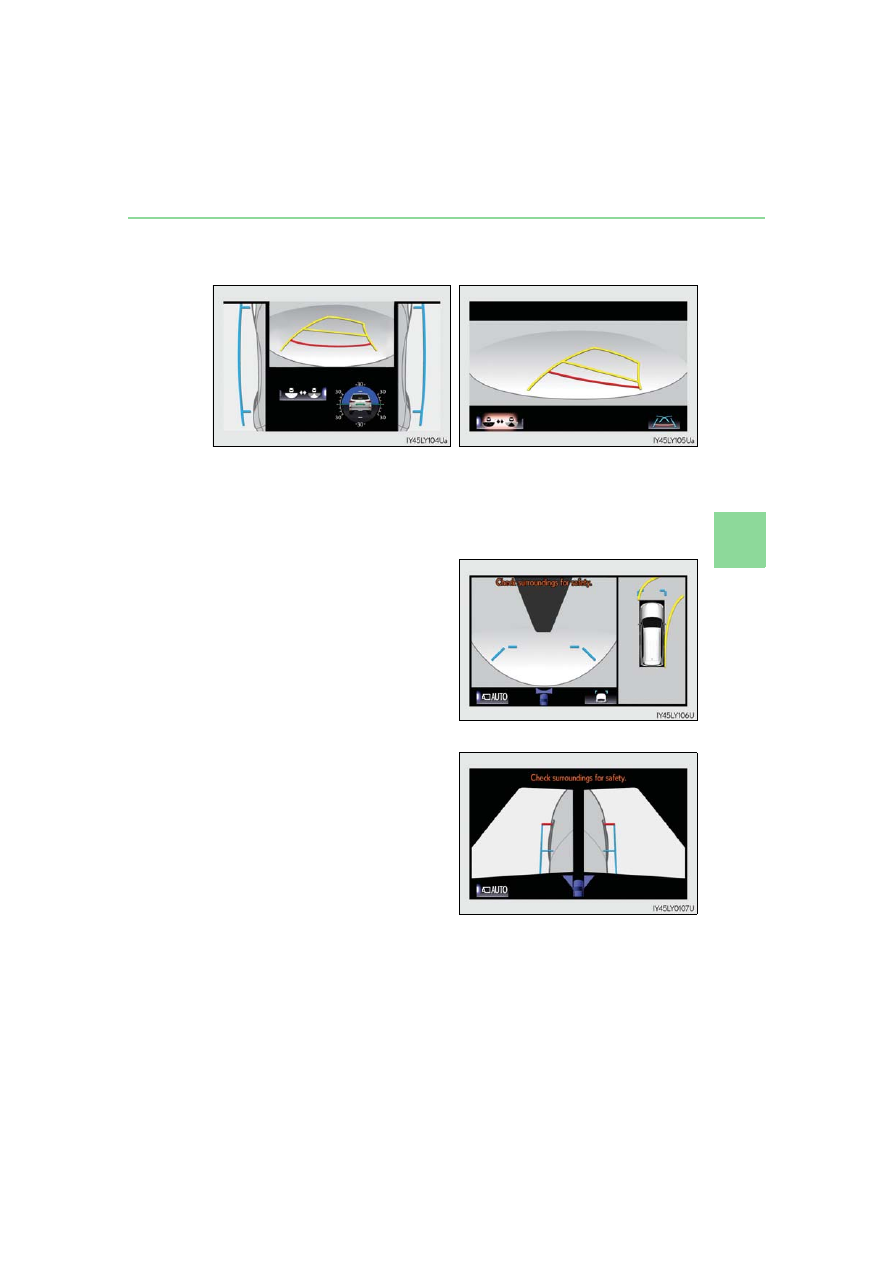

When checking the area to the rear of the vehicle

■

Screens when the four-wheel drive control switch is in H4

●

When checking the area to the front of the vehicle (panoramic view & wide
front view)



P. 340

●

When checking the area to the sides of the vehicle (side views)



P. 342



Rear view & dual side view



Wide rear view





326

●

When checking the area to the rear of the vehicle

●

When checking the area to the sides, front and rear of the vehicle (with out-
side rear view mirrors retracted)



Panoramic view & rear view



Wide rear view







Wide front view & side view



Rear view & side view



P. 351



P. 351



Side views



P. 351

327

■

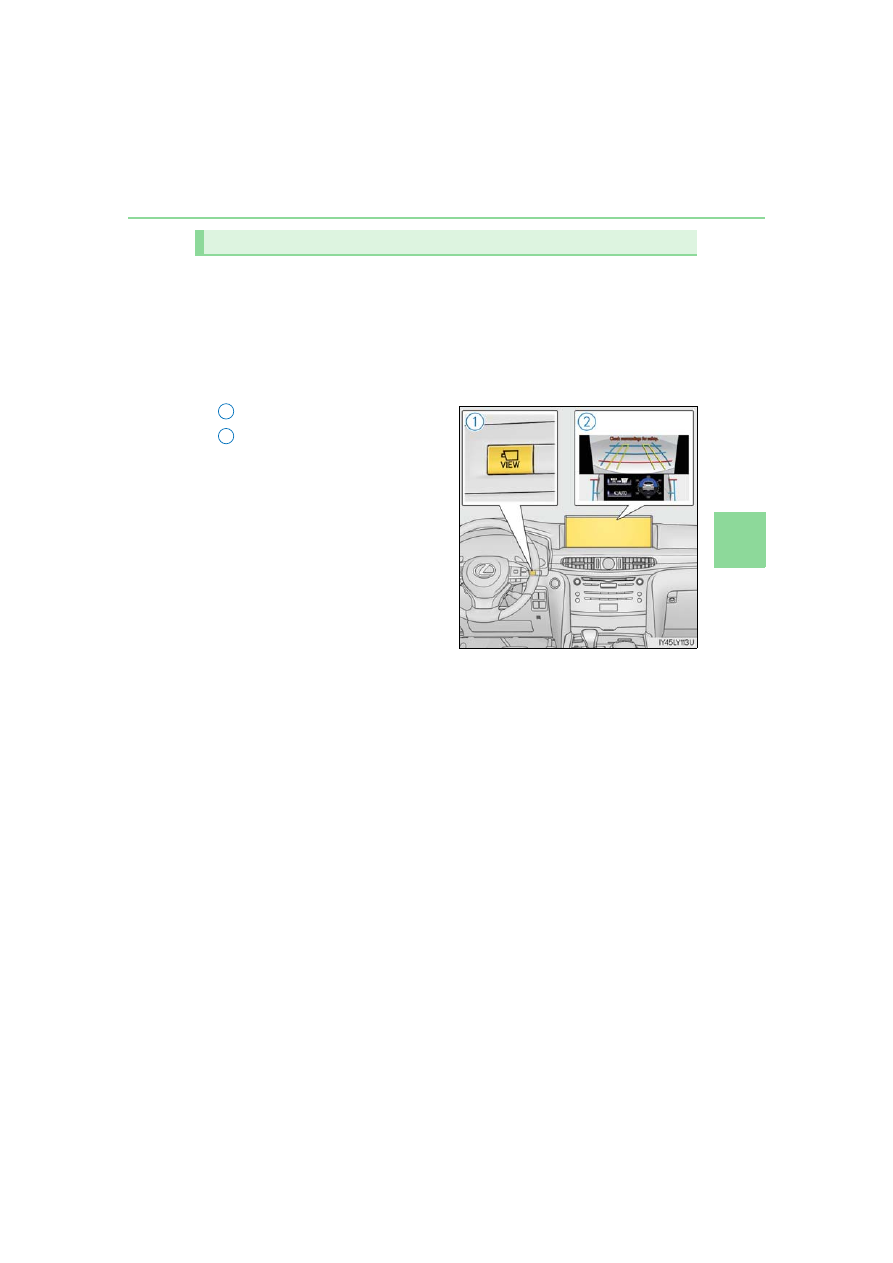

Displaying the Multi-terrain Monitor screen

The Multi-terrain Monitor screen will be displayed when the VIEW switch is
pressed while the engine switch is in IGNITION ON mode.

When the vehicle speed exceeds a certain value for a specific amount of time, the

display returns to the navigation or information display screen.
The amount of time that the Multi-terrain Monitor is displayed differs depending

on conditions such as the vehicle speed. (



P. 332)

VIEW switch
Display

Using the Multi-terrain Monitor screen

328

■

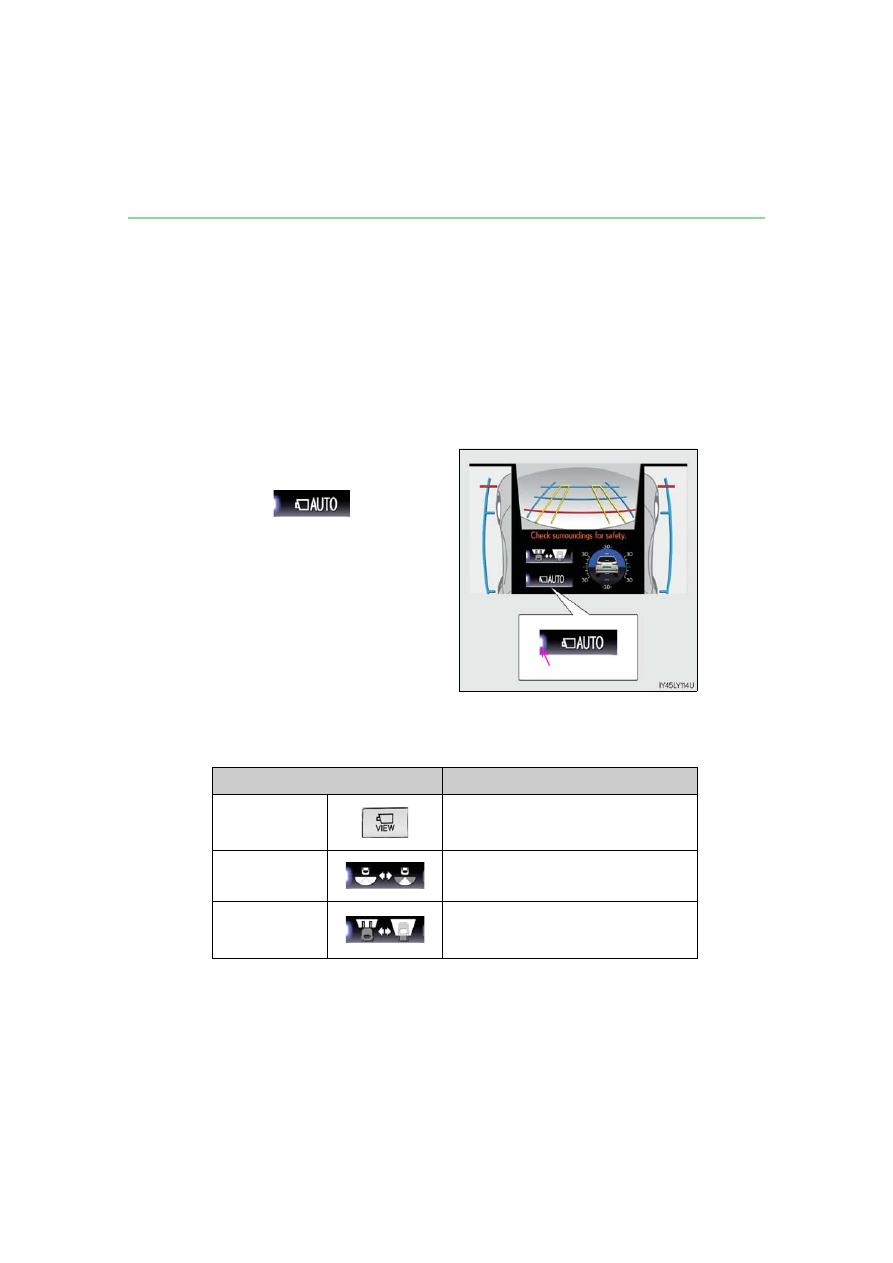

Switch operations

On some screens, the display mode or display settings can be changed using
the switches.

●

Automatic display mode switch
When automatic display mode is turned on, the Multi-terrain Monitor
screen is displayed in the following conditions, even if the VIEW switch has
not been operated.

• The shift lever is shifted to D or N
• While driving, the vehicle speed drops to approximately 6 mph (10 km/h)

or less (except when the shift lever is in R)

The automatic display mode
switches between on and off each

time

is selected.

When automatic display mode is
on, an indicator illuminates on the
icon.
Even when automatic display
mode is on, the display can still be
switched by pressing the VIEW
switch.

●

Display selection switches
The following switches can be pressed or selected to switch the Multi-ter-
rain Monitor display screen and to switch from normal to wide view display.

Indicator

Switch

Switch Function

VIEW switch

Changing a display (

P. 329)

Angle mode

selection switch

Switches between the wide rear view and

wide view display (

P. 338, 345)

Under vehicle ter-

rain view selection

switch

Switches between the front view and under

vehicle terrain view (

P. 332, 336)

329

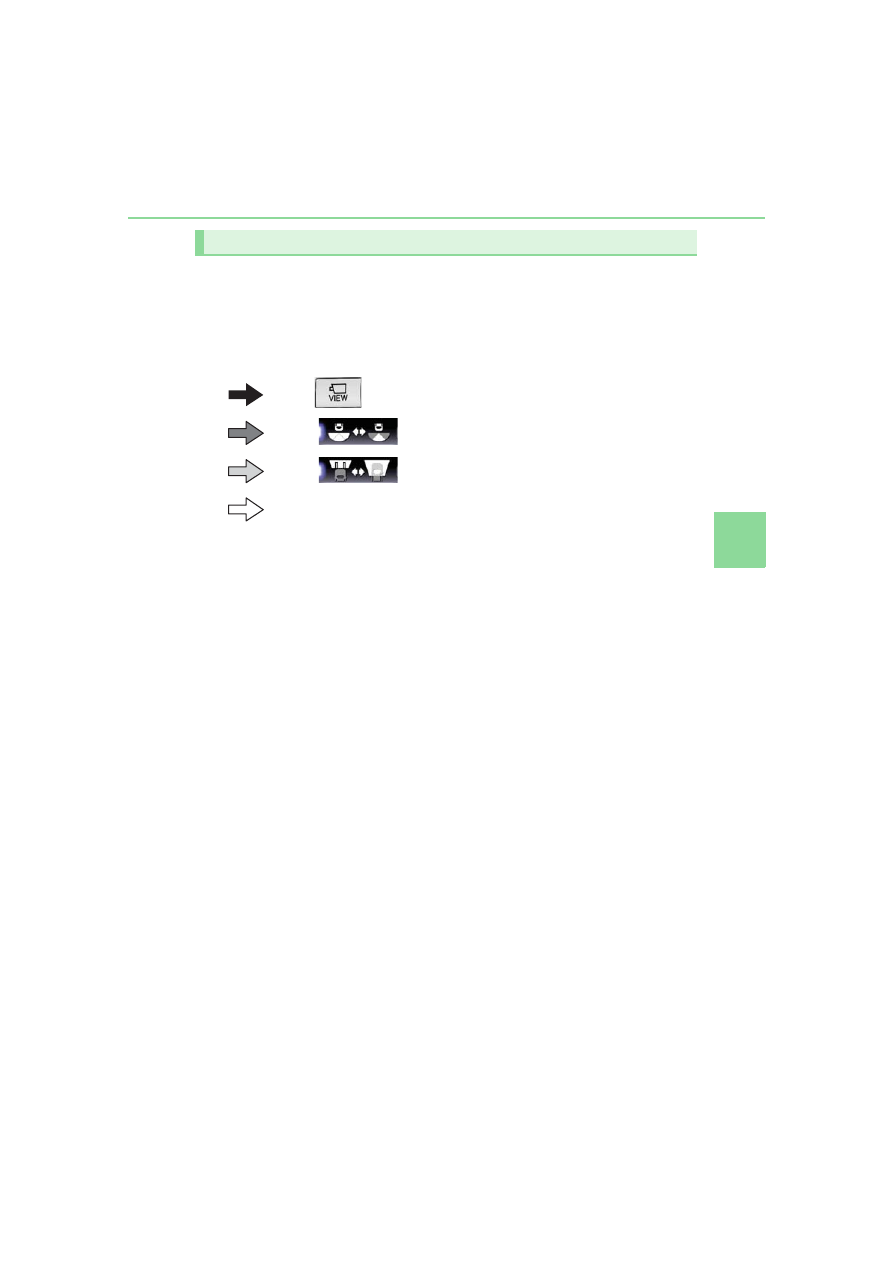

The screen display can be switched by operating the switches as follows while
the Multi-terrain Monitor screen is displayed. (Screens that can be displayed will
vary depending on the positions of the shift lever and four-wheel drive control
switch)

■

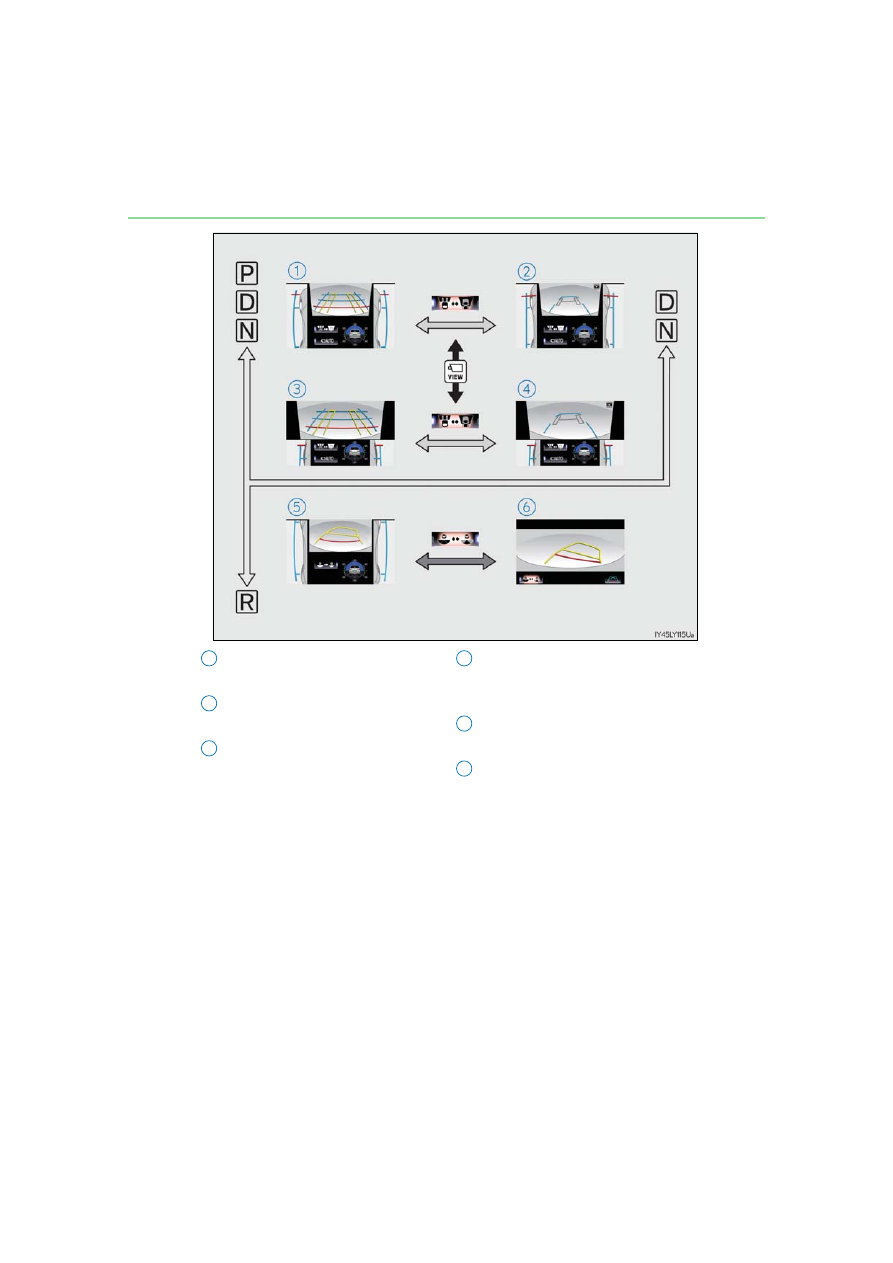

Screens when the four-wheel drive control switch is in L4

: Press

: Select

: Operate the shift lever

Changing the Multi-terrain Monitor screen

330

: The screen display can be switched by touching the image from the camera on the

screen.

Front view & dual side view:



Under vehicle terrain view & dual
side view:

Front view & dual side view (front
magnified):



Under vehicle terrain view & dual
side view (front magnified):



Rear view & dual side view:



Wide rear view:

331

■

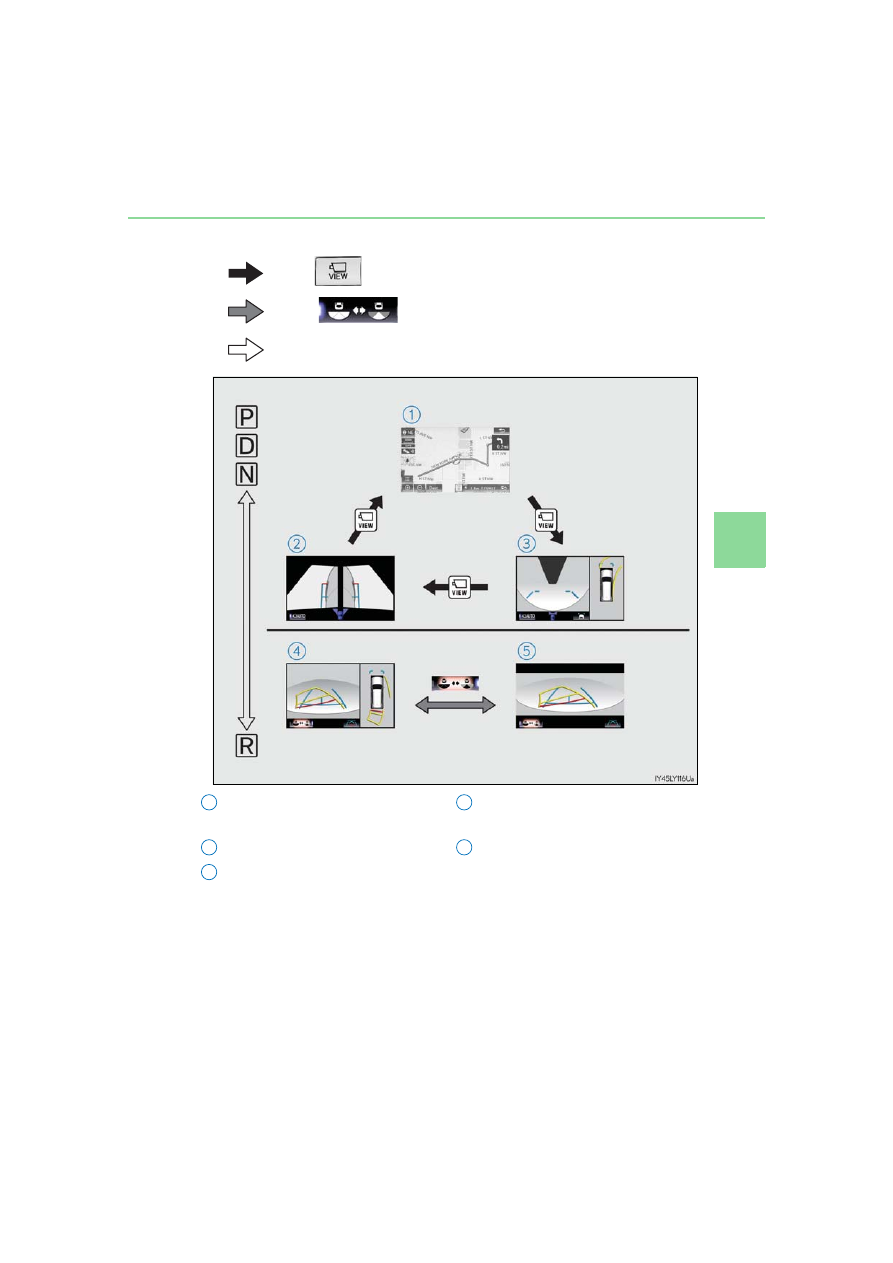

Screens when the four-wheel drive control switch is in H4

: Press

: Select

: Operate the shift lever

: The displayed screen differs when the outside rear view mirrors are retracted.

: The screen display can be switched by touching the image from the camera on the

screen.

Navigation screen, information set-
tings screen, etc.
Side views:

P. 342

Panoramic view & wide front view:



P. 340

Panoramic view & rear view:



Wide rear view:

2
3

332

■

Multi-terrain Monitor screen display

The amount of time that the Multi-terrain Monitor screen is displayed changes as follows

according to the vehicle speed at the time the VIEW switch was pressed.
The Multi-terrain Monitor screen is displayed if the vehicle speed is approximately 7 mph

(12 km/h) or less when the camera switch is pressed.
If the vehicle speed exceeds approximately 7 mph (12 km/h), the Multi-terrain Monitor

display is canceled.

The various screens of the Multi-terrain Monitor display information to support
several different driving situations, such as when checking for obstacles when
moving forward or in reverse, or when judging road surface conditions during
off-road driving.

■

Front view & dual side view

Front view & dual side view can be used to check the area around the front of
the vehicle.

• In addition to an image of the front of the vehicle, guide lines are displayed

in a composite view to provide reference for when deciding a direction to
move forward in.

• If the VIEW switch is pressed while the screen is displayed, the screen

switches from normal to magnified display. (Pressing the switch again
returns the screen to the normal display)

• If the steering wheel is turned 270



or more, guide lines and other features

to support turning are automatically displayed.

Screen display and functions

333

●

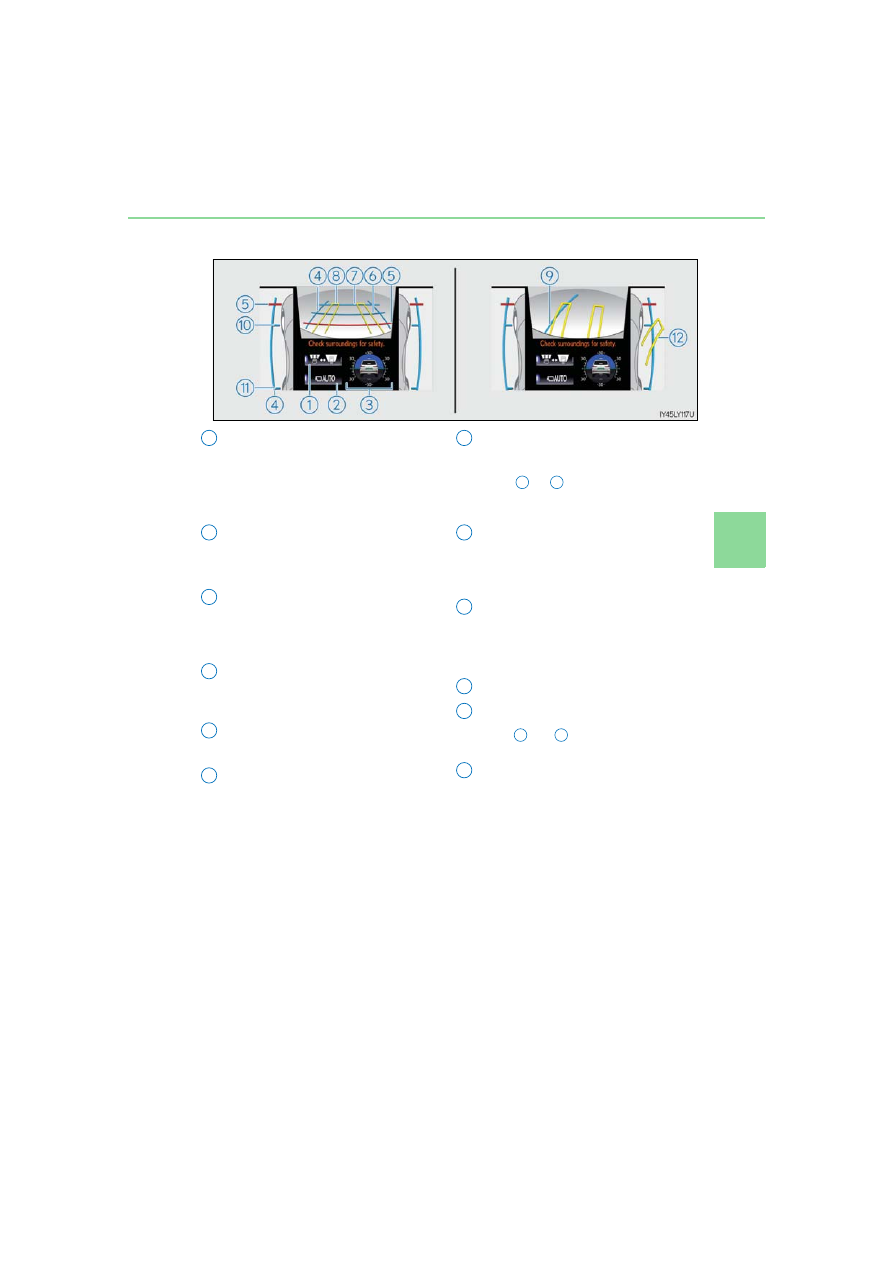

Screen description

Under vehicle terrain view selection
switch

Switches between front view and under

vehicle terrain view display each time

the switch is selected.

Automatic display mode selection
switch

P. 328

Tilt meter/slip display

Displays the vehicle’s estimated degree

of incline or indicates a tire slippage.

(

P. 334)

Vehicle width lines (blue)

Indicate the width of the vehicle includ-

ing the outside rear view mirror.

1.5 ft. (0.5 m) distance guide line
(red)
3 ft. (1 m) distance guide line (blue)

6 ft. (2 m) distance guide line
(blue)

Items to indicate the estimated

distance from the front end of the vehi-

cle.

Front tire course line (yellow)

Indicates the estimated course of the

front tires according to steering wheel

position.

Forward movement guide line
(blue)

Indicates the estimated tire course of

the tightest possible turn.

Front tire contact line (blue)
Rear tire contact line (blue)

Items

and

indicate

estimated

tire

positions on the image.

Rear tire course line (yellow)

Indicates the estimated course of the

rear tires.

334

●

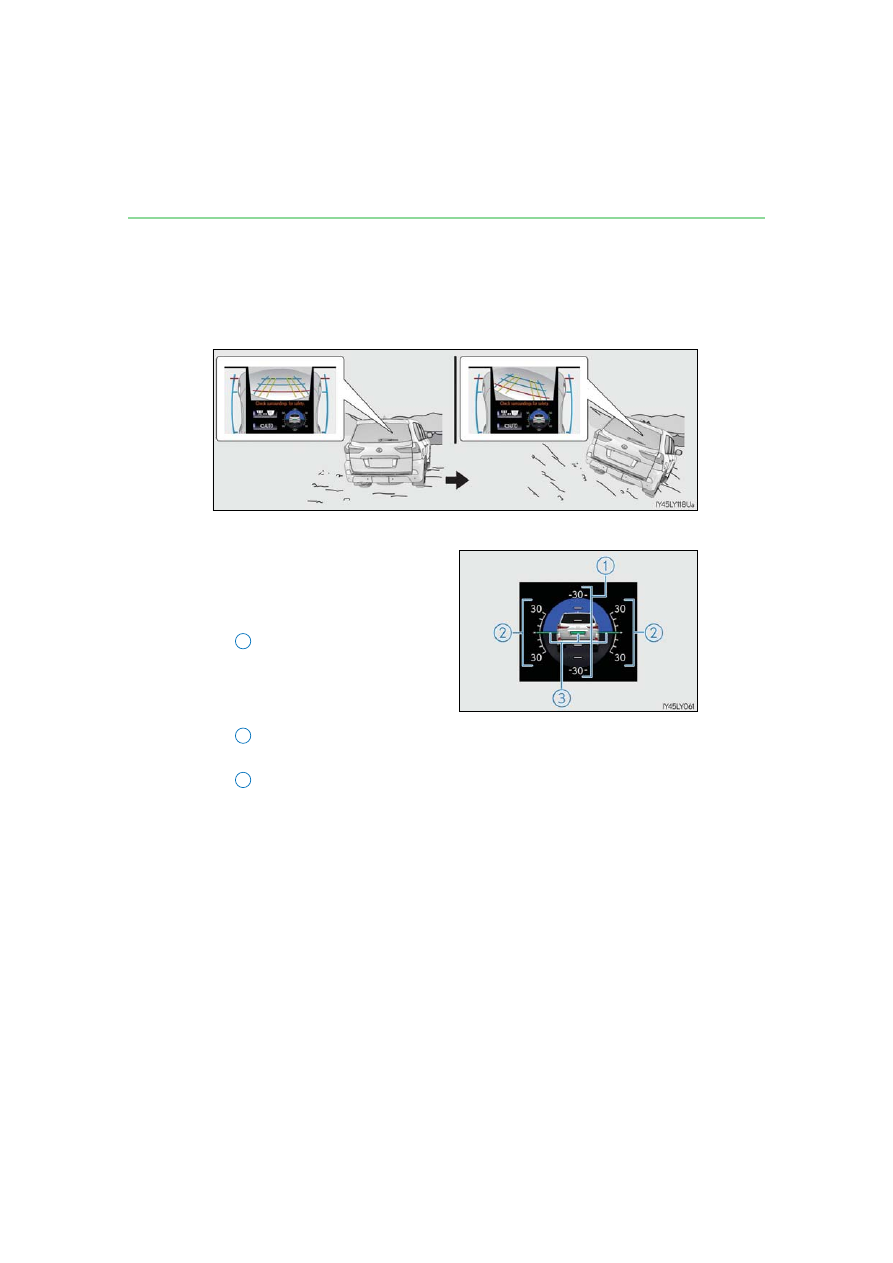

Front view rotating display function
This function operates when the four-wheel drive control switch is in L4.
The front view image is automatically adjusted to be parallel and assist the
driver to check road surface conditions regardless of the vehicle inclina-
tion.

●

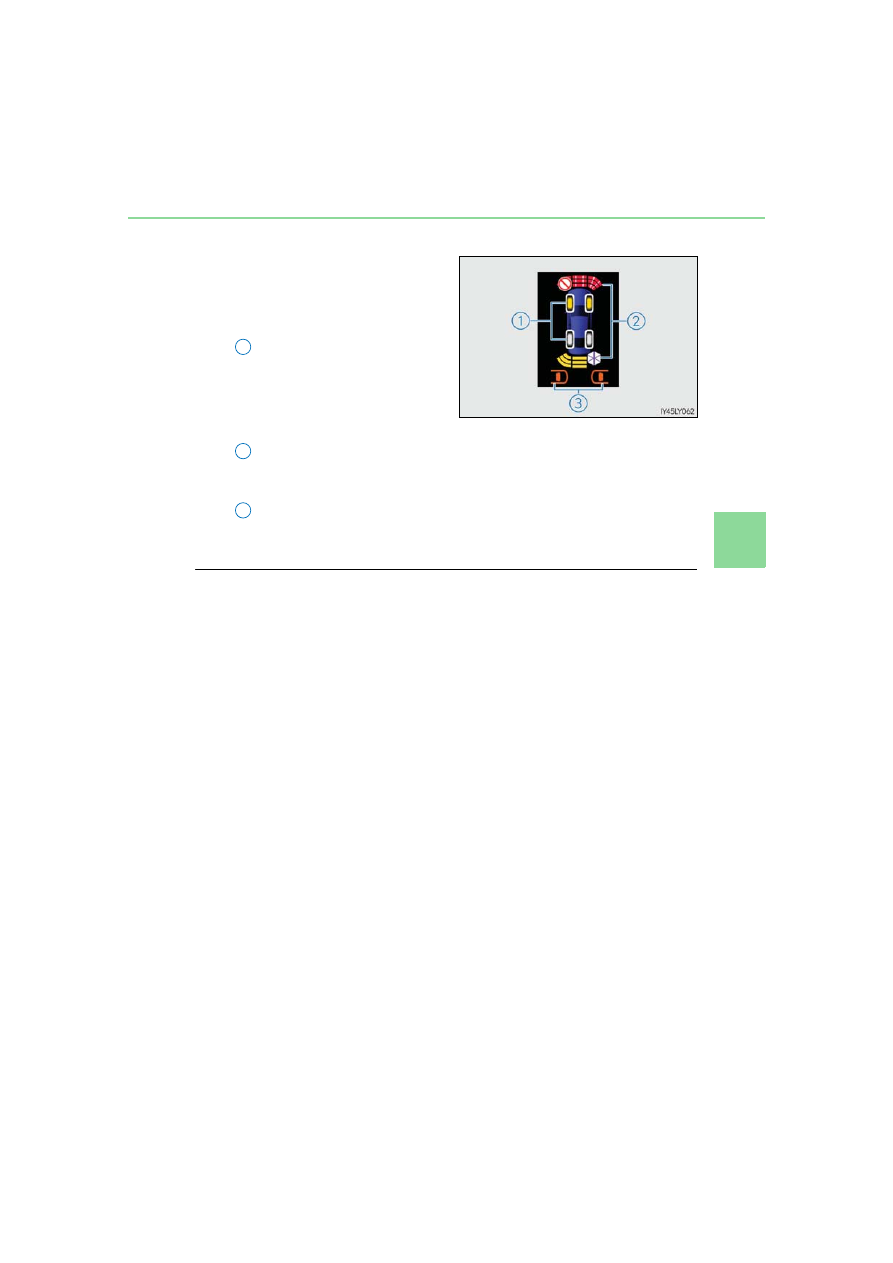

Tilt meter
Tilt meter displays the vehicle
inclination to the front, rear, left
and right within a range of 0



approximately 30



Degree markers of incline to
the front and rear

Indicates the vehicle inclination in

degrees in the front and rear

directions.

Degree markers of incline to the left and right

Indicates the vehicle inclination in degrees in the left and right directions.

Pointer

Indicates the degree of the vehicle inclination in comparison to a parallel line.
