4-5. Using the driving support systems

Cruise control



Use the cruise control to maintain a set speed without depressing the accelera-
tor pedal.

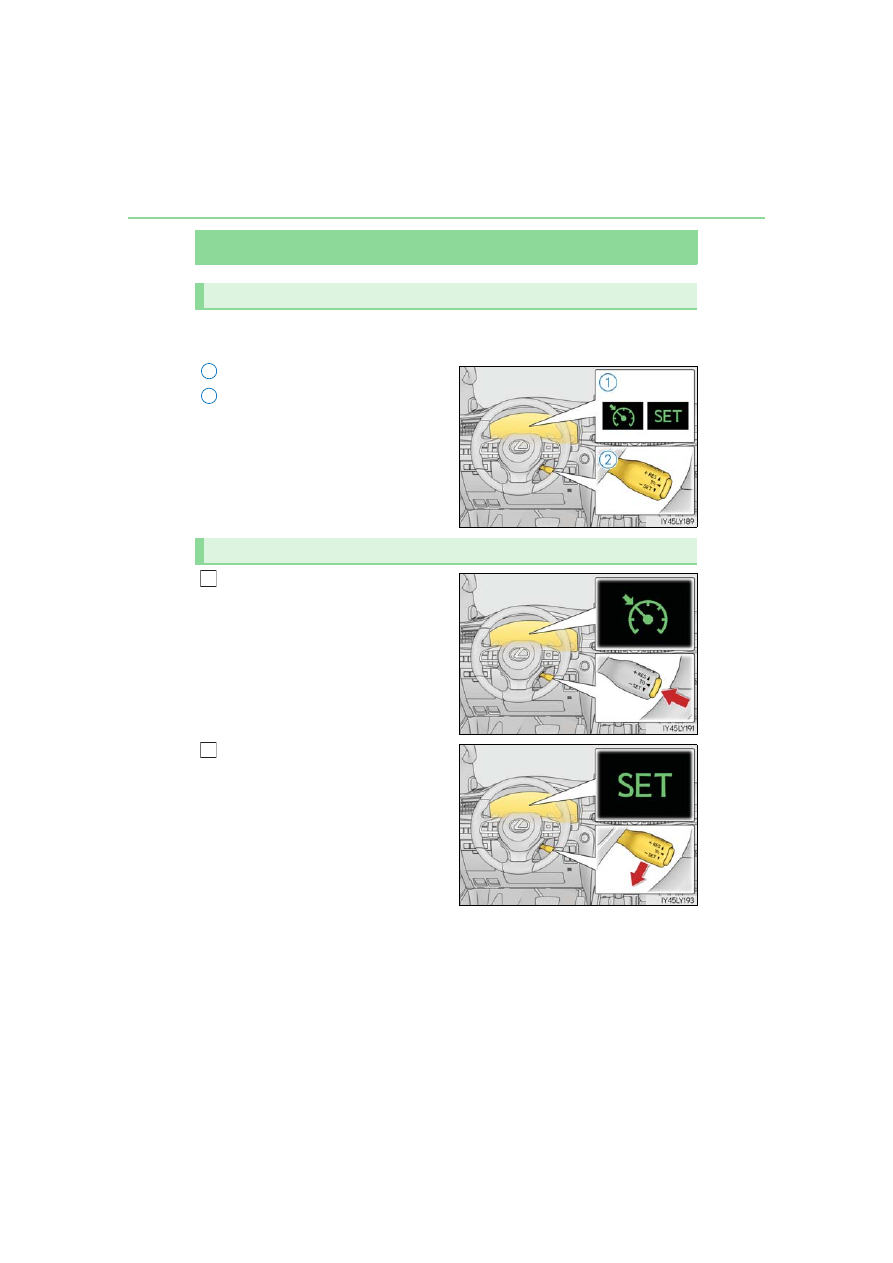

Indicators
Cruise control switch

Press the “ON/OFF” button to acti-
vate the cruise control.

Cruise control indicator will come on.
Press the button again to deactivate the

cruise control.

Accelerate or decelerate the vehicle
to the desired speed, and push the
lever down to set the speed.

“SET” indicator will come on.
The vehicle speed at the moment the

lever is released becomes the set speed.



: If equipped

Summary of functions

Setting the vehicle speed

289

4-5. Using the driving support systems

iving

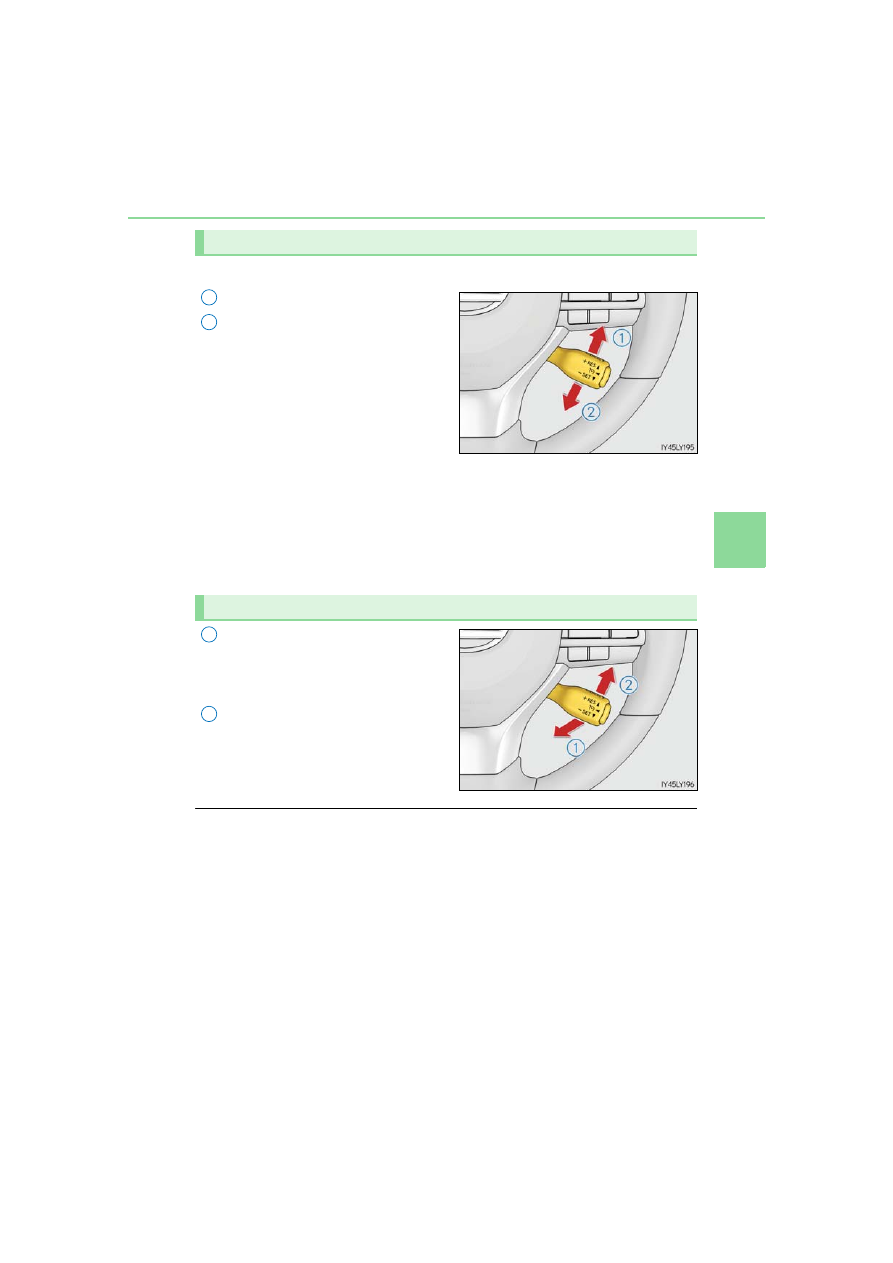

To change the set speed, operate the lever until the desired set speed is obtained.

Increases the speed
Decreases the speed

Fine adjustment: Momentarily move the

lever in the desired direction.
Large adjustment: Hold the lever in the

desired direction.

The set speed will be increased or decreased as follows:
Fine adjustment: By 1 mph (1.6 km/h)

or 1 km/h (0.6 mph)

each time the lever is

operated
Large adjustment: The set speed can be increased or decreased continually until the

lever is released.

: When the set speed is shown in “MPH”

: When the set speed is shown in “km/h”

Pulling the lever toward you cancels
the constant speed control.

The speed setting is also canceled when

the brakes are applied.

Pushing the lever up resumes the
constant speed control.

Resuming is available when the vehicle

speed is more than approximately 25

mph (40 km/h).

■

Cruise control can be set when

●

The shift lever is in the D or range 4 or higher of S has been selected.

●

Range 4 or higher has been selected by using the paddle shift. (vehicles with paddle

shift switches)

●

Vehicle speed is above approximately 25 mph (40 km/h).

■

Accelerating after setting the vehicle speed

●

The vehicle can be accelerated normally. After acceleration, the set speed resumes.

●

Even without canceling the cruise control, the set speed can be increased by first accel-

erating the vehicle to the desired speed and then pushing the lever down to set the new

speed.

Adjusting the set speed

Canceling and resuming the constant speed control

290

4-5. Using the driving support systems

■

Automatic cruise control cancelation

Cruise control will stop maintaining the vehicle speed in any of the following situations:

●

Actual vehicle speed falls more than approximately 10 mph (16 km/h) below the preset

vehicle speed.

At this time, the memorized set speed is not retained.

●

Actual vehicle speed is below approximately 25 mph (40 km/h).

●

VSC is activated.

●

Active TRAC is activated for a period of time.

●

The switching operation continues for 5 seconds or more after the center differential

lock switch has been operated.

●

When the VSC or Active TRAC system is turned off.

■

If “Cruise Control Malfunction Visit Your Dealer” is shown on the multi-information

display

Press the “ON/OFF” button once to deactivate the system, and then press the button

again to reactivate the system.

If the cruise control speed cannot be set or if the cruise control cancels immediately after

being activated, there may be a malfunction in the cruise control system. Have the vehi-

cle inspected by your Lexus dealer.

WARNING

■

To avoid operating the cruise control by mistake

Switch the cruise control off using the “ON/OFF” button when not in use.

■

Situations unsuitable for cruise control

Do not use cruise control in any of the following situations.

Doing so may result in loss of control and could cause an accident resulting in death or

serious injury.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as those covered with rain, ice or snow

●

On steep hills

Vehicle speed may exceed the set speed when driving down a steep hill.

●

When your vehicle is towing a trailer or during emergency towing

291

4-5. Using the driving support systems

iving

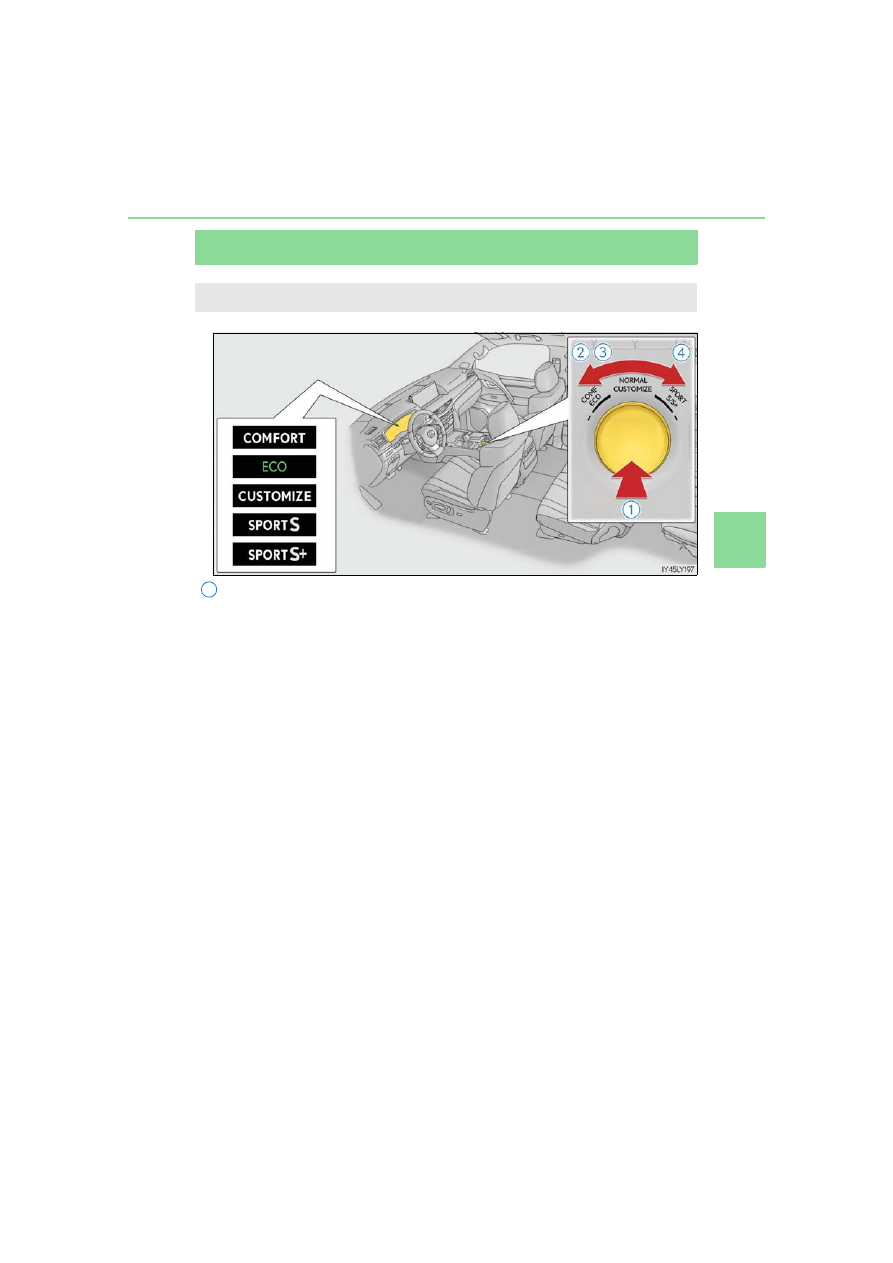

Driving mode select switch

Normal mode/Customized mode
Normal mode and customized mode are selected by pressing the driving
mode select switch. Each time the switch is pressed, the driving mode
changes between normal mode and customized mode. When customized
mode is selected, the “CUSTOMIZE” indicator will be illuminated.

Press the switch to change the driving mode to normal mode when not in normal

mode.

• Normal mode

Provides an optimal balance of fuel economy, quietness, and dynamic per-
formance. Suitable for city driving.

• Customized mode

Allows you to drive with the following functions set to your preferred set-
tings.
Customized mode settings can only be changed on the drive mode cus-
tomization display of the Remote touch screen. (



P. 584)

The driving modes can be selected to suit driving condition.

292

4-5. Using the driving support systems

Comfort mode
By controlling the suspension, riding comfort is further enhanced. Suitable for
city driving.

When not in comfort mode and the driving mode select switch is turned to the left, the

“COMFORT” indicator comes on in the multi-information display.

Eco drive mode
Helps the driver accelerate in an eco-friendly manner and improve fuel econ-
omy through moderate throttle characteristics and by controlling the opera-
tion of the air conditioning system (heating/cooling).

When in comfort mode, if the driving mode select switch is turned to the left, the

“ECO” indicator will come on in the multi-information display.

Sport mode

• SPORT S mode

Controls the transmission and engine to provide quick, powerful accelera-
tion. This mode is suitable for when agile driving response is desired, such
as when driving on roads with many curves.

When not in SPORT S mode, if the driving mode select switch is turned to the

right, the “SPORT S” indicator will come on in the multi-information display.

• SPORT S+ mode

Helps to ensure steering performance and driving stability by simultane-
ously controlling the steering and suspension in addition to the transmis-
sion and engine. Suitable for sportier driving.

When in SPORT S mode, if the driving mode select switch is turned to the right,

the “SPORT S+” indicator will come on in the multi-information display.

Function

Setting

Powertrain

Normal

Power

Eco

Chassis

Normal

Sport

Air conditioning system

Normal

Eco

293

4-5. Using the driving support systems

iving

■

Operation of the air conditioning system in Eco drive mode

Eco drive mode controls the heating/cooling operations and fan speed of the air condi-

tioning system to enhance fuel efficiency. To improve air conditioning performance,

adjust the fan speed or turn off eco mode of the air conditioning system. (



P. 407)

■

Automatic deactivation of sport mode and customized mode

If the engine switch is turned off after driving in sport mode or customized mode, the

drive mode will be changed to normal mode.

■

Driving mode pop-up display

When the driving mode is changed, the selected driving mode will be temporarily dis-

played on the side display. (



P. 400)

294

4-5. Using the driving support systems

Intuitive parking assist

Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors

On/off

To turn the system on, press the switch.

The indicator light comes on to inform

the driver that the system is operational.
To turn the system off, press the switch

again.

The distance from your vehicle to nearby obstacles when parallel parking or
maneuvering into a garage is measured by the sensors and communicated via
the multi-information display, the remote touch screen, and a buzzer. Always
check the surrounding area when using this system.

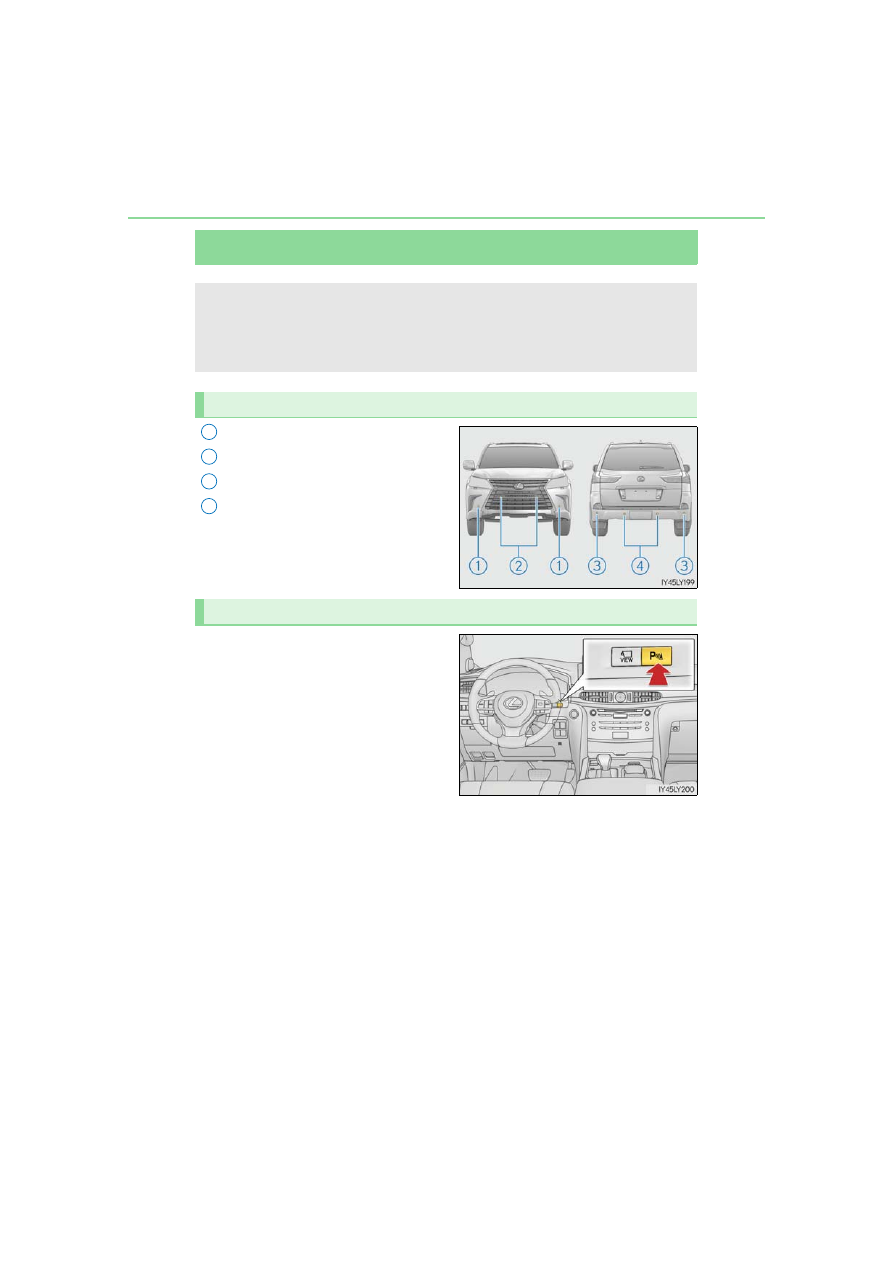

Types of sensors

2
3
4

Intuitive parking assist switch

295

4-5. Using the driving support systems

iving

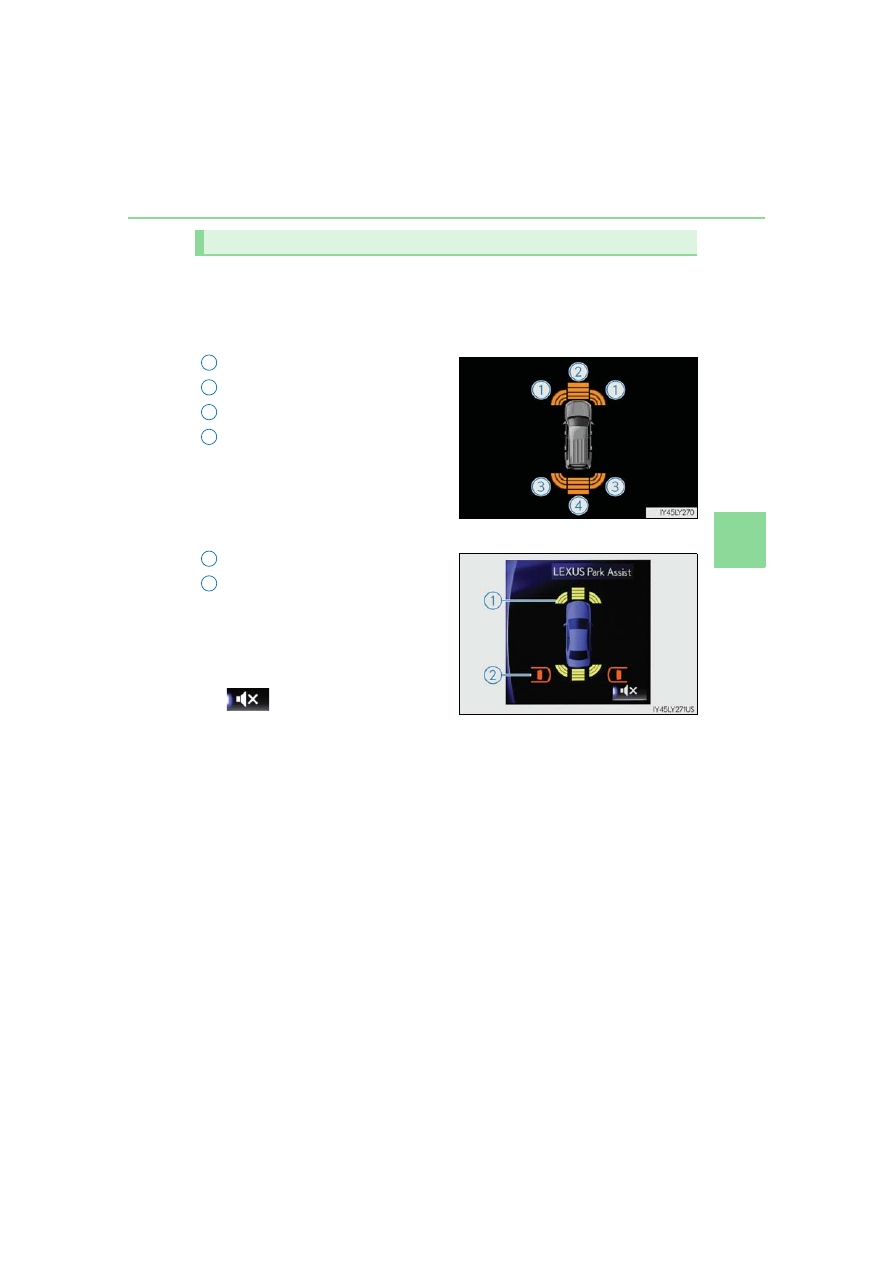

When the sensors detect an obstacle, a graphic is shown on the multi-informa-
tion display and the remote touch screen depending on the position and distance
to the obstacle.



Multi-information display
Front corner sensor operation
Front center sensor operation
Rear corner sensor operation
Rear center sensor operation



Remote touch screen
Intuitive parking assist
Rear Cross Traffic Alert (if
equipped)

A graphic is automatically displayed on

the side display when an obstacle is

detected. The screen can be set so that

the graphic is not displayed.

: Select to mute the buzzer

sounds.

Display

2
3
4

296

4-5. Using the driving support systems

■

Distance display

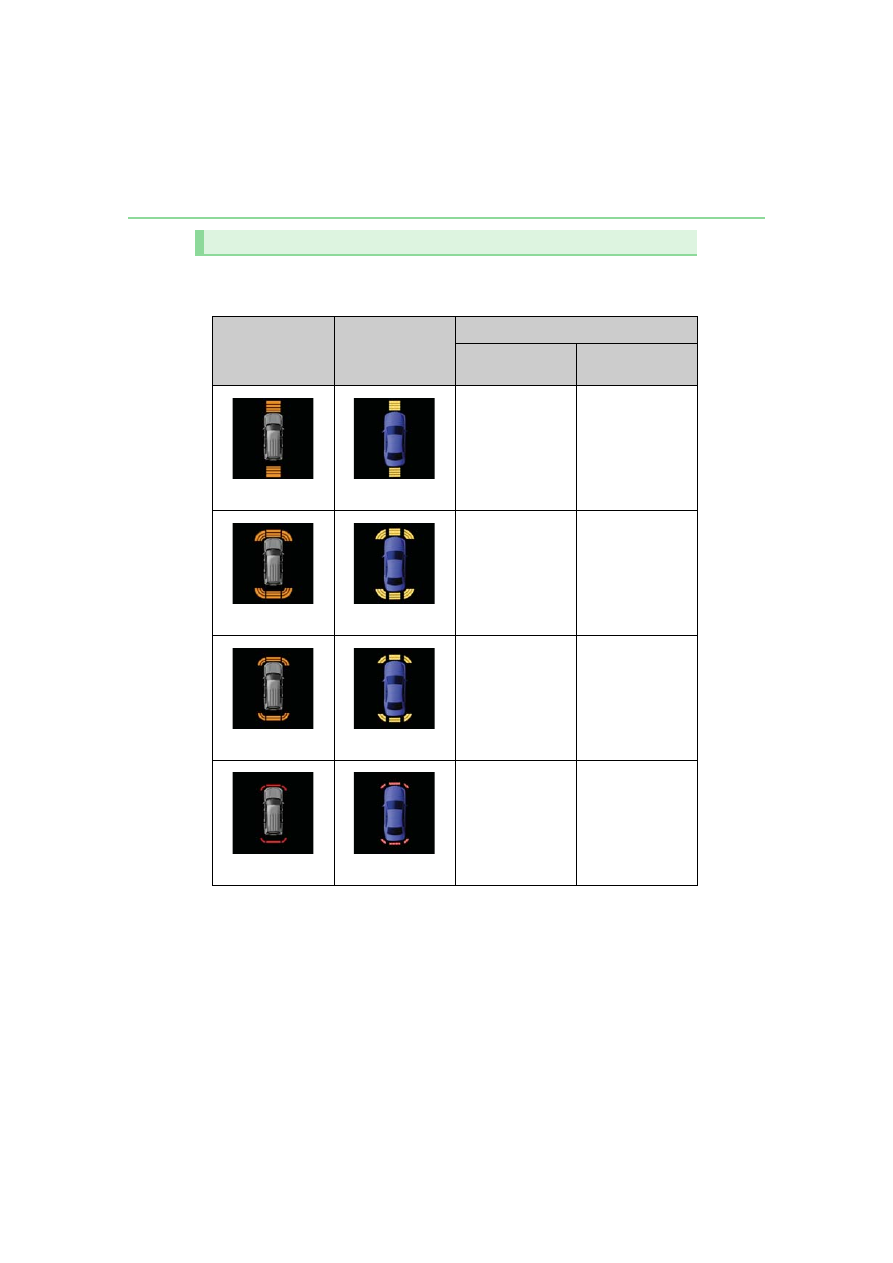

Sensors that detect an obstacle will illuminate continuously or blink.

Sensor detection display, obstacle distance

Multi-information

display

Remote touch

screen

Approximate distance to obstacle

Corner sensor/

front center sensor Rear center sensor

(continuous)

Front center

sensor:

3.3 ft. (100 cm) to

2.0 ft. (60 cm)

4.9 ft. (150 cm) to

2.6 ft. (80 cm)

(continuous)

2.0 ft. (60 cm) to

1.5 ft. (45 cm)

2.6 ft. (80 cm) to

2.1 ft. (65 cm)

(continuous)

1.5 ft. (45 cm) to

1.1 ft. (35 cm)

2.1 ft. (65 cm) to

1.6 ft. (50 cm)

(blinking)

(continuous)

Less than

1.1 ft. (35 cm)

Less than

1.6 ft. (50 cm)

297

4-5. Using the driving support systems

iving

■

Buzzer operation and distance to an obstacle

A buzzer sounds when the sensors are operating.

●

The buzzer sounds faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the obstacle, the
buzzer sounds continuously.

• Front center sensors: Approximately 1.1 ft. (35 cm)
• Corner: Approximately 1.1 ft. (35 cm)
• Rear center sensors: Approximately 1.6 ft. (50 cm)

●

When 2 or more obstacles are detected simultaneously, the buzzer system
responds to the nearest obstacle. If one or both come within the above dis-
tances, the beep will repeat a long tone, followed by fast beeps.

●

You can change the volume of the warning beeps. (



P. 298)

Approximately 3.3 ft. (100 cm)
Approximately 4.9 ft. (150 cm)
Approximately 2.0 ft. (60 cm)
Approximately 2.0 ft. (60 cm)

The diagram shows the detection range

of the sensors. Note that the sensors

may not be able to detect obstacles that

are extremely close to the vehicle.
The range of the sensors may change

depending on the shape of the object

etc.

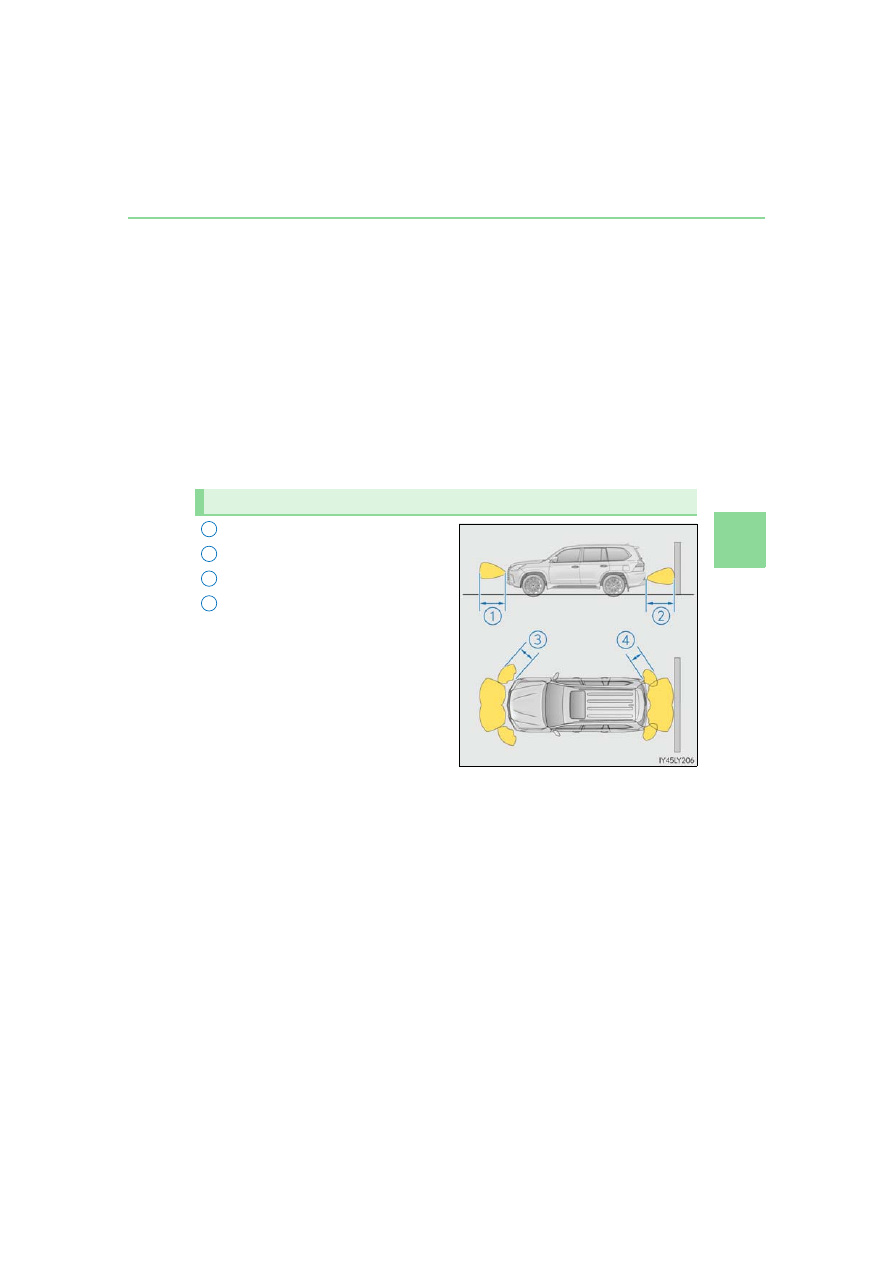

Detection range of the sensors

2
3
4

298

4-5. Using the driving support systems

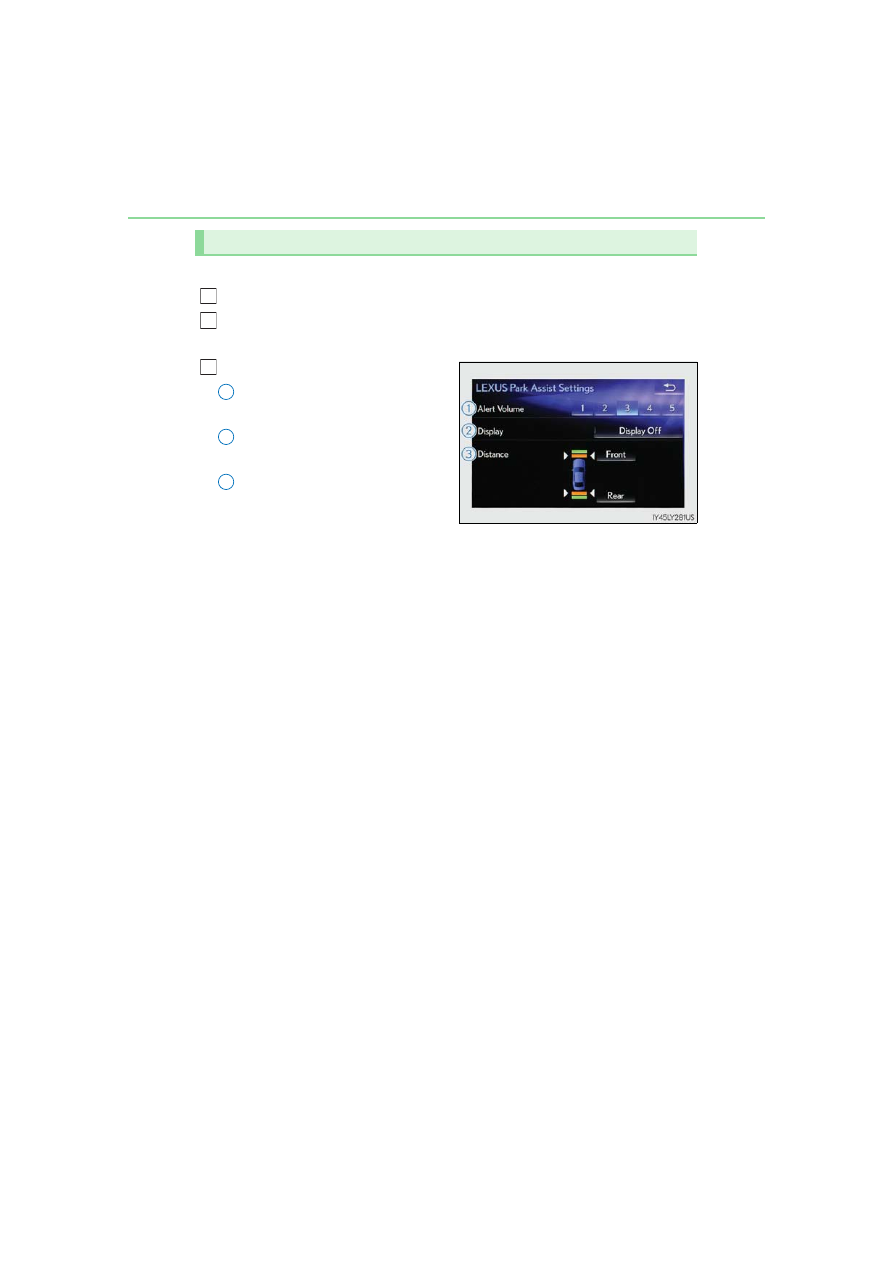

You can change the buzzer sound volume and the screen operating conditions.

Press the “SETUP” button.
Select “Vehicle”, and then select “LEXUS Park Assist”/“LEXUS Park Assist
Settings” on the screen.
Select the desired item.

The buzzer sound volume can be
adjusted.
On or off can be selected for intu-
itive parking assist display.
Front or rear center sensors dis-
play and tone indication can be
set.

Setting up intuitive parking assist

299

4-5. Using the driving support systems

iving

■

The intuitive parking assist can be operated when

●

Front corner sensors:
• The engine switch is in IGNITION ON mode.

• The shift lever is in a position other than P.

• The vehicle speed is less than approximately 6 mph (10 km/h).

(At any speed when the shift lever is in R)

●

Front center sensors:
• The engine switch is in IGNITION ON mode.

• The shift lever is in a position other than P or R.

• The vehicle speed is less than about 6 mph (10 km/h).

●

Rear corner and rear center sensors:
• The engine switch is in IGNITION ON mode.

• The shift lever is in R.

■

Intuitive parking assist display

When an obstacle is detected while the rear view monitor system, Lexus parking assist

monitor or Multi-terrain Monitor is in use, the warning indicator will appear in the upper

corner of the screen even if the display setting has been set to off.

■

Sensor detection information

●

The sensor’s detection areas are limited to the areas around the vehicle’s bumper.

●

Certain vehicle conditions and the surrounding environment may affect the ability of a

sensor to correctly detect an obstacle. Particular instances where this may occur are

listed below.
• There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve this prob-

lem.)

• The sensor is frozen. (Thawing the area will resolve this problem.)

In especially cold weather, if a sensor is frozen the screen may show an abnormal

display, or obstacles may not be detected.

• The sensor is covered in any way.

• The vehicle is leaning considerably to one side.

• On an extremely bumpy road, on an incline, on gravel, or on grass.

• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air

brakes of large vehicles, or other loud noises producing ultrasonic waves.

• There is another vehicle equipped with parking assist sensors in the vicinity.

• The sensor is coated with a sheet of spray or heavy rain.

• The vehicle is equipped with a fender pole or wireless antenna.

• The bumper or sensor receives a strong impact.

• The vehicle is approaching a tall or curved curb.

• In harsh sunlight or intense cold weather.

• The area directly under the bumpers is not detected.

• If obstacles draw too close to the sensor.

• A non-genuine Lexus suspension (lowered suspension etc.) is installed.

• People may not be detected if they are wearing certain types of clothing.

In addition to the examples above, there are instances in which, because of their shape,

signs and other objects may be judged by a sensor to be closer than they are.

300

4-5. Using the driving support systems

●

The shape of the obstacle may prevent a sensor from detecting it. Pay particular atten-

tion to the following obstacles:
• Wires, fences, ropes, etc.

• Cotton, snow and other materials that absorb sound waves

• Sharply-angled objects

• Low obstacles

• Tall obstacles with upper sections projecting outwards in the direction of your vehi-

cle

●

The following situations may occur during use.
• Depending on the shape of the obstacle and other factors, the detection distance

may shorten, or detection may be impossible.

• Obstacles may not be detected if they are too close to the sensor.

• There will be a short delay between obstacle detection and display. Even at slow

speeds, there is a possibility that the obstacle will come within the sensor’s detection

areas before the display is shown and the buzzer sounds.

• Thin posts or objects lower than the sensor may not be detected when approached,

even if they have been detected once.

• It might be difficult to hear beeps due to the volume of audio system or air flow noise

of the air conditioning system.

■

If “Clean Parking Assist Sensor” is displayed on the multi-information display

A sensor may be dirty or covered with snow or ice. In such cases, if it is removed from the

sensor, the system should return to normal.
Also, due to the sensor being frozen at low temperatures, a malfunction display may

appear or an obstacle may not be detected. If the sensor thaws out, the system should

return to normal.

■

If “Parking Assist Malfunction” is displayed on the multi-information display

Depending on the malfunction of the sensor, the device may not be working normally.

Have the vehicle inspected by your Lexus dealer.

■

Certification for the intuitive parking assist (Canada only)

This ISM device complies with Canadian ICES-001.

■

Customization

Settings (e.g. buzzer sounds volume) can be changed.

(Customizable features:



P. 584)

301

4-5. Using the driving support systems

iving

WARNING

■

When using the intuitive parking assist

Observe the following precautions.

Failing to do so may result in the vehicle being unable to be driven safely and possibly

cause an accident.

●

Do not use the sensor at speeds in excess of 6 mph (10 km/h).

●

The sensors’ detection areas and reaction times are limited. When moving forward or

reversing, check the areas surrounding the vehicle (especially the sides of the vehi-

cle) for safety, and drive slowly, using the brake to control the vehicle’s speed.

●

Do not install accessories within the sensors’ detection areas.

NOTICE

■

When using intuitive parking assist

In the following situations, the system may not function correctly due to a sensor mal-

function etc. Have the vehicle checked by your Lexus dealer.

●

A buzzer does not sound when you turn the intuitive parking assist on.

●

The intuitive parking assist operation display flashes, and a buzzer sounds when no

obstacles are detected.

●

If the area around a sensor collides with something, or is subjected to strong impact.

●

If the bumper collides with something.

●

If the display shows continuously without a buzzer.

●

If a display error occurs, first check the sensor.

If the error occurs even if there is no ice, snow or mud on the sensor, it is likely that the

sensor is malfunctioning.

■

Notes when washing the vehicle

Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

302

4-5. Using the driving support systems

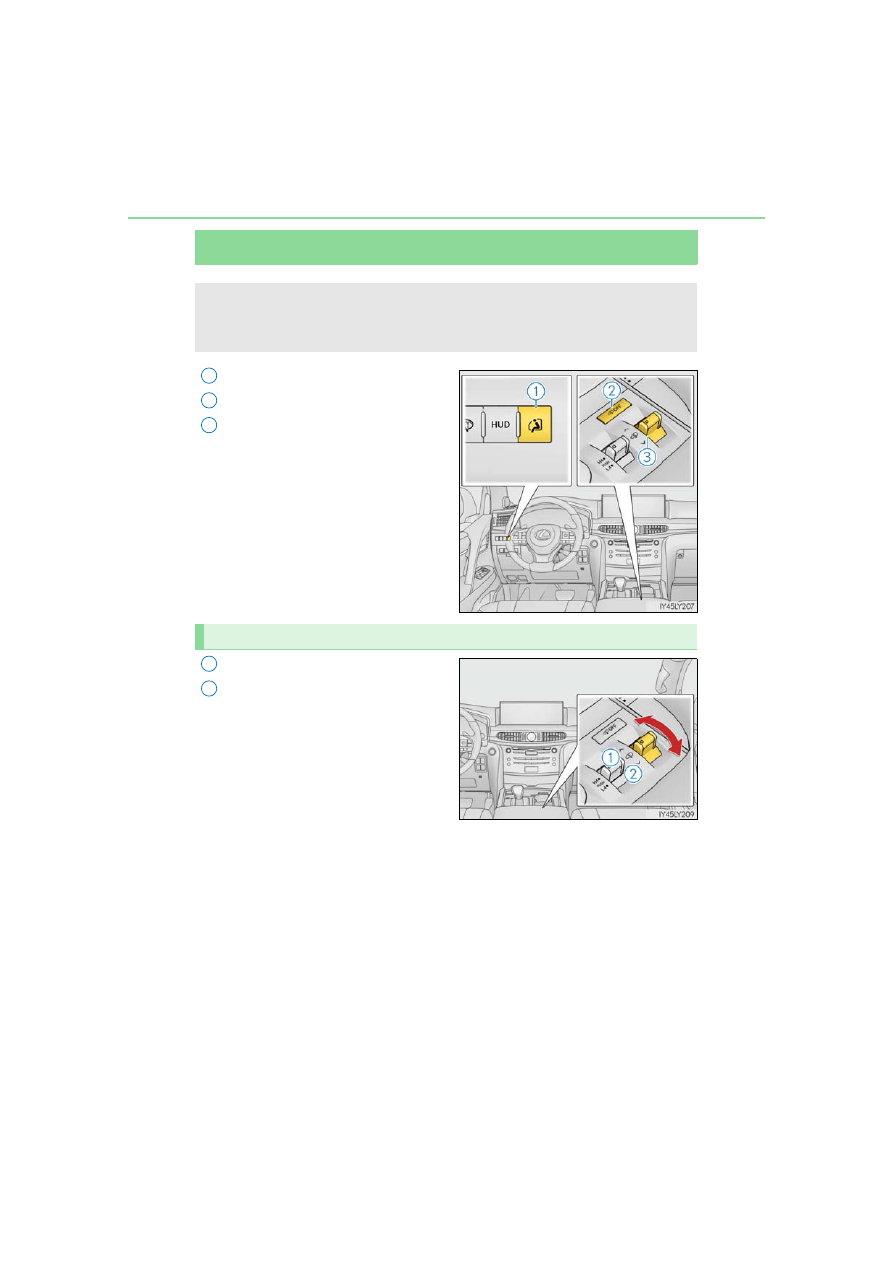

4-Wheel AHC (Active Height Control Suspension)

Easy access mode switch
Height control OFF switch
Height select switch

Higher
Lower

The 4-Wheel AHC adjusts the vehicle height in accordance with driving con-
ditions. There are 3 selectable modes, “HI” (high), “N” (normal), and “LO”
(low).

2
3

Selecting vehicle height

303

4-5. Using the driving support systems

iving

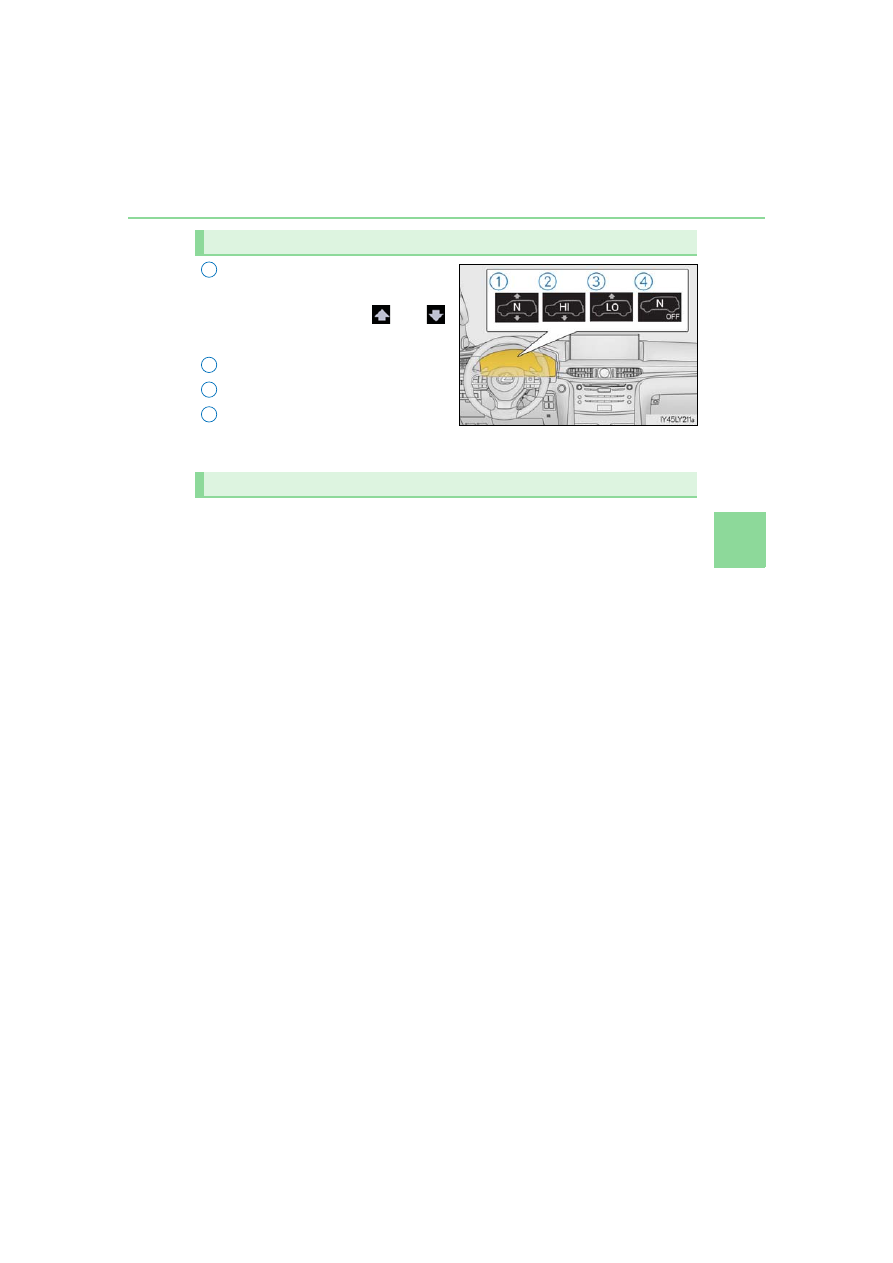

Current mode

The vehicle is in the N (normal) height
mode in the illustration.

and

show directions in which it is possible to

adjust the vehicle height.

Height up
Height down
Height control “OFF” indicator

When the height control “OFF” indicator is displayed, the vehicle height will not

change even if the height select switch is operated.

Push the height select switch to “



” to step up one height mode, and pull to “



” to

step down one height mode. (Ex. When in the low height mode, push to “



” once

to switch to the normal height mode, and twice to switch to the high height
mode.)

■

“HI” (high) height mode

Vehicle height is about 2.0 in. (50 mm) higher at the front, and about 2.4 in.
(60 mm) higher at the rear than the normal mode height.
This mode is suitable when driving on bumpy roads or through water.
High height mode is only available when the vehicle speed is under 18 mph
(30 km/h).

■

N (normal) height mode

The standard vehicle height. This mode is suitable for ordinary driving.
When driving at high speeds, the vehicle height is automatically lowered by
0.8 in. (20 mm) in the front and 0.6 in. (15 mm) in the rear, to ensure excellent
aerodynamic characteristics and stability.
If the vehicle speed drops, normal height mode is automatically resumed.

■

“LO” (low) height mode

Vehicle height is about 2.4 in. (60 mm) lower at the front, and about 1.6 in. (40
mm) lower at the rear than the normal mode height.
This mode allows easy access to the vehicle.
Low height mode is only available when the vehicle is travelling at 7 mph
(12 km/h) or less. When the vehicle speed exceeds 7 mph (12 km/h), normal
height mode is automatically selected.

Display

2
3
4

Vehicle height modes

Content .. 15 16 17 18 ..
