Lexus LC (2021 year). Manual in english

1-5. Theft deterrent system

The intrusion sensor and tilt sensor
detection



The intrusion sensor detects intrud-
ers or movement in the vehicle.



The tilt sensor detects changes in
vehicle inclination, such as when the
vehicle is towed away.

This system is designed to deter and
prevent vehicle theft but does not
guarantee absolute security against all
intrusions.

Setting the intrusion sensor and tilt
sensor

The intrusion sensor and tilt sensor will
be set automatically when the alarm is
set. (



P.91)

Canceling the intrusion sensor and
tilt sensor

If you are leaving pets or other moving
things inside the vehicle, make sure to
disable the intrusion sensor and tilt
sensor before setting the alarm, as they
will respond to movement inside the
vehicle.

Turn the engine switch <power
switch> off.

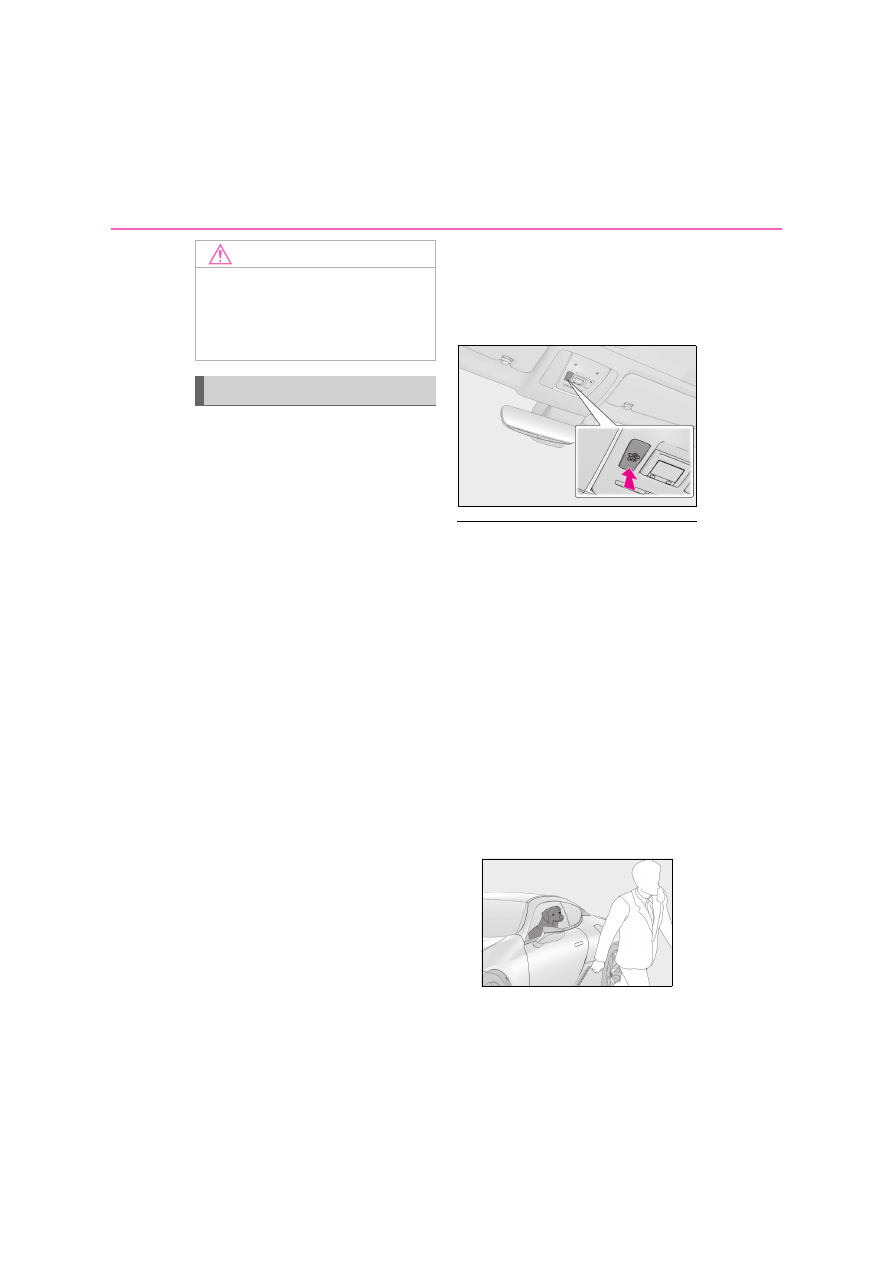

Press the intrusion sensor and tilt
sensor cancel switch.

Press the switch again to re-enable the

intrusion sensor and tilt sensor.
Each time the intrusion sensor and tilt sen-

sor are canceled/set, a message will be

shown on the multi-information display in

the instrument cluster.

Canceling and automatic re-enabling of

the intrusion sensor and tilt sensor

The alarm will still be set even when the

intrusion sensor and tilt sensor are can-

celed.

After the intrusion sensor and tilt sensor

are canceled, pressing the engine switch

<power switch> or unlocking the doors

using the entry function or wireless

remote control will re-enable the intru-

sion sensor and tilt sensor.

The intrusion sensor and tilt sensor will

automatically be re-enabled when the

alarm system is deactivated.

Intrusion sensor detection consider-

ations

The sensor may trigger the alarm in the fol-

lowing situations:

People or pets are in the vehicle.

A window is open.

In this case, the sensor may detect the fol-

NOTICE

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

Intrusion sensor and tilt sensor

1-5. Theft deterrent system

For
sa

d s

uri

lowing:

• Wind or the movement of objects such as

leaves and insects inside the vehicle

• Ultrasonic waves emitted from devices

such as the intrusion sensors of other

vehicles

• The movement of people outside the

vehicle

Unstable items, such as dangling acces-

sories or clothes hanging on the coat

hooks, are in the vehicle.

The vehicle is parked in a place where

extreme vibrations or noises occur, such

as in a parking garage.

Ice or snow is removed from the vehicle,

causing the vehicle to receive repeated

impacts or vibrations.

The vehicle is inside an automatic or

high-pressure car wash.

The vehicle experiences impacts, such as

hail, lightning strikes, and other kinds of

repeated impacts or vibrations.

Tilt sensor detection considerations

The sensor may trigger the alarm in the fol-

lowing situations:

The vehicle is transported by a ferry,

trailer, train, etc.

The vehicle is parked in a parking garage.

The vehicle is inside a car wash that

moves the vehicle.

Any of the tires loses air pressure.

The vehicle is jacked up.

An earthquake occurs or the road caves

in.

NOTICE

To ensure the intrusion sensor func-

tion correctly

To ensure that the sensors operate

properly, do not touch or cover them.

icle

ion
an

d i

ica

tor

Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indicators.

Gauges and meters ..................

102

Multi-information display........

106

Head-up display ..........................

113

Energy monitor/consumption

screen ...........................................

118

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

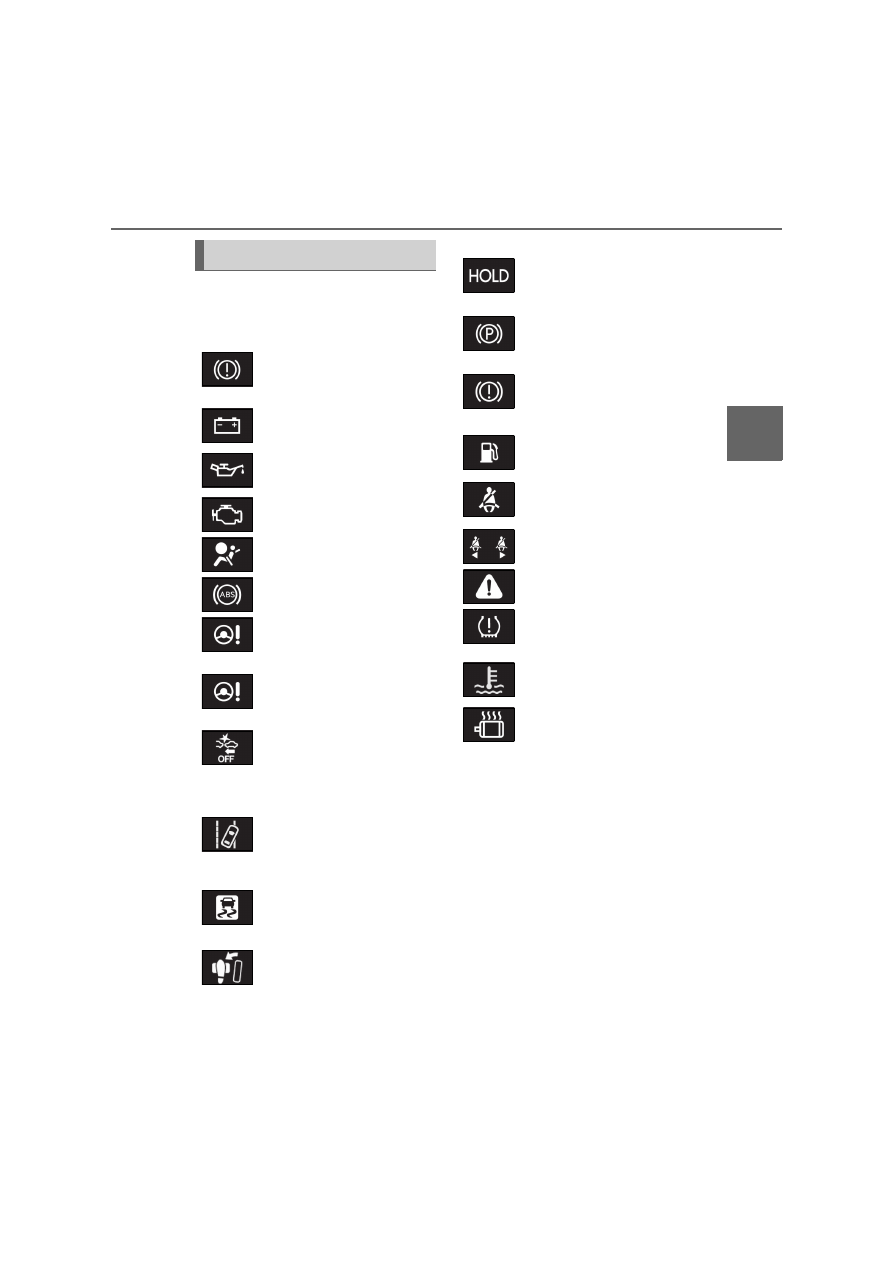

Warning lights inform the driver of mal-
functions in the indicated vehicle sys-
tems.

: These lights turn on when the engine

switch <power switch> is turned to
IGNITION ON mode <ON mode> to
indicate that a system check is being
performed. They will turn off after the
engine <hybrid system> is started, or
after a few seconds. There may be a
malfunction in a system if a light does
not come on, or turn off. Have the vehi-
cle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.

: This light illuminates on the multi-infor-

mation display.

Warning lights

(red)

Brake system warning light

(



P.441)

Charging system warning
light

(



P.441)

Low engine oil pressure
warning light

(



P.442)

Malfunction indicator lamp

(



P.442)

SRS warning light

(



P.442)

ABS warning light

(



P.443)

(red)

Electric power steering sys-
tem warning light

(



P.443)

(yellow)

Electric power steering sys-
tem warning light

(



P.443)

(Flashes or

illuminates)

(if equipped)

PCS warning light

(



P.443)

(orange)

(if equipped)

LKA indicator

(



P.444)

Slip indicator

(



P.444)

Brake Override System
warning light

(



P.445)/Drive-Start Con-

trol warning light

(



P.445)

Brake hold operated indica-
tor

*1, 3

(



P.445)

Parking brake indicator

(



P.445)

(yellow)

Brake system warning light

(



P.446)

Low fuel level warning light
(



P.446)

Driver’s and front passen-
ger’s seat belt reminder light
(



P.446)

Rear passengers’ seat belt
reminder lights

(



P.446)

Master warning light

(



P.447)

Tire pressure warning light

*1, 3

(



P.447)

High coolant temperature
warning light

(



P.447)

(if equipped)

Hybrid system overheat
warning light

(



P.448)

2-1. Instrument cluster

: The light flashes to indicate a malfunc-

tion.

: This light illuminates on the center

panel.

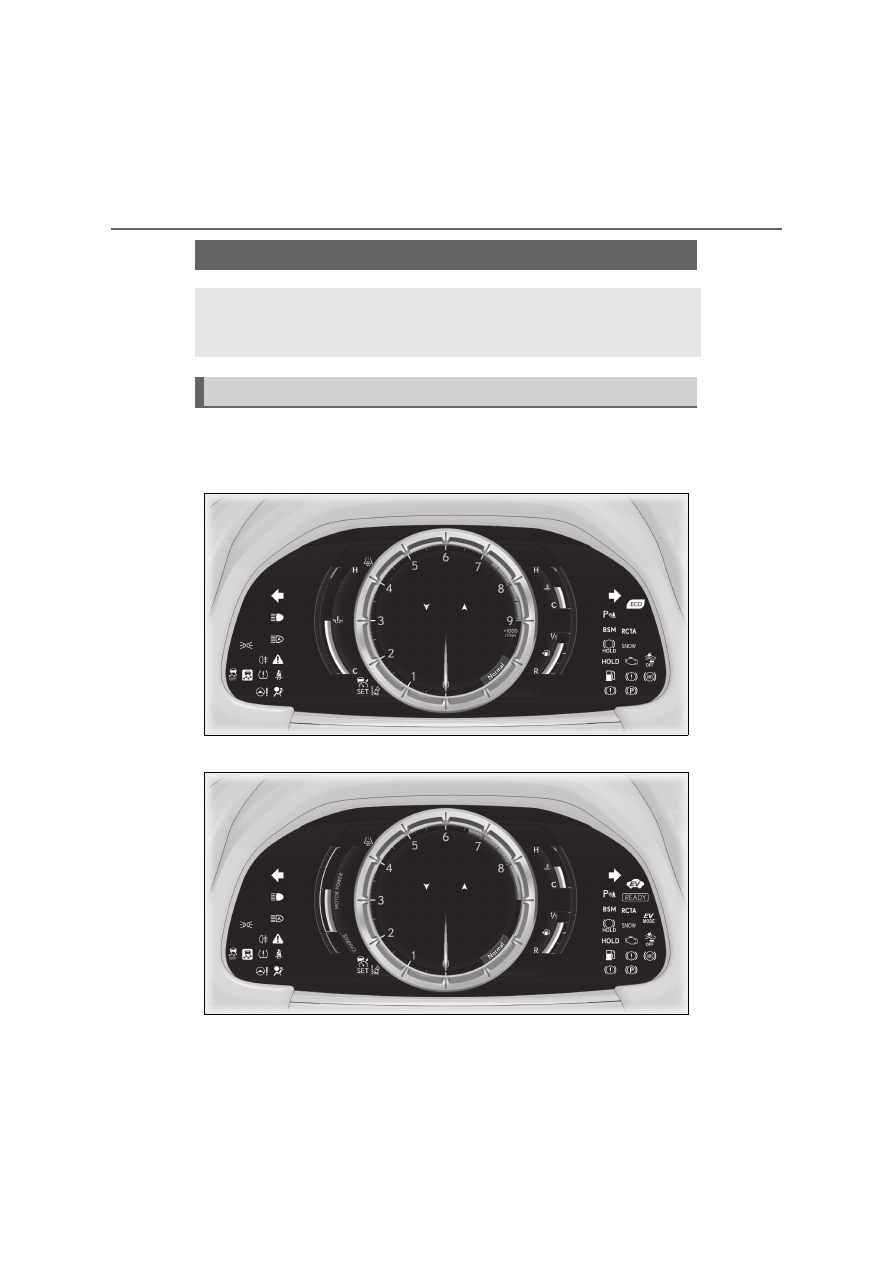

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

WARNING

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine <hybrid sys-

tem>, this could mean that these systems

are not available to help protect you in an

accident, which could result in death or

serious injury. Have the vehicle inspected

by any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer immediately if this occurs.

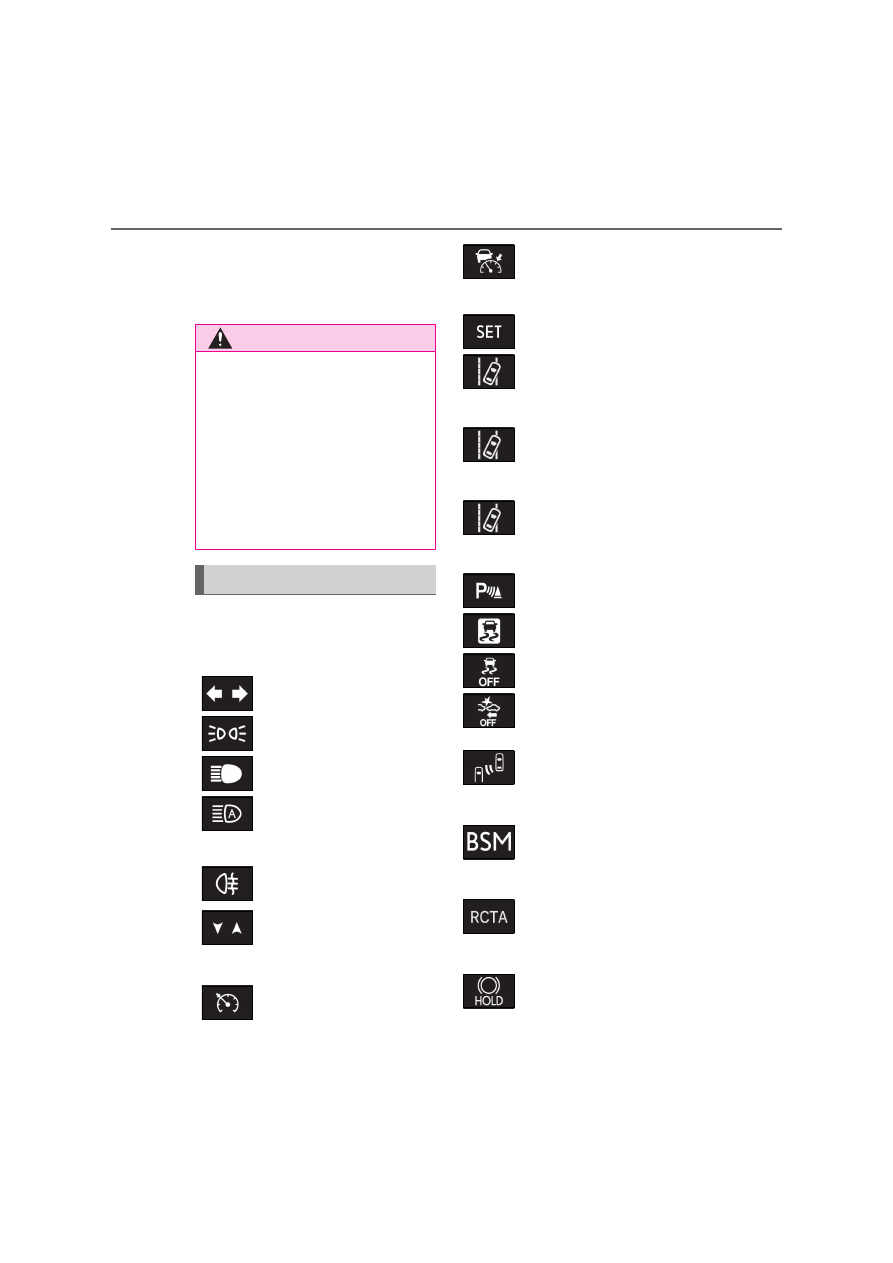

Indicators

Turn signal indicator
(



P.230)

Tail light indicator (



P.236)

Headlight high beam indica-
tor (



P.237)

(If

equipped)

Automatic High Beam indica-
tor

(



P.238)

Rear fog light indicator
(



P.241)

(If

equipped)

Gear Shift Indicator

(



P.222, 229)

Cruise control indicator

(



P.279, 289)

(If

equipped)

Dynamic radar cruise control
indicator

(



P.279)

Cruise control “SET” indica-
tor

(



P.279, 289)

(white)

(if equipped)

LKA indicator

(



P.267)

(green)

(if equipped)

LKA indicator

(



P.267)

(orange)

(if equipped)

LKA indicator

*2, 3

(



P.267)

Lexus parking assist-sensor
indicator (



P.293)

Slip indicator

*1, 3

(



P.325)

VSC OFF indicator

(



P.326)

(if equipped)

PCS warning light

*1, 4

(



P.259)

(If

equipped)

BSM (Blind Spot Monitor)
outside rear view mirror indi-
cators

*5, 6

(



P.298)

(If

equipped)

BSM (Blind Spot Monitor)
indicator (



P.298)

(If

equipped)

RCTA (Rear Crossing Traffic
Alert) indicator (



P.298)

Brake hold standby indica-
tor

(



P.234)

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

: These lights turn on when the engine

: This light illuminates on the multi-infor-

mation display.

: The light flashes to indicate that the sys-

tem is operating.

: The light comes on when the system is

turned off.

: In order to confirm operation, the BSM

outside rear view mirror indicators illu-
minate in the following situations:
When the engine switch <power switch>
is turned to IGNITION ON mode <ON
mode> while the BSM main switch is
turned on.
When the BSM main switch is turned
on while the engine switch <power
switch> is in IGNITION ON mode
<ON mode>.
If the system is functioning correctly, the
BSM outside rear view mirror indica-
tors will turn off after a few seconds.
If the BSM outside rear view mirror indi-
cators do not illuminate or do not turn

Brake hold operated indica-
tor

(



P.234)

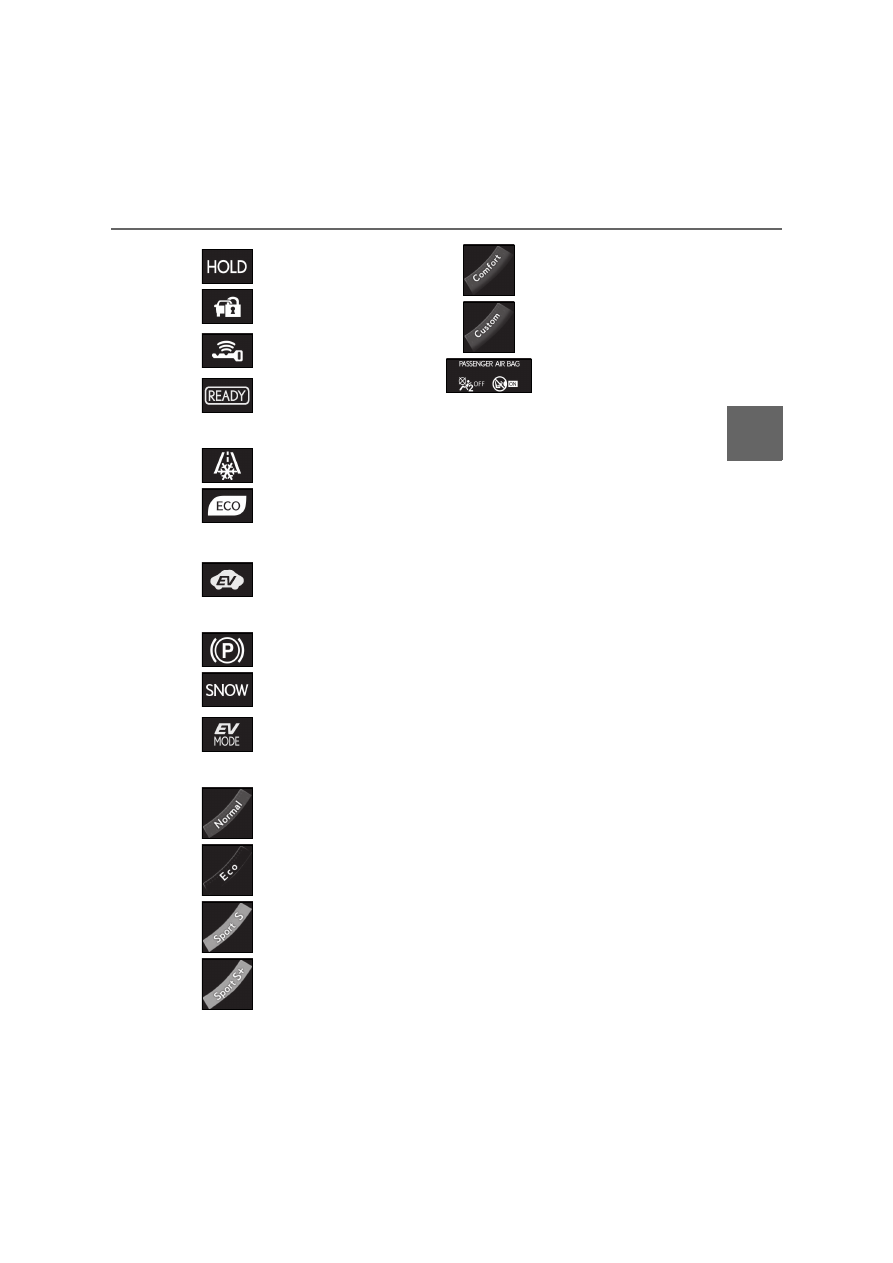

Security indicator

(



P.77,

90)
Smart entry & start system
indicator

(



P.205)

(If

equipped)

“READY” indicator
(



P.209)

Low outside temperature
indicator

*2, 8

(



P.102)

(If

equipped)

Eco Driving Indicator Light

(



P.100)

(If

equipped)

EV indicator (



P.70)

Parking brake indicator
(



P.231)

Snow mode indicator
(



P.220, 227)

(If

equipped)

EV drive mode indicator
(



P.213)

“Normal” indicator

(



P.292)

“Eco” indicator

(



P.292)

“Sport S” indicator

(



P.292)

“Sport S+” indicator

(



P.292)

“Comfort” indicator

(



P.292)

“Custom” indicator

(



P.292)

“PASSENGER AIR BAG”
indicator

(



P.50)

100

2-1. Instrument cluster

off, there may be a malfunction in the
system.
If this occurs, have the vehicle inspected
by any authorized Lexus retailer or
Lexus authorized repairer, or any reli-
able repairer.

: This light illuminates on the outside rear

view mirrors.

: This light illuminates on the center

panel.

: When the outside temperature is

approximately 3°C (37°F) or lower, the
indicator will flash for approximately 10
seconds, then stay on.

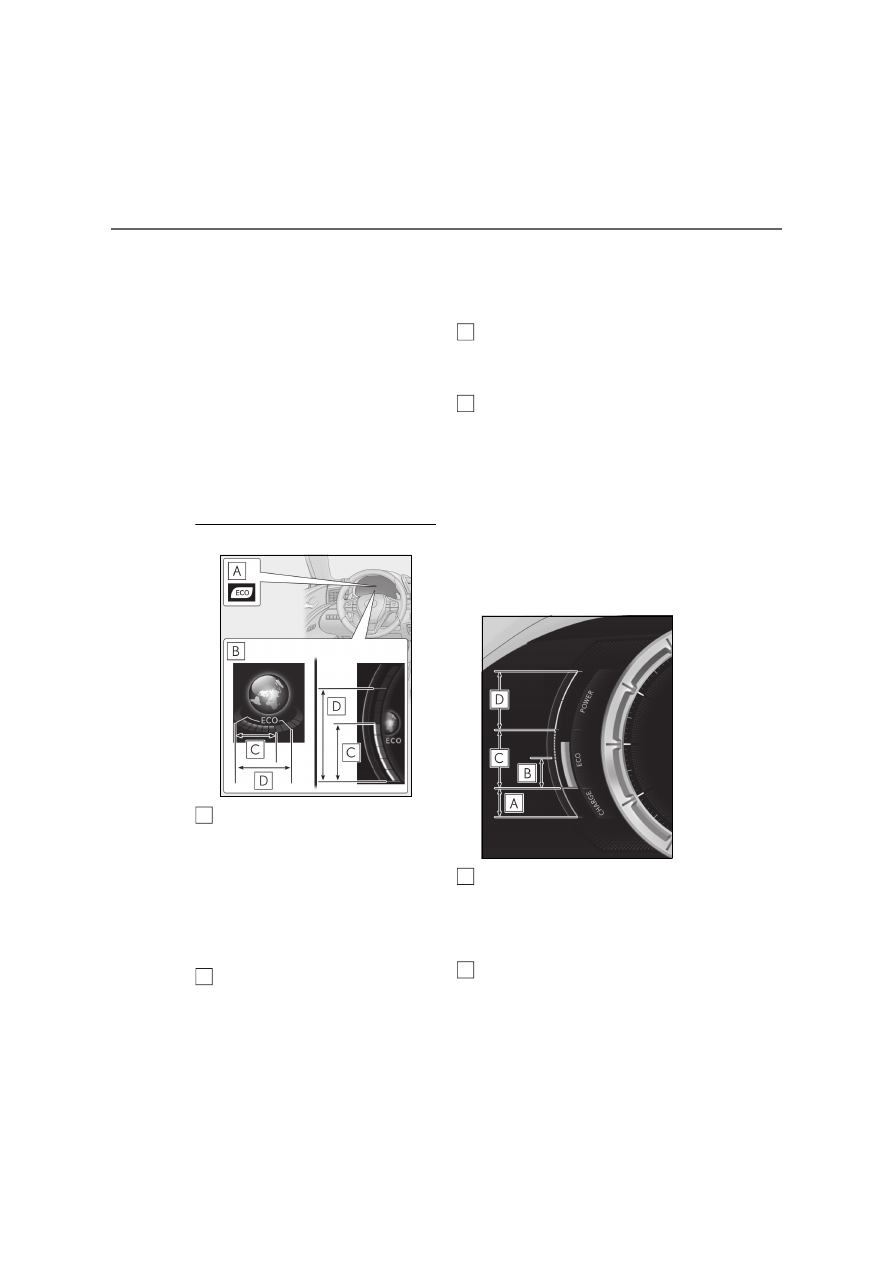

Eco Driving Indicator (LC500)

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco driv-
ing), the Eco Driving Indicator Light will
turn on. When the acceleration exceeds the
Zone of Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator can be enabled on
the multi-information display. (



P.106)

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-

tion.
When the driving mode is Normal mode or
Comfort mode, switch the display to the
side position. (



P.105)

Eco driving ratio based on acceleration

The part that exceeds the Zone of Eco driv-
ing illuminates in white.

Zone of Eco driving

Eco Driving Indicator will not operate

under the following conditions:

The shift position is in any position other

than D.

A paddle shift switch is operated.

The driving mode is SPORT S mode or

SPORT S+ mode.

The vehicle speed is approximately 130

km/h (80 mph) or higher.

Hybrid System Indicator (LC500h)

Charge area

Shows regeneration

status. Regenerated

energy will be used to charge the hybrid
battery (traction battery).

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.

101

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

The gasoline engine will automatically stop
and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the indicator needle within Eco
area, more Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)
In the following situation, the Hybrid System

Indicator does not operate.

The shift position is in other than D or M.

The driving mode is other than Eco

mode.

: When used in this manual, “regeneration”

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

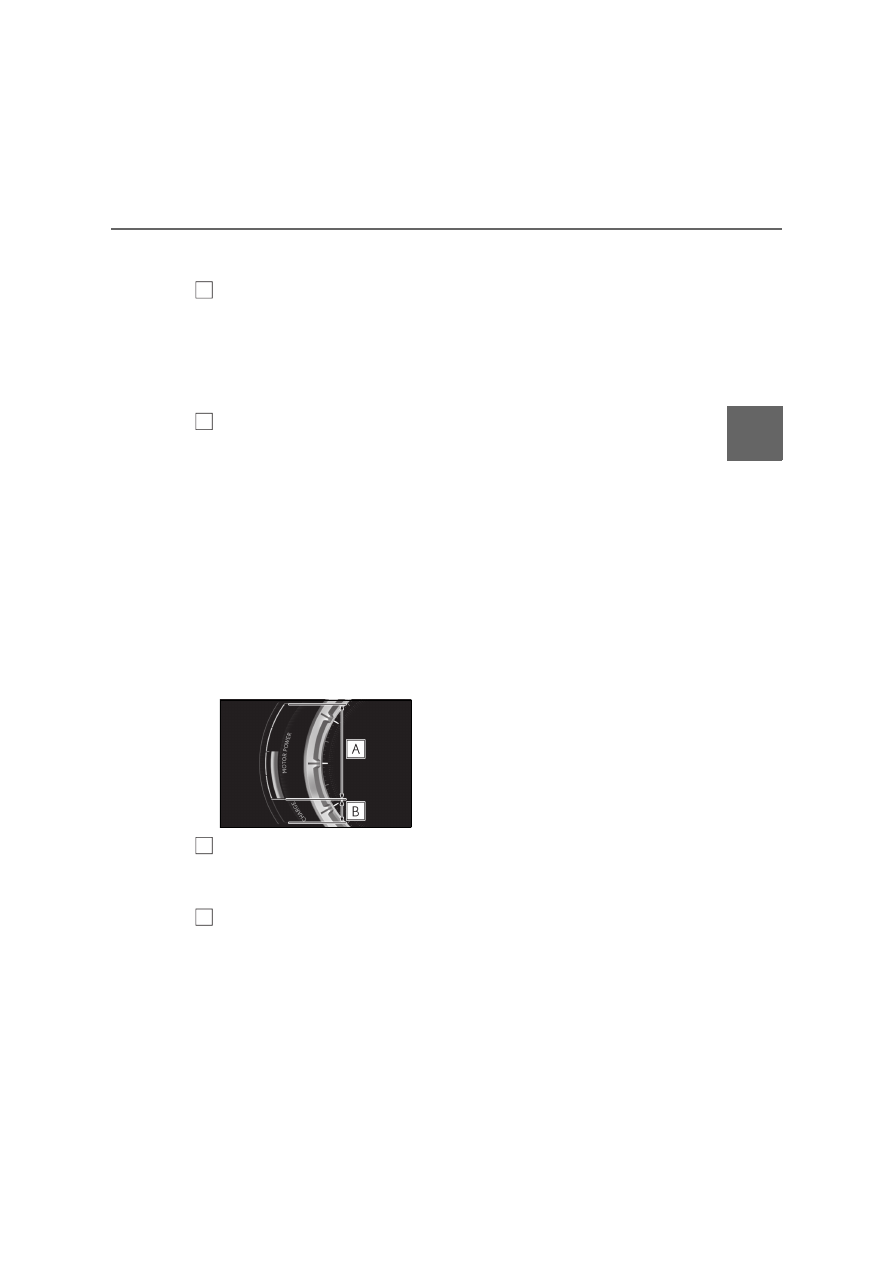

Motor power display (LC500h)

Motor power area

Shows that the power of the motor assists
the engine.

Charge area

Shows regeneration

status. Regenerated

energy will be used to charge the hybrid
battery (traction battery).

: When used in this manual, “regeneration”

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

103

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

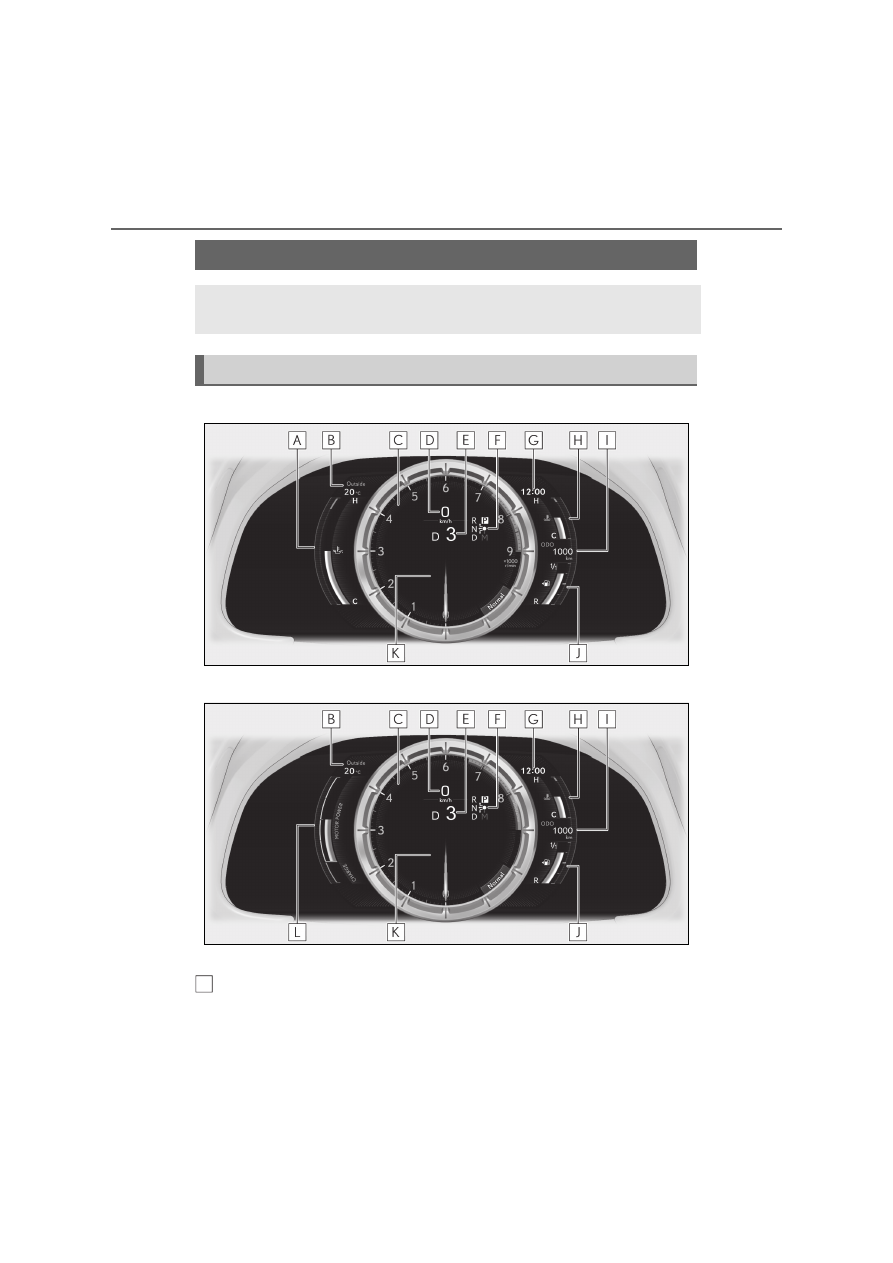

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)
Low outside temperature indicator comes on when the ambient temperature is 3°C (37°F)
or lower

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Shift position/shift range/gear position (



P.215, 223)

Shift position indicator (



P.217, 225)

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.360)

Engine coolant temperature gauge

Displays the engine coolant temperature
If the engine coolant temperature gauge indicator enters the red zone, a buzzer sounds
and the high coolant temperature warning light comes on

Odometer and trip meter display

Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset
Trip meters “A” and “B” can be used to record and display different distances independently

Fuel gauge

Displays the quantity of fuel remaining in the tank

Multi-information display

Presents the driver with a variety of vehicle data (



P.106)

Displays warning messages in case of a malfunction (



P.451)

Motor power display/Hybrid System Indicator (LC500h)

Displays the motor power display (



P.101) or Hybrid System Indicator (



P.100)

Speed warning

When the vehicle reaches the set
speed, the speed warning display will
flash.
This setting can be enabled on the
multi-information display. (



P.106)

Always observe the legal speed limit when
driving on public roads.

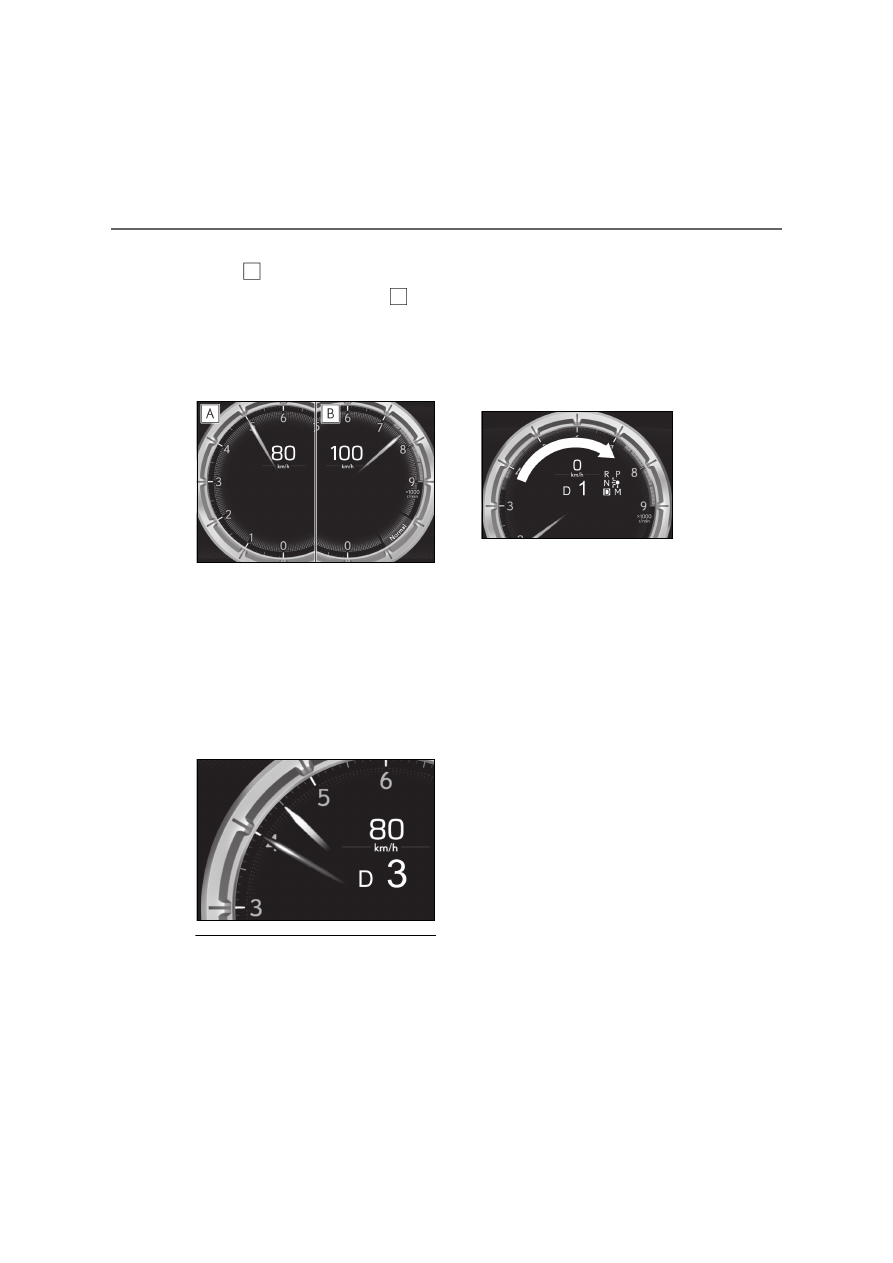

Rev indicator

When the engine reaches a set speed
or the red zone, a ring-shaped indica-
tor will be displayed on the tachometer.

E
F

104

2-1. Instrument cluster

The indicators will be displayed in
amber (

) when the engine speed

reaches a set speed, and in red (

)

when the engine speed reaches the
red zone. This setting can be enabled
on the multi-information display.
(



P.111)

Rev peak

When the engine speed reaches or
exceeds the following, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.
LC500: 3600 r/min
LC500h: 4000 r/min

The meters and display illuminate when

The engine switch <power switch> is in

IGNITION ON mode <ON mode>.

Variable red zone (LC500)

To help protect the engine, the engine

speed is controlled by starting the red zone

of the tachometer at different engine

speeds ranging from 3700 r/min to 7300

r/min depending on the engine coolant

temperature.
Before driving under extremely high load

conditions, make sure to sufficiently warm

up the engine.

Instrument panel brightness adjustment

The brightness of the instrument panel

lights is automatically adjusted based on the

light sensor detecting how bright the sur-

roundings are.

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change.

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

When “- -” or “E” is displayed, the system

may be malfunctioning.

Take your vehicle to any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer.

Pop-up display

In some situations, such as when a switch

operation is performed, a pop-up display

will be temporarily displayed on the

multi-information display.

Some pop-up displays can be set on/off.

(



P.111)

105

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

Customization

The meter display can be customized on

the multi-information display. (



P.495)

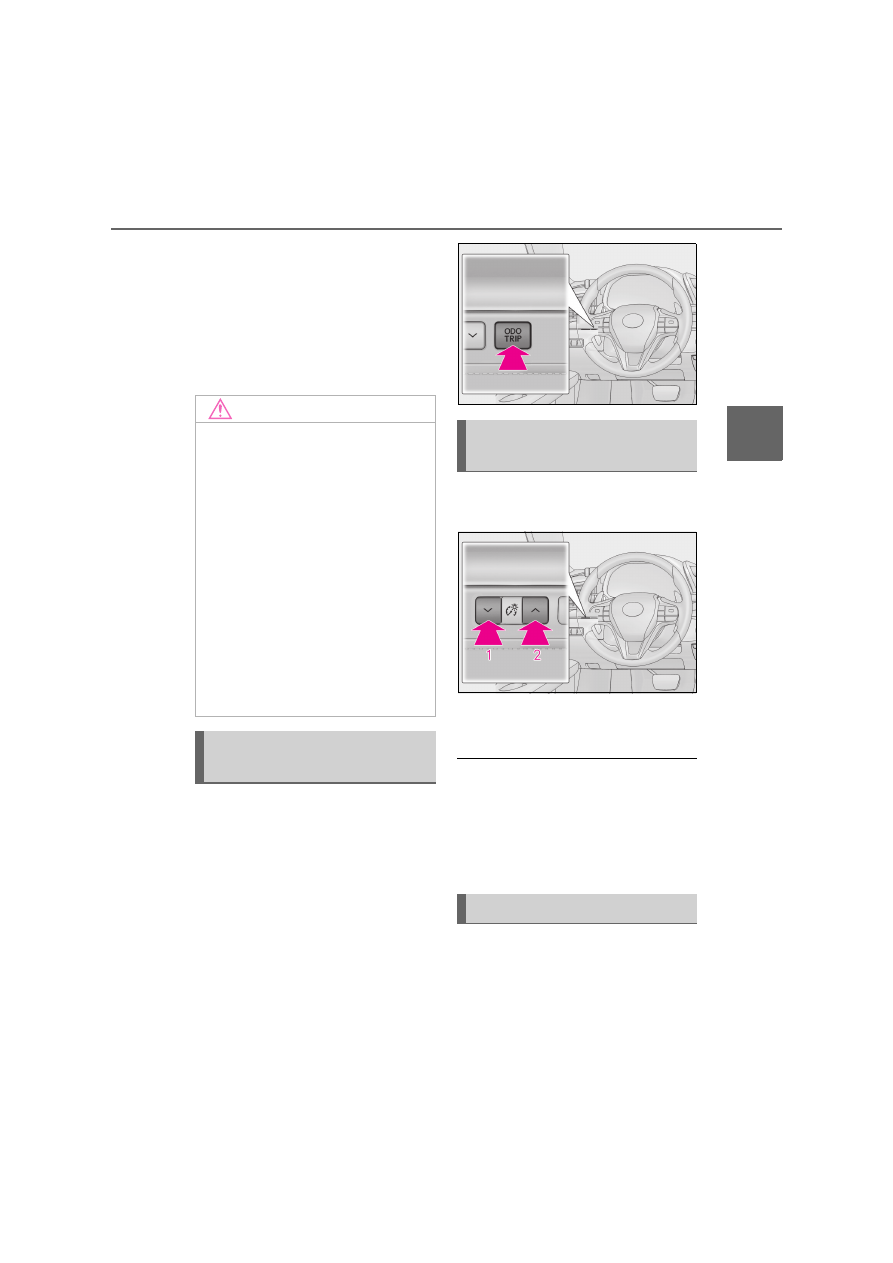

The odometer and trip meter displays
can be switched. When the trip meter
is displayed, pressing and holding the
button will reset the trip meter.

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

Instrument panel brightness adjustment

The instrument panel brightness levels

when the tail lights are on and off can be

adjusted individually. However, when the

surroundings are bright (daytime, etc.),

turning on the tail lights will not change the

instrument panel brightness.

The display can be switched between
the center and side positions.

NOTICE

To prevent damage to the engine and

its components

Do not let the indicator of the tachom-

eter enter the red zone, as it rep-

resents the engine speed range which

exceeds the maximum safe engine

speed.

In the following situations, the engine

may be overheating. In this case,

immediately stop the vehicle in a safe

place, and check the engine after it has

cooled completely. (



P.474, 476)

• The engine coolant temperature

gauge is in the red zone (H).

• LC500: The engine oil temperature

gauge is in the red zone (H).

Changing between the odome-
ter and trip meter

Changing the instrument panel
light brightness

Changing the display

106

2-1. Instrument cluster

Display



When the main meter is in the cen-
ter position

Displays various drive information on
the main meter.

Some of the content which are displayed
when the main meter is in the side position
cannot be displayed.



When the main meter is in the side
position

Selecting a menu icon displays a vari-
ety of vehicle data or allows vehicle
settings to be customized.

Menu icons

Multi-information display

Display and menu icons

Drive information (



P.108)

Navigation system-linked dis-
play (if equipped) (



P.110)

Audio system-linked display
(



P.110)

Driving assist system informa-
tion (



P.110)

107

2-1. Instrument cluster

icle

ion
an

d i

ica

tor

Opening image display

When the engine switch <power switch> is

in ACCESSORY mode or IGNITION ON

mode <ON mode>, the opening image is

displayed on the multi-information display.

While the opening image is being dis-

played, the meter display cannot be

changed even if the drive mode is changed.

When the opening image is finished, the

meter display for the currently selected

mode will be displayed.

When disconnecting and reconnecting

12-volt battery terminals

Record of the maximum G-forces will be

reset.

Liquid crystal display



P.105

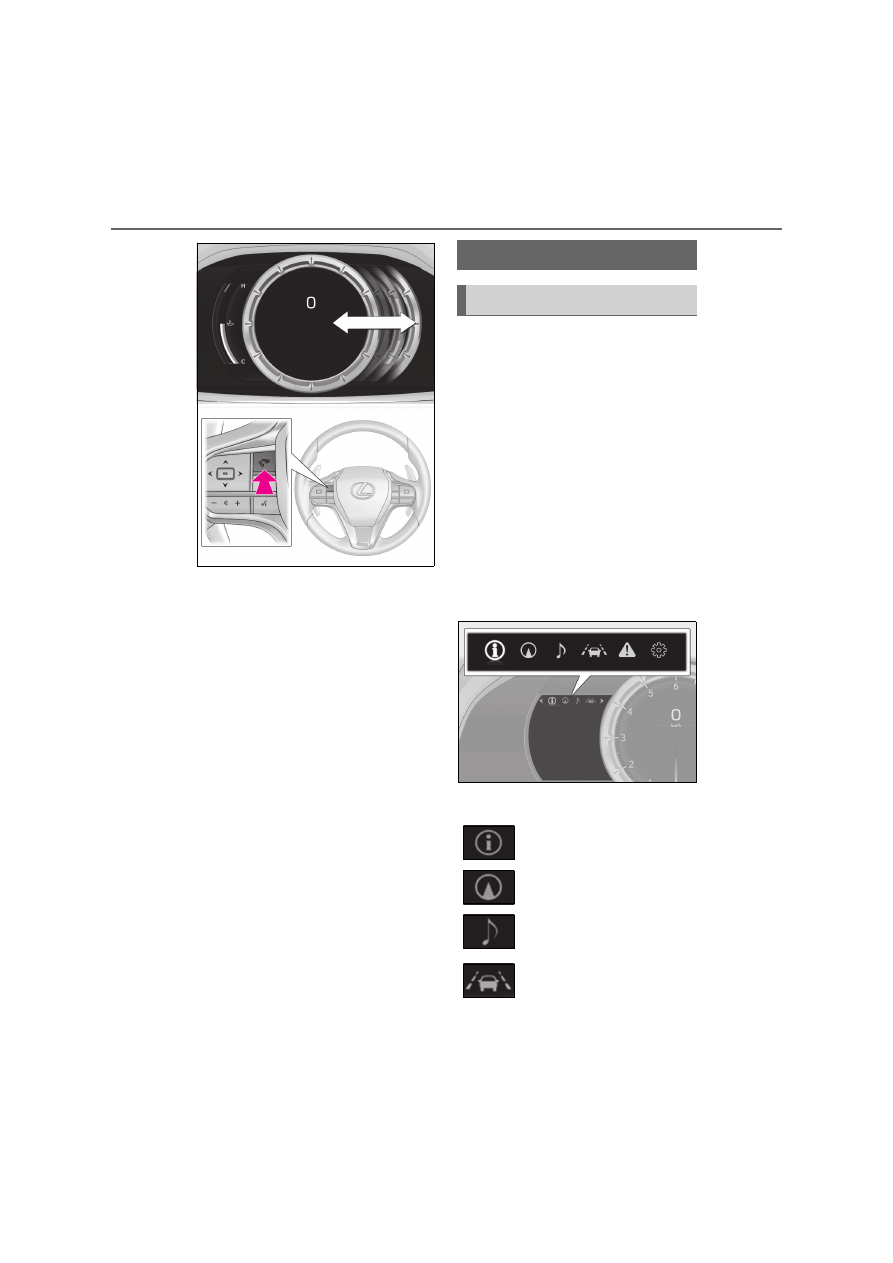

The multi-information display is oper-
ated using the meter control switches.

: Switch menu

: Change displayed con-

tent, scroll up/down the screen and
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Return to the previous screen and
move the main meter

Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details

Warning message display
(



P.451)

Settings display (



P.110)

WARNING

Caution for use while driving

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

Changing the meter display

Lexus LC (2021 year). Manual in english - page 4
