380

7-2. Steps to take in an emergency

Remove the cover inside the lug-
gage compartment by inserting a
screwdriver.

When removing the cover, to prevent dam-

age, cover the tip of the screwdriver with a

rag.

Pull the lever.

■

When the electronic key does not work

properly

●

Make sure that the smart access system

with push-button start has not been deac-

tivated using the Remote Touch or at your

Lexus dealer. If it is off, turn the function

on.

●

Check if battery-saving mode is set. If it is

set, cancel the function. (

P.115)

■

Unlocking the door

Use the mechanical key (

P.96) to

perform the following operations.

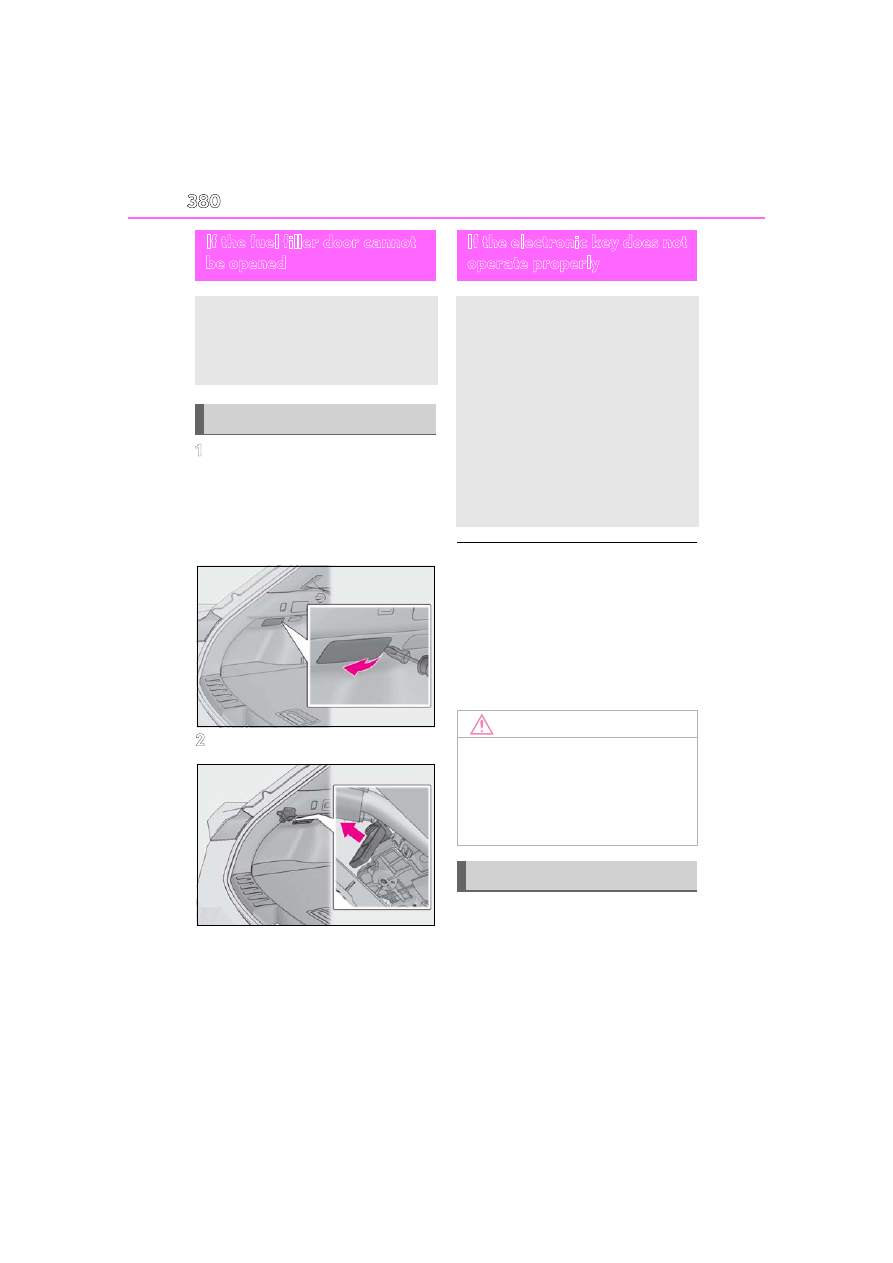

If the fuel filler door cannot
be opened

If the fuel filler door opener switch
cannot be operated, the following
procedure can be used to open the
fuel filler door.

Opening the fuel filler door

If the electronic key does not
operate properly

If communication between the
electronic key and vehicle is inter-
rupted (

P.115) or the electronic

key cannot be used because the
battery is depleted, the smart
access system with push-button
start and wireless remote control
cannot be used. In such cases, the
doors can be opened and the
engine can be started by following
the procedure below.

NOTICE

■

In case of a smart access system with

push-button start malfunction or

other key-related problems

Take your vehicle with all the electronic

keys provided with your vehicle, includ-

ing the card key, to your Lexus dealer.

Locking and unlocking the doors

381

7-2. Steps to take in an emergency

n t

ris

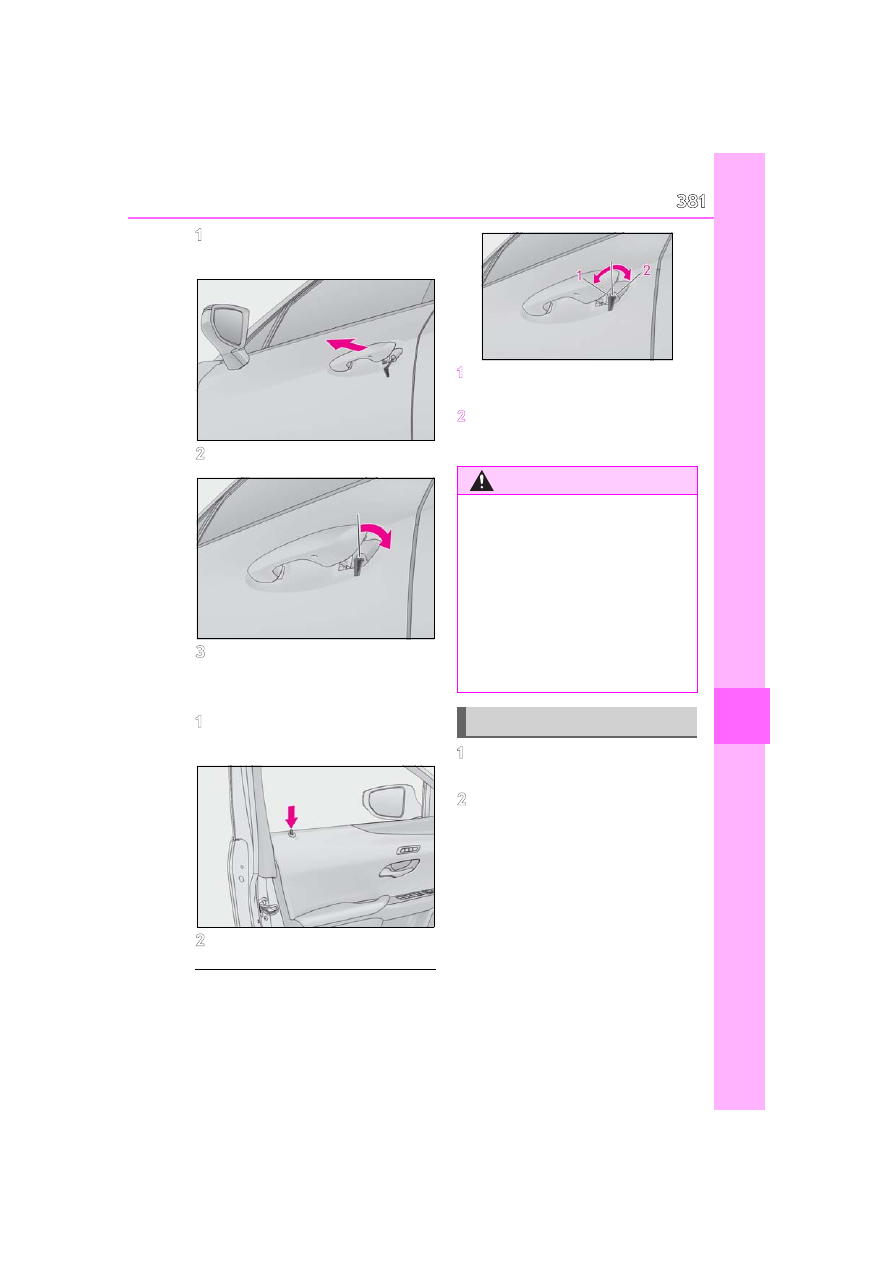

Insert the mechanical key while
pulling on the driver’s door handle.

Unlock the door.

Remove the key, return the handle,
and then pull the handle again.

■

Locking the door

With the door open, push down the
inside lock button.

Close the door.

■

Key linked functions

The opening and closing of the power win-

dows and moon roof can be linked to key

operation by a customized setting.

Closes the windows and moon roof
(turn and hold)

Opens the windows and moon roof
(turn and hold)

Ensure that the shift lever is in P and
depress the brake pedal.

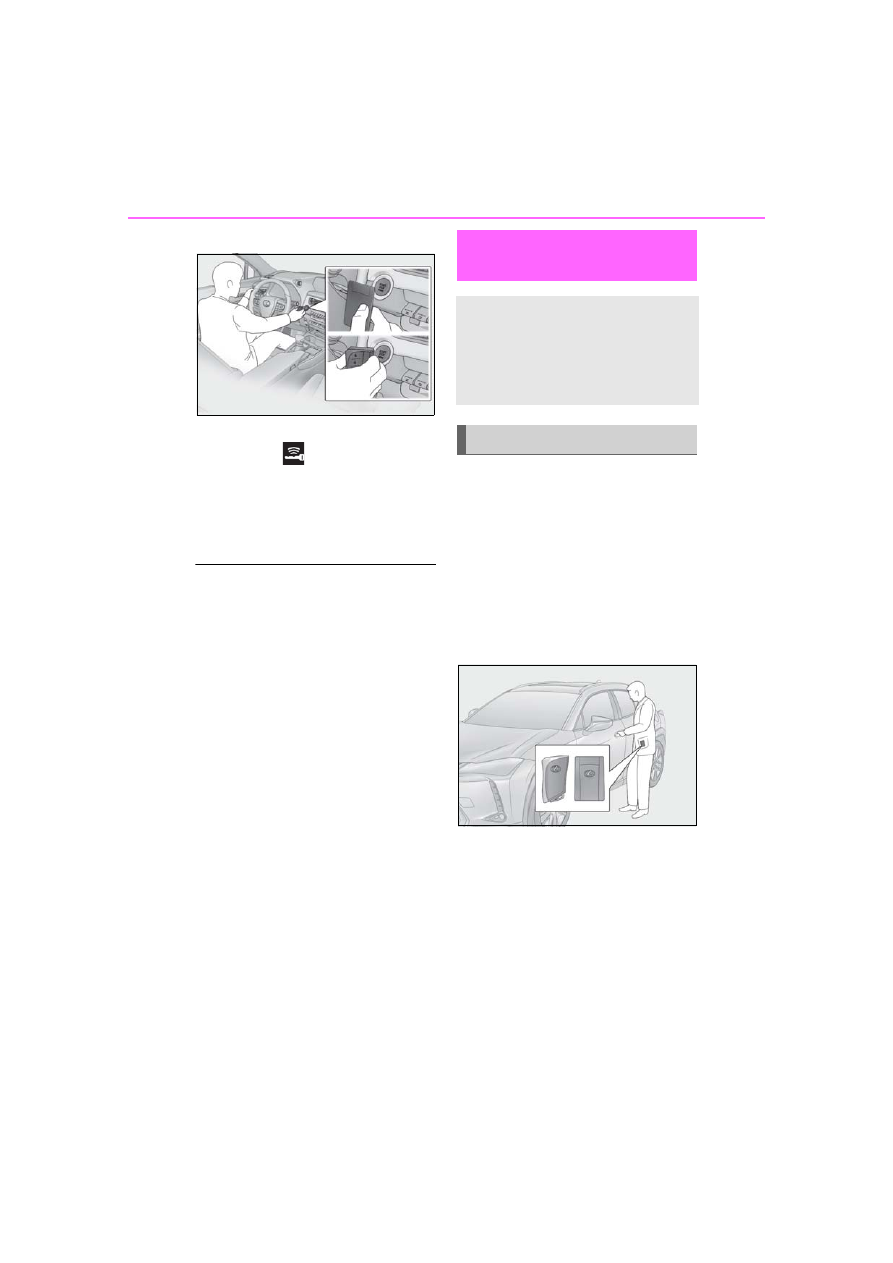

Touch the Lexus emblem side of the
electronic key to the engine switch.

When the electronic key is detected, a

buzzer sounds and the engine switch will

turn to ON.

When the smart access system with push-

button start is deactivated in customization

WARNING

■

When using the mechanical key and

operating the power windows or

moon roof (if equipped)

Operate the power window or moon

roof after checking to make sure that

there is no possibility of any passenger

having any of their body parts caught in

the window or moon roof.

Also, do not allow children to operate the

mechanical key. It is possible for children

and other passengers to get caught in

the power window or moon roof.

Starting the engine

382

7-2. Steps to take in an emergency

setting, the engine switch will turn to ACC.

Firmly depress the brake pedal and
check that

is shown on the

multi-information display.

Press the engine switch.

In the event that the engine still cannot be

started, contact your Lexus dealer.

■

Stopping the engine

Set the parking brake, shift the shift lever to

P and press the engine switch as you nor-

mally do when stopping the engine.

■

Electronic key battery

As the above procedure is a temporary

measure, it is recommended that the elec-

tronic key battery be replaced immediately

when the battery is depleted. (

P.341)

■

Changing engine switch modes

Release the brake pedal and press the

engine switch in step

above.

The engine does not start and modes will be

changed each time the switch is pressed.

(

P.154)

If you have a set of jumper (or booster)
cables and a second vehicle with a bat-
tery, you can jump start your vehicle by
following the steps below.

Confirm that the electronic key is
being carried.

When connecting the jumper (or booster)

cables, depending on the situation, the

alarm may activate and doors locked.

(

P.65)

Open the hood (

P.319)

If the vehicle battery is dis-
charged

The following procedures may be
used to start the engine if the vehi-
cle’s battery is discharged.
You can also call your Lexus dealer
or a qualified repair shop.

Restarting the engine

383

7-2. Steps to take in an emergency

When trouble

ari

ses

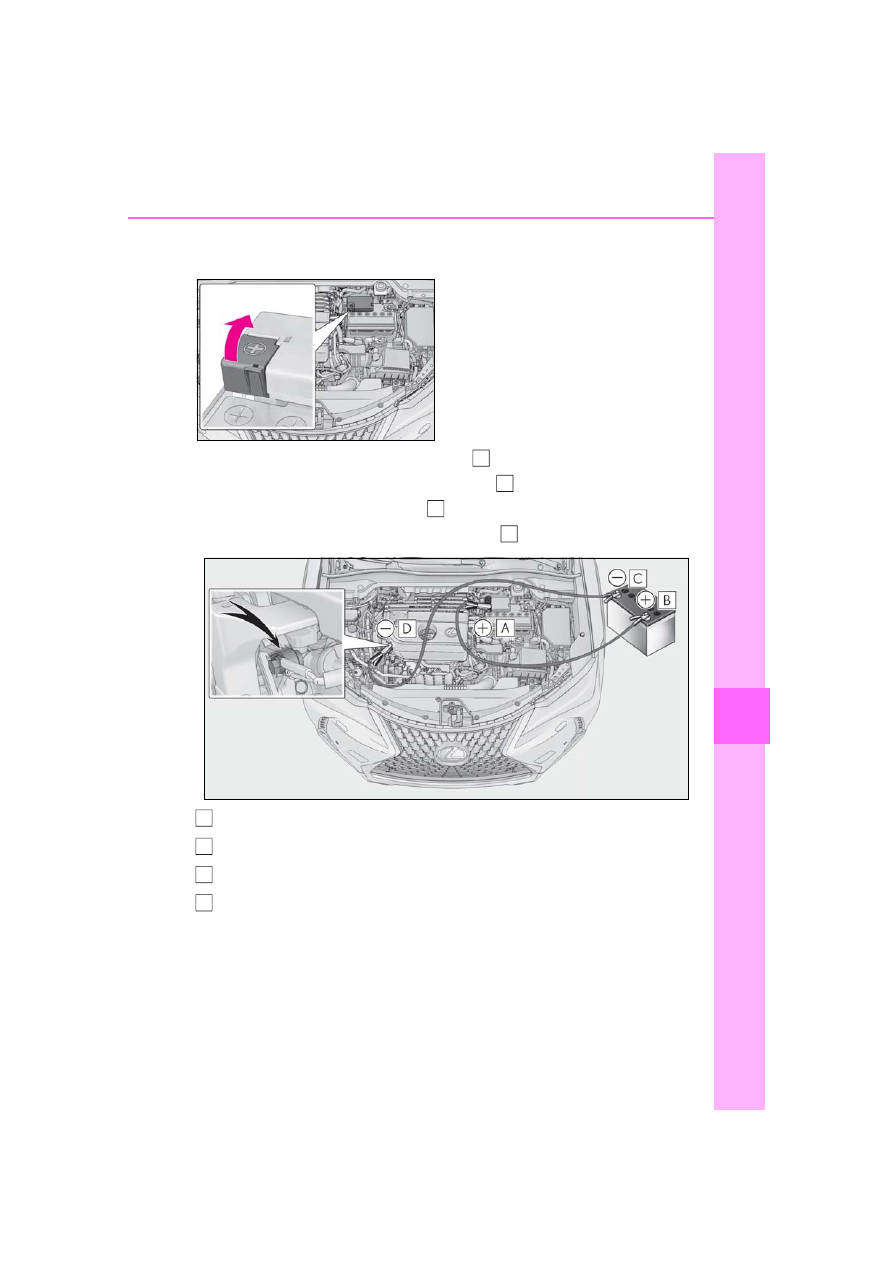

Open the positive (+) battery ter-
minal cover.

Connect a positive jumper cable clamp to

on your vehicle and connect the

clamp on the other end of the positive cable to

on the second vehicle. Then,

connect a negative cable clamp to

on the second vehicle and connect the

clamp at the other end of the negative cable to

Positive (+) battery terminal (your vehicle)

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Solid, stationary, unpainted metallic point away from the battery and any mov-
ing parts as shown in the illustration

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to

recharge the battery of your vehi-
cle.

A
B
C
D

384

7-2. Steps to take in an emergency

Open and close any of the doors of
your vehicle with the engine switch
OFF.

Maintain the engine speed of the
second vehicle and start the engine
of your vehicle by turning the
engine switch to ON.

Once the vehicle’s engine has
started, remove the jumper cables
in the exact reverse order from
which they were connected.

Once the engine starts, have the vehi-
cle inspected at your Lexus dealer as
soon as possible.

■

Starting the engine when the battery is

discharged

The engine cannot be started by push-start-

ing.

■

To prevent battery discharge

●

Turn off the headlights, the air condition-

ing system, the audio system, etc. while

the engine is off.

●

Turn off any unnecessary electrical com-

ponents when the vehicle is running at a

low speed for an extended period, such

as in heavy traffic.

■

Charging the battery

The electricity stored in the battery will dis-

charge gradually even when the vehicle is

not in use, due to natural discharge and the

draining effects of certain electrical appli-

ances. If the vehicle is left for a long time,

the battery may discharge, and the engine

may be unable to start. (The battery

recharges automatically during driving.)

■

When the battery is removed or dis-

charged

●

Information stored in the ECU is cleared.

When the battery is depleted, have the

vehicle inspected at your Lexus dealer.

●

In some cases, it may not be possible to

unlock the doors using the smart access

system with push-button start when the

battery is discharged. Use the wireless

remote control or the mechanical key to

lock or unlock the doors.

●

The engine may not start on the first

attempt after the battery has recharged

but will start normally after the second

attempt. This is not a malfunction.

●

The engine switch mode is memorized by

the vehicle. When the battery is recon-

nected, the system will return to the

mode it was in before the battery was dis-

charged. Before disconnecting the bat-

tery, turn the engine switch off.

If you are unsure what mode the engine

switch was in before the battery dis-

charged, be especially careful when

reconnecting the battery.

●

The power back door must be initialized.

(

P.109)

385

7-2. Steps to take in an emergency

n t

ris

■

When replacing the battery

●

Use a battery that conforms to European

regulations.

●

Use a battery that the case size is same as

the previous one (LN3), 20 hour rate

capacity (20HR) is equivalent (70Ah) or

greater, and performance rating (CCA)

is equivalent (592A) or greater.

• If the sizes differ, the battery cannot be

properly secured.

• If an improper battery is used, battery

performance may decrease and the

engine may not be able to restart.

• If the 20 hour rate capacity is low, even if

the time period where the vehicle is not

used is a short time, the battery may dis-

charge and the engine may not be able to

start.

For details, consult your Lexus dealer.

WARNING

■

When removing the battery terminals

Always remove the negative (-) terminal

first. If the positive (+) terminal contacts

any metal in the surrounding area when

the positive (+) terminal is removed, a

spark may occur, leading to a fire in addi-

tion to electrical shocks and death or

serious injury.

■

Avoiding battery fires or explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the bat-

tery:

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

battery.

■

Battery precautions

The battery contains poisonous and cor-

rosive acidic electrolyte, while related

parts contain lead and lead compounds.

Observe the following precautions when

handling the battery:

●

When working with the battery, always

wear safety glasses and take care not

to allow any battery fluids (acid) to

come into contact with skin, clothing

or the vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid (acid)

comes into contact with the skin or

eyes, immediately wash the affected

area with water and seek medical

attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after handling

the battery and other battery-related

parts.

●

Do not allow children near the battery.

■

When replacing the battery

●

When the vent plug is close to the hold

down clamp, the battery fluid (acid)

may leak.

●

For information regarding battery

replacement, contact your Lexus

dealer.

NOTICE

■

When handling jumper cables

When connecting the jumper cables,

ensure that they do not become entan-

gled in the cooling fan or engine drive

belt.

386

7-2. Steps to take in an emergency

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the engine.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

After the engine has cooled down
sufficiently, inspect the hoses and

radiator core (radiator) for any
leaks.

Radiator

Cooling fan

If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.

The coolant level is satisfactory if it
is between the “FULL” and “LOW”
lines on the reservoir.

Reservoir

“FULL” line

“LOW” line

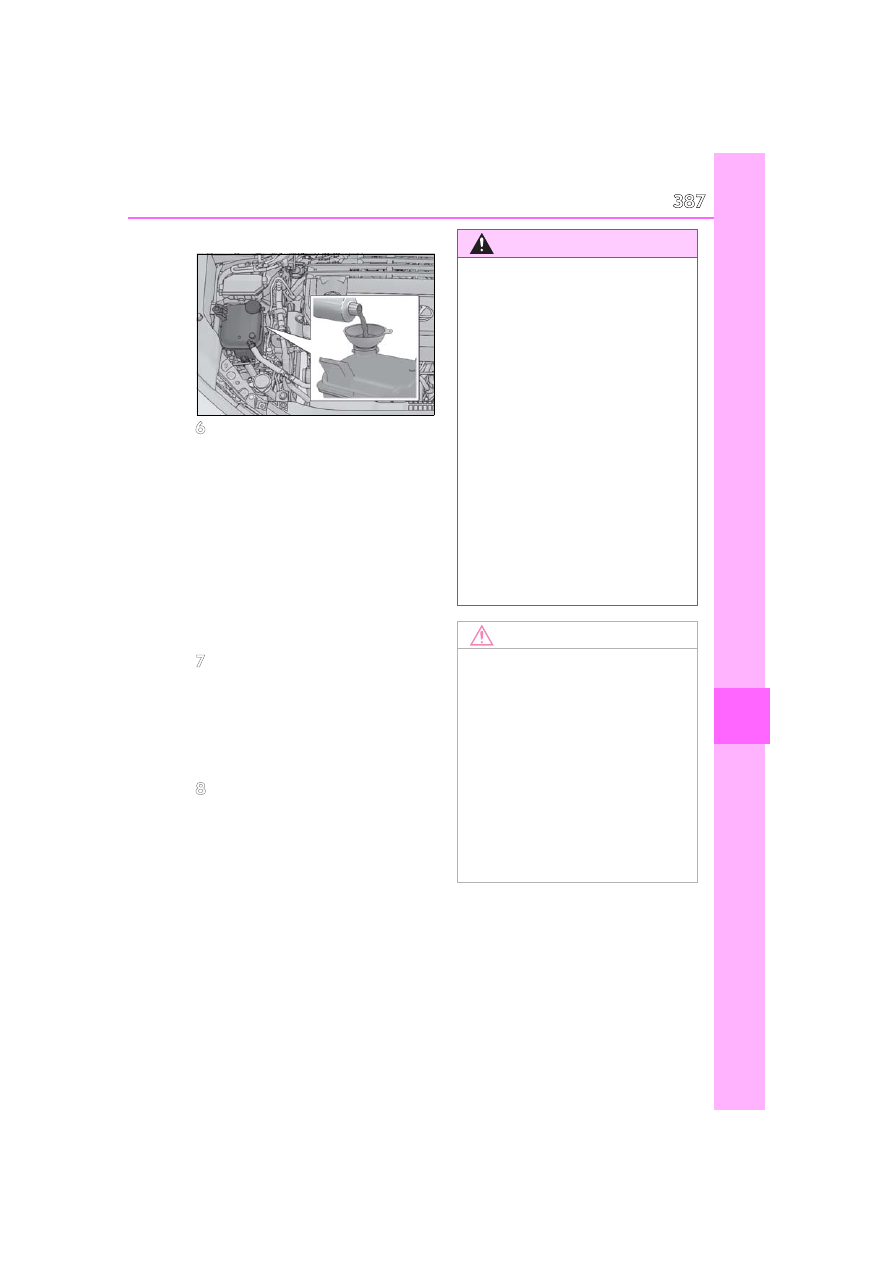

Add coolant if necessary.

Water can be used in an emergency if

If your vehicle overheats

The following may indicate that
your vehicle is overheating.
 The engine coolant temperature

gauge (

P.72, 75) enters the red

zone, or a loss of engine power is
experienced. (For example, the
vehicle speed does not increase.)

 “Engine Coolant Temp High Stop

in a Safe Place See Owner’s
Manual” is shown on the multi-
information display.

 Steam comes out from under the

hood.

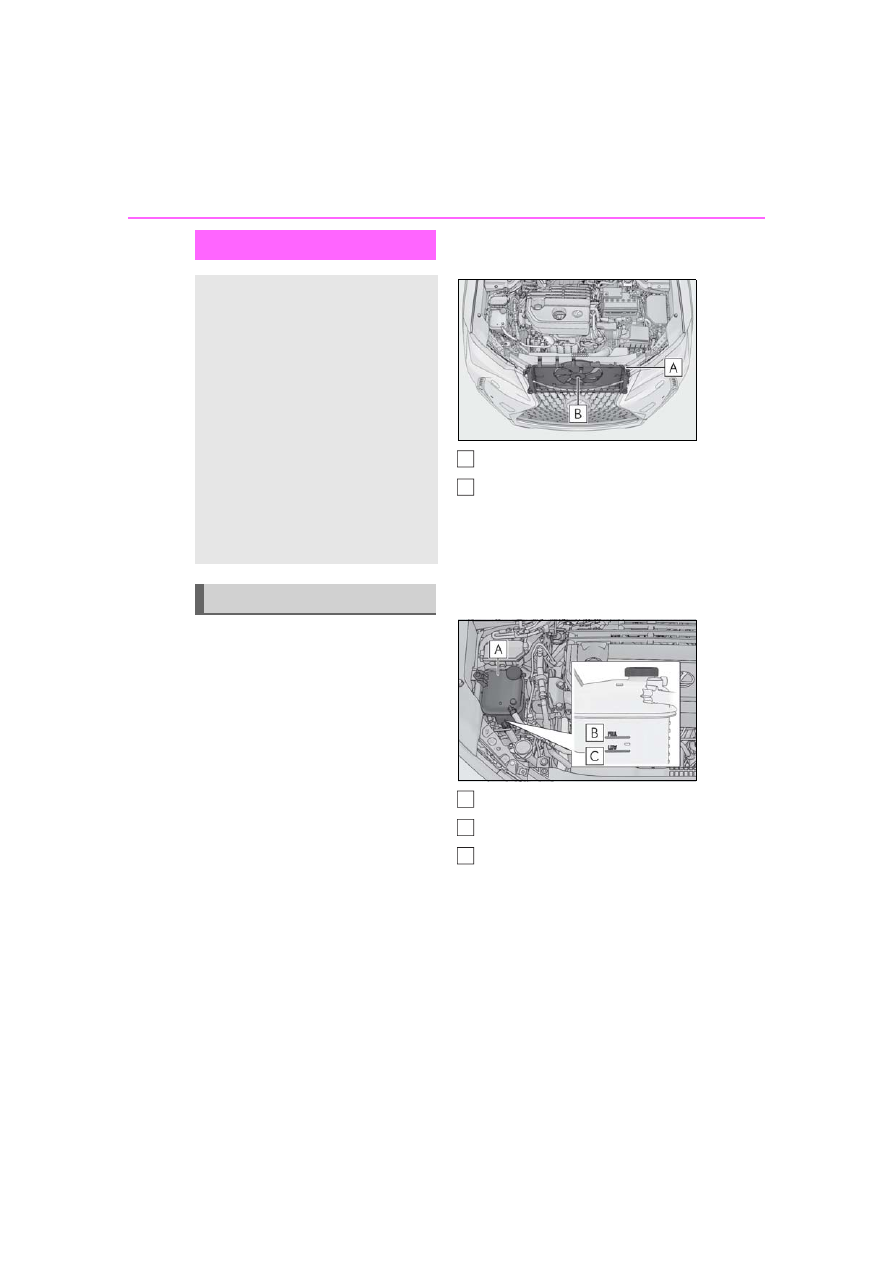

Correction procedures

A
B

A
B
C

387

7-2. Steps to take in an emergency

n t

ris

coolant is unavailable.

Start the engine and turn the air
conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fan is operating

by checking the fan sound and air flow. If it

is difficult to check these, turn the air con-

ditioning system on and off repeatedly.

(The fan may not operate in freezing tem-

peratures.)

If the fan is not operating:
Stop the engine immediately and
contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the
nearest Lexus dealer.

Check if “Engine Coolant Temp
High Stop in a Safe Place See
Owner’s Manual” is shown on the
multi-information display.
If the message does not disappear:
Stop the engine and contact your
Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the
nearest Lexus dealer.

WARNING

■

To prevent an accident or injury when

inspecting under the hood of your

vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

Keep hands and clothing (especially a

tie, a scarf or a muffler) away from the

fan and belts. Failure to do so may

cause the hands or clothing to be

caught, resulting in serious injury.

●

Do not loosen the coolant reservoir

cap while the engine and radiator are

hot.

High temperature steam or coolant

could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the engine has

cooled down sufficiently. Adding cool

coolant to a hot engine too quickly can

cause damage to the engine.

■

To prevent damage to the cooling sys-

tem

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust,

etc.).

●

Do not use any coolant additive.

388

7-2. Steps to take in an emergency

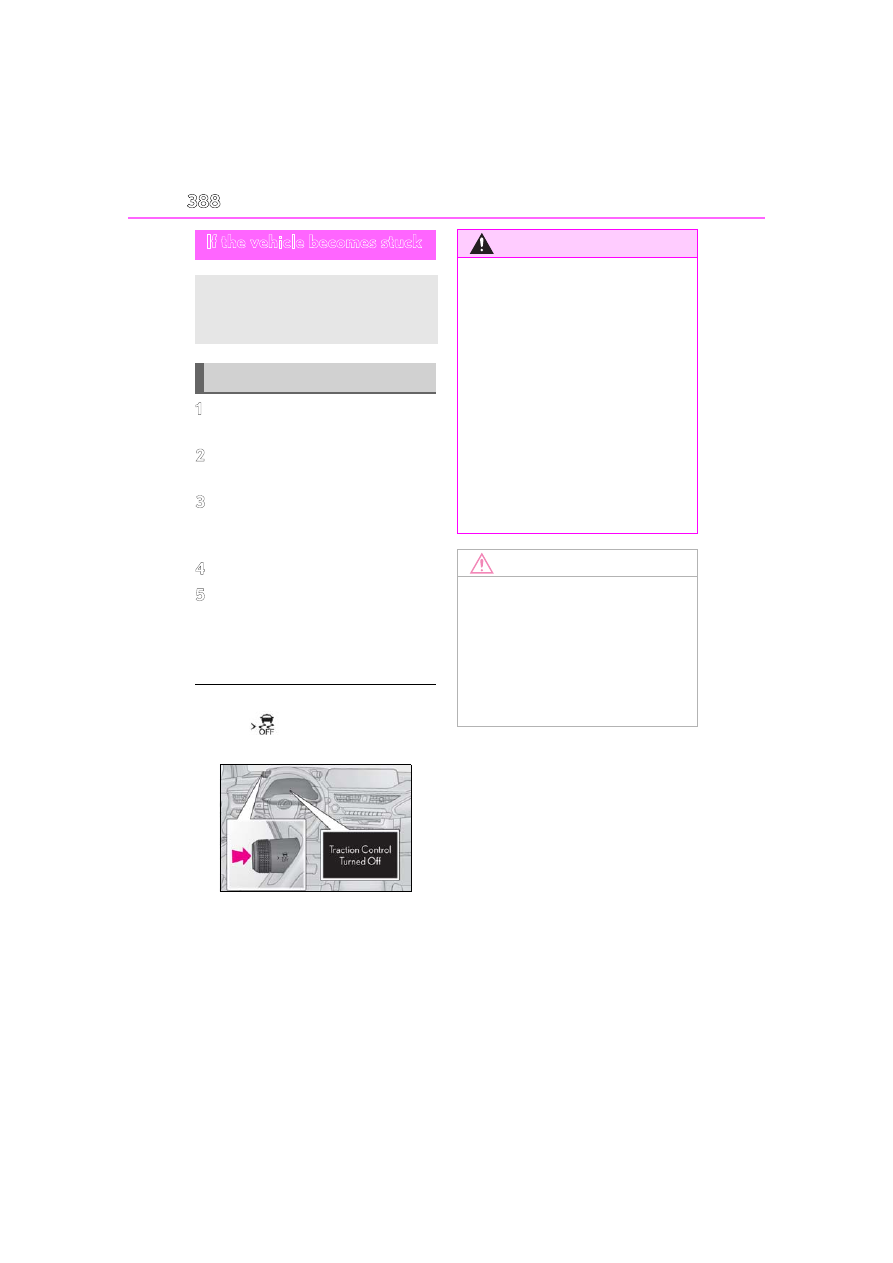

Stop the engine. Shift the shift lever
to P and set the parking brake.

Remove the mud, snow or sand
from around the front wheels.

Place wood, stones or some other
material under the front wheels to
help provide traction.

Restart the engine.

Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

When it is difficult to free the vehicle

Press the

switch to turn off TRAC.

(

P.245)

If the vehicle becomes stuck

Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with

the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damage to the transmission

and other components

●

Avoid spinning the tires and depress-

ing the accelerator pedal more than

necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

389

Vehi

cle

spec

ifi

tions

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

390

Fuel information.........................

397

Tire information..........................

399

8-2. Customization

Customizable features............

408

8-3. Initialization

Items to initialize .........................

419

390

8-1. Specifications

8-1.Specifications

: Unladen vehicle

: Vehicles without shark fin antenna

: Vehicles with shark fin antenna

: Vehicles with 215/60R17 tires

: Vehicles with 225/50RF18 tires

■

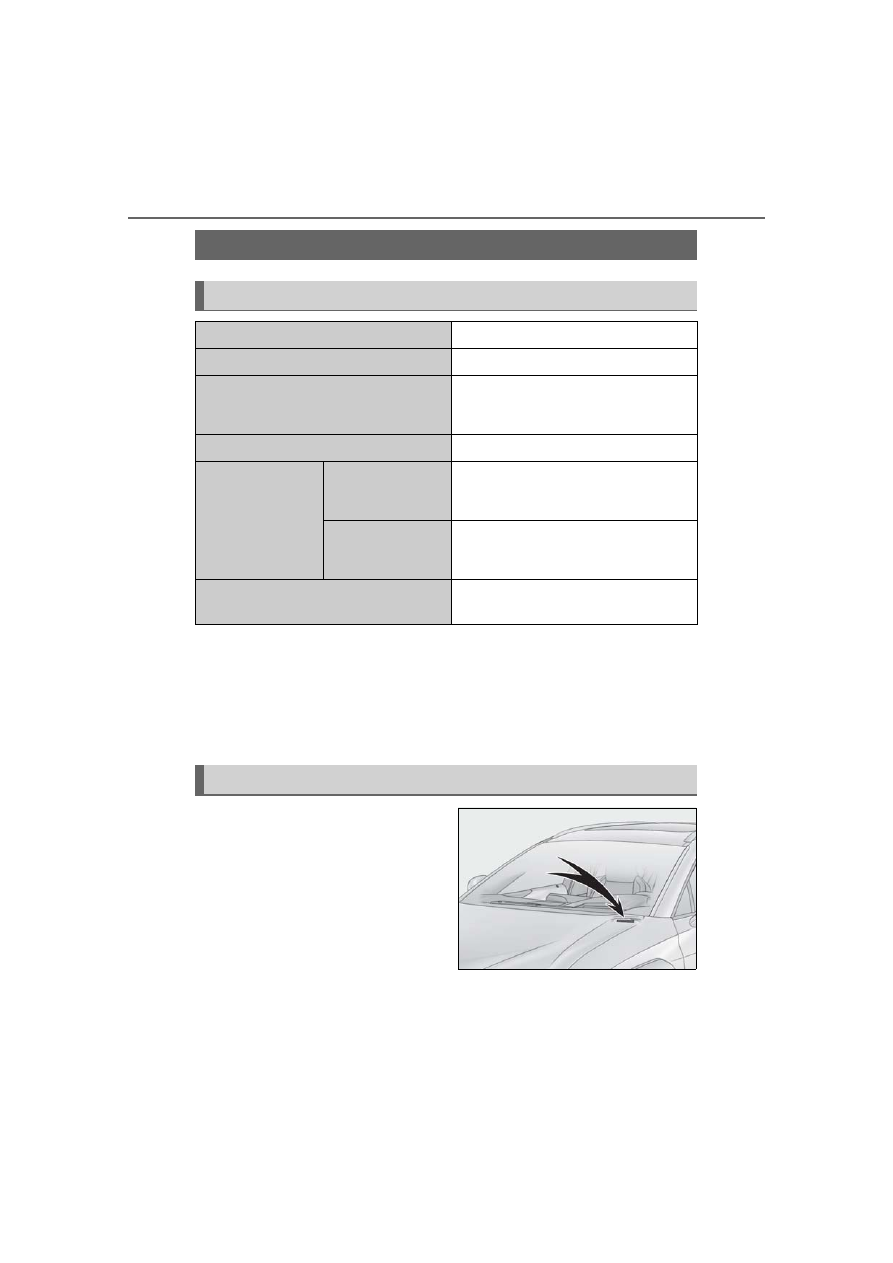

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel.

This number is also on the Certification
Label.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

177.0 in. (4495 mm)

Overall width

72.4 in. (1840 mm)

Overall height

59.8 in. (1520 mm)

60.6 in. (1540 mm)

Wheelbase

103.9 in. (2640 mm)

Tread

Front

61.4 in. (1560 mm)

61.0 in. (1550 mm)

Rear

61.4 in. (1560 mm)

61.0 in. (1550 mm)

Vehicle capacity weight
(Occupants + luggage)

890 lb. (405 kg)

Vehicle identification

391

8-1. Specifications

Vehi

cle

spec

ifi

tions

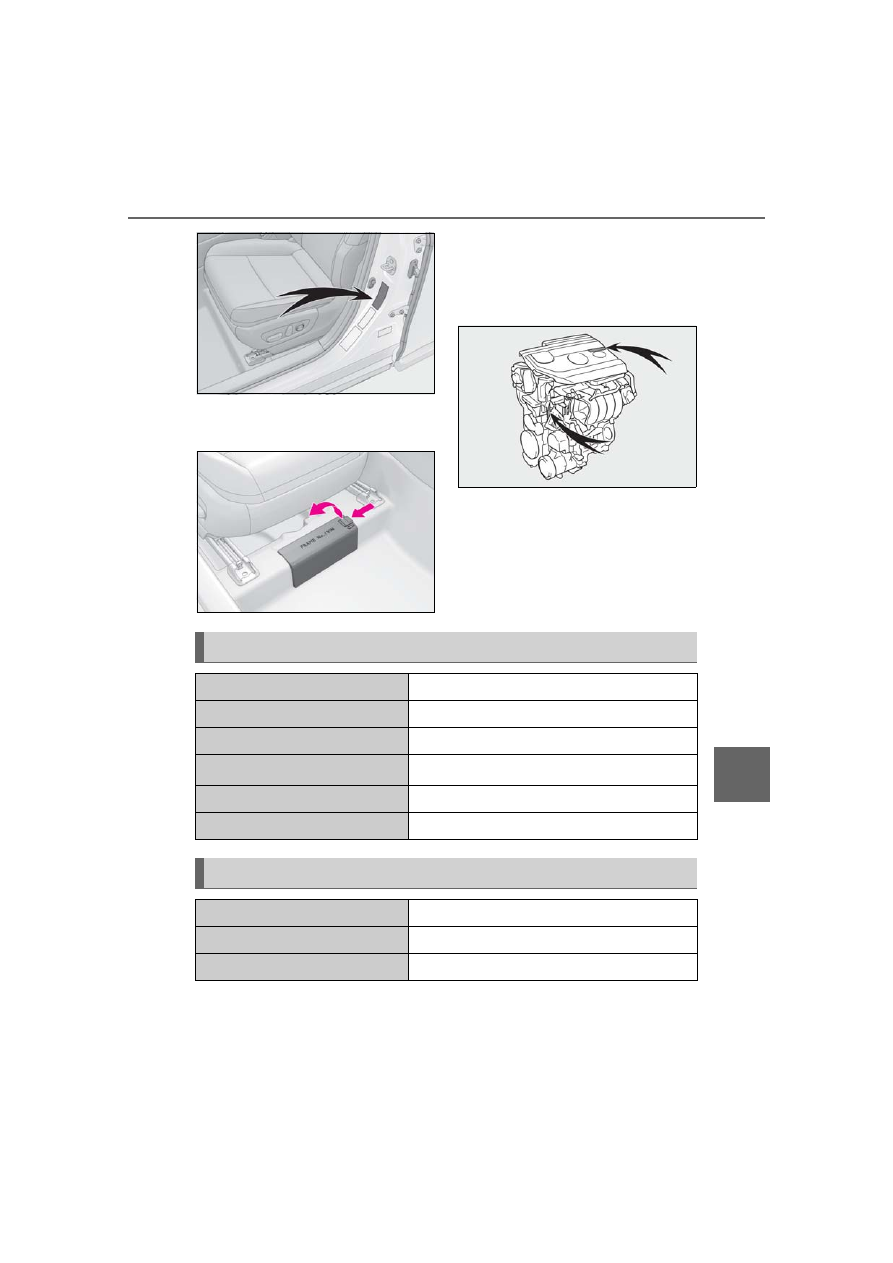

This number is also stamped under the
right-hand front seat.

■

Engine number

The engine number is stamped on the
engine block and engine cover as
shown.

Engine

Model

2.0 L 4-cylinder (M20A-FKS)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.17

 3.84 in. (80.5  97.6 mm)

Displacement

121.3 cu.in. (1987 cm

)

Valve clearance (engine cold)

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or higher

Fuel tank capacity (Reference)

12.4 gal. (47 L, 10.3 Imp.gal.)

392

8-1. Specifications

■

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.

■

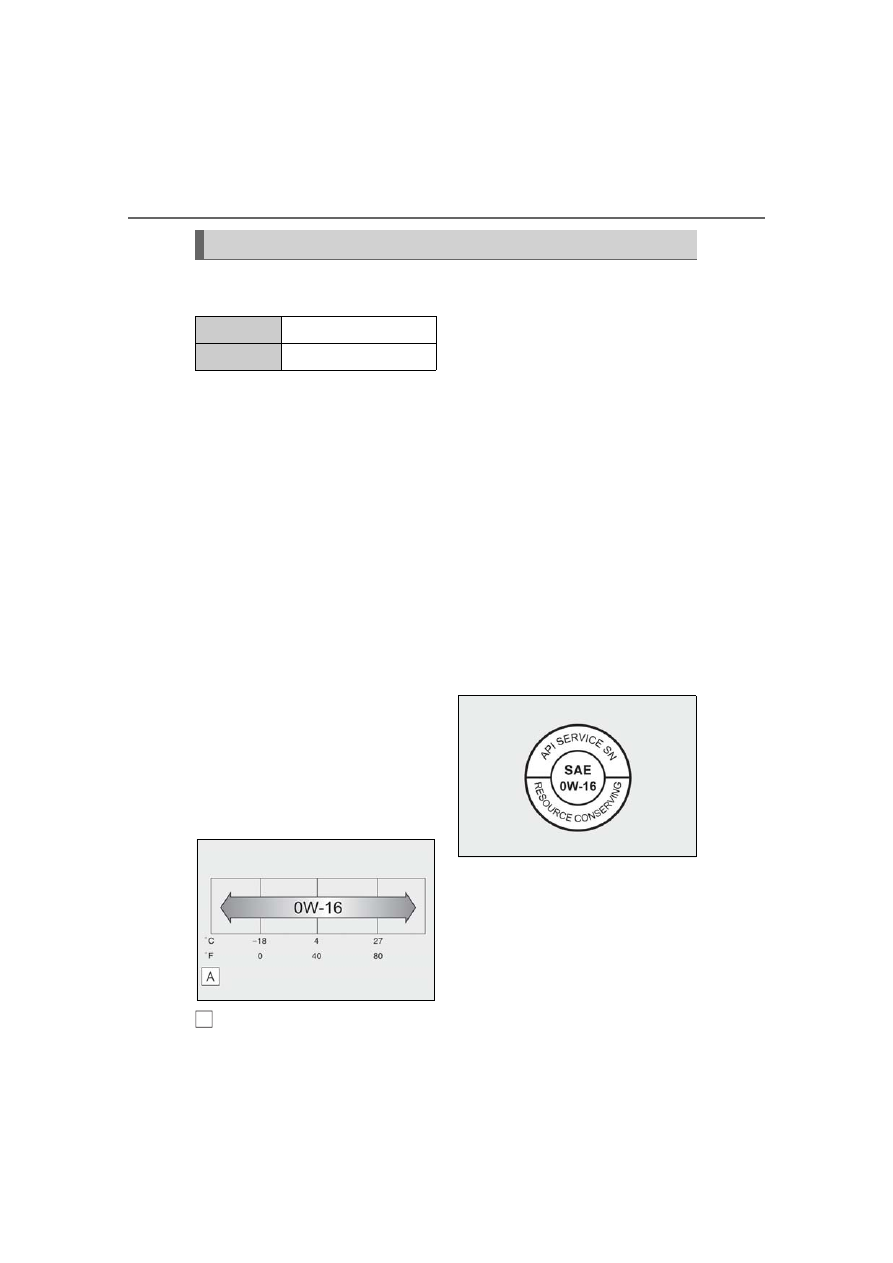

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: API SN/RC multigrade
engine oil
Recommended viscosity: SAE 0W-16
SAE 0W-16 is the best choice for good
fuel economy and good starting in cold
weather.
If SAE 0W-16 is not available, SAE
0W-20 oil may be used. However, it
must be replaced with SAE 0W-16 at
the next oil change.

Outside temperature

Oil viscosity (0W-16 is explained here
as an example):
• The 0W in 0W-16 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 16 in 0W-16 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

How to read oil container label:
API registered marks is added to some
oil containers to help you select the oil
you should use.

Lubrication system

With filter

4.9 qt. (4.6 L, 4.0 Imp.qt.)

Without filter 4.5 qt. (4.3 L, 3.8 Imp.qt.)

393

8-1. Specifications

icle

ific

atio

: The coolant capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

■

Spark plug

■

Battery

Cooling system

Capacity

6.8 qt. (6.4 L, 5.6 Imp.qt.)

Coolant type

Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-

amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology

Do not use plain water alone.

Ignition system

Make

DENSO FC20HR-Q8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

Open voltage at 68°F (20°C):

12.3 V or higher
If the voltage is lower than the standard value,
charge the battery.
(After charging the battery, turn on the high beam
headlights for 30 seconds with the engine switch
OFF, and turn the headlights off.)

Charging rates:
Quick charge
Slow charge

15 A max.
5 A max.

394

8-1. Specifications

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

: Minimum pedal clearance when depressed with a force of 66 lbf (300N, 31.0 kgf)

while the engine is running.

: Make sure to confirm that the brake system warning light (yellow) does not illuminate. (If

the brake system warning light illuminates, refer to P.360.)

CVT (Continuously Variable Transaxle)

Fluid capacity

9.0 qt. (8.5 L, 7.5 Imp.qt)

Fluid type

Toyota Genuine CVT Fluid FE

NOTICE

■

CVT (Continuously Variable Transaxle) fluid type

Using CVT (Continuously Variable Transaxle) fluid other than “Toyota Genuine CVT

Fluid FE” may cause deterioration in shift quality, locking up of your transmission accom-

panied by vibration, and ultimately damage the transmission of your vehicle.

Brakes

Pedal clearance

3.98 in. (101 mm) Min.

Brake pad wear limit

0.04 in. (1.0 mm)

Pedal free play

0.04

 0.24 in. (1.0  6.0 mm)

Parking brake indicator

When pushing the parking brake switch for 1 to 4
seconds: comes on
When pulling the parking brake switch for 1 to 4
seconds: turns off

Fluid type

SAE J1703 or FMVSS No. 116 DOT 3
SAE J1704 or FMVSS No. 116 DOT 4

Steering

Free play

Less than 1.2 in. (30 mm)

395

8-1. Specifications

Vehi

cle

spec

ifi

tions



17-inch tires



18-inch tires



Compact spare tire (type A)

: If equipped



Compact spare tire (type B)

: If equipped

Tires and wheels

Tire size

215/60R17 96H

Tire inflation pressure
(Recommended cold tire inflation
pressure)

Front: 33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear: 33 psi (230 kPa, 2.3 kgf/cm

or bar)

Wheel size

 6 1/2 J

Wheel nut torque

76 ft• lbf (103 N• m, 10.5 kgf• m)

Tire size

225/50RF18 95V

Tire inflation pressure
(Recommended cold tire inflation
pressure)

Front: 33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear: 33 psi (230 kPa, 2.3 kgf/cm

or bar)

Wheel size

 7 J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

T145/90D16 106M

Spare tire inflation pressure
(Recommended cold tire inflation
pressure)

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size

 4 T

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

T145/70D18 107M

Spare tire inflation pressure
(Recommended cold tire inflation
pressure)

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size

 4 T

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Content .. 22 23 24 25 ..
