6-3. Do-it-yourself maintenance

■

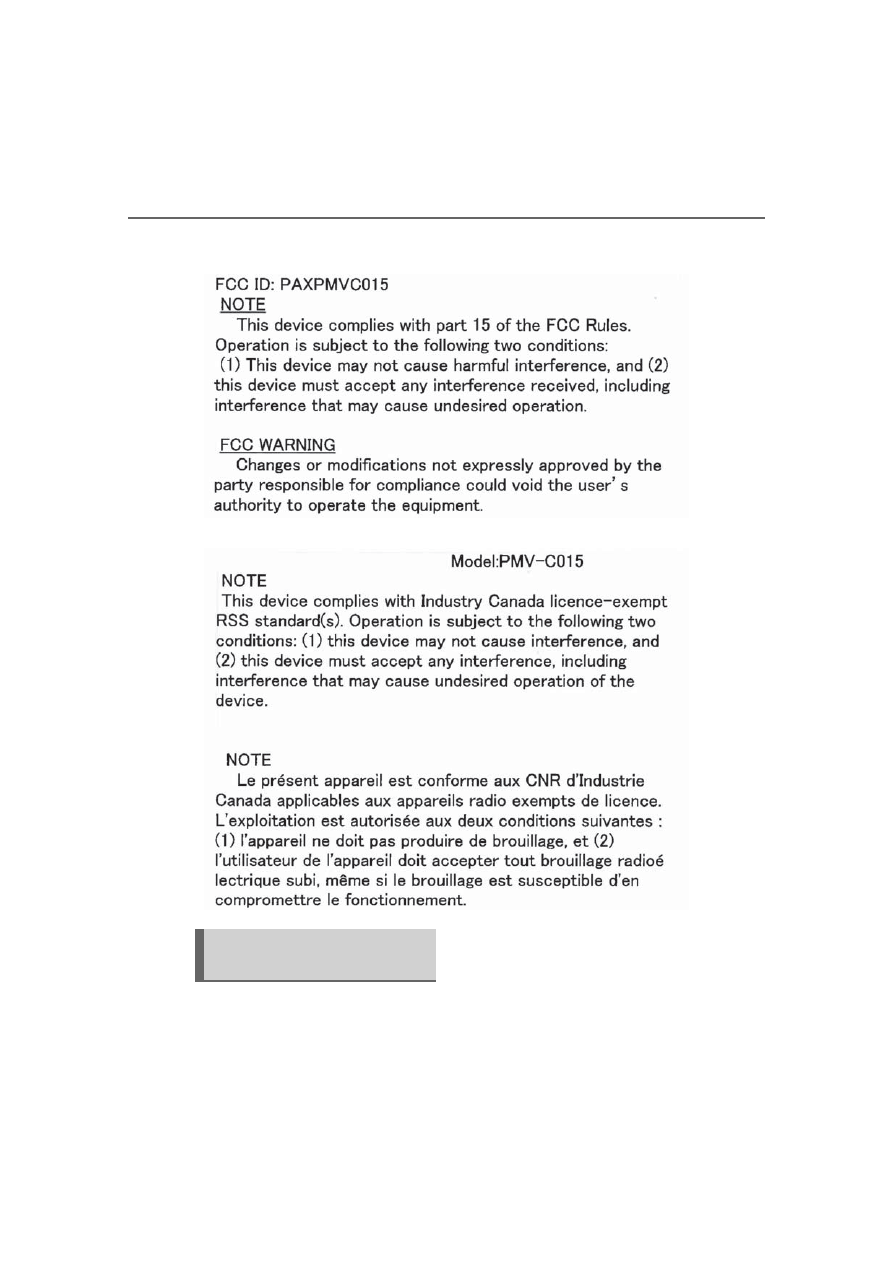

Certification for tire pressure warning system



For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico



For vehicles sold in Canada

When replacing tires or wheels, tire
pressure warning valves and transmit-
ters must also be installed.

When new tire pressure warning valves
and transmitters are installed, new ID
codes must be registered in the tire pres-
sure warning computer and the tire pres-
sure warning system must be initialized.
(

P.335)

Installing tire pressure warning
valves and transmitters

333

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

■

When replacing the tires and wheels

If the ID code of the tire pressure warning

valve and transmitter is not registered, the

tire pressure warning system will not work

properly. After driving for about 20 min-

utes, the tire pressure warning light blinks

for 1 minute and stays on to indicate a sys-

tem malfunction.

■

The tire pressure warning system
must be initialized in the following
circumstances:

 When rotating the tires.
 When the tire inflation pressure is

changed such as when changing tire
size. (When there are multiple spec-
ified pressures)

 After registering the ID codes.

(

P.335)

When the tire pressure warning system
is initialized, the current tire inflation
pressure is set as the benchmark pres-
sure.

■

How to initialize the tire pressure
warning system

Park the vehicle in a safe place and
stop the engine for 20 minutes or
more.

Initialization cannot be performed while

the vehicle is moving.

Adjust the tire inflation pressure to
the specified cold tire inflation pres-
sure level.

Make sure to adjust the tire pressure to the

specified cold tire inflation pressure level.

The tire pressure warning system will oper-

ate based on this pressure level.

Start the engine (

P.152)

Press

of the meter con-

trol switches and select

Press

of the meter con-

trol switches and select “Vehicle
Settings”, then press “OK”.

NOTICE

■

Repairing or replacing tires, wheels,

tire pressure warning valves, trans-

mitters and tire valve caps

●

When removing or fitting the wheels,

tires or the tire pressure warning

valves and transmitters, contact your

Lexus dealer as the tire pressure warn-

ing valves and transmitters may be

damaged if not handled correctly.

●

Make sure to install the tire valve caps.

If the tire valve caps are not installed,

water could enter the tire pressure

warning valves and the tire pressure

warning valves could be bound.

●

When replacing tire valve caps, do not

use tire valve caps other than those

specified. The cap may become stuck.

■

To avoid damage to the tire pressure

warning valves and transmitters

When a tire is repaired with liquid seal-

ants, the tire pressure warning valve and

transmitter may not operate properly. If a

liquid sealant is used, contact your Lexus

dealer or other qualified service shop as

soon as possible. After use of liquid seal-

ant, make sure to replace the tire pres-

sure warning valve and transmitter when

repairing or replacing the tire.

Initializing the tire pressure
warning system

334

6-3. Do-it-yourself maintenance

Press

of the meter con-

trol switches and select “TPWS”,
then press “OK”.

Press

of the meter con-

trol switches and select “Set Pres-
sure”. Then press and hold “OK”
until the tire pressure warning light
starts blinking.

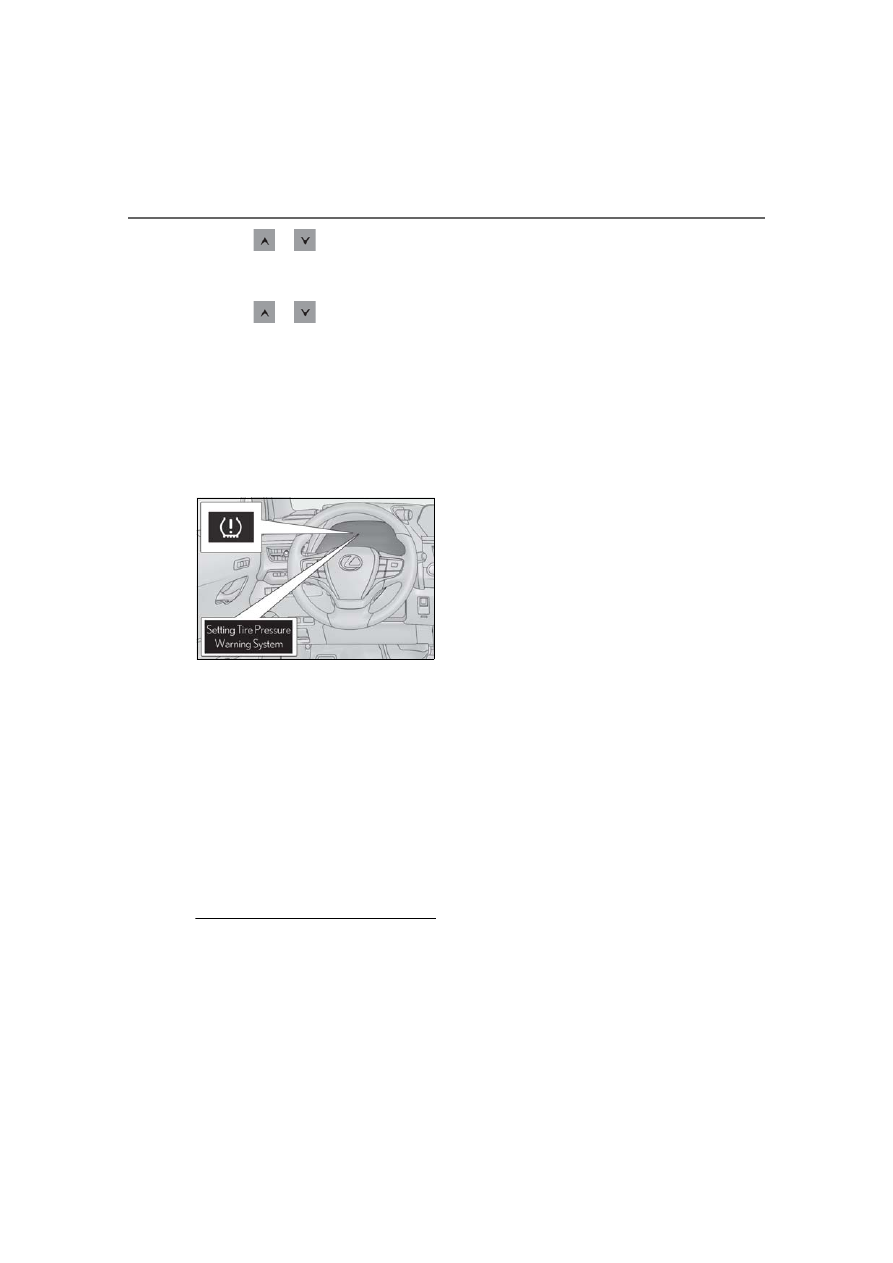

A message is displayed on the multi-infor-

mation display. Also, “--” is displayed for

inflation pressure of each tire on the multi-

information display while the tire pressure

warning system determines the position.

Drive at approximately 25 mph
(40 km/h) or more for approxi-
mately 10 to 30 minutes.

When initialization is complete, the infla-

tion pressure of each tire will be displayed

on the multi-information display.
Even if the vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more, initial-

ization can be completed by driving for a

long time. However, if initialization does not

complete after driving for 1 hour or more,

park the vehicle in a safe place for approxi-

mately 20 minutes and then drive the vehi-

cle again.

■

When initializing

●

Initialization is performed while driving at

a vehicle speed of approximately 25 mph

(40 km/h) or more.

●

Make sure to carry out initialization after

adjusting the tire inflation pressure. Also,

make sure the tires are cold before carry-

ing out initialization or tire inflation pres-

sure adjustment.

●

The tire pressure warning system can be

initialized by yourself, but depending on

the driving conditions and driving envi-

ronment, initialization may take some

time to complete.

■

The initialization operation

●

If you have accidentally turned the engine

switch off during initialization, it is not

necessary to manually restart the initial-

ization again, as initialization will restart

automatically the next time the engine

switch is turned to ON.

●

If you accidentally perform initialization

when initialization is not necessary, adjust

the tire inflation pressure to the specified

level when the tires are cold, and conduct

initialization again.

●

While the position of each tire is being

determined and the inflation pressures

are not being displayed on the multi-

information display, if the inflation pres-

sure of a tire drops, the tire pressure

warning light will come on.

■

If the tire pressure warning system is not

initialized properly

●

In the following situations, initialization

may take longer than usual to be com-

pleted or may not be possible. Normally,

initialization completes within approxi-

mately 30 minutes.

• Vehicle is not driven at approximately 25

mph (40 km/h) or more

• Vehicle is driven on unpaved roads

• Vehicle is driven near other vehicles and

system cannot recognize tire pressure

warning valve and transmitters of your

vehicle over those of other vehicles

If initialization does not complete after driv-
ing for 1 hour or more, park the vehicle in a
safe place for approximately 20 minutes
and then drive the vehicle again.

●

If the vehicle is reversed during initializa-

tion, the data up to that point is reset, so

perform the initialization procedure

again from the beginning.

●

In the following situations, initialization

will not be started or was not completed

335

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

properly and the system will not operate

properly. Perform the initialization proce-

dure again.

• If, when attempting to start initialization,

the tire pressure warning light does not

blink 3 times.

• If, when the vehicle has been driven for

about 20 minutes after performing ini-

tialization, the tire pressure warning light

blinks for approximately 1 minute and

then illuminates.

If initialization cannot be completed after
performing the above procedure, contact
your Lexus dealer.

Every tire pressure warning valve and
transmitter has a unique ID code.
When replacing a tire pressure warn-
ing valve and transmitter, it is necessary
to register the ID code.
When registering the ID codes, per-
form the following procedure.

Park the vehicle in a safe place, wait
for approximately 20 minutes, and
then start the engine. (

P.152)

Press

of the meter con-

trol switches and select

Press

of the meter con-

trol switches and select “Vehicle
Settings”, then press “OK”.

Press

of the meter con-

trol switches and select “TPWS”,
then press “OK”.

Press

of the meter con-

trol switches and select “Change
Wheel Set”. Then press and hold
“OK” until the tire pressure warning
light starts slowly blinking 3 times.

Then a message will be displayed on the

multi-information display.
When registration is being performed, the

tire pressure warning light will blink for

approximately 1 minute then illuminate and

“- -” will be displayed for the inflation pres-

sure of each tire on the multi-information

display.

Drive at 25 mph (40 km/h) or
more for approximately 10 to 30
minutes.

Registration is complete when the tire

pressure warning light turns off and the

inflation pressure of each tire is displayed

on the multi-information display.
Even if the vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more, regis-

tration can be completed by driving for a

long time. However, if registration does not

complete after driving for 1 hour or more,

perform the procedure again from the

beginning.

WARNING

■

When initializing the tire pressure

warning system

Do not initialize tire inflation pressure

without first adjusting the tire inflation

pressure to the specified level. Other-

wise, the tire pressure warning light may

not come on even if the tire inflation pres-

sure is low, or it may come on when the

tire inflation pressure is actually normal.

Registering ID codes

336

6-3. Do-it-yourself maintenance

Initialize the tire pressure warning
system. (

P.333)

■

When registering ID codes

●

ID code registration is performed while

driving at a vehicle speed of approxi-

mately 25 mph (40 km/h) or more.

●

Before performing ID code registration,

make sure that no wheels with tire pres-

sure warning valve and transmitters

installed are near the vehicle.

●

Make sure to initialize the tire pressure

warning system after registering the ID

codes. If the system is initialized before

registering the ID codes, the initialized

values will be invalid.

●

ID codes can be registered by yourself,

but depending on the driving conditions

and driving environment, registration

may take some time to complete.

■

Canceling ID code registration

●

To cancel ID code registration after it has

been started, turn the engine switch off

before driving the vehicle.

If the vehicle is driven after ID code regis-

tration is started, to cancel registration,

perform the ID code registration start

procedure again and turn the engine

switch off before driving.

●

If ID code registration has been canceled,

the tire pressure warning light will blink

for approximately 1 minute when the

engine switch is turned to ON and then

illuminate. The tire pressure warning sys-

tem will be operational when the tire

pressure warning light turns off.

●

If the warning light does not turn off even

after several minutes have elapsed, ID

code registration may not have been can-

celed correctly. To cancel registration,

perform the ID code registration start

procedure again and then turn the engine

switch off before driving.

■

If ID codes are not registered properly

●

In the following situations, ID code regis-

tration may take longer than usual to be

completed or may not be possible. Nor-

mally, registration completes within

approximately 30 minutes.

• Vehicle is not parked for approximately

20 minutes or more before driving

• Vehicle is not driven at approximately 25

mph (40 km/h) or more

• Vehicle is driven on unpaved roads

• Vehicle is driven near other vehicles and

system cannot recognize tire pressure

warning valves and transmitters of your

vehicle over those of other vehicles

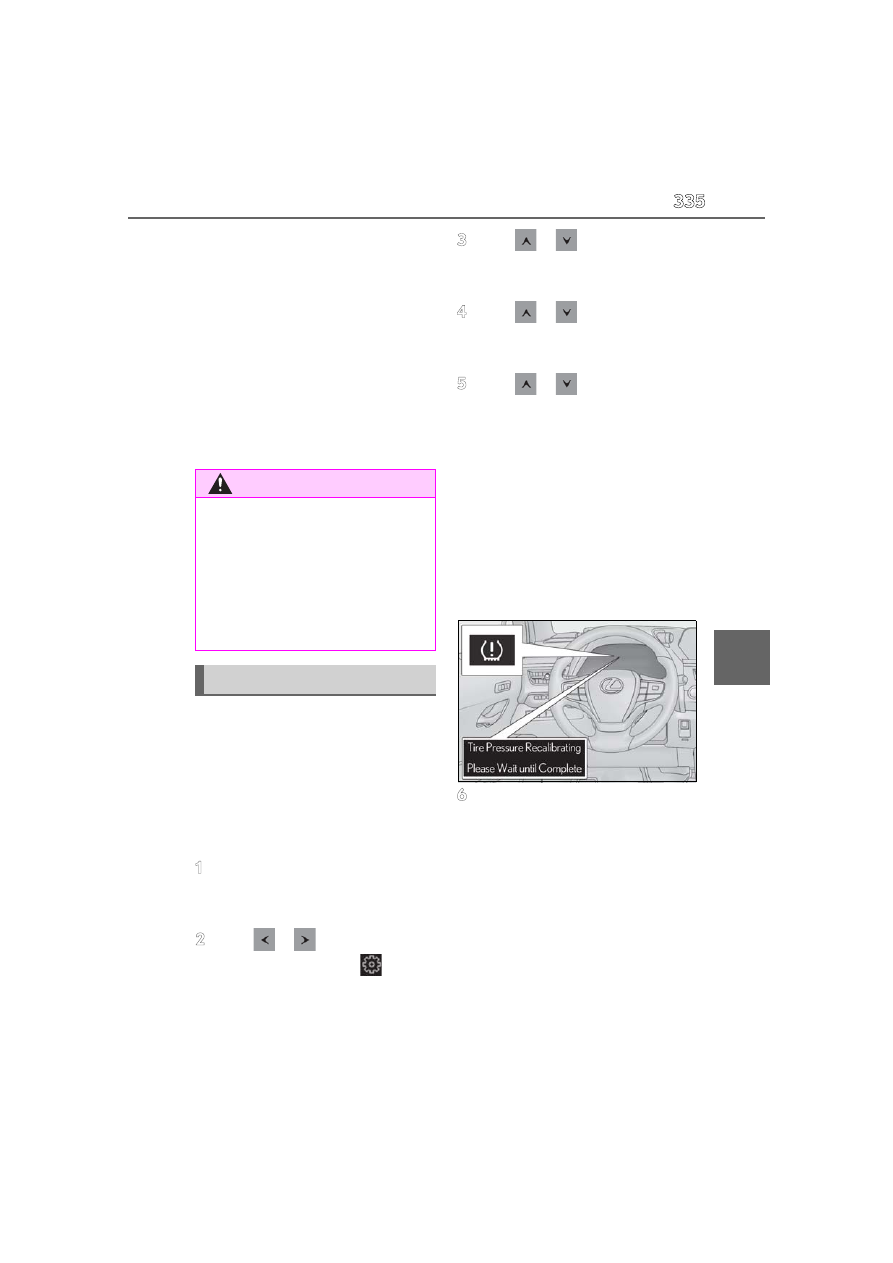

• Wheel with tire pressure warning valve

and transmitter installed is inside or near

the vehicle

If registration does not complete after driv-
ing for 1 hour or more, perform the ID code
registration procedure again from the
beginning.

●

If the vehicle is reversed during registra-

tion, the data up to that point is reset, so

perform the registration procedure again

from the beginning.

●

In the following situations, ID code regis-

tration will not be started or was not com-

pleted properly and the system will not

operate properly. Perform the ID code

registration procedure again.

• If, when attempting to start ID code regis-

tration, the tire pressure warning light

does not blink slowly 3 times.

• If, when the vehicle has been driven for

about 20 minutes after performing ID

code registration, the tire pressure warn-

ing light blinks for approximately 1 minute

and then illuminates.

●

If ID code registration cannot be com-

pleted after performing the above proce-

dure, contact your Lexus dealer.

337

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

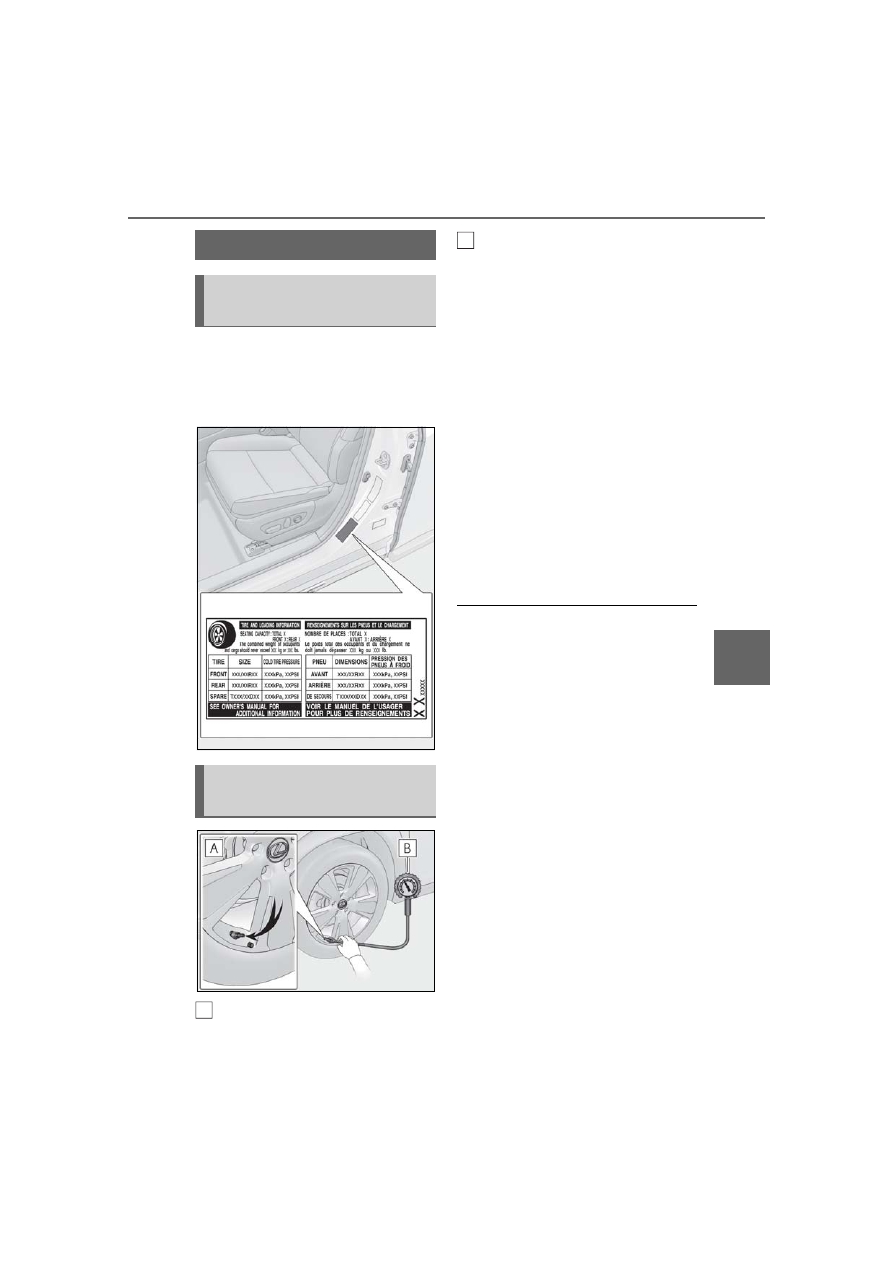

The recommended cold tire inflation
pressure and tire size are displayed on
the tire and loading information label.
(

P.395)

Tire valve

Tire pressure gauge

Remove the tire valve cap.

Press the tip of the tire pressure
gauge onto the tire valve.

Read the pressure using the gauge
gradations.

If the tire inflation pressure is not at
the recommended level, adjust the
pressure.
If you add too much air, press the
center of the valve to deflate.

After completing the tire inflation
pressure measurement and adjust-
ment, apply soapy water to the
valve and check for leakage.

Put the tire valve cap back on.

■

Tire inflation pressure check interval

You should check tire inflation pressure

every two weeks, or at least once a month.

Do not forget to check the spare.

■

Effects of incorrect tire inflation pres-

sure

Driving with incorrect tire inflation pressure

may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor han-

dling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drive train

If a tire needs frequent inflating, have it

checked by your Lexus dealer.

■

Instructions for checking tire inflation

pressure

When checking tire inflation pressure,

observe the following:

●

Check only when the tires are cold.

If your vehicle has been parked for at

least 3 hours or has not been driven for

Tire inflation pressure

Checking the specified tire infla-
tion pressure

Inspection and adjustment pro-
cedure

338

6-3. Do-it-yourself maintenance

more than 1 mile or 1.5 km, you will get an

accurate cold tire inflation pressure read-

ing.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is properly

inflated based only on its appearance.

●

It is normal for the tire inflation pressure

to be higher after driving as heat is gen-

erated in the tire. Do not reduce tire infla-

tion pressure after driving.

●

Never exceed the vehicle capacity

weight.

Passengers and luggage weight should

be placed so that the vehicle is balanced.

WARNING

■

Proper inflation is critical to save tire

performance

Keep your tires properly inflated.

If the tires are not properly inflated, the

following conditions may occur which

could lead to an accident resulting in

death or serious injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting from

overheated tires

●

Air leaking from between tire and

wheel

●

Wheel deformation and/or tire dam-

age

●

Greater possibility of tire damage

while driving (due to road hazards,

expansion joints, sharp edges in the

road, etc.)

NOTICE

■

When inspecting and adjusting tire

inflation pressure

Be sure to put the tire valve caps back on.

If a valve cap is not installed, dirt or mois-

ture may get into the valve and cause an

air leak, resulting in decreased tire infla-

tion pressure.

339

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

When replacing wheels, care should
be taken to ensure that they are equiv-
alent to those removed in load capac-
ity, diameter, rim width and inset

Replacement wheels are available at
your Lexus dealer.

: Conventionally referred to as offset.

Lexus does not recommend using the
following:
 Wheels of different sizes or types
 Used wheels
 Bent wheels that have been straight-

ened

■

When replacing wheels

The wheels of your vehicle are equipped

with tire pressure warning valves and trans-

mitters that allow the tire pressure warning

system to provide advance warning in the

event of a loss in tire inflation pressure.

Whenever wheels are replaced, tire pres-

sure warning valves and transmitters must

be installed. (

P.332)

 Use only Lexus wheel nuts and

wrenches designed for use with
your aluminum wheels.

 When rotating, repairing or chang-

ing your tires, check that the wheel
nuts are still tight after driving 1000
miles (1600 km).

 Be careful not to damage the alumi-

num wheels when using tire chains.

 Use only Lexus genuine balance

weights or equivalent and a plastic
or rubber hammer when balancing
your wheels.

Wheels

If a wheel is bent, cracked or heavily
corroded, it should be replaced.
Otherwise, the tire may separate
from the wheel or cause a loss of
handling control.

Wheel selection

WARNING

■

When replacing wheels

●

Do not use wheels that are a different

size from those recommended in the

Owner’s Manual, as this may result in a

loss of handling control.

●

Never use an inner tube in a leaking

wheel which is designed for a tubeless

tire. Doing so may result in an acci-

dent, causing death or serious injury.

■

Use of defective wheels prohibited

Do not use cracked or deformed wheels.

Doing so could cause the tire to leak air

during driving, possibly causing an acci-

dent.

NOTICE

■

Replacing tire pressure warning

valves and transmitters

●

Because tire repair or replacement

may affect the tire pressure warning

valves and transmitters, make sure to

have tires serviced by your Lexus

dealer or other qualified service shop.

In addition, make sure to purchase

your tire pressure warning valves and

transmitters at your Lexus dealer.

●

Ensure that only genuine Lexus wheels

are used on your vehicle.

Tire pressure warning valves and trans-

mitters may not work properly with

non-genuine wheels.

Aluminum wheel precautions

340

6-3. Do-it-yourself maintenance

Turn the engine switch off.

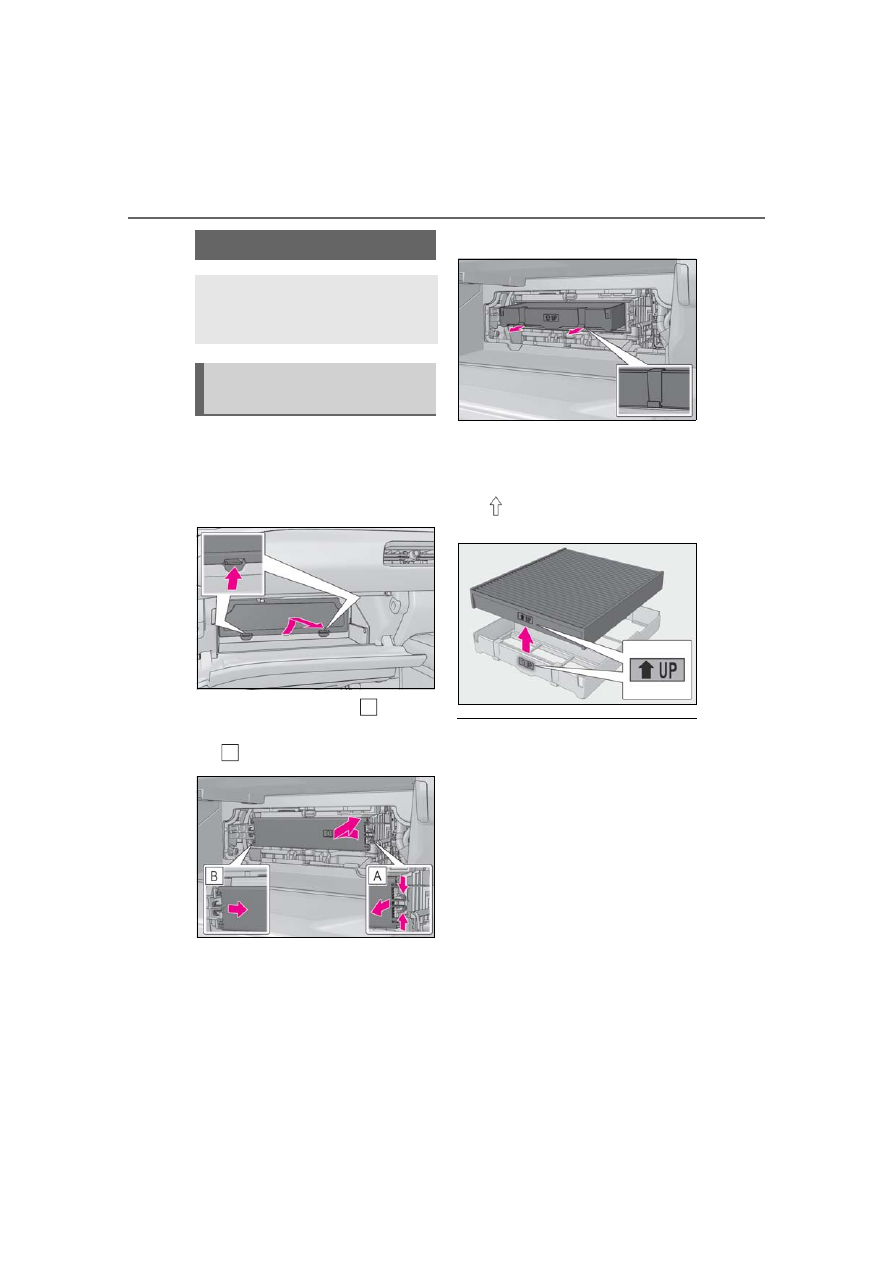

Open the glove box. Remove the
partition. (

P.278)

Remove the panel.

Unlock the filter cover (

), pull

the filter cover out of the claws
(

), and remove the filter cover.

Remove the filter case.

Remove the air conditioning filter
from the filter case and replace it
with a new one.

The “

UP” marks shown on the filter and

the filter case should be pointing up.

■

Checking interval

Inspect and replace the air conditioning fil-

ter according to the maintenance schedule.

In dusty areas or areas with heavy traffic

flow, early replacement may be required.

(For scheduled maintenance information,

please refer to the “Owner’s Manual Sup-

plement” or “Scheduled Maintenance”.)

■

If air flow from the vents decreases dra-

matically

The filter may be clogged. Check the filter

and replace if necessary.

■

Air conditioning filter with deodorizing

function

When fragrances are placed in your vehi-

cle, the deodorizing effect may become

significantly weakened in a short period.

When an air conditioning odor comes out

continuously, replace the air conditioning

Air conditioning filter

The air conditioning filter must be
changed regularly to maintain air
conditioning efficiency.

Removing the air conditioning
filter

341

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

filter.

■

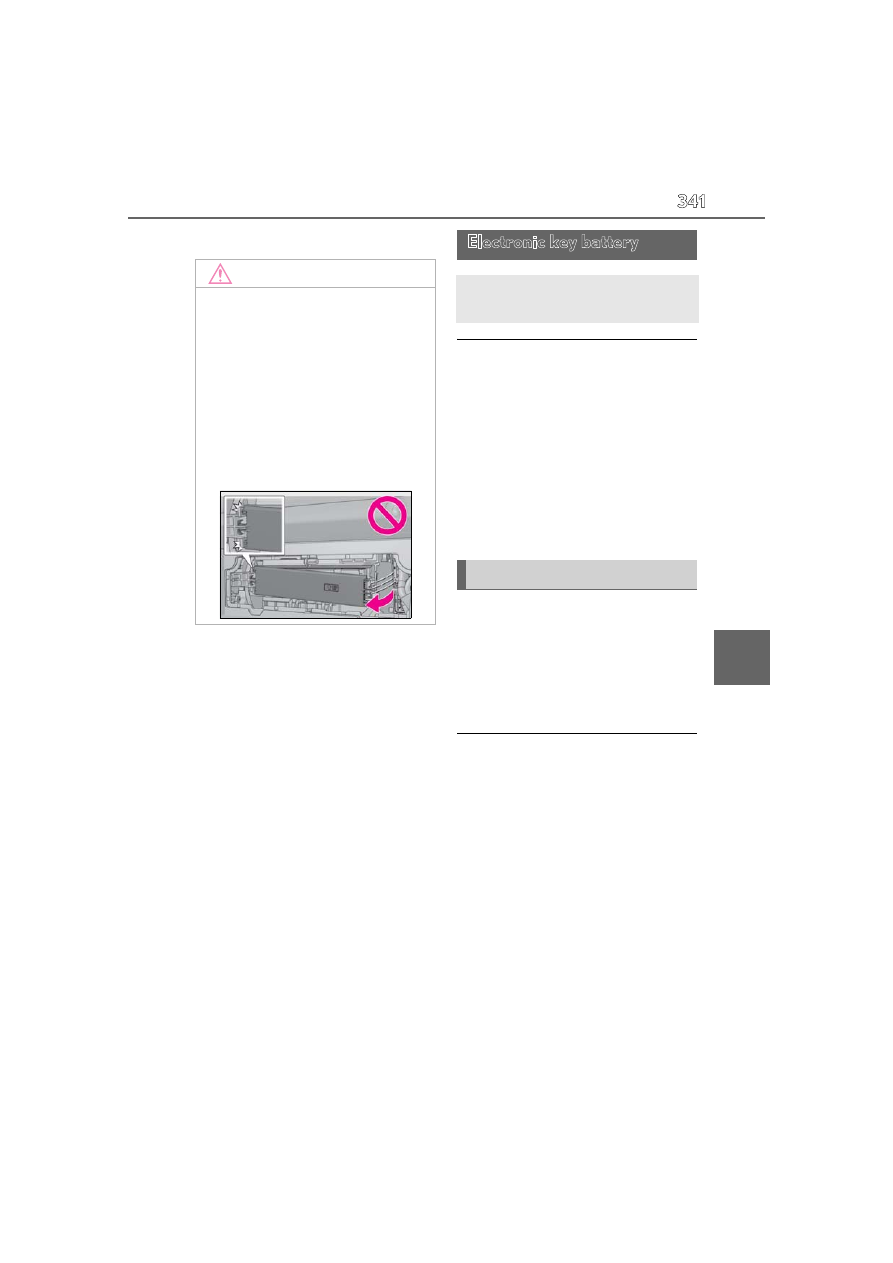

If the electronic key battery is depleted

The following symptoms may occur:

●

The smart access system with push-but-

ton start and wireless remote control will

not function properly.

●

The operational range will be reduced.

■

When the card key battery needs to be

replaced (if equipped)

The battery for the card key is available only

at Lexus dealers. Your Lexus dealer can

replace the battery for you.

Prepare the following before replacing
the battery:
 Flathead screwdriver
 Small flathead screwdriver
 Lithium battery CR2032

■

Use a CR2032 lithium battery

●

Batteries can be purchased at your Lexus

dealer, local electrical appliance shops or

camera stores.

●

Replace only with the same or equivalent

type recommended by the manufacturer.

●

Dispose of used batteries according to

the local laws.

NOTICE

■

When using the air conditioning sys-

tem

Make sure that a filter is always installed.

Using the air conditioning system without

a filter may cause damage to the system.

■

To prevent damage to the filter cover

When moving the filter cover in the

direction of arrow to release the fitting,

pay attention not to apply excessive force

to the claws. Otherwise, the claws may

be damaged.

Electronic key battery

Replace the battery with a new one
if it is depleted.

Items to prepare

342

6-3. Do-it-yourself maintenance

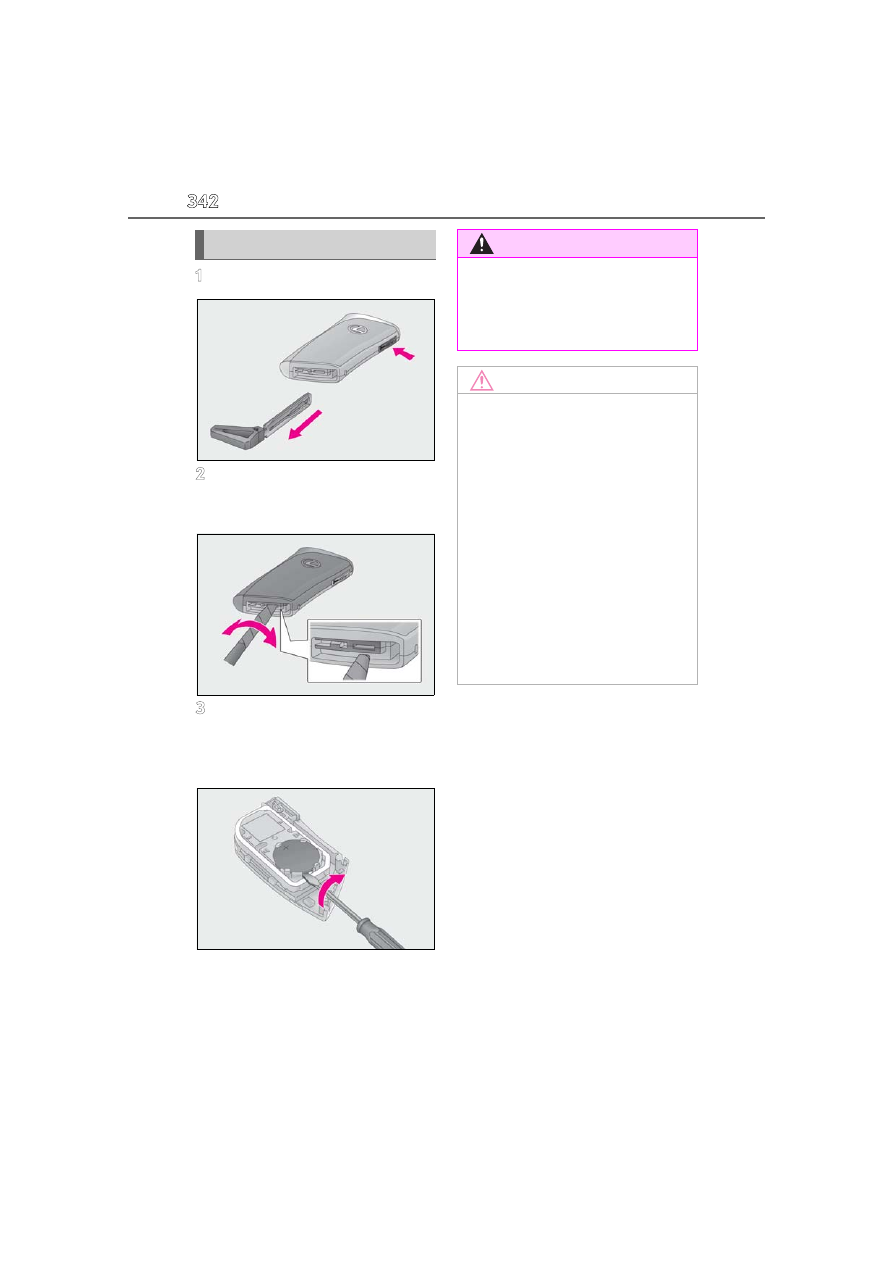

Take out the mechanical key.

Remove the cover.

To prevent damage to the key, cover the tip

of the flathead screwdriver with a tape.

Remove the depleted battery using
the small flathead screwdriver.

Insert a new battery with the “+” terminal

facing up.

Replacing the battery

WARNING

■

Removed battery and other parts

These parts are small and if swallowed by

a child, they can cause choking. Keep

away from children. Failure to do so

could result in death or serious injury.

NOTICE

■

When replacing the battery

Use a screwdriver of appropriate size.

Applying excessive force may deform or

damage the cover.

■

For normal operation after replacing

the battery

Observe the following precautions to

prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery to

rust.

●

Do not touch or move any other com-

ponent inside the remote control.

●

Do not bend either of the battery ter-

minals.

343

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

Turn the engine switch off.

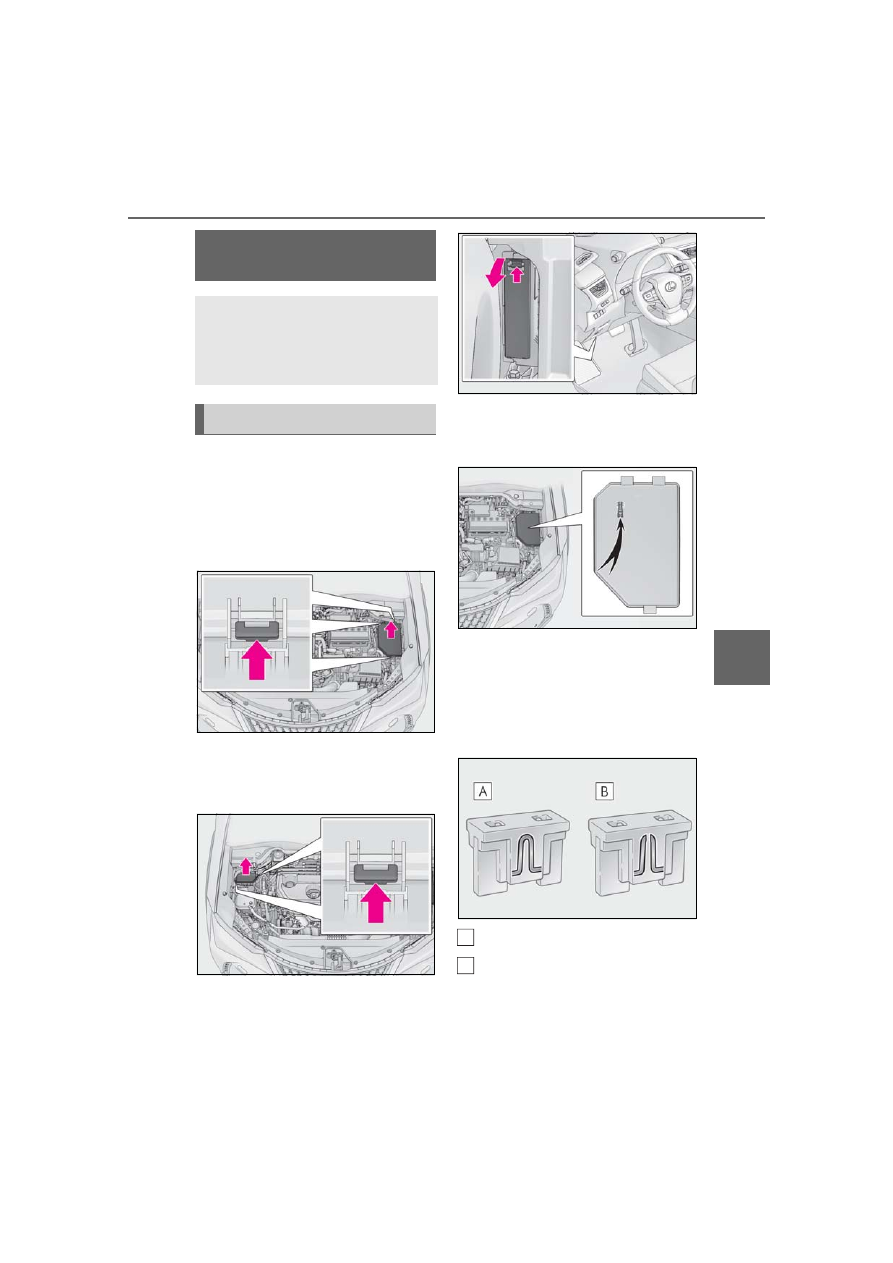

Open the fuse box cover.



Engine compartment: type A fuse
box

Push the tab in and lift the lid off.



Engine compartment: type B fuse
box

Push the tab in and lift the lid off.



Left side instrument panel

Remove the lid.

Remove the fuse.

Only type A fuse can be removed using the

pullout tool.

Check if the fuse is blown.

Replace the blown fuse with a new fuse of

an appropriate amperage rating. The

amperage rating can be found on the fuse

box lid.



Type A

Normal fuse

Blown fuse

Checking and replacing
fuses

If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.

Checking and replacing fuses

A
B

344

6-3. Do-it-yourself maintenance



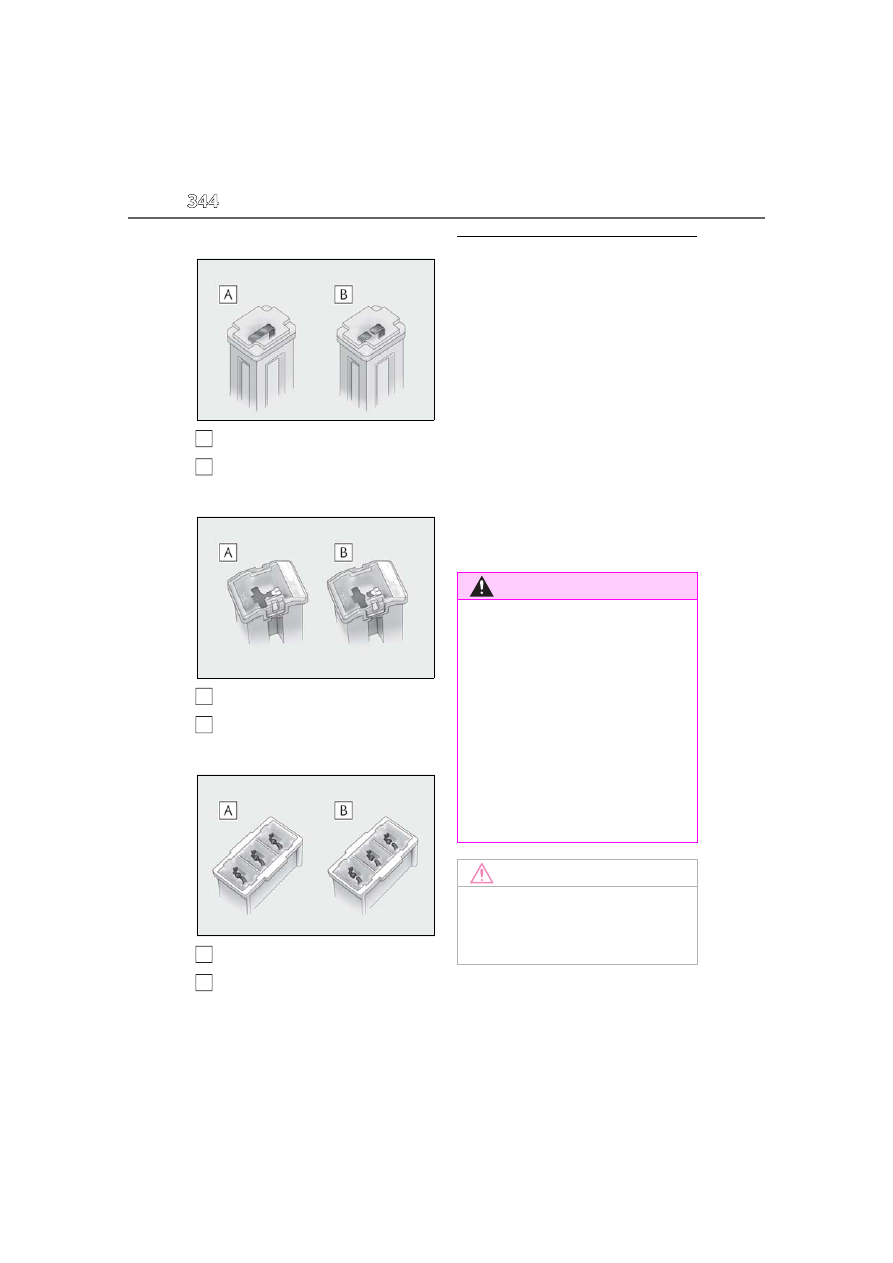

Type B

Normal fuse

Blown fuse



Type C

Normal fuse

Blown fuse



Type D

Normal fuse

Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure that the

tab is installed securely.

●

If the lights do not turn on even after the

fuse has been replaced, a bulb may need

replacement. (

P.346)

●

If the replaced fuse blows again, have the

vehicle inspected by your Lexus dealer.

■

If there is an overload in a circuit

The fuses are designed to blow, protecting

the wiring harness from damage.

■

When replacing light bulbs

Lexus recommends that you use genuine

Lexus products designed for this vehicle.

Because certain bulbs are connected to cir-

cuits designed to prevent overload, non-

genuine parts or parts not designed for this

vehicle may be unusable.

WARNING

■

To prevent system breakdowns and

vehicle fire

Observe the following precautions.

Failure to do so may cause damage to

the vehicle, and possibly a fire or injury.

●

Never use a fuse of a higher amperage

rating than that indicated, or use any

other object in place of a fuse.

●

Always use a genuine Lexus fuse or

equivalent.

Never replace a fuse with a wire, even

as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical overload

determined and repaired by your Lexus

dealer as soon as possible.

345

6-3. Do-it-yourself maintenance

Mai
nte

e a

are



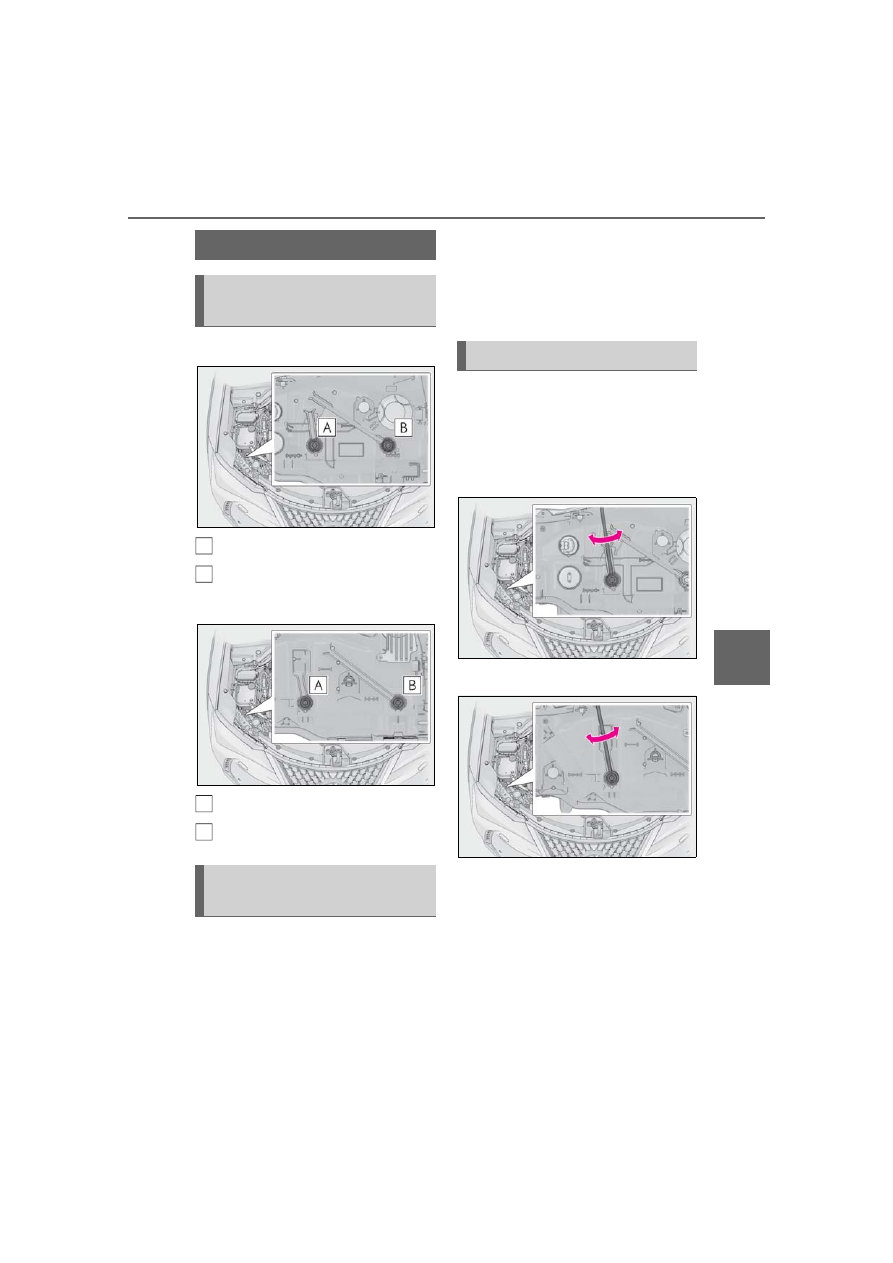

Single-beam headlights

Adjustment bolt A

Adjustment bolt B



Triple-beam headlights

Adjustment bolt A

Adjustment bolt B

 Make sure the vehicle has a full tank

of gasoline and the area around the
headlight is not deformed.

 Park the vehicle on level ground.
 Make sure the tire inflation pressure

is at the specified level.

 Have someone sit in the driver’s

seat.

 Bounce the vehicle several times.

Using a Phillips-head screwdriver,
turn bolt A in either direction.
Remember the turning direction
and the number of turns.



Single-beam headlights



Triple-beam headlights

Turn bolt B the same number of
turns and in the same direction as
step

If the headlight cannot be adjusted using

this procedure, take the vehicle to your

Lexus dealer to adjust the headlight aim.

Headlight aim

Vertical movement adjusting
bolts

Before checking the headlight
aim

A
B

Adjusting the headlight aim

346

6-3. Do-it-yourself maintenance



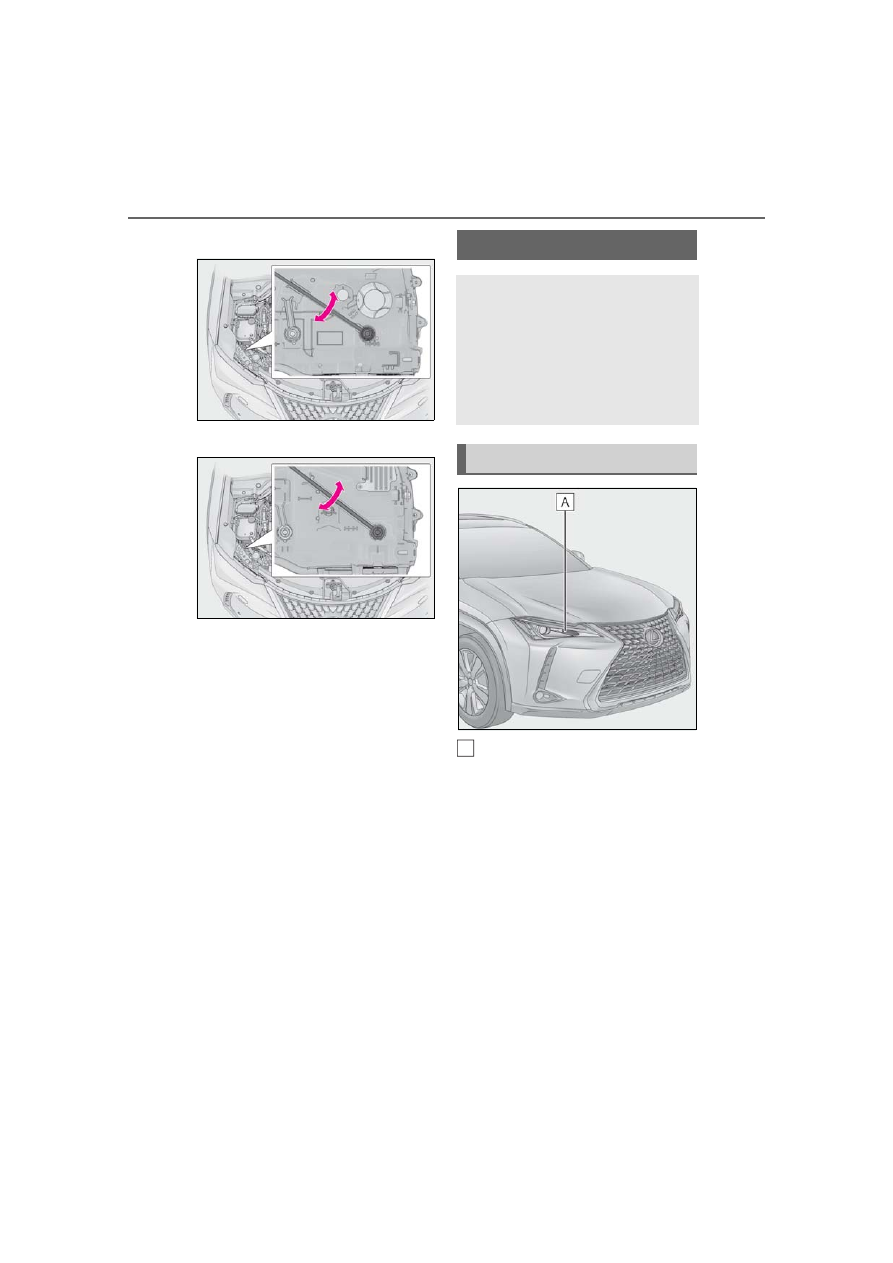

Single-beam headlights



Triple-beam headlights

Front turn signal light (vehicles with
single-beam headlights)

■

Bulbs that need to be replaced by
your Lexus dealer

 Headlights
 Parking lights and daytime running

lights (if equipped)

 Front turn signal lights (vehicles with

triple-beam headlights)

 Front fog lights (if equipped)
 Cornering lights (if equipped)
 Side turn signal lights

Light bulbs

You may replace the following bulb
by yourself. Before replacing,
check the wattage of the light bulb
to be replaced. As there is a danger
that components may be damaged,
we recommend that replacement is
carried out by your Lexus dealer.

Bulb location

347

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

 Tail lights
 Stop lights
 Tail lights/stop lights
 Rear turn signal lights
 Back-up lights
 High mounted stoplight
 License plate lights

■

LED lights

Vehicles with single-beam headlights:
The lights other than the front turn signal

light each consist of a number of LEDs. If

any of the LEDs burn out, take your vehicle

to your Lexus dealer to have the light

replaced.
Vehicles with triple-beam headlights:
The lights consist of a number of LEDs. If

any of the LEDs burn out, take your vehicle

to your Lexus dealer to have the light

replaced.

■

Condensation build-up on the inside of

the lens

Temporary condensation build-up on the

inside of the headlight lens does not indi-

cate a malfunction. Contact your Lexus

dealer for more information in the following

situations:

●

Large drops of water have built up on the

inside of the lens.

●

Water has built up inside the headlight.

■

When replacing light bulbs

P.344

■

Front turn signal lights (vehicles
with single-beam headlights)

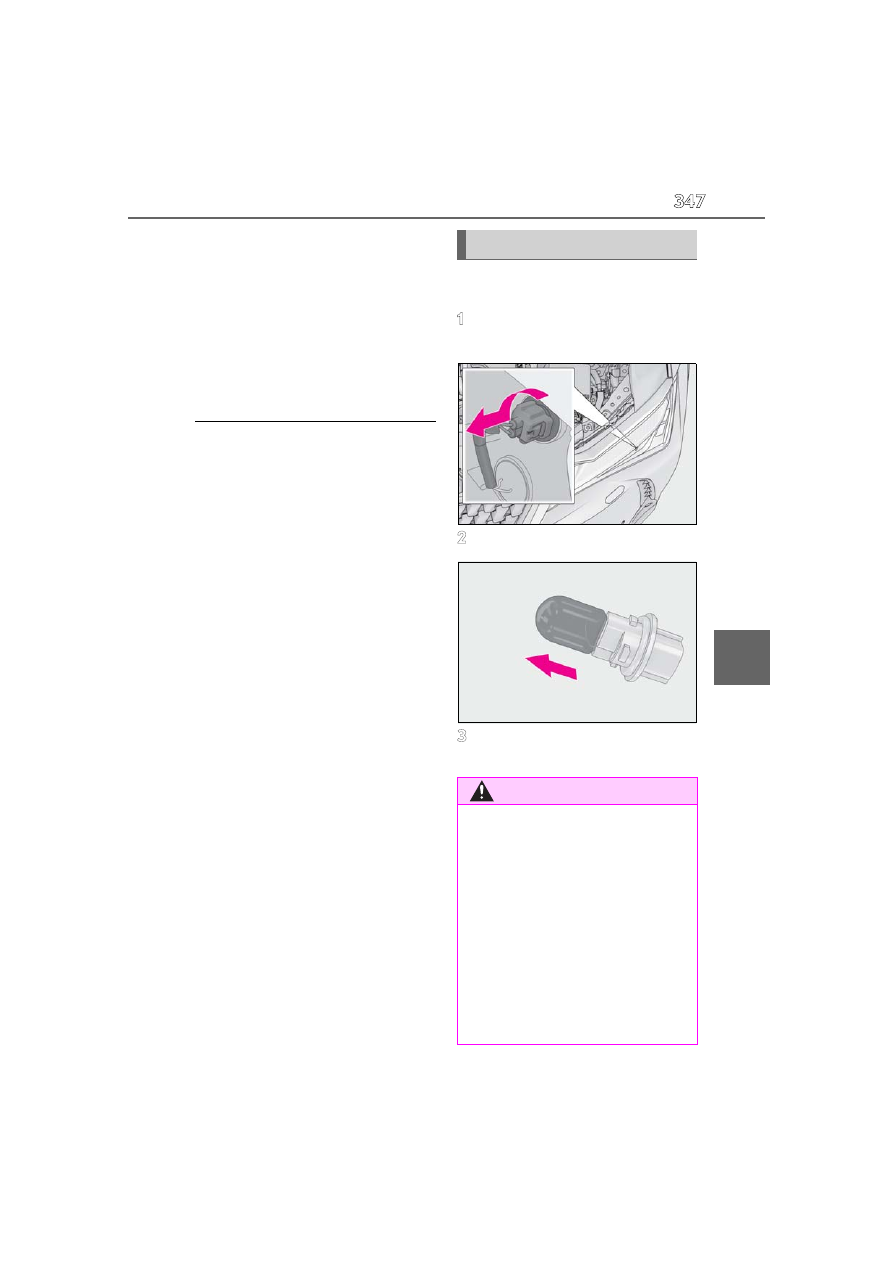

Turn the bulb base counterclock-
wise.

Remove the light bulb.

When installing, reverse the steps
listed.

Replacing light bulb

WARNING

■

Replacing light bulb

●

Turn off the light. Do not attempt to

replace the bulb immediately after

turning off the light.

The bulb become very hot and may

cause burns.

●

Do not touch the glass portion of the

light bulb with bare hands. When it is

unavoidable to hold the glass portion,

use and hold with a clean dry cloth to

avoid getting moisture and oils on the

bulb.

Also, if the bulb is scratched or

dropped, it may blow out or crack.

Content .. 19 20 21 22 ..
