LEXUS UX 200 (2019 year). Instruction - part 19

300

5-6. Using the other interior features

Press the appropriate HomeLink

button. The HomeLink

indicator light

should turn on.
The status of the opening and closing
of a garage door is shown by the indi-
cators.

Opening

Closing

This function is only available if the garage
door opener motor used is a compatible
device. (To check device compatibility,
refer to www.homelink.com.)

The indicators can operate within
approximately 820 ft. (250 m) of the
garage door. However, if there are
obstructions between the garage door
and the vehicle, such as houses and
trees, feedback signals from the
garage door may not be received.

To recall the previous door operation
status, press and release either Home-

Link

buttons

and

simultaneously. The

last recorded status will be displayed
for 3 seconds.

Press and hold the 2 outside buttons
for 10 seconds until the HomeLink

indicator light changes from continu-
ously lit (orange) to rapidly flashing
(green).

If you sell your vehicle, be sure to erase the
programs stored in the HomeLink

mem-

ory.

Operating HomeLink

Color

Status

Orange (flashing)

Currently open-

ing/closing

Green

Opening/closing

has completed

Red (flashing)

Feedback signals

cannot be received

A
B

Erasing the entire HomeLink

memory (all three codes)

301

5-6. Using the other interior features

rio

r f

: If equipped

To turn the compass on or off, press the
button for more than 3 seconds.

Directions are displayed as follows:

■

Conditions unfavorable to correct

operation

The compass may not show the correct

direction in the following conditions:

●

The vehicle is stopped immediately after

turning.

●

The vehicle is on an inclined surface.

●

The vehicle is in a place where the earth’s

magnetic field is subject to interference

by artificial magnetic fields (under-

ground car park/parking lot, under a

steel tower, between buildings, roof car

park/parking lot, near an intersection,

near a large vehicle, etc.).

●

The vehicle has become magnetized.

(There is a magnet or metal object near

the inside rear view mirror.)

●

The battery has been disconnected.

●

A door is open.

Compass

The compass on the inside rear
view mirror indicates the direction
in which the vehicle is heading.

Operation and displays

Display

Direction

“N”

North

“NE”

Northeast

“E”

East

“SE”

Southeast

“S”

South

“SW”

Southwest

“W”

West

“NW”

Northwest

WARNING

■

While driving the vehicle

Do not adjust the display. Adjust the dis-

play only when the vehicle is stopped.

NOTICE

■

To avoid compass malfunctions

Do not place magnets or any metal

objects near the inside rear view mirror.

Doing this may cause the compass sen-

sor to malfunction.

■

To ensure normal operation of the

compass

●

Do not perform a circling calibration of

the compass in a place where the

earth’s magnetic field is subject to

interference by artificial magnetic

fields.

●

During calibration, do not operate

electric systems (moon roof, power

windows, etc.) as they may interfere

with the calibration.

302

5-6. Using the other interior features

■

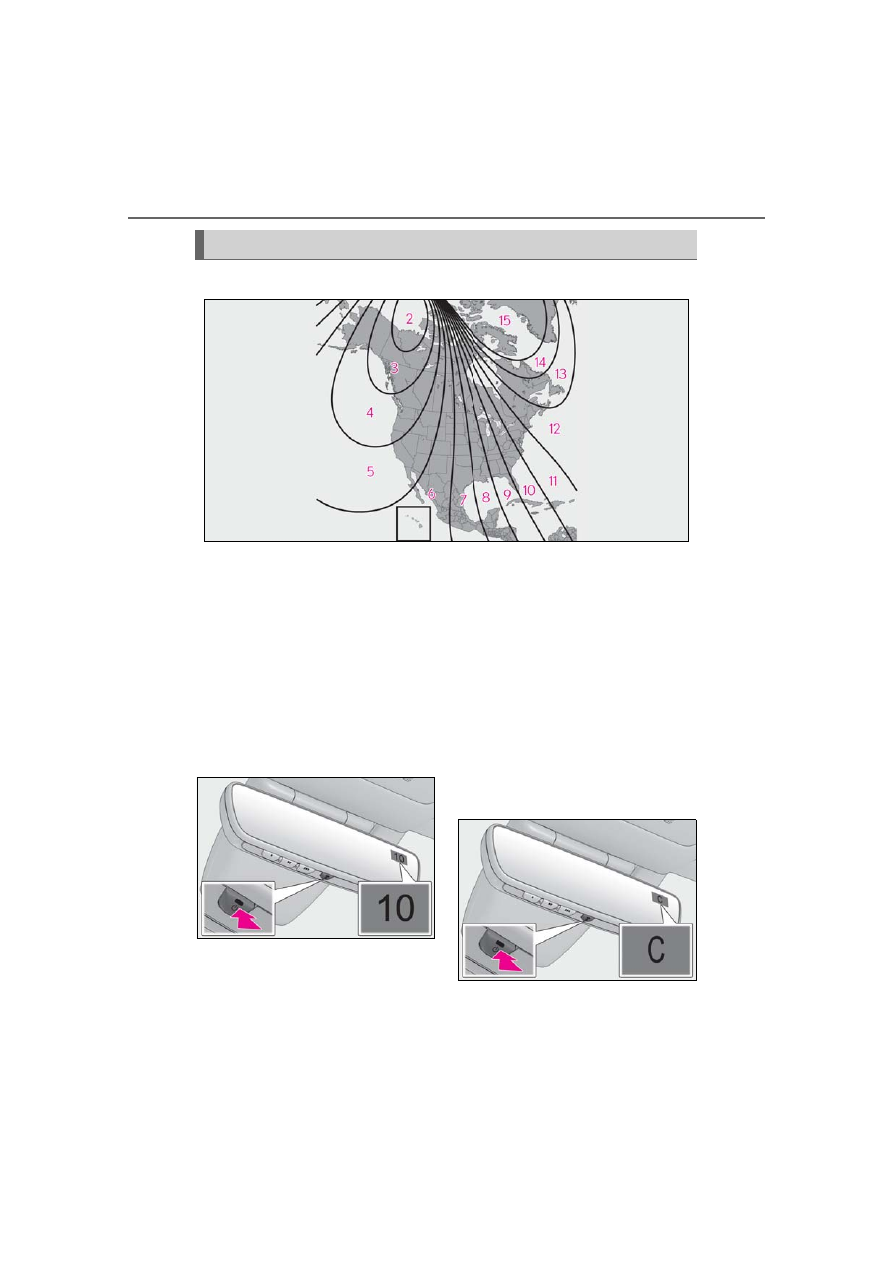

Deviation

The direction display deviates from the true direction determined by the earth’s
magnetic field. The amount of deviation varies depending on the geographic posi-
tion of the vehicle.

If you cross over one of the map boundaries shown in illustration, the compass will deviate.
To obtain higher precision or perfect calibration, refer to “Deviation calibration”.

■

Deviation calibration

Stop the vehicle.

Press and hold the button for 6 sec-
onds. A number (1 to 15) appears
on the compass display.

Referring to the map above, press
the button to select the number of
the zone you are in.

If the direction is displayed several seconds

after adjustment, the calibration is com-

plete.

■

Circling calibration

Stop the vehicle in a place where it
is safe to drive in a circle.

Press and hold the button for 9 sec-
onds.

“C” appears on the compass display.

Drive the vehicle at 5 mph (8 km/
h) or less in a circle until a direction
is displayed.

Calibrating the compass

303

5-6. Using the other interior features

rio

r f

If there is not enough space to drive in a

circle, drive around the block until a direc-

tion is displayed.

WARNING

■

When doing the circling calibration

Secure a wide space, and watch out for

people and vehicles in the vicinity. Do not

violate any local traffic rules while per-

forming circling calibration.

304

5-6. Using the other interior features

305

Mai
nte

e a

are

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting the vehi-

cle exterior................................

306

Cleaning and protecting the vehi-

cle interior .................................

309

6-2. Maintenance

Maintenance requirements ...

312

General maintenance..............

313

Emission inspection and mainte-

nance (I/M) programs ..........

316

6-3. Do-it-yourself maintenance

Do-it-yourself service precautions

.........................................................

317

Hood................................................

319

Positioning a floor jack............

320

Engine compartment................

321

Tires ................................................

328

Tire inflation pressure..............

337

Wheels...........................................

339

Air conditioning filter...............

340

Electronic key battery..............

341

Checking and replacing fuses

........................................................

343

Headlight aim..............................

345

Light bulbs....................................

346

306

6-1. Maintenance and care

6-1.Maintenance and care

 Working from top to bottom, liber-

ally apply water to the vehicle body,
wheel wells and underside of the
vehicle to remove any dirt and dust.

 Wash the vehicle body using a

sponge or soft cloth, such as a
chamois.

 For hard-to-remove marks, use car

wash soap and rinse thoroughly with
water.

 Wipe away any water.
 Wax the vehicle when the water-

proof coating deteriorates.

If water does not bead on a clean surface,
apply wax when the vehicle body is cool.

■

Self-restoring coat

The vehicle body has a self-restoring coat-

ing that is resistant to small surface

scratches caused in a car wash, etc.

●

The coating lasts for 5 to 8 years from

when the vehicle is delivered from the

plant.

●

The restoration time differs depending on

the depth of the scratch and outside tem-

perature. The restoration time may

become shorter when the coating is

warmed by applying warm water.

●

Deep scratches caused by keys, coins,

etc. cannot be restored.

●

Do not use wax that contain abrasives.

■

Automatic car washes

●

Before washing the vehicle:

• Fold the mirrors

• Turn off the power back door (if

equipped)

Start washing from the front of the vehicle.
Extend the mirrors before driving.

●

Brushes used in automatic car washes

may scratch the vehicle surface and harm

your vehicle’s paint.

●

Rear spoiler may not be washable in

some automatic car washes. There may

also be an increased risk of damage to

vehicle.

■

High pressure car washes

●

Do not allow the nozzles of the car wash

to come within close proximity of open-

ing and closing part of the doors or side

windows, and do not continuously let

water hit at the same place.

●

Before using the car wash, check that the

fuel filler door on your vehicle is closed

properly.

■

Note for a smart access system with

push-button start

●

If the door handle becomes wet while the

electronic key is within the effective

range, the door may lock and unlock

repeatedly. In that case, follow the follow-

ing correction procedures to wash the

vehicle:

• Place the key in a position 6 ft. (2 m) or

more separate from the vehicle while the

vehicle is being washed. (Take care to

ensure that the key is not stolen.)

• Set the electronic key to battery-saving

mode to disable the smart access system

with push-button start. (

P.115)

●

If the electronic key is inside the vehicle

and a door handle becomes wet during a

car wash, a buzzer may sound outside the

vehicle and “Key Detected in Vehicle”

may be shown on the multi-information

display. To turn off the alarm, lock all the

doors.

■

Aluminum wheels

●

Remove any dirt immediately by using a

neutral detergent.

Cleaning and protecting the
vehicle exterior

Perform cleaning in a manner
appropriate to each component
and its material.

Cleaning instructions

307

6-1. Maintenance and care

Mai
nte

e a

are

●

Wash detergent off with water immedi-

ately after use.

●

To protect the paint from damage, make

sure to observe the following precau-

tions.

• Do not use acidic, alkaline or abrasive

detergent

• Do not use hard brushes

• Do not use detergent on the wheels when

they are hot, such as after driving or park-

ing in hot weather

■

Bumpers

Do not scrub with abrasive cleaners.

■

Front side windows water-repellent

coating

●

The following precautions can extend the

effectiveness of the water-repellent coat-

ing.

• Remove any dirt, etc. from the front side

windows regularly.

• Do not allow dirt and dust to accumulate

on the windows for a long period.

Clean the windows with a soft, damp

cloth as soon as possible.

• Do not use wax or glass cleaners that

contain abrasives when cleaning the win-

dows.

• Do not use any metallic objects to

remove condensation build up.

●

When the water-repellent performance

has become insufficient, the coating can

be repaired. Contact your Lexus dealer.

WARNING

■

When washing the vehicle

Do not apply water to the inside of the

engine compartment. Doing so may

cause the electrical components, etc. to

catch fire.

■

When cleaning the windshield (vehi-

cles with rain-sensing windshield wip-

ers)

Set the wiper switch to off.

If the switch is in AUTO, the wipers may

operate unexpectedly in the following sit-

uations, and may result in hands being

caught or other serious injuries and

cause damage to the wiper blades.

Off

AUTO

●

When the upper part of the windshield

where the raindrop sensor is located is

touched by hand

●

When a wet rag or similar is held close

to the raindrop sensor

●

If something bumps against the wind-

shield

●

If you directly touch the raindrop sen-

sor body or if something bumps into

the raindrop sensor

■

Precautions regarding the exhaust

pipe

Exhaust gasses cause the exhaust pipe to

become quite hot.

When washing the vehicle, be careful not

to touch the pipe until it has cooled suffi-

ciently, as touching a hot exhaust pipe

can cause burns.

■

Precautions regarding the rear

bumper

If the paint of the rear bumper is chipped

or scratched, the following systems may

not function correctly. If this occurs, con-

sult your Lexus dealer.

308

6-1. Maintenance and care

WARNING

●

Lexus Safety System+2.0

●

BSM (if equipped)

●

RCTA (if equipped)

●

PKSB (if equipped)

NOTICE

■

To prevent paint deterioration and

corrosion on the body and compo-

nents (aluminum wheels, etc.)

●

Wash the vehicle immediately in the

following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present on the

paint surface

• If dead insects, insect droppings or

bird droppings are present on the

paint surface

• After driving in an area contaminated

with soot, oily smoke, mine dust, iron

powder or chemical substances

• If the vehicle becomes heavily soiled

with dust or mud

• If liquids such as benzene and gasoline

are spilled on the paint surface

●

If the paint is chipped or scratched,

have it repaired immediately.

●

To prevent the wheels from corroding,

remove any dirt and store in a place

with low humidity when storing the

wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use organic

substances or scrub with a hard brush.

This may damage the surfaces of the

lights.

●

Do not apply wax to the surfaces of the

lights.

Wax may cause damage to the lenses.

■

When using an automatic car wash

(vehicles with rain-sensing windshield

wipers)

Set the wiper switch to the off position.

If the wiper switch is in AUTO, the wipers

may operate and the wiper blades may

be damaged.

■

When using a high pressure car wash

●

When washing the vehicle, do not let

water of the high pressure washer hit

directly or the vicinity of the camera.

Due to the shock from the high pres-

sure water, it is possible the device may

not operate as normal.

●

Do not bring the nozzle tip close to

boots (rubber or resin manufactured

cover), connectors or the following

parts. The parts may be damaged if

they come into contact with high-pres-

sure water.

• Traction related parts
• Steering parts
• Suspension parts
• Brake parts

●

Keep the cleaning nozzle at least 11.9

in. (30 cm) away from the vehicle

body. Otherwise resin section, such as

molding and bumpers, may be

deformed and damaged. Also, do not

continuously hold the nozzle in the

same place.

●

Do not continuously let water hit at the

lower part of the windshield. As there

is the air inlet vents, the air condition-

ing system may not operate properly.

309

6-1. Maintenance and care

Mai
nte

e a

are

 Remove dirt and dust using a vac-

uum cleaner. Wipe dirty surfaces
with a cloth dampened with luke-
warm water.

 If dirt cannot be removed, wipe it off

with a soft cloth dampened with
neutral detergent diluted to approx-
imately 1%.
Wring out any excess water from
the cloth and thoroughly wipe off
remaining traces of detergent and
water.

■

Shampooing the carpets

There are several commercial foaming-type

cleaners available. Use a sponge or brush

to apply the foam. Rub in overlapping cir-

cles. Do not use water. Wipe dirty surfaces

and let them dry. Excellent results are

obtained by keeping the carpet as dry as

possible.

■

Handling the seat belts

Clean with mild soap and lukewarm water

using a cloth or sponge. Also check the

belts periodically for excessive wear, fraying

or cuts.

■

Front side windows with UV protective

coating (vehicles with UV protective

coating)

The front side windows have UV protective

coating. To prevent any damage to the UV

protective coating, observe the following:

●

If the windows are dirty, gently wipe them

with a cloth soaked in water or lukewarm

water as soon as possible.

●

If the windows are very dirty, do not open

and close them repeatedly.

Cleaning and protecting the
vehicle interior

Perform cleaning in a manner
appropriate to each component
and its material.

Protecting the vehicle interior

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in the vehi-

cle.

Doing so may cause electrical compo-

nents, etc. to malfunction or catch fire.

●

Do not get any of the SRS components

or wiring in the vehicle interior wet.

(

P.30)

An electrical malfunction may cause

the airbags to deploy or not function

properly, resulting in death or serious

injury.

●

Vehicles with wireless charger: Do not

let the wireless charger (

P.287) get

wet. Failure to do so may cause the

charger to become hot and cause

burns or could cause electric shock

resulting in death or serious injury.

■

Cleaning the interior (especially

instrument panel)

Do not use polish wax or polish cleaner.

The instrument panel may reflect off the

windshield, obstructing the driver’s view

and leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following types of

detergent, as they may discolor the

vehicle interior or cause streaks or

damage to painted surfaces:

• Non-seat portions: Organic sub-

stances such as benzene or gasoline,

alkaline or acidic solutions, dye, and

bleach

• Seats: Alkaline or acidic solutions,

such as thinner, benzene, and alcohol

310

6-1. Maintenance and care

 Remove dirt using a water-damp-

ened soft cloth or synthetic chamois.

 Wipe the surface with a dry soft

cloth to remove any remaining

moisture.

■

Cleaning the areas with satin-finish

metal accents

The metal areas use a layer of real metal for

the surface. It is necessary to clean them

regularly. If dirty areas are left uncleaned for

long periods of time, they may be difficult to

clean.

■

Cleaning the leather

 Remove dirt and dust using a vac-

uum cleaner.

 Wipe off any excess dirt and dust

with a soft cloth dampened with
diluted detergent.

Use a diluted water solution of approxi-
mately 5% neutral wool detergent.

 Wring out any excess water from

the cloth and thoroughly wipe off all
remaining traces of detergent.

 Wipe the surface with a dry, soft

cloth to remove any remaining
moisture. Allow the leather to dry in
a shaded and ventilated area.

■

Cleaning the synthetic leather

 Remove dirt and dust using a vac-

uum cleaner.

 If the area gets dirty, wipe it off with

a soft cloth dampened with water
and wrung out.

 If dirt cannot be removed by wiping

with water, wipe it off using cleaner
for leather.

■

Caring for leather areas

Lexus recommends cleaning the interior of

NOTICE

●

Do not use polish wax or polish

cleaner. The instrument panel’s or

other interior part’s painted surface

may be damaged.

■

Water on the floor

Do not wash the vehicle floor with water.

Vehicle systems such as the audio system

may be damaged if water comes into

contact with electrical components such

as the audio system above or under the

floor of the vehicle. Water may also

cause the body to rust.

■

When cleaning the inside of the wind-

shield

Do not allow glass cleaner to contact the

lens. Also, do not touch the lens.

(

P.180)

■

Cleaning the inside of the rear win-

dow

●

Do not use glass cleaner to clean the

rear window, as this may cause dam-

age to the rear window defogger

heater wires or antenna. Use a cloth

dampened with lukewarm water to

gently wipe the window clean. Wipe

the window in strokes running parallel

to the heater wires or antenna.

●

Be careful not to scratch or damage

the heater wires or antenna.

■

Cleaning the front side windows

Do not use any compound or abrasive

product (e.g., glass cleaner, detergent,

wax) to clean the windows. It may dam-

age the coating.

Cleaning the areas with satin-fin-
ish metal accents

Cleaning the leather areas

311

6-1. Maintenance and care

Mai
nte

e a

are

the vehicle at least twice a year to maintain

the quality of the vehicle’s interior.

■

Dirt on the synthetic leather areas

Ingrained dirt which has been left

uncleaned for long periods of time is diffi-

cult to clean. Lexus recommends cleaning

the area regularly.

NOTICE

■

Preventing damage to leather sur-

faces

Observe the following precautions to

avoid damage to and deterioration of

leather surfaces:

●

Remove any dust or dirt from leather

surfaces immediately.

●

Do not expose the vehicle to direct

sunlight for extended periods of time.

Park the vehicle in the shade, espe-

cially during summer.

●

Do not place items made of vinyl, plas-

tic, or containing wax on the uphol-

stery, as they may stick to the leather

surface if the vehicle interior heats up

significantly.

312

6-2. Maintenance

6-2.Maintenance

■

Repair and replacement

It is recommended that genuine Lexus parts

be used for repairs to ensure performance

of each system. If non-Lexus parts are used

in replacement or if a repair shop other than

a Lexus dealer performs repairs, confirm

the warranty coverage.

■

Allow inspection and repairs to be per-

formed by a Lexus dealer

●

Lexus technicians are well-trained spe-

cialists and are kept up to date with the

latest service information. They are well

informed about the operation of all sys-

tems on your vehicle.

●

Keep a copy of the repair order. It proves

that the maintenance that has been per-

formed is under warranty coverage. If any

problem should arise while your vehicle is

under warranty, your Lexus dealer will

promptly take care of it.

General maintenance should be per-
formed on a daily basis. This can be
done by yourself or by a Lexus dealer.

Scheduled maintenance should be
performed at specified intervals
according to the maintenance sched-
ule.

For details about maintenance items and
schedules, refer to the “Warranty and Ser-
vice Guide”, “Owner’s Manual Supple-
ment” or “Scheduled Maintenance”.

■

Resetting the message indicating main-

tenance is required

After the required maintenance is per-

formed according to the maintenance

schedule, please reset the message.

To reset the message, follow the procedures

described below:

Press

of the meter control

switches and select

Press

of the meter control

switches, select “Vehicle Settings” and

then press “OK”.

Maintenance requirements

To ensure safe and economical driv-
ing, day-to-day care and regular
maintenance are essential. It is the
owner’s responsibility to perform
regular checks. Lexus recommends
the following maintenance:

WARNING

■

If your vehicle is not properly main-

tained

Improper maintenance could result in

serious damage to the vehicle and possi-

ble serious injury or death.

■

Handling of the battery

●

Engine exhaust, some of its constitu-

ents, and a wide variety of automobile

components contain or emit chemicals

known to the State of California to

cause cancer and birth defects and

other reproductive harm. Work in a

well ventilated area.

●

Oils, fuels and fluids contained in vehi-

cles as well as waste produced by

component wear contain or emit

chemicals known to the State of Cali-

fornia to cause cancer and birth

defects or other reproductive harm.

Avoid exposure and wash any affected

area immediately.

●

Battery posts, terminals and related

accessories contain lead and lead

compounds which are known to cause

brain damage. Wash your hands after

handling. (

P.325)

General maintenance

Scheduled maintenance

313

6-2. Maintenance

Mai
nte

e a

are

Press

of the meter control

switches, select “Scheduled Mainte-

nance” and then press and hold the

“OK”.

Select “Yes” and press “OK”.

A message will be displayed when the reset

procedure has been completed.

You can perform some maintenance
procedures by yourself.
Please be aware that do-it-yourself
maintenance may affect warranty cov-
erage.

The use of Lexus repair manuals is recom-
mended.
For details about warranty coverage, refer
to the separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Man-
ual Supplement” or “Warranty Booklet”.

Do-it-yourself maintenance

General maintenance

Listed below are the general main-
tenance items that should be per-
formed at the intervals specified in
the “Warranty and Service Guide”
or “Owner’s Manual Supplement”.
It is recommended that any prob-
lem you notice should be brought to
the attention of your Lexus dealer
or qualified service shop for advice.

WARNING

■

If the engine is running

Turn the engine off and ensure that there

is adequate ventilation before perform-

ing maintenance checks.

Engine compartment

Items

Check points

Battery

Check the connections.
(

P.325)

Brake fluid

Is the brake fluid at the
correct level? (

P.324)

Engine coolant

Is the engine coolant at
the correct level?
(

P.323)

Engine oil

Is the engine oil at the
correct level? (

P.321)

Exhaust system

There should not be any
fumes or strange
sounds.

314

6-2. Maintenance

Radiator/con-
denser

The radiator and con-
denser should be free
from foreign objects.
(

P.324)

Washer fluid

Is there sufficient washer
fluid? (

P.327)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator pedal

should move smoothly
(without uneven pedal
effort or catching).

Automatic
transmission
“Park” mecha-
nism

• When parked on a

slope and the shift
lever is in P, is the vehi-
cle securely stopped?

Brake pedal

• Does the brake pedal

move smoothly?

• Does the brake pedal

have appropriate
clearance from the
floor?

• Does the brake pedal

have the correct
amount of free play?

Items

Check points

Brakes

• The vehicle should not

pull to one side when
the brakes are
applied.

• The brakes should

work effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get too
close to the floor
when the brakes are
applied.

Head restraints

• Do the head restraints

move smoothly and
lock securely?

Indica-
tors/buzzers

• Do the indicators and

buzzers function
properly?

Lights

• Do all the lights come

on?

• Are the headlights

aimed correctly?

Parking brake

• Does the parking

brake switch operate
normally?

• When parked on a

slope and the parking
brake is on, is the vehi-
cle securely stopped?

Seat belts

• Do the seat belts

operate smoothly?

• The seat belts should

not be damaged.

Items

Check points

315

6-2. Maintenance

Mai
nte

e a

are

Seats

• Do the seat controls

operate properly?

Steering wheel

• Does the steering

wheel rotate
smoothly?

• Does the steering

wheel have the cor-
rect amount of free
play?

• There should not be

any strange sounds
coming from the
steering wheel.

Vehicle exterior

Items

Check points

Doors

• Do the doors operate

smoothly?

Engine hood

• Does the engine hood

lock system work
properly?

Fluid leaks

• There should not be

any signs of fluid leak-
age after the vehicle
has been parked.

Items

Check points

Tires

• Is the tire inflation

pressure correct?

• The tires should not be

damaged or exces-
sively worn.

• Have the tires been

rotated according to
the maintenance
schedule?

• The wheel nuts should

not be loose.

Windshield wip-
ers/
rear window
wiper

• The wiper blades

should not show any
signs of cracking,
splitting, wear, con-
tamination or defor-
mation.

• The wiper blades

should clear the wind-
shield/rear window
without streaking or
skipping.

Items

Check points

Content .. 17 18 19 20 ..
