LEXUS UX 200 (2019 year). Instruction - part 18

284

5-5. Using the storage features

WARNING

●

When unfolding the luggage cover,

hold it securely in both hands and

slowly unfold it.

●

Do not unfold the luggage cover near

your face.

●

When unfolding the luggage cover, do

not release your hand from the cover.

●

Do not unfold the luggage cover near

other people.

■

When installing the luggage cover

Observe the following precautions. Fail-

ure to do so may cause an accident.

●

Make sure that the rear edge of the

luggage cover is laying flat to prevent

the driver’s view from being

obstructed.

●

Make sure to attach the strings cor-

rectly.

NOTICE

■

When using the luggage cover

●

Do not place anything on the luggage

cover. Doing so may deform the lug-

gage cover.

●

Do not open or close the back door

with the strings unhooked. Doing so

may cause damage to the luggage

cover.

●

Do not hook anything other than the

luggage cover and deck board strings

on the luggage cover hooks. The

hooks and back door may be dam-

aged.

285

5-6. Using the other interior features

rio

r f

5-6.Using the other interior features

To set the visor in the forward posi-
tion, flip it down.

To set the visor in the side position,
flip down, unhook, and swing it to
the side.

To use the side extender, place the
visor in the side position, then slide
it backward.

■

When adjusting the inside rear view mir-

ror

Adjust the inside rear view mirror to enable

sufficient confirmation of the rear view with-

out interfering with the sun visor.

Slide the cover to open.

The light turns on when the cover is
opened.

■

Vanity lights

If the vanity lights remain on when the

engine switch is turned off, the lights will go

off automatically after 20 minutes.

The GPS clock’s time is automatically
adjusted by utilizing GPS time infor-
mation.
For details, refer to the “NAVIGA-
TION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Other interior features

Sun visors

NOTICE

■

To prevent damage to the sun visors

When using the side extender, do not

swing the visor to the front.

Vanity mirrors

NOTICE

■

To prevent battery discharge

Do not leave the vanity lights on for

extended periods while the engine is off.

Clock

286

5-6. Using the other interior features

Please use a power supply for elec-
tronic goods that use less than 12
VDC/10 A (power consumption of
120 W).
When using electronic goods, make
sure that the power consumption of all
the connected power outlets is less
than 120 W.



Front

Press down the lid to open it.



Rear

Open the lid.

■

The power outlet can be used when

The engine switch is in ACC or ON.

The USB charging ports are used to
supply 2.1 A of electricity at 5 V to

Power outlet

NOTICE

■

When power outlet is not in use

To avoid damaging the power outlet,

close the power outlet lid when the

power outlet is not in use.

Foreign objects or liquids that enter the

power outlet may cause a short circuit.

■

To prevent battery discharge

Do not use the power outlet longer than

necessary when the engine is off.

■

To prevent incorrect operation of the

vehicle

When turning the engine switch off,

make sure to disconnect accessories

designed for charging, such as portable

chargers, power banks, etc. from the

power outlets.
If such an accessory is left connected, the

following may occur:

●

The doors will not be able to be locked.

●

The opening screen will be displayed

on the multi-information display.

●

The interior lights, instrument panel

lights, etc. will illuminate.

USB charging ports

287

5-6. Using the other interior features

rio

r f

external devices.
The USB charging ports are for
charging only. They are not designed
for data transfer or other purposes.
Depending on the external device, it
may not charge properly. Refer to the
manual included with the device
before using a USB charging port.

■

Using the USB charging ports

Open the lid.

■

The USB charging ports can be used

when

The engine switch is in ACC or ON.

■

Situations in which the USB charging

ports may not operate correctly

●

If a device which consumes more than 2.1

A at 5 V is connected

●

If a device designed to communicate with

a personal computer, such as a USB

memory device, is connected

●

If the connected external device is turned

off (depending on device)

●

If the temperature inside the vehicle is

high, such as after the vehicle has been

parked in the sun

■

About connected external devices

Depending on the connected external

device, charging may occasionally be sus-

pended and then start again. This is not a

malfunction.

A portable device, such as a smart-
phone or mobile battery, can be
charged by just placing it on the
charging area, provided the device is
compatible with the Qi wireless
charging standard created by the
Wireless Power Consortium.
The wireless charger cannot be used
with a portable device that is larger

NOTICE

■

To prevent damage to the USB

charging ports

●

Do not insert foreign objects into the

ports.

●

Do not spill water or other liquids into

the ports.

●

When the USB charging ports are not

in use, close the lids. If a foreign object

or liquid enters a port may cause a

short circuit.

●

Do not apply excessive force to or

impact the USB charging ports.

●

Do not disassemble or modify the USB

charging ports.

■

To prevent damage to external

devices

●

Do not leave external devices in the

vehicle. The temperature inside the

vehicle may become high, resulting in

damage to an external device.

●

Do not push down on or apply unnec-

essary force to an external device or

the cable of an external device while it

is connected.

■

To prevent battery discharge

Do not use the USB charging ports for a

long period of time with the engine

stopped.

Wireless charger (if equipped)

288

5-6. Using the other interior features

than the charging area. Additionally,
depending on the portable device, the
wireless charger may not operate
properly. Refer to the operation man-
ual of the portable device.

■

The “Qi” symbol

The “Qi” symbol is a trademark of the
Wireless Power Consortium.

■

Name for all parts

Operation indicator light

Power supply switch

Charge area

■

Using the wireless charger

Press the power supply switch of
the wireless charger.

Pressing the switch again turns the wireless

charger off.

When turned on, the operation indicator

light (green) comes on.
When the engine switch is turned off, the

on/off state of the wireless charger will be

memorized.

Place a portable device on the
charging area with its charging sur-
face facing down.

While charging, the operation indicator

light (orange) will be illuminated.
If charging does not begin, move the porta-

ble device as close to the center of the

charging area as possible.
When charging is complete, the operation

indicator light (green) will illuminate.

■

Recharging function

 If a certain amount of time has

elapsed since charging completed
and the portable device has not
been moved, the wireless charger
will restart charging.

 If the portable device is moved

within the charging area, charging
will stop temporarily then restart.

A
B
C

289

5-6. Using the other interior features

Interio

r fe

atures

■

Operation indicator light status

: Depending on the portable device, the

operation indicator light may stay illumi-
nated (orange) after charging has com-
pleted.

 If the operation indicator light blinks

If an error is detected, the operation indi-
cator light will blink (orange). Take the
appropriate measures according to the
table below.
• Blinks (orange) at a one second interval

continuously

• Blinks (orange) 3 times repeatedly

• Blinks (orange) 4 times repeatedly

■

The wireless charger can be operated

when

The engine switch is in ACC or ON.

■

Portable devices that can be charged

●

Portable devices compatible with the Qi

wireless charging standard can be

charged by the wireless charger. How-

ever, compatibility with all devices which

meet the Qi wireless charging standard is

not guaranteed.

●

The wireless charger is designed to sup-

ply low power electricity (5 W or less) to

a cellular phone, smartphone, or other

portable device.

■

If a cover or accessory is attached to the

portable device

Do not charge a portable device if a cover

or accessory which is not Qi compatible is

attached. Depending on the type of cover

and/or accessory attached, it may not be

possible to charge the portable device. If

the portable device is placed on the

charging area and does not charge, remove

the cover and/or accessories.

■

If interference is heard in AM radio

broadcasts while charging

Turn off the wireless charger and check if

Operation indicator

light

State

Off

The Wireless char-
ger is off

Green (illuminated)

Standby (charging is
possible)

Charging is com-
plete

Orange (illumi-
nated)

A portable device
has been placed on
the charging area
(identifying the por-
table device)

Charging in prog-
ress

Suspected causes

Measure

Vehicle to charger
communication fail-
ure.

Contact your Lexus
dealer.

Suspected causes

Measure

A foreign object
exists between the
portable device and
charging area.

Remove the foreign
object.

Portable device is
not positioned prop-
erly on the charging
area.

Move the portable
device toward the
center of the
charging area.

Suspected causes

Measure

The temperature of
the wireless charger
is excessively high.

Stop charging
immediately and
continue charging
after a while.

290

5-6. Using the other interior features

the noise is reduced. If noise is reduced,

press and hold the power supply switch of

the wireless charger for 2 seconds. The fre-

quency of the wireless charger is changed

and noise may be reduced. When the fre-

quency is changed, the operation indicator

light will blink (orange) 2 times.

■

Charging precautions

●

If the electronic key cannot be detected

in the cabin, charging cannot be per-

formed. When a door is opened and

closed, charging may be temporarily sus-

pended.

●

While charging, the wireless charger and

the portable device will become warm.

This is not a malfunction.

If a portable device becomes warm while

charging and charging stops due to the

protection function of the portable

device, wait until the portable device

cools down and charge it again.

■

Sound generated during operation

When the power supply switch is turned on

or while a portable device is being identi-

fied, operation sounds may be heard. This is

not a malfunction.

■

Cleaning the wireless charger

P.309

■

Label indicating precautions for using

the wireless charger

There is a label on the vehicle front side of

the wireless charger. Follow the instructions

on the label.

291

5-6. Using the other interior features

Interio

r fe

atures

■

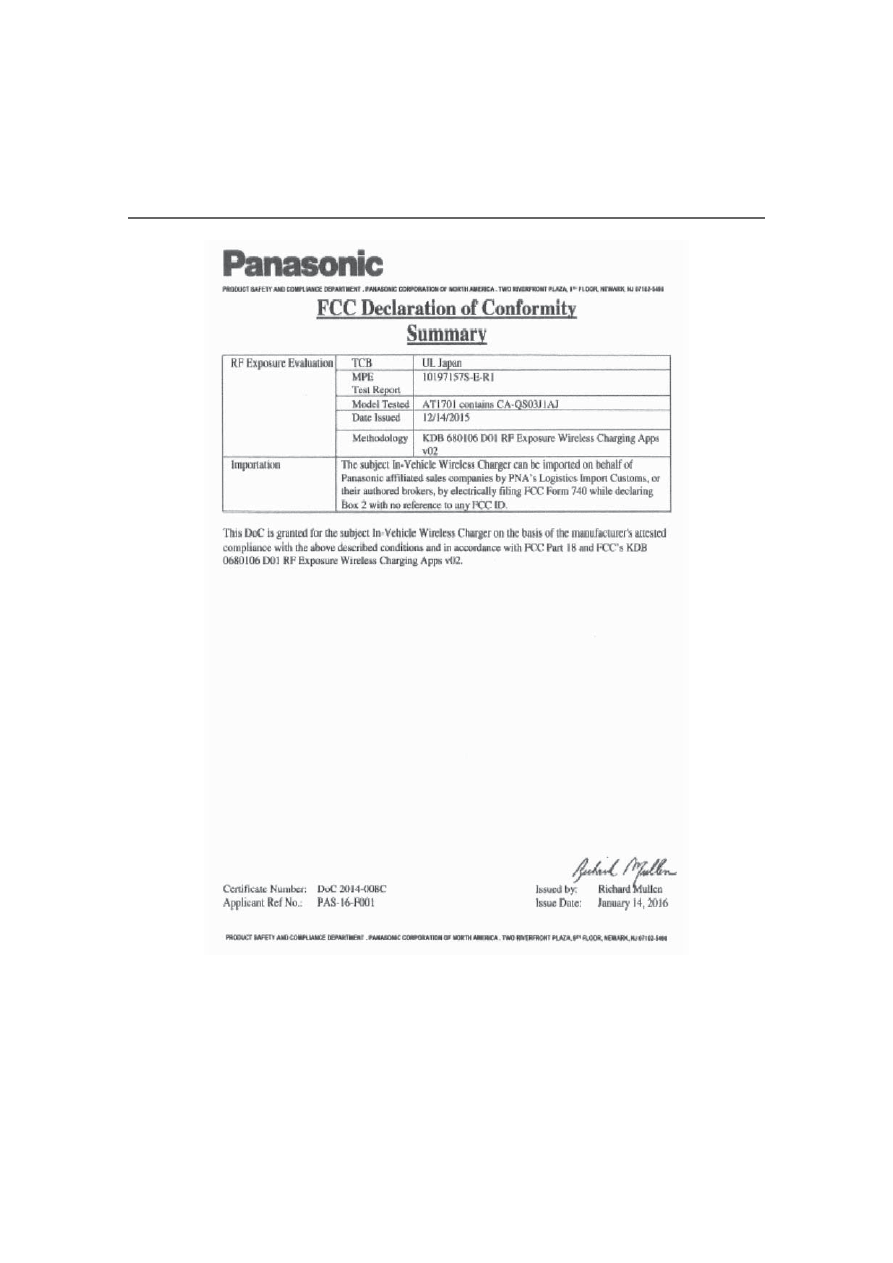

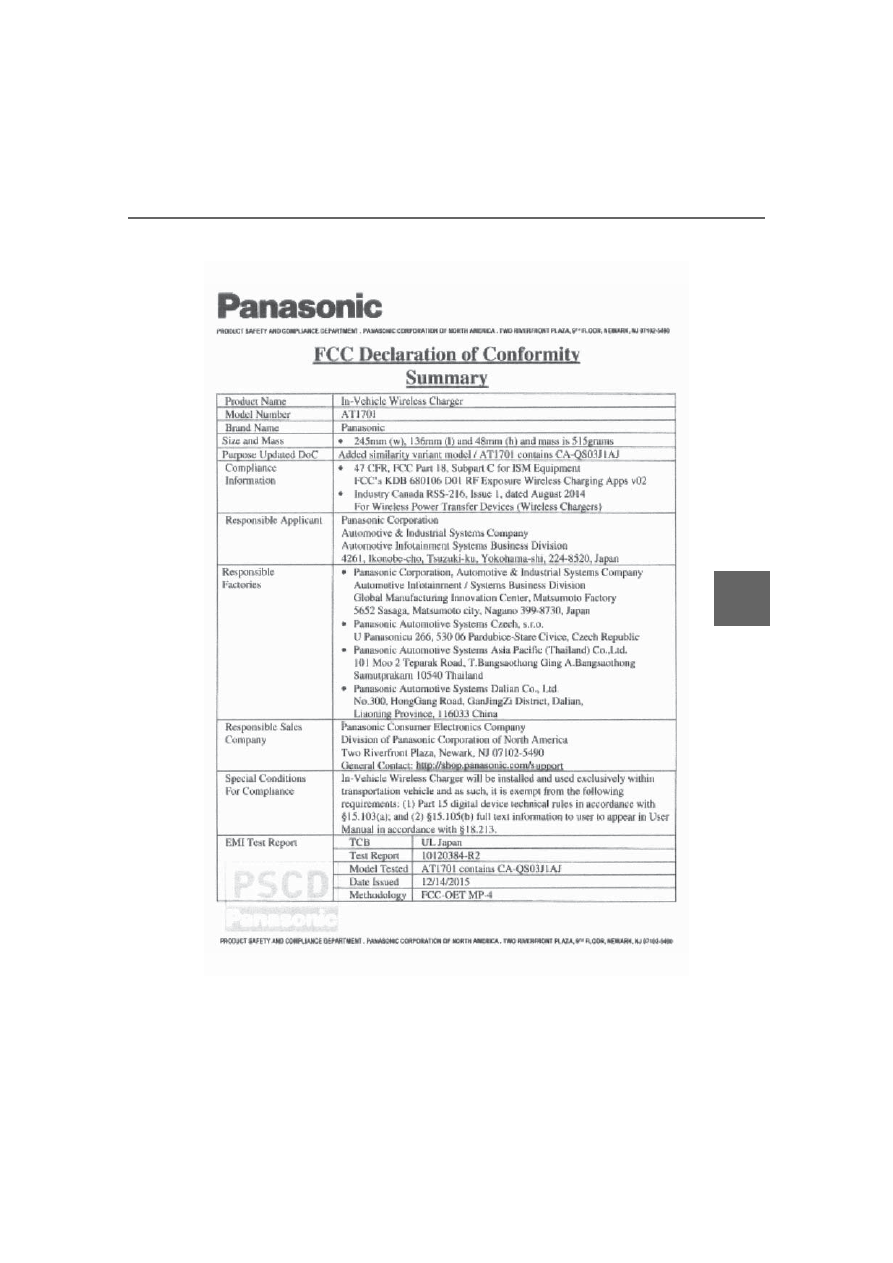

Certification for the wireless charger

292

5-6. Using the other interior features

293

5-6. Using the other interior features

rio

r f

WARNING

■

Caution while driving

When charging a portable device while

driving, for safety reasons, the driver

should not operate the portable device.

■

Caution regarding interference with

electronic devices

People who use cardiac pacemakers

should use the wireless charger sepa-

rated from the installation part of the car-

diac pacemaker by 8.7 in. (22 cm) or

more.

■

To prevent damage or burns

Observe the following precautions.

Failure to do so may result in the possibil-

ity of fire, equipment failure or damage,

or burns due to heat.

●

Do not put any metallic objects

between the charging area and the

portable device while charging.

●

Do not place containers with liquid

such as water on the wireless charger.

●

Do not attach metallic objects, such as

aluminum stickers, to the charging

area.

●

Do not cover the wireless charger with

a cloth or other object while charging.

●

Do not attempt to charge portable

devices which are not compatible with

the Qi wireless charging standard.

●

Do not disassemble, modify or remove

the wireless charger.

●

Do not apply force or impact to the

wireless charger.

NOTICE

■

Conditions in which the wireless

charger may not operate correctly

In the following situations, the wireless

charger may not operate correctly:

●

When a portable device is fully

charged

●

When there is a foreign object

between the charging area and porta-

ble device

●

When a portable device becomes hot

while charging

●

When a portable device is placed on

the charging area with its charging sur-

face facing up

294

5-6. Using the other interior features

Fold down the armrest for use.

The coat hooks are provided with the
rear assist grips.

NOTICE

●

When a portable device is not cen-

tered on the charging area

●

When the vehicle is near a TV tower,

electric power plant, gas station, radio

station, large display, airport or other

facility that generates strong radio

waves or electrical noise

●

When the portable device is in contact

with, or is covered by any of the follow-

ing metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have aluminum

foil inside

• Metallic wallets or bags

• Coins

• Metal hand warmers

• Media such as CDs and DVDs

●

When wireless keys (that emit radio

waves) other than those of your vehicle

are being used nearby.

If in situations other than above the wire-

less charger does not operate properly

or the operation indicator light is blink-

ing, the wireless charger may be mal-

functioning. Contact your Lexus dealer.

■

To prevent failure or damage to data

●

Do not bring magnetic cards, such as a

credit card, or magnetic recording

media, close to the wireless charger

while charging. Otherwise, data may

be erased due to the influence of mag-

netism.

Additionally, do not bring precision

instruments such as wrist watches,

close to the wireless charger, as such

objects may malfunction.

●

Do not leave portable devices in the

cabin. The temperature inside the

cabin may become high when parked

in the sun, and cause damage to the

device.

■

To prevent battery discharge

Do not use the wireless charger for a

long period of time with the engine is

stopped.

Armrest

NOTICE

■

To prevent damage to the armrest

Do not apply too much load on the arm-

rest.

Coat hooks

295

5-6. Using the other interior features

rio

r f

An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.

: If equipped

The HomeLink

wireless control sys-

tem in your vehicle has 3 buttons which
can be programmed to operate 3 dif-
ferent devices. Refer to the program-
ming methods on the following pages
to determine the method which is
appropriate for the device.

HomeLink

indicator light

Garage door operation indicators

HomeLink

icon

Illuminates while HomeLink

is operating.

Buttons

■

Codes stored in the HomeLink

mem-

ory

●

The registered codes are not erased even

if the battery cable is disconnected.

WARNING

■

Items that must not be hung on the

hook

Do not hang coat hangers or other hard

or sharp objects on the hook. If the SRS

curtain shield airbags deploy, these items

may become projectiles, causing death

or serious injury.

Assist grips

WARNING

■

Assist grips

Do not use the assist grip when getting in

or out of the vehicle or rising from your

seat.

NOTICE

■

To prevent damage to the assist grip

Do not hang any heavy object or put a

heavy load on the assist grip.

Garage door opener

The garage door opener can be
programmed using the Home-
Link

to operate garage doors,

gates, entry doors, door locks,
home lighting systems, security sys-
tems, and other devices.

System components

296

5-6. Using the other interior features

●

If learning failed when registering a dif-
ferent code to a HomeLink

button that

already has a code registered to it, the

already registered code will not be

erased.

■

Certification for the garage door opener

■

When support is necessary

Visit on the web at

www.homelink.com/lexus

or call 1-800-355-3515.

■

Before programming HomeLink

 During programming, it is possible

WARNING

■

When programming a garage door or

other remote control device

The garage door or other device may

operate, so ensure people and objects

are out of danger to prevent potential

harm.

■

Conforming to federal safety stan-

dards

Do not use the HomeLink

compatible

transceiver with any garage door opener

or device that lacks safety stop and

reverse features as required by federal

safety standards.
This includes any garage door that can-

not detect an interfering object. A door

or device without these features

increases the risk of death or serious

injury.

■

When operating or programming
HomeLink

Never allow a child to operate or play
with the HomeLink

buttons.

Programming the HomeLink

297

5-6. Using the other interior features

Interio

r fe

atures

that garage doors, gates, or other
devices may operate. For this rea-
son, make sure that people and
objects are clear of the garage door
or other devices to prevent injury or
other potential harm.

 It is recommended that a new bat-

tery be placed in the remote control
transmitter for more accurate pro-
gramming.

 Garage door opener motors manu-

factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “Learn” or
“Smart” button on the garage door
opener motor.

■

Programming HomeLink

Steps

through

must be performed

within 60 seconds, otherwise the indi-
cator light will stop flashing and pro-
gramming will not be able to be
completed.

Press and release the HomeLink

button you want to program and
check that the HomeLink

indica-

tor light flashes (orange).

Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink

buttons.

Keep the HomeLink

indicator light in

view while programming.

Program a device.



Programming a device other than
an entry gate (for U.S.A. owners)

Press and hold the remote control
transmitter button until the Home-
Link

indicator light changes from

slowly flashing orange to rapidly flash-
ing green (rolling code) or continu-
ously lit green (fixed code), then
release the button.



Programming an entry gate (for
U.S.A. owners)/Programming a
device in the Canadian market

Press and release the remote control
transmitter button at 2 second inter-
vals, repeatedly, until the HomeLink

indicator light changes from slowly
flashing (orange) to rapidly flashing
(green) (rolling code) or continuously
lit (green) (fixed code).

298

5-6. Using the other interior features

Test the HomeLink

operation by

pressing the newly programmed
button and observing the indicator
light:

 Indicator light illuminates: Program-

ming of a fixed code device has
completed. The garage door or
other device should operate when a
HomeLink

button is pressed and

released.

 Indicator light flashes rapidly: The

garage door opener motor or other
device is equipped with a rolling
code. To complete programming,
firmly press and hold the Home-
Link

button for 2 seconds then

release it.

 If the garage door or other device

does not operate, proceed to “Pro-
gramming a rolling code system”.

Repeat the steps above to program
another device for any of the
remaining HomeLink

buttons.

■

Programming a rolling code sys-
tem

2 or more people may be necessary to
complete rolling code programming.

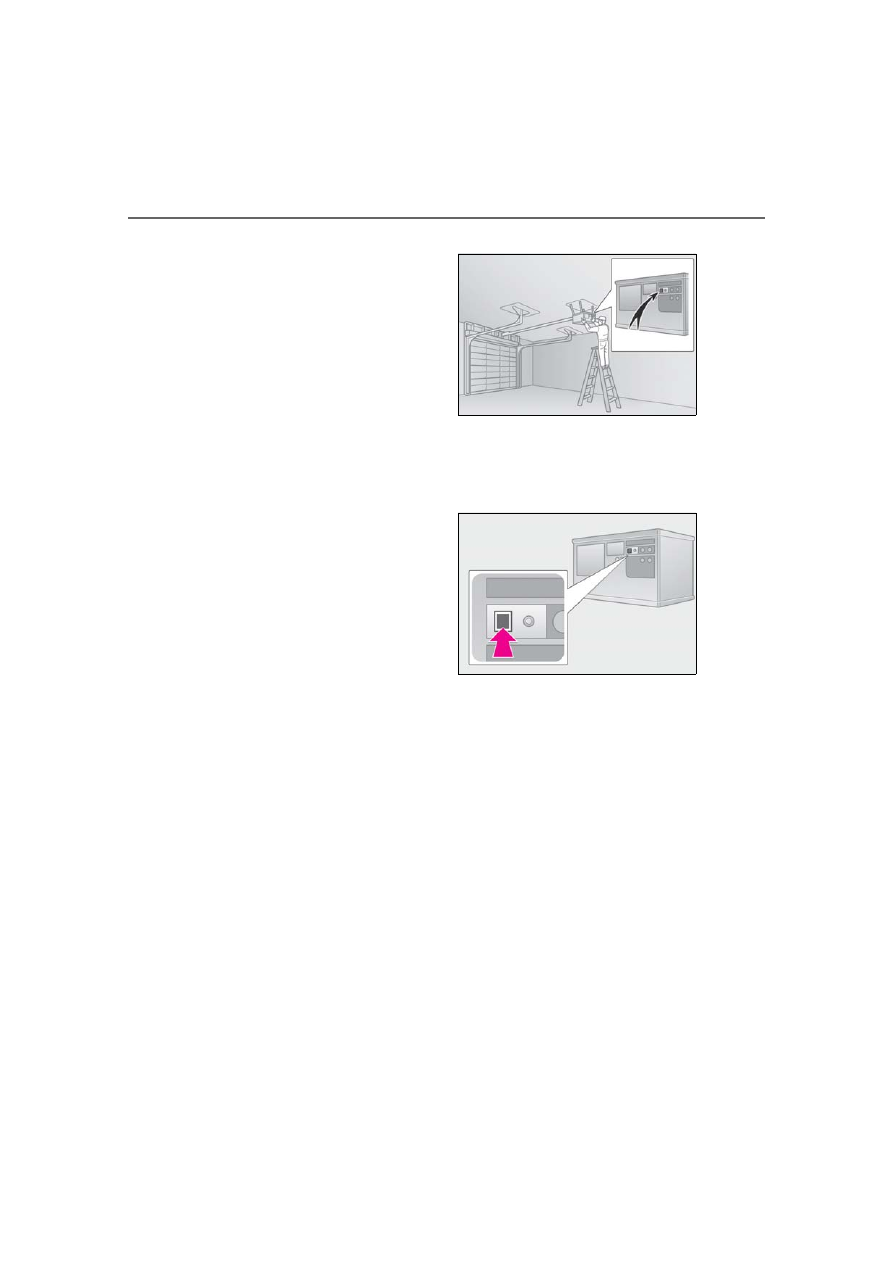

Locate the “Learn” or “Smart” but-
ton on the garage door opener
motor in the garage.

This button can usually be found where the

hanging antenna wire is attached to the

unit. The name and color of the button may

vary by manufacturer. Refer to the owner’s

manual supplied with the garage door

opener motor for details.

Press and release the “Learn” or
“Smart” button.
Perform

within 30 seconds after

performing

Press and hold the desired Home-
Link

button (inside the vehicle)

for 2 seconds and release it. Repeat
this sequence (press/hold/release)
up to 3 times to complete pro-
gramming.
If the garage door opener motor
operates when the HomeLink

button is pressed, the garage door

299

5-6. Using the other interior features

Interio

r fe

atures

opener motor recognizes the
HomeLink

signal.

■

Enabling 2-way communication
with a garage door (only available
for compatible devices)

When enabled, 2-way communication
allows you to check the status of the
opening and closing of a garage door
through indicators in your vehicle.
2-way communication is only available
if the garage door opener motor used
is a compatible device. (To check
device compatibility, refer to
www.homelink.com.)

Within 5 seconds after program-
ming the garage door opener has
been completed, if the garage door
opener motor is trained to Home-
Link

, both garage door operation

indicators will flash rapidly (green)
and the light on the garage door
opener motor will blink twice, indi-
cating that 2-way communication is
enabled.

If the indicators do not flash, perform

and

within the first 10 presses of the Home-

Link

button after programming has been

completed.

Press a programmed HomeLink

button to operate a garage door.

Within 1 minute of pressing the
HomeLink

button, after the

garage door operation has
stopped, press the “Learn” or
“Smart” button on the garage door
opener motor. Within 5 seconds of
the establishment of 2-way com-
munication with the garage door
opener, both garage door opera-
tion indicators in the vehicle will
flash rapidly (green) and the light
on the garage door opener motor
will blink twice, indicating that 2-
way communication is enabled.

■

Reprogramming a single Home-
Link

button

When the following procedure is per-
formed, buttons which already have
devices registered to them can be
overwritten:

With one hand, press and hold the
desired HomeLink

button.

When the HomeLink

indicator

starts flashing (orange), continue to
hold the HomeLink

button and

perform “Programming Home-
Link

”

(it takes 20 seconds for

the HomeLink

indicator to start

flashing).

■

Before programming

●

Install a new battery in the transmitter.

●

The battery side of the transmitter must
be pointed away from the HomeLink

Content .. 16 17 18 19 ..
