2-1. Instrument cluster

Use the displayed average fuel consump-
tion as a reference.

■

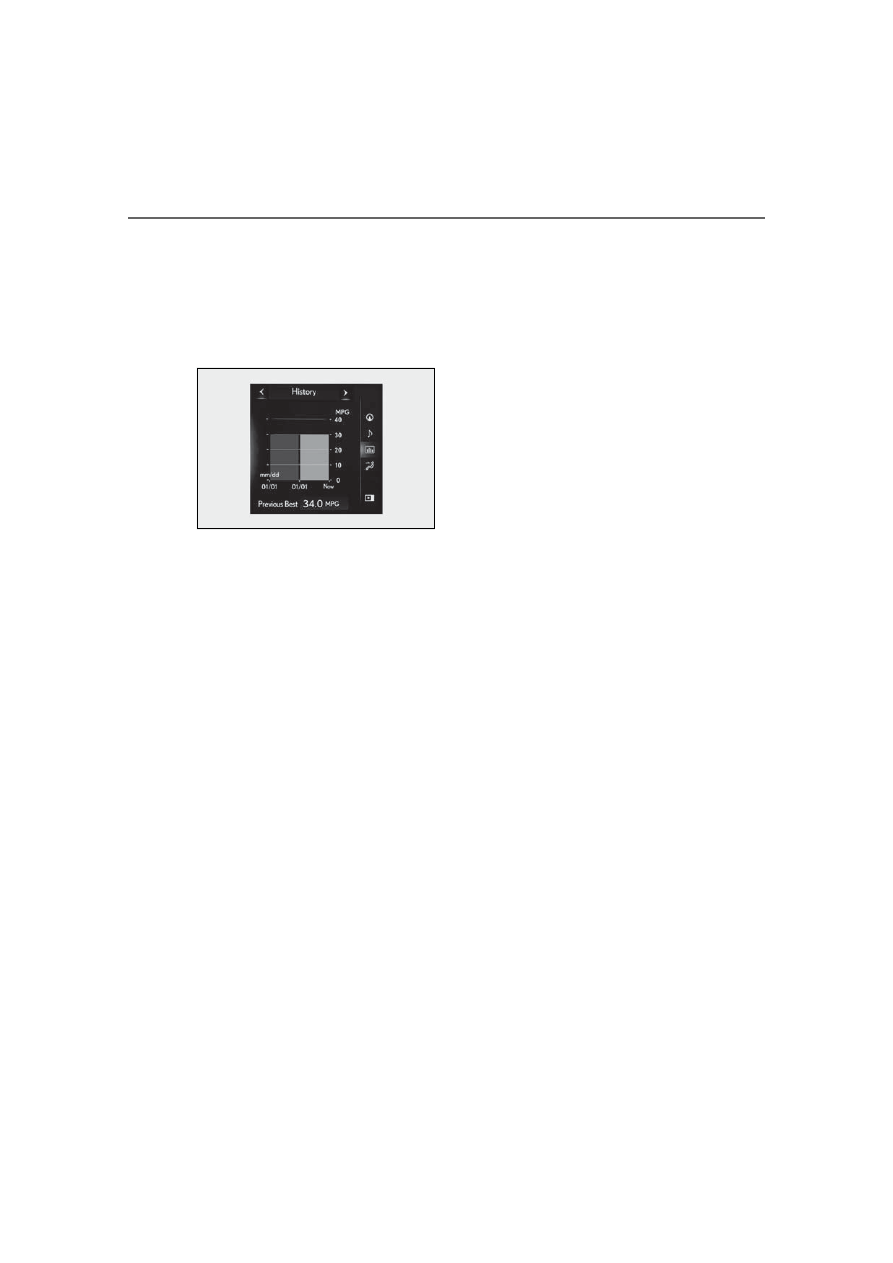

History

Displays the average fuel consumption,
previous average fuel consumption
and highest fuel consumption.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

fore
dri
ving

Before driving

3-1. Key information

Keys ...................................................

3-2. Opening, closing and locking the

doors

Side doors .......................................

Back door......................................

102

Smart access system with push-

button start..................................

114

3-3. Adjusting the seats

Front seats......................................

121

Rear seats......................................

122

Driving position memory ........

123

Head restraints............................

126

3-4. Adjusting the steering wheel and

mirrors

Steering wheel.............................

129

Inside rear view mirror.............

130

Outside rear view mirrors......

132

3-5. Opening, closing the windows

and moon roof

Power windows...........................

135

Moon roof .....................................

137

3-1. Key information

3-1.Key information

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart access system with

push-button start (

P.114)

• Operating the wireless remote control

function

Mechanical keys

Key number plate

Card key (electronic key) (if
equipped)

Operating the smart access system with
push-button start (

P.114)

■

Card key (if equipped)

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

●

The card key is not waterproof.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag, etc., ensure that

the buttons are not likely to be pressed acci-

dentally. Pressing a button may cause the

electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is about a year

and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin when the engine stops.

●

To reduce key battery depletion when the

electronic key is to not be used for long

periods of time, set the electronic key to

the battery-saving mode. (

P.115)

●

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary. (

P.341)

• The smart access system with push-but-

ton start or the wireless remote control

does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

You can replace the battery by yourself

Keys

Key types

B
C
D

3-1. Key information

fore
dri
ving

(

P.341). However, as there is a danger

that the electronic key may be damaged, it
is recommended that replacement be car-
ried out by your Lexus dealer.

●

To avoid serious deterioration, do not

leave the electronic key within 3 ft. (1 m)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

■

Replacing the battery

P.341

■

Confirmation of the registered key

number

The number of keys already registered to

the vehicle can be confirmed. Ask your

Lexus dealer for details.

■

If “A New Key has been Registered

Contact Your Dealer for Details” is

shown on the multi-information display

This message will be displayed each time

the driver’s door is opened when the doors

are unlocked from the outside for approxi-

mately 10 days after a new electronic key

has been registered. If this message is dis-

played but you have not had a new elec-

tronic key registered, ask your Lexus dealer

to check if an unknown electronic key

(other than those in your possession) has

been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to

strong shocks or bend them.

●

Do not expose the keys to high tem-

peratures for long periods of time.

●

Do not get the keys wet or wash them

in an ultrasonic washer, etc.

●

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else

to the surface of the electronic key.

●

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers,

or medical electrical equipment, such

as low-frequency therapy equipment.

■

Carrying the electronic key on your

person

Carry the electronic key 3.9 in. (10 cm)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 3.9 in. (10

cm) of the electronic key may interfere

with the key, causing the key to not func-

tion properly.

■

In case of a smart access system with

push-button start malfunction or

other key-related problems

P.380

■

When an electronic key is lost

P.379

■

Handling the card key

●

If the battery or card key terminals get

wet, the battery may corrode and the

card key may stop working.

If the key is dropped into water, or if

drinking water, etc., is spilled on the

key, immediately remove the battery

cover and wipe the battery and termi-

nals. (To remove the battery cover,

lightly grasp and pull it.) If the battery is

corroded, have your Lexus dealer

replace the battery.

●

Do not crush the battery cover or use

a screwdriver to remove the battery

cover.

Forcibly removing the battery cover

may bend or damage the key.

3-1. Key information

The electronic keys are equipped with
the following wireless remote control:

Locks all the doors (

P.98)

Unlocks all the doors (

P.98)

Opens the windows and moon
roof

*1, 2

(

P.98)

Opens and closes the power back
door

(

P.105)

Sounds the alarm (

P.96)

: If equipped

: This setting must be customized at your

Lexus dealer.

■

Theft deterrent panic mode

When

is pressed for longer than

about 1 second, an alarm will sound inter-

mittently and the vehicle lights will flash to

deter any person from trying to break into

or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

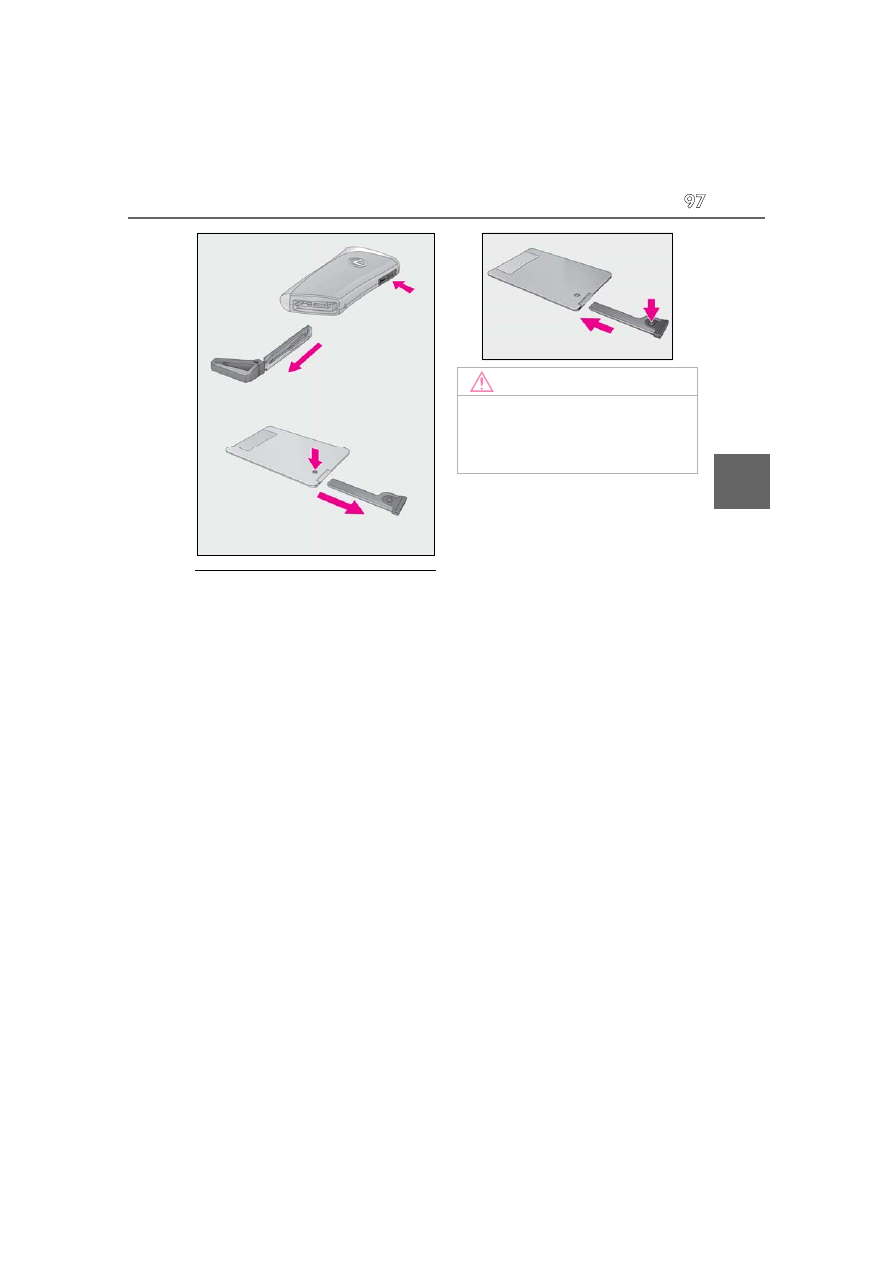

To take out the mechanical key, push
the release button and take the key out.

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(

P.380)

NOTICE

●

If the battery cover is frequently

removed, the battery cover may

become loose.

●

When installing the battery, make sure

to check the direction of the battery.

Installing the battery in the wrong

direction may cause the battery to

deplete rapidly.

●

The surface of the card key may be

damaged, or its coating may peel off in

the following situations:

• The card key is carried together with

hard objects, such as coins and keys.

• The card key is scraped with a sharp

object, such as the tip of a mechanical

pencil.

• The surface of the card key is wiped

with thinner or benzene.

Wireless remote control

Using the mechanical key

3-1. Key information

fore
dri
ving

■

When required to leave the vehicle’s

key with a parking attendant

Lock the glove box as circumstances

demand. (

P.278)

Remove the mechanical key for your own

use and provide the attendant with the elec-

tronic key only.

■

If you lose your mechanical keys

P.379

■

If a wrong key is used

The key cylinder rotates freely to isolate

inside mechanism.

■

Card key (if equipped)

●

If it is difficult to take out the mechanical

key, push down the release button using a

pen tip, etc. If it is still difficult to pull it out,

use a coin, etc.

●

To store the mechanical key in the card

key, insert it while pressing the release

button.

NOTICE

■

Handling the card key

Do not apply excess force when inserting

the mechanical key into the card key.

Doing so may damage the card key.

3-2. Opening, closing and locking the doors

3-2.Opening, closing and locking the doors

■

Smart access system with push-
button start

Carry the electronic key to enable this
function.

Grip the driver’s door handle to
unlock the door. Holding the
driver’s door handle for approxi-
mately 2 seconds unlocks all the
doors. Grip the front passenger
door handle to unlock all the
doors.

Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.

: The door unlock settings can be

changed.

Touch the lock sensor (the indenta-
tion on the upper part of the front
door handle) to lock all the doors.

Check that the door is securely locked.

■

Wireless remote control

Locks all the doors

Check that the door is securely locked.

Unlocks all the doors

Pressing the button unlocks the driver’s
door. Pressing the button again within 3
seconds unlocks the other doors.
Press and hold to open the windows and
moon roof

*1, 2

: If equipped

: This setting must be customized at your

Lexus dealer.

■

Switching the door unlock function

It is possible to set which doors the entry

function unlocks using the wireless remote

control.

Turn the engine switch off.

When the indicator light on the key sur-
face is not on, press and hold

for approximately 5

seconds while pressing and holding

The setting changes each time an operation
is performed, as shown below. (When
changing the setting continuously, release
the buttons, wait for at least 5 seconds, and
repeat step

Side doors

Unlocking and locking the doors
from the outside

3-2. Opening, closing and locking the doors

fore
dri
ving

To prevent unintended triggering of the

alarm, unlock the doors using the wireless

remote control and open and close a door

once after the settings have been changed.

(If a door is not opened within 60 seconds
after

is pressed, the doors will be

locked again and the alarm will automati-

cally be set.)

In a case that the alarm is triggered, imme-

diately stop the alarm. (

P.64)

■

Locking the front doors from the outside

without a key

Push down the inside lock button.

(

P.100)

Close the door.

The door cannot be locked if the engine

switch is in ACC or ON, or the electronic

key is left inside the vehicle.
The key may not be detected correctly and
the door may be locked.

■

Impact detection door lock release sys-

tem

In the event that the vehicle is subject to a

strong impact, all the doors are unlocked.

Depending on the force of the impact or the

type of accident, however, the system may

not operate.

■

Operation signals

A buzzer sounds and the emergency flash-

ers flash to indicate that the doors have

been locked/unlocked. (Locked: Once;

Unlocked: Twice)
A buzzer sounds to indicate that all win-

dows are opening.

■

Security feature

If a door is not opened within approximately

60 seconds after the vehicle is unlocked,

the security feature automatically locks the

vehicle again.

■

When the door cannot be locked by the

lock sensor on the upper part of the

door handle

When the door cannot be locked even if the

lock sensor on the upper part of the door

handle is touched by a finger, touch the lock

sensor with the palm.

When gloves are being worn, remove the

gloves.

■

Open door warning buzzer

If an attempt to lock the doors is made when

a door is not fully closed, a buzzer sounds

continuously for 5 seconds. Fully close the

door to stop the buzzer, and lock the vehi-

cle once more.

■

Setting the alarm

Locking the doors will set the alarm system.

(

P.64)

■

Conditions affecting the operation of

the smart access system with push-but-

ton start or wireless remote control

P.115

Multi-information

display/Beep

Unlocking function

Exterior: Beeps 3

times

Interior: Pings

once

Holding the driver’s

door handle unlocks

only the driver’s door.

Holding the front pas-

senger door handle

unlocks all the doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding a front door

handle unlocks all the

doors.

100

3-2. Opening, closing and locking the doors

■

If the smart access system with push-

button start or the wireless remote con-

trol does not operate properly

●

Use the mechanical key to lock and

unlock the doors. (

P.380)

●

Replace the key battery with a new one if

it is depleted. (

P.341)

■

If the battery is discharged

The doors cannot be locked and unlocked

using the smart access system with push-

button start or wireless remote control.
Lock or unlock the doors using the

mechanical key. (

P.380)

■

Customization

Settings (e.g. unlocking function using a

key) can be changed. (Customizable fea-

tures:

P.410)

■

Door lock switches (to
lock/unlock)

Locks all the doors

Unlocks all the doors

■

Inside lock buttons (to lock)

Push down the inside lock button to
lock the door.

■

Inside door handles (to unlock)



For the front doors

Pull the handle to unlock and open the
door.

When the door is unlocked, the inside lock
button will pop up.



For the rear doors

Pull the handle to unlock the door. Pull
the handle a second time to open the
door.

WARNING

■

To prevent an accident

Observe the following precautions while

driving the vehicle.

Failure to do so may result in a door

opening and an occupant falling out,

resulting in death or serious injury.

●

Ensure that all doors are properly

closed and locked.

●

Do not pull the inside handle of the

doors while driving.

Be especially careful for the front

doors, as the doors may be opened

even if the inside lock buttons are in

locked position.

●

Set the rear door child-protector locks

when children are seated in the rear

seats.

■

When opening or closing a door

Check the surroundings of the vehicle

such as whether the vehicle is on an

incline, whether there is enough space

for a door to open and whether a strong

wind is blowing. When opening or clos-

ing the door, hold the door handle tightly

to prepare for any unpredictable move-

ment.

Unlocking and locking the doors
from the inside

101

3-2. Opening, closing and locking the doors

fore
dri
ving

When the door is unlocked, the inside lock
button will pop up.

■

If a symbol indicating one or more doors

are open is shown on the multi-informa-

tion display

The hood or one or more of the doors are

not fully closed. The system also indicates

which doors are not fully closed. If the vehi-

cle reaches a speed of 3 mph (5 km/h), a

buzzer sounds to indicate that the door(s)

are not yet fully closed.
Make sure that the hood and all the doors

are closed.

The door cannot be opened from
inside the vehicle when the lock is set.

Unlock

Lock

These locks can be set to prevent children
from opening the rear doors. Push down
on each rear door switch to lock both rear
doors.

The following functions can be set or
canceled:

For instructions on customizing, refer to
P.408.

Rear door child-protector lock

Automatic door locking and
unlocking systems

Function

Operation

Speed linked door
locking function

All doors are auto-
matically locked
when vehicle speed
is approximately 12
mph (20 km/h) or
higher.

Shift position linked
door locking func-
tion

All doors are auto-
matically locked
when shifting the
shift lever out of P.

Shift position linked
door unlocking
function

All doors are auto-
matically unlocked
when shifting the
shift lever to P.

Driver’s door linked
door unlocking
function

All doors are auto-
matically unlocked
when driver’s door is
opened within
approximately 45
seconds after turn-
ing the engine switch
off.

102

3-2. Opening, closing and locking the doors

Back door

The back door can be
locked/unlocked and
opened/closed by the following
procedures.

WARNING

Observe the following precautions.
Failure to do so may cause parts of the

body to be caught, resulting in death or

serious injury.

■

Before driving the vehicle

Before driving the vehicle, make sure

that the back door is fully closed. If the

back door is not fully closed, it may open

unexpectedly while driving, causing an

accident.

■

Caution while driving

●

Keep the back door closed while driv-

ing.

If the back door is left open, it may hit

nearby objects while driving or lug-

gage may be unexpectedly thrown out,

causing an accident.

In addition, exhaust gases may enter

the vehicle, causing death or a serious

health hazard. Make sure to close the

back door before driving.

●

Never let anyone sit in the luggage

compartment. In the event of sudden

braking, sudden swerving or a colli-

sion, they are susceptible to death or

serious injury.

■

When children are in the vehicle

Observe the following precautions.

Failure to do so may result in death or

serious injury.

●

Do not allow children to play in the lug-

gage compartment.

If a child is accidentally locked in the

luggage compartment, they could

have heat exhaustion or other injuries.

●

Do not allow a child to open or close

the back door.

Doing so may cause the back door to

move unexpectedly, or cause the

child’s hands, arms, head, or neck to be

caught by the closing back door.

■

Operating the back door

Observe the following precautions.

Failure to do so may cause parts of the

body to be caught, resulting in death or

serious injury.

●

Remove any heavy loads, such as snow

and ice, from the back door before

opening it. Failure to do so may cause

the back door to suddenly shut again

after it is opened.

●

When opening or closing the back

door, thoroughly check to make sure

the surrounding area is safe.

●

If anyone is in the vicinity, make sure

they are safe and let them know that

the back door is about to open or

close.

●

Use caution when opening or closing

the back door in windy weather as it

may move abruptly in strong wind.

●

Vehicles without power back door:

The back door may suddenly shut if it is

not opened fully. It is more difficult to

open or close the back door on an

incline than on a level surface, so

beware of the back door unexpectedly

opening or closing by itself. Make sure

that the back door is fully open and

secure before using the luggage com-

partment.

103

3-2. Opening, closing and locking the doors

fore
dri
ving

■

Smart access system with push-
button start

Carry the electronic key to enable this
function.

Locks all the doors

Check that the door is securely locked.

Unlocks all the doors

The doors cannot be unlocked for 3 sec-
onds after the doors are locked.

■

Wireless remote control

P.96

■

Door lock switch

P.100

■

Open

Raise the back door while pressing up
the back door opener switch.

WARNING

●

Vehicles with power back door: The

back door may suddenly shut if it is not

opened fully, while on a steep incline.

Make sure that the back door is

secured before using the luggage

compartment.

●

When closing the back door, take

extra care to prevent your fingers, etc.,

from being caught.

●

When closing the back door, make

sure to press it lightly on its outer sur-

face. If the back door handle is used to

fully close the back door, it may result

in hands or arms being caught.

●

Do not pull on the back door damper

stay (vehicles without power back

door) (

P.104) or back door spindle

(vehicles with power back door)

(

P.111) to close the back door, and do

not hang on the back door damper

stay (vehicles without power back

door) or back door spindle (vehicles

with power back door).

Doing so may cause hands to be

caught or the back door damper stay

(vehicles without power back door) or

back door spindle (vehicles with

power back door) to break, causing an

accident.

●

If a bicycle carrier or similar heavy

object is attached to the back door, it

may suddenly shut again after being

opened, causing someone’s hands,

arms, head or neck to be caught and

injured. When installing an accessory

part to the back door, using a genuine

Lexus part is recommended.

Unlocking and locking the back
door from the outside

Unlocking and locking the back
door from the inside

Opening/closing the back door
(vehicles without power back
door)

104

3-2. Opening, closing and locking the doors

■

Lower the back door using the back
door handle, and make sure to push
the back door down from the outside
to close it.

■

Luggage compartment light

●

The luggage compartment light turns on

when the back door is opened.

●

If the luggage compartment light is left on

when the engine switch is turned off, the

light will go off automatically after 20

minutes.

■

If the back door opener is inoperative

The back door can be unlocked from the

inside.

Remove the cover.

To protect the cover, place a rag between

the flathead screwdriver and the cover as

shown in the illustration.

Move the lever.

NOTICE

■

Back door damper stays

The back door is equipped with damper
stays

that hold the back door in

place.

Observe the following precautions.

Failure to do so may cause damage to
the back door damper stay

, resulting

in malfunction.

●

Do not attach any foreign objects, such

as stickers, plastic sheets, or adhesives

to the damper stay rod.

●

Do not touch the damper stay rod with

gloves or other fabric items.

●

Do not attach any accessories other

than genuine Lexus parts to the back

door.

●

Do not place your hand on the damper

stay or apply lateral forces to it.

105

3-2. Opening, closing and locking the doors

fore
dri
ving

■

Opening/closing the back door
using the wireless remote control

Press the switch for 1 second.

■

Opening/closing the back door
from the inside

Press the switch for 1 second.

A buzzer sounds and the back door auto-
matically opens and closes.
Pressing the switch while the back door is
opening/closing stops the operation.
When the switch is pressed again for 1 sec-
ond during the halted operation, the back
door will perform the reverse operation.

■

Opening/closing the back door
from the outside

 Open

When the back door is unlocked: Press the
back door opener switch.
When the back door is locked: While car-

rying the electronic key on your person,
press the back door opener switch.
A buzzer sounds and the back door auto-
matically opens.
Pressing the switch while the back door is
opening stops the operation.

 Close

Press the switch.
A buzzer sounds and the back door auto-
matically closes.
Pressing the switch while the back door is
closing stops the operation.
Pressing the switch again will open the
back door automatically.

 Close the back door and lock all

doors (close & lock function)

Press the switch.
A different buzzer than the normal one will
sound and the power back door will begin
closing automatically. When the power
back door is closed, all of the doors will
lock simultaneously and operation signals
will indicate that all of the doors have been

Opening/closing the back door
(vehicles with power back door)

106

3-2. Opening, closing and locking the doors

locked.
If the switch is pressed while the power
back door is closing, the operation will
stop.
Pressing the switch again will close the
power back door automatically.

■

Closing the back door using the
back door handle

Lower the back door using the back
door handle, then a buzzer sounds and
the back door automatically closes.

■

Hands Free Power Back Door

While carrying an electronic key,
stand within the smart access sys-
tem with push-button start opera-
tion range, approximately 19.7 to

27.6 in. (50 to 70 cm) from the rear
bumper.

Hands Free Power Back Door sen-
sor

Hands Free Power Back Door
operation detection area

Smart access system with push-
button start operation detection
area (

P.114)

Perform a kick operation by mov-
ing your foot to within approxi-
mately 3.9 in. (10 cm) of the rear
bumper and then pulling it back.

• Perform the entire kick operation

within 1 second.

• The Hands Free Power Back Door

will not start operating while a foot is
detected under the rear bumper.

• Operate the Hands Free Power

Back Door without contacting the
rear bumper with your foot.

• If another electronic key is in the

cabin or luggage compartment, it
may take slightly longer than normal

107

3-2. Opening, closing and locking the doors

fore
dri
ving

for the operation to occur.

Hands Free Power Back Door sen-
sor

Hands Free Power Back Door
operation detection area

When the sensor detects that your
foot is pulled back, a buzzer will
sound and the back door will auto-
matically fully open/close.

If a foot is moved under the rear bumper

while the back door is opening, the back

door will stop moving.

If a foot is moved under the rear bumper

while the back door is closing, the back

door will open.

■

Luggage compartment light

●

The luggage compartment light turns on

when the back door is opened.

●

If the luggage compartment light is left on

when the engine switch is turned off, the

light will go off automatically after 20

minutes.

■

Power back door operating conditions

With the power back door operations set to

ON, it can automatically open and close for

the following conditions:

●

The power back door is unlocked. How-

ever, the power back door will operate if

it is locked, in the following situations:

• When the electronic key is being carried

and the power back door opener switch

is pressed

• When the wireless remote control is

used

●

When the engine switch is in ON, in addi-

tion to the above for the opening opera-

tions, the back door operates for any of

the following conditions:

• Parking brake is engaged

• The brake pedal is depressed

• The shift lever is in P

: When configured with the customization

function so that it can be operated after
being unlocked, operate the back door
after it has been unlocked.

■

Hands Free Power Back Door operating

conditions

●

When the Hands Free Power Back Door

operation setting is turned on

●

When an electronic key is carried within

the operation range

■

Back door closer

In the event that the back door is left slightly

open, the back door closer will automati-

cally close it to the fully closed position.

Whatever the state of the engine switch, the

back door closer operates.

■

Operation of the power back door

●

A buzzer sounds and the emergency

flashers flash twice to indicate that the

back door is opening/closing.

●

When the power back door operations

are OFF, the power back door does not

operate but it can be opened and closed

by hand.

●

When the power back door automati-

cally opens, if an abnormality due to peo-

ple or objects is detected, operation will

stop.

■

Back door reserve lock function

This function reserves locking of all doors

beforehand, when the power back door is

open.
When the following procedure is per-

formed, all the doors except the power

back door are locked and then power back

door will also be locked at the same time it

is closed.

Close all doors, except the back door.

During the power back door closing

operation, lock the doors using the

Content .. 4 5 6 7 ..
