LEXUS UX 200 (2019 year). Instruction

2-1. Instrument cluster

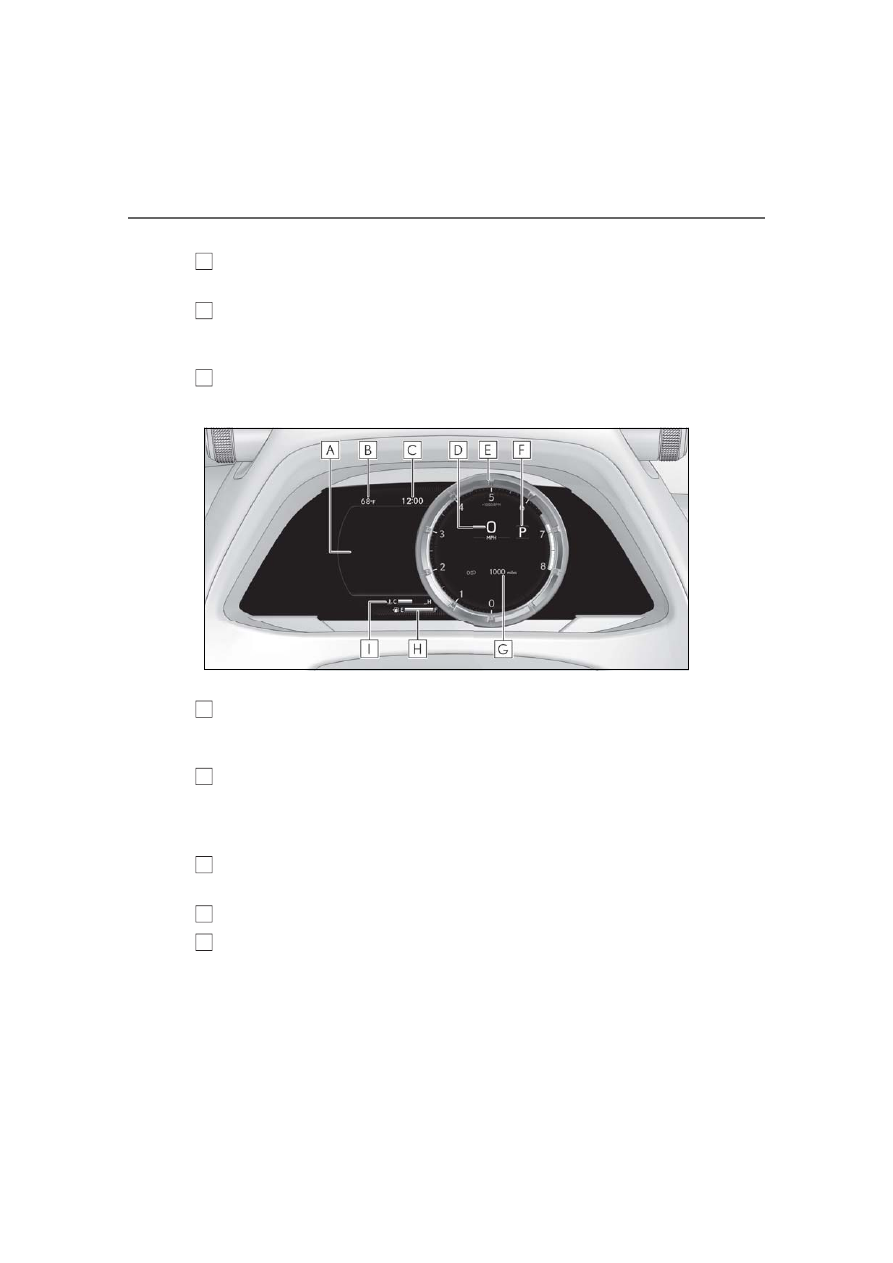

Time displayed is linked to the analog clock on the center panel. (

P.285)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Multi-information display

Presents the driver with a variety of vehicle data (

P.79)

Displays warning messages if a malfunction occurs (

P.367)

Odometer and trip meter display (

P.78)



When the main meter is in the side position

The units of measure may differ depending on the intended destination of the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (

P.79)

Displays warning messages if a malfunction occurs (

P.367)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F (3°C)
or lower

Clock

Time displayed is linked to the analog clock on the center panel. (

P.285)

Speedometer

Tachometer

Displays the engine speed in revolutions per minute
When Sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
• Rev indicator

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

• Rev peak

Shift position/shift range (

P.155)

Odometer and trip meter display (

P.78)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

■

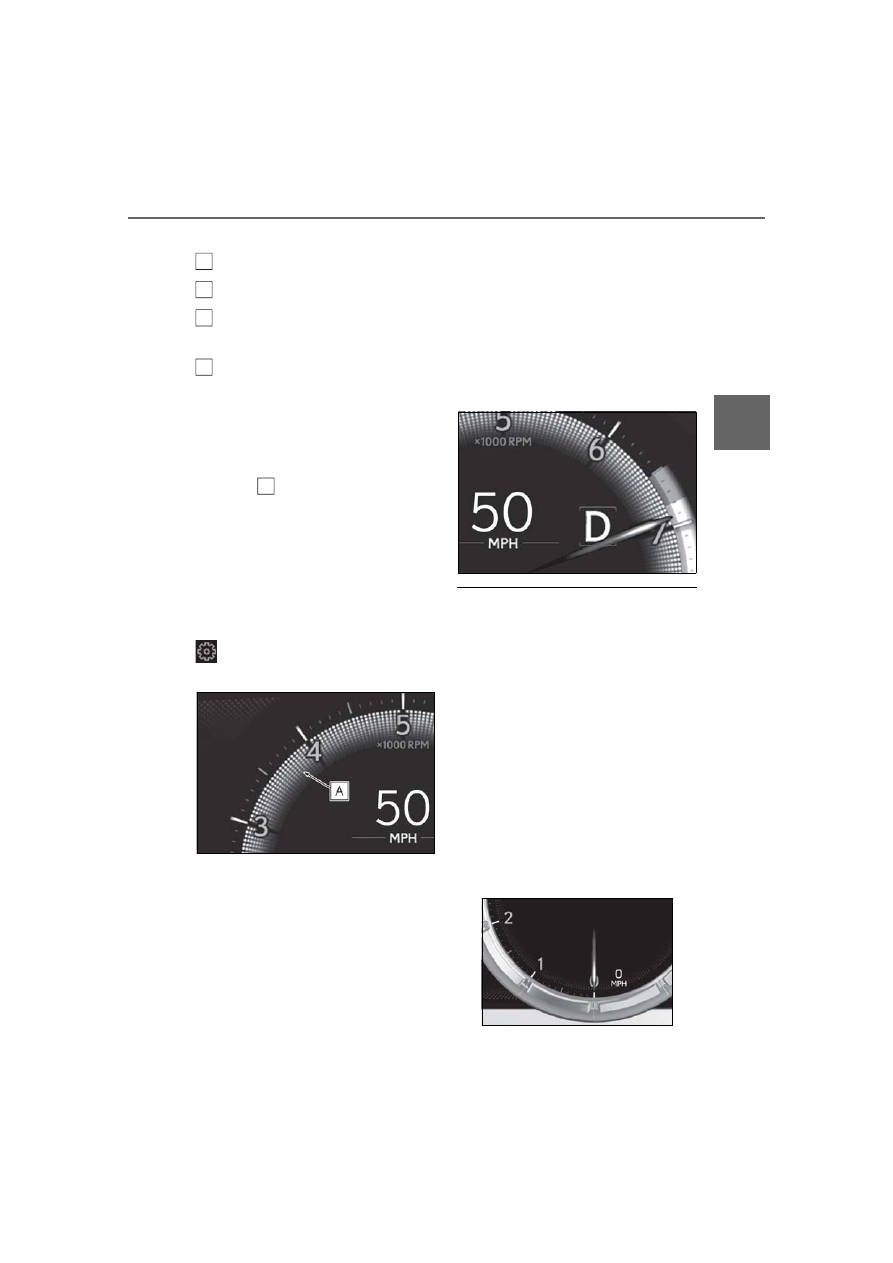

Rev indicator

When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator (

) will be displayed on the

tachometer.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on

of the multi-information display.

(

P.80)

■

Rev peak

When the engine speed reaches or
exceeds 5000 rpm, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Speed unit setting for the speedometer

When the speed unit has been changed

from the default setting, the vehicle speed in

the default unit is also displayed in the

meter.

2-1. Instrument cluster

■

Liquid crystal display

P.80

■

Customization

The gauges and meters can be customized
on

of the multi-information display.

(

P.409)

■

Display items

 Odometer

Displays the total distance the vehicle has

been driven.

 Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.

 Distance until next engine oil

change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

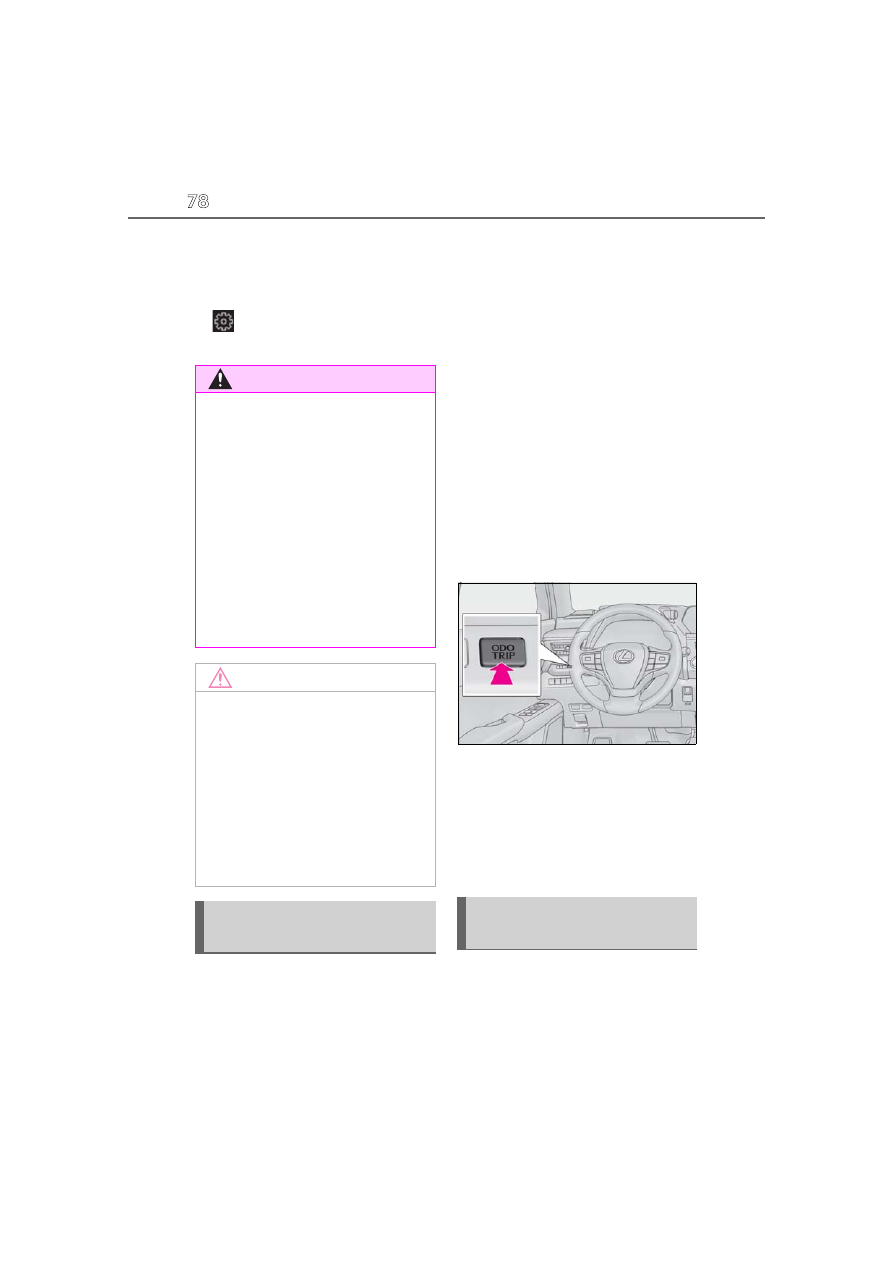

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Pop-up display

Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator of the tachom-

eter enter the red zone, which indi-

cates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (

P.386)

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Darker

Brighter

■

Instrument panel brightness adjustment

The instrument panel brightness levels

when the surroundings are bright (daytime

etc.) and dark (nighttime etc.) can be

adjusted individually.

The display can be switched between
the center and side positions.

■

Display (except F SPORT models)

By selecting menu icons on the multi-
information display, a variety of driving-
related information can be displayed.
The multi-information display can also
be used to change display settings and
other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

■

Display (F SPORT models)



When the main meter is in the cen-
ter position

The multi-information display presents
the driver with a variety of driving-
related information.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

Changing the display

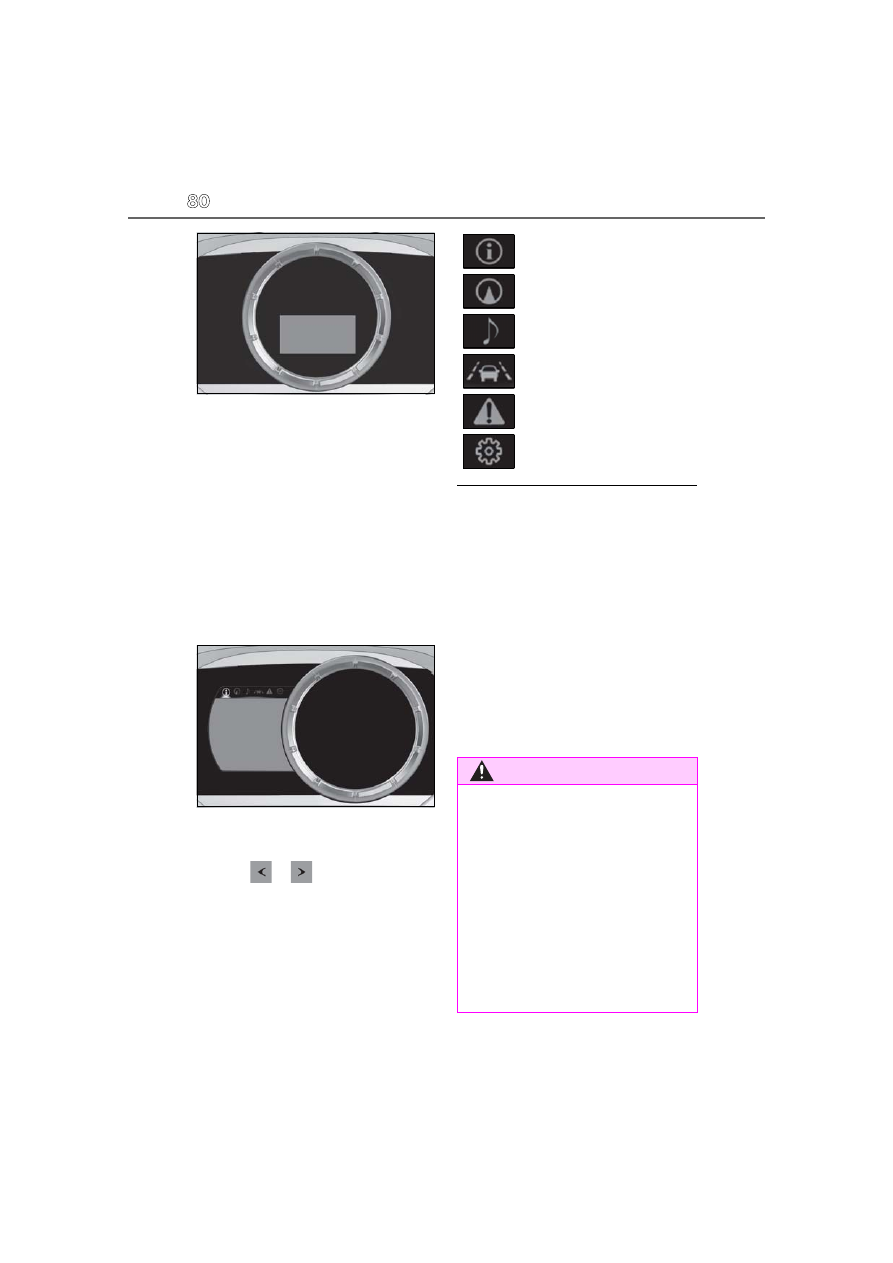

Multi-information display

Display and menu icons

2-1. Instrument cluster



When the main meter is in the side
position

■

Menu icons

The menu icons will be displayed by
pressing

of the meter con-

trol switches (

P.81).

F SPORT models: The menu icons can be
displayed when the main meter is in the
side position.

■

Opening image display

When the engine switch is in ACC or ON,

the opening image is displayed on the multi-

information display.
While the opening image is being dis-

played, the meter display cannot be

changed even if the drive mode is changed.

When the opening image is finished, the

meter display for the currently selected

mode will be displayed.

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

Driving information display
(

P.81)

Navigation system-linked dis-
play (if equipped) (

P.83)

Audio system-linked display
(

P.83)

Driving support system infor-
mation display (

P.83)

Warning message display
(

P.367)

Settings display (

P.84)

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

■

The information display at low tem-

peratures

P.73, 78

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

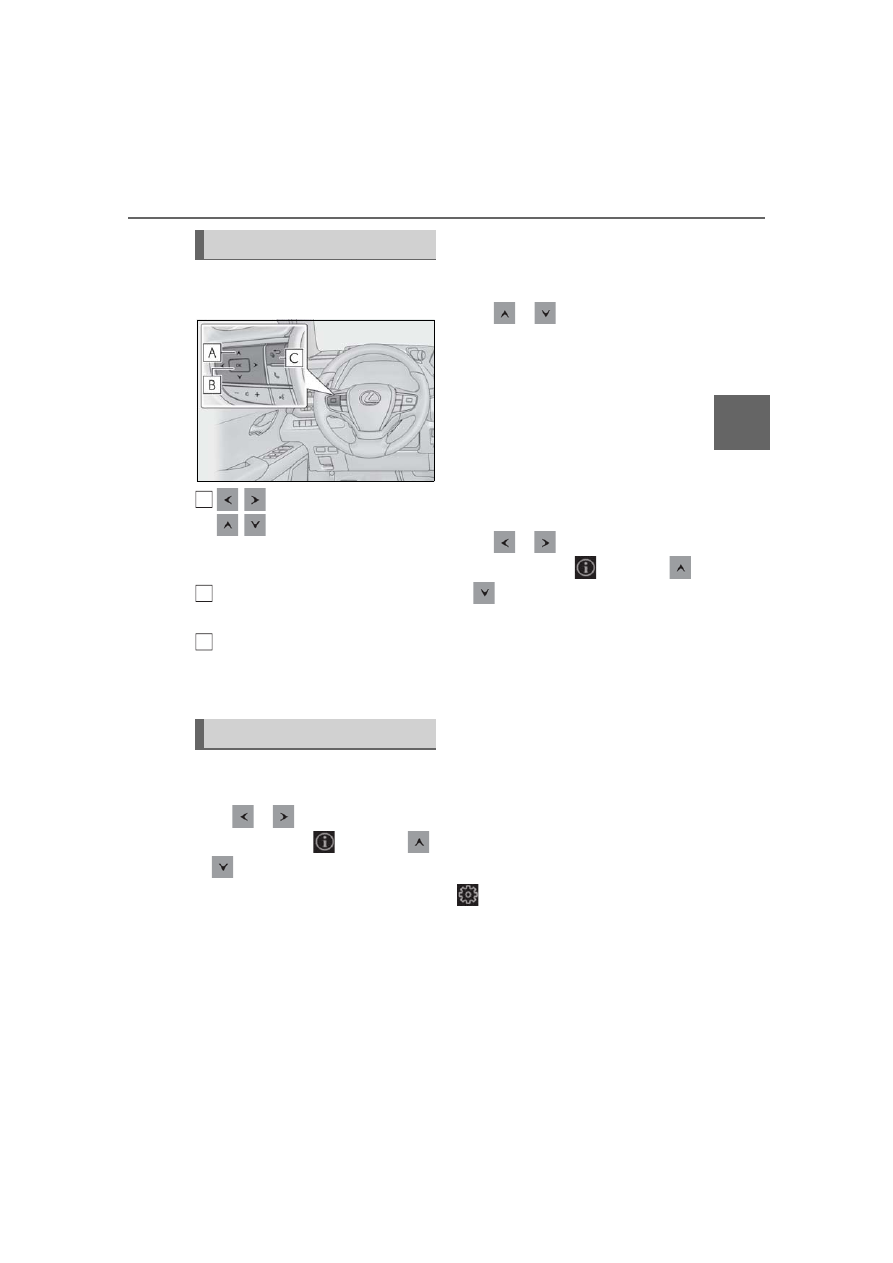

The multi-information display is oper-
ated using the meter control switches.

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen or
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

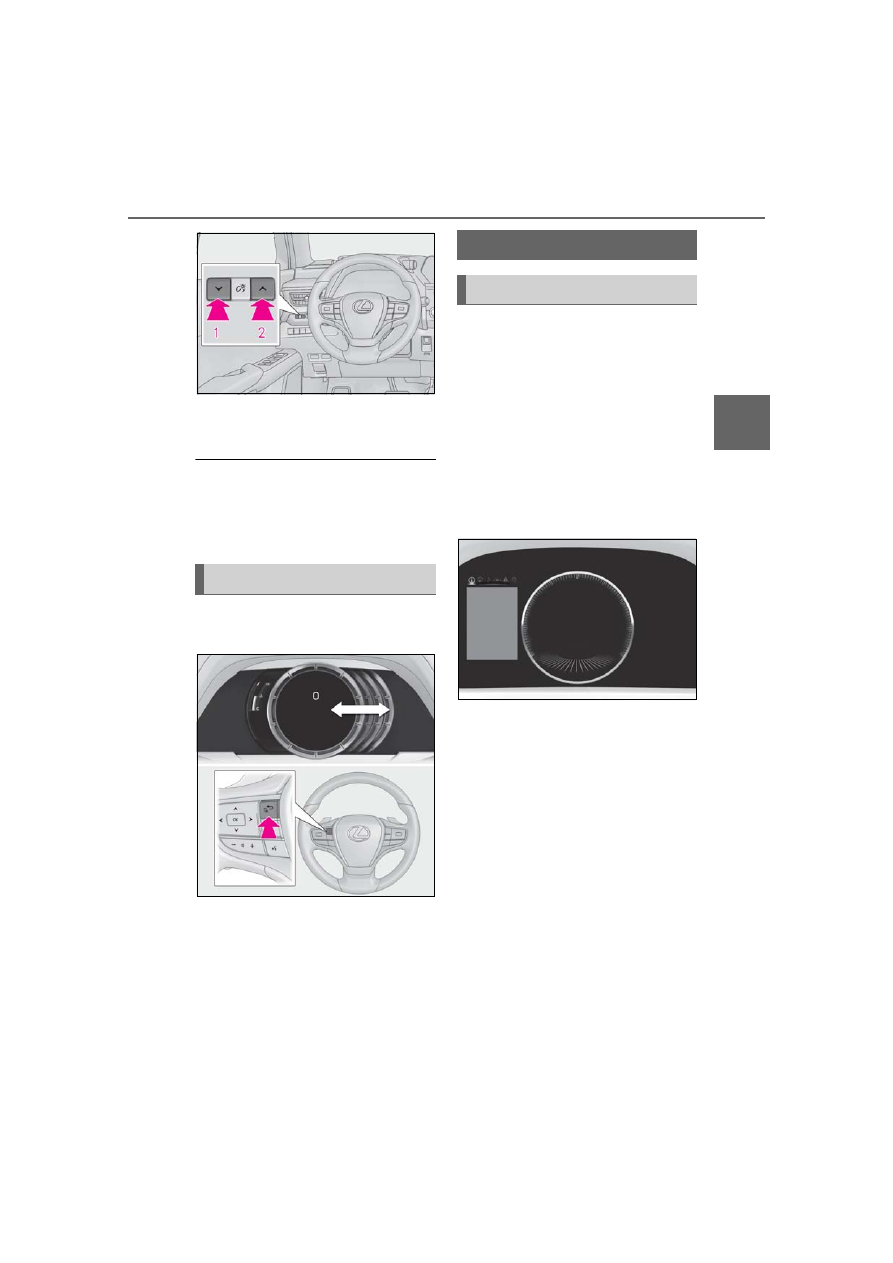

Move the main meter

or return to

the previous screen

: F SPORT models

■

Display items (except F SPORT
models)

Press

of the meter control

switches and select

. Then press

to display the following items:

 Drive information 1
 Drive information 2
 Eco Driving Indicator
 Tire pressure
 Display off

■

Display items (F SPORT models)



When the main meter is in the cen-
ter position

Press

of the meter control

switches to display the following items:
 Drive information 1
 Drive information 2
 Tire pressure
 Units
 Display off



When the main meter is in the side
position

Press

of the meter control

switches and select

. Then press

to display the following items:

 Drive information 1
 Drive information 2
 Eco Driving Indicator
 G-force
 Tire pressure
 Display off

■

Drive information 1/Drive infor-
mation 2

2 of the following drive information can
be displayed in each screen.
Displayed items can be changed on

. (

P.84)

Use the displayed values as a reference
only.

 Current fuel consumption

Displays instantaneous current fuel con-
sumption

 Average fuel economy

Changing the meter display

Drive information

2-1. Instrument cluster

After reset: Displays average fuel con-
sumption since the display was reset

After start: Displays average fuel con-
sumption since the engine was started
After refuel: Displays average fuel con-
sumption since refuel

 Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since the engine was started

 Driven distance

Displays the distance driven since the
engine was started

 Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since the
engine was started

 Driving range

Displays driving range with remaining
fuel

*2, 3

 Other

No item

: To reset, display the desired item and

press and hold “OK” of the meter con-
trol switches.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.

■

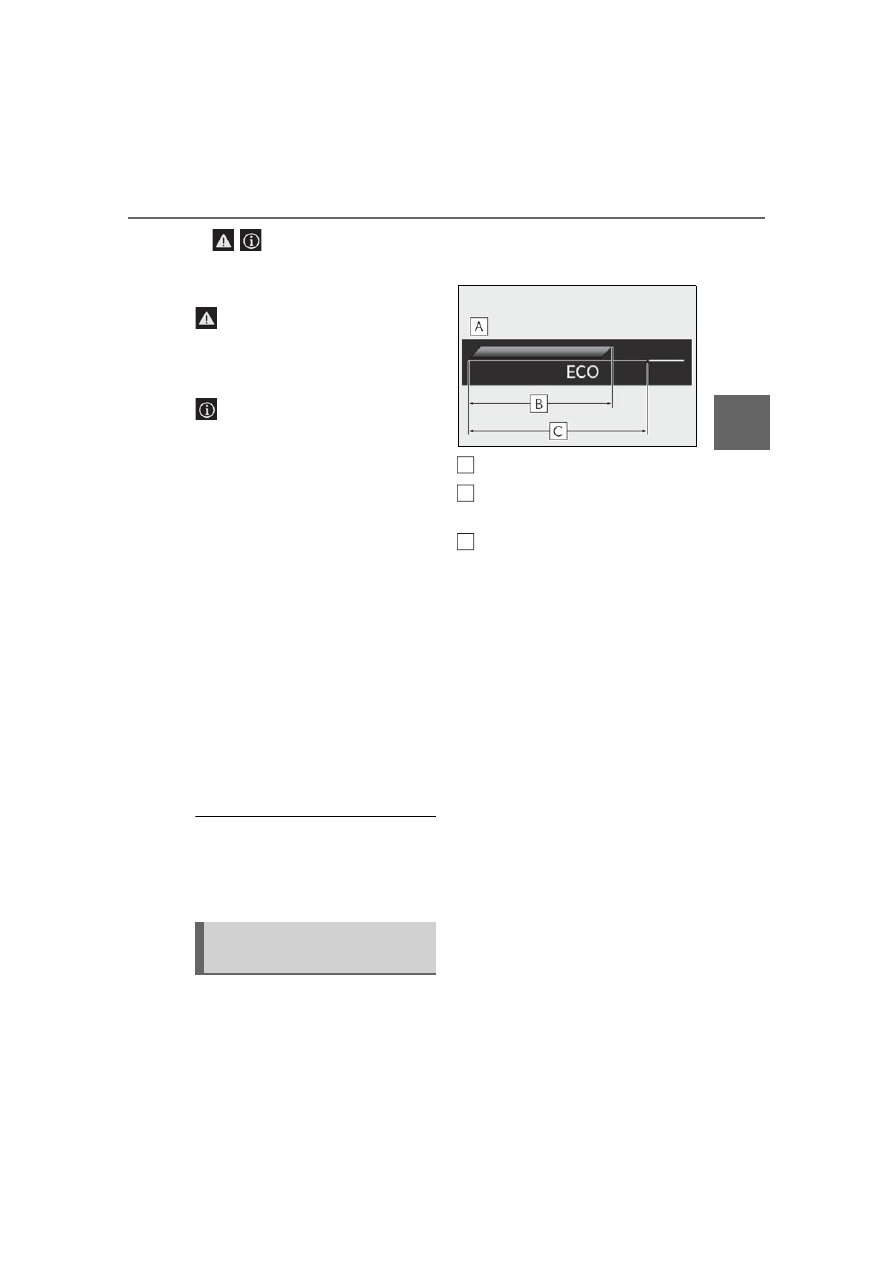

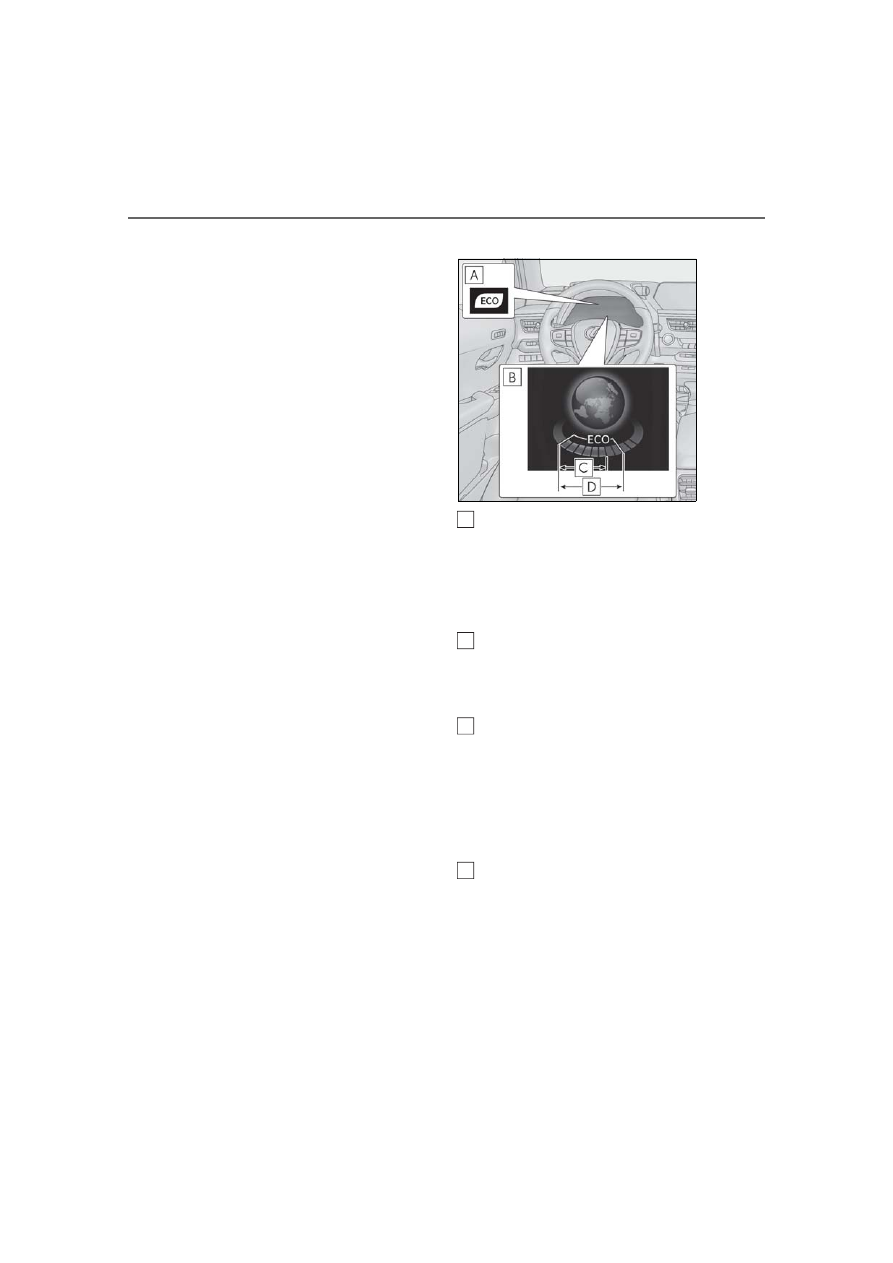

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.

Zone of Eco driving

■

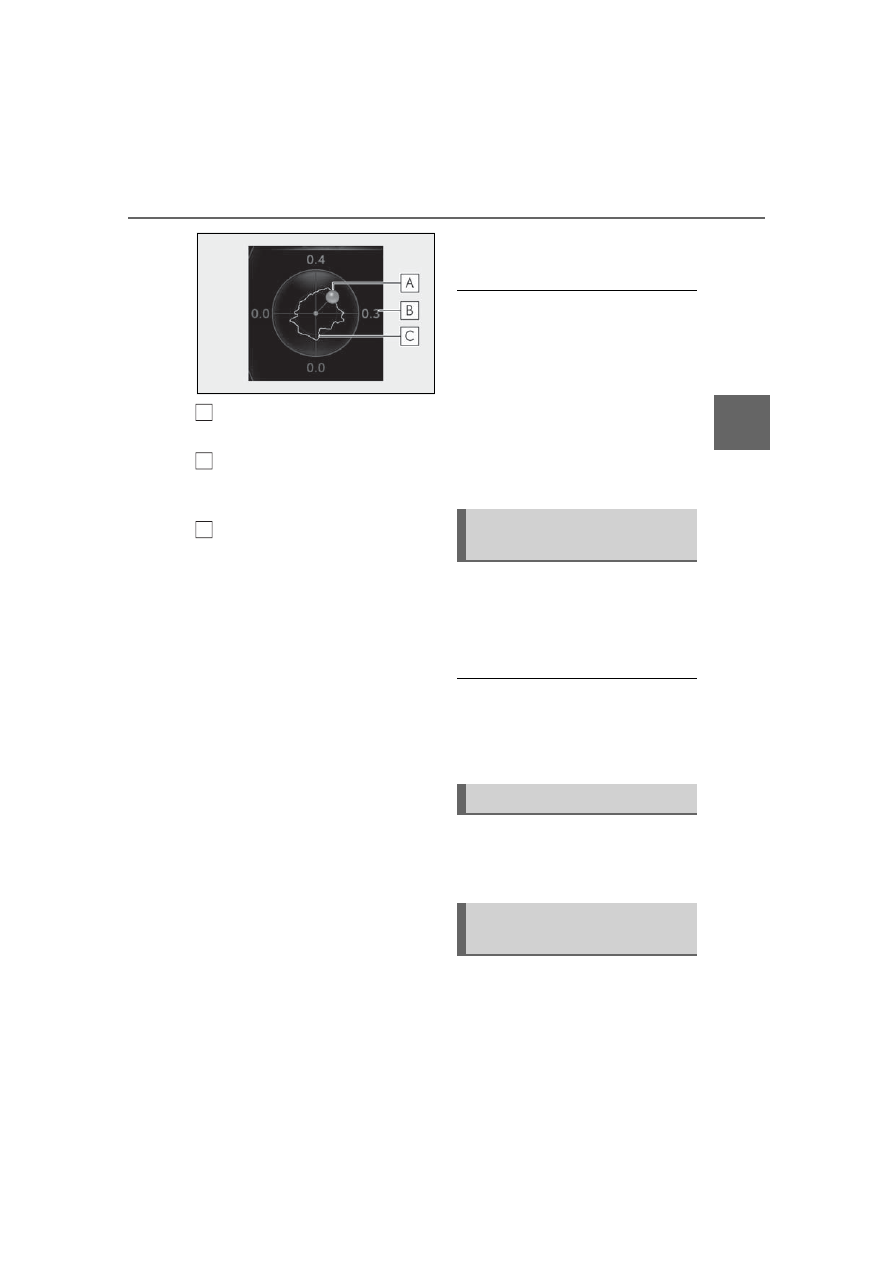

G-force (F SPORT models)

Displays lateral G-forces on the vehi-
cle.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Acceleration G-force on the vehi-
cle

Current G-force value (analyzed
value of front/rear and left/right G-
forces)

Record of the maximum G-forces

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

 Resetting the record of maximum

G-forces

Press and hold “OK” of the meter control
switches to reset the record.

 Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

■

Tire pressure

P.330

■

Units (F SPORT models)

The units of measure used can be
changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

■

Display OFF

Displays a blank screen.

■

Eco Driving Indicator

Eco Driving Indicator will not operate

under the following conditions:

●

The shift lever is in any position other than

●

A paddle shift switch (if equipped) is

operated.

●

The driving mode is set to other than nor-

mal and Eco drive mode.

●

The vehicle speed is approximately 80

mph (130 km/h) or higher.

Select to display the following naviga-
tion system-linked information.
 Route guidance to destination
 Compass display

■

Route guidance to destination display

When the route guidance to destination

display is enabled on the head-up display, it

will not be displayed on the multi-informa-

tion display. (

P.86)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:
 LTA (Lane Tracing Assist) (

P.193)

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

2-1. Instrument cluster

 Dynamic radar cruise control with

full-speed range (

P.204)

 RSA (Road Sign Assist) (if

equipped) (

P.202)

Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (

P.367)

■

Meter display settings that can be
changed

 Language

Select to change the language displayed.

 Units

Select to change the units of measure dis-
played.

 Speedometer display (except F

SPORT models)

Select to set the display of the speedome-
ter to digital/analog.

 Drive information 1/Drive informa-

tion 2

Select to select up to 2 items (

P.81) that

will be displayed on each Drive information
screen (Drive information 1 screen and
Drive information 2 screen) respectively.

 Clock

Select to switch between 12-hour display
and 24-hour display.

 Pop-up display

Select to enable/disable some pop-up dis-
plays for each relevant system.

 Accent color

Select to change the accent color on the
screen, such as the cursor color.

 Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.

 Rev peak (F SPORT models)

Select to enable/disable the rev peak.

 Eco Driving Indicator Light

Select to enable/disable the Eco Driving
Indicator Light.

 Default setting

Select to reset the meter display settings to
the default setting.

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Warning message display

Settings display

WARNING

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

■

Suggestion to enable the power
back door

If the power back door system is dis-
abled on

of the multi-information

display (

P.80) and the power back

door switch on the instrument panel is
operated, a suggestion message will be
displayed asking if you wish to enable
the power back door system. To enable
the power back door system, select
“Yes”.
After enabling the power back door
system, press the power back door
switch again to open or close the
power back door.

■

Suggestion to turn on the head-
lights

If the headlight switch is in other than

position, and the vehicle

speed is 3 mph (5 km/h) or higher for
a certain amount of time when the sur-
roundings are dark, a suggestion mes-
sage will be displayed.

■

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight
switch in

position after the

engine switch has been turned off, a
suggestion message will be displayed
asking if you wish to turn the headlights
off.
To turn the headlights off, select “Yes”.

If a front door is opened after the engine
switch is turned off, this suggestion mes-
sage will not be displayed.

■

Customization

Some functions can be customized.

(

P.409)

NOTICE

■

During setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

Suggestion function

2-1. Instrument cluster

: If equipped

Illustrations used in this text are intended as
examples, and may differ from the image
that is actually displayed by the head-up
display.

Driving support system display
area (

P.88)

Navigation system-linked display
area (if equipped)

Displays the following items which are
linked to the navigation system:
• Route guidance to destination
• Street name

• Compass (heading-up display)

Driving information display area

Displays the following items:
• Speed limit of the current road (linked to

the navigation system) (U.S.A. only)

• RSA (Road Sign Assist) display (if

equipped) (

P.202)

• Speedometer
• Shift position/shift range (

P.155)

Tachometer/Eco Driving Indicator
display area (

P.89)

Head-up display switch

■

Head-up display will operate when

The engine switch is in ON.

■

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are included in the

map data will be displayed.

■

Outside temperature display

●

In the following situations, the outside

temperature is displayed.

• When the ambient temperature is

approximately 37°F (3°C) or lower (In

this case, the outside temperature display

will be displayed and the low outside tem-

perature indicator will flash for approxi-

mately 10 seconds.)

• After the opening image (

P.80) is dis-

played (The outside temperature display

will be displayed for approximately 10

seconds.)

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

Head-up display

The head-up display projects a vari-
ety of driving-related information
and the operating state of the driv-
ing support systems on the wind-
shield.

System components

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

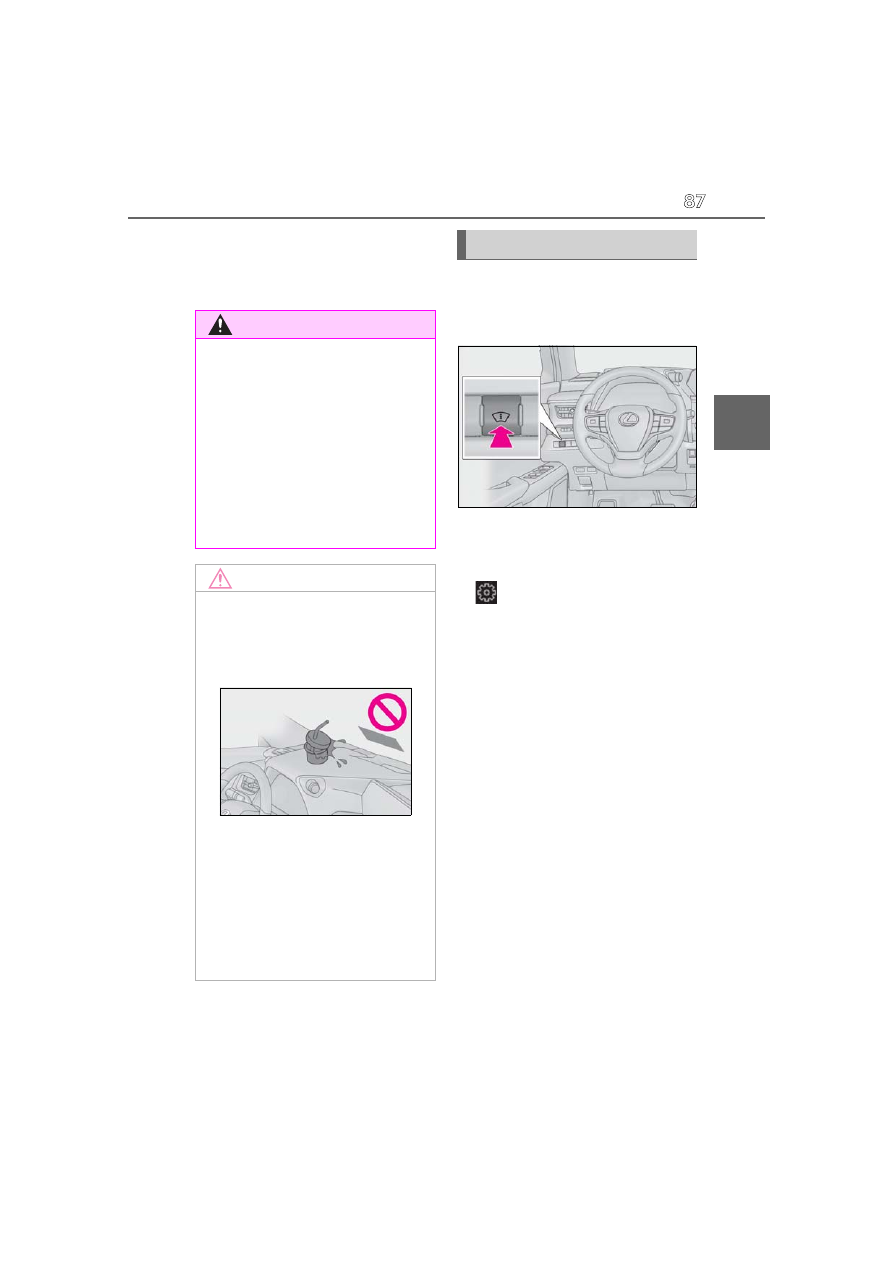

Enabling/disabling the head-up dis-
play

Press the head-up display switch.

■

Changing settings of the head-up
display

The following settings can be changed
on

of the multi-information display.

(

P.410)

 Brightness and vertical position of

the head-up display

Select to adjust the brightness or vertical
position of the head-up display.

 Tachometer/Eco Driving Indicator

Select to display the tachometer, Eco Driv-
ing Indicator or no content.

 Display content

Select to enable/disable the following
items:
• Route guidance to destination/street

name

• Driving support system display

• Compass (heading-up display)
• Audio system operation status

: Make sure to enable this display when

using the driving support systems

 Display angle

WARNING

■

When using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

Using the head-up display

2-1. Instrument cluster

Select to adjust the angle of the head-up
display.

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the engine switch is

turned off then back to ON.

■

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted

according to the ambient brightness.

■

Head-up display automatic position

adjustment (vehicles with driving posi-

tion memory)

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(

P.123)

■

When the battery is disconnected

The customize settings of the head-up dis-

play will be reset.

Displays the operational status of the
following systems:
 LTA (Lane Tracing Assist) (

P.193)

 Dynamic radar cruise control with

full-speed range (

P.204)

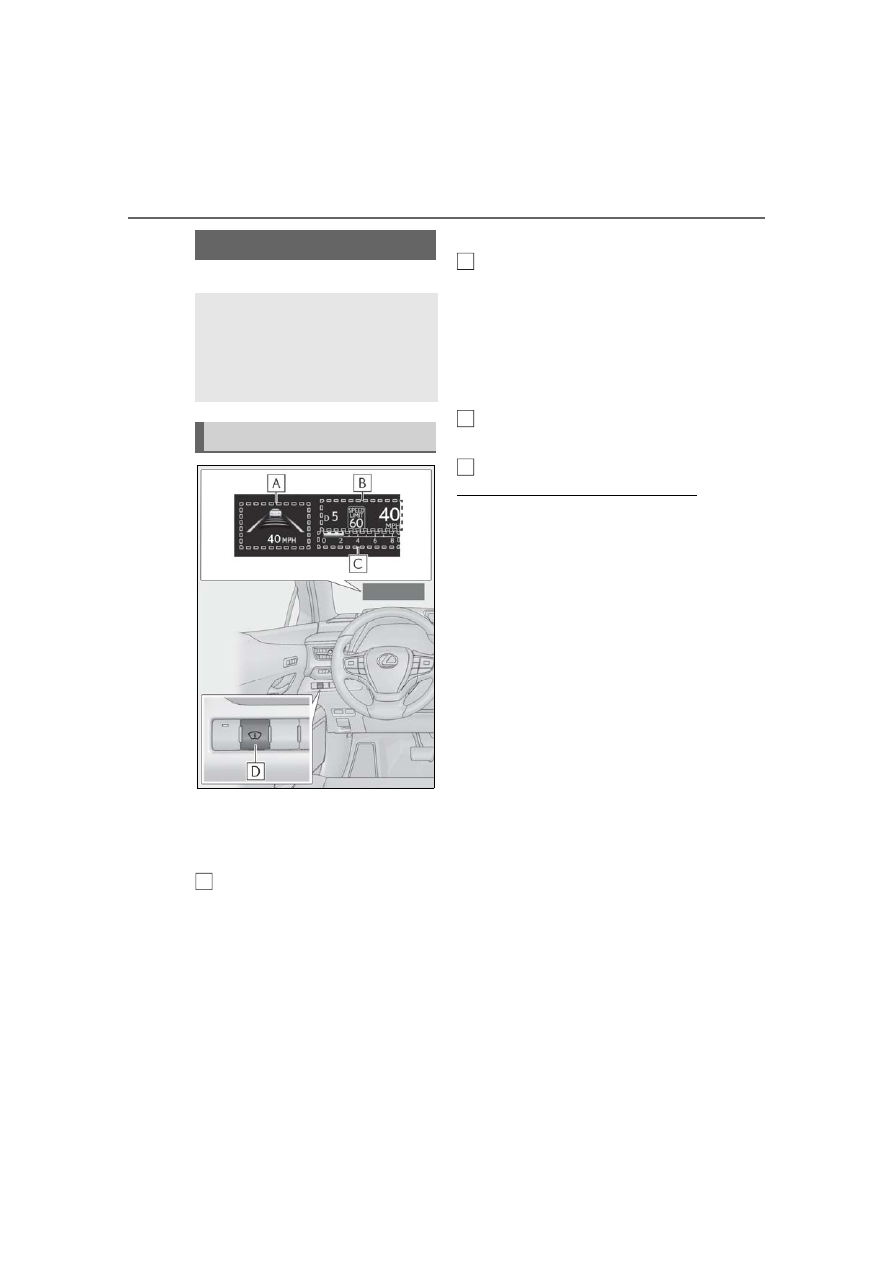

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

■

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel-
evant system.
 PCS (Pre-Collision System)

(

P.186)

 Intuitive parking assist (if equipped)

(

P.220)

 Parking Support Brake function (for

static objects) (if equipped)
(

P.235)

 Brake Override System (

P.143)

 Drive-Start Control (

P.143)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

WARNING

■

Caution for changing settings of the

head-up display

As the engine needs to be running while

changing the settings of the head-up dis-

play, ensure that the vehicle is parked in a

place with adequate ventilation. In a

closed area such as a garage, exhaust

gases including harmful carbon monox-

ide (CO) may collect and enter the vehi-

cle. This may lead to death or a serious

health hazard.

NOTICE

■

When changing the settings of the

head-up display

To prevent battery discharge, ensure that

the engine is running while changing the

settings of the head-up display.

Driving support system display
area

Pop-up display

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

icons

These icons are linked to the multi-
information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(

P.367)

: Information icon

Displayed when a suggestion pop-up dis-
play (

P.85) or advice pop-up display is

displayed on the multi-information display.

■

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display.

■

Audio system operation status

Displayed when an audio remote con-
trol switch on the steering wheel is
operated.

■

Hands-free system status

Displayed when the hands-free system
is operated.

■

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

■

Tachometer

Displays the engine speed in revolu-

tions per minute.

■

Eco Driving Indicator

Eco Driving Indicator Zone Display

Eco driving ratio based on acceler-
ation

Zone of Eco driving

Displayed content is the same as that dis-
played on the multi-information display
(Eco Driving Indicator). For details, refer to
P.82.

Tachometer/Eco Driving Indica-
tor display area

A
B

2-1. Instrument cluster

Center Display

“MENU” button

Touchpad

Press the “MENU” button on the
Remote Touch, and then select

the screen.

■

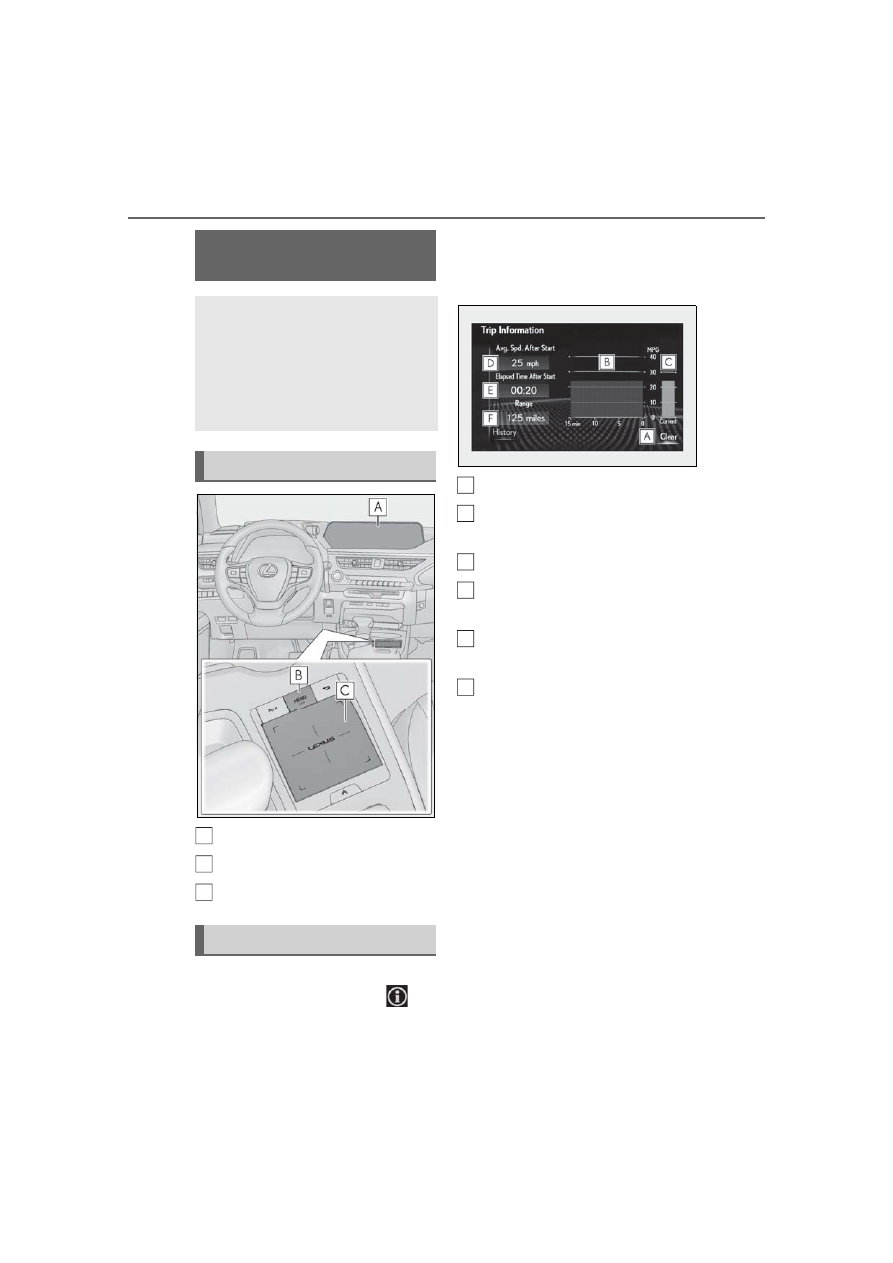

Trip information

If a screen other than “Trip Information”
is displayed, select “Trip Information”.

Resetting the consumption data

Fuel consumption in the past 15
minutes

Current fuel consumption

Average vehicle speed since the
engine was started.

Elapsed time since the engine was
started.

Cruising range

Average fuel consumption for the past 15
minutes is divided by color into past aver-
ages and averages attained since the
engine switch was last turned to ON. Use
the displayed average fuel consumption as
a reference.
The image is an example only, and may
vary slightly from actual conditions.

■

History

If a screen other than “History” is dis-
played, select “History”.

Fuel consumption informa-
tion

Fuel consumption information can
be displayed on the multi-informa-
tion display and Center Display.
10.3-inch display model: The con-
sumption screen can be displayed
on the side display.

System components

Consumption

A
B
C

A
B

C
D

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

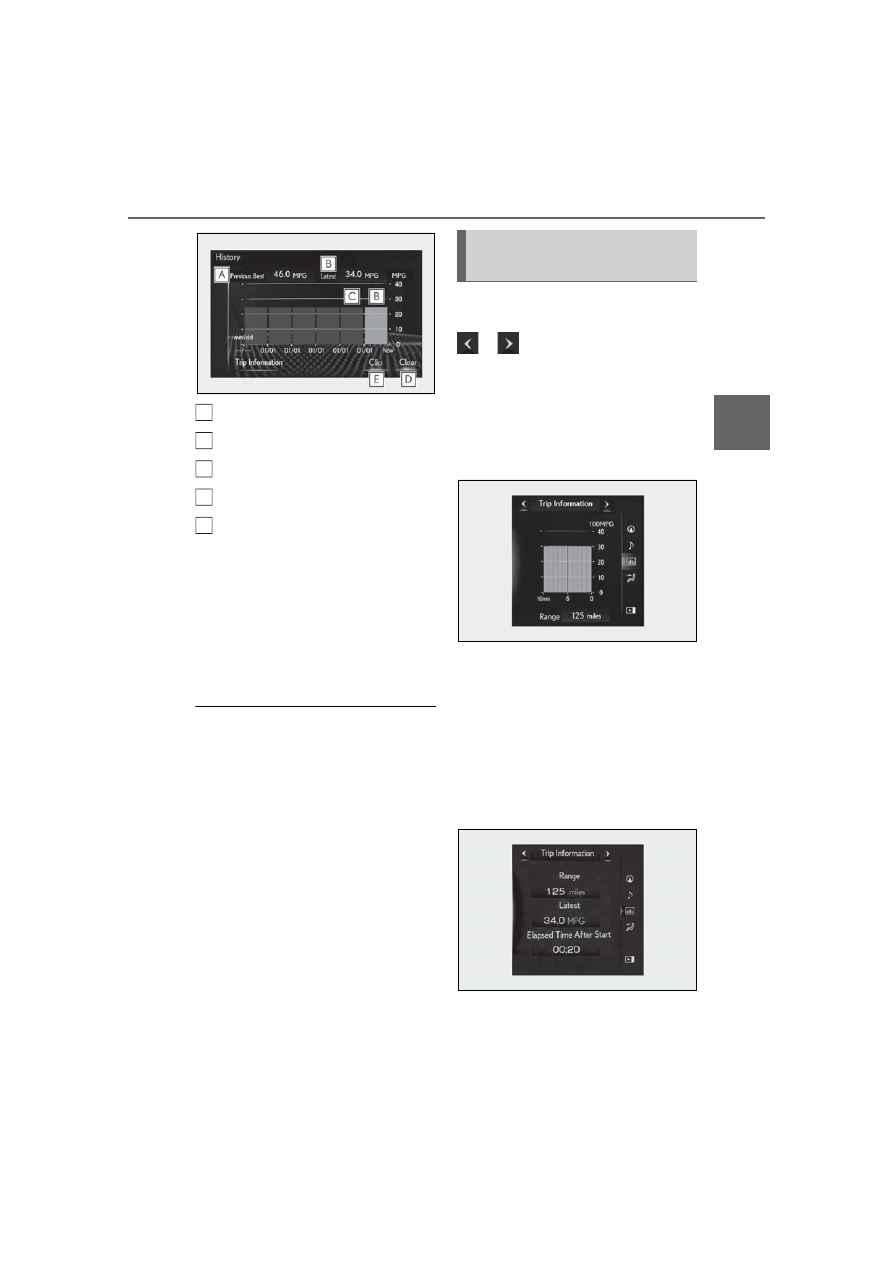

Best recorded fuel consumption

Latest fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel consump-
tion data

The average fuel consumption history is
divided by color into past averages and the
average fuel consumption since the last
updated. Use the displayed average fuel
consumption as a reference.
The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Clip” to measure the current fuel

consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

Display the vehicle information on the
side display (

P.259), and then select

to display the desired

screen.

■

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

■

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.

The image is an example only, and may
vary slightly from actual conditions.

A
B
C
D

Using the side display (10.3-inch
display model)

LEXUS UX 200 (2019 year). Instruction - part 5
