LEXUS UX 200 (2019 year). Instruction

1-3. LEXUS Enform

mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.
 ANSI (American National Stan-

dards Institute) C95.1 [1992]

 NCRP (National Council on Radia-

tion Protection and Measurement)
Report 86 [1986]

 ICNIRP (International Commission

on Non-Ionizing Radiation Protec-
tion) [1996]

Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-
plies with the FCC guidelines in addi-
tion to those standards.

: If equipped

After you sign the Telematics Subscrip-
tion Service Agreement, download the
Lexus Enform Remote app from your
cellular phone’s app store, and register
within the app (or enroll and complete
registration at the dealer), you can
begin using these services. (

P.56)

A variety of subscription terms are
available. Contact your Lexus dealer,
or call 1-800-25-LEXUS (1-800-
255-3987) for further subscription
details.

■

Availability of service

Lexus Enform Remote is available in the

contiguous United States, Washington D.C.

and Alaska.
Lexus Enform Remote is not available in

some countries or areas.

■

Lexus Enform Remote Information

●

Lexus Enform Remote should only be

used by authorized users.

●

Laws in some communities may require

that the vehicle be within view of the user

Lexus Enform Remote

Lexus Enform Remote is a cellular
phone application that lets you view
and remotely control certain
aspects of your vehicle.
For details about the functions and
services of this application, refer to
http://www.lexus.com/enform/.
Function of the Lexus Enform
Remote is achieved by using DCM
(Data Communication Module).

Subscription

1-3. LEXUS Enform

For safety and security

when operating Lexus Enform Remote.

In some states, use of Lexus Enform

Remote may violate state or local laws.

Before using Lexus Enform Remote,

check your state and local laws.

●

Any malfunction of the Lexus should be

repaired by your Lexus dealer.

●

Lexus Enform Remote is designed to

work at temperatures above -22°F (-

30°C). This specification is related to the

Lexus Enform Remote operation, but is

dependent on the vehicle’s operating

temperature range which may be differ-

ent.

●

Content is subject to change without

notice.

●

Some features of the Lexus Enform

Remote may not be available on some

models.

●

Additional information can be found at

www.lexus.com/enform/.

●

Availability of functions of the Lexus

Enform service is dependent on network

reception level.

■

Safety information for Lexus Enform

Remote

Refer to the safety information for Safety

Connect:

P.59

: If equipped

■

Availability of service

Lexus Enform Service Connect is not avail-

able in some countries or areas.

■

Lexus Enform Service Connect Infor-

mation

Availability of functions of the Lexus Enform

Service Connect is dependent on network

reception level.

■

Safety information for Lexus Enform

Service Connect

Refer to the safety information for Safety

Connect:

P.59

Lexus Enform Service Con-
nect

Lexus Enform Service Connect
uses DCM (Data Communication
Module) to collect and transmit
vehicle data that allows Lexus to
provide:
 Vehicle Health Report (VHR)

(Safety Recalls, Service Cam-
paigns, Current Vehicle Alerts,
Required Maintenance, and Vehi-
cle Condition Status)

 Maintenance Notifications
 Vehicle Alert Notifications
For details about this service and
how to register, refer to
http://www.lexus.com/enform/.
The Lexus Enform Service Con-
nect is achieved by using a DCM
built in the vehicle.

1-4. Theft deterrent system

1-4.Theft deterrent system

The security indicator flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACC or ON to indicate that the sys-
tem has been canceled.

■

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

■

Certification for the engine immobilizer system



For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico

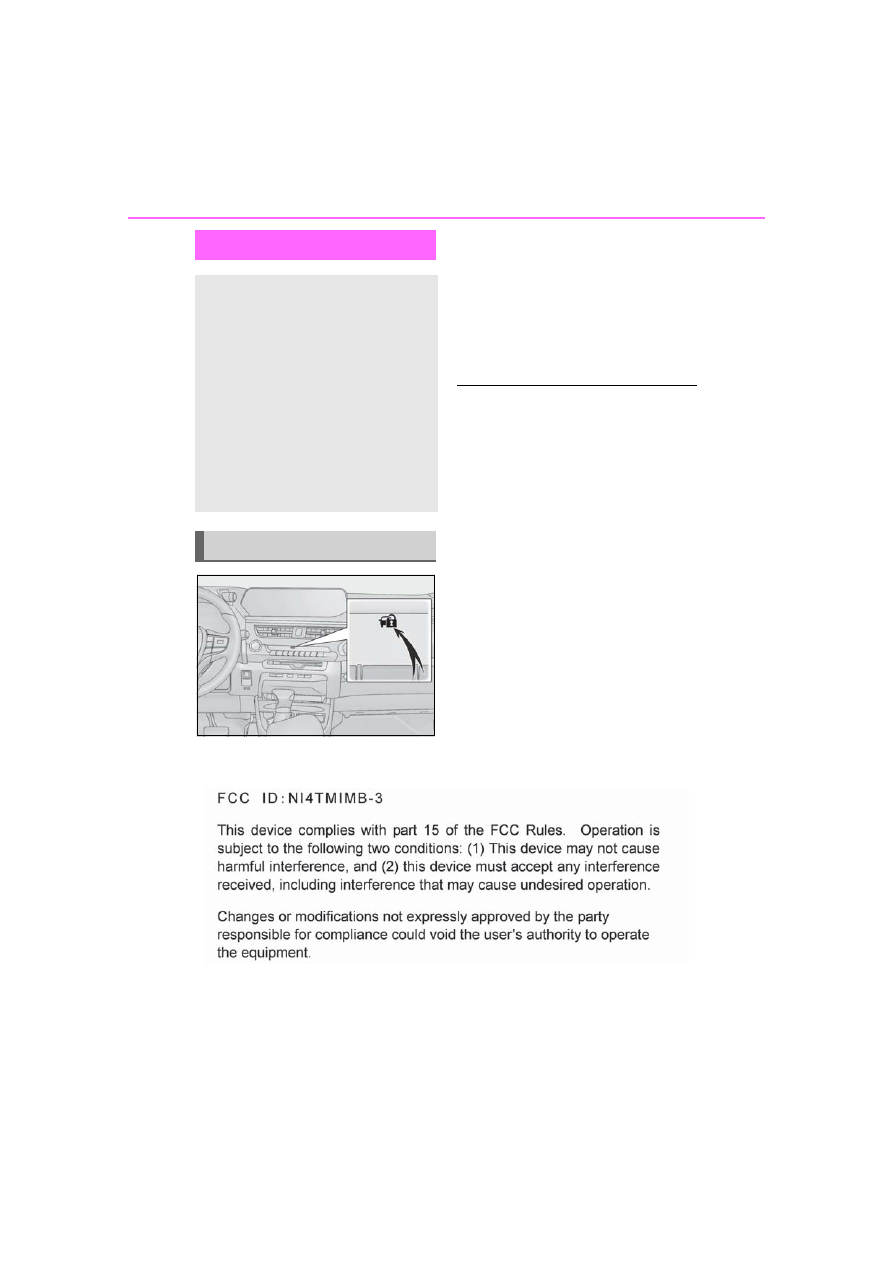

Engine immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.
This system is designed to help pre-
vent vehicle theft but does not guar-
antee absolute security against all
vehicle thefts.

Operating the system

1-4. Theft deterrent system

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
 Nobody is in the vehicle.
 The windows and moon roof (if

equipped) are closed before the
alarm is set.

 No valuables or other personal

items are left in the vehicle.

■

Setting

Close the doors and hood, and lock all
the doors. The system will be set auto-
matically after 30 seconds.

The security indicator changes from being
on to flashing when the system is set.

■

Canceling or stopping

Do one of the following to deactivate
or stop the alarms:
 Unlock the doors.
 Turn the engine switch to ACC or

ON, or start the engine. (The alarm
will be deactivated or stopped after
a few seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

A person inside the vehicle opens a door

or hood, or unlocks the vehicle using an

inside lock button.

●

The battery is recharged or replaced

when the vehicle is locked. (

P.384)

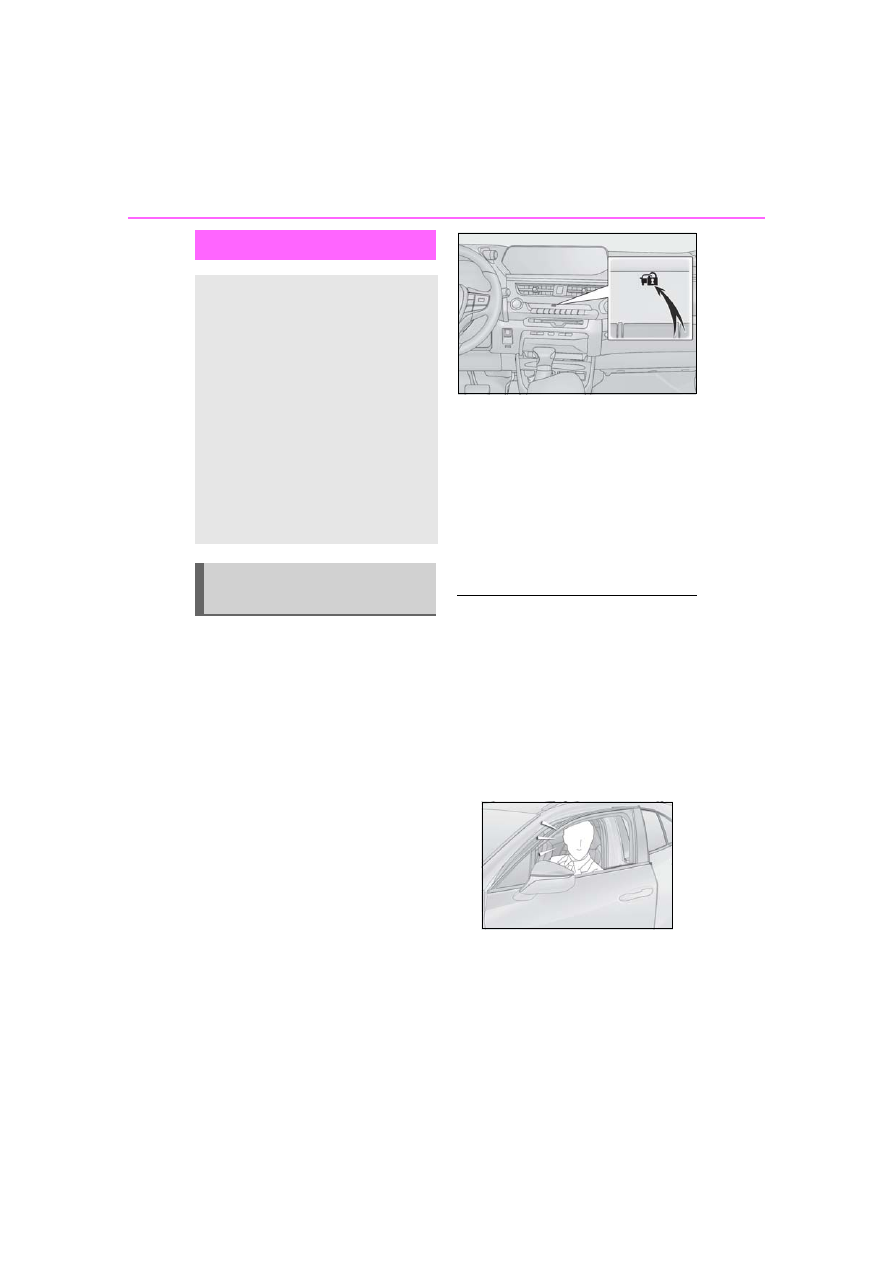

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:
 A locked door is unlocked or

opened in any way other than
using the entry function, wireless
remote control or mechanical
key. (The doors will lock again
automatically.)

 The hood is opened.

Setting/canceling/stopping the
alarm system

1-4. Theft deterrent system

For safety and security

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

When recharging or replacing the bat-

tery.

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

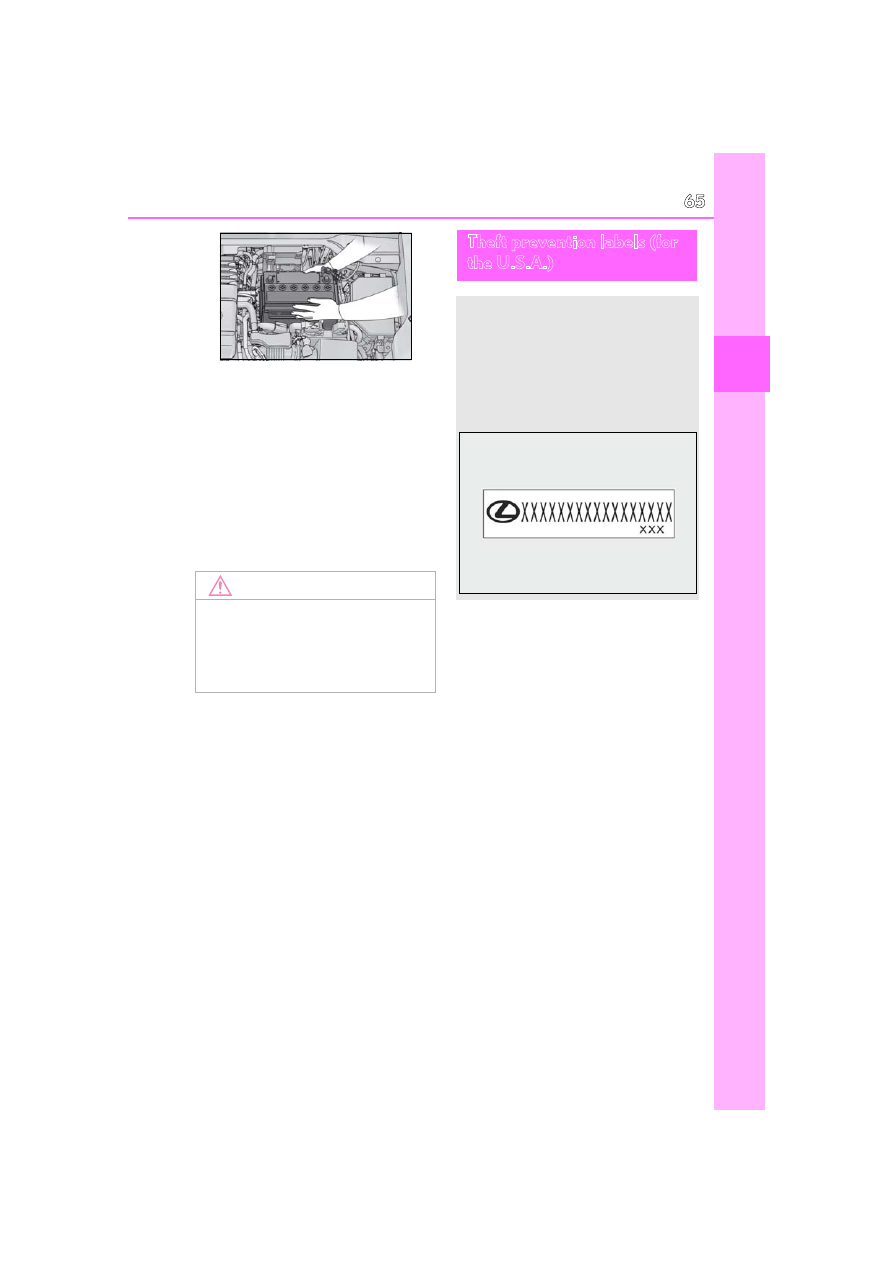

Theft prevention labels (for
the U.S.A.)

These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indicators.

Gauges and meters (except F

SPORT models) .........................

Gauges and meters (F SPORT

models)..........................................

Multi-information display..........

Head-up display ...........................

Fuel consumption information

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

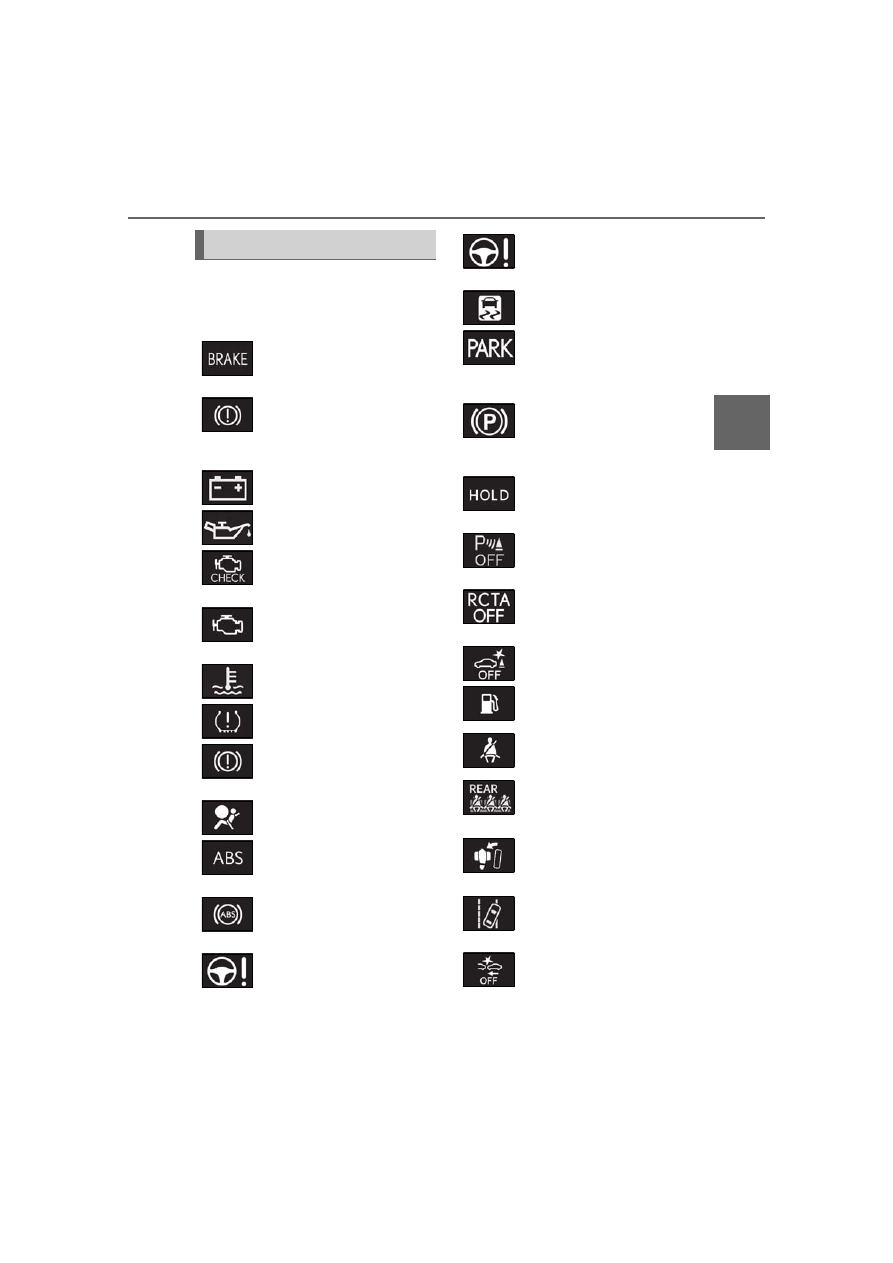

Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.

: These lights come on when the engine

Warning lights

(U.S.A.)

Brake system warning light

(

P.358)

(red)

(Canada)

Brake system warning light

(

P.358)

Charging system warning
light

(

P.358)

Low engine oil pressure warn-
ing light

(

P.358)

(U.S.A.)

Malfunction indicator lamp

(

P.359)

(Canada)

Malfunction indicator lamp

(

P.359)

High coolant temperature
warning light

(

P.359)

Tire pressure warning light

(

P.359)

(yellow)

Brake system warning light

(

P.360)

SRS warning light

(

P.360)

(U.S.A.)

ABS warning light

(

P.360)

(Canada)

ABS warning light

(

P.360)

(red)

Electric power steering system
warning light

(

P.360)

(yellow)

Electric power steering system
warning light

(

P.360)

Slip indicator

(

P.361)

(Flashes)

(U.S.A.)

Parking brake indicator
(

P.361)

(Flashes)

(Canada)

Parking brake indicator
(

P.361)

(Flashes)

Brake hold operated indicator

(

P.361)

(Flashes)

Intuitive parking assist OFF indi-
cator (if equipped) (

P.361)

(Flashes)

RCTA OFF indicator (if
equipped) (

P.362)

PKSB OFF indicator

(if

equipped) (

P.362)

Low fuel level warning light
(

P.362)

Driver’s and front passenger’s
seat belt reminder light
(

P.362)

Rear passengers’ seat belt
reminder lights

(

P.363)

Brake Override System warn-
ing light/Drive-Start Control
warning light/PKSB warning
light

(

P.363)

(orange)

LTA indicator

(

P.364)

(Flashes or

illuminates)

PCS warning light

(

P.364)

2-1. Instrument cluster

switch is turned to ON to indicate that a
system check is being performed. They
will go off after the engine is on, or after
a few seconds. There may be a malfunc-
tion in a system if the lights do not come
on, or go off. Have the vehicle inspected
by your Lexus dealer.

: This light illuminates on the multi-infor-

mation display.

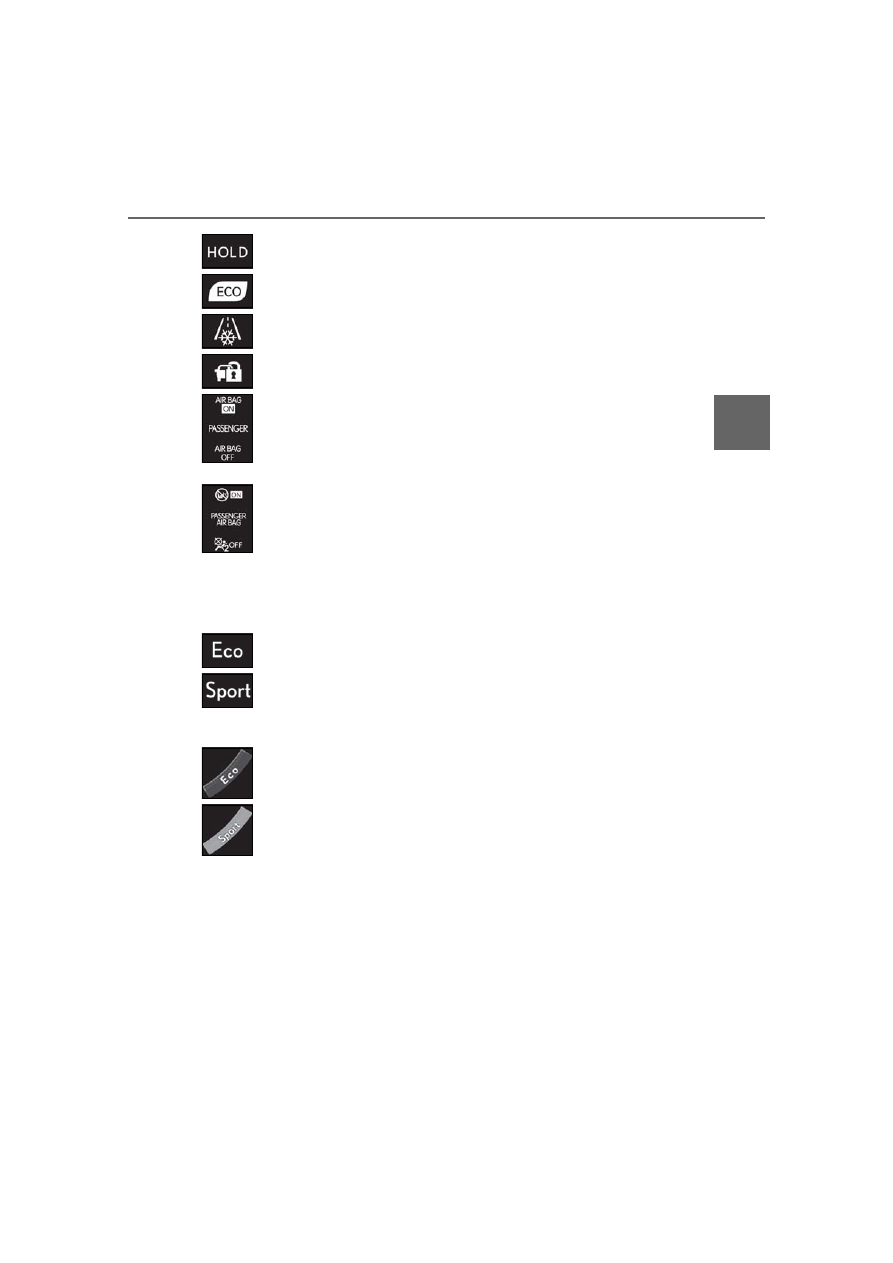

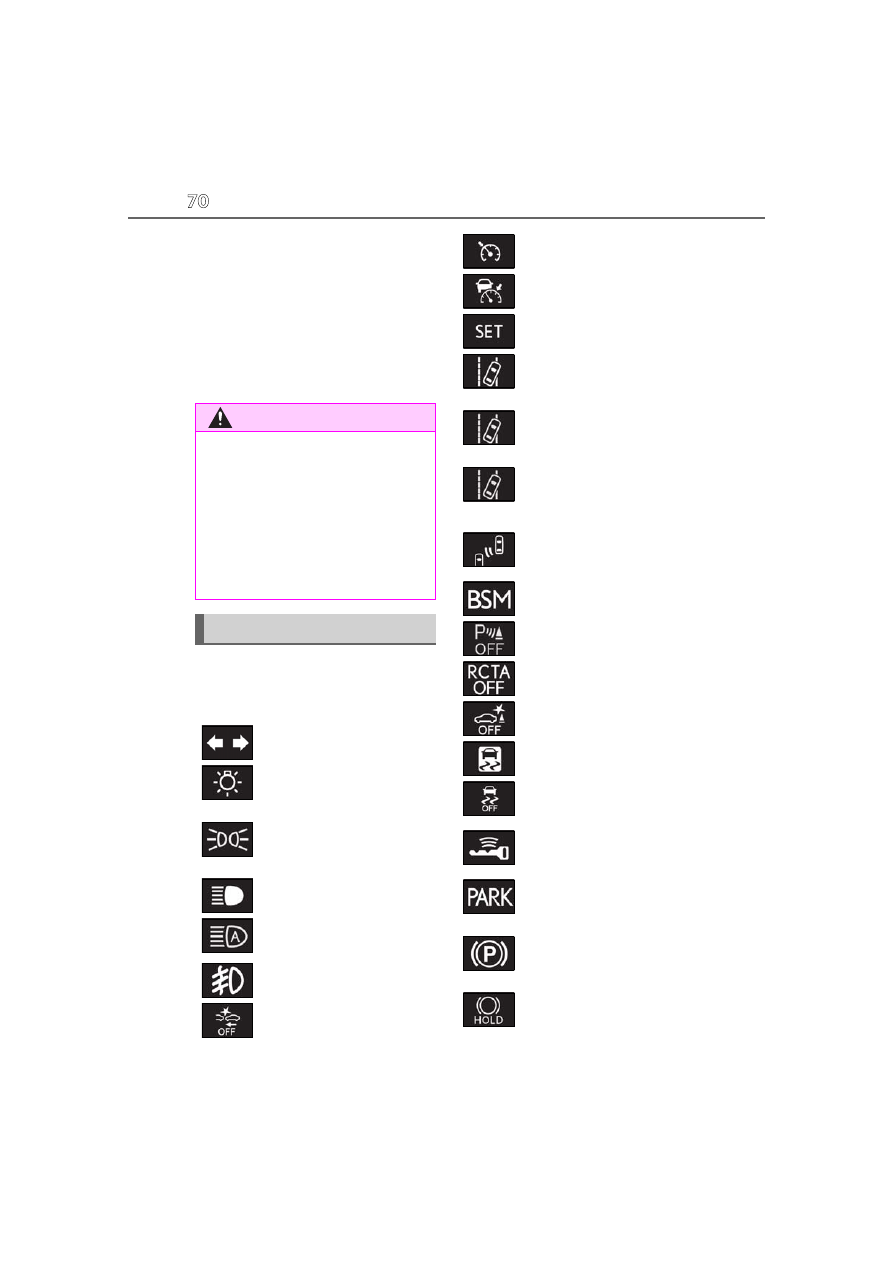

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine, this could

mean that these systems are not available

to help protect you in an accident, which

could result in death or serious injury.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

Indicators

Turn signal indicator (

P.159)

(U.S.A.)

Headlight indicator (

P.165)

(Canada)

Tail light indicator (

P.165)

Headlight high beam indicator
(

P.166)

Automatic High Beam indica-
tor

(

P.168)

Front fog light indicator (if
equipped) (

P.172)

PCS warning light

*1, 2

(

P.186)

Cruise control indicator

(

P.202)

Dynamic radar cruise control
indicator

(

P.202)

Cruise control “SET” indica-
tor

(

P.202)

(white)

LTA indicator

(

P.198)

(green)

LTA indicator

(

P.198)

(orange)

LTA indicator

*3, 4

(

P.198)

BSM outside rear view mirror
indicators

*1, 5

(if equipped)

(

P.244)

BSM indicator (if equipped)
(

P.244)

Intuitive parking assist OFF indi-
cator

(if equipped) (

P.221)

RCTA OFF indicator

(if

equipped) (

P.227)

PKSB OFF indicator

*1, 2

(if

equipped) (

P.232)

Slip indicator

*1, 4

(

P.245)

VSC OFF indicator

*1, 2

(

P.245)

Smart access system with push-
button start indicator

(

P.152)

(U.S.A.)

Parking brake indicator
(

P.160)

(Canada)

Parking brake indicator
(

P.160)

Brake hold standby indicator

(

P.163)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

 Drive mode indicators



Except F SPORT models



F SPORT models

: These lights come on when the engine

: This light comes on when the system is

turned off.

: This light illuminates on the multi-infor-

mation display.

: This light flashes to indicate that the sys-

tem is operating.

: This light illuminates on the outside rear

view mirrors.

: Except F SPORT models: This light illu-

minates on the multi-information dis-
play.

: When the outside temperature is

approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

: This light illuminates on the center

panel.

Brake hold operated indicator

(

P.163)

Eco Driving Indicator Light

*1, 6

(

P.82)

Low outside temperature indi-
cator

*3, 7

(

P.72, 75)

Security indicator

(

P.62,

64)

(U.S.A.)

“AIR BAG ON/OFF” indica-
tor

(

P.39)

(Canada)

“AIR BAG ON/OFF” indica-
tor

(

P.39)

Eco drive mode indicator
(

P.243)

Sport mode indicator
(

P.243)

Eco drive mode indicator
(

P.243)

Sport mode indicator
(

P.243)

2-1. Instrument cluster

■

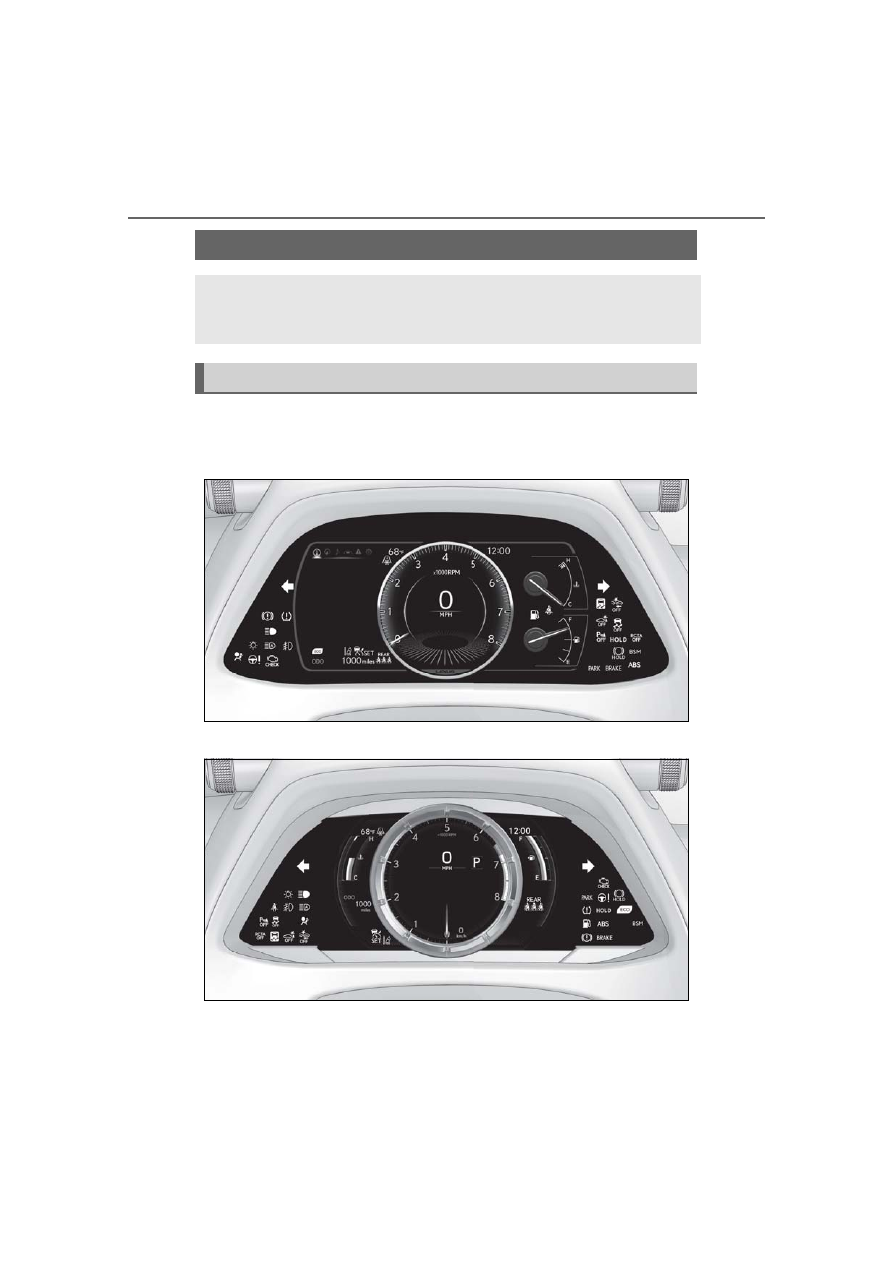

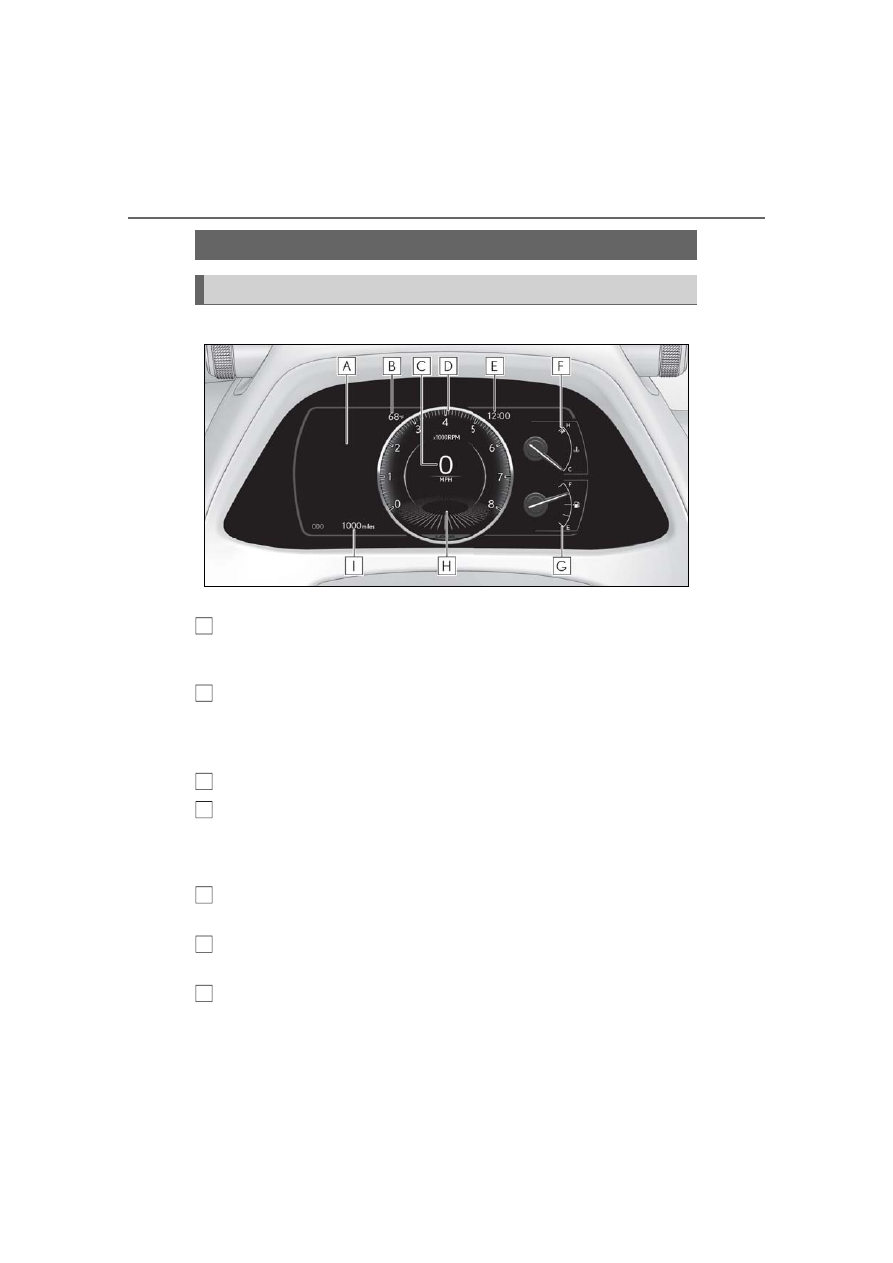

Locations of gauges and meters

The units of measure may differ depending on the intended destination of the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (

P.79)

Displays warning messages if a malfunction occurs (

P.367)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F (3°C)
or lower

Speedometer

Tachometer

Displays the engine speed in revolutions per minute
When Sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Clock

Time displayed is linked to the analog clock on the center panel. (

P.285)

Engine coolant temperature gauge

Displays the engine coolant temperature

Fuel gauge

Displays the quantity of fuel remaining in the tank

Gauges and meters (except F SPORT models)

Meter display

C
D

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

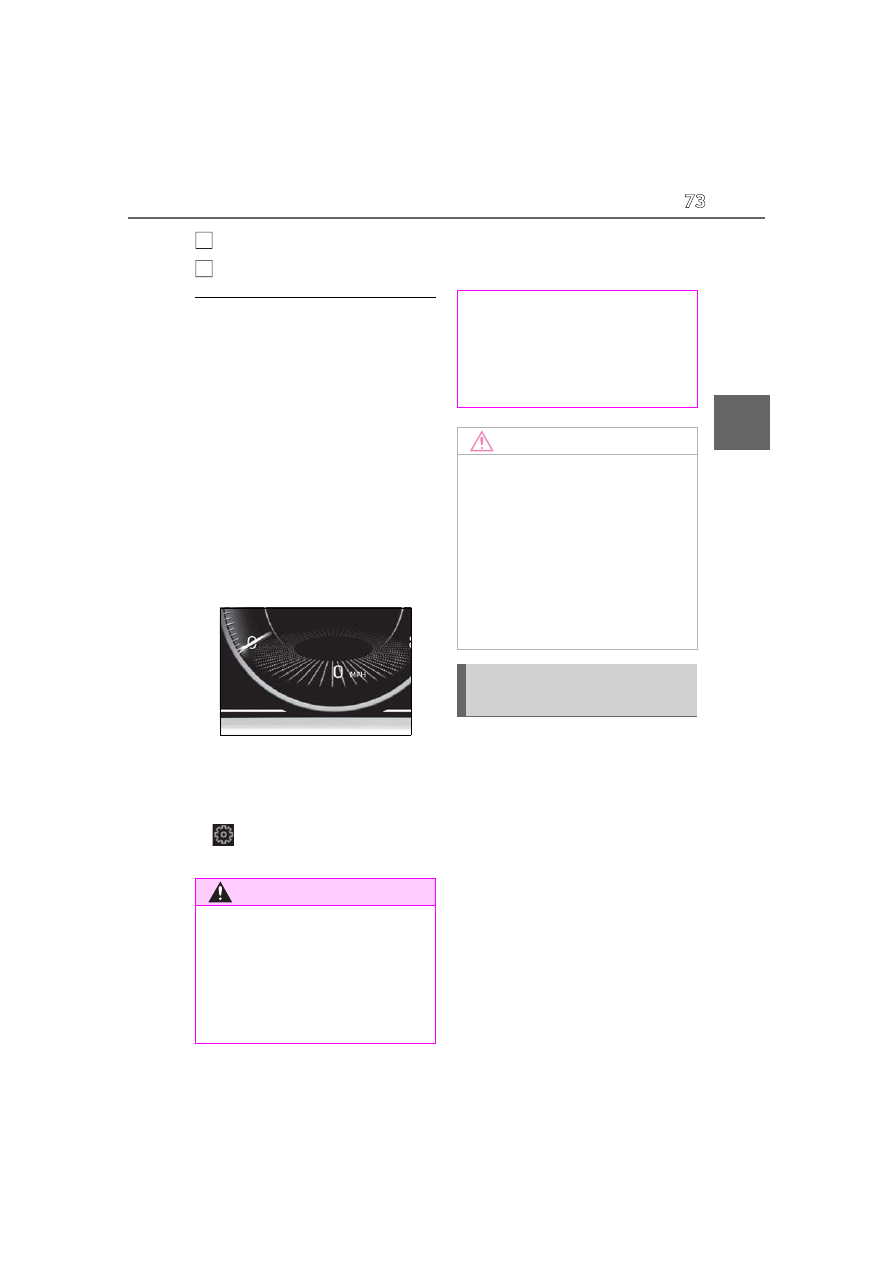

Shift position/shift range (

P.155)

Odometer and trip meter display (

P.73)

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Speed unit setting for the speedometer

When the speed unit has been changed

from the default setting, the vehicle speed in

the default unit is also displayed in the

meter.

■

Liquid crystal display

P.80

■

Customization

The gauges and meters can be customized
on

of the multi-information display.

(

P.409)

■

Display items

 Odometer

Displays the total distance the vehicle has
been driven.

 Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.

 Distance until next engine oil

change

Displays the distance the vehicle can be
driven until an oil change is necessary.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator of the tachom-

eter enter the red zone, which indi-

cates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (

P.386)

Odometer and trip meter dis-
play

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

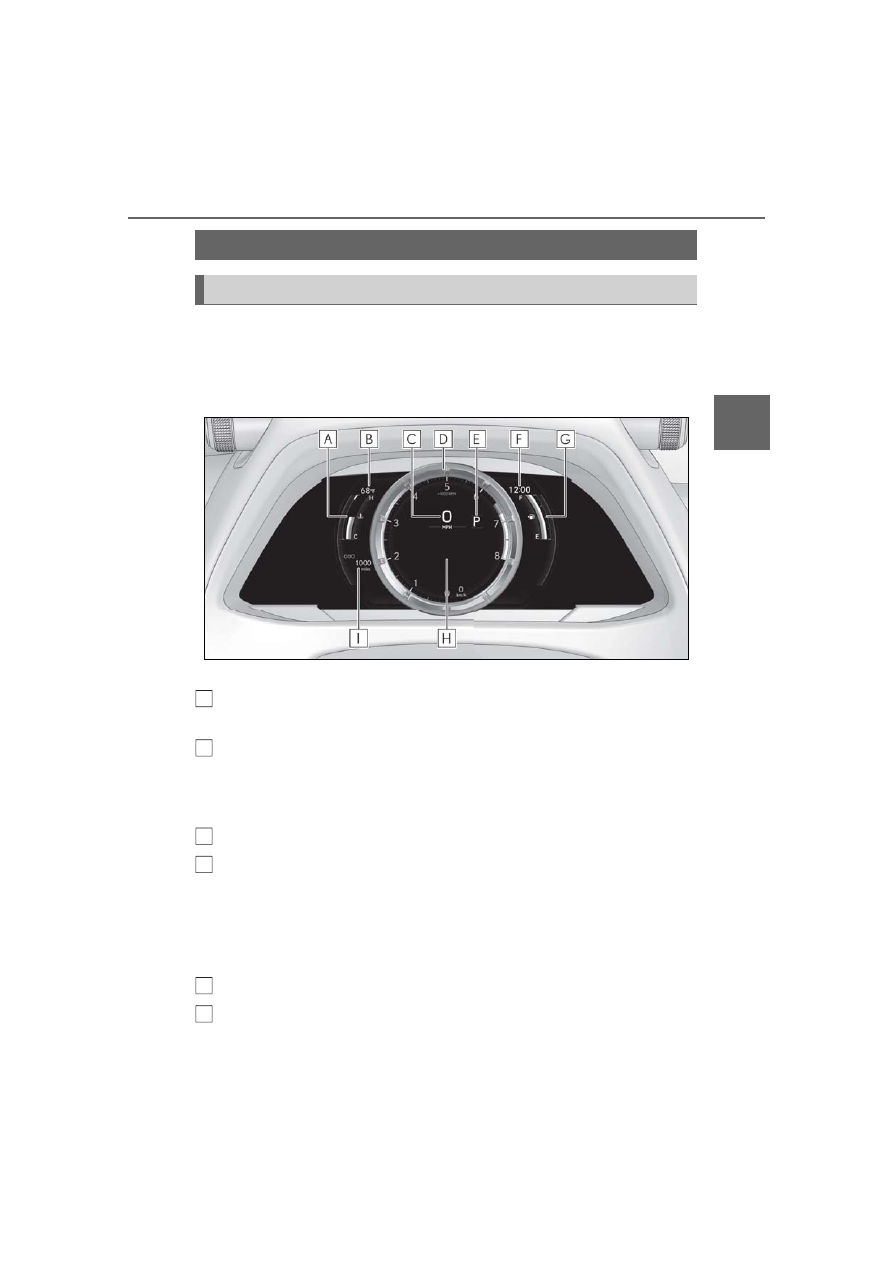

Locations of gauges and meters

When the main meter is in the side position, some of the meter displays and the
gauge layout will change.



When the main meter is in the center position

The units of measure may differ depending on the intended destination of the vehicle.

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F (3°C)
or lower

Speedometer

Tachometer

Shift position/shift range (

P.155)

Clock

Gauges and meters (F SPORT models)

Meter display

C
D

E
F

LEXUS UX 200 (2019 year). Instruction - part 4
