LEXUS RC F (2019 year). Instruction

526

7-2. Steps to take in an emergency

RC F_U

●

The engine coolant temperature gauge (

P. 91, 96) is in the red zone or a

loss of engine power is experienced. (For example, the vehicle speed does not
increase.)

●

“Engine Coolant Temp High Stop in a Safe Place See Owner's Manual” is
shown on the multi-information display.

●

Steam comes out from under the hood.

Stop the vehicle in a safe place and turn off the air conditioning system, and
then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.

If your vehicle overheats

The following may indicate that your vehicle is overheating.

Correction procedures

527

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses

After the engine has cooled down sufficiently, inspect the hoses and radiator
core (radiator) for any leaks.

Radiator
Cooling fans

If a large amount of coolant leaks, immediately contact your Lexus dealer.



RC350/RC300 AWD



RC300



RC F

528

7-2. Steps to take in an emergency

RC F_U

The coolant level is satisfactory if it is between the full (“FULL” or “F”) and low
(“LOW” or “L”) lines on the reservoir.

Reservoir cap
“FULL” or “F”
“LOW” or “L”

2
3



Engine (RC350/RC300 AWD)



Engine (RC300)



Engine (RC F)



Intercooler (RC300)

529

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses

Add coolant if necessary.

Water can be used in an emergency if coolant is unavailable.

Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.

The fans operate when the air conditioning system is turned on immediately after a

cold start. Confirm that the fans are operating by checking the fan sound and air flow.

If it is difficult to check these, turn the air conditioning system on and off repeatedly.

(The fan may not operate in freezing temperatures.)

If the fans are not operating:
Stop the engine immediately and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.



Engine (RC350/RC300 AWD)



Engine (RC300)



Engine (RC F)



Intercooler (RC300)

530

7-2. Steps to take in an emergency

RC F_U

WARNING

■

When inspecting under the hood of your vehicle
Observe the following precautions.

Failure to do so may result in serious injury such as burns.

●

If steam is seen coming from under the hood, do not open the hood until the steam

has subsided. The engine compartment may be very hot.

●

Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and

belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-

ous injury.

●

RC350/RC300 AWD: While the engine

and radiator are hot, do not loosen or remove

the coolant reservoir cap or coolant inlet cap.

(The coolant inlet cap is located under the

engine cover.)

High temperature steam or coolant could

spray out.

●

RC300: While the engine and radiators are

hot, do not loosen or remove the coolant res-

ervoir cap, coolant inlet cap, or intercooler

coolant reservoir cap.

High temperature steam or coolant could

spray out.

●

RC F: While the engine and radiator are hot,

do not loosen or remove the coolant reser-

voir cap.

High temperature steam or coolant could

spray out.

531

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses

NOTICE

■

When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant

to a hot engine too quickly can cause damage to the engine.

■

To prevent damage to the cooling system
Observe the following precautions:

●

Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).

●

Do not use any coolant additive.

532

7-2. Steps to take in an emergency

RC F_U

Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and release the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.

■

When it is difficult to free the vehicle



RC350/RC300

If the vehicle becomes stuck

Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:

Press

(

) to turn off TRAC.

2
3

4
5

533

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses



RC F

Press

(

) to turn off TRAC.

WARNING

■

When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding

area is clear to avoid striking other vehicles, objects or people. The vehicle may also

lunge forward or lunge back suddenly as it becomes free. Use extreme caution.

■

When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.

This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-

dent resulting in death or serious injury.

NOTICE

■

To avoid damaging the transmission and other components

●

Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-

essary.

●

If the vehicle remains stuck even after these procedures are performed, the vehicle

may require towing to be freed.

536

RC F_U

8-1. Specifications



RC350/RC300

: Unladen vehicle

: Vehicles with 265/35R19 tires



RC F

: Unladen vehicle

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

184.8 in. (4695 mm)

Overall width

72.4 in. (1840 mm)

Overall height

54.9 in. (1395 mm)

Wheelbase

107.5 in. (2730 mm)

Tread

Front

62.2 in. (1580 mm)

Rear

63.0 in. (1600 mm)
61.8 in. (1570 mm)

Vehicle capacity weight

(Occupants + luggage)

700 lb. (320 kg)

Overall length

185.2 in. (4705 mm)

Overall width

72.6 in. (1845 mm)

Overall height

54.7 in. (1390 mm)

Wheelbase

107.5 in. (2730 mm)

Tread

Front

61.2 in. (1555 mm)

Rear

61.4 in. (1560 mm)

Vehicle capacity weight

(Occupants + luggage)

700 lb. (320 kg)

537

8-1. Specifications

icl

e spe

cif

atio

RC F_U

■

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.

Vehicle identification



RC350/RC300 AWD



RC300



RC F

538

8-1. Specifications

RC F_U

This number is also on the Certifica-
tion Label.

■

Engine number
The engine number is located as shown.



RC350/RC300 AWD



RC300



RC F

539

8-1. Specifications

icl

e spe

cif

atio

RC F_U



RC350/RC300 AWD



RC300



RC F

Engine

Model

3.5 L 6-cylinder (2GR-FKS) engine

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70

 3.27 in. (94.0  83.0 mm)

Displacement

210.9 cu. in. (3456 cm

)

Drive belt tension

Automatic adjustment

Model

2.0 L 4-cylinder (8AR-FTS) engine

Type

4-cylinder in line, 4-cycle, gasoline (with turbocharger)

Bore and stroke

3.39

 3.39 in. (86.0  86.0 mm)

Displacement

121.9 cu. in. (1998 cm

)

Drive belt tension

Automatic adjustment

Model

5.0 L 8-cylinder (2UR-GSE) engine

Type

8-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70

 3.52 in. (94.0  89.5 mm)

Displacement

303.2 cu. in. (4969 cm

)

Drive belt tension

Automatic adjustment

540

8-1. Specifications

RC F_U

■

Oil capacity (Drain and refill [Reference

])

: The engine oil capacity is a reference quantity to be used when changing the engine

oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

91 (Research Octane Number 96) or higher

Fuel tank capacity

(Reference)

17.5 gal. (66.3 L, 14.6 Imp. gal.)

Lubrication system

With filter

Without filter

RC350

6.0 qt. (5.7 L, 5.0 Imp. qt.)

5.8 qt. (5.5 L, 4.8 Imp. qt.)

RC350 AWD/

RC300 AWD

6.8 qt. (6.4 L, 5.6 Imp. qt.)

6.3 qt. (6.0 L, 5.3 Imp. qt.)

RC300

4.9 qt. (4.6 L, 4.0 Imp. qt.)

4.5 qt. (4.3 L, 3.8 Imp. qt.)

RC F

9.3 qt. (8.8 L, 7.7 Imp. qt.)

8.3 qt. (7.9 L, 7.0 Imp. qt.)

541

8-1. Specifications

icl

e spe

cif

atio

RC F_U

■

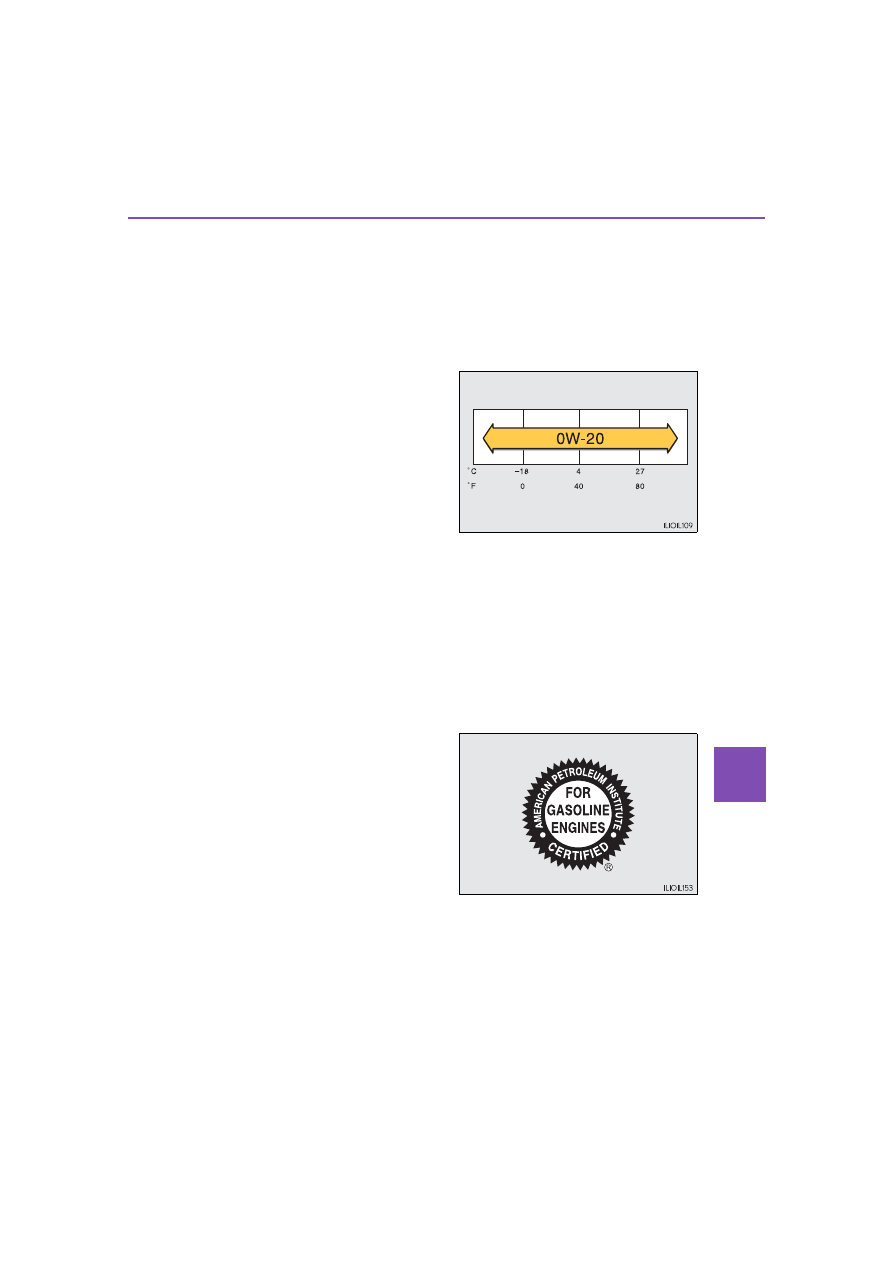

Engine oil selection (RC350/RC300 AWD)
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.

Outside temperature
