7-2. Steps to take in an emergency

RC F_U



RC350/RC300

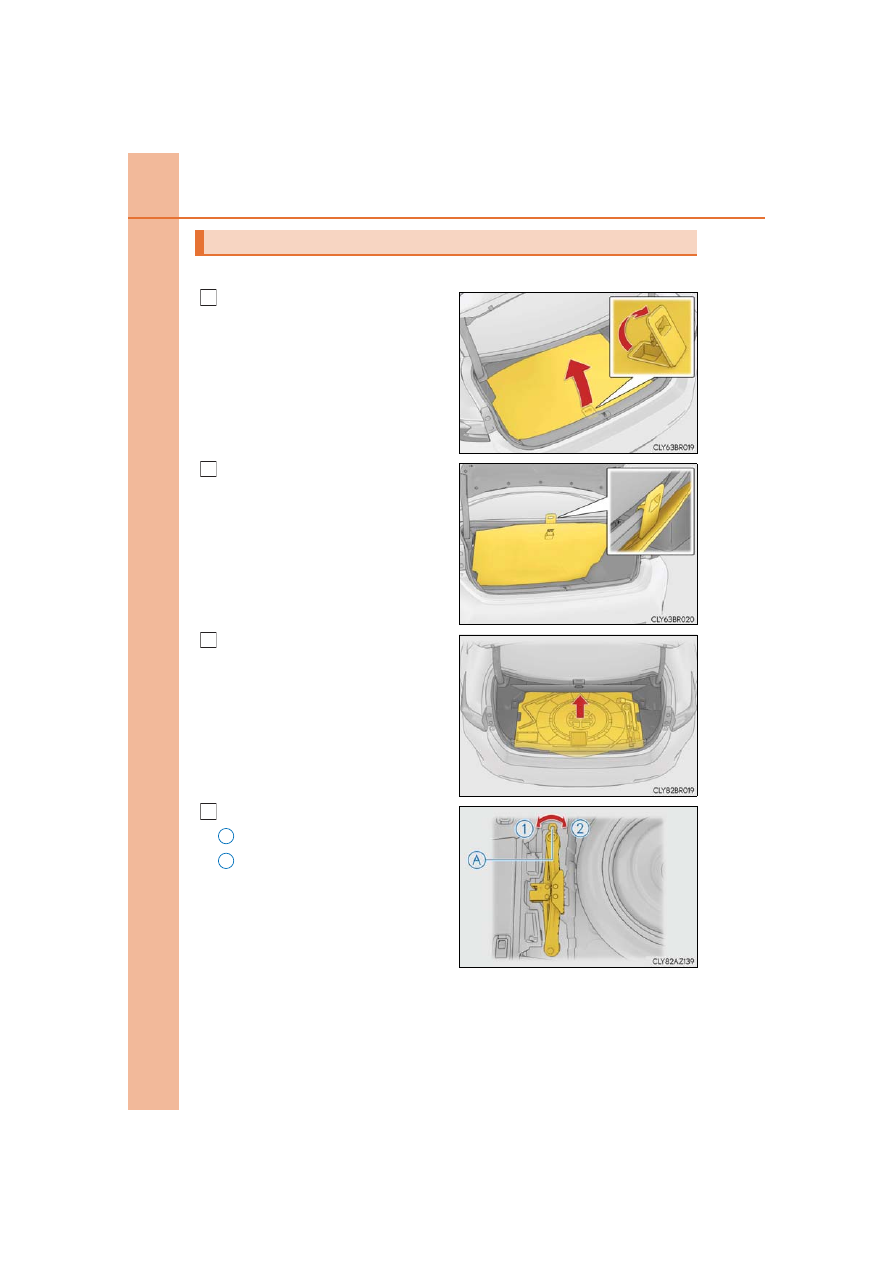

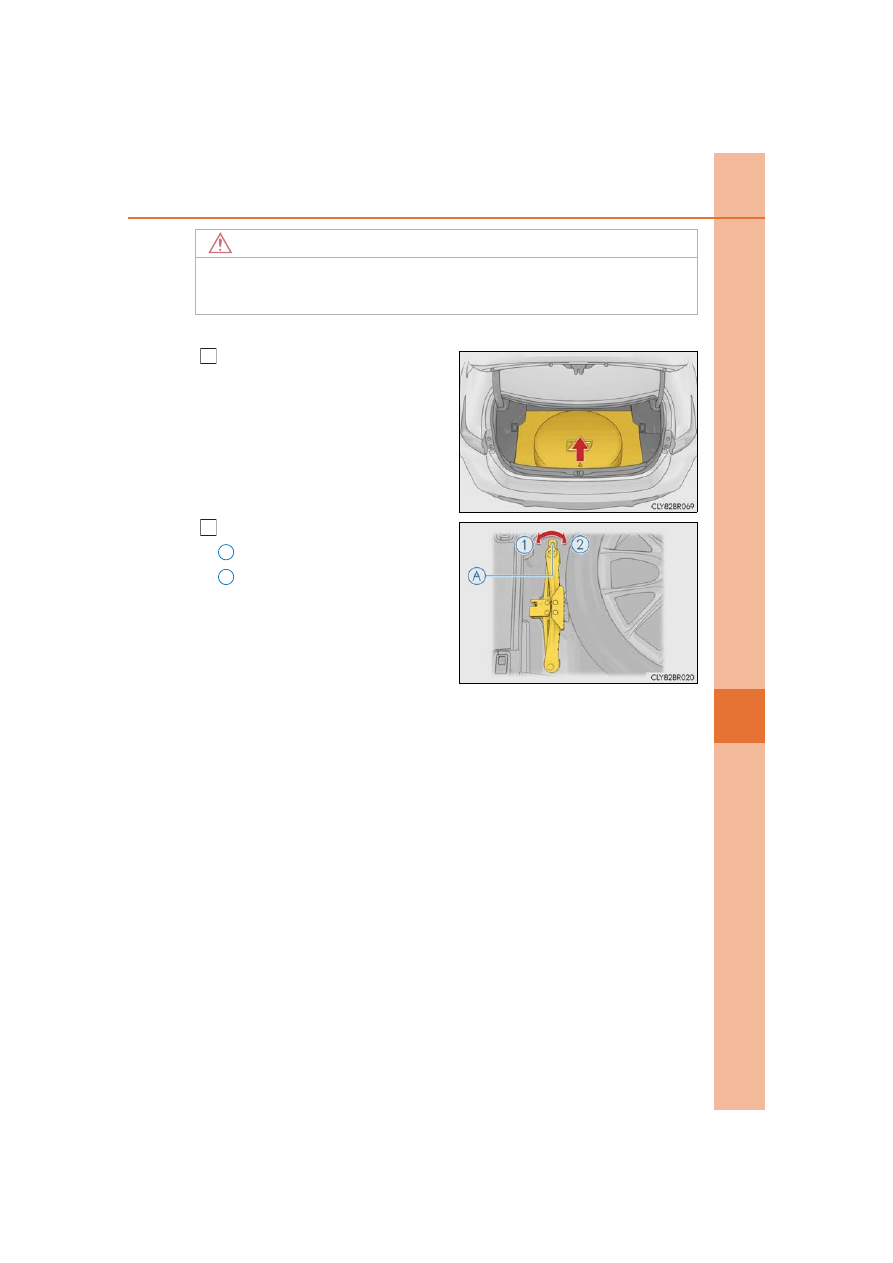

Hold the hook and lift up the lug-
gage mat.

Secure the luggage mat using the
hook.

Remove the tool tray.

Take out the jack.

For tightening
For loosening

If the jack is too tightly installed to be

removed by hand, insert a tool, such

as the screwdriver included with the

vehicle, into the hole of the jack (por-

tion “A”) and loosen the jack.

Taking out the jack

495

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses



RC F
Remove the luggage mat.

Take out the jack.

For tightening
For loosening

If the jack is too tightly installed to be

removed by hand, insert a tool, such

as the screwdriver included with the

vehicle, into the hole of the jack (por-

tion “A”) and loosen the jack.

NOTICE

When closing the trunk door, do not leave the luggage mat lever hooked on the edge

of the trunk. The luggage mat may get damaged.

496

7-2. Steps to take in an emergency

RC F_U



RC350/RC300
Secure the luggage mat using the hook. (

P. 494)

Remove the tool tray.

Loosen the center fastener that
secures the spare tire.

If the center fastener cannot be turned

by hand, use the wheel nut wrench that

is stored in the trunk. (To secure the tire,

tighten the center fastener by hand. Do

not use the wrench or other tools.)



RC F
Remove the luggage mat.

Loosen the center fastener that
secures the spare tire.

If the center fastener cannot be turned

by hand, use the wheel nut wrench that

is stored in the trunk. (To secure the tire,

tighten the center fastener by hand. Do

not use the wrench or other tools.)

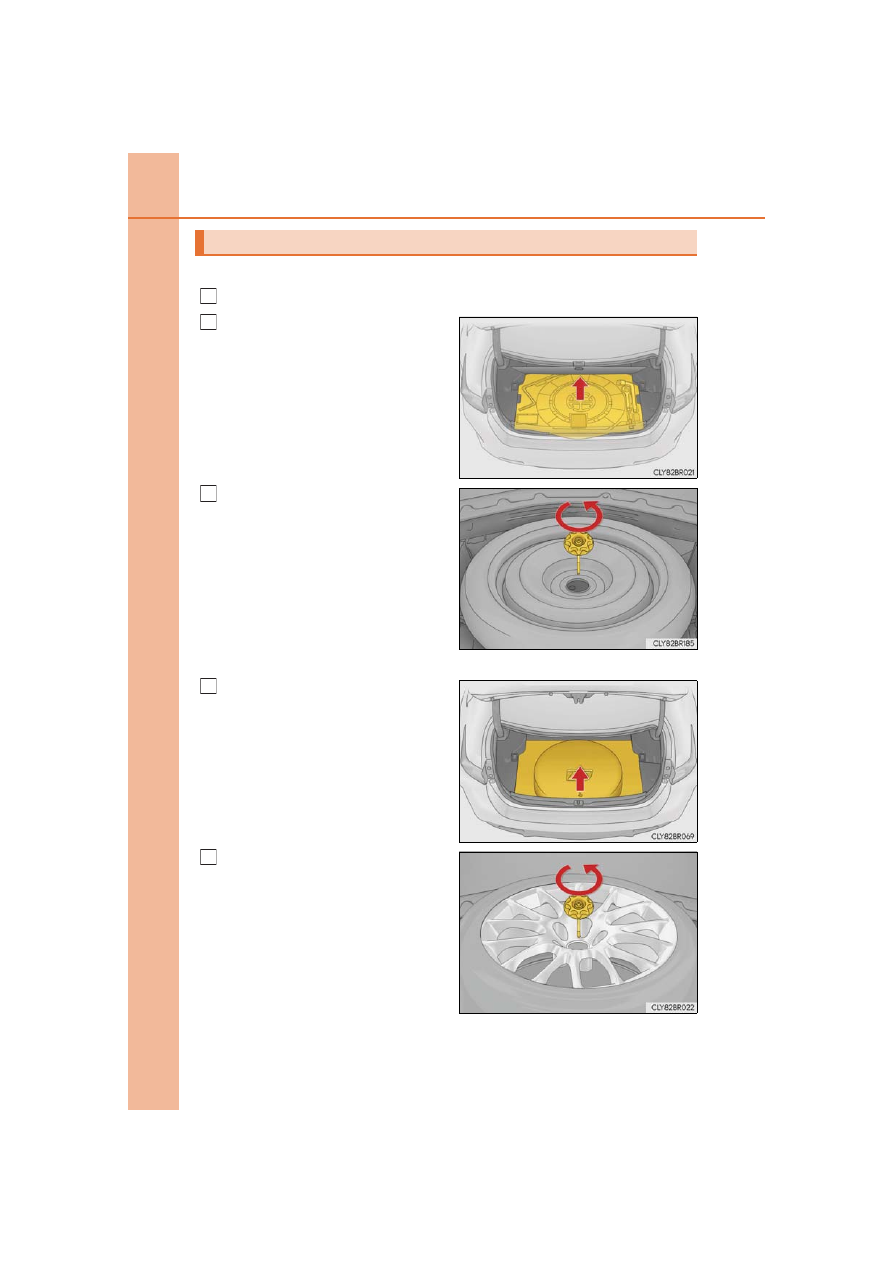

Taking out the spare tire

497

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses

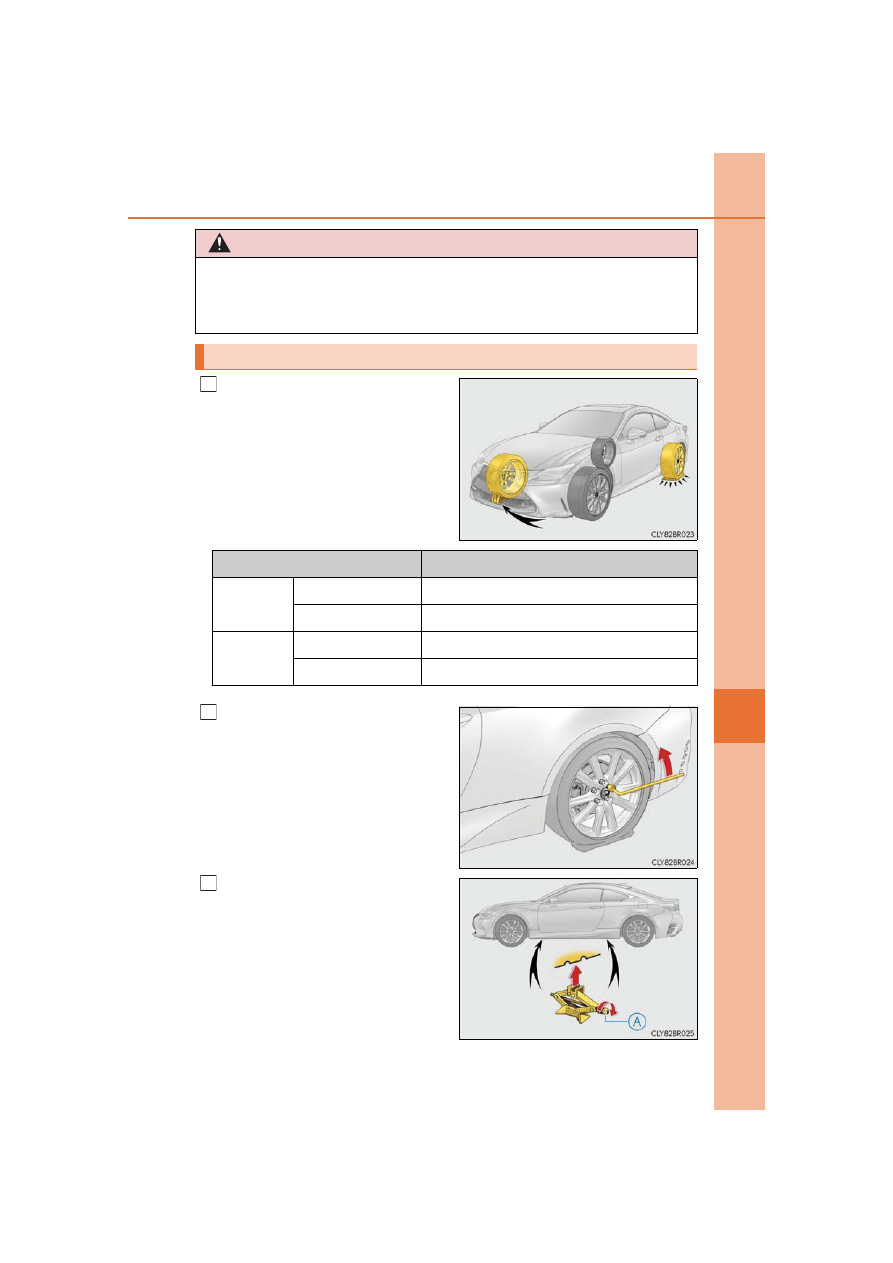

Chock the tires.

Slightly loosen the wheel nuts (one
turn).

Turn the tire jack portion “A” by hand
until the notch of the jack is in con-
tact with the jack point.

The jack point guides are located under

the rocker panel. They indicate the jack

point positions.

WARNING

■

When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the body

of the vehicle.

Replacing a flat tire

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

498

7-2. Steps to take in an emergency

RC F_U

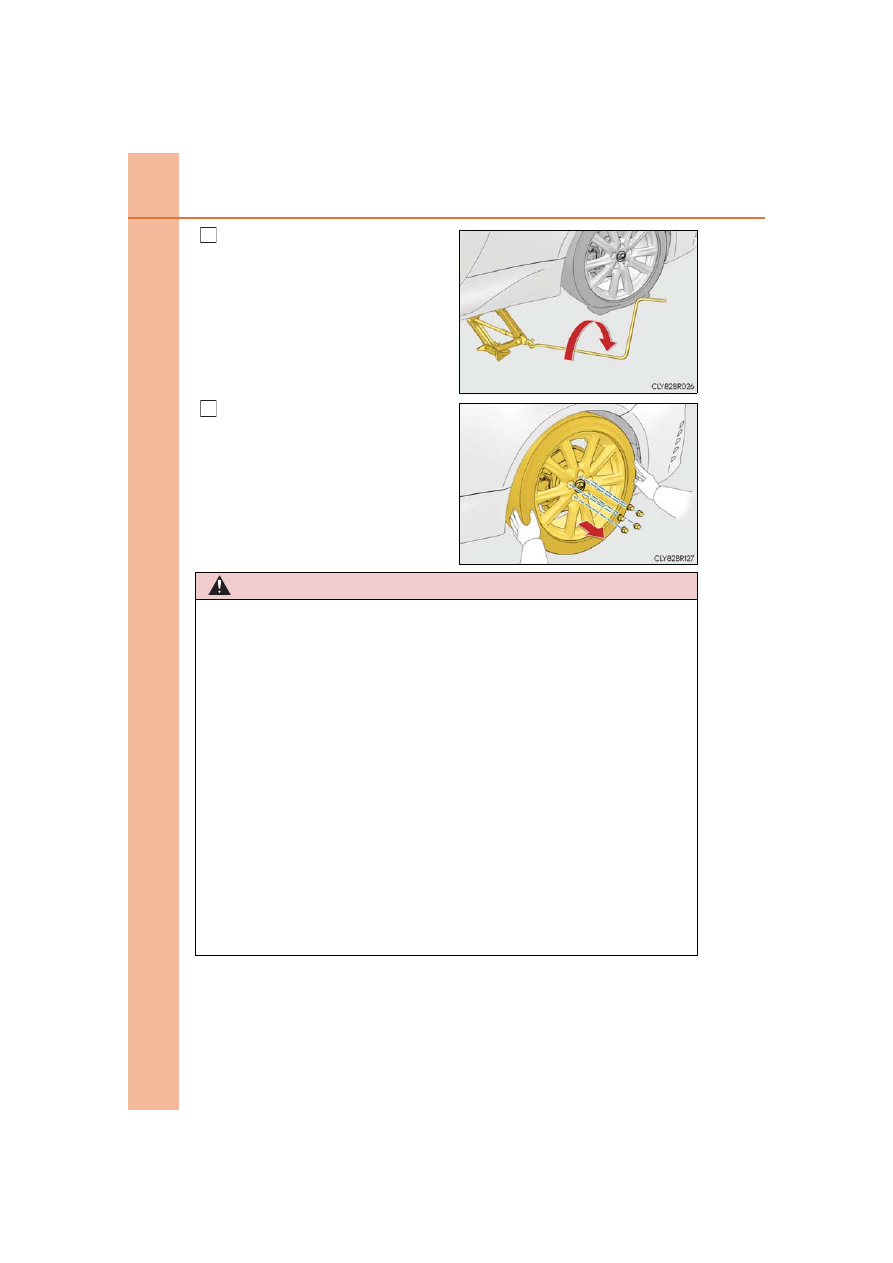

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and the
tire.

When resting the tire on the ground,

place the tire so that the wheel design

faces up to avoid scratching the wheel

surface.

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or the area around the brakes immediately after the

vehicle has been driven.

After the vehicle has been driven the disc wheels and the area around the brakes will

be extremely hot. Touching these areas with hands, feet or other body parts while

changing a tire, etc. may result in burns.

●

Failure to follow these precautions could cause the wheel nuts to loosen and the tire

to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.

Oil and grease may cause the wheel nuts to be excessively tightened, leading to

bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts

to loosen and the wheel may fall off, causing a serious accident. Remove any oil or

grease from the wheel bolts or wheel nuts.

• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m,

10.5 kgf•m) as soon as possible after changing wheels.

• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while

the vehicle is moving.

• When installing a tire, only use wheel nuts that have been specifically designed for

that wheel.

• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes

of the wheel, have the vehicle inspected by your Lexus dealer.

499

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses

Remove any dirt or foreign matter
from the wheel contact surface.

If foreign matter is on the wheel contact

surface, the wheel nuts may loosen

while the vehicle is in motion, causing

the tire to come off.

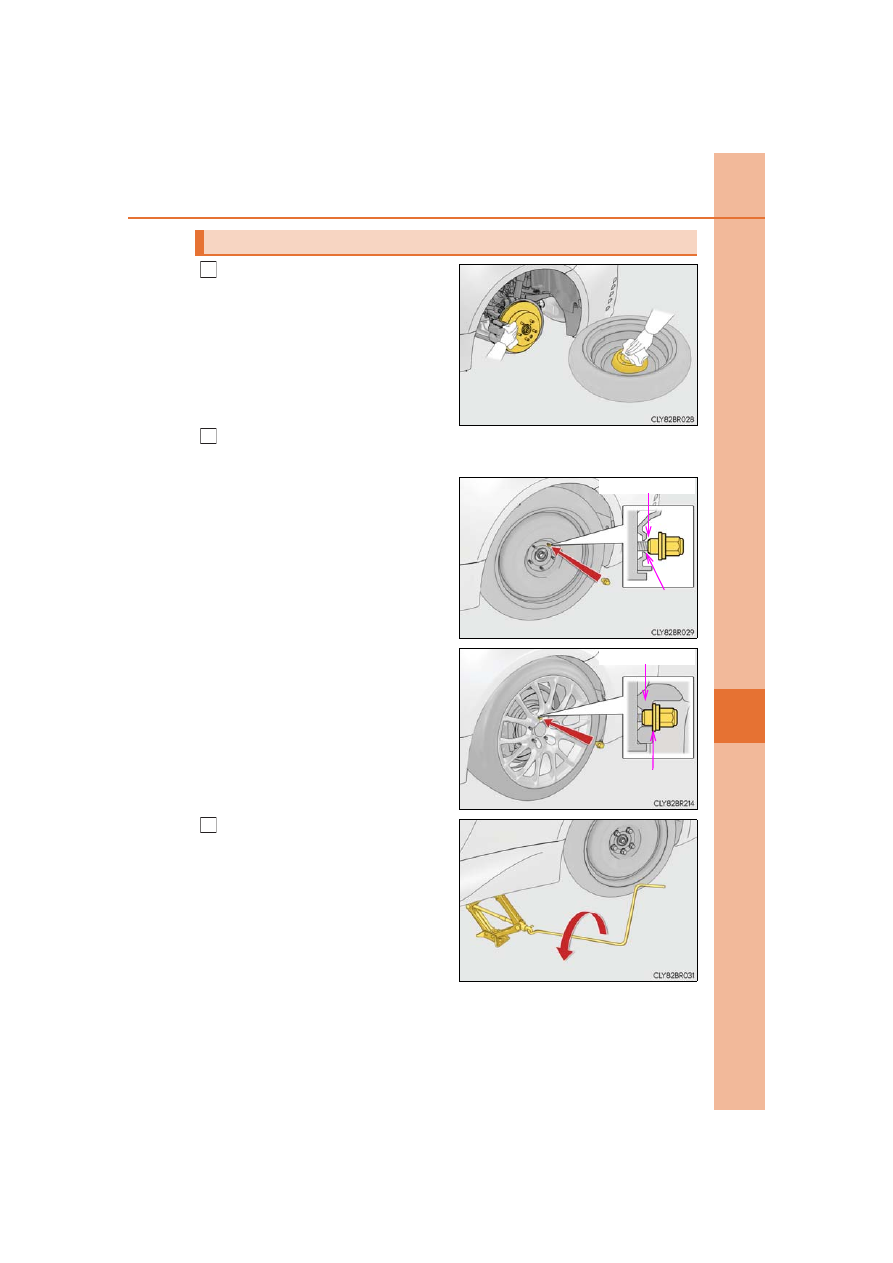

Install the spare tire and loosely tighten each wheel nut by hand by approxi-
mately the same amount.
When replacing an aluminum wheel
with a steel wheel, tighten the wheel
nuts until the tapered portion comes
into loose contact with the disc
wheel seat.

When replacing an aluminum wheel
with an aluminum wheel, turn the
wheel nuts until the washers come
into contact with the disc wheel.

Lower the vehicle.

Installing the spare tire

Disc wheel
seat

Tapered portion

Washer

Disc wheel

500

7-2. Steps to take in an emergency

RC F_U

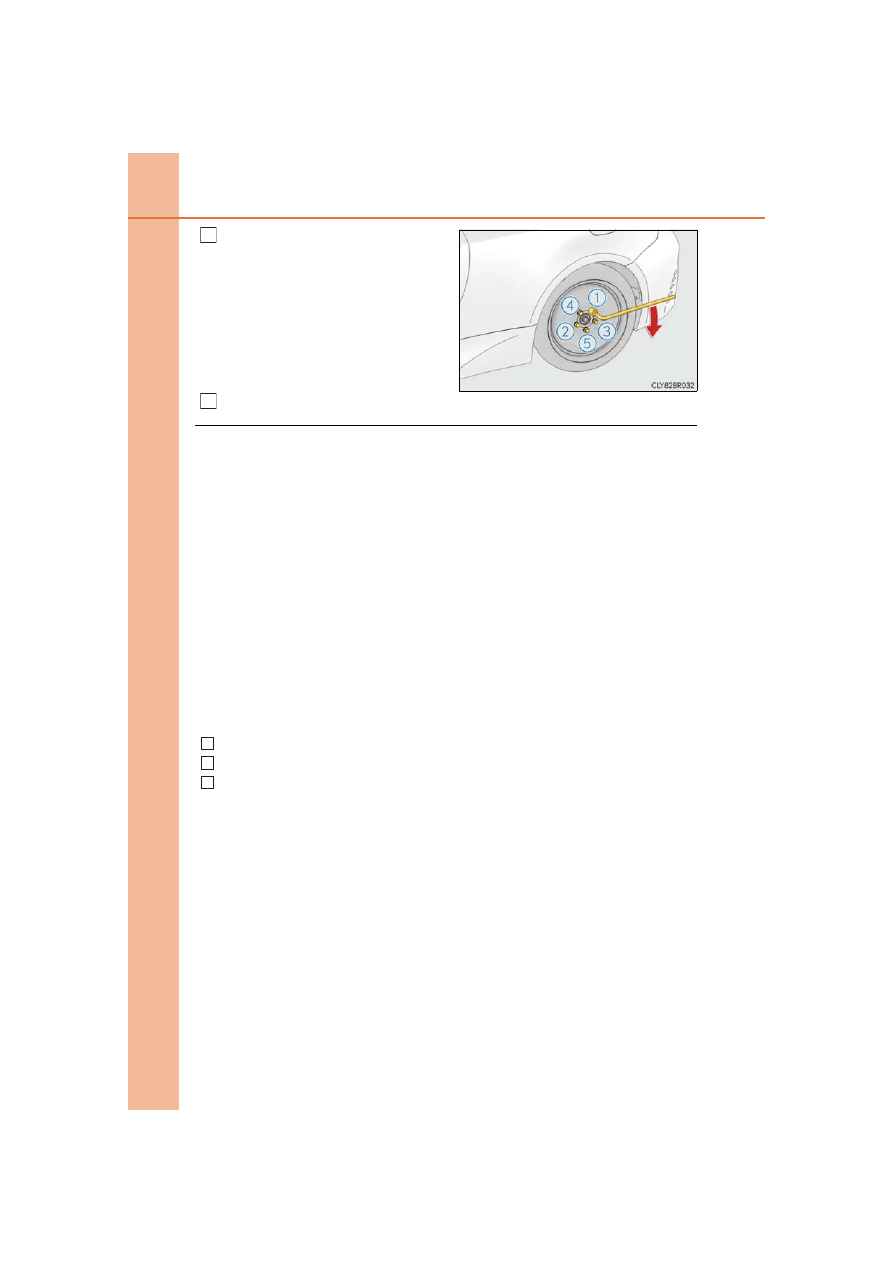

Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

Stow the flat tire, tire jack and all tools.

■

The spare tire

●

RC350/RC300:

The spare tire is identified by the label “TEMPORARY USE ONLY” on the tire sidewall.

●

Use the spare tire temporarily, and only in an emergency.

●

Make sure to check the tire inflation pressure of the spare tire. (

P. 548)

■

When using the spare tire
As the spare tire is not equipped with a tire pressure warning valve and transmitter, low

inflation pressure of the spare tire will not be indicated by the tire pressure warning sys-

tem. Also, if you replace the spare tire after the tire pressure warning light comes on, the

light remains on.

■

When the spare tire is equipped
The vehicle becomes lower when driving with the spare tire compared to when driving

with standard tires.

■

If you have a flat rear tire on a road covered with snow or ice (vehicles with front and

rear tires of the same size except for vehicles with LDH and 19-inch tires)
Install the spare tire on one of the front wheels of the vehicle. Perform the following steps

and fit tire chains to the rear tires:

Replace a front tire with the spare tire.
Replace the flat rear tire with the tire removed from the front of the vehicle.
Fit tire chains to the rear tires.

2
3

501

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses

WARNING

■

When using the spare tire

●

Remember that the spare tire provided is specifically designed for use with your vehi-

cle. Do not use your spare tire on another vehicle.

●

Do not use more than one spare tires simultaneously.

●

Replace the spare tire with a standard tire as soon as possible.

●

Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations

that cause sudden engine braking.

■

When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not

operate correctly:

Also, not only can the following system not be utilized fully, but it may even negatively

affect the drive-train components:
• AWD system (if equipped)

■

Speed limit when using the spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a spare tire is installed on

the vehicle.
The spare tire is not designed for driving at high speeds. Failure to observe this precau-

tion may lead to an accident causing death or serious injury.

■

After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage

location to reduce the possibility of personal injury during a collision or sudden brak-

ing.

NOTICE

■

Driving with tire chains and the spare tire
Do not fit tire chains to the spare tire.

Tire chains may damage the vehicle body and adversely affect driving performance.

■

When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and trans-

mitter, contact your Lexus dealer as the tire pressure warning valve and transmitter

may be damaged if not handled correctly.

• ABS & Brake assist

• VSC

• TRAC

• Dynamic radar cruise control

• PCS

• EPS

• Adaptive Variable Suspension System

(if equipped)

• LDA (Lane Departure Alert with

steering control)

• VGRS (if equipped)

• LDH (Lexus Dynamic Handling sys-

tem) (if equipped)

• DRS (Dynamic Rear Steering) (if

equipped)

• VDIM (Vehicle Dynamics Integrated

Management)

• Tire pressure warning system

• Lexus parking assist monitor

• Intuitive parking assist (if equipped)

• Navigation system (if equipped)

502

7-2. Steps to take in an emergency

RC F_U

If you have a flat tire (vehicles with an emergency
tire puncture repair kit)

Your vehicle is not equipped with a spare tire, but instead is equipped with an
emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can be
repaired temporarily with the emergency tire puncture repair kit.

WARNING

■

If you have a flat tire
Do not continue driving with a flat tire.

Driving even a short distance with a flat tire can damage the tire and the wheel beyond

repair. Driving with a flat tire may cause a circumferential groove on the side wall. In

such a case, the tire may explode when using the emergency tire puncture repair kit,

resulting in death or serious injury.

503

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses

●

Stop the vehicle in a safe place on a hard, flat surface.

●

Set the parking brake.

●

Shift the shift lever to P.

●

Stop the engine.

●

Turn on the emergency flashers. (

P. 442)

●

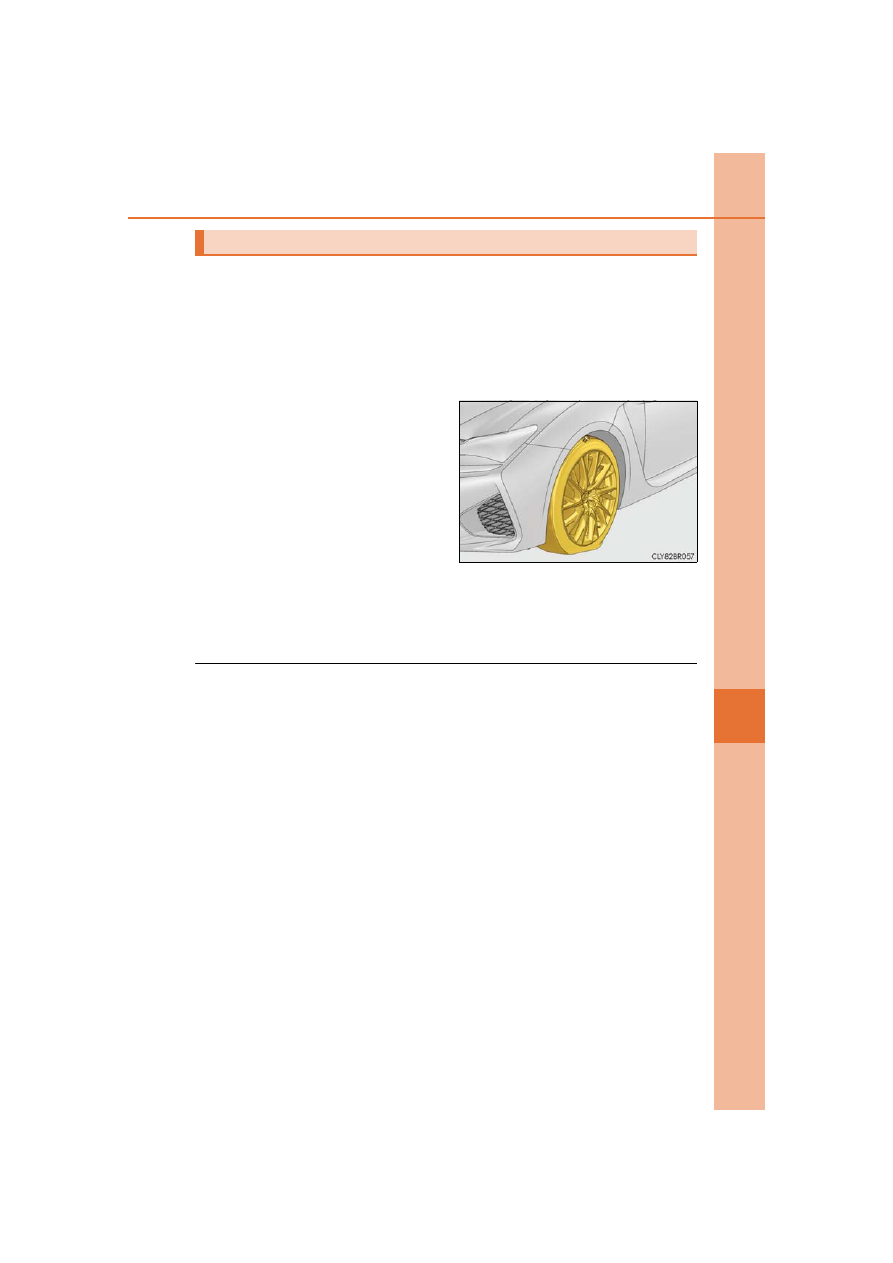

Check the degree of the tire damage.
A tire should only be repaired with
the emergency tire puncture repair
kit if the damage is caused by a nail
or screw passing through the tire
tread.

• Do not remove the nail or screw

from the tire. Removing the
object may widen the opening
and disenable emergency repair
with the kit.

• To avoid sealant leakage, move the vehicle until the area of the puncture, if

known, is positioned at the top of the tire.

■

A flat tire that cannot be repaired with the emergency tire puncture repair kit
In the following cases, the tire cannot be repaired with the emergency tire puncture

repair kit. Contact your Lexus dealer.

●

When the tire is damaged due to driving without sufficient air pressure

●

When the tire lost air pressure due to a crack or damage in the tire sidewall

●

When the tire is visibly separated from the wheel

●

When the cut or damage to the tread is 0.16 in. (4 mm) long or more

●

When the wheel is damaged

●

When 2 or more sharp objects, such as nails or screws, have passed through the tread

on a single tire

●

When there is more than one hole or cut in the damaged tire

●

When the sealant has expired

Before repairing the vehicle

504

7-2. Steps to take in an emergency

RC F_U

: Use of the jack (

P. 497)

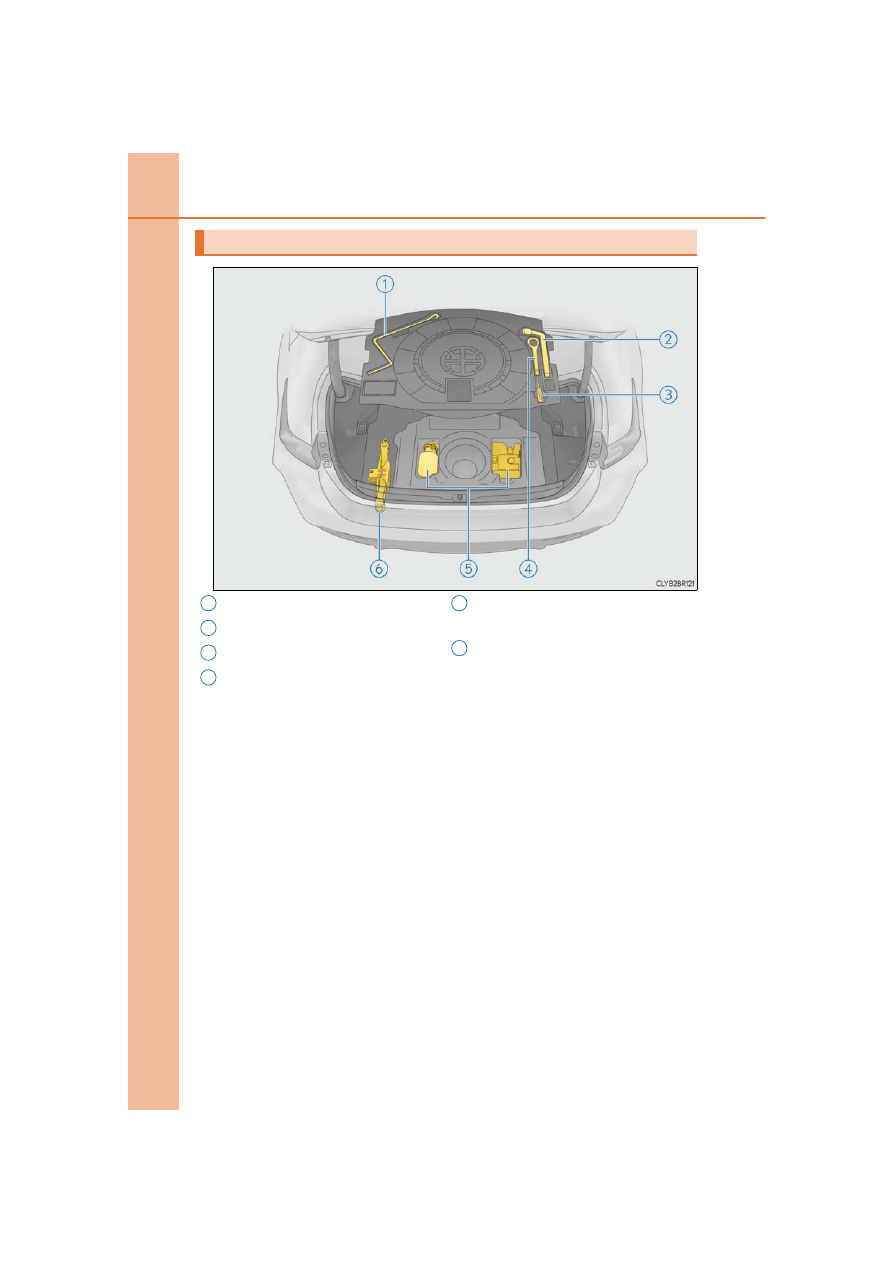

Location of the emergency tire puncture repair kit, jack and tools

Jack handle
Wheel nut wrench
Screwdriver
Towing eyelet

Emergency tire puncture repair
kits

Jack

2
3
4

505

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses

■

Bottle

■

Compressor

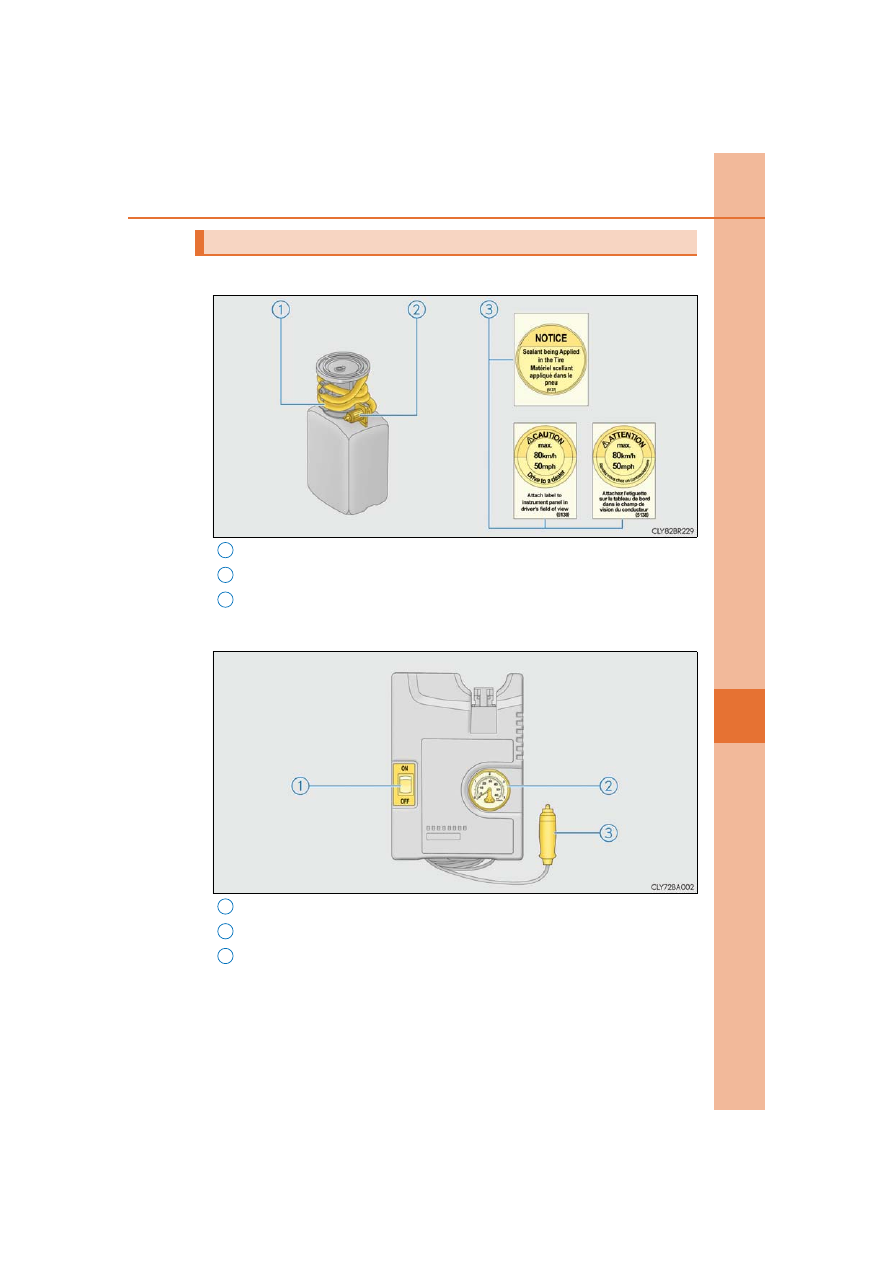

Emergency tire puncture repair kit components

Hose
Air release cap
Stickers

2
3

Compressor switch
Air pressure gauge
Power plug

2
3

506

7-2. Steps to take in an emergency

RC F_U

Secure the luggage mat using the hook. (

P. 494)

Remove the tool tray.

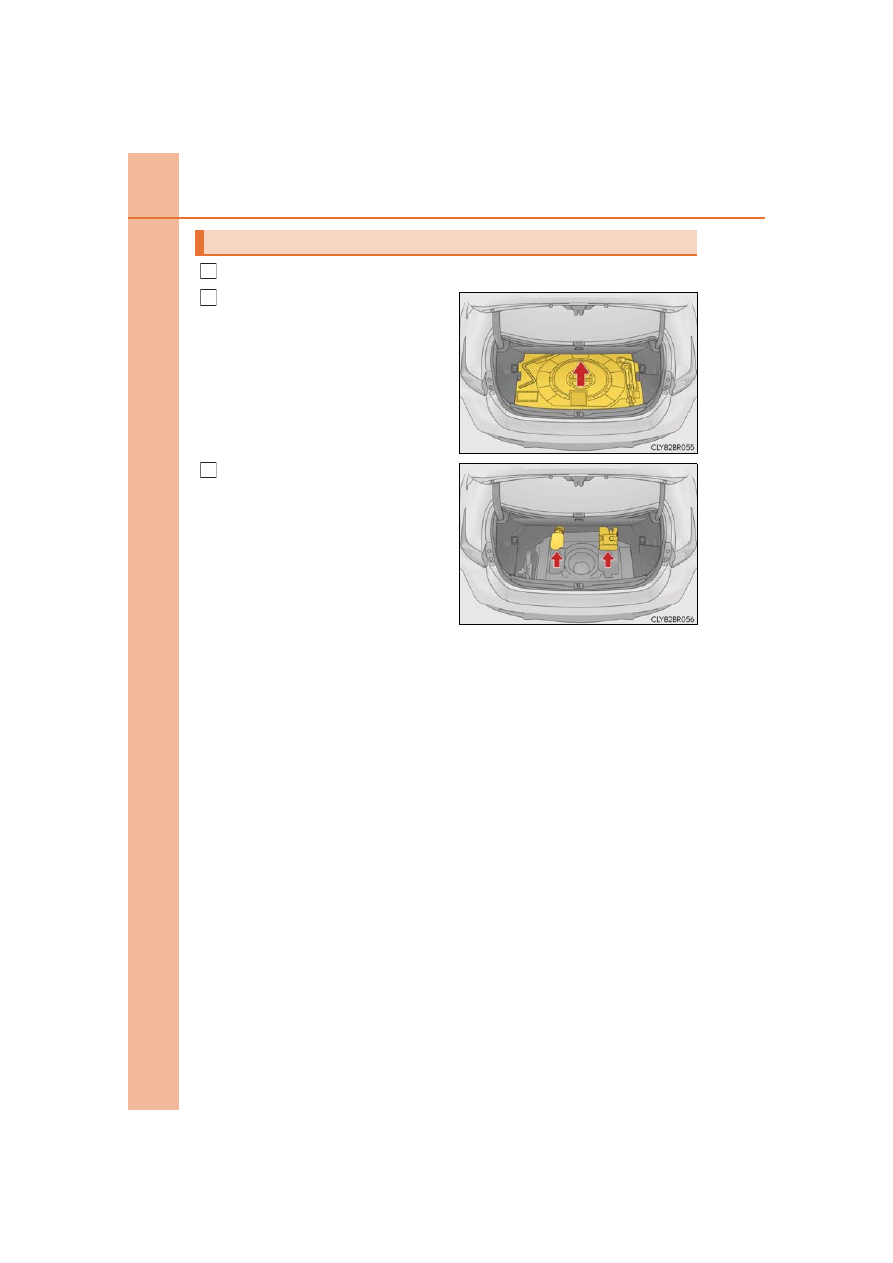

Take out the emergency tire
puncture repair kits.

Taking out the emergency tire puncture repair kits

507

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses

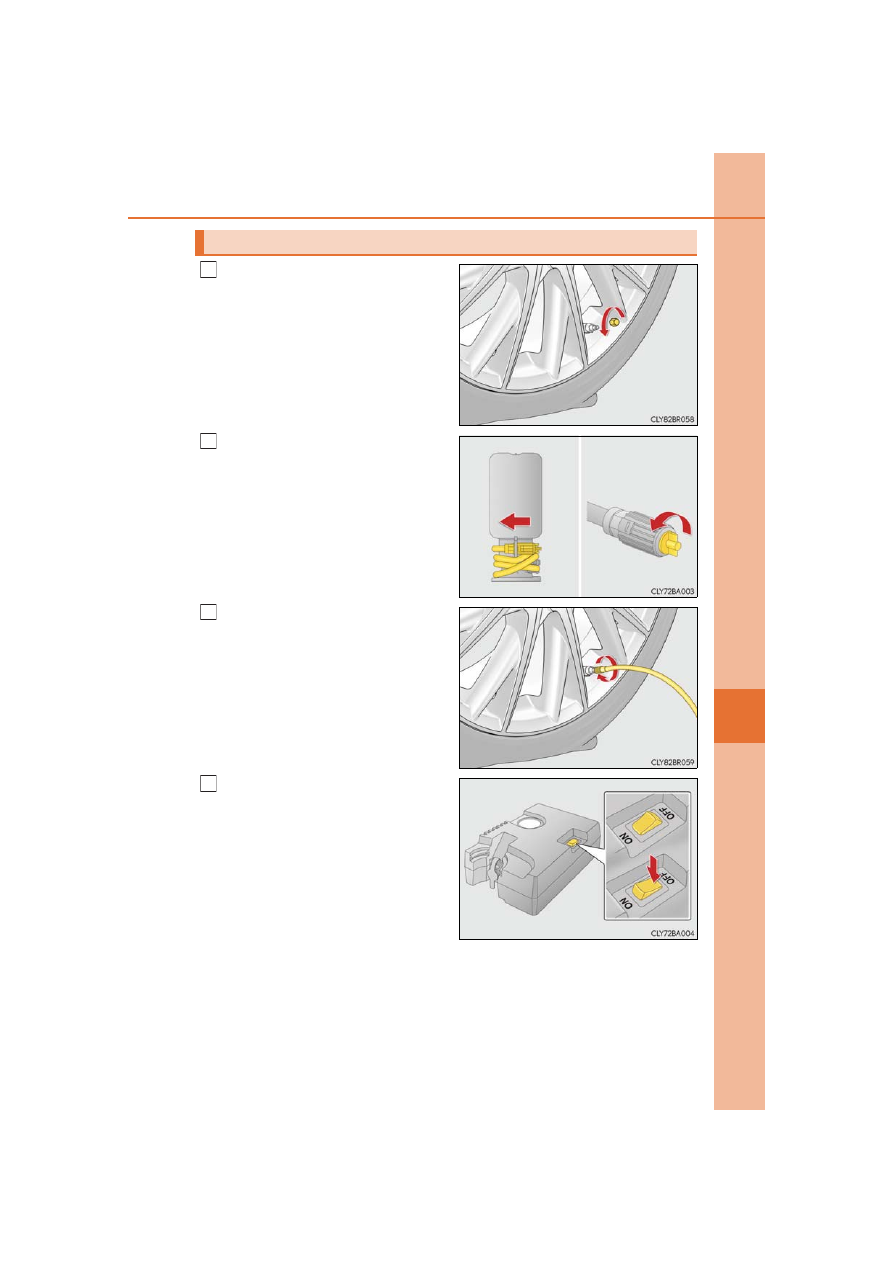

Remove the valve cap from the valve
of the punctured tire.

Extend the hose. Remove the air
release cap from the hose.

You will use the air release cap again.

Therefore keep it in a safe place.

Connect the hose to the valve.

Screw the end of the hose clockwise as

far as possible.

Make sure that the compressor
switch is off.

Emergency repair method

508

7-2. Steps to take in an emergency

RC F_U

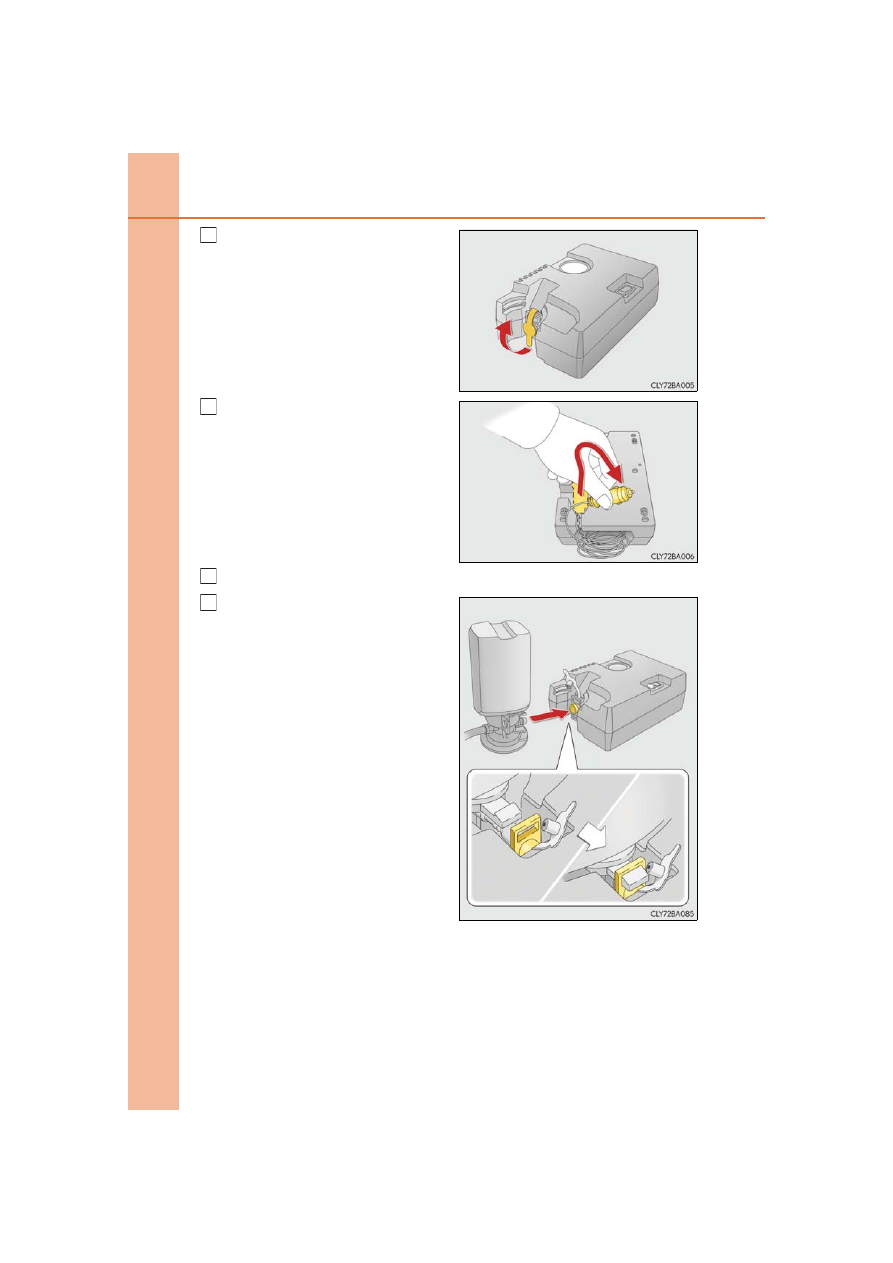

Lift the rubber stopper on the com-
pressor.

Remove the power plug from the
compressor.

Connect the power plug to the power outlet socket. (

P. 355)

Connect the bottle to the compres-
sor.

Make sure that the bottle is securely

connected.

509

7-2. Steps to take in an emergency

RC F_U

When trouble

ari

ses

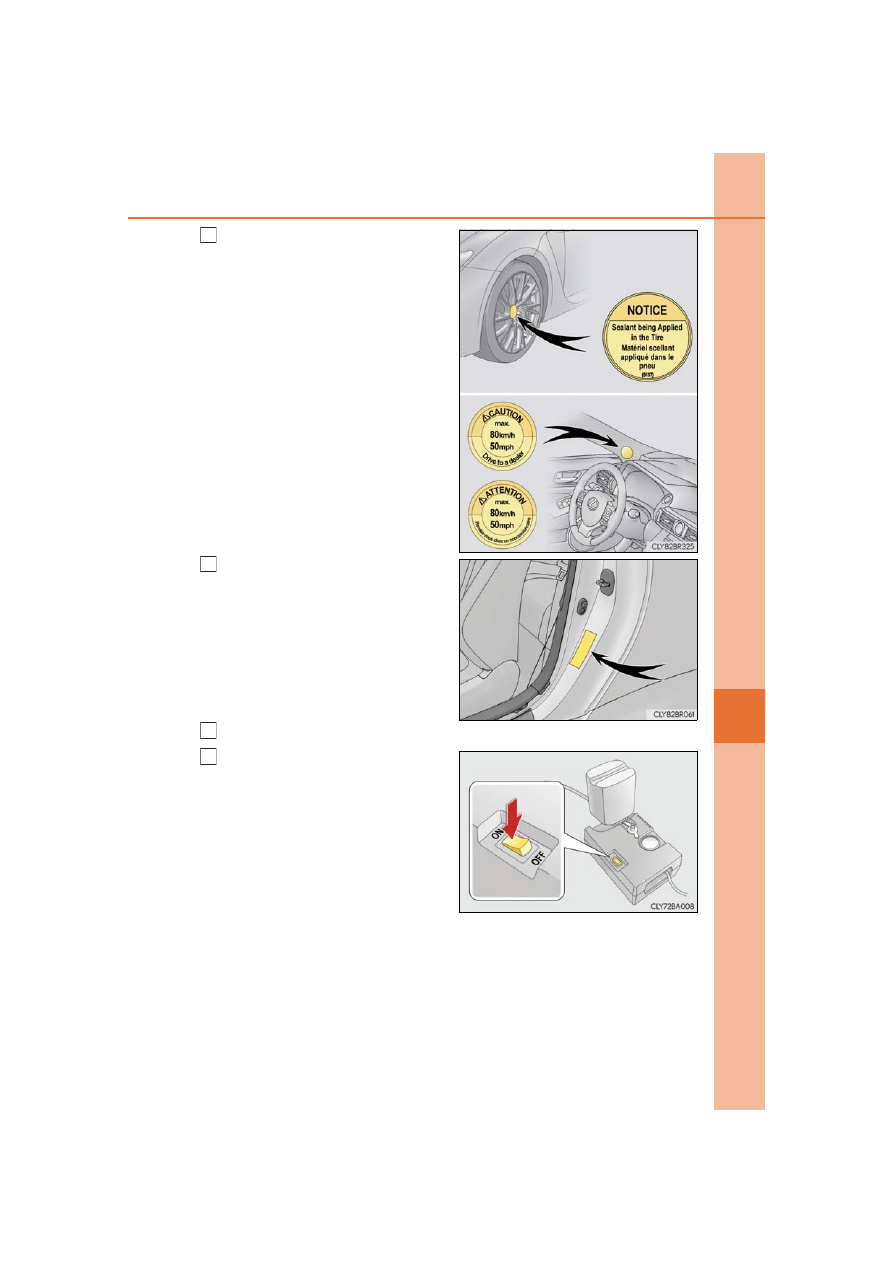

Attach the 2 stickers as shown.

Remove any dirt and moisture from the

wheel before attaching the label. If it is

impossible to attach the label, make sure

to tell your Lexus dealer when you have

them repair and replace the tire that

sealant is injected.

Check the specified tire inflation
pressure.

Tire inflation pressure is specified on the

label as shown. (

P. 548)

Start the engine. (

P. 207)

To inject the sealant and inflate the
tire, turn the compressor switch on.

Content .. 29 30 31 32 ..
