LEXUS RC F (2019 year). Instruction - part 7

110

2. Instrument cluster

RC F_U

■

G-force (if equipped)

*

1



Displays lateral G-forces on the vehicle.

Acceleration G-force on the
vehicle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces

This display is intended for use as a guideline. Depending on factors such as the

road surface condition, temperature and vehicle speed, the display may not show

the actual condition of the vehicle.

●

Resetting the record of maximum G-forces
Press and hold

 to reset the record.

●

Peak hold function
If lateral G-forces of 0.5 G or greater are generated, the G-force value
display will turn amber and be held for 2 seconds.

*

1

: For F SPORT models, this item is not available when the main meter is in the center

position.

■

Tire pressure
P. 413

■

Vehicle sway warning

*

1

Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s attention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest.

This display is a part of the LDA (Lane Departure Alert with steering control) sys-

tem. The display is enabled when the operating conditions of the vehicle sway

warning are met. (

P. 261)

*

1

: For F SPORT models, this item is not available when the main meter is in the center

position.

■

Gear positions
Displays the current gear position when the shift lever is in D or M.

1

2

3

111

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

■

Units (if equipped)

*

2

The units of measure used can be changed while driving.

Unlike the units setting performed on

, the units setting performed on

 can

be changed while driving.

*

2

:  For F SPORT models, this item is not available when the main meter is in the right-side

position.

■

Blank (No items)
Displays no drive information contents.

◆

Changing settings

Use the meter control switches on the steering wheel to change settings.

Press

or

to

select .

Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the screen.

◆

Setting items

■

 LDA (Lane Departure Alert with steering control) (

P. 261)

The following LDA system settings can be changed:

Settings display (

)

1

2
3

Item

Settings

Details

Steering assist

On

Select to enable/disable steering

wheel assistance.

Off

Alert

Select to set a vibrator or buzzer as

the notification method used to warn

the driver.

Sensitivity

High

Select to set the warning sensitivity.

Standard

Sway warning

On

Select to enable/disable the vehicle

sway warning.

Off

Sway sensitivity

High

Select to set the vehicle sway warning

sensitivity.

Standard

Low

112

2. Instrument cluster

RC F_U

■

 PCS (Pre-collision system) (

P. 250)

The following pre-collision system settings can be changed:

■

Speed indicator (F SPORT models) (

P. 93)

The following speed indicator settings can be changed:

*

: Always observe the legal speed limit when driving on public roads.

■

Clock (on multi-information display) (

P. 91)

The following clock settings can be changed:

Press the

/

 switch to select an item and then press the

/

 switch to

change the setting or adjust the time.

Item

Settings

Details

PCS

On

Select to enable/disable the pre-colli-

sion system.

Off

Warning sensitivity

Select to change the warning timing.

Item

Settings

Details

Speed Indicator

On

Select to enable/disable the speed

indicator.

Off

Speed Setting

30 mph to 100 mph

(50 km/h to 160

km/h)

*

Select to set the desired vehicle

speed at which the speed indicator

will begin to be displayed.

Item

Settings

Details

Display mode

12-hour display

Select to set the display mode of the

clock.

24-hour display

Adjust time

Select to adjust the hour/minute.

113

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

■

Vehicle settings

■

Meter settings

Item

Settings

Details

Scheduled maintenance

Maintenance data reset

Select to reset the message indicating

maintenance is required, after the

required maintenance is performed.

(

P. 385)

Oil maintenance

Engine oil maintenance data reset

Select to reset the engine oil mainte-

nance information (message indicat-

ing maintenance is required and

distance until the next oil change)

after engine oil maintenance is per-

formed. (

P. 403)

Item

Settings

Details

Language

Select to change the language dis-

played.

Units

Select to change the units of measure

displayed.

 (Eco Driving

Indicator Light)

On

Select to enable/disable the Eco Driv-

ing Indicator Light. (

P. 109)

Off

 Switch settings (except F SPORT mod-

els)

Select to display how to change the

top screen.

Drive information 1

Select to select up to 2 items that will

be displayed on each Drive informa-

tion screen (Drive information 1

screen, Drive information 2 screen,

and Drive information 3 screen)

respectively.

(Selectable items:

P. 108)

Drive information 2

Drive information 3

114

2. Instrument cluster

RC F_U

Pop-up display

Intersection guid-

ance (if equipped)

Select to enable/disable the pop-up

display.

Incoming calls

Audio Feedback

(F SPORT)

Volume Feedback

(F SPORT)

Brightness adjust-

ment

Color (except F

SPORT models)

2 available colors

Select to set the color of the cursor on

the multi-information display.

Needle (F SPORT

models)

3 available colors

Select to set the tachometer needle

color.

Rev indicator (F

SPORT models)

On

Select to enable/disable the Rev indi-

cator. (

P. 93)

Off

Rev setting

Select to set the desired engine speed

at which the Rev indicator will begin

to be displayed.

Rev peak (F SPORT

models)

On

Select to enable/disable the Rev peak.

(

P. 93)

Off

Default setting

Select to reset the meter display set-

tings to the default setting.

Item

Settings

Details

115

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

◆

Display items

■

Odometer
Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.

To reset, display the desired trip meter and press and hold the odometer/trip meter

and trip meter reset button.

■

 Distance until next engine oil change

Displays the distance the vehicle can be driven until an oil change is neces-
sary.

◆

Pop-up display

In some situations the following will be temporarily displayed:

■

 Distance until next engine oil change

Displays the distance until the next engine oil change. This display will be dis-
played in the following situations:

• When the engine switch is turned to IGNITION ON mode.

• When a warning message indicating that oil maintenance should be performed

soon or is required is displayed.

Odometer/trip meter display area

116

2. Instrument cluster

RC F_U

■

Eco Driving Indicator

Eco Driving Indicator will not operate under the following conditions:

●

The shift lever is in any position other than D.

●

A paddle shift switch is operated.

●

Neither normal mode nor Eco drive mode is selected. (

P. 301)

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

■

Background color of the indicator/shift position display area (except F SPORT models)
The background color of the indicator/shift position display area is changed according to

the driving mode as follows (

P. 301):

●

Eco drive mode: Blue

●

Sport mode: Red

■

G-force display (if equipped)
The G-force values may not be zero even when the vehicle is parked, such as when it is

parked on an incline.

■

Suspension of the settings display

●

Some settings cannot be changed while driving. When changing settings, park the

vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be suspended.

■

Tire pressure

●

It may take a few minutes to display the tire inflation pressure after the engine switch is

turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-

tion pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined due to

unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may also be dif-

ferent from the values measured using a tire pressure gauge.

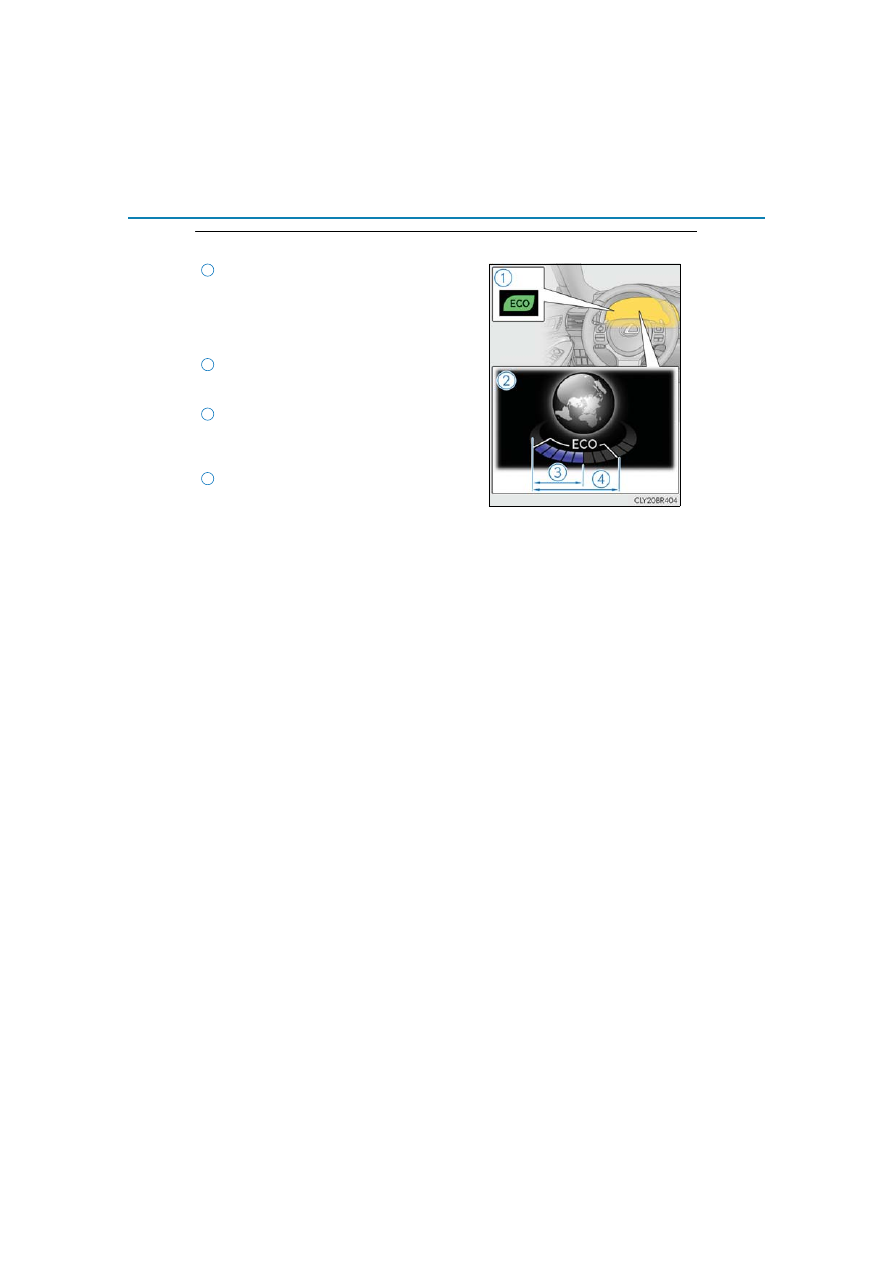

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco driv-

ing), the Eco Driving Indicator Light will turn

on. When the acceleration exceeds the Zone

of Eco driving, or when the vehicle is stopped,

the light turns off.
Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with current

Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration

If the acceleration exceeds the Zone of Eco

driving, the right side of the Eco Driving Indi-

cator Zone Display will illuminate.
Zone of Eco driving

1

2

3

4

117

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

■

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic

of liquid crystal displays, and there is no problem continuing to use the display.

■

Customization
Some functions can be customized. (

P. 111, 569)

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra attention to the

safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as you may fail

to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information

display. At extremely low temperatures, the information display monitor may respond

slowly, and display changes may be delayed.

For example, there is a lag between the driver’s shifting and the new gear number

appearing on the display. This lag could cause the driver to downshift again, causing

rapid and excessive engine braking and possibly an accident resulting in death or

injury.

■

Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that the vehicle

is parked in a place with adequate ventilation. In a closed area such as a garage,

exhaust gases including harmful carbon monoxide (CO) may collect and enter the

vehicle. This may lead to death or a serious health hazard.

NOTICE

■

While setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the dis-

play features.

118

2. Instrument cluster

RC F_U

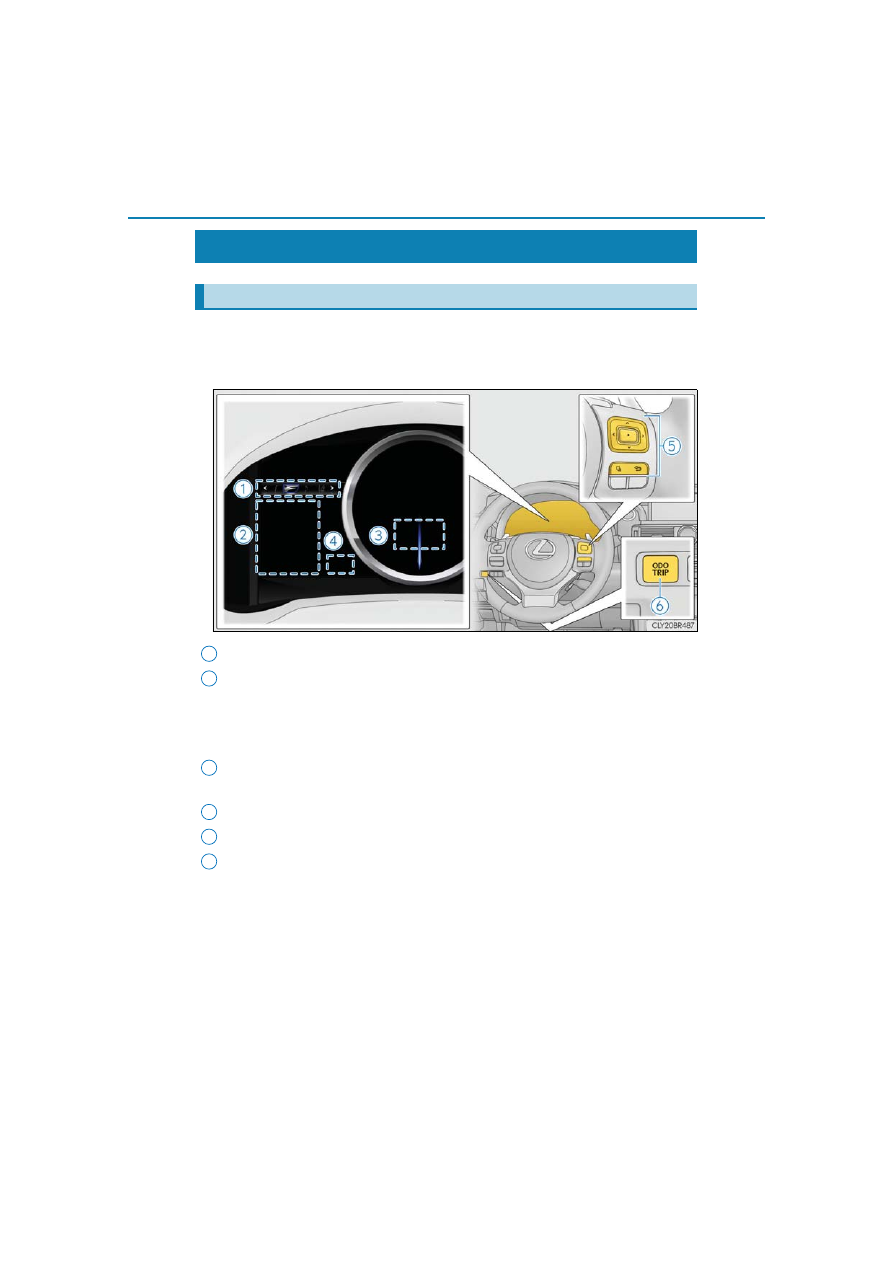

The multi-information display presents the driver with a variety of driving-related
data, such as the current outside temperature. The multi-information display can
also be used to change the display settings and other settings.

Menu icon display area (

P. 121)

Content display area

A variety of information can be displayed by selecting a menu icon. Additionally,

warning or advice pop-up displays will be displayed in some situations.

• Menu icon content (

P. 107)

• Warning message (

P. 460)

Sub-content display area

Displays some “F” content in conjunction with the content display area.

Odometer/trip meter (

P. 132)

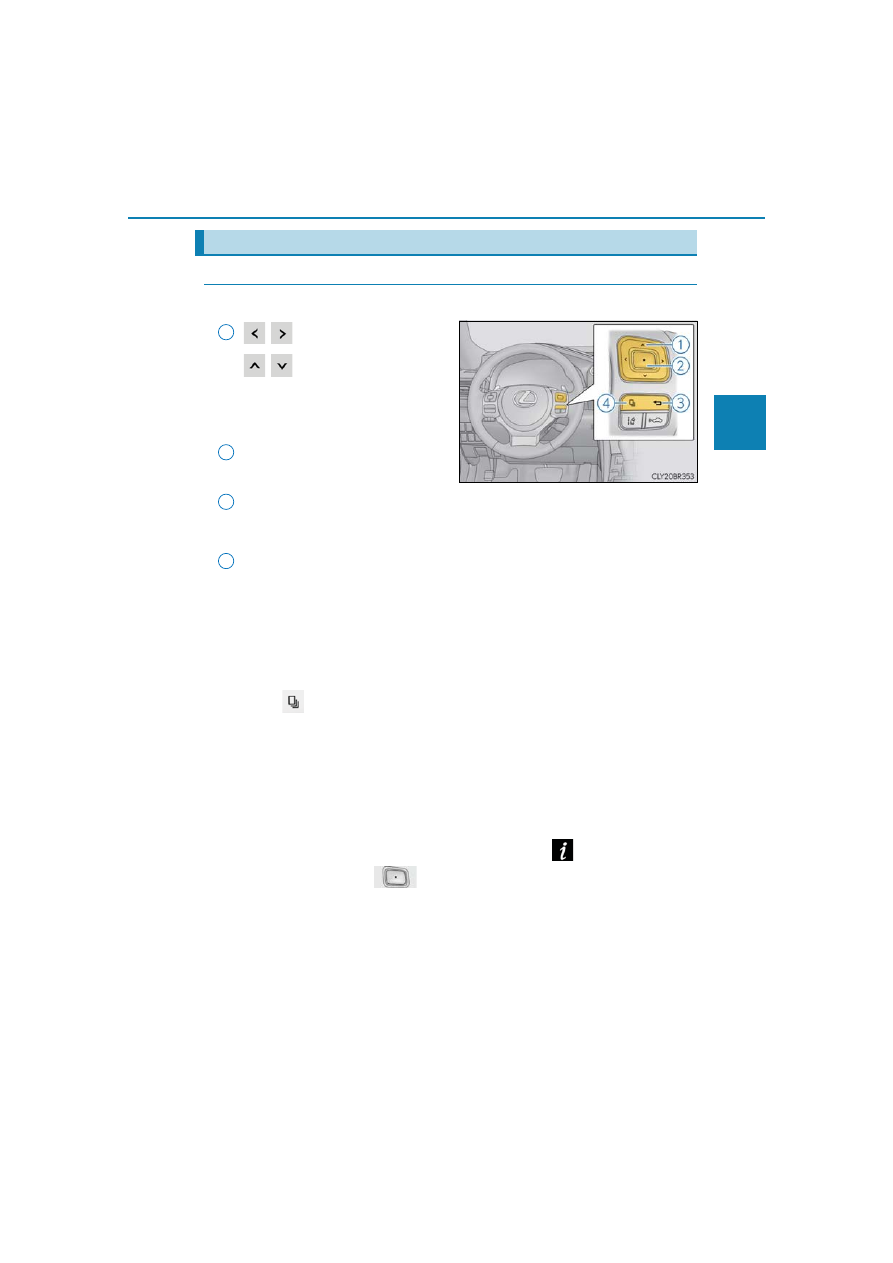

Meter control switches (

P. 119)

Odometer/trip meter and trip meter reset button (

P. 120)

Multi-information display (RC F)

Summary of functions

1

2

3

4
5
6

119

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

◆

Using the content display area

The content display area is operated using the meter control switches.



:Select menu icons

 :Change

displayed

con-

tent, scroll up/down the
screen and move the
cursor

Press: Enter/Set
Press and hold: Reset
Return to the previous screen

Pressing and holding the switch will display the first screen of the selected menu

icon.

Press: Display the top screen
Press and hold: Register current screen as the top screen

■

Registering a top screen
The displayed top screen can be changed to a registered screen of your
choice.
To register a screen as the top screen, display the desired screen and press
and hold

.

• A message asking to confirm if registration is desired will be displayed. If the

selected screen cannot be registered, a registration failure message will be dis-

played.

• When no screen has been registered, the drive information screen will be dis-

played.

■

Resetting drive information
To reset the average fuel economy (after reset)/average vehicle speed (after
reset)/elapsed time (after reset) that are displayed on

, display the desired

item and press and hold

.

If both of the displayed items are resettable, a message will be displayed asking

which item(s) to reset.

Using the multi-information display

1

2

3

4

120

2. Instrument cluster

RC F_U

◆

Using the odometer/trip meter display

Items in this area are operated using the odometer/trip meter and trip meter
reset button.
Press: Change displayed item

Each time the button is pressed, the

displayed item will be changed.

Press and hold: Reset

Display the desired trip meter and

press and hold the button to reset the

trip meter.

121

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

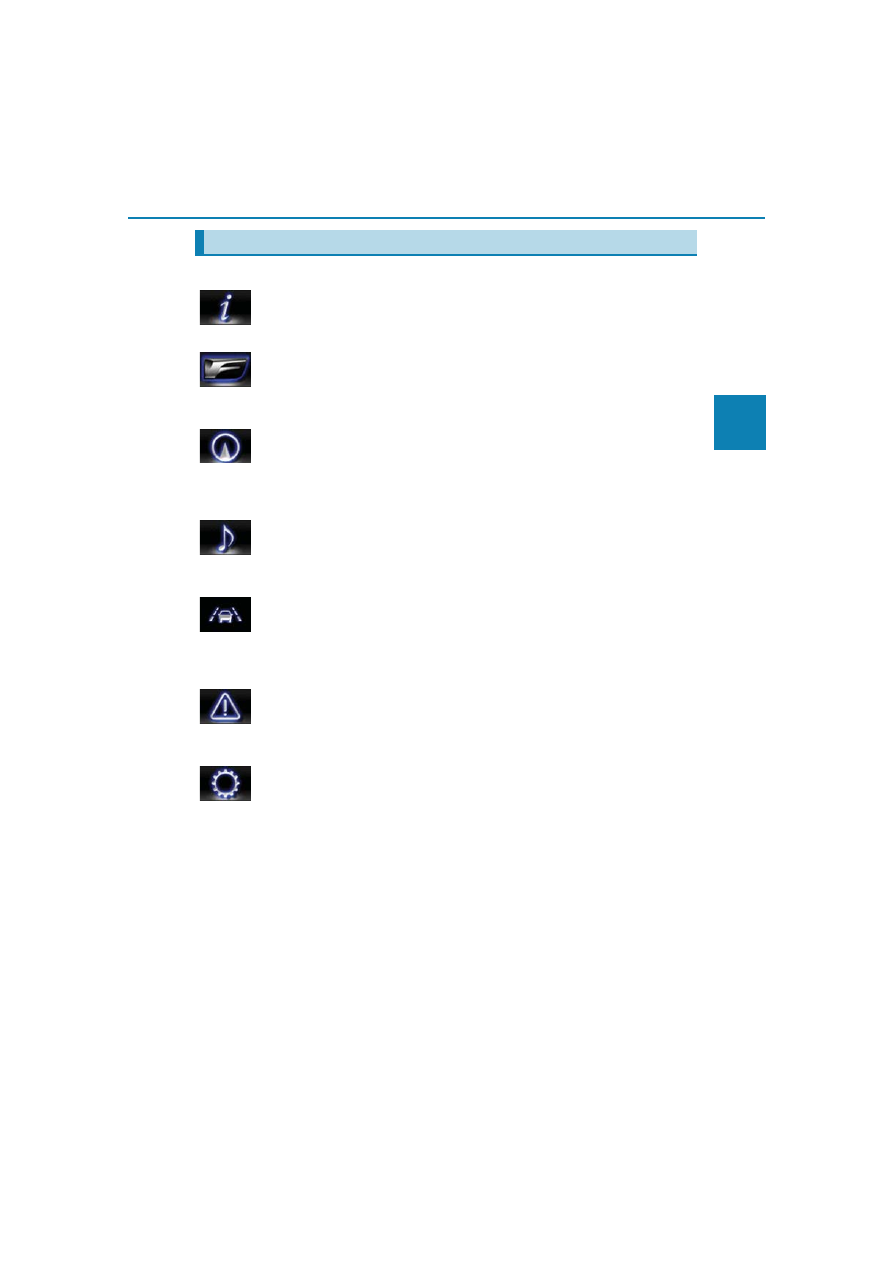

Select a menu icon to display its content.

Drive information (

P. 122)

Select to display various drive data.

“F” content (

P. 124)

Select to display the lap timer, G-force, torque distribution (vehicles with TVD

[Torque Vectoring Differential]) and other useful functions for sporty driving.

Navigation system-linked display (if equipped)

Select to display the following navigation system-linked information.

• Route  guidance

• Compass display (heading-up display)

Audio system-linked display

Select to enable selection of an audio source or track on the meter using the meter

control switches.

Driving assist system information

Select to display the operational status of the following systems:

• Dynamic radar cruise control (

P. 268)

• LDA (Lane Departure Alert with steering control) (

P. 261)

Warning message display (

P. 460)

Select to display warning messages and measures to be taken if a malfunction is

detected.

Settings display (

P. 111)

Select to change the meter display settings and other settings.

Menu icons

122

2. Instrument cluster

RC F_U

■

Drive information 1/Drive information 2/Drive information 3
Displays drive information such as the following.

Each item is displayed separately.

●

Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)

●

Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)

●

Drive information 3

• Average fuel economy (after refuel)
• Elapsed time (after start)

Displayed items (listed below) can be changed on

. (

P. 129)

Drive information ( )

Item

Content

Current fuel consumption

Displays instantaneous current fuel consumption

Average fuel

economy

After reset

Displays average fuel consumption since display
reset

*

1, 2

After start

Displays average fuel consumption since engine
start

*

2

After refuel

Displays average fuel consumption since refuel

*

2, 3

Average

vehicle

speed

After reset

Displays average vehicle speed since display
reset

*

1

After start

Displays average vehicle speed since engine start

Elapsed time

After reset

Displays elapsed time since display reset

*

1

After start

Displays elapsed time since engine start

Distance

Driving range

Displays driving range with remaining fuel

*

3, 4

After start

Displays drive distance since vehicle start

Other

Blank

No item

123

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

*

1

: Resetting:

P. 119

*

2

: Use the displayed fuel consumption as a reference.

*

3

: When only a small amount of fuel is added to the tank, the display may not be

updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning the
engine switch off, the display may not be updated.

*

4

: This distance is computed based on your average fuel consumption. As a result, the

actual distance that can be driven may differ from that displayed.

■

Tire pressure
P. 413

■

Gear positions
Displays the current gear position when the shift lever is in D or M.

■

Vehicle sway warning
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s attention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest.

This display is a part of the LDA (Lane Departure Alert with steering control) sys-

tem. The display is enabled when the operating conditions of the vehicle sway

warning are met. (

P. 261)

■

Units
The units of measure used can be changed while driving.

Unlike the units setting performed on

, the units setting performed on

 can

be changed while driving.

■

Blank (No items)
Displays no drive information contents.

124

2. Instrument cluster

RC F_U

■

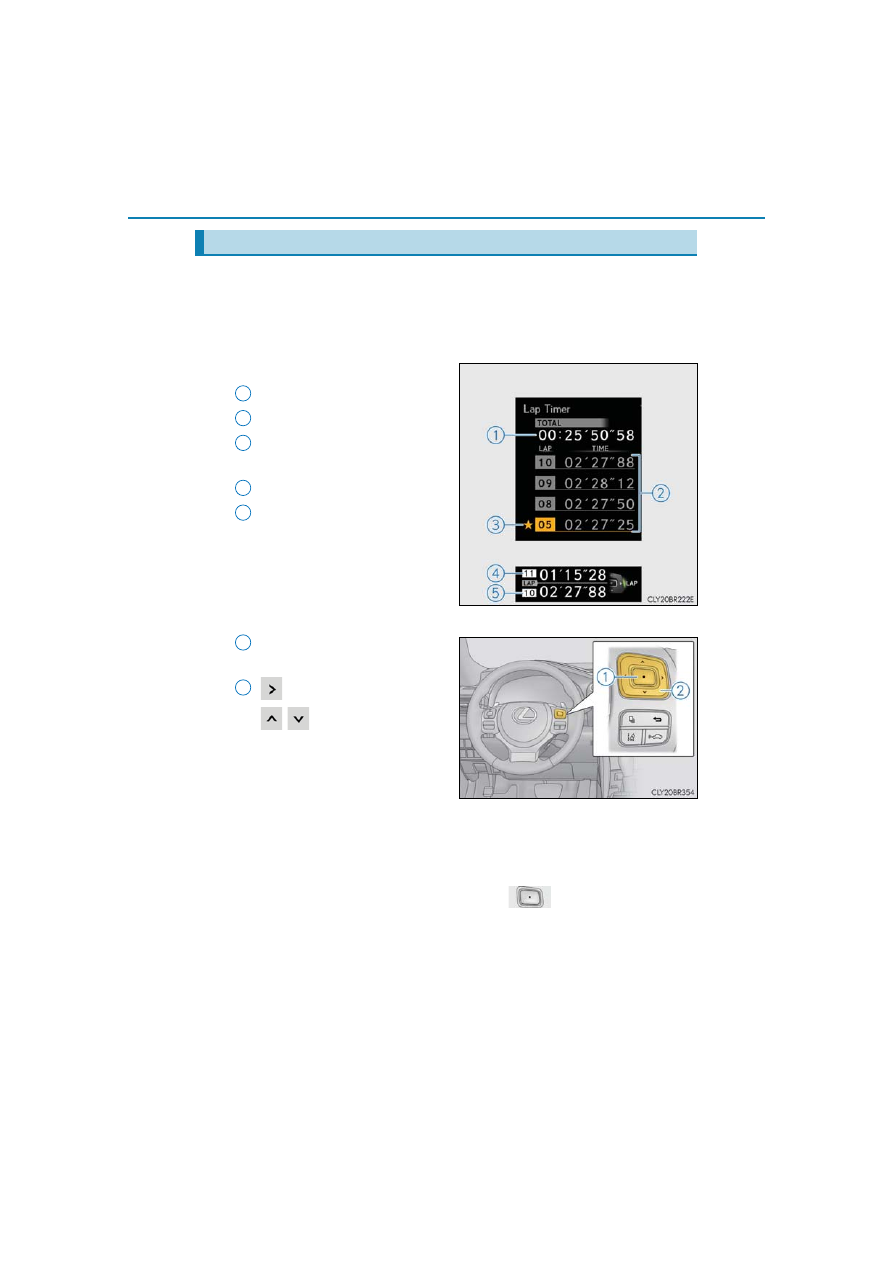

Lap timer
Measures and displays current lap time and previous lap times

●

Reading the display
Measured lap times since the timer was last reset are displayed as follows:

• Content display area

Total lap time
Past lap times
Fastest lap (marked with a star)

• Sub-content display area

Current lap time
Most recent lap time

●

Operating the meter control switches

Press: Start/stop lap timer
Press and hold: Reset

 : Mark off one lap



: Change

displayed

content

While a lap time is being mea-

sured, the display can be changed

to show the following content:

• Torque distribution (if equipped)

• G-force

• Tire pressure

• Rear wing position

●

Resetting/saving measured lap times
After stopping the lap timer, press and hold

 .

When a confirmation screen is displayed, select to reset/save the mea-
sured lap times.

When saved, the lap time data will be displayed on the history screen. (

P. 125)

“F” content

Content display area

Sub-content display area

1

2
3

4
5

1

2

125

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

■

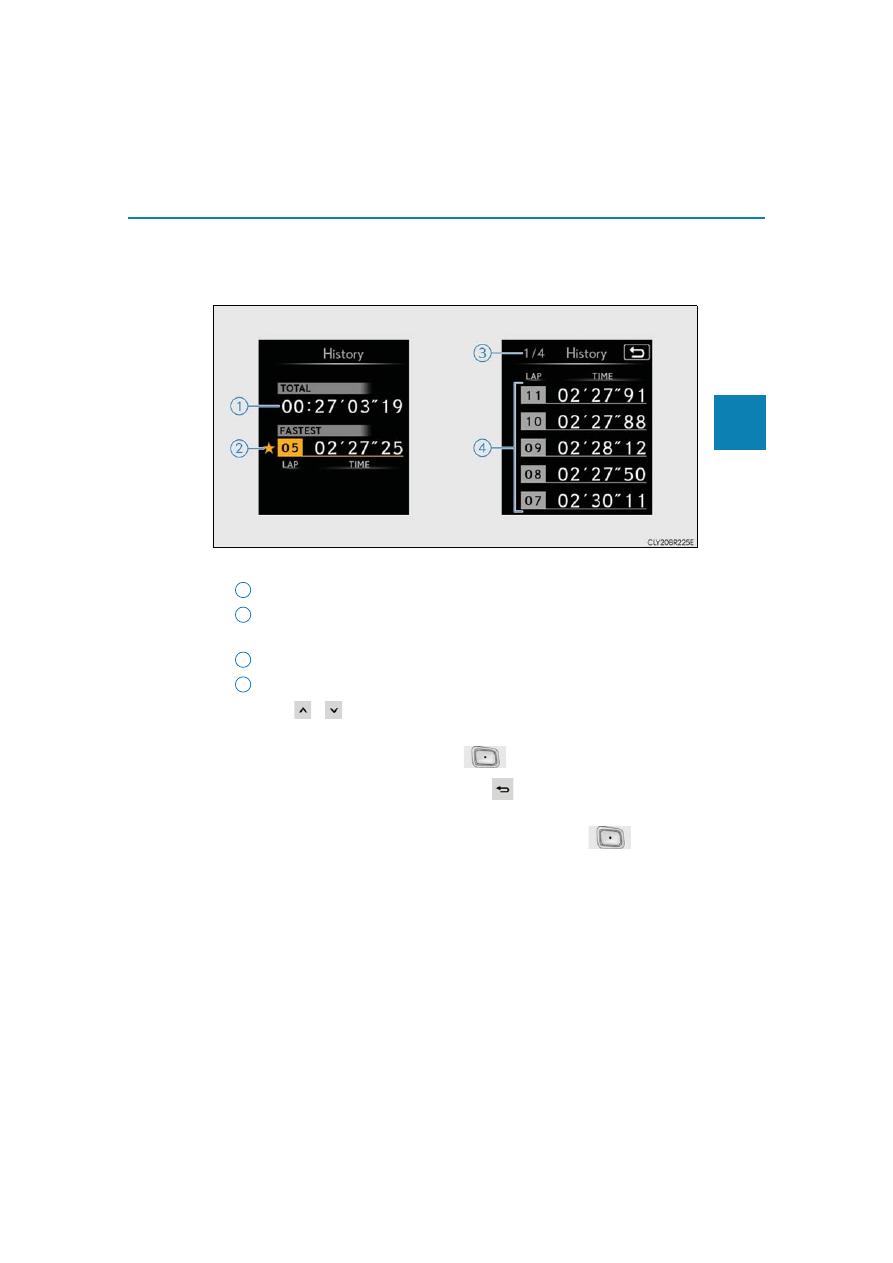

History (Lap timer)
Displays the saved lap times

●

Reading the display

• History top screen

Total lap time
Fastest lap time

• Past lap screen

Page
Past lap times (20 most recent lap times)

Press

 /

 to scroll up and down the screen.

●

Switching the display

To display the past lap screen, press

.

To return to the history top screen, press

.

●

Deleting history
When the history top screen is displayed, press and hold

 to display

a confirmation screen. To delete the history, follow the instructions dis-
played on the screen.

History top screen

Past lap screen

1

2

3
4
