1-1. For safe use

RC F_U

Exhaust gas precautions

Harmful substance to the human body is included in exhaust gases if inhaled.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and odorless.

Observe the following precautions.

Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident

caused by light-headedness, or may lead to death or a serious health hazard.

■

Important points while driving

●

Keep the trunk lid closed.

●

If you smell exhaust gases in the vehicle even when the trunk lid is closed, open the

windows and have the vehicle inspected at your Lexus dealer as soon as possible.

■

When parking

●

If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the

engine.

●

Do not leave the vehicle with the engine on for a long time.

If such a situation cannot be avoided, park the vehicle in an open space and ensure

that exhaust fumes do not enter the vehicle interior.

●

Do not leave the engine running in an area with snow build-up, or where it is snowing.

If snowbanks build up around the vehicle while the engine is running, exhaust gases

may collect and enter the vehicle.

■

Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack caused

by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle

inspected and repaired by your Lexus dealer.

79

1

For safety

and security

RC F_U

1-2. Theft deterrent system

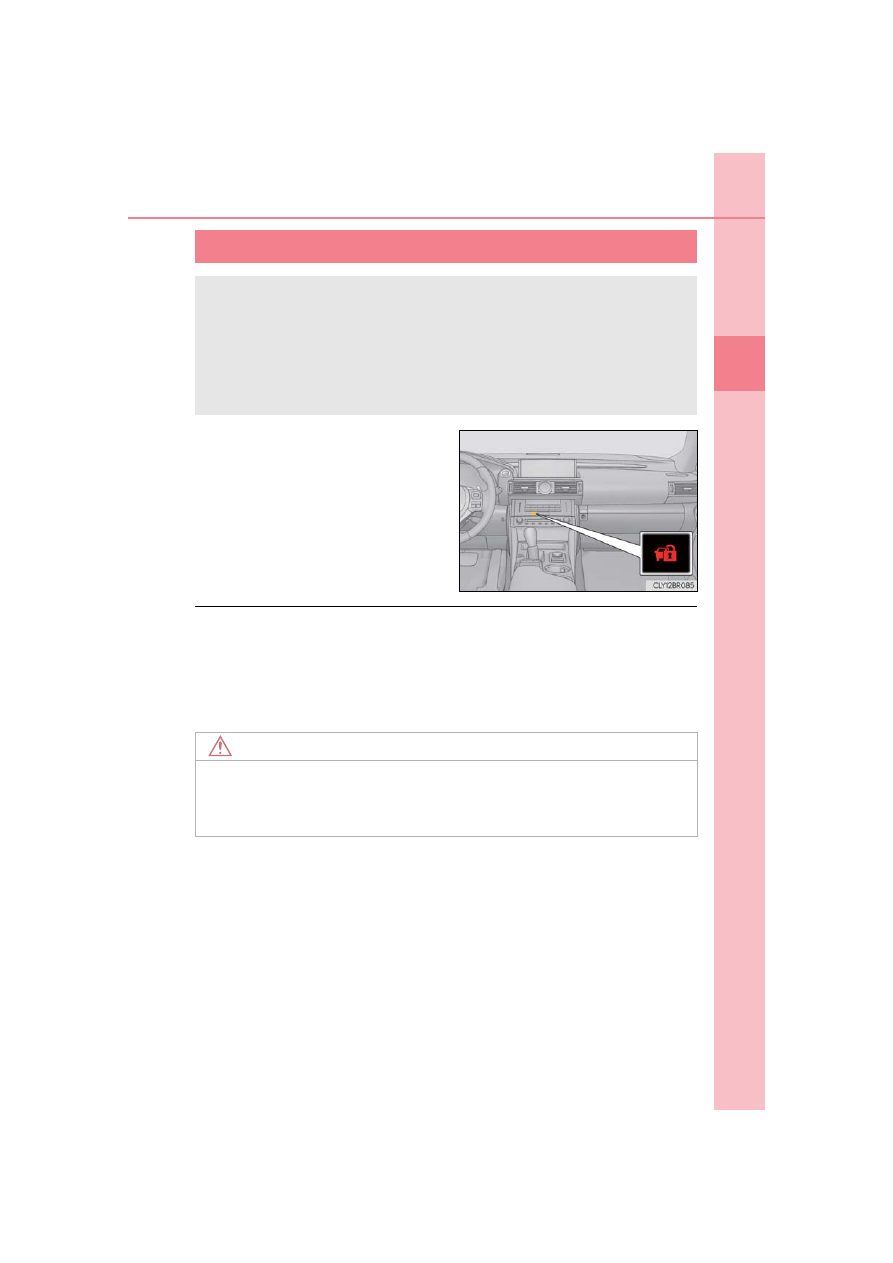

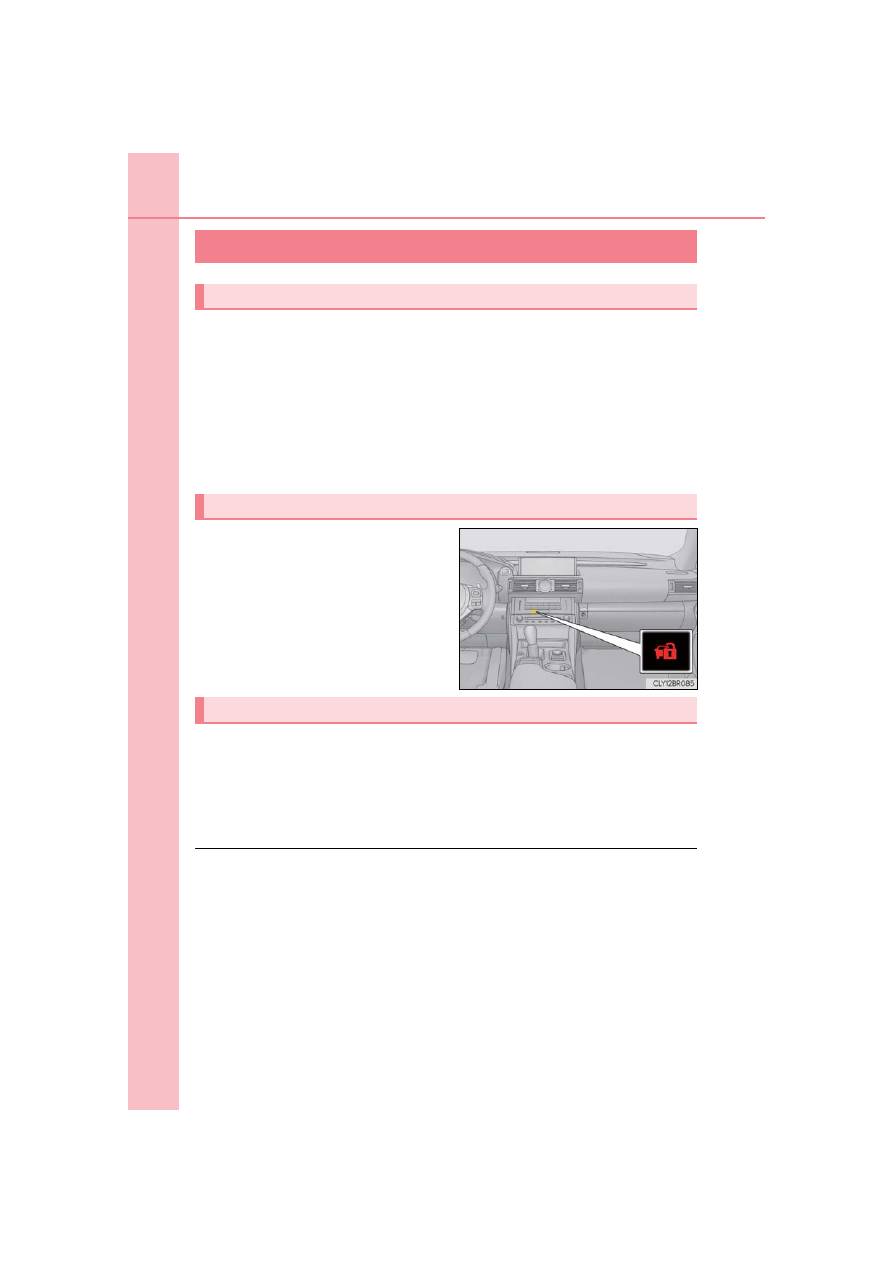

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.

■

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key registered to the security system (key

with a built-in transponder chip) of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been previously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee
absolute security against all vehicle thefts.

NOTICE

■

To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of

the system cannot be guaranteed.

80

1-2. Theft deterrent system

RC F_U

The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:

●

A locked door is unlocked or opened in any way other than using the entry
function, wireless remote control or mechanical key. (The doors will lock again
automatically.)

●

The trunk is opened in any way other than using the entry function or wireless
remote control.

●

The hood is opened.

Close the doors, trunk and hood, and
lock both side doors. The system will be
set automatically after 30 seconds.

The indicator light changes from being

on to flashing when the system is set.

Do one of the following to deactivate or stop the alarms:

●

Unlock the doors.

●

Open the trunk using the entry function or wireless remote control.

●

Turn the engine switch to ACCESSORY or IGNITION ON mode, or start
the engine. (The alarm will be deactivated or stopped after a few seconds.)

■

System maintenance
The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-

ing:

●

Nobody is in the vehicle.

●

The windows and moon roof (if equipped) are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

Alarm

The alarm

Setting the alarm system

Deactivating or stopping the alarm

81

1-2. Theft deterrent system

1

For safety

and security

RC F_U

■

Triggering of the alarm
The alarm may be triggered in the following situations:

(Stopping the alarm deactivates the alarm system.)

■

Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle unlocks the door and the alarm is activated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the door.

●

When recharging or replacing the battery

●

A person inside the vehicle opens a door, the

trunk or hood, or unlocks the vehicle using a

inside lock button.

●

The trunk is opened using the mechanical key.

●

The battery is recharged or replaced when the

vehicle is locked. (

P. 524)

NOTICE

■

To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of

the system cannot be guaranteed.

82

1-2. Theft deterrent system

RC F_U

These labels are attached to the vehicle
to reduce vehicle theft by facilitating
the tracing and recovery of parts from
stolen vehicles. Do not remove under
penalty of law.

Theft prevention labels (U.S.A.)

84

RC F_U

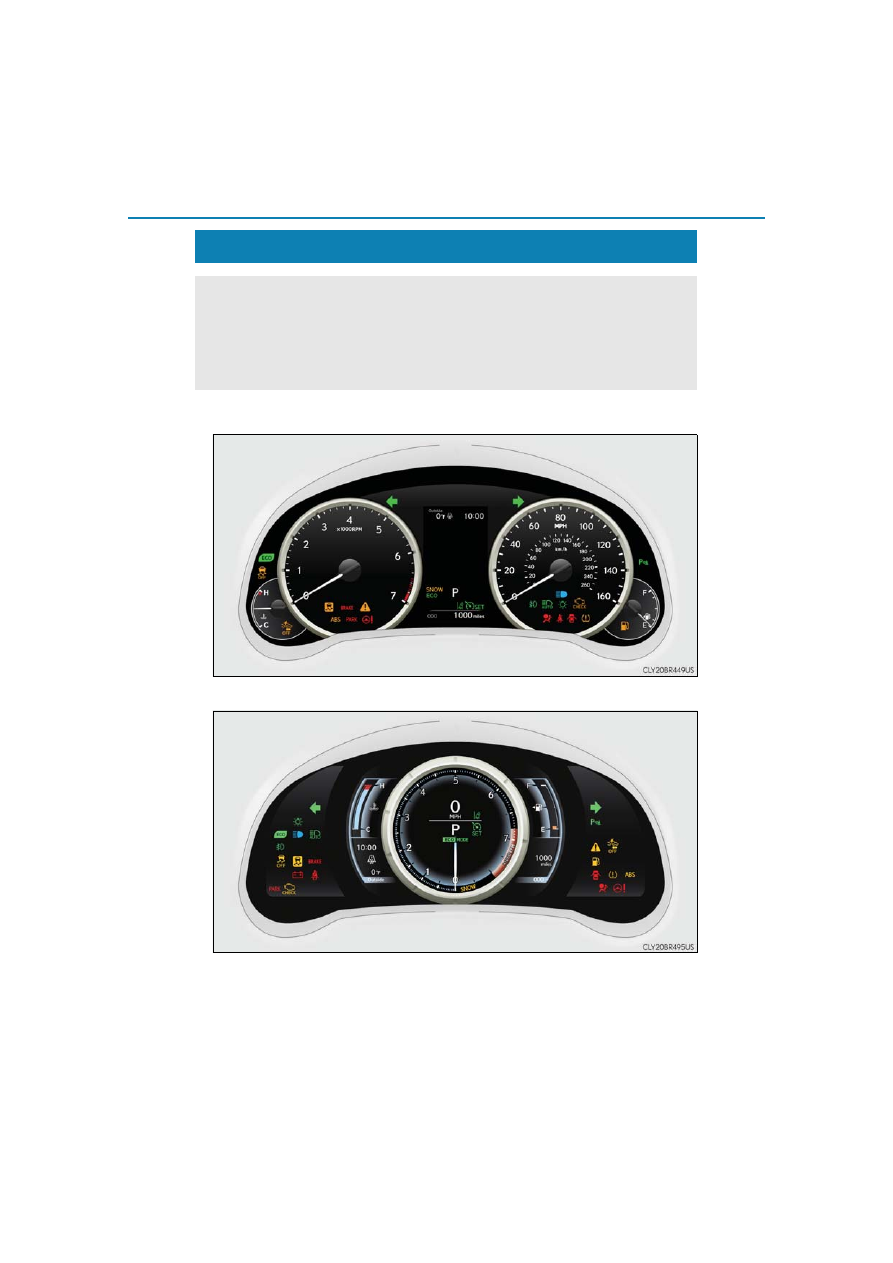

2. Instrument cluster

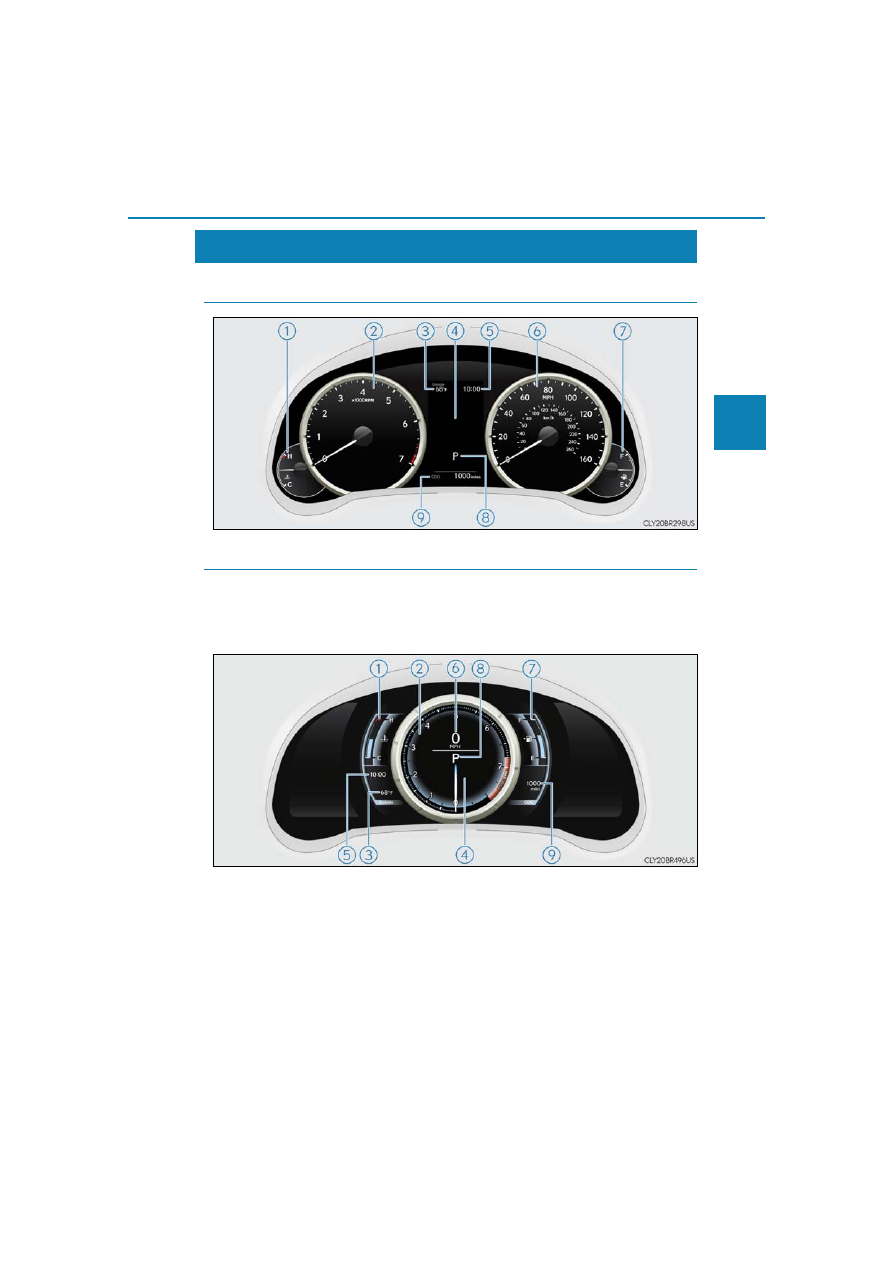

RC350/RC300 (except F SPORT models)

RC350/RC300 (F SPORT models)

Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.

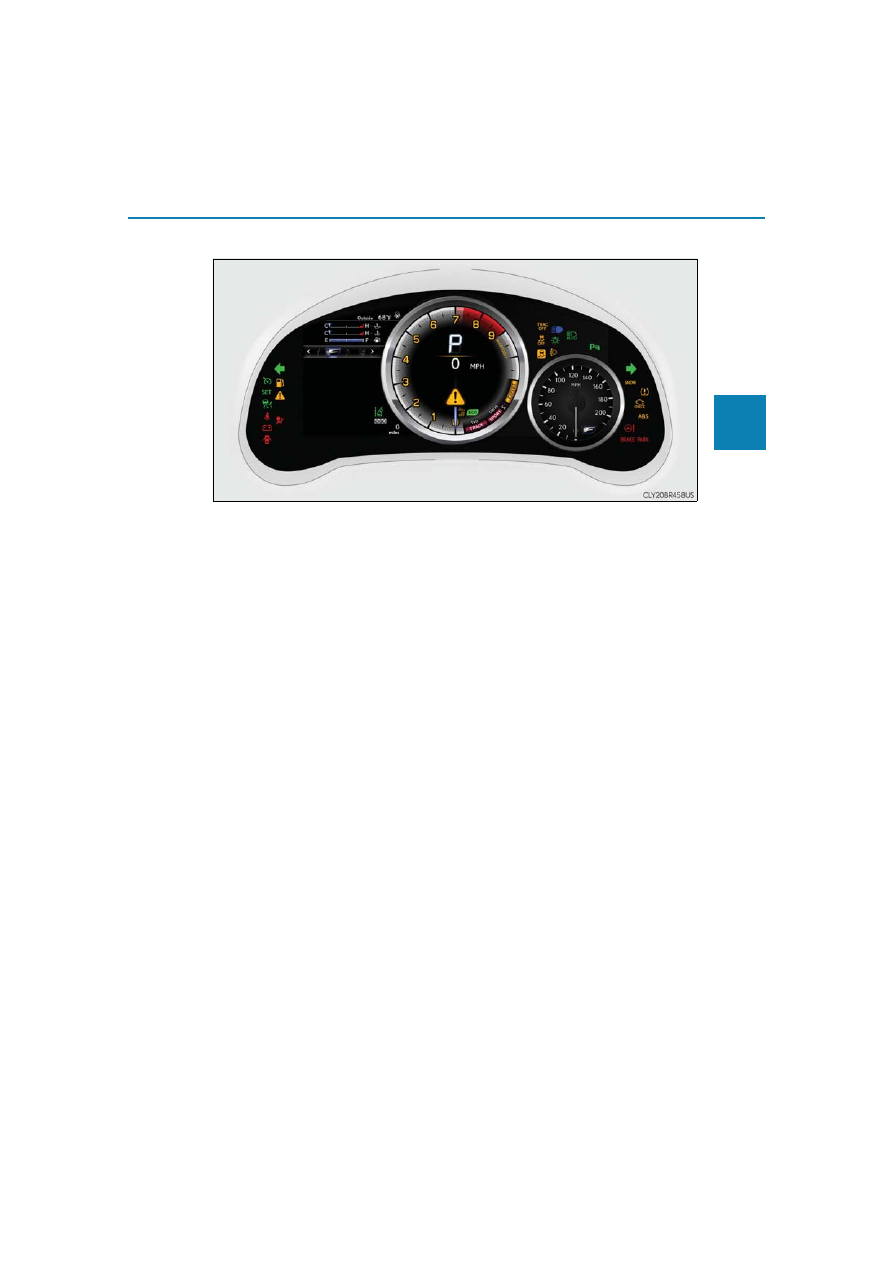

For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

85

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

RC F

The units used on the meters and some indicators may differ depending on the target

region.

86

2. Instrument cluster

RC F_U

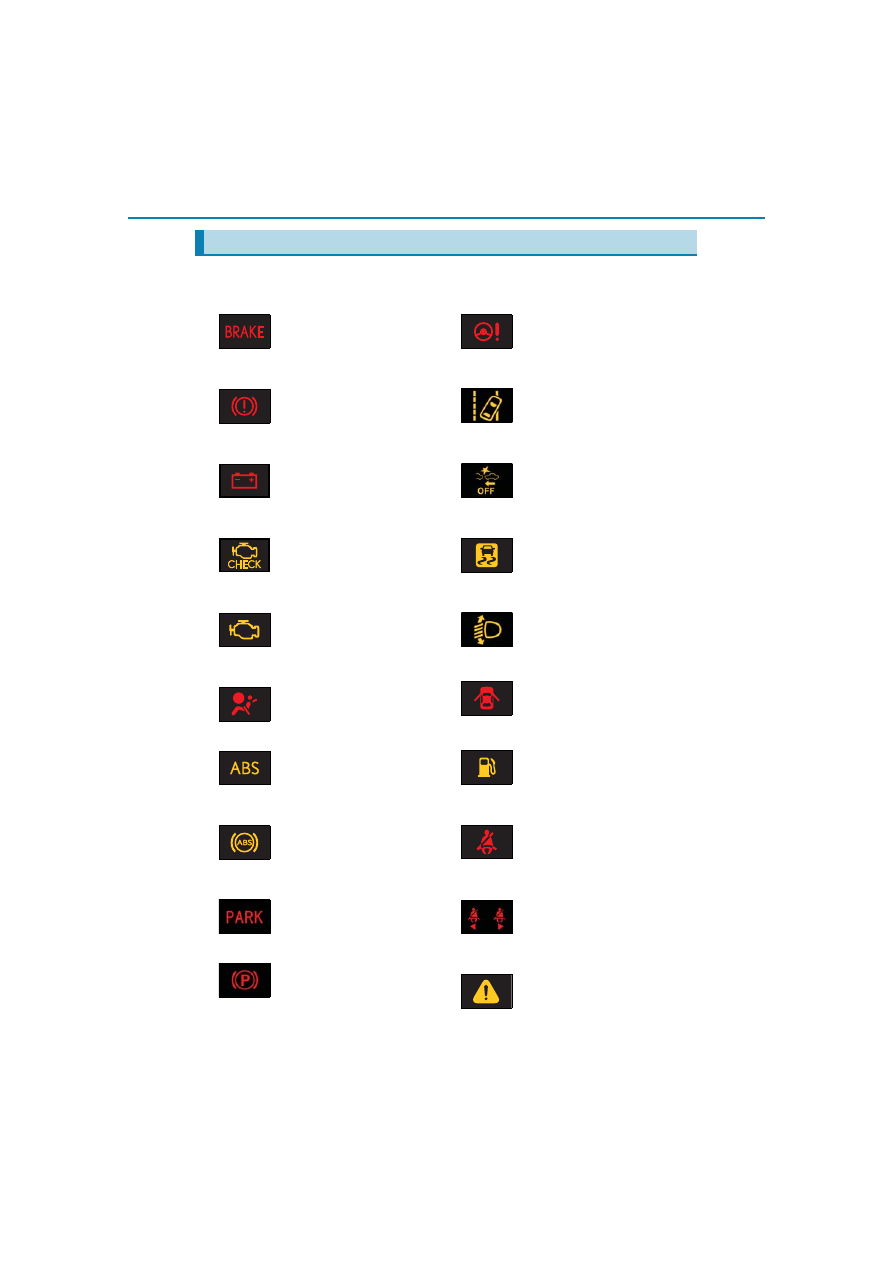

Warning lights inform the driver of malfunctions in the indicated vehicle systems.

Warning lights

*

1

(U.S.A.)

Brake system warning light

(

P. 453)

*

1

Electric power steering sys-

tem warning light

(

P. 454)

*

1

(Canada)

Brake system warning light

(

P. 453)

LDA (Lane Departure

 Alert) indicator (

P. 454)

*

1

(If equipped)

Charging system warning

light (

P. 453)

*

1

PCS warning light

(

P. 454)

*

1

(U.S.A.)

Malfunction indicator lamp

(

P. 453)

*

1

Slip indicator (

P. 454)

*

1

(Canada)

Malfunction indicator lamp

(

P. 453)

*

1



(If equipped)

Automatic headlight level-

ing system warning light

(

P. 454)

*

1

SRS warning light

(

P. 453)

Open door warning light

(

P. 454)

*

1

(U.S.A.)

ABS warning light

(

P. 453)

Low fuel level warning light

(

P. 455)

*

1

(Canada)

ABS warning light

(

P. 453)

Driver’s and front passen-

ger’s seat belt reminder light

(

P. 455)

(U.S.A.)

Parking brake warning light

(

P. 454)

*

2

Rear passenger’s seat belt

reminder lights (

P. 455)

(Canada)

Parking brake warning light

(

P. 454)

*

1

Master warning light

(

P. 455)

87

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

*

1

: These  lights turn on when the engine switch is turned to IGNITION ON mode  to

indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by your Lexus dealer.

*

2

: This light illuminates on the center panel.

The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.

*

1

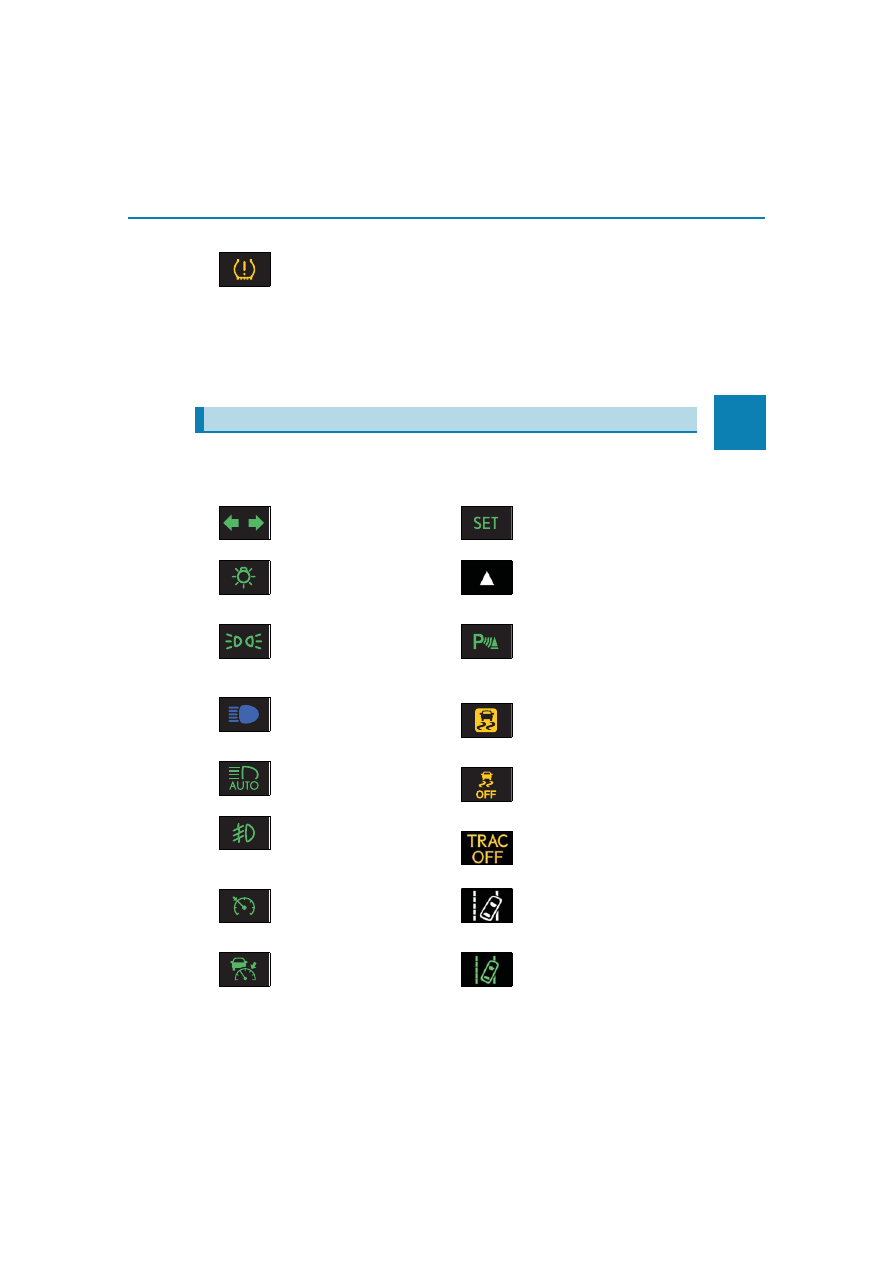

Tire pressure warning light

(

P. 455)

Indicators

Turn signal indicator

(

P. 221)

Cruise control “SET” indica-

tor (

P. 268)

(U.S.A.)

Headlight indicator

(

P. 225)

(if equipped)

Gear Shift Indicator

(

P. 217)

(Canada)

Tail light indicator

(

P. 225)



(if equipped)

Intuitive parking assist indi-

cator (

P. 280)

Headlight high beam indi-

cator (

P. 226)

*

1, 2



Slip indicator (

P. 314)

Automatic High Beam indi-

cator (

P. 228)

*

1, 3

VSC OFF indicator

(

P. 315)

(if equipped)

Front fog light indicator

(

P. 232)

*

1, 8

TRAC OFF indicator

(

P. 314)

Cruise control indicator

(

P. 268)

LDA (Lane Departure

Alert) indicator (

P. 261)

Dynamic radar cruise con-

trol indicator (

P. 268)

LDA (Lane Departure

Alert) indicator (

P. 261)

88

2. Instrument cluster

RC F_U

●

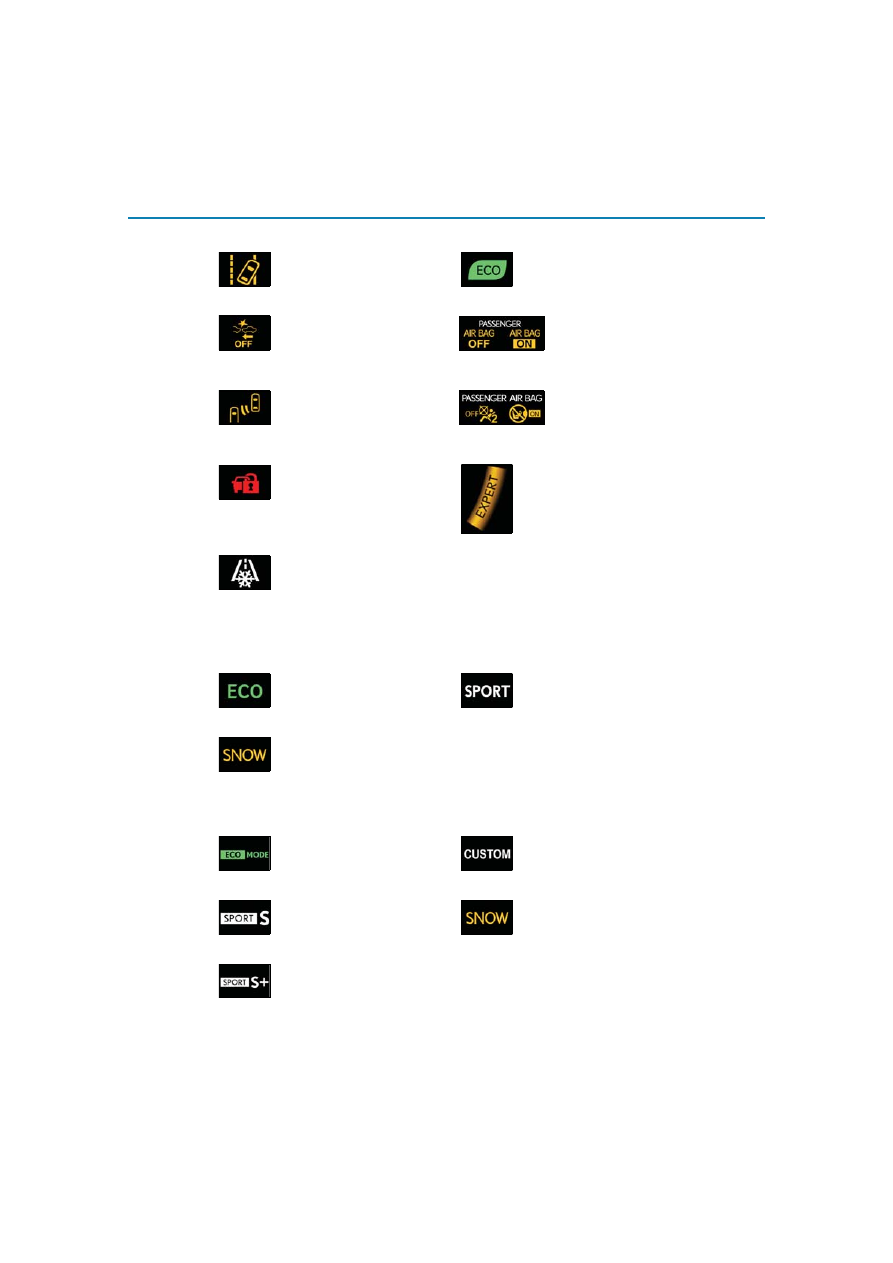

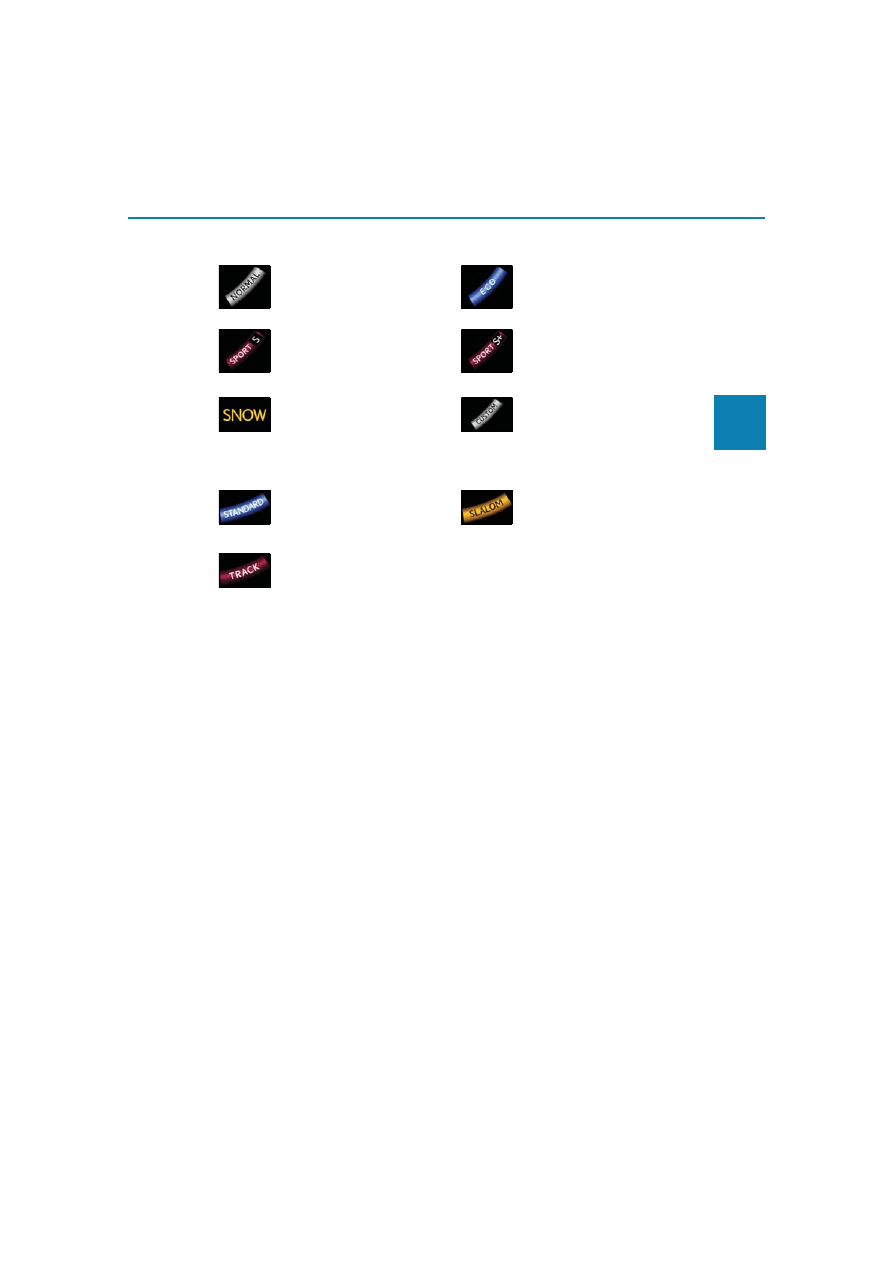

Drive mode indicators

RC350/RC300 (except F SPORT models)

RC350/RC300 (F SPORT models)

*

2

LDA (Lane Departure

Alert) indicator (

P. 261)

*

1

Eco Driving Indicator Light

(

P. 116, 132)

*

1, 3

PCS warning light

(

P. 254)

*

1, 7

(U.S.A.)

“AIR BAG ON/OFF”

indicator (

P. 51)

*

4, 6

(if equipped)

BSM (Blind Spot Monitor)

outside rear view mirror

indicators (

P. 290)

*

1, 7

(Canada)

“AIR BAG ON/OFF”

indicator (

P. 51)

*

7

Security indicator

(

P. 79, 80)

*

8

“EXPERT” indicator

(

P. 316)

*

5

Low outside temperature

indicator (

P. 91, 96)

Eco drive mode indicator

(

P. 301)

“SPORT” indicator

(

P. 301)

Snow mode indicator

 (

P. 214)

Eco drive mode indicator

(

P. 301)

“CUSTOM” indicator

(

P. 301)

“SPORT S” indicator

(

P. 301)

Snow mode indicator

(

P. 214)

“SPORT S+” indicator

(

P. 301)

89

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

RC F

●

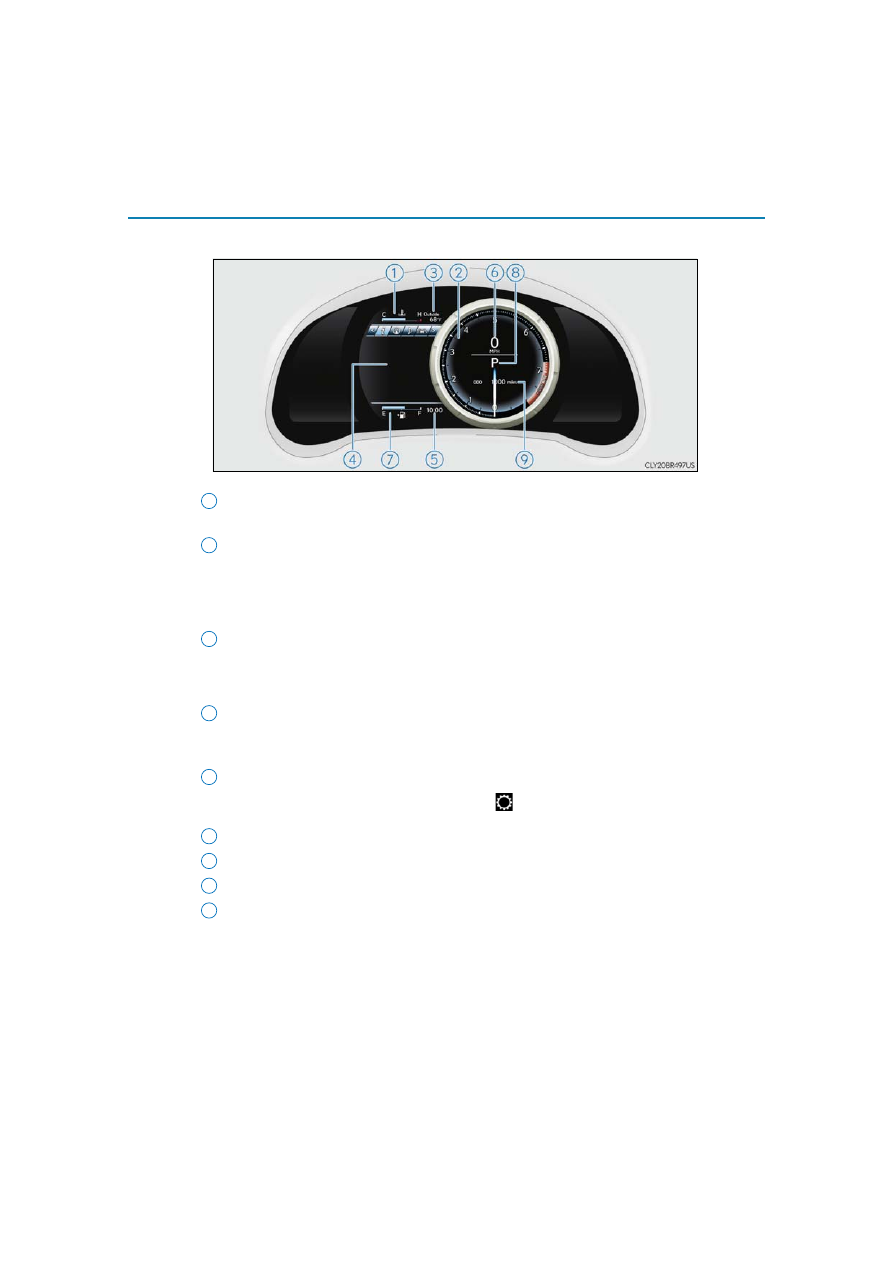

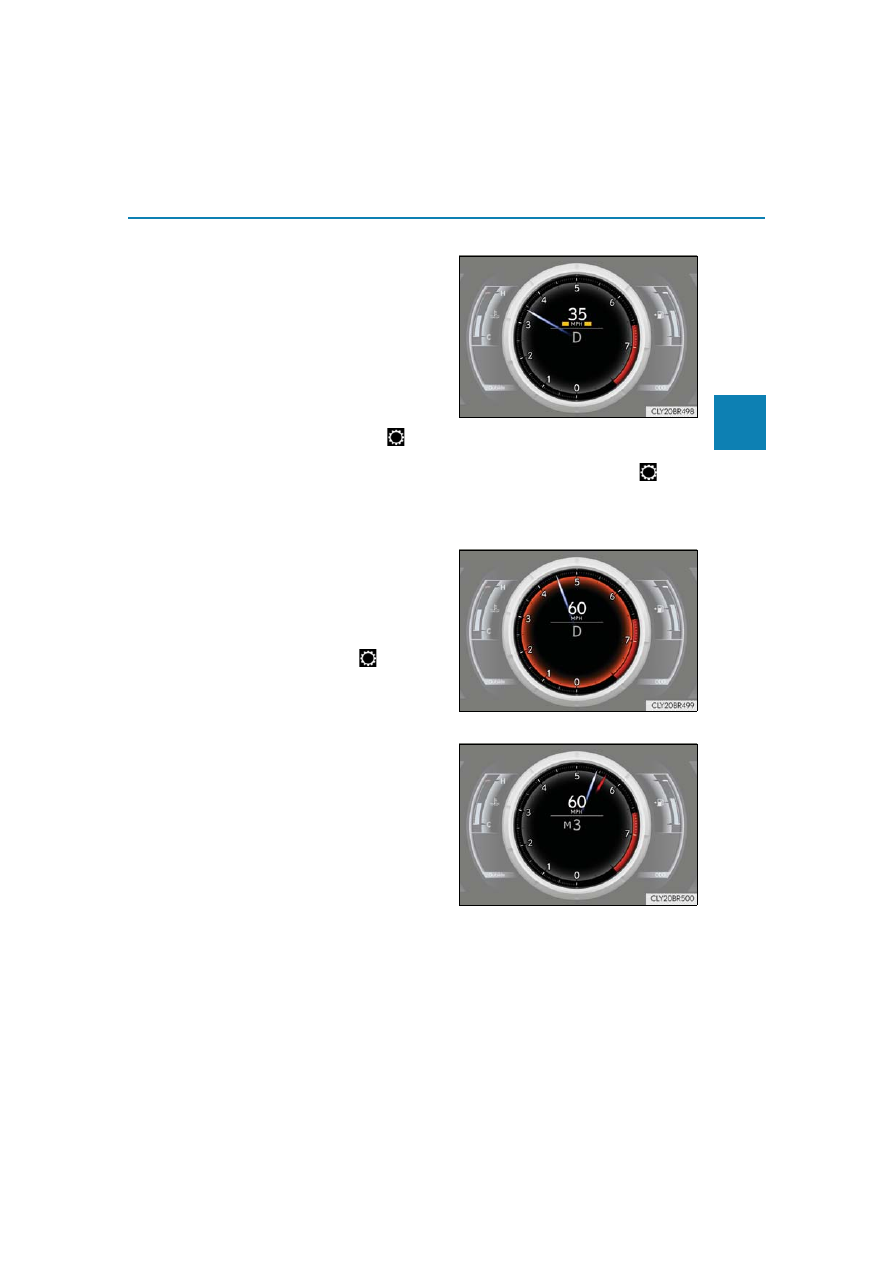

TVD (Torque Vectoring Differential) control mode indicators (RC F)

*

1

: These  lights turn on when the engine switch is turned to IGNITION ON mode  to

indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by your Lexus dealer.

*

2

: The light flashes to indicate that the system is operating.

*

3

: The light comes on when the system is turned off.

*

4

: In order to confirm operation, the BSM outside rear view mirror indicators illuminate

in the following situations:

• When the engine switch is turned to IGNITION ON mode while the BSM main

switch is turned on.

• When the BSM main switch is turned on while the engine switch is in IGNITION

ON mode.

If the system is functioning correctly, the BSM outside rear view mirror indicators will

turn off after a few seconds.

If the BSM outside rear view mirror indicators do not illuminate or do not turn off,

there may be a malfunction in the system.

If this occurs, have the vehicle inspected by your Lexus dealer.

*

5

: When the outside temperature is approximately 37

F (3C) or lower, the indicator

will flash for approximately 10 seconds, then stay on.

*

6

: This light illuminates on the outside rear view mirrors.

*

7

: This light illuminates on the center panel.

*

8

: RC  F

“NORMAL” indicator

(

P. 301)

Eco drive mode indicator

(

P. 301)

“SPORT S” indicator

(

P. 301)

“SPORT S+” indicator

(

P. 301)

Snow mode indicator

(

P. 214)

“CUSTOM” indicator

(

P. 301)

(if equipped)

“STANDARD” indicator

(

P. 310)

(if equipped)

“SLALOM” indicator

(

P. 310)

(if equipped)

“TRACK” indicator

(

P. 310)

90

2. Instrument cluster

RC F_U

WARNING

■

If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when

you start the engine, this could mean that these systems are not available to help pro-

tect you in an accident, which could result in death or serious injury. Have the vehicle

inspected by your Lexus dealer immediately if this occurs.

91

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

◆

Except F SPORT models

◆

F SPORT models

When the main meter is moved to the right, some of the meter displays and
the gauge layout will change.

Main meter in center position

Gauges and meters (RC350/RC300)

92

2. Instrument cluster

RC F_U

Main meter moved to the right

The units used on the meters may differ depending on the target region.

Engine coolant temperature gauge

Displays the engine coolant temperature

Tachometer

Displays the engine speed in revolutions per minute
F SPORT models: When sport mode is selected for the driving mode, the periphery

of the tachometer will change color and the scale of the tachometer will be empha-

sized.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F

(50°C). Low outside temperature indicator comes on when the ambient temperature

is 37°F (3°C) or lower.

Multi-information display

Presents the driver with a variety of vehicle data (

P. 103)

Displays warning messages in case of a malfunction (

P. 460)

Clock

Time displayed on the clock can be adjusted on

 of the multi-information display.

(

P. 111)

Speedometer
Fuel gauge
Shift position/shift range/gear position

 (

P. 213)

Odometer and trip meter display

 (

P. 115)

1

2

3

4

5

6
7
8
9

93

2. Instrument cluster

2

Instrument cl

uste
r

RC F_U

■

Speed indicator (F SPORT models)
When the vehicle reaches a set
speed, indicators will be displayed
on both sides of the displayed speed
unit.

• The indicators will be displayed in

yellow (corresponding to a speed set

by a user) or red (fixed at 100 mph

[160 km/h])

*

.

• The desired vehicle speed at which

the speed indicator will begin to be
displayed can be set in

 of the

multi-information display. (

P. 111)

• The default setting of the indicator is off. This setting can be changed in

 of the

multi-information display. (

P. 111)

*

: Always observe the legal speed limit when driving on public roads.

■

Rev indicator (F SPORT models)
When the engine speed reaches a
set speed, a ring-shaped indicator
will be displayed on the tachometer.

The desired engine speed at which

the Rev indicator will begin to be dis-
played can be set on

 of the multi-

information display. (

P. 111

)

■

Rev peak (F SPORT models)
The engine speed reaches or
exceeds 5000 rpm, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 0.5 seconds.















Content   ..  3  4  5  6   ..
