LEXUS RC F (2019 year). Instruction - part 8

126

2. Instrument cluster

RC F_U

■

Torque distribution (if equipped)
Displays the distribution of driving torque between the left and right rear
wheels

●

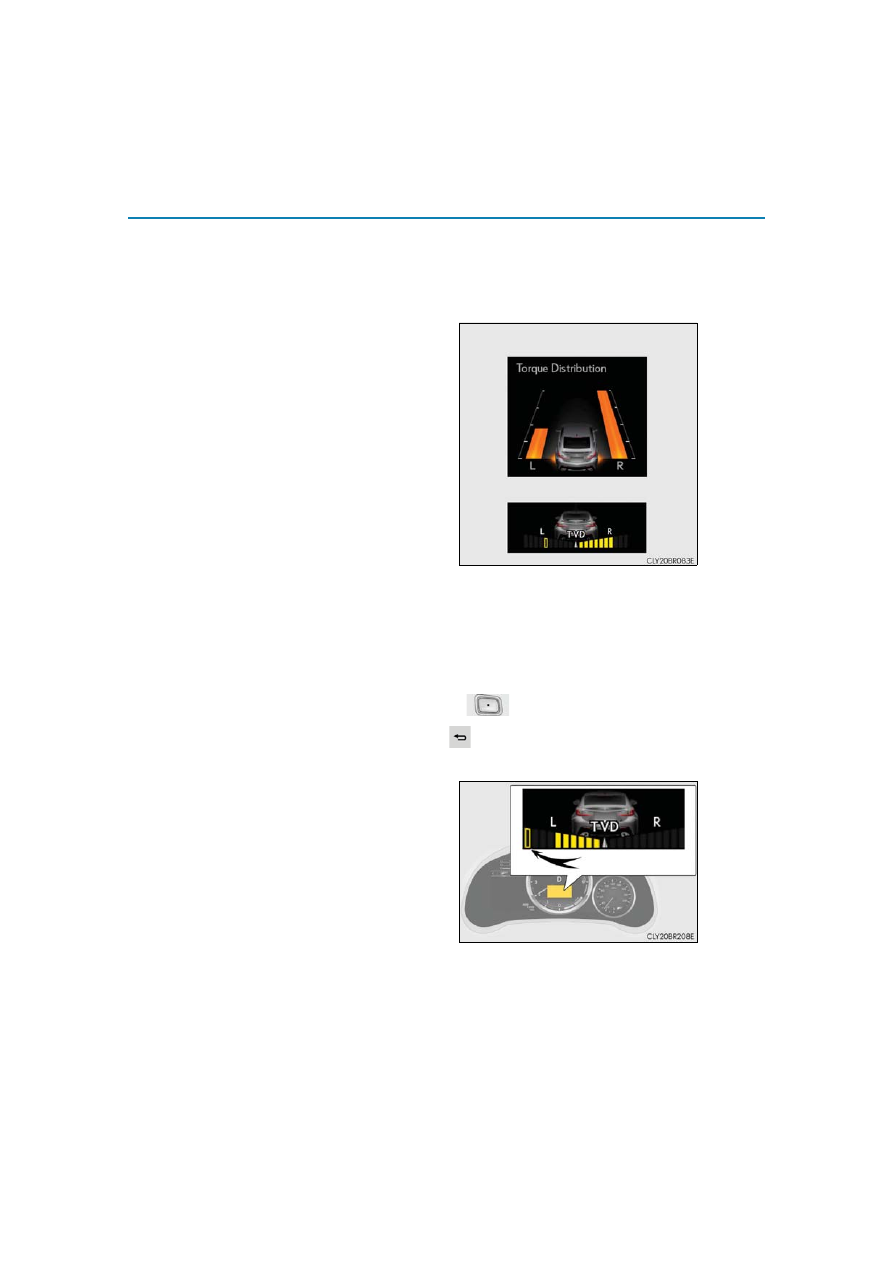

Reading the display

• Normal display

Displays the amount of drive
torque applied to the left and
right rear wheels through bars
that fluctuate in length on the
content display area

• Advanced display

Displays the difference in
torque applied to the left and
right rear wheels through dis-
played segments on the sub-
content display area in addi-
tion to the bar display.
The greater the number of
segments displayed, the
greater the difference in
torque is.

●

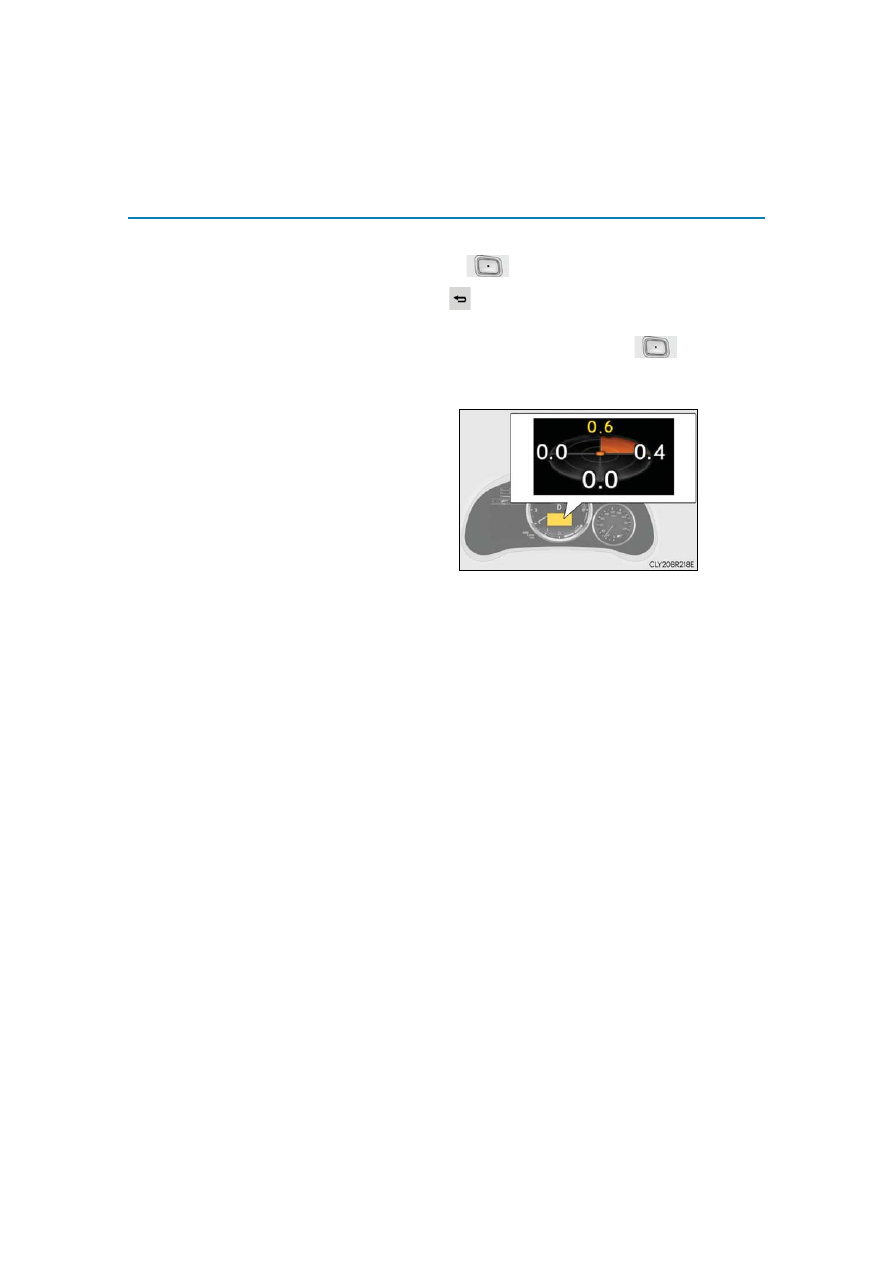

Switching the display

To switch to advanced display, press

To return to normal display, press

●

Peak hold function (advanced display only)
If the difference in torque of 4
segments or more is applied to
the left or right rear wheel, a yel-
low outline will be displayed for
the highest segment that was
reached, for a certain amount of
time.

Content display area

Sub-content display area

127

2. Instrument cluster

Instrument cl

uste
r

RC F_U

■

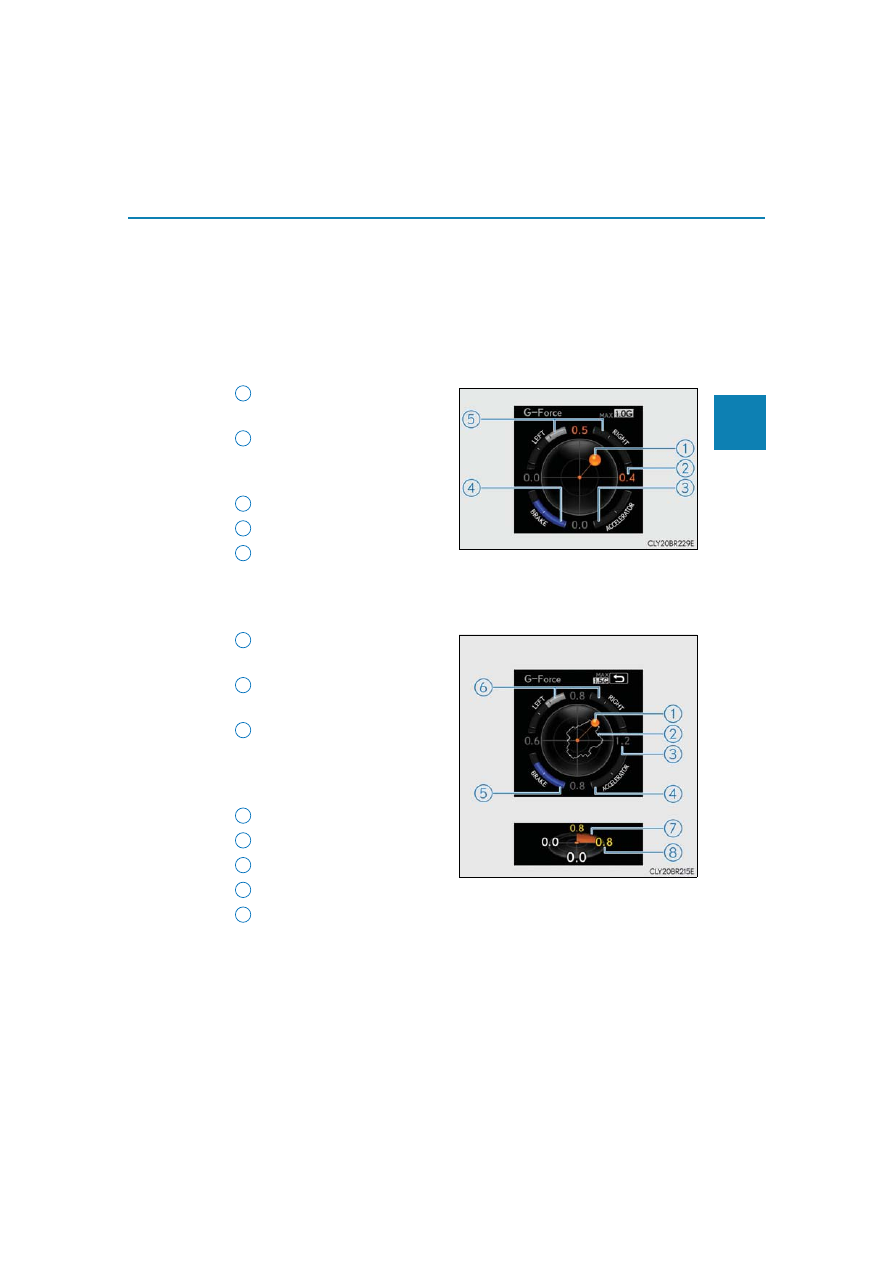

G-force
Displays lateral G-forces on the vehicle
Also displays, around the periphery of the G-force display, the left and right
steering amount, accelerator pedal input, and brake fluid pressure

●

Reading the display

• Normal display

Displays the following on the content display area
Acceleration G-force on the
vehicle
Current G-force value (ana-
lyzed value of front/rear and
left/right G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount

• Advanced display

Displays the following on the sub-content display area and content dis-
play area
Acceleration G-force on the
vehicle
Record of the maximum G-
forces
Value of the maximum G-
force since display reset (ana-
lyzed value of front/rear and
left/right G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount
G-force direction
Current G-force value (analyzed value of front/rear and left/right G-
forces)

This display is intended for use as a guideline. Depending on factors such as the

road surface condition, temperature and vehicle speed, the display may not

show the actual condition of the vehicle.

3
4
5

Content display area

Sub-content display area

4
5
6
7
8

128

2. Instrument cluster

RC F_U

●

Switching the display

To switch to advanced display, press

To return to normal display, press

●

Resetting the record of maximum G-forces
With the record of maximum G-forces displayed, press and hold

reset the display.

●

Peak hold function (advanced display only)
If lateral G-forces of 0.5 G or
greater are generated, the G-
force value displayed on the sub-
content display area will turn yel-
low and be held for 3 seconds.

■

Tire pressure
Displays the tire inflation pressure (

P. 413)

Unlike the tire pressure display on the drive information menu, the tire inflation

pressure display of the “F” content menu can be displayed while lap time is being

measured.

■

Rear wing position
Displays the raised/retracted state of the active rear wing

129

2. Instrument cluster

Instrument cl

uste
r

RC F_U

◆

Changing settings

Use the meter control switches on the steering wheel to change settings.

Press

select .

Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the screen.

◆

Setting items

■

LDA (Lane Departure Alert with steering control) (

P. 261)

The following LDA system settings can be changed:

■

PCS (Pre-collision system) (

P. 250)

The following pre-collision system settings can be changed:

Settings display ( )

2
3

Item

Settings

Details

Steering assist

Select to enable/disable steering

wheel assistance.

Off

Alert

Select to set a vibrator or buzzer as

the notification method used to warn

the driver.

Sensitivity

High

Select to set the warning sensitivity.

Standard

Sway warning

Select to enable/disable the vehicle

sway warning.

Off

Sway sensitivity

High

Select to set the vehicle sway warning

sensitivity.

Standard

Low

Item

Settings

Details

PCS

Select to enable/disable the pre-colli-

sion system.

Off

Warning sensitivity

Select to change the warning timing.

130

2. Instrument cluster

RC F_U

■

Speed indicator (

P. 93)

The following speed indicator settings can be changed:

: Always observe the legal speed limit when driving on public roads.

■

Active rear wing

■

Vehicle settings

■

Meter settings

Item

Settings

Details

Speed Indicator

Select to enable/disable the speed

indicator.

Off

Speed Setting

30 mph to 100 mph

(50 km/h to 160

km/h)

Select to set the desired vehicle

speed at which the speed indicator

will begin to be displayed.

Item

Settings

Details

Active rear wing

Select to enable/disable the active

rear wing.

Off

Item

Settings

Details

Scheduled maintenance

Maintenance data reset

Select to reset the message indicating

maintenance is required, after the

required maintenance is performed.

(

P. 385)

Item

Settings

Details

Language

Select to change the language dis-

played.

Units

Select to change the units of measure

displayed.

131

2. Instrument cluster

Instrument cl

uste
r

RC F_U

(Eco Driving

Indicator Light)

Select to enable/disable the Eco Driv-

ing Indicator Light. (

P. 116)

Off

Switch settings

Select to display how to change the

top screen.

Drive information 1

Select to select up to 2 items that will

be displayed on each Drive informa-

tion screen (Drive information 1

screen, Drive information 2 screen,

and Drive information 3 screen)

respectively.

(Selectable items:

P. 122)

Drive information 2

Drive information 3

Pop-up display

Intersection Guid-

ance (if equipped)

Select to enable/disable the pop-up

display.

Telephone

Audio Feedback

Volume Feedback

Adjust Brightness

TVD MODE (if

equipped)

Rev indicator

Select to enable/disable the Rev indi-

cator. (

P. 99)

Off

Rev setting

Select to set the desired engine speed

at which the Rev indicator will begin

to be displayed.

Rev peak

Select to enable/disable the Rev peak.

(

P. 100)

Off

Gauge options

2-4 Available meter

displays (depending

on drive mode)

Select to change the displayed

meters for each applicable drive

mode.

Default setting

Select to reset the meter display set-

tings to the default setting.

Item

Settings

Details

132

2. Instrument cluster

RC F_U

■

Odometer
Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.

To reset, display the desired trip meter and press and hold the odometer/trip meter

and trip meter reset button.

■

Eco Driving Indicator

Eco Driving Indicator will not operate under the following conditions:

●

The shift lever is in any position other than D.

●

A paddle shift switch is operated.

●

Neither normal mode nor Eco drive mode is selected. (

P. 301)

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

■

Start-up display
When the engine is started, the name of the vehicle is displayed on the multi-information

display.

While the start-up display is being displayed, the meter display cannot be changed even

if the drive mode is changed. When the start-up display is finished, the meter display for

the currently selected mode will be displayed.

■

Torque distribution display (if equipped)
Torque distribution may not be displayed correctly in some cases, such as when the vehi-

cle passes over road expansion joints.

Odometer/trip meter display

During Eco-friendly acceleration (Eco driving),

the Eco Driving Indicator Light will turn on.

When the acceleration exceeds the Zone of

Eco driving, or when the vehicle is stopped, the

light turns off.

133

2. Instrument cluster

Instrument cl

uste
r

RC F_U

■

G-force display

●

The G-force values may not be zero even when the vehicle is parked, such as when it is

parked on an incline.

●

The steering amount, accelerator pedal input, and brake fluid pressure displays are dis-

abled until the engine has warmed up (the variable red zone of the tachometer has

retracted to 7300 rpm).

After the engine has warmed up, these displays will be enabled.

●

Depending on the vehicle usage conditions, the brake fluid pressure display may not

reach its maximum reading even though the brake pedal is fully depressed.

●

If a battery terminal is disconnected and reconnected, the steering amount display may

be disabled temporarily. After driving the vehicle for a while, the display will be enabled.

■

Suspension of the settings display
In the following situations, operation of the settings display will be temporarily sus-

pended.

●

When a warning message appears on the multi-information display

●

When the vehicle begins to move

■

Tire pressure

●

It may take a few minutes to display the tire inflation pressure after the engine switch is

turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-

tion pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined due to

unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may also be dif-

ferent from the values measured using a tire pressure gauge.

■

When disconnecting and reconnecting battery terminals
The following information data will be reset:

●

Drive information

●

Lap timer: Measured lap times, history

●

G-force: Record of the maximum G-forces

■

Using the lap timer
If the engine is stopped while a lap is being timed, the lap timer will stop and the lap time

up to that point will be recorded.

■

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic

of liquid crystal displays, and there is no problem continuing to use the display.

134

2. Instrument cluster

RC F_U

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra attention to the

safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as you may fail

to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information

display. At extremely low temperatures, the information display monitor may respond

slowly, and display changes may be delayed.

For example, there is a lag between the driver’s shifting and the new gear number

appearing on the display. This lag could cause the driver to downshift again, causing

rapid and excessive engine braking and possibly an accident resulting in death or

injury.

■

Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that the vehicle

is parked in a place with adequate ventilation. In a closed area such as a garage,

exhaust gases including harmful carbon monoxide (CO) may collect and enter the

vehicle. This may lead to death or a serious health hazard.

NOTICE

■

While setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the dis-

play features.

135

2. Instrument cluster

Instrument cl

uste
r

RC F_U

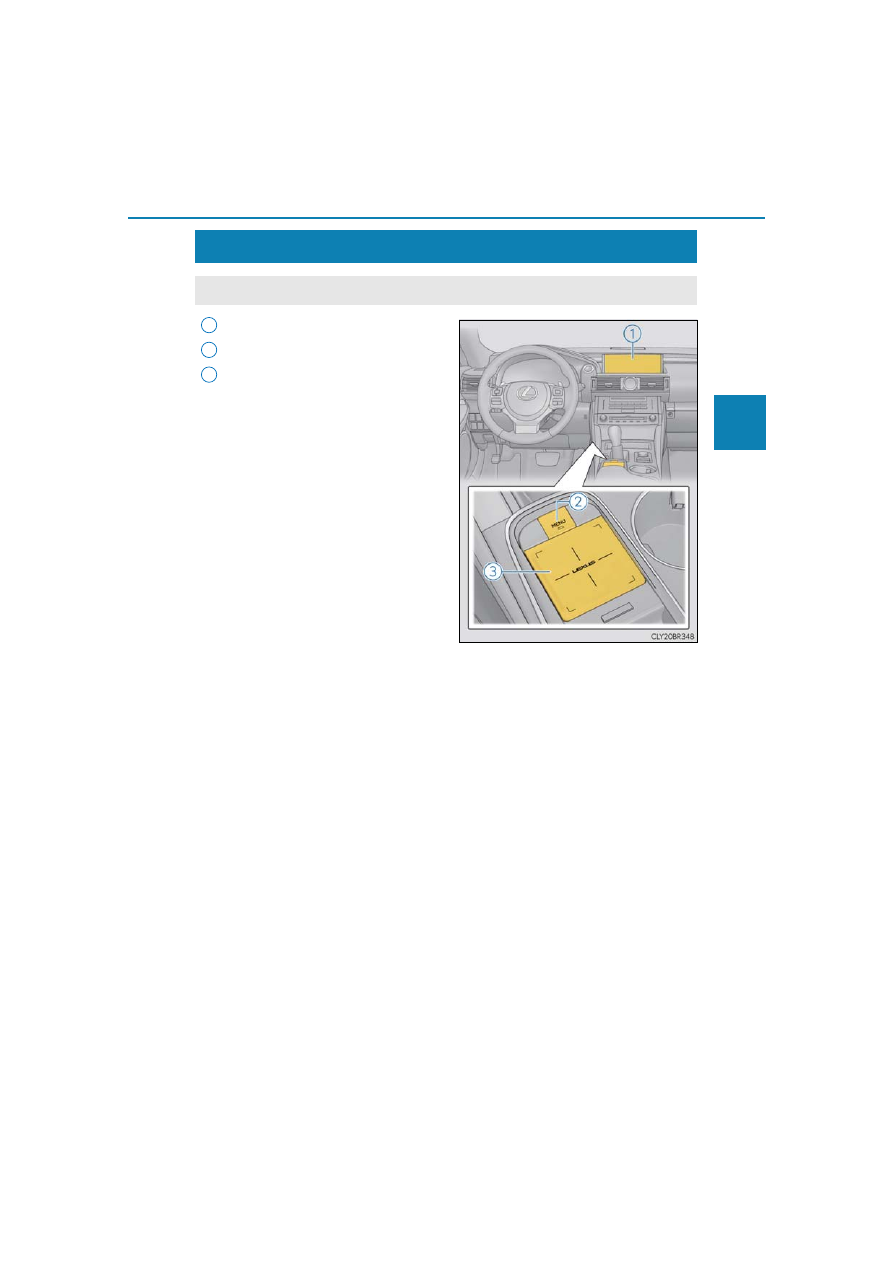

Center Display
“MENU” button
Touchpad

Fuel consumption information

Fuel consumption information can be displayed on the Center Display.

2
3

136

2. Instrument cluster

RC F_U

Press the “MENU” button on the Remote Touch, then select “Info” on the
“Menu” screen, and then select “ECO”.

If the “History” screen is displayed, select “Trip Information”.

■

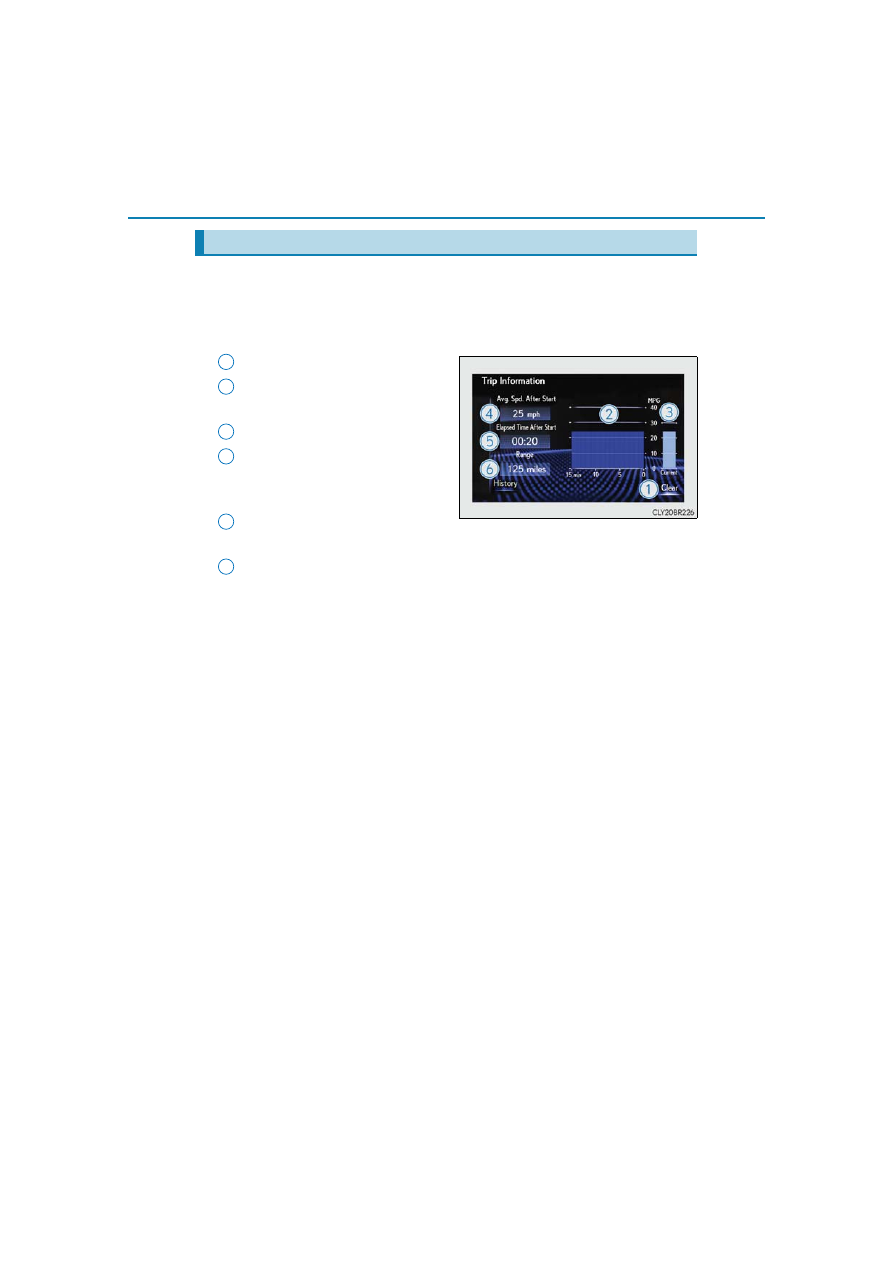

Trip information screen

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Displays the average vehicle
speed since the engine was
started.
Displays the elapsed time since
the engine was started.
Cruising range (

P. 137)

Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the engine switch was last turned to IGNI-
TION ON mode. Use the displayed average fuel consumption as a reference.
The image is an example only.

Trip information

3
4

137

2. Instrument cluster

Instrument cl

uste
r

RC F_U

Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu”
screen, and then select “ECO”.

If the “Trip Information” screen is displayed, select “History”.

■

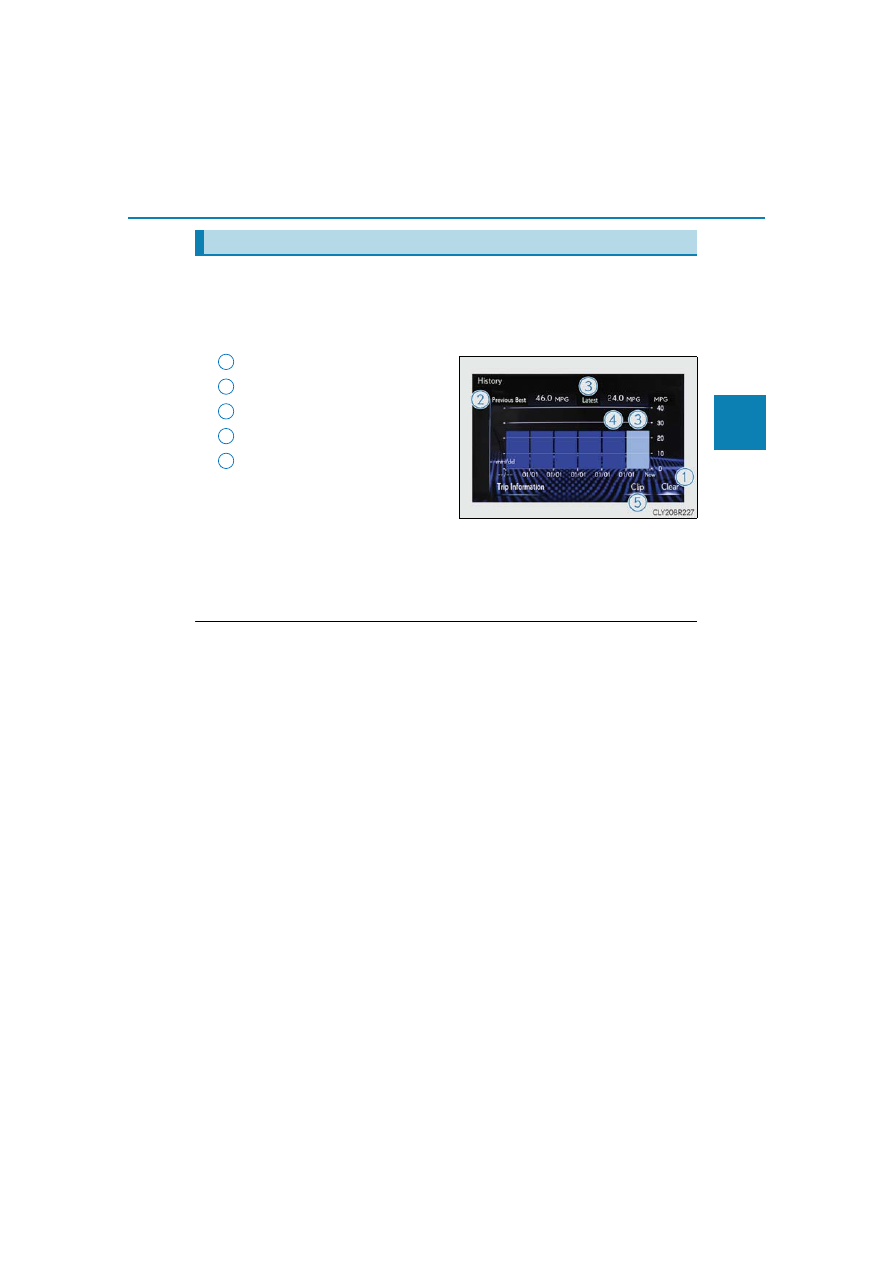

History

Resetting the history data
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data

The average fuel consumption history is divided by color into past averages and
the average fuel consumption since the last updated. Use the displayed average
fuel consumption as a reference.
The image is an example only.

■

Updating the history data
Update the latest fuel consumption by selecting “Clip” to measure the current fuel con-

sumption again.

■

Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel

remaining.
This distance is computed based on your average fuel consumption.

As a result, the actual distance that can be driven may differ from that displayed.

History

2
3
4
5

138

2. Instrument cluster

RC F_U

Display the vehicle information on the side display (

P. 332), and then select

to display the desired screen.

The image is an example only, and may vary slightly from actual conditions.

■

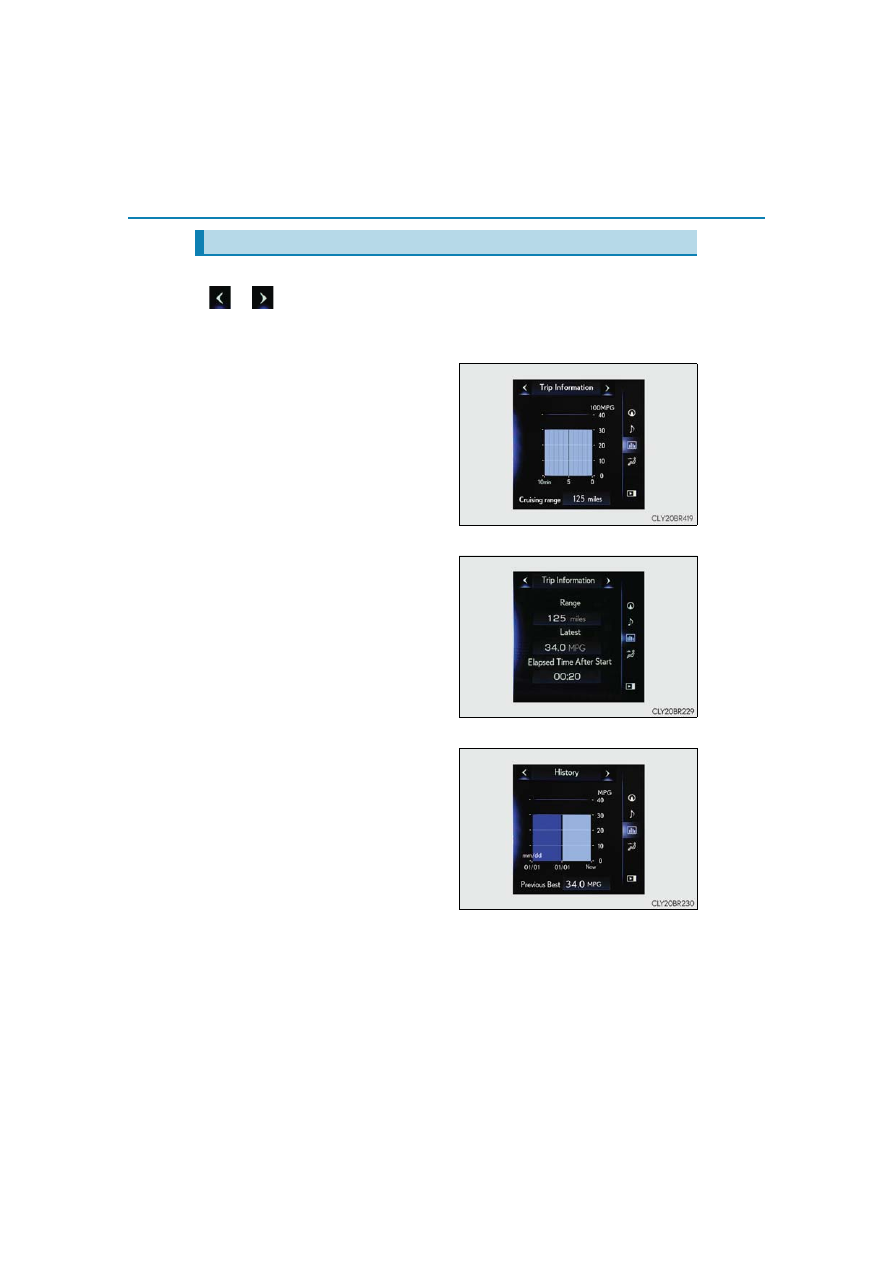

Trip information screen (Type A)
Displays the average fuel consump-
tion and regenerated energy for the
past 10 minutes in 1 minute intervals,
as well as the cruising range.

Use the displayed average fuel con-

sumption as a reference.

■

Trip information screen (Type B)
Displays the cruising range, latest
fuel consumption and the amount of
time elapsed since the engine was
started.

Use the displayed average fuel con-

sumption as a reference.

■

History
Displays the average fuel consump-
tion and highest fuel consumption.

Use the displayed average fuel con-

sumption as a reference.

Using the side display (vehicles with a 10.3-inch display)

139
