LEXUS LX 570 (2019 year). Instruction - part 28

443

5-6. Using the other interior features

Inte
rior fe

ature

■

Lighting conditions of operation indicator light

: Depending on the portable device, there are cases where the operation indicator

light will continue being lit up orange even after the charging is complete.

●

When the operation indicator light flashes
When an error occurs, the operation indicator light flashes an orange color.
Handle the error based on the following table.

■

The wireless charger can be operated when
The engine switch is in ACCESSORY or IGNITION ON mode.

■

Usable portable devices
Qi standard wireless charge standard can be used on compatible devices.

However, not all Qi standard devices and compatibility are guaranteed.
Starting with mobile phones and smart phones, it is aimed for low power electrically sup-

plied portable devices of no more than 5W.

Operation indicator light

Conditions

Turning off

When the Wireless charger power supply is off

Green (comes on)

On Standby (charging possible state)

When charging is complete

Orange (comes on)

When placing the portable device on the charging

area (detecting the portable device)

Charging

Operation indicator light

Suspected causes

Handling method

Flashing repeatedly once

every second (Orange)

Vehicle to charger commu-

nication failure.

Contact your Lexus dealer.

Repeatedly flashes

3 times continuously

(Orange)

A foreign substance is

between the portable device

and charge area.

Remove the foreign sub-

stance from between por-

table device and the

charge area.

The portable device is out of

sync due to the device being

shifted from its position.

Place the portable device

near the center of the

charge area.

Repeatedly flashes

4 times continuously

(Orange)

Temperature rising within

the wireless charger.

Stop charging at once and

start charging again after

for a while.

444

5-6. Using the other interior features

■

When covers and accessories are attached to portable devices
Do not charge in situations where cover and accessories not able to handle Qi are

attached to the portable device. Depending on the type of cover and accessory, it may

not be possible to charge. When charging is not performed even with the portable

device placed on the charge area, remove the cover and accessories.

■

While charging, noise enters the AM radio
Turn off the wireless charger and confirm that the noise has decreased. If the noise

decreases, continuously pushing the power supply switch of the wireless charger for 2

seconds, the frequency of the charger can be changed and the noise can be reduced.

Also, on that occasion, the operation indicator light will flash orange 2 times.

■

Important points of the wireless charger

●

If the electronic key cannot be detected within the vehicle interior, charging cannot be

done. When the door is opened and closed, charging may be temporarily suspended.

●

When charging, the wireless charging device and portable device will get warmer,

however this is not a malfunction.

When a portable device gets warm while charging, charging may stop due to the pro-

tection function on the portable device side. In this case, when the temperature of the

portable device drops significantly, charge again.

■

Operation sounds
When the power supply is turned on, while searching for the portable device a sound will

be produced, however this is not a malfunction.

445

5-6. Using the other interior features

Inte
rior fe

ature

■

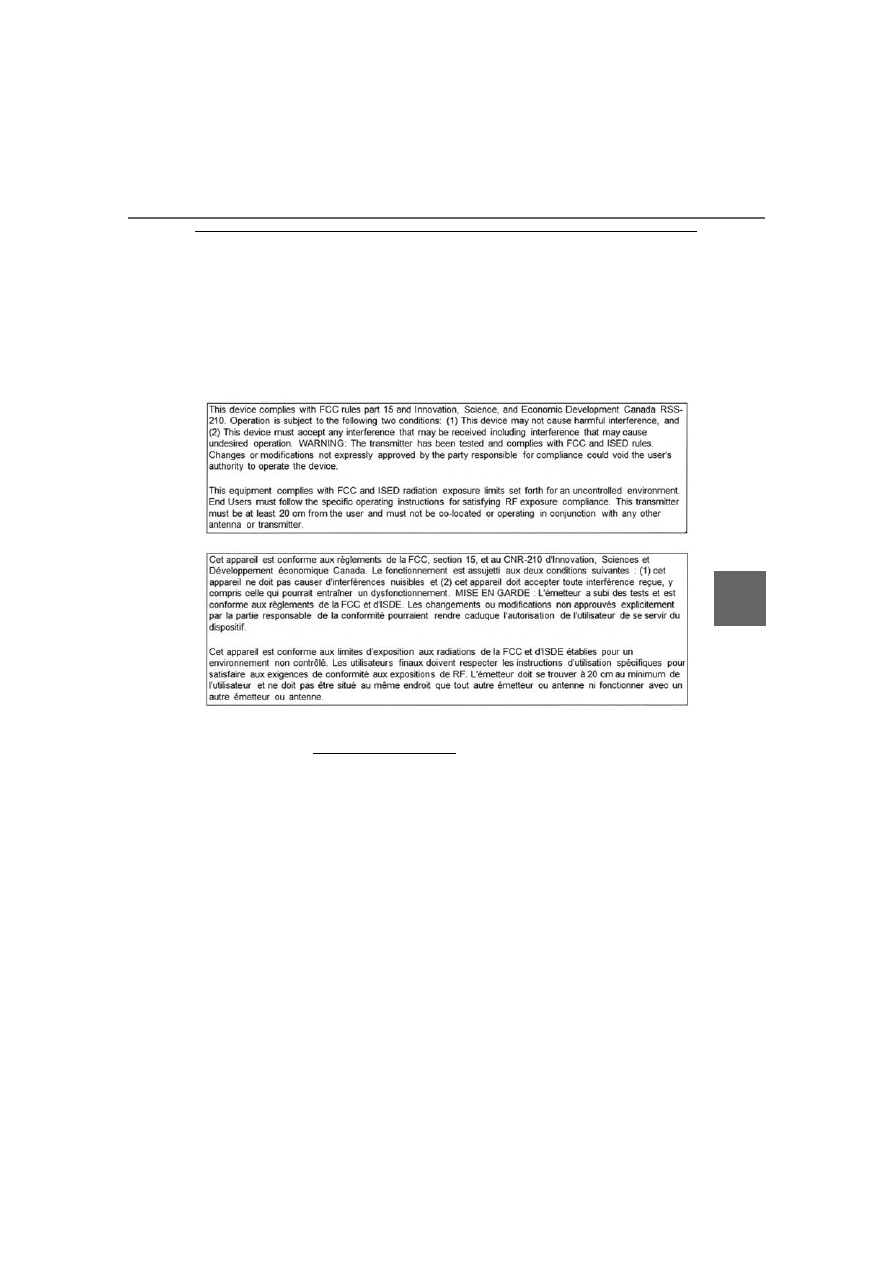

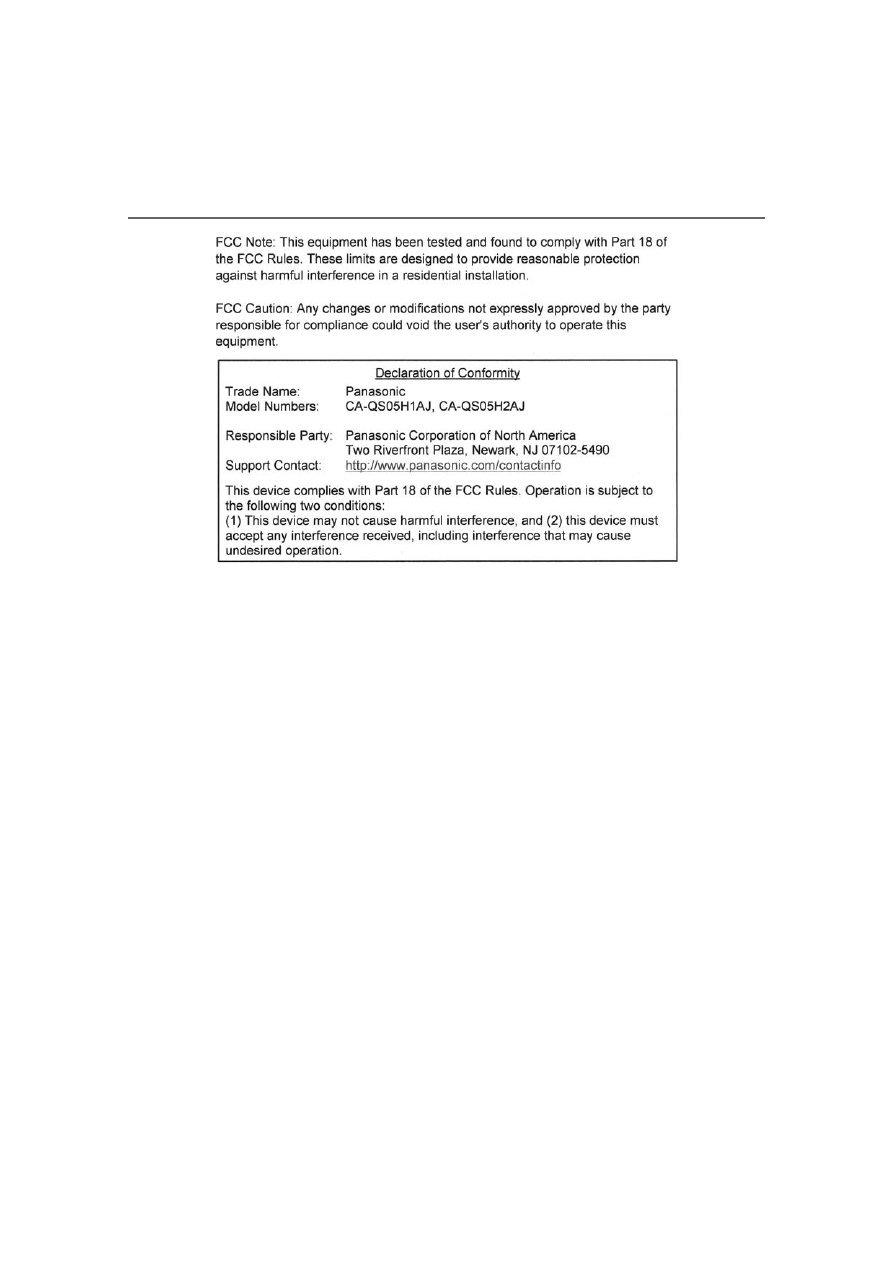

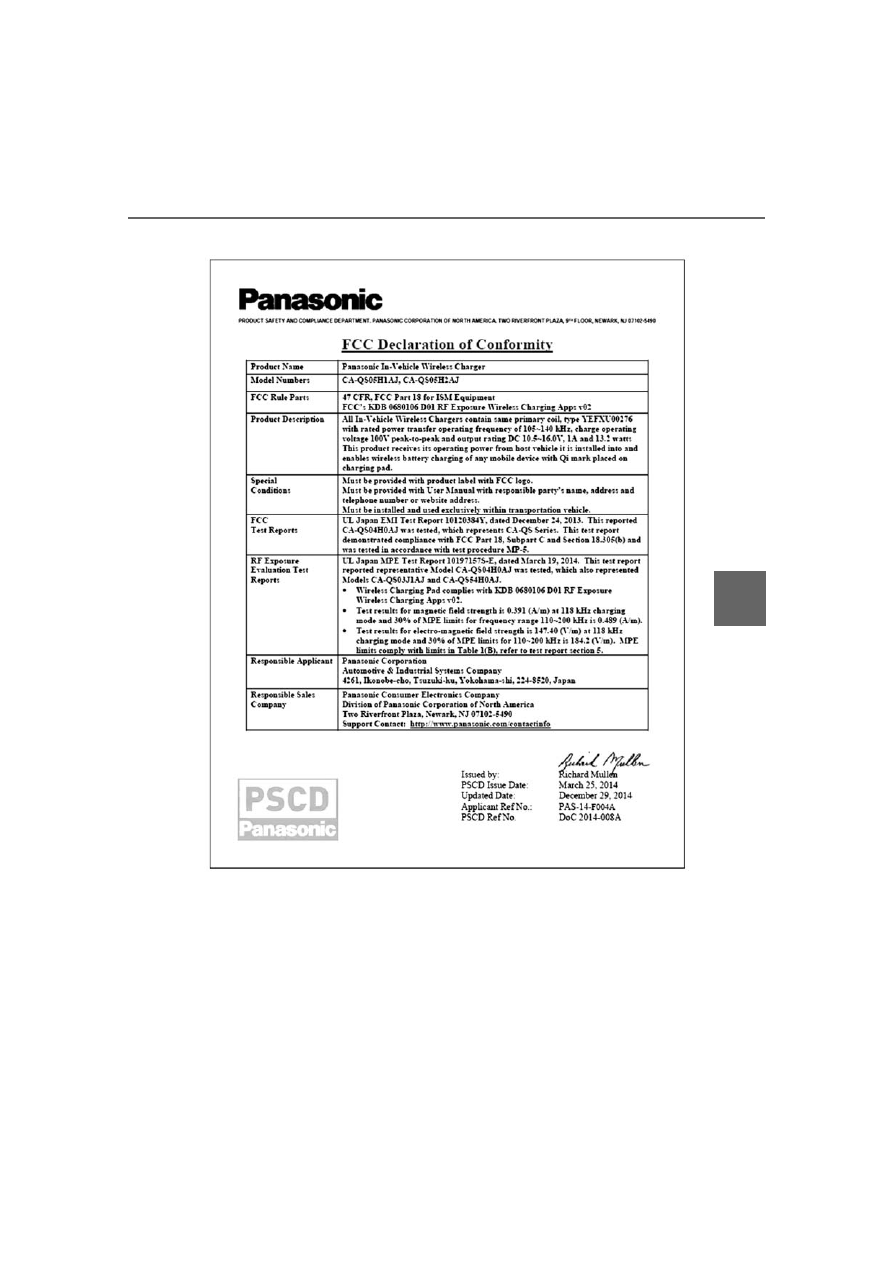

Certification for the wireless charger

446

5-6. Using the other interior features

447

5-6. Using the other interior features

Inte
rior fe

ature

WARNING

■

Caution while driving
When charging a portable device, for safety reasons, the driver should not operate the

portable device while driving.

■

Caution regarding interference with electronic devices
People with implantable cardiac pacemakers, cardiac resynchronization therapy-

pacemakers or implantable cardioverter defibrillators, as well as any other electrical

medical device, should consult their physician about the usage of the wireless charger.

The operations of the wireless charger may have an affect on medical devices.

■

To prevent damage or burns
Observe the following precautions.

Failure to do so may result in a possibility of equipment failure and damage, catch fire,

burns due to overheat.

●

Do not insert any metallic objects between the charging area and the portable device

while charging

●

Do not attach stickers, metallic objects, etc., to the charger area or portable device

●

Do not cover with cloth, etc., and charge

●

Do not charge portable devices other than designated

●

Do not attempt to dismantle for disassembly or modifications

●

Do not hit or apply a strong force

448

5-6. Using the other interior features

WARNING

■

Conditions in which the function may not operate correctly
In the following conditions, the wireless charger may not operate correctly

●

The portable device is fully charged

●

There is foreign matter between the charge area and portable device

●

The temperature of the portable device gets higher from charging

●

The charging surface of the portable device is facing up

●

The placement of the portable device is out of alignment with the charge area

●

Near a TV tower, electric power plant, gas station, radio station, large display, airport

or other facility that generates strong radio waves or electrical noise

●

When the electronic key is in contact with, or is covered by the following metallic

objects
• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

●

When other wireless keys (that emit radio waves) are being used nearby

In addition, excluding the above-mentioned, when the charger does not perform nor-

mally or the operation indicator light is flashing continuously, it is considered that the

wireless charger is malfunctioning. Contact your Lexus dealer.

■

To prevent failure or damage to data

●

Do not bring magnetic cards, such as credit cards, or magnetic recording media, etc.,

close to the charger while charging, otherwise, data may disappear under the influ-

ence of magnetism. Also, do not bring precision instruments such as wrist watches,

etc., close to the charger, as such objects may break.

●

Do not leave portable devices in the cabin. The temperature inside the cabin may

become high, when under the sun, and cause damage to the device.

■

To prevent battery discharge
When the engine is stopped, do not use the wireless charger for a long time.

449

5-6. Using the other interior features

Inte
rior fe

ature

Fold down the armrest for use.

Armrest

NOTICE

To prevent damage, do not apply too much load on the armrest.

450

5-6. Using the other interior features

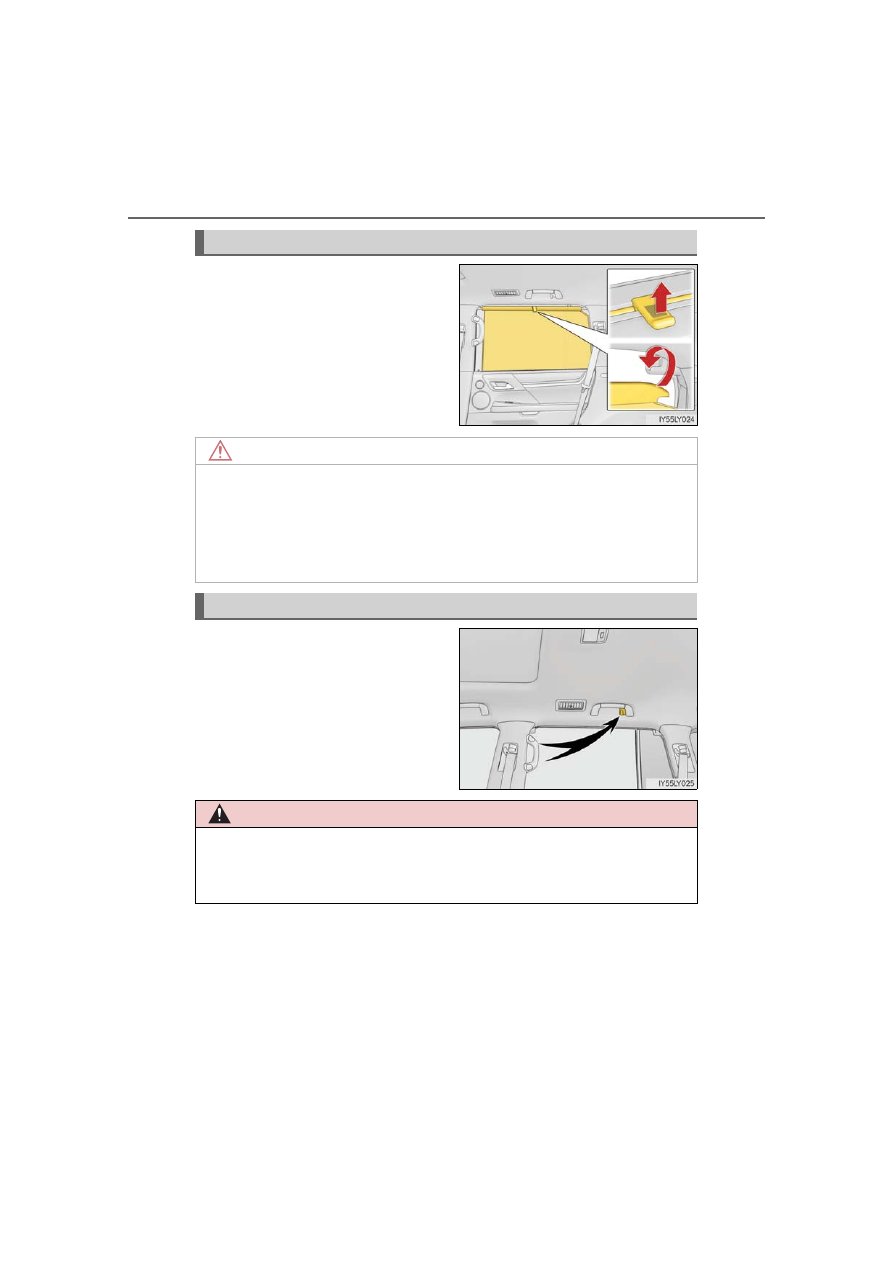

Pull the tab of the rear door sunshade
and hook the shade on using the
anchor.

To retract the rear door sunshade,

unhook the shade and retract it slowly.

The coat hooks are provided with the
second seat assist grips.

Rear door sunshades

NOTICE

To ensure normal operation of the rear door sunshade, observe the following precau-

tions.

●

Do not place anything where it may hinder the opening/closing of the sunshade.

●

Do not attach anything to the rear door sunshade.

●

Do not retract the rear door sunshade at an angle.

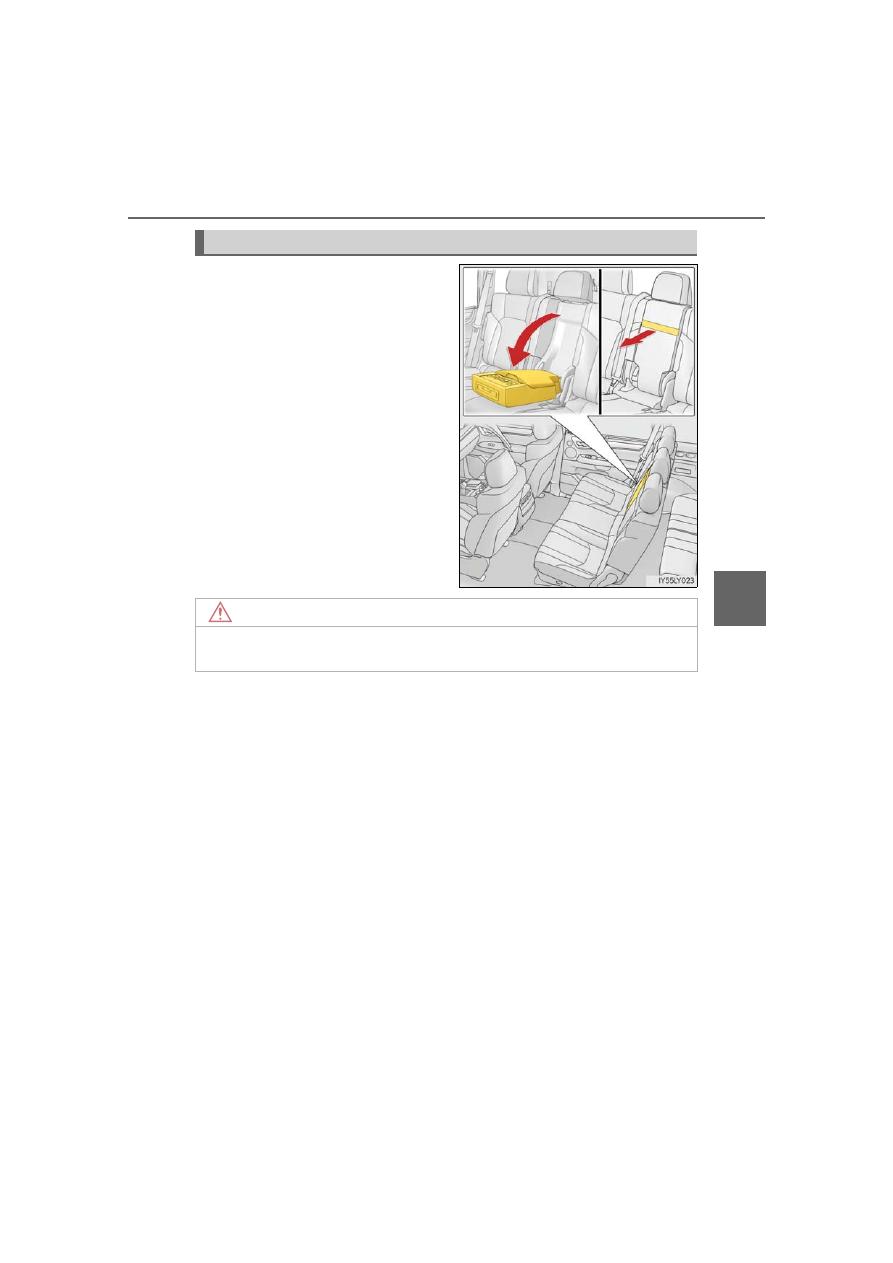

Coat hooks

WARNING

Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS cur-

tain shield airbags deploy, these items may become projectiles, causing death or seri-

ous injury.

451

5-6. Using the other interior features

Inte
rior fe

ature

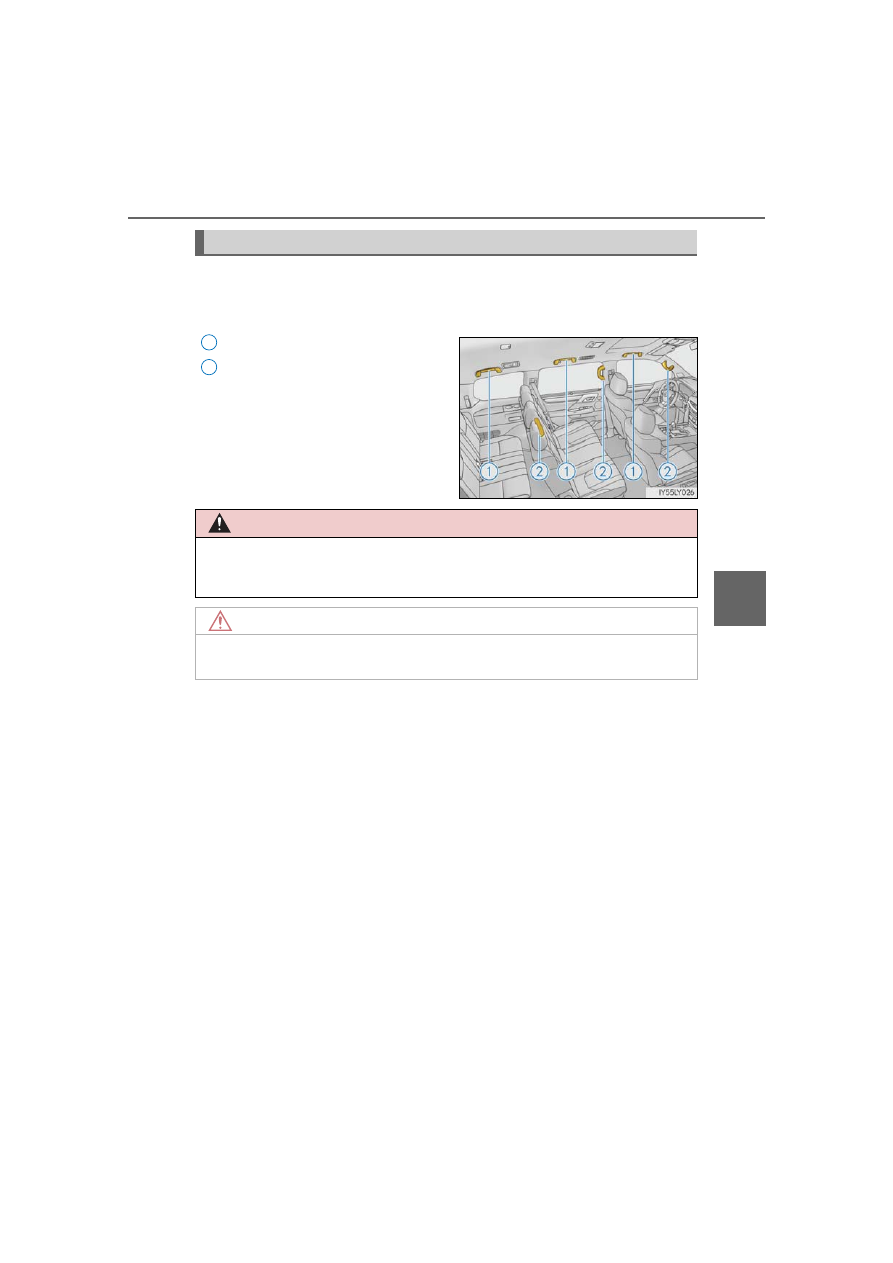

An assist grip (Type A) can be used to support your body while sitting on the seat.
An assist grip (Type B) can be used when getting in or out of the vehicle and oth-
ers.

Assist grip (Type A)
Assist grip (Type B)

Assist grips

WARNING

Do not use the assist grip (Type A) when getting in or out of the vehicle or rising from

your seat.

NOTICE

To prevent damage, do not hang heavy objects or put a heavy load on the assist grip.

452

5-6. Using the other interior features

Garage door opener

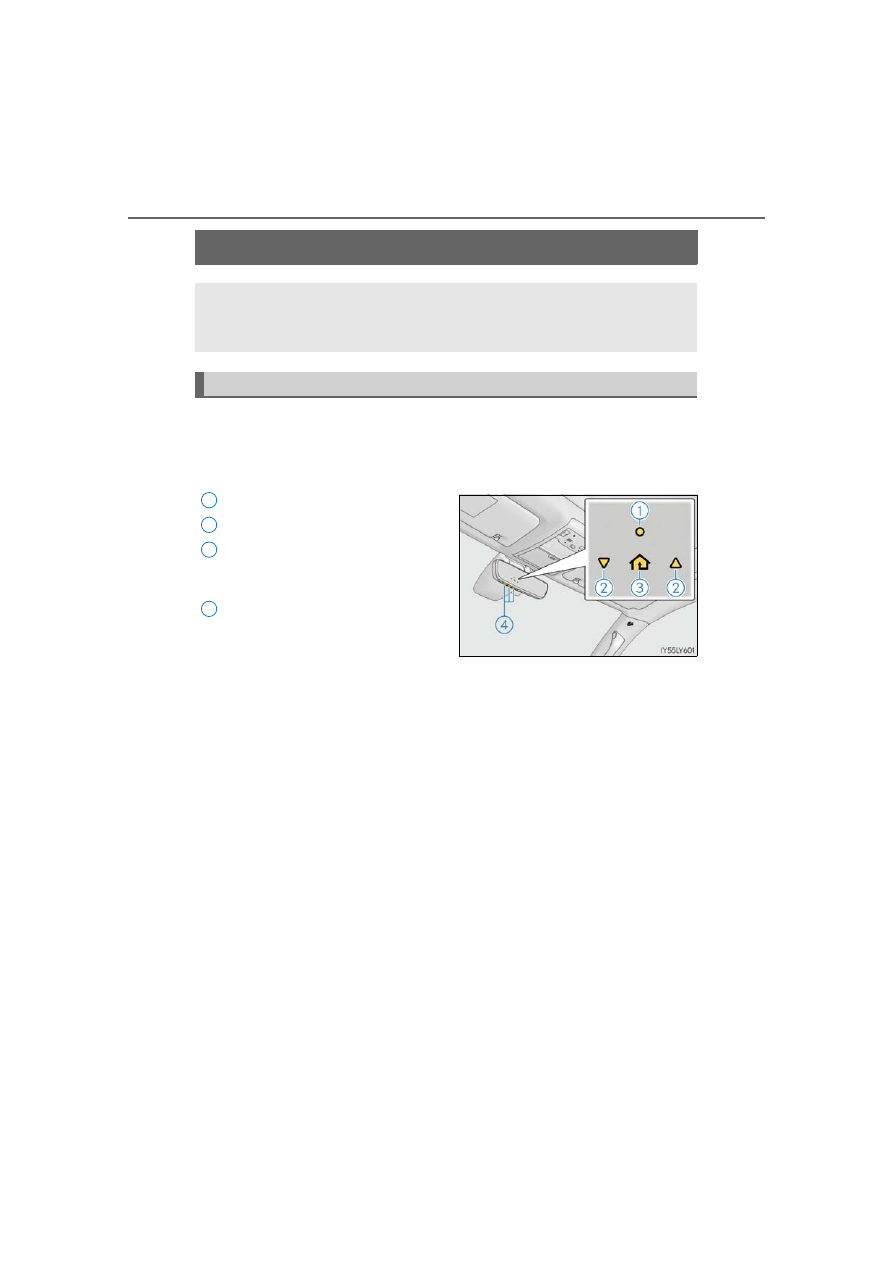

The HomeLink

wireless control system in your vehicle has 3 buttons which can

be programmed to operate 3 different devices. Refer to the programming meth-
ods on the following pages to determine the method which is appropriate for the
device.

HomeLink

indicator light

Garage door operation indicators
HomeLink

icon

Illuminates while HomeLink

is operat-

ing.

Buttons

■

Before programming HomeLink

●

During programming, it is possible that garage doors, gates, or other
devices may operate. For this reason, make sure that people and objects
are clear of the garage door or other devices to prevent injury or other
potential harm.

●

It is recommended that a new battery be placed in the remote control
transmitter for more accurate programming.

●

Garage door opener motors manufactured after 1995 may be equipped
with rolling code protection. If this is the case, you may need a stepladder
or other sturdy, safe device to reach the “Learn” or “Smart” button on the
garage door opener motor.

The garage door opener can be programmed to operate garage doors, gates,
entry doors, door locks, home lighting systems, security systems, and other
devices.

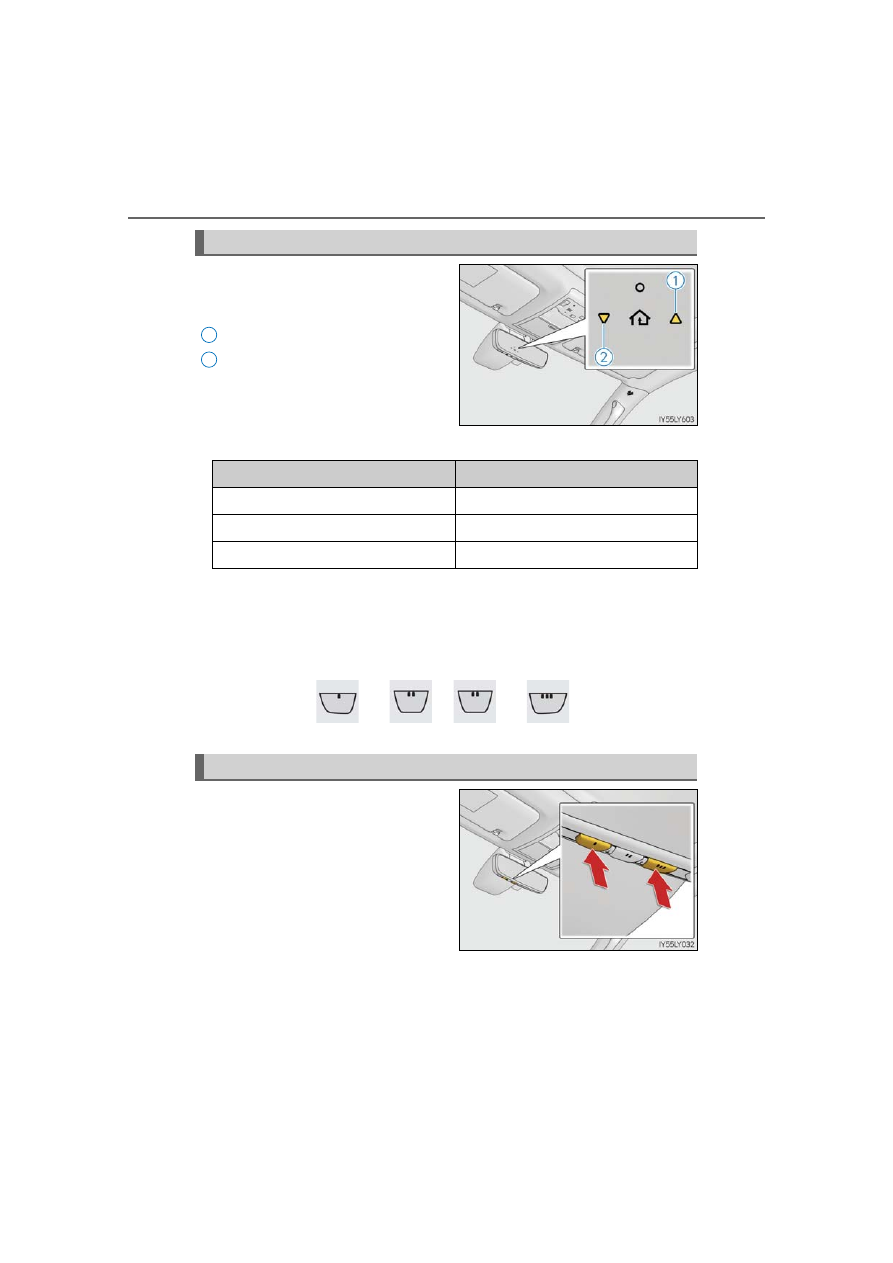

Programming HomeLink

2
3

453

5-6. Using the other interior features

Inte
rior fe

ature

■

Programming the HomeLink

Steps through must be performed within 60 seconds, otherwise the
indicator light will stop flashing and programming will not be able to be com-
pleted.

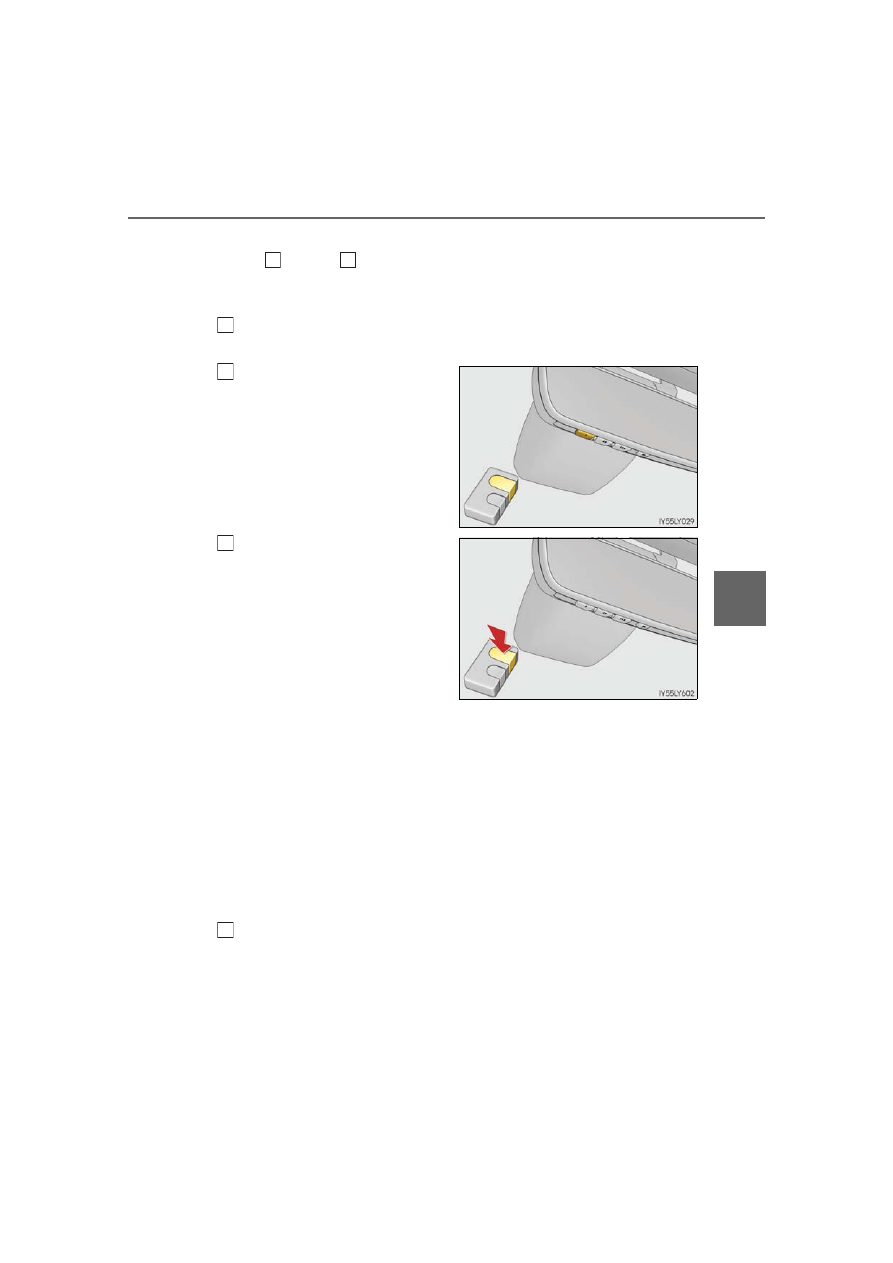

Press and release the HomeLink

button you want to program and check

that the HomeLink

indicator light flashes (orange).

Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink

buttons.

Keep the HomeLink

indicator light

in view while programming.

Program a device.



Programming a device other
than an entry gate (for U.S.A.
owners)

Press and hold the remote control
transmitter button until the
HomeLink

indicator light

changes from slowly flashing
orange to rapidly flashing green
(rolling code) or continuously lit
green (fixed code), then release
the button.



Programming an entry gate (for U.S.A. owners)/Programming a device
in the Canadian market

Press and release the remote control transmitter button at 2 second inter-
vals, repeatedly, until the HomeLink

indicator light changes from slowly

flashing (orange) to rapidly flashing (green) (rolling code) or continuously
lit (green) (fixed code).
Test the HomeLink

operation by pressing the newly programmed button

and observing the indicator light:

●

Indicator light illuminates: Programming of a fixed code device has com-
pleted. The garage door or other device should operate when a Home-
Link

button is pressed and released.

454

5-6. Using the other interior features

●

Indicator light flashes rapidly: The garage door opener motor or other
device is equipped with a rolling code. To complete programming, firmly
press and hold the HomeLink

button for 2 seconds then release it.

●

If the garage door or other device does not operate, proceed to “Pro-
gramming a rolling code system”.

Repeat the steps above to program another device for any of the remaining
HomeLink

buttons.

■

Programming a rolling code system
2 or more people may be necessary to complete rolling code programming.

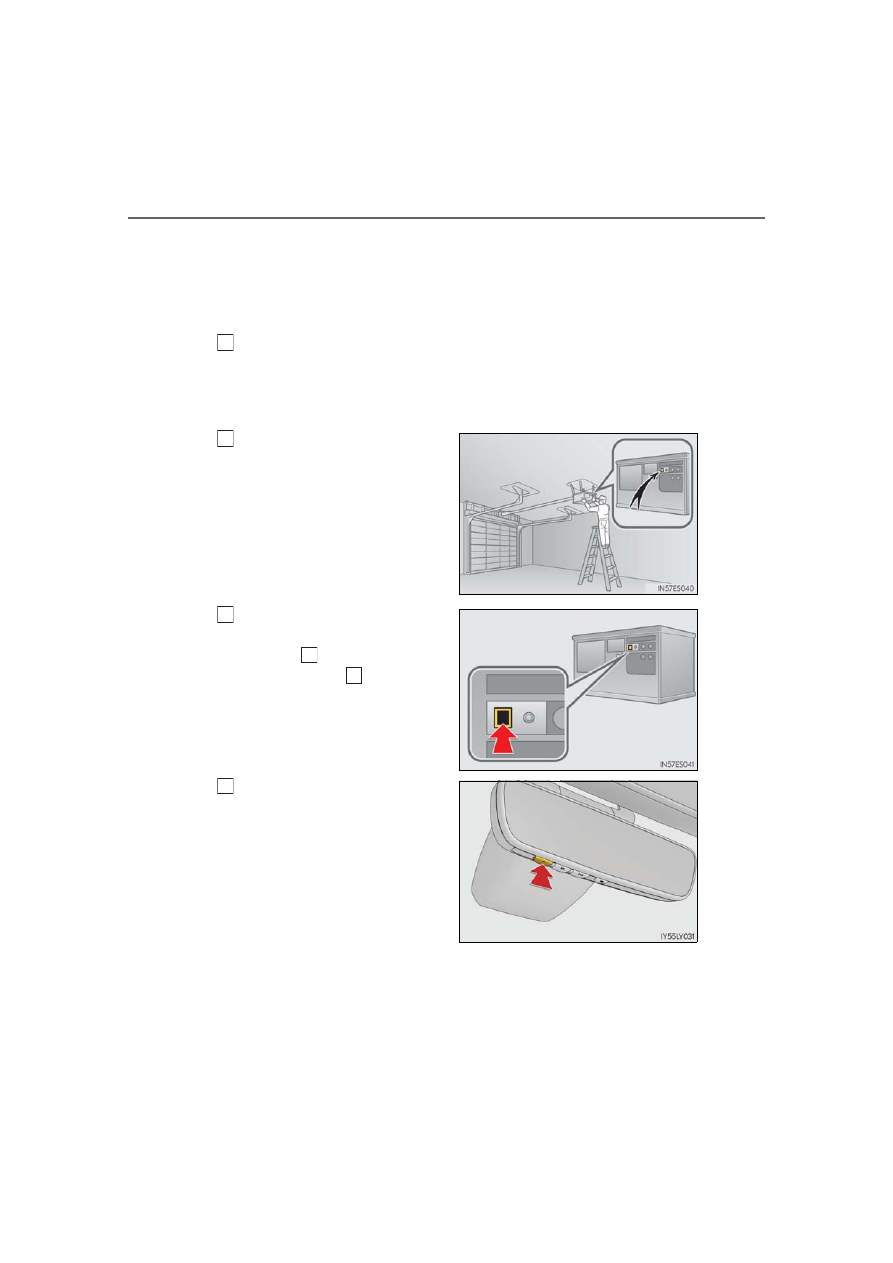

Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.

This button can usually be found

where the hanging antenna wire is

attached to the unit. The name and

color of the button may vary by man-

ufacturer. Refer to the owner’s man-

ual supplied with the garage door

opener motor for details.

Press and release the “Learn” or
“Smart” button.
Perform within 30 seconds
after performing .

Press and hold the desired
HomeLink

button (inside the

vehicle) for 2 seconds and
release it. Repeat this sequence
(press/hold/release) up to 3
times to complete programming.
If the garage door opener motor
operates when the HomeLink

button is pressed, the garage
door opener motor recognizes
the HomeLink

signal.

455

5-6. Using the other interior features

Inte
rior fe

ature

■

Enabling 2-way communication with a garage door (only available for com-
patible devices)
When enabled, 2-way communication allows you to check the status of the
opening and closing of a garage door through indicators in your vehicle.
2-way communication is only available if the garage door opener motor used
is a compatible device. (To check device compatibility, refer to www.Home-
Link.com.)

Within 5 seconds after programming the garage door opener has been
completed, if the garage door opener motor is trained to HomeLink

both garage door operation indicators will flash rapidly (green) and the
light on the garage door opener motor will blink twice, indicating that 2-
way communication is enabled.

If the indicators do not flash, perform and within the first 10 presses of
the HomeLink

button after programming has been completed.

Press a programmed HomeLink

button to operate a garage door.

Within 1 minute of pressing the HomeLink

button, after the garage door

operation has stopped, press the “Learn” or “Smart” button on the garage
door opener motor. Within 5 seconds of the establishment of 2-way com-
munication with the garage door opener, both garage door operation indi-
cators in the vehicle will flash rapidly (green) and the light on the garage
door opener motor will blink twice, indicating that 2-way communication is
enabled.

■

Reprogramming a single HomeLink

button

When the following procedure is performed, buttons which already have
devices registered to them can be overwritten:

With one hand, press and hold the desired HomeLink

button.

When the HomeLink

indicator starts flashing (orange), continue to hold

the HomeLink

button and perform “Programming HomeLink

”

(it

takes 20 seconds for the HomeLink

indicator to start flashing).

Press the appropriate HomeLink

button. The HomeLink

indicator light

should turn on.

Operating HomeLink

2
3

456

5-6. Using the other interior features

The status of the opening and closing of
a garage door is shown by the indica-
tors.

Opening
Closing

This function is only available if the

garage door opener motor used is a

compatible device. (To check device

compatibility, refer to www.Home-

Link.com.)

The indicators can operate within approximately 820 ft. (250 m) of the
garage door. However, if there are obstructions between the garage door and
the vehicle, such as houses and trees, feedback signals from the garage door
may not be received.
To recall the previous door operation status, press and release either Home-

Link

buttons

and

simultaneously. The

last recorded status will be displayed for 3 seconds.

Press and hold the 2 outside buttons for
10 seconds until the HomeLink

indi-

cator light changes from continuously
lit (orange) to rapidly flashing (green).

If you sell your vehicle, be sure to erase

the programs stored in the HomeLink

memory.

Garage door operation indicators

Color

Status

Orange (flashing)

Currently opening/closing

Green

Opening/closing has completed

Red (flashing)

Feedback signals cannot be received

Erasing the entire HomeLink

memory (all three codes)

457

5-6. Using the other interior features

Inte
rior fe

ature

■

Codes stored in the HomeLink

memory

●

The registered codes are not erased even if the battery cable is disconnected.

●

If learning failed when registering a different code to a HomeLink

button that already

has a code registered to it, the already registered code will not be erased.

■

Before programming

●

Install a new battery in the transmitter.

●

The battery side of the transmitter must be pointed away from the HomeLink

■

Certification for the garage door opener

■

When support is necessary
Visit on the web at www.homelink.com/lexus or call 1-800-355-3515.

458

5-6. Using the other interior features

WARNING

■

When programming a garage door or other remote control device
The garage door or other device may operate, so ensure people and objects are out of

danger to prevent potential harm.

■

Conforming to federal safety standards
Do not use the HomeLink

compatible transceiver with any garage door opener or

device that lacks safety stop and reverse features as required by federal safety stan-

dards.

This includes any garage door that cannot detect an interfering object. A door or

device without these features increases the risk of death or serious injury.

■

When operating or programming HomeLink

Never allow a child to operate or play with the HomeLink

buttons.

Content .. 26 27 28 29 ..
