Vehicle interior

Items

Check points

Accelerator pedal

• The accelerator pedal should move smoothly (with-

out uneven pedal effort or catching).

Hybrid transmission “Park”

mechanism

• When parked on a slope and the shift position is in P,

is the vehicle securely stopped?

Brake pedal

• Does the brake pedal move smoothly?

• Does the brake pedal have appropriate clearance

from the floor?

(

P. 583)

• Does the brake pedal have the correct amount of

free play?

(

P. 583)

Brakes

• The vehicle should not pull to one side when the

brakes are applied.

• The brakes should work effectively.

• The brake pedal should not feel spongy.

• The brake pedal should not get too close to the floor

when the brakes are applied.

Head restraints

• Do the head restraints move smoothly and lock

securely?

Indicators/buzzers

• Do the indicators and buzzers function properly?

Lights

• Do all the lights come on?

Parking brake

• Does the parking brake pedal move smoothly?

• When parked on a slope and the parking brake is on,

is the vehicle securely stopped?

Seat belts

• Do the seat belts operate smoothly?

• The seat belts should not be damaged.

Seats

• Do the seat controls operate properly?

Steering wheel

• Does the steering wheel rotate smoothly?

• Does the steering wheel have the correct amount of

free play?

• There should not be any strange sounds coming

from the steering wheel.

476

7-2. Maintenance

Vehicle exterior

Items

Check points

Doors

• Do the doors operate smoothly?

Engine hood

• Does the engine hood lock system work properly?

Fluid leaks

• There should not be any signs of fluid leakage after

the vehicle has been parked.

Tires

• Is the tire inflation pressure correct?

• The tires should not be damaged or excessively

worn.

• Have the tires been rotated according to the mainte-

nance schedule?

• The wheel nuts should not be loose.

Windshield wipers/

rear window wiper

• The wiper blades should not show any signs of crack-

ing, splitting, wear, contamination or deformation.

• The wiper blades should clear the windshield/rear

window without streaking or skipping.

WARNING

■

If the hybrid system is operating
Turn the hybrid system off and ensure that there is adequate ventilation before per-

forming maintenance checks.

477

7-2. Maintenance

Main

Emission inspection and maintenance (I/M) programs

The OBD system determines that a problem exists somewhere in the emission
control system. Your vehicle may not pass the I/M test and may need to be
repaired. Contact your Lexus dealer to service the vehicle.

●

When the 12-volt battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may not be com-
pletely set.

●

When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary malfunction
and your vehicle may not pass the I/M test.

The error code in the OBD system will not be cleared unless the vehicle is driven
40 or more times.

Contact your Lexus dealer to prepare the vehicle for re-testing.

Some states have vehicle emission inspection programs which include OBD
(On Board Diagnostics) checks. The OBD system monitors the operation of
the emission control system.

If the malfunction indicator lamp comes on

Your vehicle may not pass the I/M test in the following situations:

When the malfunction indicator lamp still remains on after several driv-
ing trips

If your vehicle does not pass the I/M test

478

Do-it-yourself service precautions

If you perform maintenance by yourself, be sure to follow the correct proce-
dure as given in these sections.

Items

Parts and tools

12-volt battery con-

dition (

P. 491)

• Grease

• Conventional wrench (for terminal clamp bolts)

Brake fluid level

(

P. 489)

• FMVSS No.116 DOT 3 or SAE J1703 brake fluid

• Rag or paper towel

• Funnel (used only for adding brake fluid)

Engine/power con-

trol unit coolant level

(

P. 487)

• “Toyota Super Long Life Coolant” or a similar high quality

ethylene glycol-based non-silicate, non-amine, non-nitrite

and non-borate coolant with long-life hybrid organic acid

technology
For the U.S.A.:

“Toyota Super Long Life Coolant” is pre-mixed with 50%

coolant and 50% deionized water.
For Canada:

“Toyota Super Long Life Coolant” is pre-mixed with 55%

coolant and 45% deionized water.

• Funnel (used only for adding coolant)

Engine oil level

(

P. 484)

• “Toyota Genuine Motor Oil” or equivalent

• Rag or paper towel

• Funnel (used only for adding engine oil)

Fuses (

P. 511)

• Fuse with same amperage rating as original

Light bulbs

(

P. 514)

• Bulb with same number and wattage rating as original

• Phillips-head screwdriver

• Flathead screwdriver

• Wrench

Radiator and con-

denser (



Tire inflation pres-

sure (

P. 502)

• Tire pressure gauge

• Compressed air source

Washer fluid

(

P. 490)

• Water or washer fluid containing antifreeze (for winter use)

• Funnel (used only for adding water or washer fluid)

479

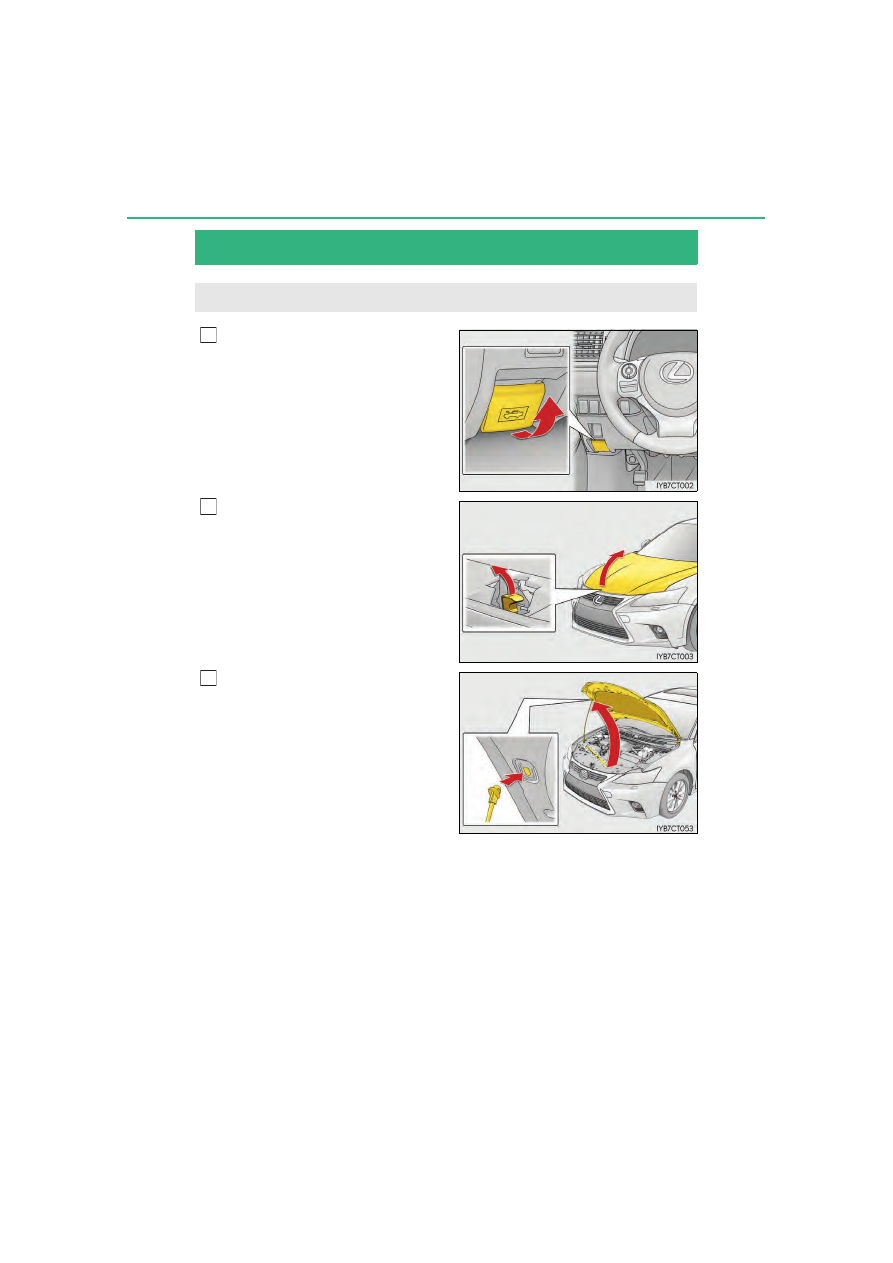

Main

WARNING

The engine compartment contains many mechanisms and fluids that may move suddenly,

become hot, or become electrically energized. To avoid death or serious injury, observe

the following precautions.

■

When working on the engine compartment

●

Make sure that the indicator on the power switch and the “READY” indicator are

both off.

●

Keep hands, clothing and tools away from the moving fan.

●

Be careful not to touch the engine, power control unit, radiator, exhaust manifold, etc.

right after driving as they may be hot. Oil and other fluids may also be hot.

●

Do not leave anything that may burn easily, such as paper and rags, in the engine

compartment.

●

Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are flamma-

ble.

■

When working near the electric cooling fans or radiator grille
Be sure the power switch is off.

With the power switch in ON mode, the electric cooling fans may automatically start to

run if the air conditioning is on and/or the coolant temperature is high. (

■

Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting in

your eyes.

NOTICE

■

If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt

in the air.

481

Main

WARNING

■

Pre-driving check
Check that the hood is fully closed and locked.

If the hood is not locked properly, it may open while the vehicle is in motion and cause

an accident, which may result in death or serious injury.

■

After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your head or

body.

NOTICE

■

When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing the hood

without returning the support rod properly could cause the hood to bend.

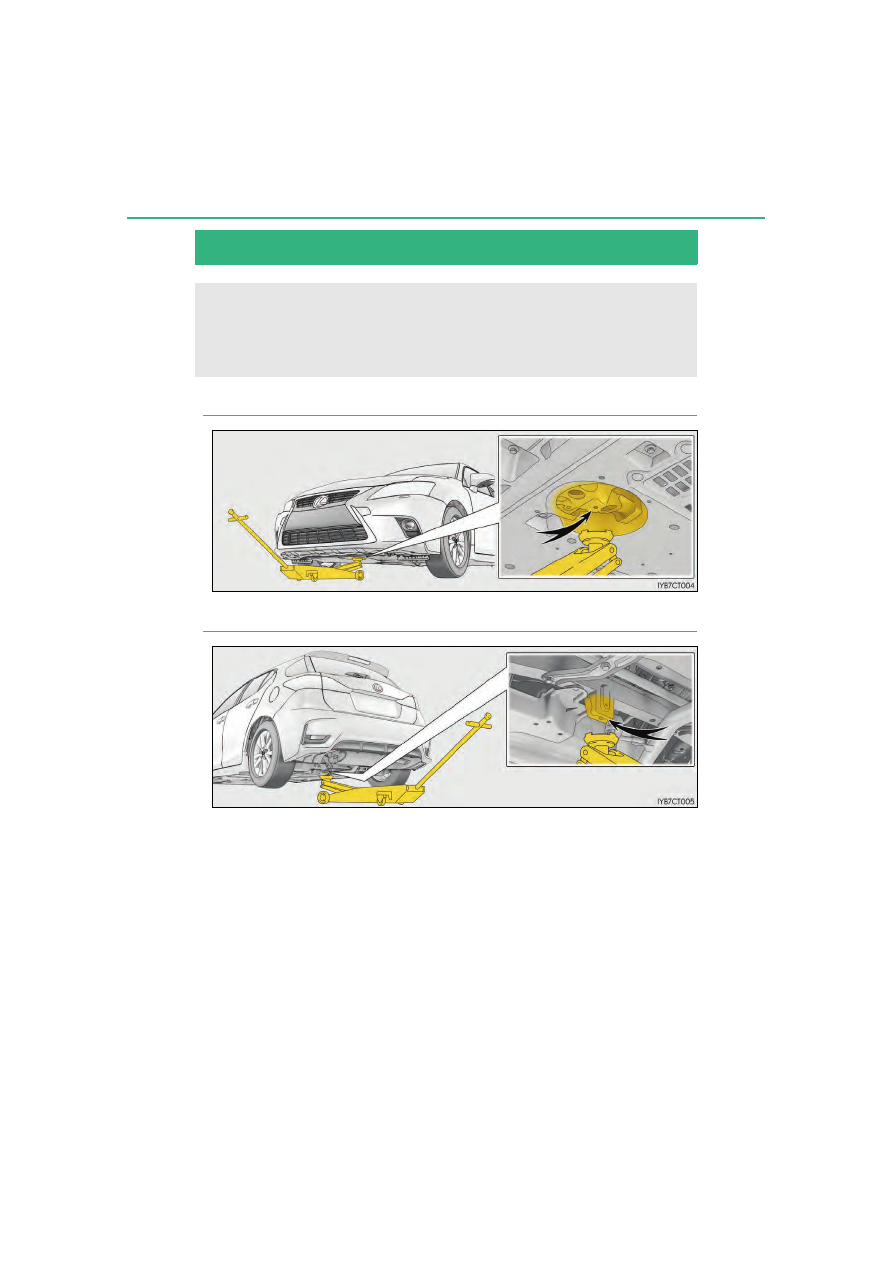

483

Main

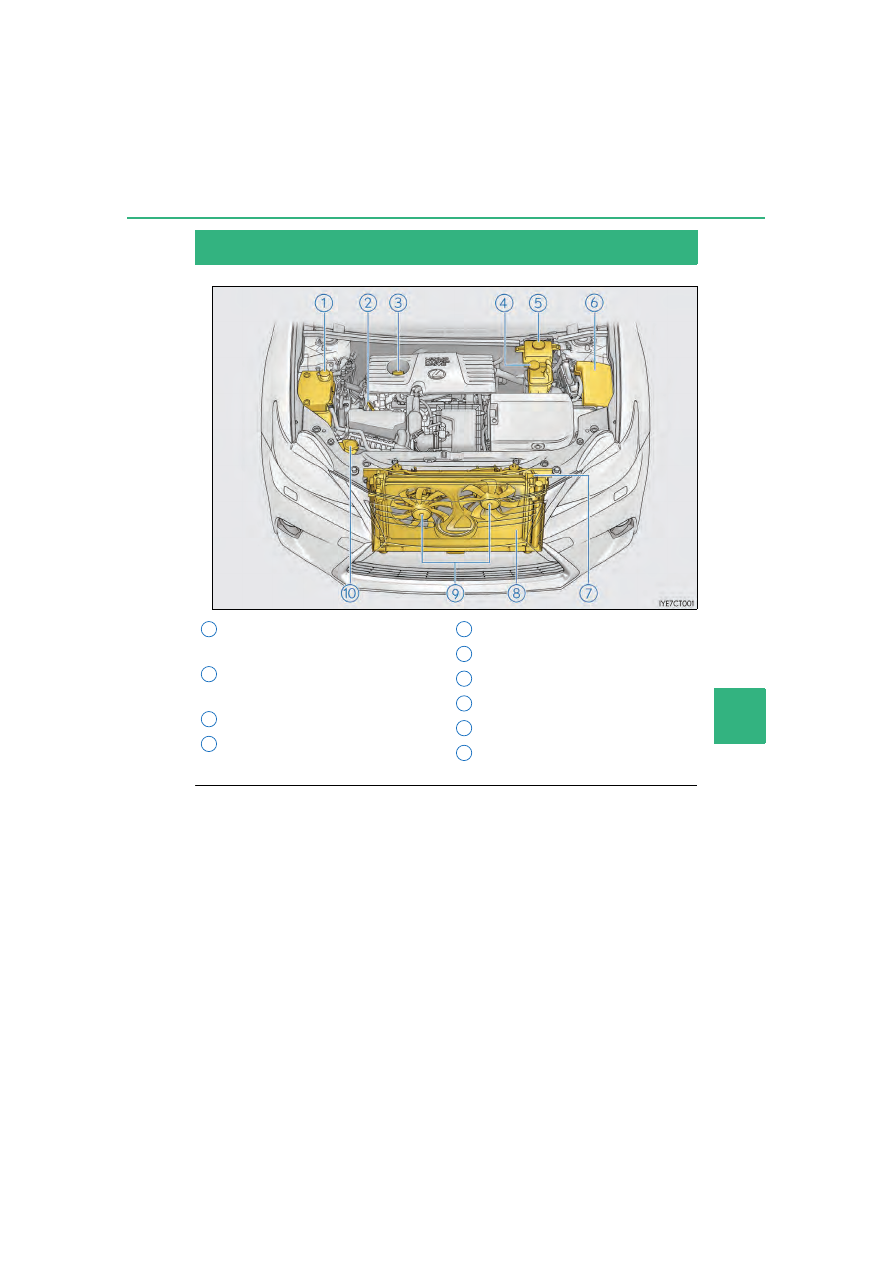

Engine compartment

■

12-volt battery
P. 491

Engine coolant reservoir

(

P. 487)

Engine oil level dipstick

(

P. 484)

Engine oil filler cap

(

P. 484)

Power control unit coolant reservoir

(

P. 487)

Brake fluid reservoir (

Fuse box

(

P. 511)

Radiator (

Condenser

(

Electric cooling fans
Washer fluid tank

(

P. 490)

3
4

5
6
7
8
9

484

■

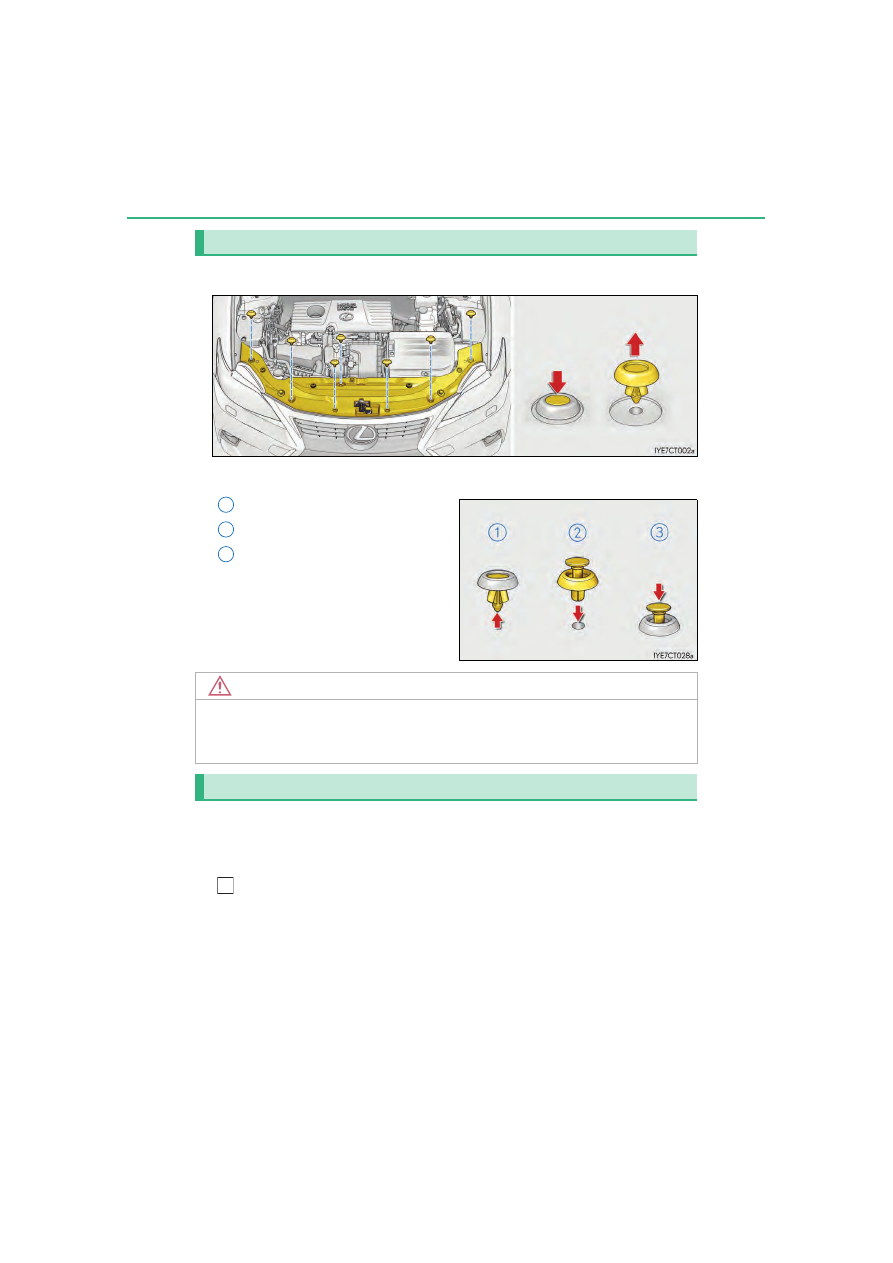

Removing the engine compartment cover

■

Installing the clips

Push up center portion
Insert
Press

With the engine at operating temperature and turned off, check the oil level on
the dipstick.

■

Checking the engine oil

Park the vehicle on level ground. After warming up the engine and turning
off the hybrid system, wait more than 5 minutes for the oil to drain back into
the bottom of the engine.

Engine compartment cover

2
3

NOTICE

■

After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.

Engine oil

485

Main

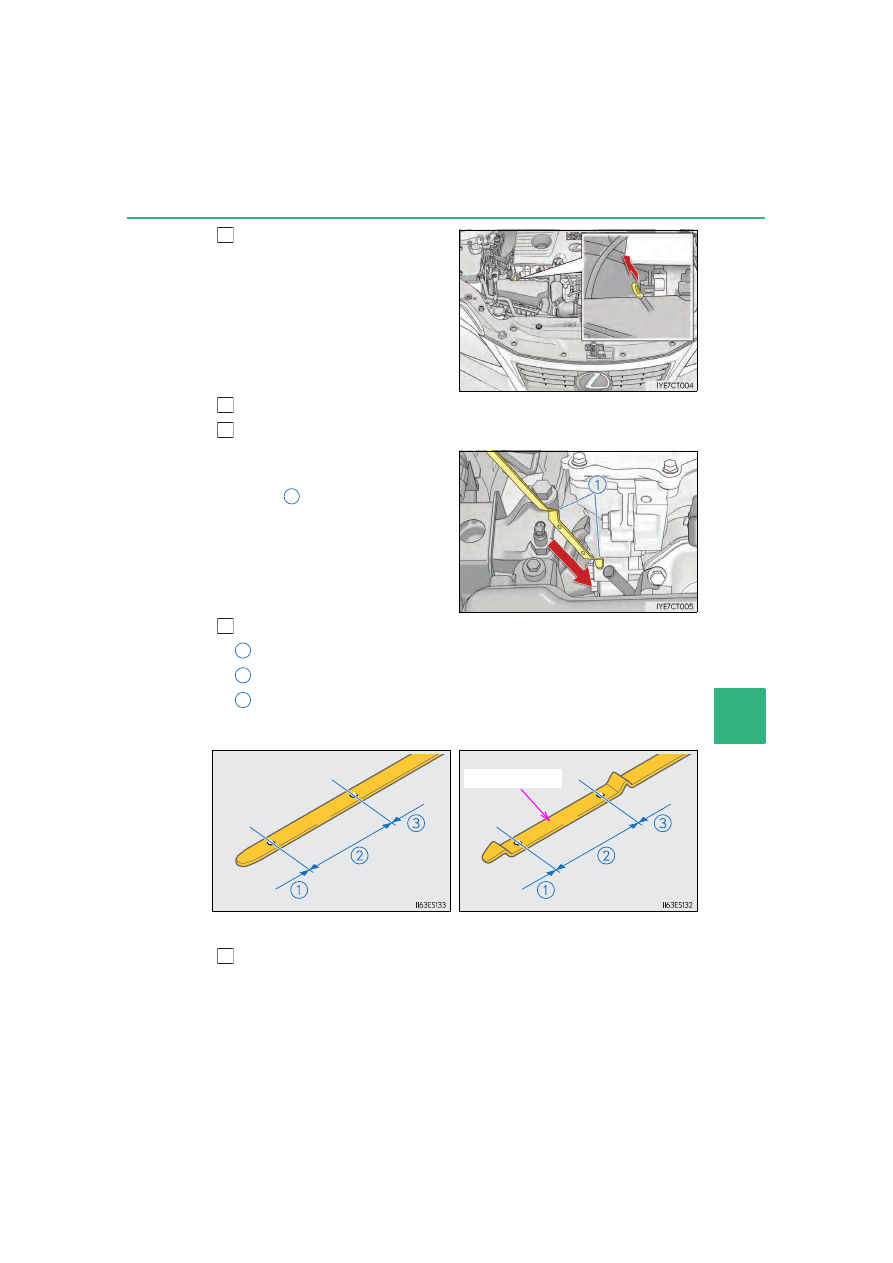

Holding a rag under the end, pull
the dipstick out.

Wipe the dipstick clean.
Flat dipstick: Reinsert the dipstick fully.
Non-flat dipstick: Reinsert the
dipstick fully with its protruding
areas ( in the illustration) point-
ing towards engine.

Holding a rag under the end, pull the dipstick out and check the oil level.

Low
Normal
Excessive

The shape of the dipstick may differ depending on the type of vehicle or engine.

Wipe the dipstick and reinsert it fully.

3
4

2
3



Flat dipstick



Non-flat dipstick

Measuring side

486

■

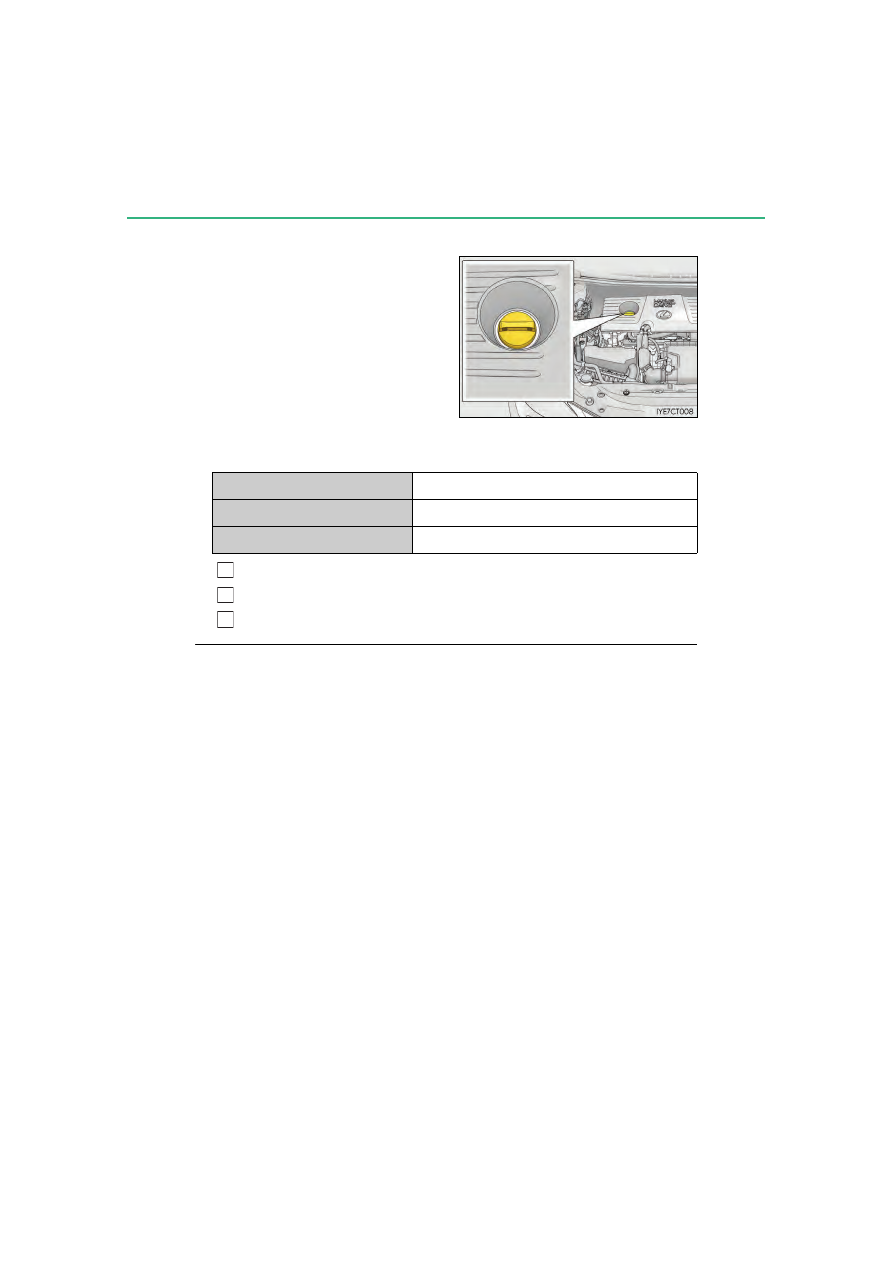

Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as that already in the
engine.

Make sure to check the oil type and prepare the items needed before adding
oil.

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.

■

Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following situations,

oil consumption may increase, and engine oil may need to be refilled in between oil

maintenance intervals.

●

When the engine is new, for example directly after purchasing the vehicle or after

replacing the engine

●

If low quality oil or oil of an inappropriate viscosity is used

●

When driving at high engine speeds or with a heavy load, or when driving while accel-

erating or decelerating frequently

●

When leaving the engine idling for a long time, or when driving frequently through

heavy traffic

Engine oil selection

P. 580

Oil quantity (Low

 Full)

1.6 qt. (1.5 L, 1.3 Imp.qt.)

Items

Clean funnel

2
3

487

Main

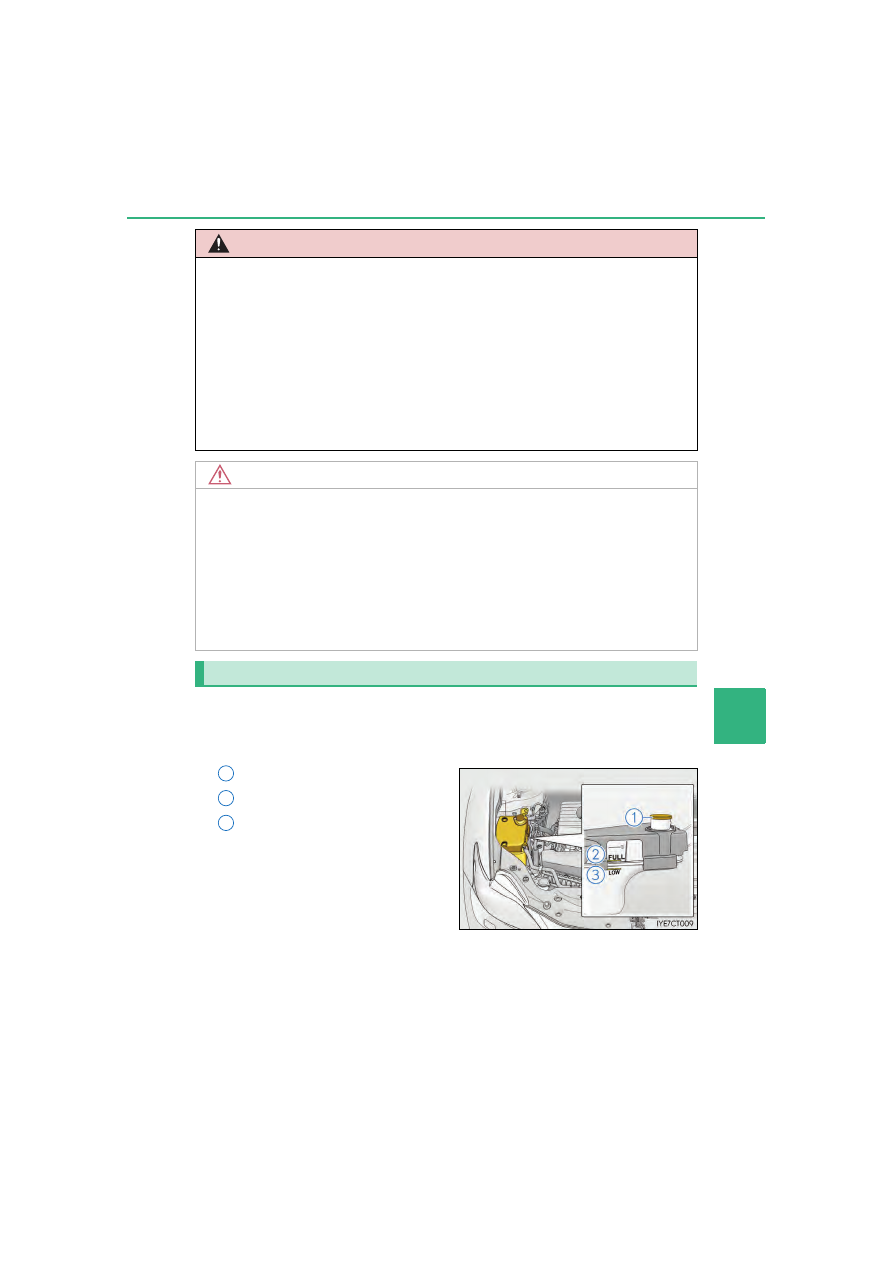

The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir when the hybrid system is cold.

■

Engine coolant reservoir

Reservoir cap
“FULL” line
“LOW” line

If the level is on or below the “LOW”

line, add coolant up to the “FULL”

line. (

P. 572)

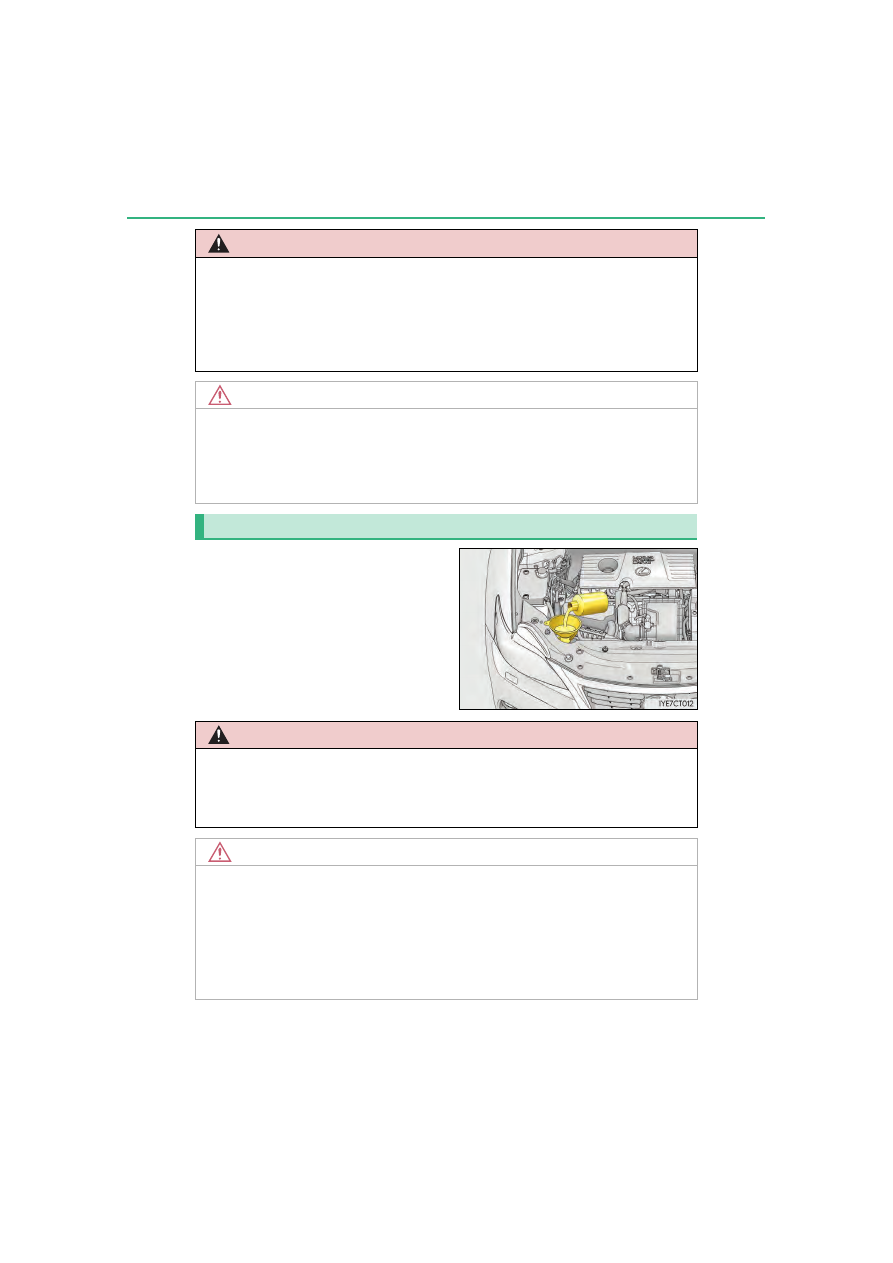

WARNING

■

Used engine oil

●

Used engine oil contains potentially harmful contaminants which may cause skin dis-

orders such as inflammation and skin cancer, so care should be taken to avoid pro-

longed and repeated contact. To remove used engine oil from your skin, wash

thoroughly with soap and water.

●

Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of

used oil and filters in household trash, in sewers or onto the ground. Call your Lexus

dealer, service station or auto parts store for information concerning recycling or dis-

posal.

●

Do not leave used engine oil within the reach of children.

NOTICE

■

To prevent serious engine damage
Check the oil level on a regular basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil on the vehicle components.

●

Avoid overfilling, or the engine could be damaged.

●

Check the oil level on the dipstick every time you refill the vehicle.

●

Be sure the engine oil filler cap is properly tightened.

Coolant

2
3

488

■

Power control unit coolant reservoir

Reservoir cap
“FULL” line
“LOW” line

If the level is on or below the “LOW”

line, add coolant up to the “FULL”

line. (

P. 572)

■

Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol

based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid

organic acid technology.
U.S.A.:

“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water.

(Minimum temperature: -31

F [-35C])

Canada:

“Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized water.

(Minimum temperature: -44

F [-42C])

For more details about coolant, contact your Lexus dealer.

■

If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine/power control unit coolant reservoir caps,

drain cock and water pump.

If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in the

cooling system.

2
3

WARNING

■

When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps.

The cooling system may be under pressure and may spray hot coolant if the cap is

removed, causing serious injuries, such as burns.

NOTICE

■

When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and

antifreeze must be used to provide proper lubrication, corrosion protection and cool-

ing. Be sure to read the antifreeze or coolant label.

■

If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

489

Main

Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of their condi-
tion, have your vehicle inspected by your Lexus dealer.

■

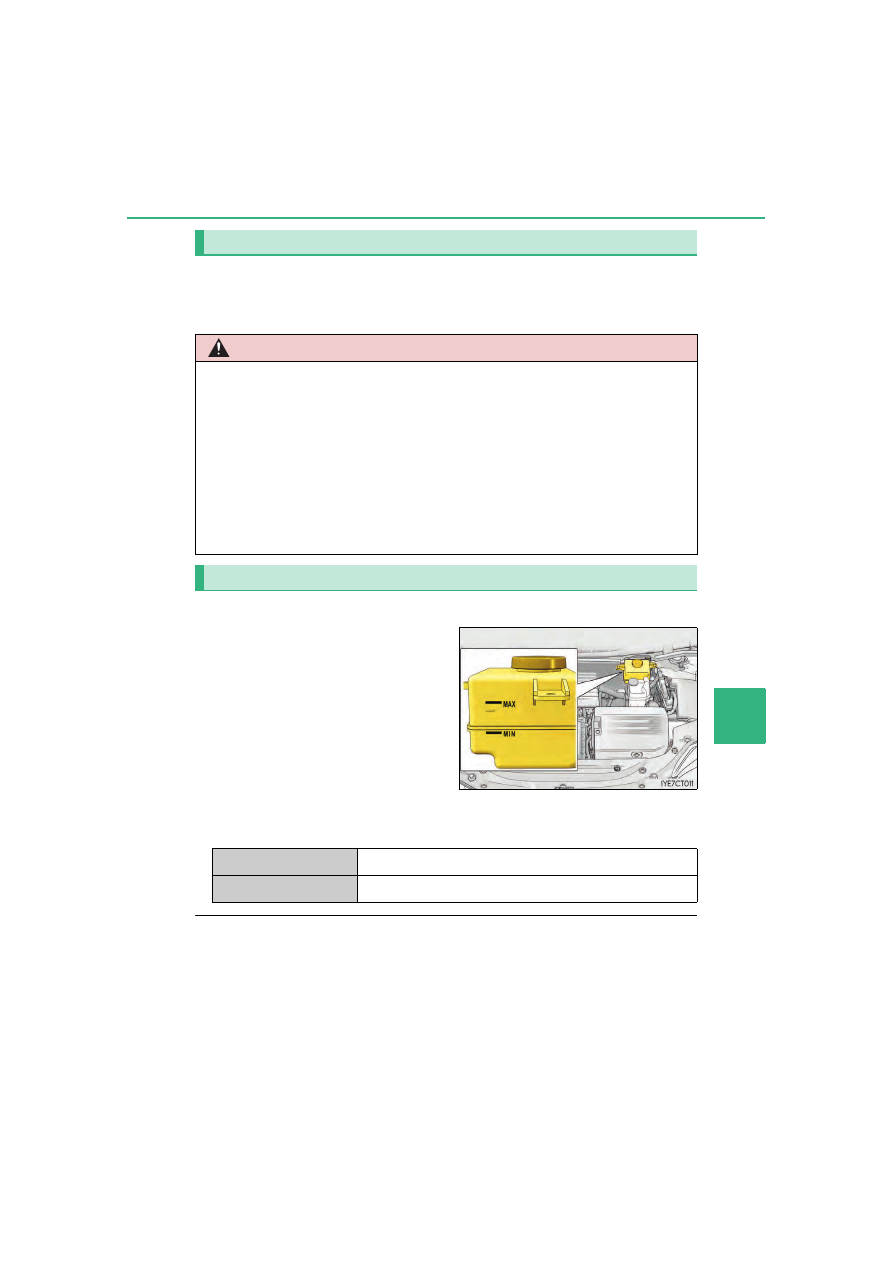

Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.

■

Adding fluid
Make sure to check the fluid type and prepare the necessary item.

■

Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking efficiency. Use

only newly opened brake fluid.

Radiator and condenser

WARNING

■

When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and cause serious injuries,

such as burns.

■

When the electric cooling fans are operating
Do not touch the engine compartment.

The electric cooling fans may keep rotating for about 3 minutes even after the power

switch is off.

With the power switch in ON mode, the electric cooling fans may automatically start to

run if the air conditioning is on and/or the coolant temperature is high. Be sure the

power switch is off when working near the electric cooling fans or radiator grille.

Brake fluid

Fluid type

FMVSS No.116 DOT 3 or SAE J1703 brake fluid

Items

Clean funnel

490
