LUBRICANT

SA06E–02

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

Item

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

Capacity

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

Classification

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

Outboard Joint

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

100–105 g

(0.22–0.23 lb, 3.5–3.7 oz.)

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

Inboard Joint

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

100–105 g

(0.22–0.23 lb, 3.5–3.7 oz.)

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

End cover

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

50–55 g

(0.11–0.12 lb, 1.8–1.9 oz.)

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑ

SSM (SPECIAL SERVICE MATERIALS)

SA06F–01

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

08826–00090    Seal Packing 1281,

THREE BOND 1281 or equivalent

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

Universal joint X End plate

SA–64

–

SUSPENSION AND AXLE

REAR DRIVE SHAFT

REAR DRIVE SHAFT

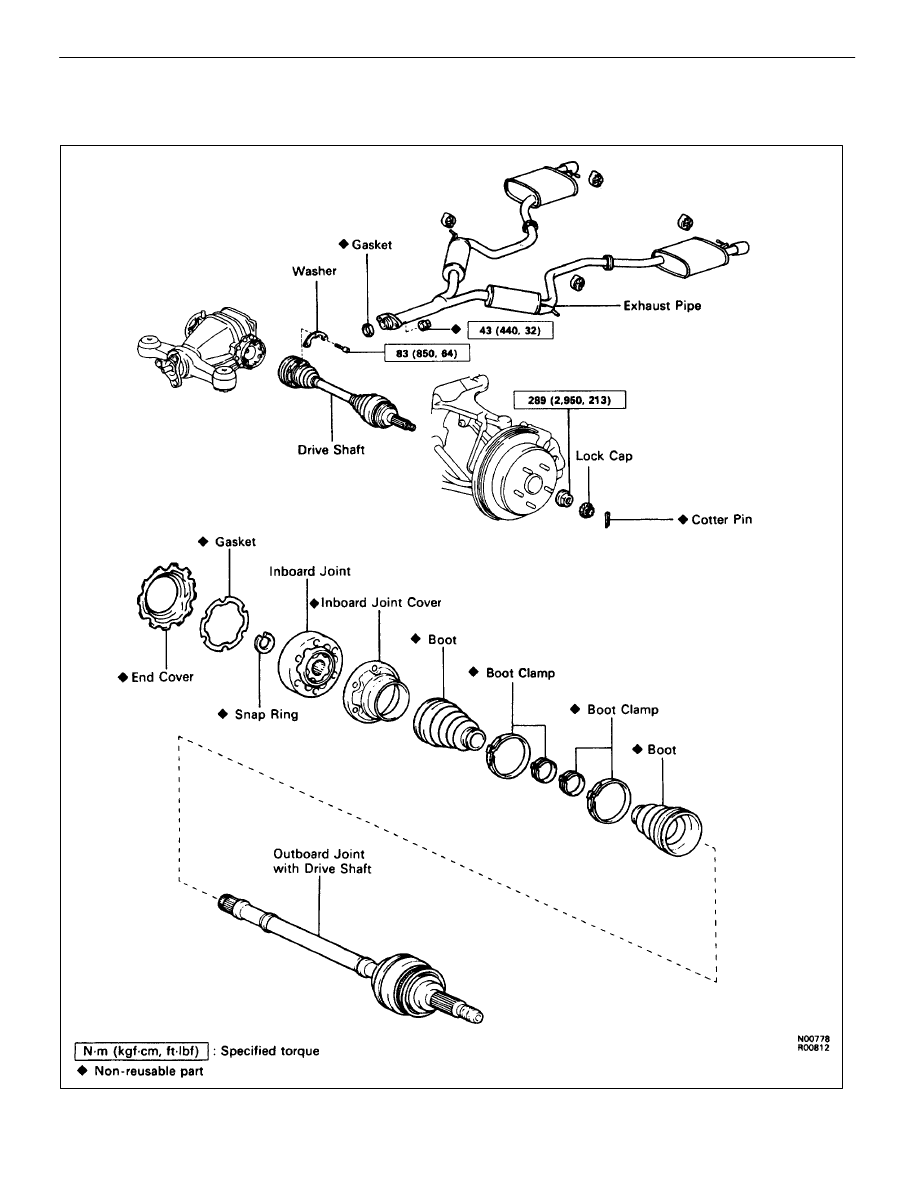

COMPONENTS

SA0W5–01

–

SUSPENSION AND AXLE

REAR DRIVE SHAFT

SA–65

REAR DRIVE SHAFT REMOVAL

SA0S3–03

1.

JACK UP VEHICLE AND REMOVE REAR WHEEL

2.

REMOVE EXHAUST PIPE

3.

REMOVE COTTER PIN, LOCK NUT CAP AND LOCK NUT

4.

REMOVE REAR DRIVE SHAFT

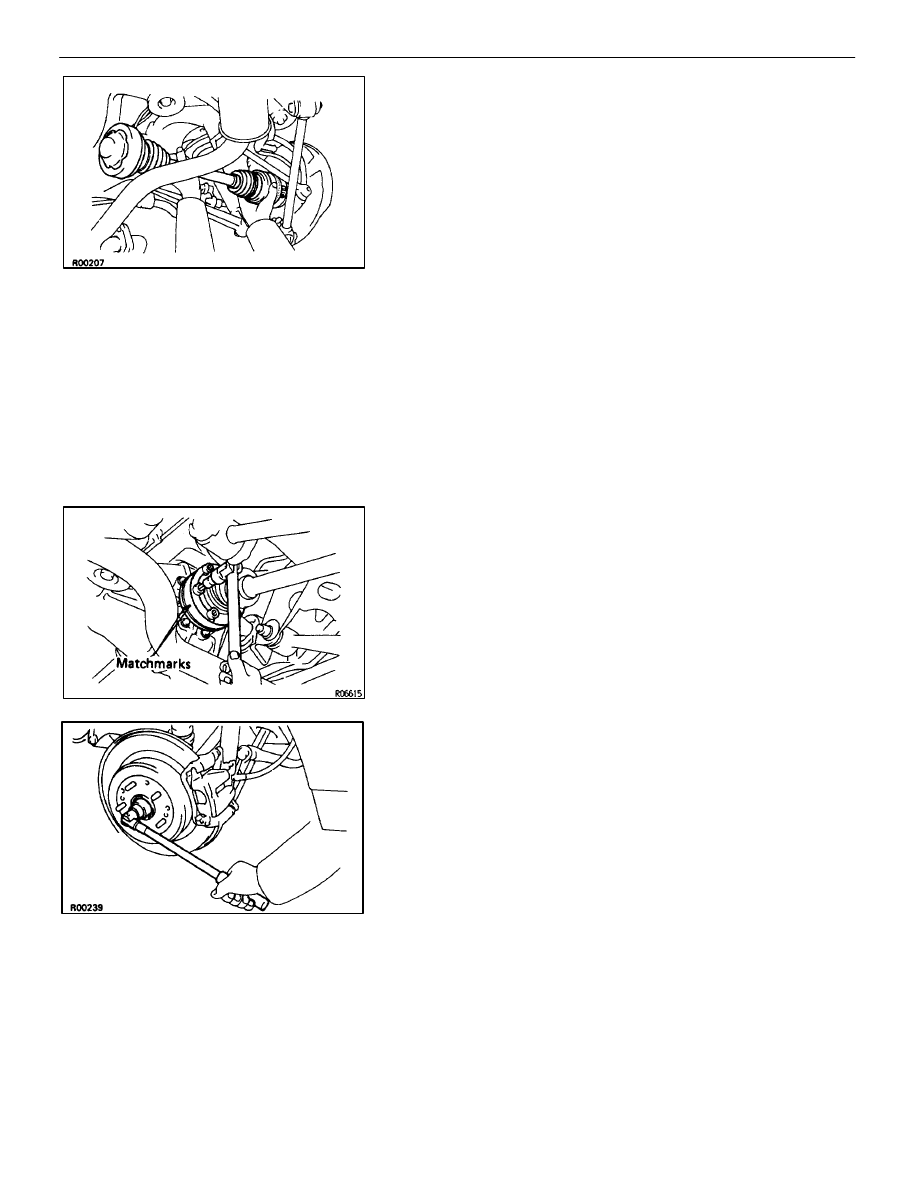

(a)  Place matchmarks on the drive shaft and side gear shaft.

NOTICE: Do not use a punch to mark the matchmarks. Use

paint, etc.

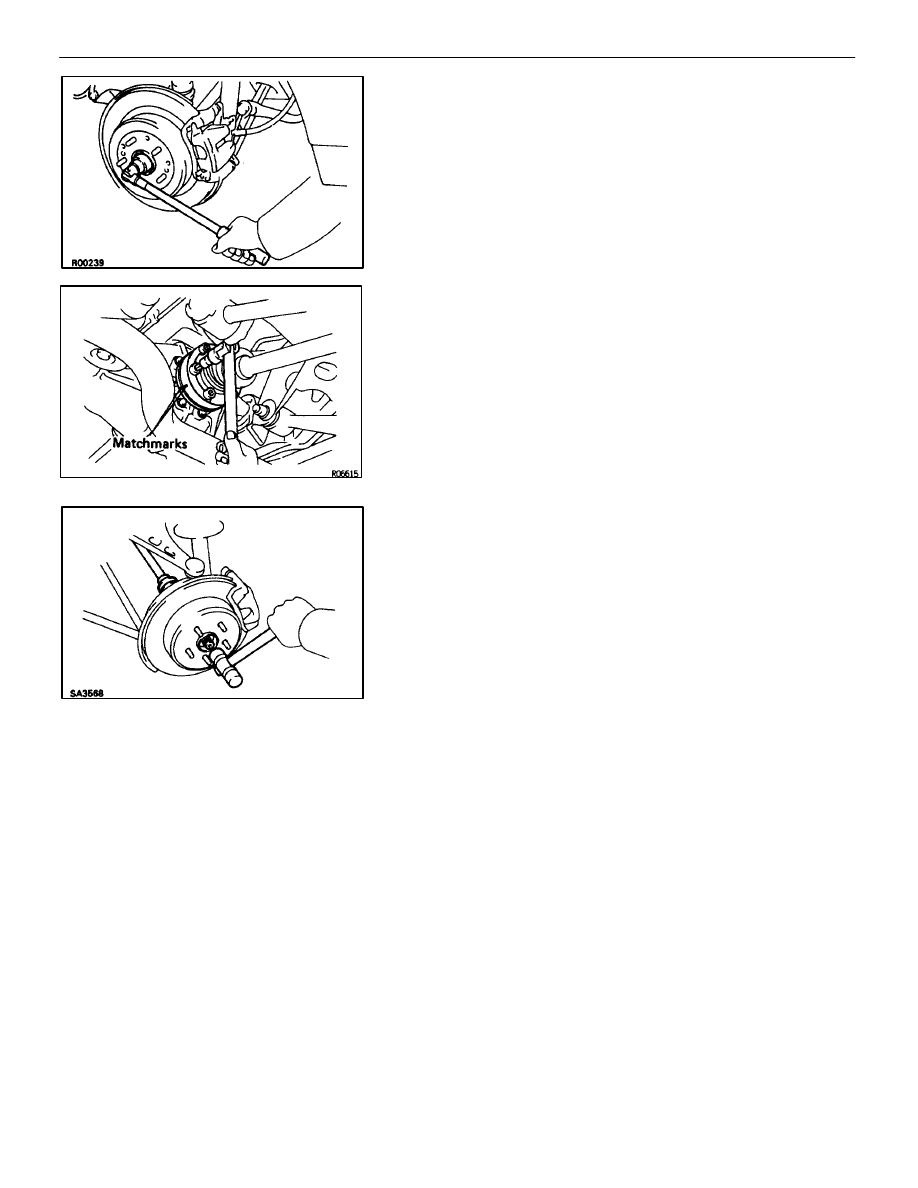

(b)  Using a 10 mm hexagon wrench, remove the 6 hexagon bolts

and 2 washers while depressing the brake pedal.

(c)  Hold the inboard joint side of the drive shaft so that the

outboard joint side does not bend too much.

(d)  Using a plastic–faced hammer, lightly tap the end of the drive

shaft, disengage the axle hub and remove the drive shaft.

NOTICE:

•

Be careful not to damage the boots, end cover and speed

sensor rotor of the drive shaft, and oil seal of the axle hub.

•

Make sure the outboard joint side of the drive shaft does

not bend too much.

SA–66

–

SUSPENSION AND AXLE

REAR DRIVE SHAFT

REAR DRIVE SHAFT INSTALLATION

SA0S4–02

1.

INSTALL DRIVE SHAFT

(a)  Insert the outboard joint side of the drive shaft to the axle hub.

NOTICE:

•

Be careful not to damage the boots, end cover and speed

sensor rotor of the drive shaft, and oil seal of the axle hub.

•

Make sure the outboard joint side of the drive shaft does

not bend too much.

(b)  Align the matchmarks on the side gear shaft and drive shaft.
(c)  Apply a light coat of engine oil on the threads of the bolt.
(d)  Install the 6 hexagon bolts and 2 washers.
(e)  Using a 10 mm hexagon wrench, torque the bolts.

Torque: 83 N

⋅

m (850 kgf

⋅

cm, 64 ft

⋅

lbf)

2.

INSTALL EXHAUST PIPE

3.

INSTALL LOCK NUT, LOCK CAP AND NEW COTTER PIN

Torque: 289 N

⋅

m (2,950 kgf

⋅

cm, 213 ft

⋅

lbf)

4.

INSTALL REAR WHEEL AND LOWER VEHICLE

–

SUSPENSION AND AXLE

REAR DRIVE SHAFT

SA–67
