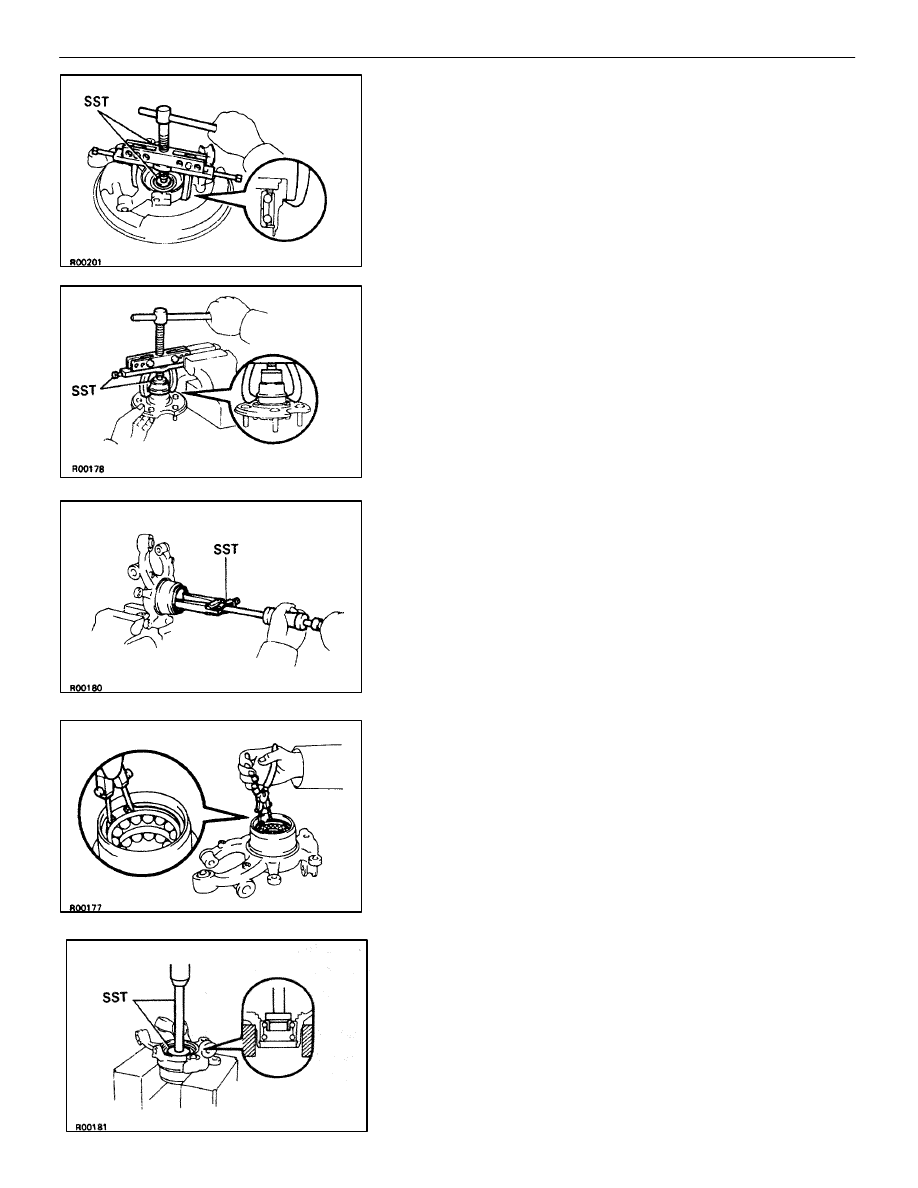

REMOVE AXLE HUB FROM AXLE CARRIER

(a)  Using SST, remove the axle hub.

SST 09950–20017

(b)  Remove the backing plate.

(c)  Using SST, remove the inner race (outside) from the axle

hub.
SST 09950–20017

4.

REMOVE OIL SEAL (OUTSIDE)
Using SST, remove the oil seal.
SST 09308–00010

5. REMOVE

BEARING

(a)  Using snap ring pliers, remove the snap ring.

(b)  Temporarily install the inner race (inside) to the bearing.
(c)  Using SST and a press, remove the bearing.

SST 09608–35014 (09608–06020, 09608–06100)

SA–56

–

SUSPENSION AND AXLE

REAR AXLE HUB

AXLE HUB ASSEMBLY

SA0S0–03

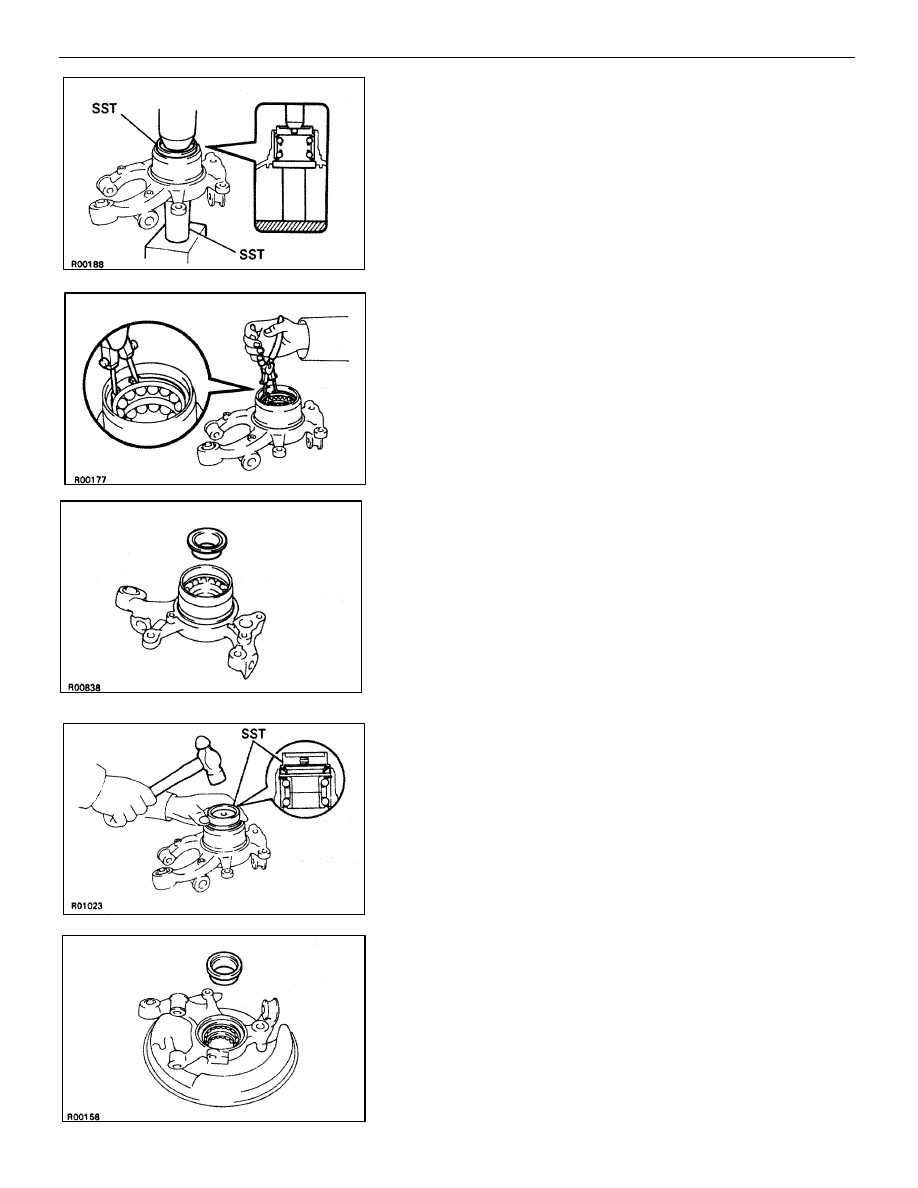

1. INSTALL

BEARING

(a)  Using SST, install the bearing to the axle carrier.

SST 09309–36010, 09608–32010
NOTICE: If the inner races come loose from the bearing
outer race, be sure to install them on the same side as be-
fore.

(b)  Using snap ring pliers, install the snap ring.

2.

INSTALL OIL SEAL (OUTSIDE)

(a)  Install the inner race (outside).

(b)  Using SST, install a new oil seal.

SST 09608–32010

(c)  Coat MP grease to the oil seal lip.

NOTICE: Be careful not to damage the oil seal.

3.

INSTALL AXLE HUB

(a)  Temporarily install the backing plate.
(b)  Install the inner race (inside).

–

SUSPENSION AND AXLE

REAR AXLE HUB

SA–57

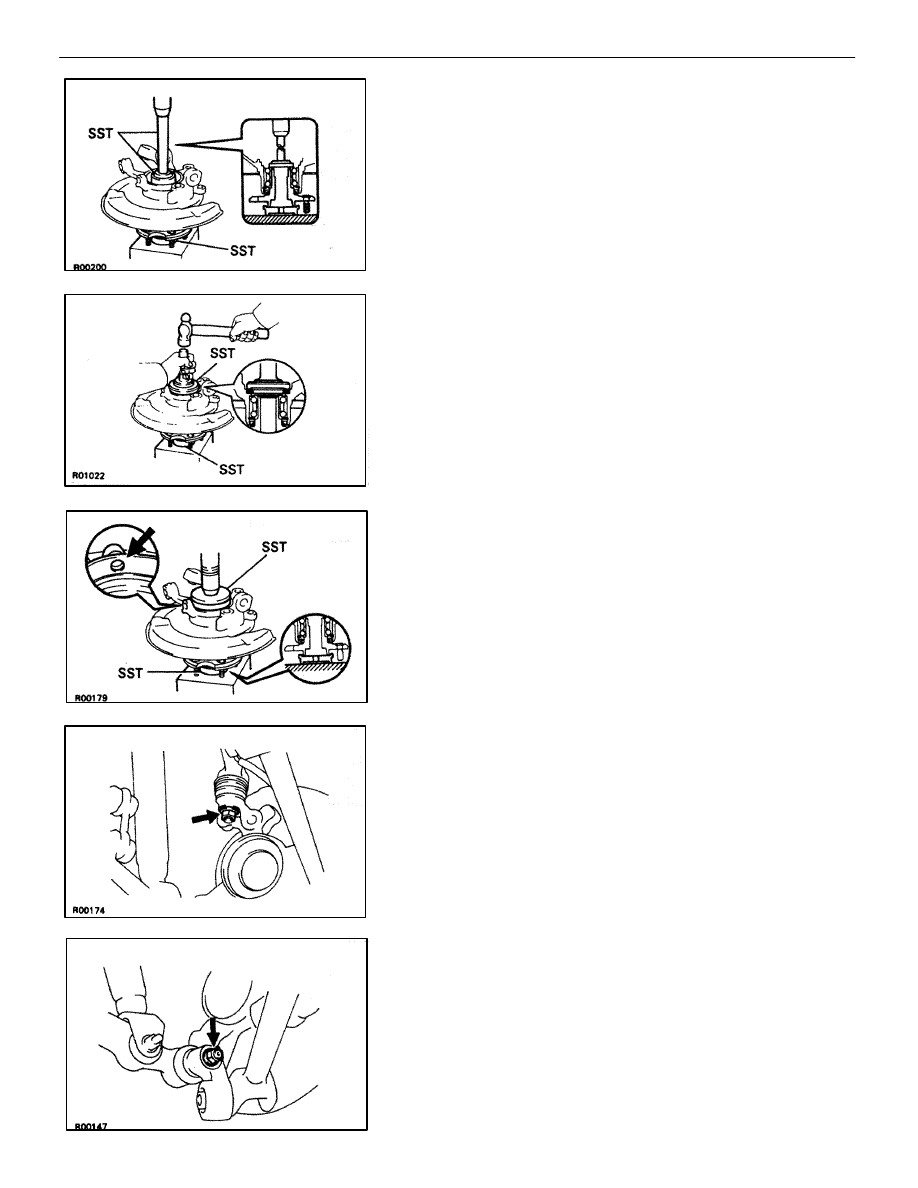

(c)  Using SST and a press, install the axle hub.

SST 09608–32010, 09608–35014 (09608–06020,

09608–06100)

4.

INSTALL OIL SEAL (INSIDE)

(a)  Using SST and a hammer, install a new oil seal.

SST 09223–15020, 09608–32010, 09608–35014,

(09608–06020)

(b)  Coat MP grease to the oil seal lip.

5.

INSTALL DUST DEFLECTOR
Using SST and a press, install a new dust deflector.
SST 09608–32010, 09608–35014 (09608–06160)
HINT: Align the holes for the ABS speed sensor in the dust
deflector and carrier.

REAR AXLE CARRIER WITH UPPER
ARM INSTALLATION

SA0S1–03

1.

INSTALL REAR AXLE HUB WITH CARRIER

(a)  Connect the upper arm to the axle carrier with a new nut.

Torque: 109 N

⋅

m (1,100 kgf

⋅

cm, 80 ft

⋅

lbf)

(b)  Connect the No.2 lower suspension to the axle carrier with a

new nut.

Torque: 150 N

⋅

m (1,525 kgf

⋅

cm, 110 ft

⋅

lbf)

SA–58

–

SUSPENSION AND AXLE

REAR AXLE HUB

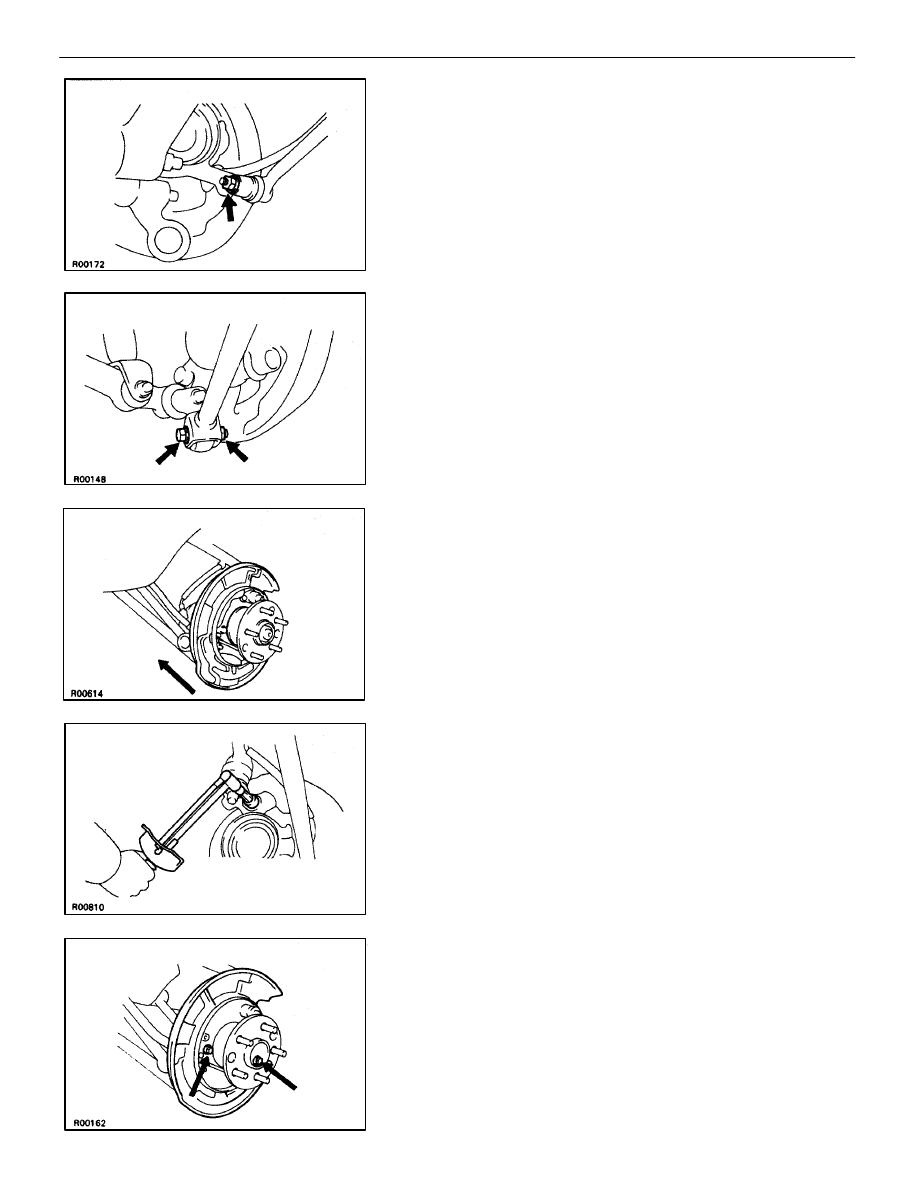

(c)  Connect the No. 1 lower suspension arm to the axle carrier

with a new nut.

Torque: 59 N

⋅

m (600 kgf

⋅

cm, 43 ft

⋅

lbf)

(d) Connect

the strut rod to the axle carrier and temporarily install

the bolt and nut.

(e)  Connect the parking brake cable.
(f)  Slide the backing plate to the inside.

(g)  Install the hexagon bolt.

Torque: 180 N

⋅

m (1,825 kgf

⋅

cm, 132 ft

⋅

lbf)

(h)  Install the 2 bolts.

Torque: 26 N

⋅

m (260 kgf

⋅

cm, 19 ft

⋅

lbf)

–
