(i)

Install the 2 bolts.

Torque: 7.8 N

⋅

m (80 kgf

⋅

cm, 69 in.

⋅

lbf)

2.

INSTALL PARKING BRAKE SHOE
(See page

BR–44

)

3.

INSTALL ABS SPEED SENSOR
Install the sensor to the axle carrier with the bolt.

Torque: 7.8 N

⋅

m (80 kgf

⋅

cm, 69 in.

⋅

lbf)

4.

INSTALL DRIVE SHAFT
(See page

SA–67

)

5.

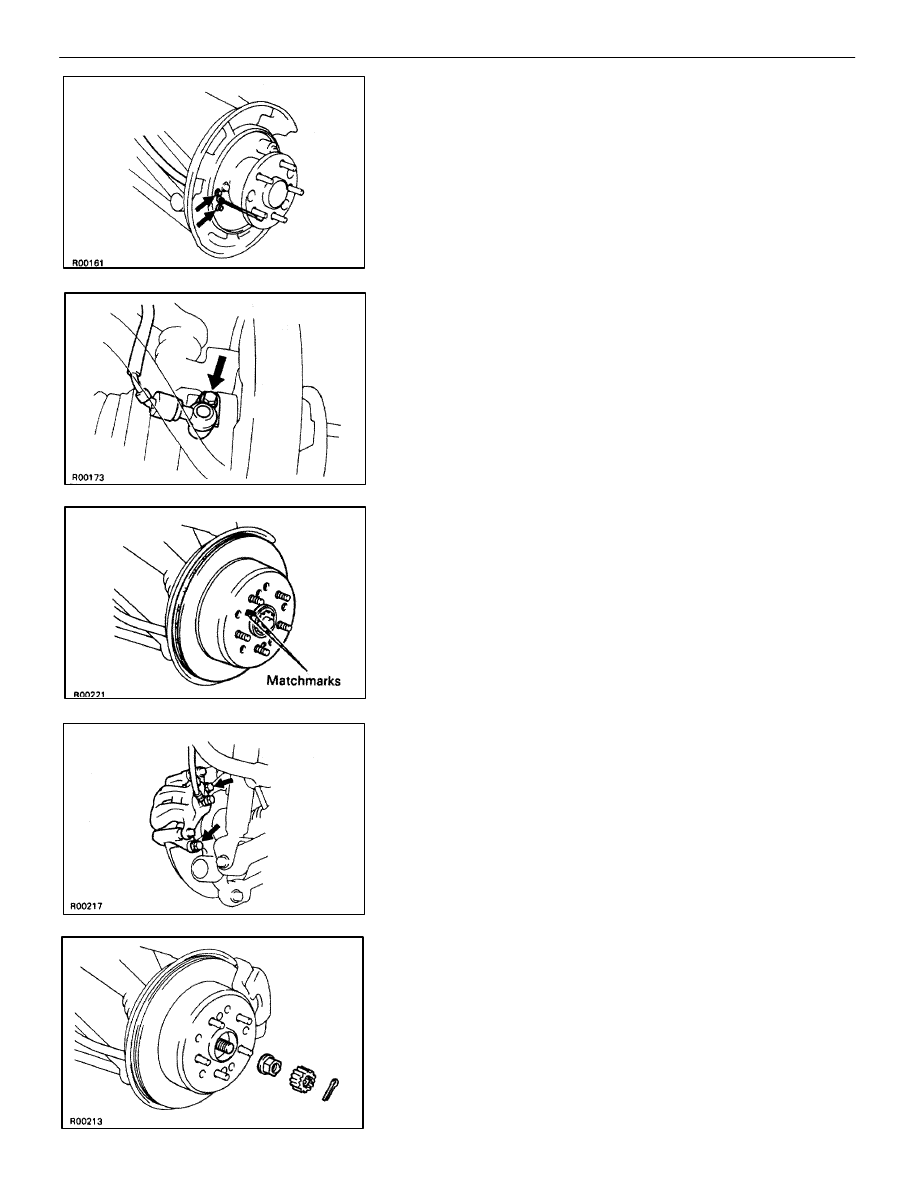

INSTALL BRAKE DISC AND BRAKE CALIPER

(a)  Align the matchmarks and install the brake disc.

(b)  Install the brake caliper with the 2 bolts.

Torque: 104 N

⋅

m (1,065 kgf

⋅

cm, 77 ft

⋅

lbf)

6.

INSTALL DRIVE SHAFT LOCK NUT

(a)  Torque the nut while applying the brakes.

Torque: 289 N

⋅

m (2,950 kgf

⋅

cm, 213 ft

⋅

lbf)

(b)  Install the lock cap and a new cotter pin.

SA–60

–

SUSPENSION AND AXLE

REAR AXLE HUB

7. STABILIZE

SUSPENSION

(a)  Install the rear wheel and lower the vehicle.

Torque: 103 N

⋅

m (1,050 kgf

⋅

cm, 76 ft

⋅

lbf)

(b) Bounce

the vehicle up and down several times to stabilize the

suspension.

8.

TORQUE BOLT AND NUTS

(a)  Jack up the vehicle and remove the rear wheel.
(b)  Support the axle carrier with jack.
(c)  Torque the bolt and nuts.

Torque: 184 N

⋅

m (1,880 kgf

⋅

cm, 136 ft

⋅

lbf)

9.

INSTALL REAR WHEEL AND LOWER VEHICLE

Torque: 103 N

⋅

m (1,050 kgf

⋅

cm, 76 ft

⋅

lbf)

10.  CHECK REAR WHEEL ALIGNMENT

(See page

SA–10

)

HUB BOLT REPLACEMENT

SA03E–04

1.

JACK UP VEHICLE AND REMOVE REAR WHEEL

2.

REMOVE REAR BRAKE CALIPER AND BRAKE DISC
(See page

SA–52

)

3.

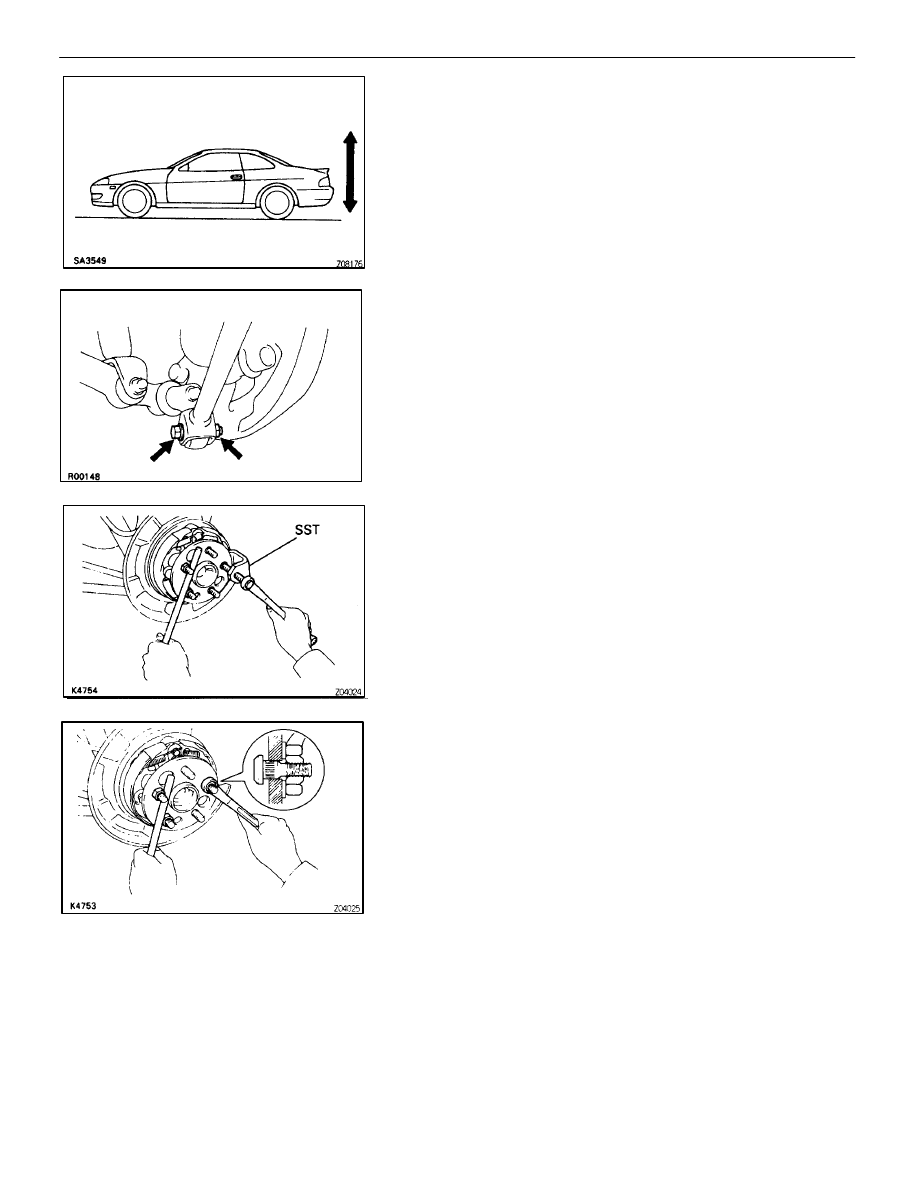

REMOVE HUB BOLT
Using SST, remove the hub bolt.
SST 09628–10011

4.

INSTALL HUB BOLT
Install washer and nut to the hub bolt, as shown in the illustra-
tion, and install the hub bolt with torquing the nut.

5.

INSTALL REAR BRAKE DISC AND BRAKE CALIPER
(See page

SA–60

)

6.

INSTALL REAR WHEEL AND LOWER VEHICLE

Torque: 103 N

⋅

m (1,050 kgf

⋅

cm, 76 ft

⋅

lbf)

–

SUSPENSION AND AXLE

REAR AXLE HUB

SA–61

REAR DRIVE SHAFT

DESCRIPTION

SA0S2–03

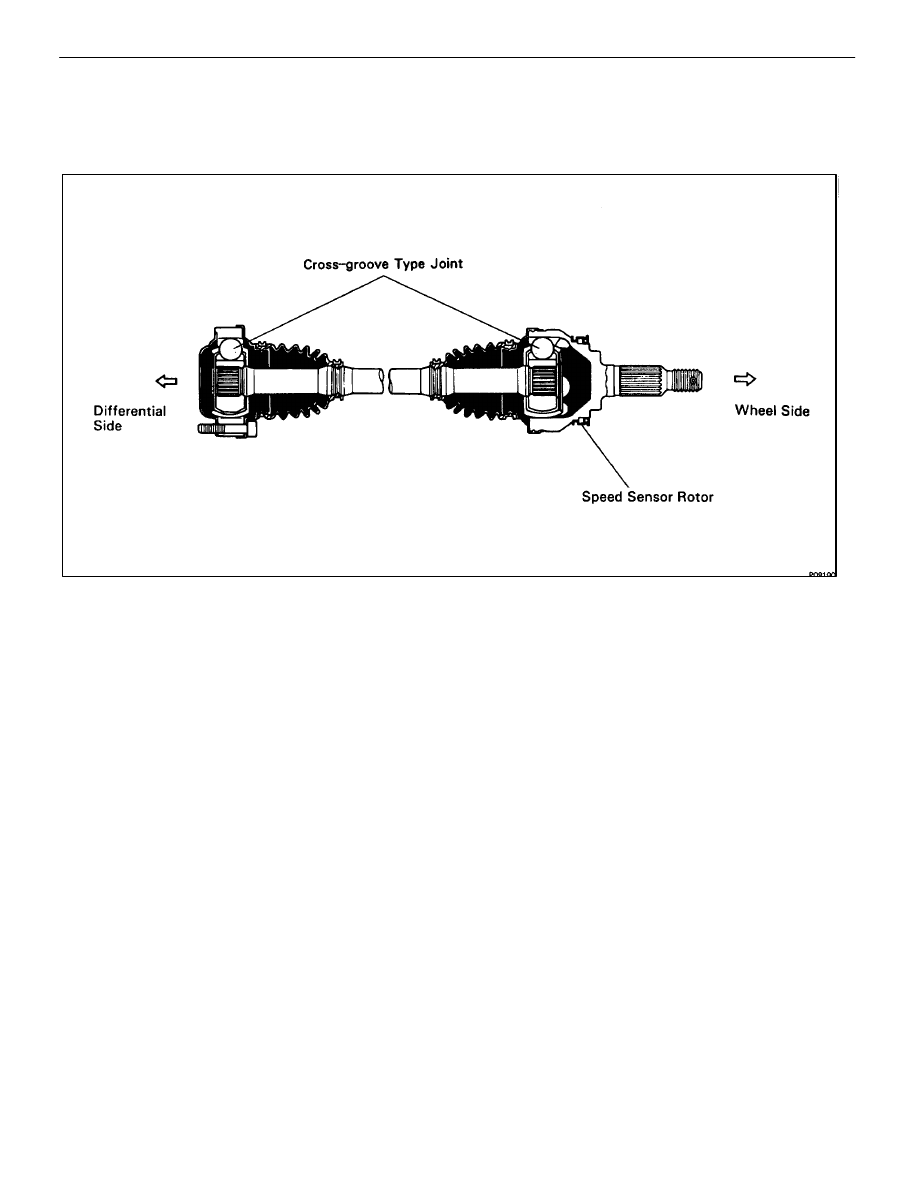

The drive shaft has cross–groove type joints on the differential side and on the wheel side.

SA–62

–

SUSPENSION AND AXLE

REAR DRIVE SHAFT

PREPARATION

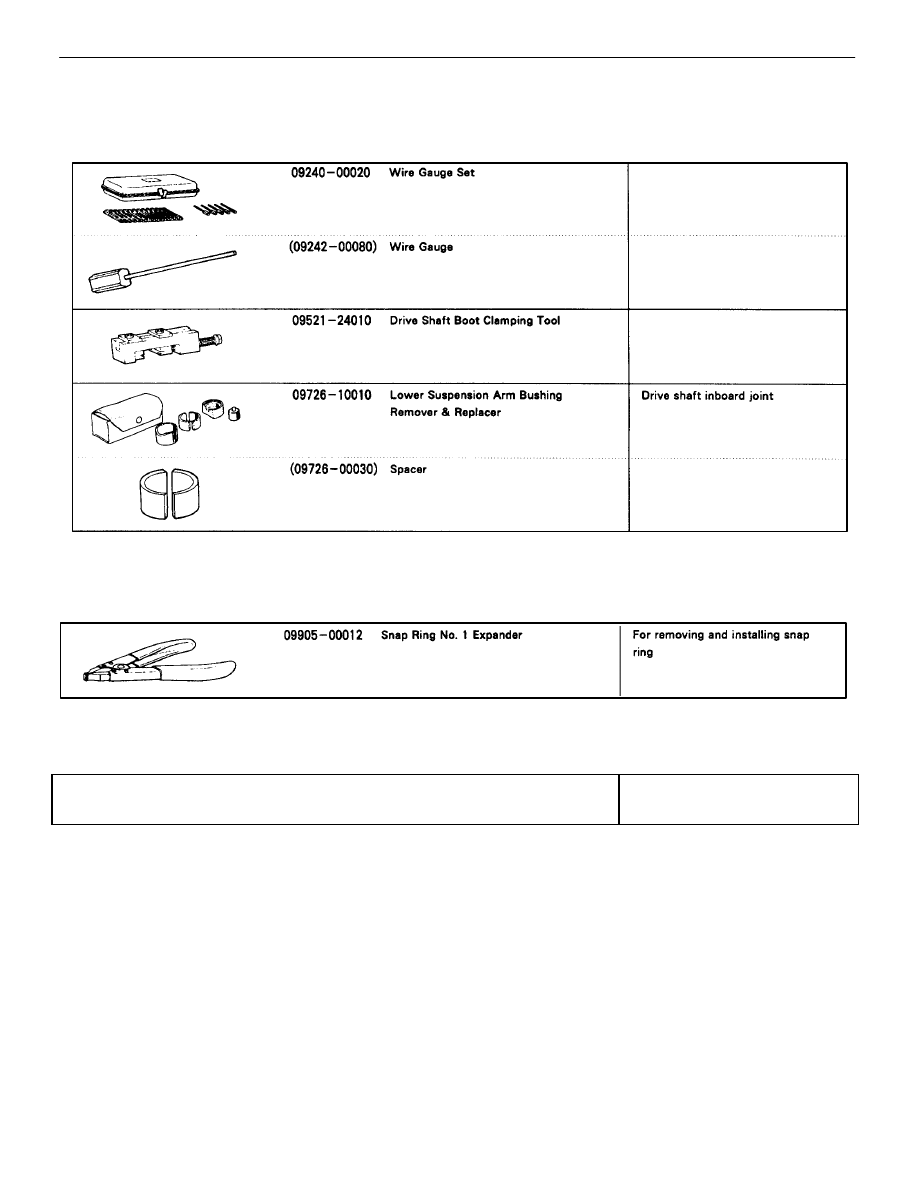

SST (SPECIAL SERVICE TOOLS)

SA06B–02

RECOMMENDED TOOLS

SA06C–02

EQUIPMENT

SA06D–01

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Torque wrench

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑ

–

SUSPENSION AND AXLE

REAR DRIVE SHAFT

SA–63
