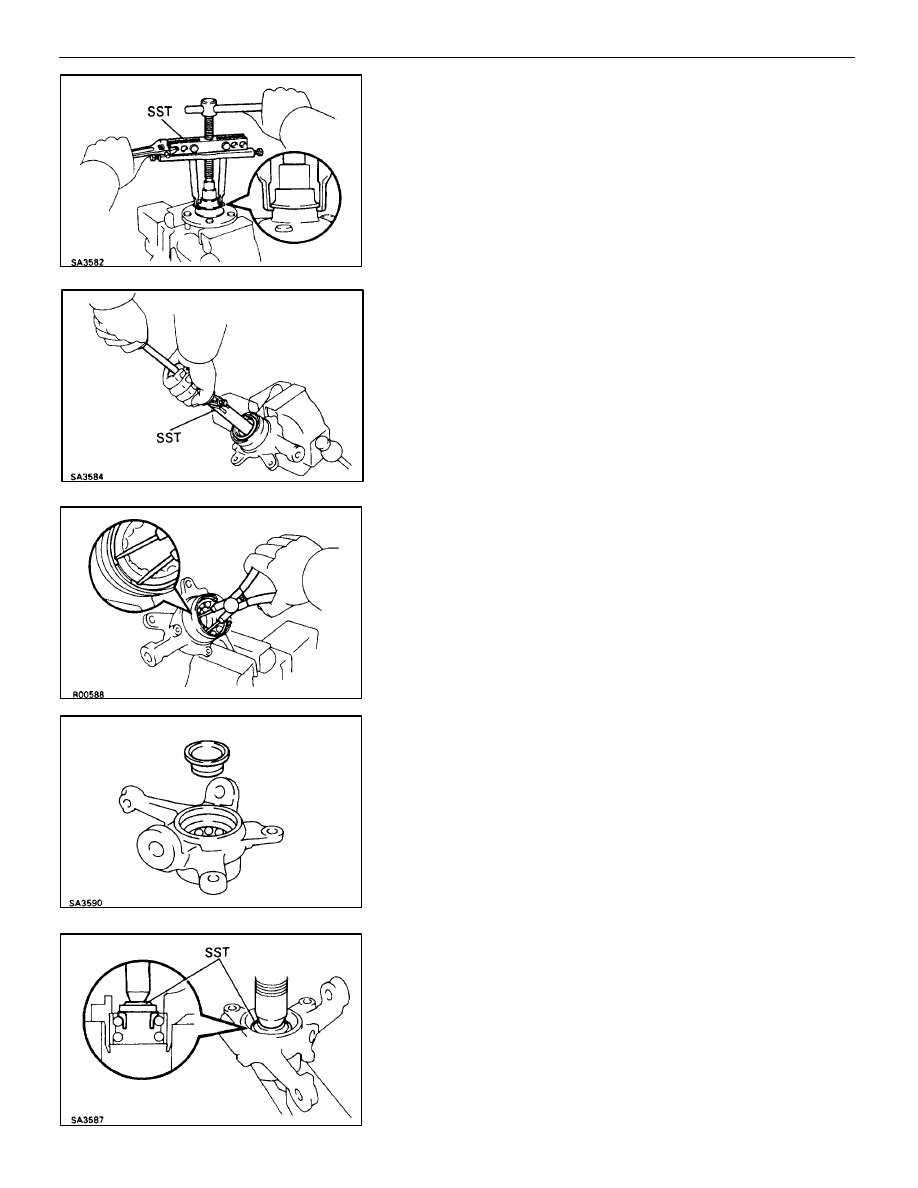

REMOVE INNER RACE (OUTSIDE) FROM AXLE SHAFT
Using SST, remove the inner race from the axle shaft.
SST 09950–20017

5.

REMOVE OIL SEAL
Using SST, remove the oil seal from the steering knuckle.
SST 09308–00010

6.

REMOVE BEARING FROM STEERING KNUCKLE

(a)  Using snap ring pliers, remove the snap ring.

(b)  Position the inner race above the bearing on the inner side.

(c) Using

SST and a press, remove the bearing from the steering

knuckle.
SST 09608–35014 (09608–06100)

SA–20

–

SUSPENSION AND AXLE

FRONT AXLE HUB

FRONT AXLE HUB ASSEMBLY

SA0W3–03

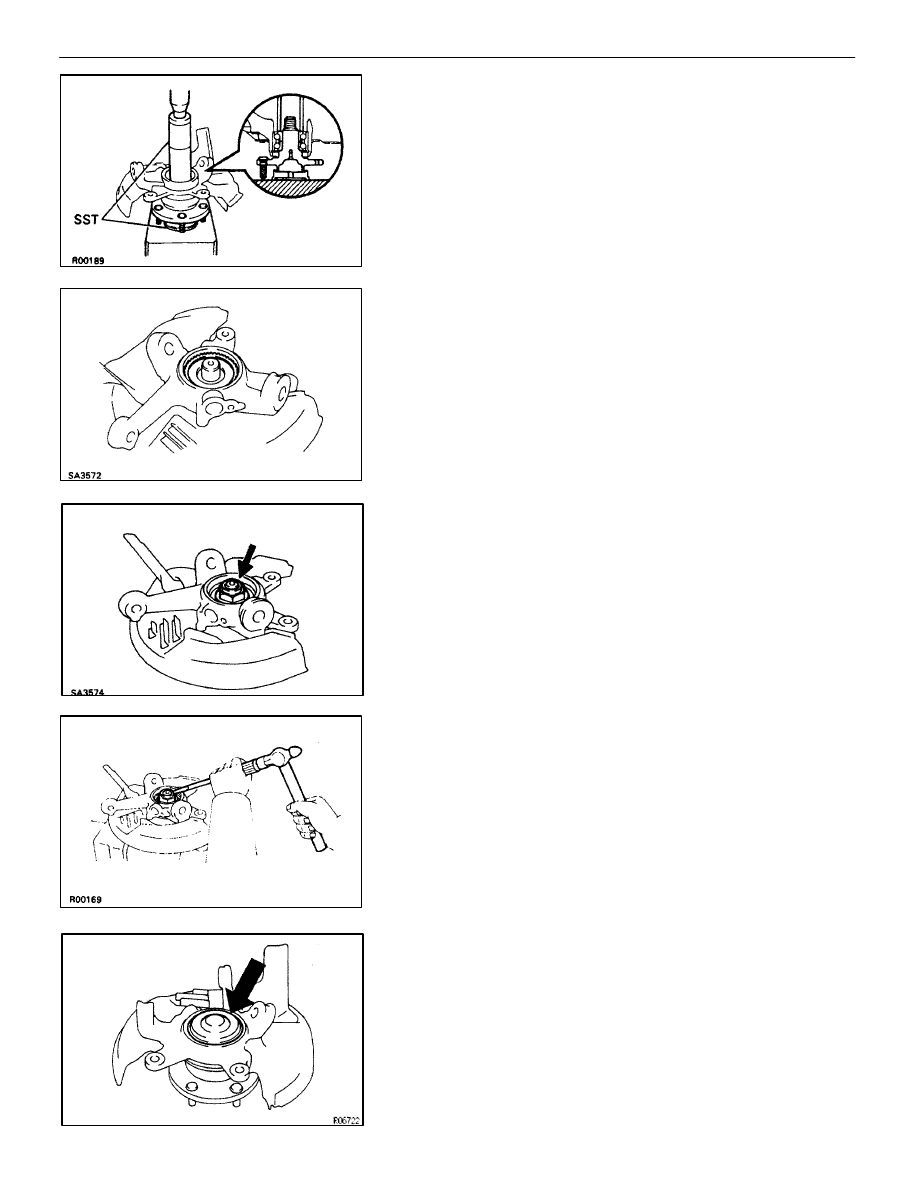

1. INSTALL

BEARING

(a)  Using SST, install a new bearing to steering knuckle.

SST 09608–35014 (09608–06200)
NOTICE: If the inner race and balls come loose from the
bearing outer race, be sure to install them on the same
side as before.

(b)  Using snap ring pliers, install the snap ring.

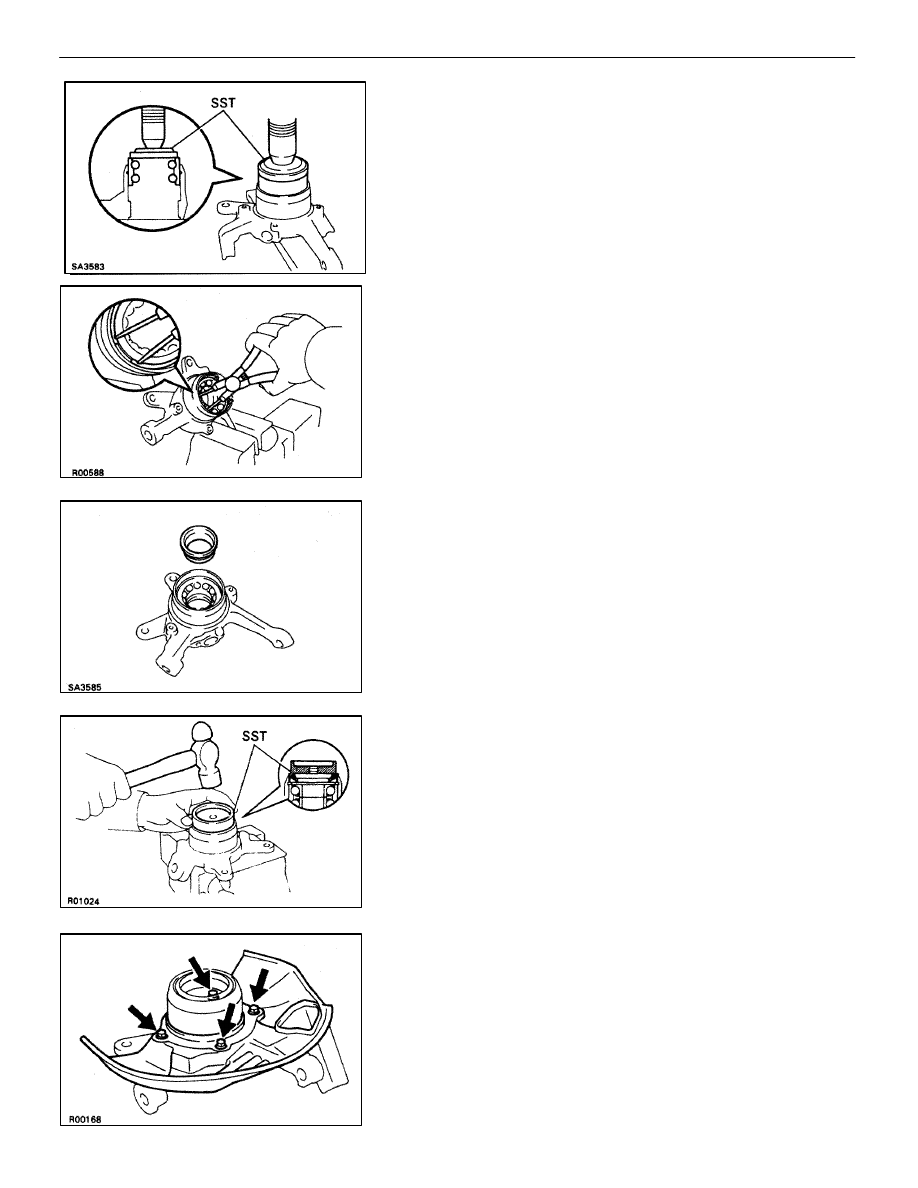

2.

INSTALL OIL SEAL

(a)  Install the inner race (outside).

(b)  Using SST and a hammer, tap in a new oil seal until it is flush

with end surface of the steering knuckle.
SST 09608–32010

(c)  Coat MP grease to the oil seal lip.

3.

INSTALL AXLE HUB TO STEERING KNUCKLE

(a)  Install the brake dust cover to the steering knuckle with the

4 bolts.

Torque: 8.3 N

⋅

m (85 kgf

⋅

cm, 74 in.

⋅

lbf)

–

SUSPENSION AND AXLE

FRONT AXLE HUB

SA–21

(b)  Using SST and a press, press the axle hub to steering

knuckle.
SST 09608–32010, 09608–35014 (09608–06040)

4.

INSTALL ABS SPEED SENSOR ROTOR
NOTICE: Do not scratch the serrations of the sensor ro-
tor.

5.

INSTALL AXLE HUB LOCK NUT

(a)  Install and torque a new axle hub lock nut.

Torque: 199 N

⋅

m (2,030 kgf

⋅

cm, 147 ft

⋅

lbf)

(b)  Using a screwdriver and hammer, stake the lock nut.

6.

INSTALL HUB BEARING CAP
Using a screwdriver and hammer, install the hub bearing cap
to the steering knuckle.

SA–22

–

SUSPENSION AND AXLE

FRONT AXLE HUB

FRONT AXLE HUB INSTALLATION

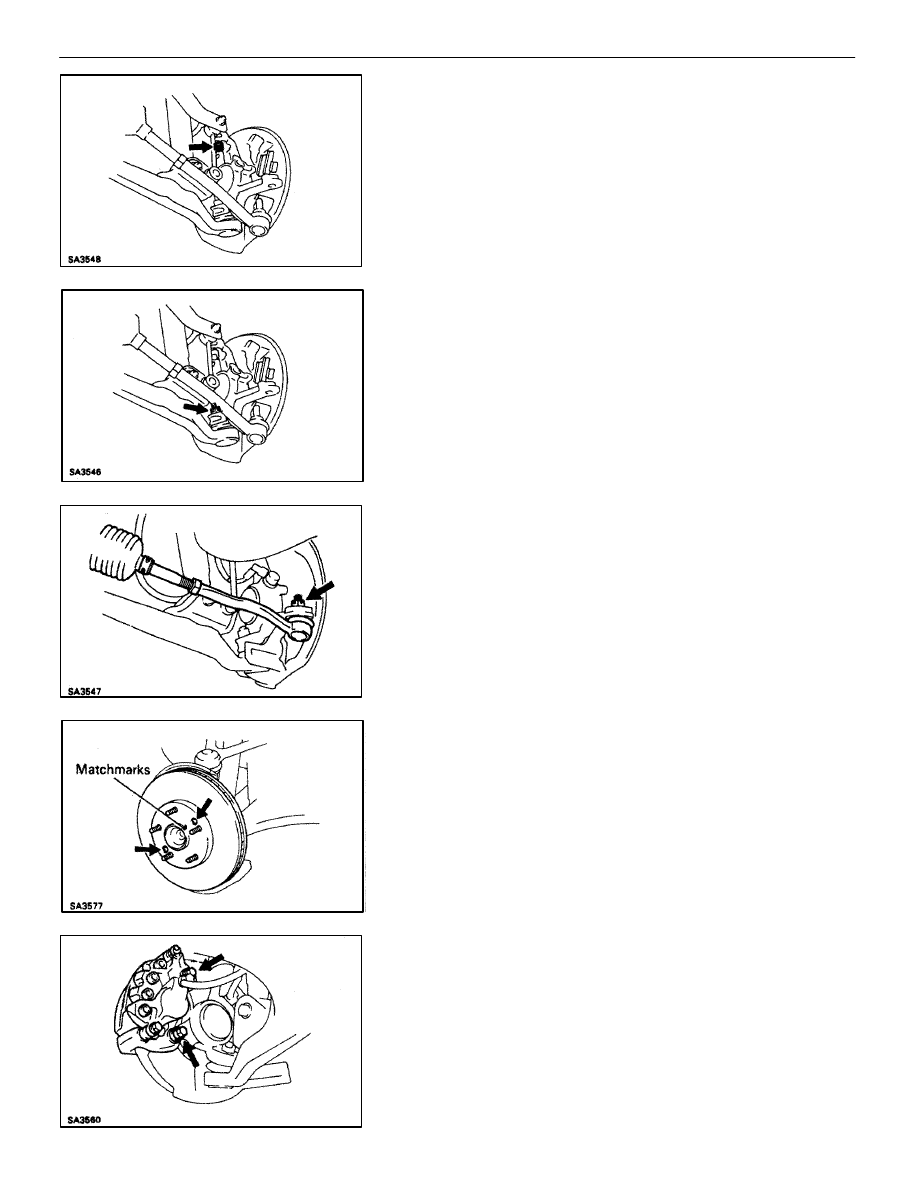

SA040–06
